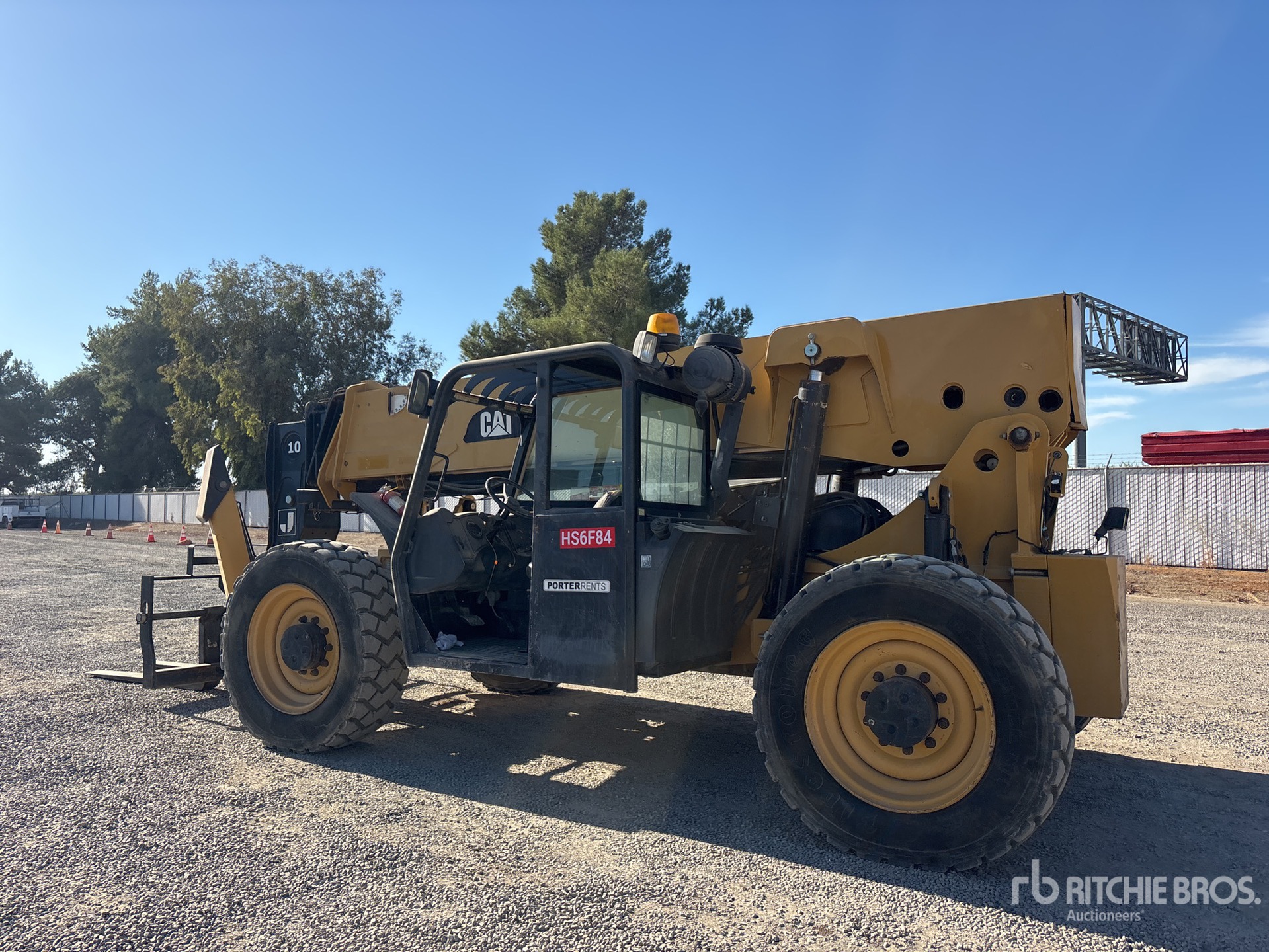

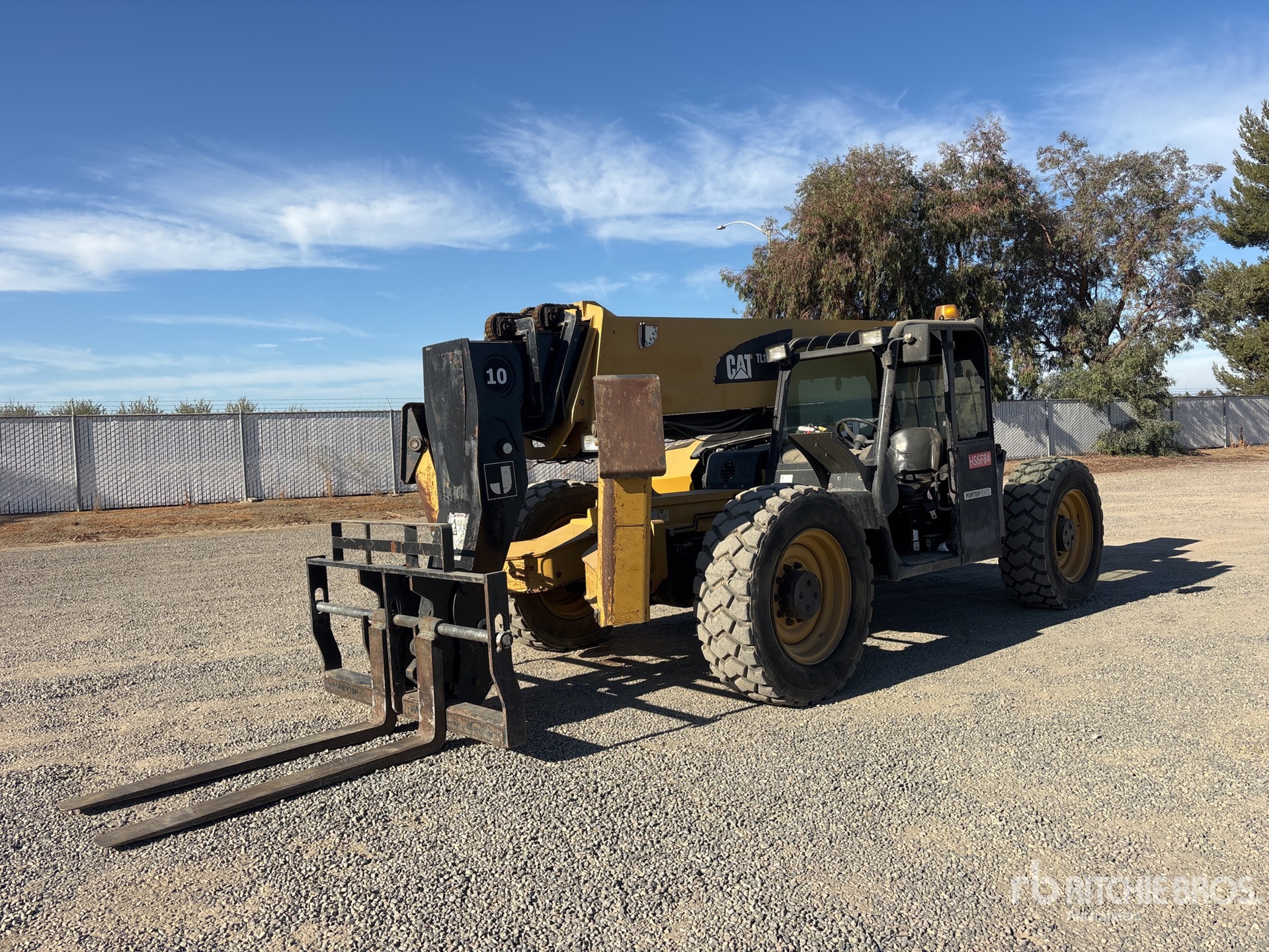

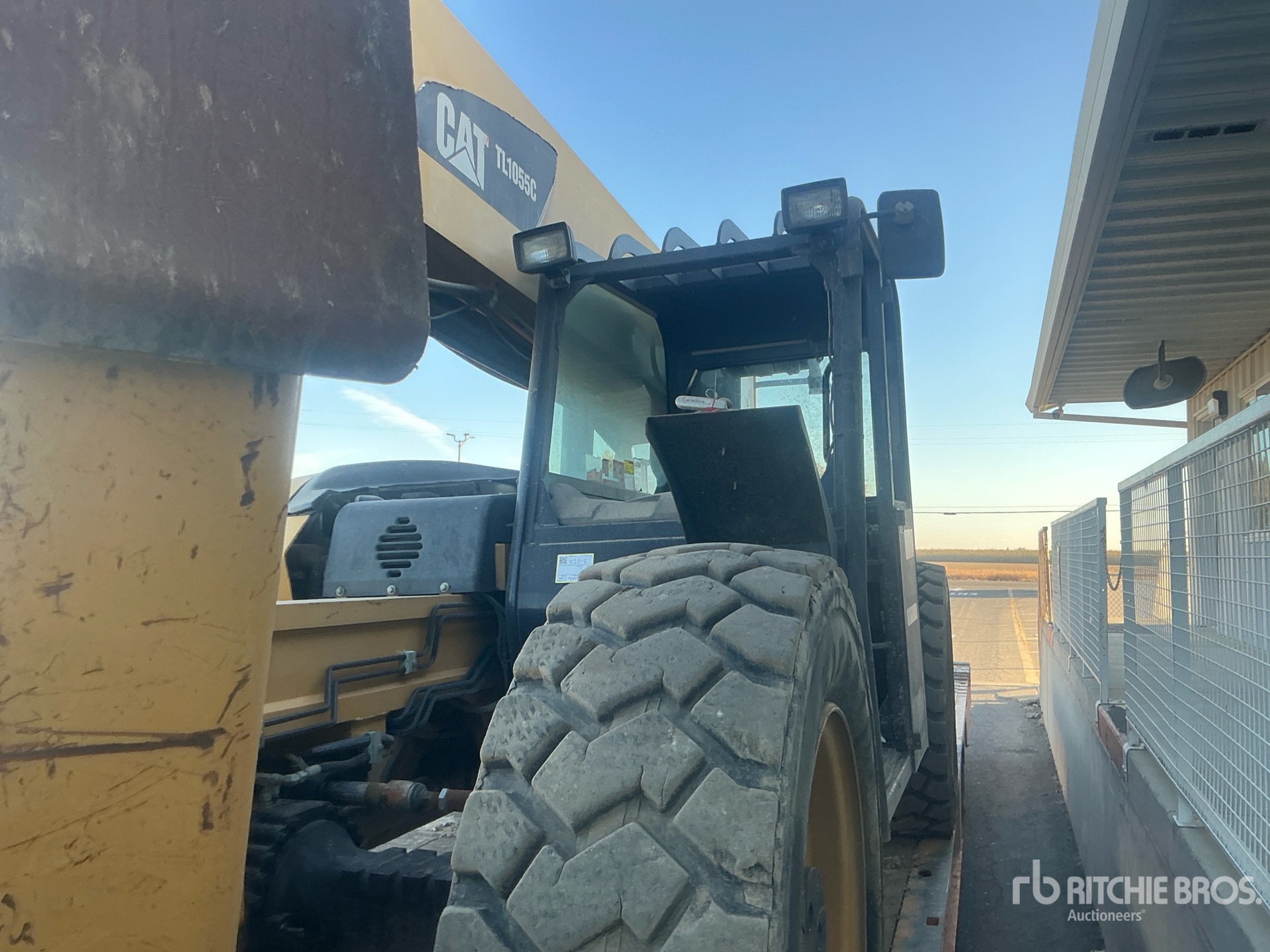

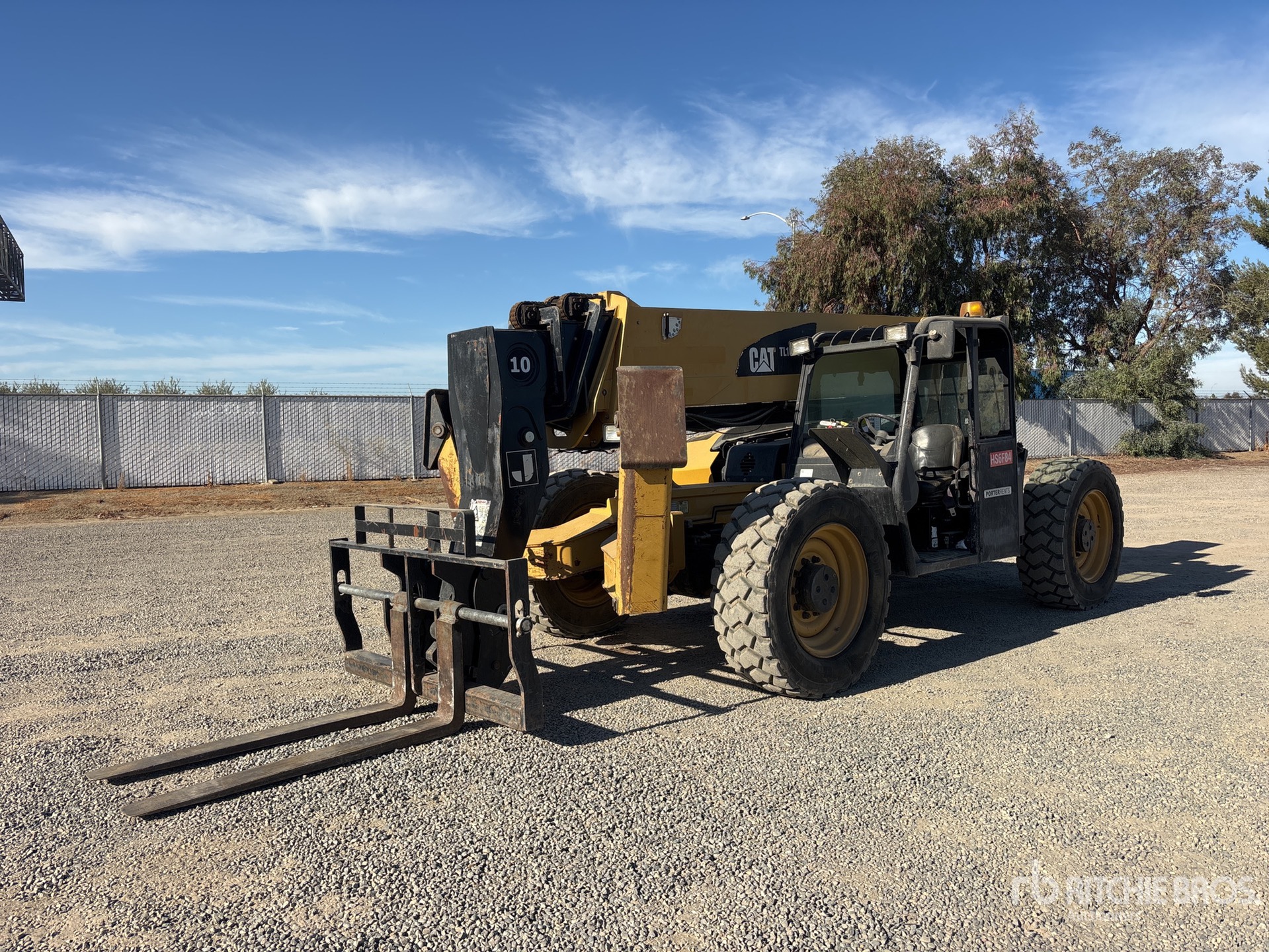

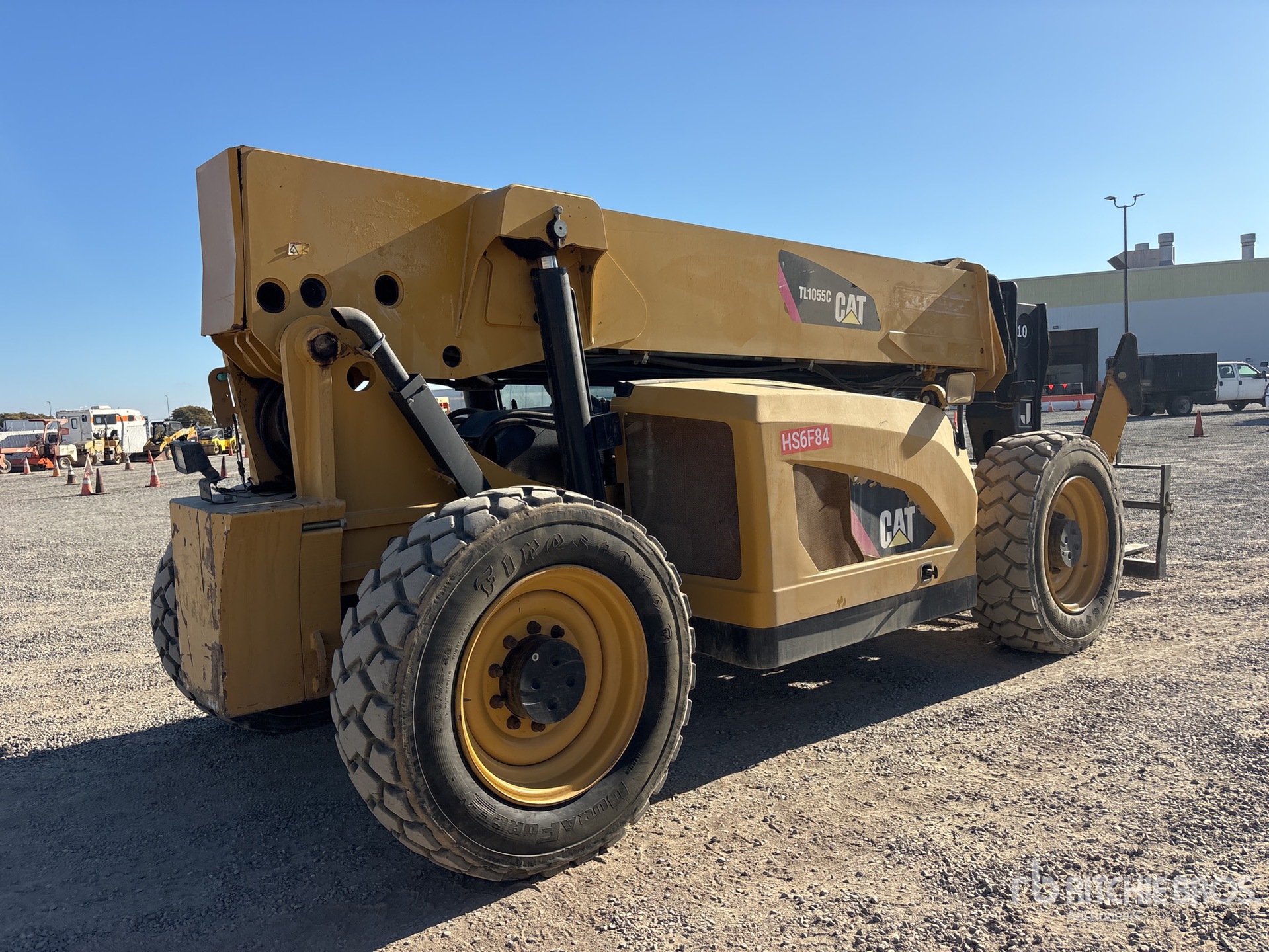

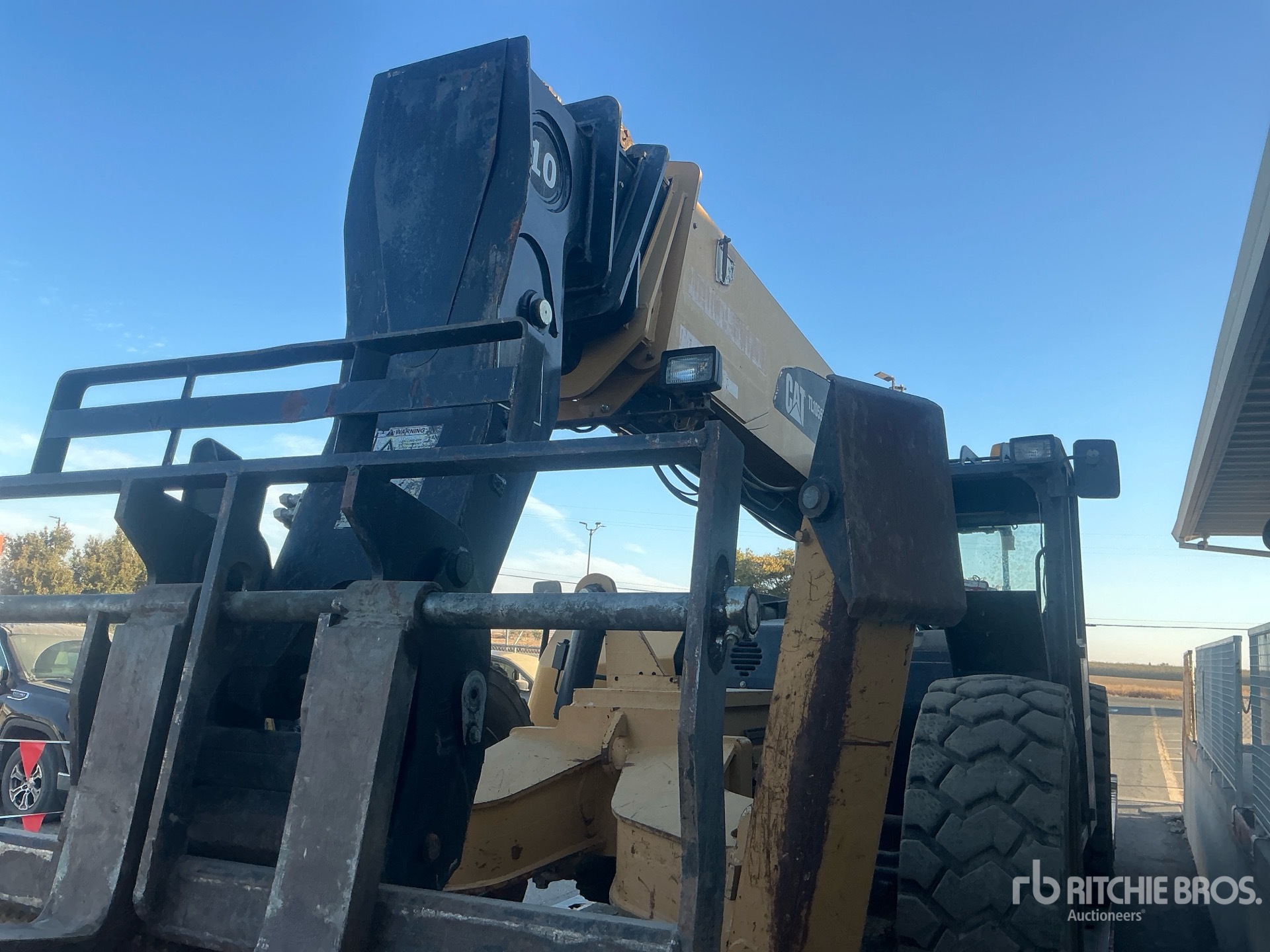

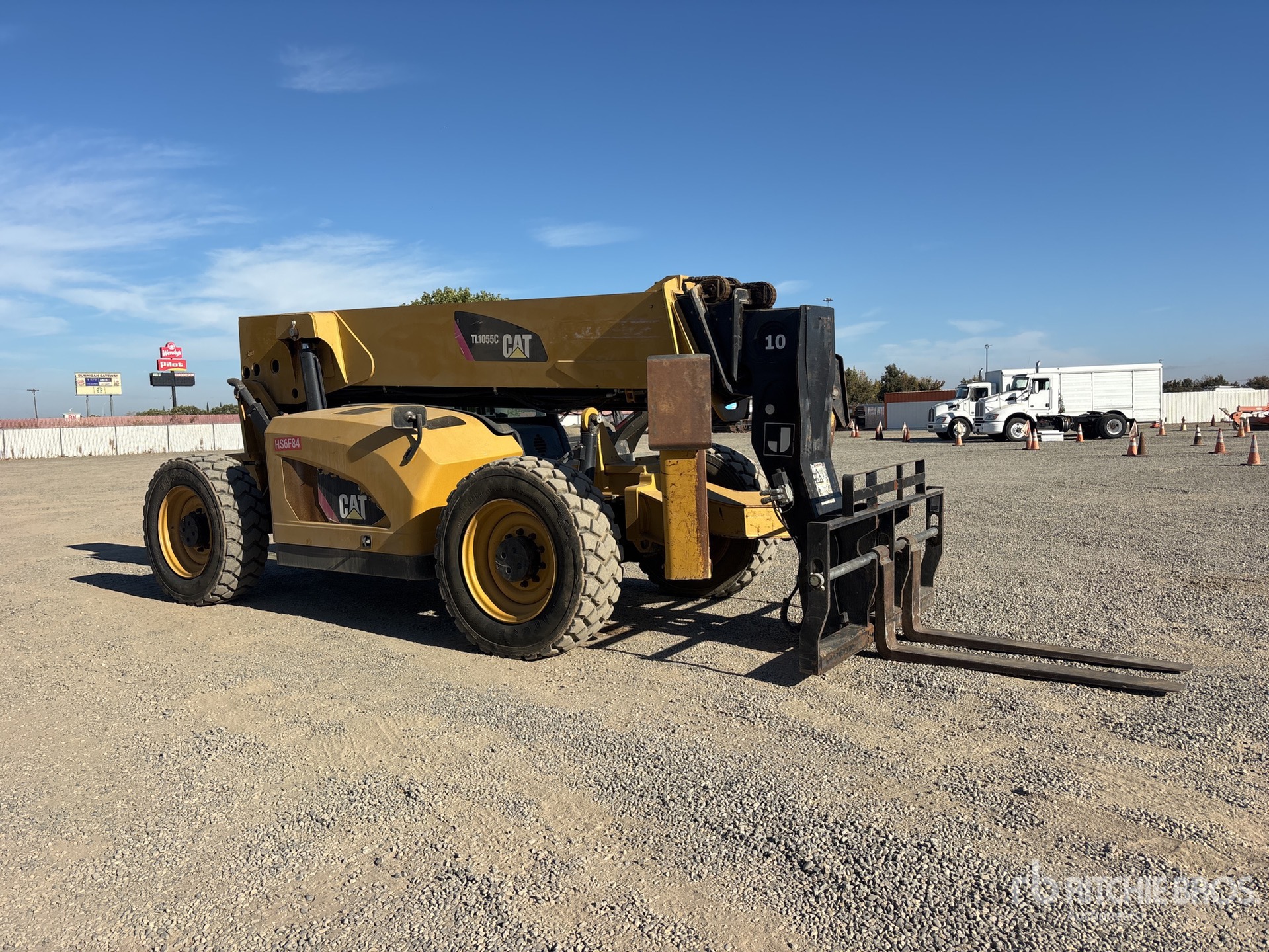

| Axles |
|
Manufacturer |
Dana |
| Boom Performance |
|
Boom Down |
13.7 s |
|
Boom Up |
13.8 s |
|
Drawbar Pull - Basic |
20,000 lbs (9,072 kg)
|
|
Tele In |
14.8 s |
|
Tele Out |
17.4 s |
| Brakes |
|
Features |
Service Brakes - inboard wet disc brakes on front and rear axles; Parking Brakes - mechanical on front axle |
|
Parking Brake |
mechanical on front axle |
| Dimensions |
|
Ground Clearance |
2 ft (0 m)
|
|
Height |
8 ft (3 m)
|
|
Height |
8 ft (3 m)
|
|
Length |
21 ft (6 m)
|
|
Length - Fork Face |
21 ft (6 m)
|
|
Length To Fork Face |
21 ft (6 m)
|
|
Overall Height |
8 ft (3 m)
|
|
Turning Radius - Over Tires |
14 ft (4 m)
|
|
Turning Radius Outside Tires |
14 ft (4 m)
|
|
Weight |
34,160 lbs (15,495 kg)
|
|
Wheel Base |
12 ft (4 m)
|
|
Wheelbase |
12 ft (4 m)
|
|
Width |
8.4 ft |
|
Width |
8 ft (3 m)
|
|
Width Over Tires |
8 ft (3 m)
|
| Engine |
|
Bore |
4 in (11 cm)
|
|
Engine Make |
CATERPILLAR |
|
Engine Model |
C4.4 ACERT |
|
Engine Model |
Cat C4.4 ACERT, Tier 4 Interim |
|
Gross Power |
142 hp (106 kw)
|
|
Gross Power - Basic |
142 hp (106 kw)
|
|
Stroke |
5 in (13 cm)
|
| General Specifications |
|
1st (Since 2016)
|
5.3 3.3 |
|
2nd (Since 2016)
|
10.2 6.4 |
|
2nd (Since 2016)
|
10.1 6.3 |
|
3rd (Since 2016)
|
23.4 14.6 |
|
3rd (Since 2016)
|
23.3 14.5 |
|
3rd (Since 2016)
|
22 13.7 |
|
3rd (Since 2016)
|
20.9 13.0 |
|
4th Speeds Reverse (Since 2016)
|
20 mph (33 kph)
|
|
4th Speeds Reverse (Since 2016)
|
18 mph (29 kph)
|
|
A) Length to fork face (Since 2013)
|
248 in (630 cm)
|
|
A) Length to fork face (2015)
|
248 in (630 cm)
|
|
A) Length to fork face (2016)
|
248 in (630 cm)
|
|
A) Length to fork face (2017)
|
248 in (630 cm)
|
|
A) Length to fork face (2018)
|
248 in (630 cm)
|
|
A) Length to fork face (2019)
|
248 in (630 cm)
|
|
B) Width (Since 2013)
|
100 in (254 cm)
|
|
B) Width (2015)
|
100 in (254 cm)
|
|
B) Width (2016)
|
100 in (254 cm)
|
|
B) Width (2017)
|
100 in (254 cm)
|
|
B) Width (2018)
|
100 in (254 cm)
|
|
B) Width (2019)
|
100 in (254 cm)
|
|
Bore (Since 2016)
|
4 in (10 cm)
|
|
C) Height (Since 2013)
|
100 in (254 cm)
|
|
C) Height (2015)
|
100 in (254 cm)
|
|
C) Height (2016)
|
100 in (254 cm)
|
|
C) Height (2017)
|
100 in (254 cm)
|
|
C) Height (2018)
|
100 in (254 cm)
|
|
C) Height (2019)
|
100 in (254 cm)
|
|
D) Wheel base (Since 2013)
|
144 in (366 cm)
|
|
D) Wheel base (2015)
|
144 in (366 cm)
|
|
D) Wheel base (2016)
|
144 in (366 cm)
|
|
D) Wheel base (2017)
|
144 in (366 cm)
|
|
D) Wheel base (2018)
|
144 in (366 cm)
|
|
D) Wheel base (2019)
|
144 in (366 cm)
|
|
E) Ground clearance (Since 2013)
|
18 in (46 cm)
|
|
E) Ground clearance (2015)
|
18 in (46 cm)
|
|
E) Ground clearance (2016)
|
18 in (46 cm)
|
|
E) Ground clearance (2017)
|
18 in (46 cm)
|
|
E) Ground clearance (2018)
|
18 in (46 cm)
|
|
E) Ground clearance (2019)
|
18 in (46 cm)
|
|
Engine Displacement (Since 2016)
|
269 cu in (4,408 cu cm)
|
|
Engine Displacement (2017)
|
269 cu in (4,408 cu cm)
|
|
Engine Displacement (2018)
|
269 cu in (4,408 cu cm)
|
|
Engine Displacement (2019)
|
269 cu in (4,408 cu cm)
|
|
Engine Model (Since 2016)
|
C4.4 ACERT Tier 4 Interim equivalent |
|
Engine Model (Since 2016)
|
C4.4 Tier 3 equivalent |
|
Engine Model - Standard (Since 2017)
|
C4.4 ACERT Tier 4 Interim equivalent |
|
Engine Model - Standard (Since 2017)
|
C4.4 Tier 3 equivalent |
|
Engine Model - Standard (Since 2018)
|
C4.4 ACERT Tier 4 Interim equivalent |
|
Engine Model - Standard (Since 2018)
|
C4.4 Tier 3 equivalent |
|
Engine Model - Standard (Since 2019)
|
C4.4 ACERT Tier 4 Interim equivalent |
|
Engine Model - Standard (Since 2019)
|
C4.4 Tier 3 equivalent |
|
F) Wheel track (Since 2013)
|
85 in (216 cm)
|
|
F) Wheel track (2015)
|
85 in (216 cm)
|
|
F) Wheel track (2016)
|
85 in (216 cm)
|
|
F) Wheel track (2017)
|
85 in (216 cm)
|
|
F) Wheel track (2018)
|
85 in (216 cm)
|
|
F) Wheel track (2019)
|
85 in (216 cm)
|
|
Floating fork movement (Since 2013)
|
4 in (10 cm)
|
|
Floating fork movement (Since 2013)
|
2 in (5 cm)
|
|
Floating fork movement (Since 2013)
|
3 in (8 cm)
|
|
Floating fork movement (Since 2015)
|
4 in (10 cm)
|
|
Floating fork movement (Since 2015)
|
2 in (5 cm)
|
|
Floating fork movement (Since 2015)
|
3 in (8 cm)
|
|
Floating fork movement (Since 2016)
|
4 in (10 cm)
|
|
Flywheel Power (Gross) (Since 2016)
|
142 hp (106 kw)
|
|
Flywheel Power (Gross) - Standard (Since 2017)
|
142 hp (106 kw)
|
|
Flywheel Power (Gross) - Standard (2018)
|
142 hp (106 kw)
|
|
Flywheel Power (Gross) - Standard (2019)
|
142 hp (106 kw)
|
|
G) Cab width (inside) (Since 2013)
|
37 in (94 cm)
|
|
G) Cab width (inside) (2015)
|
37 in (94 cm)
|
|
G) Cab width (inside) (2016)
|
37 in (94 cm)
|
|
G) Cab width (inside) (2017)
|
37 in (94 cm)
|
|
G) Cab width (inside) (2018)
|
37 in (94 cm)
|
|
G) Cab width (inside) (2019)
|
37 in (94 cm)
|
|
Height (Since 2013)
|
42 in (107 cm)
|
|
Height (Since 2013)
|
50 in (127 cm)
|
|
Height (Since 2013)
|
41 in (104 cm)
|
|
Height (Since 2013)
|
47 in (119 cm)
|
|
Height (Since 2015)
|
42 in (107 cm)
|
|
Height (Since 2015)
|
50 in (127 cm)
|
|
Height (Since 2015)
|
41 in (104 cm)
|
|
Height (Since 2015)
|
47 in (119 cm)
|
|
Height (Since 2016)
|
50 in (127 cm)
|
|
Height (Since 2016)
|
42 in (107 cm)
|
|
Max. fork spread (out to out) (Since 2013)
|
72 in (183 cm)
|
|
Max. fork spread (out to out) (Since 2013)
|
50 in (127 cm)
|
|
Max. fork spread (out to out) (Since 2013)
|
46 in (116 cm)
|
|
Max. fork spread (out to out) (Since 2013)
|
73 in (185 cm)
|
|
Max. fork spread (out to out) (Since 2015)
|
72 in (183 cm)
|
|
Max. fork spread (out to out) (Since 2015)
|
50 in (127 cm)
|
|
Max. fork spread (out to out) (Since 2015)
|
46 in (116 cm)
|
|
Max. fork spread (out to out) (Since 2015)
|
73 in (185 cm)
|
|
Max. fork spread (out to out) (Since 2016)
|
50 in (127 cm)
|
|
Max. fork spread (out to out) (Since 2016)
|
72 in (183 cm)
|
|
Maximum Lift Capacity (Since 2016)
|
10,000 lbs (4,536 kg)
|
|
Maximum Lift Capacity (2017)
|
10,000 lbs (4,536 kg)
|
|
Maximum Lift Capacity (2018)
|
10,000 lbs (4,536 kg)
|
|
Maximum Lift Capacity (2019)
|
10,000 lbs (4,536 kg)
|
|
Maximum Lift Height (Since 2016)
|
55 ft (17 m)
|
|
Maximum Lift Height (2017)
|
55 ft (17 m)
|
|
Maximum Lift Height (2018)
|
55 ft (17 m)
|
|
Maximum Lift Height (2019)
|
55 ft (17 m)
|
|
No. of Cylinders (Since 2016)
|
4 |
|
No. of Cylinders (2017)
|
4 |
|
No. of Cylinders (2018)
|
4 |
|
No. of Cylinders (2019)
|
4 |
|
Operating Weight (Since 2016)
|
34,160 lbs (15,495 kg)
|
|
Operating Weight (Since 2016)
|
34,100 lbs (15,468 kg)
|
|
Operating Weight (Since 2017)
|
34,160 lbs (15,495 kg)
|
|
Operating Weight (Since 2017)
|
34,100 lbs (15,468 kg)
|
|
Operating Weight (Since 2018)
|
34,160 lbs (15,495 kg)
|
|
Operating Weight (Since 2018)
|
34,100 lbs (15,468 kg)
|
|
Operating Weight (Since 2019)
|
34,160 lbs (15,495 kg)
|
|
Operating Weight (Since 2019)
|
34,100 lbs (15,468 kg)
|
|
Rated Engine RPM (Since 2016)
|
2,200 rpm |
|
Rated Engine RPM (Since 2016)
|
2,400 rpm |
|
Rated Engine RPM (Since 2017)
|
2,200 rpm |
|
Rated Engine RPM (Since 2017)
|
2,400 rpm |
|
Rated Engine RPM (Since 2018)
|
2,200 rpm |
|
Rated Engine RPM (Since 2018)
|
2,400 rpm |
|
Rated Engine RPM (Since 2019)
|
2,200 rpm |
|
Rated Engine RPM (Since 2019)
|
2,400 rpm |
|
Rotation (Since 2013)
|
±10 deg |
|
Rotation (Since 2013)
|
100 deg |
|
Rotation (Since 2015)
|
±10 deg |
|
Rotation (Since 2015)
|
100 deg |
|
Rotation (Since 2016)
|
±10 deg |
|
Service Refill Capacity - Fuel Tank @ 90% Fill (Since 2016)
|
38 US gal (144 L)
|
|
Service Refill Capacity - Fuel Tank @ 90% Fill (2017)
|
38 US gal (144 L)
|
|
Service Refill Capacity - Fuel Tank @ 90% Fill (2018)
|
38 US gal (144 L)
|
|
Service Refill Capacity - Fuel Tank @ 90% Fill (2019)
|
38 US gal (144 L)
|
|
Service Refill Capacity - Hydraulic System (Since 2016)
|
63 US gal (238 L)
|
|
Service Refill Capacity - Hydraulic System (2017)
|
63 US gal (238 L)
|
|
Service Refill Capacity - Hydraulic System (2018)
|
63 US gal (238 L)
|
|
Service Refill Capacity - Hydraulic System (2019)
|
63 US gal (238 L)
|
|
Standard Engine - 1st (Since 2017)
|
5.3 3.3 |
|
Standard Engine - 1st (2018)
|
5.3 3.3 |
|
Standard Engine - 1st (2019)
|
5.3 3.3 |
|
Standard Engine - 2nd (Since 2017)
|
10.2 6.4 |
|
Standard Engine - 2nd (Since 2017)
|
10.1 6.3 |
|
Standard Engine - 2nd (Since 2018)
|
10.2 6.4 |
|
Standard Engine - 2nd (Since 2018)
|
10.1 6.3 |
|
Standard Engine - 2nd (Since 2019)
|
10.2 6.4 |
|
Standard Engine - 2nd (Since 2019)
|
10.1 6.3 |
|
Standard Engine - 3rd (Since 2017)
|
23.4 14.6 |
|
Standard Engine - 3rd (Since 2017)
|
23.3 14.5 |
|
Standard Engine - 3rd (Since 2017)
|
22 13.7 |
|
Standard Engine - 3rd (Since 2017)
|
20.9 13.0 |
|
Standard Engine - 3rd (Since 2018)
|
23.4 14.6 |
|
Standard Engine - 3rd (Since 2018)
|
23.3 14.5 |
|
Standard Engine - 3rd (Since 2018)
|
22 13.7 |
|
Standard Engine - 3rd (Since 2018)
|
20.9 13.0 |
|
Standard Engine - 3rd (Since 2019)
|
23.4 14.6 |
|
Standard Engine - 3rd (Since 2019)
|
23.3 14.5 |
|
Standard Engine - 3rd (Since 2019)
|
22 13.7 |
|
Standard Engine - 3rd (Since 2019)
|
20.9 13.0 |
|
Standard Engine - 4th Speeds Reverse (Since 2017)
|
20 mph (33 kph)
|
|
Standard Engine - 4th Speeds Reverse (Since 2017)
|
18 mph (29 kph)
|
|
Standard Engine - 4th Speeds Reverse (Since 2018)
|
20 mph (33 kph)
|
|
Standard Engine - 4th Speeds Reverse (Since 2018)
|
18 mph (29 kph)
|
|
Standard Engine - 4th Speeds Reverse (Since 2019)
|
20 mph (33 kph)
|
|
Standard Engine - 4th Speeds Reverse (Since 2019)
|
18 mph (29 kph)
|
|
Standard Engine - Bore (Since 2017)
|
4 in (10 cm)
|
|
Standard Engine - Bore (2018)
|
4 in (10 cm)
|
|
Standard Engine - Bore (2019)
|
4 in (10 cm)
|
|
Standard Engine - Stroke (Since 2017)
|
5 in (13 cm)
|
|
Standard Engine - Stroke (2018)
|
5 in (13 cm)
|
|
Standard Engine - Stroke (2019)
|
5 in (13 cm)
|
|
Standard Tires (Since 2016)
|
400/75-28 Duraforce MT |
|
Standard Tires (2017)
|
400/75-28 Duraforce MT |
|
Standard Tires (2018)
|
400/75-28 Duraforce MT |
|
Standard Tires (2019)
|
400/75-28 Duraforce MT |
|
Stroke (Since 2016)
|
5 in (13 cm)
|
|
Turning Circle Radius - Over Forks (Since 2016)
|
14 ft (4 m)
|
|
Turning Circle Radius - Over Forks (2017)
|
14 ft (4 m)
|
|
Turning Circle Radius - Over Forks (2018)
|
14 ft (4 m)
|
|
Turning Circle Radius - Over Forks (2019)
|
14 ft (4 m)
|
|
Turning Circle Radius - Over Tires (Since 2016)
|
13 ft (4 m)
|
|
Turning Circle Radius - Over Tires (2017)
|
13 ft (4 m)
|
|
Turning Circle Radius - Over Tires (2018)
|
13 ft (4 m)
|
|
Turning Circle Radius - Over Tires (2019)
|
13 ft (4 m)
|
|
Weight w/1220 mm (48") forks (51 mm x 51 mm/2" x 2") (Since 2013)
|
1,150 lbs (522 kg)
|
|
Weight w/1220 mm (48") forks (51 mm x 51 mm/2" x 2") (Since 2013)
|
1,000 lbs (454 kg)
|
|
Weight w/1220 mm (48") forks (51 mm x 51 mm/2" x 2") (Since 2013)
|
800 lbs (363 kg)
|
|
Weight w/1220 mm (48") forks (51 mm x 51 mm/2" x 2") (Since 2013)
|
650 lbs (295 kg)
|
|
Weight w/1220 mm (48") forks (51 mm x 51 mm/2" x 2") (Since 2013)
|
2,150 lbs (975 kg)
|
|
Weight w/1220 mm (48") forks (51 mm x 51 mm/2" x 2") (Since 2015)
|
1,150 lbs (522 kg)
|
|
Weight w/1220 mm (48") forks (51 mm x 51 mm/2" x 2") (Since 2015)
|
1,000 lbs (454 kg)
|
|
Weight w/1220 mm (48") forks (51 mm x 51 mm/2" x 2") (Since 2015)
|
800 lbs (363 kg)
|
|
Weight w/1220 mm (48") forks (51 mm x 51 mm/2" x 2") (Since 2015)
|
650 lbs (295 kg)
|
|
Weight w/1220 mm (48") forks (51 mm x 51 mm/2" x 2") (Since 2015)
|
2,150 lbs (975 kg)
|
|
Weight w/1220 mm (48") forks (51 mm x 51 mm/2" x 2") (Since 2016)
|
1,000 lbs (454 kg)
|
|
Weight w/1220 mm (48") forks (51 mm x 51 mm/2" x 2") (Since 2016)
|
800 lbs (363 kg)
|
|
Weight w/1220 mm (48") forks (51 mm x 51 mm/2" x 2") (Since 2016)
|
650 lbs (295 kg)
|
|
Width (Since 2013)
|
78 in (198 cm)
|
|
Width (Since 2013)
|
56 in (142 cm)
|
|
Width (Since 2013)
|
49 in (124 cm)
|
|
Width (Since 2013)
|
70 in (177 cm)
|
|
Width (Since 2015)
|
78 in (198 cm)
|
|
Width (Since 2015)
|
56 in (142 cm)
|
|
Width (Since 2015)
|
49 in (124 cm)
|
|
Width (Since 2015)
|
70 in (177 cm)
|
|
Width (Since 2016)
|
56 in (142 cm)
|
|
Width (Since 2016)
|
78 in (198 cm)
|
| Hydraulic |
|
Pump Flow Capacity |
15 gpm (57 lpm)
|
|
Relief Valve Pressure |
3,650 psi |
| Hydraulic System |
|
Pump Type |
Load sensing piston |
| Instrumentation |
|
Features |

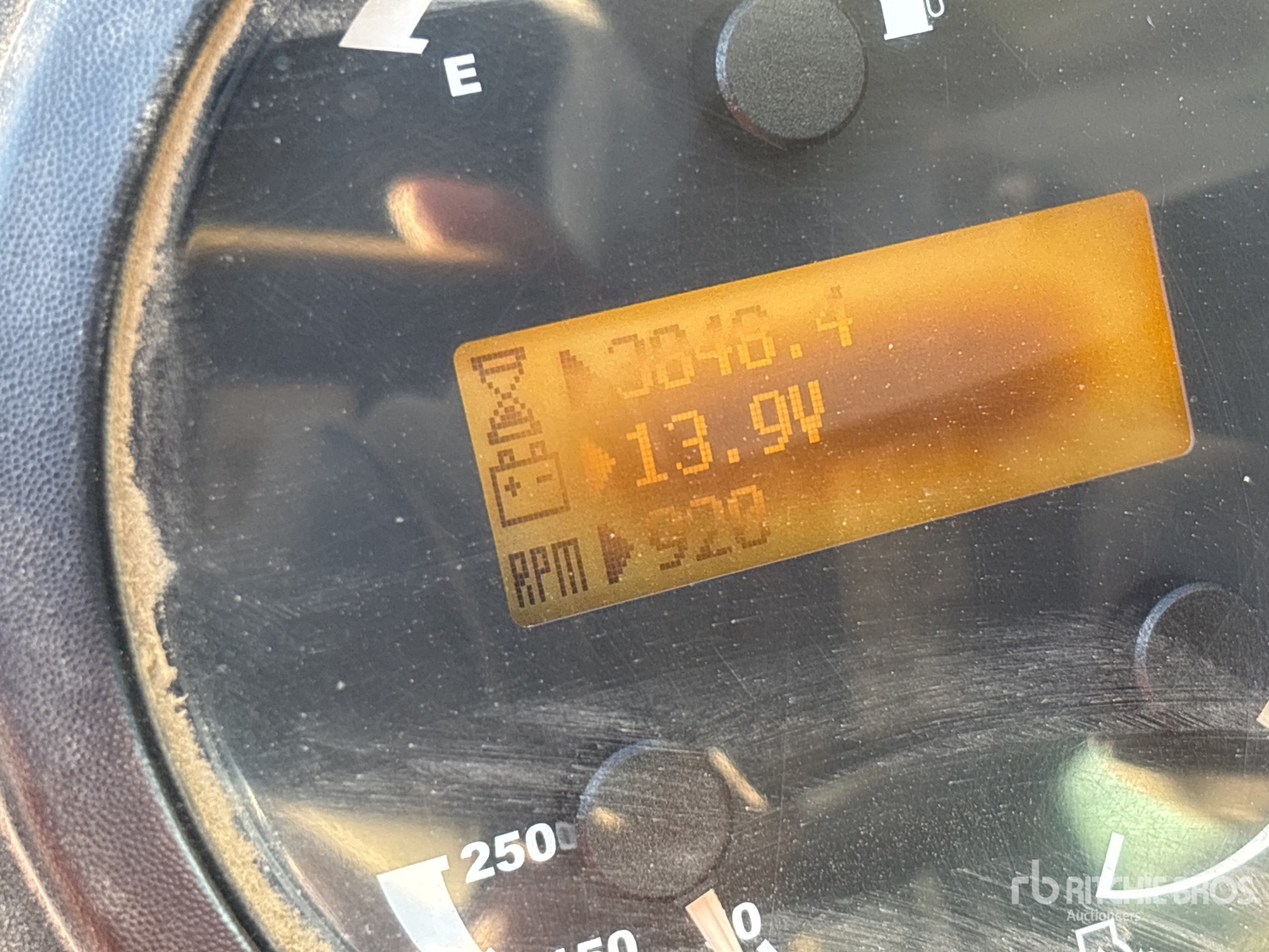

Volt meter, hourmeter, engine oil pressure gauge, fuel gauge, water temperature gauge |

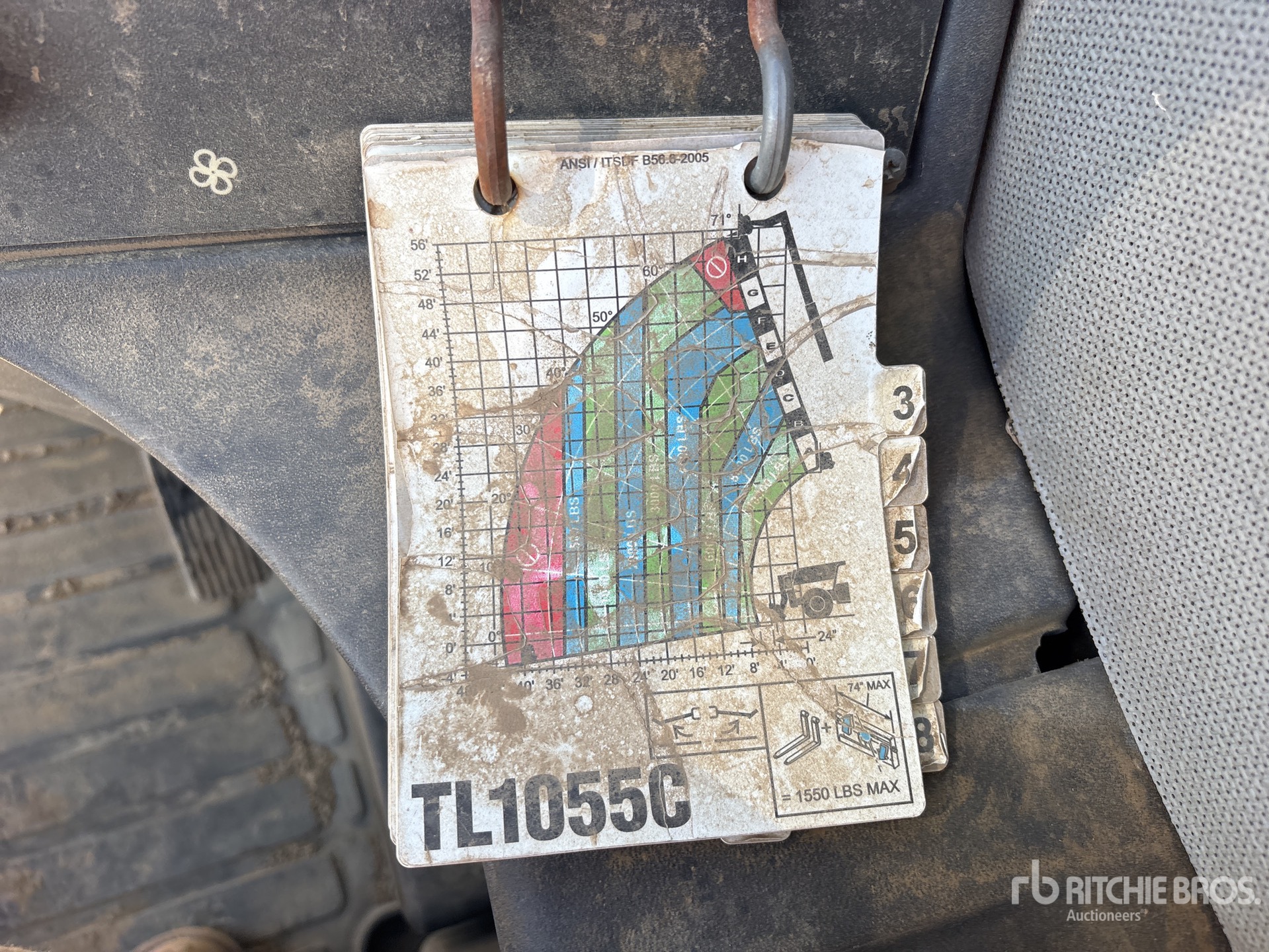

| Lift |
|
Max Forward Reach |
10 ft (3 m)
|
|
Max Lift Capacity |
10,000 lbs (4,536 kg)
|
|
Max Lift Height |
55 ft (17 m)
|
|
Max Load At Max Height |
5,000 lbs (2,268 kg)
|
|
Max Load At Max Reach |
2,500 lbs (1,134 kg)
|
| Operating Specifications |
|
Load At Maximum Height |
5,000 lbs (2,268 kg)
|
|
Load At Maximum Height - Stabilizers Down |
5,000 lbs (2,268 kg)
|
|
Load At Maximum Reach |
2,500 lbs (1,134 kg)
|
|
Load At Maximum Reach - Stabilizers Down |
2,500 lbs (1,134 kg)
|
|
Maximum Forward Reach |
43 ft (13 m)
|
|
Maximum Lift Height |
55 ft (17 m)
|
|
Rated Load Capacity |
10,000 lbs (4,536 kg)
|
|
Top Travel Speed |
20 mph (33 kph)
|
| Operational |
|
Drawbar Pull |
24,000 lbs (10,886 kg)
|
|
Fuel Capacity |
38 gal (144 l)
|
|
Hydraulic System Fluid Capacity |
63 gal (238 l)
|
|
Operating Weight |
34,161 lbs (15,495 kg)
|
|
Tire Size |
400/75-28 Duraforce MT |
| Operator Station |
|
Features |
Vinyl suspension seat, single electronic joystick, spacious interior, ergonomic cab |
| Service Refill Capacities |
|
Fuel Tank |
38 gal (144 l)
|
|
Hydraulic System |
63 gal (238 l)
|
|
Hydraulic Tank |
63 gal (238 l)
|
| Tires |
|
Optional Construction |
14.00 x 24 Foam Filled, Rock Lug or Solid |
|
Standard |
14.00 x 24 - 12 PR |
| Transmission |
|
Max Speed - Forward |
20 mph (33 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
3 |
| Weights |
|
Operating Weight |
34,160 lbs (15,495 kg)
|
