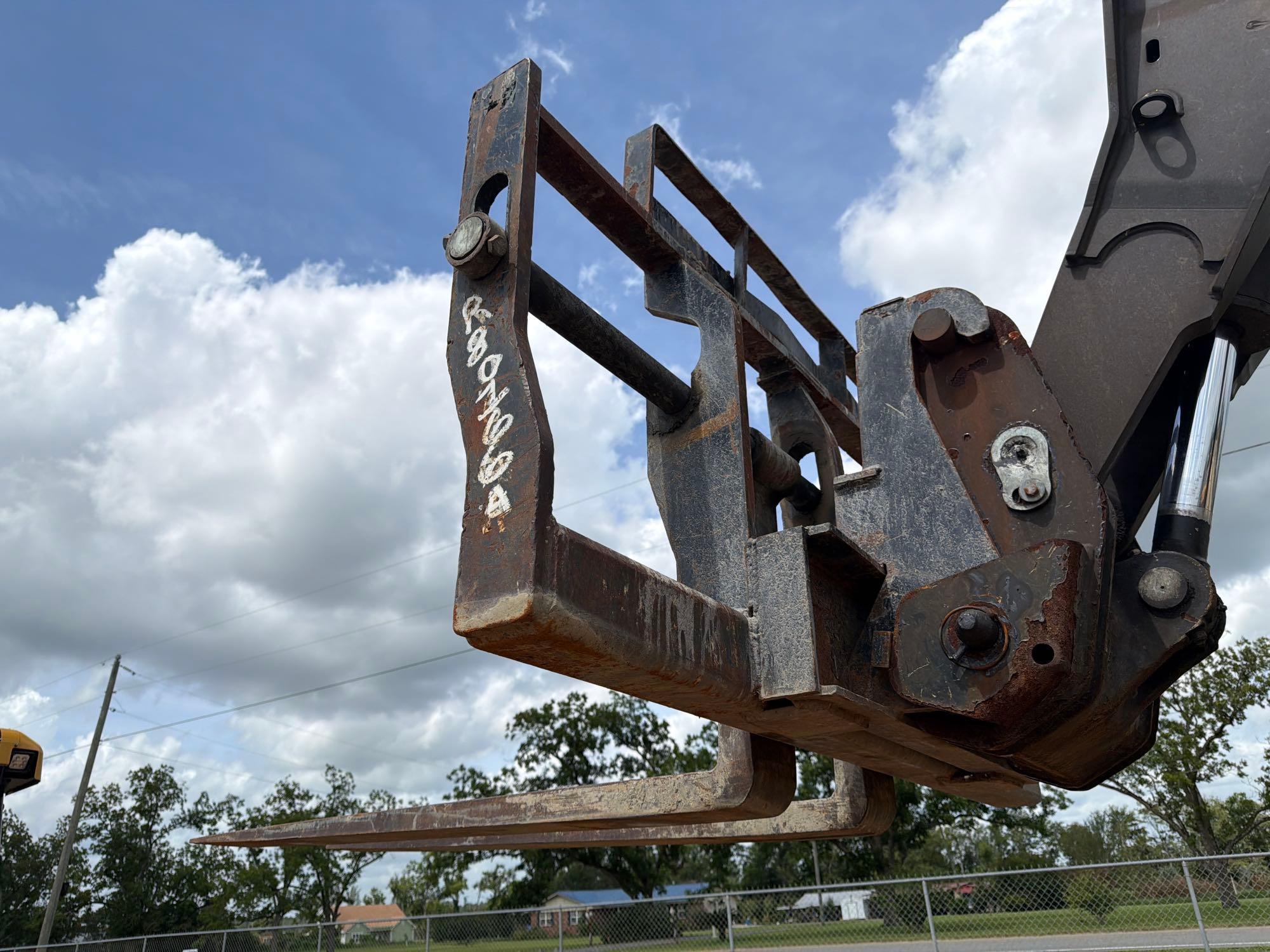

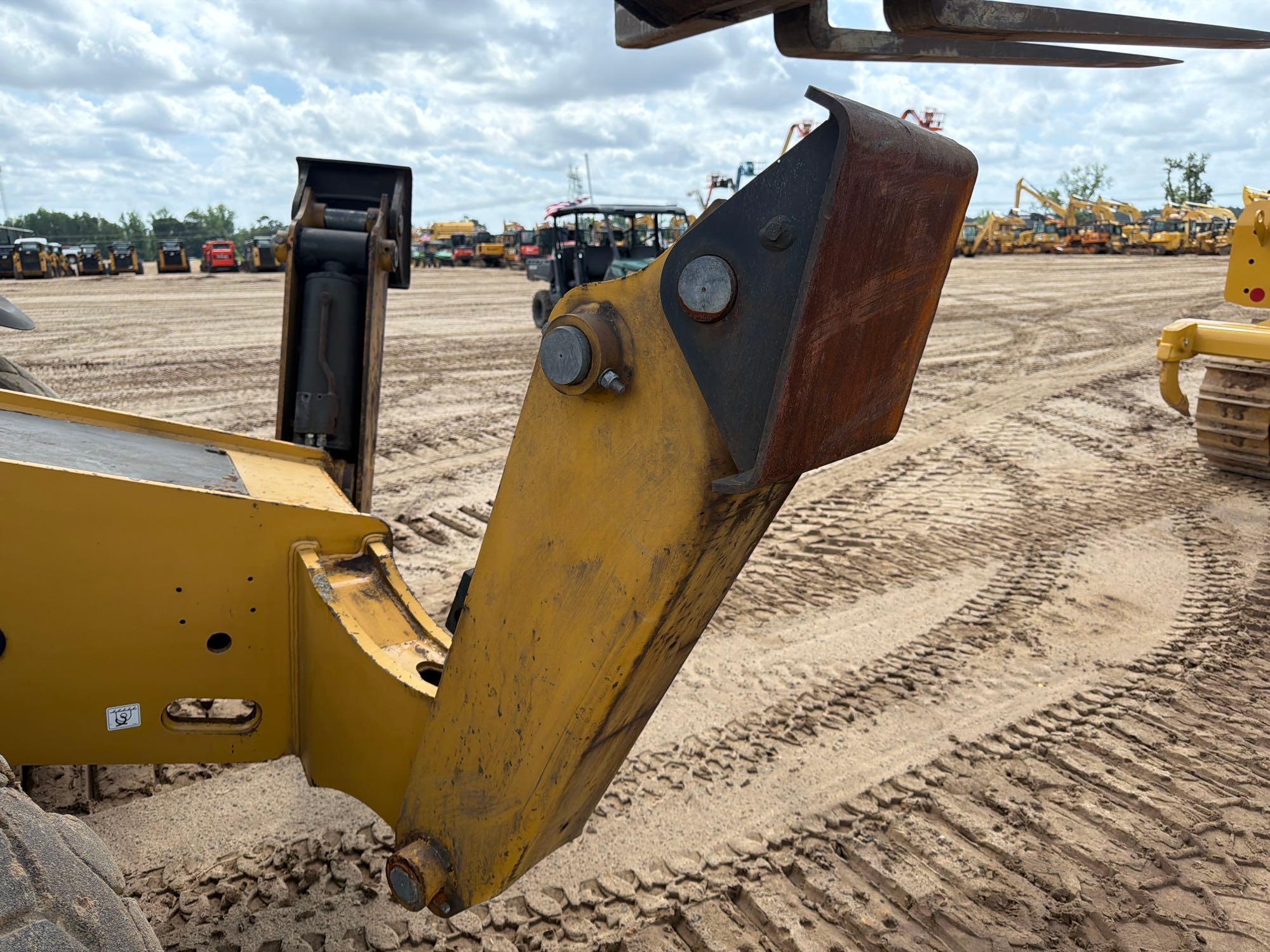

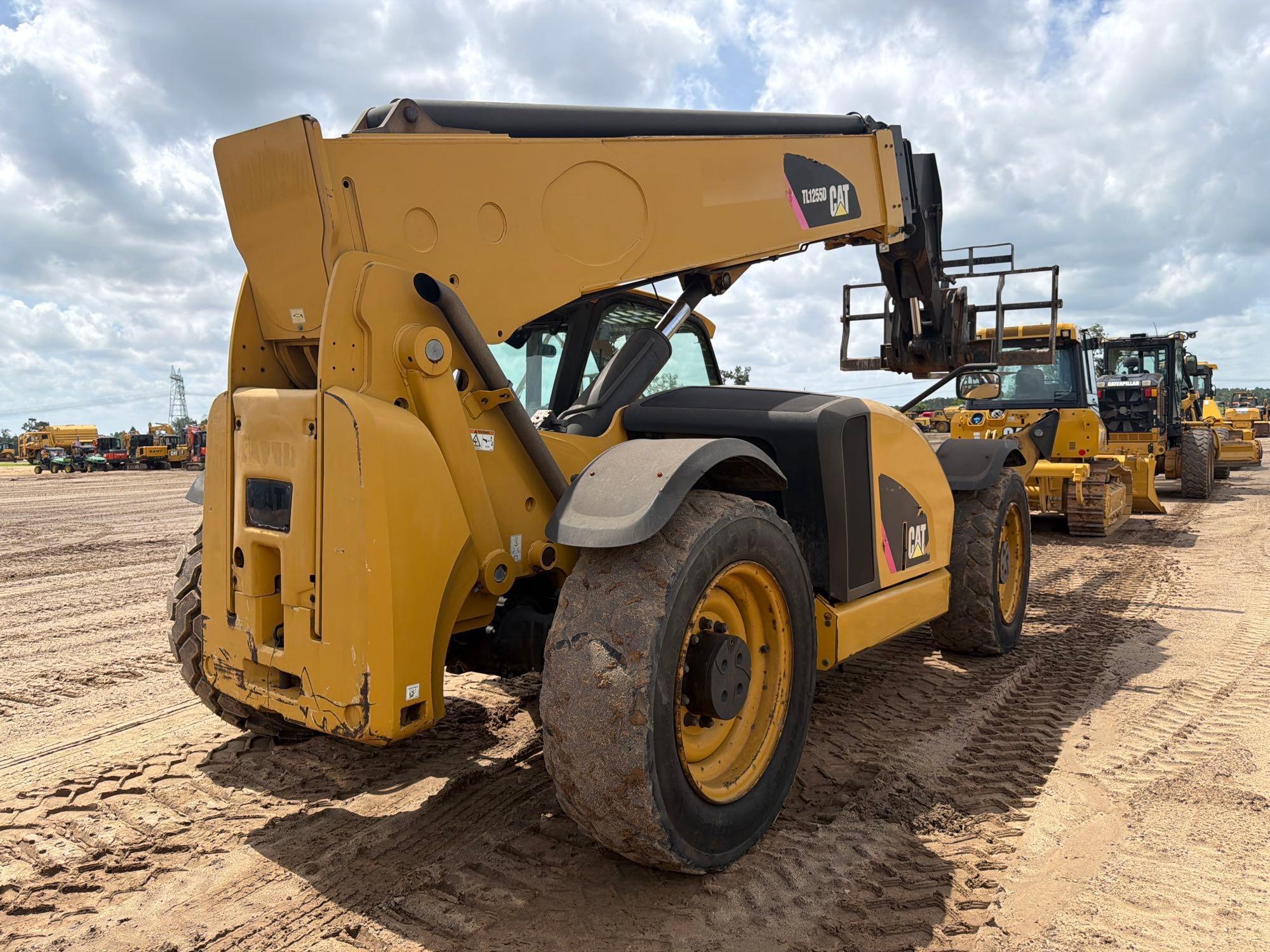

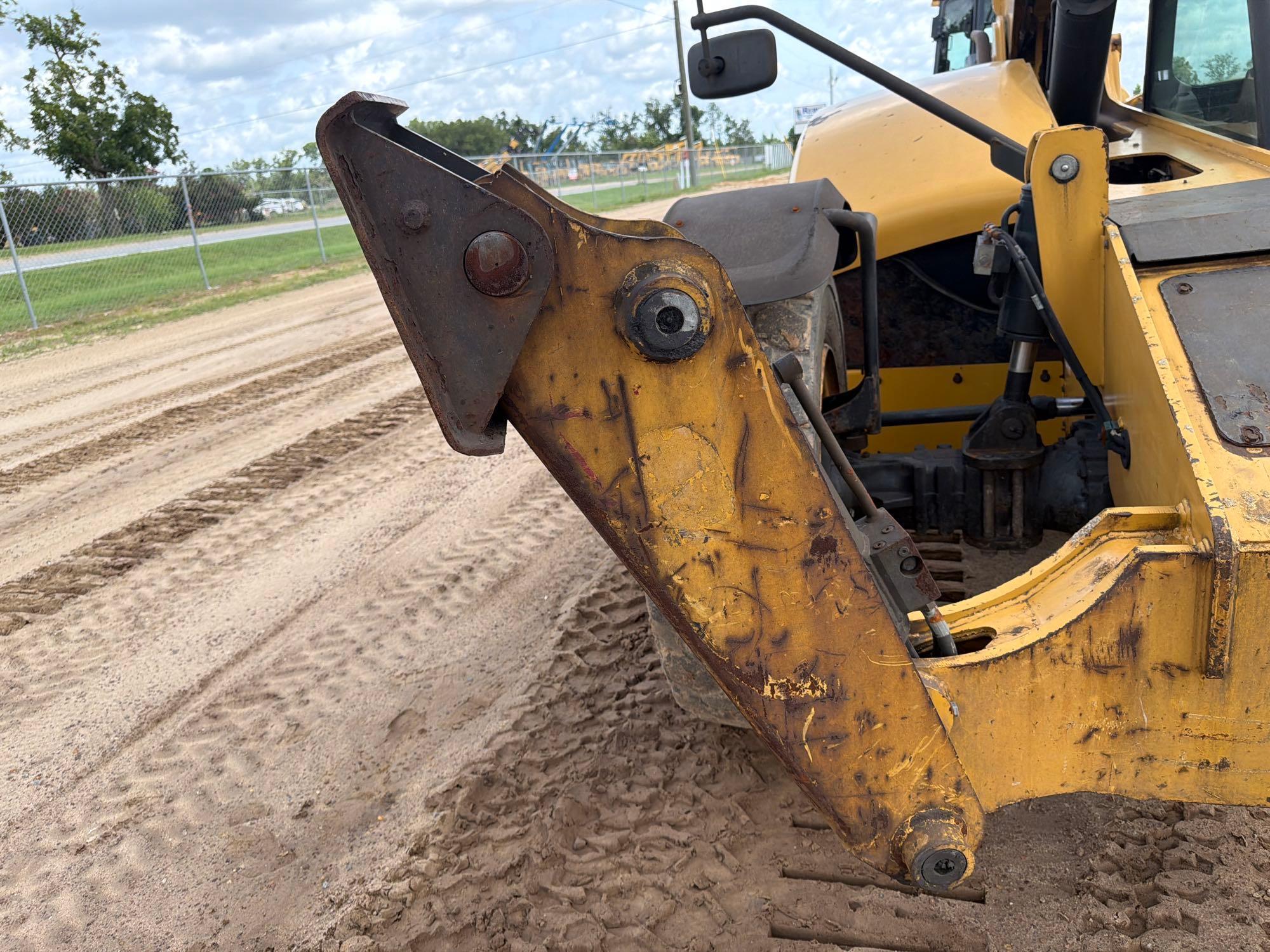

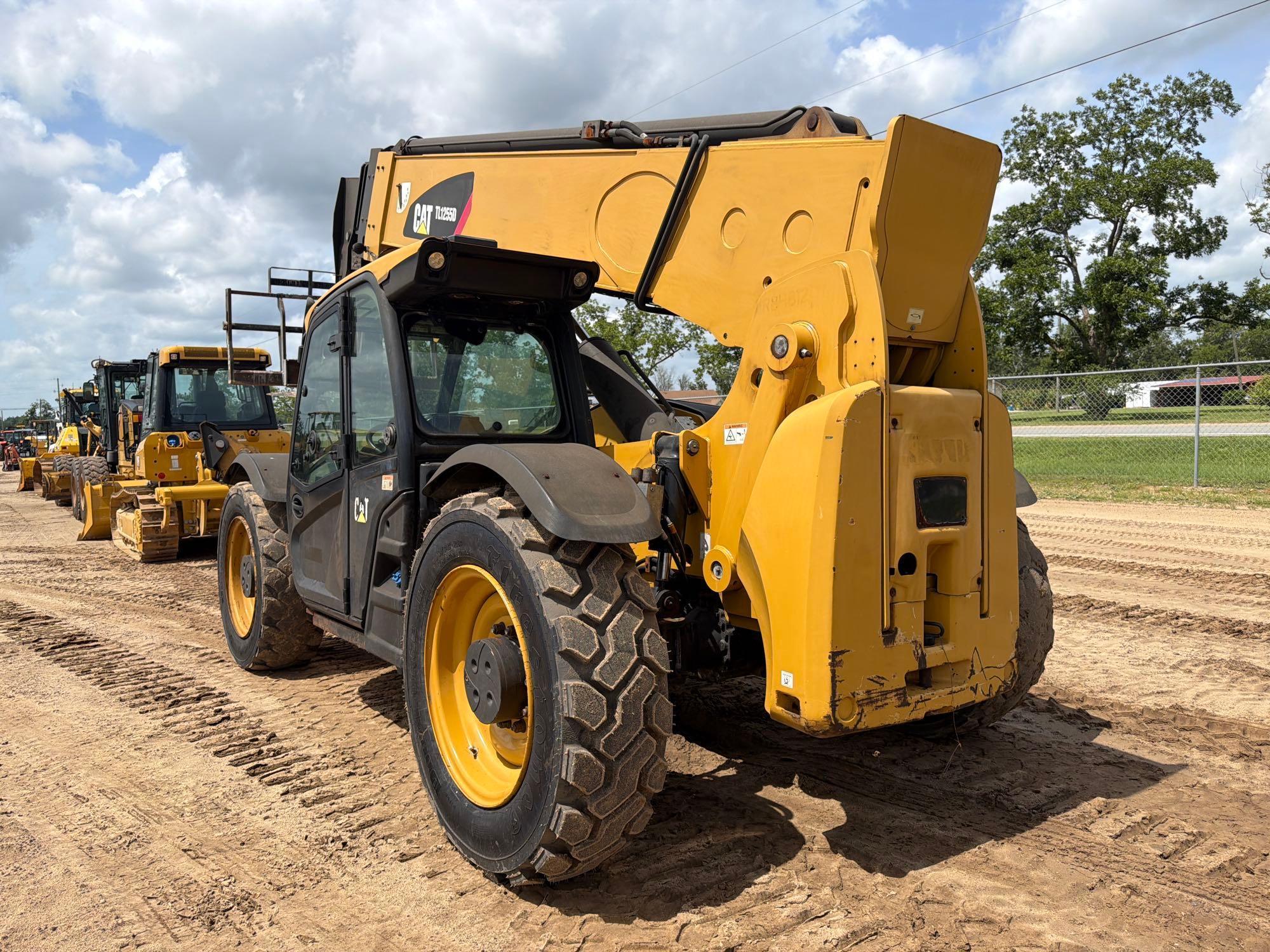

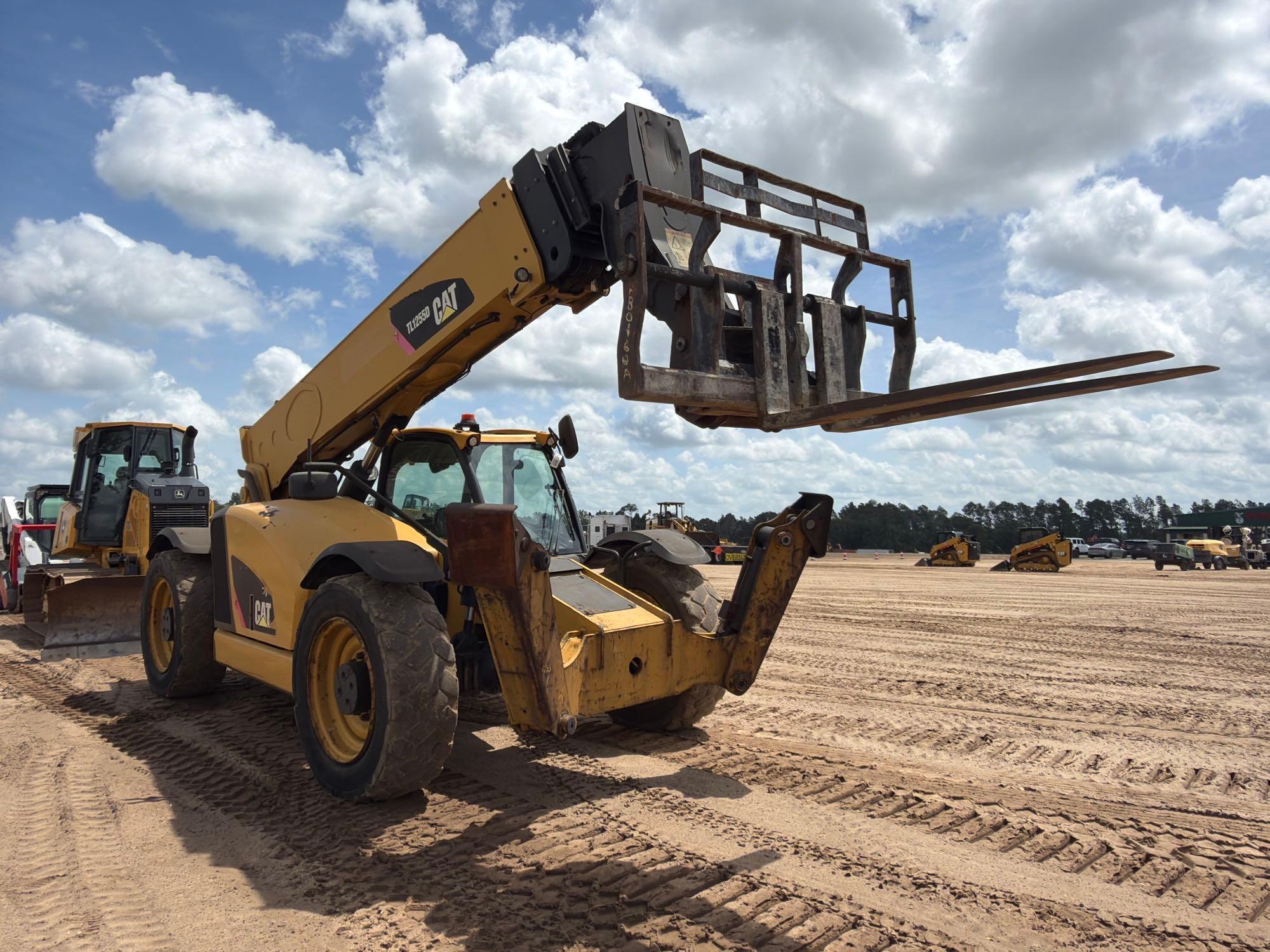

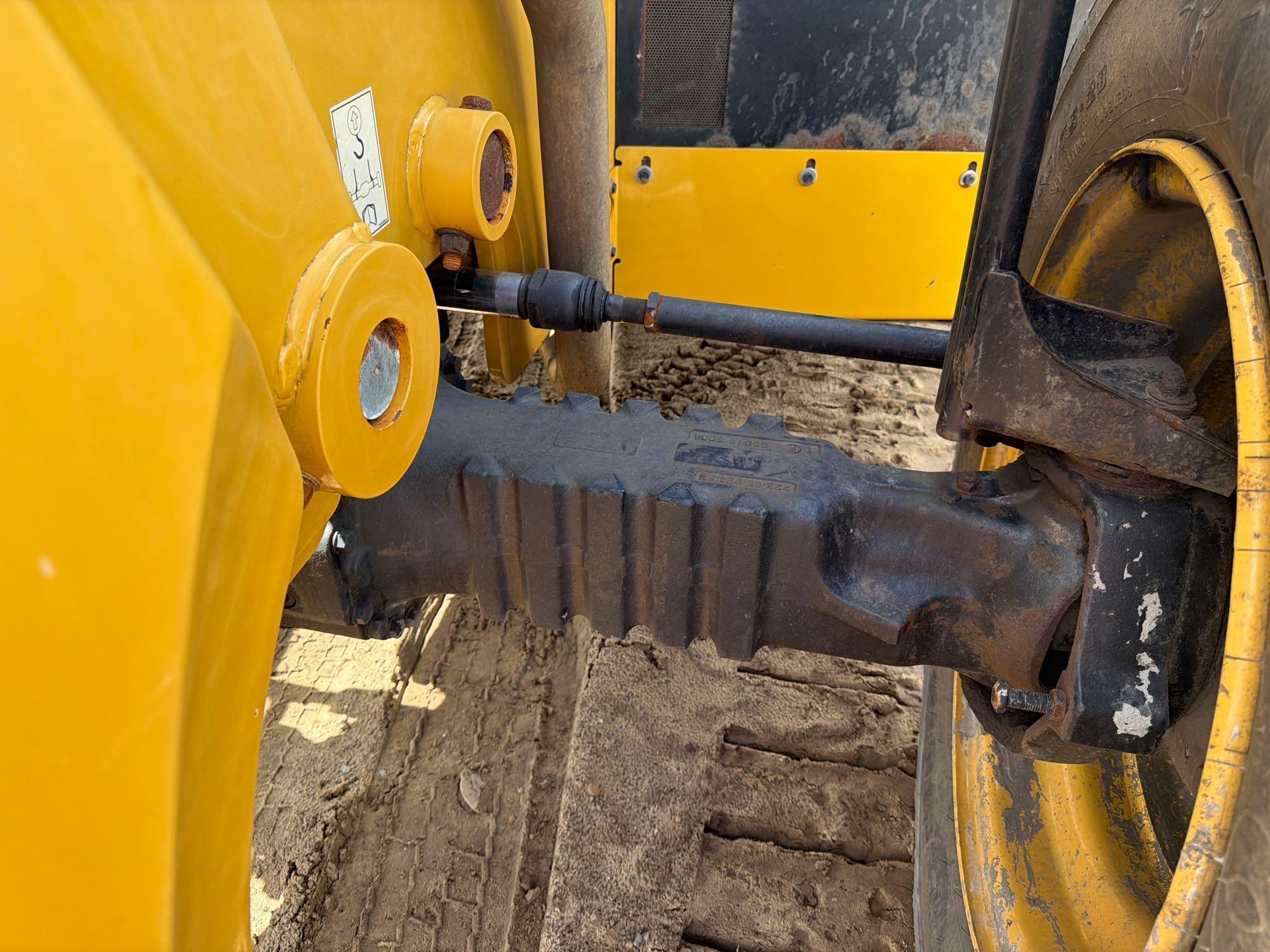

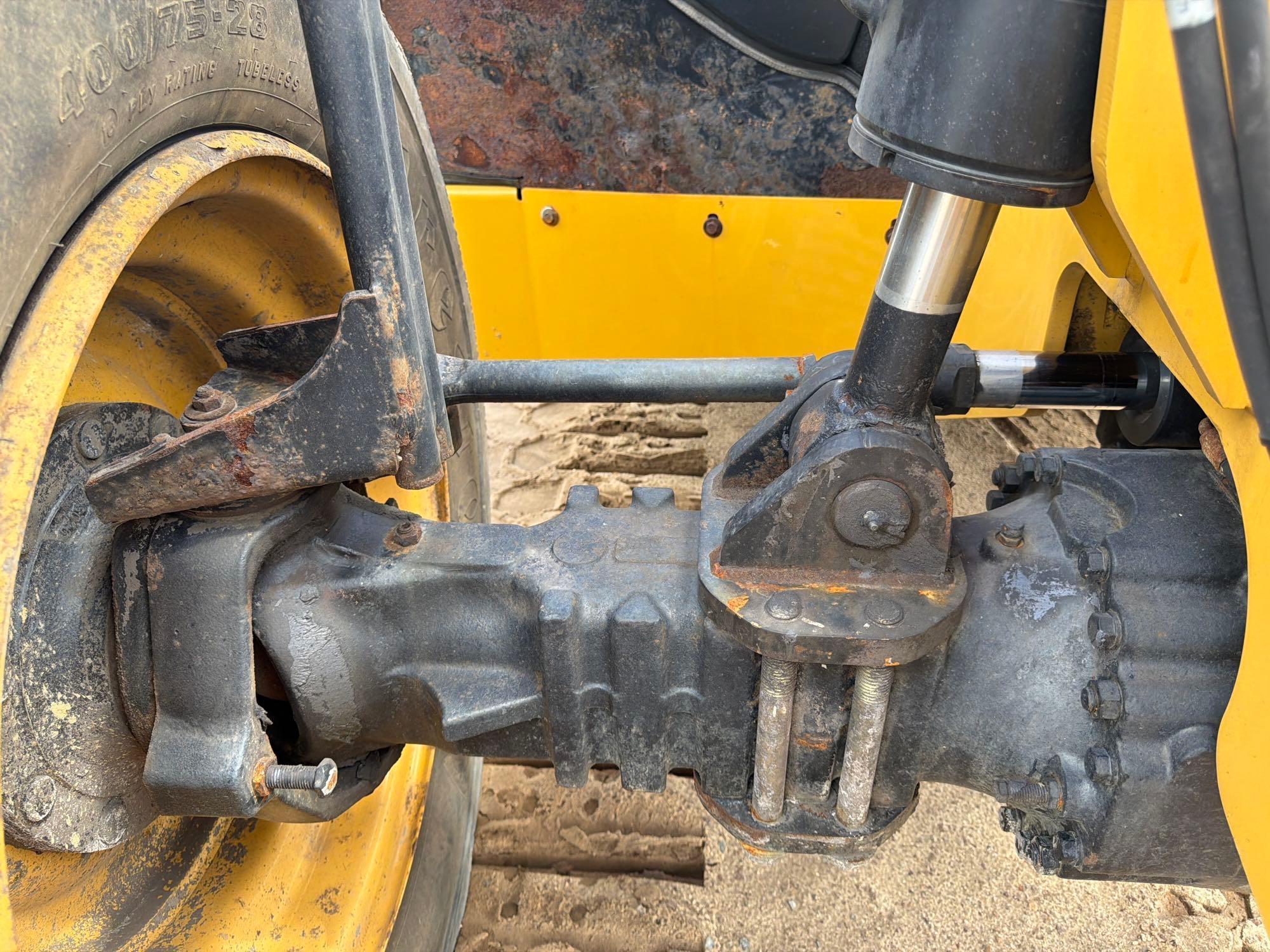

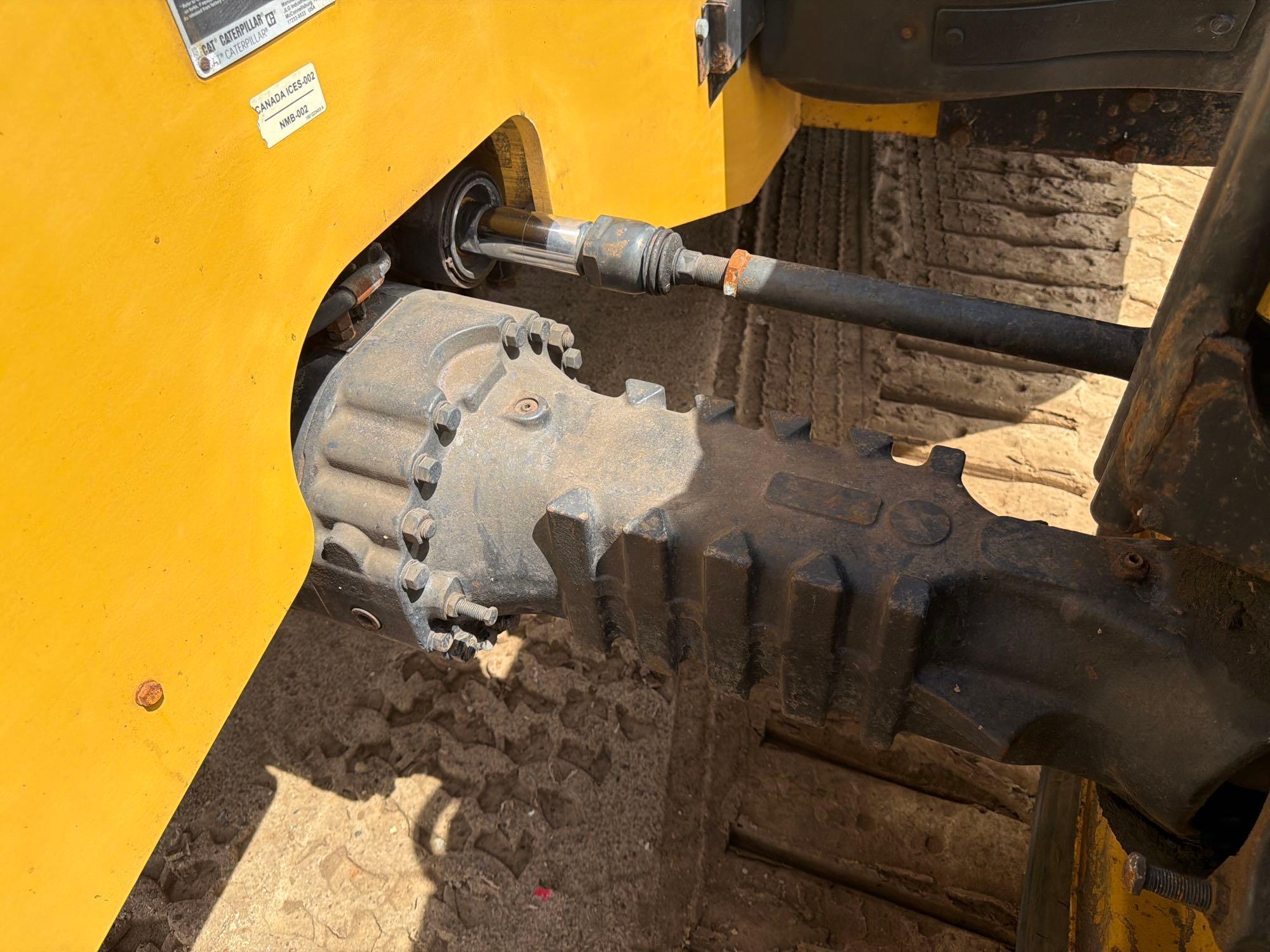

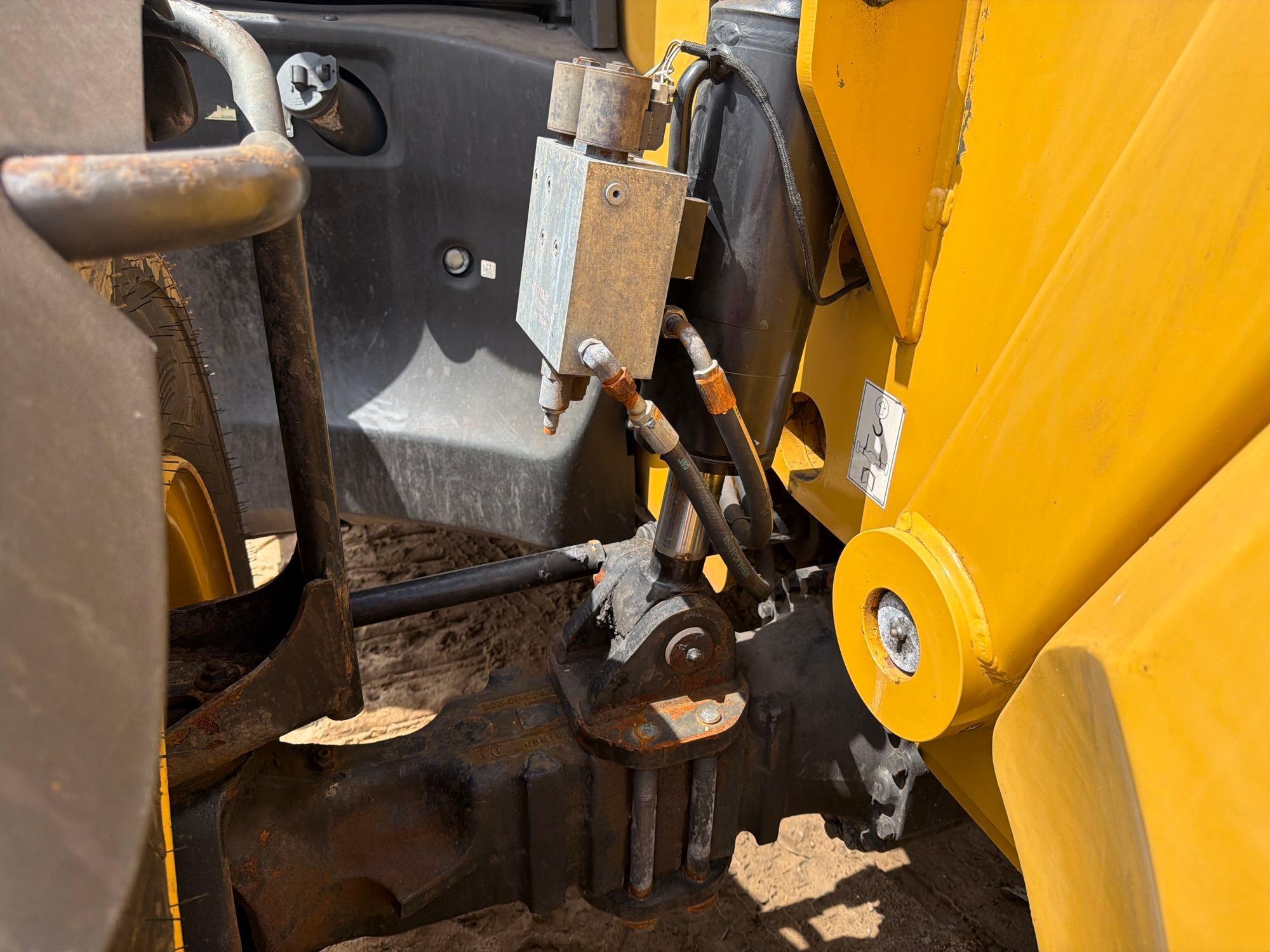

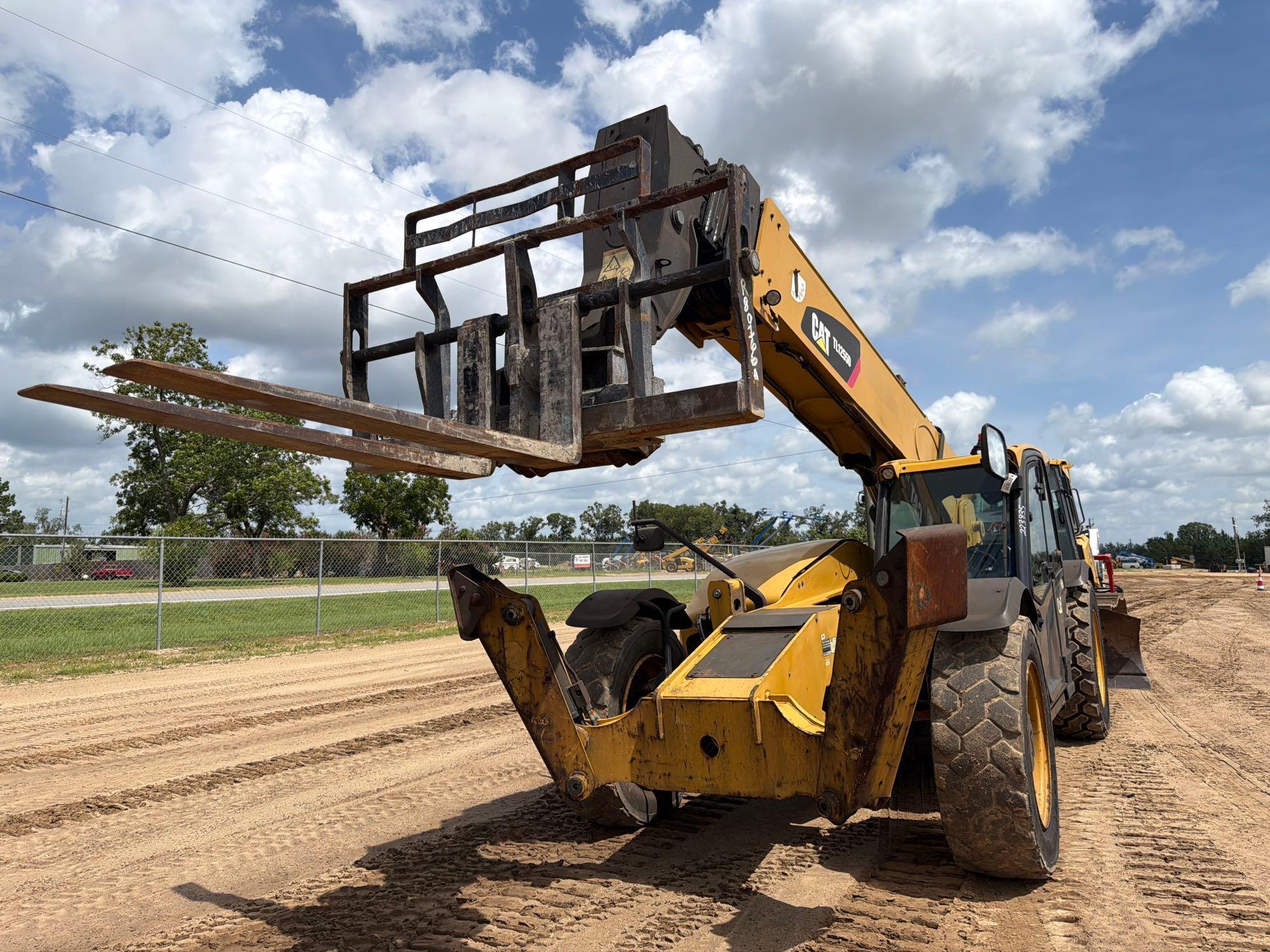

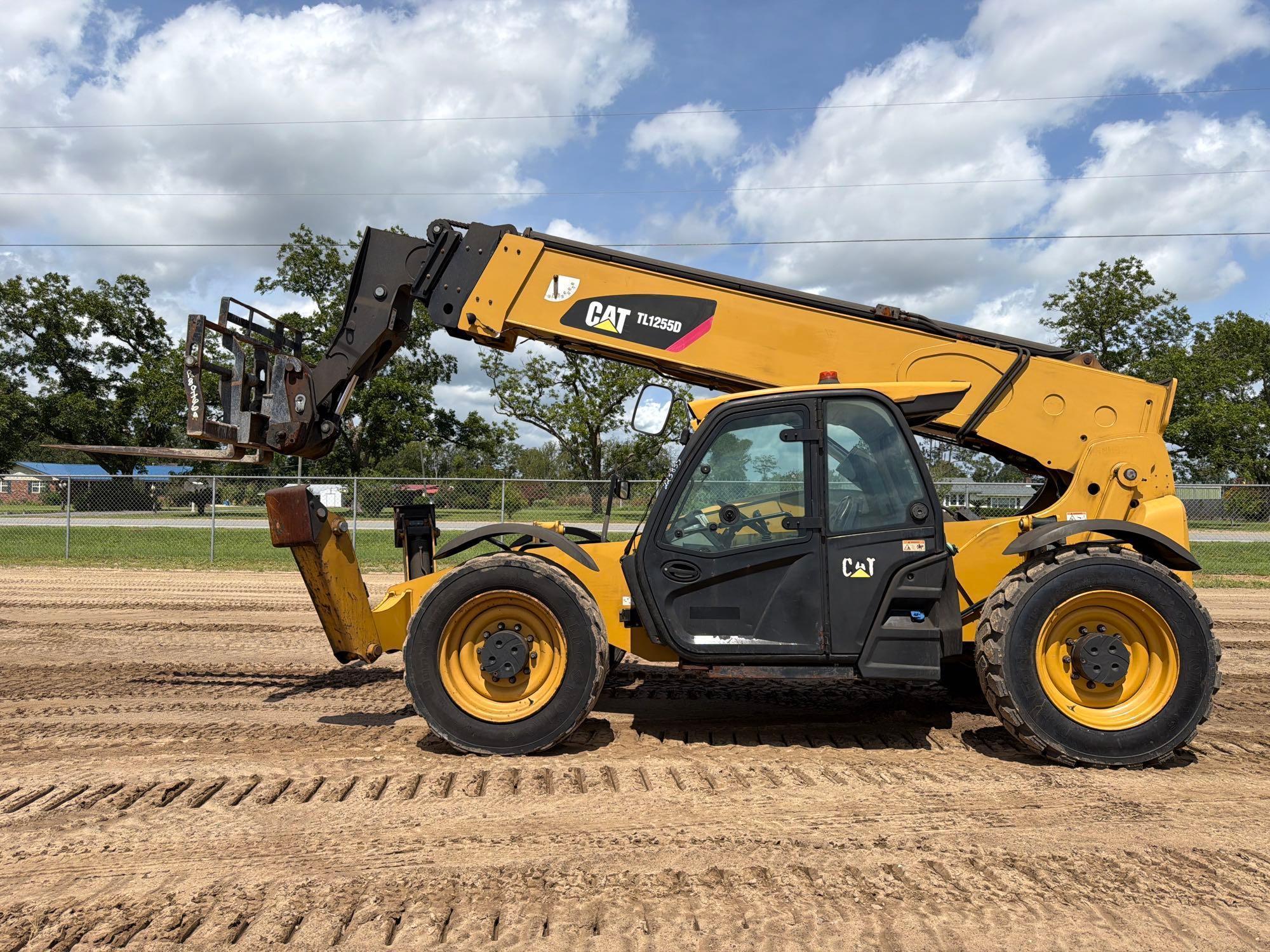

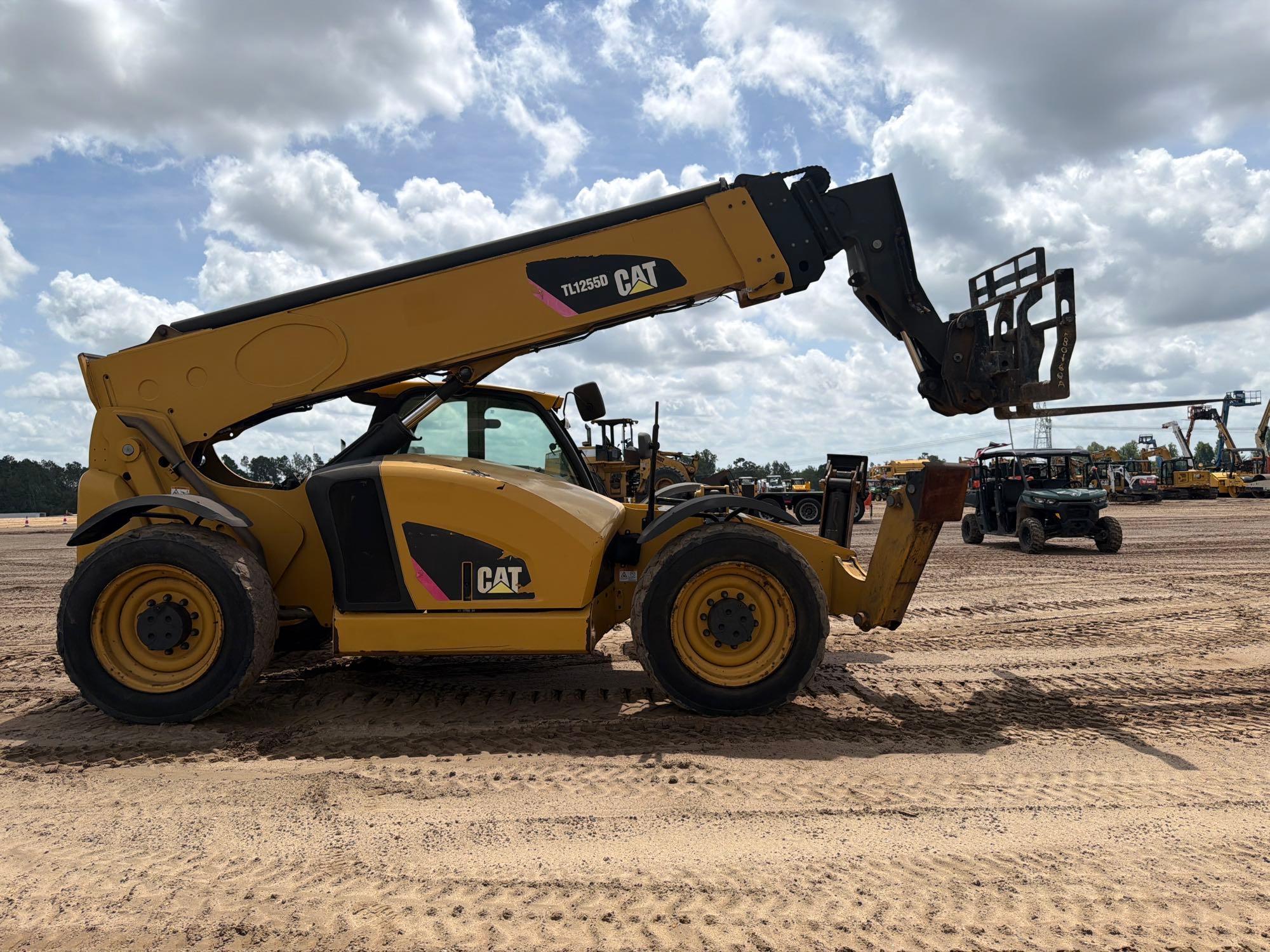

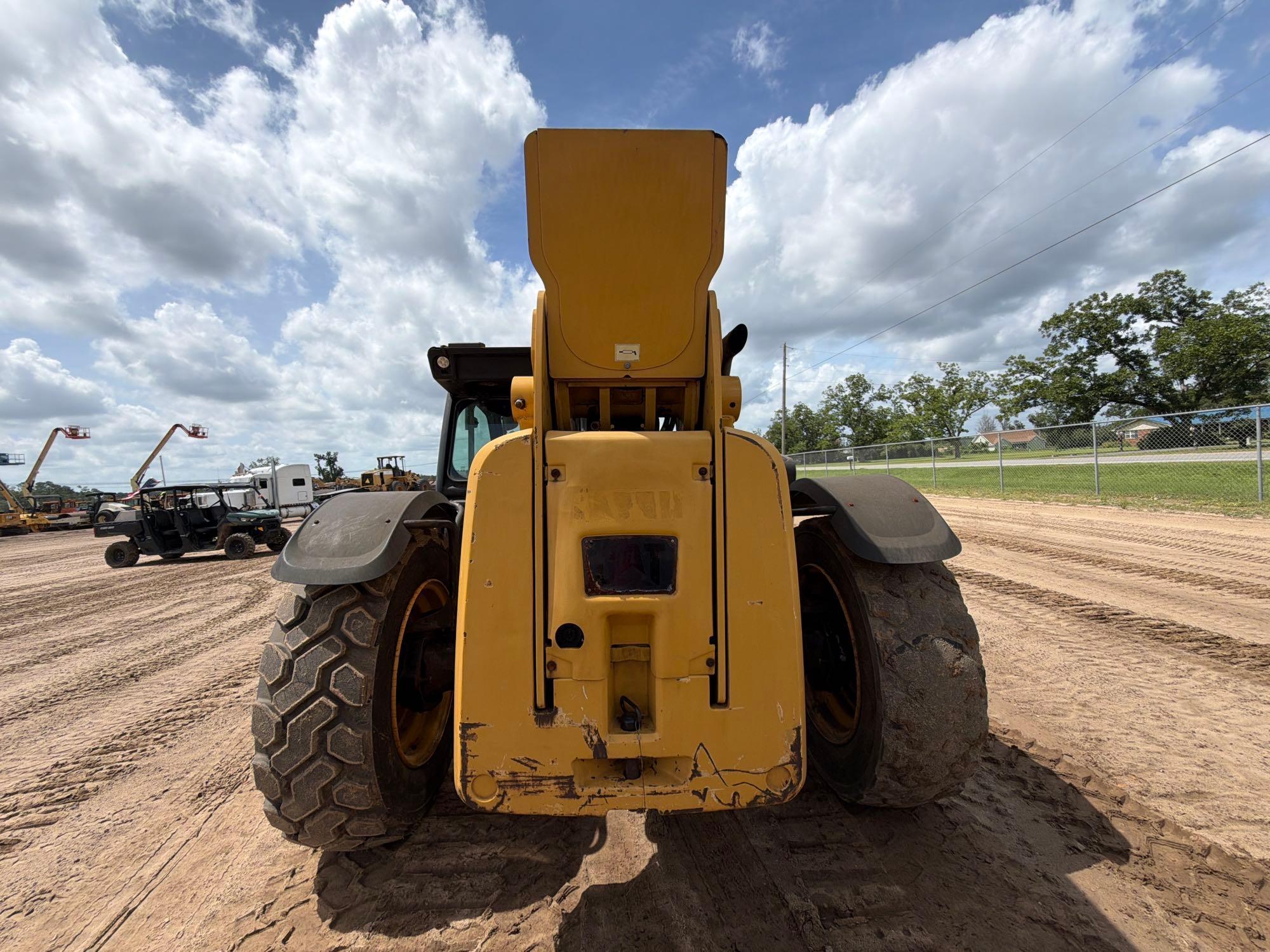

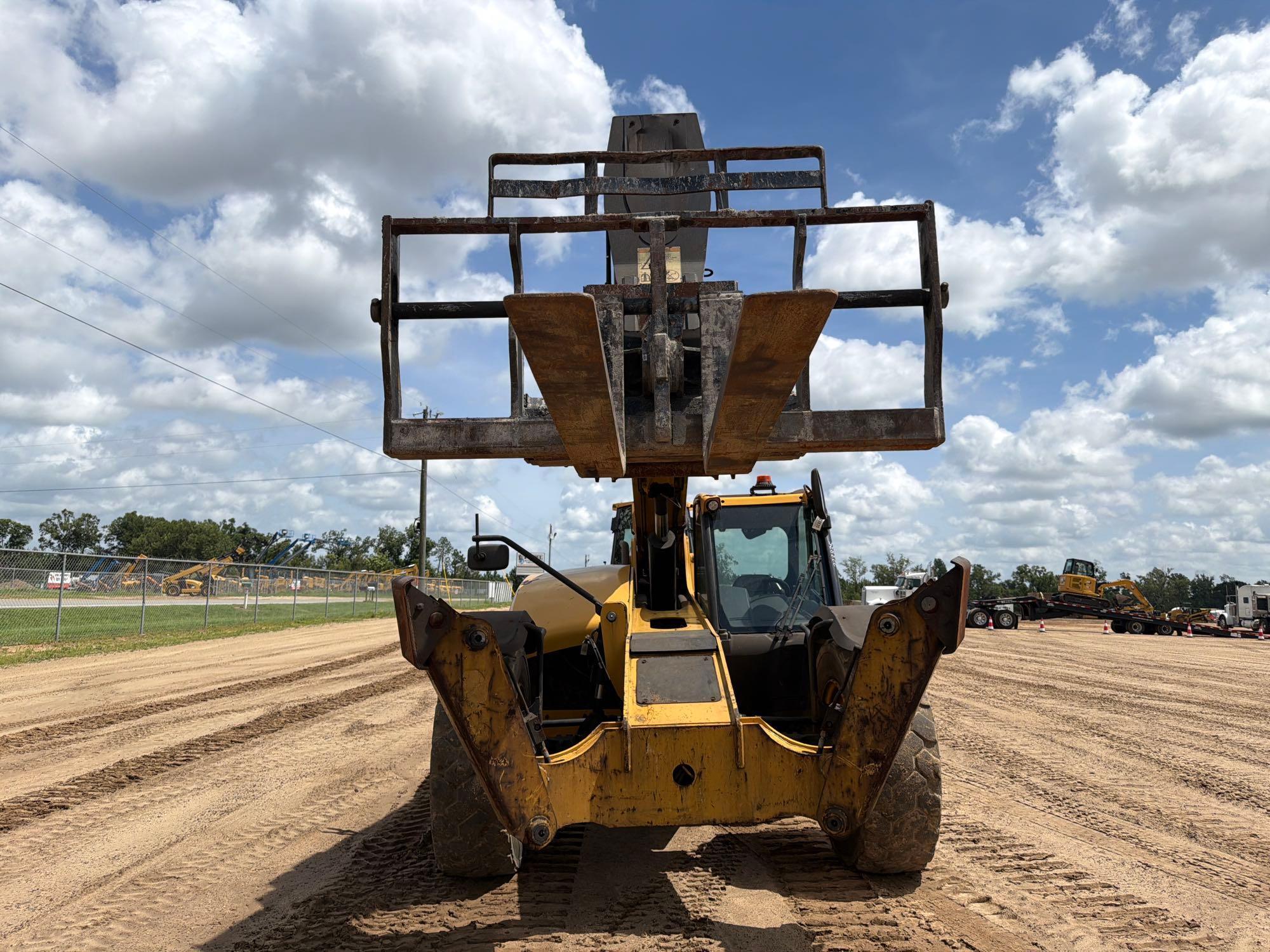

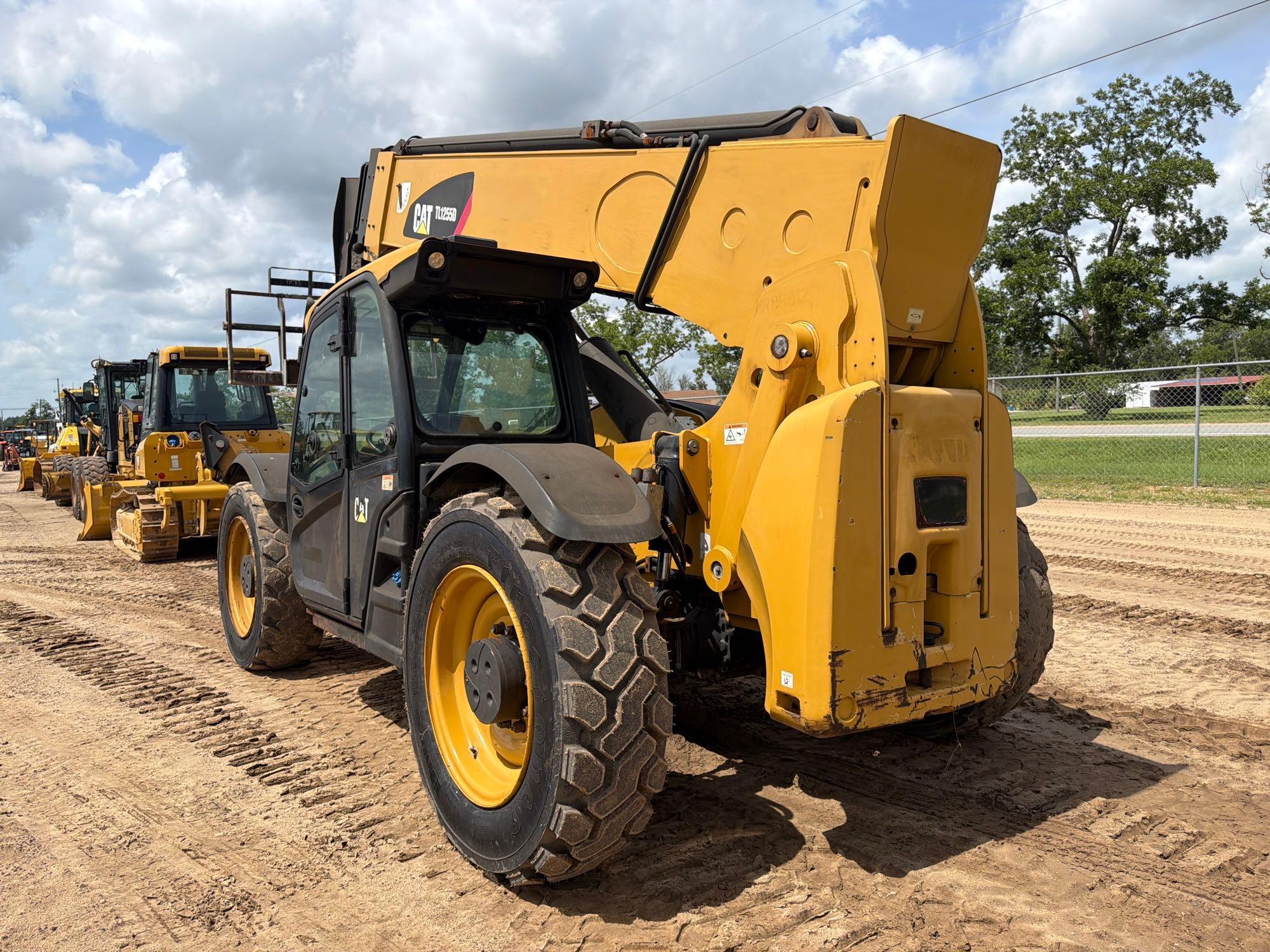

| Axles |
|
Manufacturer |
Dana |

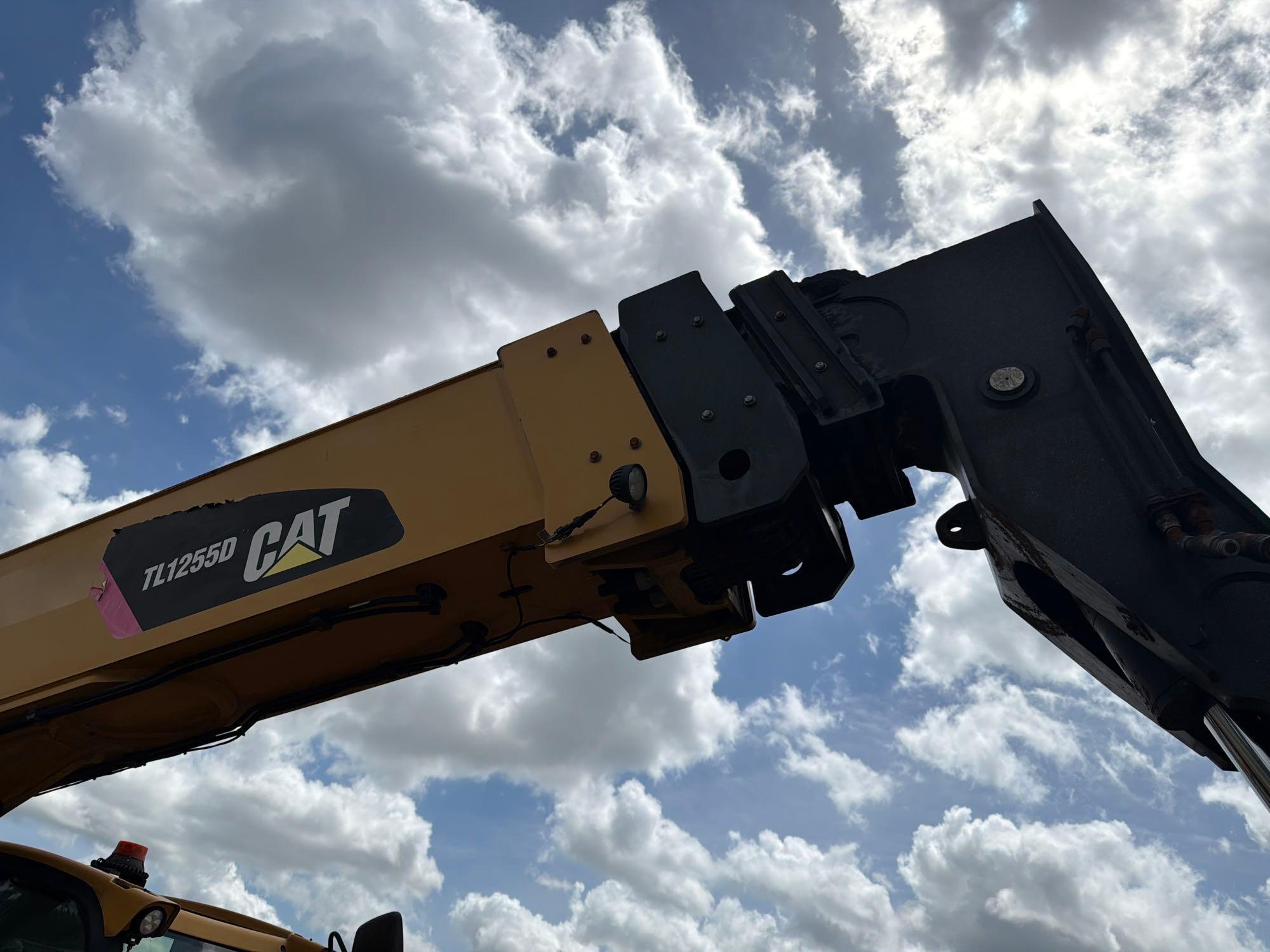

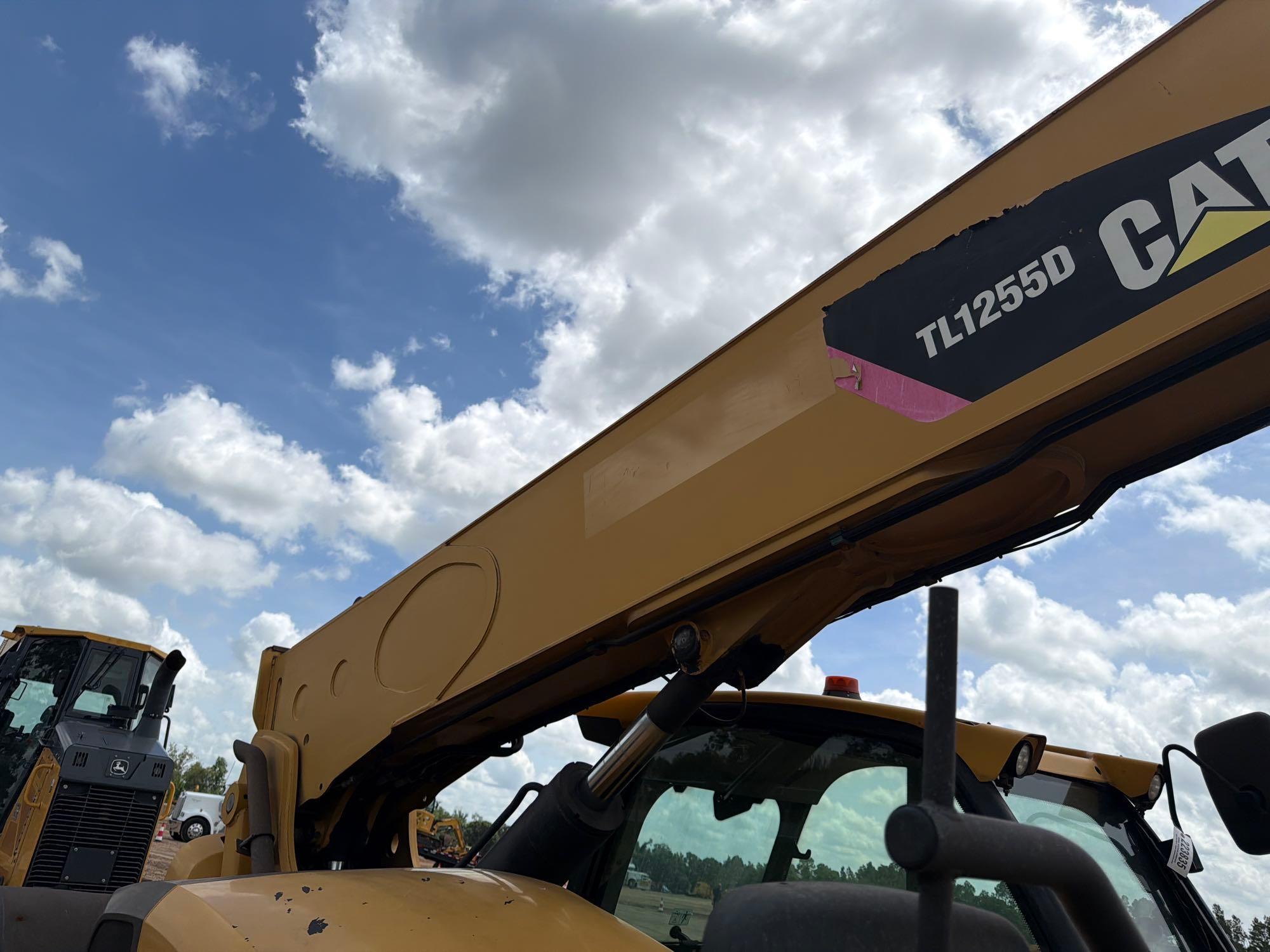

| Boom Performance |
|
Boom Down |
14 seconds |
|
Boom Up |
16 seconds |
|
Drawbar Pull - Basic |
20,000 lbs (9,070 kg)
|
|
Tele In |
14 seconds |
|
Tele Out |
18 seconds |
| Brakes |
|
Features |
Service Brakes - inboard wet disc brakes on front and rear axles; Parking Brakes - mechanical on front axle |
|
Parking Brake |
mechanical on front axle |
| Dimensions |
|
Ground Clearance |
19 in (49 cm)
|
|
Height |
8 ft (3 m)
|
|
Length to Fork Face |
21 ft (6 m)
|
|
Length to Fork Face |
21 ft (6 m)
|
|
Overall Height |
8 ft (3 m)
|
|
Turning Radius - Over Tires |
14 ft (4 m)
|
|
Turning Radius Outside Tires |
14 ft (4 m)
|
|
Wheelbase |
12 ft (4 m)
|
|
Wheelbase |
12 ft (4 m)
|
|
Width Over Tires |
8 ft (3 m)
|

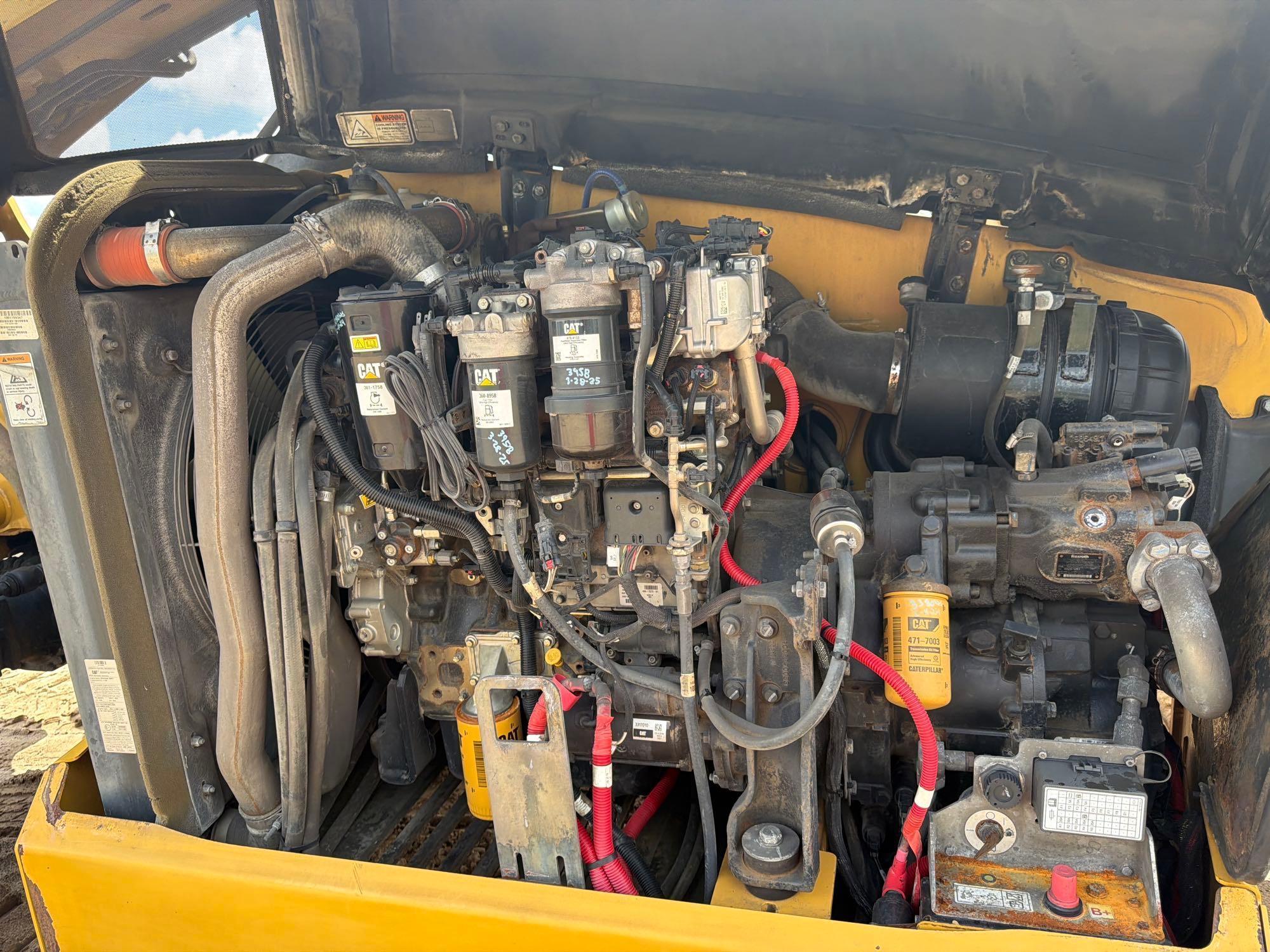

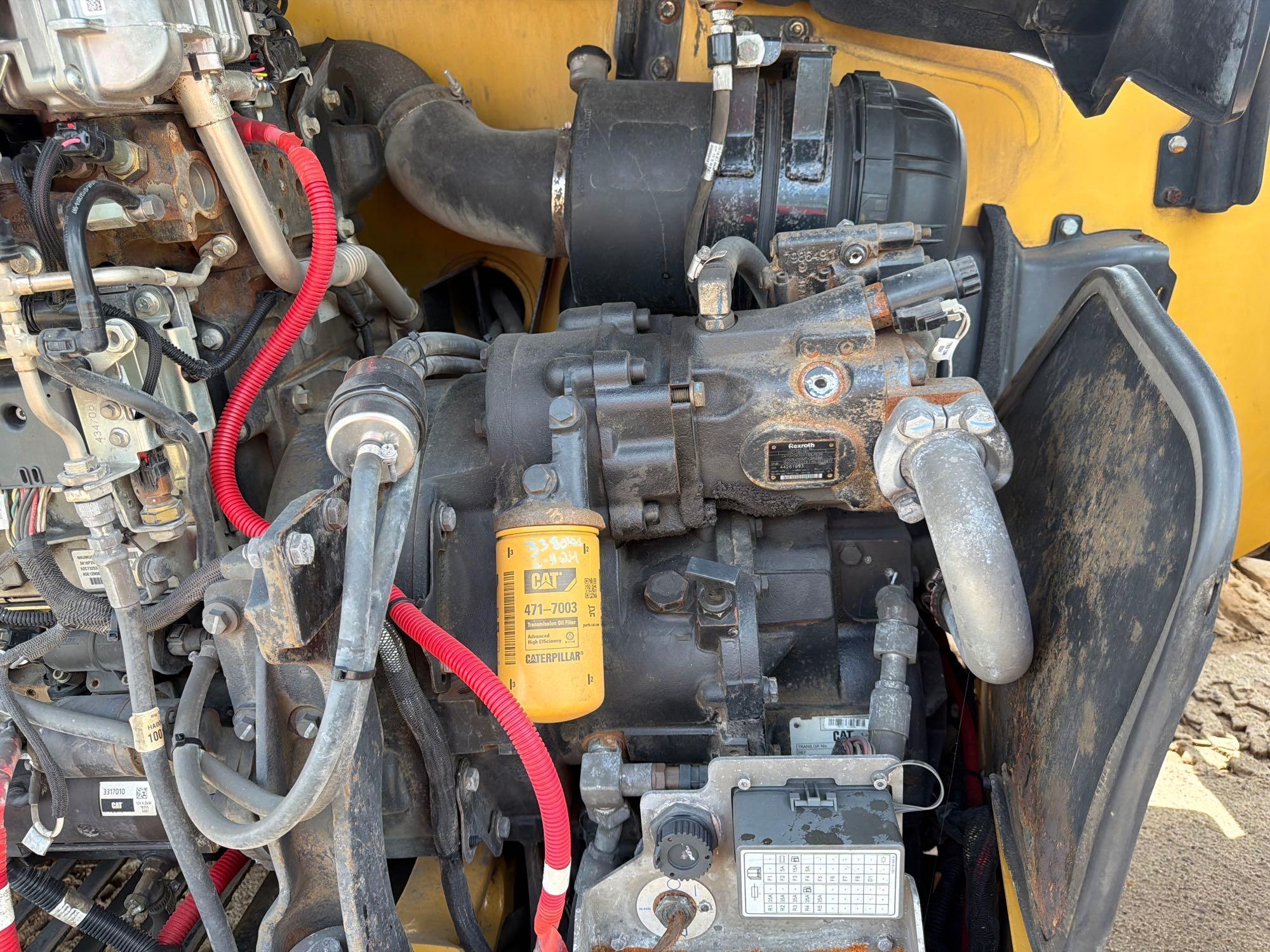

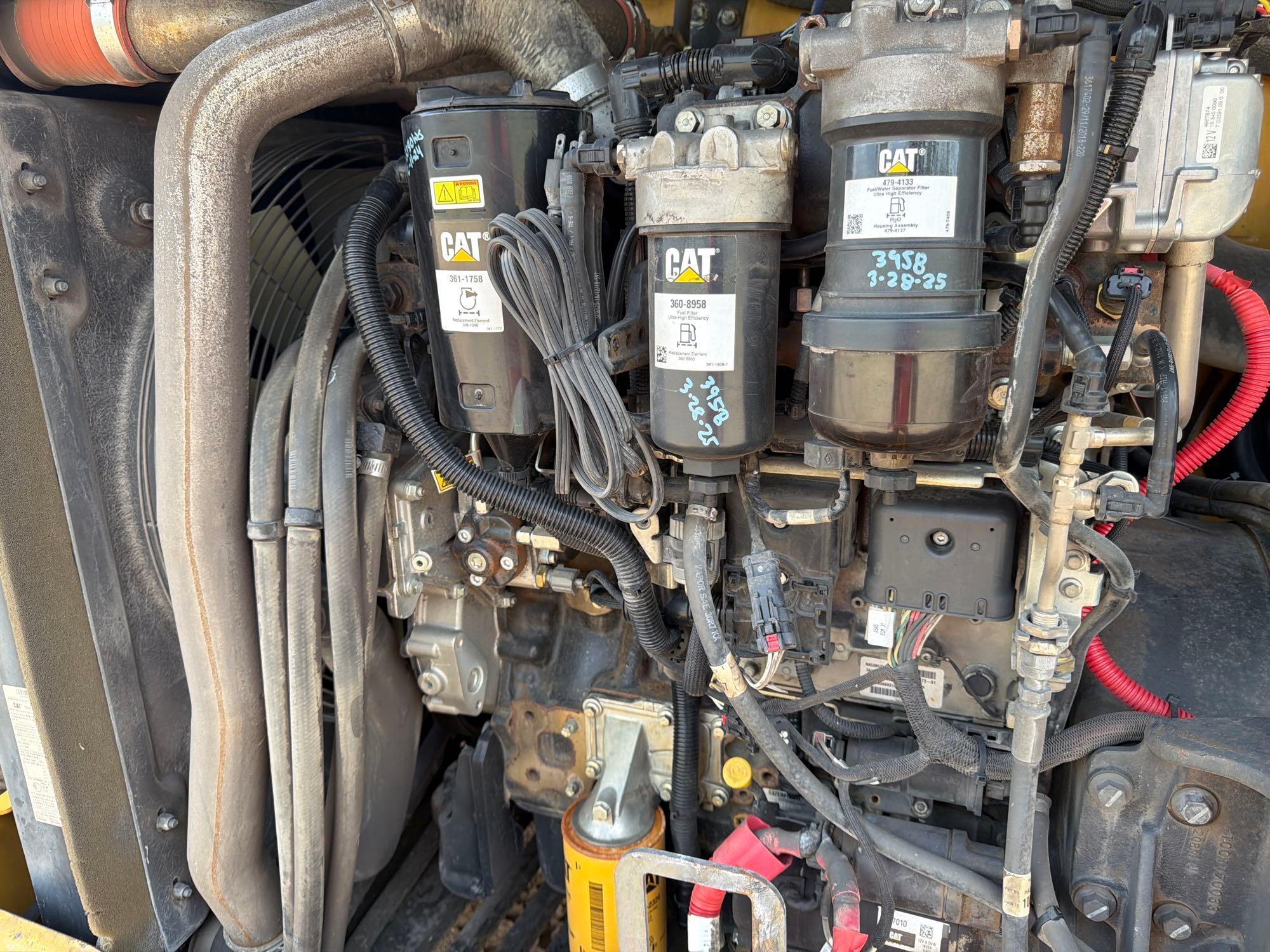

| Engine |
|
Engine Model |
Cat C4.4 EDITAAC Tier 3 |
|
Engine Model (Since 2024)
|
Cat C3.6TA |
|
Gross Power |
142 hp (106 kw)
|
|
Gross Power - Basic |
141 hp (105 kw)
|
|
Gross power ISO 14396 (Since 2024)
|
74 hp (55 kw)
|
|
Gross power option ISO 14396 (Since 2024)
|
115 hp (86 kw)
|
|
Net Power |
135 hp (101 kw)
|
| General Specifications |
|
Engine (Since 2023)
|
C3.6 |
|
Gross Power (Since 2023)
|
134 hp (100 kw)
|
|
Load Capacity (Since 2023)
|
12,000 lbs (5,442 kg)
|
|
Max Forward Reach (Since 2023)
|
42 ft (13 m)
|
|
Max Lift Height (Since 2023)
|
55 ft (17 m)
|
|
Top Travel Speed (Since 2023)
|
21 mph (34 kph)
|

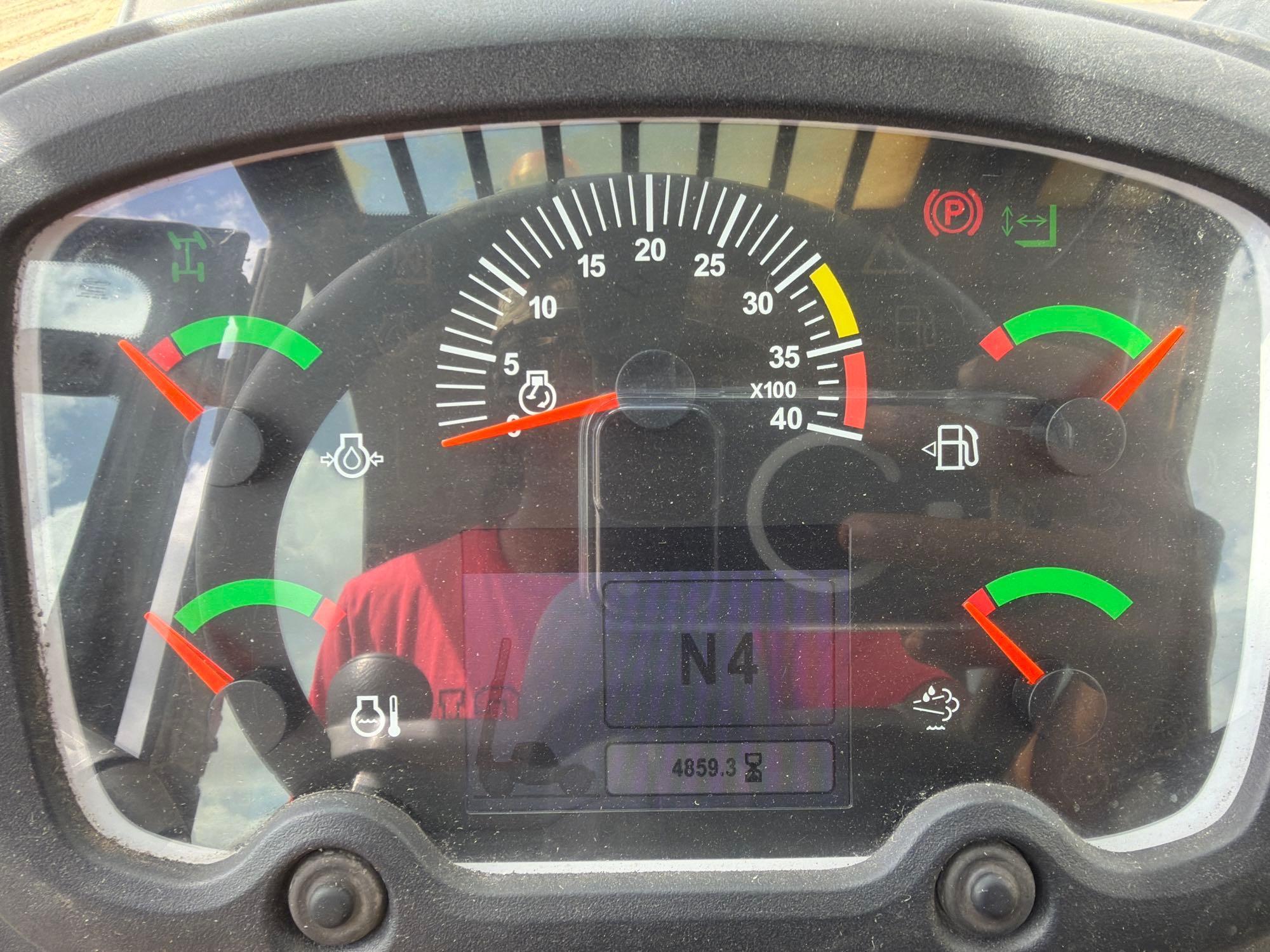

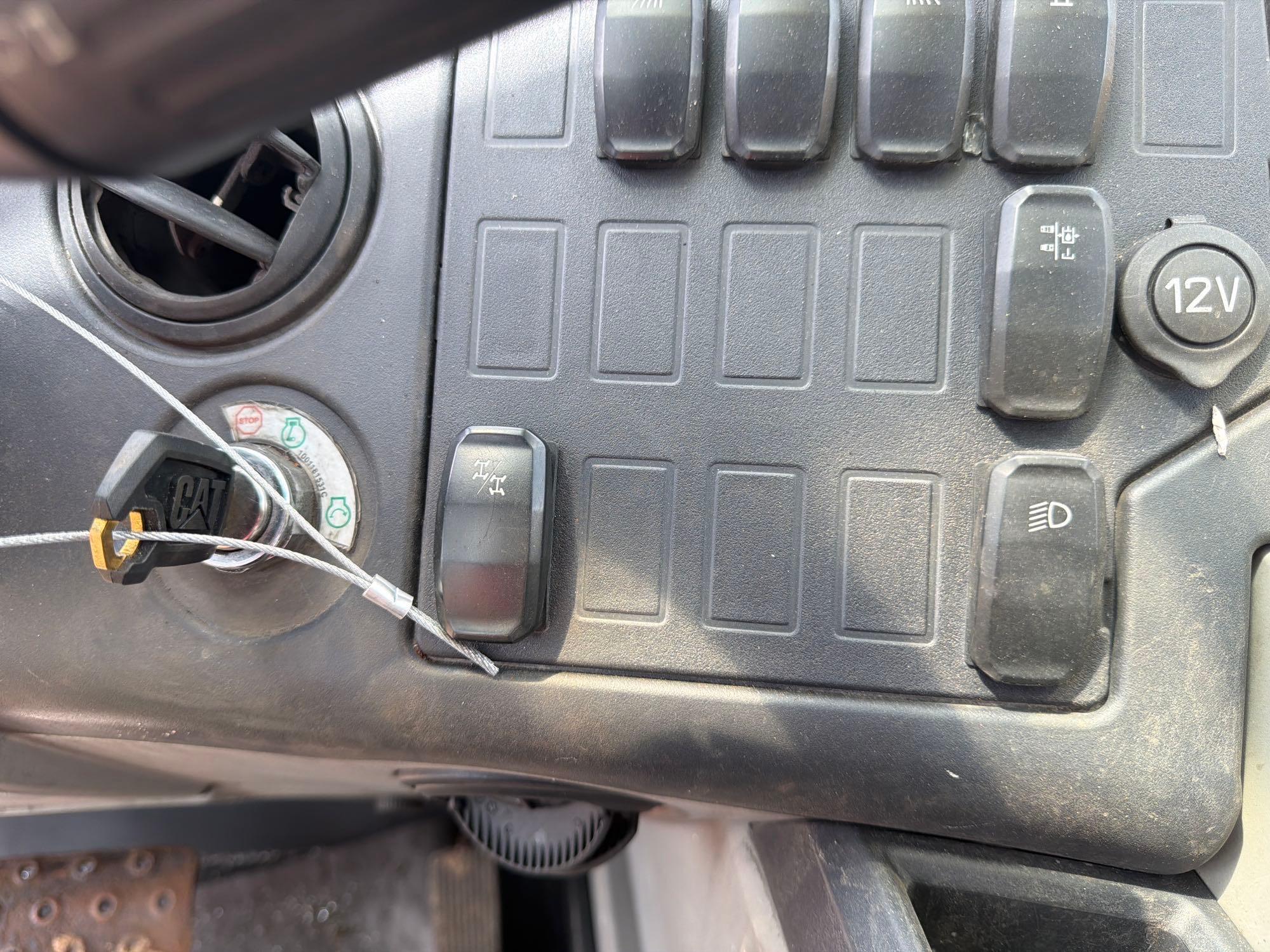

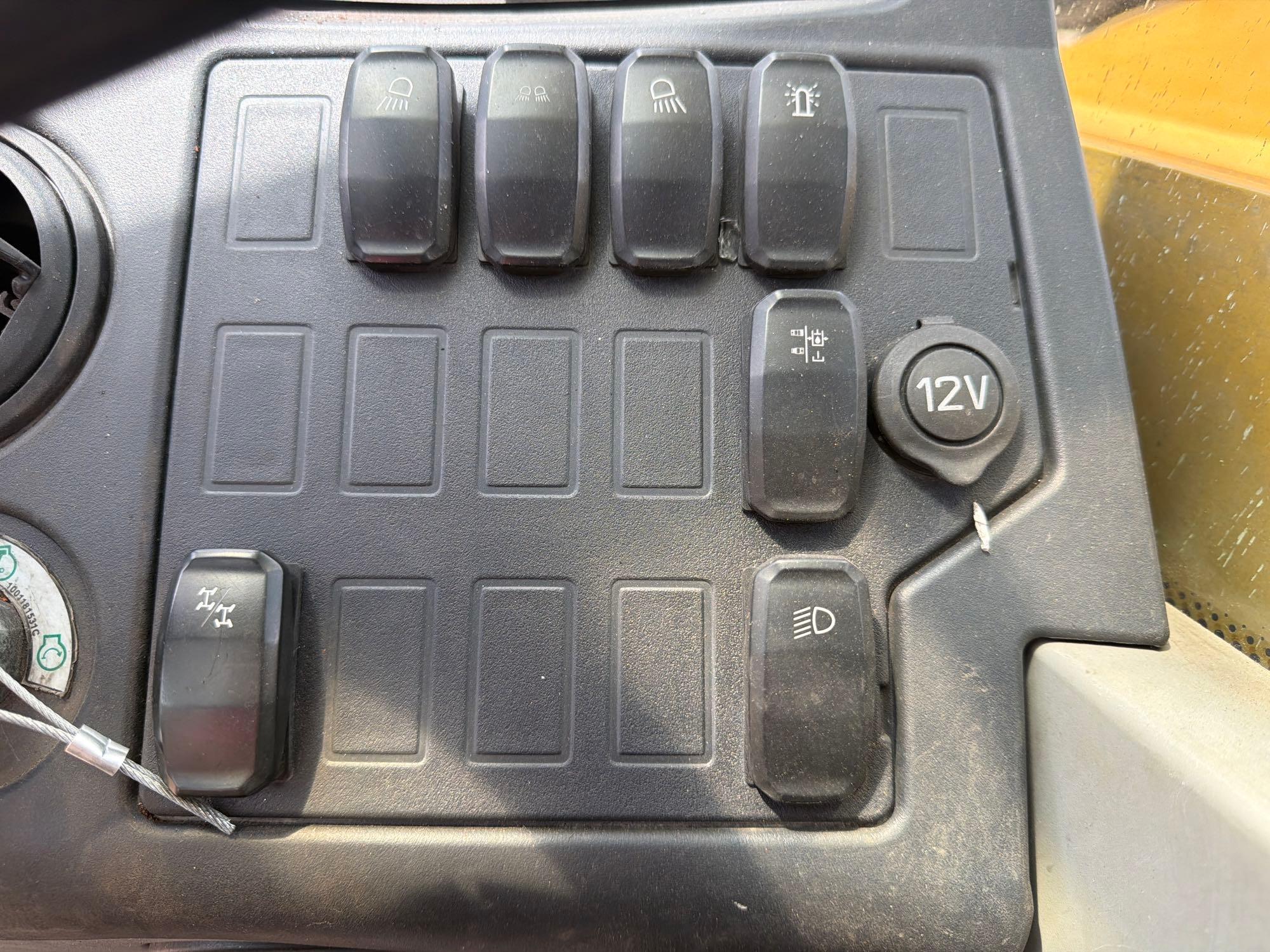

| Instrumentation |
|
Features |
Volt meter hourmeter engine oil pressure gauge fuel gauge water temperature gauge |

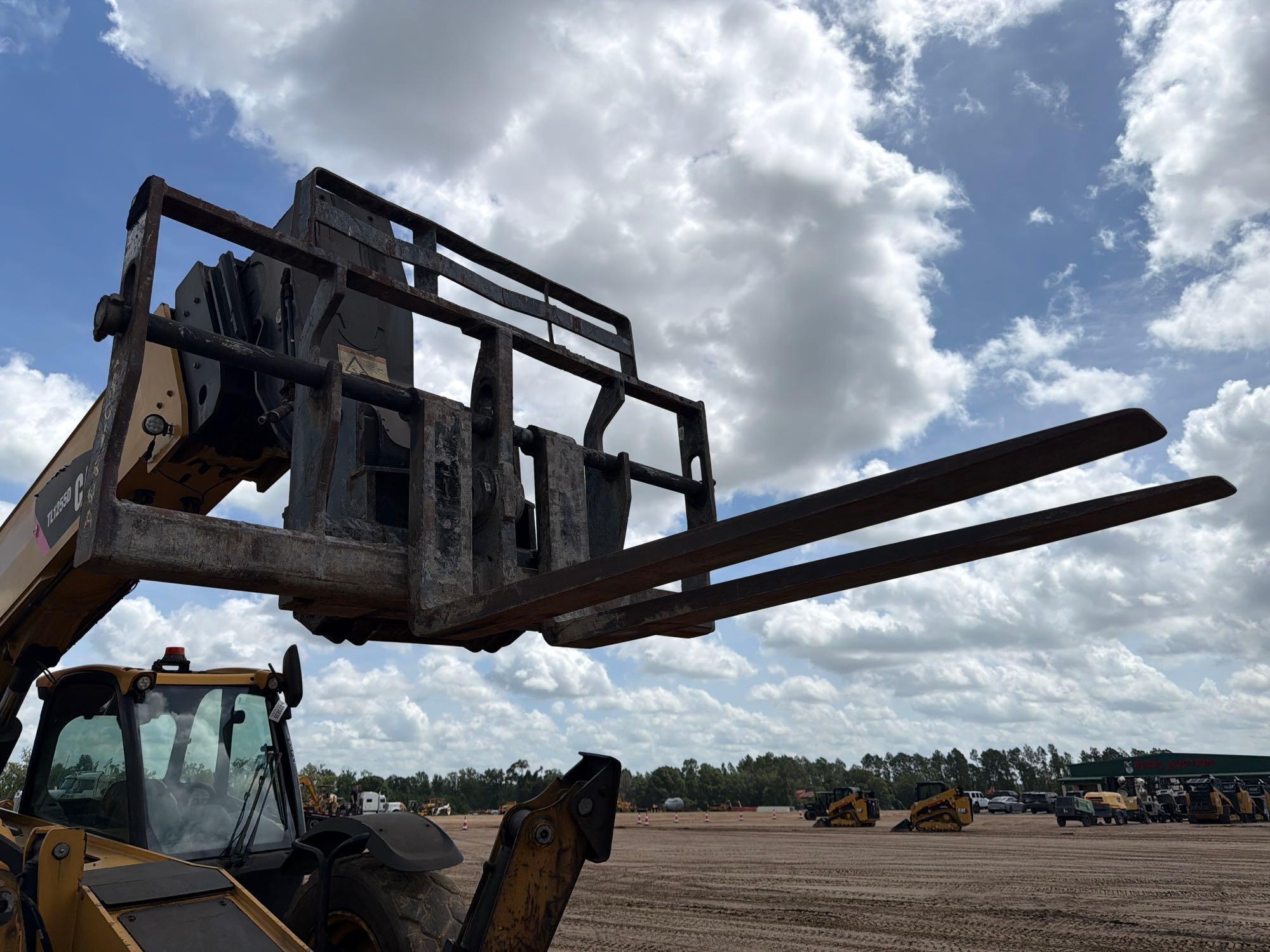

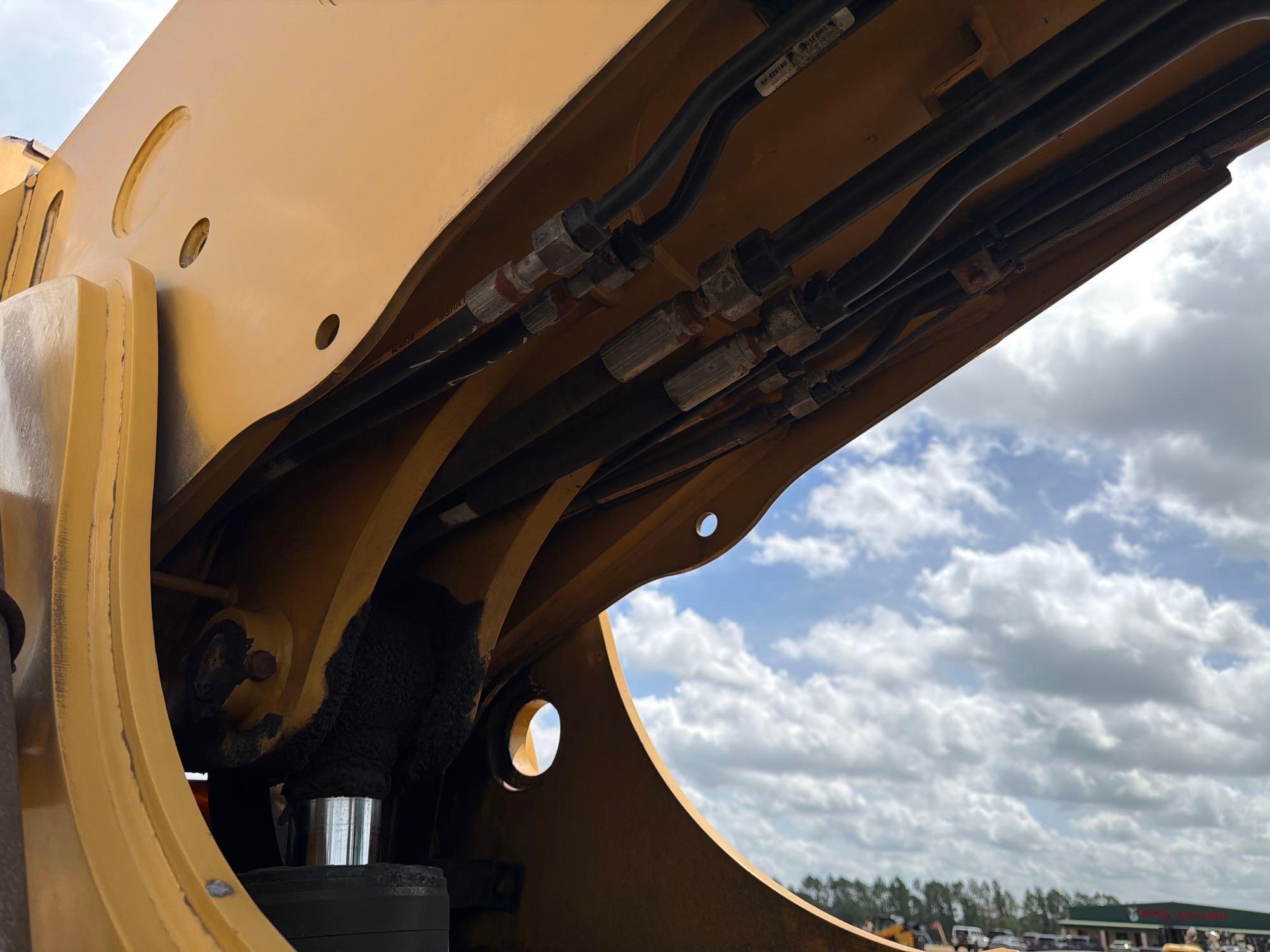

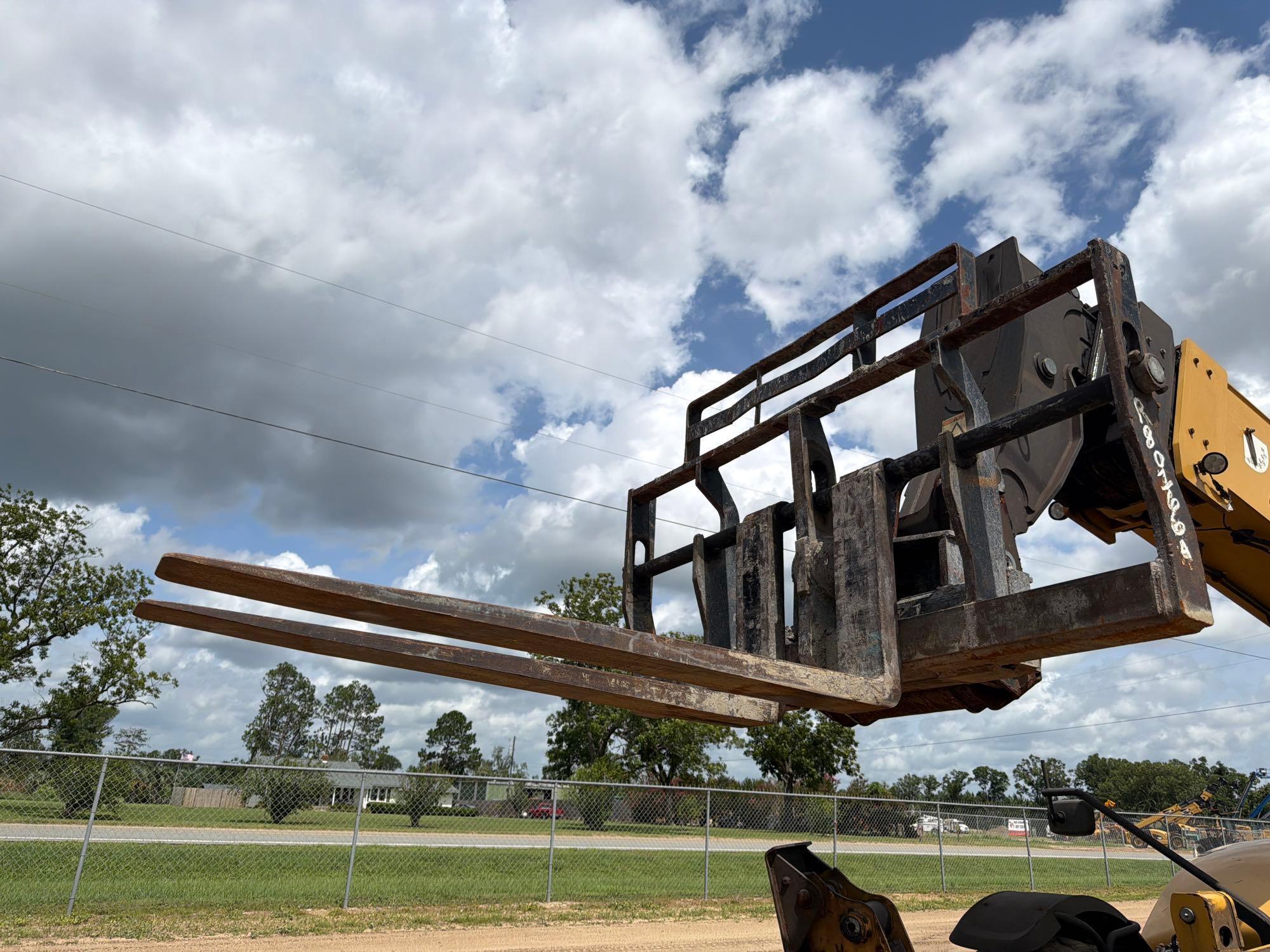

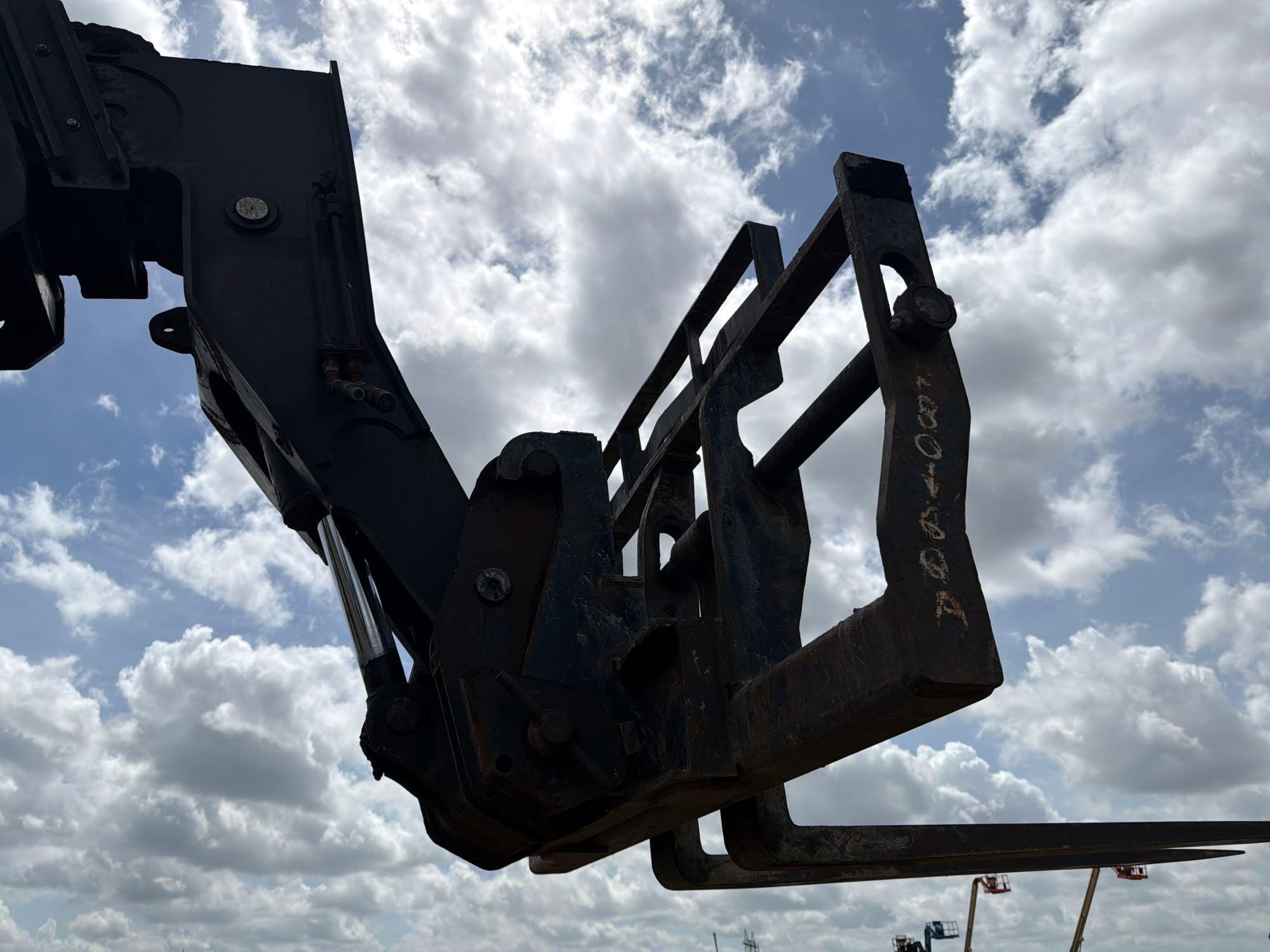

| Lift System |
|
Max Forward Reach |
43 ft (13 m)
|
|
Max Lift Capacity |
12,000 lbs (5,442 kg)
|
|
Max Lift Height |
55 ft (17 m)
|
|
Max Load at Max Height |
5,000 lbs (2,268 kg)
|
|
Max Load at Max Reach |
3,500 lbs (1,587 kg)
|
|
Maximum Forward Reach (Since 2024)
|
41 ft (13 m)
|
|
Maximum lift height (Since 2024)
|
55 ft (17 m)
|
| Operating Specifications |
|
Auxiliary hydraulic flow (Since 2024)
|
15 gpm (55 lpm)
|
|
Auxiliary hydraulic pressure (Since 2024)
|
4,061 psi |
|
Fuel Capacity |
38 gal (144 l)
|
|
Hydraulic System Fluid Capacity |
60 gal (227 l)
|
|
Load at Maximum Height |
5,000 lbs (2,268 kg)
|
|

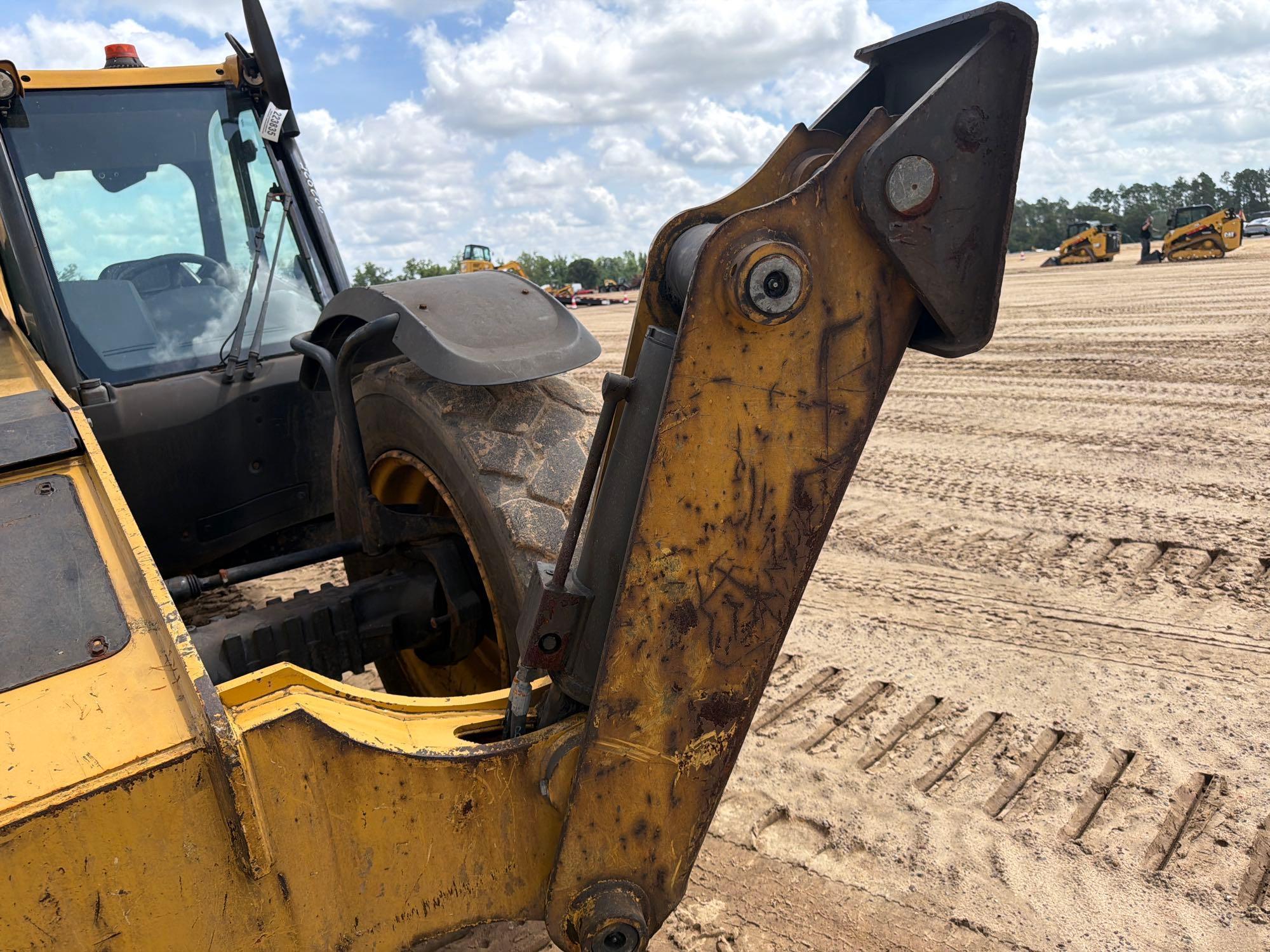

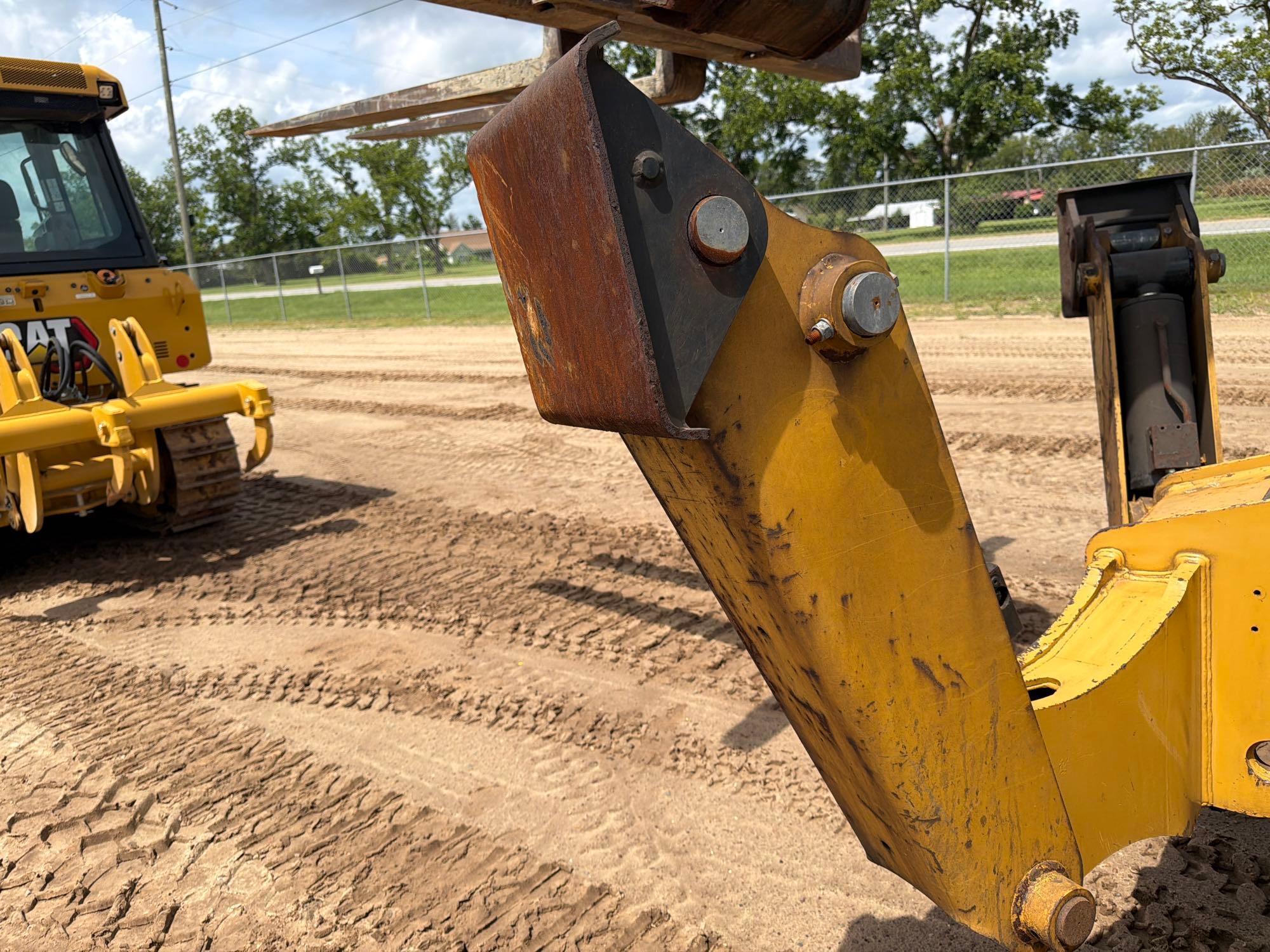

Load at Maximum Height - Stabilizers Down |
5,000 lbs (2,268 kg)
|
|
Load at Maximum Height - Stabilizers Up |
4,000 lbs (1,814 kg)
|
|
Load at Maximum Reach |
3,499 lbs (1,587 kg)
|
|
Load at Maximum Reach - Stabilizers Down |
3,500 lbs (1,587 kg)
|
|
Maximum Forward Reach |
43 ft (13 m)
|
|
Maximum Lift Height |
55 ft (17 m)
|
|
Rated Load Capacity |
12,000 lbs (5,442 kg)
|
|
Tire Size |
17.50 x 25-12 PR |
|
Top Travel Speed |
19 mph (30 kph)
|
|
Travel speed forward |
19 mph (30 kph)
|
|
Travel speed forward (Since 2024)
|
18 mph (29 kph)
|

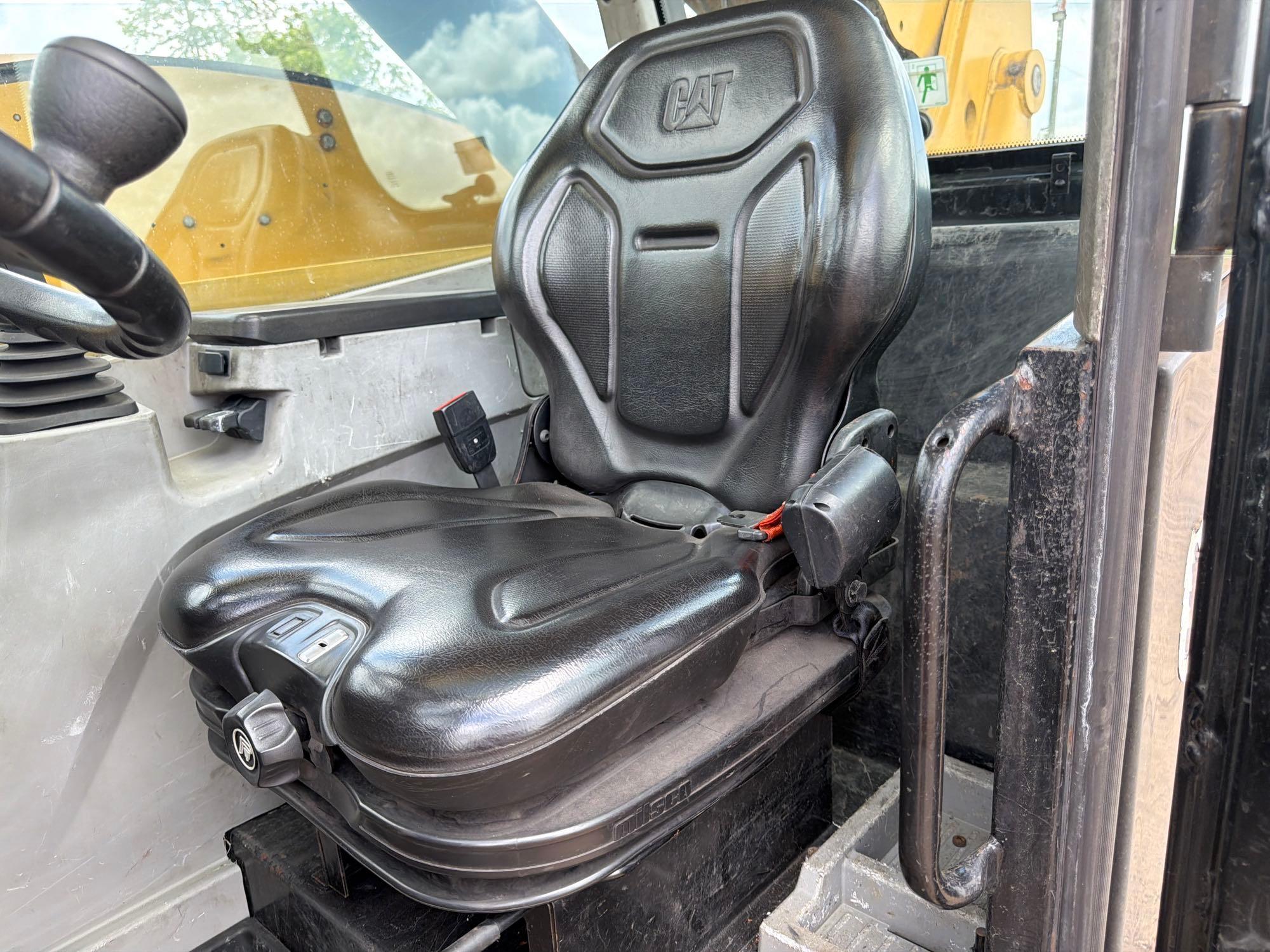

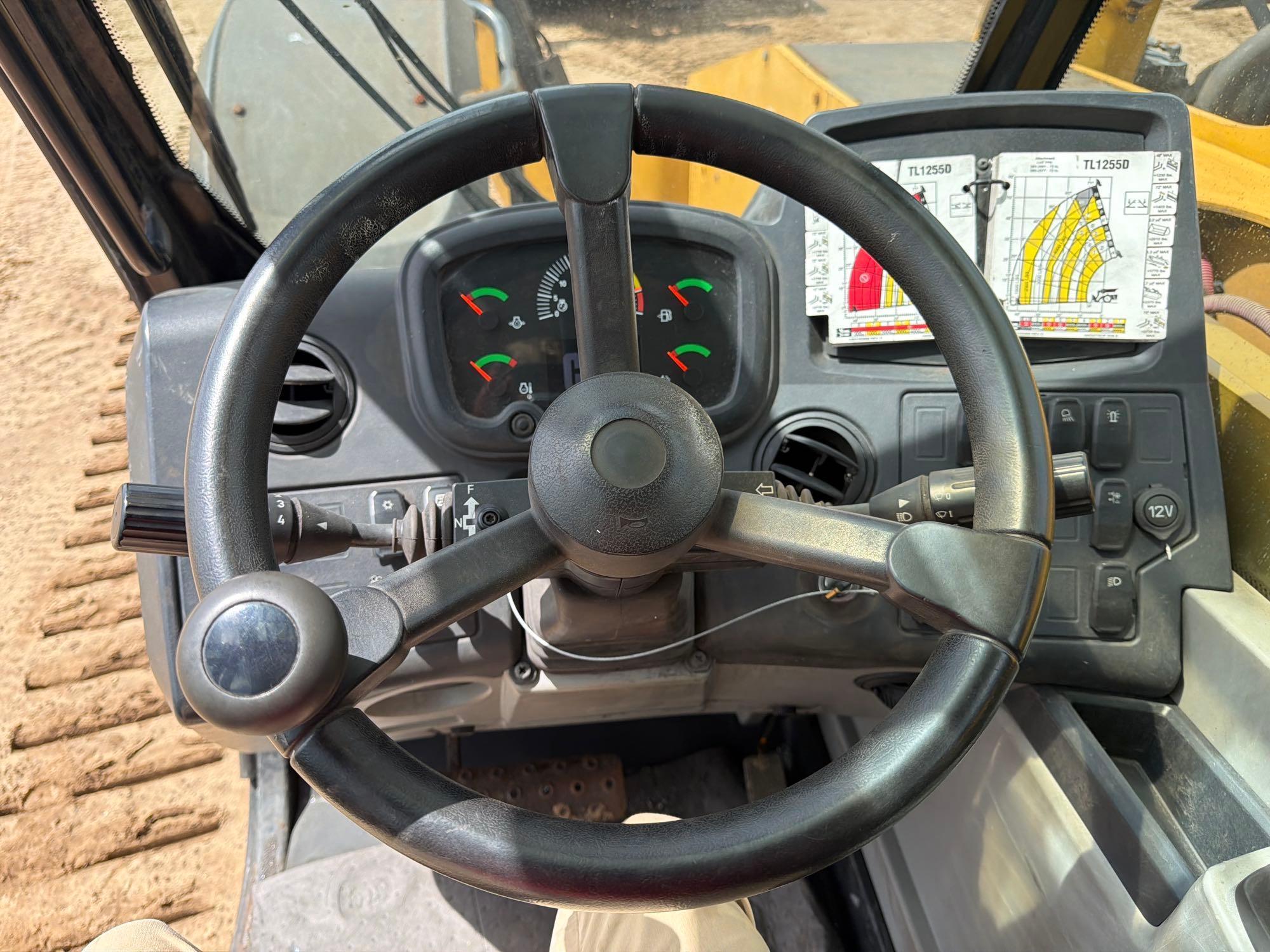

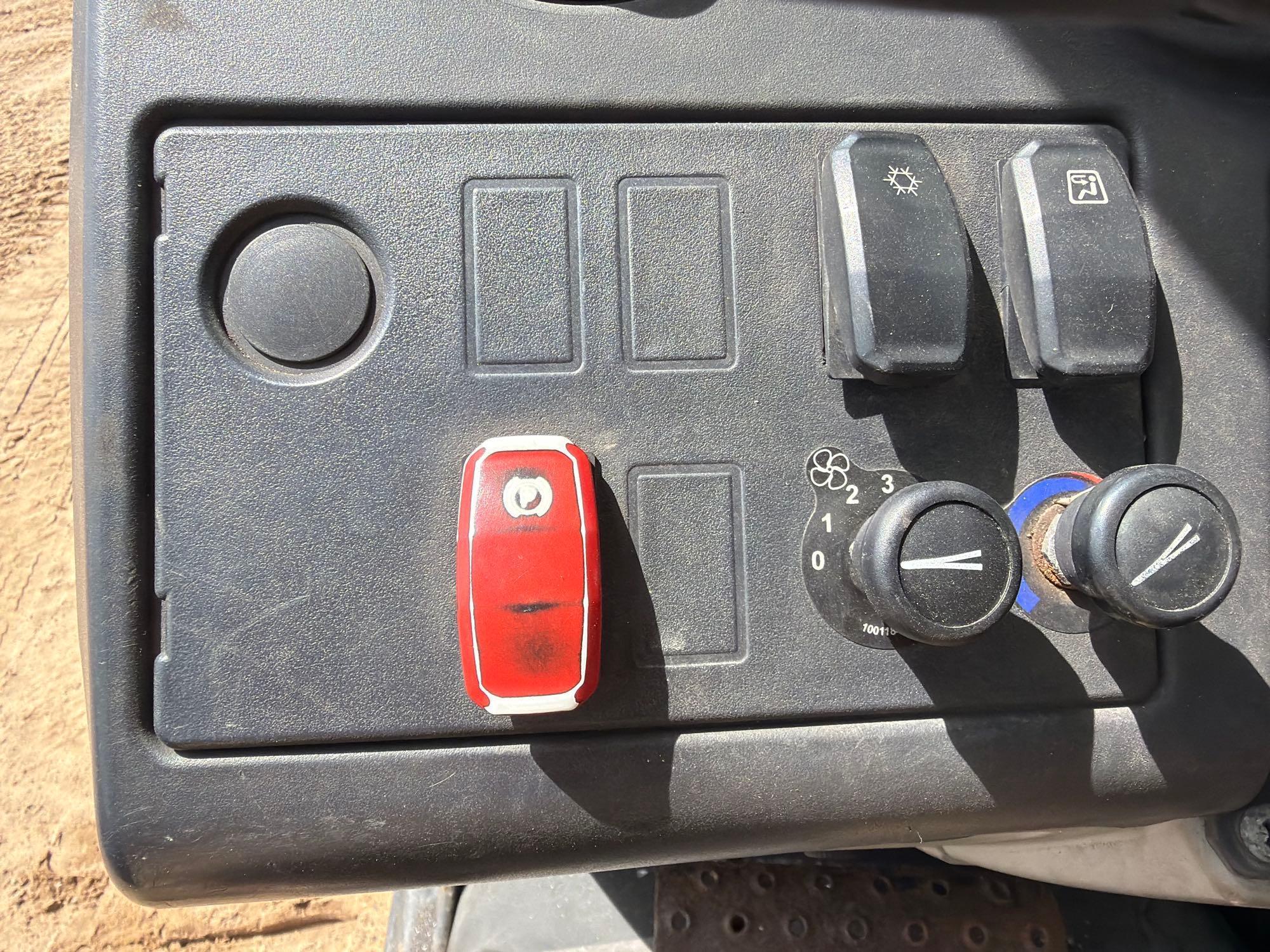

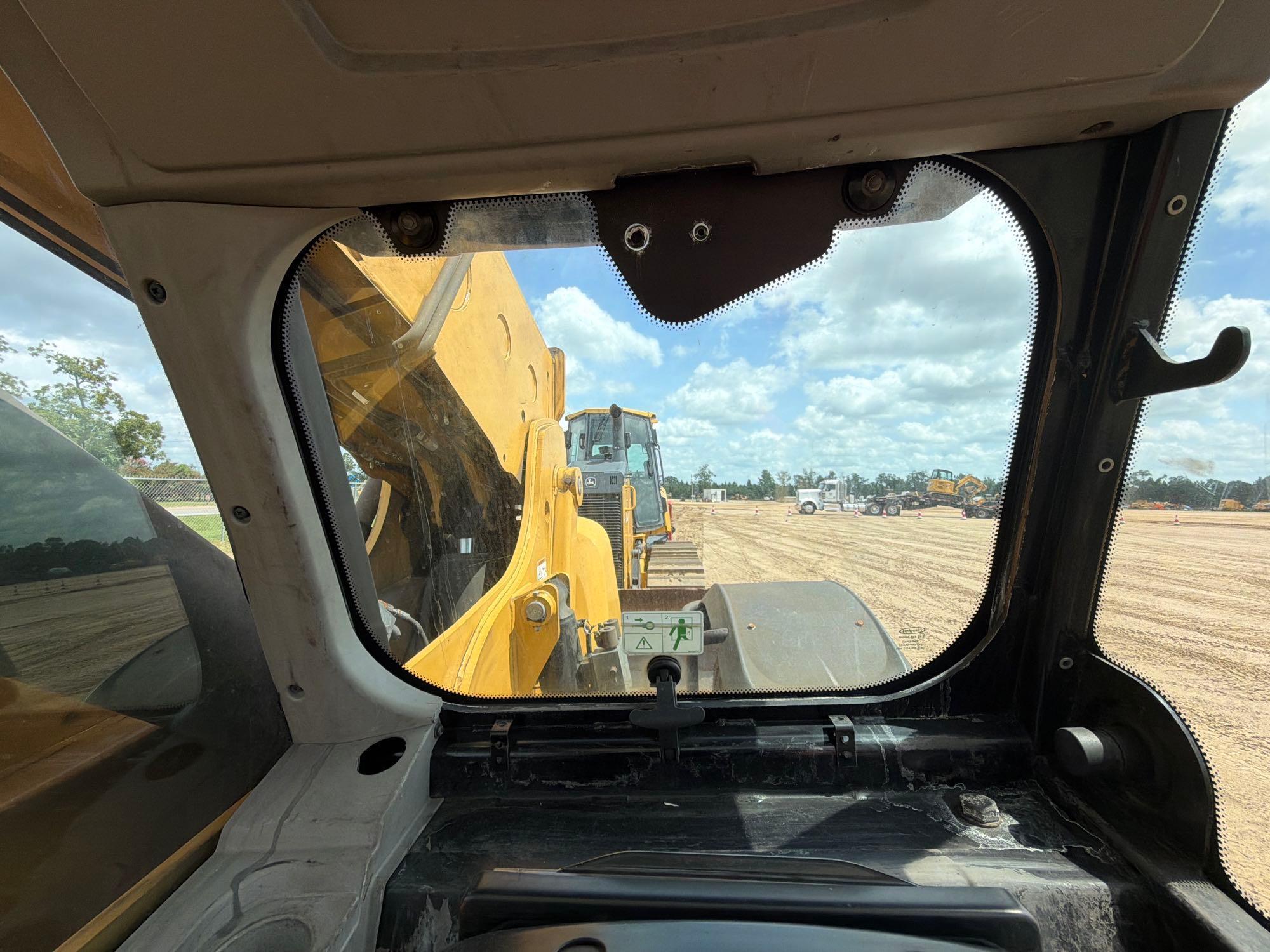

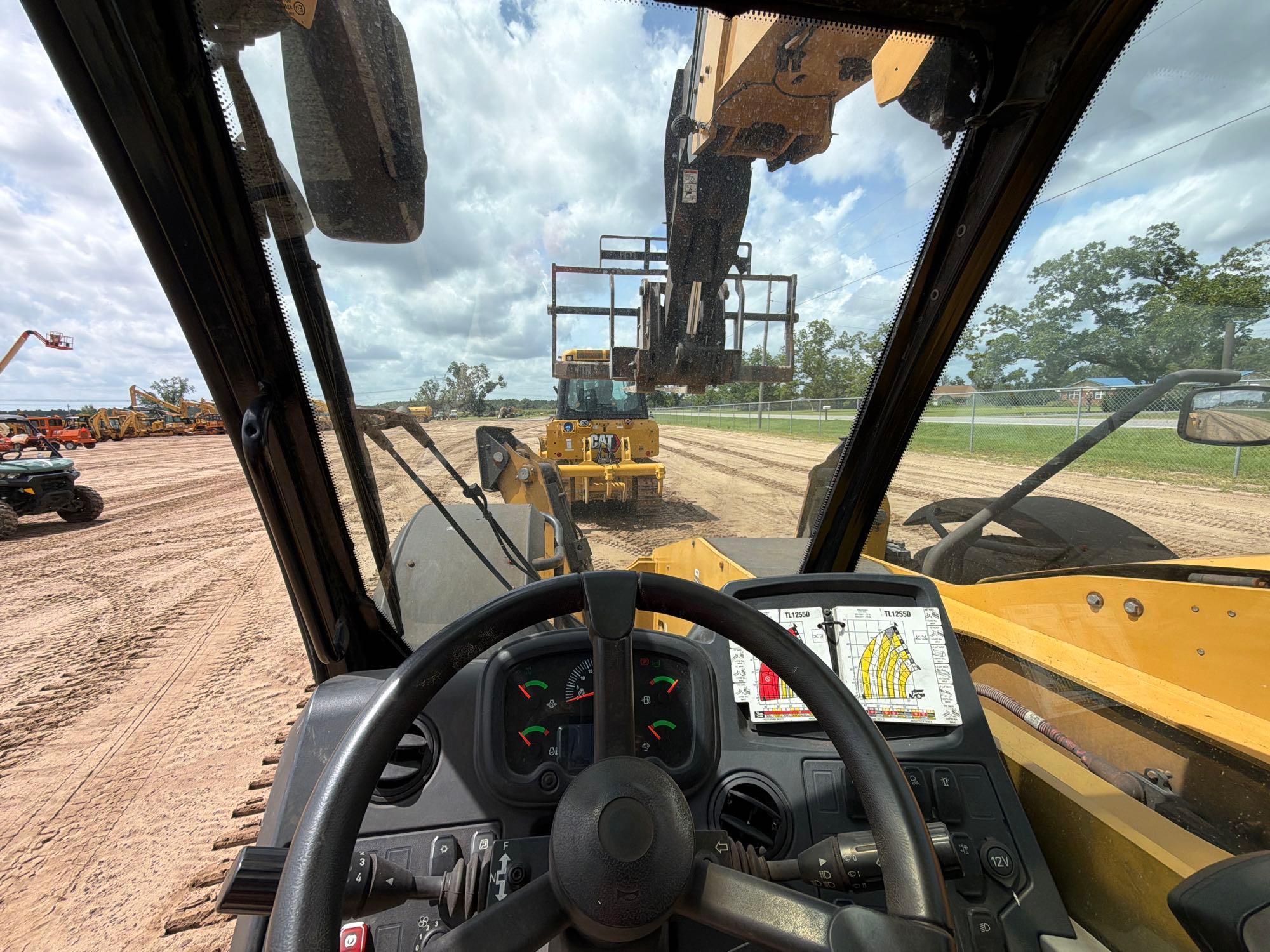

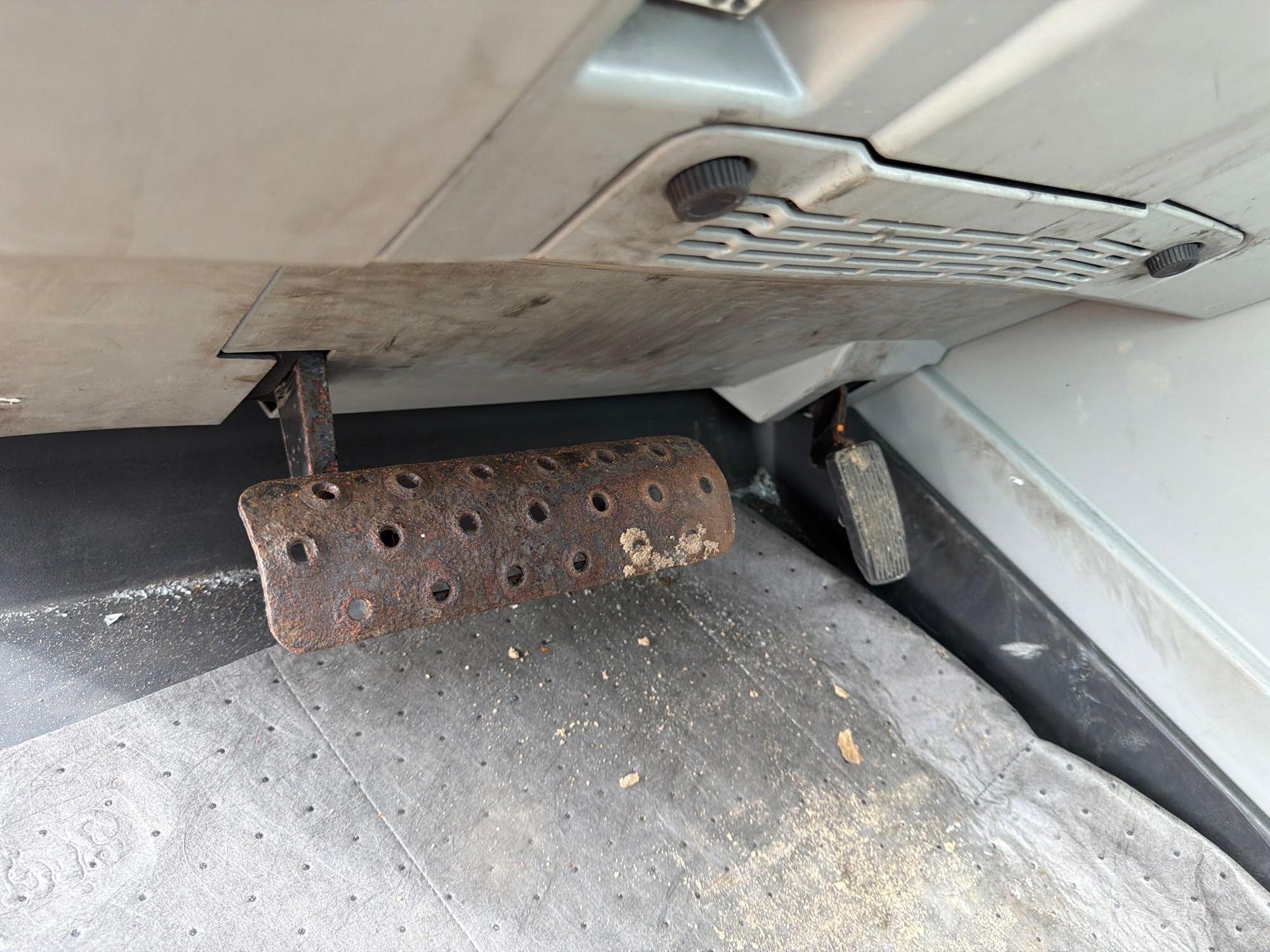

| Operator Station |
|
Features |

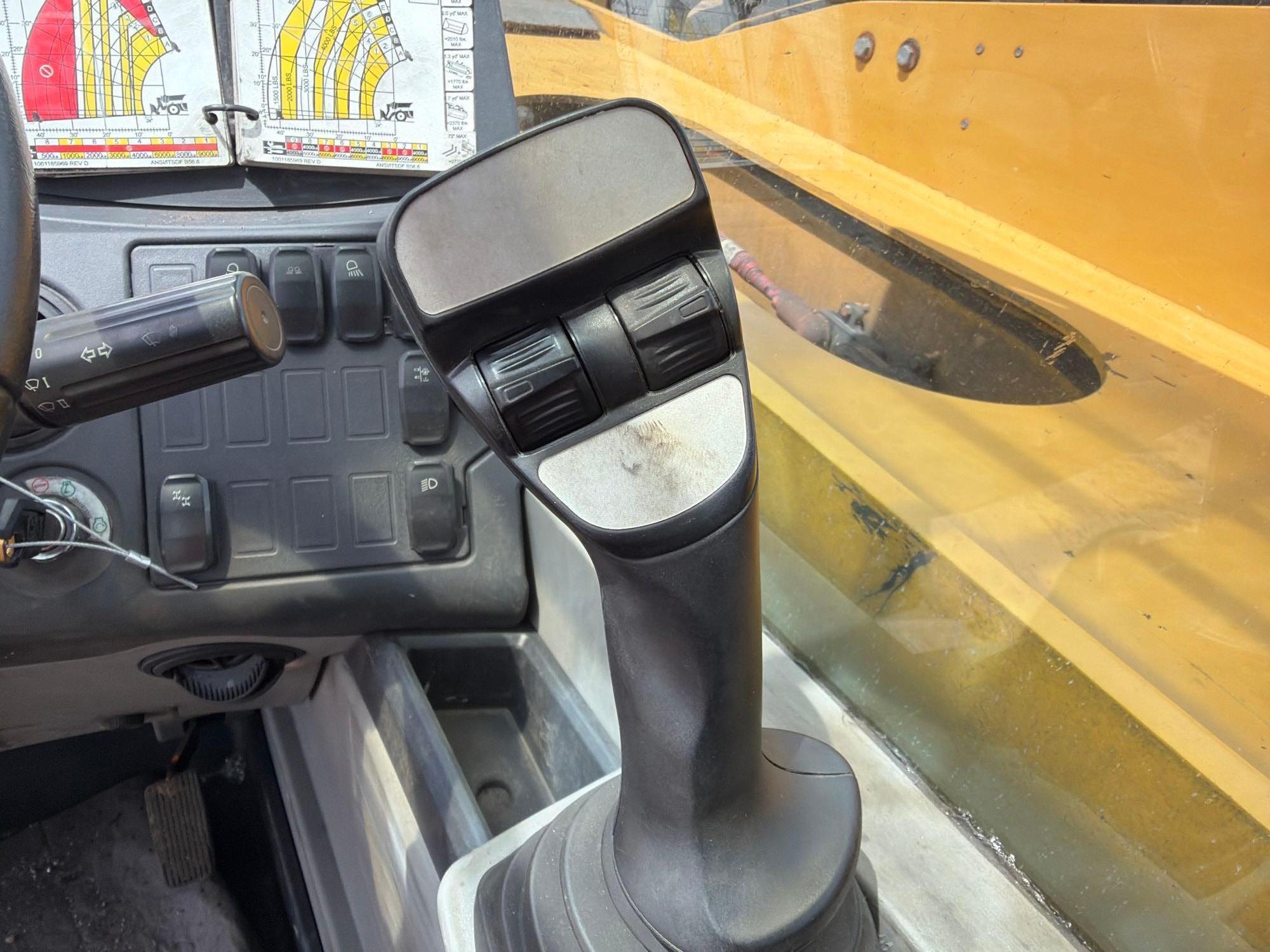

Vinyl suspension seat single electronic joystick spacious interior ergonomic cab |
| Service Refill Capacities |
|
Fuel Tank |
38 gal (144 l)
|
|
Hydraulic System |
60 gal (227 l)
|
|
Hydraulic Tank |
60 gal (227 l)
|

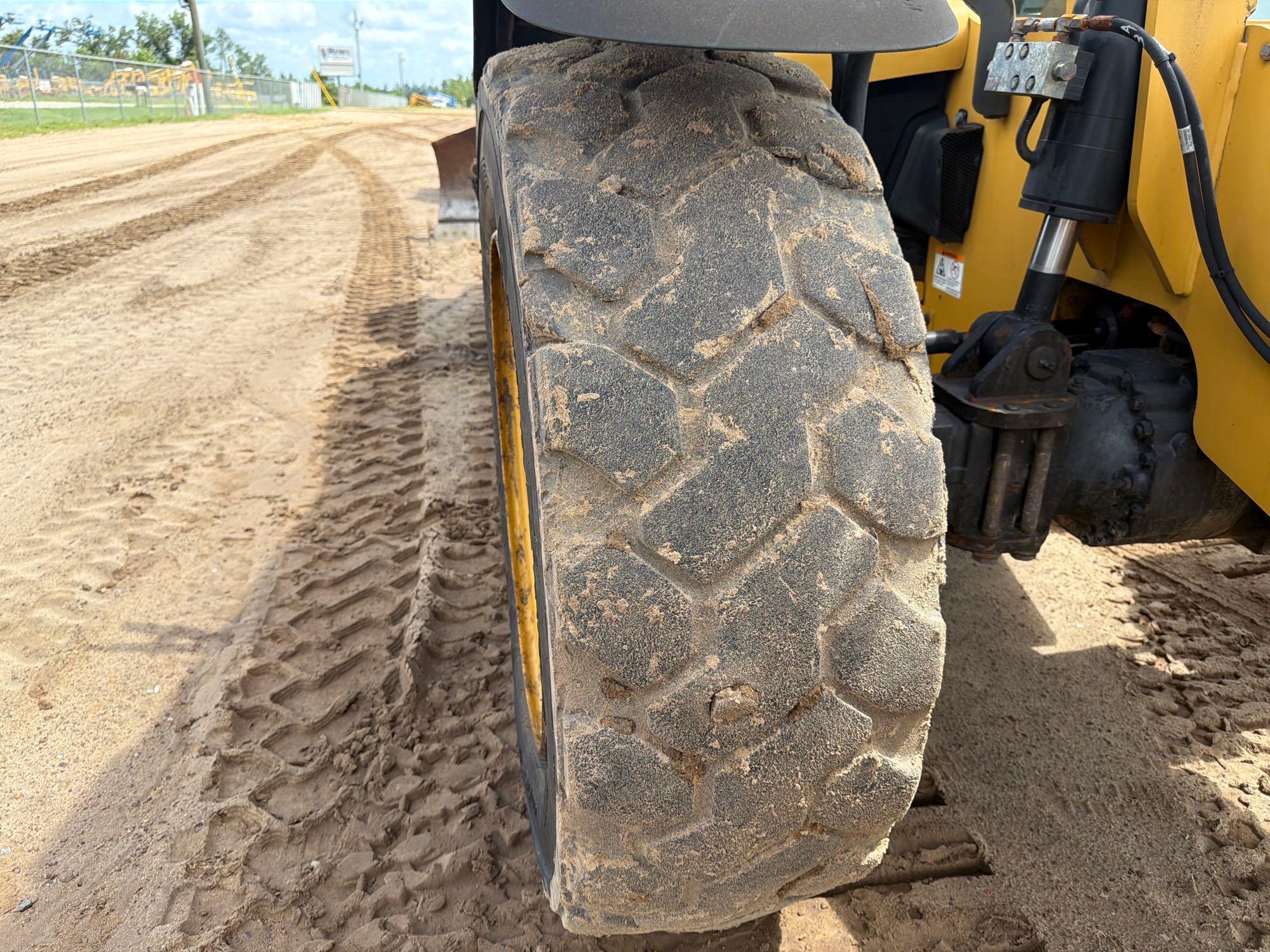

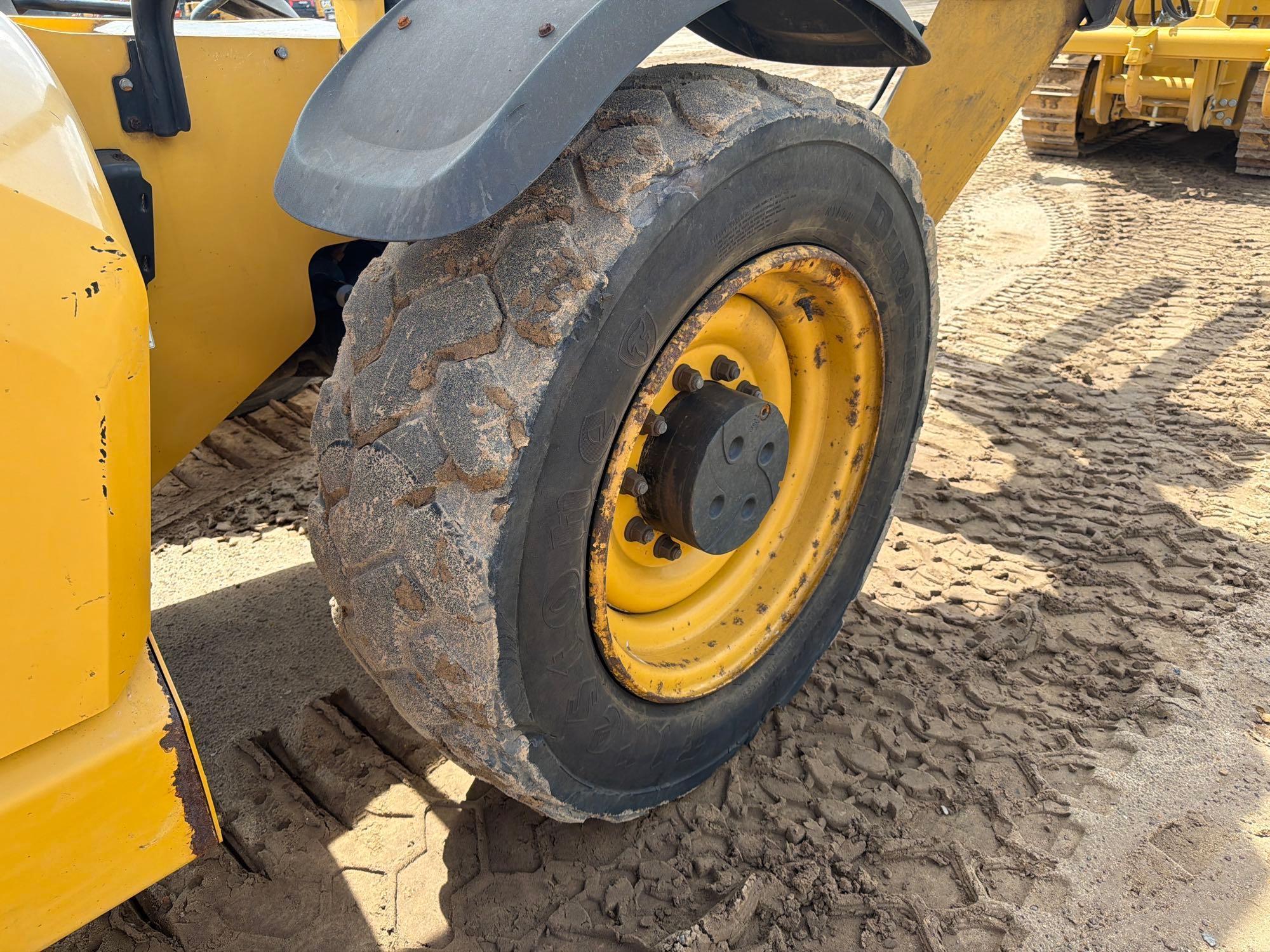

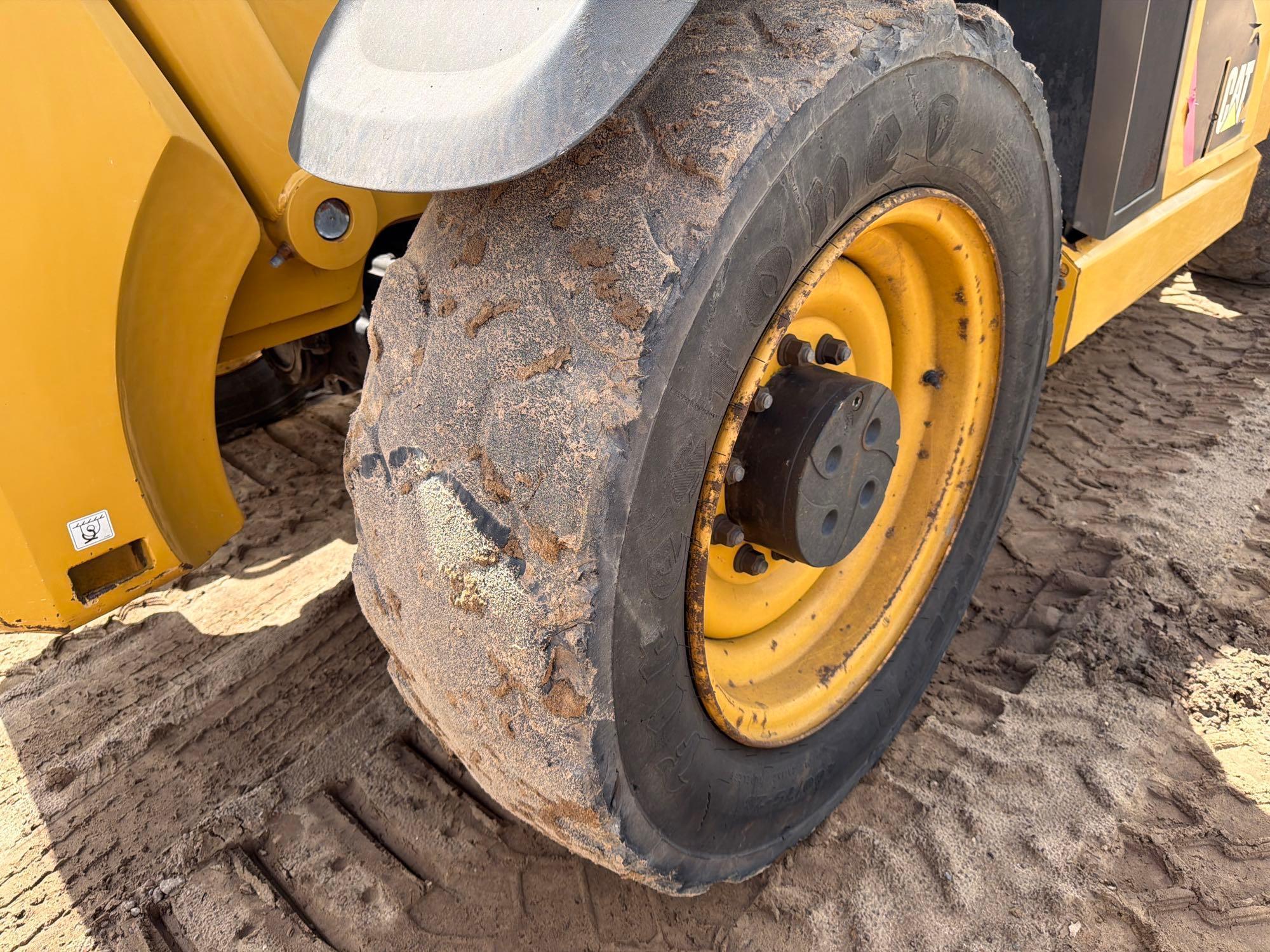

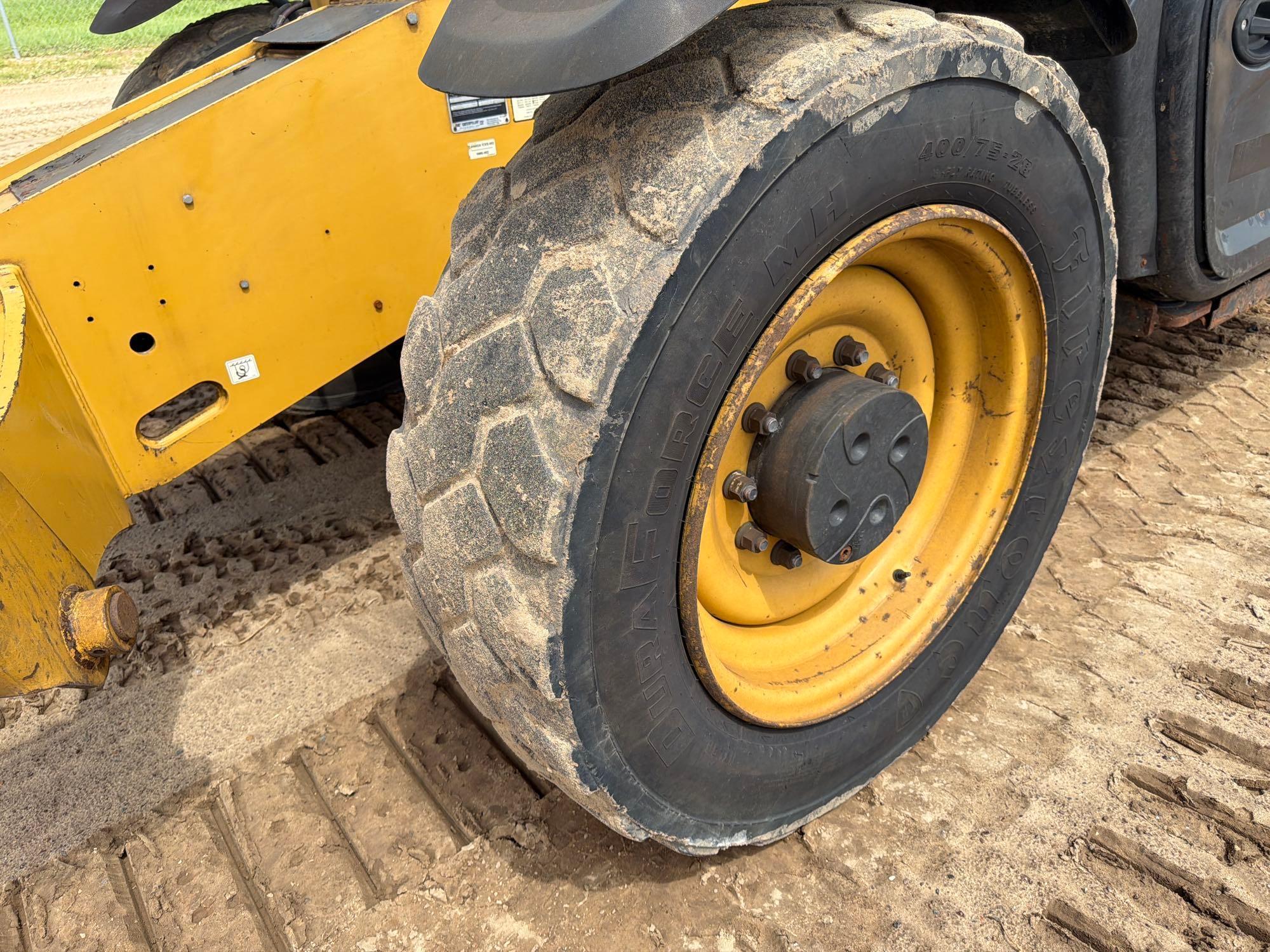

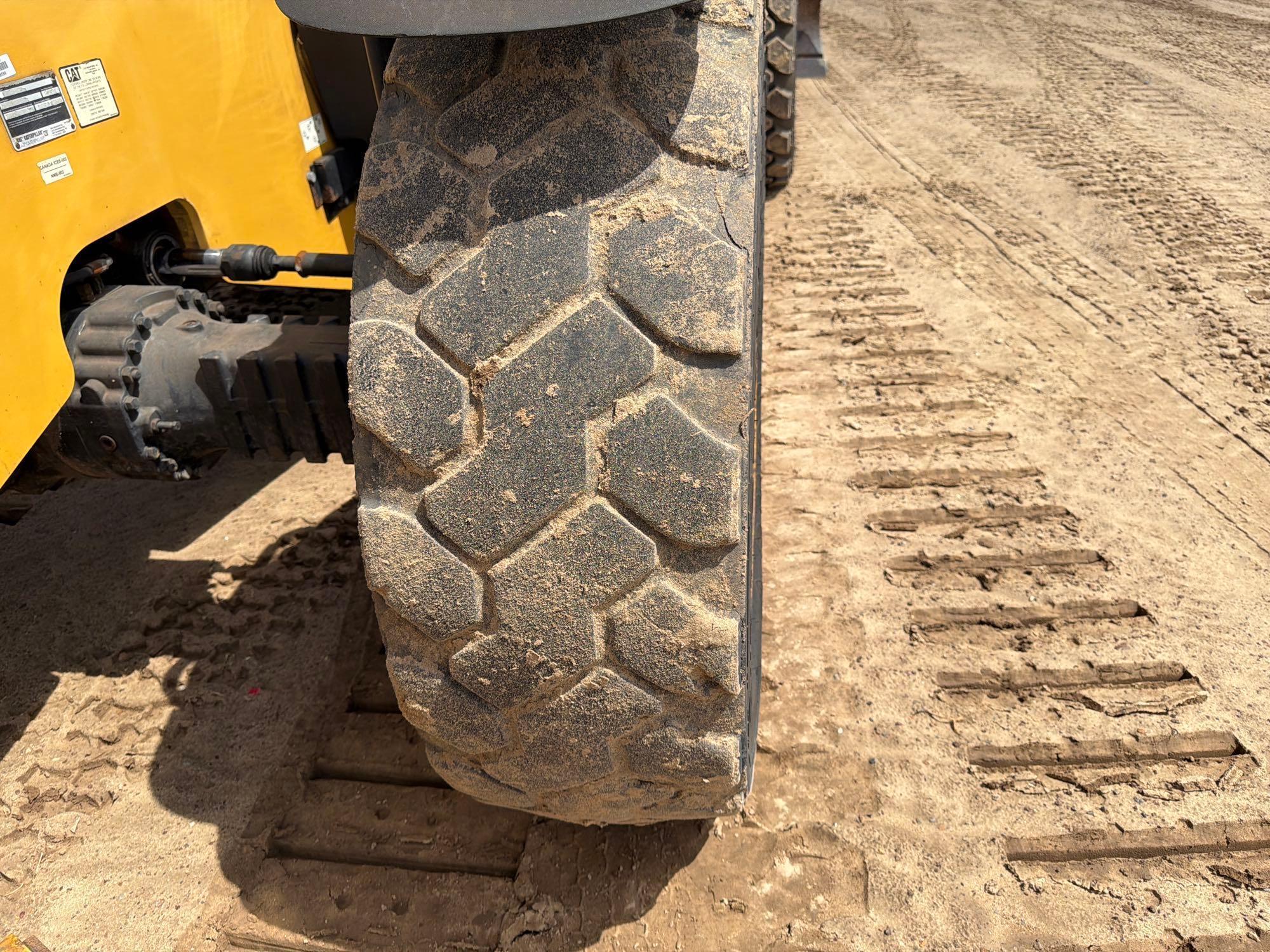

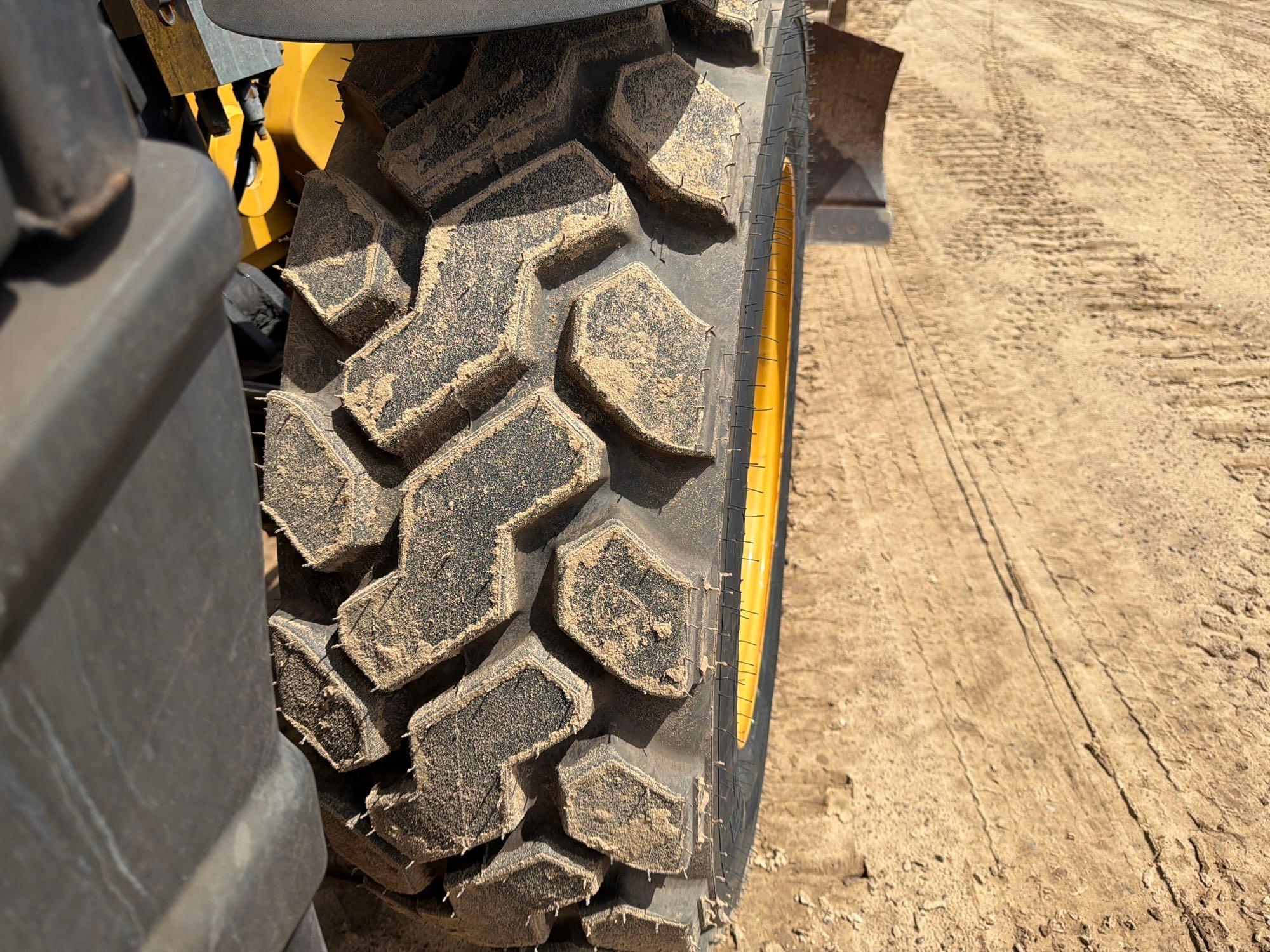

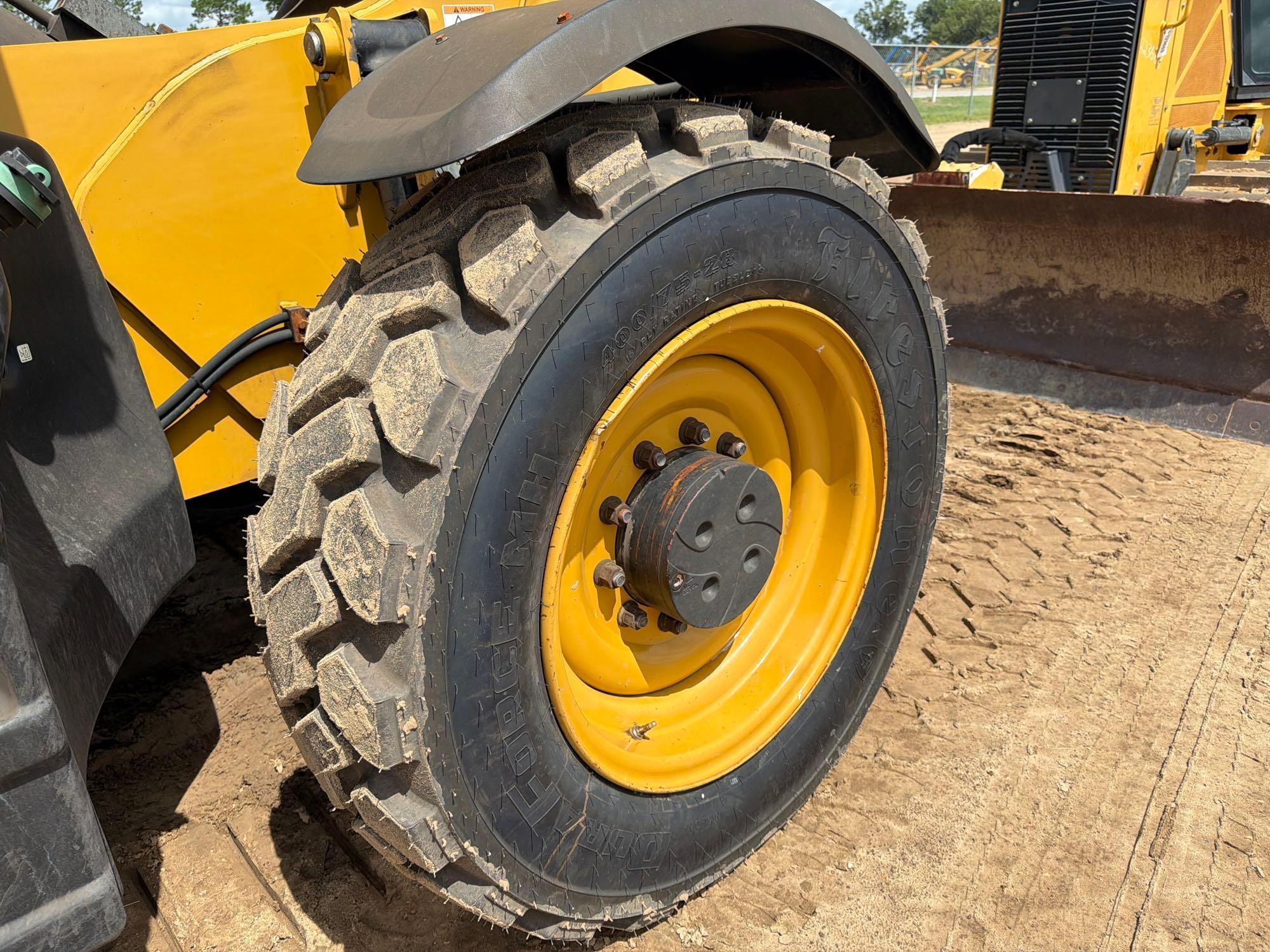

| Tires |
|
Optional Construction |
17.50 x 25 Foam Filled Rock Lug or 14.00 x 24 Solid |
|
Standard |
17.50 x 25 - 12 PR |
| Transmission |
|
Number of Forward Gears |
4 |
|
Number of Reverse Gears |
3 |
| Weights |
|
Operating Weight |
35,400 lbs (16,054 kg)
|
|
Operating Weight |
35,644 lbs (16,165 kg)
|
|
Operating Weight (Since 2023)
|
34,182 lbs (15,502 kg)
|
|
Operating weight (Since 2024)
|
31,238 lbs (14,167 kg)
|
