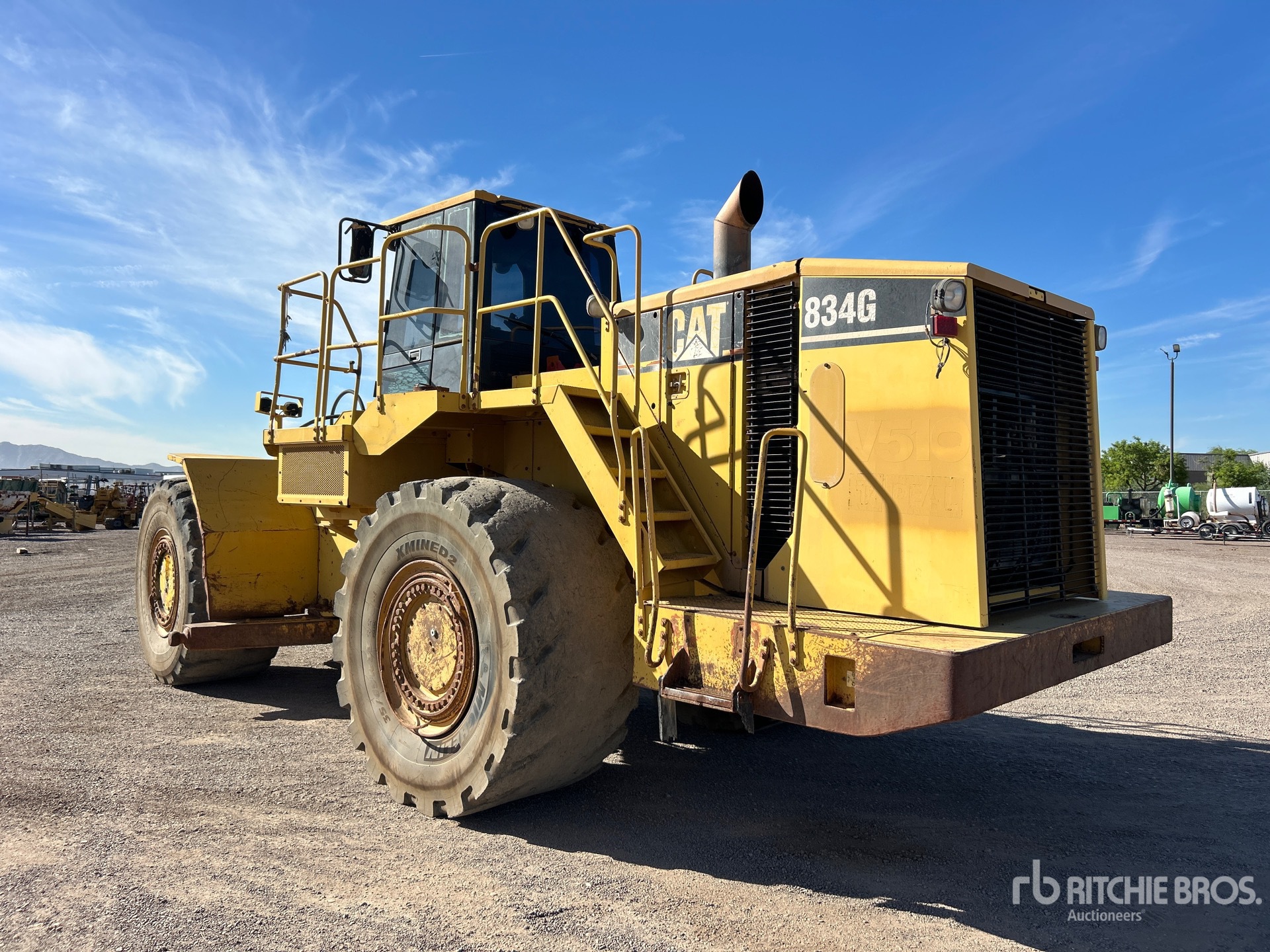

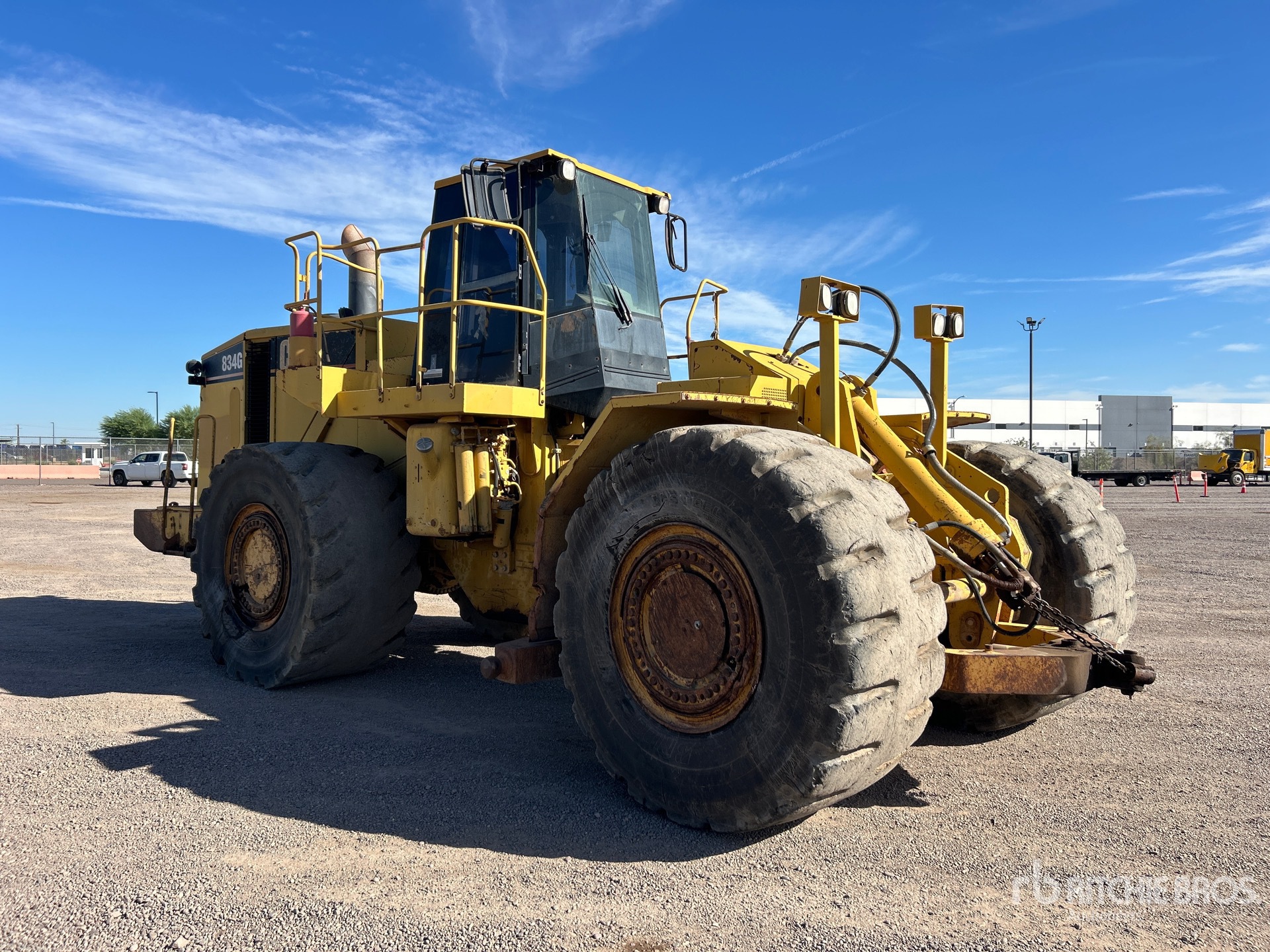

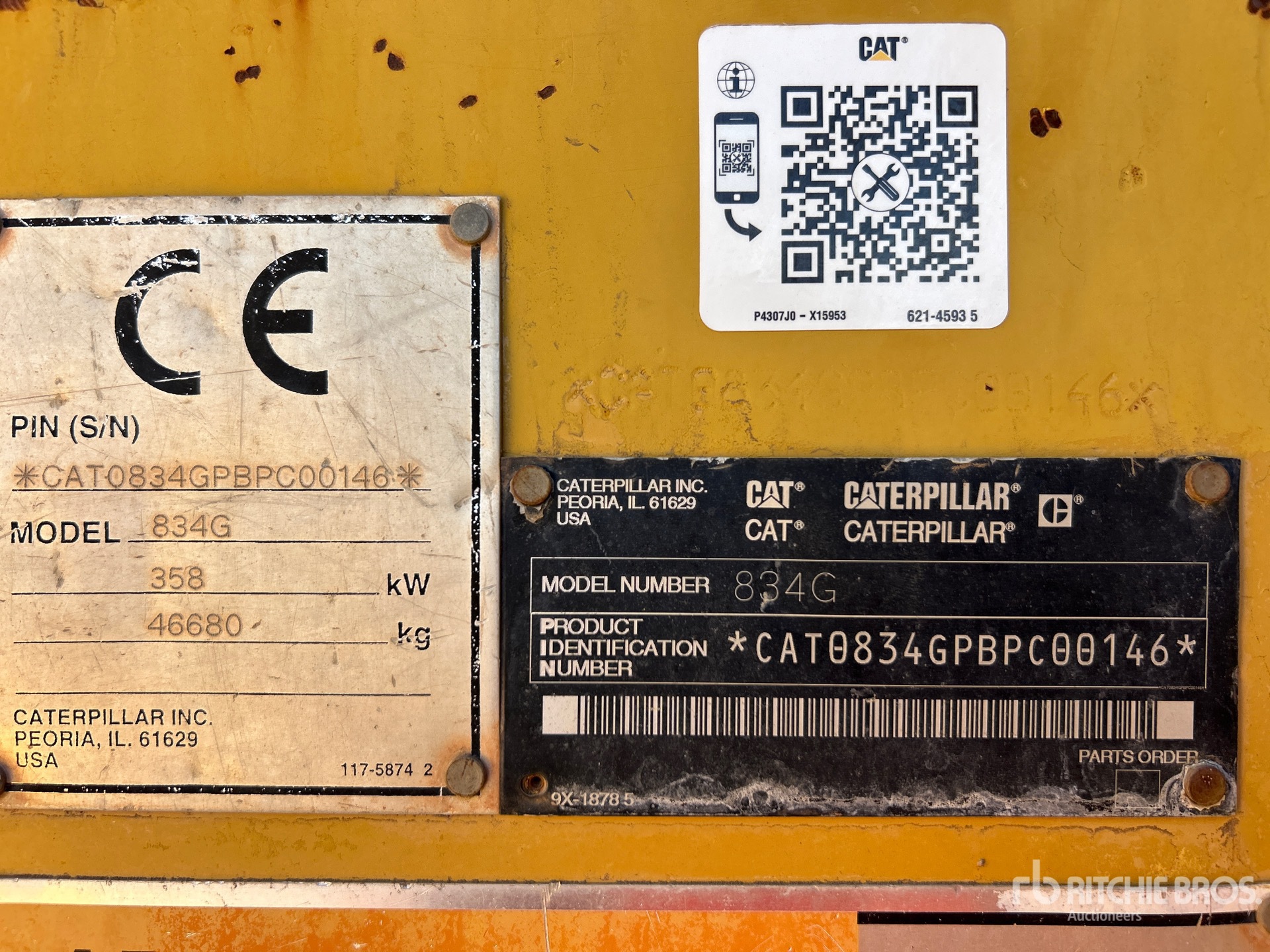

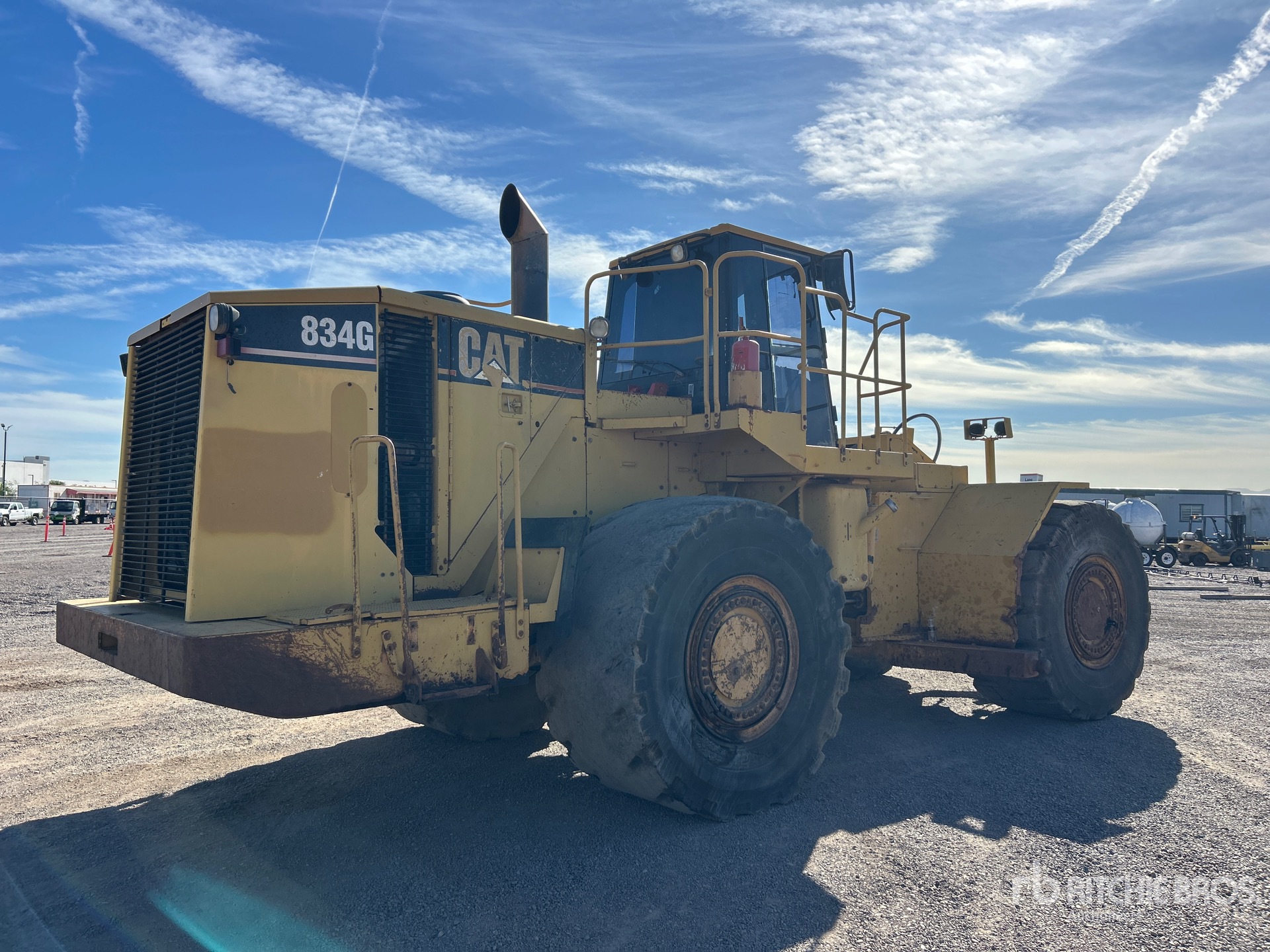

| Axles |
|
Front |
Fixed axle |
|
Maximum Single-Wheel Rise And Fall |
18 in (45 cm)
|
|
Rear |
Oscillating +/-13 degrees |
| Blade |
|
Blade Capacity |
11 cu yd |
|
Blade Height |
5 ft (1 m)
|
|
Blade Width |
17 ft (5 m)
|
| Blade Specifications |
|
Blade Capacities |
7.9 to 22.2 m3 10.3 to 29 yd3 |
|
Coal Blade - Capacity |
29 cu yd |
|
Coal Blade - Digging Depth |
18 ft (6 m)
|
|
Coal Blade - Ground Clearance |
46 ft (14 m)
|
|
Coal Blade - Height |
77 ft (23 m)
|
|
Coal Blade - Maximum Tilt |
58 ft (18 m)
|
|
Coal Blade - Overall Width |
224 ft (68 m)
|
|
Coal Blade - Total Operating Weight |
106,252 lbs (48,195 kg)
|
|
Coal Blade - Weight |
9,450 lbs (4,286 kg)
|
|
Maximum Lift Above Ground |
4 ft (1 m)
|
|
Moldboard - Length |
19 ft (6 m)
|
|
Straight Blade - Capacity |
10 cu yd |
|
Straight Blade - Digging Depth |
22 ft (7 m)
|
|
Straight Blade - Ground Clearance |
50 ft (15 m)
|
|
Straight Blade - Height |
58 ft (18 m)
|
|
Straight Blade - Maximum Tilt |
50 ft (15 m)
|
|
Straight Blade - Overall Width |
200 ft (61 m)
|
|
Straight Blade - Total Operating Weight |
103,849 lbs (47,105 kg)
|
|
Straight Blade - Weight |
7,047 lbs (3,196 kg)
|
|
Universal Blade - Capacity |
15 cu yd |
|
Universal Blade - Digging Depth |
22 ft (7 m)
|
|
Universal Blade - Ground Clearance |
50 ft (15 m)
|
|
Universal Blade - Height |
58 ft (18 m)
|
|
Universal Blade - Maximum Tilt |
50 ft (15 m)
|
|
Universal Blade - Overall Width |
203 ft (62 m)
|
|
Universal Blade - Total Operating Weight |
106,844 lbs (48,464 kg)
|
|
Universal Blade - Weight |
10,042 lbs (4,555 kg)
|
| Brakes |
|
Brakes |
Meet SAE/ISO 3450 1996. |
| Cab |
|
Cab |
ROPS/FOPS is standard. |
|
Rops/Fops |
Meets SAE and ISO standards. |
|
Sound Performance Levels |
Meets ANSI/SAE, SAE and ISO standards. |
| Dimensions |
|
Ground Clearance |
2 ft (1 m)
|
|
Height - Top Of Cab |
13 ft (4 m)
|
|
Height To Top Of Cab |
13 ft (4 m)
|
|
Length - With Blade On Ground |
32 ft (10 m)
|
|
Length With Blade On Ground |
34 ft (10 m)
|
|
Wheel Base |
15 ft (5 m)
|
|
Wheelbase |
15 ft (5 m)
|
|
Width Over Tires |
11 ft (3 m)
|
| Engine |
|
Bore |
6 in (14 cm)
|
|
Converter Drive Net Power - Caterpillar |
481 hp (359 kw)
|
|
Converter Drive Net Power - Eec 80/1269 |
481 hp (359 kw)
|
|
Converter Drive Net Power - Iso 9249 |
481 hp (359 kw)
|
|
Converter Drive Net Power - Sae J1349 (Jan90) |
477 hp (356 kw)
|
|
Direct Drive Net Power - Caterpillar |
451 hp (336 kw)
|
|
Direct Drive Net Power - Eec 80/1269 |
451 hp (336 kw)
|
|
Direct Drive Net Power - Iso 9249 |
451 hp (336 kw)
|
|
Direct Drive Net Power - Sae J1349 (Jan90) |
446 hp (333 kw)
|
|
Displacement |
964 cu in (15,800 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
3456 DITA |
|
Engine Model |
Cat 3456 Diesel |
|
Flywheel Power |
481 hp (359 kw)
|
|
Net Power |
480 hp (358 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
1,900 rpm |
|
Stroke |
7 in (17 cm)
|
| Hydraulic System |
|
Gear Pump Output At 1,900 Rpm And 24 000 Kpa (3,480 Psi) |
50 gpm (188 lpm)
|
|
Left Tilt And Tip, Bore And Stroke |
139.75 x 276 mm 5.5 x 10.9 in |
|
Lift Cylinder, Bore And Stroke |
139.75 mm x 1021 mm 5.5 in x 40.2 in |
|
Relief Valve Setting |
4,206 psi |
|
Right Tilt And Tip, Bore And Stroke |
152.4 mm x 276 mm 6 in x 10.9 in |
|
Steering Cylinder, Bore And Stroke |
114.3 mm x 740 mm 4.5 in x 29.1 in |
| Operating Specifications |
|
Ground Clearance |
2 ft (1 m)
|
| Operational |
|
Fuel Capacity |
212 gal (803 l)
|
|
Operating Weight |
103,851 lbs (47,106 kg)
|
|
Tire Size |
35/65-R33 24PR |
| Service Refill Capacities |
|
Cooling System |
25 gal (95 l)
|
|
Crankcase |
16 gal (60 l)
|
|
Differential - Final Drives - Front |
49 gal (186 l)
|
|
Differential - Final Drives - Rear |
49 gal (186 l)
|
|
Fuel Tank - Standard |
210 gal (795 l)
|
|
Hydraulic Tank |
37 gal (140 l)
|
|
Transmission |
19 gal (72 l)
|
| Steering |
|
Steering |
Meets SAE J1511 FEB94/ISO 5010:1992 stds. |
|
Turning Radius - With Straight Blade |
29 ft (9 m)
|
| Tires |
|
Standard Tire Size |
35/65-33 |
|
Tires |
Four choices with others on request. |
| Transmission |
|
Converter Drive - Forward 1 |
4 mph (7 kph)
|
|
Converter Drive - Forward 2 |
7 mph (12 kph)
|
|
Converter Drive - Forward 3 |
13 mph (21 kph)
|
|
Converter Drive - Forward 4 |
22 mph (36 kph)
|
|
Converter Drive - Reverse 1 |
4 mph (7 kph)
|
|
Converter Drive - Reverse 2 |
8 mph (12 kph)
|
|
Converter Drive - Reverse 3 |
13 mph (22 kph)
|
|
Direct Drive - Forward 1 |
Lock-up Disabled in Forward 1 |
|
Direct Drive - Forward 2 |
8 mph (12 kph)
|
|
Direct Drive - Forward 3 |
14 mph (22 kph)
|
|
Direct Drive - Forward 4 |
24 mph (39 kph)
|
|
Direct Drive - Reverse 1 |
5 mph (7 kph)
|
|
Direct Drive - Reverse 2 |
8 mph (13 kph)
|
|
Direct Drive - Reverse 3 |
14 mph (23 kph)
|
|
Forward - 1 |
4 mph (7 kph)
|
|
Forward - 2 |
8 mph (13 kph)
|
|
Forward - 3 |
14 mph (22 kph)
|
|
Forward - 4 |
24 mph (39 kph)
|
|
Max Speed - Forward |
22 mph (36 kph)
|
|
Max Speed - Reverse |
14 mph (22 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Forward Speeds |
4 |
|
Number Of Reverse Gears |
3 |
|
Number Of Reverse Speeds |
3 |
|
Reverse - 1 |
5 mph (7 kph)
|
|
Reverse - 2 |
8 mph (13 kph)
|
|
Reverse - 3 |
14 mph (23 kph)
|
| Weights |
|
Operating Weight |
103,849 lbs (47,105 kg)
|
