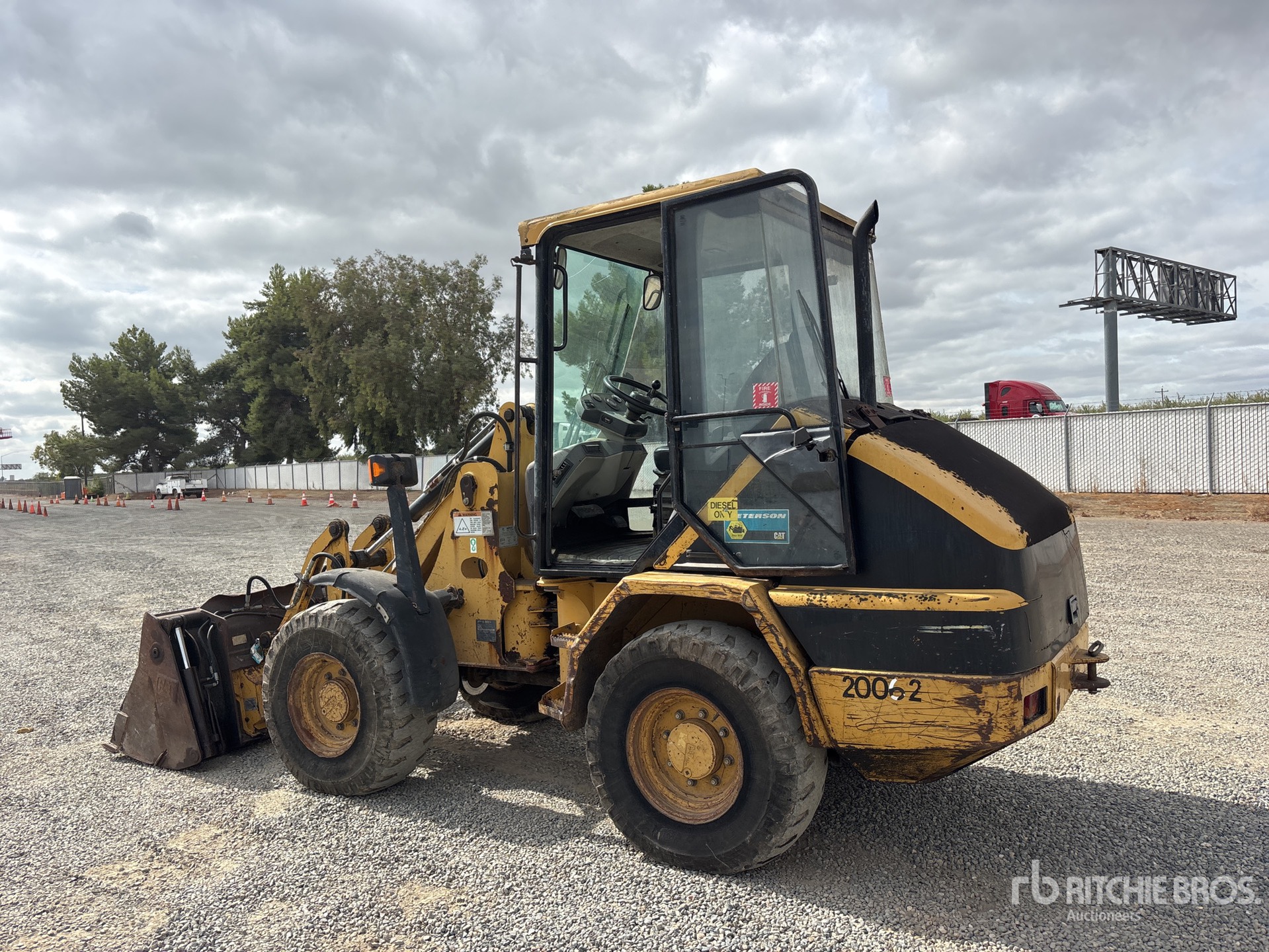

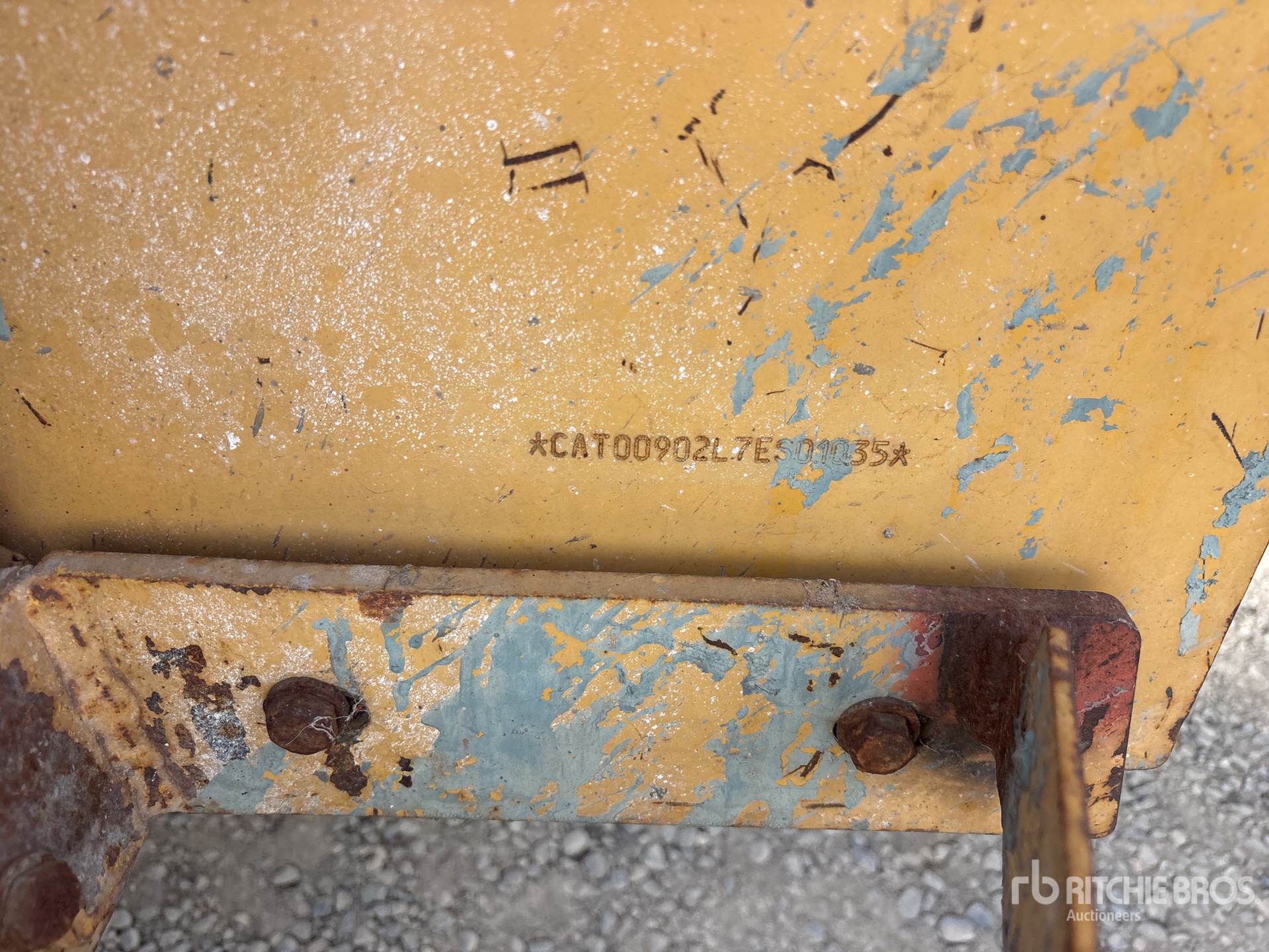

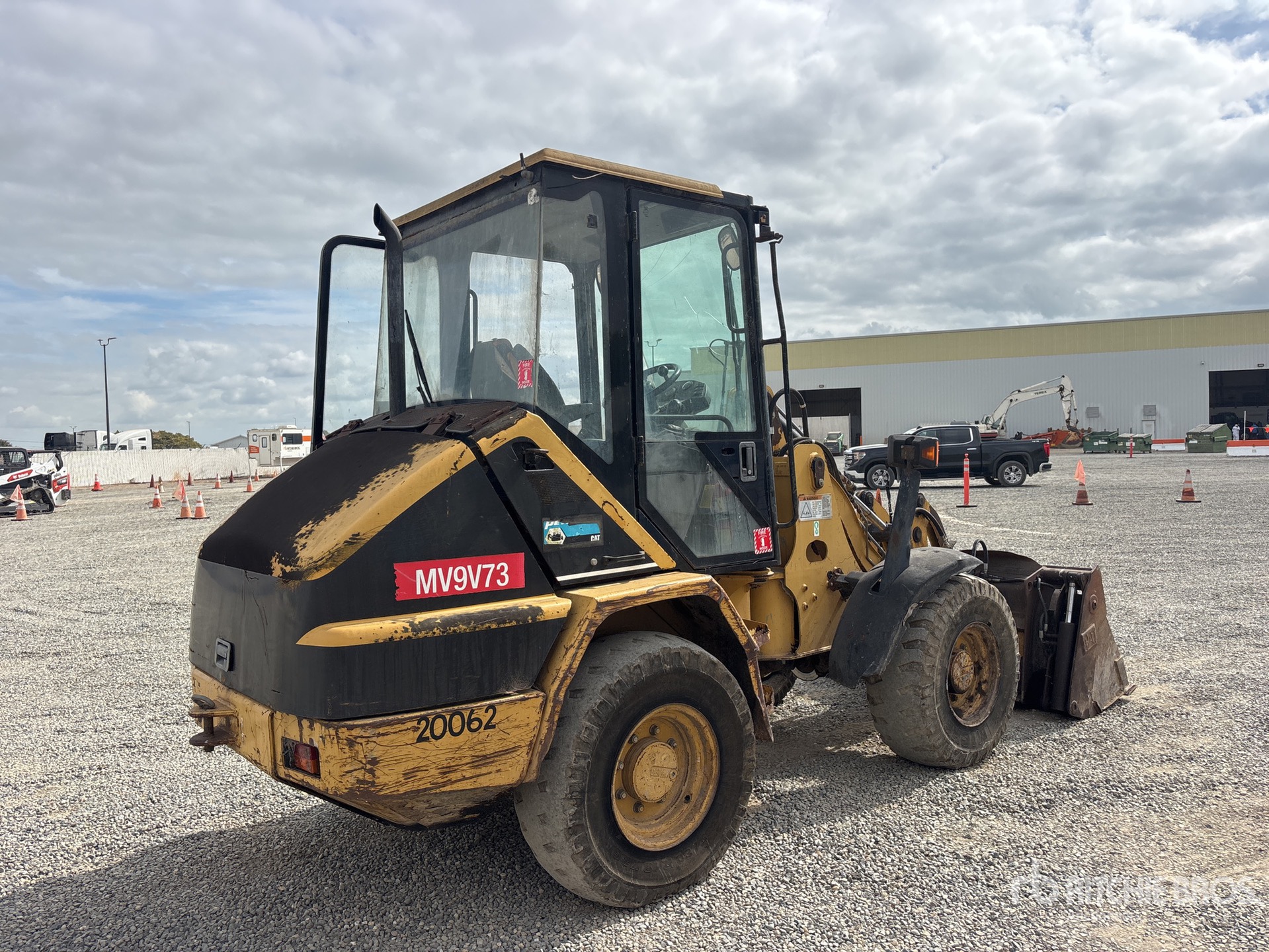

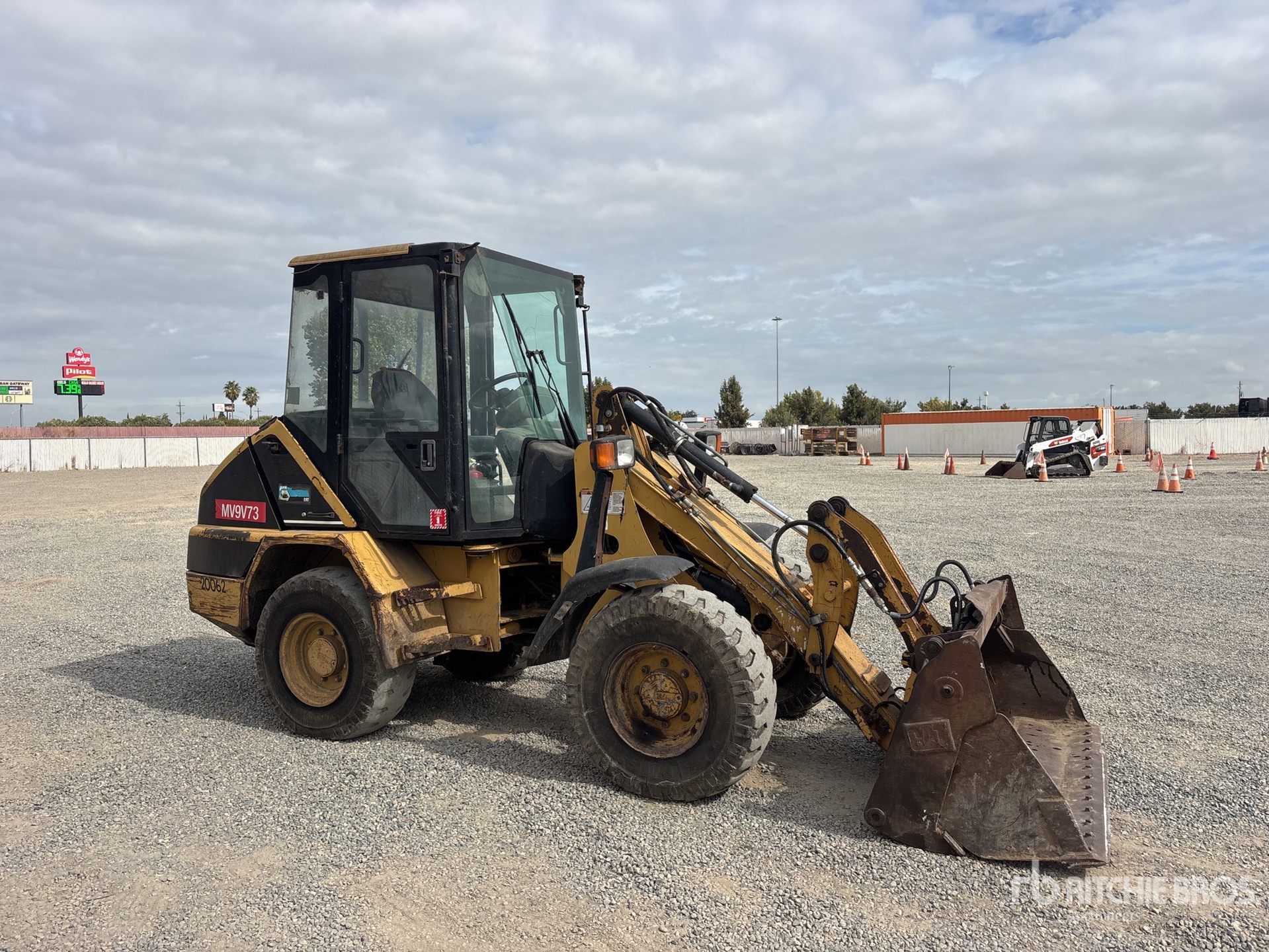

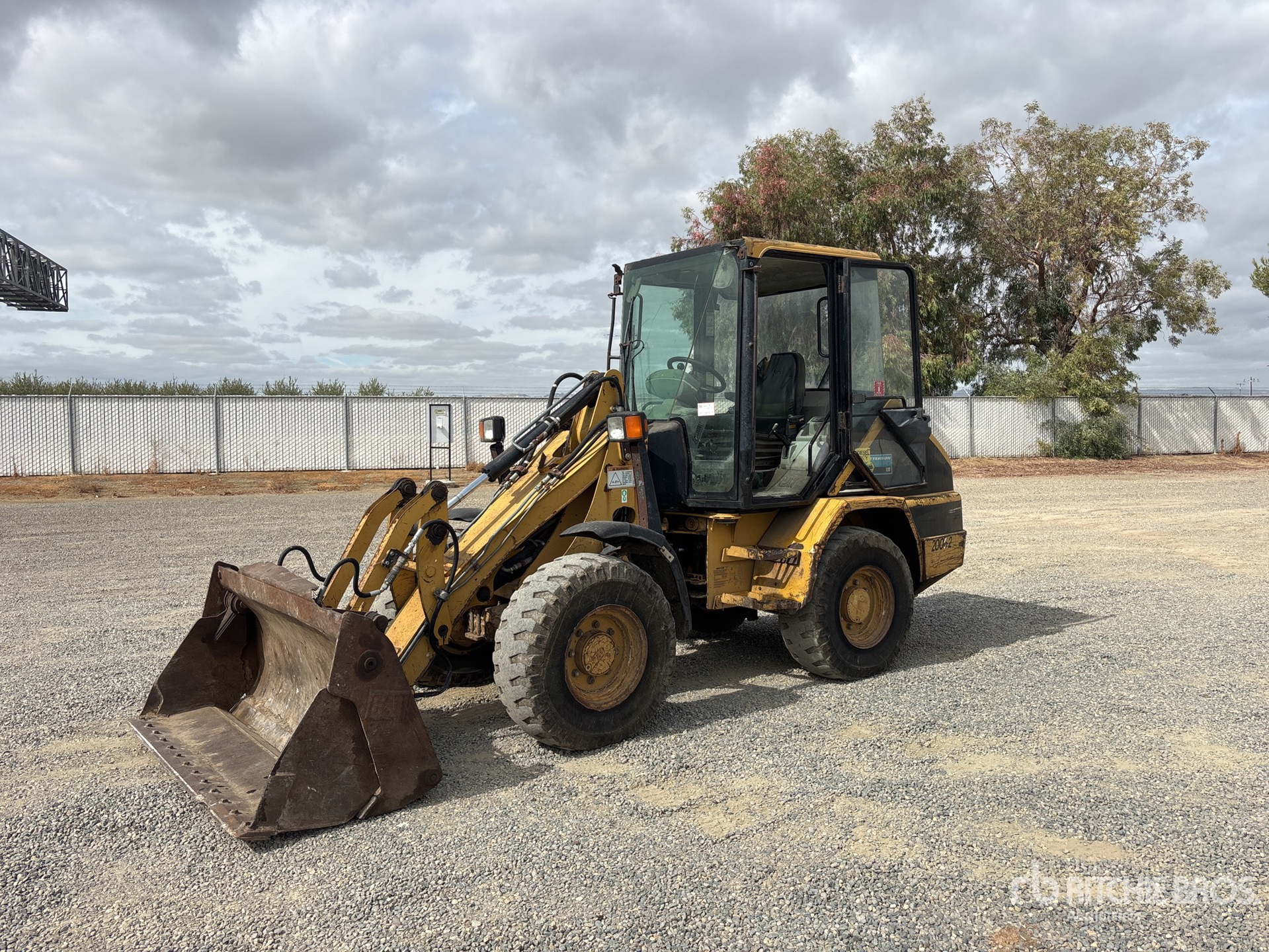

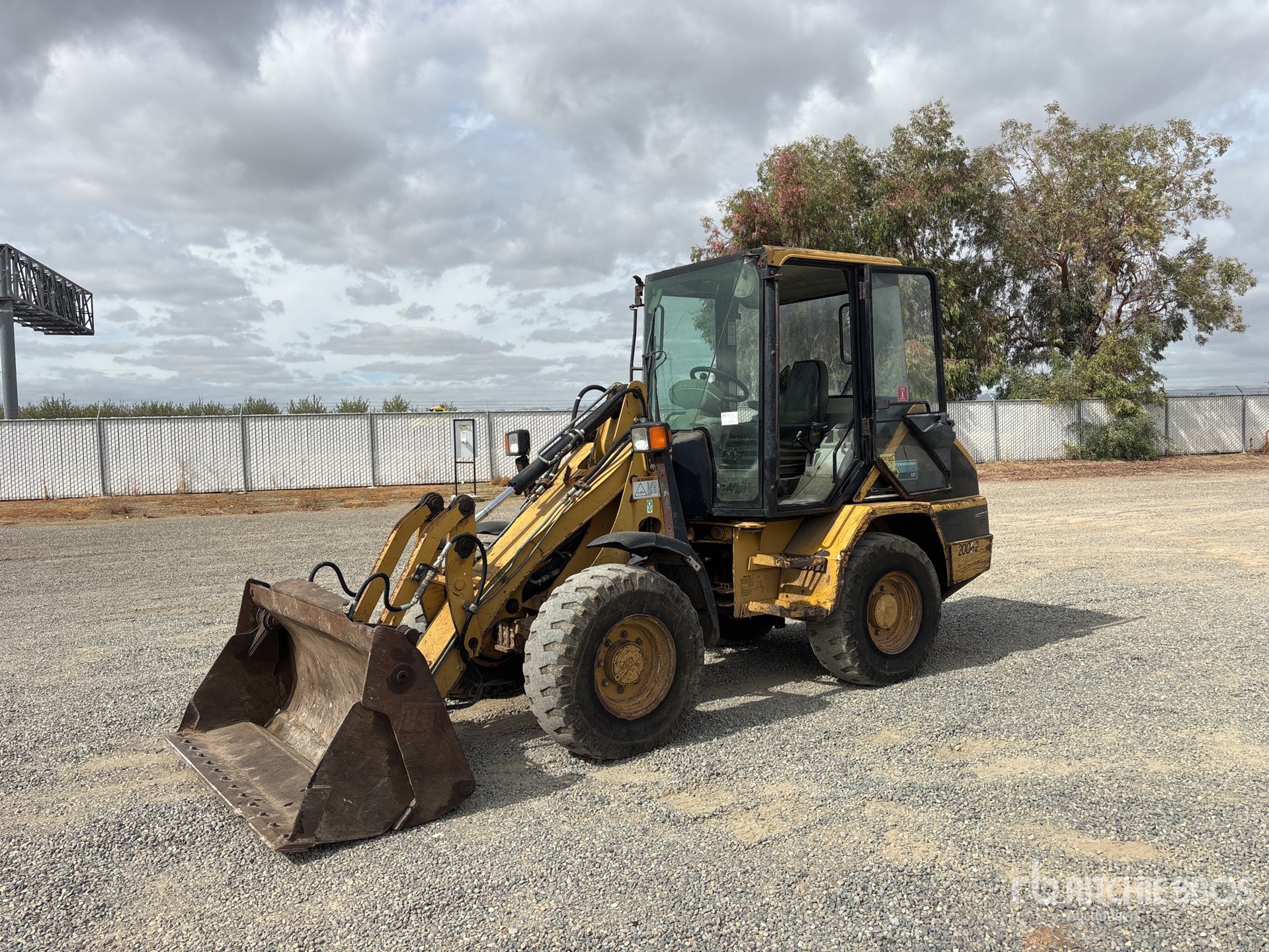

| Bucket |
|
Breakout Force |
8,190 lbs (3,715 kg)
|
|
Bucket Capacity - Heaped |
1 cu yd |
|
Bucket Width |
6 ft (2 m)
|
|
Dump Clearance At Max Raise |
8 ft (2 m)
|
| Buckets |
|
Bucket Width |
5 ft (2 m)
|

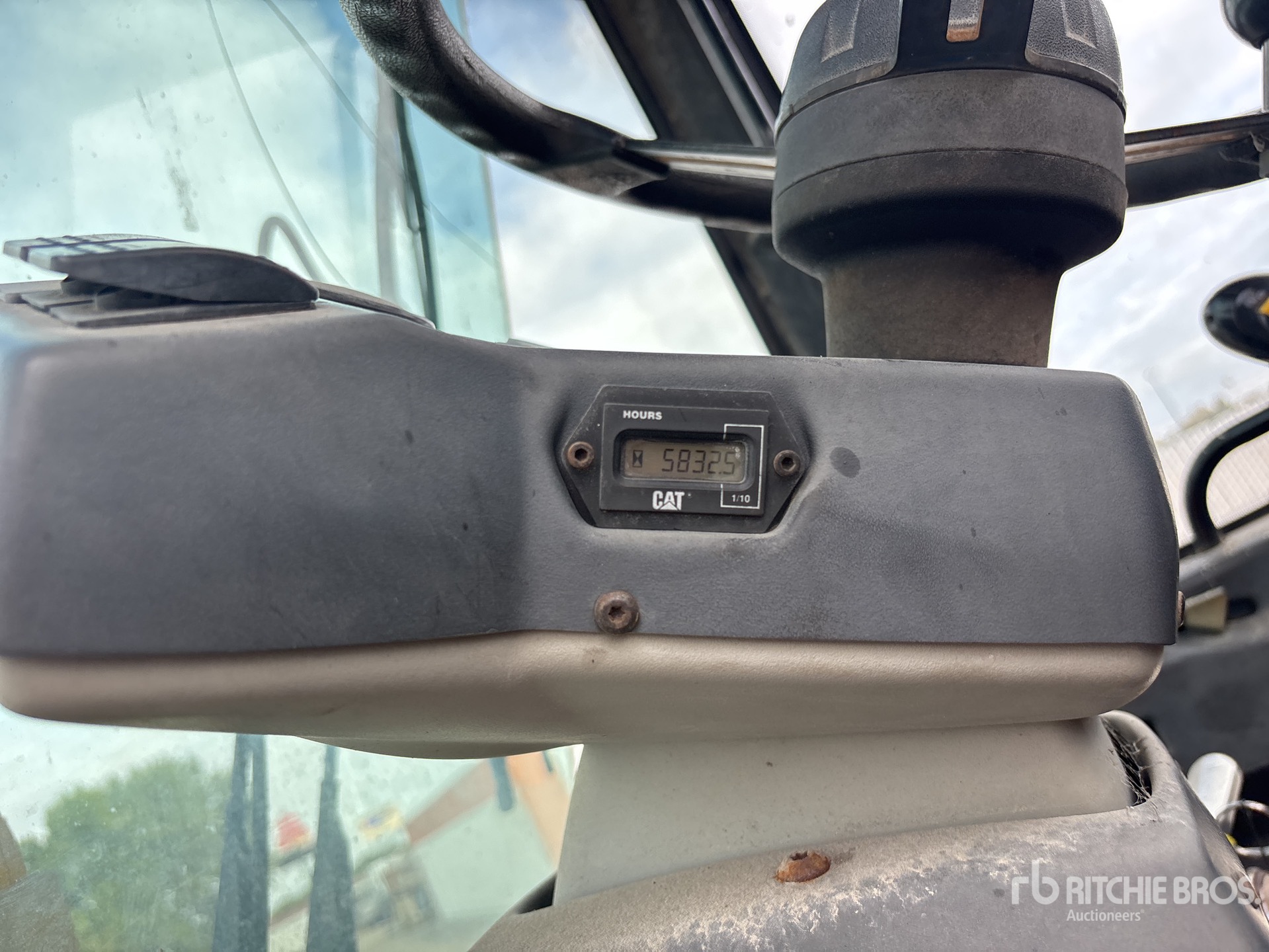

| Cab |
|
Fops |
meets the following criteria: SAE J231 JAN81, ISO 3449:1992 |
|
Rops |
meets the following criteria: SAE J1040 MAY94, ISO 3471-1:1986 |
|
Sound |
Sound level is below 75 dB(A) |
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
9 ft (3 m)
|
|
Length |
16 ft (5 m)
|
|
Length With Bucket On Ground |
17 ft (5 m)
|
|
Tread Width |
54 in (137 cm)
|
|
Weight |
9,416 lbs (4,270 kg)
|
|
Width |
6 ft (2 m)
|
|
Width Over Tires |
6 ft (2 m)
|
| Engine |
|
Displacement |
134 cu in (2,201 cu cm)
|
|
Eec 80/1269 Rating |
46 hp (34 kw)
|
|
Engine Model |
3,024 |
|
Gross Power |
48 hp (36 kw)
|
|
Iso 9249 Rating |
46 hp (34 kw)
|
|
Net Power |
46 hp (34 kw)
|
|
Sae J1349 Rating |
46 hp (34 kw)
|
| Engine Dimensions |
|
Bore |
3 in (8 cm)
|
|
Stroke |
4 in (10 cm)
|
| Hydraulic System |
|
3rd Valve Flow |
12 gpm (47 lpm)
|
|
Dump Time |
2 sec |
|
Hydraulic Cycle Time - Dump |
2 |
|
Hydraulic Cycle Time - Lift |
5 |
|
Hydraulic Cycle Time - Lower, Float |
3 |
|
Lower Time |
3 sec |
|
Main Relief |
3,400 psi |
|
Pressure Flow At 2,600 Rpm And 70 Bar (1,000 Psi) |
16 gpm (60 lpm)
|
|
Raise Time |
5 sec |
| Maximum Material Densities |
|
General Purpose Bucket - 0.6 M3 (0.8 Yd3) |
3500 lb/yd |
|
High Dump Bucket - 0.7 M3 (0.8 Yd3) |
3400 lb/yd |
|
Light Material - Bucket 1.0 M3 (1.3 Yd3) |
2100 lb/yd |
|
Multi Purpose Bucket - 0.6 M3 (0.8 Yd3) |
3200 lb/yd |
|
Stone Sieve Bucket - 0.6 M3 (0.8 Yd3) |
3450 lb/yd |
| Operating Specifications |
|
Articulation |
43 degrees |
|
Breakout Force |
8,320 lbs (3,774 kg)
|
|
Dump Height At Full Lift |
8 ft (2 m)
|
|
Full Turn Static Tipping Load - Bucket |
5,700 lbs (2,585 kg)
|
|
Full Turn Static Tipping Load - Forks |
4,400 lbs (1,996 kg)
|
|
Hydraulic Lift Capacity |
7,800 lbs (3,538 kg)
|
|
Oscillation +/- |
11 degrees |
|
Rack Back - Transport Position |
50 degrees |
|
Rated Bucket Capacity |
1 cu yd |
|
Rated Operating Load At Full Turn - Bucket |
2,860 lbs (1,297 kg)
|
|
Rated Operating Load At Full Turn - Forks |
3,520 lbs (1,597 kg)
|
|
Reach - Without Teeth |
3 ft (1 m)
|
|
Straight Tipping Load - Bucket |
6,600 lbs (2,994 kg)
|
| Operational |
|
Fuel Capacity |
20 gal (74 l)
|
|
Hydraulic System Fluid Capacity |
18 gal (66 l)
|
|
Static Tipping Weight |
6,702 lbs (3,040 kg)
|
| Power Train, Axles And Brakes |
|
Axle And Final Drives |
fixed front axle with limited slip differential and planetary ge |
|
Brake Standards |
Brake meets ISO 3450:1996 |
|
Maximum Travel Speeds - Forward And Reverse, High |
12 mph (19 kph)
|
|
Maximum Travel Speeds - With 12.5-18 Tires, Forward And Reverse, Low |
4 mph (6 kph)
|
|
Service And Parking Brake |
Are combined in a single, dry-disc driveline brake |
|
Transmission Type |
Closed-loop, two-speed hydrostatic single-path transmission. |
| Service Refill Capacities |
|
Cooling System |
4 gal (14 l)
|
|
Engine Oil |
2 gal (8 l)
|
|
Fuel Tank |
20 gal (74 l)
|
|
Hydraulic System |
18 gal (66 l)
|
| Transmission |
|
Max Speed - Forward |
13 mph (20 kph)
|
|
Max Speed - Reverse |
13 mph (20 kph)
|
|
Number Of Forward Gears |
2 |
|
Number Of Reverse Gears |
2 |
| Weights |
|
Operating Weight |
9,435 lbs (4,280 kg)
|
