| Axles |
|
Front (Since 2026)
|
Fixed (standard), Locking Differential (optional) |
|
Rear (Since 2026)
|
Fixed (standard), Locking Differential (optional) |
| Buckets |
|
Bucket Capacities (Since 2026)
|
0.75-1.55 m³ (1.0-2 yd³) |
|
Bucket Capacities - General Purpose (Since 2026)
|
0.80-1.35 m³ (1.0-1.7 yd³) |
|
Bucket Capacities - Light Material (Since 2026)
|
1.25-1.55 m³ (1.6-2 yd³) |
|
Multi-Purpose (Since 2026)
|
0.75-1.1 m³ (1.0-1.4 yd³) |
| Cab |
|
FOPS (Since 2026)
|
ISO 3449:2005 Level II |
|
ROPS (Since 2026)
|
ISO 3471:2008 |
| Dimensions |
|
Height |
9 ft (3 m)
|
|
Length |
17 ft (5 m)
|
|
Weight |
13,380 lbs (6,069 kg)
|
|
Width |
6 ft (2 m)
|
| Dimensions - High Lift - With Hpl-V Coupler - Approximate# |
|
80% of Tip: Firm and Level EN474-3 †† (Since 2026)
|
4,706 lbs (2,135 kg)
|
|
Articulation Angle - Degrees (Since 2026)
|
39 degrees |
|
Carry Height: Bucket Pin (Since 2026)
|
1 ft (0 m)
|
|
Clearance: Bucket at 45° * (Since 2026)
|
11 ft (3 m)
|
|
Clearance: Level Bucket** (Since 2026)
|
12 ft (4 m)
|
|
Clearance: Load over Height** (Since 2026)
|
11 ft (3 m)
|
|
Departure Angle - Degrees (Since 2026)
|
30 degrees |
|
Dig Depth** (Since 2026)
|
0 ft (0 m)
|
|
Dump Angle at Full Lift (Since 2026)
|
40 degrees |
|
Height: Bucket Pin** (Since 2026)
|
13 ft (4 m)
|
|
Height: Ground Axle Center** (Since 2026)
|
2 ft (1 m)
|
|
Height: Ground Clearance** (Since 2026)
|
1 ft (0 m)
|
|
Height: Ground to Beacon** (Since 2026)
|
9 ft (3 m)
|
|
Height: Ground to Cab** (Since 2026)
|
9 ft (3 m)
|
|
Height: Overall** (Since 2026)
|
16 ft (5 m)
|
|
Length: Hitch to Front Axle (Since 2026)
|
4 ft (1 m)
|
|
Length: Overall* (Since 2026)
|
20 ft (6 m)
|
|
Length: Rear Axle to Bumper (Since 2026)
|
5 ft (1 m)
|
|
Length: Wheel Base (Since 2026)
|
7 ft (2 m)
|
|
Operating Weight: Bucket ^ (Since 2026)
|
14,848 lbs (6,735 kg)
|
|
Operating Weight: Carriage and Tines ^^ (Since 2026)
|
14,542 lbs (6,596 kg)
|
|
Rack Angle at Carry (Since 2026)
|
48 degrees |
|
Rack Angle at Full Lift (Since 2026)
|
69 degrees |
|
Reach: Bucket at 45° * (Since 2026)
|
3 ft (1 m)
|
|
Tipping Load - Full Turn - ISO 14397-1 † (Since 2026)
|
7,645 lbs (3,468 kg)
|
|
Tipping Load - Straight - ISO 14397-1 † (Since 2026)
|
9,187 lbs (4,167 kg)
|
|
Tipping Load - Straight † (Since 2026)
|
9,187 lbs (4,167 kg)
|
|
Turning Radius: Inside of Tires (Since 2026)
|
7 ft (2 m)
|
|
Turning Radius: Outside of Tires (Since 2026)
|
13 ft (4 m)
|
|
Turning Radius: Over Bucket (Since 2026)
|
16 ft (5 m)
|
|
Width: Bucket (Since 2026)
|
7 ft (2 m)
|
|
Width: Over Tires (Since 2026)
|
7 ft (2 m)
|
|
Width: Tread Center (Since 2026)
|
5 ft (2 m)
|
| Dimensions - High Lift - With Ssl Coupler - Approximate |
|
80% of Tip: Firm and Level EN474-3 †† (Since 2026)
|
4,375 lbs (1,984 kg)
|
|
Articulation Angle - Degrees (Since 2026)
|
39 degrees |
|
Carry Height: Bucket Pin (Since 2026)
|
1 ft (0 m)
|
|
Clearance: Bucket at 45° * (Since 2026)
|
10 ft (3 m)
|
|
Clearance: Level Bucket** (Since 2026)
|
12 ft (4 m)
|
|
Clearance: Load over Height** (Since 2026)
|
11 ft (3 m)
|
|
Departure Angle - Degrees (Since 2026)
|
30 degrees |
|
Dig Depth** (Since 2026)
|
0 ft (0 m)
|
|
Dump Angle at Full Lift (Since 2026)
|
40 degrees |
|
Height: Bucket Pin** (Since 2026)
|
13 ft (4 m)
|
|
Height: Ground Axle Center** (Since 2026)
|
2 ft (1 m)
|
|
Height: Ground Clearance** (Since 2026)
|
1 ft (0 m)
|
|
Height: Ground to Beacon** (Since 2026)
|
9 ft (3 m)
|
|
Height: Ground to Cab** (Since 2026)
|
9 ft (3 m)
|
|
Height: Overall** (Since 2026)
|
16 ft (5 m)
|
|
Length: Hitch to Front Axle (Since 2026)
|
4 ft (1 m)
|
|
Length: Overall* (Since 2026)
|
20 ft (6 m)
|
|
Length: Rear Axle to Bumper (Since 2026)
|
5 ft (1 m)
|
|
Length: Wheel Base (Since 2026)
|
7 ft (2 m)
|
|
Operating Weight: Bucket ^ (Since 2026)
|
15,070 lbs (6,836 kg)
|
|
Operating Weight: Carriage and Tines ^^ (Since 2026)
|
14,714 lbs (6,674 kg)
|
|
Rack Angle at Carry (Since 2026)
|
42 degrees |
|
Rack Angle at Full Lift (Since 2026)
|
66 degrees |
|
Reach: Bucket at 45° * (Since 2026)
|
3 ft (1 m)
|
|
Tipping Load - Full Turn - ISO 14397-1 † (Since 2026)
|
6,943 lbs (3,149 kg)
|
|
Tipping Load - Straight - ISO 14397-1 † (Since 2026)
|
8,385 lbs (3,803 kg)
|
|
Tipping Load - Straight † (Since 2026)
|
8,385 lbs (3,803 kg)
|
|
Turning Radius: Inside of Tires (Since 2026)
|
7 ft (2 m)
|
|
Turning Radius: Outside of Tires (Since 2026)
|
13 ft (4 m)
|
|
Turning Radius: Over Bucket (Since 2026)
|
16 ft (5 m)
|
|
Width: Bucket (Since 2026)
|
7 ft (2 m)
|
|
Width: Over Tires (Since 2026)
|
7 ft (2 m)
|
|
Width: Tread Center (Since 2026)
|
5 ft (2 m)
|
| Dimensions - With Hpl-V Coupler - Approximate# |
|
80% of Tip: Firm and Level EN474-3 †† (Since 2026)
|
5,815 lbs (2,638 kg)
|
|
Articulation Angle - Degrees (Since 2026)
|
39 degrees |
|
Carry Height: Bucket Pin (Since 2026)
|
1 ft (0 m)
|
|
Clearance: Bucket at 45° * (Since 2026)
|
9 ft (3 m)
|
|
Clearance: Level Bucket** (Since 2026)
|
11 ft (3 m)
|
|
Clearance: Load over Height** (Since 2026)
|
10 ft (3 m)
|
|
Departure Angle - Degrees (Since 2026)
|
30 degrees |
|
Dig Depth** (Since 2026)
|
0 ft (0 m)
|
|
Dump Angle at Full Lift (Since 2026)
|
45 degrees |
|
Height: Bucket Pin** (Since 2026)
|
11 ft (3 m)
|
|
Height: Ground Axle Center** (Since 2026)
|
2 ft (1 m)
|
|
Height: Ground Clearance** (Since 2026)
|
1 ft (0 m)
|
|
Height: Ground to Beacon** (Since 2026)
|
9 ft (3 m)
|
|
Height: Ground to Cab** (Since 2026)
|
9 ft (3 m)
|
|
Height: Overall** (Since 2026)
|
14 ft (4 m)
|
|
Length: Hitch to Front Axle (Since 2026)
|
4 ft (1 m)
|
|
Length: Overall* (Since 2026)
|
18 ft (6 m)
|
|
Length: Rear Axle to Bumper (Since 2026)
|
5 ft (1 m)
|
|
Length: Wheel Base (Since 2026)
|
7 ft (2 m)
|
|
Operating Weight: Bucket ^ (Since 2026)
|
14,633 lbs (6,637 kg)
|
|
Operating Weight: Carriage and Tines ^^ (Since 2026)
|
14,252 lbs (6,465 kg)
|
|
Rack Angle at Carry (Since 2026)
|
51 degrees |
|
Rack Angle at Full Lift (Since 2026)
|
53 degrees |
|
Reach: Bucket at 45° * (Since 2026)
|
2 ft (1 m)
|
|
Tipping Load - Full Turn - ISO 14397-1 † (Since 2026)
|
8,895 lbs (4,035 kg)
|
|
Tipping Load - Straight - ISO 14397-1 † (Since 2026)
|
10,626 lbs (4,820 kg)
|
|
Tipping Load - Straight † (Since 2026)
|
10,626 lbs (4,820 kg)
|
|
Turning Radius: Inside of Tires (Since 2026)
|
7 ft (2 m)
|
|
Turning Radius: Outside of Tires (Since 2026)
|
13 ft (4 m)
|
|
Turning Radius: Over Bucket (Since 2026)
|
15 ft (5 m)
|
|
Width: Bucket (Since 2026)
|
7 ft (2 m)
|
|
Width: Over Tires (Since 2026)
|
7 ft (2 m)
|
|
Width: Tread Center (Since 2026)
|
5 ft (2 m)
|
| Dimensions - With Ssl Coupler - Approximate |
|
80% of Tip: Firm and Level EN474-3 †† (Since 2026)
|
5,438 lbs (2,467 kg)
|
|
Articulation Angle - Degrees (Since 2026)
|
39 degrees |
|
Carry Height: Bucket Pin (Since 2026)
|
1 ft (0 m)
|
|
Clearance - Bucket at 45° (Since 2026)
|
8 ft (3 m)
|
|
Clearance - Level Bucket (Since 2026)
|
11 ft (3 m)
|
|
Clearance: Load over Height** (Since 2026)
|
10 ft (3 m)
|
|
Departure Angle - Degrees (Since 2026)
|
30 degrees |
|
Dig Depth (Since 2026)
|
0 ft (0 m)
|
|
Dump Angle at Full Lift (Since 2026)
|
48 degrees |
|
Height - Bucket Pin (Since 2026)
|
11 ft (3 m)
|
|
Height - Ground Clearance (Since 2026)
|
1 ft (0 m)
|
|
Height - Ground to Cab (Since 2026)
|
9 ft (3 m)
|
|
Height: Ground Axle Center** (Since 2026)
|
2 ft (1 m)
|
|
Height: Ground to Beacon** (Since 2026)
|
9 ft (3 m)
|
|
Height: Overall** (Since 2026)
|
14 ft (4 m)
|
|
Length - Overall with Bucket (Since 2026)
|
19 ft (6 m)
|
|
Length - Wheel Base (Since 2026)
|
7 ft (2 m)
|
|
Length: Front Axle to Front of Coupler (Since 2026)
|
5 ft (1 m)
|
|
Length: Hitch to Front Axle (Since 2026)
|
4 ft (1 m)
|
|
Length: Rear Axle to Bumper (Since 2026)
|
5 ft (1 m)
|
|
Operating Weight: Bucket ^ (Since 2026)
|
14,752 lbs (6,691 kg)
|
|
Operating Weight: Carriage and Tines ^^ (Since 2026)
|
14,391 lbs (6,528 kg)
|
|
Rack Angle at Carry (Since 2026)
|
54 degrees |
|
Rack Angle at Full Lift (Since 2026)
|
50 degrees |
|
Reach - Bucket at 45° (Since 2026)
|
3 ft (1 m)
|
|
Tipping Load - Full Turn - ISO 14397-1† (Since 2026)
|
6,800 lbs (3,084 kg)
|
|
Tipping Load - Straight † (Since 2026)
|
9,753 lbs (4,424 kg)
|
|
Tipping Load – Full Turn – ISO 14397-1 † (Since 2026)
|
8,141 lbs (3,693 kg)
|
|
Tipping Load – Straight – ISO 14397-1 † (Since 2026)
|
9,581 lbs (4,346 kg)
|
|
Turning Radius - Inside Tire (Since 2026)
|
7 ft (2 m)
|
|
Turning Radius - Over Bucket (Since 2026)
|
15 ft (5 m)
|
|
Turning Radius: Outside of Tires (Since 2026)
|
13 ft (4 m)
|
|
Width - Bucket (Since 2026)
|
7 ft (2 m)
|
|
Width - Over Tires (Since 2026)
|
7 ft (2 m)
|
|
Width - Tread Center (Since 2026)
|
5 ft (2 m)
|
| Engine |
|
Bore (Since 2026)
|
4 in (9 cm)
|
|
Displacement (Since 2026)
|
171 cu in (2,802 cu cm)
|
|
Engine Model (Since 2026)
|
Cat C2.8* |
|
Maximum Engine Speed (Since 2026)
|
2,550 rpm |
|
Maximum Gross Power (Since 2026)
|
75 hp (56 kw)
|
|
Maximum Gross Power - ISO 14396 (Since 2026)
|
74 hp (55 kw)
|
|
Maximum Gross Power - ISO 14396 (metric) (Since 2026)
|
75.3 mhp |
|
Maximum Gross Power - Rated Engine Speed (Since 2026)
|
2,400 r/min |
|
Maximum Gross Power - SAE J1995 (Since 2026)
|
75 hp (56 kw)
|
|
Maximum Gross Torque - ISO 14396 (Since 2026)
|
221 lbs ft (300 nm)
|
|
Maximum Gross Torque - SAE J1995 (Since 2026)
|
222 lbs ft (301 nm)
|
|
Maximum Net Torque - ISO 9249 (Since 2026)
|
217 lbs ft (294 nm)
|
|
Maximum Net Torque - SAE J1349 (Since 2026)
|
218 lbs ft (296 nm)
|
|
Rated Net Power - 2,400 rpm - ISO 9249 (metric) (Since 2026)
|
73.1 mhp |
|
Rated Net Power - ISO 9249 (Since 2026)
|
72 hp (54 kw)
|
|
Rated Net Power - Rated Engine Speed (Since 2026)
|
2,400 r/min |
|
Rated Net Power - SAE J1349 (Since 2026)
|
73 hp (54 kw)
|
|
Stroke (Since 2026)
|
4 in (11 cm)
|
| General Specifications |
|
Bucket Capacity (Since 2022)
|
1.0 - 1.7 (.80 - 1.35) |
|
Bucket Capacity (2023)
|
1.0 - 1.7 (.80 - 1.35) |
|
Bucket Capacity (Since 2024)
|
1.0 - 1.5 (.80 - 1.15) |
|
Bucket Capacity (Since 2025)
|
1.0 - 1.5 |
|
Bucket Capacity (2026)
|
1.0 - 1.5 |
|
Engine Power (Since 2022)
|
74 (56) |
|
Engine Power (2023)
|
74 (56) |
|
Engine Power (2024)
|
74 (56) |
|
Engine Power Net (Since 2025)
|
74 hp (55 kw)
|
|
Engine Power Net (2026)
|
74 hp (55 kw)
|
|
Engine type (Since 2022)
|
Cat C2.8 |
|
Engine type (2023)
|
Cat C2.8 |
|
Engine type (2024)
|
Cat C2.8 |
|
Engine type (2025)
|
Cat C2.8 |
|
Engine type (2026)
|
Cat C2.8 |
|
Operating Weight (Since 2022)
|
14,617 (6,632) |
|
Operating Weight (2023)
|
14,617 (6,632) |
|
Operating Weight (Since 2024)
|
14,717 (6,675) |
|
Operating Weight (Since 2025)
|
14,717 lbs (6,676 kg)
|
|
OperatingWeight (Since 2026)
|
14,717 lbs (6,676 kg)
|
|
Tip Load (Since 2022)
|
10,604 (4,812) |
|
Tip Load (2023)
|
10,604 (4,812) |
|
Tip Load (Since 2024)
|
8,479 (3,846) |
|
Tip Load (Since 2025)
|
8,479 lbs (3,846 kg)
|
|
Tip Load (2026)
|
8,479 lbs (3,846 kg)
|
|
Travel Speed (Since 2024)
|
25 / 12.5 mph |
|
Travel Speed (Fwd/Rev) (Since 2025)
|
25 / 12.5 mph |
|
Travel Speed (Fwd/Rev) (2026)
|
25 / 12.5 mph |
|
Travel Speed(Fwd/Rev) (Since 2022)
|
25 / 19 mph |
|
Travel Speed(Fwd/Rev) (2023)
|
25 / 19 mph |

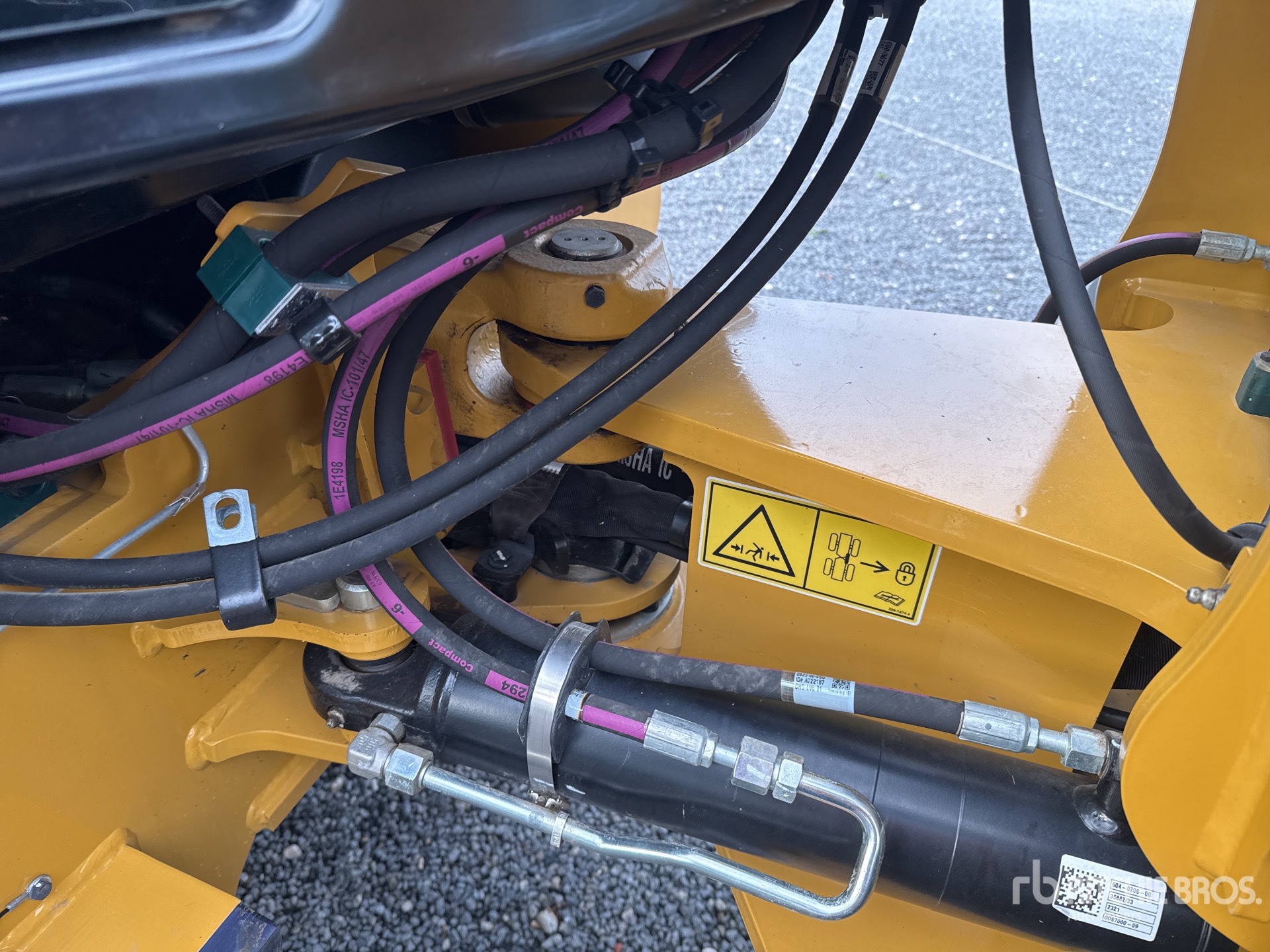

| Loader Hydraulic System |
|
Hydraulic Cycle Time - Dump (Since 2026)
|
2 s |
|
Hydraulic Cycle Time - Float Down (Since 2026)
|
4 s |
|
Hydraulic Cycle Time - Lift (Since 2026)
|
6 s |
|
Hydraulic Cycle Time - Rackback (Since 2026)
|
3 s |
|
Main Relief - 1st Auxiliary (3rd slice) (Since 2026)
|
3,408 psi |
|
Main Relief - 1st Auxiliary (3rd slice) - High Flow* (Since 2026)
|
33 gpm (125 lpm)
|
|
Main Relief - 1st Auxiliary (3rd slice) - Standard Flow* (Since 2026)
|
24 gpm (91 lpm)
|
|
Main Relief - 2nd Auxiliary (4th slice) (Since 2026)
|
3,408 psi |
|
Main Relief - 2nd Auxiliary (4th slice) - Flow (Since 2026)
|
12 gpm (45 lpm)
|
| Service Refill Capacities |
|
Axles - Front Center Differential (Since 2026)
|
2 gal (9 l)
|
|
Axles - Rear Center Differential (Since 2026)
|
2 gal (9 l)
|
|
Cooling System (Since 2026)
|
3 gal (12 l)
|
|
Engine Crankcase (Since 2026)
|
2 gal (9 l)
|
|
Fuel Tank (Since 2026)
|
24 gal (91 l)
|
|
Hydraulic System - Including Tank (Since 2026)
|
19 gal (70 l)
|
|
Hydraulic Tank (Since 2026)
|
12 gal (45 l)
|
|
Transmission (Since 2026)
|
1 gal (2 l)
|
| Steering |
|
Maximum Flow - Steering Pump (Since 2026)
|
12 gpm (47 lpm)
|
|
Maximum Working Pressure - Steering Pump (Since 2026)
|
3,336 psi |
|
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left (Since 2026)
|
3.25 turns or 4.00 turns |
|
Steering Articulation Angle - Each Direction (Since 2026)
|
39 degrees |
|
Steering Cycle Times – (full left to full right) – at High Idle (Since 2026)
|
3 s |
| Sustainability |
|
Recyclability (Since 2026)
|
93% |
| Tires |
|

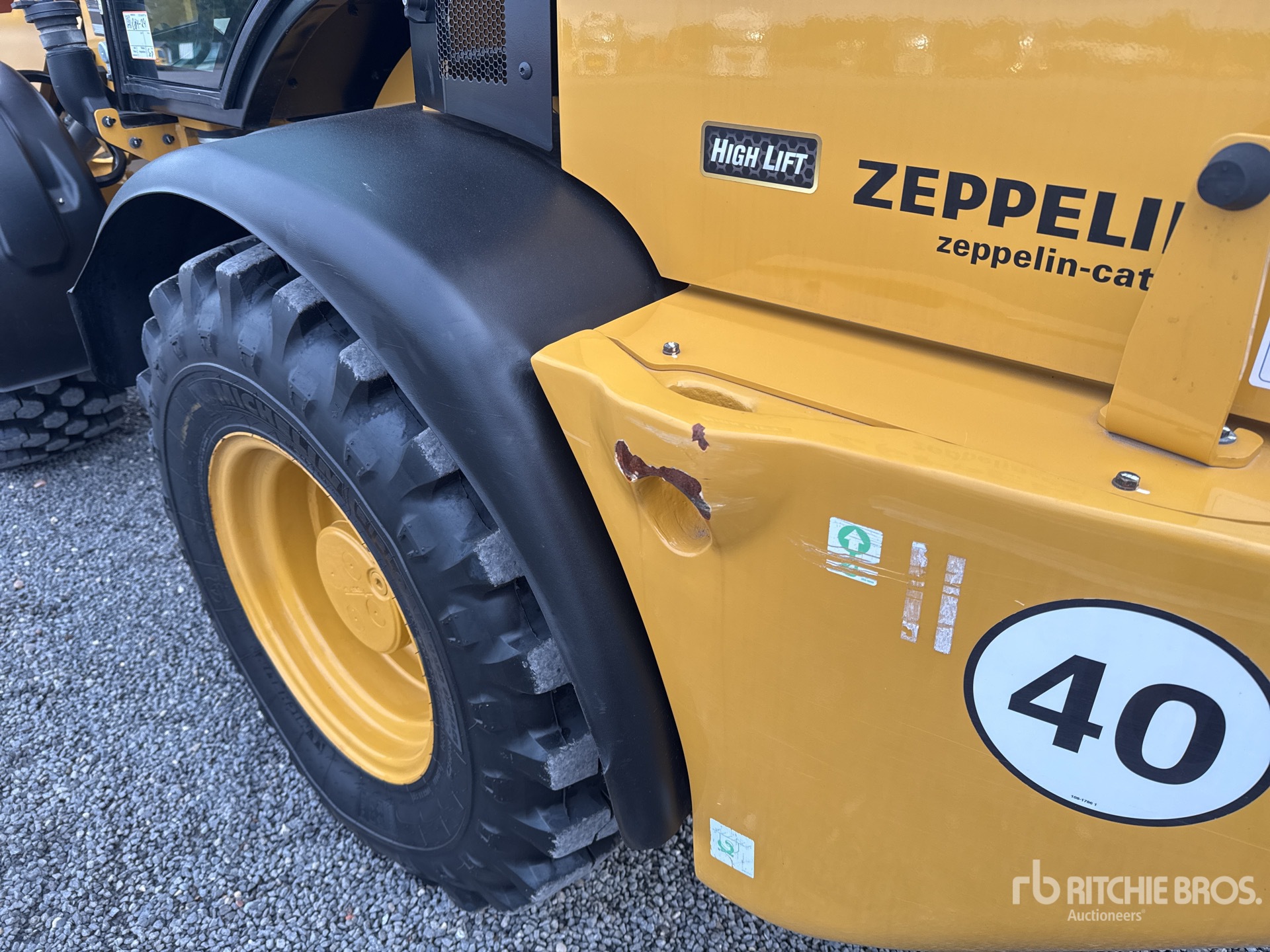

Tire Size - Optional (Since 2026)
|
405/70 R20 Powerloads |
|
Tire Size - Optional (1) (Since 2026)
|
400/70 R20 XMCL/Bibload |
|
Tire Size - Optional (2) (Since 2026)
|
360/80 R20 TRI 2 |
|
Tire Size - Optional (3) (Since 2026)
|
40X14-20 TL, SM/TR |
|
Tire Size - Standard (Since 2026)
|
*405/70 R20 SPT9 |
| Transmission |
|
Forward and Reverse - Speed Range 1* (Since 2026)
|
6 mph (10 kph)
|
|
Forward and Reverse - Speed Range 2** - High Speed (Since 2026)
|
11 mph (17 kph)
|
|
Forward and Reverse - Speed Range 2** - Standard (Since 2026)
|
12 mph (19 kph)
|
|
Forward and Reverse - Speed Range 3*** (Since 2026)
|
25 mph (40 kph)
|
|
Forward and Reverse - Speed Range Creep# (Since 2026)
|
6 mph (10 kph)
|
| Weights |
|
Operating Weight (Since 2026)
|
14,617 lbs (6,630 kg)
|
