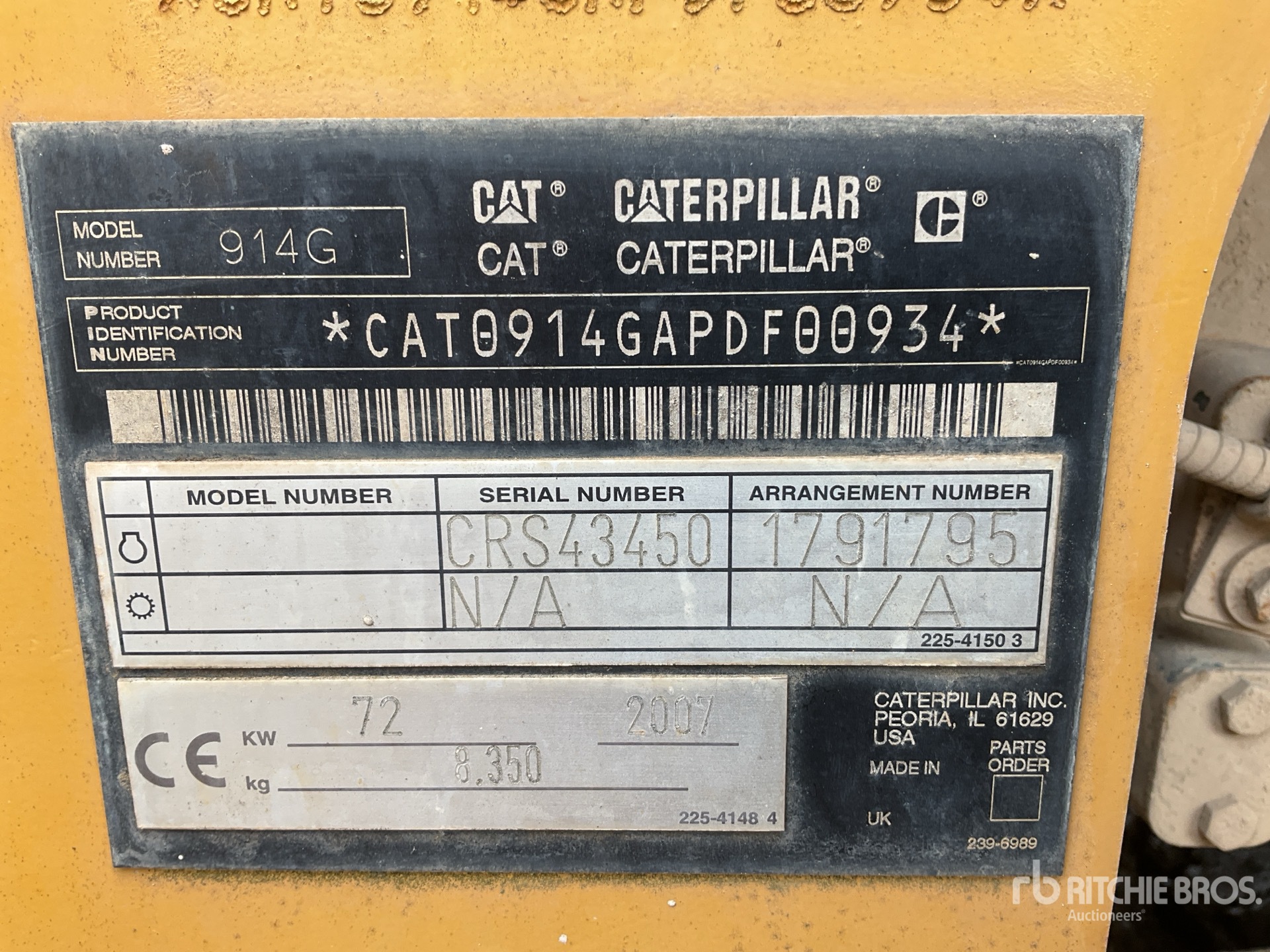

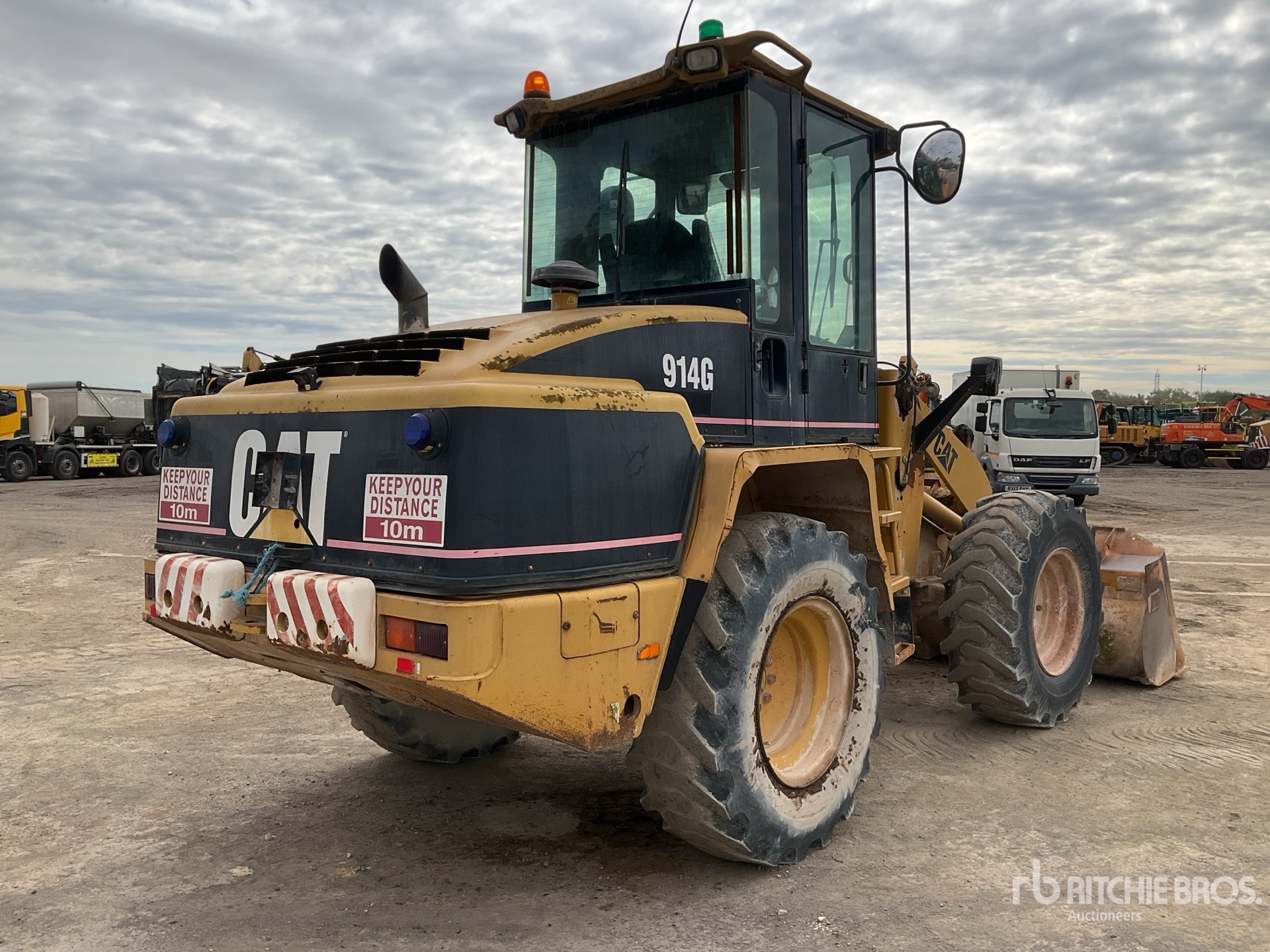

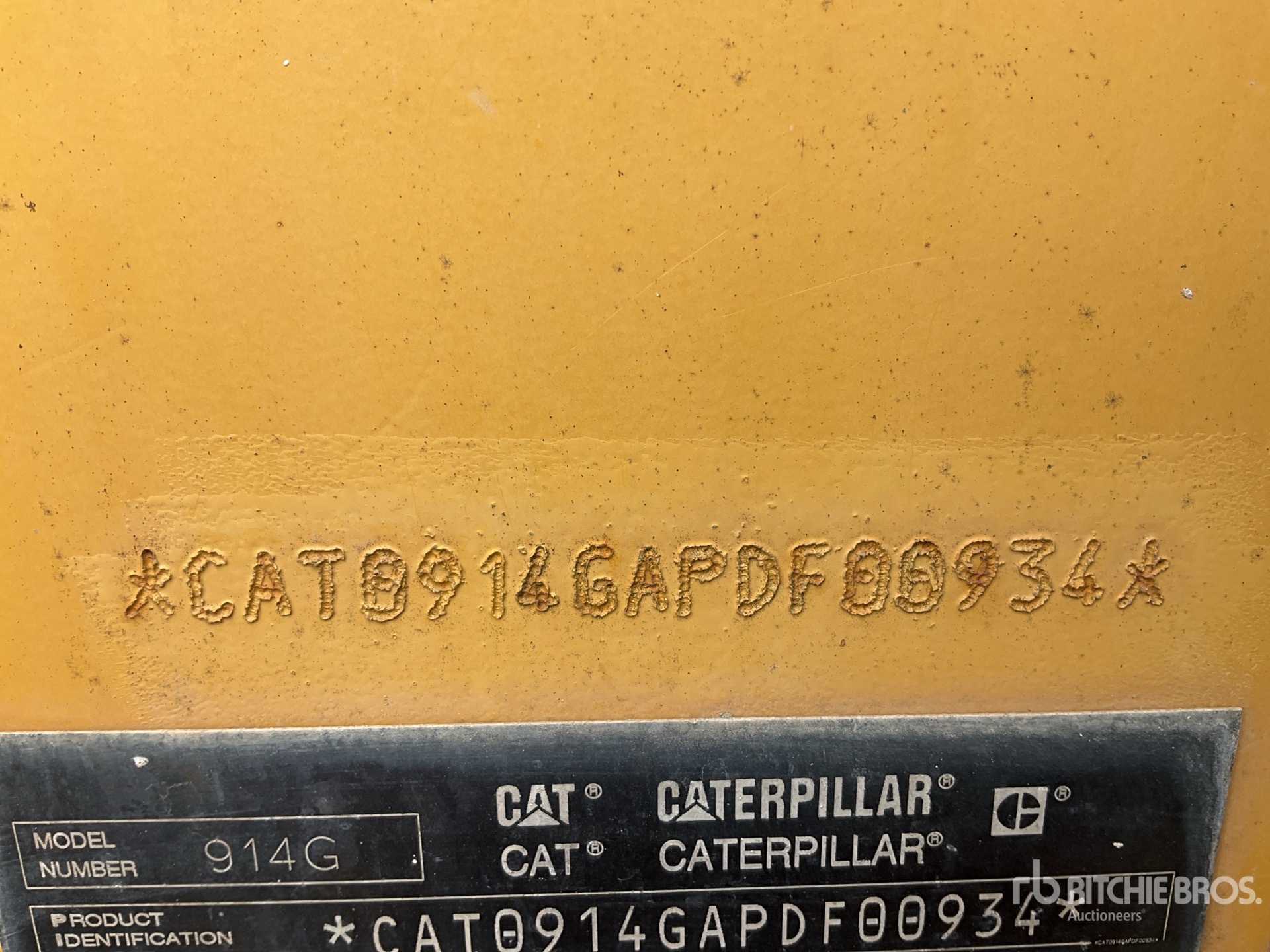

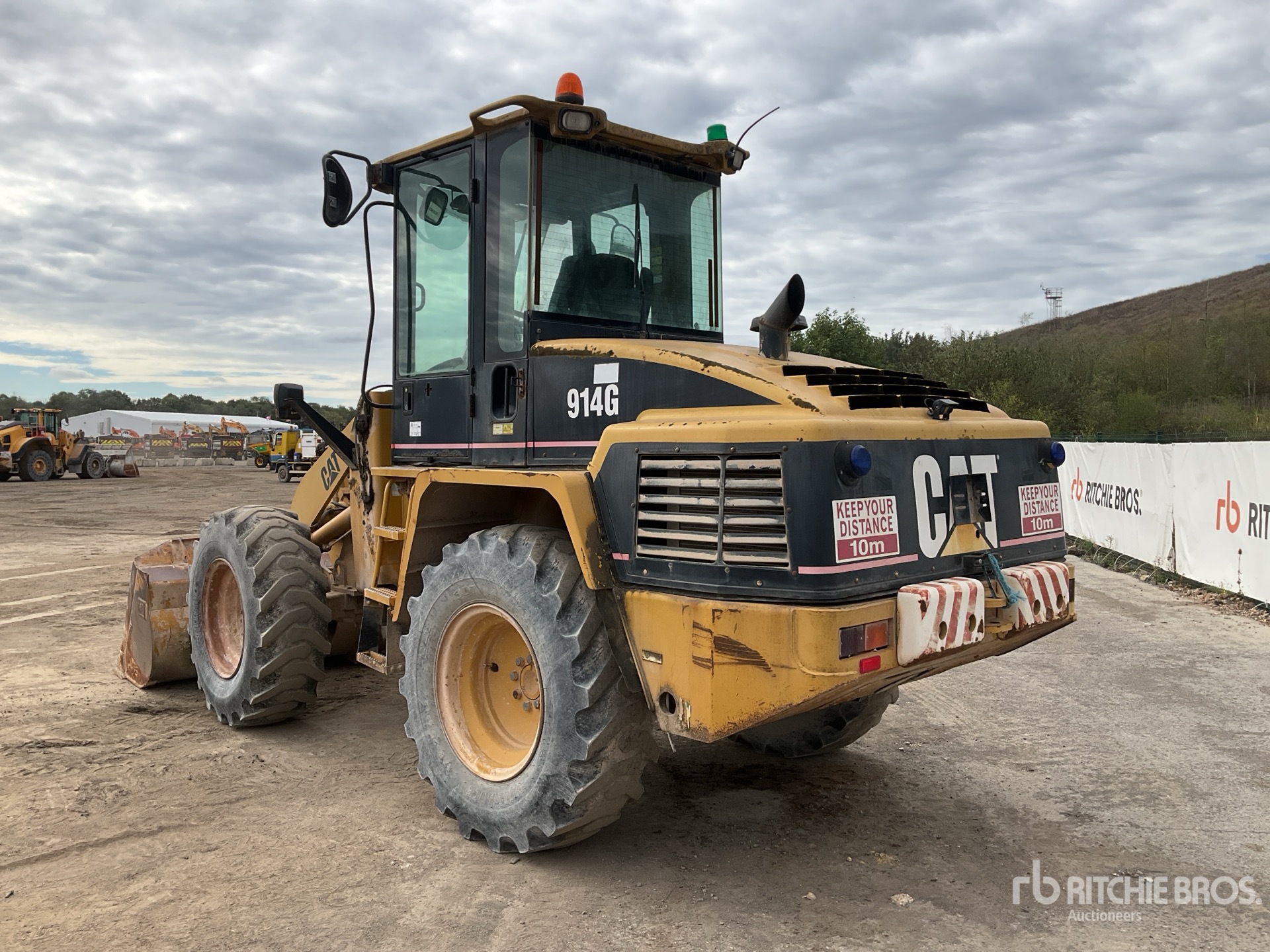

| Brakes |
|
Brakes |
Standards |

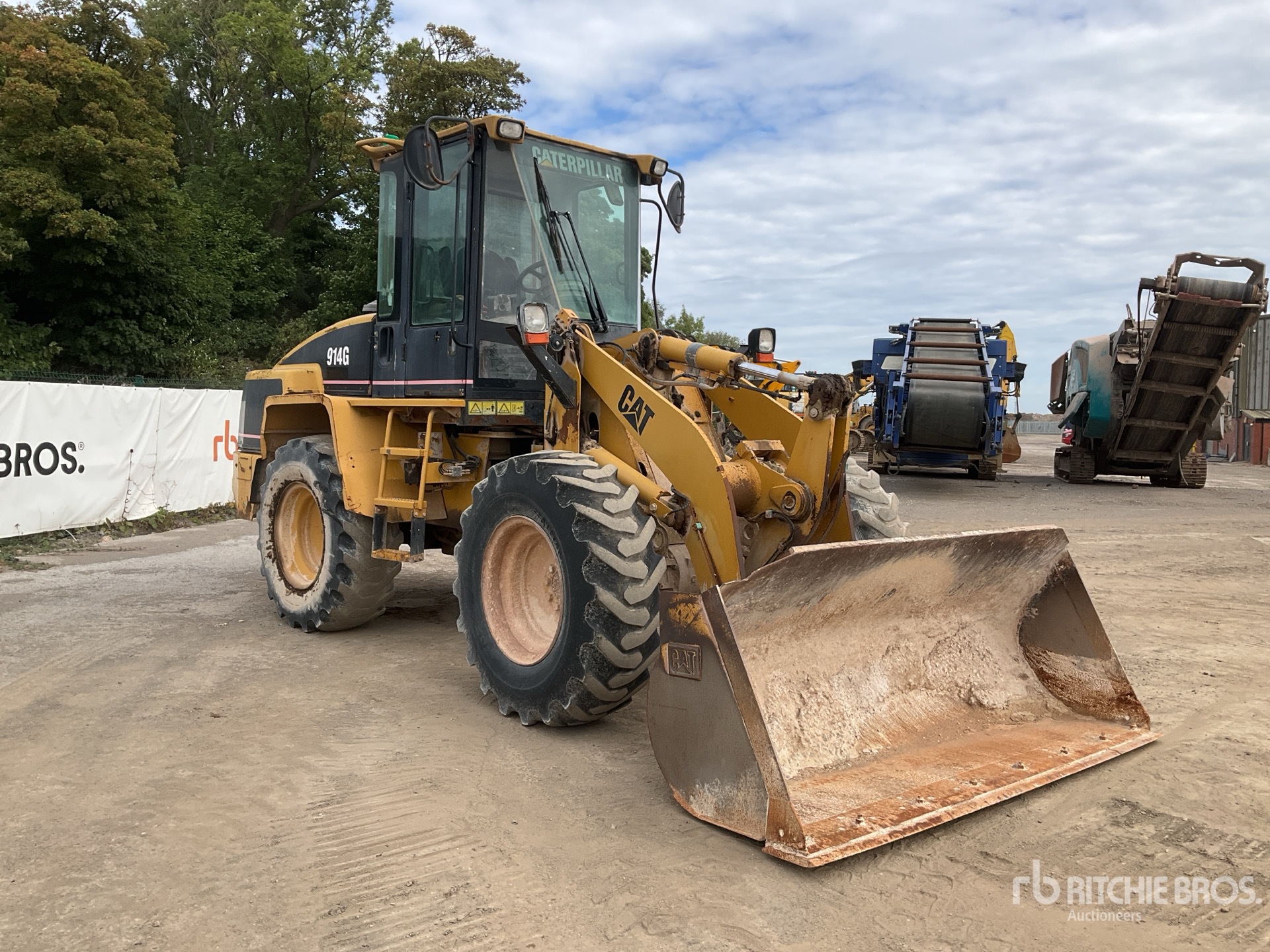

| Bucket |
|
Breakout Force |
14,007 lbs (6,353 kg)
|
|
Bucket Capacity - Heaped |
2 cu yd |
|
Bucket Capacity - Struck |
1 cu yd |
|
Bucket Width |
8 ft (2 m)
|
|
Dump Clearance At Max Raise |
9 ft (3 m)
|
| Buckets |
|
Bucket Capacities |
1.2-1.4 m3 (1.6-1.8 yd3) |

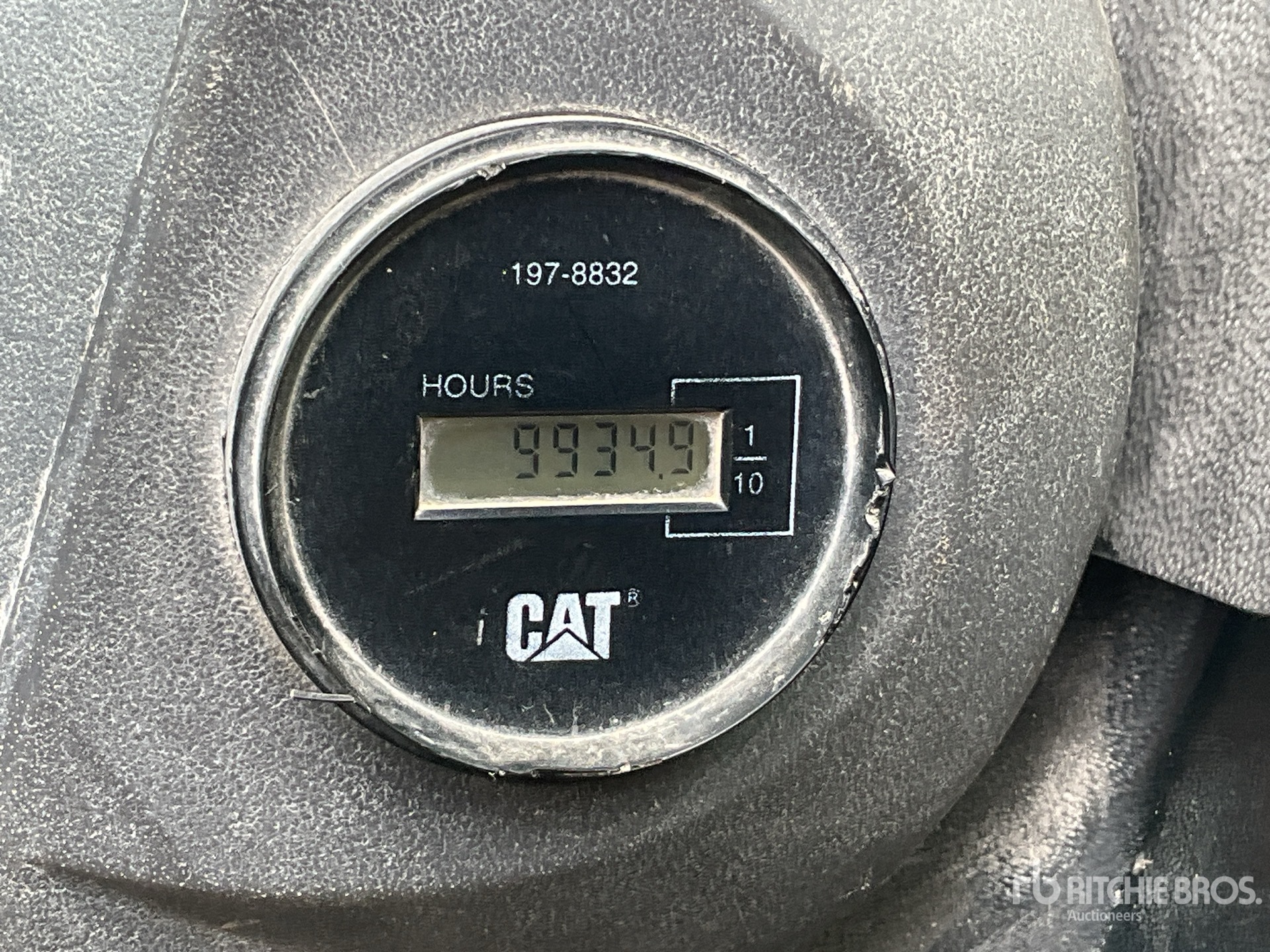

| Cab |
|
Fops |
SAE J231, ISO 3449 |
|
Rops |
SAE J394, SAE J1040, ISO 3471 |
|
Sound |
74 dB(A) |
| Dimensions |
|
Ground Clearance |
2 ft (0 m)
|
|
Height |
10 ft (3 m)
|
|
Height |
10 ft (3 m)
|
|
Height To Top Of Cab |
10 ft (3 m)
|
|
Hinge Pin - Max Height |
11 ft (3 m)
|
|
Length |
21 ft (6 m)
|
|
Length |
20 ft (6 m)
|
|
Length With Bucket On Ground |
20 ft (6 m)
|
|
Reach At Max Lift And Dump |
3 ft (1 m)
|
|
Weight |
17,530 lbs (7,950 kg)
|
|
Weight |
16,300 lbs (7,392 kg)
|
|
Wheelbase |
9 ft (3 m)
|
|
Width |
8 ft (2 m)
|
|
Width |
8 ft (2 m)
|
|
Width Over Tires |
8 ft (2 m)
|
| Engine |
|
Displacement |
269 cu in (4,402 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
3054 Turbocharged diesel |
|
Gross Power |
100 hp (75 kw)
|
|
Maximum Gross Power - Iso 14396 |
101 hp (75 kw)
|
|
Maximum Gross Power - Iso 14396 (Din) |
102 hp (76 kw)
|
|
Net Power |
95 hp (71 kw)
|
|
Net Power |
96 hp (72 kw)
|
|
Net Power - Iso 9249 (Din) |
98 hp (73 kw)
|
|
Net Power - Iso 9249 Eec |
97 hp (72 kw)
|
|
Net Power - Sae J1349 |
95 hp (71 kw)
|
|
Power Measured @ |
2,300 rpm |
|
Rated Net Power - 2,300 Rpm - Iso 9249 (Din) |
98 hp (73 kw)
|
|
Rated Net Power - 2,300 Rpm - Iso 9249/Eec |
97 hp (72 kw)
|
|
Rated Net Power - 2,300 Rpm - Sae J1349 |
95 hp (71 kw)
|
| Engine Dimensions |
|
Bore |
4 in (11 cm)
|
|
Displacement |
268 cu in (4,392 cu cm)
|
|
Stroke |
5 in (13 cm)
|
| Hydraulic System |
|
Dump Time |
2 sec |
|
Flow |
24 gpm (90 lpm)
|
|
Hydraulic Cycle Time - Dump |
2 |
|
Hydraulic Cycle Time - Lift |
6 |
|
Hydraulic Cycle Time - Lower, Float |
3 |
|
Lift Cylinder, Double Acting |
89 672 mm (3.5 26.5 in) |
|
Lower Time |
3 sec |
|
Main Relief |
3,560 psi |
|
Pump Flow Capacity |
24 gpm (90 lpm)
|
|
Pump Type |
fixed displacement |
|
Raise Time |
6 sec |
|
Relief Valve Setting |
3,560 psi |
|
Tilt Cylinder, Double Acting |
102 400 mm (4.0 15.8 in) |
| Operating Specifications |
|
Articulation |
40 degrees |
|
Breakout Force |
14,007 lbs (6,353 kg)
|
|
Dump Height At Full Lift |
9 ft (3 m)
|
|
Full Turn Static Tipping Load - Bucket |
11,737 lbs (5,324 kg)
|
|
Oscillation +/- |
11 degrees |
|
Rated Bucket Capacity |
2 cu yd |
|
Tire Size |
17.5-25 |
| Operational |
|
Alternator Supplied Amperage |
60 amps |
|
Cooling System Fluid Capacity |
6 gal (22 l)
|
|
Engine Oil Fluid Capacity |
2 gal (7 l)
|
|
Front Axle/Diff Fluid Capacity |
4 gal (15 l)
|
|
Fuel Capacity |
40 gal (150 l)
|
|
Hydraulic System Fluid Capacity |
26 gal (100 l)
|
|
Operating Voltage |
12 V |
|
Operating Weight |
17,530 lbs (7,951 kg)
|
|
Operating Weight |
16,262 lbs (7,376 kg)
|
|
Rear Axle Oscillation |
22 degrees |
|
Rear Axle/Diff Fluid Capacity |
4 gal (15 l)
|
|
Static Tipping Weight |
11,737 lbs (5,324 kg)
|
|
Tire Size |
17.5-R25,radial(L-2/L3 equivalent) |
|
Turning Radius |
16 ft (5 m)
|
| Service Refill Capacities |
|
Cooling System |
6 gal (23 l)
|
|
Fuel Tank |
40 gal (150 l)
|
|
Hydraulic System |
26 gal (100 l)
|
|
Hydraulic Tank |
19 gal (70 l)
|
| Transmission |
|
Max Speed - Forward |
22 mph (35 kph)
|
|
Max Speed - Reverse |
22 mph (35 kph)
|
|
Number Of Forward Gears |
2 |
|
Number Of Reverse Gears |
2 |
|
Transmission Type |
Hydrostatic |
|
Travel Speed 1 |
6 mph (9 kph)
|
|
Travel Speed 2 |
22 mph (35 kph)
|
| Weights |
|
Operating Weight |
17,530 lbs (7,951 kg)
|
|
Optional Counterweight* |
330 lbs (150 kg)
|
