1996 Caterpillar 924F For Sale in Truro, Ns

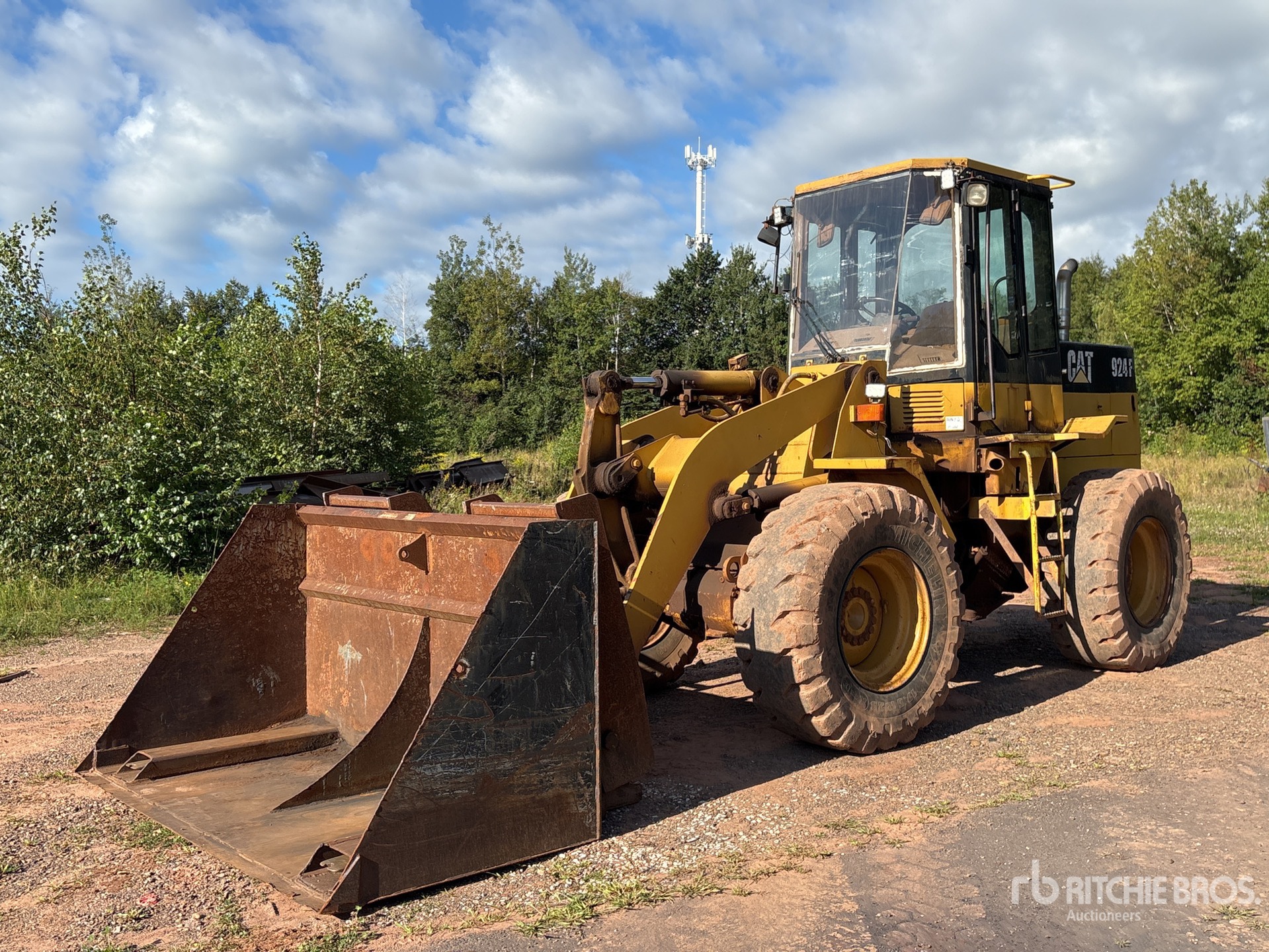

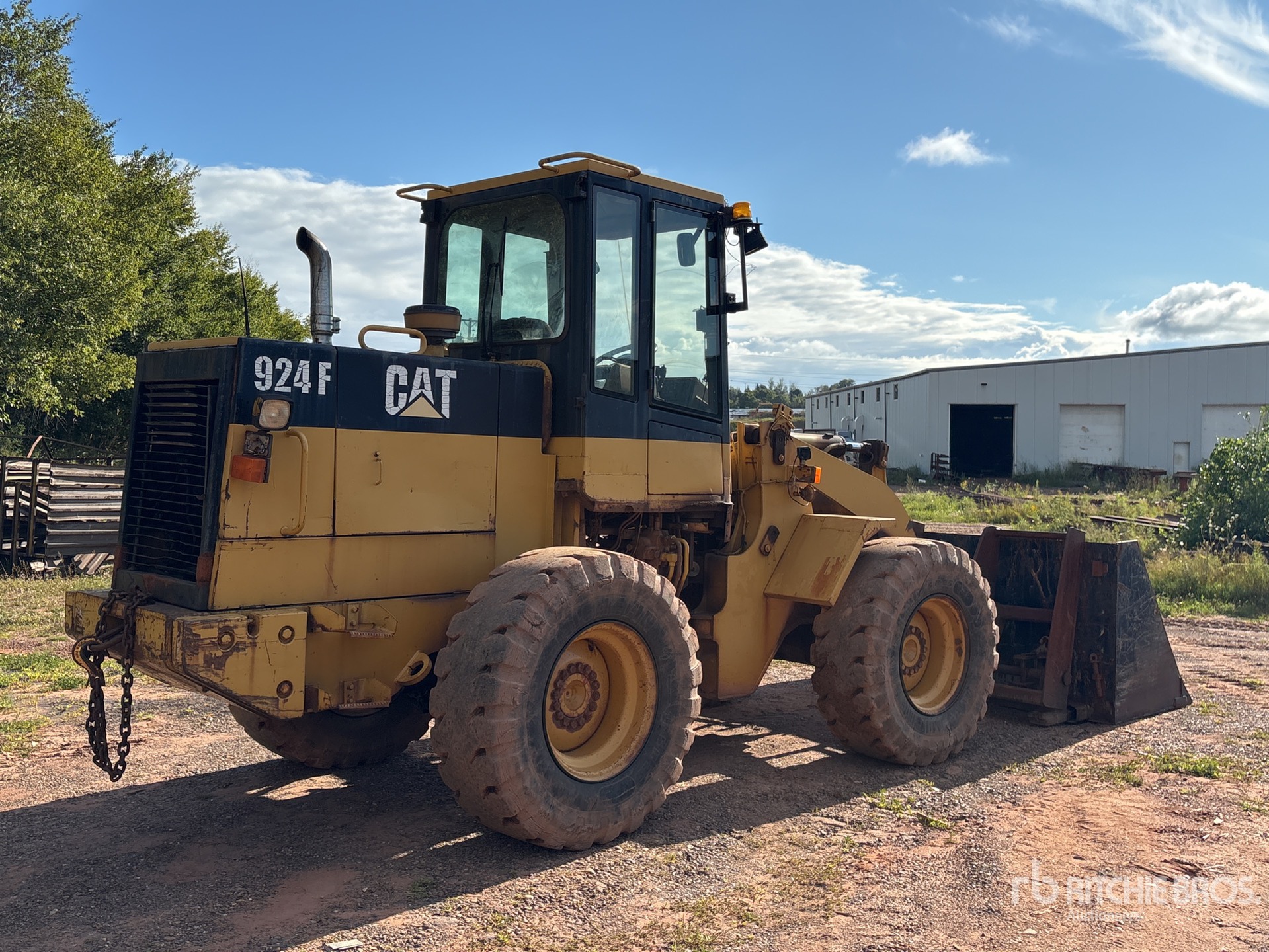

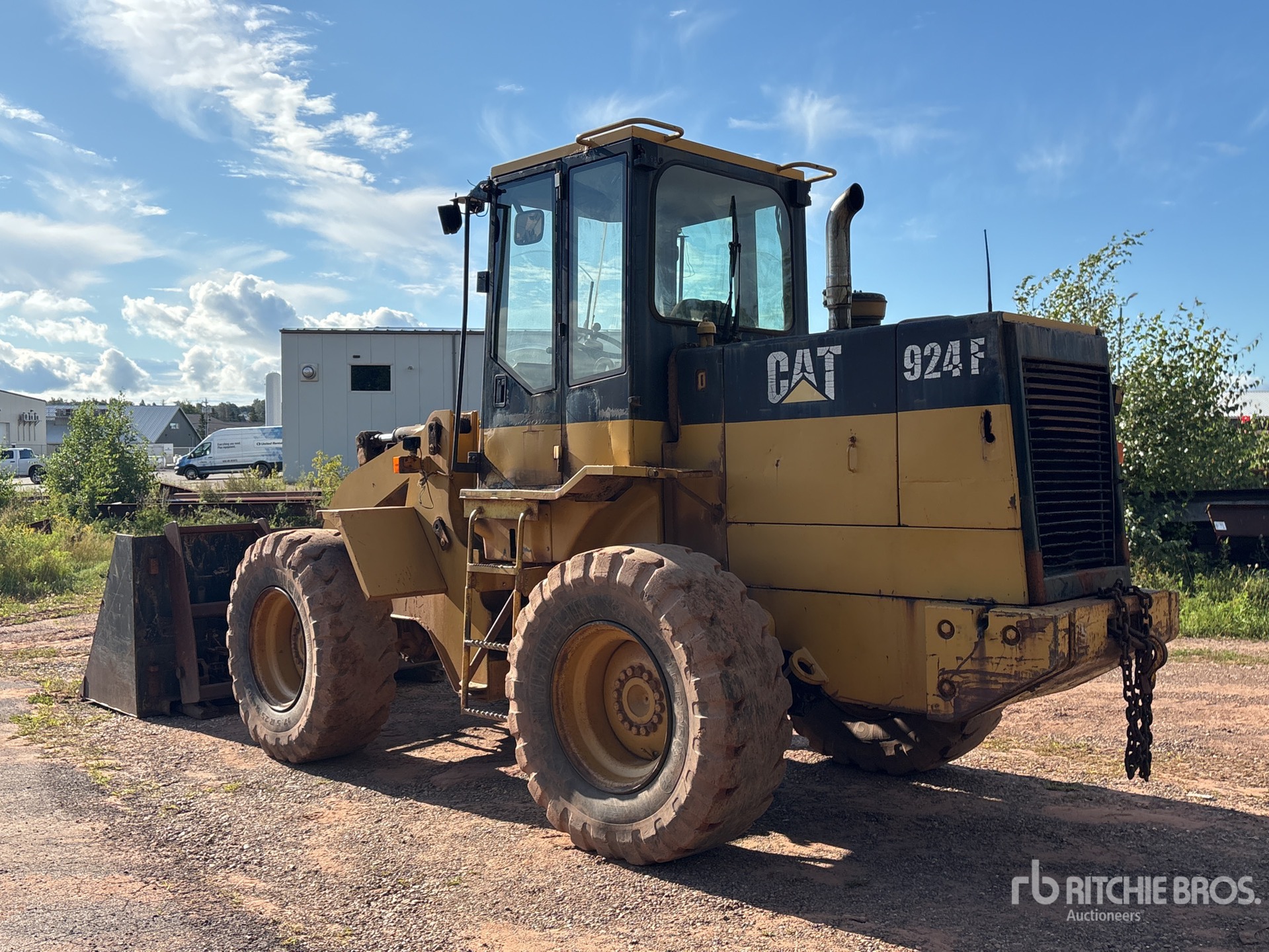

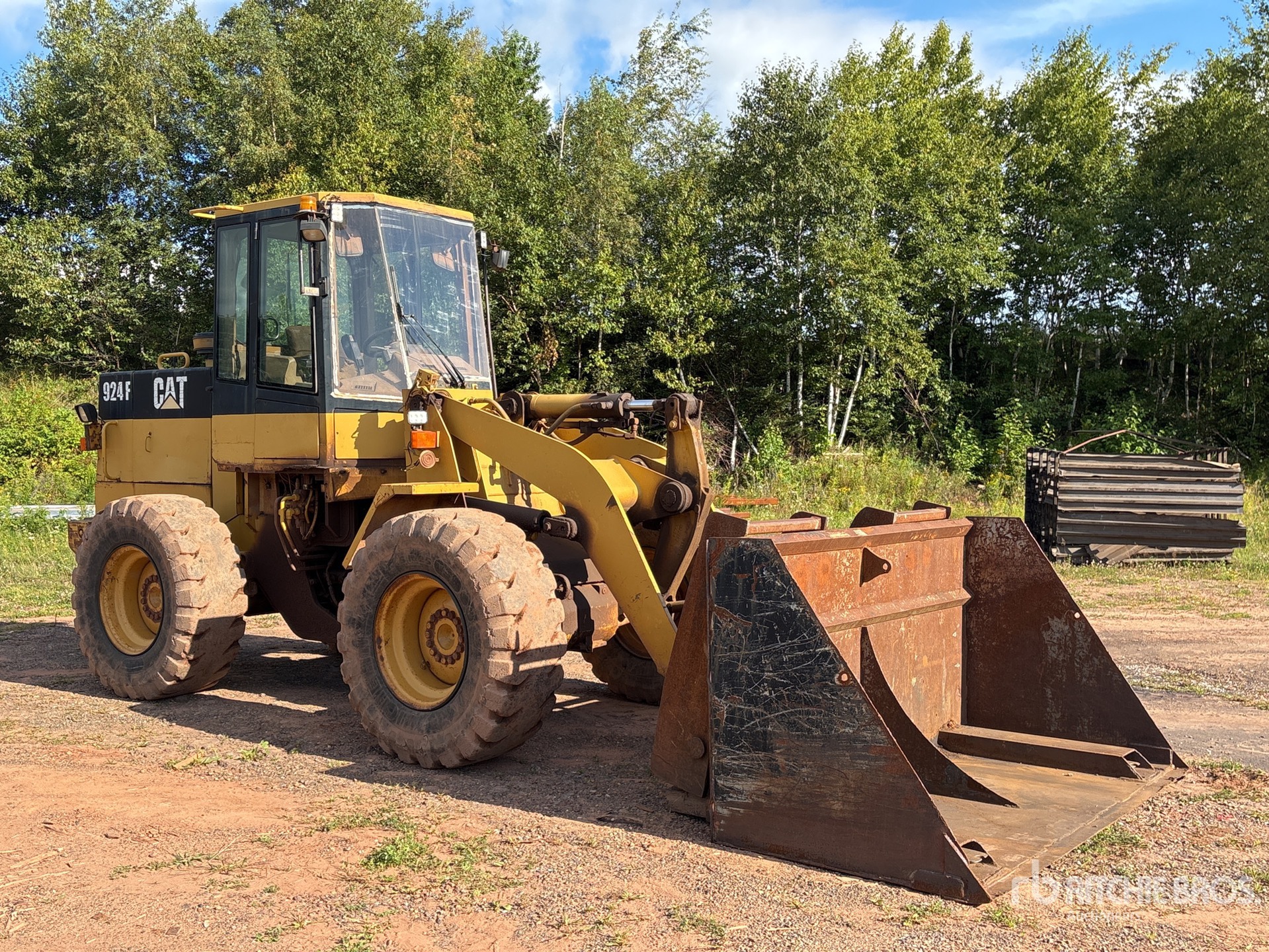

Name: 1996 Caterpillar 924F
Brand: Caterpillar
SKU: 89140525
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-25 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

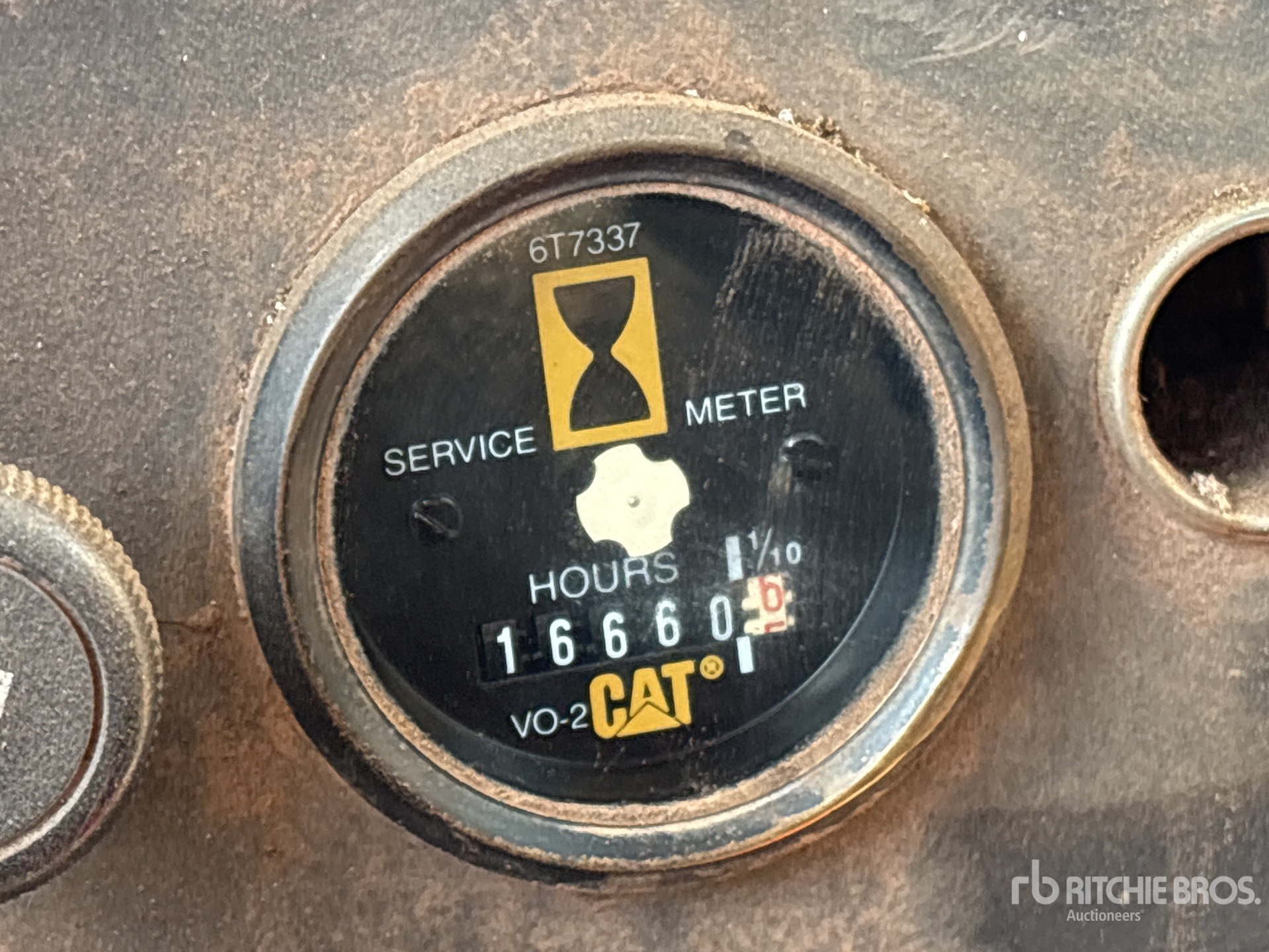

Hours:	16660

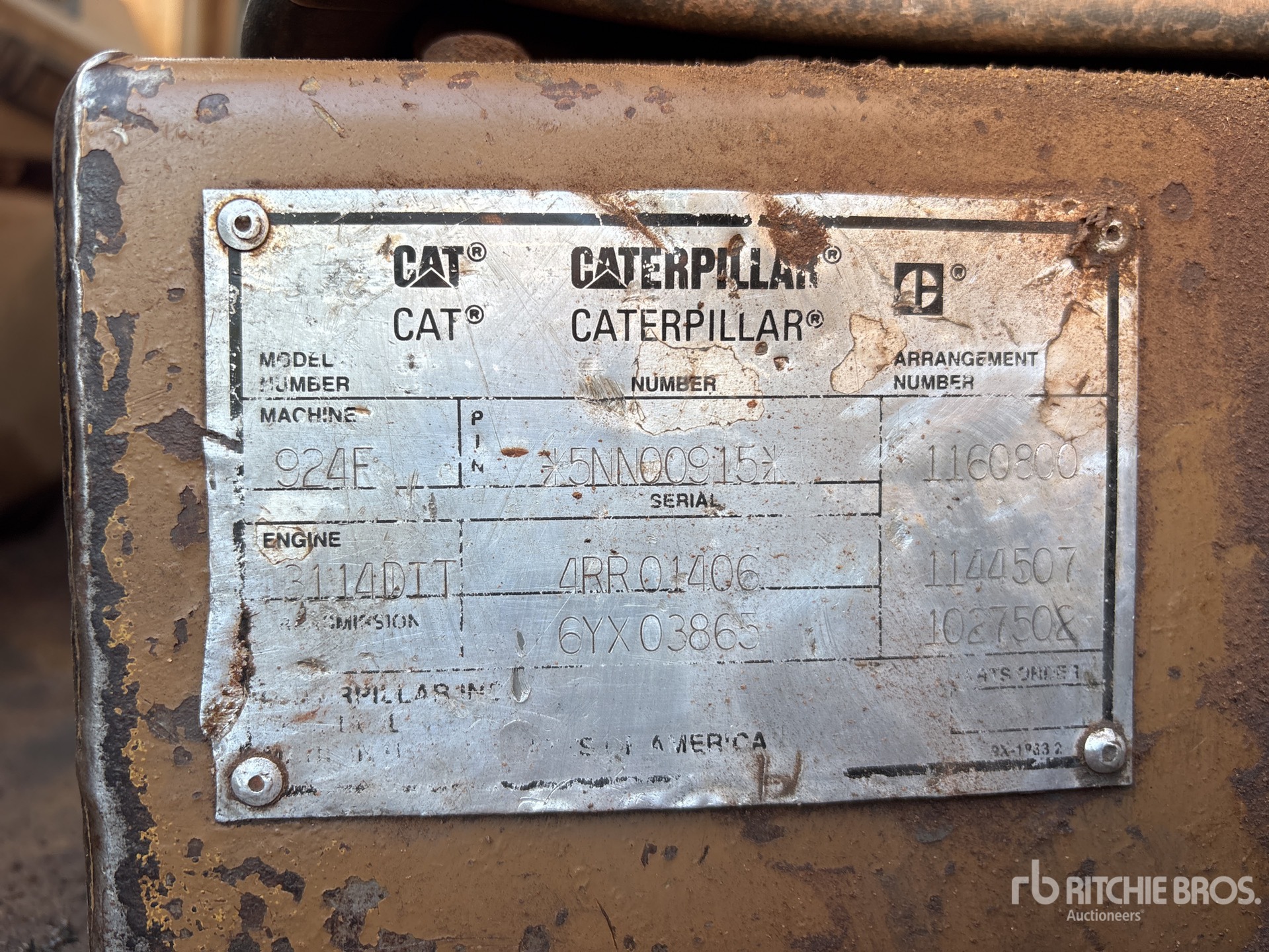

Serial Number:	5NN00915
Machine Location:	TRURO, NS

Description:

Enclosed Cab, Ride Control, Manual Quick Coupler, 96 in Bucket, Forks, 17.5-25 Foam Filled Tires Closing Time: 2026-09-25 10:25:40 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 924F is a wheel loader designed for material handling, loading, stockpiling, and general construction applications. Part of Caterpillar's F-series lineup, the 924F features a front-mounted bucket, articulated steering, and a diesel powertrain suited for earthmoving and site support work. It is commonly used in aggregate yards, construction sites, agriculture, and industrial material handling. The machine is known for balanced maneuverability, operator visibility, and compatibility with a range of attachments. As a mid-size wheel loader, the Caterpillar 924F is used for loading trucks, moving bulk materials, and supporting daily production tasks in demanding work environments.

Axles
Axle Oscillation	12 degrees
Bucket
Bucket Capacity - Heaped	2 cu yd
Bucket Capacity - Struck	2 cu yd
Bucket Width	8 ft (2 m)
Dump Clearance At Max Raise	9 ft (3 m)
Buckets
Bucket Width	8 ft (2 m)
Dimensions
Bucket Pin Height - Maximum Lift	12 ft (4 m)
Height	10 ft (3 m)
Height - Top Of Rops/Fops	10 ft (3 m)
Height To Top Of Cab	10 ft (3 m)
Hinge Pin - Max Height	12 ft (4 m)
Length	21 ft (7 m)
Length With Bucket On Ground	21 ft (7 m)
Overall Height	10 ft (3 m)
Rack Back Angle - Carry	45 degrees
Reach At Max Lift And Dump	3 ft (1 m)
Weight	20,081 lbs (9,109 kg)
Wheel Base	9 ft (3 m)
Wheelbase	9 ft (3 m)
Width	8 ft (2 m)
Width - Over Tires	8 ft (2 m)
Width Over Tires	8 ft (2 m)
Engine
Aspiration	Turbocharged
Displacement	268 cu in (4,392 cu cm)
Engine Make	2,236
Engine Model	3,114
Gross Power	111 hp (83 kw)
Net Power	105 hp (78 kw)
Number Of Cylinders	4
Power Measured @	2,400 rpm
Rated Net Power	105 hp (78 kw)
Hydraulic System
Dump Time	1 sec
Lower Time	3 sec
Pump Flow Capacity	35 gpm (132 lpm)
Raise Time	4 sec
Relief Valve Setting	3,600 psi
Loader Hydraulic System
Dump	1.3 s
Hydraulic Cycle Time	8.3 s
Lower, Empty, Float Down	2.7 s
Pump Flow - Implement Pump	35 gpm (132 lpm)
Raise	4.3 s
Relief Pressure - Implement Pump	3,600 psi
Total	8.3 s
Operating Specifications
Articulation Angle	40 degrees
Breakout Force	21,067 lbs (9,554 kg)
Bucket Capacity - With Bolt-On Cutting Edge	2 cu yd
Dump Clearance At Full Lift And 45 Degrees Dump Angle	9 ft (3 m)
Reach - Full Lift And 45 Degrees Dump	3 ft (1 m)
Static Tipping Load - Full Turn	13,885 lbs (6,297 kg)
Operational
Cooling System Fluid Capacity	9 gal (35 l)
Engine Oil Fluid Capacity	3 gal (10 l)
Front Axle/Diff Fluid Capacity	6 gal (21 l)
Fuel Capacity	42 gal (157 l)
Hydraulic System Fluid Capacity	20 gal (77 l)
Operating Weight	19,897 lbs (9,023 kg)
Rear Axle Oscillation	24 degrees
Rear Axle/Diff Fluid Capacity	6 gal (21 l)
Static Tipping Weight	15,880 lbs (7,202 kg)
Tire Size	17.5-25
Transmission Fluid Capacity	6 gal (23 l)
Service Refill Capacities
Cooling System	9 gal (35 l)
Crankcase	3 gal (10 l)
Front	6 gal (21 l)
Fuel Tank	42 gal (157 l)
Hydraulic System - Including Tank	20 gal (77 l)
Hydraulic Tank	14 gal (53 l)
Rear	6 gal (21 l)
Transmission	6 gal (23 l)
Steering
Minimum Turning Radius - Over Tires	201 in (511 cm)
Steering Articulation	40 degrees
Tires
Size	17.5-25
Tread Width	6 ft (2 m)
Transmission
2	8 mph (13 kph)
3	15 mph (24 kph)
4	24 mph (38 kph)
Forward - 1	5 mph (7 kph)
Max Speed - Forward	24 mph (38 kph)
Max Speed - Reverse	15 mph (24 kph)
Number Of Forward Gears	4
Number Of Reverse Gears	3
Reverse - 1	5 mph (7 kph)
Transmission Type	Powershift
Weights
Operating Weight	20,081 lbs (9,107 kg)
Optional Counterweight	566 lbs (257 kg)
