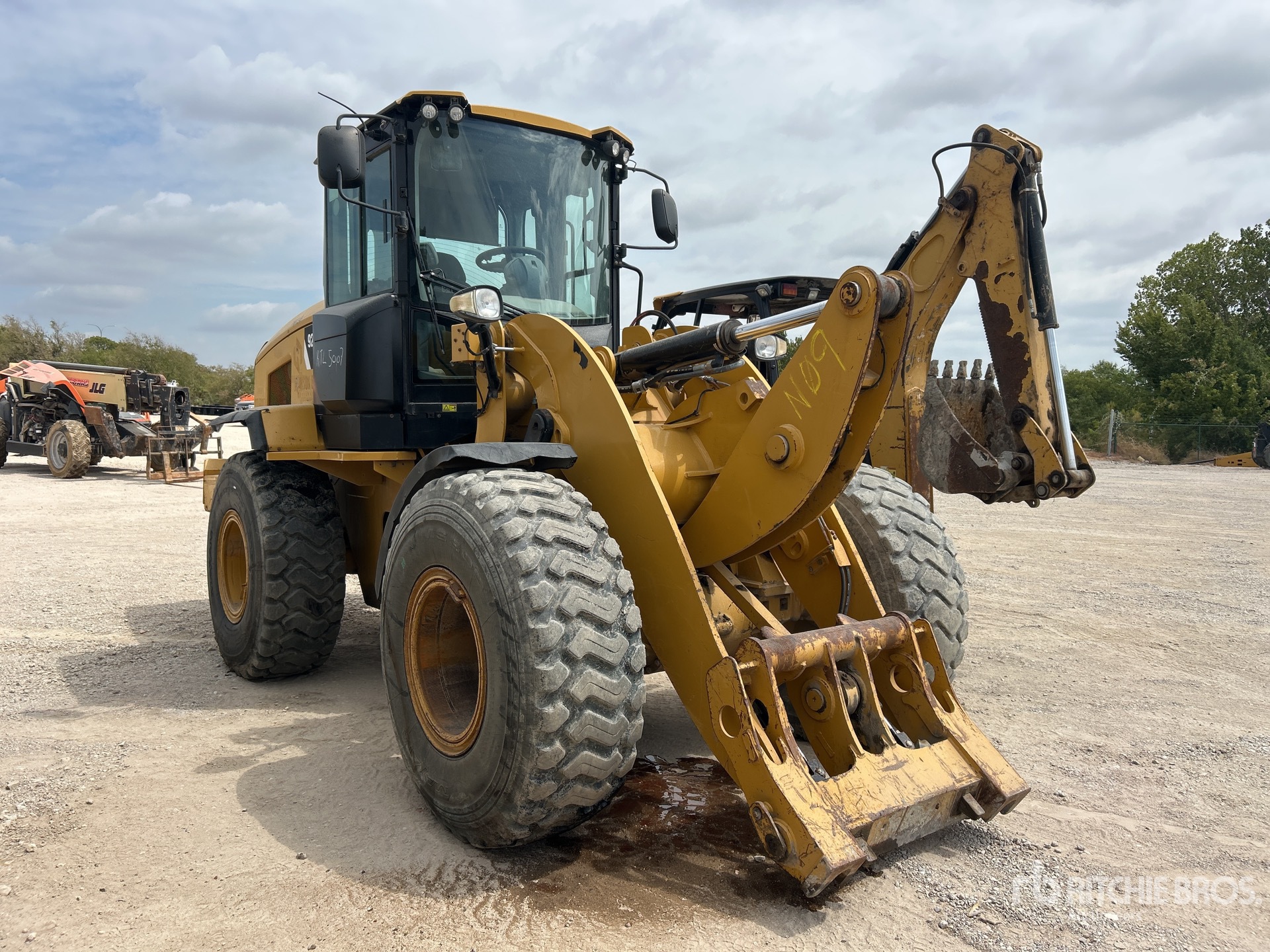

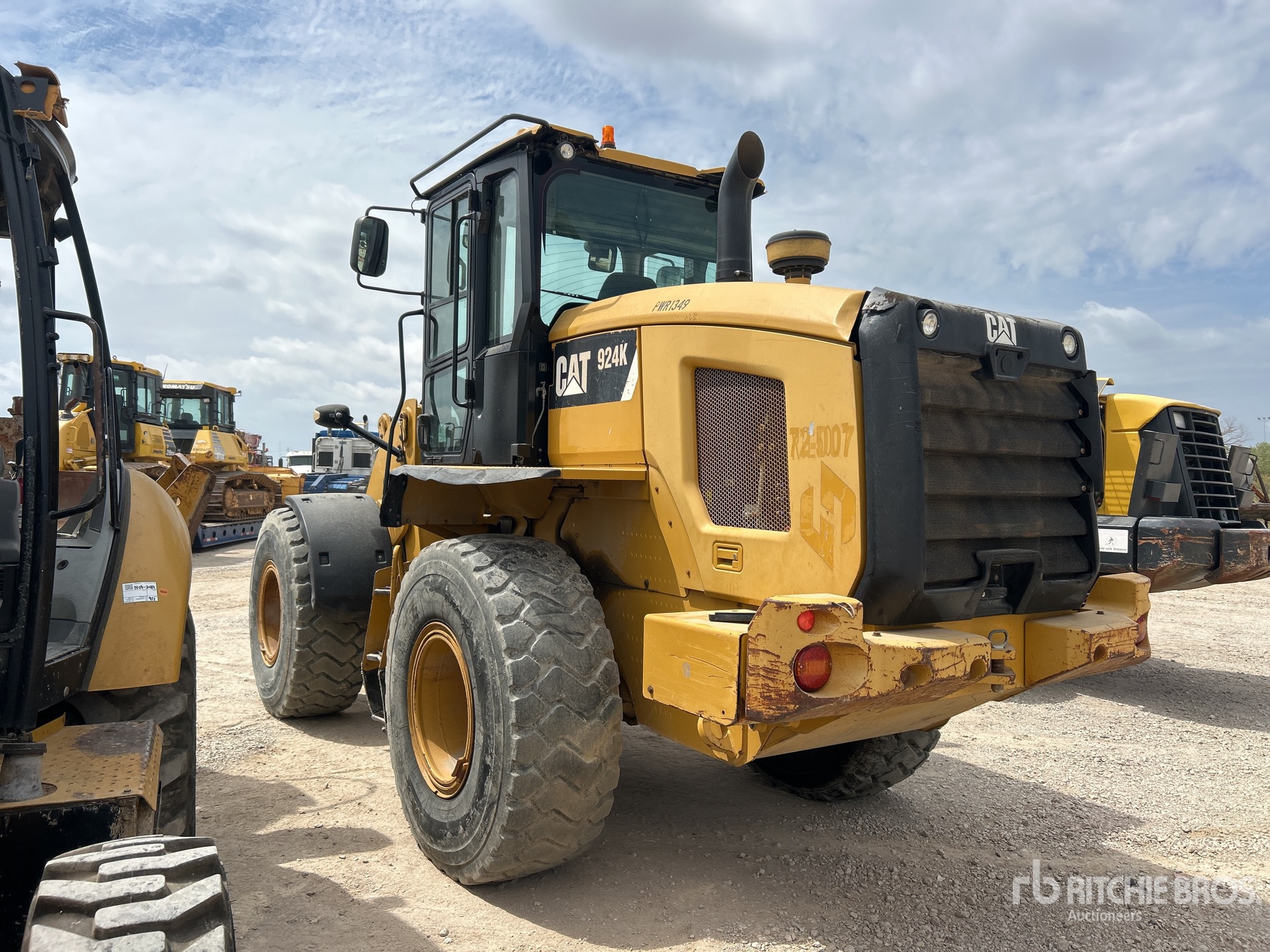

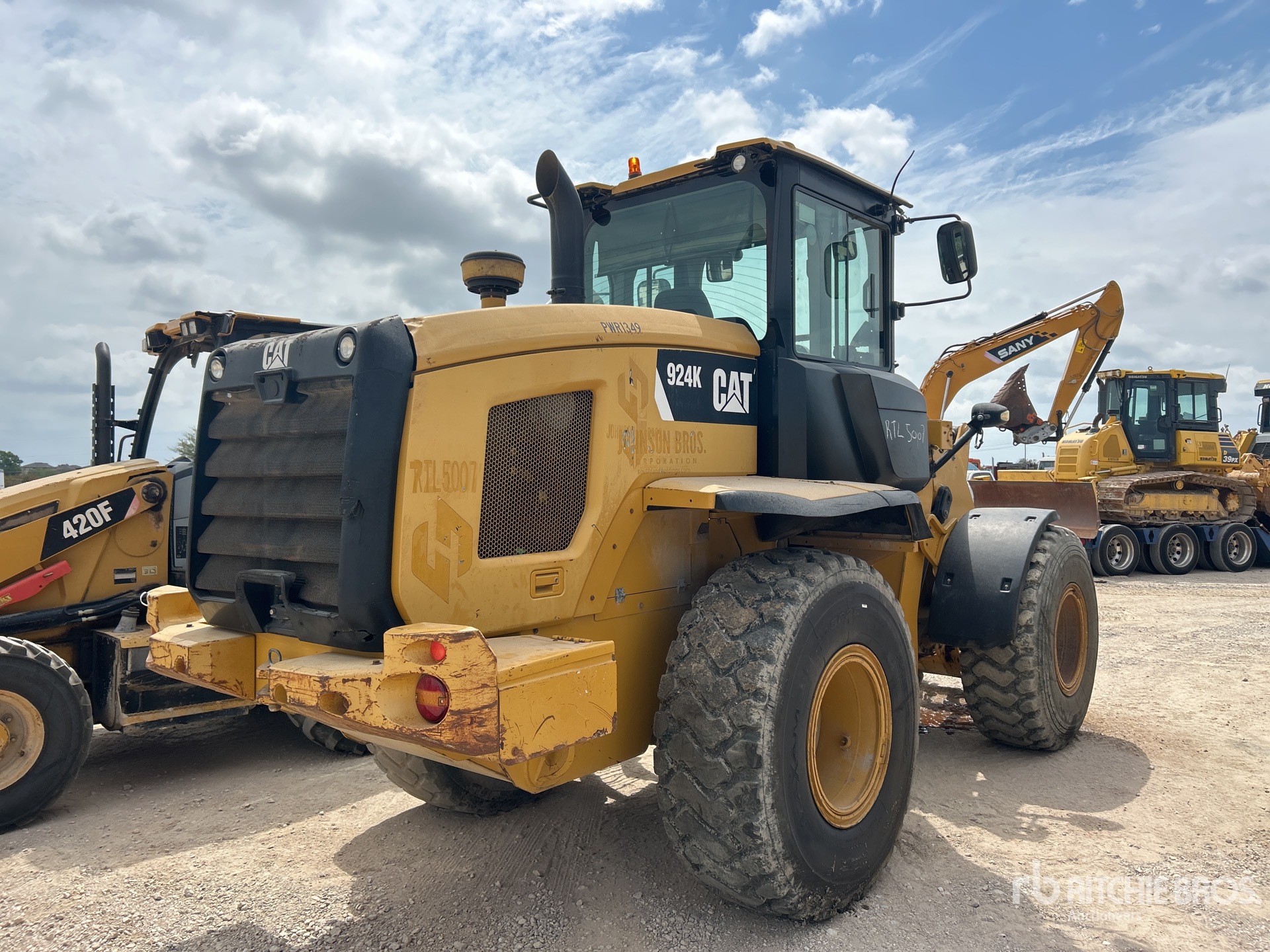

2013 Caterpillar 924K For Sale in Fort Worth, Tx

Name: 2013 Caterpillar 924K
Brand: Caterpillar
SKU: 89157404
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-16 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

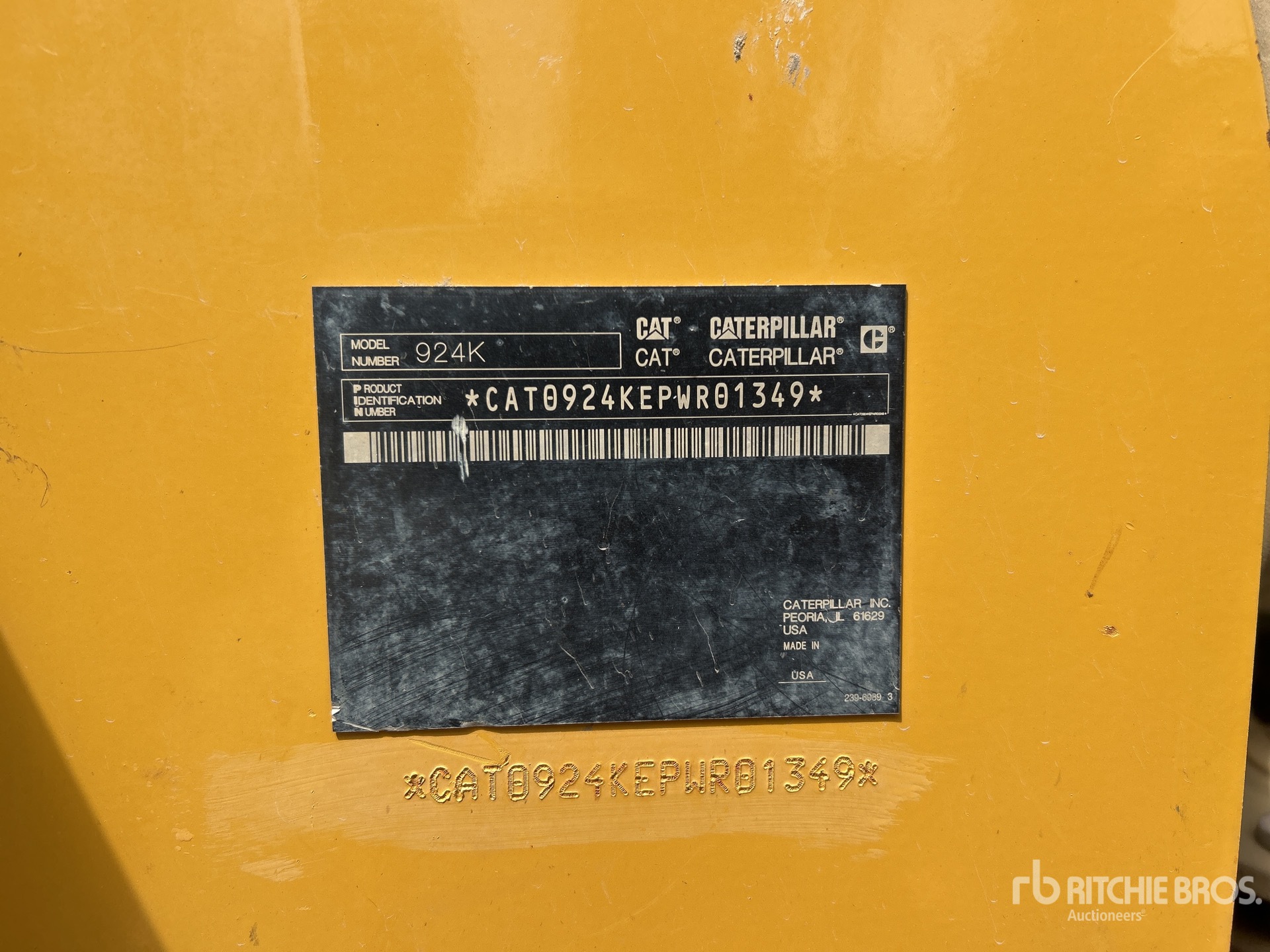

Serial Number:	CAT0924KEPWR01349
Machine Location:	FORT WORTH, TX

Description:

Enclosed Cab, Air Conditioner, Air Ride Seat, 2012 US EPA Label, Hydraulic Coupler, 20.5R25 Tires Inoperable items must be removed from yard by October 2nd and cannot be relisted; Buyer's responsibility for removal. RBA will not be able to assist with loading. Closing Time: 2026-09-16 04:30:36 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 924K is a wheel loader designed for material handling, stockpiling, truck loading, and general construction applications. It is part of Caterpillar's K Series and is commonly used in aggregate yards, roadbuilding, waste handling, and industrial sites. The 924K features a hydrostatic drive system, articulated steering, and a Z-bar linkage for efficient bucket loading and breakout force. Typical configurations include a standard or high-lift arrangement, with a range of bucket and attachment options. The machine is built for operator visibility, service access, and compatibility with multiple work tools. The Caterpillar 924K is a mid-size wheel loader used across construction and material handling sectors.

Buckets
Bucket Capacities	1.9 m3 - 5.0 m3 2.5 yd3 - 6.5 yd3
Cab
Fops	SAE J/ISO 3449 APR98 Level II, ISO 3449 1992 Level II
Rops	SAE J1040 MAY94, ISO 3471-1994
Dimensions
Bucket Pin Height - Maximum Lift	13 ft (4 m)
Carry Height	2 ft (0 m)
Centerline Of Front Axle To Hitch	5 ft (2 m)
Digging Depth	4 in (10 cm)
Dump Angle At Maximum Lift	50 degrees
Dump Clearance At Maximum Lift - 45 Degrees	9 ft (3 m)
Ground Clearance	1 ft (0 m)
Height	12 ft (4 m)
Height - Center Of Axle	2 ft (1 m)
Height - Top Of Rops/Fops	11 ft (3 m)
Length	24 ft (7 m)
Length - Rear Axle To Bumper	7 ft (2 m)
Overall Height - Bucket Raised	17 ft (5 m)
Overall Length	24 ft (7 m)
Rack Back Angle - Carry	45 degrees
Rack Back Angle - Maximum Lift	54 degrees
Reach At Maximum Lift And 45 Degrees Dump	3 ft (1 m)
Weight	28,360 lbs (12,864 kg)
Wheel Base Length	10 ft (3 m)
Width	8 ft (3 m)
Width - Over Tires	8 ft (3 m)
Engine
Bore	4 in (10 cm)
Displacement	402 cu in (6,588 cu cm)
Eec 80/1269	142 hp (106 kw)
Iso 9249 (1997)	142 hp (106 kw)
Net Torque	515 lbs ft (698 nm)
Rated Net Power	141 hp (105 kw)
Sae J1349	141 hp (105 kw)
Stroke	5 in (13 cm)
Loader Hydraulic System
Bore (1)	4 in (11 cm)
Bore (2)	5 in (13 cm)
Dump	1.5 s
Hydraulic Cycle Time	9.6 s
Lower, Empty, Float Down	2.6 s
Maximum Working Pressure	3,771 psi
Pump Flow - Implement Pump	40 gpm (151 lpm)
Raise	5.5 s
Stroke (1)	29 in (73 cm)
Stroke (2)	22 in (56 cm)
Total	9.6 s
Operating Specifications
Articulation Angle	40 degrees
Dump Clearance At Full Lift And 45 Degrees Dump Angle	9 ft (3 m)
Reach - Full Lift And 45 Degrees Dump	3 ft (1 m)
Static Tipping Load - Full Turn	16,352 lbs (7,416 kg)
Operational
Operating Weight	28,360 lbs (12,862 kg)
Service Refill Capacities
Cooling System	8 gal (30 l)
Crankcase	5 gal (20 l)
Front	6 gal (21 l)
Fuel Tank	52 gal (195 l)
Hydraulic System - Including Tank	42 gal (160 l)
Hydraulic Tank	24 gal (90 l)
Rear	6 gal (21 l)
Transmission	2 gal (8 l)
Steering
Maximum Working Pressure	3,500 psi
Steering Angle - Each Direction	40 degrees
Steering Articulation	40 degrees
Steering Cylinder, Two, Bore	3 in (7 cm)
Tires
Size	20.5 R25 Radial (L-3)
Transmission
2	8 mph (13 kph)
3	17 mph (27 kph)
4	25 mph (40 kph)
Forward - 1	8 mph (13 kph)
Reverse - 1	8 mph (13 kph)
Standard Transmission Maximum Travel Speeds	25 mph (40 kph)
