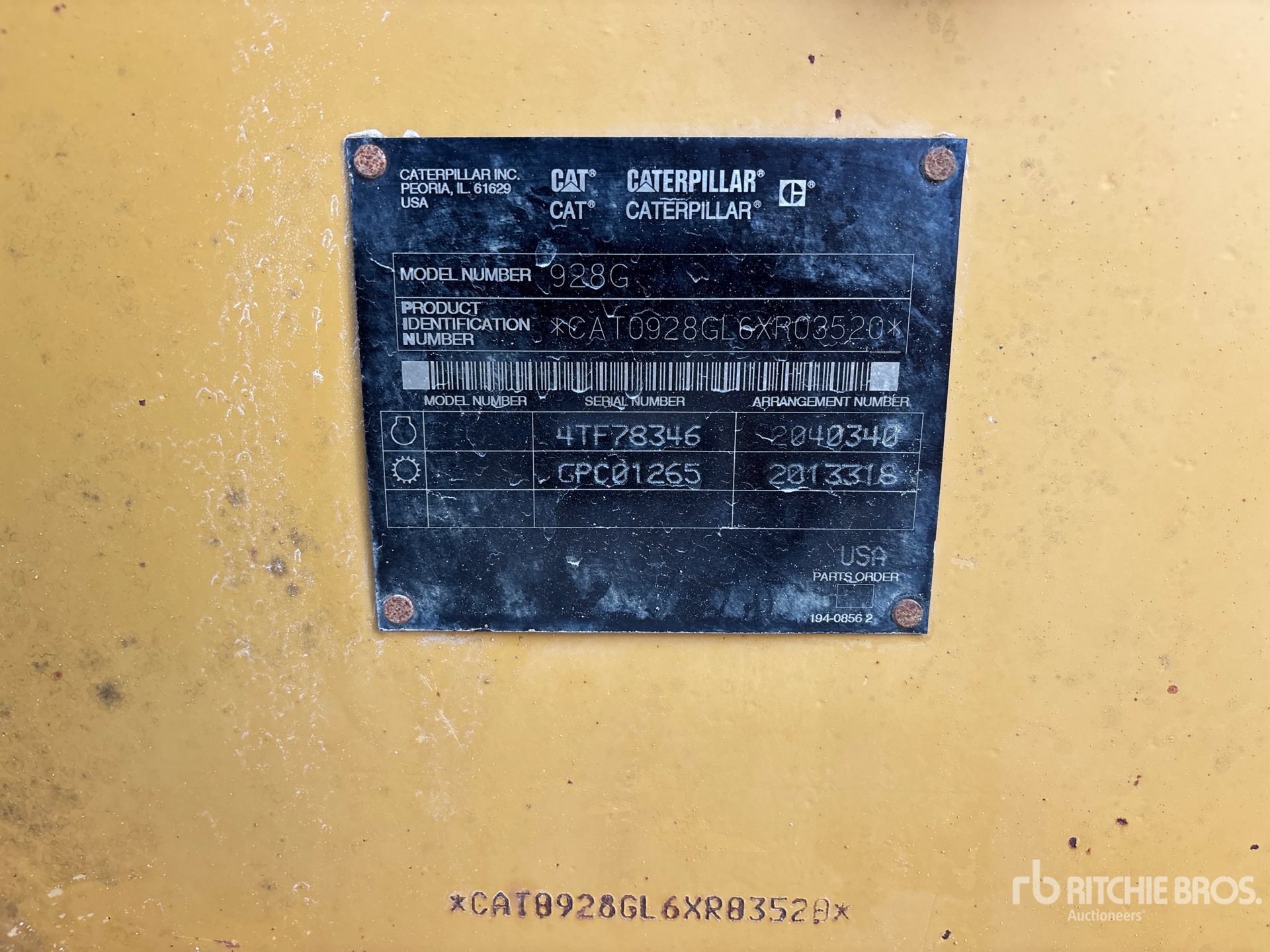

| Axles |
|
Axle Oscillation |
11 degrees |
|
Axle Oscillation |
11 degrees |
| Bucket |
|
Breakout Force |
25,849 lbs (11,723 kg)
|
|
Breakout Force |
_ - |
|
Bucket Capacity - Heaped |
2 cu yd |
|
Bucket Capacity - Heaped |
3 cu yd |
|
Bucket Capacity - Struck |
2 cu yd |
|
Bucket Width |
8 ft (3 m)
|
|
Bucket Width |
8 ft (3 m)
|
|
Dump Clearance At Max Raise |
9 ft (3 m)
|
|
Dump Clearance At Max Raise |
9 ft (3 m)
|
| Buckets |
|
Breakout Force - Reference Bucket |
25,844 lbs (11,721 kg)
|
|
Bucket Capacities |
1.9 m3 - 2.3 m3 2.5 yd3 - 3.0 yd3 |
|
Bucket Capacities |
2.0 m3 - 2.3 m3 2.6 yd3 - 3.0 yd3 |
|
Bucket Width |
8 ft (3 m)
|
|
Capacity - Reference Bucket |
3 cu yd |
|
Type - Reference Bucket |
GP |
| Cab |
|
Fops |
SAE J231 JAN81, ISO 3449-1992 Level II |
|
Fops |
SAE J/ISO 3449 APR98 Level II, ISO 3449-1992 Level II |
|
Rops |
SAE J1040 MAY94, ISO 3471-1994 |
|
Rops |
SAE J1040 MAY94, ISO 3471-1994 |
| Dimensions |
|
Bucket Clearance-Maximum Lift/Carry |
12 ft (4 m)
|
|
Bucket Clearance-Maximum Lift/Carry |
12 ft (4 m)
|
|
Bucket Pin Height - Maximum Lift |
12 ft (4 m)
|
|
Bucket Pin Height - Maximum Lift |
12 ft (4 m)
|
|
Carry Height |
3 ft (1 m)
|
|
Carry Height |
3 ft (1 m)
|
|
Centerline Of Front Axle To Hitch |
5 ft (2 m)
|
|
Centerline Of Front Axle To Hitch |
5 ft (2 m)
|
|
Digging Depth |
3 in (9 cm)
|
|
Digging Depth |
3 in (9 cm)
|
|
Dump Angle At Maximum Lift |
45 degrees |
|
Dump Angle At Maximum Lift |
45 degrees |
|
Dump Clearance At Maximum Lift - 45 Degrees |
10 ft (3 m)
|
|
Dump Clearance At Maximum Lift - 45 Degrees |
10 ft (3 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
11 ft (3 m)
|
|
Height |
11 ft (3 m)
|
|
Height - Center Of Axle |
2 ft (1 m)
|
|
Height - Center Of Axle |
2 ft (1 m)
|
|
Height - Top Of Exhaust Stack |
11 ft (3 m)
|
|
Height - Top Of Exhaust Stack |
11 ft (3 m)
|
|
Height - Top Of Hood |
88 in (223 cm)
|
|
Height - Top Of Hood |
88 in (223 cm)
|
|
Height - Top Of Rops/Fops |
11 ft (3 m)
|
|
Height - Top Of Rops/Fops |
11 ft (3 m)
|
|
Height To Top Of Cab |
11 ft (3 m)
|
|
Height To Top Of Cab |
11 ft (3 m)
|
|
Hinge Pin - Max Height |
13 ft (4 m)
|
|
Length |
24 ft (7 m)
|
|
Length |
24 ft (7 m)
|
|
Length - Rear Axle To Bumper |
6 ft (2 m)
|
|
Length - Rear Axle To Bumper |
6 ft (2 m)
|
|
Length With Bucket On Ground |
24 ft (7 m)
|
|
Length With Bucket On Ground |
24 ft (7 m)
|
|
Overall Height |
16 ft (5 m)
|
|
Overall Height |
16 ft (5 m)
|
|
Overall Height - Bucket Raised |
16 ft (5 m)
|
|
Overall Height - Bucket Raised |
16 ft (5 m)
|
|
Overall Length |
23 ft (7 m)
|
|
Overall Length |
23 ft (7 m)
|
|
Rack Back Angle - Carry |
48 degrees |
|
Rack Back Angle - Carry |
48 degrees |
|
Rack Back Angle - Ground |
44 degrees |
|
Rack Back Angle - Ground |
44 degrees |
|
Rack Back Angle - Maximum Lift |
58 degrees |
|
Rack Back Angle - Maximum Lift |
58 degrees |
|
Reach At Max Lift And Dump |
3 ft (1 m)
|
|
Reach At Max Lift And Dump |
9 ft (3 m)
|
|
Reach At Maximum Lift And 45 Degrees Dump |
3 ft (1 m)
|
|
Reach At Maximum Lift And 45 Degrees Dump |
3 ft (1 m)
|
|
Weight |
26,094 lbs (11,836 kg)
|
|
Weight |
27,140 lbs (12,311 kg)
|
|
Wheel Base |
10 ft (3 m)
|
|
Wheel Base |
10 ft (3 m)
|
|
Wheel Base Length |
10 ft (3 m)
|
|
Wheel Base Length |
10 ft (3 m)
|
|
Wheelbase |
10 ft (3 m)
|
|
Width |
8 ft (2 m)
|
|
Width |
8 ft (2 m)
|
|
Width - Over Tires |
77 ft (23 m)
|
|
Width - Over Tires |
6 ft (2 m)
|
|
Width Over Tires |
8 ft (2 m)
|
|
Width Over Tires |
8 ft (3 m)
|
| Engine |
|
Bore |
4 in (10 cm)
|
|
Bore |
4 in (10 cm)
|
|
Displacement |
366 cu in (5,998 cu cm)
|
|
Displacement |
366 cu in (5,998 cu cm)
|
|
Eec 80/1269 (1) |
145 hp (108 kw)
|
|
Eec 80/1269 (1) |
145 hp (108 kw)
|
|
Eec 80/1269 (2) |
156 hp (116 kw)
|
|
Eec 80/1269 (2) |
156 hp (116 kw)
|
|
Engine Make |
2,236 |
|
Engine Model |
3116T |
|
Engine Model |
3056E DIT ATAAC |
|
Gross Power |
157 hp (117 kw)
|
|
Iso 9249 (1997) (1) |
145 hp (108 kw)
|
|
Iso 9249 (1997) (1) |
145 hp (108 kw)
|
|
Iso 9249 (1997) (2) |
156 hp (116 kw)
|
|
Iso 9249 (1997) (2) |
156 hp (116 kw)
|
|
Maximum Net Power - 2000 Rpm |
155 hp (116 kw)
|
|
Maximum Net Power - 2000 Rpm |
155 hp (116 kw)
|
|
Net Power |
125 hp (93 kw)
|
|
Net Power |
145 hp (108 kw)
|
|
Power Measured @ |
2,300 rpm |
|
Rated Net Power |
143 hp (107 kw)
|
|
Rated Net Power |
143 hp (107 kw)
|
|
Sae J1349 (1) |
143 hp (107 kw)
|
|
Sae J1349 (1) |
143 hp (107 kw)
|
|
Sae J1349 (2) |
155 hp (116 kw)
|
|
Sae J1349 (2) |
155 hp (116 kw)
|
|
Stroke |
5 in (13 cm)
|
|
Stroke |
5 in (13 cm)
|
| Hydraulic System |
|
Dump Time |
1 sec |
|
Dump Time |
1 sec |
|
Lower Time |
3 sec |
|
Lower Time |
3 sec |
|
Pump Flow Capacity |
40 gpm (152 lpm)
|
|
Pump Type |
fixed displacement vane-type implement pump |
|
Raise Time |
6 sec |
|
Raise Time |
6 sec |
|
Relief Valve Setting |
3,597 psi |
| Loader Hydraulic System |
|
Bore (1) |
5 in (12 cm)
|
|
Bore (1) |
5 in (12 cm)
|
|
Bore (2) |
5 in (13 cm)
|
|
Bore (2) |
5 in (13 cm)
|
|
Dump |
1.2 s |
|
Dump |
1.2 s |
|
Hydraulic Cycle Time |
10.1 s |
|
Hydraulic Cycle Time |
10.1 s |
|
Lower, Empty, Float Down |
2.8 s |
|
Lower, Empty, Float Down |
2.8 s |
|
Output At 2,300 Engine Rpm And 6900 Kpa (1000 Psi) With Sae 10w Oil At 65 Degreesc (150 Degreesf) |
40 gpm (153 lpm)
|
|
Output At 2,300 Engine Rpm And 6900 Kpa (1000 Psi) With Sae 10w Oil At 65 Degreesc (150 Degreesf) |
40 gpm (153 lpm)
|
|
Pump Flow - Implement Pump |
40 gpm (152 lpm)
|
|
Pump Flow - Implement Pump |
40 gpm (152 lpm)
|
|
Raise |
6.1 s |
|
Raise |
6.1 s |
|
Relief Valve Setting |
3,600 psi |
|
Relief Valve Setting |
3,600 psi |
|
Stroke (1) |
27 in (69 cm)
|
|
Stroke (1) |
27 in (69 cm)
|
|
Stroke (2) |
22 in (55 cm)
|
|
Stroke (2) |
22 in (55 cm)
|
|
Total |
10.1 s |
|
Total |
10.1 s |
| Operating Specifications |
|
Articulation Angle |
40 degrees |
|
Articulation Angle |
40 degrees |
|
Breakout Force |
25,849 lbs (11,723 kg)
|
|
Breakout Force |
25,844 lbs (11,721 kg)
|
|
Dump Clearance At Full Lift And 45 Degrees Dump Angle |
10 ft (3 m)
|
|
Dump Clearance At Full Lift And 45 Degrees Dump Angle |
10 ft (3 m)
|
|
Reach - Full Lift And 45 Degrees Dump |
3 ft (1 m)
|
|
Reach - Full Lift And 45 Degrees Dump |
3 ft (1 m)
|
|
Static Tipping Load - Full Turn |
18,018 lbs (8,171 kg)
|
|
Static Tipping Load - Full Turn |
18,931 lbs (8,586 kg)
|
| Operational |
|
Alternator Supplied Amperage |
80 amps |
|
Cooling System Fluid Capacity |
11 gal (42 l)
|
|
Engine Oil Fluid Capacity |
4 gal (16 l)
|
|
Front Axle/Diff Fluid Capacity |
7 gal (26 l)
|
|
Fuel Capacity |
61 gal (230 l)
|
|
Fuel Capacity |
60 gal (225 l)
|
|
Hydraulic System Fluid Capacity |
33 gal (125 l)
|
|
Hydraulic System Fluid Capacity |
33 gal (125 l)
|
|
Operating Voltage |
24 V |
|
Operating Weight |
25,699 lbs (11,655 kg)
|
|
Operating Weight |
27,135 lbs (12,306 kg)
|
|
Rear Axle Oscillation |
11 degrees |
|
Rear Axle/Diff Fluid Capacity |
7 gal (25 l)
|
|
Static Tipping Weight |
20,351 lbs (9,229 kg)
|
|
Static Tipping Weight |
21,735 lbs (9,857 kg)
|
|
Tire Size |
20.5-25 R25 |
|
Transmission Fluid Capacity |
9 gal (35 l)
|
|
Turning Radius |
17 ft (5 m)
|
| Service Refill Capacities |
|
Cooling System |
11 gal (42 l)
|
|
Cooling System |
11 gal (42 l)
|
|
Crankcase |
4 gal (16 l)
|
|
Crankcase |
4 gal (14 l)
|
|
Front |
7 gal (26 l)
|
|
Front |
7 gal (26 l)
|
|
Fuel Tank |
59 gal (225 l)
|
|
Fuel Tank |
59 gal (225 l)
|
|
Hydraulic System - Including Tank |
33 gal (125 l)
|
|
Hydraulic System - Including Tank |
33 gal (125 l)
|
|
Hydraulic Tank |
19 gal (70 l)
|
|
Hydraulic Tank |
19 gal (70 l)
|
|
Rear |
7 gal (25 l)
|
|
Rear |
7 gal (25 l)
|
|
Transmission |
9 gal (34 l)
|
|
Transmission |
9 gal (34 l)
|
| Steering |
|
Hydraulic Output At 2300 Engine Rpm And 6900 Kpa (1000 Psi) |
27 gpm (102 lpm)
|
|
Hydraulic Output At 2300 Engine Rpm And 6900 Kpa (1000 Psi) |
27 gpm (102 lpm)
|
|
Maximum Working Pressure |
3,000 psi |
|
Maximum Working Pressure |
3,000 psi |
|
Minimum Turning Radius - Over Tires |
206 in (523 cm)
|
|
Minimum Turning Radius - Over Tires |
206 in (523 cm)
|
|
Steering Angle - Each Direction |
40 degrees |
|
Steering Angle - Each Direction |
40 degrees |
|
Steering Articulation |
40 degrees |
|
Steering Cylinder, Two, Bore |
3 in (7 cm)
|
|
Steering Cylinder, Two, Bore |
3 in (7 cm)
|
| Tires |
|
Size |
17.5-25PR (L-2) |
|
Size |
17.5-25PR (L-2) |
|
Tread Width |
96 ft (29 m)
|
|
Tread Width |
96 ft (29 m)
|
| Transmission |
|
2 |
8 mph (13 kph)
|
|
2 |
8 mph (13 kph)
|
|
3 |
16 mph (26 kph)
|
|
3 |
16 mph (26 kph)
|
|
4 |
23 mph (38 kph)
|
|
4 |
23 mph (38 kph)
|
|
Forward - 1 |
5 mph (8 kph)
|
|
Forward - 1 |
5 mph (8 kph)
|
|
Max Speed - Forward |
23 mph (37 kph)
|
|
Max Speed - Forward |
24 mph (38 kph)
|
|
Max Speed - Reverse |
15 mph (25 kph)
|
|
Max Speed - Reverse |
16 mph (26 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
3 |
|
Number Of Reverse Gears |
3 |
|
Reverse - 1 |
5 mph (8 kph)
|
|
Reverse - 1 |
5 mph (8 kph)
|
|
Transmission Type |
countershaft |
| Weights |
|
Operating Weight |
27,140 lbs (12,308 kg)
|
|
Operating Weight |
27,140 lbs (12,308 kg)
|
|
Optional Counterweight |
655 lbs (297 kg)
|
