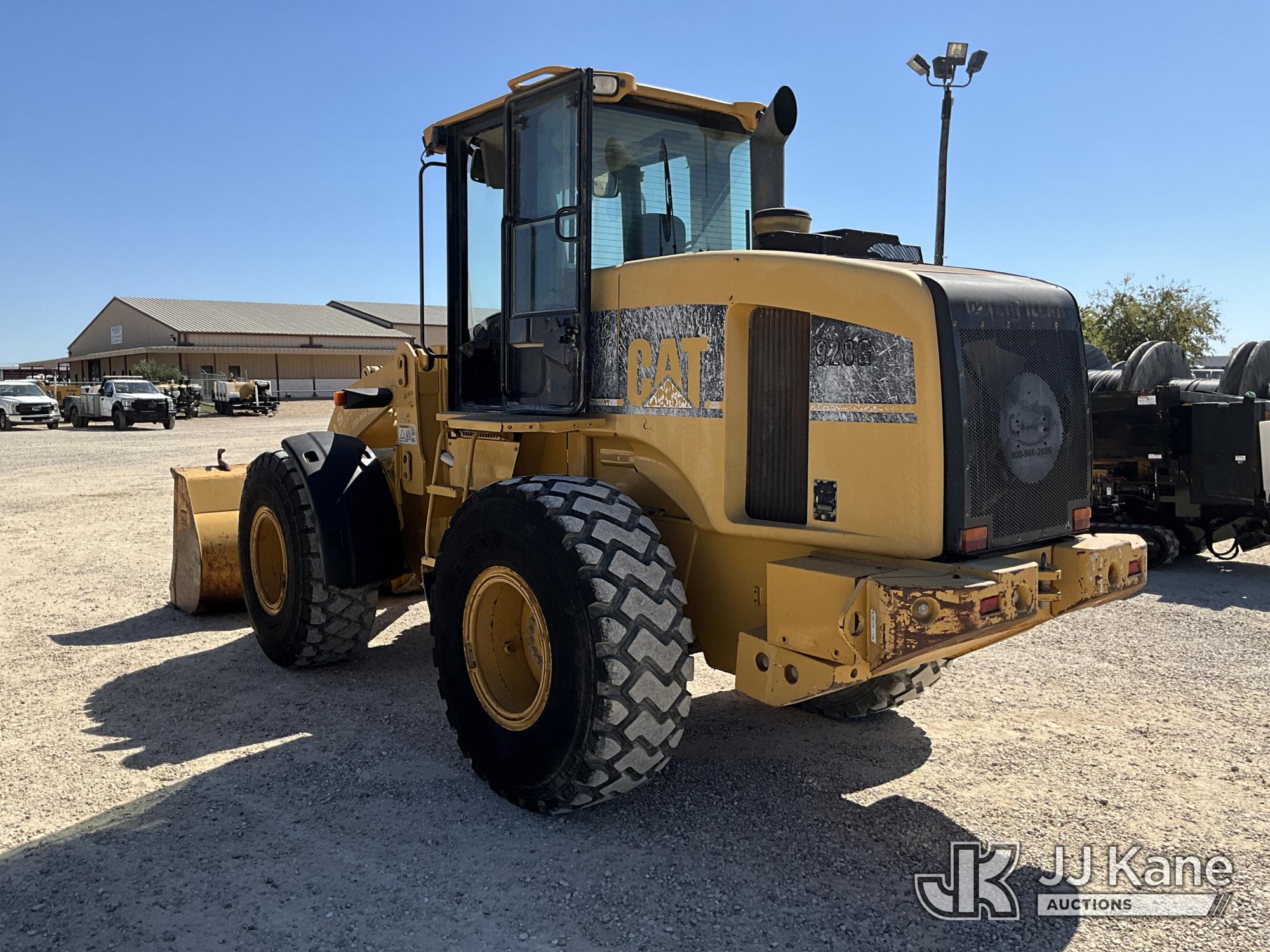

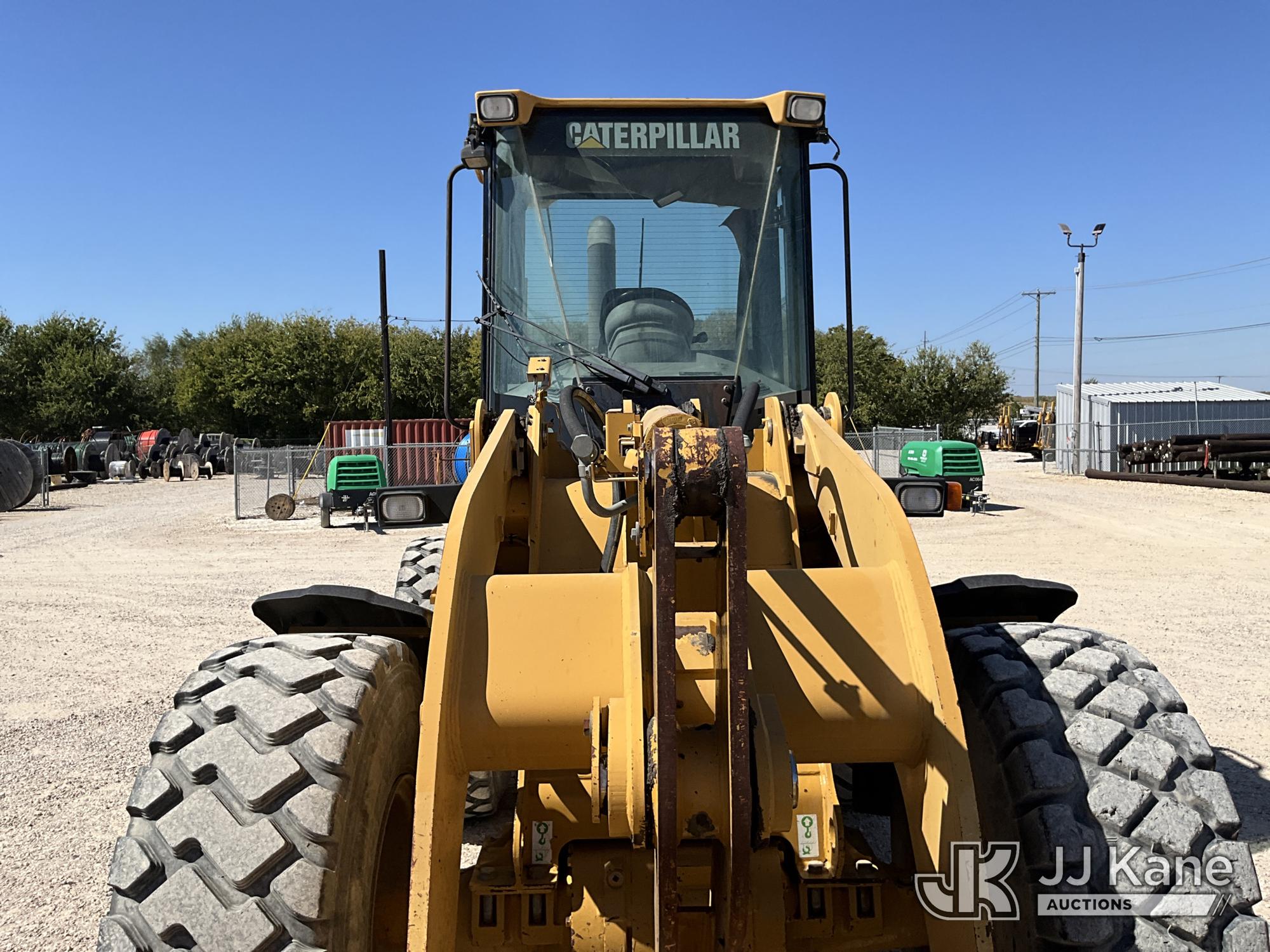

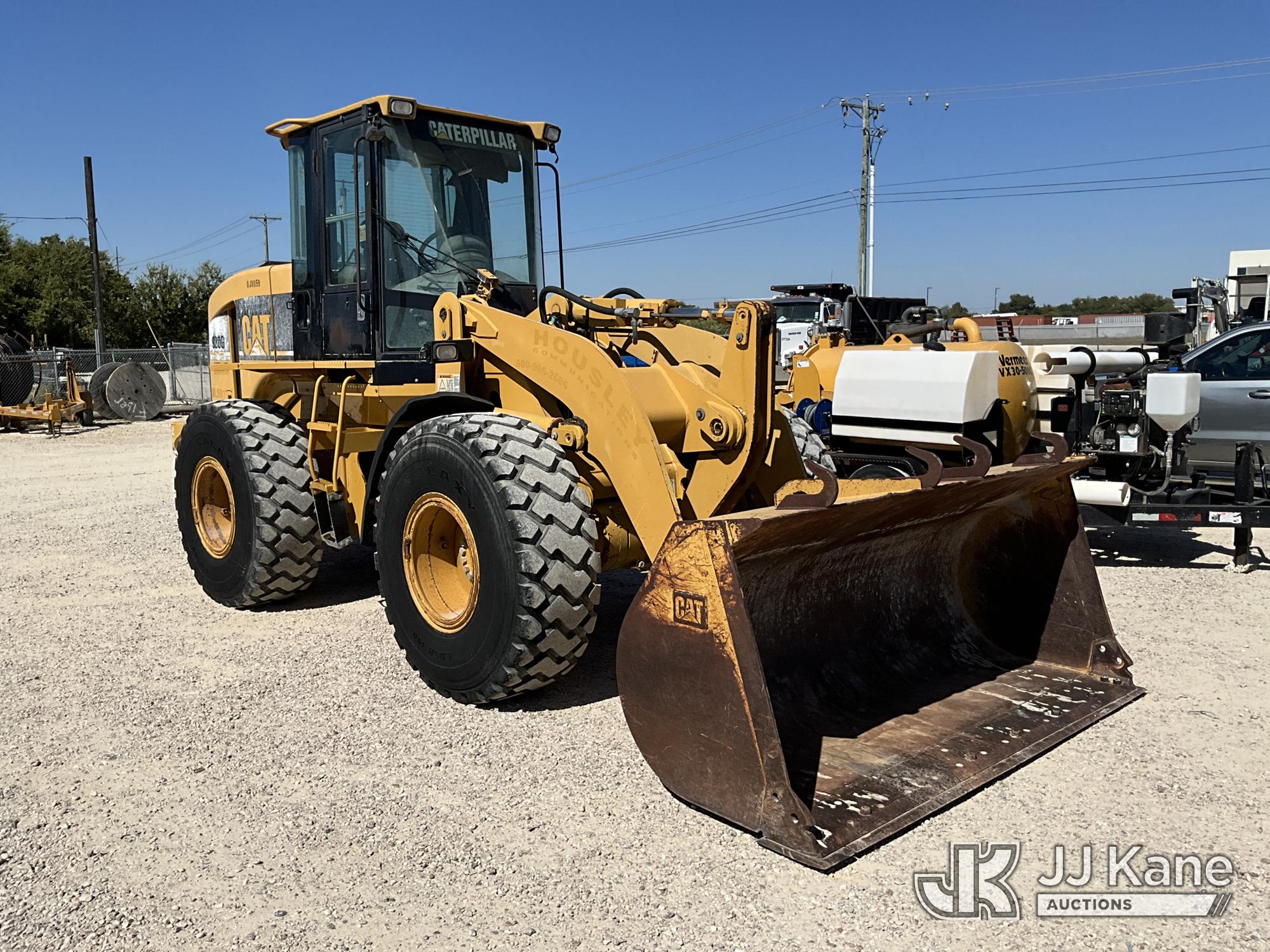

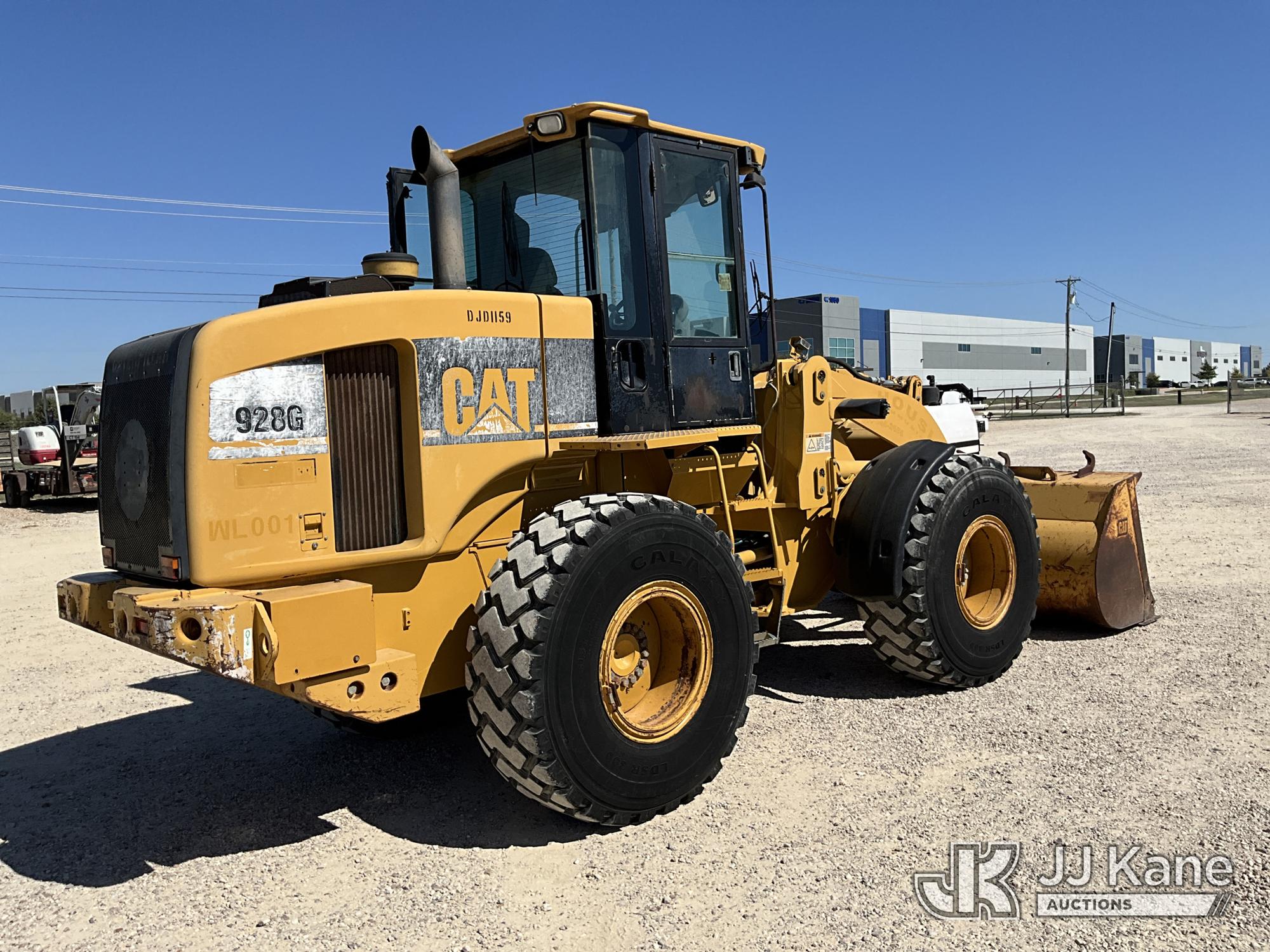

| Axles |
|
Axle Oscillation |
11 degrees |
|
Axle Oscillation |
11 degrees |

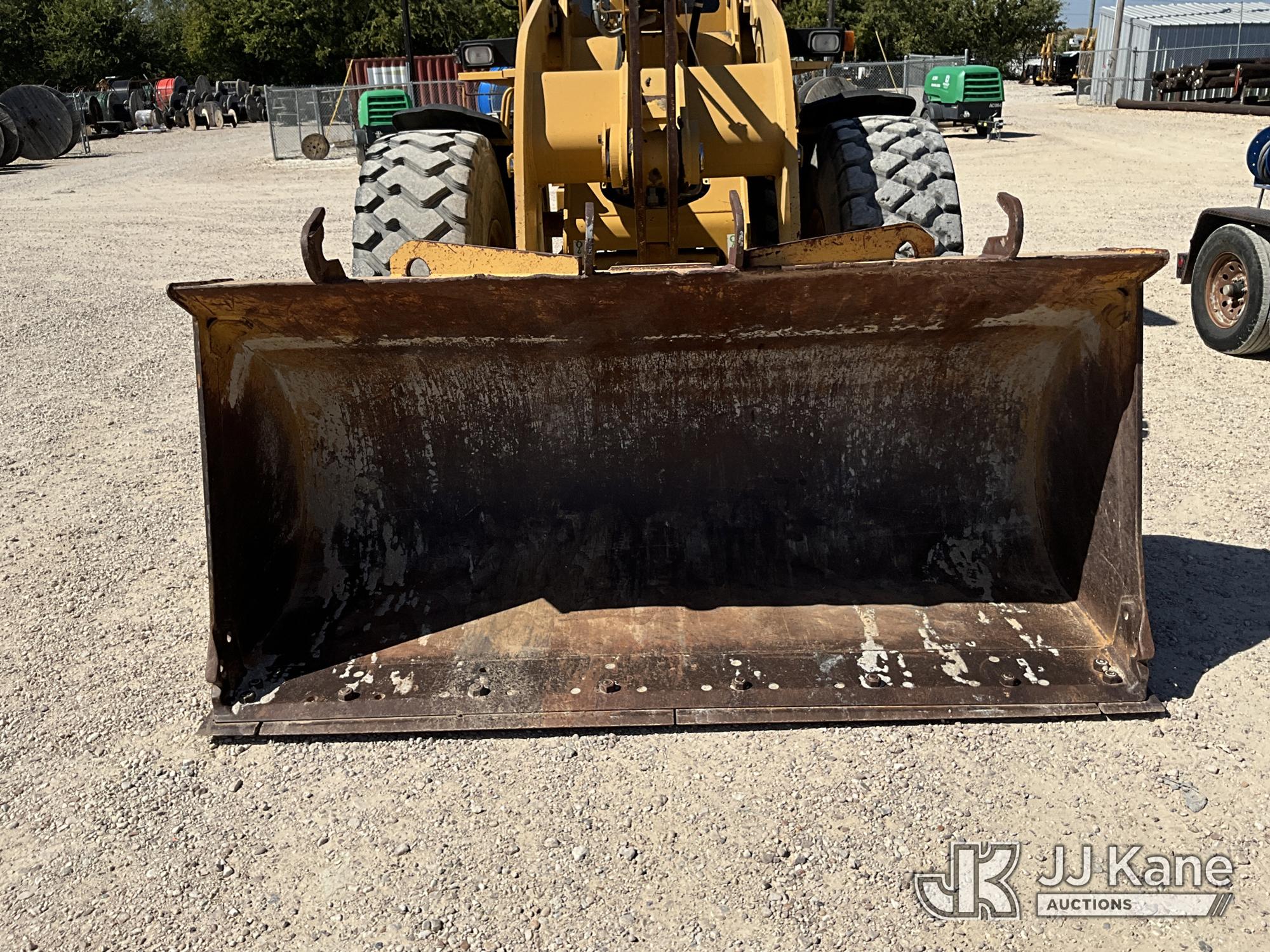

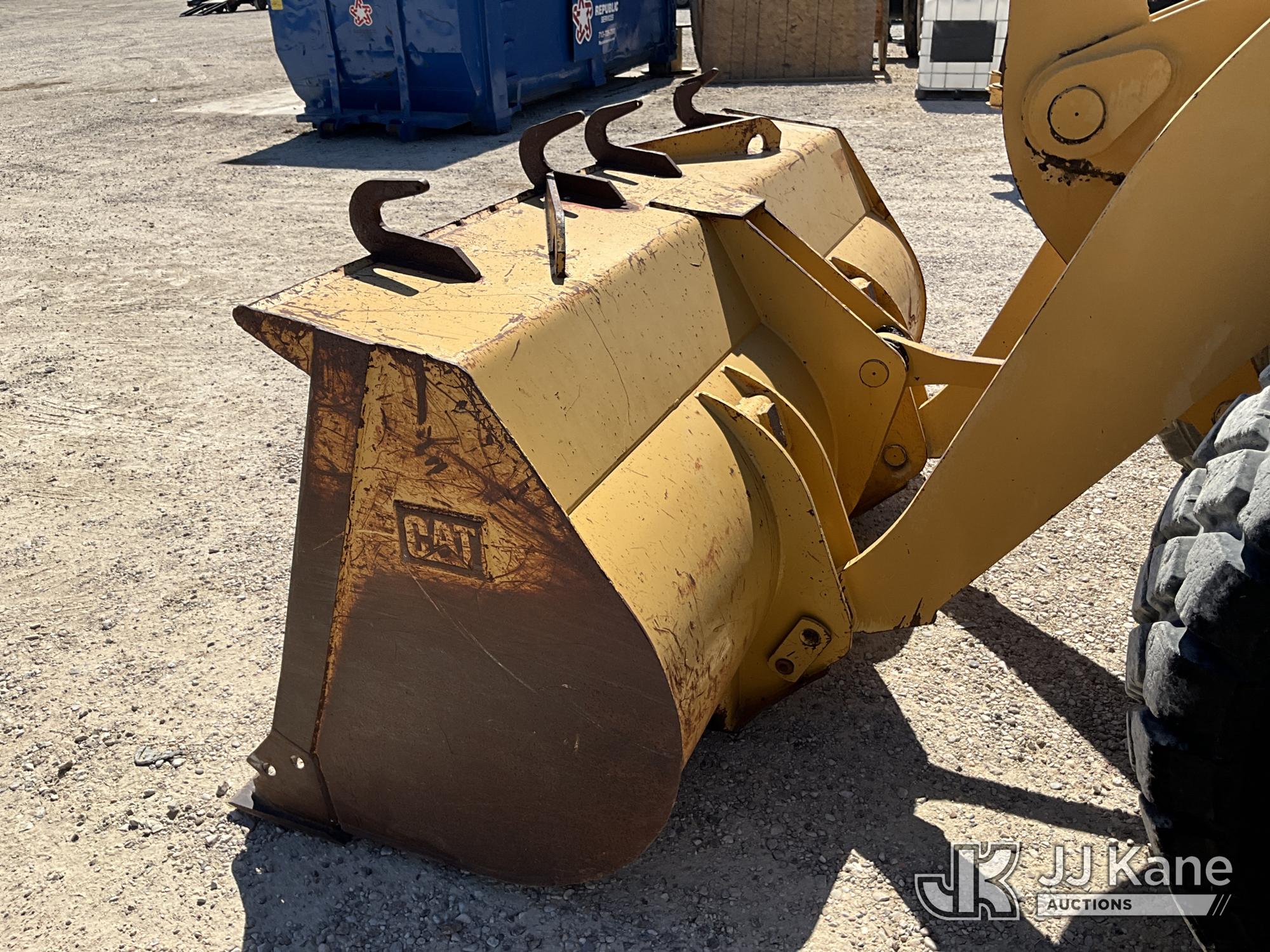

| Bucket |
|
Breakout Force |
25,849 lbs (11,725 kg)
|
|
Breakout Force |
_ - |
|
Bucket Capacity - Heaped |
2 cu yd |
|
Bucket Capacity - Heaped |
3 cu yd |
|
Bucket Capacity - Struck |
2 cu yd |
|
Bucket Width |
8 ft (3 m)
|
|
Bucket Width |
8 ft (3 m)
|
|
Dump Clearance At Max Raise |
9 ft (3 m)
|
|
Dump Clearance At Max Raise |
9 ft (3 m)
|
| Buckets |
|
Breakout Force - Reference Bucket |
25,844 lbs (11,723 kg)
|
|
Bucket Capacities |
1.9 m3 - 2.3 m3 2.5 yd3 - 3.0 yd3 |
|
Bucket Capacities |
2.0 m3 - 2.3 m3 2.6 yd3 - 3.0 yd3 |
|
Bucket Width |
8 ft (3 m)
|
|
Capacity - Reference Bucket |
3 cu yd |
|
Type - Reference Bucket |
GP |
| Cab |
|
Fops |
SAE J231 JAN81, ISO 3449-1992 Level II |
|
Fops |
SAE J/ISO 3449 APR98 Level II, ISO 3449-1992 Level II |
|
Rops |
SAE J1040 MAY94, ISO 3471-1994 |
|
Rops |
SAE J1040 MAY94, ISO 3471-1994 |
| Dimensions |
|
Bucket Clearance-Maximum Lift/Carry |
12 ft (4 m)
|
|
Bucket Clearance-Maximum Lift/Carry |
12 ft (4 m)
|
|
Bucket Pin Height - Maximum Lift |
12 ft (4 m)
|
|
Bucket Pin Height - Maximum Lift |
12 ft (4 m)
|
|
Carry Height |
3 ft (1 m)
|
|
Carry Height |
3 ft (1 m)
|
|
Centerline Of Front Axle To Hitch |
5 ft (2 m)
|
|
Centerline Of Front Axle To Hitch |
5 ft (2 m)
|
|
Digging Depth |
3 in (9 cm)
|
|
Digging Depth |
3 in (9 cm)
|
|
Dump Angle At Maximum Lift |
45 degrees |
|
Dump Angle At Maximum Lift |
45 degrees |
|
Dump Clearance At Maximum Lift - 45 Degrees |
10 ft (3 m)
|
|
Dump Clearance At Maximum Lift - 45 Degrees |
10 ft (3 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
11 ft (3 m)
|
|
Height |
11 ft (3 m)
|
|
Height - Center Of Axle |
2 ft (1 m)
|
|
Height - Center Of Axle |
2 ft (1 m)
|
|
Height - Top Of Exhaust Stack |
11 ft (3 m)
|
|
Height - Top Of Exhaust Stack |
11 ft (3 m)
|
|
Height - Top Of Hood |
88 in (223 cm)
|
|
Height - Top Of Hood |
88 in (223 cm)
|
|
Height - Top Of Rops/Fops |
11 ft (3 m)
|
|
Height - Top Of Rops/Fops |
11 ft (3 m)
|
|
Height To Top Of Cab |
11 ft (3 m)
|
|
Height To Top Of Cab |
11 ft (3 m)
|
|
Hinge Pin - Max Height |
13 ft (4 m)
|
|
Length |
24 ft (7 m)
|
|
Length |
24 ft (7 m)
|
|
Length - Rear Axle To Bumper |
6 ft (2 m)
|
|
Length - Rear Axle To Bumper |
6 ft (2 m)
|
|
Length With Bucket On Ground |
24 ft (7 m)
|
|
Length With Bucket On Ground |
24 ft (7 m)
|
|
Overall Height |
16 ft (5 m)
|
|
Overall Height |
16 ft (5 m)
|
|
Overall Height - Bucket Raised |
16 ft (5 m)
|
|
Overall Height - Bucket Raised |
16 ft (5 m)
|
|
Overall Length |
23 ft (7 m)
|
|
Overall Length |
23 ft (7 m)
|
|
Rack Back Angle - Carry |
48 degrees |
|
Rack Back Angle - Carry |
48 degrees |
|
Rack Back Angle - Ground |
44 degrees |
|
Rack Back Angle - Ground |
44 degrees |
|
Rack Back Angle - Maximum Lift |
58 degrees |
|
Rack Back Angle - Maximum Lift |
58 degrees |
|
Reach At Max Lift And Dump |
3 ft (1 m)
|
|
Reach At Max Lift And Dump |
9 ft (3 m)
|
|
Reach At Maximum Lift And 45 Degrees Dump |
3 ft (1 m)
|
|
Reach At Maximum Lift And 45 Degrees Dump |
3 ft (1 m)
|
|
Weight |
26,094 lbs (11,836 kg)
|
|
Weight |
27,140 lbs (12,311 kg)
|
|
Wheel Base |
10 ft (3 m)
|
|
Wheel Base |
10 ft (3 m)
|
|
Wheel Base Length |
10 ft (3 m)
|
|
Wheel Base Length |
10 ft (3 m)
|
|
Wheelbase |
10 ft (3 m)
|
|
Width |
8 ft (2 m)
|
|
Width |
8 ft (2 m)
|
|
Width - Over Tires |
77 ft (23 m)
|
|
Width - Over Tires |
6 ft (2 m)
|
|
Width Over Tires |
8 ft (2 m)
|
|
Width Over Tires |
8 ft (3 m)
|
| Engine |
|
Bore |
4 in (10 cm)
|
|
Bore |
4 in (10 cm)
|
|
Displacement |
366 cu in (5,998 cu cm)
|
|
Displacement |
366 cu in (5,998 cu cm)
|
|
Eec 80/1269 (1) |
145 hp (108 kw)
|
|
Eec 80/1269 (1) |
145 hp (108 kw)
|
|
Eec 80/1269 (2) |
156 hp (116 kw)
|
|
Eec 80/1269 (2) |
156 hp (116 kw)
|
|
Engine Make |
2,236 |
|
Engine Model |
3116T |
|
Engine Model |
3056E DIT ATAAC |
|
Gross Power |
157 hp (117 kw)
|
|
Iso 9249 (1997) (1) |
145 hp (108 kw)
|
|
Iso 9249 (1997) (1) |
145 hp (108 kw)
|
|
Iso 9249 (1997) (2) |
156 hp (116 kw)
|
|
Iso 9249 (1997) (2) |
156 hp (116 kw)
|
|
Maximum Net Power - 2000 Rpm |
155 hp (116 kw)
|
|
Maximum Net Power - 2000 Rpm |
155 hp (116 kw)
|
|
Net Power |
125 hp (93 kw)
|
|
Net Power |
145 hp (108 kw)
|
|
Power Measured @ |
2,300 rpm |
|
Rated Net Power |
143 hp (107 kw)
|
|
Rated Net Power |
143 hp (107 kw)
|
|
Sae J1349 (1) |
143 hp (107 kw)
|
|
Sae J1349 (1) |
143 hp (107 kw)
|
|
Sae J1349 (2) |
155 hp (116 kw)
|
|
Sae J1349 (2) |
155 hp (116 kw)
|
|
Stroke |
5 in (13 cm)
|
|
Stroke |
5 in (13 cm)
|
| General Specifications |
|
1st (Since 1998)
|
7.6 4.7 |
|
1st (2001)
|
7.6 4.7 |
|
1st (Since 2006)
|
7.9 4.9 |
|
2nd (Since 1998)
|
12 7.5 |
|
2nd (Since 2001)
|
12.0 7.5 |
|
2nd (Since 2006)
|
12.6 7.8 |
|
3rd (Since 1998)
|
24.6 15.3 |
|
3rd (2001)
|
24.6 15.3 |
|
3rd (Since 2006)
|
25.8 16.0 |
|
4th (Since 1998)
|
36.7 22.8 |
|
4th (2001)
|
36.7 22.8 |
|
4th (Since 2006)
|
37.7 23.4 |
|
A Height to top of stack (Since 1998)
|
122 in (310 cm)
|
|
A Height to top of stack (2001)
|
122 in (310 cm)
|
|
A Height to top of stack (Since 2006)
|
126 in (320 cm)
|
|
Approx. Shipping Wt. (Since 1996)
|
24,802 lbs (11,250 kg)
|
|
Approx. Shipping Wt. (1997)
|
24,802 lbs (11,250 kg)
|
|
Approx. Shipping Wt. (1998)
|
24,802 lbs (11,250 kg)
|
|
Approx. Shipping Wt. (1999)
|
24,802 lbs (11,250 kg)
|
|
Approx. Shipping Wt. (2000)
|
24,802 lbs (11,250 kg)
|
|
Approx. Shipping Wt. (2001)
|
24,802 lbs (11,250 kg)
|
|
Approx. Shipping Wt. (2002)
|
24,802 lbs (11,250 kg)
|
|
Approx. Shipping Wt. (2002)
|
24,802 lbs (11,250 kg)
|
|
Approx. Shipping Wt. (2003)
|
24,802 lbs (11,250 kg)
|
|
Approx. Shipping Wt. (2004)
|
24,802 lbs (11,250 kg)
|
|
Approx. Shipping Wt. (2005)
|
24,802 lbs (11,250 kg)
|
|
Approx. Shipping Wt. (2006)
|
24,802 lbs (11,250 kg)
|
|
Approx. Shipping Wt. (2007)
|
24,802 lbs (11,250 kg)
|
|
B Height to top of engine compartment (Since 1998)
|
85 in (216 cm)
|
|
B Height to top of engine compartment (2001)
|
85 in (216 cm)
|
|
B Height to top of engine compartment (Since 2006)
|
87 in (221 cm)
|
|
Bore (Since 1998)
|
4 in (10 cm)
|
|
Bore (2001)
|
4 in (10 cm)
|
|
Bore (Since 2006)
|
4 in (10 cm)
|
|
Breakout Force (Since 1996)
|
25,849 lbf (11,723 kgf)
|
|
Breakout Force (1997)
|
25,849 lbf (11,723 kgf)
|
|
Breakout Force (1998)
|
25,849 lbf (11,723 kgf)
|
|
Breakout Force (1999)
|
25,849 lbf (11,723 kgf)
|
|
Breakout Force (2000)
|
25,849 lbf (11,723 kgf)
|
|
Breakout Force (2001)
|
25,849 lbf (11,723 kgf)
|
|
Breakout Force (2002)
|
25,849 lbf (11,723 kgf)
|
|
Breakout Force (2002)
|
25,849 lbf (11,723 kgf)
|
|
Breakout Force (2003)
|
25,849 lbf (11,723 kgf)
|
|
Breakout Force (2004)
|
25,849 lbf (11,723 kgf)
|
|
Breakout Force (2005)
|
25,849 lbf (11,723 kgf)
|
|
Breakout Force (2006)
|
25,849 lbf (11,723 kgf)
|
|
Breakout Force (2007)
|
25,849 lbf (11,723 kgf)
|
|
Breakout force (§) (Since 2006)
|
25,849 lbs (11,725 kg)
|
|
Breakout force (§) (Since 2006)
|
24,464 lbs (11,097 kg)
|
|
Breakout force (§) (Since 2006)
|
25,556 lbs (11,592 kg)
|
|
Breakout force (§) (Since 2006)
|
24,169 lbs (10,963 kg)
|
|
Breakout force (§) (Since 2006)
|
27,792 lbs (12,606 kg)
|
|
Breakout force (§) (Since 2006)
|
26,195 lbs (11,882 kg)
|
|
Breakout force (§) (Since 2006)
|
26,343 lbs (11,949 kg)
|
|
Bucket Capacity (Since 2012)
|
3 - 3 cu yd (2 - 3 cu m)
|
|
Bucket Capacity (Since 2012)
|
3 - 4 cu yd (3 - 3 cu m)
|
|
Bucket Capacity (Since 2012)
|
3 - 3 cu yd (2 - 3 cu m)
|
|
Bucket Capacity (Since 2012)
|
3 cu yd (2 cu m)
|
|
Bucket Capacity (Since 2012)
|
2 cu yd (2 cu m)
|
|
Bucket Capacity (Since 2012)
|
4 - 5 cu yd (3 - 3 cu m)
|
|
Bucket Capacity (Since 2012)
|
7 cu yd (5 cu m)
|
|
Bucket Capacity (Since 2012)
|
3 - 3 cu yd (2 - 2 cu m)
|
|
Bucket Capacity (2012)
|
3 - 3 cu yd (2 - 2 cu m)
|
|
Bucket Capacity (Since 2012)
|
5 cu yd (3 cu m)
|
|
Bucket Capacity (Since 2012)
|
3 cu yd (2 cu m)
|
|
Bucket Capacity (2013)
|
3 cu yd (2 cu m)
|
|
Bucket Weight (Since 2012)
|
3,494 lbs (1,585 kg)
|
|
Bucket Weight (Since 2012)
|
3,637 lbs (1,650 kg)
|
|
Bucket Weight (Since 2012)
|
1,808 - 1,896 lbs (820 - 860 kg)
|
|
Bucket Weight (Since 2012)
|
3,080 lbs (1,397 kg)
|
|
Bucket Weight (Since 2012)
|
3,221 - 3,349 lbs (1,461 - 1,519 kg)
|
|
Bucket Weight (Since 2012)
|
3,703 lbs (1,680 kg)
|
|
Bucket Weight (Since 2012)
|
2,175 lbs (987 kg)
|
|
Bucket Weight (Since 2012)
|
3,160 lbs (1,433 kg)
|
|
Bucket Weight (Since 2012)
|
2,230 lbs (1,012 kg)
|
|
Bucket Weight (Since 2012)
|
3,100 lbs (1,406 kg)
|
|
Bucket Weight (Since 2012)
|
3,800 lbs (1,724 kg)
|
|
Bucket Weight (Since 2012)
|
2,860 lbs (1,297 kg)
|
|
Bucket Weight (Since 2012)
|
2,360 lbs (1,070 kg)
|
|
Bucket Weight (Since 2012)
|
2,830 lbs (1,284 kg)
|
|
Bucket Weight (Since 2013)
|
2,833 lbs (1,285 kg)
|
|
Bucket width (Since 1998)
|
100 in (254 cm)
|
|
Bucket width (Since 1998)
|
102 in (259 cm)
|
|
Bucket width (Since 2001)
|
100 in (254 cm)
|
|
Bucket width (Since 2001)
|
102 in (259 cm)
|
|
Bucket width (Since 2006)
|
100 in (254 cm)
|
|
Bucket width (Since 2006)
|
102 in (259 cm)
|
|
Bucket Width (Since 2012)
|
106 in (269 cm)
|
|
Bucket Width (Since 2012)
|
105 in (267 cm)
|
|
Bucket Width (Since 2012)
|
100 in (254 cm)
|
|
Bucket Width (Since 2012)
|
103 in (262 cm)
|
|
Bucket Width (Since 2012)
|
115 in (292 cm)
|
|
Bucket Width (Since 2012)
|
100 - 106 in (254 - 269 cm)
|
|
Bucket Width (Since 2012)
|
129 in (328 cm)
|
|
Bucket Width (Since 2012)
|
100 in (254 cm)
|
|
Bucket Width (Since 2012)
|
103 in (262 cm)
|
|
Bucket Width (Since 2012)
|
116 in (295 cm)
|
|
Bucket Width (Since 2012)
|
101 in (257 cm)
|
|
Bucket Width (Since 2012)
|
107 in (272 cm)
|
|
Bucket Width (Since 2012)
|
113 in (287 cm)
|
|
Bucket Width (Since 2013)
|
103 in (262 cm)
|
|
C Height to top of ROPS (Since 1998)
|
128 in (325 cm)
|
|
C Height to top of ROPS (2001)
|
128 in (325 cm)
|
|
C Height to top of ROPS (2006)
|
128 in (325 cm)
|
|
D Hinge pin height at carry position (Since 1998)
|
18 in (46 cm)
|
|
D Hinge pin height at carry position (2001)
|
18 in (46 cm)
|
|
D Hinge pin height at carry position (2006)
|
18 in (46 cm)
|
|
Digging depth (§) (Since 1998)
|
3 in (9 cm)
|
|
Digging depth (§) (Since 1998)
|
4 in (10 cm)
|
|
Digging depth (§) (Since 1998)
|
3 in (7 cm)
|
|
Digging depth (§) (Since 2001)
|
3 in (9 cm)
|
|
Digging depth (§) (Since 2001)
|
4 in (10 cm)
|
|
Digging depth (§) (Since 2001)
|
3 in (7 cm)
|
|
Digging depth (§) (Since 2006)
|
3 in (9 cm)
|
|
Digging depth (§) (Since 2006)
|
4 in (10 cm)
|
|
Digging depth (§) (Since 2006)
|
3 in (7 cm)
|
|
dump and maximum lift - Breakout force (§) (Since 1998)
|
25,849 lbs (11,725 kg)
|
|
dump and maximum lift - Breakout force (§) (Since 1998)
|
24,464 lbs (11,097 kg)
|
|
dump and maximum lift - Breakout force (§) (Since 1998)
|
25,556 lbs (11,592 kg)
|
|
dump and maximum lift - Breakout force (§) (Since 1998)
|
24,169 lbs (10,963 kg)
|
|
dump and maximum lift - Breakout force (§) (Since 1998)
|
27,792 lbs (12,606 kg)
|
|
dump and maximum lift - Breakout force (§) (Since 1998)
|
26,195 lbs (11,882 kg)
|
|
dump and maximum lift - Breakout force (§) (Since 1998)
|
26,343 lbs (11,949 kg)
|
|
dump and maximum lift - Breakout force (§) (Since 2001)
|
25,849 lbs (11,725 kg)
|
|
dump and maximum lift - Breakout force (§) (Since 2001)
|
24,464 lbs (11,097 kg)
|
|
dump and maximum lift - Breakout force (§) (Since 2001)
|
25,556 lbs (11,592 kg)
|
|
dump and maximum lift - Breakout force (§) (Since 2001)
|
24,169 lbs (10,963 kg)
|
|
dump and maximum lift - Breakout force (§) (Since 2001)
|
27,792 lbs (12,606 kg)
|
|
dump and maximum lift - Breakout force (§) (Since 2001)
|
26,195 lbs (11,882 kg)
|
|
dump and maximum lift - Breakout force (§) (Since 2001)
|
26,343 lbs (11,949 kg)
|
|
dump and maximum lift - Loader clearance circle with bucket in carry position (Since 1998)
|
456 in (1,158 cm)
|
|
dump and maximum lift - Loader clearance circle with bucket in carry position (1998)
|
456 in (1,158 cm)
|
|
dump and maximum lift - Loader clearance circle with bucket in carry position (Since 1998)
|
460 in (1,168 cm)
|
|
dump and maximum lift - Loader clearance circle with bucket in carry position (Since 1998)
|
462 in (1,173 cm)
|
|
dump and maximum lift - Loader clearance circle with bucket in carry position (Since 1998)
|
460 in (1,168 cm)
|
|
dump and maximum lift - Loader clearance circle with bucket in carry position (Since 2001)
|
456 in (1,158 cm)
|
|
dump and maximum lift - Loader clearance circle with bucket in carry position (2001)
|
456 in (1,158 cm)
|
|
dump and maximum lift - Loader clearance circle with bucket in carry position (Since 2001)
|
460 in (1,168 cm)
|
|
dump and maximum lift - Loader clearance circle with bucket in carry position (Since 2001)
|
462 in (1,173 cm)
|
|
dump and maximum lift - Loader clearance circle with bucket in carry position (Since 2001)
|
460 in (1,168 cm)
|
|
dump and maximum lift - Operating weight (Since 1998)
|
25,704 lbs (11,659 kg)
|
|
dump and maximum lift - Operating weight (Since 1998)
|
25,814 lbs (11,709 kg)
|
|
dump and maximum lift - Operating weight (Since 1998)
|
25,999 lbs (11,793 kg)
|
|
dump and maximum lift - Operating weight (Since 1998)
|
26,109 lbs (11,843 kg)
|
|
dump and maximum lift - Operating weight (Since 1998)
|
25,812 lbs (11,708 kg)
|
|
dump and maximum lift - Operating weight (Since 1998)
|
25,922 lbs (11,758 kg)
|
|
dump and maximum lift - Operating weight (Since 1998)
|
25,970 lbs (11,780 kg)
|
|
dump and maximum lift - Operating weight (Since 2001)
|
25,704 lbs (11,659 kg)
|
|
dump and maximum lift - Operating weight (Since 2001)
|
25,814 lbs (11,709 kg)
|
|
dump and maximum lift - Operating weight (Since 2001)
|
25,999 lbs (11,793 kg)
|
|
dump and maximum lift - Operating weight (Since 2001)
|
26,109 lbs (11,843 kg)
|
|
dump and maximum lift - Operating weight (Since 2001)
|
25,812 lbs (11,708 kg)
|
|
dump and maximum lift - Operating weight (Since 2001)
|
25,922 lbs (11,758 kg)
|
|
dump and maximum lift - Operating weight (Since 2001)
|
25,970 lbs (11,780 kg)
|
|
dump and maximum lift - Shipping weight (Since 1998)
|
25,131 lbs (11,399 kg)
|
|
dump and maximum lift - Shipping weight (Since 1998)
|
25,241 lbs (11,449 kg)
|
|
dump and maximum lift - Shipping weight (Since 1998)
|
25,426 lbs (11,533 kg)
|
|
dump and maximum lift - Shipping weight (Since 1998)
|
25,536 lbs (11,583 kg)
|
|
dump and maximum lift - Shipping weight (Since 1998)
|
25,239 lbs (11,448 kg)
|
|
dump and maximum lift - Shipping weight (Since 1998)
|
25,349 lbs (11,498 kg)
|
|
dump and maximum lift - Shipping weight (Since 1998)
|
25,397 lbs (11,520 kg)
|
|
dump and maximum lift - Shipping weight (Since 2001)
|
25,131 lbs (11,399 kg)
|
|
dump and maximum lift - Shipping weight (Since 2001)
|
25,241 lbs (11,449 kg)
|
|
dump and maximum lift - Shipping weight (Since 2001)
|
25,426 lbs (11,533 kg)
|
|
dump and maximum lift - Shipping weight (Since 2001)
|
25,536 lbs (11,583 kg)
|
|
dump and maximum lift - Shipping weight (Since 2001)
|
25,239 lbs (11,448 kg)
|
|
dump and maximum lift - Shipping weight (Since 2001)
|
25,349 lbs (11,498 kg)
|
|
dump and maximum lift - Shipping weight (Since 2001)
|
25,397 lbs (11,520 kg)
|
|
dump and maximum lift - Static tipping load, full 40° turn (§) (Since 1998)
|
17,684 lbs (8,021 kg)
|
|
dump and maximum lift - Static tipping load, full 40° turn (§) (Since 1998)
|
17,369 lbs (7,878 kg)
|
|
dump and maximum lift - Static tipping load, full 40° turn (§) (Since 1998)
|
17,309 lbs (7,851 kg)
|
|
dump and maximum lift - Static tipping load, full 40° turn (§) (Since 1998)
|
16,998 lbs (7,710 kg)
|
|
dump and maximum lift - Static tipping load, full 40° turn (§) (Since 1998)
|
17,510 lbs (7,942 kg)
|
|
dump and maximum lift - Static tipping load, full 40° turn (§) (Since 1998)
|
17,349 lbs (7,869 kg)
|
|
dump and maximum lift - Static tipping load, full 40° turn (§) (Since 2001)
|
17,684 lbs (8,021 kg)
|
|
dump and maximum lift - Static tipping load, full 40° turn (§) (Since 2001)
|
17,369 lbs (7,878 kg)
|
|
dump and maximum lift - Static tipping load, full 40° turn (§) (Since 2001)
|
17,309 lbs (7,851 kg)
|
|
dump and maximum lift - Static tipping load, full 40° turn (§) (Since 2001)
|
16,998 lbs (7,710 kg)
|
|
dump and maximum lift - Static tipping load, full 40° turn (§) (Since 2001)
|
17,510 lbs (7,942 kg)
|
|
dump and maximum lift - Static tipping load, full 40° turn (§) (Since 2001)
|
17,349 lbs (7,869 kg)
|
|
dump and maximum lift - Static tipping load, straight (§) (Since 1998)
|
20,354 lbs (9,232 kg)
|
|
dump and maximum lift - Static tipping load, straight (§) (Since 1998)
|
20,008 lbs (9,075 kg)
|
|
dump and maximum lift - Static tipping load, straight (§) (Since 1998)
|
19,982 lbs (9,064 kg)
|
|
dump and maximum lift - Static tipping load, straight (§) (Since 1998)
|
19,644 lbs (8,910 kg)
|
|
dump and maximum lift - Static tipping load, straight (§) (Since 1998)
|
20,176 lbs (9,152 kg)
|
|
dump and maximum lift - Static tipping load, straight (§) (Since 1998)
|
20,028 lbs (9,085 kg)
|
|
dump and maximum lift - Static tipping load, straight (§) (Since 2001)
|
20,354 lbs (9,232 kg)
|
|
dump and maximum lift - Static tipping load, straight (§) (Since 2001)
|
20,008 lbs (9,075 kg)
|
|
dump and maximum lift - Static tipping load, straight (§) (Since 2001)
|
19,982 lbs (9,064 kg)
|
|
dump and maximum lift - Static tipping load, straight (§) (Since 2001)
|
19,644 lbs (8,910 kg)
|
|
dump and maximum lift - Static tipping load, straight (§) (Since 2001)
|
20,176 lbs (9,152 kg)
|
|
dump and maximum lift - Static tipping load, straight (§) (Since 2001)
|
20,028 lbs (9,085 kg)
|
|
Dump clearance at full lift and 45° discharge (§) (Since 1998)
|
113 in (287 cm)
|
|
Dump clearance at full lift and 45° discharge (§) (Since 1998)
|
112 in (284 cm)
|
|
Dump clearance at full lift and 45° discharge (§) (Since 1998)
|
109 in (277 cm)
|
|
Dump clearance at full lift and 45° discharge (§) (Since 1998)
|
107 in (272 cm)
|
|
Dump clearance at full lift and 45° discharge (§) (1998)
|
107 in (272 cm)
|
|
Dump clearance at full lift and 45° discharge (§) (Since 1998)
|
108 in (274 cm)
|
|
Dump clearance at full lift and 45° discharge (§) (Since 2001)
|
113 in (287 cm)
|
|
Dump clearance at full lift and 45° discharge (§) (Since 2001)
|
112 in (284 cm)
|
|
Dump clearance at full lift and 45° discharge (§) (Since 2001)
|
109 in (277 cm)
|
|
Dump clearance at full lift and 45° discharge (§) (Since 2001)
|
107 in (272 cm)
|
|
Dump clearance at full lift and 45° discharge (§) (2001)
|
107 in (272 cm)
|
|
Dump clearance at full lift and 45° discharge (§) (Since 2001)
|
108 in (274 cm)
|
|
Dump clearance at full lift and 45° discharge (§) (Since 2006)
|
113 in (287 cm)
|
|
Dump clearance at full lift and 45° discharge (§) (Since 2006)
|
112 in (284 cm)
|
|
Dump clearance at full lift and 45° discharge (§) (Since 2006)
|
109 in (277 cm)
|
|
Dump clearance at full lift and 45° discharge (§) (Since 2006)
|
107 in (272 cm)
|
|
Dump clearance at full lift and 45° discharge (§) (2006)
|
107 in (272 cm)
|
|
Dump clearance at full lift and 45° discharge (§) (Since 2006)
|
108 in (274 cm)
|
|
Dump Clearance at max. height (Since 1996)
|
113 in (287 cm)
|
|
Dump Clearance at max. height (1997)
|
113 in (287 cm)
|
|
Dump Clearance at max. height (1998)
|
113 in (287 cm)
|
|
Dump Clearance at max. height (1999)
|
113 in (287 cm)
|
|
Dump Clearance at max. height (2000)
|
113 in (287 cm)
|
|
Dump Clearance at max. height (2001)
|
113 in (287 cm)
|
|
Dump Clearance at max. height (2002)
|
113 in (287 cm)
|
|
Dump Clearance at max. height (2002)
|
113 in (287 cm)
|
|
Dump Clearance at max. height (2003)
|
113 in (287 cm)
|
|
Dump Clearance at max. height (2004)
|
113 in (287 cm)
|
|
Dump Clearance at max. height (2005)
|
113 in (287 cm)
|
|
Dump Clearance at max. height (2006)
|
113 in (287 cm)
|
|
Dump Clearance at max. height (2007)
|
113 in (287 cm)
|
|
E Dump clearance at full lift and - 45° discharge angle (Since 1998)
|
112 in (284 cm)
|
|
E Dump clearance at full lift and - 45° discharge angle (2001)
|
112 in (284 cm)
|
|
E Dump clearance at full lift and - 45° discharge angle (2006)
|
112 in (284 cm)
|
|
E Dump clearance at full lift and - F Hinge pin height at full lift (Since 2001)
|
152 in (386 cm)
|
|
E Dump clearance at full lift and - F Hinge pin height at full lift (2006)
|
152 in (386 cm)
|
|
Engine Displacement (Since 1998)
|
403 cu in (6,604 cu cm)
|
|
Engine Displacement (2001)
|
403 cu in (6,604 cu cm)
|
|
Engine Displacement (Since 2006)
|
366 cu in (5,998 cu cm)
|
|
Engine Model (Since 1998)
|
3116T |
|
Engine Model (Since 2001)
|
3116 T |
|
Engine Model (Since 2006)
|
3056 DI ATAAC |
|
F Hinge pin height at full lift (Since 1998)
|
152 in (386 cm)
|
|
Flywheel Horse- power (Since 1996)
|
125 hp (93 kw)
|
|
Flywheel Horse- power (1997)
|
125 hp (93 kw)
|
|
Flywheel Horse- power (1998)
|
125 hp (93 kw)
|
|
Flywheel Horse- power (1999)
|
125 hp (93 kw)
|
|
Flywheel Horse- power (2000)
|
125 hp (93 kw)
|
|
Flywheel Horse- power (2001)
|
125 hp (93 kw)
|
|
Flywheel Horse- power (2002)
|
125 hp (93 kw)
|
|
Flywheel Horse- power (Since 2002)
|
143 hp (107 kw)
|
|
Flywheel Horse- power (2003)
|
143 hp (107 kw)
|
|
Flywheel Horse- power (2004)
|
143 hp (107 kw)
|
|
Flywheel Horse- power (2005)
|
143 hp (107 kw)
|
|
Flywheel Horse- power (2006)
|
143 hp (107 kw)
|
|
Flywheel Horse- power (2007)
|
143 hp (107 kw)
|
|
Flywheel Power: Max. (Since 2001)
|
137 hp (102 kw)
|
|
Flywheel Power: Net (Since 1998)
|
125 hp (93 kw)
|
|
Flywheel Power: Net (2001)
|
125 hp (93 kw)
|
|
Flywheel Power: Net (Since 2006)
|
143 hp (107 kw)
|
|
Fuel Tank Capacity (Since 1998)
|
61 US gal (230 L)
|
|
Fuel Tank Capacity (2001)
|
61 US gal (230 L)
|
|
Fuel Tank Capacity (Since 2006)
|
59 US gal (225 L)
|
|
G Maximum overall height (Since 1998)
|
200 in (508 cm)
|
|
G Maximum overall height (2001)
|
200 in (508 cm)
|
|
G Maximum overall height (2006)
|
200 in (508 cm)
|
|
Ground Clearance (Since 1996)
|
16 in (41 cm)
|
|
Ground Clearance (1997)
|
16 in (41 cm)
|
|
Ground Clearance (1998)
|
16 in (41 cm)
|
|
Ground Clearance (1999)
|
16 in (41 cm)
|
|
Ground Clearance (2000)
|
16 in (41 cm)
|
|
Ground Clearance (2001)
|
16 in (41 cm)
|
|
Ground Clearance (2002)
|
16 in (41 cm)
|
|
Ground Clearance (2002)
|
16 in (41 cm)
|
|
Ground Clearance (2003)
|
16 in (41 cm)
|
|
Ground Clearance (2004)
|
16 in (41 cm)
|
|
Ground Clearance (2005)
|
16 in (41 cm)
|
|
Ground Clearance (2006)
|
16 in (41 cm)
|
|
Ground Clearance (2007)
|
16 in (41 cm)
|
|
Ground clearance (std. tires) (Since 1998)
|
16 in (41 cm)
|
|
Ground clearance (std. tires) (2001)
|
16 in (41 cm)
|
|
Ground clearance (std. tires) (2006)
|
16 in (41 cm)
|
|
Ground Engaging Tools (Since 2012)
|
J250 |
|
Ground Engaging Tools (Since 2012)
|
BOCE |
|
Ground Engaging Tools (Since 2012)
|
J250/BOCE |
|
Ground Engaging Tools (Since 2012)
|
BOCE Included |
|
H Maximum digging depth (Since 1998)
|
3 in (9 cm)
|
|
H Maximum digging depth (2001)
|
3 in (9 cm)
|
|
H Maximum digging depth (2006)
|
3 in (9 cm)
|
|
Hydraulic Cycle Time, - Dump (Since 1998)
|
1 sec |
|
Hydraulic Cycle Time, - Dump (Since 2001)
|
1 sec (1 Seconds)
|
|
Hydraulic Cycle Time, - Lower (Empty, Float Down) (Since 1998)
|
3 sec |
|
Hydraulic Cycle Time, - Lower (Empty, Float Down) (Since 2001)
|
3 sec (3 Seconds)
|
|
Hydraulic Cycle Time, - Raise (Since 1998)
|
6 sec |
|
Hydraulic Cycle Time, - Raise (Since 2001)
|
6 sec (6 Seconds)
|
|
Hydraulic Cycle Time, - Rated Load in Bucket (Since 2001)
|
928G IT28G |
|
Hydraulic Cycle Time, - Total (Since 1998)
|
10 sec |
|
Hydraulic Cycle Time, - Total (Since 2001)
|
10 sec (10 Seconds)
|
|
Hydraulic System Capacity - (includes tank) (Since 1998)
|
33 US gal (125 L)
|
|
Hydraulic System Capacity - (includes tank) (2001)
|
33 US gal (125 L)
|
|
Hydraulic System Capacity - (includes tank) (2006)
|
33 US gal (125 L)
|
|
Hydraulic Tank Capacity (Since 1998)
|
19 US gal (70 L)
|
|
Hydraulic Tank Capacity (2001)
|
19 US gal (70 L)
|
|
Hydraulic Tank Capacity (2006)
|
19 US gal (70 L)
|
|
J Machine center point to axle (Since 1998)
|
57 in (145 cm)
|
|
J Machine center point to axle (2001)
|
57 in (145 cm)
|
|
J Machine center point to axle (2006)
|
57 in (145 cm)
|
|
K Wheel base (Since 2006)
|
114 in (290 cm)
|
|
K Wheelbase (Since 1998)
|
114 in (290 cm)
|
|
K Wheelbase (2001)
|
114 in (290 cm)
|
|
L Radius of wheel (Since 1998)
|
30 in (76 cm)
|
|
L Radius of wheel (2001)
|
30 in (76 cm)
|
|
L Radius of wheel (Since 2006)
|
27 in (69 cm)
|
|
Loader clearance circle with bucket in carry position (Since 2006)
|
456 in (1,158 cm)
|
|
Loader clearance circle with bucket in carry position (2006)
|
456 in (1,158 cm)
|
|
Loader clearance circle with bucket in carry position (Since 2006)
|
460 in (1,168 cm)
|
|
Loader clearance circle with bucket in carry position (Since 2006)
|
462 in (1,173 cm)
|
|
Loader clearance circle with bucket in carry position (Since 2006)
|
460 in (1,168 cm)
|
|
M Maximum overall length (Since 1998)
|
288 in (732 cm)
|
|
M Maximum overall length (2001)
|
288 in (732 cm)
|
|
M Maximum overall length (2006)
|
288 in (732 cm)
|
|
Max. (Since 2006)
|
155 hp (116 kw)
|
|
Max. Reach at max. height (Since 1996)
|
57 in (145 cm)
|
|
Max. Reach at max. height (1997)
|
57 in (145 cm)
|
|
Max. Reach at max. height (1998)
|
57 in (145 cm)
|
|
Max. Reach at max. height (1999)
|
57 in (145 cm)
|
|
Max. Reach at max. height (2000)
|
57 in (145 cm)
|
|
Max. Reach at max. height (2001)
|
57 in (145 cm)
|
|
Max. Reach at max. height (2002)
|
57 in (145 cm)
|
|
Max. Reach at max. height (2002)
|
57 in (145 cm)
|
|
Max. Reach at max. height (2003)
|
57 in (145 cm)
|
|
Max. Reach at max. height (2004)
|
57 in (145 cm)
|
|
Max. Reach at max. height (2005)
|
57 in (145 cm)
|
|
Max. Reach at max. height (2006)
|
57 in (145 cm)
|
|
Max. Reach at max. height (2007)
|
57 in (145 cm)
|
|
Maximum Forward Speed (Since 1996)
|
23 mph (38 kph)
|
|
Maximum Forward Speed (1997)
|
23 mph (38 kph)
|
|
Maximum Forward Speed (1998)
|
23 mph (38 kph)
|
|
Maximum Forward Speed (1999)
|
23 mph (38 kph)
|
|
Maximum Forward Speed (2000)
|
23 mph (38 kph)
|
|
Maximum Forward Speed (2001)
|
23 mph (38 kph)
|
|
Maximum Forward Speed (2002)
|
23 mph (38 kph)
|
|
Maximum Forward Speed (2002)
|
23 mph (38 kph)
|
|
Maximum Forward Speed (2003)
|
23 mph (38 kph)
|
|
Maximum Forward Speed (2004)
|
23 mph (38 kph)
|
|
Maximum Forward Speed (2005)
|
23 mph (38 kph)
|
|
Maximum Forward Speed (2006)
|
23 mph (38 kph)
|
|
Maximum Forward Speed (2007)
|
23 mph (38 kph)
|
|
Maximum Reverse Speed (Since 1996)
|
16 mph (26 kph)
|
|
Maximum Reverse Speed (1997)
|
16 mph (26 kph)
|
|
Maximum Reverse Speed (1998)
|
16 mph (26 kph)
|
|
Maximum Reverse Speed (1999)
|
16 mph (26 kph)
|
|
Maximum Reverse Speed (2000)
|
16 mph (26 kph)
|
|
Maximum Reverse Speed (2001)
|
16 mph (26 kph)
|
|
Maximum Reverse Speed (2002)
|
16 mph (26 kph)
|
|
Maximum Reverse Speed (2002)
|
16 mph (26 kph)
|
|
Maximum Reverse Speed (2003)
|
16 mph (26 kph)
|
|
Maximum Reverse Speed (2004)
|
16 mph (26 kph)
|
|
Maximum Reverse Speed (2005)
|
16 mph (26 kph)
|
|
Maximum Reverse Speed (2006)
|
16 mph (26 kph)
|
|
Maximum Reverse Speed (2007)
|
16 mph (26 kph)
|
|
N Reach at full lift (Since 1998)
|
38 in (97 cm)
|
|
N Reach at full lift (2001)
|
38 in (97 cm)
|
|
N Reach at full lift (2006)
|
38 in (97 cm)
|
|
No. Cylinders (Since 1998)
|
6 |
|
No. Cylinders (2001)
|
6 |
|
No. Cylinders (2006)
|
6 |
|
O Maximum rollback at maximum lift (Since 1998)
|
58 deg |
|
O Maximum rollback at maximum lift (2001)
|
58 deg |
|
O Maximum rollback at maximum lift (2006)
|
58 deg |
|
Operating weight (Since 2006)
|
25,984 lbs (11,786 kg)
|
|
Operating weight (Since 2006)
|
26,094 lbs (11,836 kg)
|
|
Operating weight (Since 2006)
|
26,279 lbs (11,920 kg)
|
|
Operating weight (Since 2006)
|
26,389 lbs (11,970 kg)
|
|
Operating weight (Since 2006)
|
26,092 lbs (11,835 kg)
|
|
Operating weight (Since 2006)
|
26,202 lbs (11,885 kg)
|
|
Operating weight (Since 2006)
|
26,250 lbs (11,907 kg)
|
|
Overall height with bucket at full raise (§) (Since 1998)
|
196 in (498 cm)
|
|
Overall height with bucket at full raise (§) (Since 1998)
|
200 in (508 cm)
|
|
Overall height with bucket at full raise (§) (Since 1998)
|
199 in (505 cm)
|
|
Overall height with bucket at full raise (§) (Since 2001)
|
196 in (498 cm)
|
|
Overall height with bucket at full raise (§) (Since 2001)
|
200 in (508 cm)
|
|
Overall height with bucket at full raise (§) (Since 2001)
|
199 in (505 cm)
|
|
Overall height with bucket at full raise (§) (Since 2006)
|
196 in (498 cm)
|
|
Overall height with bucket at full raise (§) (Since 2006)
|
200 in (508 cm)
|
|
Overall height with bucket at full raise (§) (Since 2006)
|
199 in (505 cm)
|
|
Overall length (Since 1998)
|
286 in (726 cm)
|
|
Overall length (Since 1998)
|
288 in (732 cm)
|
|
Overall length (Since 1998)
|
291 in (739 cm)
|
|
Overall length (Since 1998)
|
293 in (744 cm)
|
|
Overall length (Since 1998)
|
292 in (742 cm)
|
|
Overall length (Since 1998)
|
293 in (744 cm)
|
|
Overall length (1998)
|
293 in (744 cm)
|
|
Overall length (Since 2001)
|
286 in (726 cm)
|
|
Overall length (Since 2001)
|
288 in (732 cm)
|
|
Overall length (Since 2001)
|
291 in (739 cm)
|
|
Overall length (Since 2001)
|
293 in (744 cm)
|
|
Overall length (Since 2001)
|
292 in (742 cm)
|
|
Overall length (Since 2001)
|
293 in (744 cm)
|
|
Overall length (2001)
|
293 in (744 cm)
|
|
Overall length (Since 2006)
|
286 in (726 cm)
|
|
Overall length (Since 2006)
|
288 in (732 cm)
|
|
Overall length (Since 2006)
|
291 in (739 cm)
|
|
Overall length (Since 2006)
|
293 in (744 cm)
|
|
Overall length (Since 2006)
|
290 in (737 cm)
|
|
Overall length (Since 2006)
|
293 in (744 cm)
|
|
Overall length (2006)
|
293 in (744 cm)
|
|
P Maximum rollback at carry height (Since 1998)
|
48 deg |
|
P Maximum rollback at carry height (2001)
|
48 deg |
|
P Maximum rollback at carry height (Since 2006)
|
48 deg |
|

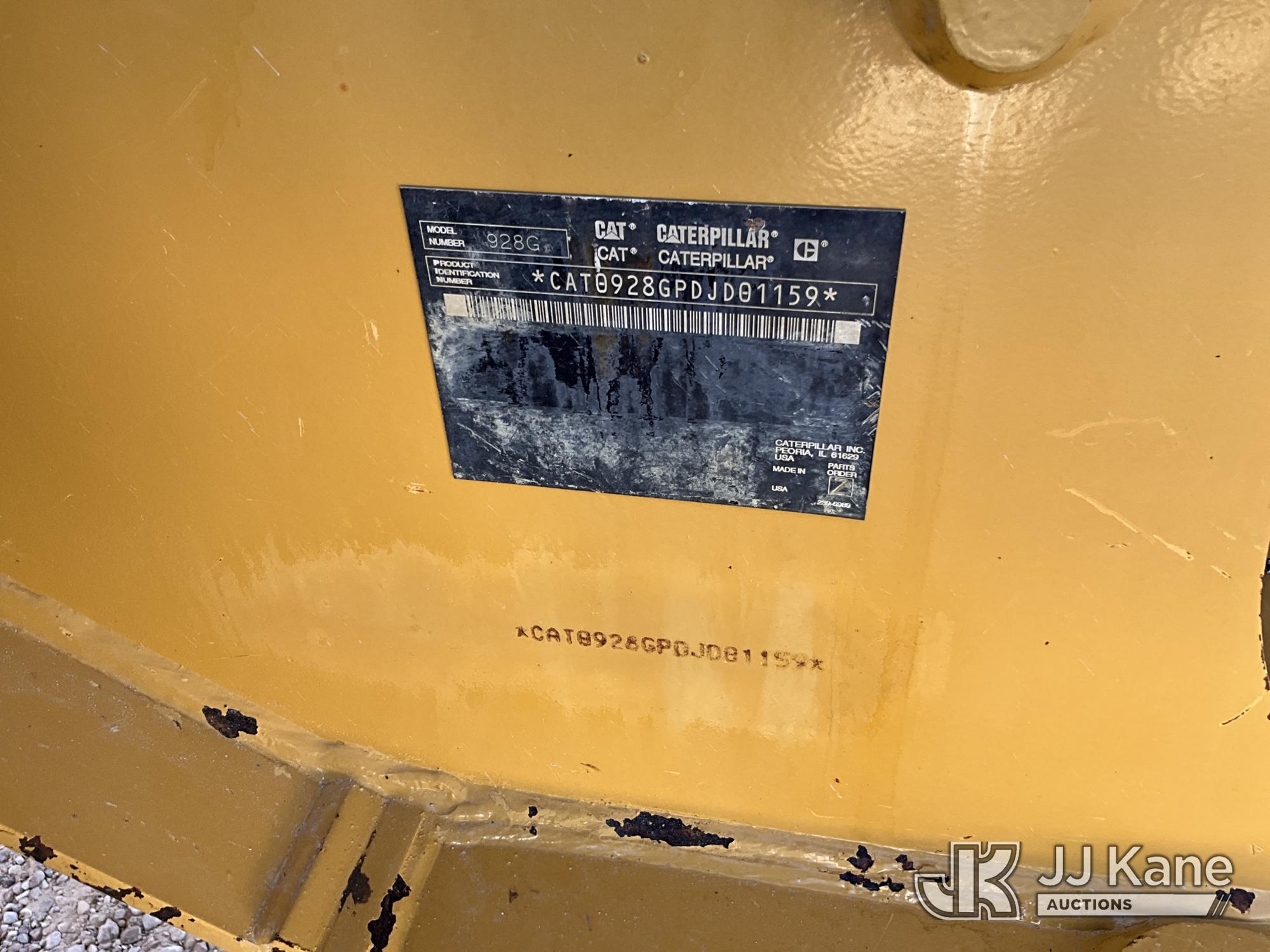

Product Identification Prefix (Since 1996)
|
6XR |
|
Product Identification Prefix (Since 1996)
|
7SR |
|
Product Identification Prefix (Since 1997)
|
6XR |
|
Product Identification Prefix (Since 1997)
|
7SR |
|
Product Identification Prefix (Since 1998)
|
6XR |
|
Product Identification Prefix (Since 1998)
|
7SR |
|
Product Identification Prefix (Since 1999)
|
6XR |
|
Product Identification Prefix (Since 1999)
|
7SR |
|
Product Identification Prefix (Since 2000)
|
6XR |
|
Product Identification Prefix (Since 2000)
|
7SR |
|
Product Identification Prefix (Since 2001)
|
6XR |
|
Product Identification Prefix (Since 2001)
|
7SR |
|
Product Identification Prefix (Since 2002)
|
6XR |
|
Product Identification Prefix (Since 2002)
|
7SR |
|
Product Identification Prefix (Since 2002)
|
DJD |
|
Product Identification Prefix (Since 2002)
|
WLG |
|
Product Identification Prefix (Since 2003)
|
DJD |
|
Product Identification Prefix (Since 2003)
|
WLG |
|
Product Identification Prefix (Since 2004)
|
DJD |
|
Product Identification Prefix (Since 2004)
|
WLG |
|
Product Identification Prefix (Since 2005)
|
DJD |
|
Product Identification Prefix (Since 2005)
|
WLG |
|
Product Identification Prefix (Since 2006)
|
DJD |
|
Product Identification Prefix (Since 2006)
|
WLG |
|
Product Identification Prefix (Since 2007)
|
DJD |
|
Product Identification Prefix (Since 2007)
|
WLG |
|
Q Maximum rollback at ground (Since 1998)
|
44 deg |
|
Q Maximum rollback at ground (2001)
|
44 deg |
|
Q Maximum rollback at ground (2006)
|
44 deg |
|
Rated bucket capacity (§) (Since 1998)
|
3 cu yd (2 cu m)
|
|
Rated bucket capacity (§) (Since 1998)
|
3 cu yd (2 cu m)
|
|
Rated bucket capacity (§) (Since 1998)
|
3 cu yd (2 cu m)
|
|
Rated bucket capacity (§) (Since 1998)
|
3 cu yd (2 cu m)
|
|
Rated bucket capacity (§) (Since 2001)
|
3 cu yd (2 cu m)
|
|
Rated bucket capacity (§) (Since 2001)
|
3 cu yd (2 cu m)
|
|
Rated bucket capacity (§) (Since 2001)
|
3 cu yd (2 cu m)
|
|
Rated bucket capacity (§) (Since 2001)
|
3 cu yd (2 cu m)
|
|
Rated bucket capacity (§) (Since 2006)
|
3 cu yd (2 cu m)
|
|
Rated bucket capacity (§) (Since 2006)
|
3 cu yd (2 cu m)
|
|
Rated bucket capacity (§) (Since 2006)
|
3 cu yd (2 cu m)
|
|
Rated bucket capacity (§) (Since 2006)
|
3 cu yd (2 cu m)
|
|
Rated bucket capacity (§) (Since 2006)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (Since 1996)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (1997)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (1998)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (1999)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (2000)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (2001)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (2002)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (2002)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (2003)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (2004)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (2005)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (2006)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (2007)
|
3 cu yd (2 cu m)
|
|
Rated Engine RPM (Since 1998)
|
2,300 rpm |
|
Rated Engine RPM (2001)
|
2,300 rpm |
|
Rated Engine RPM (2006)
|
2,300 rpm |
|
Reach at 45° discharge and 2130 mm (7'0") clearance (§) (Since 1998)
|
57 in (145 cm)
|
|
Reach at 45° discharge and 2130 mm (7'0") clearance (§) (Since 1998)
|
58 in (147 cm)
|
|
Reach at 45° discharge and 2130 mm (7'0") clearance (§) (Since 1998)
|
59 in (150 cm)
|
|
Reach at 45° discharge and 2130 mm (7'0") clearance (§) (1998)
|
59 in (150 cm)
|
|
Reach at 45° discharge and 2130 mm (7'0") clearance (§) (Since 1998)
|
60 in (152 cm)
|
|
Reach at 45° discharge and 2130 mm (7'0") clearance (§) (Since 2001)
|
57 in (145 cm)
|
|
Reach at 45° discharge and 2130 mm (7'0") clearance (§) (Since 2001)
|
58 in (147 cm)
|
|
Reach at 45° discharge and 2130 mm (7'0") clearance (§) (Since 2001)
|
59 in (150 cm)
|
|
Reach at 45° discharge and 2130 mm (7'0") clearance (§) (2001)
|
59 in (150 cm)
|
|
Reach at 45° discharge and 2130 mm (7'0") clearance (§) (Since 2001)
|
60 in (152 cm)
|
|
Reach at 45° discharge and 2130 mm (7'0") clearance (§) (Since 2006)
|
57 in (145 cm)
|
|
Reach at 45° discharge and 2130 mm (7'0") clearance (§) (Since 2006)
|
58 in (147 cm)
|
|
Reach at 45° discharge and 2130 mm (7'0") clearance (§) (Since 2006)
|
59 in (150 cm)
|
|
Reach at 45° discharge and 2130 mm (7'0") clearance (§) (2006)
|
59 in (150 cm)
|
|
Reach at 45° discharge and 2130 mm (7'0") clearance (§) (Since 2006)
|
60 in (152 cm)
|
|
Reach at full lift and 45° discharge (§) (Since 1998)
|
36 in (91 cm)
|
|
Reach at full lift and 45° discharge (§) (Since 1998)
|
38 in (97 cm)
|
|
Reach at full lift and 45° discharge (§) (Since 1998)
|
40 in (102 cm)
|
|
Reach at full lift and 45° discharge (§) (Since 1998)
|
42 in (107 cm)
|
|
Reach at full lift and 45° discharge (§) (1998)
|
42 in (107 cm)
|
|
Reach at full lift and 45° discharge (§) (Since 2001)
|
36 in (91 cm)
|
|
Reach at full lift and 45° discharge (§) (Since 2001)
|
38 in (97 cm)
|
|
Reach at full lift and 45° discharge (§) (Since 2001)
|
40 in (102 cm)
|
|
Reach at full lift and 45° discharge (§) (Since 2001)
|
42 in (107 cm)
|
|
Reach at full lift and 45° discharge (§) (2001)
|
42 in (107 cm)
|
|
Reach at full lift and 45° discharge (§) (Since 2006)
|
36 in (91 cm)
|
|
Reach at full lift and 45° discharge (§) (Since 2006)
|
38 in (97 cm)
|
|
Reach at full lift and 45° discharge (§) (Since 2006)
|
40 in (102 cm)
|
|
Reach at full lift and 45° discharge (§) (Since 2006)
|
42 in (107 cm)
|
|
Reach at full lift and 45° discharge (§) (2006)
|
42 in (107 cm)
|
|
Reach with arms horizontal and bucket level (Since 1998)
|
89 in (226 cm)
|
|
Reach with arms horizontal and bucket level (Since 1998)
|
91 in (231 cm)
|
|
Reach with arms horizontal and bucket level (Since 1998)
|
94 in (239 cm)
|
|
Reach with arms horizontal and bucket level (Since 1998)
|
96 in (244 cm)
|
|
Reach with arms horizontal and bucket level (1998)
|
96 in (244 cm)
|
|
Reach with arms horizontal and bucket level (Since 2001)
|
89 in (226 cm)
|
|
Reach with arms horizontal and bucket level (Since 2001)
|
91 in (231 cm)
|
|
Reach with arms horizontal and bucket level (Since 2001)
|
94 in (239 cm)
|
|
Reach with arms horizontal and bucket level (Since 2001)
|
96 in (244 cm)
|
|
Reach with arms horizontal and bucket level (2001)
|
96 in (244 cm)
|
|
Reach with arms horizontal and bucket level (Since 2006)
|
89 in (226 cm)
|
|
Reach with arms horizontal and bucket level (Since 2006)
|
91 in (231 cm)
|
|
Reach with arms horizontal and bucket level (Since 2006)
|
94 in (239 cm)
|
|
Reach with arms horizontal and bucket level (Since 2006)
|
96 in (244 cm)
|
|
Reach with arms horizontal and bucket level (2006)
|
96 in (244 cm)
|
|
Shipping weight (Since 2006)
|
25,441 lbs (11,540 kg)
|
|
Shipping weight (Since 2006)
|
25,552 lbs (11,590 kg)
|
|
Shipping weight (Since 2006)
|
25,737 lbs (11,674 kg)
|
|
Shipping weight (Since 2006)
|
25,847 lbs (11,724 kg)
|
|
Shipping weight (Since 2006)
|
25,549 lbs (11,589 kg)
|
|
Shipping weight (Since 2006)
|
25,660 lbs (11,639 kg)
|
|
Shipping weight (Since 2006)
|
25,708 lbs (11,661 kg)
|
|
Speeds Reverse - 1st (Since 1998)
|
7.6 4.7 |
|
Speeds Reverse - 1st (2001)
|
7.6 4.7 |
|
Speeds Reverse - 1st (Since 2006)
|
7.9 4.9 |
|
Speeds Reverse - 2nd (Since 1998)
|
12 7.5 |
|
Speeds Reverse - 2nd (Since 2001)
|
12.0 7.5 |
|
Speeds Reverse - 2nd (Since 2006)
|
12.6 7.8 |
|
Speeds Reverse - 3rd (Since 1998)
|
24.6 15.3 |
|
Speeds Reverse - 3rd (2001)
|
24.6 15.3 |
|
Speeds Reverse - Dump (Since 2006)
|
1 |
|
Speeds Reverse - Lower (Empty, Float Down) (Since 2006)
|
3 |
|
Speeds Reverse - Raise (Since 2006)
|
6 |
|
Speeds Reverse - Total (Since 2006)
|
10 |
|
Static tipping load, full 40° turn (§) (Since 2006)
|
18,018 lbs (8,173 kg)
|
|
Static tipping load, full 40° turn (§) (Since 2006)
|
17,703 lbs (8,030 kg)
|
|
Static tipping load, full 40° turn (§) (Since 2006)
|
17,644 lbs (8,003 kg)
|
|
Static tipping load, full 40° turn (§) (Since 2006)
|
17,333 lbs (7,862 kg)
|
|
Static tipping load, full 40° turn (§) (Since 2006)
|
17,844 lbs (8,094 kg)
|
|
Static tipping load, full 40° turn (§) (Since 2006)
|
17,683 lbs (8,021 kg)
|
|
Static tipping load, straight (§) (Since 2006)
|
20,723 lbs (9,400 kg)
|
|
Static tipping load, straight (§) (Since 2006)
|
20,377 lbs (9,243 kg)
|
|
Static tipping load, straight (§) (Since 2006)
|
20,351 lbs (9,231 kg)
|
|
Static tipping load, straight (§) (Since 2006)
|
20,014 lbs (9,078 kg)
|
|
Static tipping load, straight (§) (Since 2006)
|
20,545 lbs (9,319 kg)
|
|
Static tipping load, straight (§) (Since 2006)
|
20,397 lbs (9,252 kg)
|
|
Stroke (Since 1998)
|
5 in (13 cm)
|
|
Stroke (2001)
|
5 in (13 cm)
|
|
Stroke (2006)
|
5 in (13 cm)
|
|
Struck capacity (§) (Since 1998)
|
2 cu yd (2 cu m)
|
|
Struck capacity (§) (Since 1998)
|
3 cu yd (2 cu m)
|
|
Struck capacity (§) (Since 1998)
|
2 cu yd (2 cu m)
|
|
Struck capacity (§) (Since 1998)
|
2 cu yd (2 cu m)
|
|
Struck capacity (§) (Since 2001)
|
2 cu yd (2 cu m)
|
|
Struck capacity (§) (Since 2001)
|
3 cu yd (2 cu m)
|
|
Struck capacity (§) (Since 2001)
|
2 cu yd (2 cu m)
|
|
Struck capacity (§) (Since 2001)
|
2 cu yd (2 cu m)
|
|
Struck capacity (§) (Since 2006)
|
2 cu yd (2 cu m)
|
|
Struck capacity (§) (Since 2006)
|
3 cu yd (2 cu m)
|
|
Struck capacity (§) (Since 2006)
|
2 cu yd (2 cu m)
|
|
Struck capacity (§) (Since 2006)
|
2 cu yd (2 cu m)
|
|
Tires used for measurements (Since 1998)
|
L-2 |
|
Tires used for measurements (2001)
|
L-2 |
|
Tires used for measurements (Since 2006)
|
20.5-25 (L-2 |
|
Tread Width (Since 1998)
|
73 in (185 cm)
|
|
Tread Width (Since 2001)
|
77 in (196 cm)
|
|
Tread Width (2006)
|
77 in (196 cm)
|
|
Tread width (std. tires) (Since 1998)
|
73 in (185 cm)
|
|
Tread width (std. tires) (2001)
|
73 in (185 cm)
|
|
Tread width (std. tires) (Since 2006)
|
77 in (196 cm)
|
|
Width Over Tires (Since 1996)
|
96 in (244 cm)
|
|
Width Over Tires (1997)
|
96 in (244 cm)
|
|
Width Over Tires (1998)
|
96 in (244 cm)
|
|
Width Over Tires (1999)
|
96 in (244 cm)
|
|
Width Over Tires (2000)
|
96 in (244 cm)
|
|
Width Over Tires (2001)
|
96 in (244 cm)
|
|
Width Over Tires (2002)
|
96 in (244 cm)
|
|
Width Over Tires (2002)
|
96 in (244 cm)
|
|
Width Over Tires (2003)
|
96 in (244 cm)
|
|
Width Over Tires (2004)
|
96 in (244 cm)
|
|
Width Over Tires (2005)
|
96 in (244 cm)
|
|
Width Over Tires (2006)
|
96 in (244 cm)
|
|
Width Over Tires (2007)
|
96 in (244 cm)
|
|
Width over tires (std. tires) (Since 1998)
|
96 in (244 cm)
|
|
Width over tires (std. tires) (2001)
|
96 in (244 cm)
|
|
Width over tires (std. tires) (Since 2006)
|
101 in (257 cm)
|
|
Years Built (Since 1996)
|
1,996 - 2,002 |
|
Years Built (1997)
|
1,996 - 2,002 |
|
Years Built (1998)
|
1,996 - 2,002 |
|
Years Built (1999)
|
1,996 - 2,002 |
|
Years Built (2000)
|
1,996 - 2,002 |
|
Years Built (2001)
|
1,996 - 2,002 |
|
Years Built (2002)
|
1,996 - 2,002 |
|
Years Built (Since 2002)
|
2,002 - 2,007 |
|
Years Built (2003)
|
2,002 - 2,007 |
|
Years Built (2004)
|
2,002 - 2,007 |
|
Years Built (2005)
|
2,002 - 2,007 |
|
Years Built (2006)
|
2,002 - 2,007 |
|
Years Built (2007)
|
2,002 - 2,007 |
| Hydraulic System |
|
Dump Time |
1 sec |
|
Dump Time |
1 sec |
|
Lower Time |
3 sec |
|
Lower Time |
3 sec |
|
Pump Flow Capacity |
40 gpm (152 lpm)
|
|
Pump Type |
fixed displacement vane-type implement pump |
|
Raise Time |
6 sec |
|
Raise Time |
6 sec |
|
Relief Valve Setting |
3,597 psi |
| Loader Hydraulic System |
|
Bore (1) |
5 in (12 cm)
|
|
Bore (1) |
5 in (12 cm)
|
|
Bore (2) |
5 in (13 cm)
|
|
Bore (2) |
5 in (13 cm)
|
|
Dump |
1.2 s |
|
Dump |
1.2 s |
|
Hydraulic Cycle Time |
10.1 s |
|
Hydraulic Cycle Time |
10.1 s |
|
Lower, Empty, Float Down |
2.8 s |
|
Lower, Empty, Float Down |
2.8 s |
|
Output At 2,300 Engine Rpm And 6900 Kpa (1000 Psi) With Sae 10w Oil At 65 Degreesc (150 Degreesf) |
40 gpm (153 lpm)
|
|
Output At 2,300 Engine Rpm And 6900 Kpa (1000 Psi) With Sae 10w Oil At 65 Degreesc (150 Degreesf) |
40 gpm (153 lpm)
|
|
Pump Flow - Implement Pump |
40 gpm (152 lpm)
|
|
Pump Flow - Implement Pump |
40 gpm (152 lpm)
|
|
Raise |
6.1 s |
|
Raise |
6.1 s |
|
Relief Valve Setting |
3,600 psi |
|
Relief Valve Setting |
3,600 psi |
|
Stroke (1) |
27 in (69 cm)
|
|
Stroke (1) |
27 in (69 cm)
|
|
Stroke (2) |
22 in (55 cm)
|
|
Stroke (2) |
22 in (55 cm)
|
|
Total |
10.1 s |
|
Total |
10.1 s |
| Operating Specifications |
|
Articulation Angle |
40 degrees |
|
Articulation Angle |
40 degrees |
|
Breakout Force |
25,849 lbs (11,725 kg)
|
|
Breakout Force |
25,844 lbs (11,723 kg)
|
|
Dump Clearance At Full Lift And 45 Degrees Dump Angle |
10 ft (3 m)
|
|
Dump Clearance At Full Lift And 45 Degrees Dump Angle |
10 ft (3 m)
|
|
Reach - Full Lift And 45 Degrees Dump |
3 ft (1 m)
|
|
Reach - Full Lift And 45 Degrees Dump |
3 ft (1 m)
|
|
Static Tipping Load - Full Turn |
18,018 lbs (8,173 kg)
|
|
Static Tipping Load - Full Turn |
18,931 lbs (8,587 kg)
|
| Operational |
|
Alternator Supplied Amperage |
80 amps |
|
Cooling System Fluid Capacity |
11 gal (42 l)
|
|
Engine Oil Fluid Capacity |
4 gal (16 l)
|
|
Front Axle/Diff Fluid Capacity |
7 gal (26 l)
|
|
Fuel Capacity |
61 gal (230 l)
|
|
Fuel Capacity |
60 gal (225 l)
|
|
Hydraulic System Fluid Capacity |
33 gal (125 l)
|
|
Hydraulic System Fluid Capacity |
33 gal (125 l)
|
|
Operating Voltage |
24 V |
|
Operating Weight |
25,699 lbs (11,657 kg)
|
|
Operating Weight |
27,135 lbs (12,308 kg)
|
|
Rear Axle Oscillation |
11 degrees |
|
Rear Axle/Diff Fluid Capacity |
7 gal (25 l)
|
|
Static Tipping Weight |
20,351 lbs (9,231 kg)
|
|
Static Tipping Weight |
21,735 lbs (9,859 kg)
|
|
Tire Size |
20.5-25 R25 |
|
Transmission Fluid Capacity |
9 gal (35 l)
|
|
Turning Radius |
17 ft (5 m)
|
| Service Refill Capacities |
|
Cooling System |
11 gal (42 l)
|
|
Cooling System |
11 gal (42 l)
|
|
Crankcase |
4 gal (16 l)
|
|
Crankcase |
4 gal (14 l)
|
|
Front |
7 gal (26 l)
|
|
Front |
7 gal (26 l)
|
|
Fuel Tank |
59 gal (225 l)
|
|
Fuel Tank |
59 gal (225 l)
|
|
Hydraulic System - Including Tank |
33 gal (125 l)
|
|
Hydraulic System - Including Tank |
33 gal (125 l)
|
|
Hydraulic Tank |
19 gal (70 l)
|
|
Hydraulic Tank |
19 gal (70 l)
|
|
Rear |
7 gal (25 l)
|
|
Rear |
7 gal (25 l)
|
|
Transmission |
9 gal (34 l)
|
|
Transmission |
9 gal (34 l)
|
| Steering |
|
Hydraulic Output At 2300 Engine Rpm And 6900 Kpa (1000 Psi) |
27 gpm (102 lpm)
|
|
Hydraulic Output At 2300 Engine Rpm And 6900 Kpa (1000 Psi) |
27 gpm (102 lpm)
|
|
Maximum Working Pressure |
3,000 psi |
|
Maximum Working Pressure |
3,000 psi |
|
Minimum Turning Radius - Over Tires |
206 in (523 cm)
|
|
Minimum Turning Radius - Over Tires |
206 in (523 cm)
|
|
Steering Angle - Each Direction |
40 degrees |
|
Steering Angle - Each Direction |
40 degrees |
|
Steering Articulation |
40 degrees |
|
Steering Cylinder, Two, Bore |
3 in (7 cm)
|
|
Steering Cylinder, Two, Bore |
3 in (7 cm)
|
| Tires |
|
Size |
17.5-25PR (L-2) |
|
Size |
17.5-25PR (L-2) |
|
Tread Width |
96 ft (29 m)
|
|
Tread Width |
96 ft (29 m)
|
| Transmission |
|
2 |
8 mph (13 kph)
|
|
2 |
8 mph (13 kph)
|
|
3 |
16 mph (26 kph)
|
|
3 |
16 mph (26 kph)
|
|
4 |
23 mph (38 kph)
|
|
4 |
23 mph (38 kph)
|
|
Forward - 1 |
5 mph (8 kph)
|
|
Forward - 1 |
5 mph (8 kph)
|
|
Max Speed - Forward |
23 mph (37 kph)
|
|
Max Speed - Forward |
24 mph (38 kph)
|
|
Max Speed - Reverse |
15 mph (25 kph)
|
|
Max Speed - Reverse |
16 mph (26 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
3 |
|
Number Of Reverse Gears |
3 |
|
Reverse - 1 |
5 mph (8 kph)
|
|
Reverse - 1 |
5 mph (8 kph)
|
|
Transmission Type |
countershaft |
| Weights |
|
Operating Weight |
27,140 lbs (12,311 kg)
|
|
Operating Weight |
27,140 lbs (12,311 kg)
|
|
Optional Counterweight |
655 lbs (297 kg)
|
.jpg)
