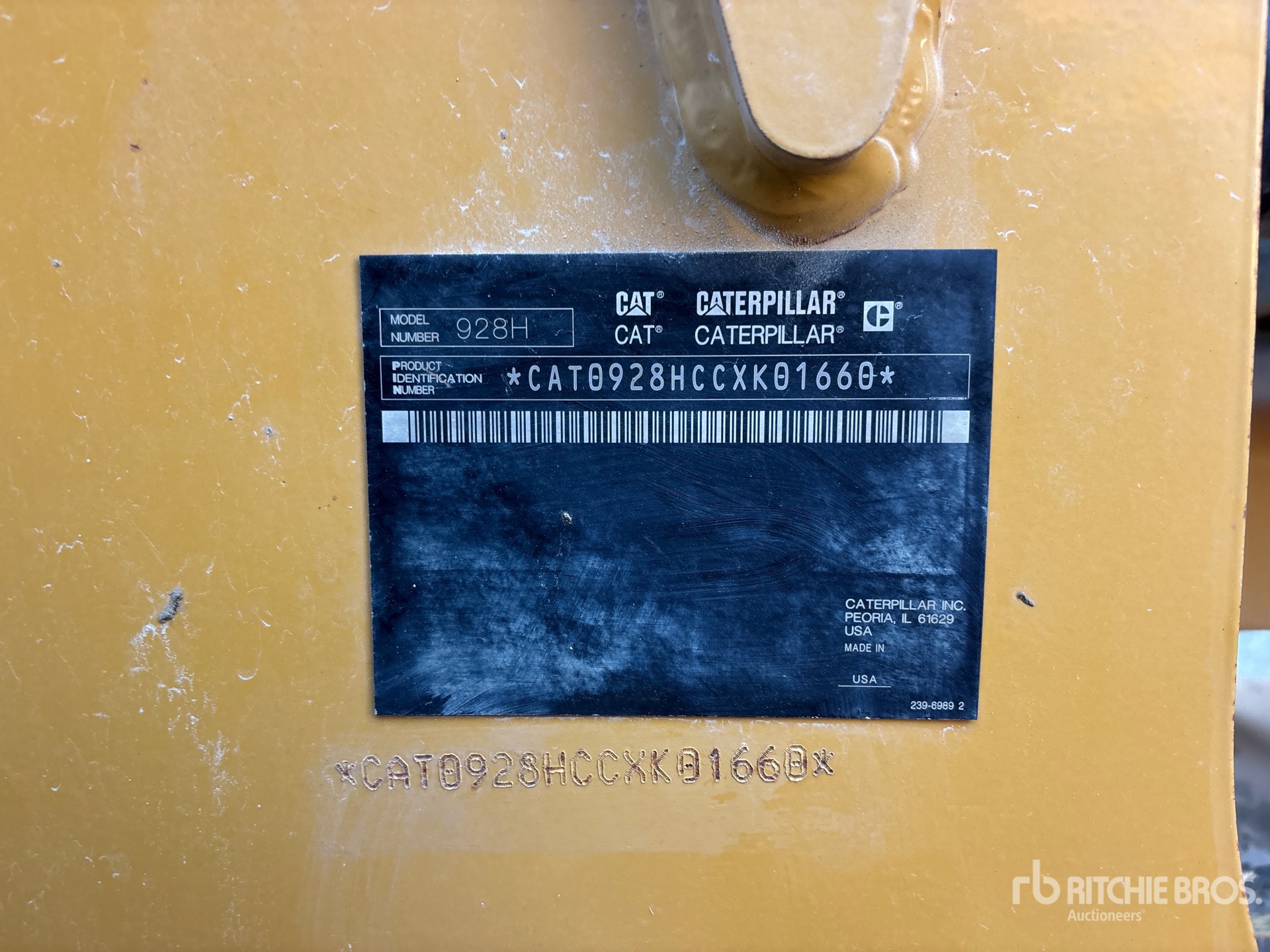

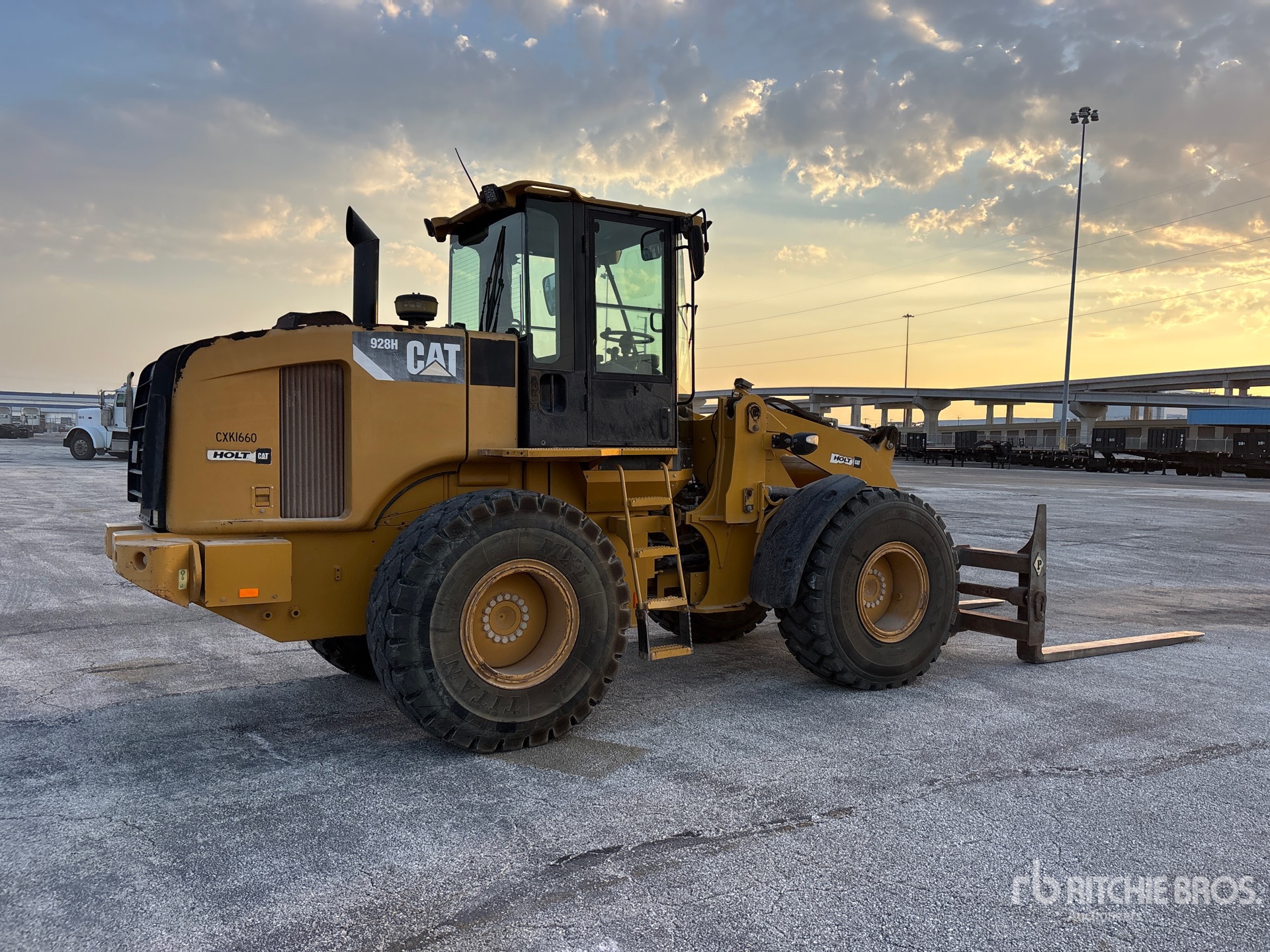

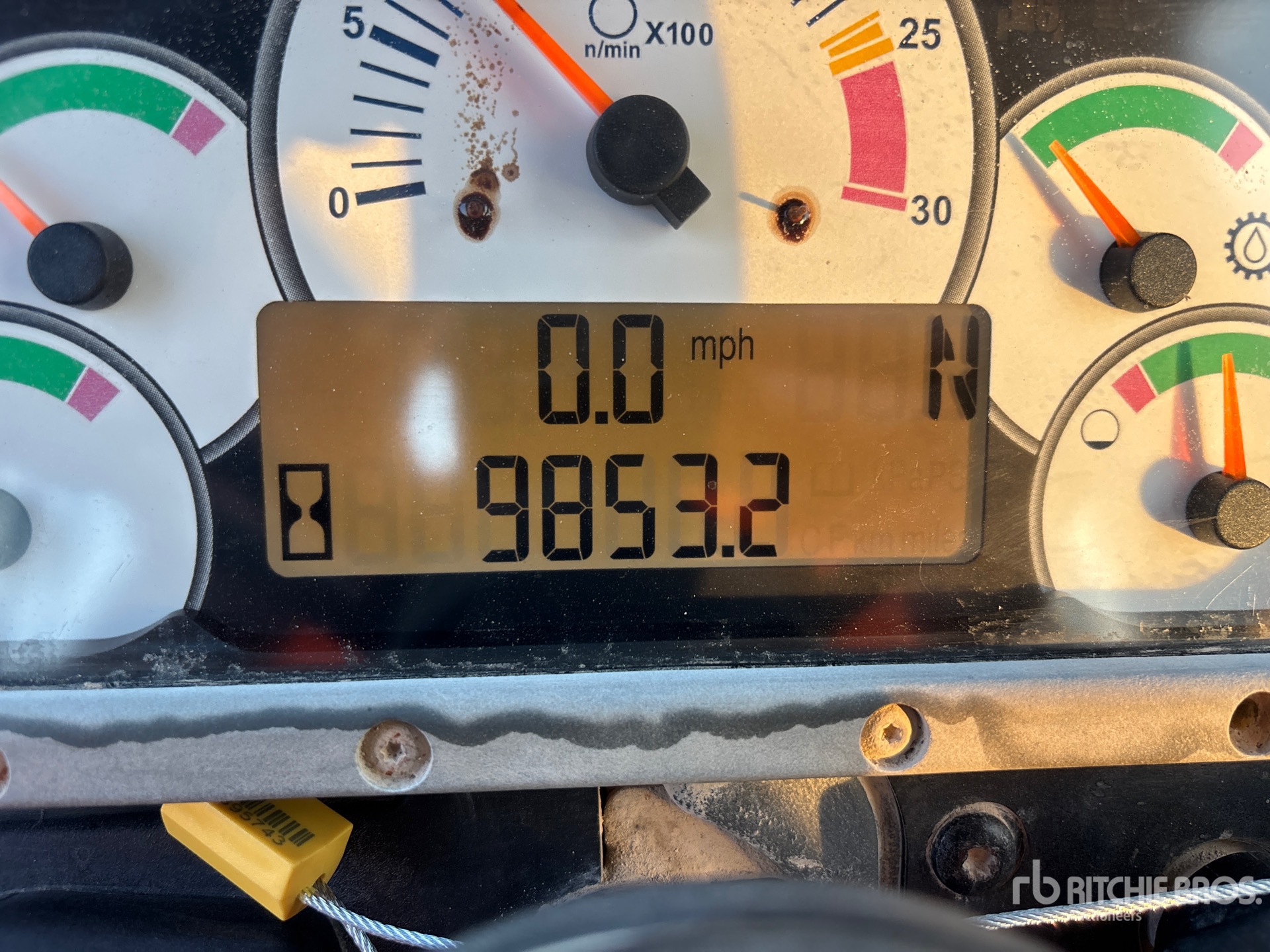

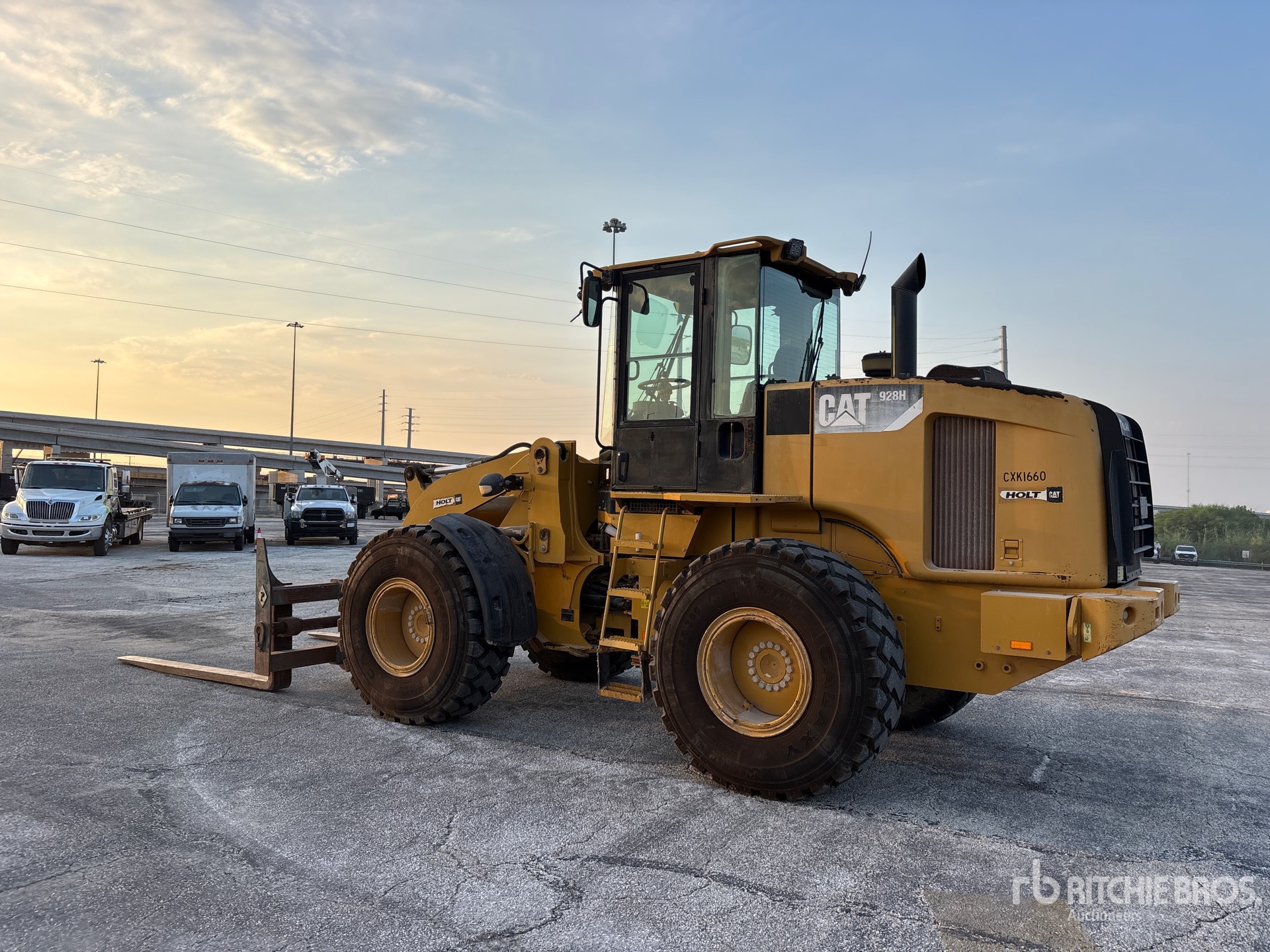

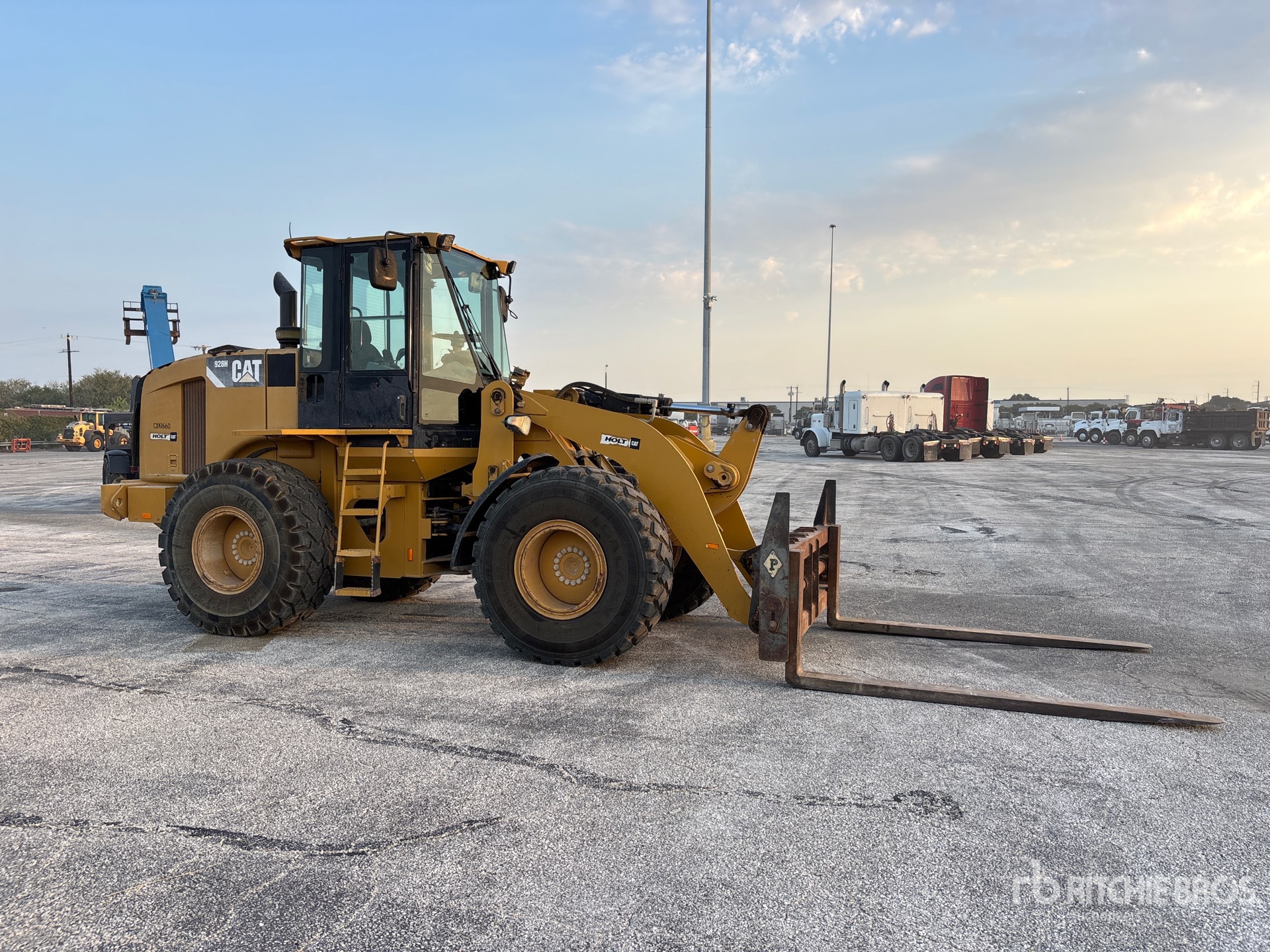

| Buckets |
|
Bucket Capacities |
2.0 m3 - 2.3 m3 2.6 yd3 - 3.0 yd3 |
| Cab |
|
Fops |
SAE J/ISO 3449 APR98 Level II, ISO 3449-1992 Level II |
|
Rops |
SAE J1040 MAY94, ISO 3471-1994 |
| Dimensions |
|
Bucket Clearance-Maximum Lift/Carry |
12 ft (4 m)
|
|
Bucket Pin Height - Maximum Lift |
13 ft (4 m)
|
|
Carry Height |
1 ft (0 m)
|
|
Centerline Of Front Axle To Hitch |
5 ft (1 m)
|
|
Digging Depth |
3 in (9 cm)
|
|
Dump Angle At Maximum Lift |
45 degrees |
|
Dump Clearance At Maximum Lift - 45 Degrees |
9 ft (3 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
11 ft (3 m)
|
|
Height |
11 ft (3 m)
|
|
Height - Center Of Axle |
2 ft (1 m)
|
|
Height - Top Of Exhaust Stack |
10 ft (3 m)
|
|
Height - Top Of Hood |
87 in (220 cm)
|
|
Height - Top Of Rops/Fops |
11 ft (3 m)
|
|
Length |
25 ft (8 m)
|
|
Length |
24 ft (7 m)
|
|
Length - Rear Axle To Bumper |
6 ft (2 m)
|
|
Overall Height - Bucket Raised |
16 ft (5 m)
|
|
Overall Length |
24 ft (7 m)
|
|
Rack Back Angle - Carry |
48 degrees |
|
Rack Back Angle - Ground |
44 degrees |
|
Rack Back Angle - Maximum Lift |
60 degrees |
|
Reach At Maximum Lift And 45 Degrees Dump |
3 ft (1 m)
|
|
Weight |
27,000 lbs (12,245 kg)
|
|
Weight |
27,699 lbs (12,562 kg)
|
|
Wheel Base |
10 ft (3 m)
|
|
Width |
8 ft (3 m)
|
|
Width |
8 ft (2 m)
|
|
Width - Over Tires |
8 ft (3 m)
|
| Engine |
|
Bore |
4 in (11 cm)
|
|
Displacement |
403 cu in (6,604 cu cm)
|
|
Eec 80/1269 (1) |
150 hp (112 kw)
|
|
Eec 80/1269 (2) |
161 hp (120 kw)
|
|
Iso 9249 (1997) (1) |
150 hp (112 kw)
|
|
Iso 9249 (1997) (2) |
161 hp (120 kw)
|
|
Maximum Net Power - 2000 Rpm |
160 hp (119 kw)
|
|
Net Torque |
536 lbs ft (727 nm)
|
|
Peak Torque |
547 lbs ft (742 nm)
|
|
Rated Net Power |
149 hp (111 kw)
|
|
Sae J1349 (1) |
149 hp (111 kw)
|
|
Sae J1349 (2) |
160 hp (119 kw)
|
|
Stroke |
5 in (13 cm)
|
| Loader Hydraulic System |
|
Bore (1) |
5 in (12 cm)
|
|
Bore (2) |
5 in (13 cm)
|
|
Dump |
1.2 s |
|
Hydraulic Cycle Time |
10.1 Seconds |
|
Lower, Empty, Float Down |
2.8 s |
|
Maximum Working Pressure |
3,755 psi |
|
Output At 2,300 Engine Rpm And 6900 Kpa (1000 Psi) With Sae 10w Oil At 65 Degreesc (150 Degreesf) |
40 gpm (153 lpm)
|
|
Pump Flow - Implement Pump |
40 gpm (152 lpm)
|
|
Raise |
6.1 s |
|
Relief Pressure - Implement Pump |
3,755 psi |
|
Stroke (1) |
27 in (69 cm)
|
|
Stroke (2) |
22 in (55 cm)
|
|
Total |
10.1 s |
| Operating Specifications |
|
Articulation Angle |
40 degrees |
|
Dump Clearance At Full Lift And 45 Degrees Dump Angle |
10 ft (3 m)
|
|
Reach - Full Lift And 45 Degrees Dump |
3 ft (1 m)
|
|
Static Tipping Load - Full Turn |
19,089 lbs (8,659 kg)
|
| Operational |
|
Operating Weight |
27,699 lbs (12,564 kg)
|
| Service Refill Capacities |
|
Cooling System |
11 gal (42 l)
|
|
Crankcase |
4 gal (15 l)
|
|
Front |
7 gal (26 l)
|
|
Fuel Tank |
59 gal (225 l)
|
|
Hydraulic System - Including Tank |
33 gal (125 l)
|
|
Hydraulic Tank |
19 gal (70 l)
|
|
Rear |
7 gal (25 l)
|
|
Transmission |
9 gal (34 l)
|
| Steering |
|
Hydraulic Output At 2300 Engine Rpm And 6900 Kpa (1000 Psi) |
27 gpm (102 lpm)
|
|
Maximum Working Pressure |
3,000 psi |
|
Minimum Turning Radius - Over Tires |
206 in (523 cm)
|
|
Steering Angle - Each Direction |
40 degrees |
|
Steering Articulation |
40 degrees |
|
Steering Cylinder, Two, Bore |
3 in (7 cm)
|
| Tires |
|
Size |
20.5 R25 L3 XHA |
|
Tread Width |
9 ft (3 m)
|
| Transmission |
|
2 |
8 mph (13 kph)
|
|
3 |
16 mph (26 kph)
|
|
4 |
23 mph (38 kph)
|
|
Forward - 1 |
5 mph (8 kph)
|
|
Reverse - 1 |
5 mph (8 kph)
|
|
Standard Transmission Maximum Travel Speeds |
23 mph (38 kph)
|
