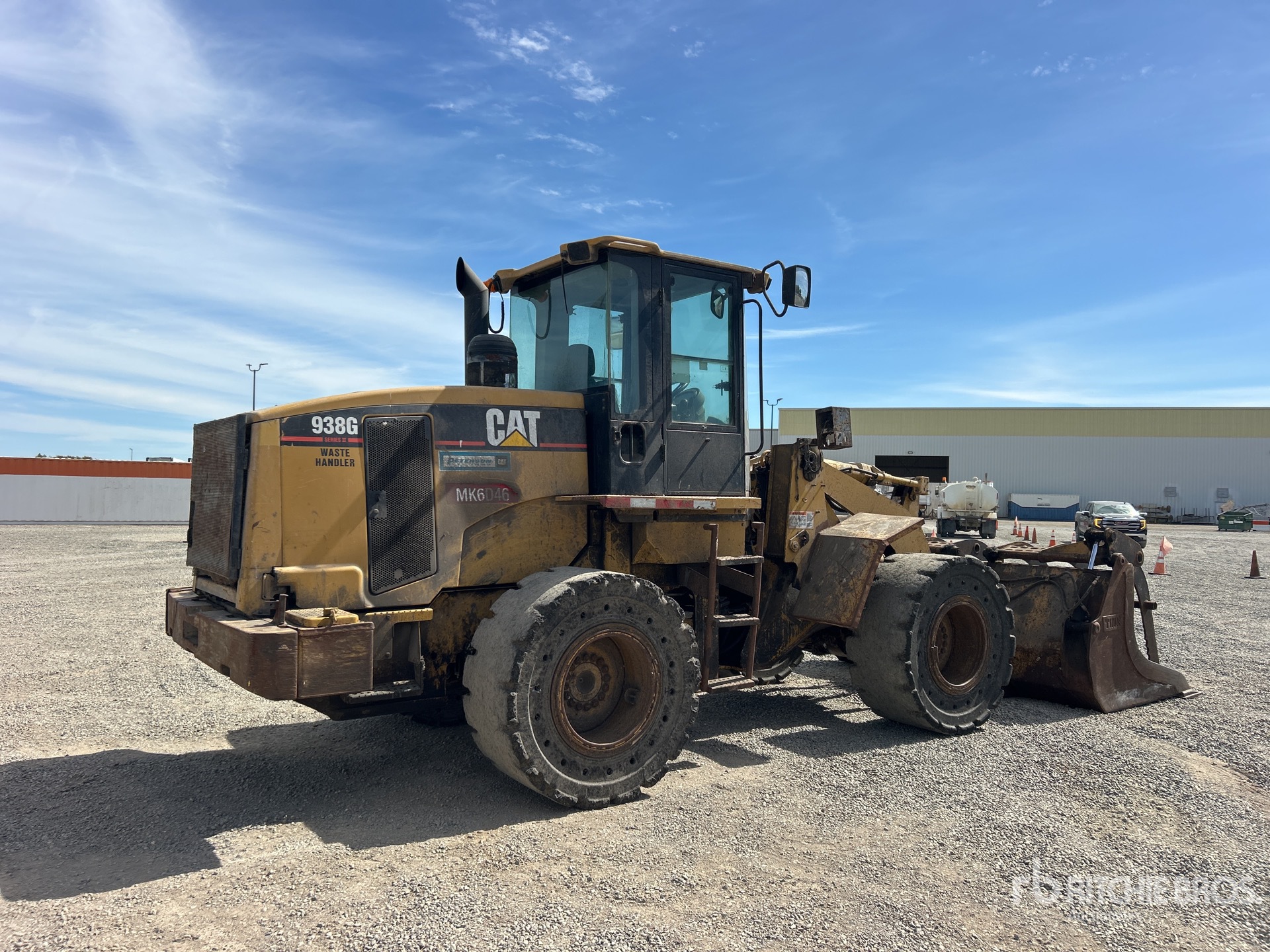

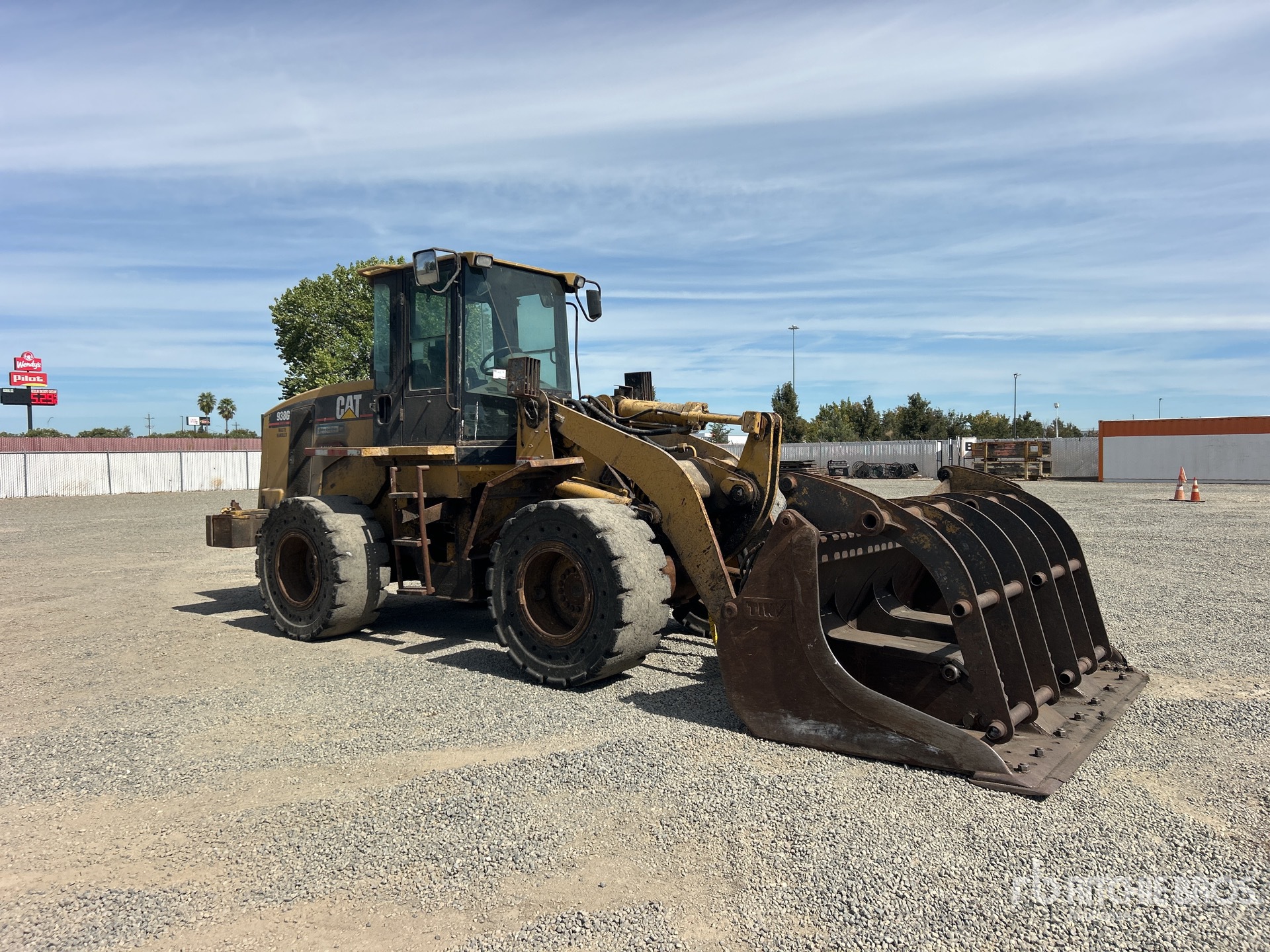

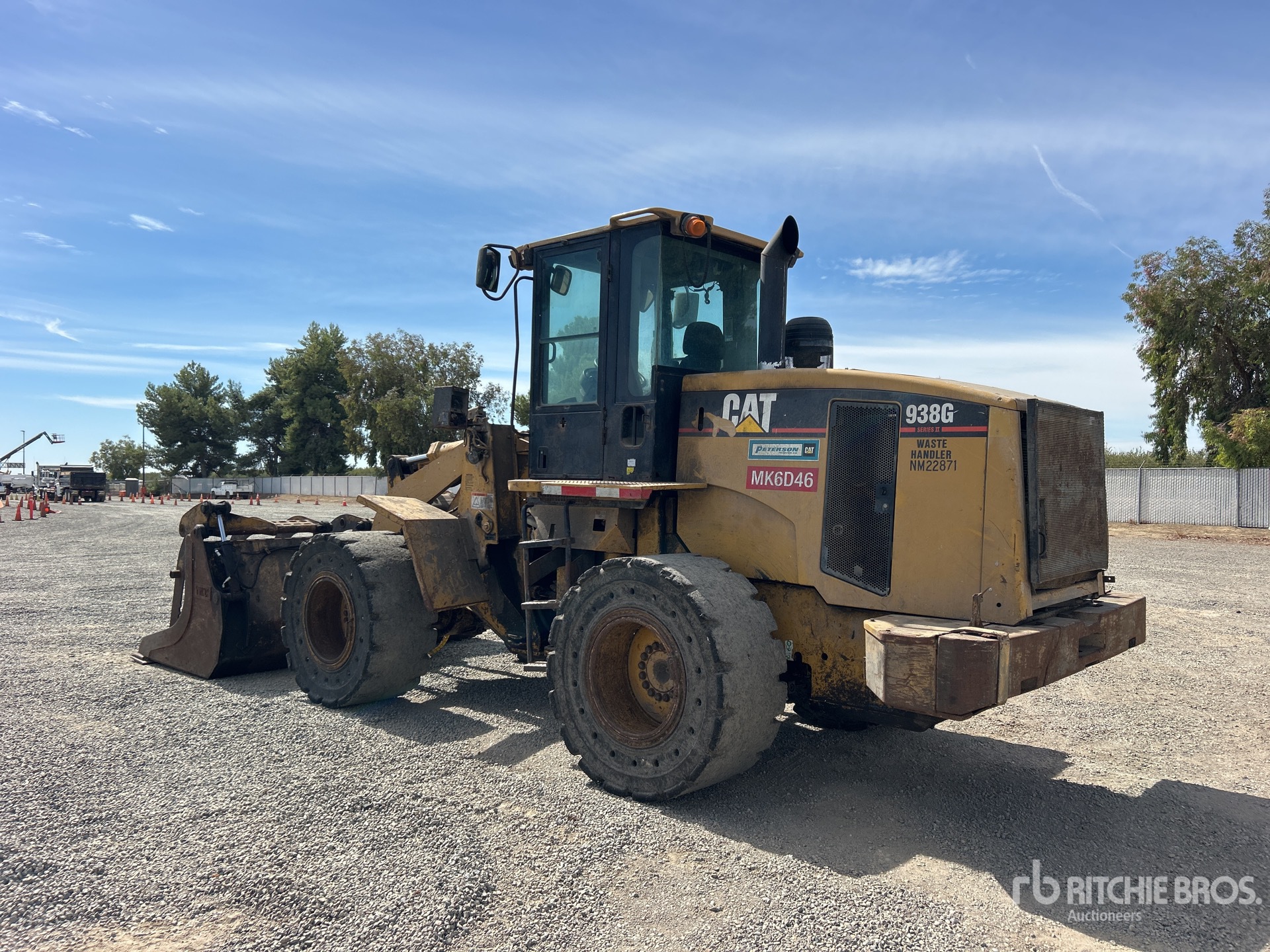

2005 Caterpillar 938G SERIES II For Sale in Los Angeles, Ca

Name: 2005 Caterpillar 938G SERIES II
Brand: Caterpillar
SKU: 89203789
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-15

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

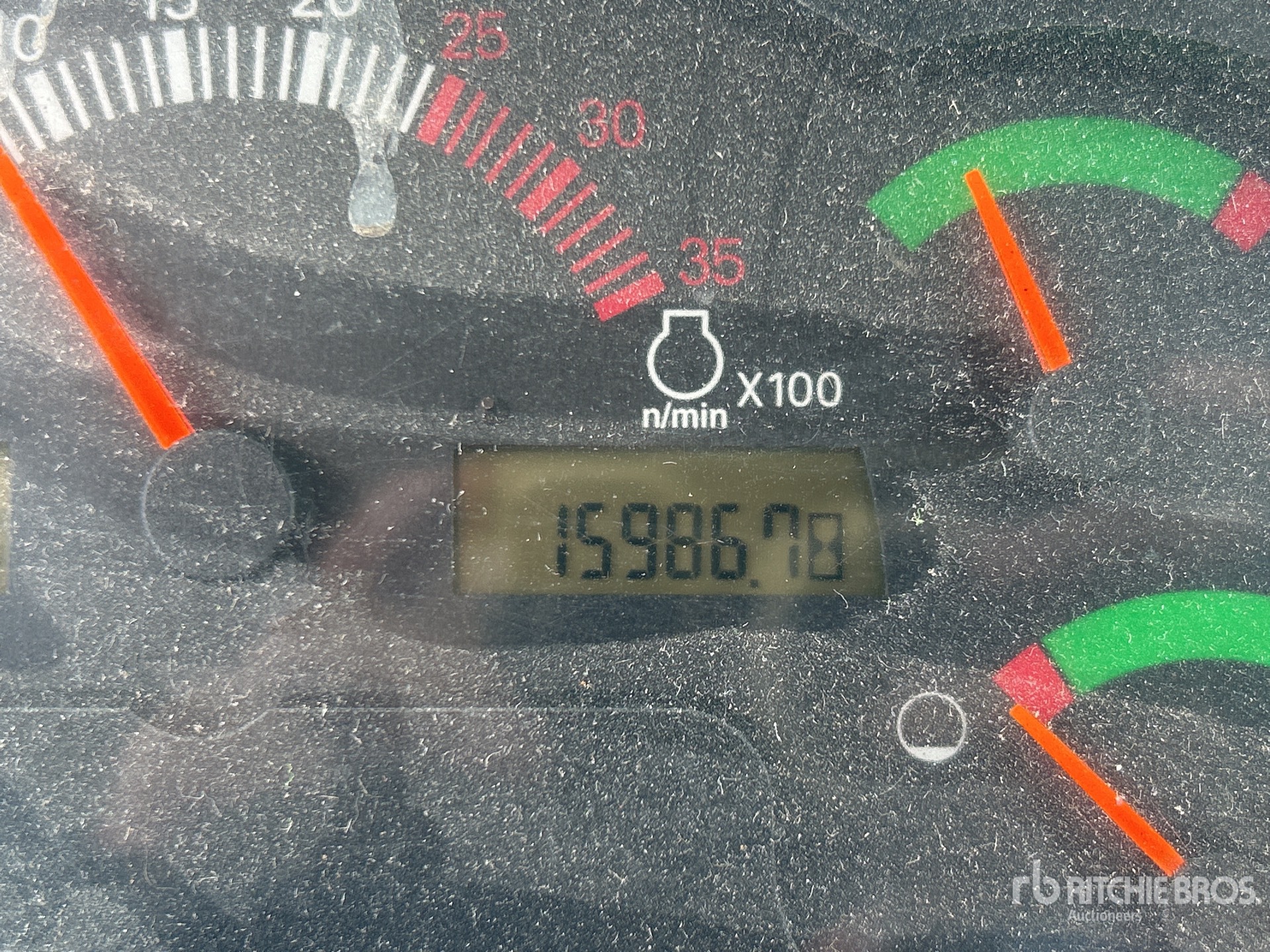

Hours:	15986

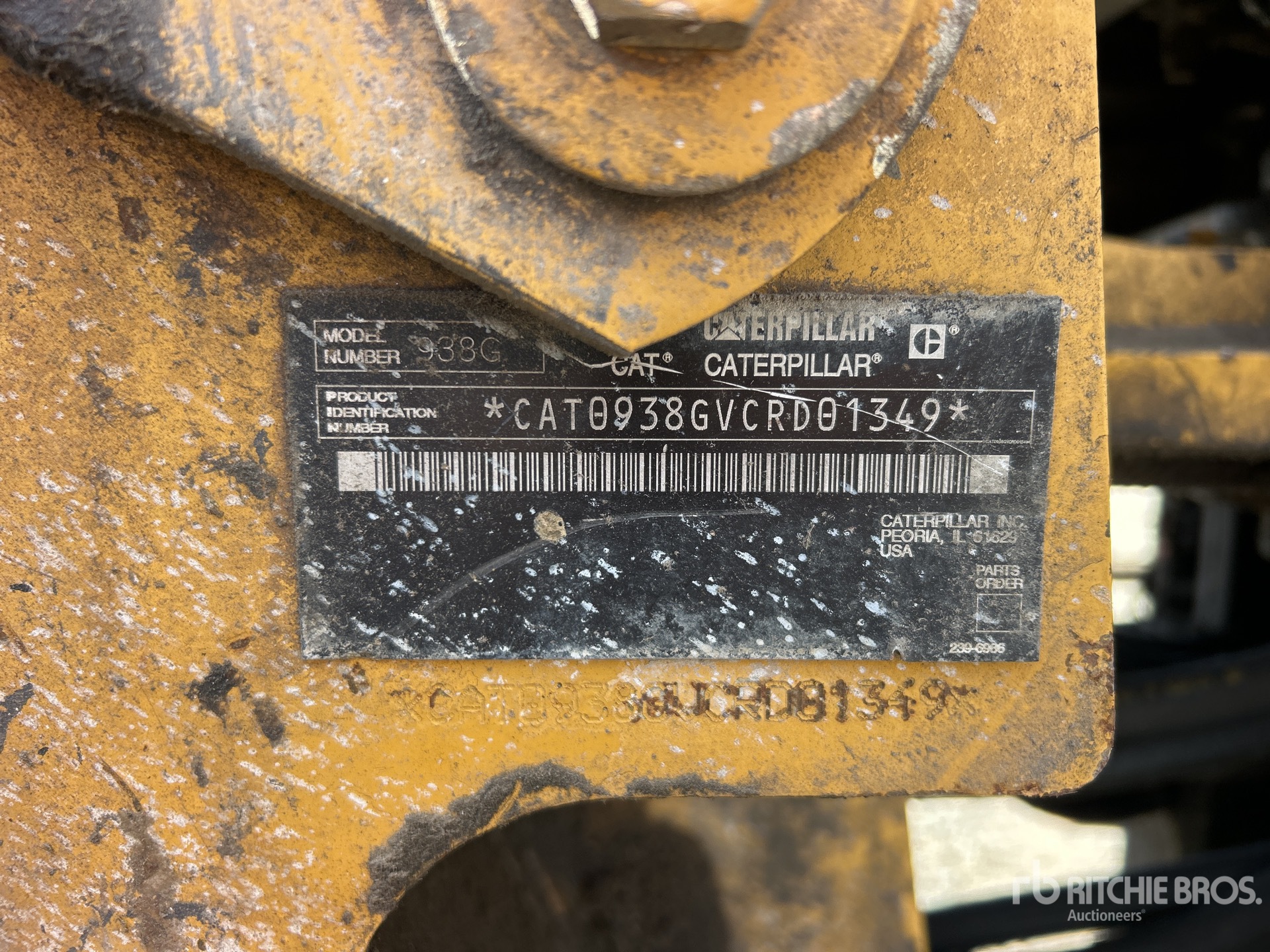

Serial Number:	CAT0938GVCRD01349
Machine Location:	LOS ANGELES, CA

Description:

Enclosed Cab, Air Conditioner, 2004 US EPA Label, Manual Quick Coupler, 112 in Roll-Out Bucket, 20.5-25/17.00 Solid Tires

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar 938G II is a wheel loader designed for material handling, loading, stockpiling, and general construction applications. It is part of Caterpillar's G series and is commonly used in aggregate yards, roadwork, waste handling, and site preparation. The machine features a front-mounted bucket, articulated steering, and a diesel powertrain suited to repetitive loading cycles and maneuverability in confined areas. The 938G II is typically configured with a hydraulic system for lift and tilt control, a cab for operator visibility, and compatibility with a range of attachments. It is recognized as a mid-size wheel loader in Caterpillar's equipment lineup.

Bucket
Breakout Force	28,326 lbs (12,846 kg)
Bucket Capacity - Heaped	3 cu yd
Bucket Capacity - Struck	3 cu yd
Bucket Width	9 ft (3 m)
Dump Clearance At Max Raise	9 ft (3 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height	11 ft (3 m)
Height To Top Of Cab	11 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Length	24 ft (7 m)
Length With Bucket On Ground	24 ft (7 m)
Reach At Max Lift And Dump	3 ft (1 m)
Weight	30,818 lbs (13,979 kg)
Wheelbase	10 ft (3 m)
Width	8 ft (3 m)
Width Over Tires	8 ft (3 m)
Engine
Aspiration	turbocharged
Displacement	439 cu in (7,200 cu cm)
Engine Make	2,236
Engine Model	3126B HEUI
Gross Power	180 hp (134 kw)
Max Torque	619 lbs ft (839 nm)
Torque Rise	62 %
Hydraulic System
Dump Time	1 sec
Lower Time	3 sec
Pump Flow Capacity	43 gpm (163 lpm)
Pump Type	vane type
Raise Time	6 sec
Relief Valve Setting	3,597 psi
Operational
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	13 gal (48 l)
Engine Oil Fluid Capacity	8 gal (31 l)
Front Axle/Diff Fluid Capacity	8 gal (30 l)
Fuel Capacity	67 gal (254 l)
Hydraulic System Fluid Capacity	24 gal (90 l)
Operating Voltage	24 V
Operating Weight	30,819 lbs (13,977 kg)
Rear Axle Oscillation	24 degrees
Rear Axle/Diff Fluid Capacity	9 gal (32 l)
Static Tipping Weight	25,230 lbs (11,442 kg)
Tire Size	20.5R25
Transmission Fluid Capacity	8 gal (30 l)
Turning Radius	20 ft (6 m)
Transmission
Max Speed - Forward	24 mph (39 kph)
Max Speed - Reverse	15 mph (23 kph)
Number Of Forward Gears	4
Number Of Reverse Gears	3
Transmission Type	electronic planetary powershift
