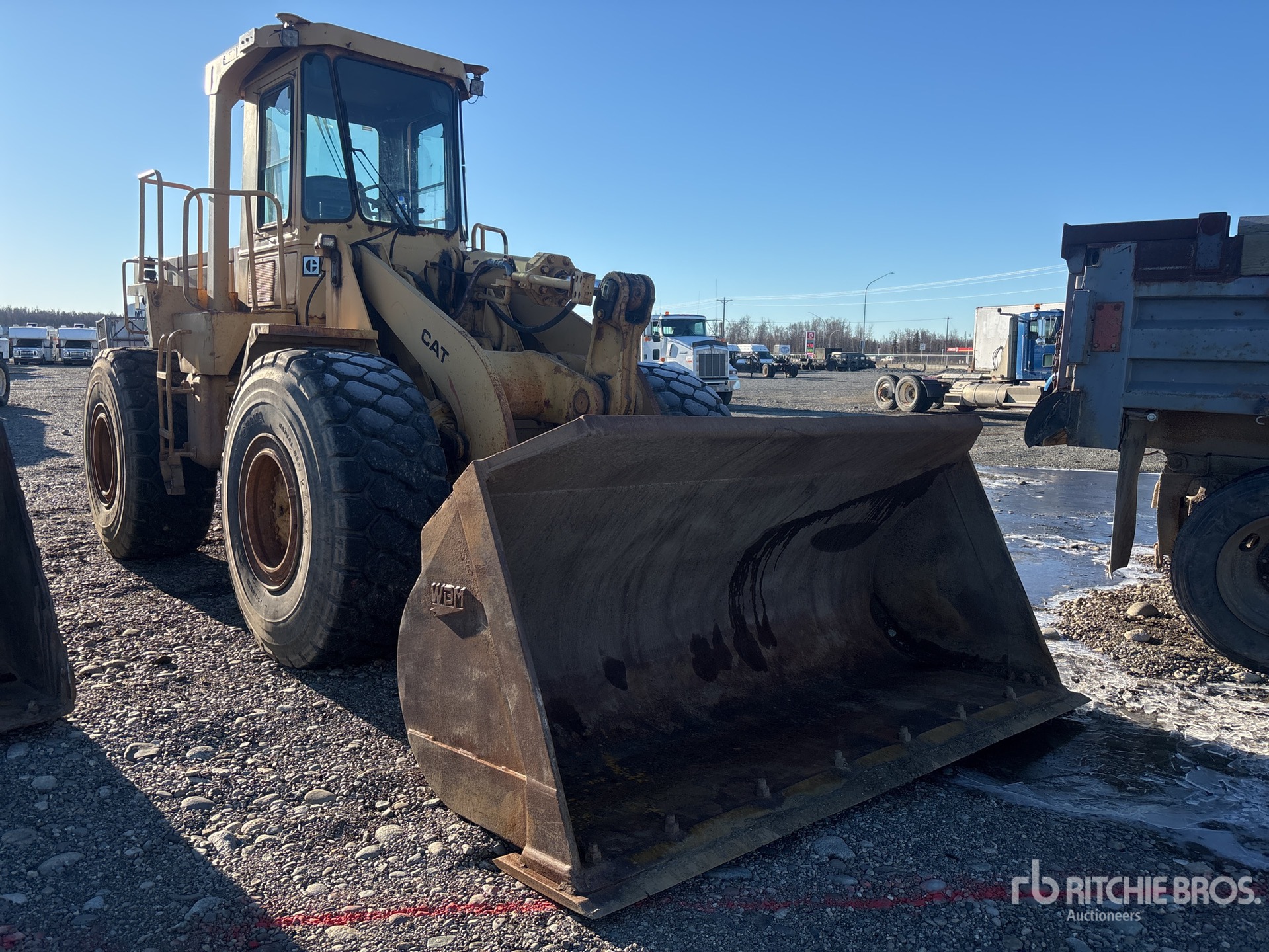

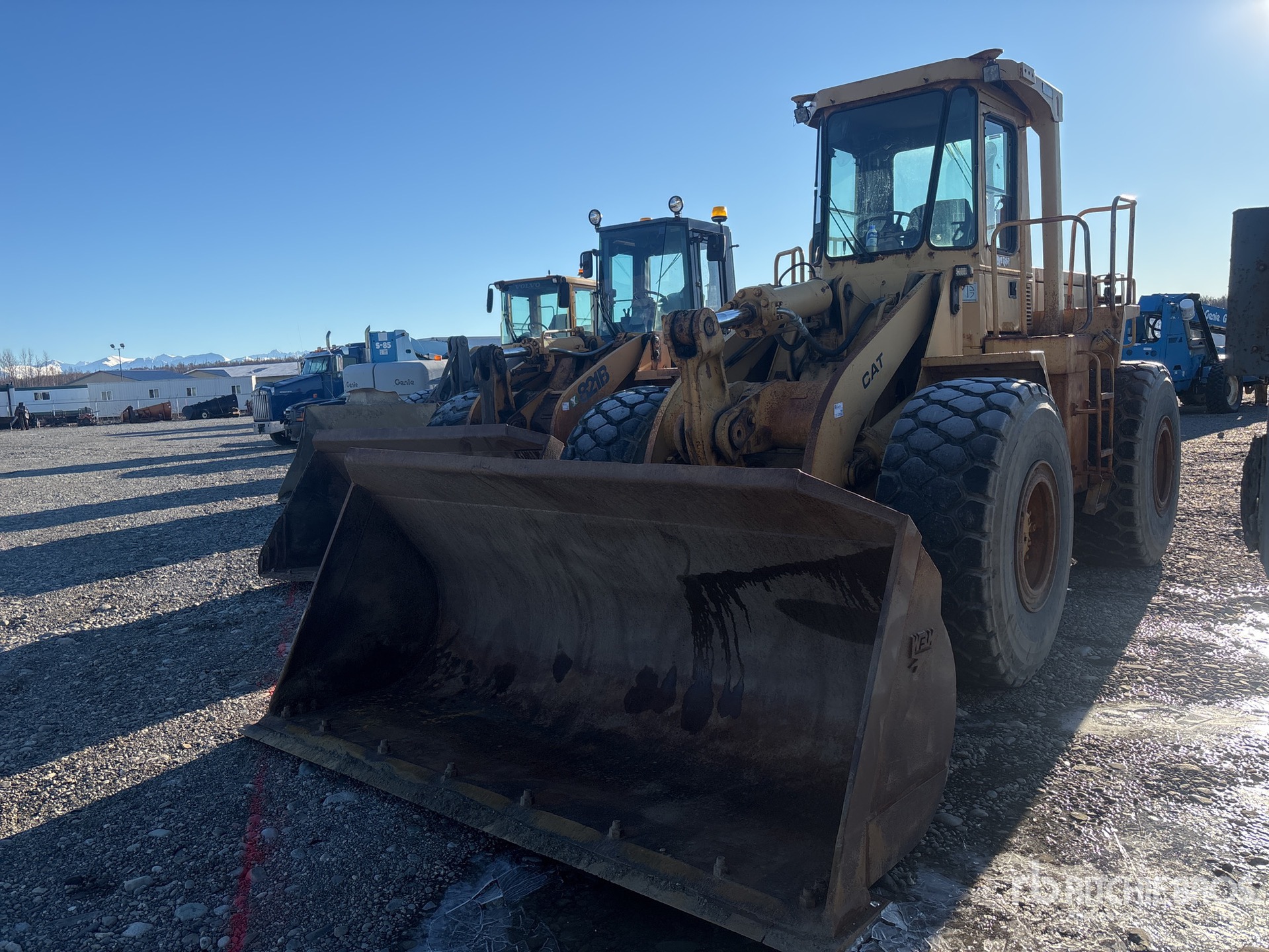

| Bucket |
|
Breakout Force |
30,150 lbs (13,676 kg)
|
|
Bucket Capacity - Heaped |
4 cu yd |
|
Bucket Capacity - Struck |
3 cu yd |
|
Bucket Width |
9 ft (3 m)
|
|
Dump Clearance At Max Raise |
9 ft (3 m)
|

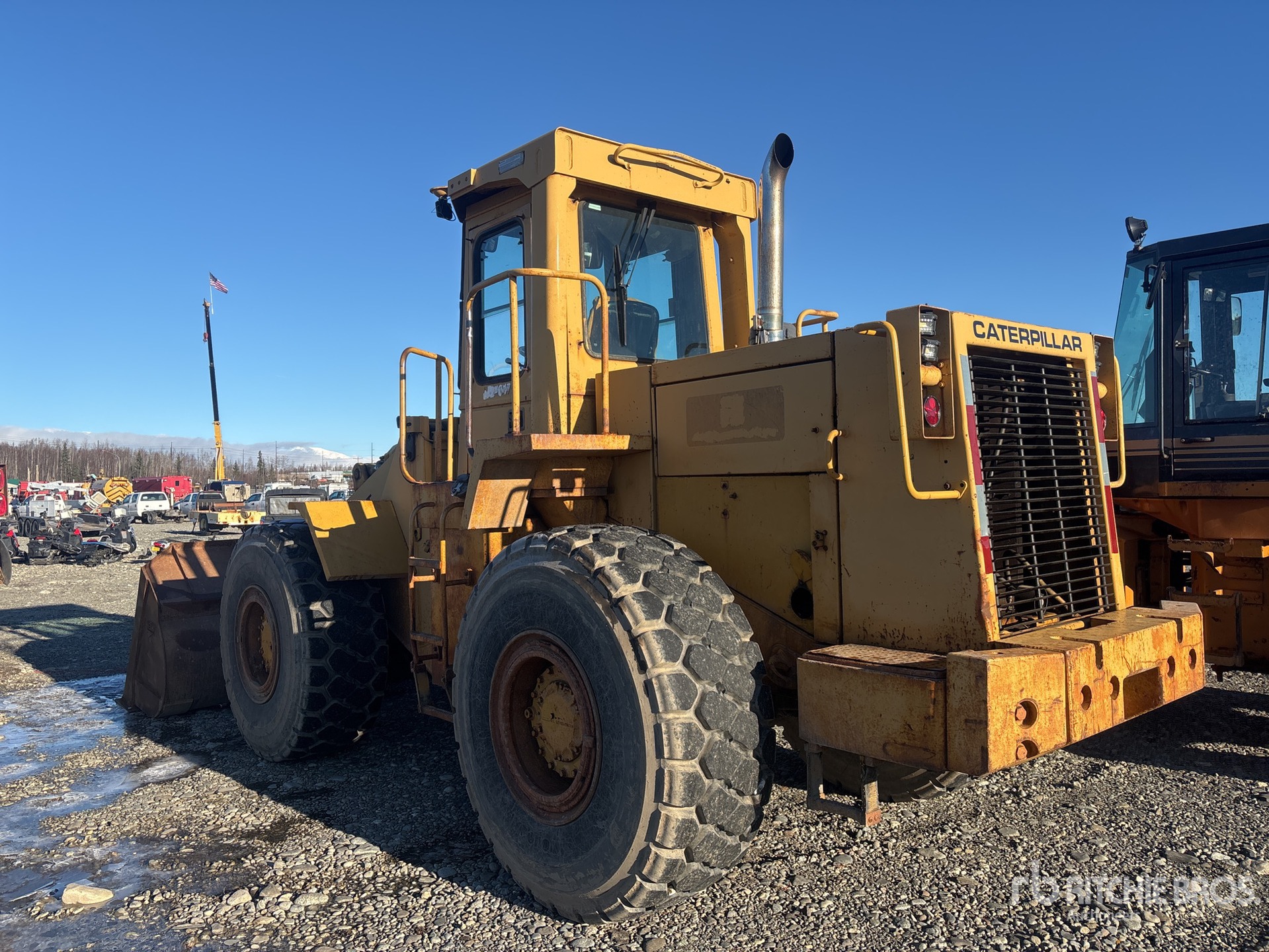

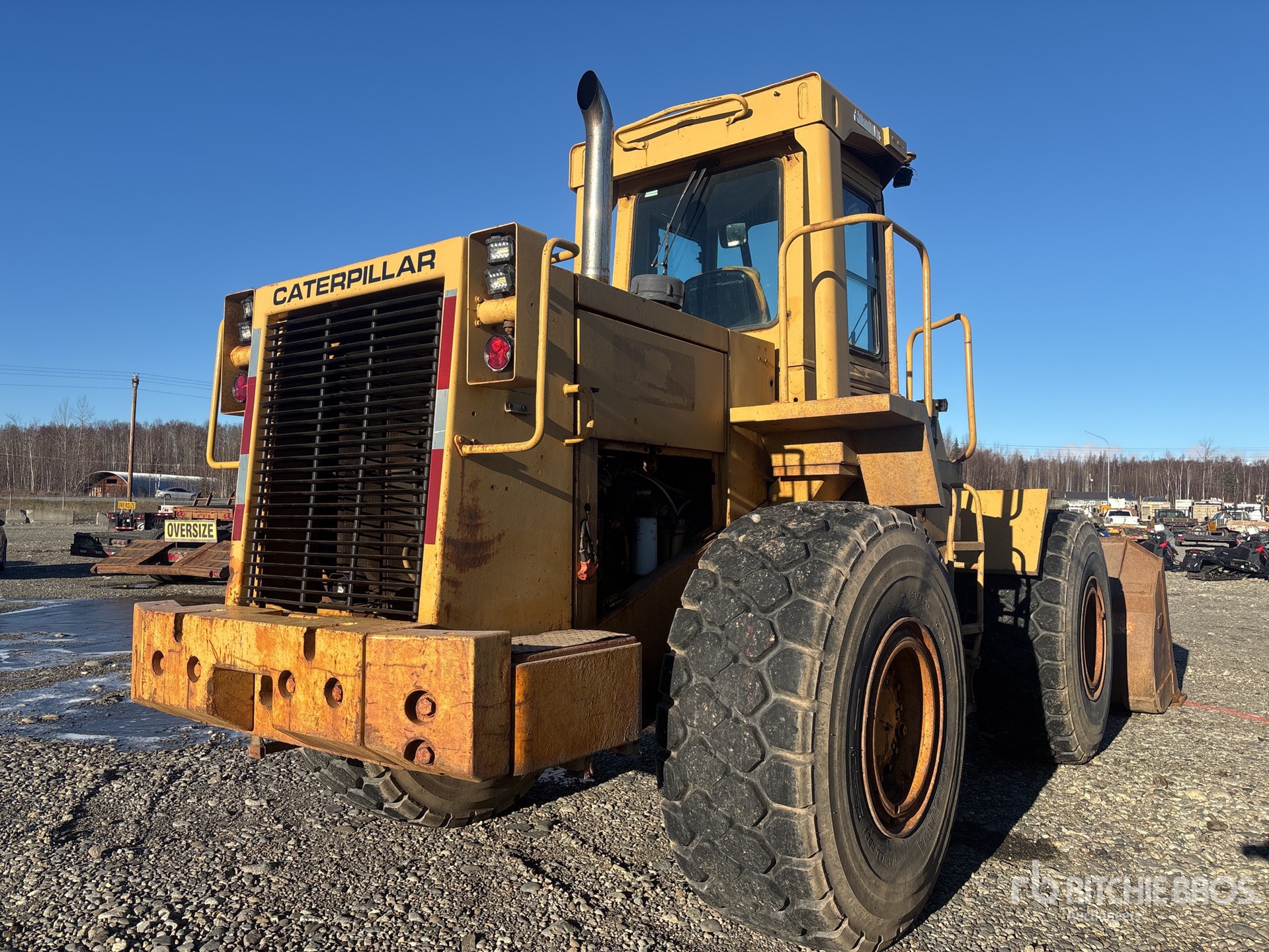

| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
12 ft (4 m)
|
|
Height To Top Of Cab |
12 ft (4 m)
|
|
Hinge Pin - Max Height |
13 ft (4 m)
|
|
Length |
25 ft (8 m)
|
|
Length With Bucket On Ground |
25 ft (8 m)
|
|
Reach At Max Lift And Dump |
4 ft (1 m)
|
|
Weight |
34,883 lbs (15,823 kg)
|
|
Wheelbase |
10 ft (3 m)
|
|
Width |
9 ft (3 m)
|
|
Width Over Tires |
9 ft (3 m)
|

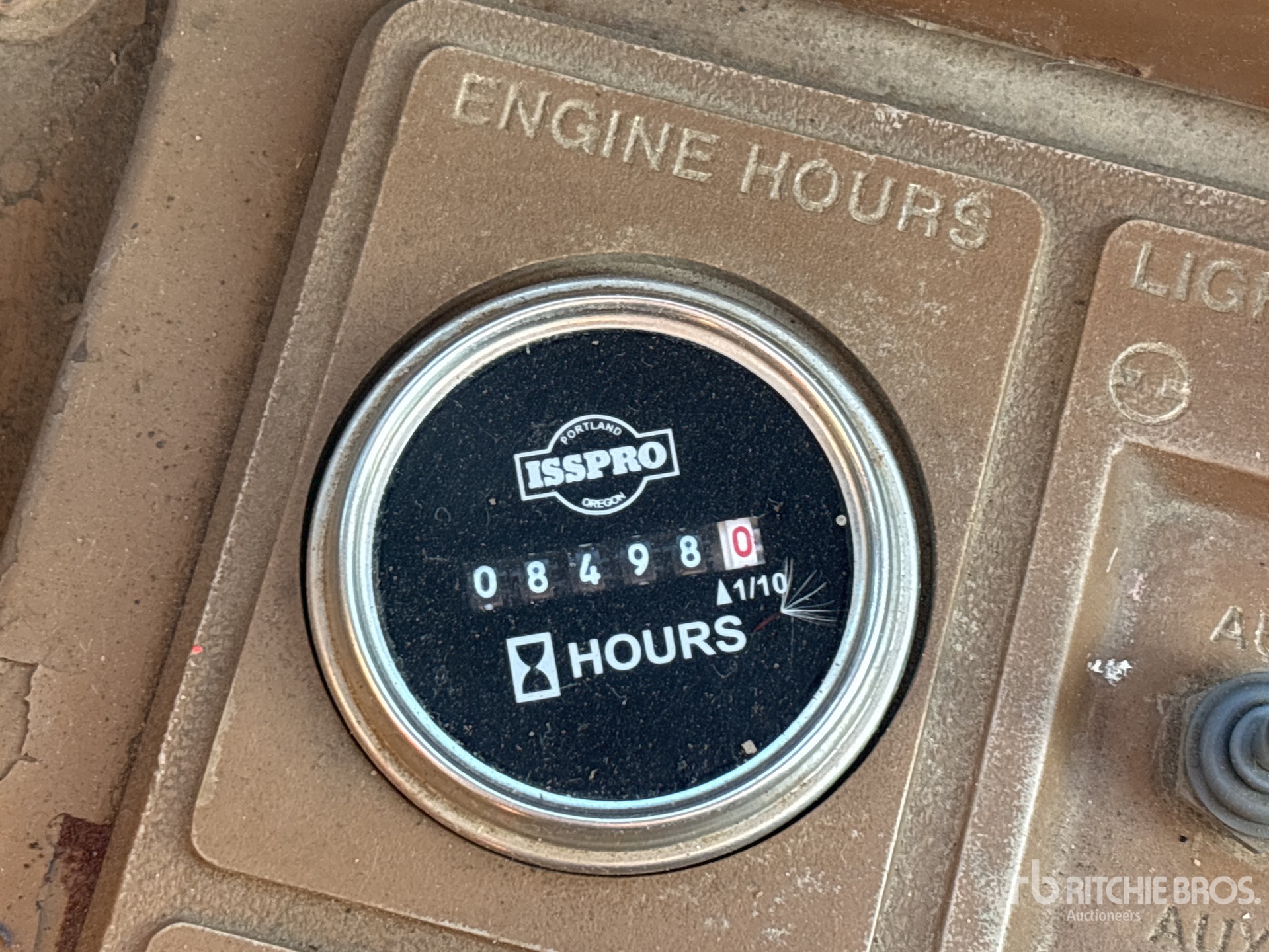

| Engine |
|
Displacement |
427 cu in (7,001 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
3,304 |
|
Gross Power |
160 hp (119 kw)
|
| General Specifications |
|
Approx. Shipping Wt. (Since 1987)
|
34,883 lbs (15,823 kg)
|
|
Approx. Shipping Wt. (1988)
|
34,883 lbs (15,823 kg)
|
|
Approx. Shipping Wt. (1989)
|
34,883 lbs (15,823 kg)
|
|
Approx. Shipping Wt. (1990)
|
34,883 lbs (15,823 kg)
|
|
Approx. Shipping Wt. (1991)
|
34,883 lbs (15,823 kg)
|
|
Breakout Force (Since 1987)
|
29,925 lbf (13,586 kgf)
|
|
Breakout Force (1988)
|
29,925 lbf (13,586 kgf)
|
|
Breakout Force (1989)
|
29,925 lbf (13,586 kgf)
|
|
Breakout Force (1990)
|
29,925 lbf (13,586 kgf)
|
|
Breakout Force (1991)
|
29,925 lbf (13,586 kgf)
|
|
Dump Clearance at max height (Since 1987)
|
112 in (284 cm)
|
|
Dump Clearance at max height (1988)
|
112 in (284 cm)
|
|
Dump Clearance at max height (1989)
|
112 in (284 cm)
|
|
Dump Clearance at max height (1990)
|
112 in (284 cm)
|
|
Dump Clearance at max height (1991)
|
112 in (284 cm)
|
|
Flywheel Horse- power (Since 1987)
|
160 hp (119 kw)
|
|
Flywheel Horse- power (1988)
|
160 hp (119 kw)
|
|
Flywheel Horse- power (1989)
|
160 hp (119 kw)
|
|
Flywheel Horse- power (1990)
|
160 hp (119 kw)
|
|
Flywheel Horse- power (1991)
|
160 hp (119 kw)
|
|
Ground Clearance (Since 1987)
|
16 in (40 cm)
|
|
Ground Clearance (1988)
|
16 in (40 cm)
|
|
Ground Clearance (1989)
|
16 in (40 cm)
|
|
Ground Clearance (1990)
|
16 in (40 cm)
|
|
Ground Clearance (1991)
|
16 in (40 cm)
|
|
Max.Reach at max height (Since 1987)
|
46 in (117 cm)
|
|
Max.Reach at max height (1988)
|
46 in (117 cm)
|
|
Max.Reach at max height (1989)
|
46 in (117 cm)
|
|
Max.Reach at max height (1990)
|
46 in (117 cm)
|
|
Max.Reach at max height (1991)
|
46 in (117 cm)
|
|
Maximum Forward Speed (Since 1987)
|
22 mph (36 kph)
|
|
Maximum Forward Speed (1988)
|
22 mph (36 kph)
|
|
Maximum Forward Speed (1989)
|
22 mph (36 kph)
|
|
Maximum Forward Speed (1990)
|
22 mph (36 kph)
|
|
Maximum Forward Speed (1991)
|
22 mph (36 kph)
|
|
Maximum Reverse Speed (Since 1987)
|
25 mph (40 kph)
|
|
Maximum Reverse Speed (1988)
|
25 mph (40 kph)
|
|
Maximum Reverse Speed (1989)
|
25 mph (40 kph)
|
|
Maximum Reverse Speed (1990)
|
25 mph (40 kph)
|
|
Maximum Reverse Speed (1991)
|
25 mph (40 kph)
|
|

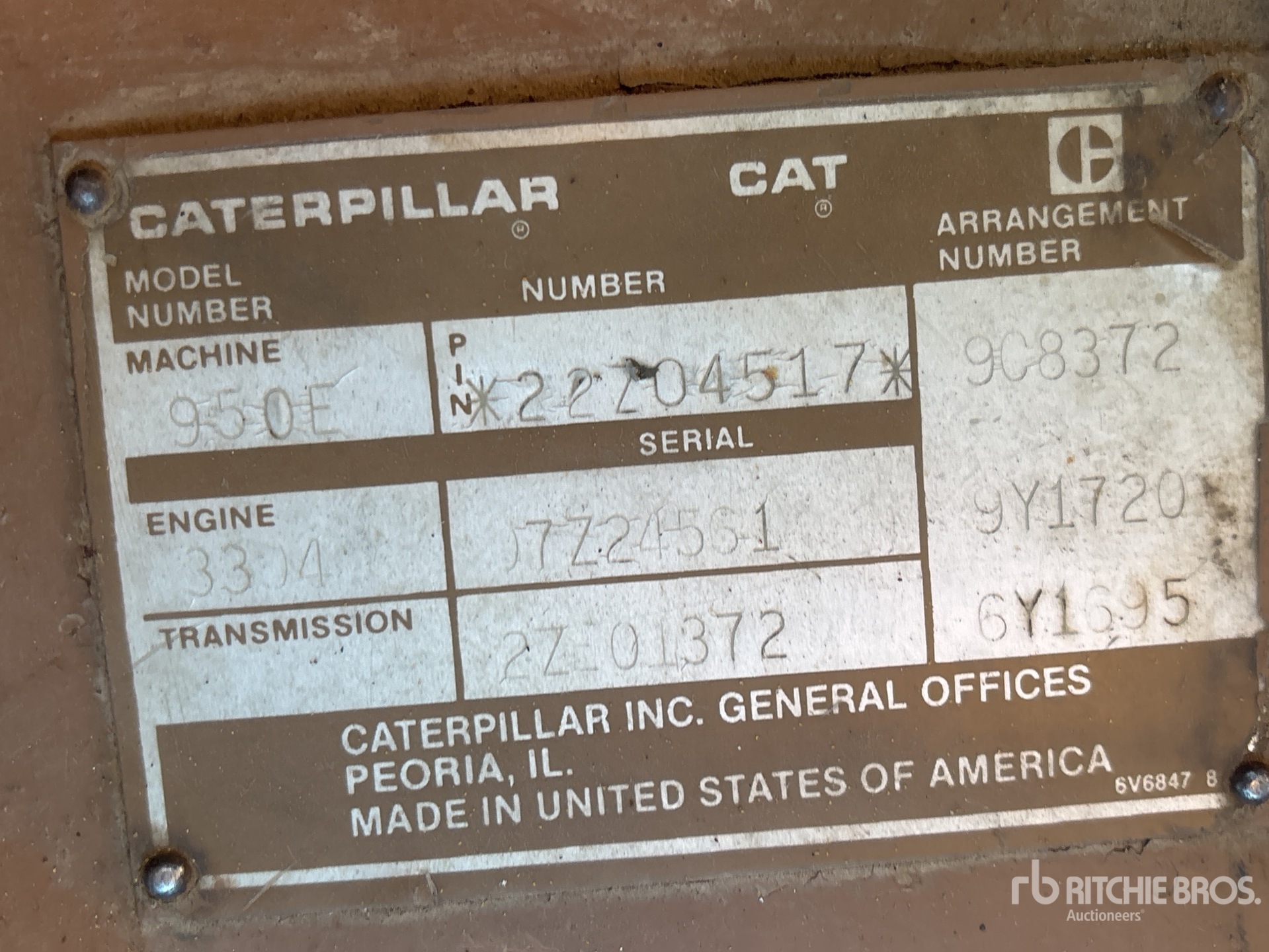

Product Identification Prefix (Since 1987)
|
22Z |
|
Product Identification Prefix (1988)
|
22Z |
|
Product Identification Prefix (1989)
|
22Z |
|
Product Identification Prefix (1990)
|
22Z |
|
Product Identification Prefix (1991)
|
22Z |
|
Rated Capacity (Since 1987)
|
4 cu yd (3 cu m)
|
|
Rated Capacity (1988)
|
4 cu yd (3 cu m)
|
|
Rated Capacity (1989)
|
4 cu yd (3 cu m)
|
|
Rated Capacity (1990)
|
4 cu yd (3 cu m)
|
|
Rated Capacity (1991)
|
4 cu yd (3 cu m)
|
|
Remarks (Since 1987)
|
23.5-25 Std. Tires |
|
Remarks (Since 1987)
|
23.5-25 Std.Tires |
|
Remarks (Since 1988)
|
23.5-25 Std. Tires |
|
Remarks (Since 1988)
|
23.5-25 Std.Tires |
|
Remarks (Since 1989)
|
23.5-25 Std. Tires |
|
Remarks (Since 1989)
|
23.5-25 Std.Tires |
|
Remarks (Since 1990)
|
23.5-25 Std. Tires |
|
Remarks (Since 1990)
|
23.5-25 Std.Tires |
|
Remarks (Since 1991)
|
23.5-25 Std. Tires |
|
Remarks (Since 1991)
|
23.5-25 Std.Tires |
|
Width Over Tires (Since 1987)
|
108 in (274 cm)
|
|
Width Over Tires (1988)
|
108 in (274 cm)
|
|
Width Over Tires (1989)
|
108 in (274 cm)
|
|
Width Over Tires (1990)
|
108 in (274 cm)
|
|
Width Over Tires (1991)
|
108 in (274 cm)
|
|
Years Built (Since 1987)
|
1,987 - 1,991 |
|
Years Built (1988)
|
1,987 - 1,991 |
|
Years Built (1989)
|
1,987 - 1,991 |
|
Years Built (1990)
|
1,987 - 1,991 |
|
Years Built (1991)
|
1,987 - 1,991 |
| Hydraulic System |
|
Dump Time |
2 sec |
|
Lower Time |
3 sec |
|
Raise Time |
7 sec |
| Operational |
|
Fuel Capacity |
59 gal (222 l)
|
|
Hydraulic System Fluid Capacity |
41 gal (153 l)
|
|
Operating Weight |
34,322 lbs (15,568 kg)
|
|
Static Tipping Weight |
22,567 lbs (10,236 kg)
|
|
Tire Size |
23.5-25 12PR |
|
Turning Radius |
23 ft (7 m)
|
| Transmission |
|
Max Speed - Forward |
23 mph (36 kph)
|
|
Max Speed - Reverse |
25 mph (40 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
4 |
