1992 Caterpillar 950F For Sale in Lethbridge, Ab

Name: 1992 Caterpillar 950F
Brand: Caterpillar
SKU: 89084865
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-10-01 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

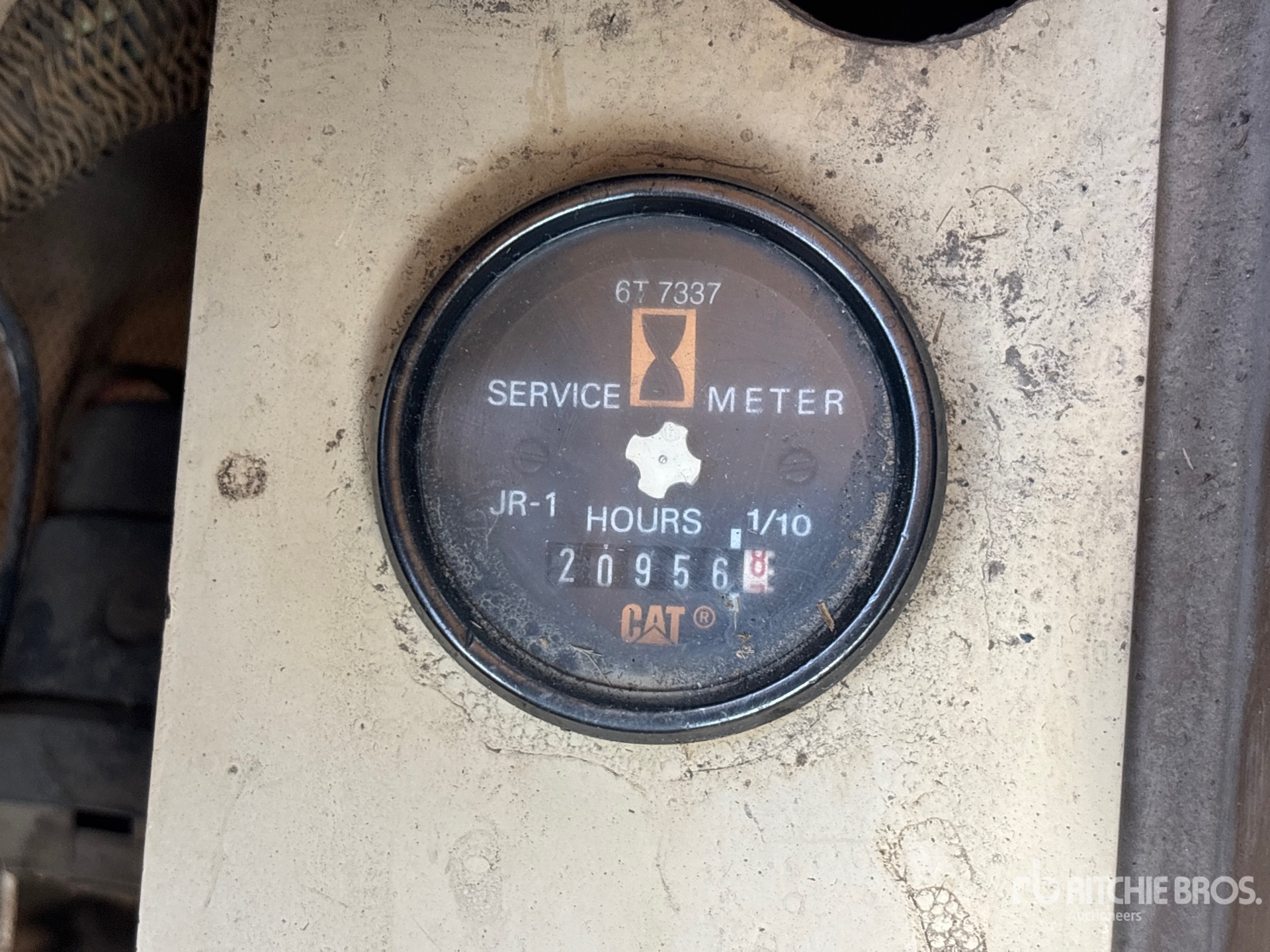

Hours:	20956

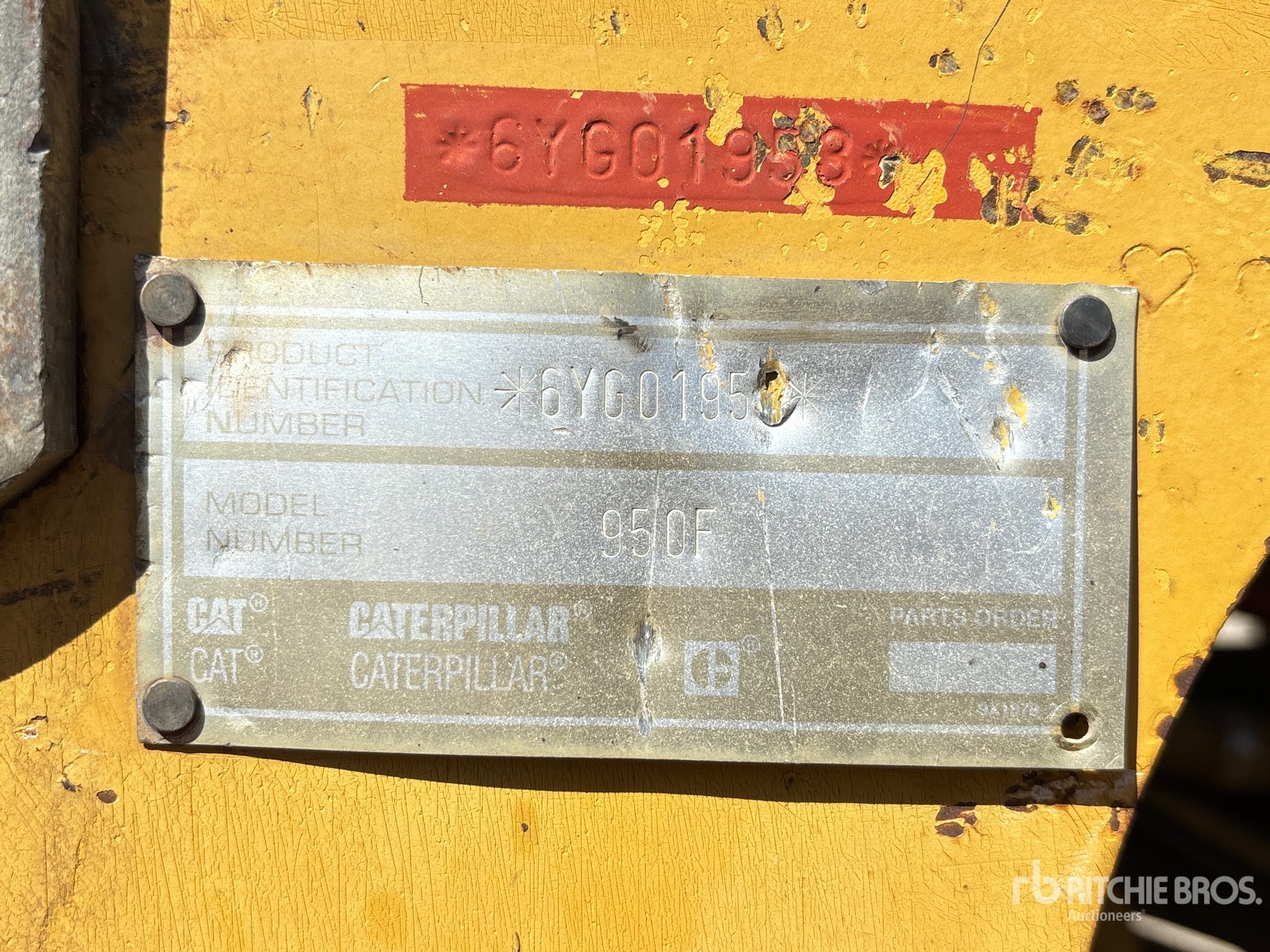

Serial Number:	6YG01958
Machine Location:	LETHBRIDGE, AB

Description:

Enclosed Cab, 112 in Grapple Bucket, 23.5R25 Tires Please contact Ted Wipf for more information at 403.821.1509 Closing Time: 2026-10-01 10:29:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

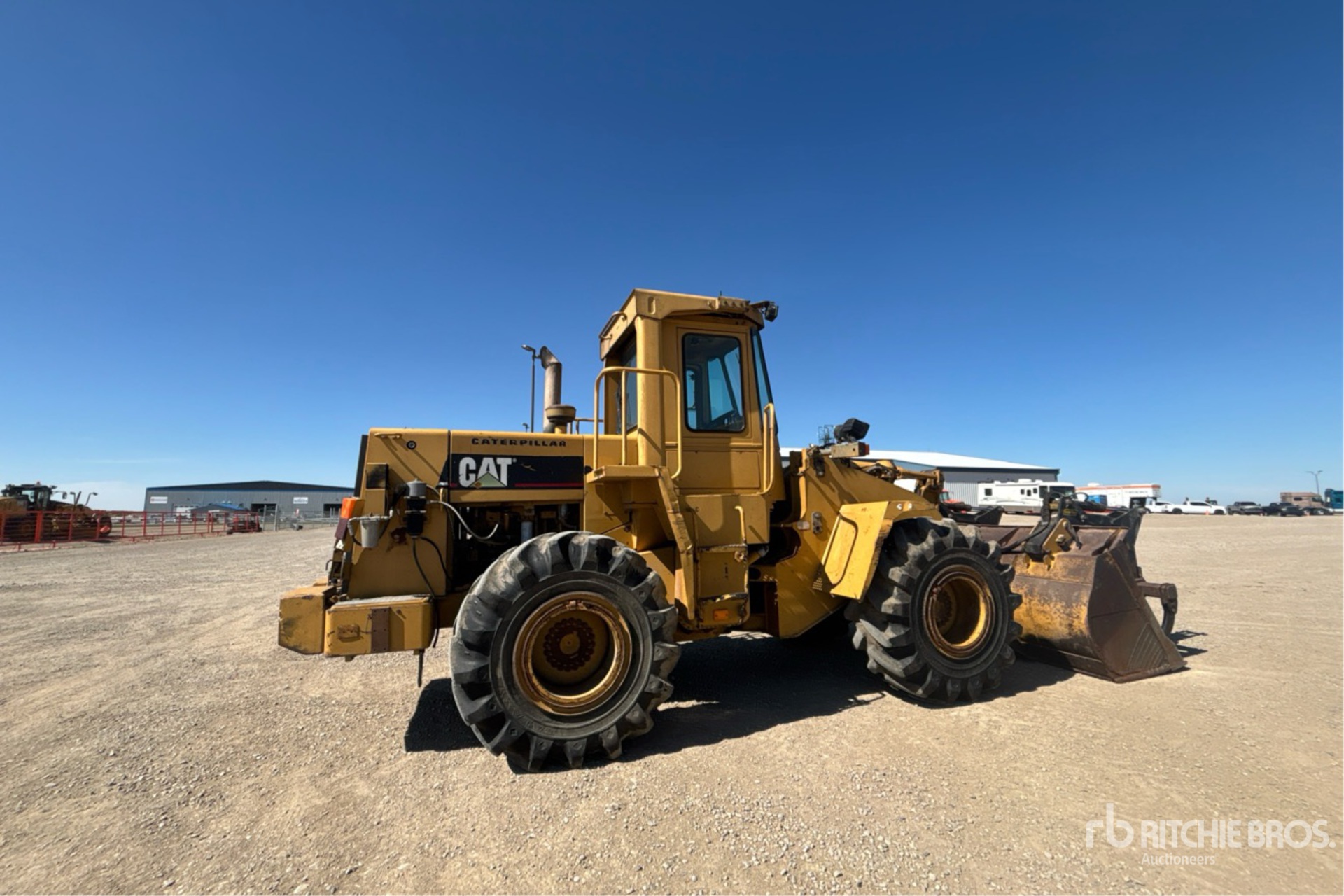

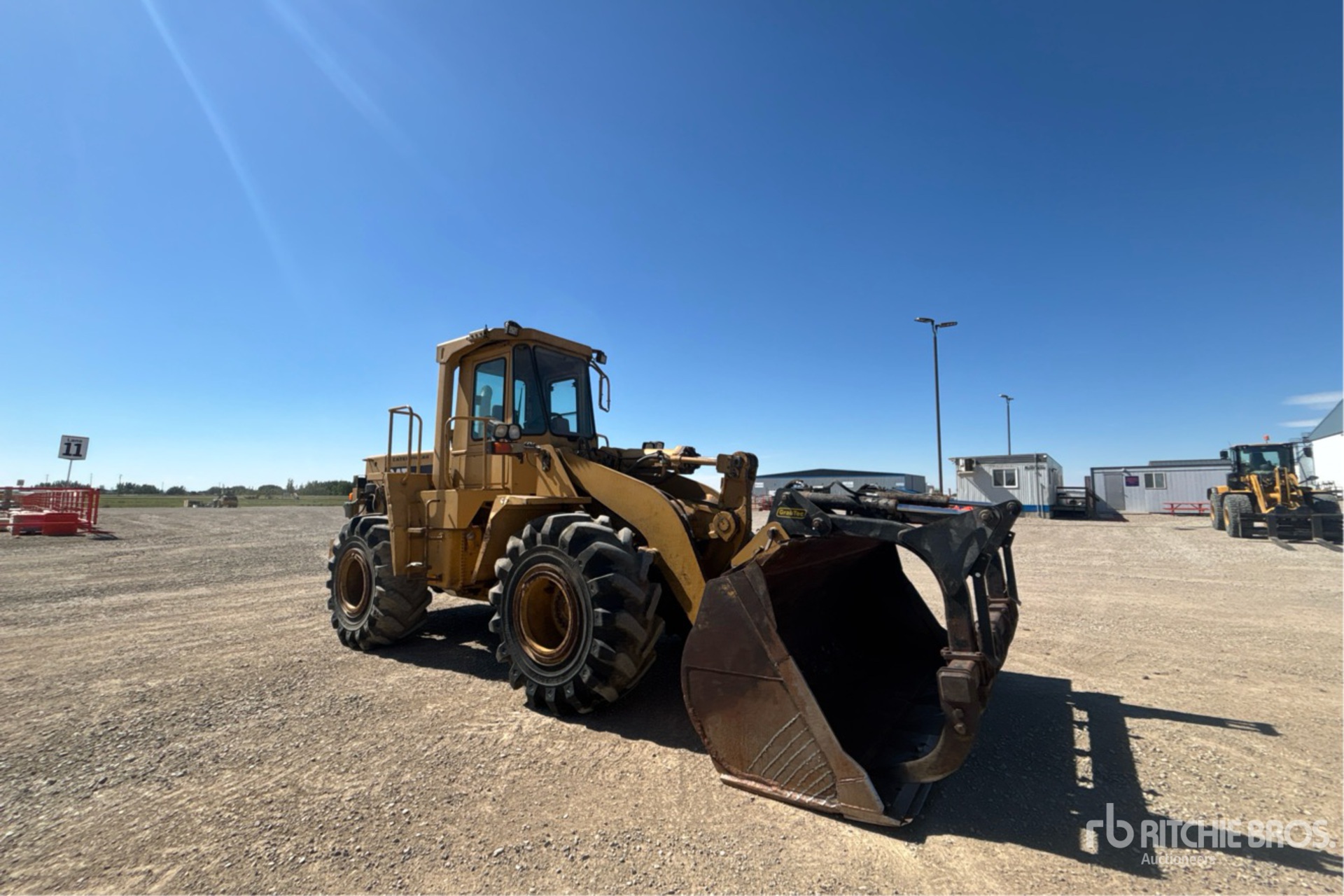

The Caterpillar 950F is a wheel loader designed for material handling, stockpiling, truck loading, and general earthmoving applications. Part of Caterpillar's F-series lineup, the 950F is commonly used in construction, aggregate, quarry, and industrial settings. It features a front-mounted loader bucket, articulated steering, and a diesel powertrain built for loading cycles and site mobility. The machine is known for its balanced operating weight, hydraulic performance, and compatibility with a range of bucket and attachment options. The Caterpillar 950F remains a recognized model in the used equipment market for operators needing a mid-size wheel loader.

Bucket
Breakout Force	35,801 lbs (16,239 kg)
Bucket Capacity - Heaped	4 cu yd
Bucket Capacity - Struck	3 cu yd
Bucket Width	9 ft (3 m)
Dump Clearance At Max Raise	10 ft (3 m)
Dimensions
Ground Clearance	2 ft (0 m)
Height	11 ft (3 m)
Height To Top Of Cab	12 ft (4 m)
Hinge Pin - Max Height	13 ft (4 m)
Length	25 ft (8 m)
Length With Bucket On Ground	25 ft (8 m)
Reach At Max Lift And Dump	4 ft (1 m)
Weight	35,500 lbs (16,100 kg)
Wheelbase	10 ft (3 m)
Width	9 ft (3 m)
Width Over Tires	9 ft (3 m)
Engine
Aspiration	Turbocharged
Displacement	403 cu in (6,601 cu cm)
Engine Make	2,236
Engine Model	3,116
Gross Power	180 hp (134 kw)
Net Power	170 hp (127 kw)
Number Of Cylinders	6
Power Measured @	2,200 rpm
Hydraulic System
Dump Time	2 sec
Lower Time	3 sec
Pump Flow Capacity	63 gpm (237 lpm)
Raise Time	7 sec
Relief Valve Setting	3,000 psi
Operational
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	13 gal (49 l)
Engine Oil Fluid Capacity	5 gal (20 l)
Front Axle/Diff Fluid Capacity	10 gal (36 l)
Fuel Capacity	59 gal (222 l)
Hydraulic System Fluid Capacity	41 gal (153 l)
Operating Voltage	24 V
Operating Weight	34,679 lbs (15,730 kg)
Rear Axle Oscillation	26 degrees
Rear Axle/Diff Fluid Capacity	10 gal (36 l)
Static Tipping Weight	23,243 lbs (10,543 kg)
Tire Size	23.5-25 12PR
Transmission Fluid Capacity	9 gal (34 l)
Turning Radius	21 ft (6 m)
Transmission
Max Speed - Forward	24 mph (39 kph)
Max Speed - Reverse	27 mph (43 kph)
Number Of Forward Gears	4
Number Of Reverse Gears	4
Transmission Type	Planetary powershift
