| Axles |
|
Front |
Fixed |
|
Maximum Single-Wheel Rise And Fall |
19 in (49 cm)
|
|
Rear |
Oscillating ?13 degrees |
| Brakes |
|
Brakes |
Brakes meet ISO 3450 standards |
| Bucket Capacities |
|
Bucket Range |
2.5-9.2 m (3.3-12.0 yd) |

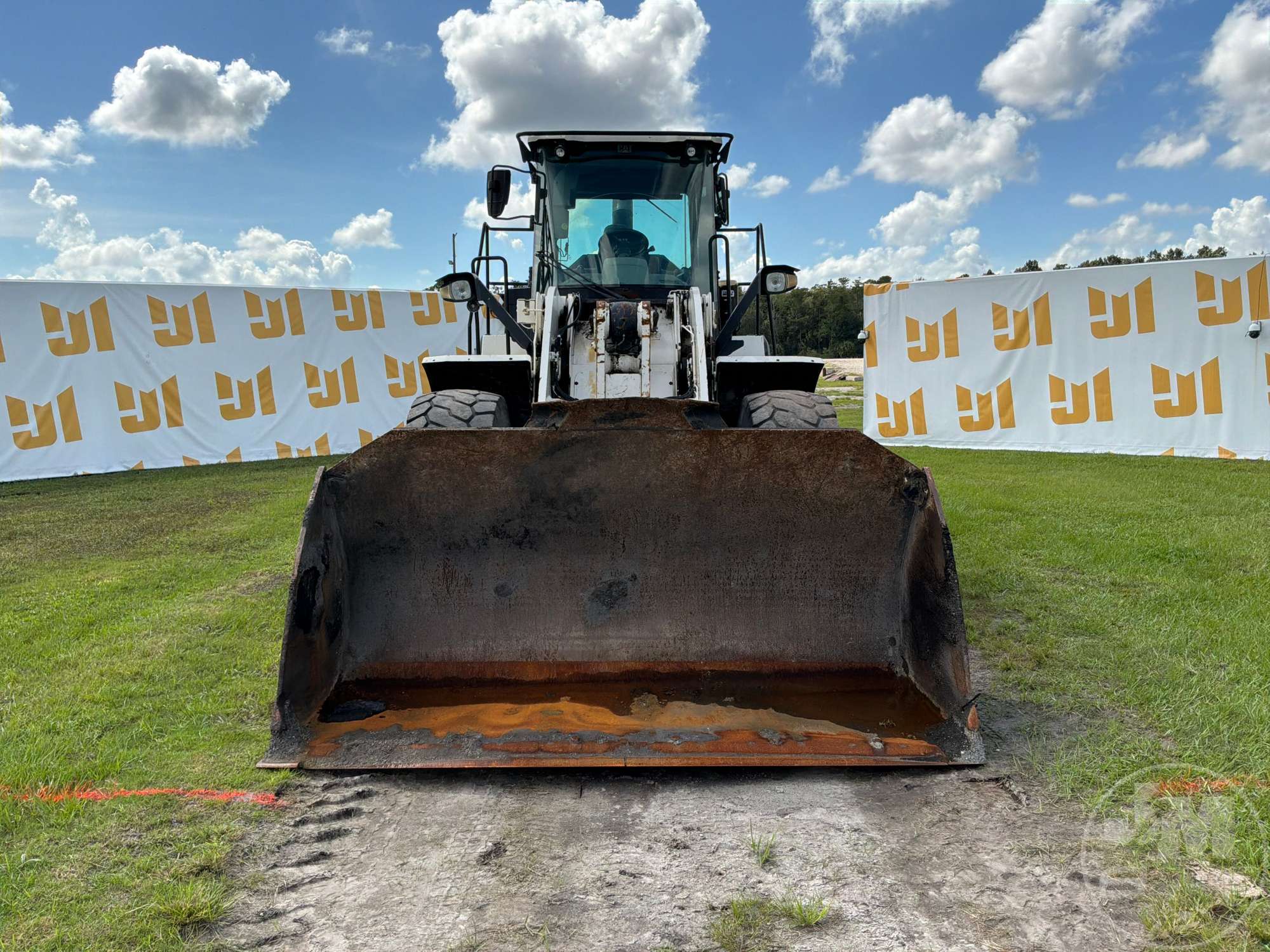

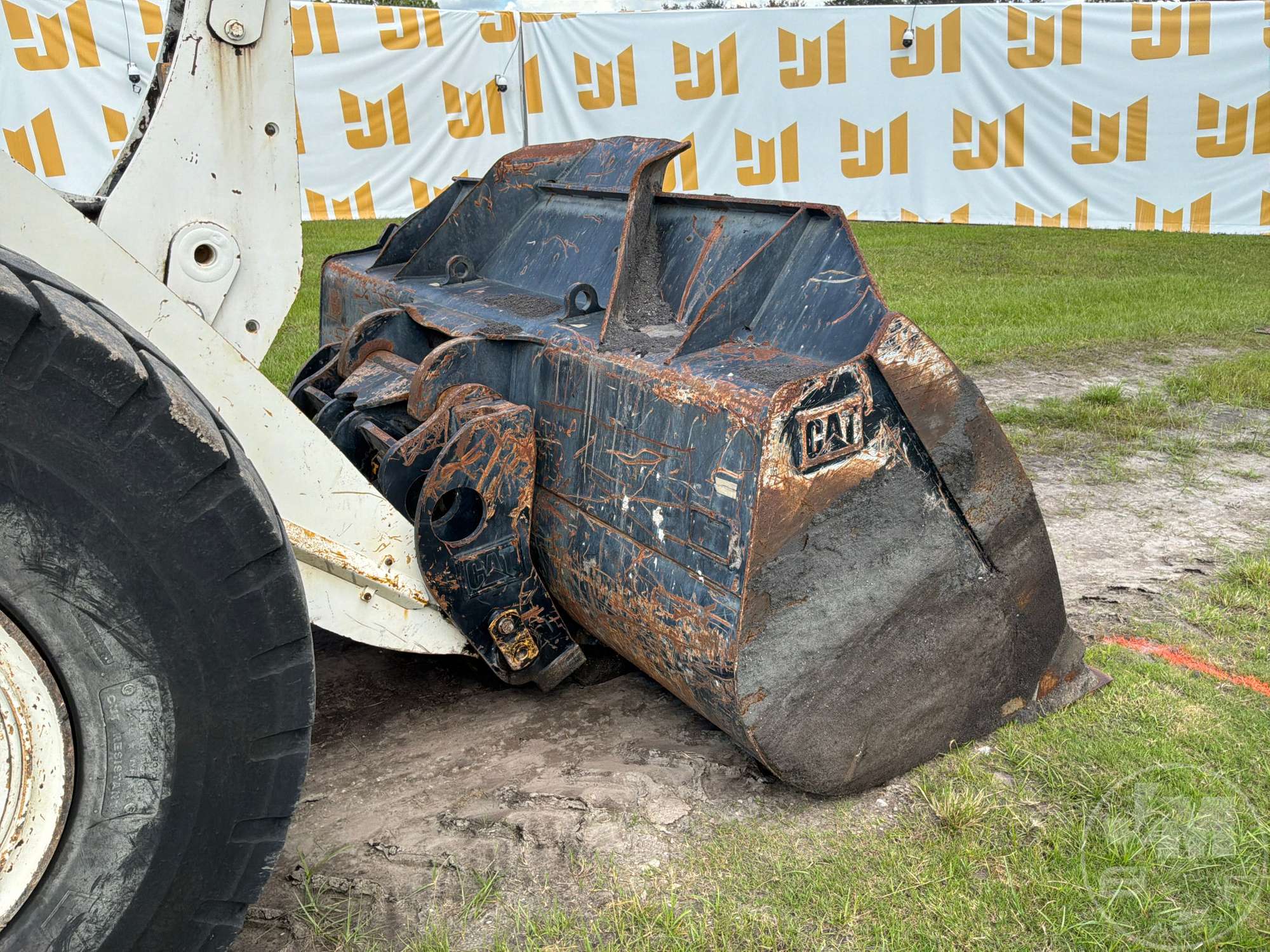

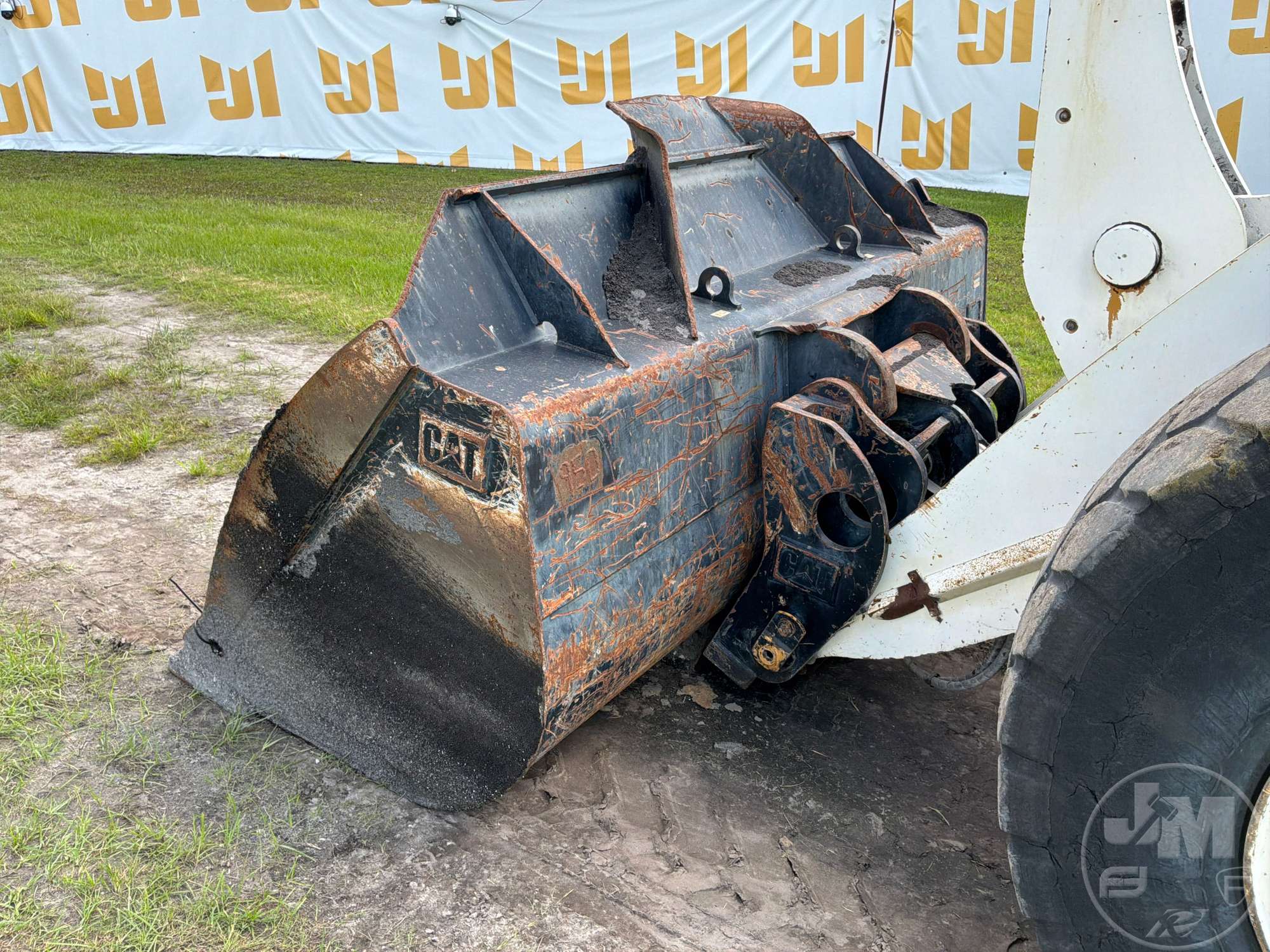

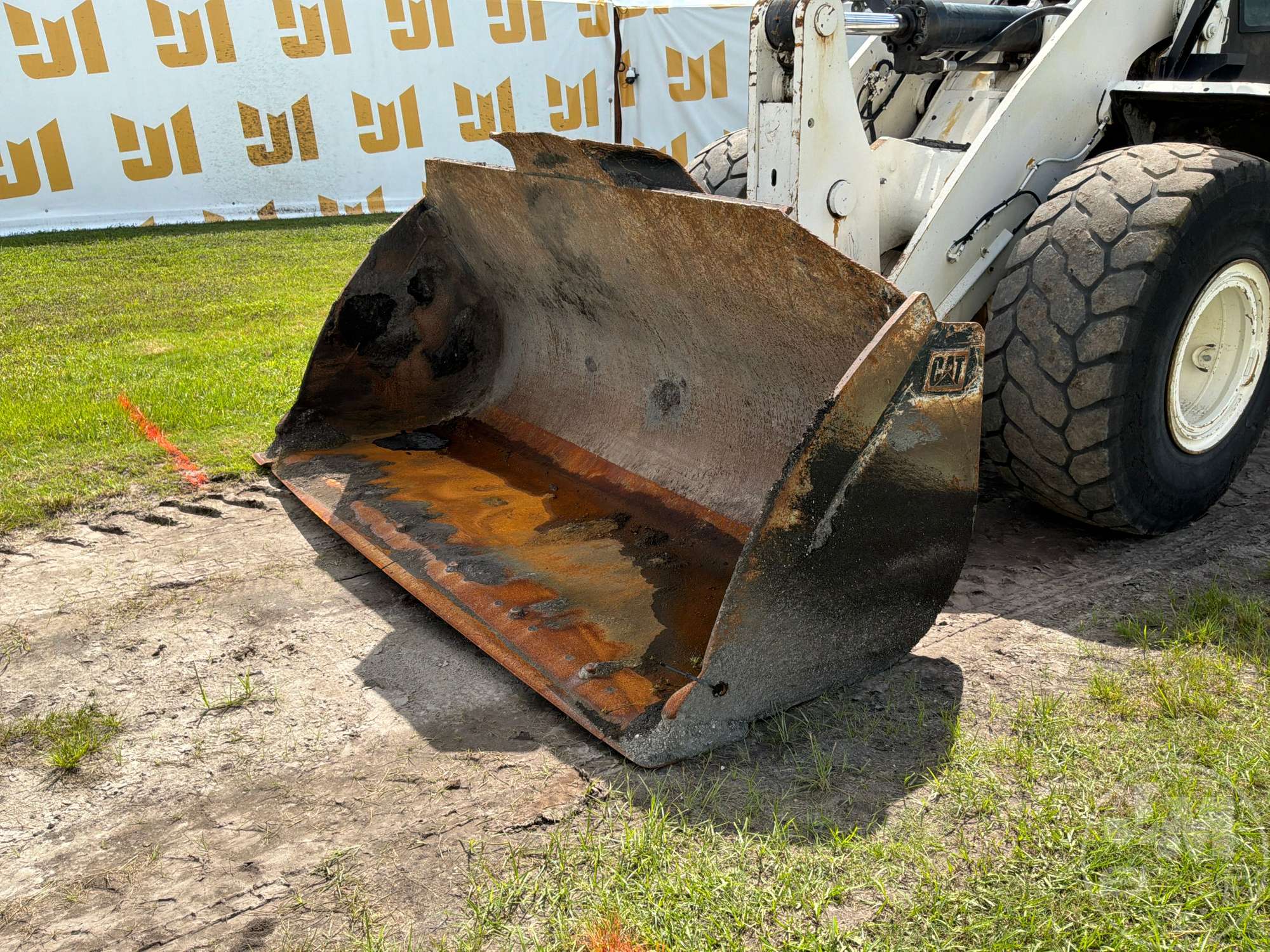

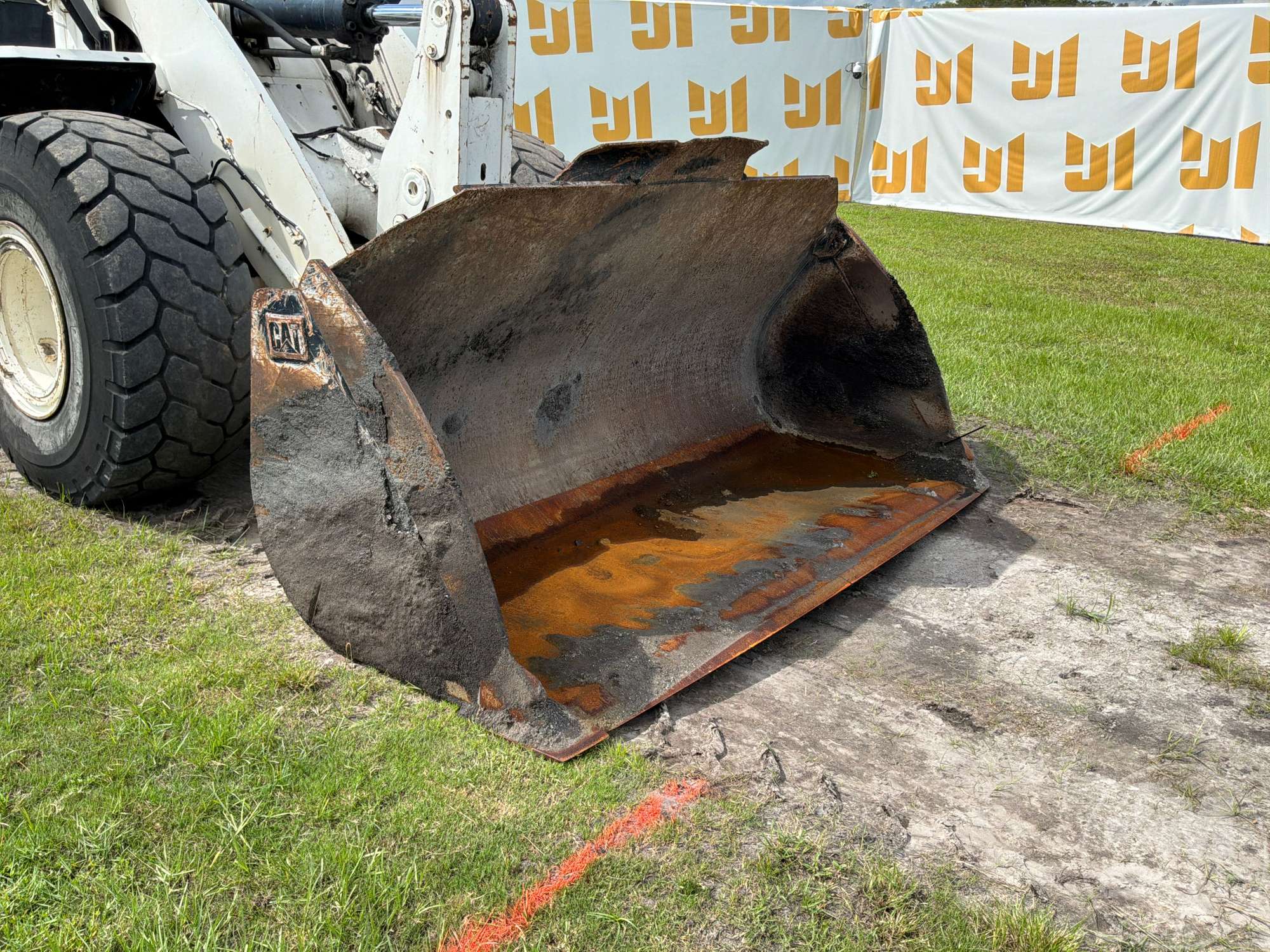

| Buckets |
|
Bucket Capacities |
2.5-9.2 m (3.3-12.0 yd) |

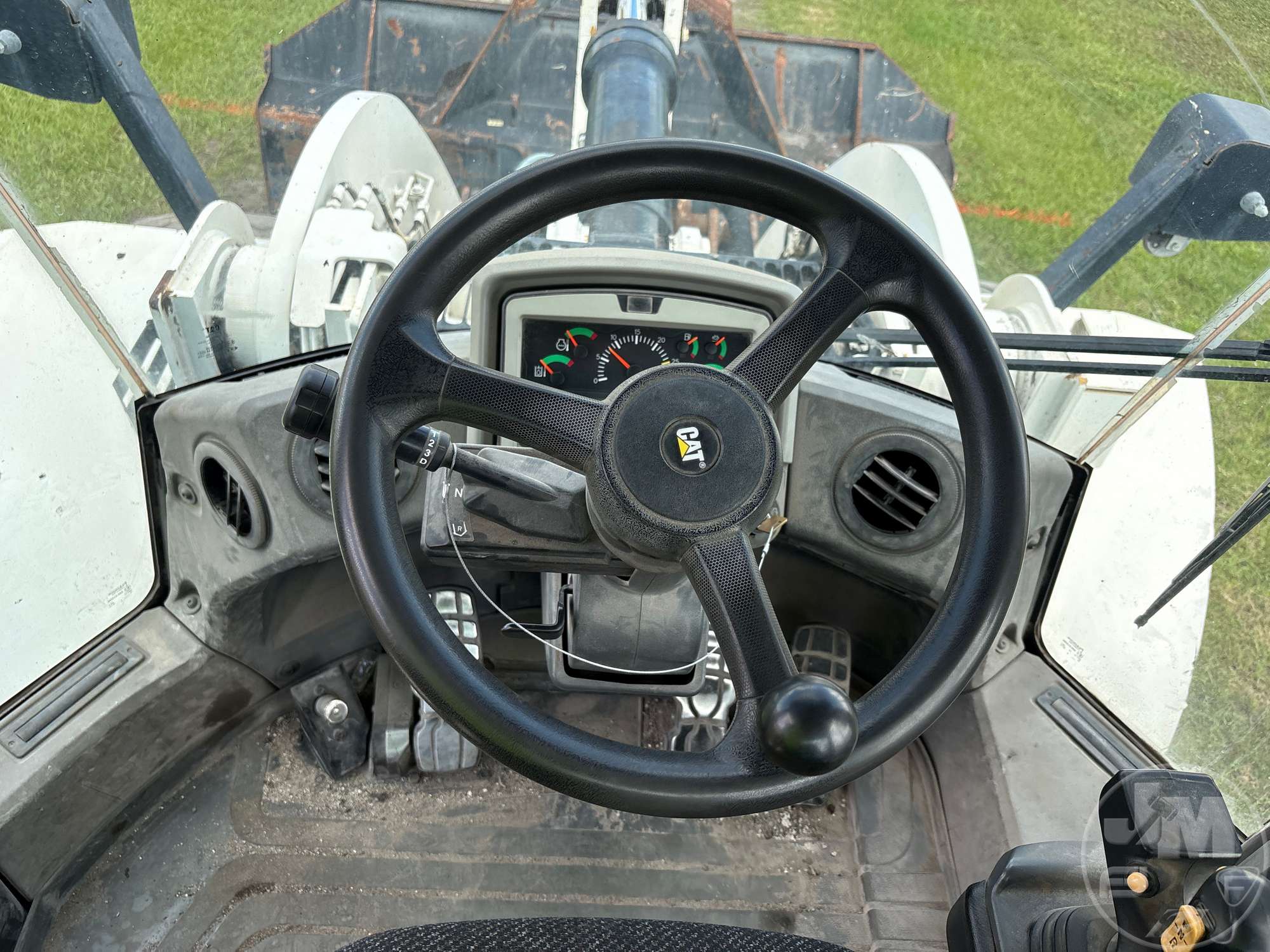

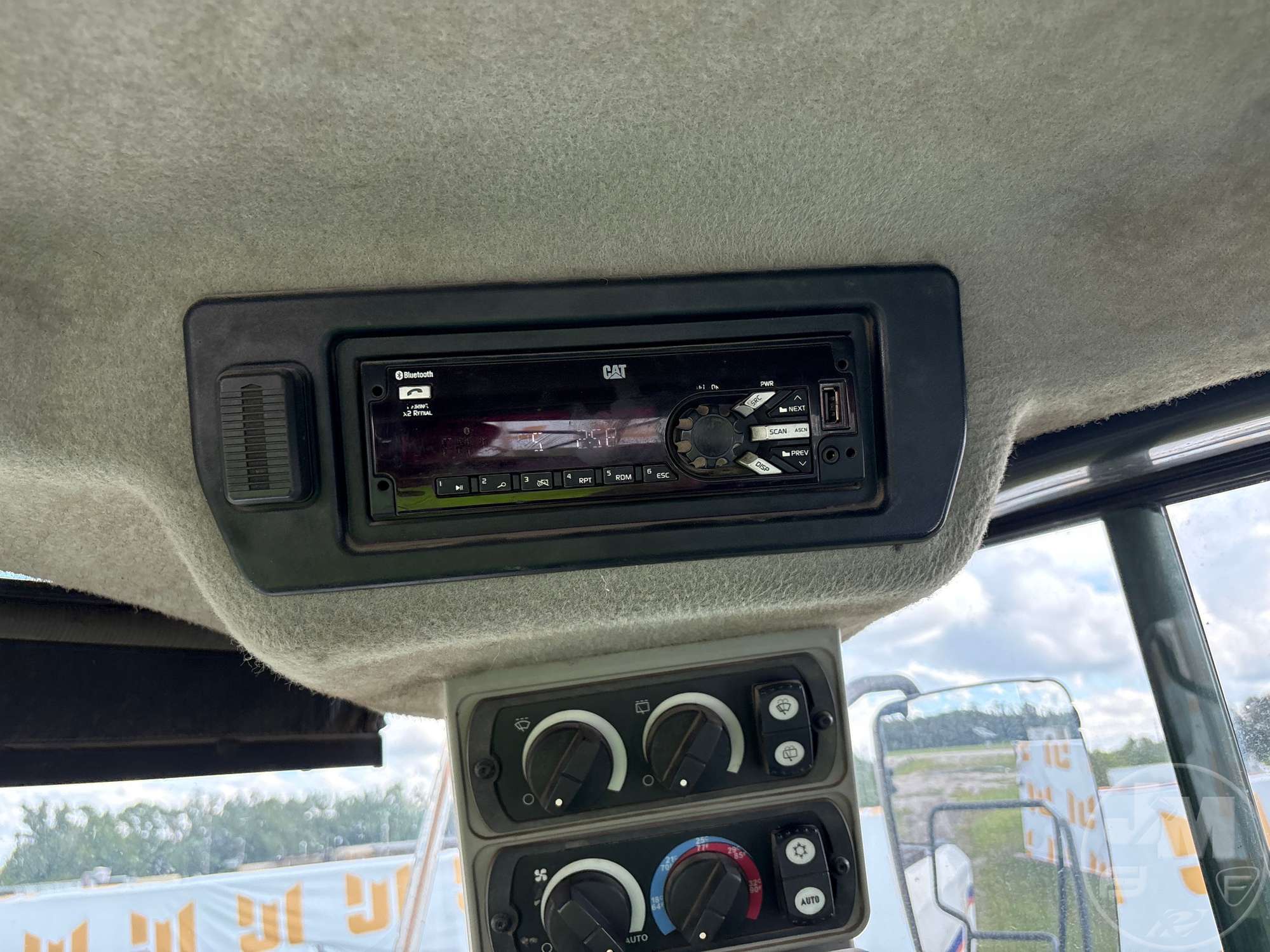

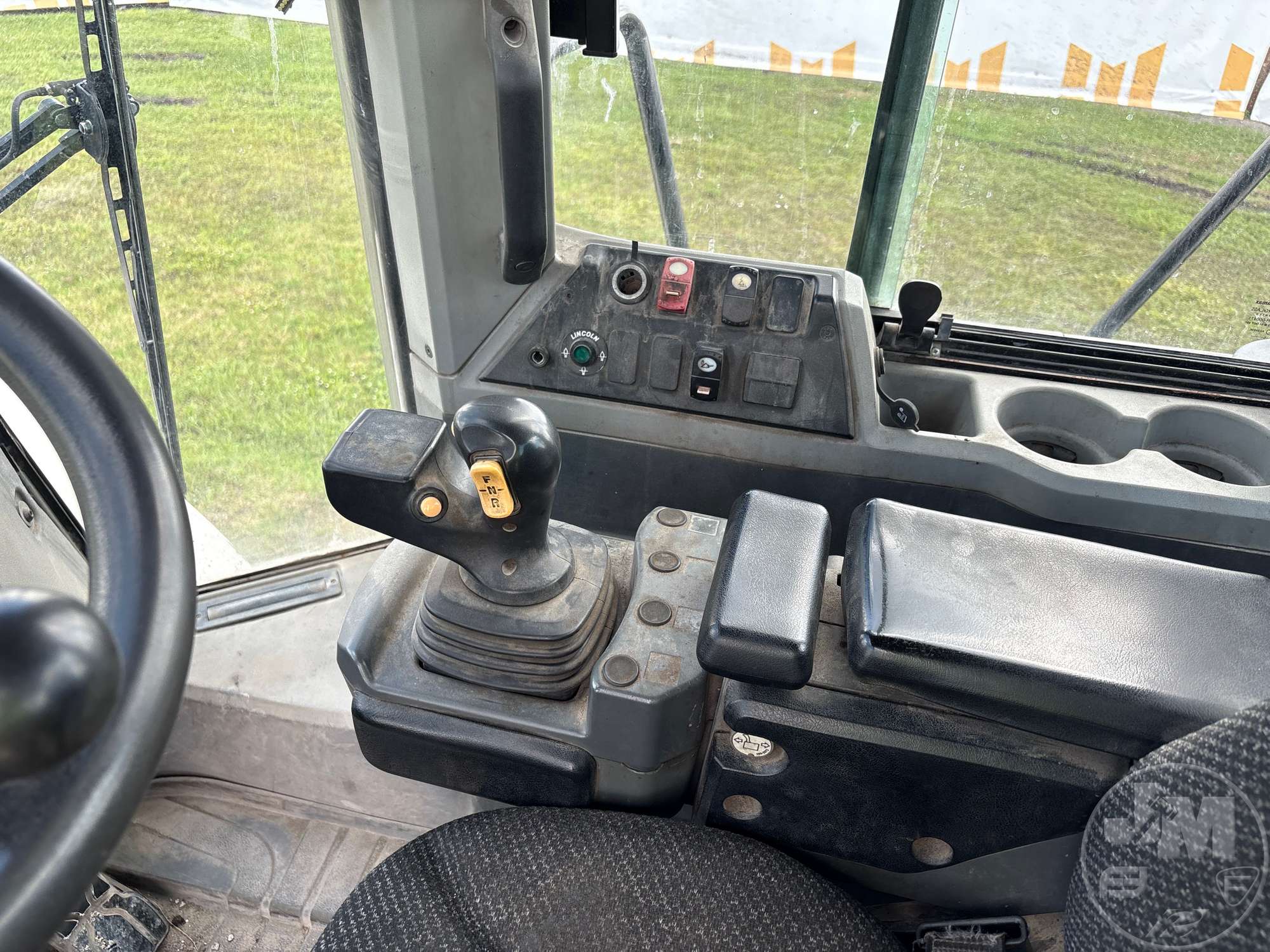

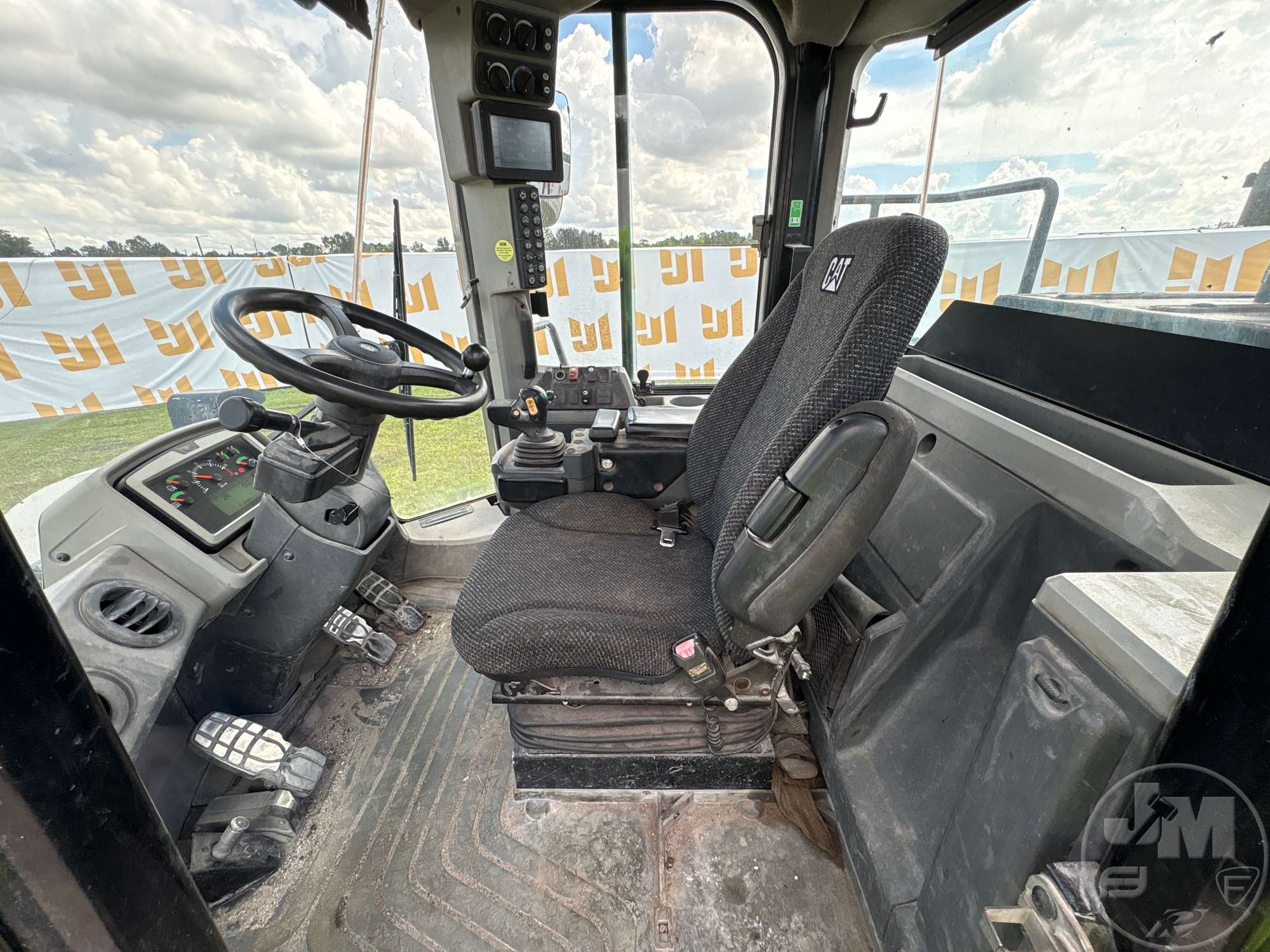

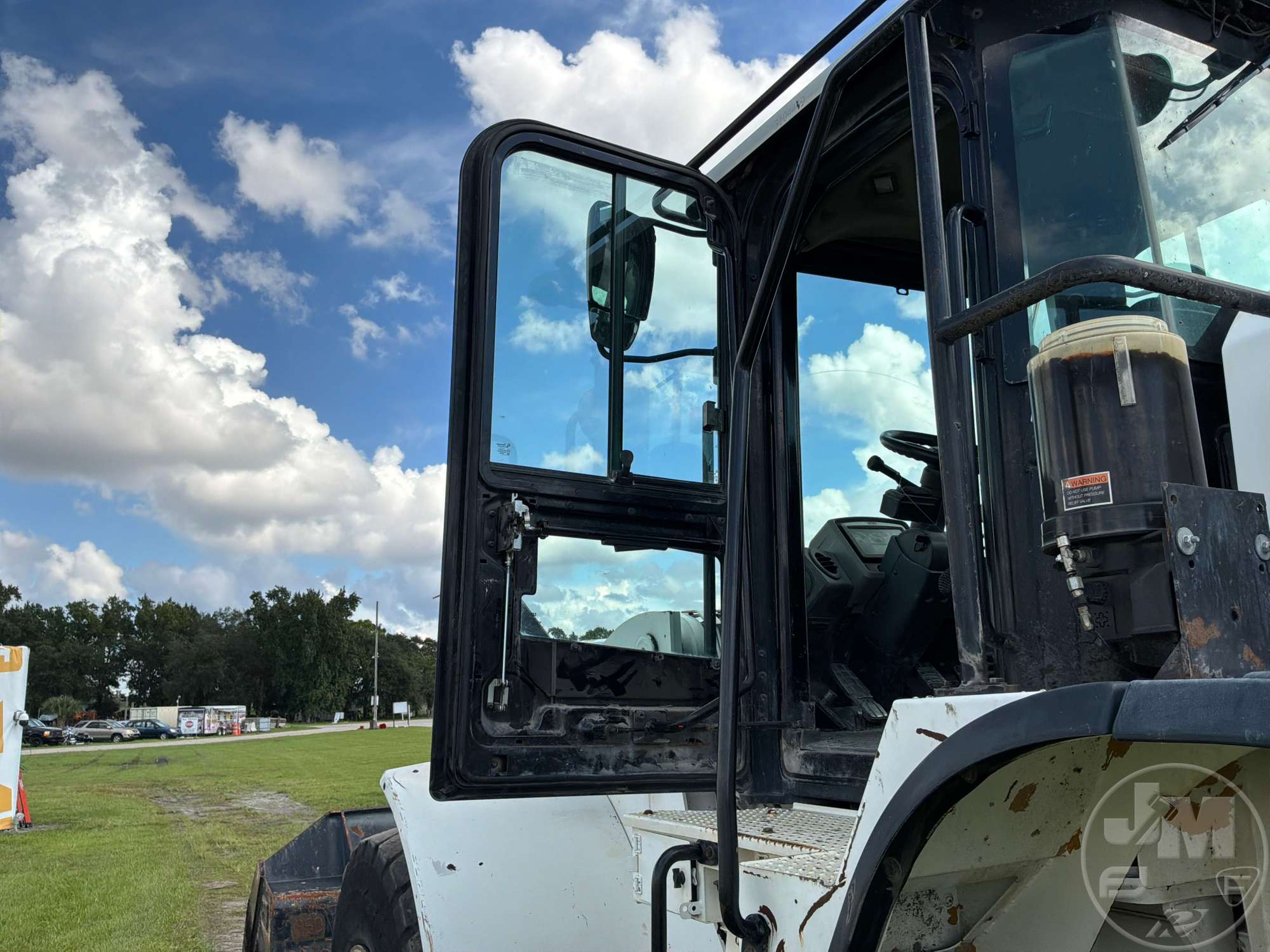

| Cab |
|
Rops/Fops |
ROPS/FOPS meet ISO 3471 and ISO 3449 Level II standards |
| Dimensions |
|
Centerline Of Rear Axle To Edge Of Counterweight |
76 in (193 cm)
|
|
Centerline Of Rear Axle To Hitch |
66 in (168 cm)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
11 ft (3 m)
|
|
Height - Top Of Exhaust Pipe |
90 in (229 cm)
|
|
Height - Top Of Hood |
106 in (269 cm)
|
|
Height - Top Of Rops |
8 ft (2 m)
|
|
Hinge Pin Height At Carry Height |
25 in (64 cm)
|
|
Hinge Pin Height At Maximum Lift |
159 in (404 cm)
|
|
Length |
27 ft (8 m)
|
|
Maximum Width Over Tires (Loaded) |
111 in (282 cm)
|
|
Note |
All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires. |
|
Overall Length (Without Bucket) |
272 in (691 cm)
|
|
Tread Width |
84 in (213 cm)
|
|
Weight |
42,357 lbs (19,213 kg)
|
|
Wheel Base |
11 ft (3 m)
|
|
Width |
9 ft (3 m)
|
| Dimensions - High Lift |
|
Centerline Of Rear Axle To Edge Of Counterweight |
6 ft (2 m)
|
|
Centerline Of Rear Axle To Hitch |
6 ft (2 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Height - Top Of Exhaust Pipe |
11 ft (3 m)
|
|
Height - Top Of Hood |
9 ft (3 m)
|
|
Height - Top Of Rops |
11 ft (3 m)
|
|
Hinge Pin Height At Carry Height |
3 ft (1 m)
|
|
Hinge Pin Height At Maximum Lift |
15 ft (5 m)
|
|
Lift Arm Clearance At Maximum Lift |
12 ft (4 m)
|
|
Maximum Width - Over Tires - Loaded |
9 ft (3 m)
|
|
Note |
All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires. |
|
Overall Length - Without Bucket |
25 ft (7 m)
|
|
Rack Back - Carry Height |
49 degrees |
|
Rack Back - Maximum Lift |
59 degrees |
|
Rack Back At Ground |
40 degrees |
|
Tread Width |
7 ft (2 m)
|
|
Wheel Base |
11 ft (3 m)
|
| Dimensions - Standard Lift |
|
Centerline Of Rear Axle To Edge Of Counterweight |
6 ft (2 m)
|
|
Centerline Of Rear Axle To Hitch |
6 ft (2 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Height - Top Of Exhaust Pipe |
11 ft (3 m)
|
|
Height - Top Of Hood |
9 ft (3 m)
|
|
Height - Top Of Rops |
11 ft (3 m)
|
|
Hinge Pin Height At Carry Height |
2 ft (1 m)
|
|
Hinge Pin Height At Maximum Lift |
13 ft (4 m)
|
|
Lift Arm Clearance At Maximum Lift |
11 ft (3 m)
|
|
Maximum Width - Over Tires - Loaded |
9 ft (3 m)
|
|
Note |
All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires. |
|
Overall Length - Without Bucket |
23 ft (7 m)
|
|
Rack Back - Carry Height |
49 degrees |
|
Rack Back - Maximum Lift |
59 degrees |
|
Rack Back At Ground |
36 degrees |
|
Tread Width |
7 ft (2 m)
|
|
Wheel Base |
11 ft (3 m)
|

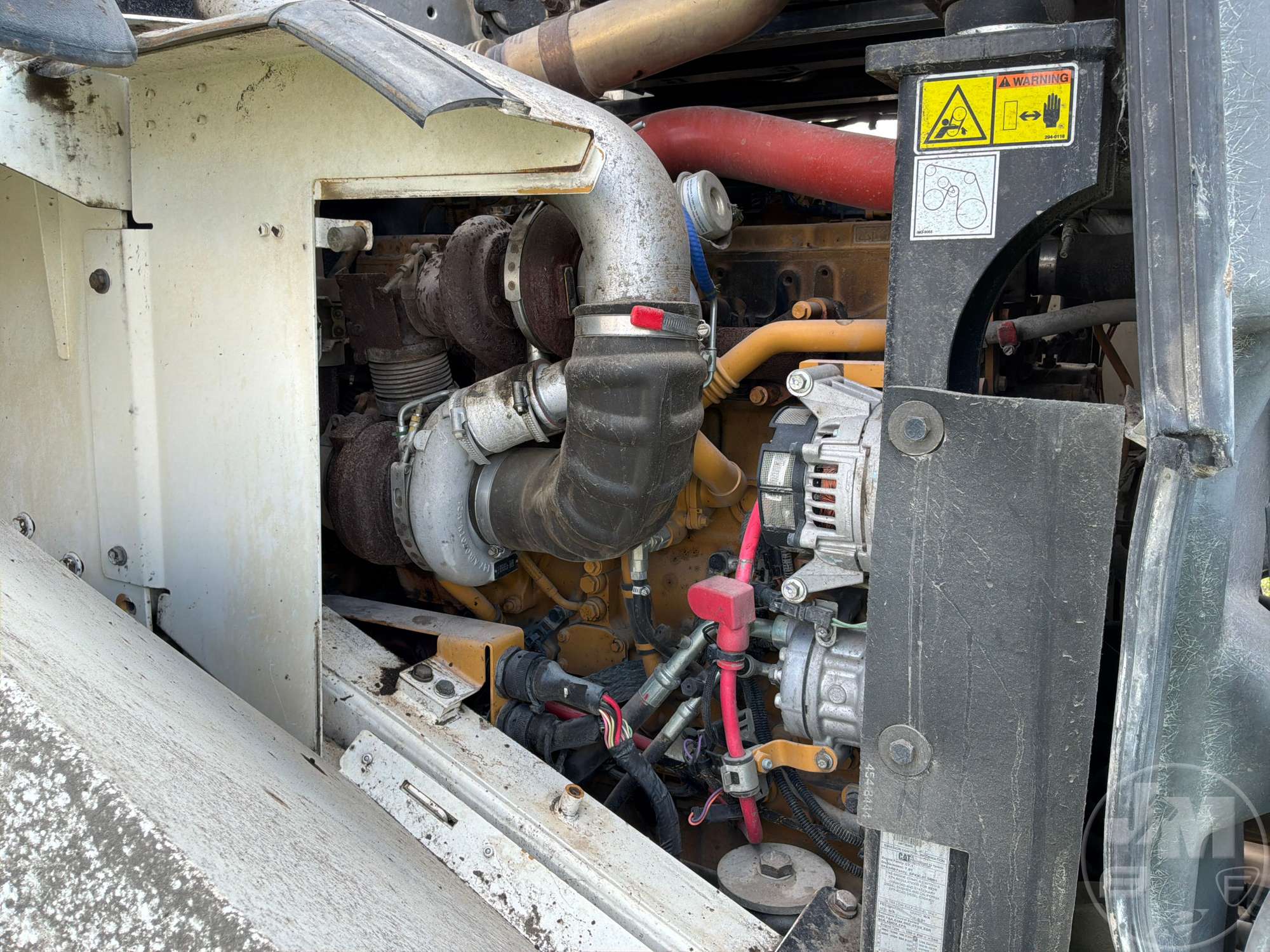

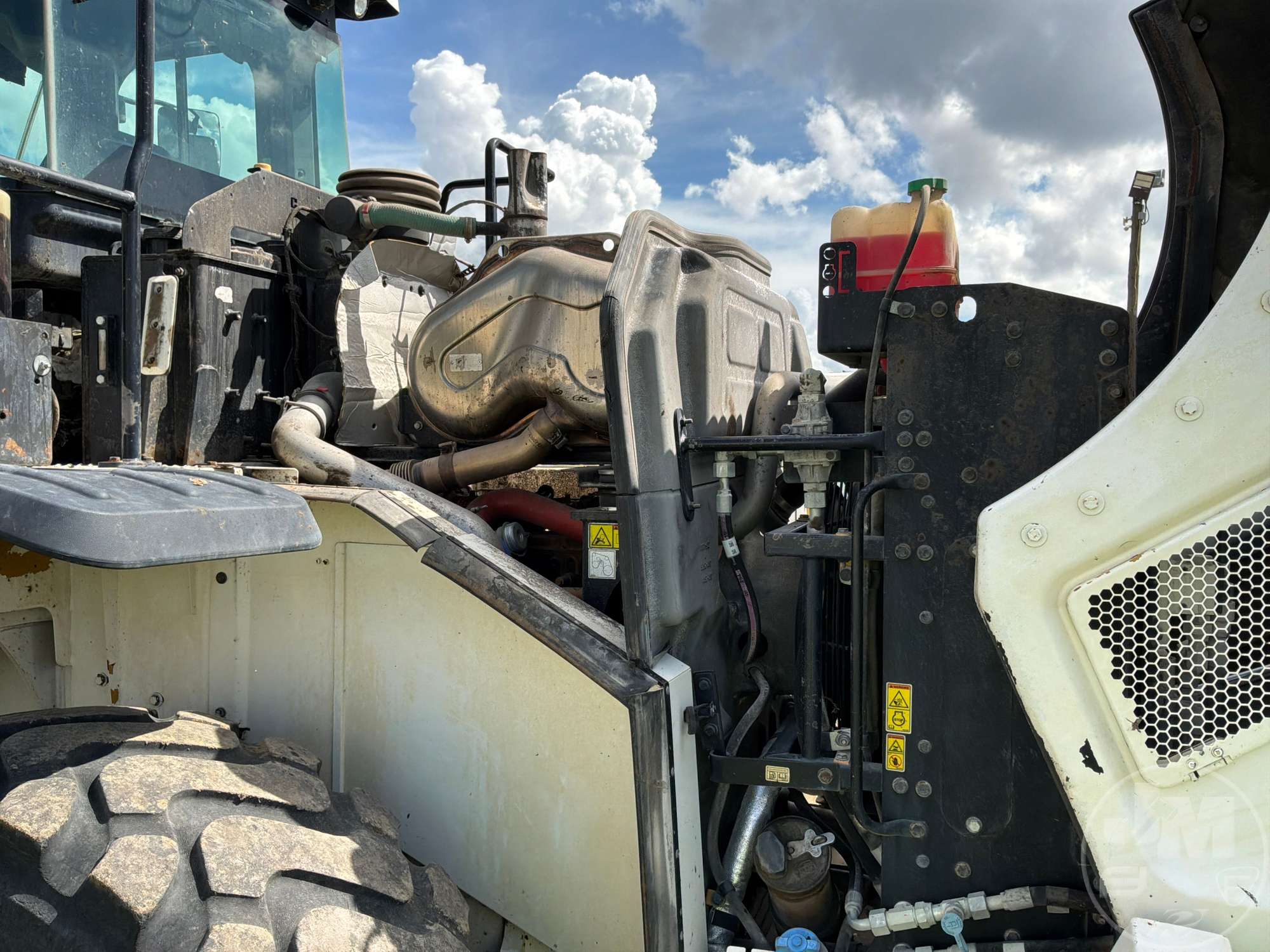

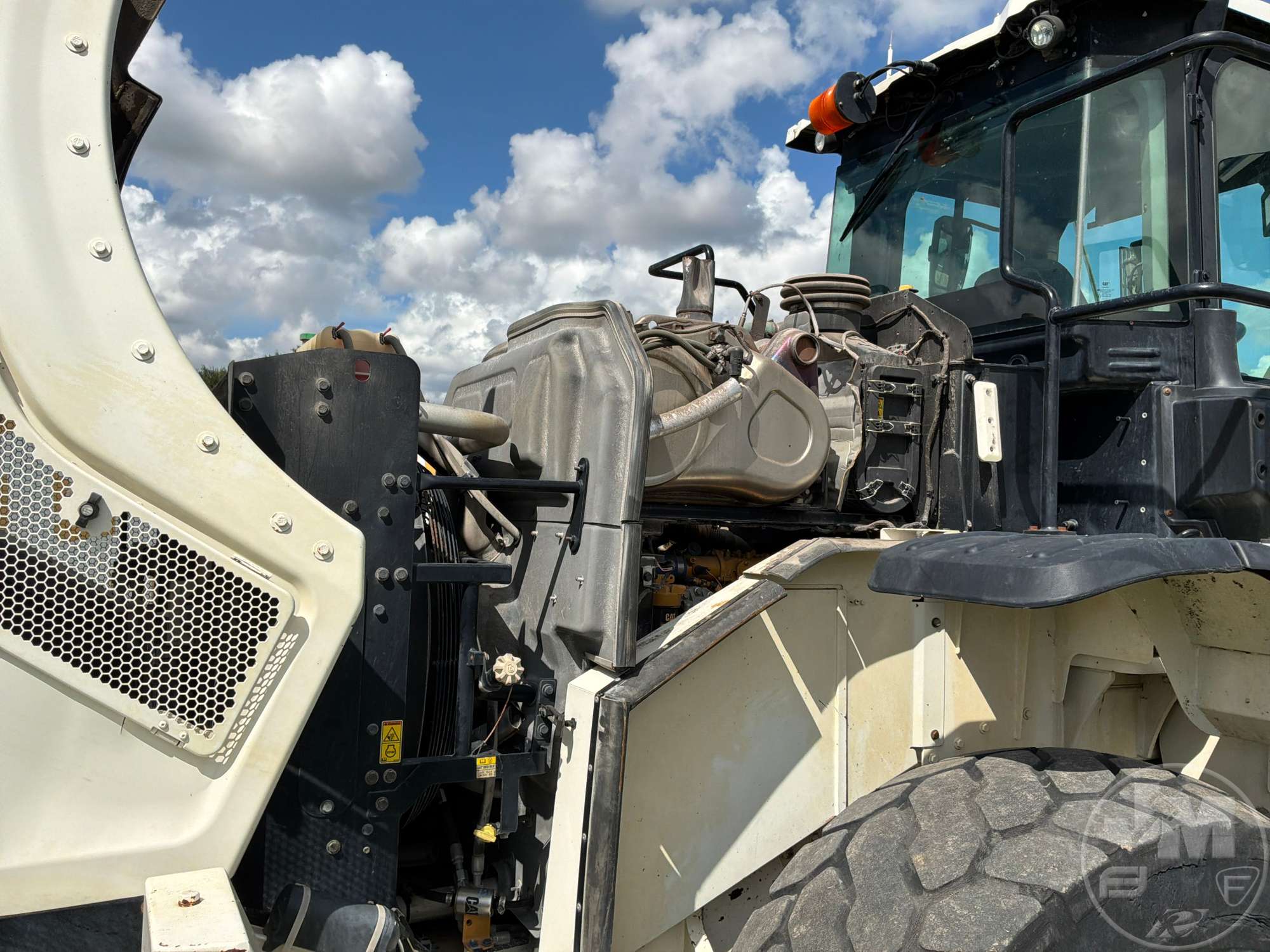

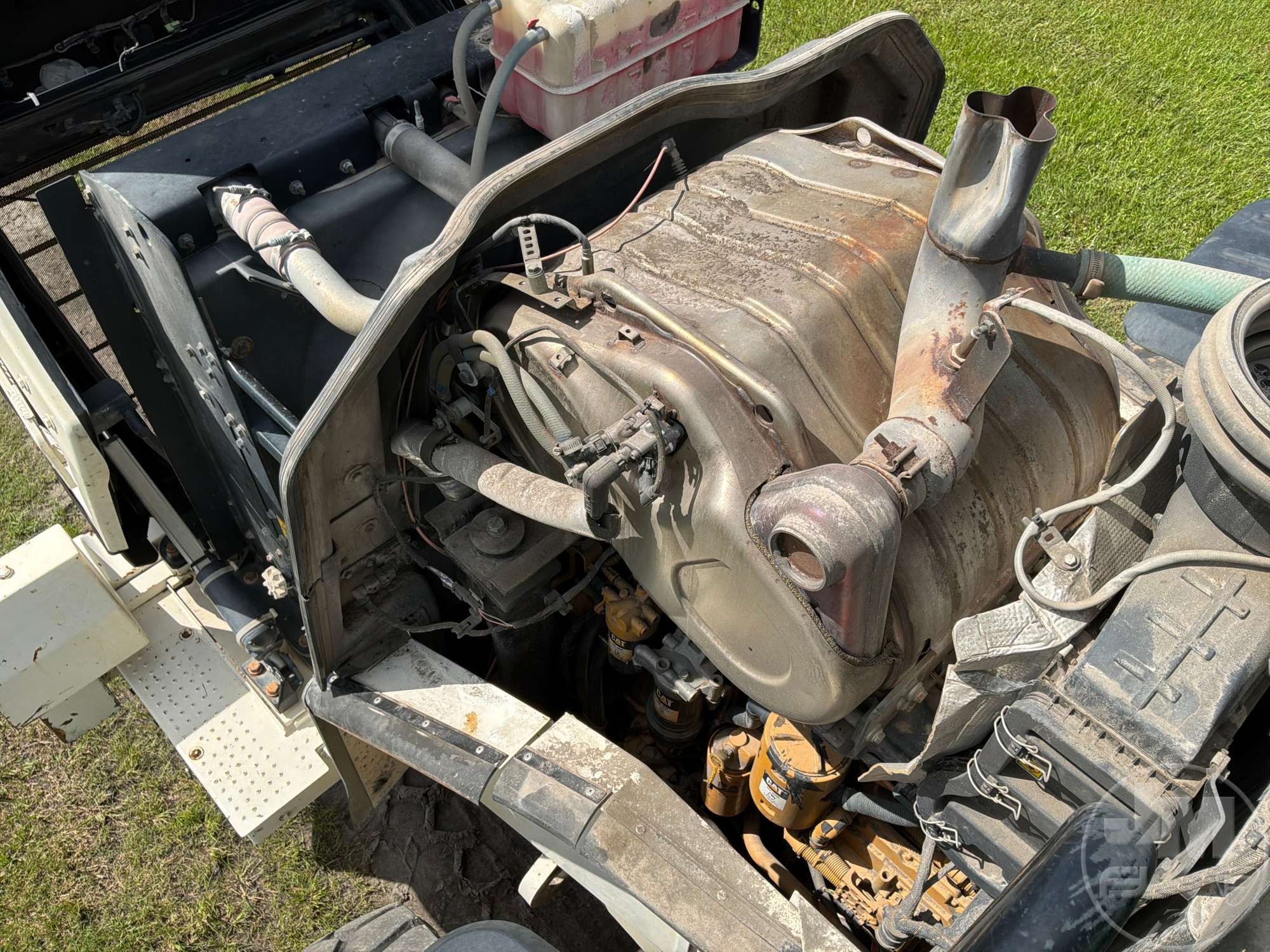

| Engine |
|
Bore |
4 in (11 cm)
|
|
Displacement |
428 cu in (7,014 cu cm)
|
|
Engine Model |
Cat C7.1 ACERT |
|
Maximum Gross Power - 2,100 Rpm - Sae J1995 |
250 hp (186 kw)
|
|
Maximum Gross Power - Sae J1995 |
250 hp (186 kw)
|
|
Maximum Net Power - 2,000 Rpm - Iso 9249 |
248 hp (185 kw)
|
|
Maximum Net Power - 2,000 Rpm - Iso 9249 - Metric |
252 hp (188 kw)
|
|
Maximum Net Power - 2,000 Rpm - Sae J1349 |
248 hp (185 kw)
|
|
Maximum Net Power - 2,100 Rpm - Iso 9249 |
230 hp (172 kw)
|
|
Maximum Net Power - 2,100 Rpm - Iso 9249 - Metric |
232 hp (173 kw)
|
|
Maximum Net Power - 2,100 Rpm - Sae J1349 |
230 hp (172 kw)
|
|
Maximum Net Power - Sae J1349 |
230 hp (172 kw)
|
|
Maximum Net Torque - 1,300 Rpm |
858 lbs ft (1,163 nm)
|
|
Maximum Net Torque - 1,300 Rpm - Sae J1349 |
858 lbs ft (1,163 nm)
|
|
Maximum Net Torque - 1,400 Rpm |
726 lbs ft (984 nm)
|
|
Maximum Power - 2,000 Rpm - Iso 14396 |
261 hp (195 kw)
|
|
Maximum Power - 2,000 Rpm - Iso 14396 - Metric |
265 hp (198 kw)
|
|
Maximum Power - 2,000 Rpm - Sae J1995 |
263 hp (196 kw)
|
|
Maximum Power - 2,100 Rpm - Iso 14396 |
249 hp (186 kw)
|
|
Maximum Power - 2,100 Rpm - Iso 14396 - Metric |
253 hp (189 kw)
|
|
Maximum Power - 2,100 Rpm - Sae J1995 |
250 hp (186 kw)
|
|
Net Power - Iso 9249 |
230 hp (172 kw)
|
|
Note |
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes. |
|
Peak Gross Torque - 1,300 Rpm - Iso 14396 |
908 lbs ft (1,231 nm)
|
|
Peak Gross Torque - 1,300 Rpm - Sae J1995 |
911 lbs ft (1,235 nm)
|
|
Peak Gross Torque - 1,400 Rpm - Iso 14396 |
774 lbs ft (1,049 nm)
|
|
Peak Gross Torque - 1,400 Rpm - Sae J1995 |
777 lbs ft (1,053 nm)
|
|
Stroke |
5 in (14 cm)
|
| Engine - Tier 4 Final/Stage Iv |
|
Emissions |
Tier 4/Stage IV |
| General Specifications |
|
1 Fork tine length (Since 2016)
|
60 in (152 cm)
|
|
1 Fork tine length (Since 2016)
|
72 in (183 cm)
|
|
1 Fork tine length (Since 2016)
|
84 in (213 cm)
|
|
1 Fork tine length (Since 2016)
|
96 in (244 cm)
|
|
1 Fork tine length (Since 2017)
|
60 in (152 cm)
|
|
1 Fork tine length (Since 2017)
|
72 in (183 cm)
|
|
1 Fork tine length (Since 2017)
|
84 in (213 cm)
|
|
1 Fork tine length (Since 2017)
|
96 in (244 cm)
|
|
1 Fork tine length (Since 2018)
|
60 in (152 cm)
|
|
1 Fork tine length (Since 2018)
|
72 in (183 cm)
|
|
1 Fork tine length (Since 2018)
|
84 in (213 cm)
|
|
1 Fork tine length (Since 2018)
|
96 in (244 cm)
|
|
1 Fork tine length (Since 2019)
|
60 in (152 cm)
|
|
1 Fork tine length (Since 2019)
|
72 in (183 cm)
|
|
1 Fork tine length (Since 2019)
|
84 in (213 cm)
|
|
1 Fork tine length (Since 2019)
|
96 in (244 cm)
|
|
10 Overall height of fork at full lift - (top of carriage to ground) (Since 2016)
|
192 in (486 cm)
|
|
10 Overall height of fork at full lift - (top of carriage to ground) (2017)
|
192 in (486 cm)
|
|
10 Overall height of fork at full lift - (top of carriage to ground) (2018)
|
192 in (486 cm)
|
|
10 Overall height of fork at full lift - (top of carriage to ground) (2019)
|
192 in (486 cm)
|
|
11 Clearance at full lift and maximum dump (Since 2016)
|
90 in (228 cm)
|
|
11 Clearance at full lift and maximum dump (Since 2016)
|
80 in (204 cm)
|
|
11 Clearance at full lift and maximum dump (Since 2016)
|
71 in (180 cm)
|
|
11 Clearance at full lift and maximum dump (Since 2016)
|
61 in (156 cm)
|
|
11 Clearance at full lift and maximum dump (Since 2017)
|
90 in (228 cm)
|
|
11 Clearance at full lift and maximum dump (Since 2017)
|
80 in (204 cm)
|
|
11 Clearance at full lift and maximum dump (Since 2017)
|
71 in (180 cm)
|
|
11 Clearance at full lift and maximum dump (Since 2017)
|
61 in (156 cm)
|
|
11 Clearance at full lift and maximum dump (Since 2018)
|
90 in (228 cm)
|
|
11 Clearance at full lift and maximum dump (Since 2018)
|
80 in (204 cm)
|
|
11 Clearance at full lift and maximum dump (Since 2018)
|
71 in (180 cm)
|
|
11 Clearance at full lift and maximum dump (Since 2018)
|
61 in (156 cm)
|
|
11 Clearance at full lift and maximum dump (Since 2019)
|
90 in (228 cm)
|
|
11 Clearance at full lift and maximum dump (Since 2019)
|
80 in (204 cm)
|
|
11 Clearance at full lift and maximum dump (Since 2019)
|
71 in (180 cm)
|
|
11 Clearance at full lift and maximum dump (Since 2019)
|
61 in (156 cm)
|
|
12 Maximum discharge angle - from horizontal (Since 2016)
|
53 deg |
|
12 Maximum discharge angle - from horizontal (2017)
|
53 deg |
|
12 Maximum discharge angle - from horizontal (2018)
|
53 deg |
|
12 Maximum discharge angle - from horizontal (2019)
|
53 deg |
|
13 Carriage width (Since 2016)
|
100 in (253 cm)
|
|
13 Carriage width (2017)
|
100 in (253 cm)
|
|
13 Carriage width (2018)
|
100 in (253 cm)
|
|
13 Carriage width (2019)
|
100 in (253 cm)
|
|
14 Carriage height (Since 2016)
|
45 in (113 cm)
|
|
14 Carriage height (2017)
|
45 in (113 cm)
|
|
14 Carriage height (2018)
|
45 in (113 cm)
|
|
14 Carriage height (2019)
|
45 in (113 cm)
|
|
15 Outside tine width (maximum spread) (Since 2016)
|
86 in (218 cm)
|
|
15 Outside tine width (maximum spread) (2017)
|
86 in (218 cm)
|
|
15 Outside tine width (maximum spread) (2018)
|
86 in (218 cm)
|
|
15 Outside tine width (maximum spread) (2019)
|
86 in (218 cm)
|
|
16 Outside tine width (minimum spread) (Since 2016)
|
23 in (58 cm)
|
|
16 Outside tine width (minimum spread) (2017)
|
23 in (58 cm)
|
|
16 Outside tine width (minimum spread) (2018)
|
23 in (58 cm)
|
|
16 Outside tine width (minimum spread) (2019)
|
23 in (58 cm)
|
|
1st (Since 2015)
|
6.9 4.3 |
|
1st (2016)
|
6.9 4.3 |
|
1st (2017)
|
6.9 4.3 |
|
1st (2018)
|
6.9 4.3 |
|
1st (2019)
|
6.9 4.3 |
|
2 Load center (Since 2016)
|
30 in (76 cm)
|
|
2 Load center (Since 2016)
|
36 in (91 cm)
|
|
2 Load center (Since 2016)
|
42 in (107 cm)
|
|
2 Load center (Since 2016)
|
48 in (122 cm)
|
|
2 Load center (Since 2017)
|
30 in (76 cm)
|
|
2 Load center (Since 2017)
|
36 in (91 cm)
|
|
2 Load center (Since 2017)
|
42 in (107 cm)
|
|
2 Load center (Since 2017)
|
48 in (122 cm)
|
|
2 Load center (Since 2018)
|
30 in (76 cm)
|
|
2 Load center (Since 2018)
|
36 in (91 cm)
|
|
2 Load center (Since 2018)
|
42 in (107 cm)
|
|
2 Load center (Since 2018)
|
48 in (122 cm)
|
|
2 Load center (Since 2019)
|
30 in (76 cm)
|
|
2 Load center (Since 2019)
|
36 in (91 cm)
|
|
2 Load center (Since 2019)
|
42 in (107 cm)
|
|
2 Load center (Since 2019)
|
48 in (122 cm)
|
|
2nd (Since 2015)
|
12.0 7.5 |
|
2nd (2016)
|
12.0 7.5 |
|
2nd (2017)
|
12.0 7.5 |
|
2nd (2018)
|
12.0 7.5 |
|
2nd (2019)
|
12.0 7.5 |
|
3 Maximum overall length (Since 2016)
|
347 in (882 cm)
|
|
3 Maximum overall length (Since 2016)
|
359 in (913 cm)
|
|
3 Maximum overall length (Since 2016)
|
371 in (943 cm)
|
|
3 Maximum overall length (Since 2016)
|
383 in (973 cm)
|
|
3 Maximum overall length (Since 2017)
|
347 in (882 cm)
|
|
3 Maximum overall length (Since 2017)
|
359 in (913 cm)
|
|
3 Maximum overall length (Since 2017)
|
371 in (943 cm)
|
|
3 Maximum overall length (Since 2017)
|
383 in (973 cm)
|
|
3 Maximum overall length (Since 2018)
|
347 in (882 cm)
|
|
3 Maximum overall length (Since 2018)
|
359 in (913 cm)
|
|
3 Maximum overall length (Since 2018)
|
371 in (943 cm)
|
|
3 Maximum overall length (Since 2018)
|
383 in (973 cm)
|
|
3 Maximum overall length (Since 2019)
|
347 in (882 cm)
|
|
3 Maximum overall length (Since 2019)
|
359 in (913 cm)
|
|
3 Maximum overall length (Since 2019)
|
371 in (943 cm)
|
|
3 Maximum overall length (Since 2019)
|
383 in (973 cm)
|
|
3rd (Since 2015)
|
19.3 12.0 |
|
3rd (Since 2015)
|
25.7 16.0 |
|
3rd (Since 2016)
|
19.3 12.0 |
|
3rd (Since 2016)
|
25.7 16.0 |
|
3rd (Since 2017)
|
19.3 12.0 |
|
3rd (Since 2017)
|
25.7 16.0 |
|
3rd (Since 2018)
|
19.3 12.0 |
|
3rd (Since 2018)
|
25.7 16.0 |
|
3rd (Since 2019)
|
19.3 12.0 |
|
3rd (Since 2019)
|
25.7 16.0 |
|
4 Reach with forks at ground level (Since 2016)
|
47 in (120 cm)
|
|
4 Reach with forks at ground level (2017)
|
47 in (120 cm)
|
|
4 Reach with forks at ground level (2018)
|
47 in (120 cm)
|
|
4 Reach with forks at ground level (2019)
|
47 in (120 cm)
|
|
4th (Since 2015)
|
25.7 16.0 |
|
4th (2016)
|
25.7 16.0 |
|
4th (2017)
|
25.7 16.0 |
|
4th (2018)
|
25.7 16.0 |
|
4th (2019)
|
25.7 16.0 |
|
5 Ground to top of tine at minimum - height and fork level (Since 2016)
|
1 in (2 cm)
|
|
5 Ground to top of tine at minimum - height and fork level (2017)
|
1 in (2 cm)
|
|
5 Ground to top of tine at minimum - height and fork level (2018)
|
1 in (2 cm)
|
|
5 Ground to top of tine at minimum - height and fork level (2019)
|
1 in (2 cm)
|
|
5th Speeds Reverse (Since 2015)
|
25 mph (40 kph)
|
|
5th Speeds Reverse (Since 2016)
|
25 mph (39 kph)
|
|
5th Speeds Reverse (2017)
|
25 mph (39 kph)
|
|
5th Speeds Reverse (2018)
|
25 mph (39 kph)
|
|
5th Speeds Reverse (2019)
|
25 mph (39 kph)
|
|
6 Reach with arms horizontal - and forks level (Since 2016)
|
68 in (174 cm)
|
|
6 Reach with arms horizontal - and forks level (2017)
|
68 in (174 cm)
|
|
6 Reach with arms horizontal - and forks level (2018)
|
68 in (174 cm)
|
|
6 Reach with arms horizontal - and forks level (2019)
|
68 in (174 cm)
|
|
7 Reach with fork at maximum height (Since 2016)
|
40 in (102 cm)
|
|
7 Reach with fork at maximum height (2017)
|
40 in (102 cm)
|
|
7 Reach with fork at maximum height (2018)
|
40 in (102 cm)
|
|
7 Reach with fork at maximum height (2019)
|
40 in (102 cm)
|
|
8 Ground to top of tine with arms - horizontal and fork level (Since 2016)
|
74 in (189 cm)
|
|
8 Ground to top of tine with arms - horizontal and fork level (2017)
|
74 in (189 cm)
|
|
8 Ground to top of tine with arms - horizontal and fork level (2018)
|
74 in (189 cm)
|
|
8 Ground to top of tine with arms - horizontal and fork level (2019)
|
74 in (189 cm)
|
|
9 Ground to top of tine at maximum - height and fork level (Since 2016)
|
151 in (383 cm)
|
|
9 Ground to top of tine at maximum - height and fork level (2017)
|
151 in (383 cm)
|
|
9 Ground to top of tine at maximum - height and fork level (2018)
|
151 in (383 cm)
|
|
9 Ground to top of tine at maximum - height and fork level (2019)
|
151 in (383 cm)
|
|
A - Tine Length (Since 2017)
|
30 in (76 cm)
|
|
A - Tine Length (Since 2017)
|
64 in (163 cm)
|
|
A - Tine Length (Since 2018)
|
30 in (76 cm)
|
|
A - Tine Length (Since 2018)
|
64 in (163 cm)
|
|
A - Tine Length (Since 2019)
|
30 in (76 cm)
|
|
A - Tine Length (Since 2019)
|
64 in (163 cm)
|
|
A Height to top of exhaust pipe (Since 2015)
|
135 in (343 cm)
|
|
A Height to top of exhaust pipe (2016)
|
135 in (343 cm)
|
|
A Height to top of exhaust pipe (2017)
|
135 in (343 cm)
|
|
A Height to top of exhaust pipe (2018)
|
135 in (343 cm)
|
|
A Height to top of exhaust pipe (2019)
|
135 in (343 cm)
|
|
B - Overall Width (Since 2017)
|
72 in (183 cm)
|
|
B - Overall Width (Since 2017)
|
92 in (234 cm)
|
|
B - Overall Width (Since 2018)
|
72 in (183 cm)
|
|
B - Overall Width (Since 2018)
|
92 in (234 cm)
|
|
B - Overall Width (Since 2019)
|
72 in (183 cm)
|
|
B - Overall Width (Since 2019)
|
92 in (234 cm)
|
|
B Height to top of engine compartment (Since 2015)
|
106 in (269 cm)
|
|
B Height to top of engine compartment (2016)
|
106 in (269 cm)
|
|
B Height to top of engine compartment (2017)
|
106 in (269 cm)
|
|
B Height to top of engine compartment (2018)
|
106 in (269 cm)
|
|
B Height to top of engine compartment (2019)
|
106 in (269 cm)
|
|
Based on 2438 mm (96") carriage, Fusion coupler and (Since 2016)
|
Fusion pallet fork. |
|
Based on 2438 mm (96") carriage, Fusion coupler and (Since 2016)
|
The rated operating load mined by: |
|
Based on 2438 mm (96") carriage, Fusion coupler and (Since 2016)
|
for a loader equipped |
|
Based on 2438 mm (96") carriage, Fusion coupler and (Since 2016)
|
with a pallet fork is deter- |
|
Based on 2438 mm (96") carriage, Fusion coupler and (Since 2017)
|
Fusion pallet fork. |
|
Based on 2438 mm (96") carriage, Fusion coupler and (Since 2017)
|
The rated operating load mined by: |
|
Based on 2438 mm (96") carriage, Fusion coupler and (Since 2017)
|
for a loader equipped |
|
Based on 2438 mm (96") carriage, Fusion coupler and (Since 2017)
|
with a pallet fork is deter- |
|
Based on 2438 mm (96") carriage, Fusion coupler and (Since 2018)
|
Fusion pallet fork. |
|
Based on 2438 mm (96") carriage, Fusion coupler and (Since 2018)
|
The rated operating load mined by: |
|
Based on 2438 mm (96") carriage, Fusion coupler and (Since 2018)
|
for a loader equipped |
|
Based on 2438 mm (96") carriage, Fusion coupler and (Since 2018)
|
with a pallet fork is deter- |
|
Based on 2438 mm (96") carriage, Fusion coupler and (Since 2019)
|
Fusion pallet fork. |
|
Based on 2438 mm (96") carriage, Fusion coupler and (Since 2019)
|
The rated operating load mined by: |
|
Based on 2438 mm (96") carriage, Fusion coupler and (Since 2019)
|
for a loader equipped |
|
Based on 2438 mm (96") carriage, Fusion coupler and (Since 2019)
|
with a pallet fork is deter- |
|
Bore (Since 2015)
|
4 in (10 cm)
|
|
Bore (2016)
|
4 in (10 cm)
|
|
Bore (2017)
|
4 in (10 cm)
|
|
Bore (2018)
|
4 in (10 cm)
|
|
Bore (2019)
|
4 in (10 cm)
|
|
Breakout force (Since 2015)
|
33,811 lbf (150 kN)
|
|
Breakout force (Since 2015)
|
33,533 lbf (149 kN)
|
|
Breakout force (Since 2015)
|
36,262 lbf (161 kN)
|
|
Breakout force (Since 2015)
|
35,106 lbf (156 kN)
|
|
Breakout force (Since 2015)
|
34,827 lbf (155 kN)
|
|
Breakout force (Since 2015)
|
37,739 lbf (167 kN)
|
|
Breakout force (Since 2015)
|
38,050 lbf (169 kN)
|
|
Breakout force (Since 2015)
|
41,455 lbf (184 kN)
|
|
Breakout force (Since 2015)
|
37,288 lbf (165 kN)
|
|
Breakout force (Since 2015)
|
37,006 lbf (164 kN)
|
|
Breakout force (Since 2015)
|
40,247 lbf (179 kN)
|
|
Breakout force (Since 2015)
|
35,985 lbf (160 kN)
|
|
Breakout force (Since 2015)
|
35,705 lbf (158 kN)
|
|
Breakout force (Since 2015)
|
38,748 lbf (172 kN)
|
|
Breakout force (Since 2015)
|
44,633 lbf (198 kN)
|
|
Breakout force (Since 2015)
|
44,343 lbf (197 kN)
|
|
Breakout force (Since 2015)
|
48,847 lbf (217 kN)
|
|
Breakout force (Since 2015)
|
42,340 lbf (188 kN)
|
|
Breakout force (Since 2015)
|
42,054 lbf (187 kN)
|
|
Breakout force (Since 2015)
|
46,135 lbf (205 kN)
|
|
Breakout force (Since 2015)
|
40,745 lbf (181 kN)
|
|
Breakout force (Since 2015)
|
40,460 lbf (180 kN)
|
|
Breakout force (Since 2015)
|
44,264 lbf (197 kN)
|
|
Breakout force (Since 2015)
|
39,259 lbf (174 kN)
|
|
Breakout force (Since 2015)
|
38,975 lbf (173 kN)
|
|
Breakout force (Since 2015)
|
42,530 lbf (189 kN)
|
|
Breakout force (Since 2015)
|
38,019 lbf (169 kN)
|
|
Breakout force (Since 2015)
|
37,737 lbf (167 kN)
|
|
Breakout force (Since 2015)
|
41,092 lbf (182 kN)
|
|
Breakout force (Since 2015)
|
35,309 lbf (157 kN)
|
|
Breakout force (Since 2015)
|
35,029 lbf (155 kN)
|
|
Breakout force (Since 2015)
|
37,973 lbf (169 kN)
|
|
Breakout force (Since 2015)
|
36,707 lbf (163 kN)
|
|
Breakout force (Since 2015)
|
36,426 lbf (162 kN)
|
|
Breakout force (Since 2015)
|
39,578 lbf (176 kN)
|
|
Breakout force (Since 2015)
|
43,055 lbf (191 kN)
|
|
Breakout force (Since 2015)
|
42,767 lbf (190 kN)
|
|
Breakout force (Since 2015)
|
46,976 lbf (209 kN)
|
|
Breakout force (Since 2015)
|
45,434 lbf (202 kN)
|
|
Breakout force (Since 2015)
|
45,144 lbf (200 kN)
|
|
Breakout force (Since 2015)
|
49,798 lbf (221 kN)
|
|
Breakout force (Since 2015)
|
42,709 lbf (190 kN)
|
|
Breakout force (Since 2015)
|
42,422 lbf (188 kN)
|
|
Breakout force (Since 2015)
|
46,570 lbf (207 kN)
|
|
Breakout force (Since 2015)
|
40,706 lbf (181 kN)
|
|
Breakout force (Since 2015)
|
40,421 lbf (179 kN)
|
|
Breakout force (Since 2015)
|
44,216 lbf (196 kN)
|
|
Breakout force (Since 2015)
|
39,080 lbf (173 kN)
|
|
Breakout force (Since 2015)
|
38,797 lbf (172 kN)
|
|
Breakout force (Since 2015)
|
42,322 lbf (188 kN)
|
|
Breakout force (Since 2015)
|
38,333 lbf (170 kN)
|
|
Breakout force (Since 2015)
|
40,598 lbf (180 kN)
|
|
Breakout force (Since 2015)
|
40,313 lbf (179 kN)
|
|
Breakout force (Since 2015)
|
44,090 lbf (196 kN)
|
|
Breakout force (Since 2015)
|
38,754 lbf (172 kN)
|
|
Breakout force (Since 2015)
|
38,471 lbf (171 kN)
|
|
Breakout force (Since 2015)
|
41,942 lbf (186 kN)
|
|
Breakout force (Since 2015)
|
37,284 lbf (165 kN)
|
|
Breakout force (Since 2015)
|
37,003 lbf (164 kN)
|
|
Breakout force (Since 2015)
|
40,241 lbf (179 kN)
|
|
Breakout force (Since 2015)
|
36,598 lbf (162 kN)
|
|
Breakout force (Since 2015)
|
36,318 lbf (161 kN)
|
|
Breakout force (Since 2015)
|
39,451 lbf (175 kN)
|
|
Breakout force (Since 2015)
|
35,639 lbf (158 kN)
|
|
Breakout force (Since 2015)
|
35,359 lbf (157 kN)
|
|
Breakout force (Since 2015)
|
38,348 lbf (170 kN)
|
|
Breakout force (Since 2015)
|
34,442 lbf (153 kN)
|
|
Breakout force (Since 2015)
|
34,164 lbf (152 kN)
|
|
Breakout force (Since 2015)
|
36,981 lbf (164 kN)
|
|
Breakout force (Since 2015)
|
42,345 lbf (188 kN)
|
|
Breakout force (Since 2015)
|
42,059 lbf (187 kN)
|
|
Breakout force (Since 2015)
|
46,141 lbf (205 kN)
|
|
Breakout force (Since 2015)
|
40,263 lbf (179 kN)
|
|
Breakout force (Since 2015)
|
39,978 lbf (177 kN)
|
|
Breakout force (Since 2015)
|
43,698 lbf (194 kN)
|
|
Breakout force (Since 2015)
|
38,805 lbf (172 kN)
|
|
Breakout force (Since 2015)
|
38,522 lbf (171 kN)
|
|
Breakout force (Since 2015)
|
42,002 lbf (186 kN)
|
|
Breakout force (Since 2015)
|
37,446 lbf (166 kN)
|
|
Breakout force (Since 2015)
|
37,165 lbf (165 kN)
|
|
Breakout force (Since 2015)
|
40,429 lbf (179 kN)
|
|
Breakout force (Since 2015)
|
36,309 lbf (161 kN)
|
|
Breakout force (Since 2015)
|
36,029 lbf (160 kN)
|
|
Breakout force (Since 2015)
|
39,119 lbf (174 kN)
|
|
Breakout force (Since 2016)
|
45,434 lbf (202 kN)
|
|
Breakout force (Since 2016)
|
45,144 lbf (200 kN)
|
|
Breakout force (Since 2016)
|
49,798 lbf (221 kN)
|
|
Breakout force (Since 2016)
|
42,709 lbf (190 kN)
|
|
Breakout force (Since 2016)
|
42,422 lbf (188 kN)
|
|
Breakout force (Since 2016)
|
46,570 lbf (207 kN)
|
|
Breakout force (Since 2016)
|
40,706 lbf (181 kN)
|
|
Breakout force (Since 2016)
|
40,421 lbf (179 kN)
|
|
Breakout force (Since 2016)
|
44,216 lbf (196 kN)
|
|
Breakout force (Since 2016)
|
39,080 lbf (173 kN)
|
|
Breakout force (Since 2016)
|
38,797 lbf (172 kN)
|
|
Breakout force (Since 2016)
|
42,322 lbf (188 kN)
|
|
Breakout force (Since 2016)
|
38,333 lbf (170 kN)
|
|
Breakout force (Since 2016)
|
38,050 lbf (169 kN)
|
|
Breakout force (Since 2016)
|
41,455 lbf (184 kN)
|
|
Breakout force (Since 2016)
|
37,288 lbf (165 kN)
|
|
Breakout force (Since 2016)
|
37,006 lbf (164 kN)
|
|
Breakout force (Since 2016)
|
40,247 lbf (179 kN)
|
|
Breakout force (Since 2016)
|
35,985 lbf (160 kN)
|
|
Breakout force (Since 2016)
|
35,705 lbf (158 kN)
|
|
Breakout force (Since 2016)
|
38,748 lbf (172 kN)
|
|
Breakout force (Since 2016)
|
44,633 lbf (198 kN)
|
|
Breakout force (Since 2016)
|
44,343 lbf (197 kN)
|
|
Breakout force (Since 2016)
|
48,847 lbf (217 kN)
|
|
Breakout force (Since 2016)
|
42,340 lbf (188 kN)
|
|
Breakout force (Since 2016)
|
42,054 lbf (187 kN)
|
|
Breakout force (Since 2016)
|
46,135 lbf (205 kN)
|
|
Breakout force (Since 2016)
|
40,745 lbf (181 kN)
|
|
Breakout force (Since 2016)
|
40,460 lbf (180 kN)
|
|
Breakout force (Since 2016)
|
44,264 lbf (197 kN)
|
|
Breakout force (Since 2016)
|
39,259 lbf (174 kN)
|
|
Breakout force (Since 2016)
|
38,975 lbf (173 kN)
|
|
Breakout force (Since 2016)
|
42,530 lbf (189 kN)
|
|
Breakout force (Since 2016)
|
38,019 lbf (169 kN)
|
|
Breakout force (Since 2016)
|
37,737 lbf (167 kN)
|
|
Breakout force (Since 2016)
|
41,092 lbf (182 kN)
|
|
Breakout force (Since 2016)
|
35,309 lbf (157 kN)
|
|
Breakout force (Since 2016)
|
35,029 lbf (155 kN)
|
|
Breakout force (Since 2016)
|
37,973 lbf (169 kN)
|
|
Breakout force (Since 2016)
|
36,707 lbf (163 kN)
|
|
Breakout force (Since 2016)
|
36,426 lbf (162 kN)
|
|
Breakout force (Since 2016)
|
39,578 lbf (176 kN)
|
|
Breakout force (Since 2016)
|
43,055 lbf (191 kN)
|
|
Breakout force (Since 2016)
|
42,767 lbf (190 kN)
|
|
Breakout force (Since 2016)
|
46,976 lbf (209 kN)
|
|
Breakout force (Since 2016)
|
40,598 lbf (180 kN)
|
|
Breakout force (Since 2016)
|
40,313 lbf (179 kN)
|
|
Breakout force (Since 2016)
|
44,090 lbf (196 kN)
|
|
Breakout force (Since 2016)
|
38,754 lbf (172 kN)
|
|
Breakout force (Since 2016)
|
38,471 lbf (171 kN)
|
|
Breakout force (Since 2016)
|
41,942 lbf (186 kN)
|
|
Breakout force (Since 2016)
|
37,284 lbf (165 kN)
|
|
Breakout force (Since 2016)
|
37,003 lbf (164 kN)
|
|
Breakout force (Since 2016)
|
40,241 lbf (179 kN)
|
|
Breakout force (Since 2016)
|
36,598 lbf (162 kN)
|
|
Breakout force (Since 2016)
|
36,318 lbf (161 kN)
|
|
Breakout force (Since 2016)
|
39,451 lbf (175 kN)
|
|
Breakout force (Since 2016)
|
35,639 lbf (158 kN)
|
|
Breakout force (Since 2016)
|
35,359 lbf (157 kN)
|
|
Breakout force (Since 2016)
|
38,348 lbf (170 kN)
|
|
Breakout force (Since 2016)
|
34,442 lbf (153 kN)
|
|
Breakout force (Since 2016)
|
34,164 lbf (152 kN)
|
|
Breakout force (Since 2016)
|
36,981 lbf (164 kN)
|
|
Breakout force (Since 2016)
|
42,345 lbf (188 kN)
|
|
Breakout force (Since 2016)
|
42,059 lbf (187 kN)
|
|
Breakout force (Since 2016)
|
46,141 lbf (205 kN)
|
|
Breakout force (Since 2016)
|
40,263 lbf (179 kN)
|
|
Breakout force (Since 2016)
|
39,978 lbf (177 kN)
|
|
Breakout force (Since 2016)
|
43,698 lbf (194 kN)
|
|
Breakout force (Since 2016)
|
38,805 lbf (172 kN)
|
|
Breakout force (Since 2016)
|
38,522 lbf (171 kN)
|
|
Breakout force (Since 2016)
|
42,002 lbf (186 kN)
|
|
Breakout force (Since 2016)
|
37,446 lbf (166 kN)
|
|
Breakout force (Since 2016)
|
37,165 lbf (165 kN)
|
|
Breakout force (Since 2016)
|
40,429 lbf (179 kN)
|
|
Breakout force (Since 2016)
|
36,309 lbf (161 kN)
|
|
Breakout force (Since 2016)
|
36,029 lbf (160 kN)
|
|
Breakout force (Since 2016)
|
39,119 lbf (174 kN)
|
|
Breakout force (Since 2016)
|
33,811 lbf (150 kN)
|
|
Breakout force (Since 2016)
|
33,533 lbf (149 kN)
|
|
Breakout force (Since 2016)
|
36,262 lbf (161 kN)
|
|
Breakout force (Since 2016)
|
35,106 lbf (156 kN)
|
|
Breakout force (Since 2016)
|
34,827 lbf (155 kN)
|
|
Breakout force (Since 2016)
|
37,739 lbf (167 kN)
|
|
Breakout force (Since 2017)
|
45,434 lbf (202 kN)
|
|
Breakout force (Since 2017)
|
45,144 lbf (200 kN)
|
|
Breakout force (Since 2017)
|
49,798 lbf (221 kN)
|
|
Breakout force (Since 2017)
|
42,709 lbf (190 kN)
|
|
Breakout force (Since 2017)
|
42,422 lbf (188 kN)
|
|
Breakout force (Since 2017)
|
46,570 lbf (207 kN)
|
|
Breakout force (Since 2017)
|
40,706 lbf (181 kN)
|
|
Breakout force (Since 2017)
|
40,421 lbf (179 kN)
|
|
Breakout force (Since 2017)
|
44,216 lbf (196 kN)
|
|
Breakout force (Since 2017)
|
39,080 lbf (173 kN)
|
|
Breakout force (Since 2017)
|
38,797 lbf (172 kN)
|
|
Breakout force (Since 2017)
|
42,322 lbf (188 kN)
|
|
Breakout force (Since 2017)
|
38,333 lbf (170 kN)
|
|
Breakout force (Since 2017)
|
38,050 lbf (169 kN)
|
|
Breakout force (Since 2017)
|
41,455 lbf (184 kN)
|
|
Breakout force (Since 2017)
|
37,288 lbf (165 kN)
|
|
Breakout force (Since 2017)
|
35,106 lbf (156 kN)
|
|
Breakout force (Since 2017)
|
34,827 lbf (155 kN)
|
|
Breakout force (Since 2017)
|
37,739 lbf (167 kN)
|
|
Breakout force (Since 2017)
|
37,006 lbf (164 kN)
|
|
Breakout force (Since 2017)
|
40,247 lbf (179 kN)
|
|
Breakout force (Since 2017)
|
35,985 lbf (160 kN)
|
|
Breakout force (Since 2017)
|
35,705 lbf (158 kN)
|
|
Breakout force (Since 2017)
|
38,748 lbf (172 kN)
|
|
Breakout force (Since 2017)
|
44,633 lbf (198 kN)
|
|
Breakout force (Since 2017)
|
44,343 lbf (197 kN)
|
|
Breakout force (Since 2017)
|
48,847 lbf (217 kN)
|
|
Breakout force (Since 2017)
|
42,340 lbf (188 kN)
|
|
Breakout force (Since 2017)
|
42,054 lbf (187 kN)
|
|
Breakout force (Since 2017)
|
46,135 lbf (205 kN)
|
|
Breakout force (Since 2017)
|
40,745 lbf (181 kN)
|
|
Breakout force (Since 2017)
|
40,460 lbf (180 kN)
|
|
Breakout force (Since 2017)
|
44,264 lbf (197 kN)
|
|
Breakout force (Since 2017)
|
39,259 lbf (174 kN)
|
|
Breakout force (Since 2017)
|
38,975 lbf (173 kN)
|
|
Breakout force (Since 2017)
|
42,530 lbf (189 kN)
|
|
Breakout force (Since 2017)
|
38,019 lbf (169 kN)
|
|
Breakout force (Since 2017)
|
37,737 lbf (167 kN)
|
|
Breakout force (Since 2017)
|
41,092 lbf (182 kN)
|
|
Breakout force (Since 2017)
|
35,309 lbf (157 kN)
|
|
Breakout force (Since 2017)
|
35,029 lbf (155 kN)
|
|
Breakout force (Since 2017)
|
37,973 lbf (169 kN)
|
|
Breakout force (Since 2017)
|
36,707 lbf (163 kN)
|
|
Breakout force (Since 2017)
|
36,426 lbf (162 kN)
|
|
Breakout force (Since 2017)
|
39,578 lbf (176 kN)
|
|
Breakout force (Since 2017)
|
43,055 lbf (191 kN)
|
|
Breakout force (Since 2017)
|
42,767 lbf (190 kN)
|
|
Breakout force (Since 2017)
|
46,976 lbf (209 kN)
|
|
Breakout force (Since 2017)
|
40,598 lbf (180 kN)
|
|
Breakout force (Since 2017)
|
40,313 lbf (179 kN)
|
|
Breakout force (Since 2017)
|
44,090 lbf (196 kN)
|
|
Breakout force (Since 2017)
|
38,754 lbf (172 kN)
|
|
Breakout force (Since 2017)
|
38,471 lbf (171 kN)
|
|
Breakout force (Since 2017)
|
41,942 lbf (186 kN)
|
|
Breakout force (Since 2017)
|
37,284 lbf (165 kN)
|
|
Breakout force (Since 2017)
|
37,003 lbf (164 kN)
|
|
Breakout force (Since 2017)
|
40,241 lbf (179 kN)
|
|
Breakout force (Since 2017)
|
36,598 lbf (162 kN)
|
|
Breakout force (Since 2017)
|
36,318 lbf (161 kN)
|
|
Breakout force (Since 2017)
|
39,451 lbf (175 kN)
|
|
Breakout force (Since 2017)
|
35,639 lbf (158 kN)
|
|
Breakout force (Since 2017)
|
35,359 lbf (157 kN)
|
|
Breakout force (Since 2017)
|
38,348 lbf (170 kN)
|
|
Breakout force (Since 2017)
|
34,442 lbf (153 kN)
|
|
Breakout force (Since 2017)
|
34,164 lbf (152 kN)
|
|
Breakout force (Since 2017)
|
36,981 lbf (164 kN)
|
|
Breakout force (Since 2017)
|
42,345 lbf (188 kN)
|
|
Breakout force (Since 2017)
|
42,059 lbf (187 kN)
|
|
Breakout force (Since 2017)
|
46,141 lbf (205 kN)
|
|
Breakout force (Since 2017)
|
40,263 lbf (179 kN)
|
|
Breakout force (Since 2017)
|
39,978 lbf (177 kN)
|
|
Breakout force (Since 2017)
|
43,698 lbf (194 kN)
|
|
Breakout force (Since 2017)
|
38,805 lbf (172 kN)
|
|
Breakout force (Since 2017)
|
38,522 lbf (171 kN)
|
|
Breakout force (Since 2017)
|
42,002 lbf (186 kN)
|
|
Breakout force (Since 2017)
|
37,446 lbf (166 kN)
|
|
Breakout force (Since 2017)
|
37,165 lbf (165 kN)
|
|
Breakout force (Since 2017)
|
40,429 lbf (179 kN)
|
|
Breakout force (Since 2017)
|
36,309 lbf (161 kN)
|
|
Breakout force (Since 2017)
|
36,029 lbf (160 kN)
|
|
Breakout force (Since 2017)
|
39,119 lbf (174 kN)
|
|
Breakout force (Since 2017)
|
33,811 lbf (150 kN)
|
|
Breakout force (Since 2017)
|
33,533 lbf (149 kN)
|
|
Breakout force (Since 2017)
|
36,262 lbf (161 kN)
|
|
Breakout force (Since 2018)
|
45,434 lbf (202 kN)
|
|
Breakout force (Since 2018)
|
45,144 lbf (200 kN)
|
|
Breakout force (Since 2018)
|
49,798 lbf (221 kN)
|
|
Breakout force (Since 2018)
|
42,709 lbf (190 kN)
|
|
Breakout force (Since 2018)
|
42,422 lbf (188 kN)
|
|
Breakout force (Since 2018)
|
46,570 lbf (207 kN)
|
|
Breakout force (Since 2018)
|
40,706 lbf (181 kN)
|
|
Breakout force (Since 2018)
|
40,421 lbf (179 kN)
|
|
Breakout force (Since 2018)
|
44,216 lbf (196 kN)
|
|
Breakout force (Since 2018)
|
39,080 lbf (173 kN)
|
|
Breakout force (Since 2018)
|
38,797 lbf (172 kN)
|
|
Breakout force (Since 2018)
|
42,322 lbf (188 kN)
|
|
Breakout force (Since 2018)
|
38,333 lbf (170 kN)
|
|
Breakout force (Since 2018)
|
33,811 lbf (150 kN)
|
|
Breakout force (Since 2018)
|
33,533 lbf (149 kN)
|
|
Breakout force (Since 2018)
|
36,262 lbf (161 kN)
|
|
Breakout force (Since 2018)
|
35,106 lbf (156 kN)
|
|
Breakout force (Since 2018)
|
34,827 lbf (155 kN)
|
|
Breakout force (Since 2018)
|
37,739 lbf (167 kN)
|
|
Breakout force (Since 2018)
|
38,050 lbf (169 kN)
|
|
Breakout force (Since 2018)
|
41,455 lbf (184 kN)
|
|
Breakout force (Since 2018)
|
37,288 lbf (165 kN)
|
|
Breakout force (Since 2018)
|
37,006 lbf (164 kN)
|
|
Breakout force (Since 2018)
|
40,247 lbf (179 kN)
|
|
Breakout force (Since 2018)
|
35,985 lbf (160 kN)
|
|
Breakout force (Since 2018)
|
35,705 lbf (158 kN)
|
|
Breakout force (Since 2018)
|
38,748 lbf (172 kN)
|
|
Breakout force (Since 2018)
|
44,633 lbf (198 kN)
|
|
Breakout force (Since 2018)
|
44,343 lbf (197 kN)
|
|
Breakout force (Since 2018)
|
48,847 lbf (217 kN)
|
|
Breakout force (Since 2018)
|
42,340 lbf (188 kN)
|
|
Breakout force (Since 2018)
|
42,054 lbf (187 kN)
|
|
Breakout force (Since 2018)
|
46,135 lbf (205 kN)
|
|
Breakout force (Since 2018)
|
40,745 lbf (181 kN)
|
|
Breakout force (Since 2018)
|
40,460 lbf (180 kN)
|
|
Breakout force (Since 2018)
|
44,264 lbf (197 kN)
|
|
Breakout force (Since 2018)
|
39,259 lbf (174 kN)
|
|
Breakout force (Since 2018)
|
38,975 lbf (173 kN)
|
|
Breakout force (Since 2018)
|
42,530 lbf (189 kN)
|
|
Breakout force (Since 2018)
|
38,019 lbf (169 kN)
|
|
Breakout force (Since 2018)
|
37,737 lbf (167 kN)
|
|
Breakout force (Since 2018)
|
41,092 lbf (182 kN)
|
|
Breakout force (Since 2018)
|
35,309 lbf (157 kN)
|
|
Breakout force (Since 2018)
|
35,029 lbf (155 kN)
|
|
Breakout force (Since 2018)
|
37,973 lbf (169 kN)
|
|
Breakout force (Since 2018)
|
36,707 lbf (163 kN)
|
|
Breakout force (Since 2018)
|
36,426 lbf (162 kN)
|
|
Breakout force (Since 2018)
|
39,578 lbf (176 kN)
|
|
Breakout force (Since 2018)
|
43,055 lbf (191 kN)
|
|
Breakout force (Since 2018)
|
42,767 lbf (190 kN)
|
|
Breakout force (Since 2018)
|
46,976 lbf (209 kN)
|
|
Breakout force (Since 2018)
|
40,598 lbf (180 kN)
|
|
Breakout force (Since 2018)
|
40,313 lbf (179 kN)
|
|
Breakout force (Since 2018)
|
44,090 lbf (196 kN)
|
|
Breakout force (Since 2018)
|
38,754 lbf (172 kN)
|
|
Breakout force (Since 2018)
|
38,471 lbf (171 kN)
|
|
Breakout force (Since 2018)
|
41,942 lbf (186 kN)
|
|
Breakout force (Since 2018)
|
37,284 lbf (165 kN)
|
|
Breakout force (Since 2018)
|
37,003 lbf (164 kN)
|
|
Breakout force (Since 2018)
|
40,241 lbf (179 kN)
|
|
Breakout force (Since 2018)
|
36,598 lbf (162 kN)
|
|
Breakout force (Since 2018)
|
36,318 lbf (161 kN)
|
|
Breakout force (Since 2018)
|
39,451 lbf (175 kN)
|
|
Breakout force (Since 2018)
|
35,639 lbf (158 kN)
|
|
Breakout force (Since 2018)
|
35,359 lbf (157 kN)
|
|
Breakout force (Since 2018)
|
38,348 lbf (170 kN)
|
|
Breakout force (Since 2018)
|
34,442 lbf (153 kN)
|
|
Breakout force (Since 2018)
|
34,164 lbf (152 kN)
|
|
Breakout force (Since 2018)
|
36,981 lbf (164 kN)
|
|
Breakout force (Since 2018)
|
42,345 lbf (188 kN)
|
|
Breakout force (Since 2018)
|
42,059 lbf (187 kN)
|
|
Breakout force (Since 2018)
|
46,141 lbf (205 kN)
|
|
Breakout force (Since 2018)
|
40,263 lbf (179 kN)
|
|
Breakout force (Since 2018)
|
39,978 lbf (177 kN)
|
|
Breakout force (Since 2018)
|
43,698 lbf (194 kN)
|
|
Breakout force (Since 2018)
|
38,805 lbf (172 kN)
|
|
Breakout force (Since 2018)
|
38,522 lbf (171 kN)
|
|
Breakout force (Since 2018)
|
42,002 lbf (186 kN)
|
|
Breakout force (Since 2018)
|
37,446 lbf (166 kN)
|
|
Breakout force (Since 2018)
|
37,165 lbf (165 kN)
|
|
Breakout force (Since 2018)
|
40,429 lbf (179 kN)
|
|
Breakout force (Since 2018)
|
36,309 lbf (161 kN)
|
|
Breakout force (Since 2018)
|
36,029 lbf (160 kN)
|
|
Breakout force (Since 2018)
|
39,119 lbf (174 kN)
|
|
Breakout force (Since 2019)
|
39,578 lbf (176 kN)
|
|
Breakout force (Since 2019)
|
43,055 lbf (191 kN)
|
|
Breakout force (Since 2019)
|
42,767 lbf (190 kN)
|
|
Breakout force (Since 2019)
|
46,976 lbf (209 kN)
|
|
Breakout force (Since 2019)
|
40,598 lbf (180 kN)
|
|
Breakout force (Since 2019)
|
40,313 lbf (179 kN)
|
|
Breakout force (Since 2019)
|
44,090 lbf (196 kN)
|
|
Breakout force (Since 2019)
|
38,754 lbf (172 kN)
|
|
Breakout force (Since 2019)
|
38,471 lbf (171 kN)
|
|
Breakout force (Since 2019)
|
41,942 lbf (186 kN)
|
|
Breakout force (Since 2019)
|
37,284 lbf (165 kN)
|
|
Breakout force (Since 2019)
|
37,003 lbf (164 kN)
|
|
Breakout force (Since 2019)
|
40,241 lbf (179 kN)
|
|
Breakout force (Since 2019)
|
36,598 lbf (162 kN)
|
|
Breakout force (Since 2019)
|
36,318 lbf (161 kN)
|
|
Breakout force (Since 2019)
|
39,451 lbf (175 kN)
|
|
Breakout force (Since 2019)
|
35,639 lbf (158 kN)
|
|
Breakout force (Since 2019)
|
35,359 lbf (157 kN)
|
|
Breakout force (Since 2019)
|
38,348 lbf (170 kN)
|
|
Breakout force (Since 2019)
|
34,442 lbf (153 kN)
|
|
Breakout force (Since 2019)
|
34,164 lbf (152 kN)
|
|
Breakout force (Since 2019)
|
36,981 lbf (164 kN)
|
|
Breakout force (Since 2019)
|
42,345 lbf (188 kN)
|
|
Breakout force (Since 2019)
|
42,059 lbf (187 kN)
|
|
Breakout force (Since 2019)
|
46,141 lbf (205 kN)
|
|
Breakout force (Since 2019)
|
40,263 lbf (179 kN)
|
|
Breakout force (Since 2019)
|
39,978 lbf (177 kN)
|
|
Breakout force (Since 2019)
|
43,698 lbf (194 kN)
|
|
Breakout force (Since 2019)
|
38,805 lbf (172 kN)
|
|
Breakout force (Since 2019)
|
38,522 lbf (171 kN)
|
|
Breakout force (Since 2019)
|
42,002 lbf (186 kN)
|
|
Breakout force (Since 2019)
|
37,446 lbf (166 kN)
|
|
Breakout force (Since 2019)
|
37,165 lbf (165 kN)
|
|
Breakout force (Since 2019)
|
45,434 lbf (202 kN)
|
|
Breakout force (Since 2019)
|
45,144 lbf (200 kN)
|
|
Breakout force (Since 2019)
|
49,798 lbf (221 kN)
|
|
Breakout force (Since 2019)
|
42,709 lbf (190 kN)
|
|
Breakout force (Since 2019)
|
42,422 lbf (188 kN)
|
|
Breakout force (Since 2019)
|
46,570 lbf (207 kN)
|
|
Breakout force (Since 2019)
|
40,706 lbf (181 kN)
|
|
Breakout force (Since 2019)
|
40,421 lbf (179 kN)
|
|
Breakout force (Since 2019)
|
44,216 lbf (196 kN)
|
|
Breakout force (Since 2019)
|
39,080 lbf (173 kN)
|
|
Breakout force (Since 2019)
|
40,429 lbf (179 kN)
|
|
Breakout force (Since 2019)
|
36,309 lbf (161 kN)
|
|
Breakout force (Since 2019)
|
36,029 lbf (160 kN)
|
|
Breakout force (Since 2019)
|
39,119 lbf (174 kN)
|
|
Breakout force (Since 2019)
|
33,811 lbf (150 kN)
|
|
Breakout force (Since 2019)
|
33,533 lbf (149 kN)
|
|
Breakout force (Since 2019)
|
36,262 lbf (161 kN)
|
|
Breakout force (Since 2019)
|
35,106 lbf (156 kN)
|
|
Breakout force (Since 2019)
|
34,827 lbf (155 kN)
|
|
Breakout force (Since 2019)
|
37,739 lbf (167 kN)
|
|
Breakout force (Since 2019)
|
38,797 lbf (172 kN)
|
|
Breakout force (Since 2019)
|
42,322 lbf (188 kN)
|
|
Breakout force (Since 2019)
|
38,333 lbf (170 kN)
|
|
Breakout force (Since 2019)
|
38,050 lbf (169 kN)
|
|
Breakout force (Since 2019)
|
41,455 lbf (184 kN)
|
|
Breakout force (Since 2019)
|
37,288 lbf (165 kN)
|
|
Breakout force (Since 2019)
|
37,006 lbf (164 kN)
|
|
Breakout force (Since 2019)
|
40,247 lbf (179 kN)
|
|
Breakout force (Since 2019)
|
35,985 lbf (160 kN)
|
|
Breakout force (Since 2019)
|
35,705 lbf (158 kN)
|
|
Breakout force (Since 2019)
|
38,748 lbf (172 kN)
|
|
Breakout force (Since 2019)
|
44,633 lbf (198 kN)
|
|
Breakout force (Since 2019)
|
44,343 lbf (197 kN)
|
|
Breakout force (Since 2019)
|
48,847 lbf (217 kN)
|
|
Breakout force (Since 2019)
|
42,340 lbf (188 kN)
|
|
Breakout force (Since 2019)
|
42,054 lbf (187 kN)
|
|
Breakout force (Since 2019)
|
46,135 lbf (205 kN)
|
|
Breakout force (Since 2019)
|
40,745 lbf (181 kN)
|
|
Breakout force (Since 2019)
|
40,460 lbf (180 kN)
|
|
Breakout force (Since 2019)
|
44,264 lbf (197 kN)
|
|
Breakout force (Since 2019)
|
39,259 lbf (174 kN)
|
|
Breakout force (Since 2019)
|
38,975 lbf (173 kN)
|
|
Breakout force (Since 2019)
|
42,530 lbf (189 kN)
|
|
Breakout force (Since 2019)
|
38,019 lbf (169 kN)
|
|
Breakout force (Since 2019)
|
37,737 lbf (167 kN)
|
|
Breakout force (Since 2019)
|
41,092 lbf (182 kN)
|
|
Breakout force (Since 2019)
|
35,309 lbf (157 kN)
|
|
Breakout force (Since 2019)
|
35,029 lbf (155 kN)
|
|
Breakout force (Since 2019)
|
37,973 lbf (169 kN)
|
|
Breakout force (Since 2019)
|
36,707 lbf (163 kN)
|
|
Breakout force (Since 2019)
|
36,426 lbf (162 kN)
|
|
Bucket Capacity (Since 2016)
|
4 - 5 cu yd (3 - 4 cu m)
|
|
Bucket Capacity (Since 2016)
|
3.3 - 12.0 |
|
Bucket Capacity (Since 2017)
|
3.3 - 12.0 (2.5 - 9.2) |
|
Bucket Capacity (Since 2017)
|
4 - 5 cu yd (3 - 4 cu m)
|
|
Bucket Capacity (2018)
|
4 - 5 cu yd (3 - 4 cu m)
|
|
Bucket Capacity (2019)
|
4 - 5 cu yd (3 - 4 cu m)
|
|
Bucket Capacity (Since 2019)
|
3.3 - 12.0 (2.5 - 9.2) |
|
Bucket Capacity (2020)
|
3.3 - 12.0 (2.5 - 9.2) |
|
Bucket Capacity (2021)
|
3.3 - 12.0 (2.5 - 9.2) |
|
Bucket Capacity (2022)
|
3.3 - 12.0 (2.5 - 9.2) |
|
Bucket Capacity (2023)
|
3.3 - 12.0 (2.5 - 9.2) |
|
Bucket Weight (Since 2016)
|
3,014 - 3,600 lbs (1,367 - 1,633 kg)
|
|
Bucket Weight (2017)
|
3,014 - 3,600 lbs (1,367 - 1,633 kg)
|
|
Bucket Weight (2018)
|
3,014 - 3,600 lbs (1,367 - 1,633 kg)
|
|
Bucket Weight (2019)
|
3,014 - 3,600 lbs (1,367 - 1,633 kg)
|
|
Bucket Width (Since 2016)
|
114 in (290 cm)
|
|
Bucket Width (2017)
|
114 in (290 cm)
|
|
Bucket Width (2018)
|
114 in (290 cm)
|
|
Bucket Width (2019)
|
114 in (290 cm)
|
|
C Height to top of ROPS (Since 2015)
|
136 in (345 cm)
|
|
C Height to top of ROPS (2016)
|
136 in (345 cm)
|
|
C Height to top of ROPS (2017)
|
136 in (345 cm)
|
|
C Height to top of ROPS (2018)
|
136 in (345 cm)
|
|
C Height to top of ROPS (2019)
|
136 in (345 cm)
|
|
Capacity - 110% (Since 2015)
|
4 cu yd (3 cu m)
|
|
Capacity - 110% (Since 2015)
|
4 cu yd (3 cu m)
|
|
Capacity - 110% (Since 2015)
|
4 cu yd (3 cu m)
|
|
Capacity - 110% (Since 2015)
|
4 cu yd (3 cu m)
|
|
Capacity - 110% (Since 2015)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2015)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2015)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2015)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2015)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2016)
|
4 cu yd (3 cu m)
|
|
Capacity - 110% (Since 2016)
|
4 cu yd (3 cu m)
|
|
Capacity - 110% (Since 2016)
|
4 cu yd (3 cu m)
|
|
Capacity - 110% (Since 2016)
|
4 cu yd (3 cu m)
|
|
Capacity - 110% (Since 2016)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2016)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2016)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2016)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2016)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2017)
|
4 cu yd (3 cu m)
|
|
Capacity - 110% (Since 2017)
|
4 cu yd (3 cu m)
|
|
Capacity - 110% (Since 2017)
|
4 cu yd (3 cu m)
|
|
Capacity - 110% (Since 2017)
|
4 cu yd (3 cu m)
|
|
Capacity - 110% (Since 2017)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2017)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2017)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2017)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2017)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2018)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2018)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2018)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2018)
|
4 cu yd (3 cu m)
|
|
Capacity - 110% (Since 2018)
|
4 cu yd (3 cu m)
|
|
Capacity - 110% (Since 2018)
|
4 cu yd (3 cu m)
|
|
Capacity - 110% (Since 2018)
|
4 cu yd (3 cu m)
|
|
Capacity - 110% (Since 2018)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2018)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (2019)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2019)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2019)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2019)
|
5 cu yd (4 cu m)
|
|
Capacity - 110% (Since 2019)
|
4 cu yd (3 cu m)
|
|
Capacity - 110% (Since 2019)
|
4 cu yd (3 cu m)
|
|
Capacity - 110% (Since 2019)
|
4 cu yd (3 cu m)
|
|
Capacity - 110% (Since 2019)
|
4 cu yd (3 cu m)
|
|
Capacity - 110% (Since 2019)
|
5 cu yd (4 cu m)
|
|
Capacity - rated (Since 2015)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2015)
|
5 cu yd (4 cu m)
|
|
Capacity - rated (Since 2015)
|
5 cu yd (4 cu m)
|
|
Capacity - rated (Since 2015)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2015)
|
3 cu yd (3 cu m)
|
|
Capacity - rated (Since 2015)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2015)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2015)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2015)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2016)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2016)
|
3 cu yd (3 cu m)
|
|
Capacity - rated (Since 2016)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2016)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2016)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2016)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2016)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2016)
|
5 cu yd (4 cu m)
|
|
Capacity - rated (Since 2016)
|
5 cu yd (4 cu m)
|
|
Capacity - rated (Since 2017)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2017)
|
3 cu yd (3 cu m)
|
|
Capacity - rated (Since 2017)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2017)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2017)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2017)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2017)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2017)
|
5 cu yd (4 cu m)
|
|
Capacity - rated (Since 2017)
|
5 cu yd (4 cu m)
|
|
Capacity - rated (Since 2018)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2018)
|
3 cu yd (3 cu m)
|
|
Capacity - rated (Since 2018)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2018)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2018)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2018)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2018)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2018)
|
5 cu yd (4 cu m)
|
|
Capacity - rated (Since 2018)
|
5 cu yd (4 cu m)
|
|
Capacity - rated (Since 2019)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2019)
|
3 cu yd (3 cu m)
|
|
Capacity - rated (Since 2019)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2019)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2019)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2019)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2019)
|
4 cu yd (3 cu m)
|
|
Capacity - rated (Since 2019)
|
5 cu yd (4 cu m)
|
|
Capacity - rated (Since 2019)
|
5 cu yd (4 cu m)
|
|
configuration: L3 Michelin XHA tires, air conditioning, (Since 2016)
|
ride control, power |
|
configuration: L3 Michelin XHA tires, air conditioning, (Since 2016)
|
of full turn static tipping |
|
configuration: L3 Michelin XHA tires, air conditioning, (Since 2016)
|
load on rough terrain or |
|
configuration: L3 Michelin XHA tires, air conditioning, (Since 2017)
|
ride control, power |
|
configuration: L3 Michelin XHA tires, air conditioning, (Since 2017)
|
of full turn static tipping |
|
configuration: L3 Michelin XHA tires, air conditioning, (Since 2017)
|
load on rough terrain or |
|
configuration: L3 Michelin XHA tires, air conditioning, (Since 2018)
|
ride control, power |
|
configuration: L3 Michelin XHA tires, air conditioning, (Since 2018)
|
of full turn static tipping |
|
configuration: L3 Michelin XHA tires, air conditioning, (Since 2018)
|
load on rough terrain or |
|
configuration: L3 Michelin XHA tires, air conditioning, (Since 2019)
|
ride control, power |
|
configuration: L3 Michelin XHA tires, air conditioning, (Since 2019)
|
of full turn static tipping |
|
configuration: L3 Michelin XHA tires, air conditioning, (Since 2019)
|
load on rough terrain or |
|
D - Minimum Opening (Since 2017)
|
53 in (135 cm)
|
|
D - Minimum Opening (Since 2017)
|
17 in (43 cm)
|
|
D - Minimum Opening (Since 2018)
|
53 in (135 cm)
|
|
D - Minimum Opening (Since 2018)
|
17 in (43 cm)
|
|
D - Minimum Opening (Since 2019)
|
53 in (135 cm)
|
|
D - Minimum Opening (Since 2019)
|
17 in (43 cm)
|
|
D Hinge pin height at carry position (Since 2015)
|
26 in (66 cm)
|
|
D Hinge pin height at carry position (2016)
|
26 in (66 cm)
|
|
D Hinge pin height at carry position (2017)
|
26 in (66 cm)
|
|
D Hinge pin height at carry position (2018)
|
26 in (66 cm)
|
|
D Hinge pin height at carry position (2019)
|
26 in (66 cm)
|
|
DEF Tank Capacity (Since 2015)
|
3 US gal (11 L)
|
|
DEF Tank Capacity (2016)
|
3 US gal (11 L)
|
|
DEF Tank Capacity (Since 2017)
|
4 US gal (16 L)
|
|
DEF Tank Capacity (2018)
|
4 US gal (16 L)
|
|
DEF Tank Capacity (2019)
|
4 US gal (16 L)
|
|
Digging depth (Since 2015)
|
4 in (9 cm)
|
|
Digging depth (Since 2015)
|
2 in (6 cm)
|
|
Digging depth (Since 2015)
|
0 in |
|
Digging depth (Since 2016)
|
4 in (9 cm)
|
|
Digging depth (Since 2016)
|
2 in (6 cm)
|
|
Digging depth (Since 2016)
|
0 in |
|
Digging depth (Since 2017)
|
4 in (9 cm)
|
|
Digging depth (Since 2017)
|
2 in (6 cm)
|
|
Digging depth (Since 2017)
|
0 in |
|
Digging depth (Since 2018)
|
4 in (9 cm)
|
|
Digging depth (Since 2018)
|
2 in (6 cm)
|
|
Digging depth (Since 2018)
|
0 in |
|
Digging depth (Since 2019)
|
4 in (9 cm)
|
|
Digging depth (Since 2019)
|
2 in (6 cm)
|
|
Digging depth (Since 2019)
|
0 in |
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
117 in (297 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
112 in (284 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
114 in (290 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
19 in (48 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
110 in (279 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
113 in (287 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
107 in (272 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
106 in (269 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
107 in (272 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
110 in (279 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
105 in (267 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
109 in (277 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
104 in (264 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
103 in (262 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
102 in (259 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
110 in (279 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
105 in (267 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
104 in (264 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
103 in (262 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
102 in (259 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
104 in (264 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
99 in (251 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
105 in (267 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
100 in (254 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
109 in (277 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
105 in (267 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
103 in (262 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
114 in (290 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
109 in (277 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
112 in (284 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
107 in (272 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
106 in (269 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
109 in (277 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
104 in (264 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
103 in (262 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
106 in (269 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
101 in (257 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
107 in (272 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
102 in (259 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
115 in (292 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2015)
|
113 in (287 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
105 in (267 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
109 in (277 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
104 in (264 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
103 in (262 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
102 in (259 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
110 in (279 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
105 in (267 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
104 in (264 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
103 in (262 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
102 in (259 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
104 in (264 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
99 in (251 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
105 in (267 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
100 in (254 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
117 in (297 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
112 in (284 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
114 in (290 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
19 in (48 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
110 in (279 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
113 in (287 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
107 in (272 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
106 in (269 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
109 in (277 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
105 in (267 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
103 in (262 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
114 in (290 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
109 in (277 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
112 in (284 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
107 in (272 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
106 in (269 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
109 in (277 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
104 in (264 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
103 in (262 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
106 in (269 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
101 in (257 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
107 in (272 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
102 in (259 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
115 in (292 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
113 in (287 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
107 in (272 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2016)
|
110 in (279 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
117 in (297 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
112 in (284 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
114 in (290 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
19 in (48 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
110 in (279 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
113 in (287 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
107 in (272 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
106 in (269 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
109 in (277 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
105 in (267 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
103 in (262 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
114 in (290 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
109 in (277 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
112 in (284 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
107 in (272 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
106 in (269 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
109 in (277 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
104 in (264 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
103 in (262 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
106 in (269 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
101 in (257 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
107 in (272 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
102 in (259 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
115 in (292 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
113 in (287 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
107 in (272 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
110 in (279 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
105 in (267 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
109 in (277 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
104 in (264 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
103 in (262 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
102 in (259 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
110 in (279 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
105 in (267 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
104 in (264 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
103 in (262 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
102 in (259 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
104 in (264 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
99 in (251 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
105 in (267 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2017)
|
100 in (254 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
117 in (297 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
112 in (284 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
114 in (290 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
19 in (48 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
110 in (279 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
113 in (287 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
107 in (272 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
106 in (269 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
99 in (251 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
105 in (267 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
100 in (254 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
109 in (277 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
105 in (267 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
103 in (262 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
114 in (290 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
109 in (277 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
112 in (284 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
107 in (272 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
106 in (269 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
109 in (277 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
104 in (264 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
103 in (262 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
106 in (269 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
101 in (257 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
107 in (272 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
102 in (259 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
115 in (292 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
113 in (287 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
107 in (272 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
110 in (279 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
105 in (267 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
109 in (277 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
104 in (264 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
103 in (262 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
102 in (259 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
110 in (279 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
105 in (267 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
104 in (264 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
103 in (262 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
102 in (259 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2018)
|
104 in (264 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
115 in (292 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
113 in (287 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
107 in (272 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
110 in (279 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
105 in (267 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
109 in (277 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
104 in (264 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
103 in (262 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
102 in (259 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
110 in (279 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
105 in (267 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
104 in (264 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
103 in (262 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
117 in (297 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
112 in (284 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
114 in (290 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
19 in (48 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
110 in (279 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
113 in (287 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
107 in (272 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
106 in (269 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
109 in (277 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
105 in (267 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
103 in (262 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
114 in (290 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
109 in (277 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
112 in (284 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
107 in (272 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
111 in (282 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
106 in (269 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
109 in (277 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
104 in (264 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
108 in (274 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
103 in (262 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
106 in (269 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
101 in (257 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
107 in (272 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
102 in (259 cm)
|
|
Dump clearance at maximum lift and 45° discharge (2019)
|
102 in (259 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
104 in (264 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
99 in (251 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
105 in (267 cm)
|
|
Dump clearance at maximum lift and 45° discharge (Since 2019)
|
100 in (254 cm)
|
|
E - Maximum Clamp Opening (Since 2017)
|
110 in (279 cm)
|
|
E - Maximum Clamp Opening (Since 2017)
|
107 in (272 cm)
|
|
E - Maximum Clamp Opening (Since 2018)
|
110 in (279 cm)
|
|
E - Maximum Clamp Opening (Since 2018)
|
107 in (272 cm)
|
|
E - Maximum Clamp Opening (Since 2019)
|
110 in (279 cm)
|
|
E - Maximum Clamp Opening (Since 2019)
|
107 in (272 cm)
|
|
E Dump clearance at full lift and - 45° discharge angle (Since 2015)
|
113 in (287 cm)
|
|
E Dump clearance at full lift and - 45° discharge angle (2016)
|
113 in (287 cm)
|
|
E Dump clearance at full lift and - 45° discharge angle (2017)
|
113 in (287 cm)
|
|
E Dump clearance at full lift and - 45° discharge angle (2018)
|
113 in (287 cm)
|
|
E Dump clearance at full lift and - 45° discharge angle (2019)
|
113 in (287 cm)
|
|
E Dump clearance at full lift and - F Hinge pin height at full lift (Since 2015)
|
158 in (401 cm)
|
|
E Dump clearance at full lift and - F Hinge pin height at full lift (2016)
|
158 in (401 cm)
|
|
E Dump clearance at full lift and - F Hinge pin height at full lift (2017)
|
158 in (401 cm)
|
|
E Dump clearance at full lift and - F Hinge pin height at full lift (2018)
|
158 in (401 cm)
|
|
E Dump clearance at full lift and - F Hinge pin height at full lift (2019)
|
158 in (401 cm)
|
|
Emission Standards (Since 2017)
|
Tier 4 Final |
|
Emission Standards (Since 2017)
|
Tier 3 equivalent |
|
Emission Standards (Since 2018)
|
Tier 4 Final |
|
Emission Standards (Since 2018)
|
Tier 3 equivalent |
|
Emission Standards (Since 2019)
|
Tier 4 Final |
|
Emission Standards (Since 2019)
|
Tier 3 equivalent |
|
Engine Displacement (Since 2015)
|
428 cu in (7,010 cu cm)
|
|
Engine Displacement (2016)
|
428 cu in (7,010 cu cm)
|
|
Engine Displacement (2017)
|
428 cu in (7,010 cu cm)
|
|
Engine Displacement (2018)
|
428 cu in (7,010 cu cm)
|
|
Engine Displacement (2019)
|
428 cu in (7,010 cu cm)
|
|
Engine Model (Since 2015)
|
C7.1 ACERT |
|
Engine Model (2016)
|
C7.1 ACERT |
|
Engine Model (2017)
|
C7.1 ACERT |
|
Engine Model (2018)
|
C7.1 ACERT |
|
Engine Model (2019)
|
C7.1 ACERT |
|
Engine Power (Since 2016)
|
230 hp (172 kw)
|
|
Engine Power (2017)
|
230 hp (172 kw)
|
|
Engine Power (2019)
|
230 hp (172 kw)
|
|
Engine Power (2020)
|
230 hp (172 kw)
|
|
Engine Power (2021)
|
230 hp (172 kw)
|
|
Engine Power (2022)
|
230 hp (172 kw)
|
|
Engine Power (2023)
|
230 hp (172 kw)
|
|
Engine type (Since 2016)
|
Cat C7.1 ACERT |
|
Engine type (2017)
|
Cat C7.1 ACERT |
|
Engine type (2019)
|
Cat C7.1 ACERT |
|
Engine type (Since 2020)
|
Cat C7.1 |
|
Engine type (2021)
|
Cat C7.1 |
|
Engine type (2022)
|
Cat C7.1 |
|
Engine type (2023)
|
Cat C7.1 |
|
Fuel Tank Capacity (Since 2015)
|
36 US gal (135 L)
|
|
Fuel Tank Capacity (2016)
|
36 US gal (135 L)
|
|
Fuel Tank Capacity (Since 2017)
|
73 US gal (275 L)
|
|
Fuel Tank Capacity (2018)
|
73 US gal (275 L)
|
|
Fuel Tank Capacity (2019)
|
73 US gal (275 L)
|
|
G Maximum overall height (Since 2015)
|
218 in (554 cm)
|
|
G Maximum overall height (2016)
|
218 in (554 cm)
|
|
G Maximum overall height (2017)
|
218 in (554 cm)
|
|
G Maximum overall height (2018)
|
218 in (554 cm)
|
|
G Maximum overall height (2019)
|
218 in (554 cm)
|
|
Ground Clearance (Since 2015)
|
15 in (38 cm)
|
|
Ground Clearance (2016)
|
15 in (38 cm)
|
|
Ground Clearance (2017)
|
15 in (38 cm)
|
|
Ground Clearance (2018)
|
15 in (38 cm)
|
|
Ground Clearance (2019)
|
15 in (38 cm)
|
|
Ground clearance (std. tires) (Since 2015)
|
15 in (38 cm)
|
|
Ground clearance (std. tires) (2016)
|
15 in (38 cm)
|
|
Ground clearance (std. tires) (2017)
|
15 in (38 cm)
|
|
Ground clearance (std. tires) (2018)
|
15 in (38 cm)
|
|
Ground clearance (std. tires) (2019)
|
15 in (38 cm)
|
|
Group Number - Logging Arrangement (Since 2017)
|
377 - 722 |
|
Group Number - Logging Arrangement (Since 2017)
|
374 - 7,148 |
|
Group Number - Logging Arrangement (Since 2018)
|
377 - 722 |
|
Group Number - Logging Arrangement (Since 2018)
|
374 - 7,148 |
|
Group Number - Logging Arrangement (Since 2019)
|
377 - 722 |
|
Group Number - Logging Arrangement (Since 2019)
|
374 - 7,148 |
|
H Maximum digging depth (Since 2015)
|
4 in (9 cm)
|
|
H Maximum digging depth (2016)
|
4 in (9 cm)
|
|
H Maximum digging depth (2017)
|
4 in (9 cm)
|
|
H Maximum digging depth (2018)
|
4 in (9 cm)
|
|
H Maximum digging depth (2019)
|
4 in (9 cm)
|
|
Hydraulic Cycle Time, - Rated Load in Bucket - Dump (Since 2015)
|
2 sec |
|
Hydraulic Cycle Time, - Rated Load in Bucket - Dump (2016)
|
2 sec |
|
Hydraulic Cycle Time, - Rated Load in Bucket - Dump (at Maximum Raise) (Since 2017)
|
2 sec |
|
Hydraulic Cycle Time, - Rated Load in Bucket - Dump (at Maximum Raise) (2018)
|
2 sec |
|
Hydraulic Cycle Time, - Rated Load in Bucket - Dump (at Maximum Raise) (2019)
|
2 sec |
|
Hydraulic Cycle Time, - Rated Load in Bucket - Lower (Empty, Float Down) (Since 2015)
|
2 sec |
|
Hydraulic Cycle Time, - Rated Load in Bucket - Lower (Empty, Float Down) (2016)
|
2 sec |
|
Hydraulic Cycle Time, - Rated Load in Bucket - Lower (Empty, Float Down) (2017)
|
2 sec |
|
Hydraulic Cycle Time, - Rated Load in Bucket - Lower (Empty, Float Down) (2018)
|
2 sec |
|
Hydraulic Cycle Time, - Rated Load in Bucket - Lower (Empty, Float Down) (2019)
|
2 sec |
|
Hydraulic Cycle Time, - Rated Load in Bucket - Raise (Since 2015)
|
5 sec |
|
Hydraulic Cycle Time, - Rated Load in Bucket - Raise (2016)
|
5 sec |
|
Hydraulic Cycle Time, - Rated Load in Bucket - Raise (from Carry Position) (Since 2017)
|
5 sec |
|
Hydraulic Cycle Time, - Rated Load in Bucket - Raise (from Carry Position) (2018)
|
5 sec |
|
Hydraulic Cycle Time, - Rated Load in Bucket - Raise (from Carry Position) (2019)
|
5 sec |
|
Hydraulic Cycle Time, - Rated Load in Bucket - Total (Since 2015)
|
9 sec |
|
Hydraulic Cycle Time, - Rated Load in Bucket - Total (2016)
|
9 sec |
|
Hydraulic Cycle Time, - Rated Load in Bucket - Total (Since 2017)
|
9 sec |
|
Hydraulic Cycle Time, - Rated Load in Bucket - Total (2018)
|
9 sec |
|
Hydraulic Cycle Time, - Rated Load in Bucket - Total (2019)
|
9 sec |
|
Hydraulic Tank Capacity (Since 2015)
|
33 US gal (125 L)
|
|
Hydraulic Tank Capacity (2016)
|
33 US gal (125 L)
|
|
Hydraulic Tank Capacity (2017)
|
33 US gal (125 L)
|
|
Hydraulic Tank Capacity (2018)
|
33 US gal (125 L)
|
|
Hydraulic Tank Capacity (2019)
|
33 US gal (125 L)
|
|
J Machine center point to axle (Since 2015)
|
66 in (168 cm)
|
|
J Machine center point to axle (2016)
|
66 in (168 cm)
|
|
J Machine center point to axle (2017)
|
66 in (168 cm)
|
|
J Machine center point to axle (2018)
|
66 in (168 cm)
|
|
J Machine center point to axle (2019)
|
66 in (168 cm)
|
|
K Wheel base (Since 2015)
|
132 in (335 cm)
|
|
K Wheel base (2016)
|
132 in (335 cm)
|
|
K Wheel base (2017)
|
132 in (335 cm)
|
|
K Wheel base (2018)
|
132 in (335 cm)
|
|
K Wheel base (2019)
|
132 in (335 cm)
|
|
L Radius of tire (Since 2015)
|
29 in (74 cm)
|
|
L Radius of tire (2016)
|
29 in (74 cm)
|
|
L Radius of tire (2017)
|
29 in (74 cm)
|
|
L Radius of tire (2018)
|
29 in (74 cm)
|
|
L Radius of tire (2019)
|
29 in (74 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
551 in (1,400 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
552 in (1,402 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
553 in (1,405 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
540 in (1,372 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
541 in (1,374 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
548 in (1,392 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
542 in (1,377 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
549 in (1,394 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
543 in (1,379 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
550 in (1,397 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
544 in (1,382 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
551 in (1,400 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
553 in (1,405 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
552 in (1,402 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
540 in (1,372 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
547 in (1,389 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
555 in (1,410 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
553 in (1,405 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
542 in (1,377 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
549 in (1,394 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
543 in (1,379 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
551 in (1,400 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
552 in (1,402 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
553 in (1,405 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
547 in (1,389 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
554 in (1,407 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
541 in (1,374 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
548 in (1,392 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
549 in (1,394 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
543 in (1,379 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
550 in (1,397 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
544 in (1,382 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
551 in (1,400 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
552 in (1,402 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
548 in (1,392 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
539 in (1,369 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
541 in (1,374 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
15 in (38 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
548 in (1,392 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
542 in (1,377 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
549 in (1,394 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
543 in (1,379 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
550 in (1,397 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2015)
|
544 in (1,382 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
551 in (1,400 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
552 in (1,402 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
553 in (1,405 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
547 in (1,389 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
554 in (1,407 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
541 in (1,374 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
548 in (1,392 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
549 in (1,394 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
543 in (1,379 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
550 in (1,397 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
544 in (1,382 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
551 in (1,400 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
552 in (1,402 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
548 in (1,392 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
555 in (1,410 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
553 in (1,405 cm)
|
|
Loader clearance circle with bucket at carry position (2016)
|
553 in (1,405 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
540 in (1,372 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
541 in (1,374 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
548 in (1,392 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
542 in (1,377 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
549 in (1,394 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
543 in (1,379 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
550 in (1,397 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
544 in (1,382 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
551 in (1,400 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
553 in (1,405 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
552 in (1,402 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
540 in (1,372 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
547 in (1,389 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
542 in (1,377 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
549 in (1,394 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
543 in (1,379 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
539 in (1,369 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
541 in (1,374 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
15 in (38 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
548 in (1,392 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
542 in (1,377 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
549 in (1,394 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
543 in (1,379 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
550 in (1,397 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
544 in (1,382 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
551 in (1,400 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
552 in (1,402 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2016)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
539 in (1,369 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
541 in (1,374 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
15 in (38 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
548 in (1,392 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
542 in (1,377 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
549 in (1,394 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
543 in (1,379 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
550 in (1,397 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
544 in (1,382 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
551 in (1,400 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
553 in (1,405 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
552 in (1,402 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
553 in (1,405 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
540 in (1,372 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
541 in (1,374 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
548 in (1,392 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
542 in (1,377 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
549 in (1,394 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
543 in (1,379 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
550 in (1,397 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
544 in (1,382 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
551 in (1,400 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
553 in (1,405 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
552 in (1,402 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
540 in (1,372 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
547 in (1,389 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
542 in (1,377 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
549 in (1,394 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
543 in (1,379 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
551 in (1,400 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
552 in (1,402 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
553 in (1,405 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
547 in (1,389 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
554 in (1,407 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
541 in (1,374 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
548 in (1,392 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
549 in (1,394 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
543 in (1,379 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
550 in (1,397 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
544 in (1,382 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
551 in (1,400 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
552 in (1,402 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
548 in (1,392 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
555 in (1,410 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2017)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
539 in (1,369 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
541 in (1,374 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
15 in (38 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
548 in (1,392 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
542 in (1,377 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
549 in (1,394 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
543 in (1,379 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
550 in (1,397 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
544 in (1,382 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
551 in (1,400 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
552 in (1,402 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
553 in (1,405 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
540 in (1,372 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
541 in (1,374 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
548 in (1,392 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
542 in (1,377 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
549 in (1,394 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
543 in (1,379 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
550 in (1,397 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
544 in (1,382 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
551 in (1,400 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
553 in (1,405 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
552 in (1,402 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
540 in (1,372 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
547 in (1,389 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
542 in (1,377 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
549 in (1,394 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
543 in (1,379 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
551 in (1,400 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
552 in (1,402 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
553 in (1,405 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
547 in (1,389 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
554 in (1,407 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
541 in (1,374 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
548 in (1,392 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
549 in (1,394 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
543 in (1,379 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
550 in (1,397 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
544 in (1,382 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
551 in (1,400 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
552 in (1,402 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
548 in (1,392 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
555 in (1,410 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2018)
|
553 in (1,405 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
539 in (1,369 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
541 in (1,374 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
15 in (38 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
548 in (1,392 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
542 in (1,377 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
549 in (1,394 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
543 in (1,379 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
552 in (1,402 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
548 in (1,392 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
555 in (1,410 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
553 in (1,405 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
540 in (1,372 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
547 in (1,389 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
542 in (1,377 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
549 in (1,394 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
543 in (1,379 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
551 in (1,400 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
552 in (1,402 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
553 in (1,405 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
547 in (1,389 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
554 in (1,407 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
541 in (1,374 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
548 in (1,392 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
549 in (1,394 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
543 in (1,379 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
550 in (1,397 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
544 in (1,382 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
551 in (1,400 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
550 in (1,397 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
544 in (1,382 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
551 in (1,400 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
552 in (1,402 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
553 in (1,405 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
540 in (1,372 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
541 in (1,374 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
548 in (1,392 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
542 in (1,377 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
549 in (1,394 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
543 in (1,379 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
550 in (1,397 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
544 in (1,382 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
551 in (1,400 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
546 in (1,387 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
553 in (1,405 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
545 in (1,384 cm)
|
|
Loader clearance circle with bucket at carry position (Since 2019)
|
552 in (1,402 cm)
|
|
M Maximum overall length (Since 2015)
|
323 in (820 cm)
|
|
M Maximum overall length (2016)
|
323 in (820 cm)
|
|
M Maximum overall length (2017)
|
323 in (820 cm)
|
|
M Maximum overall length (2018)
|
323 in (820 cm)
|
|
M Maximum overall length (2019)
|
323 in (820 cm)
|
|
Machine and work tool availability varies by region. (Since 2016)
|
Contact your local Cat dealer |
|
Machine and work tool availability varies by region. (Since 2016)
|
for product availability. |
|
Machine and work tool availability varies by region. (Since 2017)
|
Contact your local Cat dealer |
|
Machine and work tool availability varies by region. (Since 2017)
|
for product availability. |
|
Machine and work tool availability varies by region. (Since 2018)
|
Contact your local Cat dealer |
|
Machine and work tool availability varies by region. (Since 2018)
|
for product availability. |
|
Machine and work tool availability varies by region. (Since 2019)
|
Contact your local Cat dealer |
|
Machine and work tool availability varies by region. (Since 2019)
|
for product availability. |
|
Max Dump Height (Since 2016)
|
5 ft (1 m)
|
|
Max Dump Height (2017)
|
5 ft (1 m)
|
|
Max Dump Height (Since 2019)
|
9 ft (3 m)
|
|
Max Dump Height (2020)
|
9 ft (3 m)
|
|
Maximum Engine: Gross (Since 2015)
|
250 hp (186 kw)
|
|
Maximum Engine: Gross (2016)
|
250 hp (186 kw)
|
|
Maximum Engine: Gross (2017)
|
250 hp (186 kw)
|
|
Maximum Engine: Gross (Since 2017)
|
262 hp (195 kw)
|
|
Maximum Engine: Gross (Since 2018)
|
250 hp (186 kw)
|
|
Maximum Engine: Gross (Since 2018)
|
262 hp (195 kw)
|
|
Maximum Engine: Gross (Since 2019)
|
250 hp (186 kw)
|
|
Maximum Engine: Gross (Since 2019)
|
262 hp (195 kw)
|
|
Maximum Engine: Net (Since 2015)
|
230 hp (172 kw)
|
|
Maximum Engine: Net (2016)
|
230 hp (172 kw)
|
|
Maximum Engine: Net (2017)
|
230 hp (172 kw)
|
|
Maximum Engine: Net (Since 2017)
|
248 hp (185 kw)
|
|
Maximum Engine: Net (Since 2018)
|
230 hp (172 kw)
|
|
Maximum Engine: Net (Since 2018)
|
248 hp (185 kw)
|
|
Maximum Engine: Net (Since 2019)
|
230 hp (172 kw)
|
|
Maximum Engine: Net (Since 2019)
|
248 hp (185 kw)
|
|
Maximum Net Power Engine RPM (Since 2015)
|
2,100 rpm |
|
Maximum Net Power Engine RPM (2016)
|
2,100 rpm |
|
Maximum Net Power Engine RPM (2017)
|
2,100 rpm |
|
Maximum Net Power Engine RPM (Since 2017)
|
2,000 rpm |
|
Maximum Net Power Engine RPM (Since 2018)
|
2,100 rpm |
|
Maximum Net Power Engine RPM (Since 2018)
|
2,000 rpm |
|
Maximum Net Power Engine RPM (Since 2019)
|
2,100 rpm |
|
Maximum Net Power Engine RPM (Since 2019)
|
2,000 rpm |
|
N Reach at full lift (Since 2015)
|
56 in (142 cm)
|
|
N Reach at full lift (2016)
|
56 in (142 cm)
|
|
N Reach at full lift (2017)
|
56 in (142 cm)
|
|
N Reach at full lift (2018)
|
56 in (142 cm)
|
|
N Reach at full lift (2019)
|
56 in (142 cm)
|
|
No. Cylinders (Since 2015)
|
6 |
|
No. Cylinders (2017)
|
6 |
|
No. Cylinders (2018)
|
6 |
|
No. Cylinders (2019)
|
6 |
|
O Maximum rollback at maximum lift (Since 2015)
|
59 deg |
|
O Maximum rollback at maximum lift (2016)
|
59 deg |
|
O Maximum rollback at maximum lift (2017)
|
59 deg |
|
O Maximum rollback at maximum lift (2018)
|
59 deg |
|
O Maximum rollback at maximum lift (2019)
|
59 deg |
|
Operating weight (Since 2015)
|
43,748 lbs (19,844 kg)
|
|
Operating weight (Since 2015)
|
43,986 lbs (19,952 kg)
|
|
Operating weight (Since 2015)
|
43,640 lbs (19,795 kg)
|
|
Operating weight (Since 2015)
|
43,629 lbs (19,790 kg)
|
|
Operating weight (Since 2015)
|
43,867 lbs (19,898 kg)
|
|
Operating weight (Since 2015)
|
43,521 lbs (19,741 kg)
|
|
Operating weight (Since 2015)
|
42,079 lbs (19,087 kg)
|
|
Operating weight (Since 2015)
|
42,317 lbs (19,195 kg)
|
|
Operating weight (Since 2015)
|
41,971 lbs (19,038 kg)
|
|
Operating weight (Since 2015)
|
42,265 lbs (19,171 kg)
|
|
Operating weight (Since 2015)
|
1,327 lbs (602 kg)
|
|
Operating weight (Since 2015)
|
42,503 lbs (19,279 kg)
|
|
Operating weight (Since 2015)
|
42,157 lbs (19,122 kg)
|
|
Operating weight (Since 2015)
|
42,346 lbs (19,208 kg)
|
|
Operating weight (Since 2015)
|
42,584 lbs (19,316 kg)
|
|
Operating weight (Since 2015)
|
42,238 lbs (19,159 kg)
|
|
Operating weight (Since 2015)
|
42,499 lbs (19,277 kg)
|
|
Operating weight (Since 2015)
|
42,737 lbs (19,385 kg)
|
|
Operating weight (Since 2015)
|
42,391 lbs (19,228 kg)
|
|
Operating weight (Since 2015)
|
42,552 lbs (19,301 kg)
|
|
Operating weight (Since 2015)
|
42,790 lbs (19,409 kg)
|
|
Operating weight (Since 2015)
|
42,444 lbs (19,252 kg)
|
|
Operating weight (Since 2015)
|
42,632 lbs (19,338 kg)
|
|
Operating weight (Since 2015)
|
42,870 lbs (19,446 kg)
|
|
Operating weight (Since 2015)
|
42,524 lbs (19,289 kg)
|
|
Operating weight (Since 2015)
|
42,753 lbs (19,392 kg)
|
|
Operating weight (Since 2015)
|
42,991 lbs (19,500 kg)
|
|
Operating weight (Since 2015)
|
42,645 lbs (19,343 kg)
|
|
Operating weight (Since 2015)
|
42,128 lbs (19,109 kg)
|
|
Operating weight (Since 2015)
|
42,366 lbs (19,217 kg)
|
|
Operating weight (Since 2015)
|
42,020 lbs (19,060 kg)
|
|
Operating weight (Since 2015)
|
42,252 lbs (19,165 kg)
|
|
Operating weight (Since 2015)
|
42,490 lbs (19,273 kg)
|
|
Operating weight (Since 2015)
|
42,144 lbs (19,116 kg)
|
|
Operating weight (Since 2015)
|
42,362 lbs (19,215 kg)
|
|
Operating weight (Since 2015)
|
42,600 lbs (19,323 kg)
|
|
Operating weight (Since 2015)
|
42,254 lbs (19,166 kg)
|
|
Operating weight (Since 2015)
|
42,468 lbs (19,263 kg)
|
|
Operating weight (Since 2015)
|
42,706 lbs (19,371 kg)
|
|
Operating weight (Since 2015)
|
42,360 lbs (19,214 kg)
|
|
Operating weight (Since 2015)
|
42,556 lbs (19,303 kg)
|
|
Operating weight (Since 2015)
|
42,794 lbs (19,411 kg)
|
|
Operating weight (Since 2015)
|
42,448 lbs (19,254 kg)
|
|
Operating weight (Since 2015)
|
42,772 lbs (19,401 kg)
|
|
Operating weight (Since 2015)
|
43,010 lbs (19,509 kg)
|
|
Operating weight (Since 2015)
|
42,664 lbs (19,352 kg)
|
|
Operating weight (Since 2015)
|
42,653 lbs (19,347 kg)
|
|
Operating weight (Since 2015)
|
42,891 lbs (19,455 kg)
|
|
Operating weight (Since 2015)
|
42,545 lbs (19,298 kg)
|
|
Operating weight (Since 2015)
|
43,124 lbs (19,561 kg)
|
|
Operating weight (Since 2015)
|
43,362 lbs (19,669 kg)
|
|
Operating weight (Since 2015)
|
43,016 lbs (19,512 kg)
|
|
Operating weight (Since 2015)
|
43,263 lbs (19,624 kg)
|
|
Operating weight (Since 2015)
|
43,501 lbs (19,732 kg)
|
|
Operating weight (Since 2015)
|
43,155 lbs (19,575 kg)
|
|
Operating weight (Since 2015)
|
43,382 lbs (19,678 kg)
|
|
Operating weight (Since 2015)
|
43,620 lbs (19,786 kg)
|
|
Operating weight (Since 2015)
|
43,274 lbs (19,629 kg)
|
|
Operating weight (Since 2015)
|
43,484 lbs (19,724 kg)
|
|
Operating weight (Since 2015)
|
43,722 lbs (19,832 kg)
|
|
Operating weight (Since 2015)
|
43,376 lbs (19,675 kg)
|
|
Operating weight (Since 2015)
|
43,536 lbs (19,748 kg)
|
|
Operating weight (Since 2015)
|
43,774 lbs (19,856 kg)
|
|
Operating weight (Since 2015)
|
43,428 lbs (19,699 kg)
|
|
Operating weight (Since 2015)
|
43,611 lbs (19,782 kg)
|
|
Operating weight (Since 2015)
|
43,849 lbs (19,890 kg)
|
|
Operating weight (Since 2015)
|
43,503 lbs (19,733 kg)
|
|
Operating weight (Since 2015)
|
43,710 lbs (19,827 kg)
|
|
Operating weight (Since 2015)
|
43,948 lbs (19,935 kg)
|
|
Operating weight (Since 2015)
|
43,602 lbs (19,778 kg)
|
|
Operating weight (Since 2015)
|
43,137 lbs (19,567 kg)
|
|
Operating weight (Since 2015)
|
43,375 lbs (19,675 kg)
|
|
Operating weight (Since 2015)
|
43,029 lbs (19,518 kg)
|
|
Operating weight (Since 2015)
|
43,252 lbs (19,619 kg)
|
|
Operating weight (Since 2015)
|
43,490 lbs (19,727 kg)
|
|
Operating weight (Since 2015)
|
43,144 lbs (19,570 kg)
|
|
Operating weight (Since 2015)
|
43,360 lbs (19,668 kg)
|
|
Operating weight (Since 2015)
|
43,598 lbs (19,776 kg)
|
|
Operating weight (Since 2015)
|
43,457 lbs (19,712 kg)
|
|
Operating weight (Since 2015)
|
43,695 lbs (19,820 kg)
|
|
Operating weight (Since 2015)
|
43,349 lbs (19,663 kg)
|
|
Operating weight (Since 2015)
|
43,541 lbs (19,750 kg)
|
|
Operating weight (Since 2015)
|
43,779 lbs (19,858 kg)
|
|
Operating weight (Since 2015)
|
43,433 lbs (19,701 kg)
|
|
Operating weight (Since 2016)
|
42,079 lbs (19,087 kg)
|
|
Operating weight (Since 2016)
|
42,317 lbs (19,195 kg)
|
|
Operating weight (Since 2016)
|
41,971 lbs (19,038 kg)
|
|
Operating weight (Since 2016)
|
42,265 lbs (19,171 kg)
|
|
Operating weight (Since 2016)
|
1,327 lbs (602 kg)
|
|
Operating weight (Since 2016)
|
42,503 lbs (19,279 kg)
|
|
Operating weight (Since 2016)
|
42,157 lbs (19,122 kg)
|
|
Operating weight (Since 2016)
|
42,346 lbs (19,208 kg)
|
|
Operating weight (Since 2016)
|
42,584 lbs (19,316 kg)
|
|
Operating weight (Since 2016)
|
42,238 lbs (19,159 kg)
|
|
Operating weight (Since 2016)
|
42,499 lbs (19,277 kg)
|
|
Operating weight (Since 2016)
|
42,737 lbs (19,385 kg)
|
|
Operating weight (Since 2016)
|
42,391 lbs (19,228 kg)
|
|
Operating weight (Since 2016)
|
42,552 lbs (19,301 kg)
|
|
Operating weight (Since 2016)
|
42,790 lbs (19,409 kg)
|
|
Operating weight (Since 2016)
|
42,444 lbs (19,252 kg)
|
|
Operating weight (Since 2016)
|
42,632 lbs (19,338 kg)
|
|
Operating weight (Since 2016)
|
42,870 lbs (19,446 kg)
|
|
Operating weight (Since 2016)
|
42,524 lbs (19,289 kg)
|
|
Operating weight (Since 2016)
|
42,753 lbs (19,392 kg)
|
|
Operating weight (Since 2016)
|
42,487 lbs (19,272 kg)
|
|
Operating weight (Since 2016)
|
42,624 lbs (19,334 kg)
|
|
Operating weight (Since 2016)
|
42,763 lbs (19,397 kg)
|
|
Operating weight (Since 2016)
|
42,899 lbs (19,459 kg)
|
|
Operating weight (Since 2016)
|
43,484 lbs (19,724 kg)
|
|
Operating weight (Since 2016)
|
43,722 lbs (19,832 kg)
|
|
Operating weight (Since 2016)
|
43,376 lbs (19,675 kg)
|
|
Operating weight (Since 2016)
|
43,536 lbs (19,748 kg)
|
|
Operating weight (Since 2016)
|
43,774 lbs (19,856 kg)
|
|
Operating weight (Since 2016)
|
43,428 lbs (19,699 kg)
|
|
Operating weight (Since 2016)
|
43,611 lbs (19,782 kg)
|
|
Operating weight (Since 2016)
|
43,849 lbs (19,890 kg)
|
|
Operating weight (Since 2016)
|
43,503 lbs (19,733 kg)
|
|
Operating weight (Since 2016)
|
43,710 lbs (19,827 kg)
|
|
Operating weight (Since 2016)
|
43,948 lbs (19,935 kg)
|
|
Operating weight (Since 2016)
|
43,602 lbs (19,778 kg)
|
|
Operating weight (Since 2016)
|
43,137 lbs (19,567 kg)
|
|
Operating weight (Since 2016)
|
43,375 lbs (19,675 kg)
|
|
Operating weight (Since 2016)
|
43,029 lbs (19,518 kg)
|
|
Operating weight (Since 2016)
|
43,252 lbs (19,619 kg)
|
|
Operating weight (Since 2016)
|
43,490 lbs (19,727 kg)
|
|
Operating weight (Since 2016)
|
43,144 lbs (19,570 kg)
|
|
Operating weight (Since 2016)
|
43,360 lbs (19,668 kg)
|
|
Operating weight (Since 2016)
|
43,598 lbs (19,776 kg)
|
|
Operating weight (Since 2016)
|
43,457 lbs (19,712 kg)
|
|
Operating weight (Since 2016)
|
43,695 lbs (19,820 kg)
|
|
Operating weight (Since 2016)
|
43,349 lbs (19,663 kg)
|
|
Operating weight (Since 2016)
|
43,541 lbs (19,750 kg)
|
|
Operating weight (Since 2016)
|
43,779 lbs (19,858 kg)
|
|
Operating weight (Since 2016)
|
43,433 lbs (19,701 kg)
|
|
Operating weight (Since 2016)
|
43,748 lbs (19,844 kg)
|
|
Operating weight (Since 2016)
|
43,986 lbs (19,952 kg)
|
|
Operating weight (Since 2016)
|
43,640 lbs (19,795 kg)
|
|
Operating weight (Since 2016)
|
43,629 lbs (19,790 kg)
|
|
Operating weight (Since 2016)
|
43,867 lbs (19,898 kg)
|
|
Operating weight (Since 2016)
|
43,521 lbs (19,741 kg)
|
|
Operating weight (Since 2016)
|
42,991 lbs (19,500 kg)
|
|
Operating weight (Since 2016)
|
42,645 lbs (19,343 kg)
|
|
Operating weight (Since 2016)
|
42,128 lbs (19,109 kg)
|
|
Operating weight (Since 2016)
|
42,366 lbs (19,217 kg)
|
|
Operating weight (Since 2016)
|
42,020 lbs (19,060 kg)
|
|
Operating weight (Since 2016)
|
42,252 lbs (19,165 kg)
|
|
Operating weight (Since 2016)
|
42,490 lbs (19,273 kg)
|
|
Operating weight (Since 2016)
|
42,144 lbs (19,116 kg)
|
|
Operating weight (Since 2016)
|
42,362 lbs (19,215 kg)
|
|
Operating weight (Since 2016)
|
42,600 lbs (19,323 kg)
|
|
Operating weight (Since 2016)
|
42,254 lbs (19,166 kg)
|
|
Operating weight (Since 2016)
|
42,468 lbs (19,263 kg)
|
|
Operating weight (Since 2016)
|
42,706 lbs (19,371 kg)
|
|
Operating weight (Since 2016)
|
42,360 lbs (19,214 kg)
|
|
Operating weight (Since 2016)
|
42,556 lbs (19,303 kg)
|
|
Operating weight (Since 2016)
|
42,794 lbs (19,411 kg)
|
|
Operating weight (Since 2016)
|
42,448 lbs (19,254 kg)
|
|
Operating weight (Since 2016)
|
42,772 lbs (19,401 kg)
|
|
Operating weight (Since 2016)
|
43,010 lbs (19,509 kg)
|
|
Operating weight (Since 2016)
|
42,664 lbs (19,352 kg)
|
|
Operating weight (Since 2016)
|
42,653 lbs (19,347 kg)
|
|
Operating weight (Since 2016)
|
42,891 lbs (19,455 kg)
|
|
Operating weight (Since 2016)
|
42,545 lbs (19,298 kg)
|
|
Operating weight (Since 2016)
|
43,124 lbs (19,561 kg)
|
|
Operating weight (Since 2016)
|
43,362 lbs (19,669 kg)
|
|
Operating weight (Since 2016)
|
43,016 lbs (19,512 kg)
|
|
Operating weight (Since 2016)
|
43,263 lbs (19,624 kg)
|
|
Operating weight (Since 2016)
|
43,501 lbs (19,732 kg)
|
|
Operating weight (Since 2016)
|
43,155 lbs (19,575 kg)
|
|
Operating weight (Since 2016)
|
43,382 lbs (19,678 kg)
|
|
Operating weight (Since 2016)
|
43,620 lbs (19,786 kg)
|
|
Operating weight (Since 2016)
|
43,274 lbs (19,629 kg)
|
|
Operating Weight (Since 2016)
|
42,357 lbs (19,213 kg)
|
|
Operating Weight (2017)
|
42,357 lbs (19,213 kg)
|
|
Operating weight (Since 2017)
|
42,079 lbs (19,087 kg)
|
|
Operating weight (Since 2017)
|
42,317 lbs (19,195 kg)
|
|
Operating weight (Since 2017)
|
41,971 lbs (19,038 kg)
|
|
Operating weight (Since 2017)
|
42,265 lbs (19,171 kg)
|
|
Operating weight (Since 2017)
|
1,327 lbs (602 kg)
|
|
Operating weight (Since 2017)
|
42,503 lbs (19,279 kg)
|
|
Operating weight (Since 2017)
|
42,157 lbs (19,122 kg)
|
|
Operating weight (Since 2017)
|
42,346 lbs (19,208 kg)
|
|
Operating weight (Since 2017)
|
42,584 lbs (19,316 kg)
|
|
Operating weight (Since 2017)
|
42,238 lbs (19,159 kg)
|
|
Operating weight (Since 2017)
|
42,499 lbs (19,277 kg)
|
|
Operating weight (Since 2017)
|
42,737 lbs (19,385 kg)
|
|
Operating weight (Since 2017)
|
42,391 lbs (19,228 kg)
|
|
Operating weight (Since 2017)
|
42,552 lbs (19,301 kg)
|
|
Operating weight (Since 2017)
|
42,790 lbs (19,409 kg)
|
|
Operating weight (Since 2017)
|
42,444 lbs (19,252 kg)
|
|
Operating weight (Since 2017)
|
42,632 lbs (19,338 kg)
|
|
Operating weight (Since 2017)
|
43,382 lbs (19,678 kg)
|
|
Operating weight (Since 2017)
|
43,620 lbs (19,786 kg)
|
|
Operating weight (Since 2017)
|
43,274 lbs (19,629 kg)
|
|
Operating weight (Since 2017)
|
43,484 lbs (19,724 kg)
|
|
Operating weight (Since 2017)
|
43,722 lbs (19,832 kg)
|
|
Operating weight (Since 2017)
|
43,376 lbs (19,675 kg)
|
|
Operating weight (Since 2017)
|
43,536 lbs (19,748 kg)
|
|
Operating weight (Since 2017)
|
43,774 lbs (19,856 kg)
|
|
Operating weight (Since 2017)
|
43,428 lbs (19,699 kg)
|
|
Operating weight (Since 2017)
|
43,611 lbs (19,782 kg)
|
|
Operating weight (Since 2017)
|
43,849 lbs (19,890 kg)
|
|
Operating weight (Since 2017)
|
43,503 lbs (19,733 kg)
|
|
Operating weight (Since 2017)
|
43,710 lbs (19,827 kg)
|
|
Operating weight (Since 2017)
|
43,948 lbs (19,935 kg)
|
|
Operating weight (Since 2017)
|
43,602 lbs (19,778 kg)
|
|
Operating weight (Since 2017)
|
43,137 lbs (19,567 kg)
|
|
Operating weight (Since 2017)
|
43,375 lbs (19,675 kg)
|
|
Operating weight (Since 2017)
|
43,029 lbs (19,518 kg)
|
|
Operating weight (Since 2017)
|
43,252 lbs (19,619 kg)
|
|
Operating weight (Since 2017)
|
43,490 lbs (19,727 kg)
|
|
Operating weight (Since 2017)
|
43,144 lbs (19,570 kg)
|
|
Operating weight (Since 2017)
|
43,360 lbs (19,668 kg)
|
|
Operating weight (Since 2017)
|
43,598 lbs (19,776 kg)
|
|
Operating weight (Since 2017)
|
43,457 lbs (19,712 kg)
|
|
Operating weight (Since 2017)
|
43,695 lbs (19,820 kg)
|
|
Operating weight (Since 2017)
|
43,349 lbs (19,663 kg)
|
|
Operating weight (Since 2017)
|
43,541 lbs (19,750 kg)
|
|
Operating weight (Since 2017)
|
43,779 lbs (19,858 kg)
|
|
Operating weight (Since 2017)
|
43,433 lbs (19,701 kg)
|
|
Operating weight (Since 2017)
|
43,748 lbs (19,844 kg)
|
|
Operating weight (Since 2017)
|
43,986 lbs (19,952 kg)
|
|
Operating weight (Since 2017)
|
43,640 lbs (19,795 kg)
|
|
Operating weight (Since 2017)
|
43,629 lbs (19,790 kg)
|
|
Operating weight (Since 2017)
|
43,867 lbs (19,898 kg)
|
|
Operating weight (Since 2017)
|
43,521 lbs (19,741 kg)
|
|
Operating weight (Since 2017)
|
42,487 lbs (19,272 kg)
|
|
Operating weight (Since 2017)
|
42,624 lbs (19,334 kg)
|
|
Operating weight (Since 2017)
|
42,763 lbs (19,397 kg)
|
|
Operating weight (Since 2017)
|
42,899 lbs (19,459 kg)
|
|
Operating weight (Since 2017)
|
42,870 lbs (19,446 kg)
|
|
Operating weight (Since 2017)
|
42,524 lbs (19,289 kg)
|
|
Operating weight (Since 2017)
|
42,753 lbs (19,392 kg)
|
|
Operating weight (Since 2017)
|
42,991 lbs (19,500 kg)
|
|
Operating weight (Since 2017)
|
42,645 lbs (19,343 kg)
|
|
Operating weight (Since 2017)
|
42,128 lbs (19,109 kg)
|
|
Operating weight (Since 2017)
|
42,366 lbs (19,217 kg)
|
|
Operating weight (Since 2017)
|
42,020 lbs (19,060 kg)
|
|
Operating weight (Since 2017)
|
42,252 lbs (19,165 kg)
|
|
Operating weight (Since 2017)
|
42,490 lbs (19,273 kg)
|
|
Operating weight (Since 2017)
|
42,144 lbs (19,116 kg)
|
|
Operating weight (Since 2017)
|
42,362 lbs (19,215 kg)
|
|
Operating weight (Since 2017)
|
42,600 lbs (19,323 kg)
|
|
Operating weight (Since 2017)
|
42,254 lbs (19,166 kg)
|
|
Operating weight (Since 2017)
|
42,468 lbs (19,263 kg)
|
|
Operating weight (Since 2017)
|
42,706 lbs (19,371 kg)
|
|
Operating weight (Since 2017)
|
42,360 lbs (19,214 kg)
|
|
Operating weight (Since 2017)
|
42,556 lbs (19,303 kg)
|
|
Operating weight (Since 2017)
|
42,794 lbs (19,411 kg)
|
|
Operating weight (Since 2017)
|
42,448 lbs (19,254 kg)
|
|
Operating weight (Since 2017)
|
42,772 lbs (19,401 kg)
|
|
Operating weight (Since 2017)
|
43,010 lbs (19,509 kg)
|
|
Operating weight (Since 2017)
|
42,664 lbs (19,352 kg)
|
|
Operating weight (Since 2017)
|
42,653 lbs (19,347 kg)
|
|
Operating weight (Since 2017)
|
42,891 lbs (19,455 kg)
|
|
Operating weight (Since 2017)
|
42,545 lbs (19,298 kg)
|
|
Operating weight (Since 2017)
|
43,124 lbs (19,561 kg)
|
|
Operating weight (Since 2017)
|
43,362 lbs (19,669 kg)
|
|
Operating weight (Since 2017)
|
43,016 lbs (19,512 kg)
|
|
Operating weight (Since 2017)
|
43,263 lbs (19,624 kg)
|
|
Operating weight (Since 2017)
|
43,501 lbs (19,732 kg)
|
|
Operating weight (Since 2017)
|
43,155 lbs (19,575 kg)
|
|
Operating weight (Since 2018)
|
43,748 lbs (19,844 kg)
|
|
Operating weight (Since 2018)
|
43,986 lbs (19,952 kg)
|
|
Operating weight (Since 2018)
|
43,640 lbs (19,795 kg)
|
|
Operating weight (Since 2018)
|
43,629 lbs (19,790 kg)
|
|
Operating weight (Since 2018)
|
43,867 lbs (19,898 kg)
|
|
Operating weight (Since 2018)
|
43,521 lbs (19,741 kg)
|
|
Operating weight (Since 2018)
|
42,487 lbs (19,272 kg)
|
|
Operating weight (Since 2018)
|
42,624 lbs (19,334 kg)
|
|
Operating weight (Since 2018)
|
42,763 lbs (19,397 kg)
|
|
Operating weight (Since 2018)
|
42,899 lbs (19,459 kg)
|
|
Operating weight (Since 2018)
|
42,790 lbs (19,409 kg)
|
|
Operating weight (Since 2018)
|
42,444 lbs (19,252 kg)
|
|
Operating weight (Since 2018)
|
42,632 lbs (19,338 kg)
|
|
Operating weight (Since 2018)
|
42,870 lbs (19,446 kg)
|
|
Operating weight (Since 2018)
|
42,524 lbs (19,289 kg)
|
|
Operating weight (Since 2018)
|
42,753 lbs (19,392 kg)
|
|
Operating weight (Since 2018)
|
42,991 lbs (19,500 kg)
|
|
Operating weight (Since 2018)
|
42,645 lbs (19,343 kg)
|
|
Operating weight (Since 2018)
|
42,128 lbs (19,109 kg)
|
|
Operating weight (Since 2018)
|
42,366 lbs (19,217 kg)
|
|
Operating weight (Since 2018)
|
42,020 lbs (19,060 kg)
|
|
Operating weight (Since 2018)
|
42,252 lbs (19,165 kg)
|
|
Operating weight (Since 2018)
|
42,490 lbs (19,273 kg)
|
|
Operating weight (Since 2018)
|
42,144 lbs (19,116 kg)
|
|
Operating weight (Since 2018)
|
42,362 lbs (19,215 kg)
|
|
Operating weight (Since 2018)
|
42,600 lbs (19,323 kg)
|
|
Operating weight (Since 2018)
|
42,254 lbs (19,166 kg)
|
|
Operating weight (Since 2018)
|
42,468 lbs (19,263 kg)
|
|
Operating weight (Since 2018)
|
42,706 lbs (19,371 kg)
|
|
Operating weight (Since 2018)
|
42,360 lbs (19,214 kg)
|
|
Operating weight (Since 2018)
|
42,556 lbs (19,303 kg)
|
|
Operating weight (Since 2018)
|
42,794 lbs (19,411 kg)
|
|
Operating weight (Since 2018)
|
42,448 lbs (19,254 kg)
|
|
Operating weight (Since 2018)
|
42,772 lbs (19,401 kg)
|
|
Operating weight (Since 2018)
|
43,010 lbs (19,509 kg)
|
|
Operating weight (Since 2018)
|
42,664 lbs (19,352 kg)
|
|
Operating weight (Since 2018)
|
42,653 lbs (19,347 kg)
|
|
Operating weight (Since 2018)
|
42,891 lbs (19,455 kg)
|
|
Operating weight (Since 2018)
|
42,545 lbs (19,298 kg)
|
|
Operating weight (Since 2018)
|
43,124 lbs (19,561 kg)
|
|
Operating weight (Since 2018)
|
43,362 lbs (19,669 kg)
|
|
Operating weight (Since 2018)
|
42,079 lbs (19,087 kg)
|
|
Operating weight (Since 2018)
|
42,317 lbs (19,195 kg)
|
|
Operating weight (Since 2018)
|
41,971 lbs (19,038 kg)
|
|
Operating weight (Since 2018)
|
42,265 lbs (19,171 kg)
|
|
Operating weight (Since 2018)
|
1,327 lbs (602 kg)
|
|
Operating weight (Since 2018)
|
42,503 lbs (19,279 kg)
|
|
Operating weight (Since 2018)
|
42,157 lbs (19,122 kg)
|
|
Operating weight (Since 2018)
|
42,346 lbs (19,208 kg)
|
|
Operating weight (Since 2018)
|
42,584 lbs (19,316 kg)
|
|
Operating weight (Since 2018)
|
42,238 lbs (19,159 kg)
|
|
Operating weight (Since 2018)
|
42,499 lbs (19,277 kg)
|
|
Operating weight (Since 2018)
|
42,737 lbs (19,385 kg)
|
|
Operating weight (Since 2018)
|
42,391 lbs (19,228 kg)
|
|
Operating weight (Since 2018)
|
42,552 lbs (19,301 kg)
|
|
Operating weight (Since 2018)
|
43,016 lbs (19,512 kg)
|
|
Operating weight (Since 2018)
|
43,263 lbs (19,624 kg)
|
|
Operating weight (Since 2018)
|
43,501 lbs (19,732 kg)
|
|
Operating weight (Since 2018)
|
43,155 lbs (19,575 kg)
|
|
Operating weight (Since 2018)
|
43,382 lbs (19,678 kg)
|
|
Operating weight (Since 2018)
|
43,620 lbs (19,786 kg)
|
|
Operating weight (Since 2018)
|
43,274 lbs (19,629 kg)
|
|
Operating weight (Since 2018)
|
43,484 lbs (19,724 kg)
|
|
Operating weight (Since 2018)
|
43,722 lbs (19,832 kg)
|
|
Operating weight (Since 2018)
|
43,376 lbs (19,675 kg)
|
|
Operating weight (Since 2018)
|
43,536 lbs (19,748 kg)
|
|
Operating weight (Since 2018)
|
43,774 lbs (19,856 kg)
|
|
Operating weight (Since 2018)
|
43,428 lbs (19,699 kg)
|
|
Operating weight (Since 2018)
|
43,611 lbs (19,782 kg)
|
|
Operating weight (Since 2018)
|
43,849 lbs (19,890 kg)
|
|
Operating weight (Since 2018)
|
43,503 lbs (19,733 kg)
|
|
Operating weight (Since 2018)
|
43,710 lbs (19,827 kg)
|
|
Operating weight (Since 2018)
|
43,948 lbs (19,935 kg)
|
|
Operating weight (Since 2018)
|
43,602 lbs (19,778 kg)
|
|
Operating weight (Since 2018)
|
43,137 lbs (19,567 kg)
|
|
Operating weight (Since 2018)
|
43,375 lbs (19,675 kg)
|
|
Operating weight (Since 2018)
|
43,029 lbs (19,518 kg)
|
|
Operating weight (Since 2018)
|
43,252 lbs (19,619 kg)
|
|
Operating weight (Since 2018)
|
43,490 lbs (19,727 kg)
|
|
Operating weight (Since 2018)
|
43,144 lbs (19,570 kg)
|
|
Operating weight (Since 2018)
|
43,360 lbs (19,668 kg)
|
|
Operating weight (Since 2018)
|
43,598 lbs (19,776 kg)
|
|
Operating weight (Since 2018)
|
43,457 lbs (19,712 kg)
|
|
Operating weight (Since 2018)
|
43,695 lbs (19,820 kg)
|
|
Operating weight (Since 2018)
|
43,349 lbs (19,663 kg)
|
|
Operating weight (Since 2018)
|
43,541 lbs (19,750 kg)
|
|
Operating weight (Since 2018)
|
43,779 lbs (19,858 kg)
|
|
Operating weight (Since 2018)
|
43,433 lbs (19,701 kg)
|
|
Operating weight (Since 2019)
|
42,079 lbs (19,087 kg)
|
|
Operating weight (Since 2019)
|
42,317 lbs (19,195 kg)
|
|
Operating weight (Since 2019)
|
41,971 lbs (19,038 kg)
|
|
Operating weight (Since 2019)
|
42,265 lbs (19,171 kg)
|
|
Operating weight (Since 2019)
|
1,327 lbs (602 kg)
|
|
Operating weight (Since 2019)
|
42,503 lbs (19,279 kg)
|
|
Operating weight (Since 2019)
|
42,157 lbs (19,122 kg)
|
|
Operating weight (Since 2019)
|
42,346 lbs (19,208 kg)
|
|
Operating weight (Since 2019)
|
42,584 lbs (19,316 kg)
|
|
Operating weight (Since 2019)
|
42,238 lbs (19,159 kg)
|
|
Operating weight (Since 2019)
|
42,499 lbs (19,277 kg)
|
|
Operating weight (Since 2019)
|
42,737 lbs (19,385 kg)
|
|
Operating weight (Since 2019)
|
42,391 lbs (19,228 kg)
|
|
Operating weight (Since 2019)
|
42,552 lbs (19,301 kg)
|
|
Operating weight (Since 2019)
|
42,790 lbs (19,409 kg)
|
|
Operating weight (Since 2019)
|
42,444 lbs (19,252 kg)
|
|
Operating weight (Since 2019)
|
42,632 lbs (19,338 kg)
|
|
Operating weight (Since 2019)
|
42,870 lbs (19,446 kg)
|
|
Operating weight (Since 2019)
|
42,524 lbs (19,289 kg)
|
|
Operating weight (Since 2019)
|
42,753 lbs (19,392 kg)
|
|
Operating weight (Since 2019)
|
42,991 lbs (19,500 kg)
|
|
Operating weight (Since 2019)
|
42,645 lbs (19,343 kg)
|
|
Operating weight (Since 2019)
|
42,128 lbs (19,109 kg)
|
|
Operating weight (Since 2019)
|
42,366 lbs (19,217 kg)
|
|
Operating weight (Since 2019)
|
42,020 lbs (19,060 kg)
|
|
Operating weight (Since 2019)
|
42,252 lbs (19,165 kg)
|
|
Operating weight (Since 2019)
|
42,490 lbs (19,273 kg)
|
|
Operating weight (Since 2019)
|
42,144 lbs (19,116 kg)
|
|
Operating weight (Since 2019)
|
42,362 lbs (19,215 kg)
|
|
Operating weight (Since 2019)
|
42,600 lbs (19,323 kg)
|
|
Operating weight (Since 2019)
|
42,254 lbs (19,166 kg)
|
|
Operating weight (Since 2019)
|
42,468 lbs (19,263 kg)
|
|
Operating weight (Since 2019)
|
42,706 lbs (19,371 kg)
|
|
Operating weight (Since 2019)
|
42,360 lbs (19,214 kg)
|
|
Operating weight (Since 2019)
|
42,556 lbs (19,303 kg)
|
|
Operating weight (Since 2019)
|
42,794 lbs (19,411 kg)
|
|
Operating weight (Since 2019)
|
42,448 lbs (19,254 kg)
|
|
Operating weight (Since 2019)
|
42,772 lbs (19,401 kg)
|
|
Operating weight (Since 2019)
|
43,010 lbs (19,509 kg)
|
|
Operating weight (Since 2019)
|
42,664 lbs (19,352 kg)
|
|
Operating weight (Since 2019)
|
42,653 lbs (19,347 kg)
|
|
Operating weight (Since 2019)
|
42,891 lbs (19,455 kg)
|
|
Operating weight (Since 2019)
|
43,349 lbs (19,663 kg)
|
|
Operating weight (Since 2019)
|
43,541 lbs (19,750 kg)
|
|
Operating weight (Since 2019)
|
43,779 lbs (19,858 kg)
|
|
Operating weight (Since 2019)
|
43,433 lbs (19,701 kg)
|
|
Operating weight (Since 2019)
|
43,748 lbs (19,844 kg)
|
|
Operating weight (Since 2019)
|
43,986 lbs (19,952 kg)
|
|
Operating weight (Since 2019)
|
43,640 lbs (19,795 kg)
|
|
Operating weight (Since 2019)
|
43,629 lbs (19,790 kg)
|
|
Operating weight (Since 2019)
|
43,867 lbs (19,898 kg)
|
|
Operating weight (Since 2019)
|
43,521 lbs (19,741 kg)
|
|
Operating weight (Since 2019)
|
42,487 lbs (19,272 kg)
|
|
Operating weight (Since 2019)
|
42,624 lbs (19,334 kg)
|
|
Operating weight (Since 2019)
|
42,763 lbs (19,397 kg)
|
|
Operating weight (Since 2019)
|
42,899 lbs (19,459 kg)
|
|
Operating weight (Since 2019)
|
42,545 lbs (19,298 kg)
|
|
Operating weight (Since 2019)
|
43,124 lbs (19,561 kg)
|
|
Operating weight (Since 2019)
|
43,362 lbs (19,669 kg)
|
|
Operating weight (Since 2019)
|
43,016 lbs (19,512 kg)
|
|
Operating weight (Since 2019)
|
43,263 lbs (19,624 kg)
|
|
Operating weight (Since 2019)
|
43,501 lbs (19,732 kg)
|
|
Operating weight (Since 2019)
|
43,155 lbs (19,575 kg)
|
|
Operating weight (Since 2019)
|
43,382 lbs (19,678 kg)
|
|
Operating weight (Since 2019)
|
43,620 lbs (19,786 kg)
|
|
Operating weight (Since 2019)
|
43,274 lbs (19,629 kg)
|
|
Operating weight (Since 2019)
|
43,484 lbs (19,724 kg)
|
|
Operating weight (Since 2019)
|
43,722 lbs (19,832 kg)
|
|
Operating weight (Since 2019)
|
43,376 lbs (19,675 kg)
|
|
Operating weight (Since 2019)
|
43,536 lbs (19,748 kg)
|
|
Operating weight (Since 2019)
|
43,774 lbs (19,856 kg)
|
|
Operating weight (Since 2019)
|
43,428 lbs (19,699 kg)
|
|
Operating weight (Since 2019)
|
43,611 lbs (19,782 kg)
|
|
Operating weight (Since 2019)
|
43,849 lbs (19,890 kg)
|
|
Operating weight (Since 2019)
|
43,503 lbs (19,733 kg)
|
|
Operating weight (Since 2019)
|
43,710 lbs (19,827 kg)
|
|
Operating weight (Since 2019)
|
43,948 lbs (19,935 kg)
|
|
Operating weight (Since 2019)
|
43,602 lbs (19,778 kg)
|
|
Operating weight (Since 2019)
|
43,137 lbs (19,567 kg)
|
|
Operating weight (Since 2019)
|
43,375 lbs (19,675 kg)
|
|
Operating weight (Since 2019)
|
43,029 lbs (19,518 kg)
|
|
Operating weight (Since 2019)
|
43,252 lbs (19,619 kg)
|
|
Operating weight (Since 2019)
|
43,490 lbs (19,727 kg)
|
|
Operating weight (Since 2019)
|
43,144 lbs (19,570 kg)
|
|
Operating weight (Since 2019)
|
43,360 lbs (19,668 kg)
|
|
Operating weight (Since 2019)
|
43,598 lbs (19,776 kg)
|
|
Operating weight (Since 2019)
|
43,457 lbs (19,712 kg)
|
|
Operating weight (Since 2019)
|
43,695 lbs (19,820 kg)
|
|
Operating Weight (Since 2019)
|
42,357 lbs (19,213 kg)
|
|
Operating Weight (2020)
|
42,357 lbs (19,213 kg)
|
|
Operating Weight (2021)
|
42,357 lbs (19,213 kg)
|
|
Operating Weight (2022)
|
42,357 lbs (19,213 kg)
|
|
Operating Weight (2023)
|
42,357 lbs (19,213 kg)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
213 in (541 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
216 in (549 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
19 in (48 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
218 in (554 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
220 in (559 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
221 in (561 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
217 in (551 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
219 in (556 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
221 in (561 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
223 in (566 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
225 in (572 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
214 in (544 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
216 in (549 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
218 in (554 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
219 in (556 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
221 in (561 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
225 in (572 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
223 in (566 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
222 in (564 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
224 in (569 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
222 in (564 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
196 in (498 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
216 in (549 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
218 in (554 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
220 in (559 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
223 in (566 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
222 in (564 cm)
|
|
Overall height with bucket at maximum lift (Since 2015)
|
214 in (544 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
213 in (541 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
216 in (549 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
19 in (48 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
218 in (554 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
220 in (559 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
221 in (561 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
222 in (564 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
224 in (569 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
222 in (564 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
196 in (498 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
216 in (549 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
218 in (554 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
220 in (559 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
223 in (566 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
222 in (564 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
214 in (544 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
217 in (551 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
219 in (556 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
221 in (561 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
223 in (566 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
225 in (572 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
214 in (544 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
216 in (549 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
218 in (554 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
219 in (556 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
221 in (561 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
225 in (572 cm)
|
|
Overall height with bucket at maximum lift (Since 2016)
|
223 in (566 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
213 in (541 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
216 in (549 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
19 in (48 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
218 in (554 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
220 in (559 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
221 in (561 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
222 in (564 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
224 in (569 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
222 in (564 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
196 in (498 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
216 in (549 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
218 in (554 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
220 in (559 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
223 in (566 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
222 in (564 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
214 in (544 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
217 in (551 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
219 in (556 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
221 in (561 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
223 in (566 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
225 in (572 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
214 in (544 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
216 in (549 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
218 in (554 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
219 in (556 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
221 in (561 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
225 in (572 cm)
|
|
Overall height with bucket at maximum lift (Since 2017)
|
223 in (566 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
217 in (551 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
219 in (556 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
221 in (561 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
223 in (566 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
225 in (572 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
214 in (544 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
216 in (549 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
218 in (554 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
219 in (556 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
221 in (561 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
225 in (572 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
223 in (566 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
213 in (541 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
216 in (549 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
19 in (48 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
218 in (554 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
220 in (559 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
221 in (561 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
222 in (564 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
224 in (569 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
222 in (564 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
196 in (498 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
216 in (549 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
218 in (554 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
220 in (559 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
223 in (566 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
222 in (564 cm)
|
|
Overall height with bucket at maximum lift (Since 2018)
|
214 in (544 cm)
|
|
Overall height with bucket at maximum lift (2019)
|
214 in (544 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
217 in (551 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
219 in (556 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
221 in (561 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
223 in (566 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
225 in (572 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
214 in (544 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
216 in (549 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
218 in (554 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
219 in (556 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
221 in (561 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
222 in (564 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
224 in (569 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
222 in (564 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
196 in (498 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
216 in (549 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
218 in (554 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
220 in (559 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
223 in (566 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
222 in (564 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
221 in (561 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
225 in (572 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
223 in (566 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
213 in (541 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
216 in (549 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
19 in (48 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
218 in (554 cm)
|
|
Overall height with bucket at maximum lift (Since 2019)
|
220 in (559 cm)
|
|
Overall length (Since 2015)
|
323 in (820 cm)
|
|
Overall length (Since 2015)
|
330 in (838 cm)
|
|
Overall length (Since 2015)
|
326 in (828 cm)
|
|
Overall length (Since 2015)
|
332 in (843 cm)
|
|
Overall length (Since 2015)
|
328 in (833 cm)
|
|
Overall length (Since 2015)
|
334 in (848 cm)
|
|
Overall length (Since 2015)
|
329 in (836 cm)
|
|
Overall length (Since 2015)
|
335 in (851 cm)
|
|
Overall length (Since 2015)
|
330 in (838 cm)
|
|
Overall length (Since 2015)
|
337 in (856 cm)
|
|
Overall length (Since 2015)
|
332 in (843 cm)
|
|
Overall length (Since 2015)
|
339 in (861 cm)
|
|
Overall length (Since 2015)
|
324 in (823 cm)
|
|
Overall length (Since 2015)
|
331 in (841 cm)
|
|
Overall length (Since 2015)
|
326 in (828 cm)
|
|
Overall length (Since 2015)
|
332 in (843 cm)
|
|
Overall length (Since 2015)
|
327 in (831 cm)
|
|
Overall length (Since 2015)
|
334 in (848 cm)
|
|
Overall length (Since 2015)
|
329 in (836 cm)
|
|
Overall length (Since 2015)
|
336 in (853 cm)
|
|
Overall length (Since 2015)
|
333 in (846 cm)
|
|
Overall length (Since 2015)
|
318 in (808 cm)
|
|
Overall length (Since 2015)
|
325 in (826 cm)
|
|
Overall length (Since 2015)
|
321 in (815 cm)
|
|
Overall length (Since 2015)
|
22 in (56 cm)
|
|
Overall length (Since 2015)
|
328 in (833 cm)
|
|
Overall length (Since 2015)
|
323 in (820 cm)
|
|
Overall length (Since 2015)
|
330 in (838 cm)
|
|
Overall length (Since 2015)
|
325 in (826 cm)
|
|
Overall length (Since 2015)
|
332 in (843 cm)
|
|
Overall length (Since 2015)
|
326 in (828 cm)
|
|
Overall length (Since 2015)
|
333 in (846 cm)
|
|
Overall length (Since 2015)
|
328 in (833 cm)
|
|
Overall length (Since 2015)
|
334 in (848 cm)
|
|
Overall length (Since 2015)
|
329 in (836 cm)
|
|
Overall length (Since 2015)
|
336 in (853 cm)
|
|
Overall length (Since 2015)
|
319 in (810 cm)
|
|
Overall length (Since 2015)
|
326 in (828 cm)
|
|
Overall length (Since 2015)
|
321 in (815 cm)
|
|
Overall length (Since 2015)
|
328 in (833 cm)
|
|
Overall length (Since 2015)
|
323 in (820 cm)
|
|
Overall length (Since 2015)
|
330 in (838 cm)
|
|
Overall length (Since 2015)
|
325 in (826 cm)
|
|
Overall length (Since 2015)
|
332 in (843 cm)
|
|
Overall length (Since 2015)
|
327 in (831 cm)
|
|
Overall length (Since 2015)
|
333 in (846 cm)
|
|
Overall length (Since 2015)
|
330 in (838 cm)
|
|
Overall length (Since 2015)
|
337 in (856 cm)
|
|
Overall length (Since 2015)
|
328 in (833 cm)
|
|
Overall length (Since 2015)
|
335 in (851 cm)
|
|
Overall length (Since 2015)
|
321 in (815 cm)
|
|
Overall length (Since 2015)
|
328 in (833 cm)
|
|
Overall length (Since 2015)
|
340 in (864 cm)
|
|
Overall length (Since 2015)
|
331 in (841 cm)
|
|
Overall length (Since 2015)
|
338 in (859 cm)
|
|
Overall length (Since 2016)
|
318 in (808 cm)
|
|
Overall length (Since 2016)
|
325 in (826 cm)
|
|
Overall length (Since 2016)
|
321 in (815 cm)
|
|
Overall length (Since 2016)
|
22 in (56 cm)
|
|
Overall length (Since 2016)
|
328 in (833 cm)
|
|
Overall length (Since 2016)
|
323 in (820 cm)
|
|
Overall length (Since 2016)
|
330 in (838 cm)
|
|
Overall length (Since 2016)
|
325 in (826 cm)
|
|
Overall length (Since 2016)
|
332 in (843 cm)
|
|
Overall length (Since 2016)
|
326 in (828 cm)
|
|
Overall length (Since 2016)
|
333 in (846 cm)
|
|
Overall length (Since 2016)
|
328 in (833 cm)
|
|
Overall length (Since 2016)
|
334 in (848 cm)
|
|
Overall length (Since 2016)
|
329 in (836 cm)
|
|
Overall length (Since 2016)
|
336 in (853 cm)
|
|
Overall length (Since 2016)
|
334 in (848 cm)
|
|
Overall length (Since 2016)
|
329 in (836 cm)
|
|
Overall length (Since 2016)
|
335 in (851 cm)
|
|
Overall length (Since 2016)
|
330 in (838 cm)
|
|
Overall length (Since 2016)
|
337 in (856 cm)
|
|
Overall length (Since 2016)
|
332 in (843 cm)
|
|
Overall length (Since 2016)
|
339 in (861 cm)
|
|
Overall length (Since 2016)
|
324 in (823 cm)
|
|
Overall length (Since 2016)
|
331 in (841 cm)
|
|
Overall length (Since 2016)
|
326 in (828 cm)
|
|
Overall length (Since 2016)
|
332 in (843 cm)
|
|
Overall length (Since 2016)
|
327 in (831 cm)
|
|
Overall length (Since 2016)
|
334 in (848 cm)
|
|
Overall length (Since 2016)
|
329 in (836 cm)
|
|
Overall length (Since 2016)
|
336 in (853 cm)
|
|
Overall length (Since 2016)
|
333 in (846 cm)
|
|
Overall length (Since 2016)
|
340 in (864 cm)
|
|
Overall length (Since 2016)
|
331 in (841 cm)
|
|
Overall length (Since 2016)
|
338 in (859 cm)
|
|
Overall length (Since 2016)
|
319 in (810 cm)
|
|
Overall length (Since 2016)
|
326 in (828 cm)
|
|
Overall length (Since 2016)
|
321 in (815 cm)
|
|
Overall length (Since 2016)
|
328 in (833 cm)
|
|
Overall length (Since 2016)
|
323 in (820 cm)
|
|
Overall length (Since 2016)
|
330 in (838 cm)
|
|
Overall length (Since 2016)
|
325 in (826 cm)
|
|
Overall length (Since 2016)
|
332 in (843 cm)
|
|
Overall length (Since 2016)
|
327 in (831 cm)
|
|
Overall length (Since 2016)
|
333 in (846 cm)
|
|
Overall length (Since 2016)
|
330 in (838 cm)
|
|
Overall length (Since 2016)
|
337 in (856 cm)
|
|
Overall length (Since 2016)
|
328 in (833 cm)
|
|
Overall length (Since 2016)
|
335 in (851 cm)
|
|
Overall length (Since 2016)
|
321 in (815 cm)
|
|
Overall length (Since 2016)
|
328 in (833 cm)
|
|
Overall length (Since 2016)
|
323 in (820 cm)
|
|
Overall length (Since 2016)
|
330 in (838 cm)
|
|
Overall length (Since 2016)
|
326 in (828 cm)
|
|
Overall length (Since 2016)
|
332 in (843 cm)
|
|
Overall length (Since 2016)
|
328 in (833 cm)
|
|
Overall length (Since 2017)
|
318 in (808 cm)
|
|
Overall length (Since 2017)
|
325 in (826 cm)
|
|
Overall length (Since 2017)
|
321 in (815 cm)
|
|
Overall length (Since 2017)
|
22 in (56 cm)
|
|
Overall length (Since 2017)
|
328 in (833 cm)
|
|
Overall length (Since 2017)
|
323 in (820 cm)
|
|
Overall length (Since 2017)
|
330 in (838 cm)
|
|
Overall length (Since 2017)
|
325 in (826 cm)
|
|
Overall length (Since 2017)
|
332 in (843 cm)
|
|
Overall length (Since 2017)
|
326 in (828 cm)
|
|
Overall length (Since 2017)
|
333 in (846 cm)
|
|
Overall length (Since 2017)
|
328 in (833 cm)
|
|
Overall length (Since 2017)
|
334 in (848 cm)
|
|
Overall length (Since 2017)
|
329 in (836 cm)
|
|
Overall length (Since 2017)
|
336 in (853 cm)
|
|
Overall length (Since 2017)
|
319 in (810 cm)
|
|
Overall length (Since 2017)
|
326 in (828 cm)
|
|
Overall length (Since 2017)
|
321 in (815 cm)
|
|
Overall length (Since 2017)
|
328 in (833 cm)
|
|
Overall length (Since 2017)
|
323 in (820 cm)
|
|
Overall length (Since 2017)
|
330 in (838 cm)
|
|
Overall length (Since 2017)
|
325 in (826 cm)
|
|
Overall length (Since 2017)
|
332 in (843 cm)
|
|
Overall length (Since 2017)
|
327 in (831 cm)
|
|
Overall length (Since 2017)
|
333 in (846 cm)
|
|
Overall length (Since 2017)
|
330 in (838 cm)
|
|
Overall length (Since 2017)
|
337 in (856 cm)
|
|
Overall length (Since 2017)
|
328 in (833 cm)
|
|
Overall length (Since 2017)
|
335 in (851 cm)
|
|
Overall length (Since 2017)
|
321 in (815 cm)
|
|
Overall length (Since 2017)
|
328 in (833 cm)
|
|
Overall length (Since 2017)
|
323 in (820 cm)
|
|
Overall length (Since 2017)
|
330 in (838 cm)
|
|
Overall length (Since 2017)
|
326 in (828 cm)
|
|
Overall length (Since 2017)
|
332 in (843 cm)
|
|
Overall length (Since 2017)
|
328 in (833 cm)
|
|
Overall length (Since 2017)
|
334 in (848 cm)
|
|
Overall length (Since 2017)
|
329 in (836 cm)
|
|
Overall length (Since 2017)
|
335 in (851 cm)
|
|
Overall length (Since 2017)
|
330 in (838 cm)
|
|
Overall length (Since 2017)
|
337 in (856 cm)
|
|
Overall length (Since 2017)
|
332 in (843 cm)
|
|
Overall length (Since 2017)
|
339 in (861 cm)
|
|
Overall length (Since 2017)
|
324 in (823 cm)
|
|
Overall length (Since 2017)
|
331 in (841 cm)
|
|
Overall length (Since 2017)
|
326 in (828 cm)
|
|
Overall length (Since 2017)
|
332 in (843 cm)
|
|
Overall length (Since 2017)
|
327 in (831 cm)
|
|
Overall length (Since 2017)
|
334 in (848 cm)
|
|
Overall length (Since 2017)
|
329 in (836 cm)
|
|
Overall length (Since 2017)
|
336 in (853 cm)
|
|
Overall length (Since 2017)
|
333 in (846 cm)
|
|
Overall length (Since 2017)
|
340 in (864 cm)
|
|
Overall length (Since 2017)
|
331 in (841 cm)
|
|
Overall length (Since 2017)
|
338 in (859 cm)
|
|
Overall length (Since 2018)
|
318 in (808 cm)
|
|
Overall length (Since 2018)
|
325 in (826 cm)
|
|
Overall length (Since 2018)
|
321 in (815 cm)
|
|
Overall length (Since 2018)
|
22 in (56 cm)
|
|
Overall length (Since 2018)
|
328 in (833 cm)
|
|
Overall length (Since 2018)
|
323 in (820 cm)
|
|
Overall length (Since 2018)
|
330 in (838 cm)
|
|
Overall length (Since 2018)
|
325 in (826 cm)
|
|
Overall length (Since 2018)
|
332 in (843 cm)
|
|
Overall length (Since 2018)
|
326 in (828 cm)
|
|
Overall length (Since 2018)
|
333 in (846 cm)
|
|
Overall length (Since 2018)
|
328 in (833 cm)
|
|
Overall length (Since 2018)
|
334 in (848 cm)
|
|
Overall length (Since 2018)
|
329 in (836 cm)
|
|
Overall length (Since 2018)
|
336 in (853 cm)
|
|
Overall length (Since 2018)
|
319 in (810 cm)
|
|
Overall length (Since 2018)
|
326 in (828 cm)
|
|
Overall length (Since 2018)
|
321 in (815 cm)
|
|
Overall length (Since 2018)
|
328 in (833 cm)
|
|
Overall length (Since 2018)
|
323 in (820 cm)
|
|
Overall length (Since 2018)
|
330 in (838 cm)
|
|
Overall length (Since 2018)
|
325 in (826 cm)
|
|
Overall length (Since 2018)
|
332 in (843 cm)
|
|
Overall length (Since 2018)
|
327 in (831 cm)
|
|
Overall length (Since 2018)
|
333 in (846 cm)
|
|
Overall length (Since 2018)
|
330 in (838 cm)
|
|
Overall length (Since 2018)
|
337 in (856 cm)
|
|
Overall length (Since 2018)
|
328 in (833 cm)
|
|
Overall length (Since 2018)
|
335 in (851 cm)
|
|
Overall length (Since 2018)
|
321 in (815 cm)
|
|
Overall length (Since 2018)
|
328 in (833 cm)
|
|
Overall length (Since 2018)
|
323 in (820 cm)
|
|
Overall length (Since 2018)
|
330 in (838 cm)
|
|
Overall length (Since 2018)
|
326 in (828 cm)
|
|
Overall length (Since 2018)
|
332 in (843 cm)
|
|
Overall length (Since 2018)
|
328 in (833 cm)
|
|
Overall length (Since 2018)
|
334 in (848 cm)
|
|
Overall length (Since 2018)
|
329 in (836 cm)
|
|
Overall length (Since 2018)
|
335 in (851 cm)
|
|
Overall length (Since 2018)
|
330 in (838 cm)
|
|
Overall length (Since 2018)
|
337 in (856 cm)
|
|
Overall length (Since 2018)
|
332 in (843 cm)
|
|
Overall length (Since 2018)
|
339 in (861 cm)
|
|
Overall length (Since 2018)
|
324 in (823 cm)
|
|
Overall length (Since 2018)
|
331 in (841 cm)
|
|
Overall length (Since 2018)
|
326 in (828 cm)
|
|
Overall length (Since 2018)
|
332 in (843 cm)
|
|
Overall length (Since 2018)
|
327 in (831 cm)
|
|
Overall length (Since 2018)
|
334 in (848 cm)
|
|
Overall length (Since 2018)
|
329 in (836 cm)
|
|
Overall length (Since 2018)
|
336 in (853 cm)
|
|
Overall length (Since 2018)
|
333 in (846 cm)
|
|
Overall length (Since 2018)
|
340 in (864 cm)
|
|
Overall length (Since 2018)
|
331 in (841 cm)
|
|
Overall length (Since 2018)
|
338 in (859 cm)
|
|
Overall length (Since 2019)
|
318 in (808 cm)
|
|
Overall length (Since 2019)
|
325 in (826 cm)
|
|
Overall length (Since 2019)
|
321 in (815 cm)
|
|
Overall length (Since 2019)
|
22 in (56 cm)
|
|
Overall length (Since 2019)
|
328 in (833 cm)
|
|
Overall length (Since 2019)
|
323 in (820 cm)
|
|
Overall length (Since 2019)
|
330 in (838 cm)
|
|
Overall length (Since 2019)
|
325 in (826 cm)
|
|
Overall length (Since 2019)
|
321 in (815 cm)
|
|
Overall length (Since 2019)
|
328 in (833 cm)
|
|
Overall length (Since 2019)
|
323 in (820 cm)
|
|
Overall length (Since 2019)
|
330 in (838 cm)
|
|
Overall length (Since 2019)
|
326 in (828 cm)
|
|
Overall length (Since 2019)
|
332 in (843 cm)
|
|
Overall length (Since 2019)
|
328 in (833 cm)
|
|
Overall length (Since 2019)
|
334 in (848 cm)
|
|
Overall length (Since 2019)
|
329 in (836 cm)
|
|
Overall length (Since 2019)
|
335 in (851 cm)
|
|
Overall length (Since 2019)
|
330 in (838 cm)
|
|
Overall length (Since 2019)
|
337 in (856 cm)
|
|
Overall length (Since 2019)
|
332 in (843 cm)
|
|
Overall length (Since 2019)
|
339 in (861 cm)
|
|
Overall length (Since 2019)
|
324 in (823 cm)
|
|
Overall length (Since 2019)
|
331 in (841 cm)
|
|
Overall length (Since 2019)
|
326 in (828 cm)
|
|
Overall length (Since 2019)
|
332 in (843 cm)
|
|
Overall length (Since 2019)
|
327 in (831 cm)
|
|
Overall length (Since 2019)
|
334 in (848 cm)
|
|
Overall length (Since 2019)
|
329 in (836 cm)
|
|
Overall length (Since 2019)
|
336 in (853 cm)
|
|
Overall length (Since 2019)
|
333 in (846 cm)
|
|
Overall length (Since 2019)
|
340 in (864 cm)
|
|
Overall length (Since 2019)
|
331 in (841 cm)
|
|
Overall length (Since 2019)
|
338 in (859 cm)
|
|
Overall length (Since 2019)
|
332 in (843 cm)
|
|
Overall length (Since 2019)
|
326 in (828 cm)
|
|
Overall length (Since 2019)
|
333 in (846 cm)
|
|
Overall length (Since 2019)
|
328 in (833 cm)
|
|
Overall length (Since 2019)
|
334 in (848 cm)
|
|
Overall length (Since 2019)
|
329 in (836 cm)
|
|
Overall length (Since 2019)
|
336 in (853 cm)
|
|
Overall length (Since 2019)
|
319 in (810 cm)
|
|
Overall length (Since 2019)
|
326 in (828 cm)
|
|
Overall length (Since 2019)
|
321 in (815 cm)
|
|
Overall length (Since 2019)
|
328 in (833 cm)
|
|
Overall length (Since 2019)
|
323 in (820 cm)
|
|
Overall length (Since 2019)
|
330 in (838 cm)
|
|
Overall length (Since 2019)
|
325 in (826 cm)
|
|
Overall length (Since 2019)
|
332 in (843 cm)
|
|
Overall length (Since 2019)
|
327 in (831 cm)
|
|
Overall length (Since 2019)
|
333 in (846 cm)
|
|
Overall length (Since 2019)
|
330 in (838 cm)
|
|
Overall length (Since 2019)
|
337 in (856 cm)
|
|
Overall length (Since 2019)
|
328 in (833 cm)
|
|
Overall length (Since 2019)
|
335 in (851 cm)
|
|
P Maximum rollback at carry height (Since 2015)
|
46 deg |
|
P Maximum rollback at carry height (2016)
|
46 deg |
|
P Maximum rollback at carry height (2017)
|
46 deg |
|
P Maximum rollback at carry height (2018)
|
46 deg |
|
P Maximum rollback at carry height (2019)
|
46 deg |
|
Q Maximum rollback at ground (Since 2015)
|
45 deg |
|
Q Maximum rollback at ground (2016)
|
45 deg |
|
Q Maximum rollback at ground (2017)
|
45 deg |
|
Q Maximum rollback at ground (2018)
|
45 deg |
|
Q Maximum rollback at ground (2019)
|
45 deg |
|
Rated load (CEN EN 474-3 firm - and level ground) (Since 2016)
|
13,972 lbs (6,338 kg)
|
|
Rated load (CEN EN 474-3 firm - and level ground) (Since 2016)
|
13,248 lbs (6,009 kg)
|
|
Rated load (CEN EN 474-3 firm - and level ground) (Since 2016)
|
12,573 lbs (5,703 kg)
|
|
Rated load (CEN EN 474-3 firm - and level ground) (Since 2016)
|
11,854 lbs (5,377 kg)
|
|
Rated load (CEN EN 474-3 firm - and level ground) (Since 2017)
|
13,972 lbs (6,338 kg)
|
|
Rated load (CEN EN 474-3 firm - and level ground) (Since 2017)
|
13,248 lbs (6,009 kg)
|
|
Rated load (CEN EN 474-3 firm - and level ground) (Since 2017)
|
12,573 lbs (5,703 kg)
|
|
Rated load (CEN EN 474-3 firm - and level ground) (Since 2017)
|
11,854 lbs (5,377 kg)
|
|
Rated load (CEN EN 474-3 firm - and level ground) (Since 2018)
|
13,972 lbs (6,338 kg)
|
|
Rated load (CEN EN 474-3 firm - and level ground) (Since 2018)
|
13,248 lbs (6,009 kg)
|
|
Rated load (CEN EN 474-3 firm - and level ground) (Since 2018)
|
12,573 lbs (5,703 kg)
|
|
Rated load (CEN EN 474-3 firm - and level ground) (Since 2018)
|
11,854 lbs (5,377 kg)
|
|
Rated load (CEN EN 474-3 firm - and level ground) (Since 2019)
|
13,972 lbs (6,338 kg)
|
|
Rated load (CEN EN 474-3 firm - and level ground) (Since 2019)
|
13,248 lbs (6,009 kg)
|
|
Rated load (CEN EN 474-3 firm - and level ground) (Since 2019)
|
12,573 lbs (5,703 kg)
|
|
Rated load (CEN EN 474-3 firm - and level ground) (Since 2019)
|
11,854 lbs (5,377 kg)
|
|
Rated load (CEN EN 474-3 rough terrain) (Since 2016)
|
10,479 lbs (4,753 kg)
|
|
Rated load (CEN EN 474-3 rough terrain) (Since 2016)
|
9,936 lbs (4,507 kg)
|
|
Rated load (CEN EN 474-3 rough terrain) (Since 2016)
|
9,430 lbs (4,277 kg)
|
|
Rated load (CEN EN 474-3 rough terrain) (Since 2016)
|
8,961 lbs (4,065 kg)
|
|
Rated load (CEN EN 474-3 rough terrain) (Since 2017)
|
10,479 lbs (4,753 kg)
|
|
Rated load (CEN EN 474-3 rough terrain) (Since 2017)
|
9,936 lbs (4,507 kg)
|
|
Rated load (CEN EN 474-3 rough terrain) (Since 2017)
|
9,430 lbs (4,277 kg)
|
|
Rated load (CEN EN 474-3 rough terrain) (Since 2017)
|
8,961 lbs (4,065 kg)
|
|
Rated load (CEN EN 474-3 rough terrain) (Since 2018)
|
10,479 lbs (4,753 kg)
|
|
Rated load (CEN EN 474-3 rough terrain) (Since 2018)
|
9,936 lbs (4,507 kg)
|
|
Rated load (CEN EN 474-3 rough terrain) (Since 2018)
|
9,430 lbs (4,277 kg)
|
|
Rated load (CEN EN 474-3 rough terrain) (Since 2018)
|
8,961 lbs (4,065 kg)
|
|
Rated load (CEN EN 474-3 rough terrain) (Since 2019)
|
10,479 lbs (4,753 kg)
|
|
Rated load (CEN EN 474-3 rough terrain) (Since 2019)
|
9,936 lbs (4,507 kg)
|
|
Rated load (CEN EN 474-3 rough terrain) (Since 2019)
|
9,430 lbs (4,277 kg)
|
|
Rated load (CEN EN 474-3 rough terrain) (Since 2019)
|
8,961 lbs (4,065 kg)
|
|
Rated load (SAE J1197) (Since 2016)
|
8,733 lbs (3,961 kg)
|
|
Rated load (SAE J1197) (Since 2016)
|
8,280 lbs (3,756 kg)
|
|
Rated load (SAE J1197) (Since 2016)
|
7,858 lbs (3,564 kg)
|
|
Rated load (SAE J1197) (Since 2016)
|
7,467 lbs (3,387 kg)
|
|
Rated load (SAE J1197) (Since 2017)
|
8,733 lbs (3,961 kg)
|
|
Rated load (SAE J1197) (Since 2017)
|
8,280 lbs (3,756 kg)
|
|
Rated load (SAE J1197) (Since 2017)
|
7,858 lbs (3,564 kg)
|
|
Rated load (SAE J1197) (Since 2017)
|
7,467 lbs (3,387 kg)
|
|
Rated load (SAE J1197) (Since 2018)
|
8,733 lbs (3,961 kg)
|
|
Rated load (SAE J1197) (Since 2018)
|
8,280 lbs (3,756 kg)
|
|
Rated load (SAE J1197) (Since 2018)
|
7,858 lbs (3,564 kg)
|
|
Rated load (SAE J1197) (Since 2018)
|
7,467 lbs (3,387 kg)
|
|
Rated load (SAE J1197) (Since 2019)
|
8,733 lbs (3,961 kg)
|
|
Rated load (SAE J1197) (Since 2019)
|
8,280 lbs (3,756 kg)
|
|
Rated load (SAE J1197) (Since 2019)
|
7,858 lbs (3,564 kg)
|
|
Rated load (SAE J1197) (Since 2019)
|
7,467 lbs (3,387 kg)
|
|
Rated load is determined by considering % of machine (Since 2016)
|
stability, hydraulic lift |
|
Rated load is determined by considering % of machine (Since 2016)
|
capacity, and hydraulic tilt |
|
Rated load is determined by considering % of machine (Since 2016)
|
capacity. Please contact your |
|
Rated load is determined by considering % of machine (Since 2016)
|
dealer to properly select |
|
Rated load is determined by considering % of machine (Since 2017)
|
stability, hydraulic lift |
|
Rated load is determined by considering % of machine (Since 2017)
|
capacity, and hydraulic tilt |
|
Rated load is determined by considering % of machine (Since 2017)
|
capacity. Please contact your |
|
Rated load is determined by considering % of machine (Since 2017)
|
dealer to properly select |
|
Rated load is determined by considering % of machine (Since 2018)
|
stability, hydraulic lift |
|
Rated load is determined by considering % of machine (Since 2018)
|
capacity, and hydraulic tilt |
|
Rated load is determined by considering % of machine (Since 2018)
|
capacity. Please contact your |
|
Rated load is determined by considering % of machine (Since 2018)
|
dealer to properly select |
|
Rated load is determined by considering % of machine (Since 2019)
|
stability, hydraulic lift |
|
Rated load is determined by considering % of machine (Since 2019)
|
capacity, and hydraulic tilt |
|
Rated load is determined by considering % of machine (Since 2019)
|
capacity. Please contact your |
|
Rated load is determined by considering % of machine (Since 2019)
|
dealer to properly select |
|
Reach at level lift arm and bucket level (Since 2015)
|
121 in (307 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
113 in (287 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
119 in (302 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
105 in (267 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
108 in (274 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
114 in (290 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
110 in (279 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
116 in (295 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
111 in (282 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
117 in (297 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
118 in (300 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
114 in (290 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
120 in (305 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
106 in (269 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
108 in (274 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
114 in (290 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
109 in (277 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
116 in (295 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
111 in (282 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
117 in (297 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
115 in (292 cm)
|
|
Reach at level lift arm and bucket level (2015)
|
115 in (292 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
110 in (279 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
116 in (295 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
111 in (282 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
118 in (300 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
101 in (257 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
107 in (272 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
104 in (264 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
110 in (279 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
105 in (267 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
107 in (272 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
113 in (287 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
109 in (277 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
115 in (292 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
119 in (302 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
110 in (279 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
117 in (297 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
103 in (262 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
109 in (277 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
100 in (254 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
107 in (272 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
103 in (262 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
14 in (36 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
109 in (277 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
105 in (267 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
107 in (272 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
114 in (290 cm)
|
|
Reach at level lift arm and bucket level (Since 2015)
|
108 in (274 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
100 in (254 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
107 in (272 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
103 in (262 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
14 in (36 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
109 in (277 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
105 in (267 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
107 in (272 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
114 in (290 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
108 in (274 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
115 in (292 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
110 in (279 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
116 in (295 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
111 in (282 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
118 in (300 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
101 in (257 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
107 in (272 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
104 in (264 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
110 in (279 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
105 in (267 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
107 in (272 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
113 in (287 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
109 in (277 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
115 in (292 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
119 in (302 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
110 in (279 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
117 in (297 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
103 in (262 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
109 in (277 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
105 in (267 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
108 in (274 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
114 in (290 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
110 in (279 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
116 in (295 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
111 in (282 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
117 in (297 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
118 in (300 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
114 in (290 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
120 in (305 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
106 in (269 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
108 in (274 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
114 in (290 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
109 in (277 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
116 in (295 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
111 in (282 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
117 in (297 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
115 in (292 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
121 in (307 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
113 in (287 cm)
|
|
Reach at level lift arm and bucket level (Since 2016)
|
119 in (302 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
100 in (254 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
107 in (272 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
103 in (262 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
14 in (36 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
109 in (277 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
105 in (267 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
107 in (272 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
114 in (290 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
108 in (274 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
115 in (292 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
110 in (279 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
116 in (295 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
111 in (282 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
118 in (300 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
101 in (257 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
107 in (272 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
104 in (264 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
110 in (279 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
105 in (267 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
107 in (272 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
113 in (287 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
109 in (277 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
115 in (292 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
119 in (302 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
110 in (279 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
117 in (297 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
103 in (262 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
109 in (277 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
105 in (267 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
119 in (302 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
108 in (274 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
114 in (290 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
110 in (279 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
116 in (295 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
111 in (282 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
117 in (297 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
118 in (300 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
114 in (290 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
120 in (305 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
106 in (269 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
108 in (274 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
114 in (290 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
109 in (277 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
116 in (295 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
111 in (282 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
117 in (297 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
115 in (292 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
121 in (307 cm)
|
|
Reach at level lift arm and bucket level (Since 2017)
|
113 in (287 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
115 in (292 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
121 in (307 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
113 in (287 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
119 in (302 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
105 in (267 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
108 in (274 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
114 in (290 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
110 in (279 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
116 in (295 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
111 in (282 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
117 in (297 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
118 in (300 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
114 in (290 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
120 in (305 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
106 in (269 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
108 in (274 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
114 in (290 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
109 in (277 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
116 in (295 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
111 in (282 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
117 in (297 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
115 in (292 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
110 in (279 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
116 in (295 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
111 in (282 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
118 in (300 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
101 in (257 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
107 in (272 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
104 in (264 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
110 in (279 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
105 in (267 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
107 in (272 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
113 in (287 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
109 in (277 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
115 in (292 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
119 in (302 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
110 in (279 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
117 in (297 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
103 in (262 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
109 in (277 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
100 in (254 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
107 in (272 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
103 in (262 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
14 in (36 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
109 in (277 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
105 in (267 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
107 in (272 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
114 in (290 cm)
|
|
Reach at level lift arm and bucket level (Since 2018)
|
108 in (274 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
111 in (282 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
117 in (297 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
115 in (292 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
121 in (307 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
113 in (287 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
119 in (302 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
114 in (290 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
108 in (274 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
115 in (292 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
110 in (279 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
116 in (295 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
111 in (282 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
118 in (300 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
101 in (257 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
107 in (272 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
104 in (264 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
110 in (279 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
105 in (267 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
107 in (272 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
113 in (287 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
109 in (277 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
115 in (292 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
119 in (302 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
110 in (279 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
117 in (297 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
100 in (254 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
107 in (272 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
103 in (262 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
14 in (36 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
109 in (277 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
105 in (267 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
107 in (272 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
103 in (262 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
109 in (277 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
105 in (267 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
108 in (274 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
114 in (290 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
110 in (279 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
116 in (295 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
111 in (282 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
117 in (297 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
118 in (300 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
114 in (290 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
120 in (305 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
106 in (269 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
112 in (284 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
108 in (274 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
114 in (290 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
109 in (277 cm)
|
|
Reach at level lift arm and bucket level (Since 2019)
|
116 in (295 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
63 in (160 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
62 in (157 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
53 in (135 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
54 in (137 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
1 in (3 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
56 in (142 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
60 in (152 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
61 in (155 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
62 in (157 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
63 in (160 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
60 in (152 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
64 in (163 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
50 in (127 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
54 in (137 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
51 in (130 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
55 in (140 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
53 in (135 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
54 in (137 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
55 in (140 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
62 in (157 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
56 in (142 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
55 in (140 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
56 in (142 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
61 in (155 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
62 in (157 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
63 in (160 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
64 in (163 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
60 in (152 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
64 in (163 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
66 in (168 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
53 in (135 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
54 in (137 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
55 in (140 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
61 in (155 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2015)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
53 in (135 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
54 in (137 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
1 in (3 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
56 in (142 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
60 in (152 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
61 in (155 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
62 in (157 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
63 in (160 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
60 in (152 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
64 in (163 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
63 in (160 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
64 in (163 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
60 in (152 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
64 in (163 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
66 in (168 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
53 in (135 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
54 in (137 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
55 in (140 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
61 in (155 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
63 in (160 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
62 in (157 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
50 in (127 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
54 in (137 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
51 in (130 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
55 in (140 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
53 in (135 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
54 in (137 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
55 in (140 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
62 in (157 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
56 in (142 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
55 in (140 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
56 in (142 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
61 in (155 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
62 in (157 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2016)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
53 in (135 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
54 in (137 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
1 in (3 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
56 in (142 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
60 in (152 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
61 in (155 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
62 in (157 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
62 in (157 cm)
|
|
Reach at maximum lift and 45° discharge (2017)
|
62 in (157 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
63 in (160 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
64 in (163 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
60 in (152 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
64 in (163 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
66 in (168 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
53 in (135 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
54 in (137 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
55 in (140 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
61 in (155 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
63 in (160 cm)
|
|
Reach at maximum lift and 45° discharge (2017)
|
63 in (160 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
60 in (152 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
64 in (163 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
50 in (127 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
54 in (137 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
51 in (130 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
55 in (140 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
53 in (135 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
54 in (137 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
55 in (140 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
62 in (157 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
56 in (142 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
55 in (140 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
56 in (142 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
61 in (155 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2017)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
53 in (135 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
54 in (137 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
1 in (3 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
56 in (142 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
60 in (152 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
61 in (155 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
56 in (142 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
61 in (155 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
62 in (157 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
63 in (160 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
64 in (163 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
60 in (152 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
64 in (163 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
66 in (168 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
53 in (135 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
54 in (137 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
55 in (140 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
61 in (155 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
63 in (160 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
62 in (157 cm)
|
|
Reach at maximum lift and 45° discharge (2018)
|
62 in (157 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
63 in (160 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
60 in (152 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
64 in (163 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
50 in (127 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
54 in (137 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
51 in (130 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
55 in (140 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
53 in (135 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
54 in (137 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
55 in (140 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
62 in (157 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
56 in (142 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
55 in (140 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2018)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
61 in (155 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
62 in (157 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
63 in (160 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
60 in (152 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
64 in (163 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
50 in (127 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
54 in (137 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
51 in (130 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
55 in (140 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
53 in (135 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
54 in (137 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
55 in (140 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
62 in (157 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
56 in (142 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
55 in (140 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
56 in (142 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
61 in (155 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
62 in (157 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
63 in (160 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
64 in (163 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
60 in (152 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
64 in (163 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
66 in (168 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
53 in (135 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
54 in (137 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
58 in (147 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
55 in (140 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
61 in (155 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
63 in (160 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
62 in (157 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
53 in (135 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
57 in (145 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
54 in (137 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
1 in (3 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
59 in (150 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
56 in (142 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
60 in (152 cm)
|
|
Reach at maximum lift and 45° discharge (Since 2019)
|
57 in (145 cm)
|
|
SAE J732, CEN EN 474-3. (Since 2016)
|
or hydraulic limit. SAE - Society of CEN - European |
|
SAE J732, CEN EN 474-3. (Since 2016)
|
Automotive Engineers Committee for Standardization |
|
SAE J732, CEN EN 474-3. (Since 2017)
|
or hydraulic limit. SAE - Society of CEN - European |
|
SAE J732, CEN EN 474-3. (Since 2017)
|
Automotive Engineers Committee for Standardization |
|
SAE J732, CEN EN 474-3. (Since 2018)
|
or hydraulic limit. SAE - Society of CEN - European |
|
SAE J732, CEN EN 474-3. (Since 2018)
|
Automotive Engineers Committee for Standardization |
|
SAE J732, CEN EN 474-3. (Since 2019)
|
or hydraulic limit. SAE - Society of CEN - European |
|
SAE J732, CEN EN 474-3. (Since 2019)
|
Automotive Engineers Committee for Standardization |
|
Specifications and ratings conform to the following (Since 2016)
|
standards: SAE J1197, |
|
Specifications and ratings conform to the following (Since 2016)
|
· CEN EN 474-3: 80% of |
|
Specifications and ratings conform to the following (Since 2016)
|
full turn static tipping load |
|
Specifications and ratings conform to the following (Since 2016)
|
on firm and level ground |
|
Specifications and ratings conform to the following (Since 2017)
|
standards: SAE J1197, |
|
Specifications and ratings conform to the following (Since 2017)
|
· CEN EN 474-3: 80% of |
|
Specifications and ratings conform to the following (Since 2017)
|
full turn static tipping load |
|
Specifications and ratings conform to the following (Since 2017)
|
on firm and level ground |
|
Specifications and ratings conform to the following (Since 2018)
|
standards: SAE J1197, |
|
Specifications and ratings conform to the following (Since 2018)
|
· CEN EN 474-3: 80% of |
|
Specifications and ratings conform to the following (Since 2018)
|
full turn static tipping load |
|
Specifications and ratings conform to the following (Since 2018)
|
on firm and level ground |
|
Specifications and ratings conform to the following (Since 2019)
|
standards: SAE J1197, |
|
Specifications and ratings conform to the following (Since 2019)
|
· CEN EN 474-3: 80% of |
|
Specifications and ratings conform to the following (Since 2019)
|
full turn static tipping load |
|
Specifications and ratings conform to the following (Since 2019)
|
on firm and level ground |
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,883 lbs (11,287 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,573 lbs (11,146 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,290 lbs (11,471 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,661 lbs (11,186 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,349 lbs (11,045 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,063 lbs (11,368 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,477 lbs (11,103 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,163 lbs (10,960 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,874 lbs (11,283 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,391 lbs (11,064 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,075 lbs (10,920 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,785 lbs (11,242 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,257 lbs (11,003 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
23,940 lbs (10,859 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,649 lbs (11,181 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,081 lbs (10,923 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
23,762 lbs (10,778 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,469 lbs (11,099 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,804 lbs (11,251 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,500 lbs (11,113 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,189 lbs (11,426 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,591 lbs (11,154 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,284 lbs (11,015 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,968 lbs (11,325 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,403 lbs (11,069 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,094 lbs (10,929 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,778 lbs (11,239 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,226 lbs (10,989 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
23,915 lbs (10,848 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,608 lbs (11,162 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,082 lbs (10,923 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
23,769 lbs (10,781 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,454 lbs (11,092 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
23,710 lbs (10,755 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
23,394 lbs (10,611 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
23,913 lbs (10,847 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
23,599 lbs (10,704 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,286 lbs (11,016 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,260 lbs (11,458 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,849 lbs (11,725 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,433 lbs (11,536 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,115 lbs (11,392 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,696 lbs (11,656 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,228 lbs (11,443 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,908 lbs (11,298 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,478 lbs (11,557 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
26,021 lbs (11,803 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,716 lbs (11,665 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
26,422 lbs (11,985 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,786 lbs (11,696 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
26,080 lbs (11,830 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,596 lbs (11,610 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,286 lbs (11,470 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,874 lbs (11,736 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,409 lbs (11,525 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,097 lbs (11,384 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,678 lbs (11,647 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,249 lbs (11,453 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,935 lbs (11,310 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,508 lbs (11,570 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,859 lbs (11,276 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,541 lbs (11,132 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,069 lbs (11,371 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,754 lbs (11,228 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,318 lbs (11,484 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,116 lbs (11,392 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
24,810 lbs (11,254 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,532 lbs (11,581 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
26,393 lbs (11,972 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
26,085 lbs (11,832 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
26,719 lbs (12,120 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
26,101 lbs (11,839 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
-2,941 lbs (-1,334 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,790 lbs (11,698 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
26,408 lbs (11,978 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,917 lbs (11,756 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,604 lbs (11,614 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
26,203 lbs (11,886 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,666 lbs (11,642 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,351 lbs (11,499 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,947 lbs (11,769 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2015)
|
25,577 lbs (11,602 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,908 lbs (11,298 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,478 lbs (11,557 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
26,021 lbs (11,803 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,716 lbs (11,665 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
26,422 lbs (11,985 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,786 lbs (11,696 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
26,080 lbs (11,830 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,596 lbs (11,610 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,286 lbs (11,470 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,874 lbs (11,736 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,409 lbs (11,525 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,097 lbs (11,384 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,678 lbs (11,647 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,249 lbs (11,453 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,935 lbs (11,310 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,508 lbs (11,570 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,859 lbs (11,276 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,541 lbs (11,132 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,069 lbs (11,371 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,754 lbs (11,228 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,318 lbs (11,484 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,116 lbs (11,392 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,810 lbs (11,254 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,532 lbs (11,581 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,883 lbs (11,287 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,573 lbs (11,146 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,290 lbs (11,471 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,661 lbs (11,186 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,349 lbs (11,045 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,063 lbs (11,368 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,477 lbs (11,103 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,163 lbs (10,960 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,874 lbs (11,283 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,391 lbs (11,064 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,075 lbs (10,920 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,785 lbs (11,242 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,257 lbs (11,003 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
23,940 lbs (10,859 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,649 lbs (11,181 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,081 lbs (10,923 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
23,762 lbs (10,778 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,469 lbs (11,099 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,804 lbs (11,251 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,500 lbs (11,113 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,189 lbs (11,426 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,591 lbs (11,154 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,284 lbs (11,015 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,968 lbs (11,325 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,403 lbs (11,069 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,094 lbs (10,929 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,778 lbs (11,239 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,226 lbs (10,989 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
23,915 lbs (10,848 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,608 lbs (11,162 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,082 lbs (10,923 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
23,769 lbs (10,781 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,454 lbs (11,092 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
23,710 lbs (10,755 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
23,394 lbs (10,611 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
23,913 lbs (10,847 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
23,599 lbs (10,704 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
24,286 lbs (11,016 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
26,393 lbs (11,972 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
26,085 lbs (11,832 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
26,719 lbs (12,120 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
26,101 lbs (11,839 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
-2,941 lbs (-1,334 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,790 lbs (11,698 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
26,408 lbs (11,978 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,917 lbs (11,756 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,604 lbs (11,614 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
26,203 lbs (11,886 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,666 lbs (11,642 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,351 lbs (11,499 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,947 lbs (11,769 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,577 lbs (11,602 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,260 lbs (11,458 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,849 lbs (11,725 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,433 lbs (11,536 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,115 lbs (11,392 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,696 lbs (11,656 kg)
|
|
Static tipping load, articulated (No Tire Deflection) (Since 2016)
|
25,228 lbs (11,443 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
26,393 lbs (11,972 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
26,085 lbs (11,832 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
26,719 lbs (12,120 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
26,101 lbs (11,839 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
-2,941 lbs (-1,334 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,790 lbs (11,698 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
26,408 lbs (11,978 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,917 lbs (11,756 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,604 lbs (11,614 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
26,203 lbs (11,886 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,666 lbs (11,642 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,351 lbs (11,499 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,947 lbs (11,769 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,577 lbs (11,602 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,260 lbs (11,458 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,849 lbs (11,725 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,433 lbs (11,536 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,115 lbs (11,392 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,696 lbs (11,656 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,228 lbs (11,443 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,908 lbs (11,298 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,478 lbs (11,557 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
26,021 lbs (11,803 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,716 lbs (11,665 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
26,422 lbs (11,985 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,786 lbs (11,696 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
26,080 lbs (11,830 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,596 lbs (11,610 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,286 lbs (11,470 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,874 lbs (11,736 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,409 lbs (11,525 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,097 lbs (11,384 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,678 lbs (11,647 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,249 lbs (11,453 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,935 lbs (11,310 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,508 lbs (11,570 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,859 lbs (11,276 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,541 lbs (11,132 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,069 lbs (11,371 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,754 lbs (11,228 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,318 lbs (11,484 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,116 lbs (11,392 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,810 lbs (11,254 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,532 lbs (11,581 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,883 lbs (11,287 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,573 lbs (11,146 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,290 lbs (11,471 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
23,913 lbs (10,847 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
23,599 lbs (10,704 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,286 lbs (11,016 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,661 lbs (11,186 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,349 lbs (11,045 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,063 lbs (11,368 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,477 lbs (11,103 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,163 lbs (10,960 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,874 lbs (11,283 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,391 lbs (11,064 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,075 lbs (10,920 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,785 lbs (11,242 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,257 lbs (11,003 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
23,940 lbs (10,859 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,649 lbs (11,181 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,081 lbs (10,923 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
23,762 lbs (10,778 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,469 lbs (11,099 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,804 lbs (11,251 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,500 lbs (11,113 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
25,189 lbs (11,426 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,591 lbs (11,154 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,284 lbs (11,015 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,968 lbs (11,325 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,403 lbs (11,069 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,094 lbs (10,929 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,778 lbs (11,239 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,226 lbs (10,989 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
23,915 lbs (10,848 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,608 lbs (11,162 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,082 lbs (10,923 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
23,769 lbs (10,781 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
24,454 lbs (11,092 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
23,710 lbs (10,755 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2017)
|
23,394 lbs (10,611 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
23,710 lbs (10,755 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
23,394 lbs (10,611 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
23,913 lbs (10,847 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
23,599 lbs (10,704 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,286 lbs (11,016 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,260 lbs (11,458 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,849 lbs (11,725 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,433 lbs (11,536 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,115 lbs (11,392 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,696 lbs (11,656 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,228 lbs (11,443 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,908 lbs (11,298 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,478 lbs (11,557 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
26,021 lbs (11,803 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,716 lbs (11,665 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
26,422 lbs (11,985 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,786 lbs (11,696 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
26,080 lbs (11,830 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,596 lbs (11,610 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,286 lbs (11,470 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,874 lbs (11,736 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,409 lbs (11,525 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,097 lbs (11,384 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,678 lbs (11,647 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,249 lbs (11,453 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,935 lbs (11,310 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,508 lbs (11,570 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,859 lbs (11,276 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,541 lbs (11,132 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,069 lbs (11,371 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,754 lbs (11,228 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,318 lbs (11,484 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,116 lbs (11,392 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,810 lbs (11,254 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,532 lbs (11,581 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
26,393 lbs (11,972 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
26,085 lbs (11,832 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
26,719 lbs (12,120 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
26,101 lbs (11,839 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
-2,941 lbs (-1,334 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,790 lbs (11,698 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
26,408 lbs (11,978 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,917 lbs (11,756 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,604 lbs (11,614 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
26,203 lbs (11,886 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,666 lbs (11,642 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,351 lbs (11,499 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,947 lbs (11,769 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,577 lbs (11,602 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,883 lbs (11,287 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,573 lbs (11,146 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,290 lbs (11,471 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,661 lbs (11,186 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,349 lbs (11,045 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,063 lbs (11,368 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,477 lbs (11,103 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,163 lbs (10,960 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,874 lbs (11,283 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,391 lbs (11,064 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,075 lbs (10,920 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,785 lbs (11,242 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,257 lbs (11,003 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
23,940 lbs (10,859 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,649 lbs (11,181 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,081 lbs (10,923 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
23,762 lbs (10,778 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,469 lbs (11,099 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,804 lbs (11,251 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,500 lbs (11,113 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
25,189 lbs (11,426 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,591 lbs (11,154 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,284 lbs (11,015 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,968 lbs (11,325 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,403 lbs (11,069 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,094 lbs (10,929 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,778 lbs (11,239 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,226 lbs (10,989 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
23,915 lbs (10,848 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,608 lbs (11,162 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,082 lbs (10,923 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
23,769 lbs (10,781 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2018)
|
24,454 lbs (11,092 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
26,393 lbs (11,972 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
26,085 lbs (11,832 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
26,719 lbs (12,120 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
26,101 lbs (11,839 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
-2,941 lbs (-1,334 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,790 lbs (11,698 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
26,408 lbs (11,978 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,917 lbs (11,756 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,604 lbs (11,614 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
26,203 lbs (11,886 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,666 lbs (11,642 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,318 lbs (11,484 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,116 lbs (11,392 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,810 lbs (11,254 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,532 lbs (11,581 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,883 lbs (11,287 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,573 lbs (11,146 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,290 lbs (11,471 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,661 lbs (11,186 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,349 lbs (11,045 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,063 lbs (11,368 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,477 lbs (11,103 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,163 lbs (10,960 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,874 lbs (11,283 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,391 lbs (11,064 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,075 lbs (10,920 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,785 lbs (11,242 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,257 lbs (11,003 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
23,940 lbs (10,859 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,649 lbs (11,181 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,081 lbs (10,923 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
23,762 lbs (10,778 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,469 lbs (11,099 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,804 lbs (11,251 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,500 lbs (11,113 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,189 lbs (11,426 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,591 lbs (11,154 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,284 lbs (11,015 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,968 lbs (11,325 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,403 lbs (11,069 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,094 lbs (10,929 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,778 lbs (11,239 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,226 lbs (10,989 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
23,915 lbs (10,848 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,608 lbs (11,162 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,082 lbs (10,923 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
23,769 lbs (10,781 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,454 lbs (11,092 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
23,710 lbs (10,755 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
23,394 lbs (10,611 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
23,913 lbs (10,847 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
23,599 lbs (10,704 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,286 lbs (11,016 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,351 lbs (11,499 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,947 lbs (11,769 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,577 lbs (11,602 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,260 lbs (11,458 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,849 lbs (11,725 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,433 lbs (11,536 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,115 lbs (11,392 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,696 lbs (11,656 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,228 lbs (11,443 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,908 lbs (11,298 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,478 lbs (11,557 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
26,021 lbs (11,803 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,716 lbs (11,665 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
26,422 lbs (11,985 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,786 lbs (11,696 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
26,080 lbs (11,830 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,596 lbs (11,610 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,286 lbs (11,470 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,874 lbs (11,736 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,409 lbs (11,525 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,097 lbs (11,384 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,678 lbs (11,647 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,249 lbs (11,453 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,935 lbs (11,310 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,508 lbs (11,570 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,859 lbs (11,276 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,541 lbs (11,132 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
25,069 lbs (11,371 kg)
|
|
Static tipping load, articulated (no tire deflection) (Since 2019)
|
24,754 lbs (11,228 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,094 lbs (10,022 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
21,781 lbs (9,880 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,445 lbs (10,181 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,302 lbs (10,116 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
21,991 lbs (9,975 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,655 lbs (10,276 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,250 lbs (10,546 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,943 lbs (10,407 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,633 lbs (10,720 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,022 lbs (10,443 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,713 lbs (10,302 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,400 lbs (10,614 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,833 lbs (10,357 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,522 lbs (10,216 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,207 lbs (10,527 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,744 lbs (10,317 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,432 lbs (10,175 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,116 lbs (10,485 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,607 lbs (10,254 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,294 lbs (10,112 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,976 lbs (10,422 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,427 lbs (10,173 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,111 lbs (10,029 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,792 lbs (10,338 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,213 lbs (10,529 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,911 lbs (10,392 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,579 lbs (10,695 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,994 lbs (10,430 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,690 lbs (10,292 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,352 lbs (10,592 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,803 lbs (10,343 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,497 lbs (10,204 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,159 lbs (10,505 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,622 lbs (10,261 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,315 lbs (10,122 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,983 lbs (10,425 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,473 lbs (10,194 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,164 lbs (10,053 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,826 lbs (10,354 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
24,745 lbs (11,224 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
24,441 lbs (11,086 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
25,057 lbs (11,366 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
24,446 lbs (11,089 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
-2,610 lbs (-1,184 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
24,138 lbs (10,949 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
24,740 lbs (11,222 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
24,254 lbs (11,001 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,944 lbs (10,861 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
24,529 lbs (11,126 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,999 lbs (10,886 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,687 lbs (10,744 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
24,268 lbs (11,008 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,908 lbs (10,845 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,594 lbs (10,702 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
24,169 lbs (10,963 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,760 lbs (10,777 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,445 lbs (10,634 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
24,013 lbs (10,892 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,551 lbs (10,683 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,234 lbs (10,539 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,792 lbs (10,792 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
24,410 lbs (11,072 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
24,108 lbs (10,935 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
24,792 lbs (11,245 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
24,170 lbs (10,963 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,864 lbs (10,825 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
24,453 lbs (11,092 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,975 lbs (10,875 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,668 lbs (10,736 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
24,244 lbs (10,997 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,784 lbs (10,788 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,475 lbs (10,648 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
24,044 lbs (10,906 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,619 lbs (10,713 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,309 lbs (10,573 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,870 lbs (10,827 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,222 lbs (10,533 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
22,907 lbs (10,390 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,452 lbs (10,638 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,436 lbs (10,630 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,124 lbs (10,489 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,677 lbs (10,740 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,490 lbs (10,655 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,187 lbs (10,517 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2015)
|
23,882 lbs (10,833 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
24,745 lbs (11,224 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
24,441 lbs (11,086 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
25,057 lbs (11,366 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
24,446 lbs (11,089 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
-2,610 lbs (-1,184 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
24,138 lbs (10,949 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
24,740 lbs (11,222 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
24,254 lbs (11,001 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,944 lbs (10,861 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
24,529 lbs (11,126 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,999 lbs (10,886 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,687 lbs (10,744 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
24,268 lbs (11,008 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,908 lbs (10,845 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,594 lbs (10,702 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
24,169 lbs (10,963 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,760 lbs (10,777 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,445 lbs (10,634 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
24,013 lbs (10,892 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,551 lbs (10,683 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,833 lbs (10,357 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,522 lbs (10,216 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,207 lbs (10,527 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,744 lbs (10,317 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,432 lbs (10,175 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,116 lbs (10,485 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,607 lbs (10,254 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,294 lbs (10,112 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,976 lbs (10,422 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,427 lbs (10,173 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,111 lbs (10,029 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,792 lbs (10,338 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,213 lbs (10,529 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,911 lbs (10,392 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,579 lbs (10,695 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,994 lbs (10,430 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,690 lbs (10,292 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,352 lbs (10,592 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,803 lbs (10,343 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,497 lbs (10,204 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,159 lbs (10,505 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,622 lbs (10,261 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,315 lbs (10,122 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,983 lbs (10,425 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,473 lbs (10,194 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,164 lbs (10,053 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,826 lbs (10,354 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,094 lbs (10,022 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
21,781 lbs (9,880 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,445 lbs (10,181 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,302 lbs (10,116 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
21,991 lbs (9,975 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,655 lbs (10,276 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,234 lbs (10,539 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,792 lbs (10,792 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
24,410 lbs (11,072 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
24,108 lbs (10,935 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
24,792 lbs (11,245 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
24,170 lbs (10,963 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,864 lbs (10,825 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
24,453 lbs (11,092 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,975 lbs (10,875 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,668 lbs (10,736 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
24,244 lbs (10,997 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,784 lbs (10,788 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,475 lbs (10,648 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
24,044 lbs (10,906 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,619 lbs (10,713 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,309 lbs (10,573 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,870 lbs (10,827 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,222 lbs (10,533 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,907 lbs (10,390 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,452 lbs (10,638 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,436 lbs (10,630 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,124 lbs (10,489 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,677 lbs (10,740 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,490 lbs (10,655 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,187 lbs (10,517 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,882 lbs (10,833 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,250 lbs (10,546 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,943 lbs (10,407 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,633 lbs (10,720 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,022 lbs (10,443 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
22,713 lbs (10,302 kg)
|
|
Static tipping load, articulated (With Tire Deflection) (Since 2016)
|
23,400 lbs (10,614 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
24,745 lbs (11,224 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
24,441 lbs (11,086 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
25,057 lbs (11,366 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
24,446 lbs (11,089 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
-2,610 lbs (-1,184 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
24,138 lbs (10,949 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
24,740 lbs (11,222 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
24,254 lbs (11,001 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,944 lbs (10,861 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
24,529 lbs (11,126 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,999 lbs (10,886 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,687 lbs (10,744 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
24,268 lbs (11,008 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,908 lbs (10,845 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,594 lbs (10,702 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
24,169 lbs (10,963 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,760 lbs (10,777 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,022 lbs (10,443 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,713 lbs (10,302 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,400 lbs (10,614 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,833 lbs (10,357 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,522 lbs (10,216 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,207 lbs (10,527 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,744 lbs (10,317 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,432 lbs (10,175 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,116 lbs (10,485 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,607 lbs (10,254 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,294 lbs (10,112 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,976 lbs (10,422 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,427 lbs (10,173 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,111 lbs (10,029 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,792 lbs (10,338 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,213 lbs (10,529 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,911 lbs (10,392 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,579 lbs (10,695 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,994 lbs (10,430 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,690 lbs (10,292 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,352 lbs (10,592 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,803 lbs (10,343 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,497 lbs (10,204 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,159 lbs (10,505 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,622 lbs (10,261 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,315 lbs (10,122 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,983 lbs (10,425 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,473 lbs (10,194 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,164 lbs (10,053 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,826 lbs (10,354 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,094 lbs (10,022 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
21,781 lbs (9,880 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,445 lbs (10,181 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,302 lbs (10,116 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
21,991 lbs (9,975 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,655 lbs (10,276 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,445 lbs (10,634 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
24,013 lbs (10,892 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,551 lbs (10,683 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,234 lbs (10,539 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,792 lbs (10,792 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
24,410 lbs (11,072 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
24,108 lbs (10,935 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
24,792 lbs (11,245 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
24,170 lbs (10,963 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,864 lbs (10,825 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
24,453 lbs (11,092 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,975 lbs (10,875 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,668 lbs (10,736 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
24,244 lbs (10,997 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,784 lbs (10,788 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,475 lbs (10,648 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
24,044 lbs (10,906 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,619 lbs (10,713 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,309 lbs (10,573 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,870 lbs (10,827 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,222 lbs (10,533 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,907 lbs (10,390 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,452 lbs (10,638 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,436 lbs (10,630 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,124 lbs (10,489 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,677 lbs (10,740 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,490 lbs (10,655 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,187 lbs (10,517 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,882 lbs (10,833 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,250 lbs (10,546 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
22,943 lbs (10,407 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2017)
|
23,633 lbs (10,720 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,094 lbs (10,022 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
21,781 lbs (9,880 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,445 lbs (10,181 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,302 lbs (10,116 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
21,991 lbs (9,975 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,655 lbs (10,276 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,250 lbs (10,546 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,943 lbs (10,407 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,633 lbs (10,720 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,022 lbs (10,443 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,713 lbs (10,302 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,400 lbs (10,614 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,833 lbs (10,357 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,522 lbs (10,216 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,207 lbs (10,527 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,744 lbs (10,317 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,432 lbs (10,175 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,116 lbs (10,485 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,607 lbs (10,254 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,294 lbs (10,112 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,976 lbs (10,422 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,427 lbs (10,173 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,111 lbs (10,029 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,792 lbs (10,338 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,213 lbs (10,529 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,911 lbs (10,392 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,579 lbs (10,695 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,994 lbs (10,430 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,690 lbs (10,292 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,352 lbs (10,592 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,803 lbs (10,343 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,497 lbs (10,204 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,159 lbs (10,505 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,622 lbs (10,261 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,315 lbs (10,122 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,983 lbs (10,425 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,473 lbs (10,194 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,164 lbs (10,053 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,826 lbs (10,354 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
24,745 lbs (11,224 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
24,441 lbs (11,086 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
25,057 lbs (11,366 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
24,446 lbs (11,089 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
-2,610 lbs (-1,184 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
24,138 lbs (10,949 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
24,740 lbs (11,222 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
24,254 lbs (11,001 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,944 lbs (10,861 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
24,529 lbs (11,126 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,999 lbs (10,886 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,687 lbs (10,744 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
24,268 lbs (11,008 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,908 lbs (10,845 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,594 lbs (10,702 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
24,169 lbs (10,963 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,760 lbs (10,777 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,445 lbs (10,634 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
24,013 lbs (10,892 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,551 lbs (10,683 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,234 lbs (10,539 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,792 lbs (10,792 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
24,410 lbs (11,072 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
24,108 lbs (10,935 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
24,792 lbs (11,245 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
24,170 lbs (10,963 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,864 lbs (10,825 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
24,453 lbs (11,092 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,975 lbs (10,875 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,668 lbs (10,736 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
24,244 lbs (10,997 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,784 lbs (10,788 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,475 lbs (10,648 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
24,044 lbs (10,906 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,619 lbs (10,713 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,309 lbs (10,573 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,870 lbs (10,827 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,222 lbs (10,533 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
22,907 lbs (10,390 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,452 lbs (10,638 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,436 lbs (10,630 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,124 lbs (10,489 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,677 lbs (10,740 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,490 lbs (10,655 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,187 lbs (10,517 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2018)
|
23,882 lbs (10,833 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
24,745 lbs (11,224 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
24,441 lbs (11,086 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
25,057 lbs (11,366 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
24,446 lbs (11,089 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
-2,610 lbs (-1,184 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
24,138 lbs (10,949 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
24,740 lbs (11,222 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
24,254 lbs (11,001 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,944 lbs (10,861 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
24,529 lbs (11,126 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,999 lbs (10,886 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,473 lbs (10,194 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,164 lbs (10,053 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,826 lbs (10,354 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,094 lbs (10,022 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
21,781 lbs (9,880 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,445 lbs (10,181 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,302 lbs (10,116 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
21,991 lbs (9,975 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,655 lbs (10,276 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,687 lbs (10,744 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
24,268 lbs (11,008 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,908 lbs (10,845 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,594 lbs (10,702 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
24,169 lbs (10,963 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,760 lbs (10,777 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,445 lbs (10,634 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
24,013 lbs (10,892 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,551 lbs (10,683 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,234 lbs (10,539 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,792 lbs (10,792 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
24,410 lbs (11,072 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
24,108 lbs (10,935 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
24,792 lbs (11,245 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
24,170 lbs (10,963 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,864 lbs (10,825 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
24,453 lbs (11,092 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,975 lbs (10,875 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,668 lbs (10,736 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
24,244 lbs (10,997 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,784 lbs (10,788 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,475 lbs (10,648 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
24,044 lbs (10,906 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,619 lbs (10,713 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,309 lbs (10,573 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,870 lbs (10,827 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,222 lbs (10,533 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,907 lbs (10,390 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,452 lbs (10,638 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,436 lbs (10,630 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,124 lbs (10,489 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,677 lbs (10,740 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,490 lbs (10,655 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,187 lbs (10,517 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,882 lbs (10,833 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,250 lbs (10,546 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,943 lbs (10,407 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,633 lbs (10,720 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,022 lbs (10,443 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,713 lbs (10,302 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,400 lbs (10,614 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,833 lbs (10,357 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,522 lbs (10,216 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,207 lbs (10,527 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,744 lbs (10,317 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,432 lbs (10,175 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,116 lbs (10,485 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,607 lbs (10,254 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,294 lbs (10,112 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,976 lbs (10,422 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,427 lbs (10,173 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,111 lbs (10,029 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,792 lbs (10,338 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,213 lbs (10,529 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,911 lbs (10,392 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,579 lbs (10,695 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,994 lbs (10,430 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,690 lbs (10,292 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,352 lbs (10,592 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,803 lbs (10,343 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,497 lbs (10,204 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
23,159 lbs (10,505 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,622 lbs (10,261 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,315 lbs (10,122 kg)
|
|
Static tipping load, articulated (with tire deflection) (Since 2019)
|
22,983 lbs (10,425 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,105 lbs (13,202 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,734 lbs (13,487 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,270 lbs (13,277 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,951 lbs (13,132 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,572 lbs (13,414 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,054 lbs (13,179 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,734 lbs (13,034 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,344 lbs (13,310 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,861 lbs (13,545 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,555 lbs (13,406 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
30,301 lbs (13,744 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,613 lbs (13,432 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,304 lbs (13,292 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,944 lbs (13,582 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,412 lbs (13,341 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,102 lbs (13,200 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,729 lbs (13,485 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,216 lbs (13,252 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,904 lbs (13,111 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,522 lbs (13,391 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,046 lbs (13,175 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,733 lbs (13,033 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,343 lbs (13,310 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,636 lbs (12,989 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,318 lbs (12,845 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,911 lbs (13,114 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,857 lbs (13,089 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,542 lbs (12,946 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,143 lbs (13,219 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,940 lbs (13,127 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,633 lbs (12,988 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,398 lbs (13,335 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,696 lbs (13,016 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,386 lbs (12,876 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,461 lbs (12,910 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,148 lbs (12,768 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,902 lbs (13,110 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,267 lbs (12,822 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
27,952 lbs (12,679 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,703 lbs (13,019 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,176 lbs (12,780 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
27,860 lbs (12,637 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,610 lbs (12,977 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,035 lbs (12,716 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
27,718 lbs (12,573 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,466 lbs (12,912 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
27,850 lbs (12,633 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
27,531 lbs (12,488 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,276 lbs (12,826 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,586 lbs (12,966 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,281 lbs (12,828 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,008 lbs (13,158 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,360 lbs (12,864 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,053 lbs (12,725 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,773 lbs (13,051 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,162 lbs (12,774 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
27,853 lbs (12,634 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,573 lbs (12,961 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
27,975 lbs (12,689 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
27,664 lbs (12,548 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,394 lbs (12,879 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
27,823 lbs (12,620 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
27,510 lbs (12,478 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
28,231 lbs (12,805 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
27,431 lbs (12,443 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
30,276 lbs (13,733 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,969 lbs (13,594 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
30,646 lbs (13,901 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,973 lbs (13,596 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
-3,166 lbs (-1,436 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,662 lbs (13,454 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
30,322 lbs (13,754 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,776 lbs (13,506 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,463 lbs (13,364 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
30,103 lbs (13,655 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,514 lbs (13,387 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,199 lbs (13,244 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,835 lbs (13,533 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
29,421 lbs (13,345 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
27,114 lbs (12,299 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
27,838 lbs (12,627 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
27,644 lbs (12,539 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2015)
|
27,330 lbs (12,397 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
30,276 lbs (13,733 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,969 lbs (13,594 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
30,646 lbs (13,901 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,973 lbs (13,596 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
-3,166 lbs (-1,436 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,662 lbs (13,454 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
30,322 lbs (13,754 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,776 lbs (13,506 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,463 lbs (13,364 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
30,103 lbs (13,655 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,514 lbs (13,387 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,199 lbs (13,244 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,835 lbs (13,533 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,421 lbs (13,345 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,105 lbs (13,202 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,734 lbs (13,487 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,270 lbs (13,277 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,951 lbs (13,132 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,572 lbs (13,414 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,054 lbs (13,179 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,734 lbs (13,034 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,344 lbs (13,310 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,861 lbs (13,545 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,555 lbs (13,406 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
30,301 lbs (13,744 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,613 lbs (13,432 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,304 lbs (13,292 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,944 lbs (13,582 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,412 lbs (13,341 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,102 lbs (13,200 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,729 lbs (13,485 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,216 lbs (13,252 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,904 lbs (13,111 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,522 lbs (13,391 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,046 lbs (13,175 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,733 lbs (13,033 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,343 lbs (13,310 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,636 lbs (12,989 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,318 lbs (12,845 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,911 lbs (13,114 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,857 lbs (13,089 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,542 lbs (12,946 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,143 lbs (13,219 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,940 lbs (13,127 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,633 lbs (12,988 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,398 lbs (13,335 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,696 lbs (13,016 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,386 lbs (12,876 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,461 lbs (12,910 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,148 lbs (12,768 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,902 lbs (13,110 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,267 lbs (12,822 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
27,952 lbs (12,679 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,703 lbs (13,019 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,176 lbs (12,780 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
27,860 lbs (12,637 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,610 lbs (12,977 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,035 lbs (12,716 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
27,718 lbs (12,573 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,466 lbs (12,912 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
27,850 lbs (12,633 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
27,531 lbs (12,488 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,276 lbs (12,826 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,586 lbs (12,966 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,281 lbs (12,828 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
29,008 lbs (13,158 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,360 lbs (12,864 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,053 lbs (12,725 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,773 lbs (13,051 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,162 lbs (12,774 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
27,853 lbs (12,634 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,573 lbs (12,961 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
27,975 lbs (12,689 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
27,664 lbs (12,548 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,394 lbs (12,879 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
27,823 lbs (12,620 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
27,510 lbs (12,478 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
28,231 lbs (12,805 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
27,431 lbs (12,443 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
27,114 lbs (12,299 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
27,838 lbs (12,627 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
27,644 lbs (12,539 kg)
|
|
Static tipping load, straight (No Tire Deflection) (Since 2016)
|
27,330 lbs (12,397 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
30,276 lbs (13,733 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,969 lbs (13,594 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
30,646 lbs (13,901 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,973 lbs (13,596 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
-3,166 lbs (-1,436 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,662 lbs (13,454 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
30,322 lbs (13,754 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,776 lbs (13,506 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,463 lbs (13,364 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
30,103 lbs (13,655 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,514 lbs (13,387 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,199 lbs (13,244 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,835 lbs (13,533 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,421 lbs (13,345 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,105 lbs (13,202 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,734 lbs (13,487 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,270 lbs (13,277 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,951 lbs (13,132 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,572 lbs (13,414 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,054 lbs (13,179 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,734 lbs (13,034 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,344 lbs (13,310 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,861 lbs (13,545 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,555 lbs (13,406 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
30,301 lbs (13,744 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,613 lbs (13,432 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,304 lbs (13,292 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,944 lbs (13,582 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,412 lbs (13,341 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,102 lbs (13,200 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,729 lbs (13,485 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,216 lbs (13,252 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,904 lbs (13,111 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,522 lbs (13,391 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,046 lbs (13,175 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,733 lbs (13,033 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,343 lbs (13,310 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,636 lbs (12,989 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,318 lbs (12,845 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,911 lbs (13,114 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,857 lbs (13,089 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,542 lbs (12,946 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,143 lbs (13,219 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,940 lbs (13,127 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,633 lbs (12,988 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,398 lbs (13,335 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,696 lbs (13,016 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,386 lbs (12,876 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
27,644 lbs (12,539 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
27,330 lbs (12,397 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,461 lbs (12,910 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,148 lbs (12,768 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,902 lbs (13,110 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,267 lbs (12,822 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
27,952 lbs (12,679 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,703 lbs (13,019 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,176 lbs (12,780 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
27,860 lbs (12,637 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,610 lbs (12,977 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,035 lbs (12,716 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
27,718 lbs (12,573 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,466 lbs (12,912 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
27,850 lbs (12,633 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
27,531 lbs (12,488 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,276 lbs (12,826 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,586 lbs (12,966 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,281 lbs (12,828 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
29,008 lbs (13,158 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,360 lbs (12,864 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,053 lbs (12,725 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,773 lbs (13,051 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,162 lbs (12,774 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
27,853 lbs (12,634 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,573 lbs (12,961 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
27,975 lbs (12,689 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
27,664 lbs (12,548 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,394 lbs (12,879 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
27,823 lbs (12,620 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
27,510 lbs (12,478 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
28,231 lbs (12,805 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
27,431 lbs (12,443 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
27,114 lbs (12,299 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2017)
|
27,838 lbs (12,627 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
27,431 lbs (12,443 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
27,114 lbs (12,299 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
27,838 lbs (12,627 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
27,644 lbs (12,539 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
27,330 lbs (12,397 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,105 lbs (13,202 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,734 lbs (13,487 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,270 lbs (13,277 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,951 lbs (13,132 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,572 lbs (13,414 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,054 lbs (13,179 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,734 lbs (13,034 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,344 lbs (13,310 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,861 lbs (13,545 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,555 lbs (13,406 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
30,301 lbs (13,744 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,613 lbs (13,432 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,304 lbs (13,292 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,944 lbs (13,582 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,412 lbs (13,341 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,102 lbs (13,200 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,729 lbs (13,485 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,216 lbs (13,252 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,904 lbs (13,111 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,522 lbs (13,391 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,046 lbs (13,175 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,733 lbs (13,033 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,343 lbs (13,310 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,636 lbs (12,989 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,318 lbs (12,845 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,911 lbs (13,114 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,857 lbs (13,089 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,542 lbs (12,946 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,143 lbs (13,219 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,940 lbs (13,127 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,633 lbs (12,988 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,398 lbs (13,335 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
30,276 lbs (13,733 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,969 lbs (13,594 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
30,646 lbs (13,901 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,973 lbs (13,596 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
-3,166 lbs (-1,436 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,662 lbs (13,454 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
30,322 lbs (13,754 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,776 lbs (13,506 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,463 lbs (13,364 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
30,103 lbs (13,655 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,514 lbs (13,387 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,199 lbs (13,244 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,835 lbs (13,533 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,421 lbs (13,345 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,696 lbs (13,016 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,386 lbs (12,876 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,461 lbs (12,910 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,148 lbs (12,768 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,902 lbs (13,110 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,267 lbs (12,822 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
27,952 lbs (12,679 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,703 lbs (13,019 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,176 lbs (12,780 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
27,860 lbs (12,637 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,610 lbs (12,977 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,035 lbs (12,716 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
27,718 lbs (12,573 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,466 lbs (12,912 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
27,850 lbs (12,633 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
27,531 lbs (12,488 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,276 lbs (12,826 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,586 lbs (12,966 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,281 lbs (12,828 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
29,008 lbs (13,158 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,360 lbs (12,864 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,053 lbs (12,725 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,773 lbs (13,051 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,162 lbs (12,774 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
27,853 lbs (12,634 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,573 lbs (12,961 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
27,975 lbs (12,689 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
27,664 lbs (12,548 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,394 lbs (12,879 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
27,823 lbs (12,620 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
27,510 lbs (12,478 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2018)
|
28,231 lbs (12,805 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
30,276 lbs (13,733 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,969 lbs (13,594 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
30,646 lbs (13,901 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,973 lbs (13,596 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
-3,166 lbs (-1,436 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,662 lbs (13,454 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
30,322 lbs (13,754 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,776 lbs (13,506 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,463 lbs (13,364 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
30,103 lbs (13,655 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,514 lbs (13,387 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,199 lbs (13,244 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,835 lbs (13,533 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,421 lbs (13,345 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,105 lbs (13,202 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,734 lbs (13,487 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,270 lbs (13,277 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,951 lbs (13,132 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,572 lbs (13,414 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,054 lbs (13,179 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,734 lbs (13,034 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,344 lbs (13,310 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,861 lbs (13,545 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,555 lbs (13,406 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
30,301 lbs (13,744 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,613 lbs (13,432 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,304 lbs (13,292 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,944 lbs (13,582 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,412 lbs (13,341 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,102 lbs (13,200 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,729 lbs (13,485 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,216 lbs (13,252 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,904 lbs (13,111 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,522 lbs (13,391 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,046 lbs (13,175 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,733 lbs (13,033 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,343 lbs (13,310 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,636 lbs (12,989 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,318 lbs (12,845 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,911 lbs (13,114 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,857 lbs (13,089 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,542 lbs (12,946 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,143 lbs (13,219 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,940 lbs (13,127 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,633 lbs (12,988 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,398 lbs (13,335 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,696 lbs (13,016 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,386 lbs (12,876 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,461 lbs (12,910 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,148 lbs (12,768 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,902 lbs (13,110 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,267 lbs (12,822 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
27,952 lbs (12,679 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,703 lbs (13,019 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,176 lbs (12,780 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
27,860 lbs (12,637 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,610 lbs (12,977 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,035 lbs (12,716 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
27,718 lbs (12,573 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,466 lbs (12,912 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
27,850 lbs (12,633 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
27,531 lbs (12,488 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,276 lbs (12,826 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,586 lbs (12,966 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,281 lbs (12,828 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
29,008 lbs (13,158 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,360 lbs (12,864 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,053 lbs (12,725 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,773 lbs (13,051 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,162 lbs (12,774 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
27,853 lbs (12,634 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,573 lbs (12,961 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
27,975 lbs (12,689 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
27,664 lbs (12,548 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,394 lbs (12,879 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
27,823 lbs (12,620 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
27,510 lbs (12,478 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
28,231 lbs (12,805 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
27,431 lbs (12,443 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
27,114 lbs (12,299 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
27,838 lbs (12,627 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
27,644 lbs (12,539 kg)
|
|
Static tipping load, straight (no tire deflection) (Since 2019)
|
27,330 lbs (12,397 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,469 lbs (12,460 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
28,083 lbs (12,738 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,627 lbs (12,531 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,313 lbs (12,389 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,918 lbs (12,663 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,408 lbs (12,432 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,091 lbs (12,288 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,687 lbs (12,559 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
28,282 lbs (12,829 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,980 lbs (12,692 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
28,703 lbs (13,019 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
28,028 lbs (12,713 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,723 lbs (12,575 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,823 lbs (12,620 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,516 lbs (12,481 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
28,129 lbs (12,759 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,623 lbs (12,530 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,314 lbs (12,389 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,919 lbs (12,664 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,449 lbs (12,451 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,139 lbs (12,310 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,736 lbs (12,581 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,031 lbs (12,261 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,717 lbs (12,119 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,296 lbs (12,381 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,256 lbs (12,363 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,944 lbs (12,222 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,533 lbs (12,489 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,346 lbs (12,404 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,042 lbs (12,266 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,779 lbs (12,600 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,095 lbs (12,290 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,788 lbs (12,151 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,518 lbs (12,482 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,853 lbs (12,180 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,544 lbs (12,040 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,271 lbs (12,370 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,654 lbs (12,090 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,343 lbs (11,949 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,067 lbs (12,277 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,561 lbs (12,048 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,249 lbs (11,906 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,971 lbs (12,234 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,417 lbs (11,983 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,103 lbs (11,840 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,824 lbs (12,167 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,227 lbs (11,896 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
25,912 lbs (11,754 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,630 lbs (12,079 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,027 lbs (12,259 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,726 lbs (12,123 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,430 lbs (12,442 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,796 lbs (12,154 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,492 lbs (12,017 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,190 lbs (12,333 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,595 lbs (12,063 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,289 lbs (11,925 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,986 lbs (12,241 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,404 lbs (11,977 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,096 lbs (11,837 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,802 lbs (12,157 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,247 lbs (11,905 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
25,938 lbs (11,765 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,636 lbs (12,082 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
25,848 lbs (11,724 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
25,535 lbs (11,583 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,234 lbs (11,900 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,066 lbs (11,823 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
25,755 lbs (11,682 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
26,454 lbs (11,999 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
28,660 lbs (13,000 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
28,355 lbs (12,862 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
29,014 lbs (13,161 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
28,349 lbs (12,859 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
-2,815 lbs (-1,277 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
28,041 lbs (12,719 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
28,684 lbs (13,011 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
28,144 lbs (12,766 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,834 lbs (12,625 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
28,458 lbs (12,908 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,878 lbs (12,645 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,566 lbs (12,504 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
28,187 lbs (12,785 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2015)
|
27,783 lbs (12,602 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,091 lbs (12,288 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,687 lbs (12,559 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
28,282 lbs (12,829 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,980 lbs (12,692 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
28,703 lbs (13,019 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
28,028 lbs (12,713 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,723 lbs (12,575 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,823 lbs (12,620 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,516 lbs (12,481 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
28,129 lbs (12,759 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,623 lbs (12,530 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,314 lbs (12,389 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,919 lbs (12,664 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,449 lbs (12,451 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,139 lbs (12,310 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,736 lbs (12,581 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,031 lbs (12,261 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,717 lbs (12,119 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,296 lbs (12,381 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,256 lbs (12,363 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,944 lbs (12,222 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,533 lbs (12,489 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,346 lbs (12,404 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,042 lbs (12,266 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,779 lbs (12,600 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,095 lbs (12,290 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,788 lbs (12,151 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,518 lbs (12,482 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,853 lbs (12,180 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,544 lbs (12,040 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,271 lbs (12,370 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,654 lbs (12,090 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,343 lbs (11,949 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,067 lbs (12,277 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,561 lbs (12,048 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,249 lbs (11,906 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,971 lbs (12,234 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,417 lbs (11,983 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,103 lbs (11,840 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,824 lbs (12,167 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,227 lbs (11,896 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
25,912 lbs (11,754 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,630 lbs (12,079 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,027 lbs (12,259 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,726 lbs (12,123 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,430 lbs (12,442 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,796 lbs (12,154 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,492 lbs (12,017 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,190 lbs (12,333 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,595 lbs (12,063 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,289 lbs (11,925 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,986 lbs (12,241 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,404 lbs (11,977 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,096 lbs (11,837 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,802 lbs (12,157 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,247 lbs (11,905 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
25,938 lbs (11,765 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,636 lbs (12,082 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
25,848 lbs (11,724 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
25,535 lbs (11,583 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,234 lbs (11,900 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,066 lbs (11,823 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
25,755 lbs (11,682 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
26,454 lbs (11,999 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
28,660 lbs (13,000 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
28,355 lbs (12,862 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
29,014 lbs (13,161 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
28,349 lbs (12,859 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
-2,815 lbs (-1,277 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
28,041 lbs (12,719 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
28,684 lbs (13,011 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
28,144 lbs (12,766 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,834 lbs (12,625 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
28,458 lbs (12,908 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,878 lbs (12,645 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,566 lbs (12,504 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
28,187 lbs (12,785 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,783 lbs (12,602 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,469 lbs (12,460 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
28,083 lbs (12,738 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,627 lbs (12,531 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,313 lbs (12,389 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,918 lbs (12,663 kg)
|
|
Static tipping load, straight (With Tire Deflection) (Since 2016)
|
27,408 lbs (12,432 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
28,660 lbs (13,000 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
28,355 lbs (12,862 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
29,014 lbs (13,161 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
28,349 lbs (12,859 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
-2,815 lbs (-1,277 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
28,041 lbs (12,719 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
28,684 lbs (13,011 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
28,144 lbs (12,766 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,834 lbs (12,625 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
28,458 lbs (12,908 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,878 lbs (12,645 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,566 lbs (12,504 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
28,187 lbs (12,785 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,783 lbs (12,602 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,469 lbs (12,460 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
28,083 lbs (12,738 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,627 lbs (12,531 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,853 lbs (12,180 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,544 lbs (12,040 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,271 lbs (12,370 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,654 lbs (12,090 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,343 lbs (11,949 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,067 lbs (12,277 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,561 lbs (12,048 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,249 lbs (11,906 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,971 lbs (12,234 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,417 lbs (11,983 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,103 lbs (11,840 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,824 lbs (12,167 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,227 lbs (11,896 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
25,912 lbs (11,754 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,630 lbs (12,079 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,027 lbs (12,259 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,726 lbs (12,123 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,430 lbs (12,442 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,796 lbs (12,154 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,492 lbs (12,017 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,190 lbs (12,333 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,595 lbs (12,063 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,289 lbs (11,925 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,986 lbs (12,241 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,404 lbs (11,977 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,096 lbs (11,837 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,802 lbs (12,157 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,247 lbs (11,905 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
25,938 lbs (11,765 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,636 lbs (12,082 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
25,848 lbs (11,724 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
25,535 lbs (11,583 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,234 lbs (11,900 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,066 lbs (11,823 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
25,755 lbs (11,682 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,454 lbs (11,999 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,313 lbs (12,389 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,918 lbs (12,663 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,408 lbs (12,432 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,091 lbs (12,288 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,687 lbs (12,559 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
28,282 lbs (12,829 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,980 lbs (12,692 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
28,703 lbs (13,019 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
28,028 lbs (12,713 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,723 lbs (12,575 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,823 lbs (12,620 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,516 lbs (12,481 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
28,129 lbs (12,759 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,623 lbs (12,530 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,314 lbs (12,389 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,919 lbs (12,664 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,449 lbs (12,451 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,139 lbs (12,310 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,736 lbs (12,581 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,031 lbs (12,261 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,717 lbs (12,119 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,296 lbs (12,381 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,256 lbs (12,363 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,944 lbs (12,222 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,533 lbs (12,489 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,346 lbs (12,404 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,042 lbs (12,266 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,779 lbs (12,600 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,095 lbs (12,290 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
26,788 lbs (12,151 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2017)
|
27,518 lbs (12,482 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
25,848 lbs (11,724 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
25,535 lbs (11,583 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,234 lbs (11,900 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,066 lbs (11,823 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
25,755 lbs (11,682 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,454 lbs (11,999 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,095 lbs (12,290 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,788 lbs (12,151 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,518 lbs (12,482 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,853 lbs (12,180 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,544 lbs (12,040 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,271 lbs (12,370 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,654 lbs (12,090 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,343 lbs (11,949 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,067 lbs (12,277 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,561 lbs (12,048 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,249 lbs (11,906 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,971 lbs (12,234 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,417 lbs (11,983 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,103 lbs (11,840 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,824 lbs (12,167 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,227 lbs (11,896 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
25,912 lbs (11,754 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,630 lbs (12,079 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,027 lbs (12,259 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,726 lbs (12,123 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,430 lbs (12,442 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,796 lbs (12,154 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,492 lbs (12,017 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,190 lbs (12,333 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,595 lbs (12,063 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,289 lbs (11,925 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,986 lbs (12,241 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,404 lbs (11,977 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,096 lbs (11,837 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,802 lbs (12,157 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,247 lbs (11,905 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
25,938 lbs (11,765 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,636 lbs (12,082 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,469 lbs (12,460 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
28,083 lbs (12,738 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,627 lbs (12,531 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,313 lbs (12,389 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,918 lbs (12,663 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,408 lbs (12,432 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,091 lbs (12,288 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,687 lbs (12,559 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
28,282 lbs (12,829 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,980 lbs (12,692 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
28,703 lbs (13,019 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
28,028 lbs (12,713 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,723 lbs (12,575 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,823 lbs (12,620 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,516 lbs (12,481 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
28,129 lbs (12,759 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,623 lbs (12,530 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,314 lbs (12,389 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,919 lbs (12,664 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,449 lbs (12,451 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,139 lbs (12,310 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,736 lbs (12,581 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,031 lbs (12,261 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,717 lbs (12,119 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,296 lbs (12,381 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,256 lbs (12,363 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
26,944 lbs (12,222 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,533 lbs (12,489 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,346 lbs (12,404 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,042 lbs (12,266 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,779 lbs (12,600 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
28,660 lbs (13,000 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
28,355 lbs (12,862 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
29,014 lbs (13,161 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
28,349 lbs (12,859 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
-2,815 lbs (-1,277 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
28,041 lbs (12,719 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
28,684 lbs (13,011 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
28,144 lbs (12,766 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,834 lbs (12,625 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
28,458 lbs (12,908 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,878 lbs (12,645 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,566 lbs (12,504 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
28,187 lbs (12,785 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2018)
|
27,783 lbs (12,602 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
28,660 lbs (13,000 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
28,355 lbs (12,862 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
29,014 lbs (13,161 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
28,349 lbs (12,859 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
-2,815 lbs (-1,277 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
28,041 lbs (12,719 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
28,684 lbs (13,011 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
28,144 lbs (12,766 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,834 lbs (12,625 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
28,458 lbs (12,908 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,878 lbs (12,645 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,346 lbs (12,404 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,042 lbs (12,266 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,779 lbs (12,600 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,095 lbs (12,290 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,788 lbs (12,151 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,518 lbs (12,482 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,853 lbs (12,180 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,544 lbs (12,040 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,271 lbs (12,370 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,654 lbs (12,090 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,343 lbs (11,949 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,067 lbs (12,277 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,561 lbs (12,048 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,249 lbs (11,906 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,971 lbs (12,234 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,417 lbs (11,983 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,103 lbs (11,840 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,824 lbs (12,167 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,227 lbs (11,896 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
25,912 lbs (11,754 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,630 lbs (12,079 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,027 lbs (12,259 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,726 lbs (12,123 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,430 lbs (12,442 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,796 lbs (12,154 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,492 lbs (12,017 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,190 lbs (12,333 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,595 lbs (12,063 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,289 lbs (11,925 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,986 lbs (12,241 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,404 lbs (11,977 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,096 lbs (11,837 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,802 lbs (12,157 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,566 lbs (12,504 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
28,187 lbs (12,785 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,783 lbs (12,602 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,469 lbs (12,460 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
28,083 lbs (12,738 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,627 lbs (12,531 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,313 lbs (12,389 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,918 lbs (12,663 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,408 lbs (12,432 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,091 lbs (12,288 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,687 lbs (12,559 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
28,282 lbs (12,829 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,980 lbs (12,692 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
28,703 lbs (13,019 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
28,028 lbs (12,713 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,723 lbs (12,575 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,823 lbs (12,620 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,516 lbs (12,481 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
28,129 lbs (12,759 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,623 lbs (12,530 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,314 lbs (12,389 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,919 lbs (12,664 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,449 lbs (12,451 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,139 lbs (12,310 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,736 lbs (12,581 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,031 lbs (12,261 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,717 lbs (12,119 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,296 lbs (12,381 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,256 lbs (12,363 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,944 lbs (12,222 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
27,533 lbs (12,489 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,247 lbs (11,905 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
25,938 lbs (11,765 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,636 lbs (12,082 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
25,848 lbs (11,724 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
25,535 lbs (11,583 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,234 lbs (11,900 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,066 lbs (11,823 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
25,755 lbs (11,682 kg)
|
|
Static tipping load, straight (with tire deflection) (Since 2019)
|
26,454 lbs (11,999 kg)
|
|
Static tipping loads and operating weight are based on (Since 2016)
|
the following loader |
|
Static tipping loads and operating weight are based on (Since 2016)
|
· SAE J1197: 50% of full |
|
Static tipping loads and operating weight are based on (Since 2016)
|
turn static tipping load or |
|
Static tipping loads and operating weight are based on (Since 2016)
|
hydraulic limit. |
|
Static tipping loads and operating weight are based on (Since 2017)
|
the following loader |
|
Static tipping loads and operating weight are based on (Since 2017)
|
· SAE J1197: 50% of full |
|
Static tipping loads and operating weight are based on (Since 2017)
|
turn static tipping load or |
|
Static tipping loads and operating weight are based on (Since 2017)
|
hydraulic limit. |
|
Static tipping loads and operating weight are based on (Since 2018)
|
the following loader |
|
Static tipping loads and operating weight are based on (Since 2018)
|
· SAE J1197: 50% of full |
|
Static tipping loads and operating weight are based on (Since 2018)
|
turn static tipping load or |
|
Static tipping loads and operating weight are based on (Since 2018)
|
hydraulic limit. |
|
Static tipping loads and operating weight are based on (Since 2019)
|
the following loader |
|
Static tipping loads and operating weight are based on (Since 2019)
|
· SAE J1197: 50% of full |
|
Static tipping loads and operating weight are based on (Since 2019)
|
turn static tipping load or |
|
Static tipping loads and operating weight are based on (Since 2019)
|
hydraulic limit. |
|
Stroke (Since 2015)
|
5 in (13 cm)
|
|
Stroke (2016)
|
5 in (13 cm)
|
|
Stroke (2017)
|
5 in (13 cm)
|
|
Stroke (2018)
|
5 in (13 cm)
|
|
Stroke (2019)
|
5 in (13 cm)
|
|
the machine configuration for handling target (Since 2016)
|
in your specific machine |
|
the machine configuration for handling target (Since 2016)
|
application. |
|
the machine configuration for handling target (Since 2017)
|
in your specific machine |
|
the machine configuration for handling target (Since 2017)
|
application. |
|
the machine configuration for handling target (Since 2018)
|
in your specific machine |
|
the machine configuration for handling target (Since 2018)
|
application. |
|
the machine configuration for handling target (Since 2019)
|
in your specific machine |
|
the machine configuration for handling target (Since 2019)
|
application. |
|
Tine capacity (Since 2016)
|
39,231 lbs (17,795 kg)
|
|
Tine capacity (Since 2016)
|
32,619 lbs (14,796 kg)
|
|
Tine capacity (Since 2016)
|
27,991 lbs (12,697 kg)
|
|
Tine capacity (Since 2016)
|
24,905 lbs (11,297 kg)
|
|
Tine capacity (Since 2017)
|
39,231 lbs (17,795 kg)
|
|
Tine capacity (Since 2017)
|
32,619 lbs (14,796 kg)
|
|
Tine capacity (Since 2017)
|
27,991 lbs (12,697 kg)
|
|
Tine capacity (Since 2017)
|
24,905 lbs (11,297 kg)
|
|
Tine capacity (Since 2018)
|
39,231 lbs (17,795 kg)
|
|
Tine capacity (Since 2018)
|
32,619 lbs (14,796 kg)
|
|
Tine capacity (Since 2018)
|
27,991 lbs (12,697 kg)
|
|
Tine capacity (Since 2018)
|
24,905 lbs (11,297 kg)
|
|
Tine capacity (Since 2019)
|
39,231 lbs (17,795 kg)
|
|
Tine capacity (Since 2019)
|
32,619 lbs (14,796 kg)
|
|
Tine capacity (Since 2019)
|
27,991 lbs (12,697 kg)
|
|
Tine capacity (Since 2019)
|
24,905 lbs (11,297 kg)
|
|
Tine thickness (Since 2016)
|
4 in (9 cm)
|
|
Tine thickness (2017)
|
4 in (9 cm)
|
|
Tine thickness (2018)
|
4 in (9 cm)
|
|
Tine thickness (2019)
|
4 in (9 cm)
|
|
Tine width (single tine) (Since 2016)
|
7 in (18 cm)
|
|
Tine width (single tine) (2017)
|
7 in (18 cm)
|
|
Tine width (single tine) (2018)
|
7 in (18 cm)
|
|
Tine width (single tine) (2019)
|
7 in (18 cm)
|
|
Tip Load (Since 2021)
|
28,144 lbs (12,766 kg)
|
|
Tip Load (2022)
|
28,144 lbs (12,766 kg)
|
|
Tip Load (2023)
|
28,144 lbs (12,766 kg)
|
|
Tipping load - forks level articulated (Since 2016)
|
17,465 lbs (7,922 kg)
|
|
Tipping load - forks level articulated (Since 2016)
|
16,560 lbs (7,512 kg)
|
|
Tipping load - forks level articulated (Since 2016)
|
15,716 lbs (7,129 kg)
|
|
Tipping load - forks level articulated (Since 2016)
|
14,934 lbs (6,774 kg)
|
|
Tipping load - forks level articulated (Since 2017)
|
17,465 lbs (7,922 kg)
|
|
Tipping load - forks level articulated (Since 2017)
|
16,560 lbs (7,512 kg)
|
|
Tipping load - forks level articulated (Since 2017)
|
15,716 lbs (7,129 kg)
|
|
Tipping load - forks level articulated (Since 2017)
|
14,934 lbs (6,774 kg)
|
|
Tipping load - forks level articulated (Since 2018)
|
17,465 lbs (7,922 kg)
|
|
Tipping load - forks level articulated (Since 2018)
|
16,560 lbs (7,512 kg)
|
|
Tipping load - forks level articulated (Since 2018)
|
15,716 lbs (7,129 kg)
|
|
Tipping load - forks level articulated (Since 2018)
|
14,934 lbs (6,774 kg)
|
|
Tipping load - forks level articulated (Since 2019)
|
17,465 lbs (7,922 kg)
|
|
Tipping load - forks level articulated (Since 2019)
|
16,560 lbs (7,512 kg)
|
|
Tipping load - forks level articulated (Since 2019)
|
15,716 lbs (7,129 kg)
|
|
Tipping load - forks level articulated (Since 2019)
|
14,934 lbs (6,774 kg)
|
|
Tipping load - forks level straight (Since 2016)
|
20,255 lbs (9,188 kg)
|
|
Tipping load - forks level straight (Since 2016)
|
19,228 lbs (8,722 kg)
|
|
Tipping load - forks level straight (Since 2016)
|
18,273 lbs (8,289 kg)
|
|
Tipping load - forks level straight (Since 2016)
|
17,389 lbs (7,888 kg)
|
|
Tipping load - forks level straight (Since 2017)
|
20,255 lbs (9,188 kg)
|
|
Tipping load - forks level straight (Since 2017)
|
19,228 lbs (8,722 kg)
|
|
Tipping load - forks level straight (Since 2017)
|
18,273 lbs (8,289 kg)
|
|
Tipping load - forks level straight (Since 2017)
|
17,389 lbs (7,888 kg)
|
|
Tipping load - forks level straight (Since 2018)
|
20,255 lbs (9,188 kg)
|
|
Tipping load - forks level straight (Since 2018)
|
19,228 lbs (8,722 kg)
|
|
Tipping load - forks level straight (Since 2018)
|
18,273 lbs (8,289 kg)
|
|
Tipping load - forks level straight (Since 2018)
|
17,389 lbs (7,888 kg)
|
|
Tipping load - forks level straight (Since 2019)
|
20,255 lbs (9,188 kg)
|
|
Tipping load - forks level straight (Since 2019)
|
19,228 lbs (8,722 kg)
|
|
Tipping load - forks level straight (Since 2019)
|
18,273 lbs (8,289 kg)
|
|
Tipping load - forks level straight (Since 2019)
|
17,389 lbs (7,888 kg)
|
|
Tires used for measurements (Since 2015)
|
L3 Michelin XHA2 |
|
Tires used for measurements (2016)
|
L3 Michelin XHA2 |
|
Tires used for measurements (2017)
|
L3 Michelin XHA2 |
|
Tires used for measurements (2018)
|
L3 Michelin XHA2 |
|
Tires used for measurements (2019)
|
L3 Michelin XHA2 |
|
train guard, full fluids, fuel tank, coolant, lubricants, (Since 2016)
|
operator. |
|
train guard, full fluids, fuel tank, coolant, lubricants, (Since 2016)
|
hydraulic limit. |
|
train guard, full fluids, fuel tank, coolant, lubricants, (Since 2017)
|
operator. |
|
train guard, full fluids, fuel tank, coolant, lubricants, (Since 2017)
|
hydraulic limit. |
|
train guard, full fluids, fuel tank, coolant, lubricants, (Since 2018)
|
operator. |
|
train guard, full fluids, fuel tank, coolant, lubricants, (Since 2018)
|
hydraulic limit. |
|
train guard, full fluids, fuel tank, coolant, lubricants, (Since 2019)
|
operator. |
|
train guard, full fluids, fuel tank, coolant, lubricants, (Since 2019)
|
hydraulic limit. |
|
Travel Speed(Fwd/Rev) (Since 2021)
|
24.9 / 16.0 mph |
|
Travel Speed(Fwd/Rev) (2022)
|
24.9 / 16.0 mph |
|
Travel Speed(Fwd/Rev) (2023)
|
24.9 / 16.0 mph |
|
Tread Width (Since 2015)
|
84 in (213 cm)
|
|
Tread Width (2016)
|
84 in (213 cm)
|
|
Tread Width (2017)
|
84 in (213 cm)
|
|
Tread Width (2018)
|
84 in (213 cm)
|
|
Tread Width (2019)
|
84 in (213 cm)
|
|
Tread width (std. tires) (Since 2015)
|
84 in (213 cm)
|
|
Tread width (std. tires) (2016)
|
84 in (213 cm)
|
|
Tread width (std. tires) (2017)
|
84 in (213 cm)
|
|
Tread width (std. tires) (2018)
|
84 in (213 cm)
|
|
Tread width (std. tires) (2019)
|
84 in (213 cm)
|
|
Weight, Approximate (Since 2017)
|
4,253 lbs (1,929 kg)
|
|
Weight, Approximate (Since 2017)
|
5,865 lbs (2,660 kg)
|
|
Weight, Approximate (Since 2018)
|
4,253 lbs (1,929 kg)
|
|
Weight, Approximate (Since 2018)
|
5,865 lbs (2,660 kg)
|
|
Weight, Approximate (Since 2019)
|
4,253 lbs (1,929 kg)
|
|
Weight, Approximate (Since 2019)
|
5,865 lbs (2,660 kg)
|
|
Width (Since 2015)
|
115 in (292 cm)
|
|
Width (Since 2015)
|
117 in (297 cm)
|
|
Width (Since 2016)
|
115 in (292 cm)
|
|
Width (Since 2016)
|
117 in (297 cm)
|
|
Width (Since 2017)
|
115 in (292 cm)
|
|
Width (Since 2017)
|
117 in (297 cm)
|
|
Width (Since 2018)
|
115 in (292 cm)
|
|
Width (Since 2018)
|
117 in (297 cm)
|
|
Width (Since 2019)
|
115 in (292 cm)
|
|
Width (Since 2019)
|
117 in (297 cm)
|
|
Width Over Tires (Since 2015)
|
110 in (279 cm)
|
|
Width Over Tires (2016)
|
110 in (279 cm)
|
|
Width Over Tires (2017)
|
110 in (279 cm)
|
|
Width Over Tires (2018)
|
110 in (279 cm)
|
|
Width Over Tires (2019)
|
110 in (279 cm)
|
|
Width over tires (std. tires) (Since 2015)
|
110 in (279 cm)
|
|
Width over tires (std. tires) (2016)
|
110 in (279 cm)
|
|
Width over tires (std. tires) (2017)
|
110 in (279 cm)
|
|
Width over tires (std. tires) (2018)
|
110 in (279 cm)
|
|
Width over tires (std. tires) (2019)
|
110 in (279 cm)
|
| Hydraulic System |
|
Hydraulic Cycle Time - Rated Payload - Dump, At Maximum Raise |
1.5 s |
|
Hydraulic Cycle Time - Rated Payload - Lower, Empty, Float Down |
2.3 s |
|
Hydraulic Cycle Time - Rated Payload - Raise From Carry Position |
5.1 s |
|
Hydraulic Cycle Time - Rated Payload - Total |
8.9 s |
|
Hydraulic Cycle Time - Total |
8.9 s |
|
Implement Pump Type |
Variable Axial Piston |
|
Implement System - Maximum Operating Pressure |
4,250 psi |
|
Implement System - Maximum Pump Output At 2,150 Rpm |
76 gpm (288 lpm)
|
|
Implement System - Optional 3rd Function Maximum Flow |
63 gpm (238 lpm)
|
|
Implement System - Optional 3rd Function Maximum Pressure |
3,220 psi |
| Operating Specifications |
|
Breakout Force |
40,690 lbs (18,457 kg)
|
|
Note (1) |
For a machine configuration as defined under ?Weight.? |
|
Note (2) |
Full compliance to ISO 143971:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. |
|
Static Tipping Load - Full 40 Degrees Turn - No Tire Deflection |
25,926 lbs (11,760 kg)
|
|
Static Tipping Load - Full 40 Degrees Turn - With Tire Deflection |
24,262 lbs (11,005 kg)
|
| Operational |
|
Operating Weight |
42,360 lbs (19,214 kg)
|
| Service Refill Capacities |
|
Cooling System |
16 gal (59 l)
|
|
Crankcase |
6 gal (22 l)
|
|
Def Tank |
4 gal (16 l)
|
|
Def Tank* |
4 gal (16 l)
|
|
Differential - Final Drives - Front |
11 gal (43 l)
|
|
Differential - Final Drives - Rear |
11 gal (43 l)
|
|
Fuel Tank |
73 gal (275 l)
|
|
Hydraulic Tank |
33 gal (125 l)
|
|
Note |
*Must meet the requirements outlined in ISO 22241-1. |
|
Transmission |
11 gal (43 l)
|
| Sound |
|
Exterior Sound Power Level - Iso 6395:2008 |
108 dB(A) |
|
Exterior Sound Pressure Level - Sae J88:2013 |
75 dB(A) |
|
Note |
*Distance of 15 m (49.2 ft), moving forward in second gear ratio. |
|
Note (1) |
*Distance of 15 m (49.2 ft), moving forward in second gear ratio. |
|
Note (2) |
**For machines in European Union countries and in countries that adopt the ?EU Directives.? |
|
Note (3) |
***European Union Directive ?2000/14/EC? as amended by ?2005/88/EC.? |
|
Operator Sound Pressure Level - Iso 6396:2008 |
70 dB(A) |
|
With Cooling Fan Speed At 70% Of Maximum Value - Exterior Sound Power Level (Iso 6395:2008)** |
104 LWA*** |
|
With Cooling Fan Speed At 70% Of Maximum Value - Operator Sound Pressure Level (Iso 6396:2008)** |
69 dB(A) |
|
With Cooling Fan Speed At Maximum Value - Exterior Sound Power Level (Iso 6395:2008) |
107 dB(A) |
|
With Cooling Fan Speed At Maximum Value - Exterior Sound Pressure Level (Sae J88:2013) |
75 dB(A)* |
|
With Cooling Fan Speed At Maximum Value - Operator Sound Pressure Level (Iso 6396:2008) |
70 dB(A) |
| Transmission |
|
Forward - 1 |
4 mph (7 kph)
|
|
Forward - 2 |
8 mph (12 kph)
|
|
Forward - 3 |
12 mph (19 kph)
|
|
Forward - 4 |
16 mph (26 kph)
|
|
Forward - 5 |
25 mph (39 kph)
|
|
Note |
Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 787 mm (31 in) roll radius. |
|
Reverse - 1 |
4 mph (7 kph)
|
|
Reverse - 2 |
8 mph (12 kph)
|
|
Reverse - 3 |
16 mph (26 kph)
|
| Weights |
|
Note |
Weight based on a machine configuration with Michelin 23.5R25 XHA2 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link?, manual diff lock/open axles (front/rear), power train guard, secondary steering, sound suppression and a 3.1 m3 (4.1 yd3) general purpose bucket with BOCE. |
|
Operating Weight |
42,357 lbs (19,213 kg)
|
