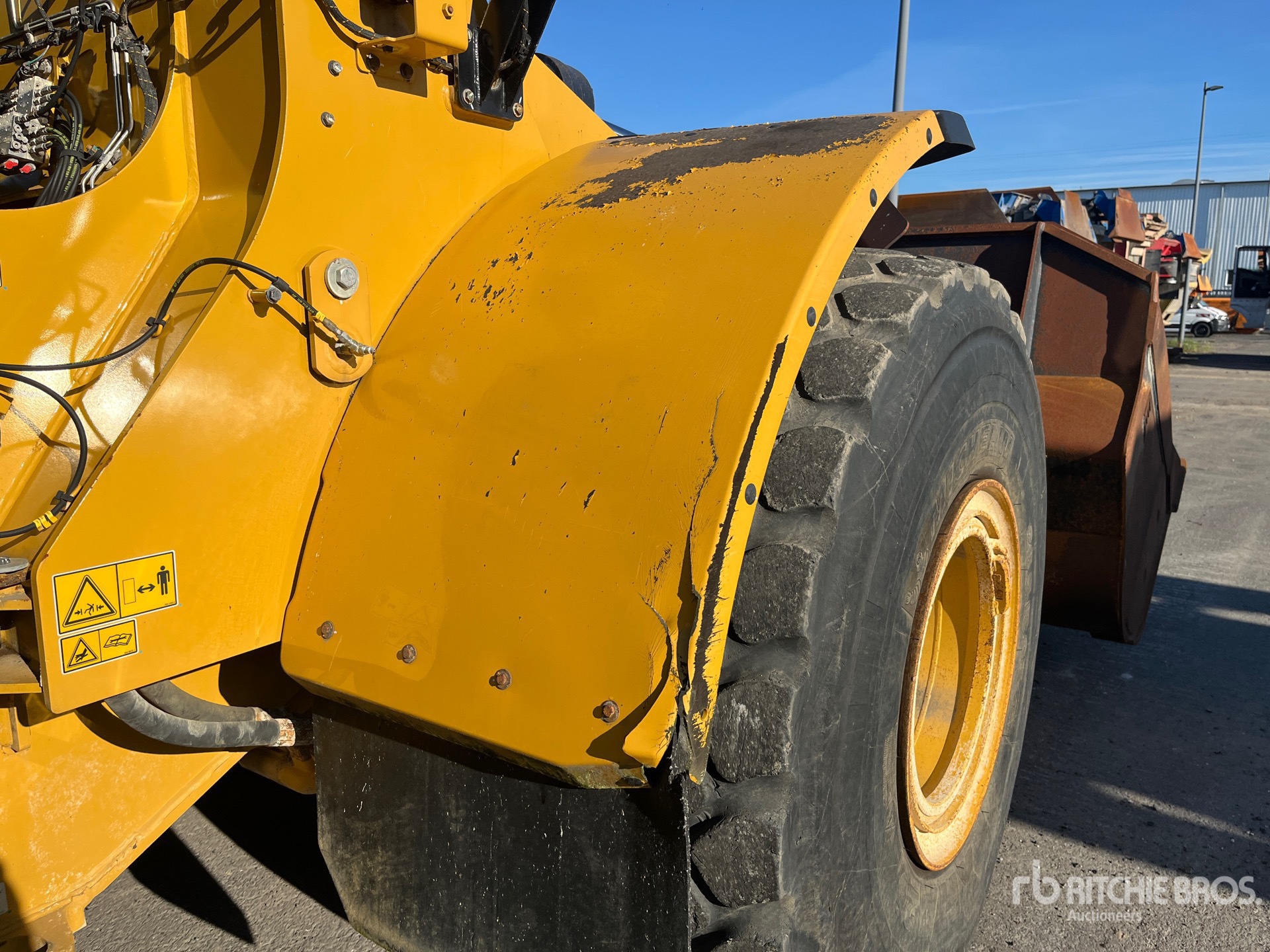

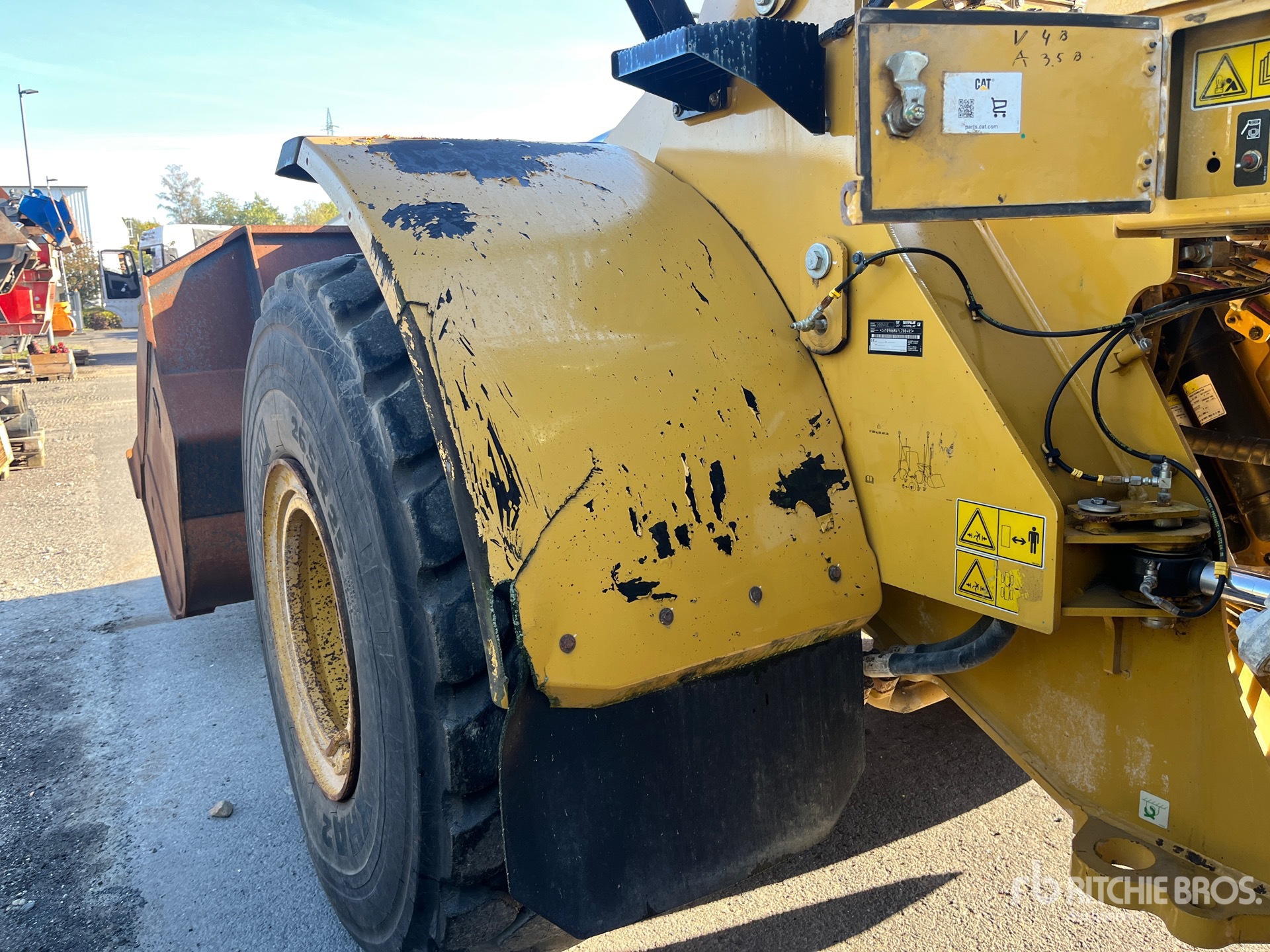

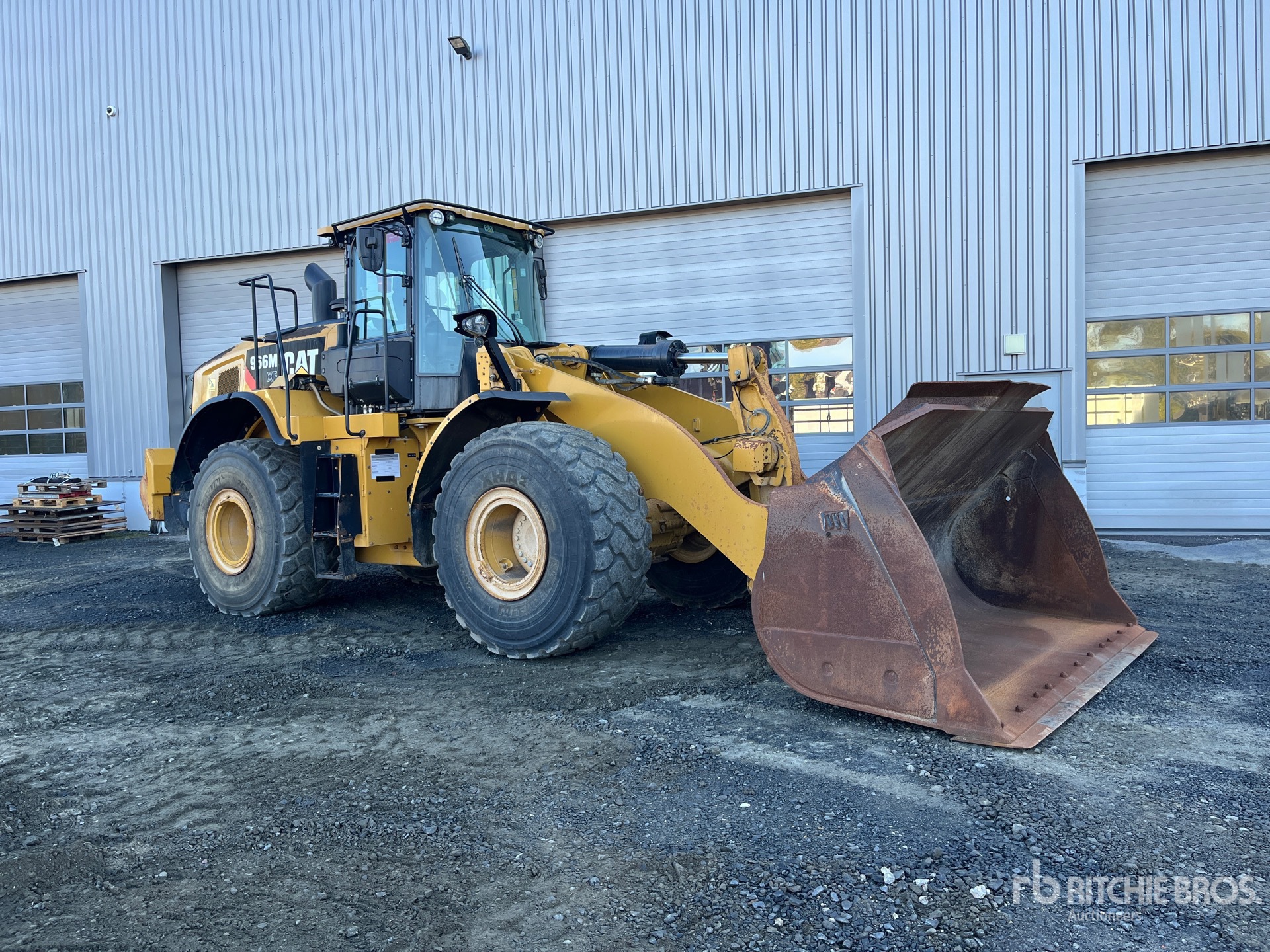

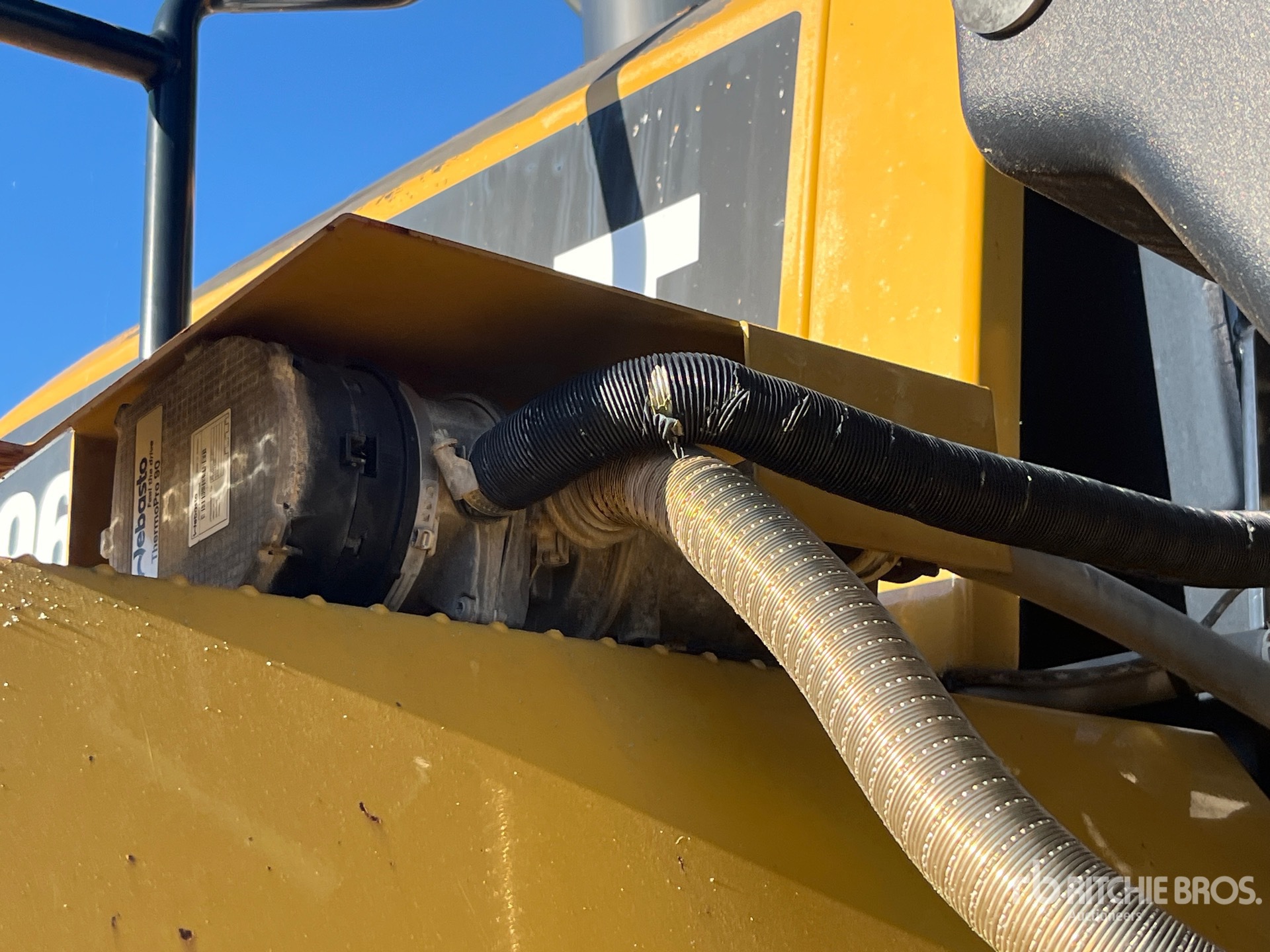

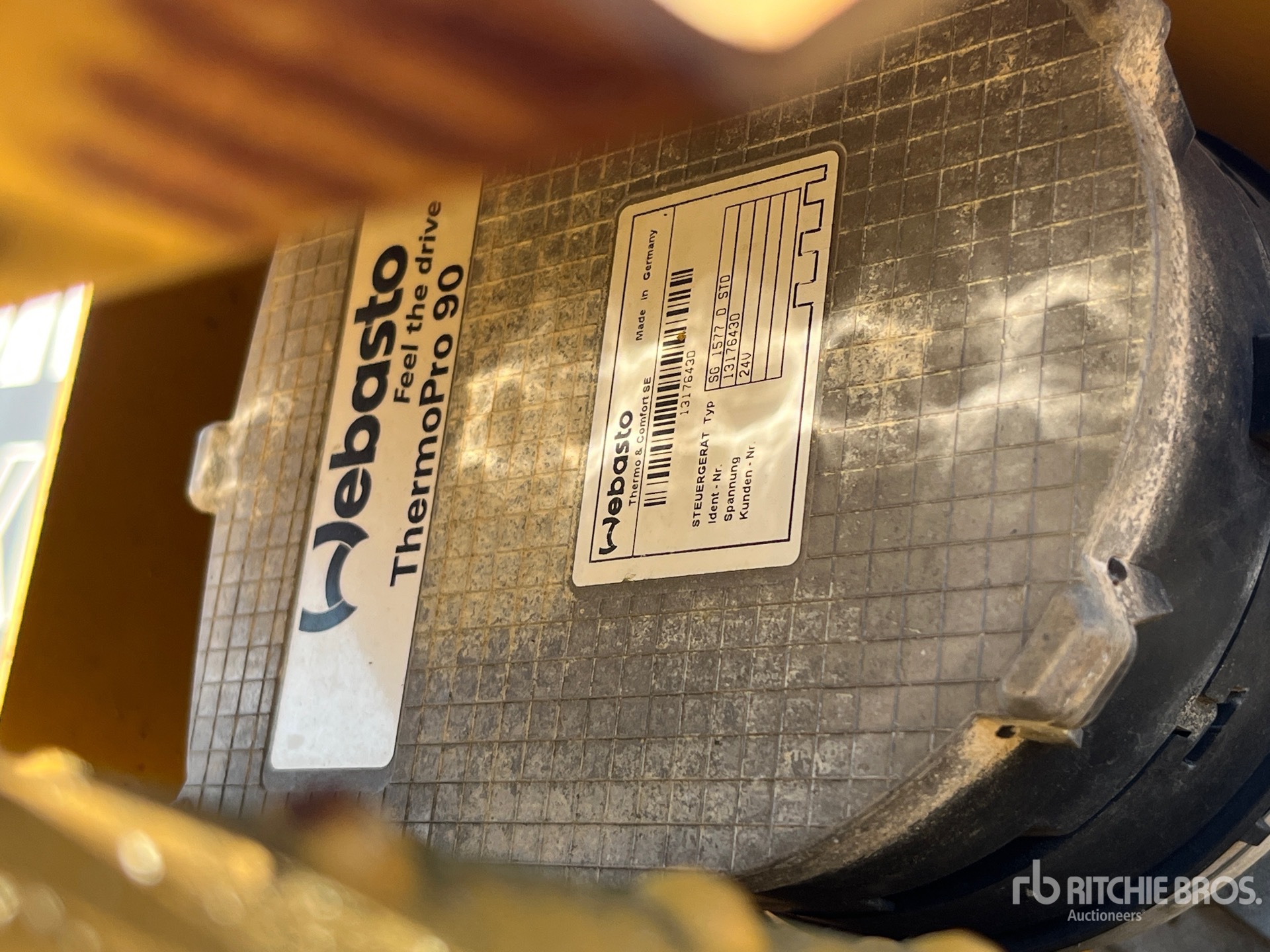

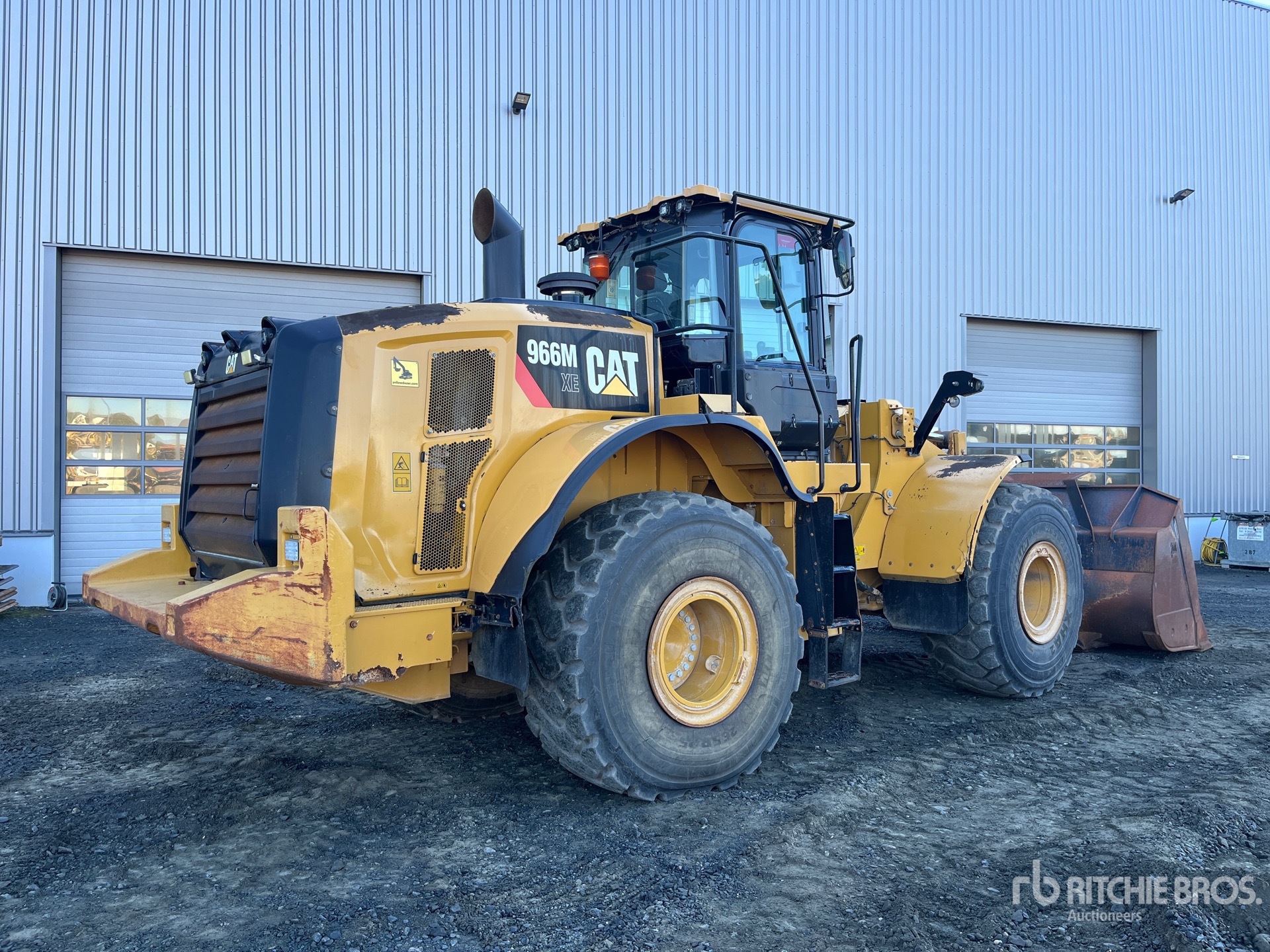

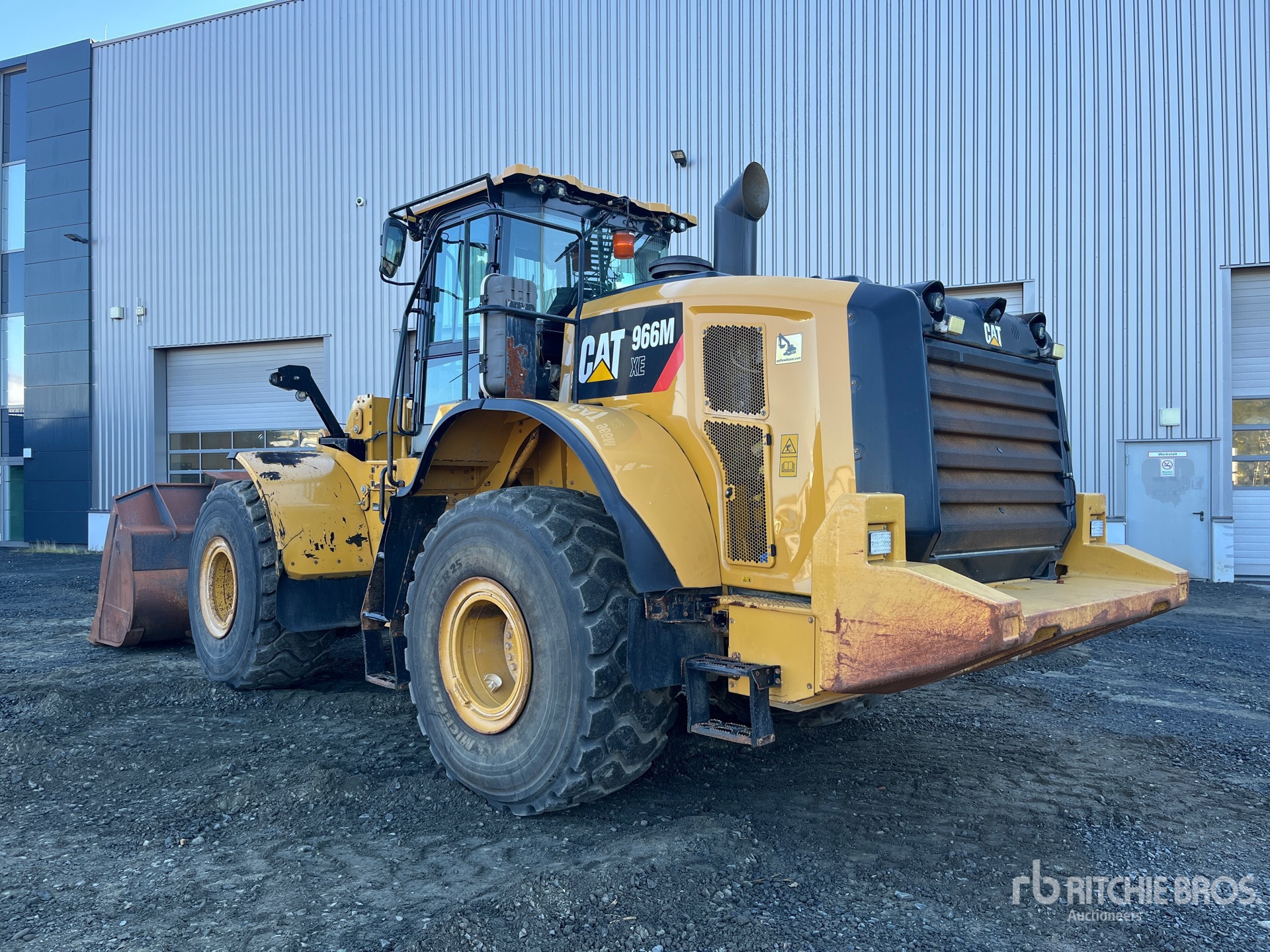

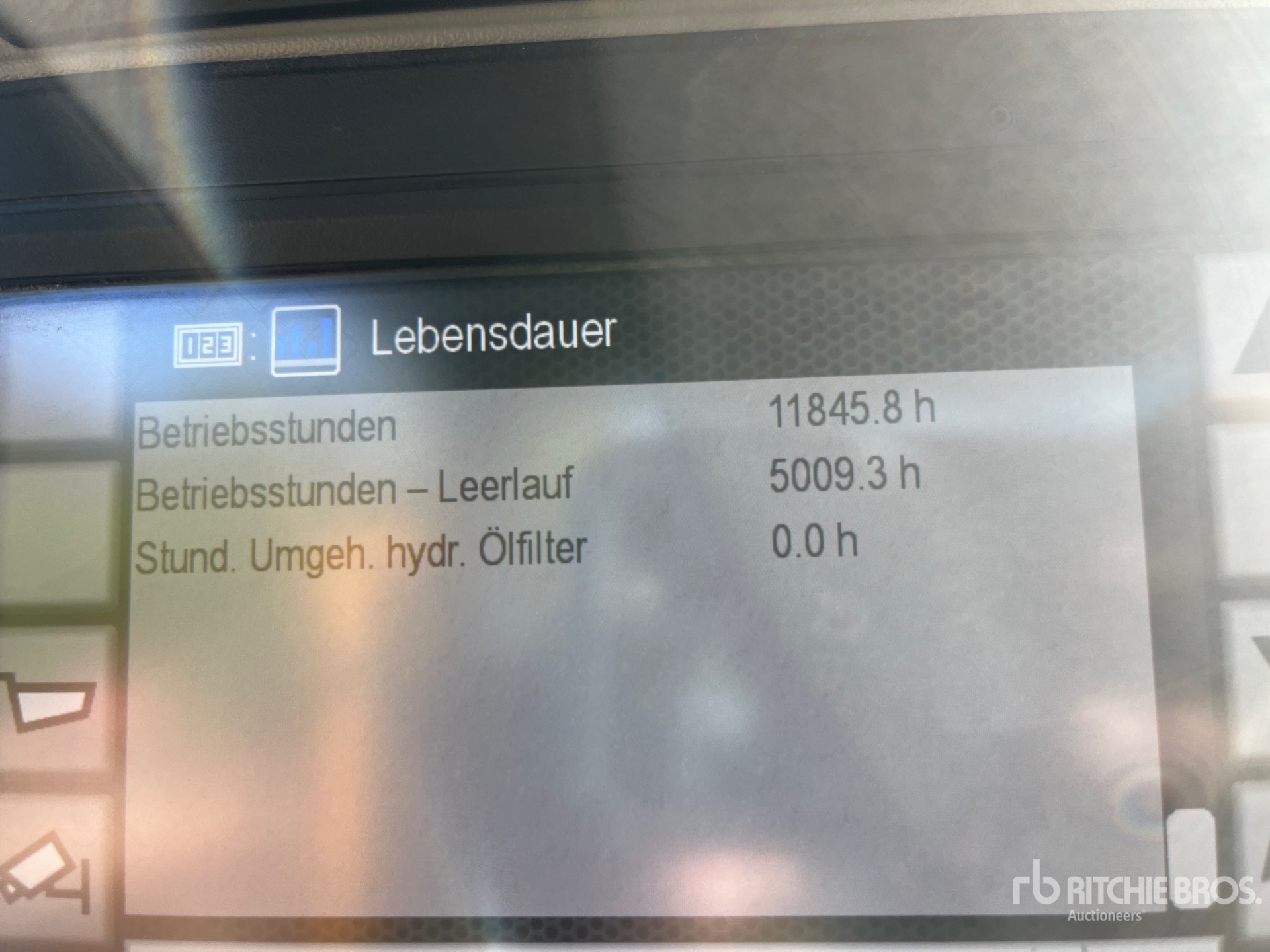

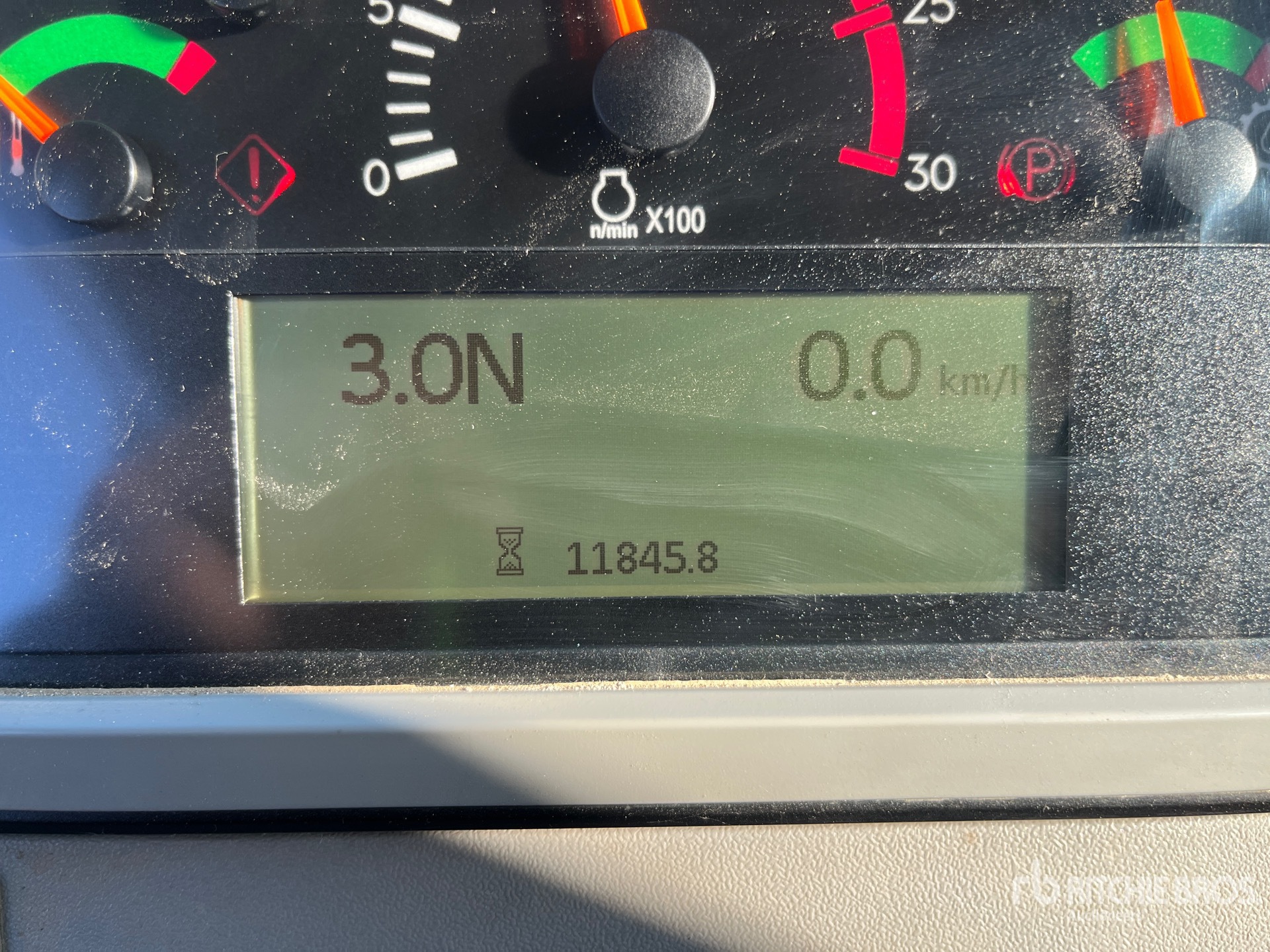

| Axles |
|
Front |
Fixed |
|
Maximum Single-Wheel Rise And Fall |
20 in (50 cm)
|
|
Rear |
Oscillating ?13 degrees |
| Brakes |
|
Brakes |
Brakes meet ISO 3450 standards |
| Bucket Capacities |
|
Bucket Capacities |
3.20-7.40 m3 (4.19-9.68 yd3) |
| Buckets |
|
Bucket Capacities |
2.5-9.2 m? (3.25-12.0 yd?) |
| Cab |
|
Rops/Fops |
ROPS/FOPS meet ISO 3471 and ISO 3449 Level II standards |
| Dimensions - High Lift |
|
Centerline Of Rear Axle To Edge Of Counterweight |
8 ft (2 m)
|
|
Centerline Of Rear Axle To Hitch |
6 ft (2 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Height - Top Of Exhaust Pipe |
12 ft (4 m)
|
|
Height - Top Of Hood |
9 ft (3 m)
|
|
Height - Top Of Rops |
12 ft (4 m)
|
|
Hinge Pin Height At Carry |
3 ft (1 m)
|
|
Hinge Pin Height At Maximum Lift |
16 ft (5 m)
|
|
Lift Arm Clearance At Maximum Lift |
14 ft (4 m)
|
|
Maximum Width Over Tires |
10 ft (3 m)
|
|
Note |
All dimensions are approximate and based on L3 XHA2 tires. |
|
Overall Length - Without Bucket |
27 ft (8 m)
|
|
Rack Back - Carry Height |
49 degrees |
|
Rack Back - Maximum Lift |
71 degrees |
|
Rack Back At Ground |
39 degrees |
|
Tread Width |
7 ft (2 m)
|
|
Wheel Base |
12 ft (4 m)
|
| Dimensions - Standard Lift |
|
Centerline Of Rear Axle To Edge Of Counterweight |
7 ft (2 m)
|
|
Centerline Of Rear Axle To Hitch |
6 ft (2 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Height - Top Of Exhaust Pipe |
12 ft (4 m)
|
|
Height - Top Of Hood |
9 ft (3 m)
|
|
Height - Top Of Rops |
12 ft (4 m)
|
|
Hinge Pin Height At Carry |
2 ft (1 m)
|
|
Hinge Pin Height At Maximum Lift |
14 ft (4 m)
|
|
Lift Arm Clearance At Maximum Lift |
12 ft (4 m)
|
|
Maximum Width Over Tires |
10 ft (3 m)
|
|
Note |
All dimensions are approximate and based on L3 XHA2 tires. |
|
Overall Length - Without Bucket |
24 ft (7 m)
|
|
Rack Back - Carry Height |
50 degrees |
|
Rack Back - Maximum Lift |
62 degrees |
|
Rack Back At Ground |
42 degrees |
|
Tread Width |
7 ft (2 m)
|
|
Wheel Base |
12 ft (4 m)
|
| Engine |
|
Displacement |
568 cu in (9,308 cu cm)
|
|
Engine Model |
Cat? C9.3 ACERT? |
|
Maximum Net Power - 1,600 Rpm - Iso 9249 |
298 hp (222 kw)
|
|
Maximum Net Power - 1,600 Rpm - Iso 9249 - Metric |
302 hp (225 kw)
|
|
Maximum Net Power - 1,600 Rpm - Sae J1349 |
298 hp (222 kw)
|
|
Maximum Net Power - 1,600 Rpm - Sae J1349 - Metric |
302 hp (225 kw)
|
|
Maximum Net Power - Sae J1349/Iso 9249 |
298 hp (222 kw)
|
|
Maximum Net Torque - 1,200 Rpm |
1,193 lbs ft (1,617 nm)
|
|
Net Power - Iso 9249 |
298 hp (222 kw)
|
|
Note |
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes. |
|
Peak Gross Torque - 1,200 Rpm - Iso 14396 |
1,260 lbs ft (1,708 nm)
|
|
Peak Gross Torque - 1,200 Rpm - Sae J1995 |
1,275 lbs ft (1,729 nm)
|
| Engine - Tier 4 Final/Stage Iv |
|
Emissions |
Tier 4/Stage IV |

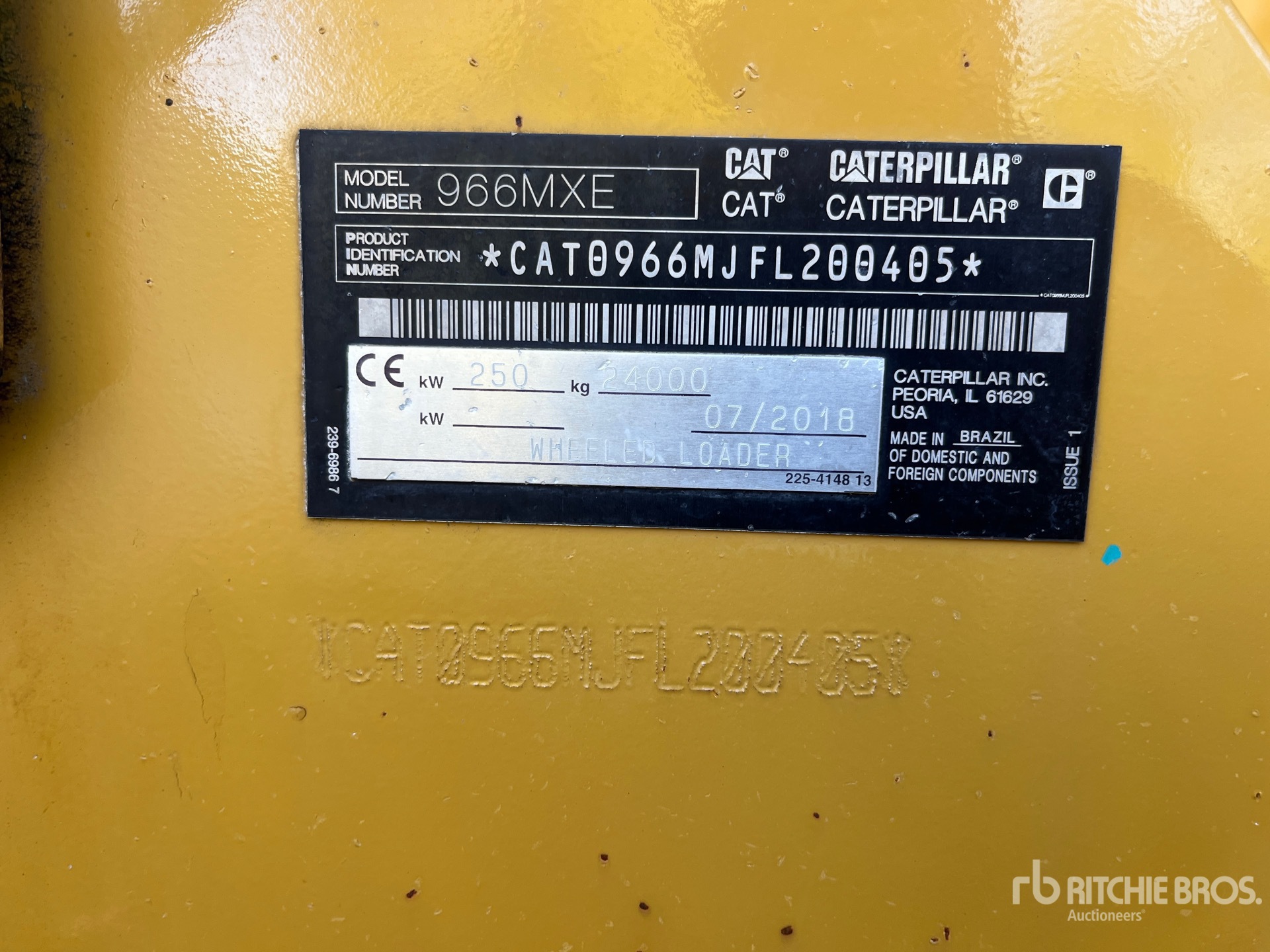

| General Specifications |
|
Bucket Capacity (Since 2016)
|
3.3 - 12.0 |
|
Bucket Capacity (Since 2017)
|
3.3 - 12.0 (2.5 - 9.2) |
|
Bucket Capacity (2019)
|
3.3 - 12.0 (2.5 - 9.2) |
|
Bucket Capacity (2020)
|
3.3 - 12.0 (2.5 - 9.2) |
|
Bucket Capacity (Since 2021)
|
4.19 - 9.68 (3.2 - 7.4) |
|
Bucket Capacity (2022)
|
4.19 - 9.68 (3.2 - 7.4) |
|
Engine Power (Since 2016)
|
298 hp (222 kw)
|
|
Engine Power (2017)
|
298 hp (222 kw)
|
|
Engine Power (2019)
|
298 hp (222 kw)
|
|
Engine Power (2020)
|
298 hp (222 kw)
|
|
Engine Power (2021)
|
298 hp (222 kw)
|
|
Engine Power (2022)
|
298 hp (222 kw)
|
|
Engine type (Since 2016)
|
Cat C9.3 ACERT |
|
Engine type (2017)
|
Cat C9.3 ACERT |
|
Engine type (2019)
|
Cat C9.3 ACERT |
|
Engine type (Since 2020)
|
Cat C9.3 |
|
Engine type (2021)
|
Cat C9.3 |
|
Engine type (2022)
|
Cat C9.3 |
|
Max Dump Height (Since 2016)
|
4 ft (1 m)
|
|
Max Dump Height (2017)
|
4 ft (1 m)
|
|
Max Dump Height (Since 2019)
|
10 ft (3 m)
|
|
Max Dump Height (2020)
|
10 ft (3 m)
|
|
Operating Weight (Since 2016)
|
51,176 lbs (23,213 kg)
|
|
Operating Weight (2017)
|
51,176 lbs (23,213 kg)
|
|
Operating Weight (2019)
|
51,176 lbs (23,213 kg)
|
|
Operating Weight (2020)
|
51,176 lbs (23,213 kg)
|
|
Operating Weight (2021)
|
51,176 lbs (23,213 kg)
|
|
Operating Weight (2022)
|
51,176 lbs (23,213 kg)
|
|
Tip Load (Since 2021)
|
36,711 lbs (16,652 kg)
|
|
Tip Load (2022)
|
36,711 lbs (16,652 kg)
|
|
Travel Speed(Fwd/Rev) (Since 2021)
|
24.9 / 17.1 mph |
|
Travel Speed(Fwd/Rev) (2022)
|
24.9 / 17.1 mph |
| Hydraulic System |
|
Hydraulic Cycle Time - Rated Payload - Dump, At Maximum Raise |
1.4 s |
|
Hydraulic Cycle Time - Rated Payload - Lower, Empty, Float Down |
2.6 s |
|
Hydraulic Cycle Time - Rated Payload - Raise From Carry Position |
6.1 s |
|
Hydraulic Cycle Time - Rated Payload - Total |
10.1 s |
|
Hydraulic Cycle Time - Total |
10.1 s |
|
Implement Pump Type |
Variable Displacement Piston |
|
Implement System - Maximum Flow - Optional 3rd/4th Function |
69 gpm (261 lpm)
|
|
Implement System - Maximum Operating Pressure |
4,496 psi |
|
Implement System - Maximum Pressure - Optional 3rd/4th Function |
2,999 psi |
|
Implement System - Maximum Pump Output At 1,600 Rpm |
103 gpm (390 lpm)
|
| Operating Specifications |
|
Breakout Force |
38,984 lbs (17,683 kg)
|
|
Note (1) |
For a machine configuration as defined under ?Weight.? |
|
Note (2) |
Full compliance to ISO 143971:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. |
|
Static Tipping Load - Full 37 Degrees Turn - No Tire Deflection |
34,873 lbs (15,818 kg)
|
|
Static Tipping Load - Full 37 Degrees Turn - With Tire Deflection |
32,329 lbs (14,664 kg)
|
| Operational |
|
Operating Weight |
51,176 lbs (23,213 kg)
|
| Service Refill Capacities |
|
Cooling System |
19 gal (72 l)
|
|
Crankcase |
7 gal (25 l)
|
|
Def Tank |
4 gal (17 l)
|
|
Def Tank* |
4 gal (17 l)
|
|
Differential - Final Drives - Front |
15 gal (57 l)
|
|
Differential - Final Drives - Rear |
15 gal (57 l)
|
|
Fuel Tank |
83 gal (313 l)
|
|
Hydraulic Tank |
33 gal (125 l)
|
|
Note |
*Must meet the requirements outlined in ISO 22241-1. |
|
Transmission |
16 gal (60 l)
|
| Sound |
|
Exterior Sound Power Level - Iso 6395:2008 |
107 dB(A) |
|
Exterior Sound Pressure Level - Sae J88:2013 |
76 dB(A) |
|
Note (1) |
The sound values are for specific operating conditions only. |
|
Note (2) |
Machine and operator sound levels will vary at different engine and/or cooling fan speeds. |
|
Note (3) |
Hearing protection may be needed when the machine is operated with a cabin that is not properly maintained. |
|
Note (4) |
Hearing protection may be needed when the doors and/or windows are open for extended periods or in a noisy environment. |
|
Operator Sound Pressure Level - Iso 6396:2008 |
67 dB(A) |
|
With Cooling Fan Speed At 70% Of Maximum Value - Exterior Sound Power Level (Iso 6395:2008)** |
105 LWA*** |
|
With Cooling Fan Speed At 70% Of Maximum Value - Operator Sound Pressure Level (Iso 6396:2008)** |
67 dB(A) |
|
With Cooling Fan Speed At Maximum Value - Exterior Sound Power Level (Iso 6395:2008) |
107 dB(A) |
|
With Cooling Fan Speed At Maximum Value - Exterior Sound Pressure Level (Sae J88:2013) |
76 dB(A)* |
|
With Cooling Fan Speed At Maximum Value - Operator Sound Pressure Level (Iso 6396:2008) |
67 dB(A) |
| Transmission - Virtual Gears |
|
Forward - 1 |
4 mph (7 kph)
|
|
Forward - 2 |
8 mph (12 kph)
|
|
Forward - 3 |
14 mph (22 kph)
|
|
Forward - 4 |
24 mph (39 kph)
|
|
Note |
Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 826 mm (32.5 in) roll radius. |
|
Reverse - 1 |
4 mph (7 kph)
|
|
Reverse - 2 |
8 mph (12 kph)
|
|
Reverse - 3 |
17 mph (28 kph)
|
| Weights |
|
Note |
*For 4.2 m3 (5.5 yd3) general purpose buckets with BOCE. |
|
Operating Weight |
51,176 lbs (23,213 kg)
|
|
Operating Weight* |
51,176 lbs (23,213 kg)
|
