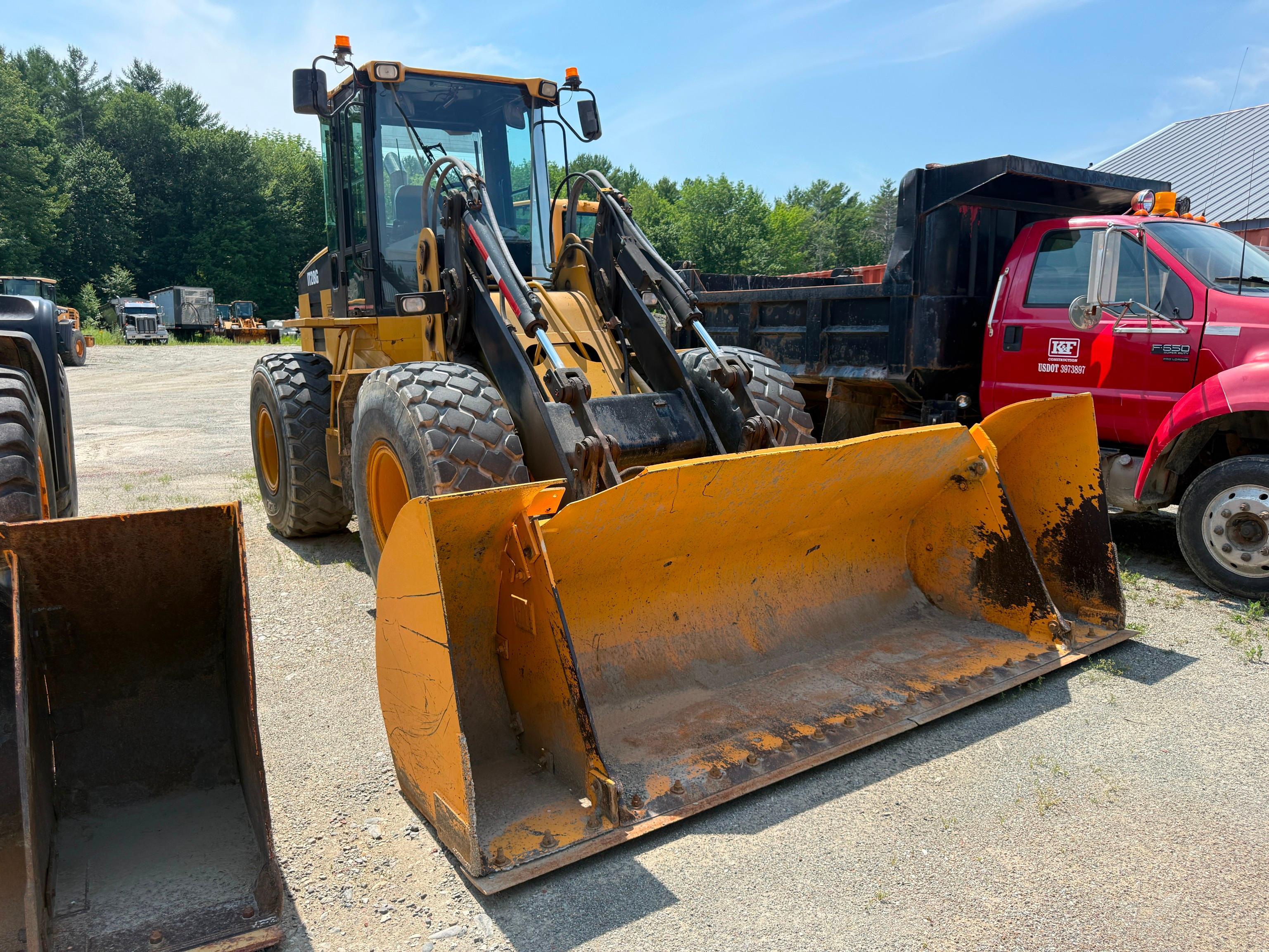

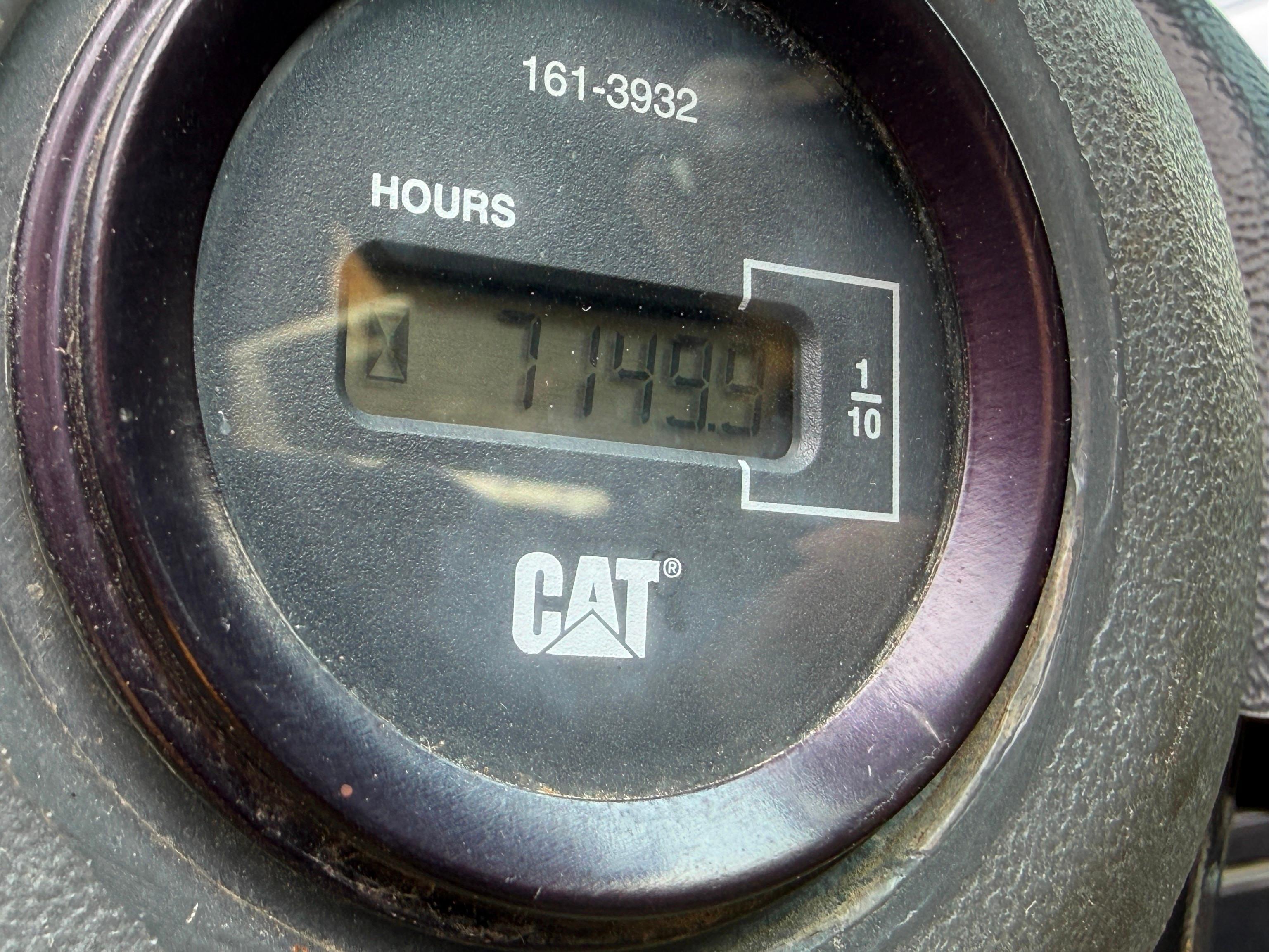

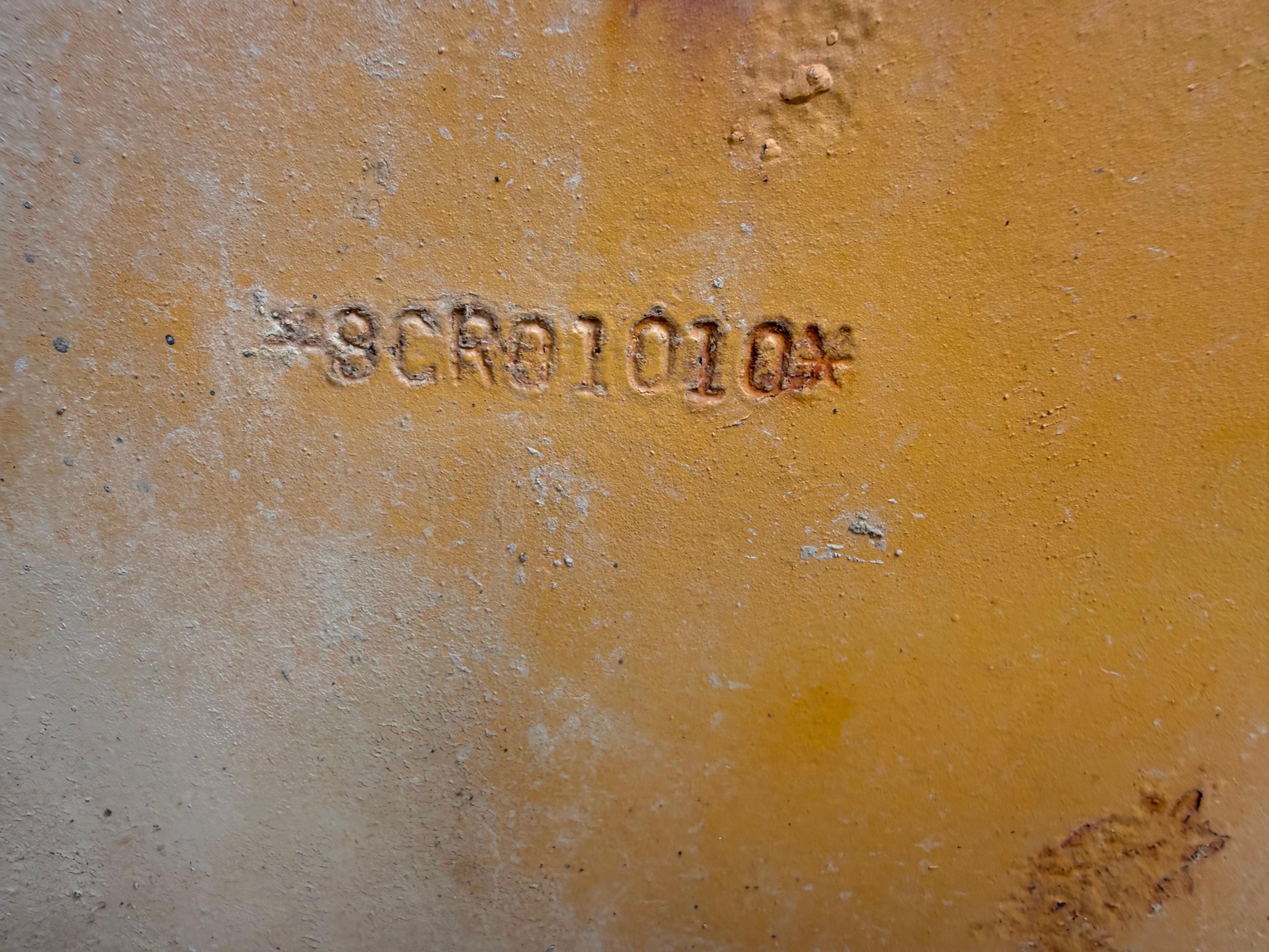

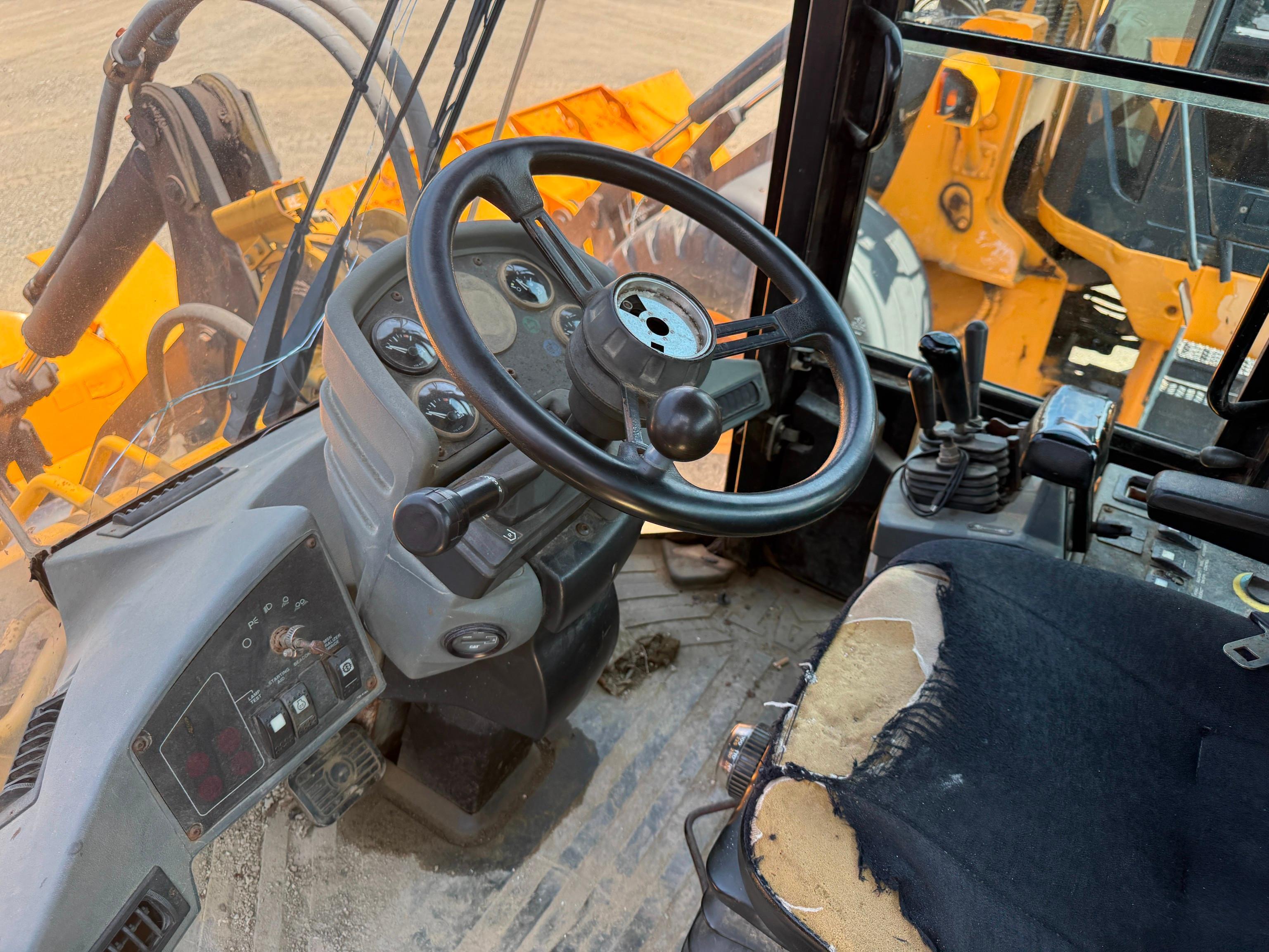

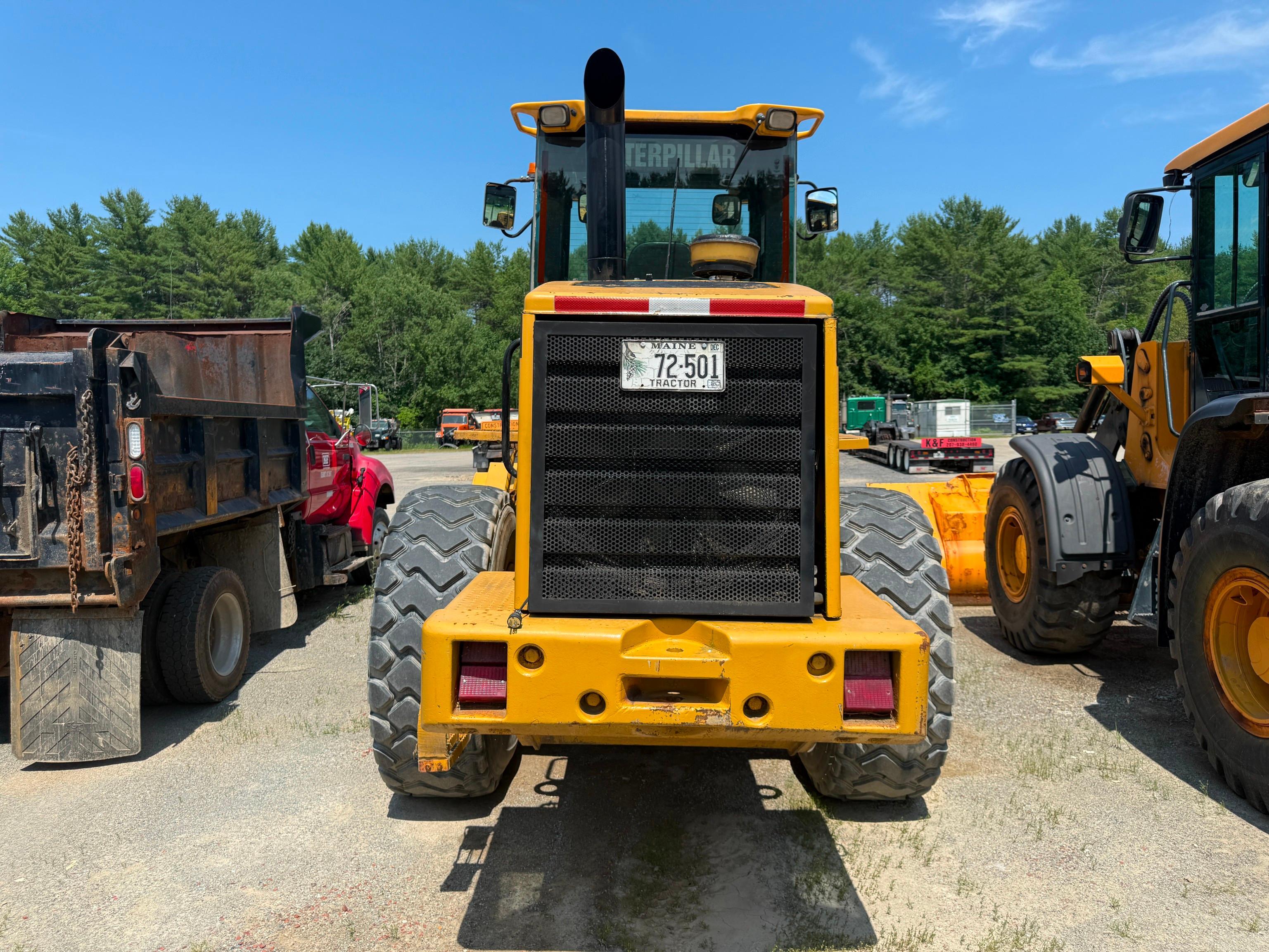

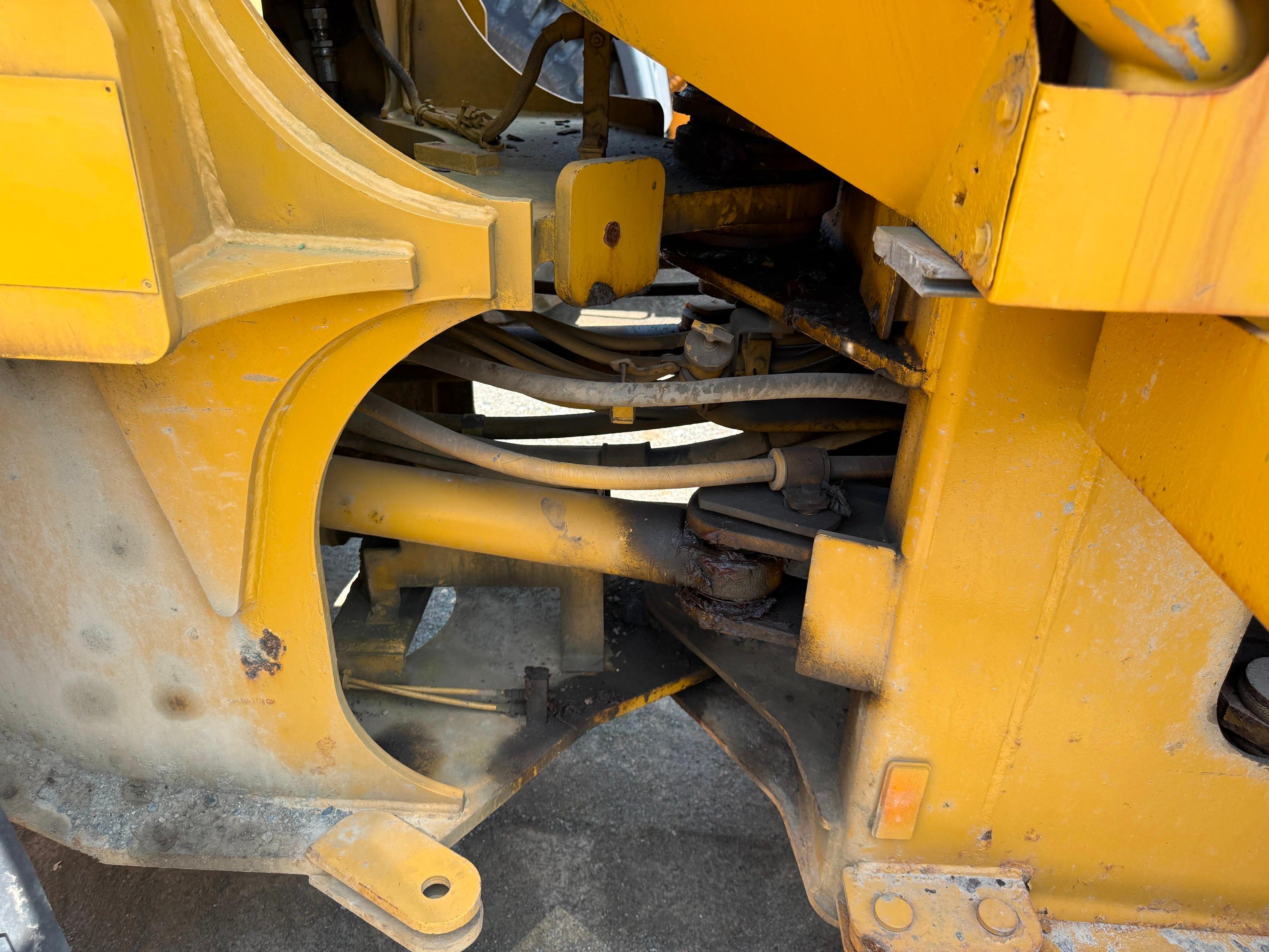

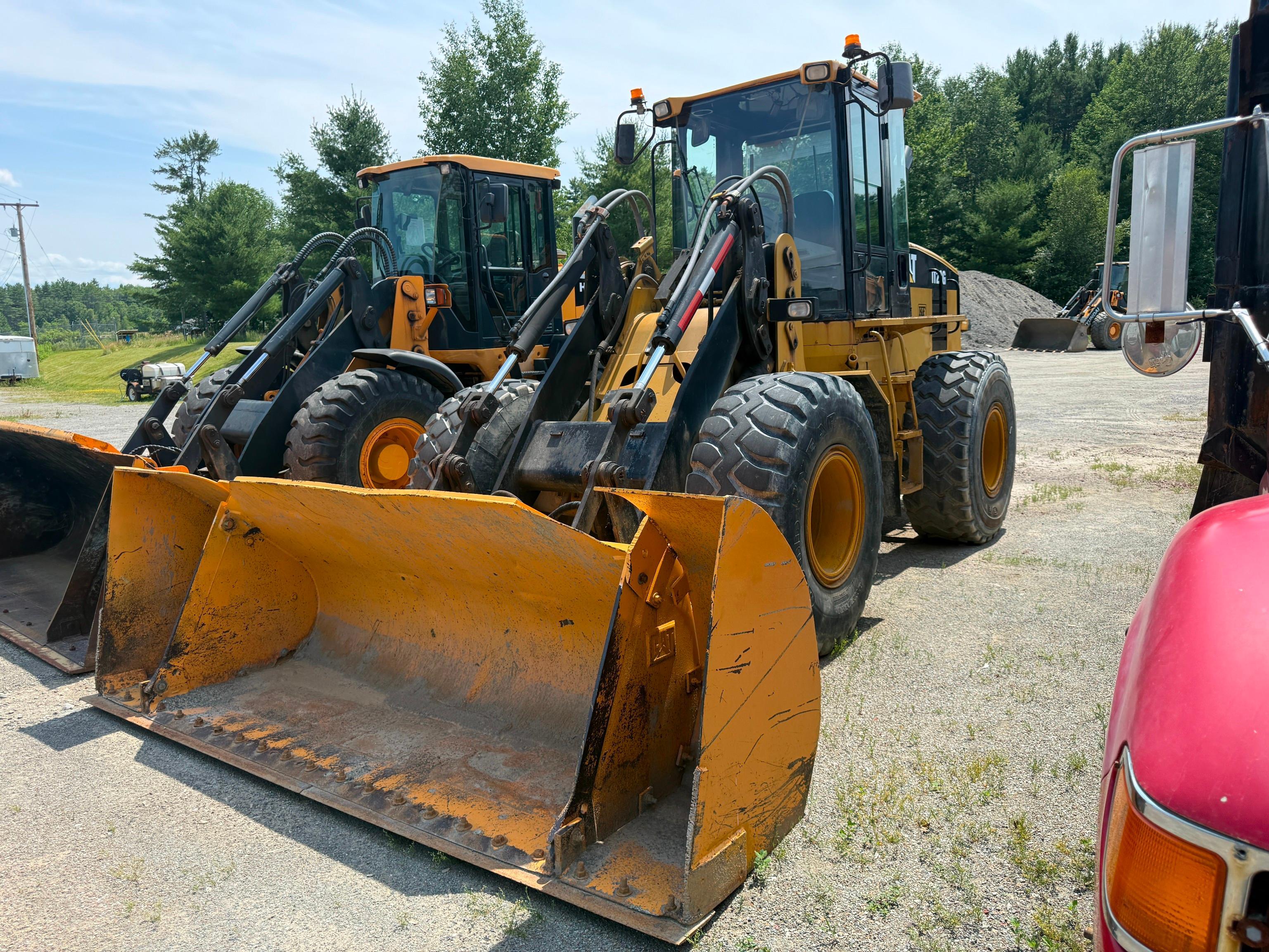

| Blade |
|
Width |
8 ft (3 m)
|

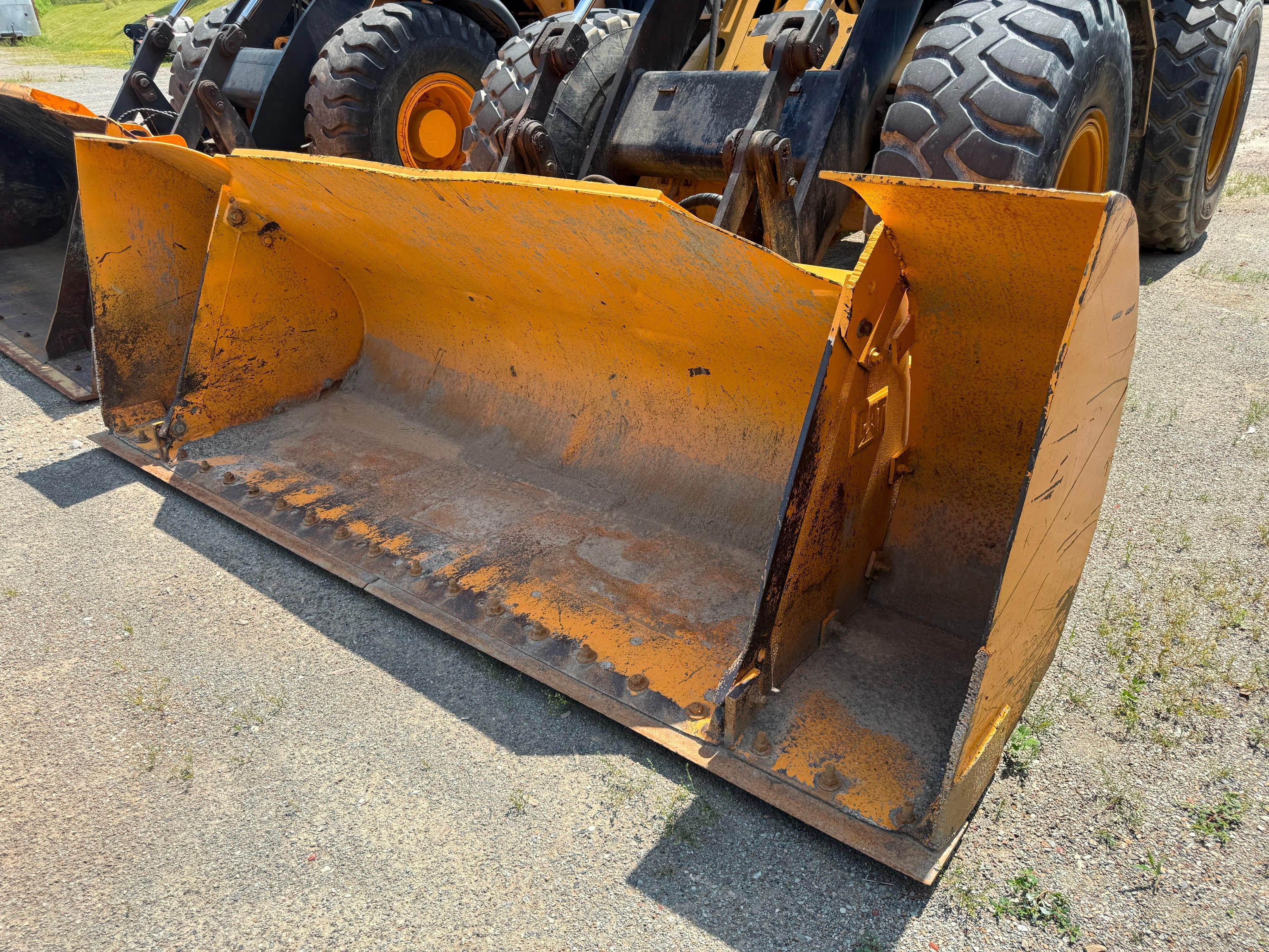

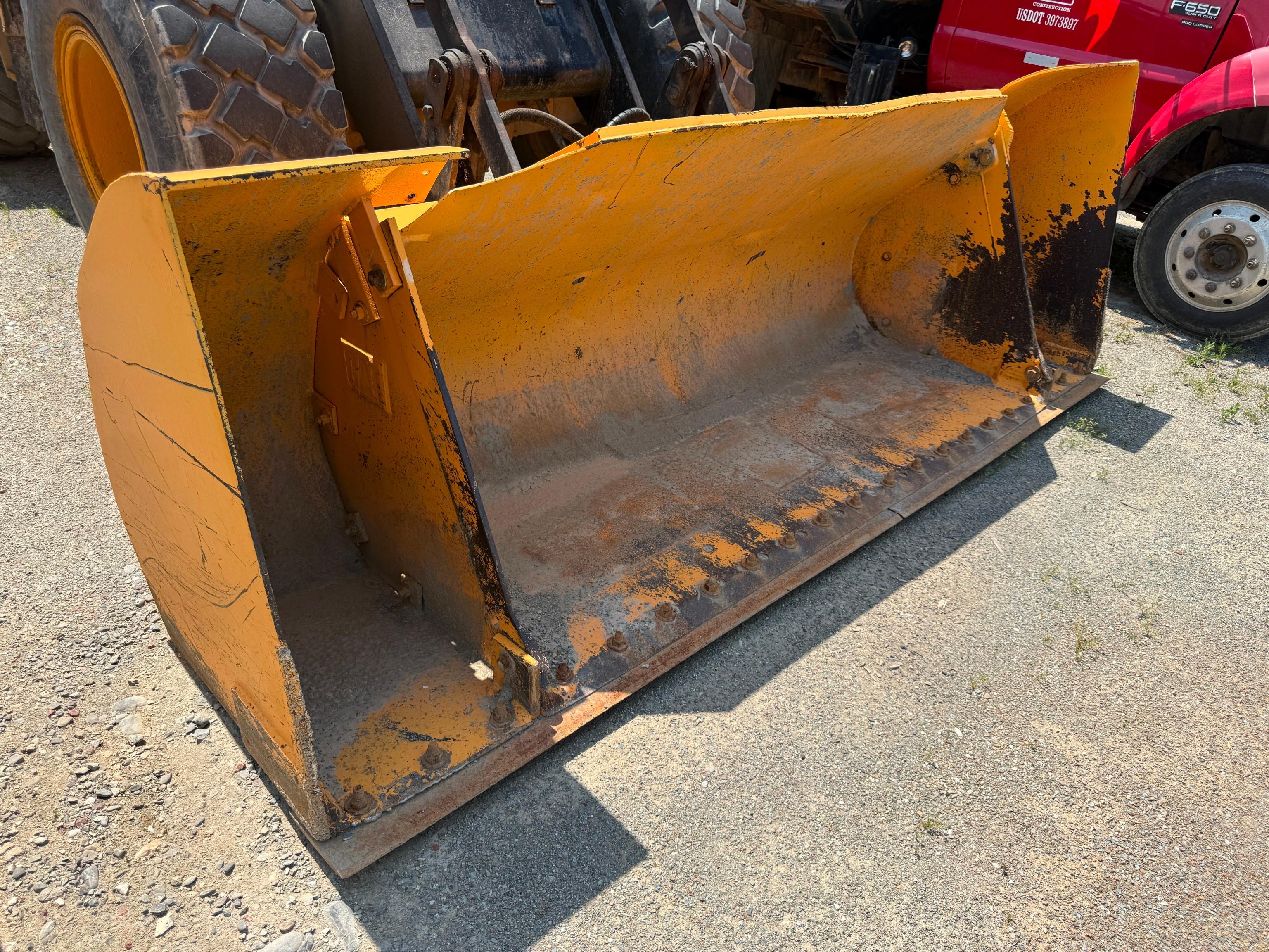

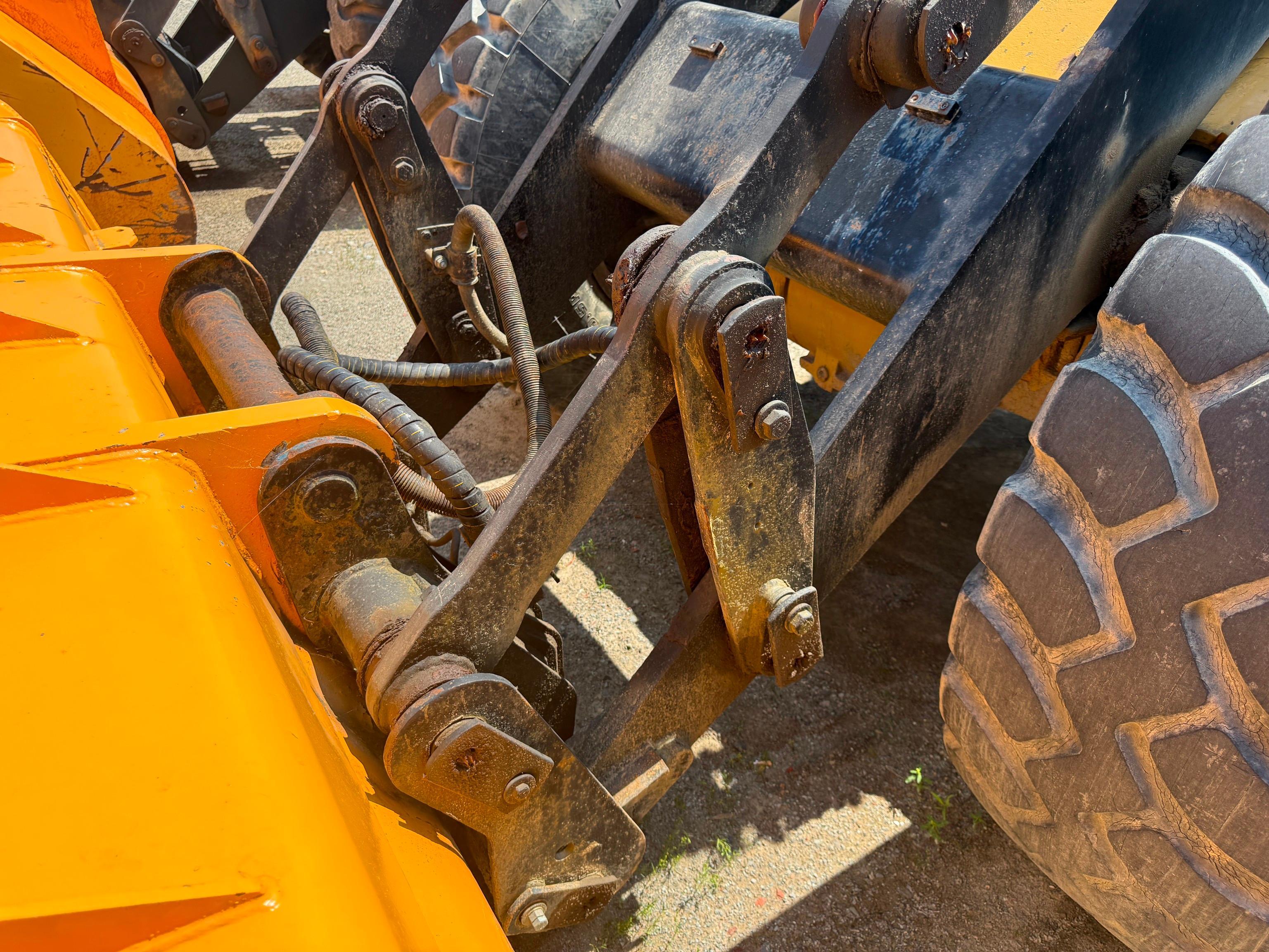

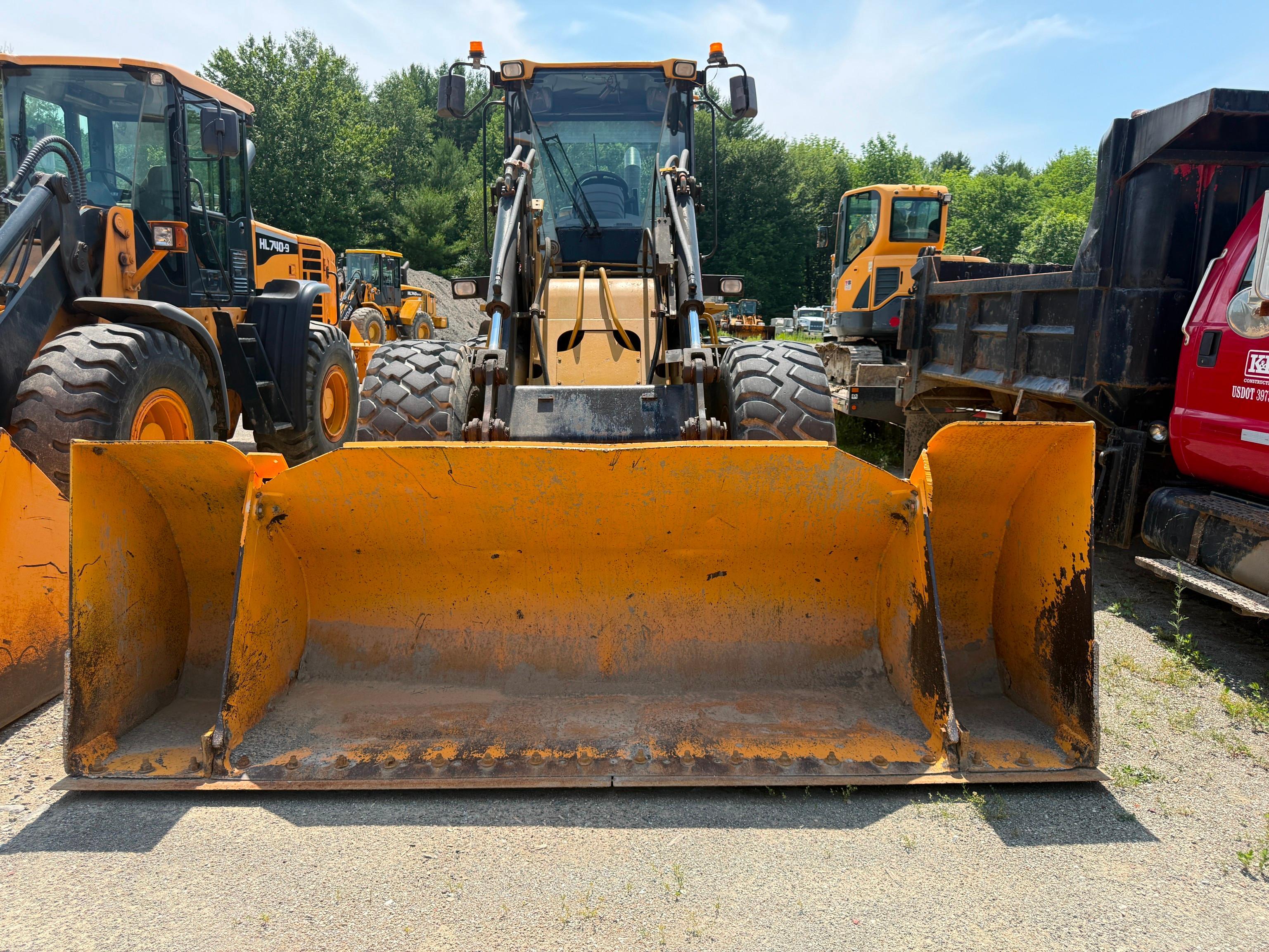

| Bucket |
|
Breakout Force |
23,440 lbs (10,632 kg)
|
|
Breakout Force |
25,340 lbs (11,494 kg)
|
|
Bucket Capacity - Heaped |
3 cu yd |
|
Bucket Capacity - Heaped |
2 cu yd |
|
Bucket Capacity - Struck |
2 cu yd |
|
Bucket Capacity - Struck |
2 cu yd |
|
Bucket Width |
8 ft (3 m)
|
|
Digging Depth |
0 ft (0 m)
|
|
Dump Clearance At Max Raise |
10 ft (3 m)
|
|
Dumping Angle, Top |
45 degrees |

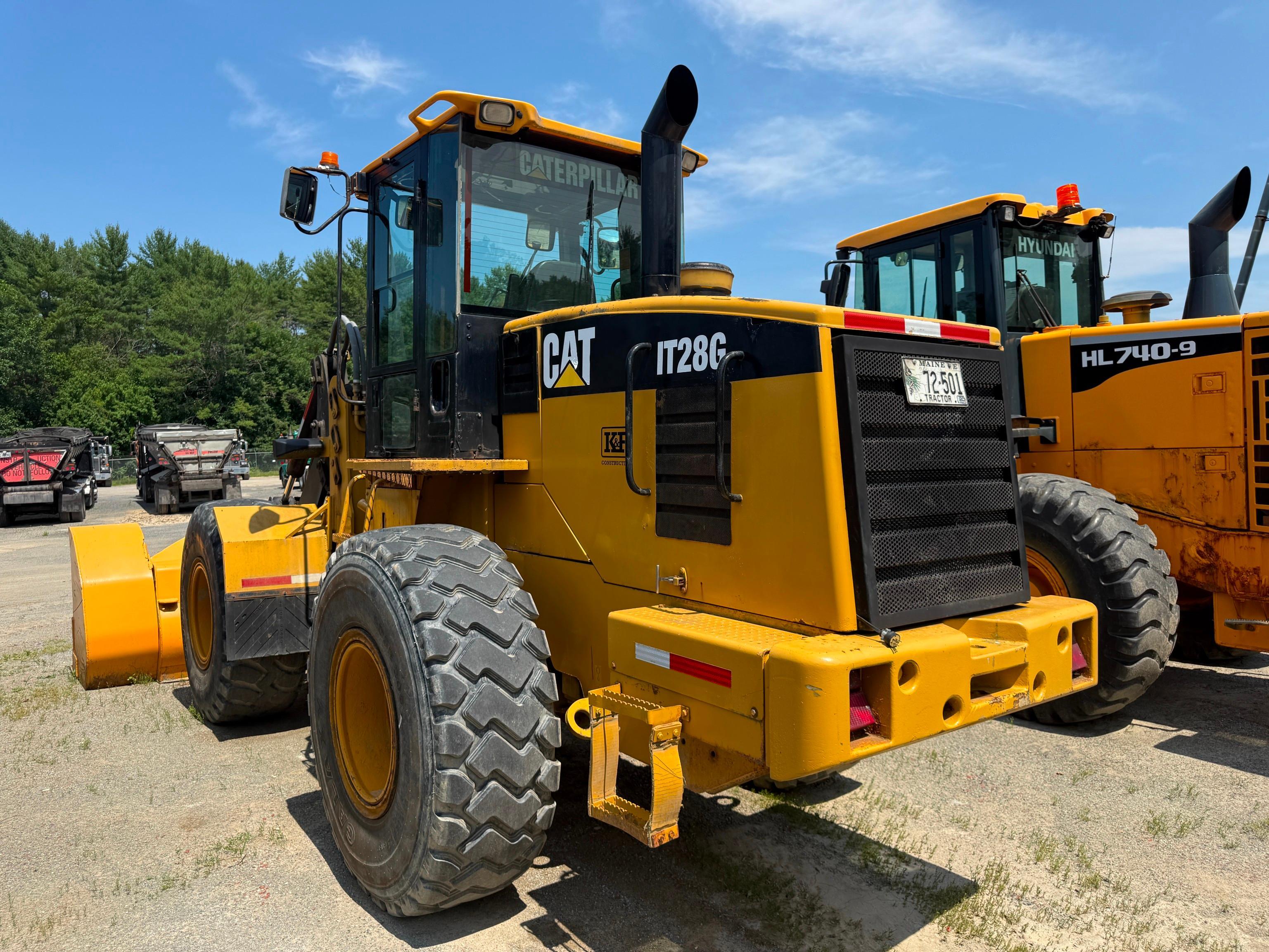

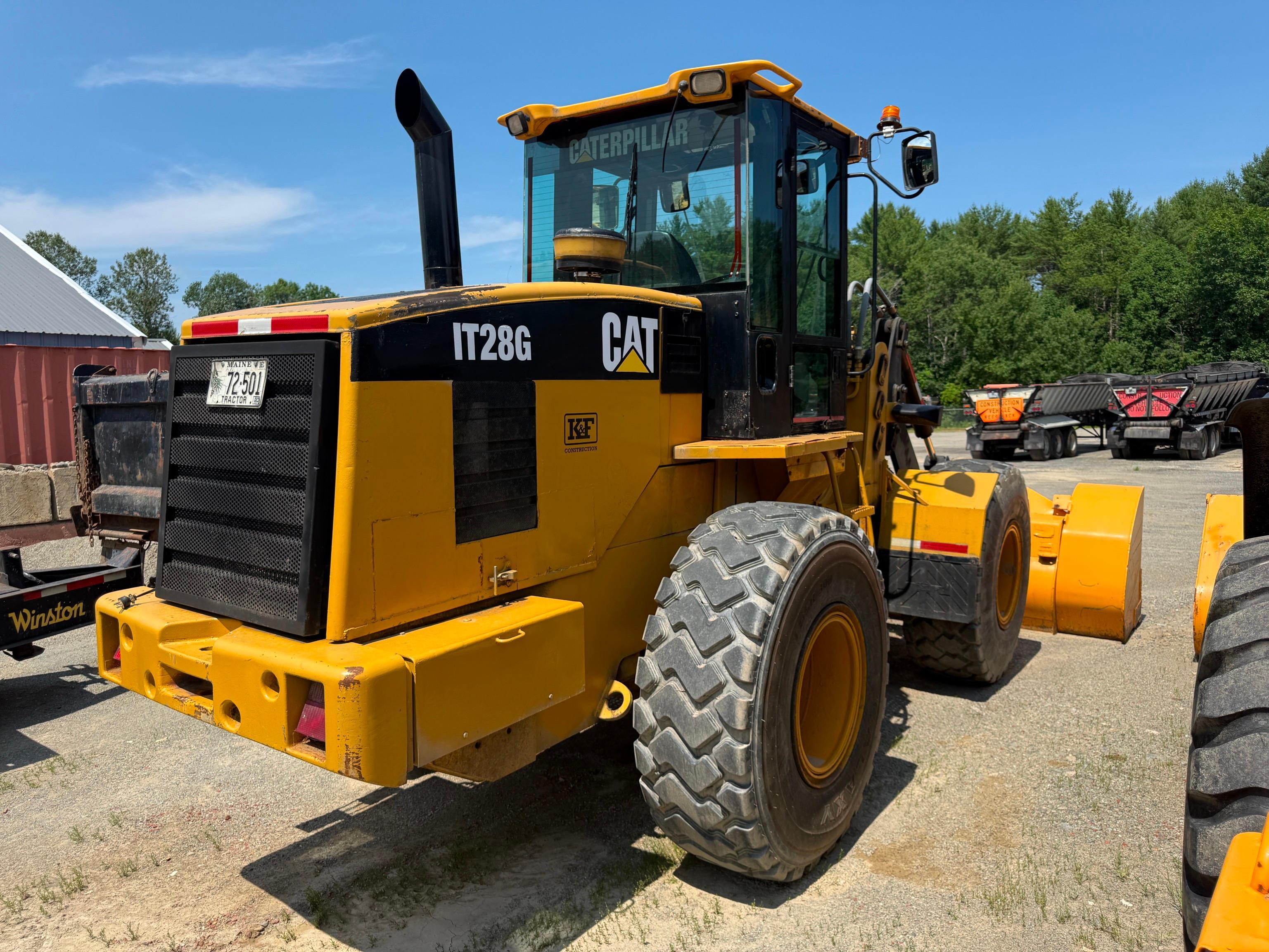

| Dimensions |
|
Dump Clearance At Max Lift |
10 ft (3 m)
|
|
Fork Tine Length |
4 ft (1 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
11 ft (3 m)
|
|
Height Over Rops |
11 ft (3 m)
|
|

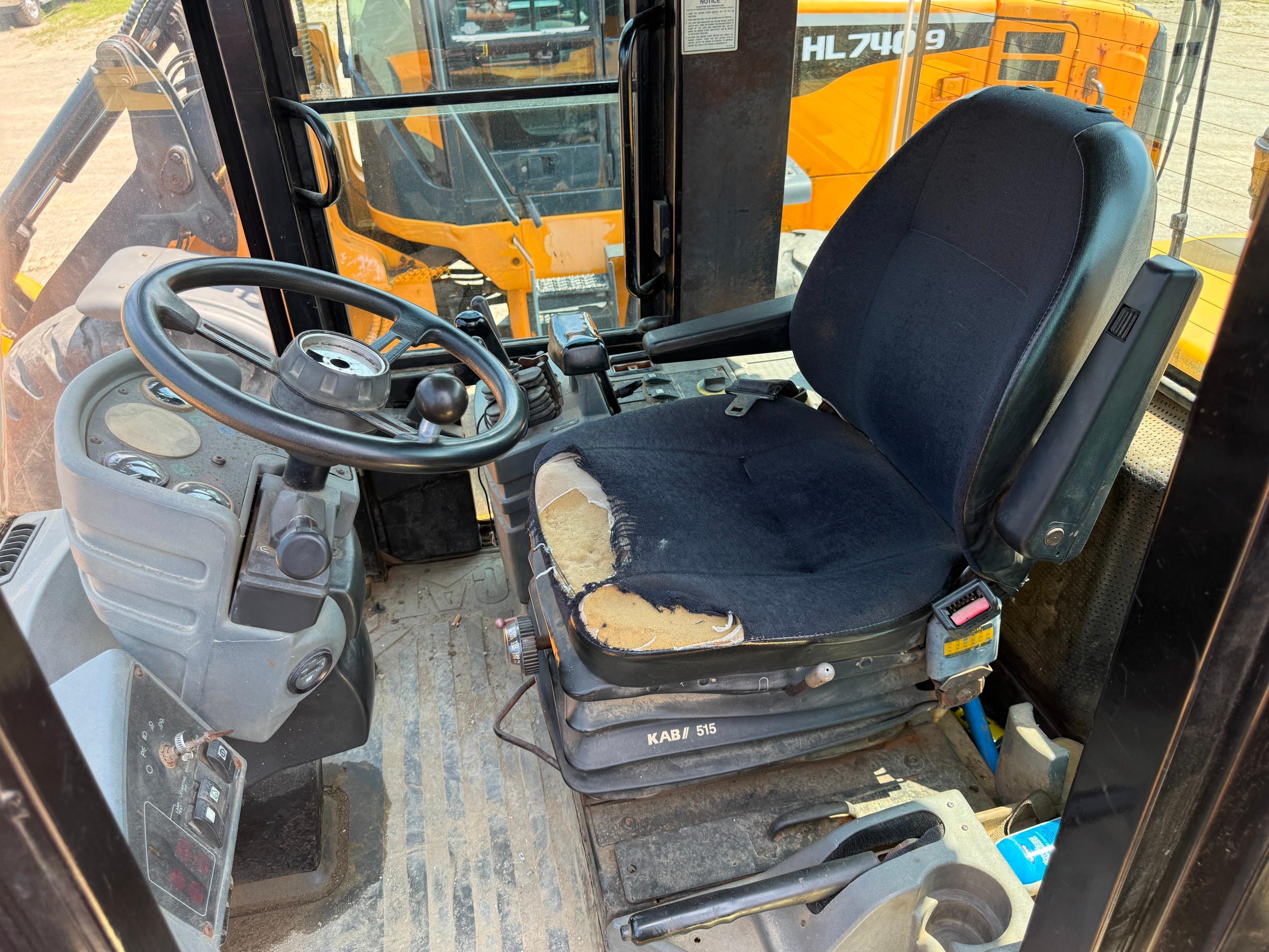

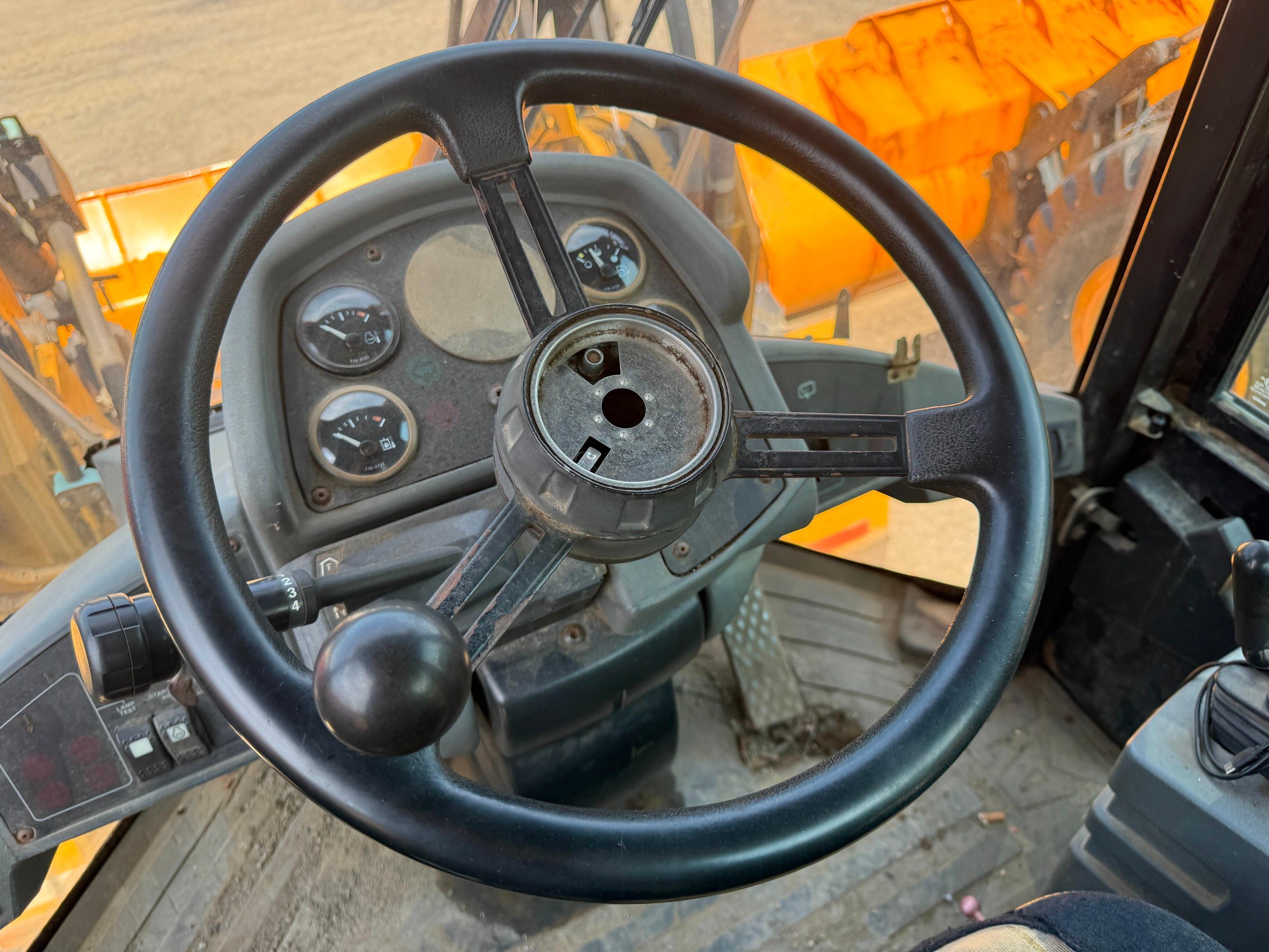

Height To Top Of Cab |
11 ft (3 m)
|
|
Height To Top Of Cab |
11 ft (3 m)
|
|
Hinge Pin - Max Height |
13 ft (4 m)
|
|
Hinge Pin Max Height |
13 ft (4 m)
|
|
Hook Height At Max Lift - Extended |
24 ft (7 m)
|
|
Hook Height At Max Lift - Standard |
18 ft (6 m)
|
|
Hook Reach At Max Lift - Extended |
9 ft (3 m)
|
|
Hook Reach At Max Lift - Standard |
5 ft (2 m)
|
|
Length |
24 ft (7 m)
|
|
Length W/ Bucket On Ground |
24 ft (7 m)
|
|
Length With Bucket On Ground |
24 ft (7 m)
|
|
Length With Out Forks On Ground |
25 ft (8 m)
|
|
Max Lift Height |
13 ft (4 m)
|
|
Minimum Turning Radius |
17,169 ft (5,233 m)
|
|
Reach At Max Height And Dump |
3 ft (1 m)
|
|
Reach At Max Lift And Dump |
3 ft (1 m)
|
|
Weight |
26,526 lbs (12,032 kg)
|
|
Wheelbase |
10 ft (3 m)
|
|
Wheelbase |
10 ft (3 m)
|
|
Width |
8 ft (3 m)
|
|
Width Over Tires |
8 ft (3 m)
|

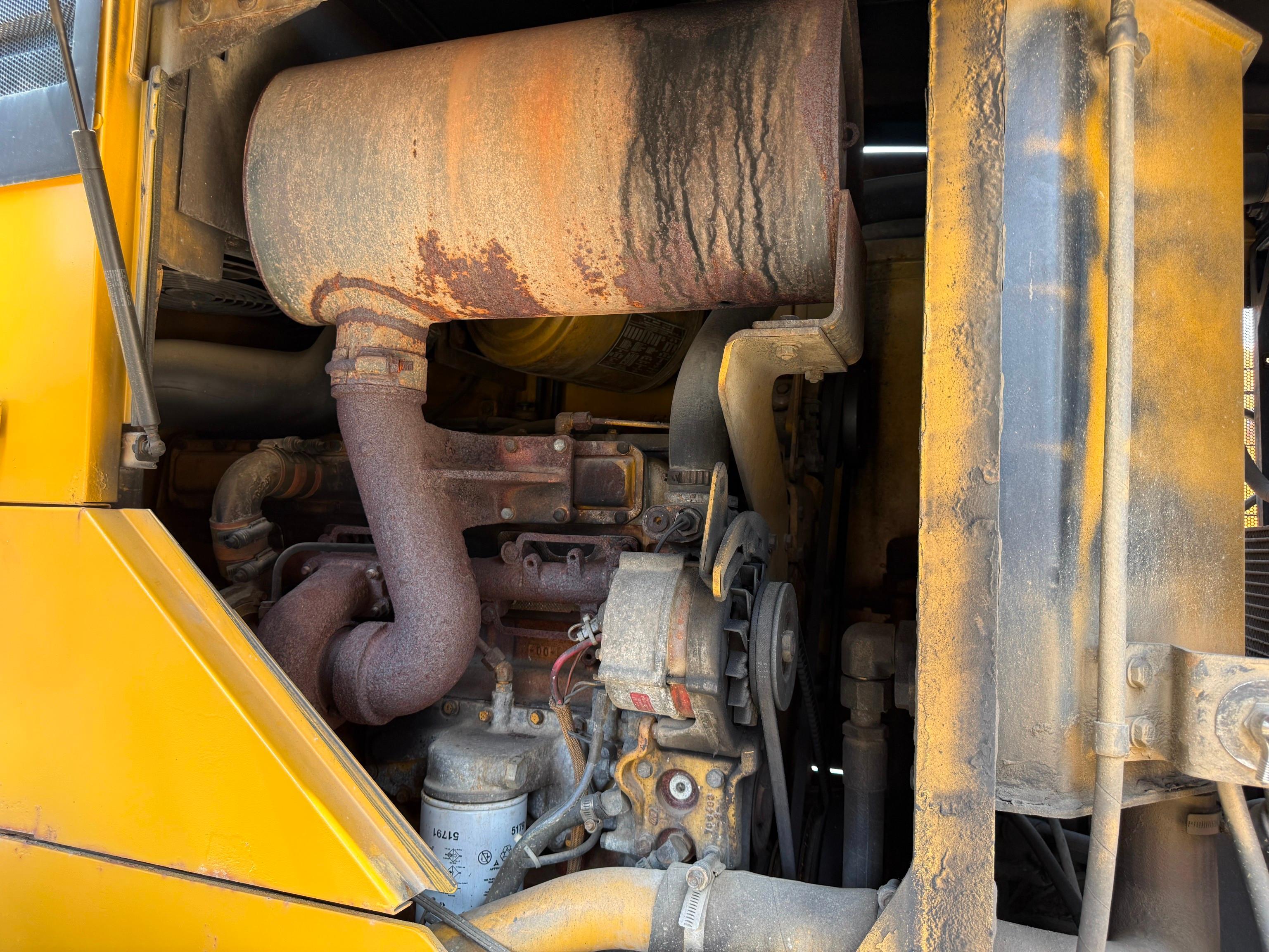

| Engine |
|
Bore |
4 in (10 cm)
|
|
Displacement |
366 cu in (6,001 cu cm)
|
|
Displacement |
366 cu in (6,001 cu cm)
|
|
Engine Model |
3116T |
|
Flywheel Horsepower |
144 hp (107 kw)
|
|
Gross Power |
156 hp (116 kw)
|
|
Net Power |
145 hp (108 kw)
|
|
Power Measured @ |
2,300 rpm |
|
Power Measured @ |
2,300 rpm |
|
Stroke |
5 in (13 cm)
|
|
Tier Compliant |
Tier 2 |
| General Specifications |
|
1st (Since 1998)
|
7.6 4.7 |
|
1st (2001)
|
7.6 4.7 |
|
2nd (Since 1998)
|
12.0 7.5 |
|
2nd (2001)
|
12.0 7.5 |
|
3rd (Since 1998)
|
24.6 15.3 |
|
3rd (2001)
|
24.6 15.3 |
|
4th (Since 1998)
|
36.7 22.8 |
|
4th (2001)
|
36.7 22.8 |
|
A - Tine Length (Since 2006)
|
48 in (122 cm)
|
|
A - Tine Length (2010)
|
48 in (122 cm)
|
|
A - Tine Length (2012)
|
48 in (122 cm)
|
|
A Maximum Overall Length (Since 1998)
|
288 in (732 cm)
|
|
A Maximum Overall Length (Since 1998)
|
298 in (757 cm)
|
|
A Maximum overall length (Since 2001)
|
288 in (732 cm)
|
|
A Maximum overall length (Since 2001)
|
298 in (757 cm)
|
|
A Operating load (retracted) @ full articulation (Since 1998)
|
5,574 lbs (2,528 kg)
|
|
A Operating load (retracted) @ full articulation (2001)
|
5,574 lbs (2,528 kg)
|
|
Approx. Operating Weight (Since 2002)
|
27,860 lbs (12,637 kg)
|
|
Approx. Operating Weight (Since 2002)
|
24,802 lbs (11,250 kg)
|
|
Approx. Operating Weight (Since 2003)
|
27,860 lbs (12,637 kg)
|
|
Approx. Operating Weight (Since 2003)
|
24,802 lbs (11,250 kg)
|
|
Approx. Operating Weight (Since 2004)
|
27,860 lbs (12,637 kg)
|
|
Approx. Operating Weight (Since 2004)
|
24,802 lbs (11,250 kg)
|
|
Approx. Operating Weight (2005)
|
24,802 lbs (11,250 kg)
|
|
B - Overall Width (Since 2006)
|
70 in (178 cm)
|
|
B - Overall Width (2006)
|
70 in (178 cm)
|
|
B - Overall Width (2010)
|
70 in (178 cm)
|
|
B - Overall Width (2012)
|
70 in (178 cm)
|
|
B Reach horizontal (retracted) (Since 1998)
|
125 in (318 cm)
|
|
B Reach horizontal (retracted) (2001)
|
125 in (318 cm)
|
|
B Reach with forks at - ground level (Since 1998)
|
30 in (76 cm)
|
|
B Reach with forks at - ground level (2001)
|
30 in (76 cm)
|
|
B Wheel base (Since 1998)
|
114 in (290 cm)
|
|
B Wheel base (2001)
|
114 in (290 cm)
|
|
Bore (Since 1998)
|
4 in (10 cm)
|
|
Bore (2001)
|
4 in (10 cm)
|
|
Breakout force (Since 2001)
|
25,000 lbs (11,340 kg)
|
|
Breakout force (Since 2001)
|
23,440 lbs (10,632 kg)
|
|
Breakout Force (Since 2002)
|
23,437 lbf (10,631 kgf)
|
|
Breakout Force (Since 2002)
|
25,849 lbf (11,723 kgf)
|
|
Breakout Force (Since 2003)
|
23,437 lbf (10,631 kgf)
|
|
Breakout Force (Since 2003)
|
25,849 lbf (11,723 kgf)
|
|
Breakout Force (Since 2004)
|
23,437 lbf (10,631 kgf)
|
|
Breakout Force (Since 2004)
|
25,849 lbf (11,723 kgf)
|
|
Breakout Force (2005)
|
25,849 lbf (11,723 kgf)
|
|
Bucket (Since 1998)
|
3 cu yd (2 cu m)
|
|
Bucket (2001)
|
3 cu yd (2 cu m)
|
|
Bucket width (Since 2001)
|
100 in (254 cm)
|
|
Bucket width (2001)
|
100 in (254 cm)
|
|
C - Back Height (Since 2006)
|
74 in (188 cm)
|
|
C - Back Height (2010)
|
74 in (188 cm)
|
|
C - Back Height (2012)
|
74 in (188 cm)
|
|
C Load center (Since 1998)
|
24 in (61 cm)
|
|
C Load center (2001)
|
24 in (61 cm)
|
|
C Machine center point to - front axle (Since 1998)
|
57 in (145 cm)
|
|
C Machine center point to - front axle (2001)
|
57 in (145 cm)
|
|
C Operating load (mid-position) @ full articulation (Since 1998)
|
3,852 lbs (1,747 kg)
|
|
C Operating load (mid-position) @ full articulation (2001)
|
3,852 lbs (1,747 kg)
|
|
D Reach with arms - horizontal and forks level (Since 1998)
|
60 in (152 cm)
|
|
D Reach with arms - horizontal and forks level (2001)
|
60 in (152 cm)
|
|
D Rear axle to counterweight (Since 1998)
|
79 in (201 cm)
|
|
D Rear axle to counterweight (2001)
|
79 in (201 cm)
|
|
Digging depth (Since 2001)
|
5 in (12 cm)
|
|
Digging depth (Since 2001)
|
4 in (11 cm)
|
|
Dump clearance at full lift and 45° discharge (Since 2001)
|
110 in (279 cm)
|
|
Dump clearance at full lift and 45° discharge (Since 2001)
|
115 in (292 cm)
|
|
Dump Clearance at Max. Height (Since 2002)
|
117 in (297 cm)
|
|
Dump Clearance at Max. Height (Since 2002)
|
113 in (287 cm)
|
|
Dump Clearance at Max. Height (Since 2003)
|
117 in (297 cm)
|
|
Dump Clearance at Max. Height (Since 2003)
|
113 in (287 cm)
|
|
Dump Clearance at Max. Height (Since 2004)
|
117 in (297 cm)
|
|
Dump Clearance at Max. Height (Since 2004)
|
113 in (287 cm)
|
|
Dump Clearance at Max. Height (2005)
|
113 in (287 cm)
|
|
E - Maximum Clamp Opening (Since 2006)
|
106 in (269 cm)
|
|
E - Maximum Clamp Opening (2010)
|
106 in (269 cm)
|
|
E - Maximum Clamp Opening (2012)
|
106 in (269 cm)
|
|
E Ground clearance (Since 1998)
|
16 in (41 cm)
|
|
E Ground clearance (2001)
|
16 in (41 cm)
|
|
E Operating load (extended) @ full articulation (Since 1998)
|
3,195 lbs (1,449 kg)
|
|
E Operating load (extended) @ full articulation (2001)
|
3,195 lbs (1,449 kg)
|
|
E Reach with fork at - maximum height (Since 1998)
|
28 in (71 cm)
|
|
E Reach with fork at - maximum height (2001)
|
28 in (71 cm)
|
|
Engine Displacement (Since 1998)
|
403 cu in (6,604 cu cm)
|
|
Engine Displacement (2001)
|
403 cu in (6,604 cu cm)
|
|
Engine Model (Since 1998)
|
3116T |
|
Engine Model (Since 2001)
|
3116 T |
|
F Arms horizontal & - forks level (Since 1998)
|
76 in (193 cm)
|
|
F Arms horizontal & - forks level (2001)
|
76 in (193 cm)
|
|
F Height to top of engine - compartment (Since 1998)
|
85 in (216 cm)
|
|
F Height to top of engine - compartment (2001)
|
85 in (216 cm)
|
|
F Reach horizontal (extended) (Since 1998)
|
204 in (518 cm)
|
|
F Reach horizontal (extended) (2001)
|
204 in (518 cm)
|
|
Flywheel Horsepower (Since 2002)
|
146 hp (109 kw)
|
|
Flywheel Horsepower (Since 2002)
|
131 hp (98 kw)
|
|
Flywheel Horsepower (Since 2003)
|
146 hp (109 kw)
|
|
Flywheel Horsepower (Since 2003)
|
131 hp (98 kw)
|
|
Flywheel Horsepower (Since 2004)
|
146 hp (109 kw)
|
|
Flywheel Horsepower (Since 2004)
|
131 hp (98 kw)
|
|
Flywheel Horsepower (2005)
|
131 hp (98 kw)
|
|
Flywheel Power (Since 1998)
|
125 hp (93 kw)
|
|
Flywheel Power: Max. (Since 2001)
|
137 hp (102 kw)
|
|
Flywheel Power: Net (Since 2001)
|
125 hp (93 kw)
|
|
Fork tine length (Since 2001)
|
47 in (119 cm)
|
|
Fork tine length (Since 2001)
|
53 in (135 cm)
|
|
Fuel tank capacity (Since 1998)
|
61 US gal (230 L)
|
|
Fuel Tank Capacity (Since 2001)
|
61 US gal (230 L)
|
|
G Clearance horizontal (Since 1998)
|
78 in (198 cm)
|
|
G Clearance horizontal (2001)
|
78 in (198 cm)
|
|
G Ground to top of tine at - maximum height (Since 1998)
|
151 in (384 cm)
|
|
G Ground to top of tine at - maximum height (2001)
|
151 in (384 cm)
|
|
G Height to top of ROPS (Since 1998)
|
128 in (325 cm)
|
|
G Height to top of ROPS (2001)
|
128 in (325 cm)
|
|
Ground Clearance (Since 2001)
|
16 in (41 cm)
|
|
Ground Clearance (2002)
|
16 in (41 cm)
|
|
Ground Clearance (2002)
|
16 in (41 cm)
|
|
Ground Clearance (2003)
|
16 in (41 cm)
|
|
Ground Clearance (2003)
|
16 in (41 cm)
|
|
Ground Clearance (2004)
|
16 in (41 cm)
|
|
Ground Clearance (2004)
|
16 in (41 cm)
|
|
Ground Clearance (2005)
|
16 in (41 cm)
|
|
Ground to top of tine clearance (Since 2001)
|
151 in (384 cm)
|
|
Group Number - Linkage Arrangement (Since 2006)
|
Pin-On |
|
Group Number - Linkage Arrangement (Since 2006)
|
Coupler |
|
Group Number - Linkage Arrangement (Since 2010)
|
Quick Coupler |
|
Group Number - Linkage Arrangement (2012)
|
Quick Coupler |
|
Group Number - Logging Arrangement (Since 2006)
|
141 - 6,275 |
|
Group Number - Logging Arrangement (Since 2006)
|
141 - 6,266 |
|
Group Number - Logging Arrangement (Since 2010)
|
250 - 7,011 |
|
Group Number - Logging Arrangement (2012)
|
250 - 7,011 |
|
H Fork Tine Length (Since 1998)
|
47 in (119 cm)
|
|
H Fork tine length (Since 2001)
|
47 in (119 cm)
|
|
H Height to top of stack (Since 1998)
|
125 in (318 cm)
|
|
H Height to top of stack (2001)
|
125 in (318 cm)
|
|
H Reach full down (retracted) (Since 1998)
|
60 in (152 cm)
|
|
H Reach full down (retracted) (2001)
|
60 in (152 cm)
|
|
Heaped capacity (Since 2001)
|
3 cu yd (2 cu m)
|
|
Heaped capacity (Since 2001)
|
3 cu yd (2 cu m)
|
|
Hydraulic Cycle Time, - Dump (Since 1998)
|
1 sec |
|
Hydraulic Cycle Time, - Dump (Since 2001)
|
1 sec (1 Seconds)
|
|
Hydraulic Cycle Time, - Lower (empty, float down) (Since 1998)
|
3 sec |
|
Hydraulic Cycle Time, - Lower (Empty, Float Down) (Since 2001)
|
3 sec (3 Seconds)
|
|
Hydraulic Cycle Time, - Raise (Since 1998)
|
6 sec |
|
Hydraulic Cycle Time, - Raise (Since 2001)
|
6 sec (6 Seconds)
|
|
Hydraulic Cycle Time, - Rated Load in Bucket (Since 2001)
|
928G IT28G |
|
Hydraulic Cycle Time, - Total (Since 1998)
|
10 sec |
|
Hydraulic Cycle Time, - Total (Since 2001)
|
10 sec (10 Seconds)
|
|
Hydraulic system capacity - (includes tank) (Since 1998)
|
33 US gal (125 L)
|
|
Hydraulic System Capacity - (includes tank) (Since 2001)
|
33 US gal (125 L)
|
|
Hydraulic tank capacity (Since 1998)
|
19 US gal (70 L)
|
|
Hydraulic Tank Capacity (Since 2001)
|
19 US gal (70 L)
|
|
J Reach full down (mid-position) (Since 1998)
|
84 in (213 cm)
|
|
J Reach full down (mid-position) (2001)
|
84 in (213 cm)
|
|
J Tire radius - (empty machine) (Since 1998)
|
27 in (69 cm)
|
|
J Tire radius - (empty machine) (2001)
|
27 in (69 cm)
|
|
K Maximum Digging Depth - (bucket level) (Since 1998)
|
4 in (11 cm)
|
|
K Maximum digging depth - (bucket level) (Since 2001)
|
4 in (11 cm)
|
|
K Reach full down (extended) (Since 1998)
|
107 in (272 cm)
|
|
K Reach full down (extended) (2001)
|
107 in (272 cm)
|
|
L Clearance full down (retracted) (Since 1998)
|
59 in (150 cm)
|
|
L Clearance full down (retracted) (2001)
|
59 in (150 cm)
|
|
L Maximum rollback at - carry height (Since 1998)
|
56 deg |
|
L Maximum rollback at - carry height (2001)
|
56 deg |
|
Loader clearance circle with bucket in carry position (Since 2001)
|
450 in (1,143 cm)
|
|
Loader clearance circle with bucket in carry position (Since 2001)
|
448 in (1,138 cm)
|
|
M Clearance full down (mid-position) (Since 1998)
|
92 in (234 cm)
|
|
M Clearance full down (mid-position) (2001)
|
92 in (234 cm)
|
|
M Maximum rollback - at ground (Since 1998)
|
53 deg |
|
M Maximum rollback - at ground (2001)
|
53 deg |
|
Max. Reach at Max. Height (Since 2002)
|
38 in (97 cm)
|
|
Max. Reach at Max. Height (Since 2002)
|
57 in (145 cm)
|
|
Max. Reach at Max. Height (Since 2003)
|
38 in (97 cm)
|
|
Max. Reach at Max. Height (Since 2003)
|
57 in (145 cm)
|
|
Max. Reach at Max. Height (Since 2004)
|
38 in (97 cm)
|
|
Max. Reach at Max. Height (Since 2004)
|
57 in (145 cm)
|
|
Max. Reach at Max. Height (2005)
|
57 in (145 cm)
|
|
Maximum Forward Speed (Since 2002)
|
23 mph (38 kph)
|
|
Maximum Forward Speed (2003)
|
23 mph (38 kph)
|
|
Maximum Forward Speed (2004)
|
23 mph (38 kph)
|
|
Maximum Forward Speed (2005)
|
23 mph (38 kph)
|
|
Maximum Reverse Speed (Since 2002)
|
16 mph (26 kph)
|
|
Maximum Reverse Speed (2003)
|
16 mph (26 kph)
|
|
Maximum Reverse Speed (2004)
|
16 mph (26 kph)
|
|
Maximum Reverse Speed (2005)
|
16 mph (26 kph)
|
|
N Clearance full down (extended) (Since 1998)
|
122 in (310 cm)
|
|
N Clearance full down (extended) (2001)
|
122 in (310 cm)
|
|
N Dump Clearance at full lift - and 45° Discharge Angle (Since 1998)
|
115 in (292 cm)
|
|
N Dump clearance at full lift - and 45° discharge angle (Since 2001)
|
115 in (292 cm)
|
|
No. Cylinders (Since 1998)
|
6 |
|
No. Cylinders (2001)
|
6 |
|
O Hinge pin Height at - carry position (Since 1998)
|
15 in (38 cm)
|
|
O Hinge pin height at - carry position (Since 2001)
|
15 in (38 cm)
|
|
Operating weight 4 forward, 3 reverse (Since 2001)
|
26,340 lbs (11,948 kg)
|
|
Operating weight 4 forward, 3 reverse (Since 2001)
|
26,390 lbs (11,970 kg)
|
|
Operating weight 4 forward, 3 reverse (Since 2001)
|
25,510 lbs (11,571 kg)
|
|
Operating weight 4 forward, 3 reverse (Since 2001)
|
25,580 lbs (11,603 kg)
|
|
Overall height with bucket at full raise (Since 2001)
|
200 in (508 cm)
|
|
Overall length (Since 2001)
|
293 in (744 cm)
|
|
Overall length (Since 2001)
|
288 in (732 cm)
|
|
Overall length (Since 2001)
|
298 in (757 cm)
|
|
Overall length (Since 2001)
|
303 in (770 cm)
|
|
P Reach at full lift and - 45° Dump (Since 1998)
|
40 in (102 cm)
|
|
P Reach at full lift and - 45° dump (Since 2001)
|
40 in (102 cm)
|
|
P Reach at maximum height (retracted) (Since 1998)
|
63 in (160 cm)
|
|
P Reach at maximum height (retracted) (2001)
|
63 in (160 cm)
|
|
Product Identification Prefix (Since 2002)
|
DBT |
|
Product Identification Prefix (Since 2002)
|
EWF |
|
Product Identification Prefix (Since 2002)
|
WAC |
|
Product Identification Prefix (Since 2003)
|
DBT |
|
Product Identification Prefix (Since 2003)
|
EWF |
|
Product Identification Prefix (Since 2003)
|
WAC |
|
Product Identification Prefix (Since 2004)
|
DBT |
|
Product Identification Prefix (Since 2004)
|
EWF |
|
Product Identification Prefix (Since 2004)
|
WAC |
|
Product Identification Prefix (Since 2005)
|
EWF |
|
Product Identification Prefix (Since 2005)
|
WAC |
|
Q Clearance Level Bucket - at full height (Since 1998)
|
145 in (368 cm)
|
|
Q Clearance level bucket - at full height (Since 2001)
|
145 in (368 cm)
|
|
Q Reach at maximum height (mid-position) (Since 1998)
|
87 in (221 cm)
|
|
Q Reach at maximum height (mid-position) (2001)
|
87 in (221 cm)
|
|
R Maximum Hinge - Pin Height (Since 1998)
|
157 in (399 cm)
|
|
R Maximum hinge - pin height (Since 2001)
|
157 in (399 cm)
|
|
R Reach at maximum height (extended) (Since 1998)
|
110 in (279 cm)
|
|
R Reach at maximum height (extended) (2001)
|
110 in (279 cm)
|
|
Rated Capacity (Since 2002)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (2003)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (2004)
|
3 cu yd (2 cu m)
|
|
Rated Capacity (2005)
|
3 cu yd (2 cu m)
|
|
Rated Engine RPM (Since 1998)
|
2,300 rpm |
|
Rated Engine RPM (2001)
|
2,300 rpm |
|
Rated Operating Load - Per CEN 474-3 Firm - level ground (Since 1998)
|
10,640 lbs (4,826 kg)
|
|
Rated operating load - Per CEN 474-3 firm - level ground (Since 2001)
|
10,640 lbs (4,826 kg)
|
|
Rated Operating Load - Per CEN 474-3 Rough Terrain (Since 1998)
|
7,980 lbs (3,620 kg)
|
|
Rated operating load - Per CEN 474-3 rough terrain (Since 2001)
|
7,980 lbs (3,620 kg)
|
|
Rated Operating Load - Per SAE J1197 (Since 1998)
|
6,650 lbs (3,016 kg)
|
|
Rated operating load - Per SAE J1197 (Since 2001)
|
6,650 lbs (3,016 kg)
|
|
Reach at 45° discharge and 2130 mm (7'0") clearance (Since 2001)
|
63 in (160 cm)
|
|
Reach at 45° discharge and 2130 mm (7'0") clearance (Since 2001)
|
62 in (157 cm)
|
|
Reach at full lift and 45° discharge (Since 2001)
|
44 in (112 cm)
|
|
Reach at full lift and 45° discharge (Since 2001)
|
40 in (102 cm)
|
|
Reach with lift arms horizontal and bucket level (Since 2001)
|
100 in (254 cm)
|
|
Reach with lift arms horizontal and bucket level (Since 2001)
|
94 in (239 cm)
|
|
Reach with lift arms horizontal and forks level (Since 2001)
|
60 in (152 cm)
|
|
S Clearance at maximum height (retracted) (Since 1998)
|
219 in (556 cm)
|
|
S Clearance at maximum height (retracted) (2001)
|
219 in (556 cm)
|
|
S Maximum Overall Height (Since 1998)
|
200 in (508 cm)
|
|
S Maximum overall height (Since 2001)
|
200 in (508 cm)
|
|
Speeds Reverse - 1st (Since 1998)
|
7.6 4.7 |
|
Speeds Reverse - 1st (2001)
|
7.6 4.7 |
|
Speeds Reverse - 2nd (Since 1998)
|
12.0 7.5 |
|
Speeds Reverse - 2nd (2001)
|
12.0 7.5 |
|
Speeds Reverse - 3rd (Since 1998)
|
24.6 15.3 |
|
Speeds Reverse - 3rd (2001)
|
24.6 15.3 |
|
Static tipping load, full turn (Since 2001)
|
16,370 lbs (7,425 kg)
|
|
Static tipping load, full turn (Since 2001)
|
16,170 lbs (7,335 kg)
|
|
Static tipping load, full turn (Since 2001)
|
13,300 lbs (6,033 kg)
|
|
Static tipping load, full turn (Since 2001)
|
12,290 lbs (5,575 kg)
|
|
Static tipping load, straight (Since 2001)
|
18,890 lbs (8,568 kg)
|
|
Static tipping load, straight (Since 2001)
|
18,670 lbs (8,469 kg)
|
|
Static tipping load, straight (Since 2001)
|
15,260 lbs (6,922 kg)
|
|
Static tipping load, straight (Since 2001)
|
14,830 lbs (6,727 kg)
|
|
Stroke (Since 1998)
|
5 in (13 cm)
|
|
Stroke (2001)
|
5 in (13 cm)
|
|
Struck capacity (Since 2001)
|
2 cu yd (2 cu m)
|
|
Struck capacity (Since 2001)
|
2 cu yd (2 cu m)
|
|
T Clearance at maximum height (mid-position) (Since 1998)
|
251 in (638 cm)
|
|
T Clearance at maximum height (mid-position) (2001)
|
251 in (638 cm)
|
|
T Full Dump at - Maximum Lift (Since 1998)
|
48 deg |
|
T Full dump at - maximum lift (Since 2001)
|
48 deg |
|

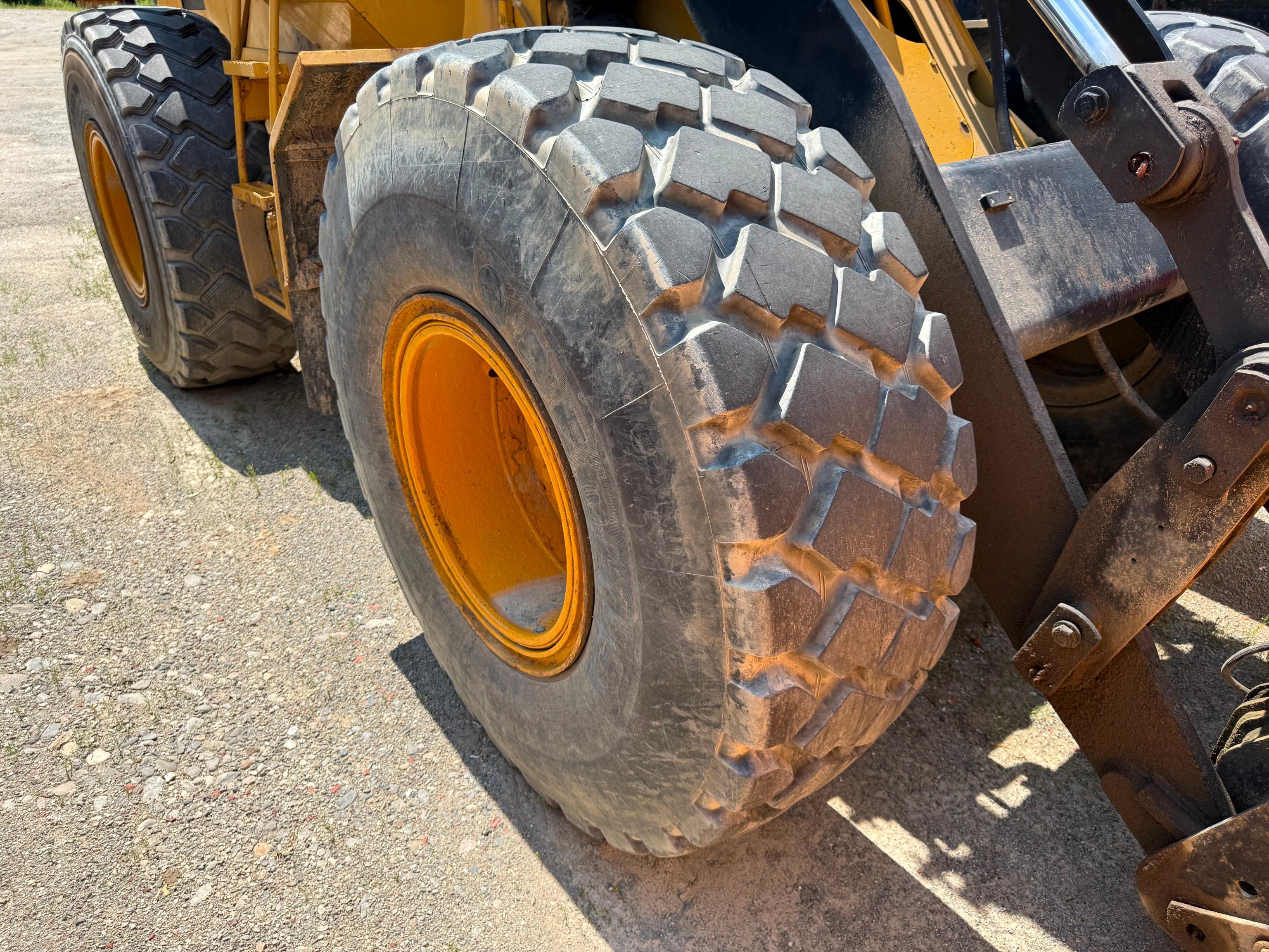

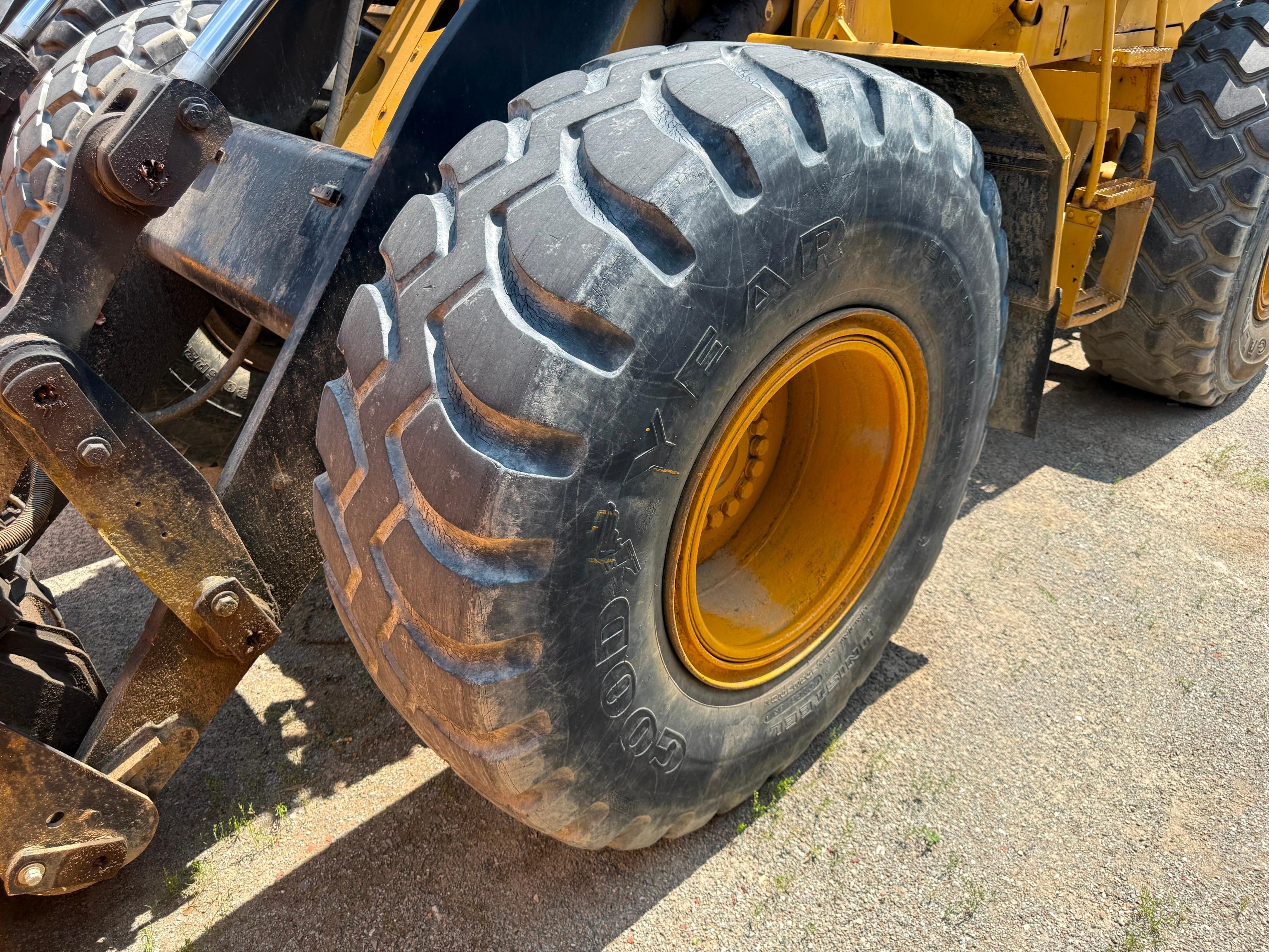

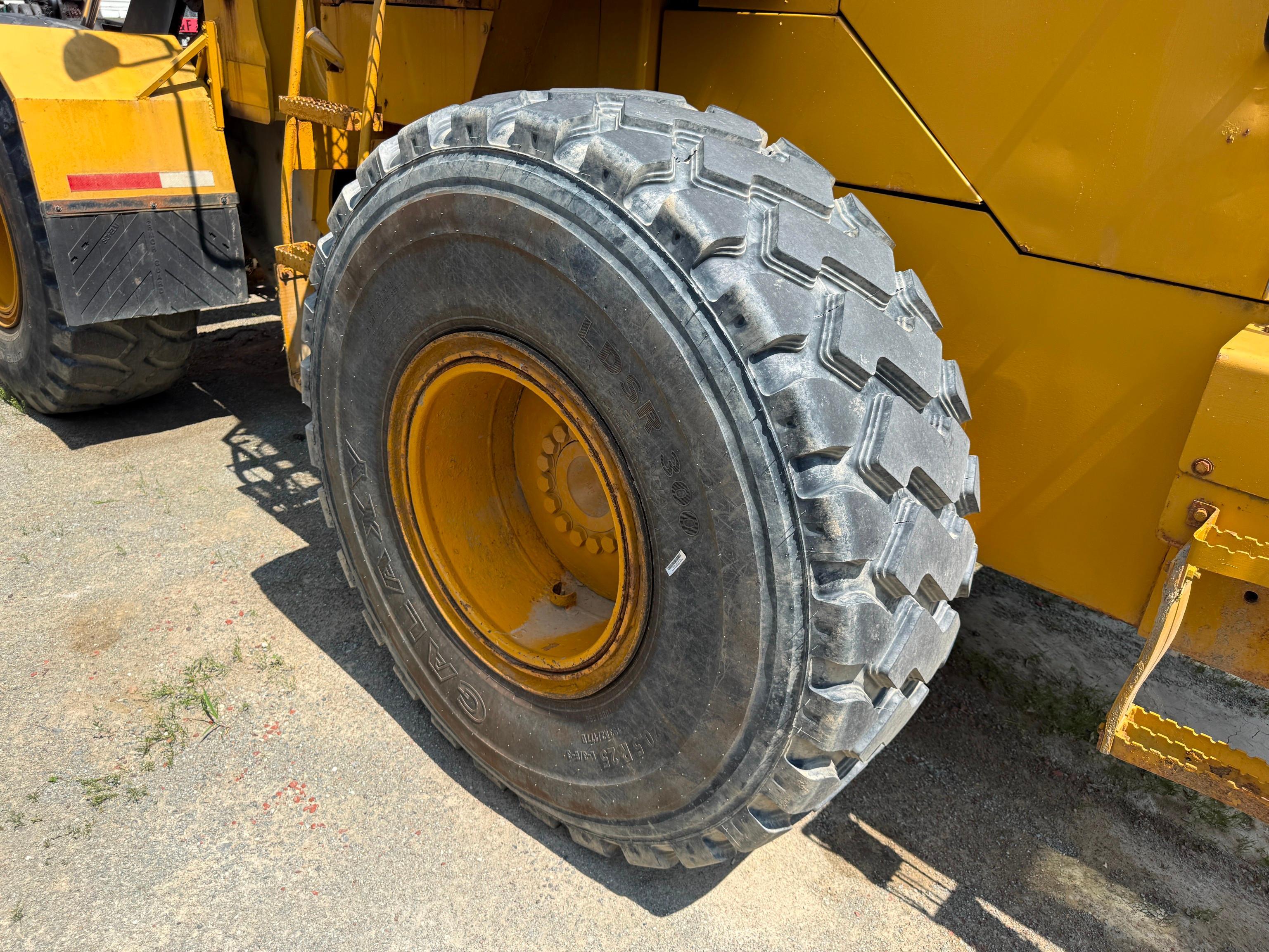

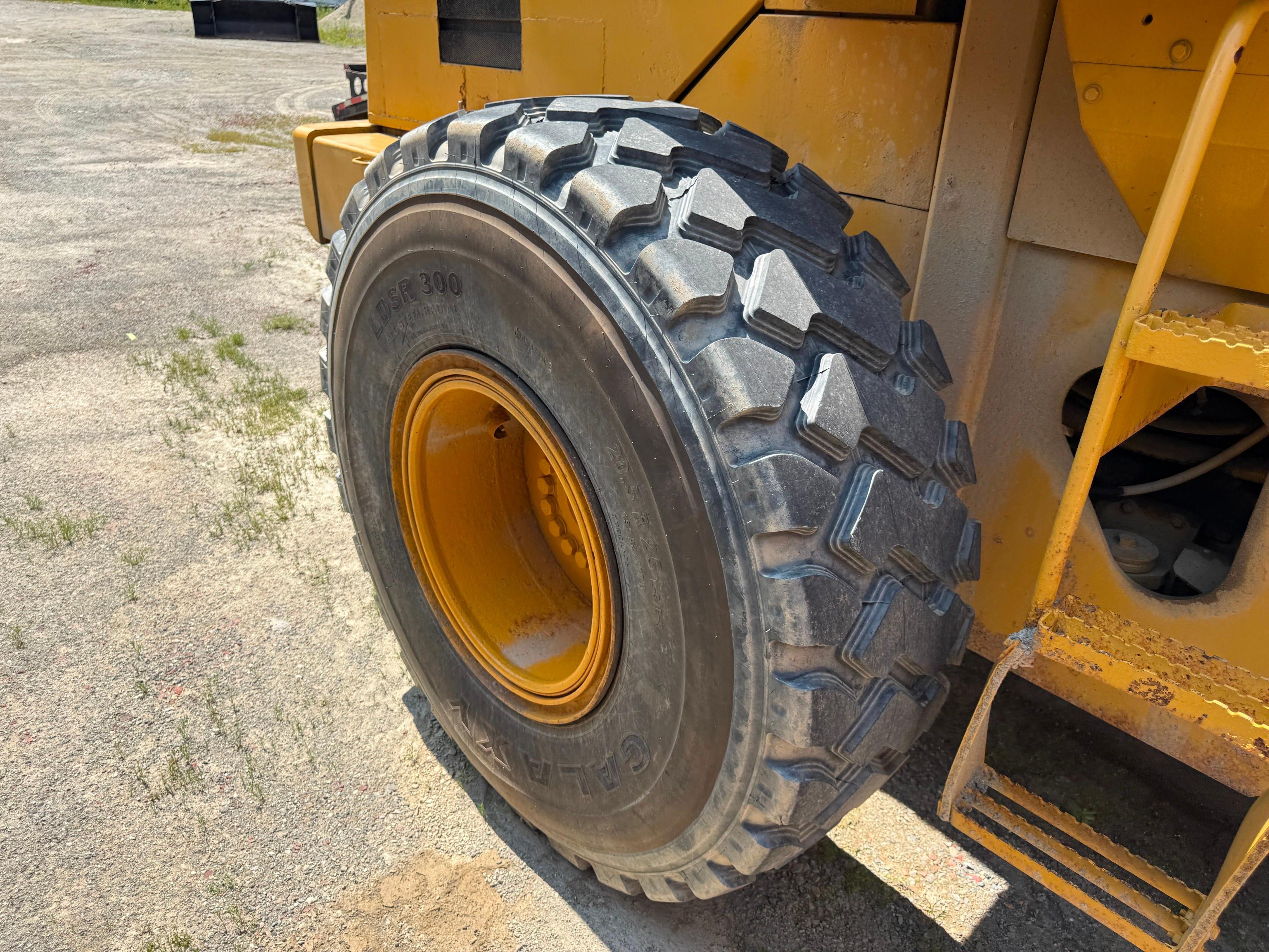

Tires (Since 1998)
|
20.5-25 |
|
Tires (2001)
|
20.5-25 |
|
Tread Width (Since 2001)
|
77 in (196 cm)
|
|
U Clearance at maximum height (extended) (Since 1998)
|
283 in (719 cm)
|
|
U Clearance at maximum height (extended) (2001)
|
283 in (719 cm)
|
|
U Maximum roll back at - Maximum Lift (Since 1998)
|
55 deg |
|
U Maximum roll back at - maximum lift (Since 2001)
|
55 deg |
|
U Maximum roll back at - Tires (Since 1998)
|
20.5-25 |
|
U Maximum roll back at - Tires (2001)
|
20.5-25 |
|
Width Over Tires (Since 2001)
|
96 in (244 cm)
|
|
Width Over Tires (Since 2002)
|
100 in (254 cm)
|
|
Width Over Tires (Since 2002)
|
96 in (244 cm)
|
|
Width Over Tires (Since 2003)
|
100 in (254 cm)
|
|
Width Over Tires (Since 2003)
|
96 in (244 cm)
|
|
Width Over Tires (Since 2004)
|
100 in (254 cm)
|
|
Width Over Tires (Since 2004)
|
96 in (244 cm)
|
|
Width Over Tires (2005)
|
96 in (244 cm)
|
|
Years Built (Since 2002)
|
2,002 - 2,004 |
|
Years Built (Since 2002)
|
2,002 - 2,005 |
|
Years Built (Since 2003)
|
2,002 - 2,004 |
|
Years Built (Since 2003)
|
2,002 - 2,005 |
|
Years Built (Since 2004)
|
2,002 - 2,004 |
|
Years Built (Since 2004)
|
2,002 - 2,005 |
|
Years Built (2005)
|
2,002 - 2,005 |
| Hydraulic System |
|
Dump Time |
1 sec |
|
Hydraulic System Tank |
19 gal (70 l)
|
|
Lower Time |
3 sec |
|
Pump Flow Capacity |
28 gpm (104 lpm)
|
|
Raise Time |
6 sec |
|
Relief Valve Setting |
3,002 psi |
| Operational |
|
Alternator Supplied Amperage |
80 amps |
|
Cooling System Fluid Capacity |
11 gal (42 l)
|
|
Cooling System Fluid Capacity |
11 gal (42 l)
|
|
Engine Oil Capacity |
4 gal (16 l)
|
|
Front Axle/Diff Fluid Capacity |
7 gal (26 l)
|
|
Front Diff Fluid Capacity |
7 gal (26 l)
|
|
Fuel Capacity |
60 gal (225 l)
|
|
Fuel Capacity |
57 gal (216 l)
|
|
Hydraulic System Fluid Capacity |
33 gal (125 l)
|
|
Hydraulic System Fluid Capacity |
33 gal (125 l)
|
|
Operating Voltage |
24 V |
|
Operating Weight |
27,867 lbs (12,640 kg)
|
|
Operating Weight |
26,751 lbs (12,134 kg)
|
|
Rear Axle Oscillation |
11 degrees |
|
Rear Axle/Diff Fluid Capacity |
7 gal (25 l)
|
|
Rear Diff Fluid Capacity |
7 gal (25 l)
|
|
Static Tipping Load - Bucket |
19,917 lbs (9,034 kg)
|
|
Static Tipping Load - Material Handler |
11,806 lbs (5,355 kg)
|
|
Tire Size |
20.5R25 L3 XHA |
|
Transmission Fluid Capacity |
9 gal (35 l)
|
|
Transmission Fluid Capacity |
9 gal (35 l)
|
|
Turning Radius |
17 ft (5 m)
|
| Transmission |
|
Max Speed - Forward |
38 mph (61 kph)
|
|
Max Speed - Reverse |
26 mph (42 kph)
|
|
Max Speed Forward |
24 mph (38 kph)
|
|
Max Speed Reverse |
16 mph (26 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
3 |
|
Number Of Reverse Gears |
3 |
