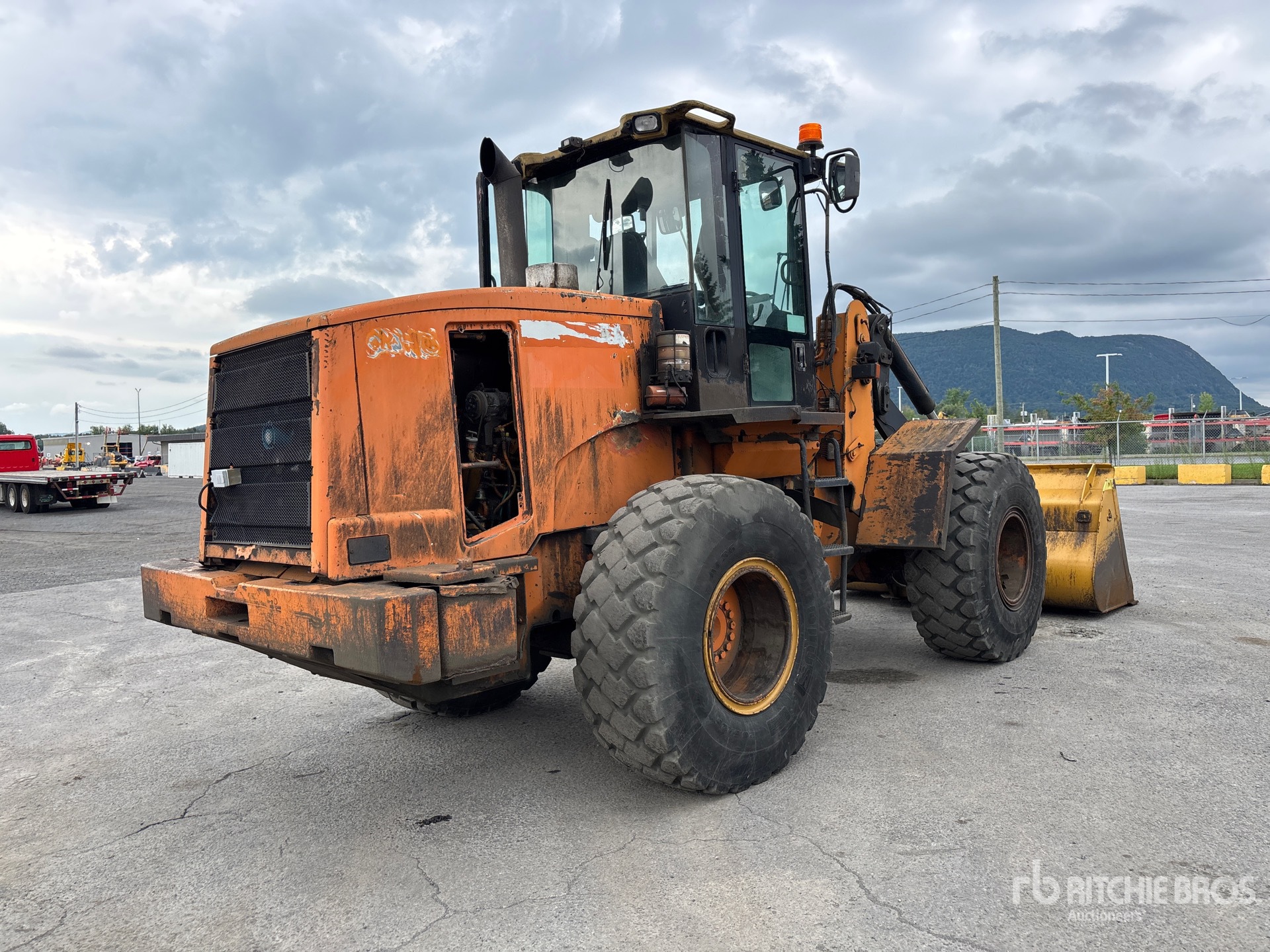

| Axles |
|
Front |
Fixed front |
|
Maximum Single-Wheel Rise and Fall |
17 in (42 cm)
|
| Brakes |
|
Brakes |
Full-hyrdaulic actuated oil-disc |

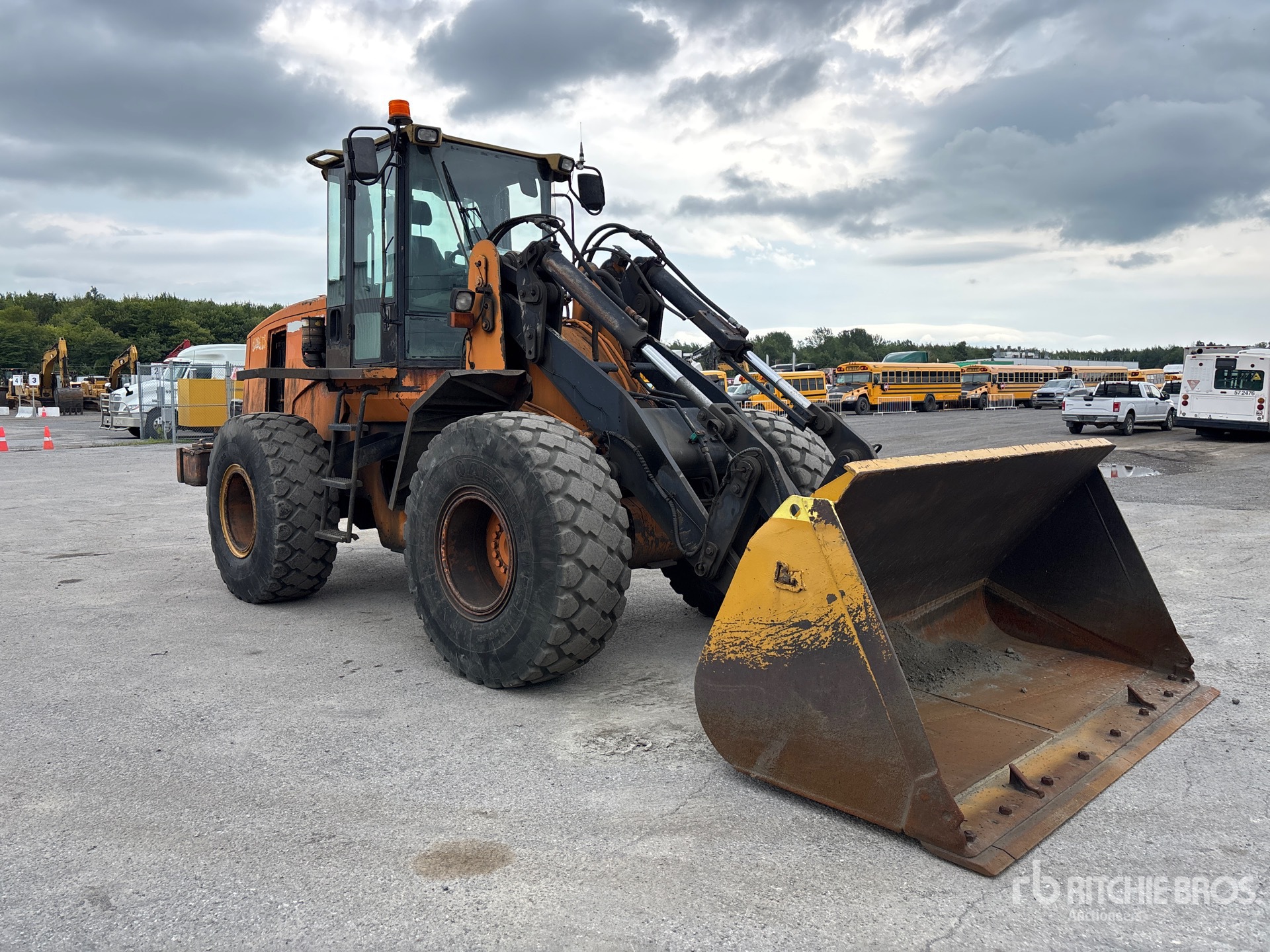

| Bucket |
|
Breakout Force |
28,575 lbs (12,959 kg)
|
|
Bucket Capacities |
3 - 3 cu yd (2 - 3 cu m)
|
|
Bucket Capacity - heaped |
3 cu yd (2 cu m)
|
|
Bucket Capacity - struck |
2 cu yd (2 cu m)
|
|
Maximum Bucket Capacity |
3 cu yd (3 cu m)
|
| Dimensions |
|
Dump Clearance at Max Lift |
9 ft (3 m)
|
|
Fork Tine Length |
4 ft (1 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Height - Top of Cab |
11 ft (3 m)
|
|
Height - Top of Hood |
93 in (236 cm)
|
|
Hinge Pin Max Height |
13 ft (4 m)
|
|
Hook Height at Max Lift - extended |
22 ft (7 m)
|
|
Hook Height at Max Lift - standard |
18 ft (6 m)
|
|
Hook Reach at Max Lift - extended |
12 ft (4 m)
|
|
Hook Reach at Max Lift - standard |
8 ft (2 m)
|
|
Length w/ Bucket on Ground |
25 ft (8 m)
|
|
Length with out Forks on Ground |
26 ft (8 m)
|
|
Max Lift Height |
12 ft (4 m)
|
|
Reach at Max Height and Dump |
4 ft (1 m)
|
|
Wheel Base |
10 ft (3 m)
|
|
Wheelbase |
10 ft (3 m)
|
|
Width Over Tires |
9 ft (3 m)
|
| Engine |
|
Bore |
4 in (11 cm)
|
|
Displacement |
439 cu in (7,194 cu cm)
|
|
Engine Model |
Cat 3126 DITA |
|
Flywheel Power |
160 hp (119 kw)
|
|
Gross Power |
180 hp (134 kw)
|
|
Max Torque |
619 lbs ft (839 nm)
|
|
Net Power |
160 hp (119 kw)
|
|
Net Power - 80/1269/EEC |
160 hp (119 kw)
|
|
Net Power - ISO 9249 |
160 hp (119 kw)
|
|
Net Power - SAE J1349 |
160 hp (119 kw)
|
|
Stroke |
5 in (13 cm)
|
|
Torque Rise |
62% |
|
Total Torque Rise |
1 |
| Hydraulic System |
|
Dump Time |
2 seconds |
|
Hydraulic Cycle Time - Dump |
2 seconds |
|
Hydraulic Cycle Time - Lower, Empty, Float Down |
3 seconds |
|
Hydraulic Cycle Time - Raise |
6 seconds |
|
Hydraulic Cycle Time - Total |
11 seconds |
|
Lower Time |
3 seconds |
|
Pump Flow Capacity |
43 gpm (163 lpm)
|
|
Pump Type |
piston |
|
Raise Time |
6 seconds |
|
Relief Valve Setting |
3,597 psi |
|
Steering System - Pump Type |
Full hydraulic power steering |
| Operating Specifications |
|
Alternator Supplied Amperage |
80 amps |
|
Breakout Force |
28,020 lbs (12,707 kg)
|
|
Cooling System Fluid Capacity |
11 gal (43 l)
|
|
Dump Clearance |
9 ft (3 m)
|
|
Engine Oil Capacity |
8 gal (30 l)
|
|
Front Diff Fluid Capacity |
6 gal (24 l)
|
|
Fuel Capacity |
68 gal (257 l)
|
|
Hydraulic System Fluid Capacity |
20 gal (76 l)
|
|
Operating Voltage |
24 volts |
|
Operating Weight |
32,156 lbs (14,583 kg)
|
|
Rear Axle Oscillation |
12 degrees |
|
Rear Diff Fluid Capacity |
7 gal (27 l)
|
|
Static Tipping Load - Bucket |
22,515 lbs (10,211 kg)
|
|
Static Tipping Load - Forks |
18,306 lbs (8,302 kg)
|
|
Static Tipping Load - Full Turn |
16,800 lbs (7,619 kg)
|
|
Static Tipping Load - Material Handler |
12,136 lbs (5,504 kg)
|
|
Tire Size |
20.5R25 |
|
Transmission Fluid Capacity |
8 gal (30 l)
|
|
Turning Radius |
20 ft (6 m)
|
| Service Refill Capacities |
|
Cooling System |
13 gal (48 l)
|
|
Crankcase |
5 gal (20 l)
|
|
Differential - Final Drives - Front |
6 gal (24 l)
|
|
Differential - Final Drives - Rear |
7 gal (27 l)
|
|
Fuel Tank - Standard |
67 gal (254 l)
|
|
Hydraulic System - Including Tank |
24 gal (90 l)
|
|
Hydraulic Tank |
20 gal (76 l)
|
|
Transmission |
8 gal (30 l)
|
| Transmission |
|
Forward - 1 |
5 mph (8 kph)
|
|
Forward - 2 |
9 mph (14 kph)
|
|
Forward - 3 |
15 mph (24 kph)
|
|
Forward - 4 |
24 mph (39 kph)
|
|
Max Speed Forward |
24 mph (39 kph)
|
|
Max Speed Reverse |
15 mph (23 kph)
|
|
Number of Forward Gears |
4 |
|
Number of Reverse Gears |
3 |
|
Reverse - 1 |
5 mph (8 kph)
|
|
Reverse - 2 |
9 mph (14 kph)
|
|
Reverse - 3 |
24 mph (39 kph)
|
|
Transmission Type |
Powershift |
| Weights |
|
Operating Weight |
28,714 lbs (13,022 kg)
|
