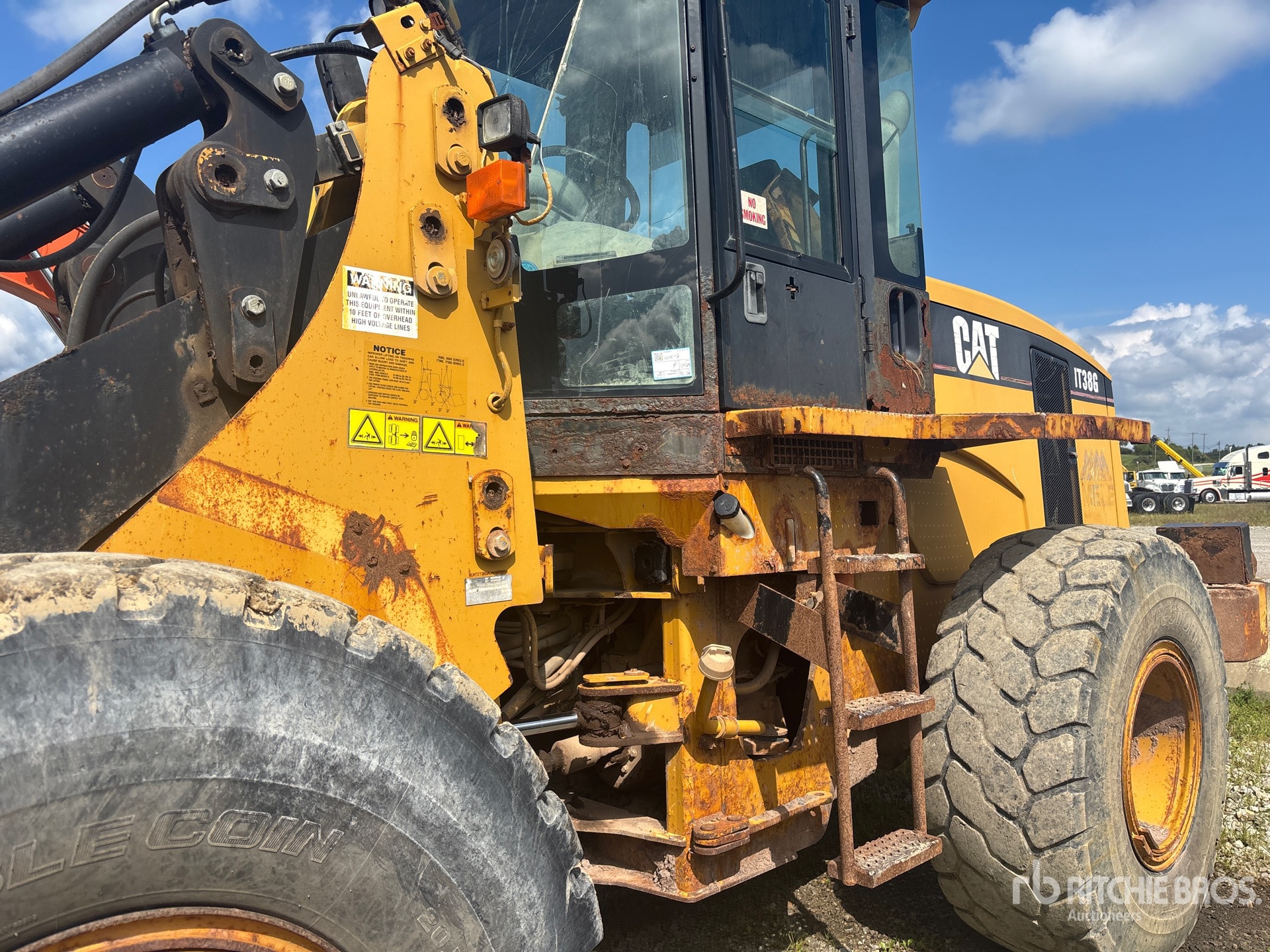

| Axles |
|
Front |
Fixed front |
|
Maximum Single-Wheel Rise And Fall |
17 in (42 cm)
|
|
Rear |
Oscillating rear (? 13?) |
| Blade |
|
Width |
9 ft (3 m)
|
| Brakes |
|
Brakes |
Full-hyrdaulic actuated, oil-disc |
| Bucket |
|
Breakout Force |
28,575 lbs (12,959 kg)
|
|
Bucket Capacity - Heaped |
3 cu yd |
|
Bucket Capacity - Struck |
2 cu yd |
| Buckets |
|
Bucket Capacities |
2.2 to 2.5 m3 : 2.9 to 3.3 yd3 |
|
Maximum Bucket Capacity |
3 cu yd |
| Dimensions |
|
B-Pin Height - Standard |
13 ft (4 m)
|
|
Centerline Of Rear Axle To Hitch |
59 in (151 cm)
|
|
Centerline Rear Axle To Edge Of Counterweight |
6 ft (2 m)
|
|
Dump Clearance At Max Lift |
9 ft (3 m)
|
|
Fork Tine Length |
4 ft (1 m)
|
|
Ground Clearance |
1 ft (0 m)
|
|
Height |
11 ft (3 m)
|
|
Height - Top Of Exhaust Pipe |
127 in (323 cm)
|
|
Height - Top Of Hood |
93 in (236 cm)
|
|
Height - Top Of Rops |
11 ft (3 m)
|
|
Height To Top Of Cab |
11 ft (3 m)
|
|
Hinge Pin Max Height |
13 ft (4 m)
|
|
Hook Height At Max Lift - Extended |
22 ft (7 m)
|
|
Hook Height At Max Lift - Standard |
18 ft (6 m)
|
|
Hook Reach At Max Lift - Extended |
12 ft (4 m)
|
|
Hook Reach At Max Lift - Standard |
8 ft (2 m)
|
|
Length |
25 ft (8 m)
|
|
Length W/ Bucket On Ground |
25 ft (8 m)
|
|
Length With Out Forks On Ground |
26 ft (8 m)
|
|
Max Lift Height |
12 ft (4 m)
|
|
Reach At Max Height And Dump |
4 ft (1 m)
|
|
Weight |
28,714 lbs (13,024 kg)
|
|
Wheel Base |
10 ft (3 m)
|
|
Wheelbase |
10 ft (3 m)
|
|
Width |
8 ft (3 m)
|
|
Width Over Tires |
9 ft (3 m)
|
| Engine |
|
Bore |
4 in (11 cm)
|
|
Displacement |
439 cu in (7,194 cu cm)
|
|
Engine Make |
2,236 |
|
Engine Model |
3126B ATAAC |
|
Engine Model |
Cat? 3126 DITA |
|
Flywheel Power |
160 hp (119 kw)
|
|
Flywheel Power - Din 70020 |
166 |
|
Gross Power |
180 hp (134 kw)
|
|
Max Torque |
619 lbs ft (839 nm)
|
|
Maximum Flywheel Power |
172 hp (128 kw)
|
|
Net Power |
160 hp (119 kw)
|
|
Net Power - 80/1269/Eec |
160 hp (119 kw)
|
|
Net Power - Iso 9249 |
160 hp (119 kw)
|
|
Net Power - Sae J1349 |
160 hp (119 kw)
|
|
Peak Torque - 1,200 Rpm - Net |
645 lbs ft (874 nm)
|
|
Stroke |
5 in (13 cm)
|
|
Torque Rise |
62 % |
|
Total Torque Rise |
69 % |
| Hydraulic System |
|
Bucket/Work Tool System - Relief Valve Setting |
3,600 psi |
|
Dump Time |
2 sec |
|
Hydraulic Cycle Time - Dump |
2 s |
|
Hydraulic Cycle Time - Lower, Empty, Float Down |
2.9 s |
|
Hydraulic Cycle Time - Raise |
5.8 s |
|
Hydraulic Cycle Time - Total |
10.7 s |
|
Lower Time |
3 sec |
|
Pump Flow Capacity |
43 gpm (163 lpm)
|
|
Pump Type |
piston |
|
Raise Time |
6 sec |
|
Relief Valve Setting |
3,597 psi |
|
Steering System - Pump Type |
Full hydraulic power steering |
| Operating Specifications |
|
Breakout Force |
28,020 lbs (12,707 kg)
|
|
Dump Clearance |
9 ft (3 m)
|
|
Static Tipping Load - Full Turn |
16,800 lbs (7,619 kg)
|
| Operational |
|
Alternator Supplied Amperage |
80 amps |
|
Cooling System Fluid Capacity |
11 gal (43 l)
|
|
Engine Oil Capacity |
8 gal (30 l)
|
|
Front Diff Fluid Capacity |
6 gal (24 l)
|
|
Fuel Capacity |
68 gal (257 l)
|
|
Hydraulic System Fluid Capacity |
20 gal (76 l)
|
|
Operating Voltage |
24 V |
|
Operating Weight |
32,156 lbs (14,583 kg)
|
|
Rear Axle Oscillation |
12 degrees |
|
Rear Diff Fluid Capacity |
7 gal (27 l)
|
|
Static Tipping Load - Bucket |
22,515 lbs (10,211 kg)
|
|
Static Tipping Load - Forks |
18,306 lbs (8,302 kg)
|
|
Static Tipping Load - Material Handler |
12,136 lbs (5,504 kg)
|
|
Tire Size |
20.5R25 |
|
Transmission Fluid Capacity |
8 gal (30 l)
|
|
Turning Radius |
20 ft (6 m)
|
| Service Refill Capacities |
|
Cooling System |
13 gal (48 l)
|
|
Crankcase |
5 gal (20 l)
|
|
Differential - Final Drives - Front |
6 gal (24 l)
|
|
Differential - Final Drives - Rear |
7 gal (27 l)
|
|
Fuel Tank - Standard |
67 gal (254 l)
|
|
Hydraulic System - Including Tank |
24 gal (90 l)
|
|
Hydraulic Tank |
20 gal (76 l)
|
|
Transmission |
8 gal (30 l)
|
| Transmission |
|
Forward - 1 |
5 mph (8 kph)
|
|
Forward - 2 |
9 mph (14 kph)
|
|
Forward - 3 |
15 mph (24 kph)
|
|
Forward - 4 |
24 mph (39 kph)
|
|
Max Speed Forward |
24 mph (39 kph)
|
|
Max Speed Reverse |
15 mph (23 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
3 |
|
Reverse - 1 |
5 mph (8 kph)
|
|
Reverse - 2 |
9 mph (14 kph)
|
|
Reverse - 3 |
24 mph (39 kph)
|
|
Transmission Type |
Powershift |
| Weights |
|
Operating Weight |
28,714 lbs (13,022 kg)
|
