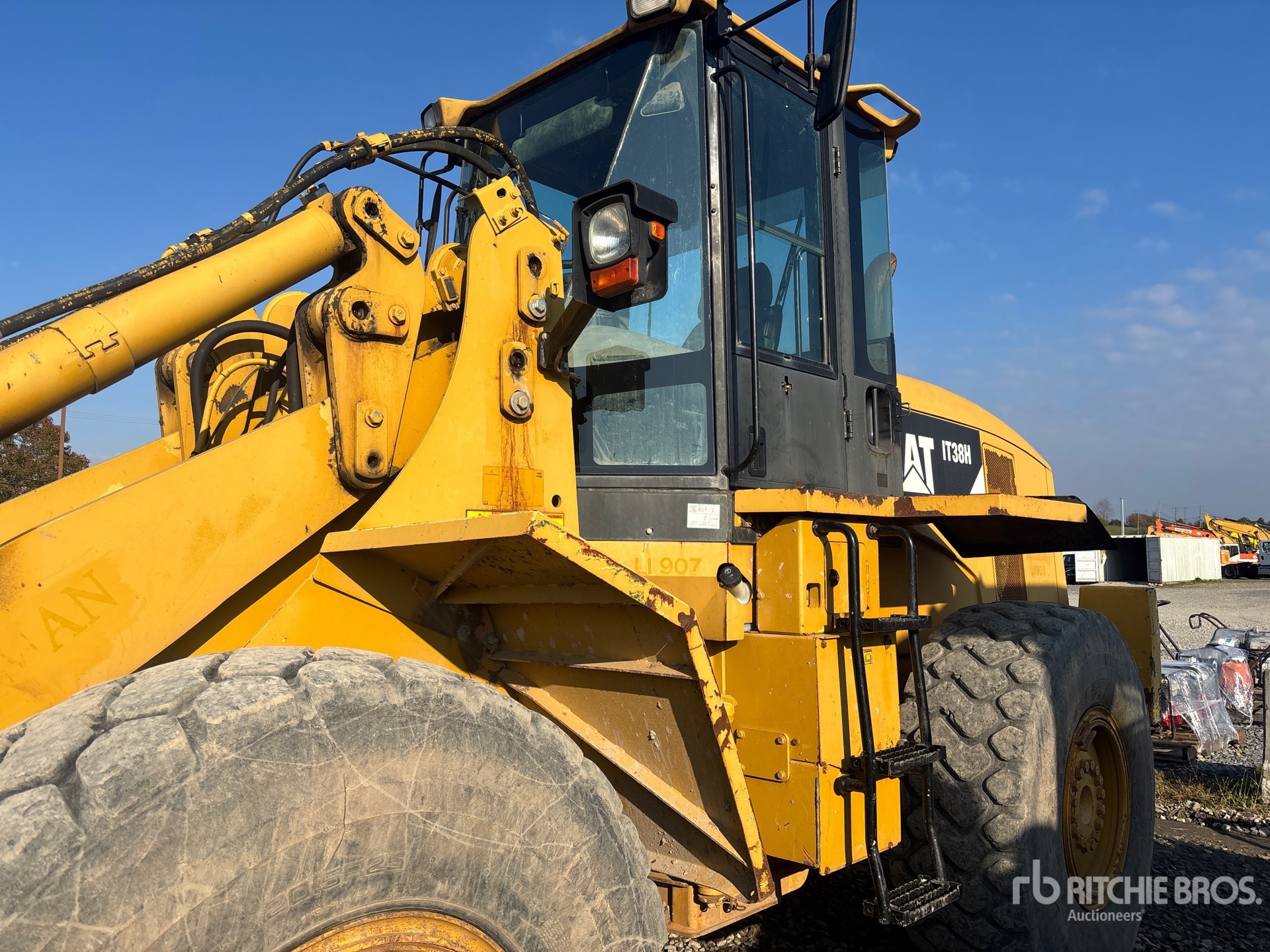

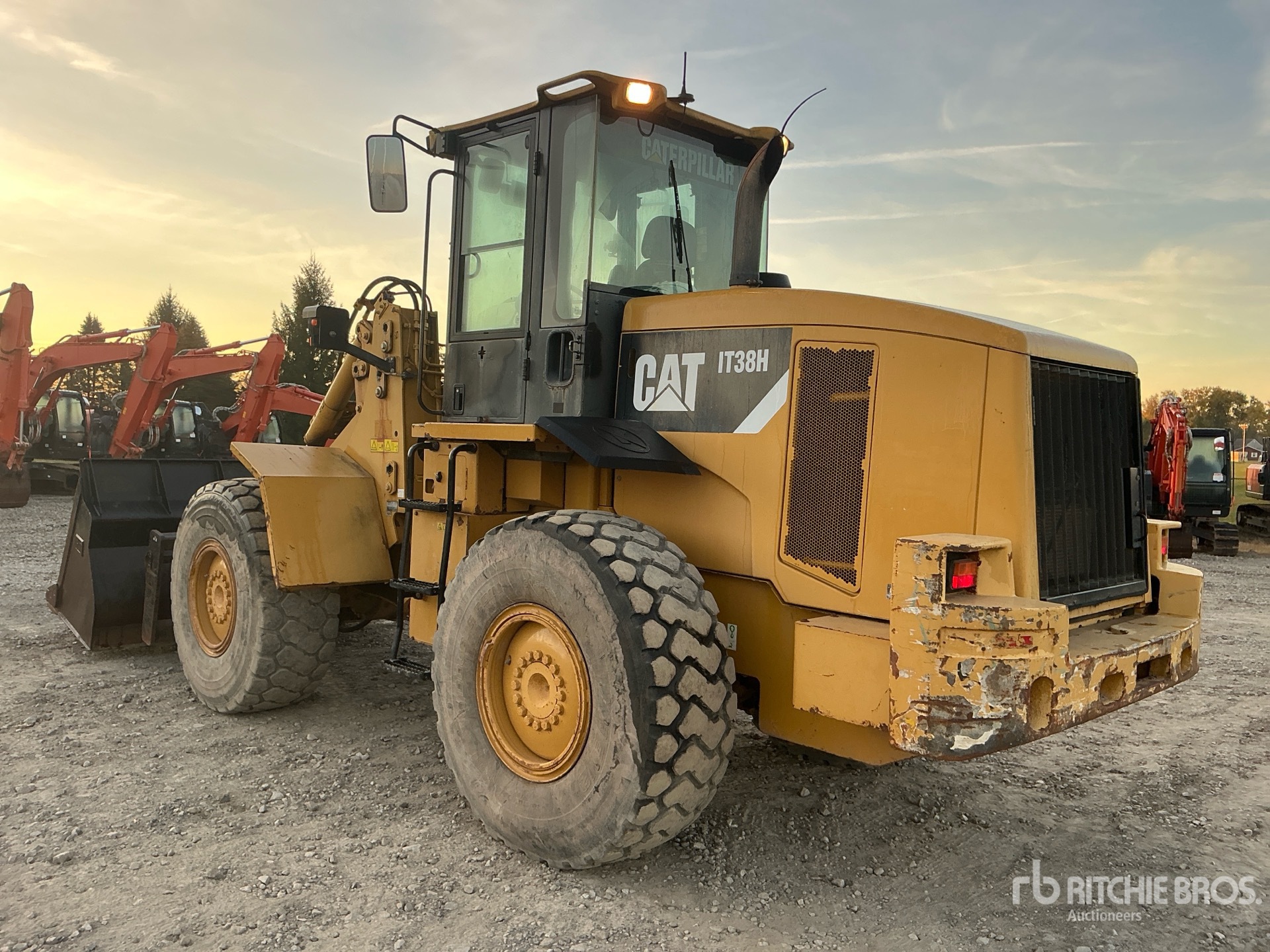

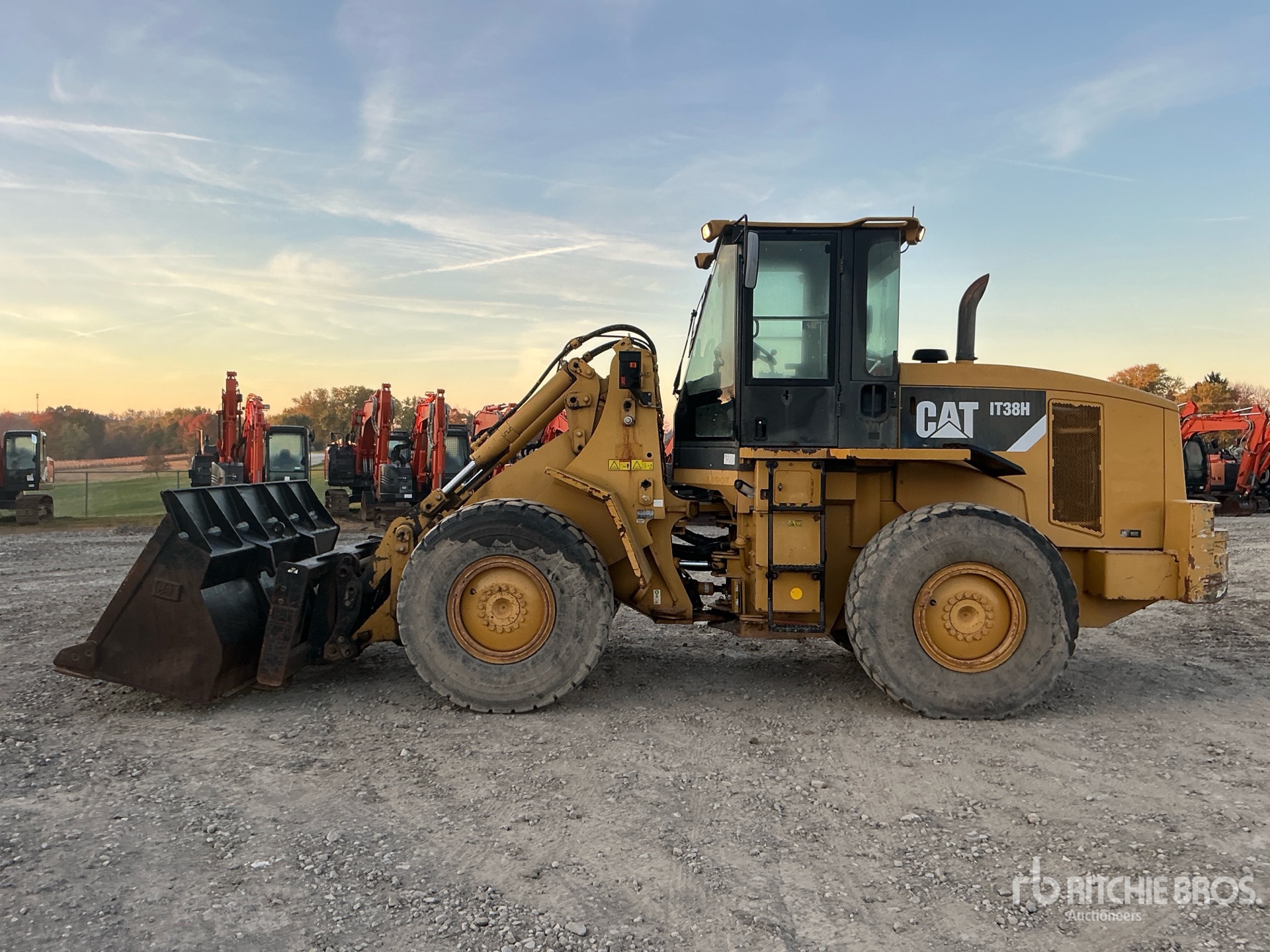

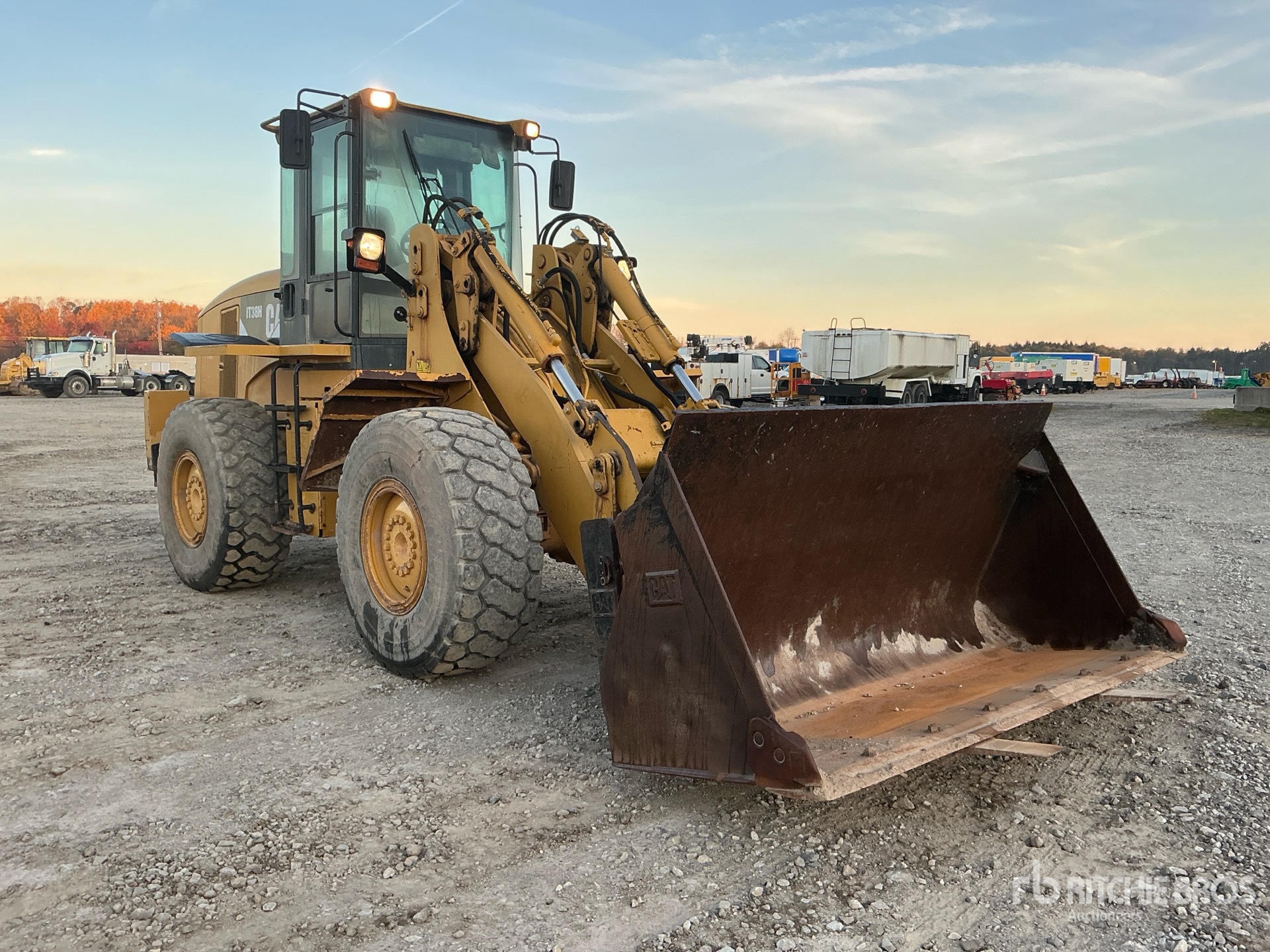

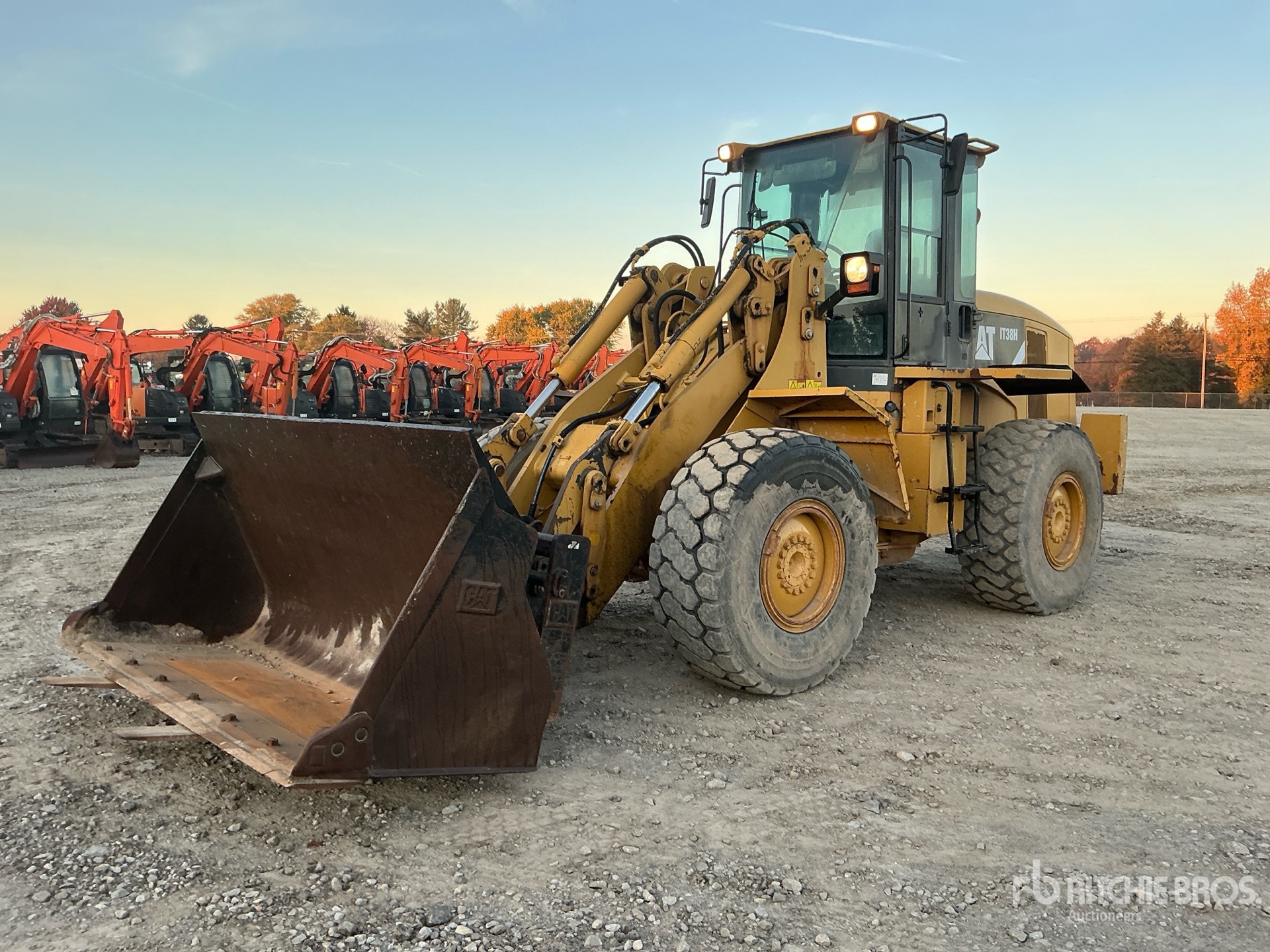

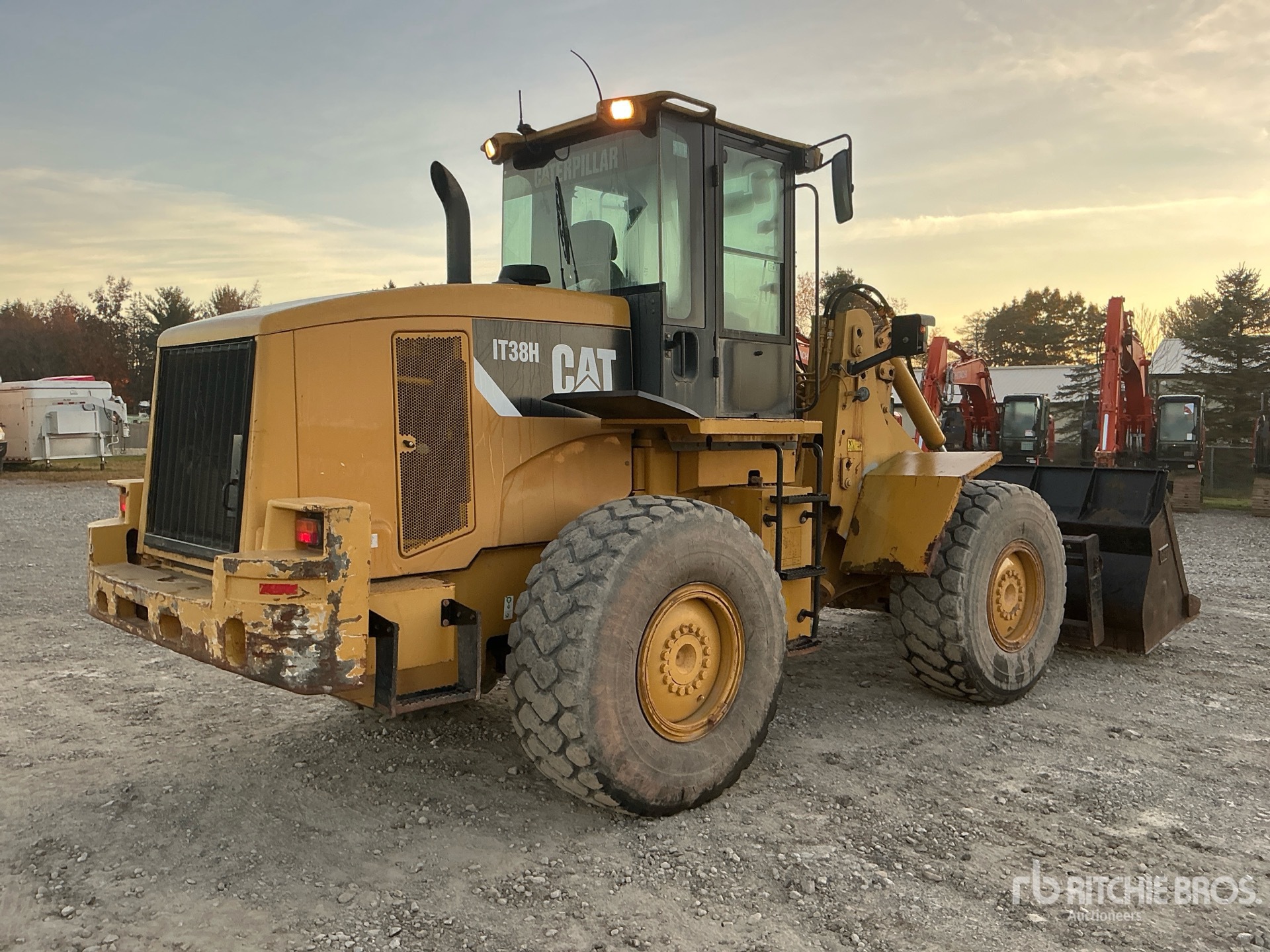

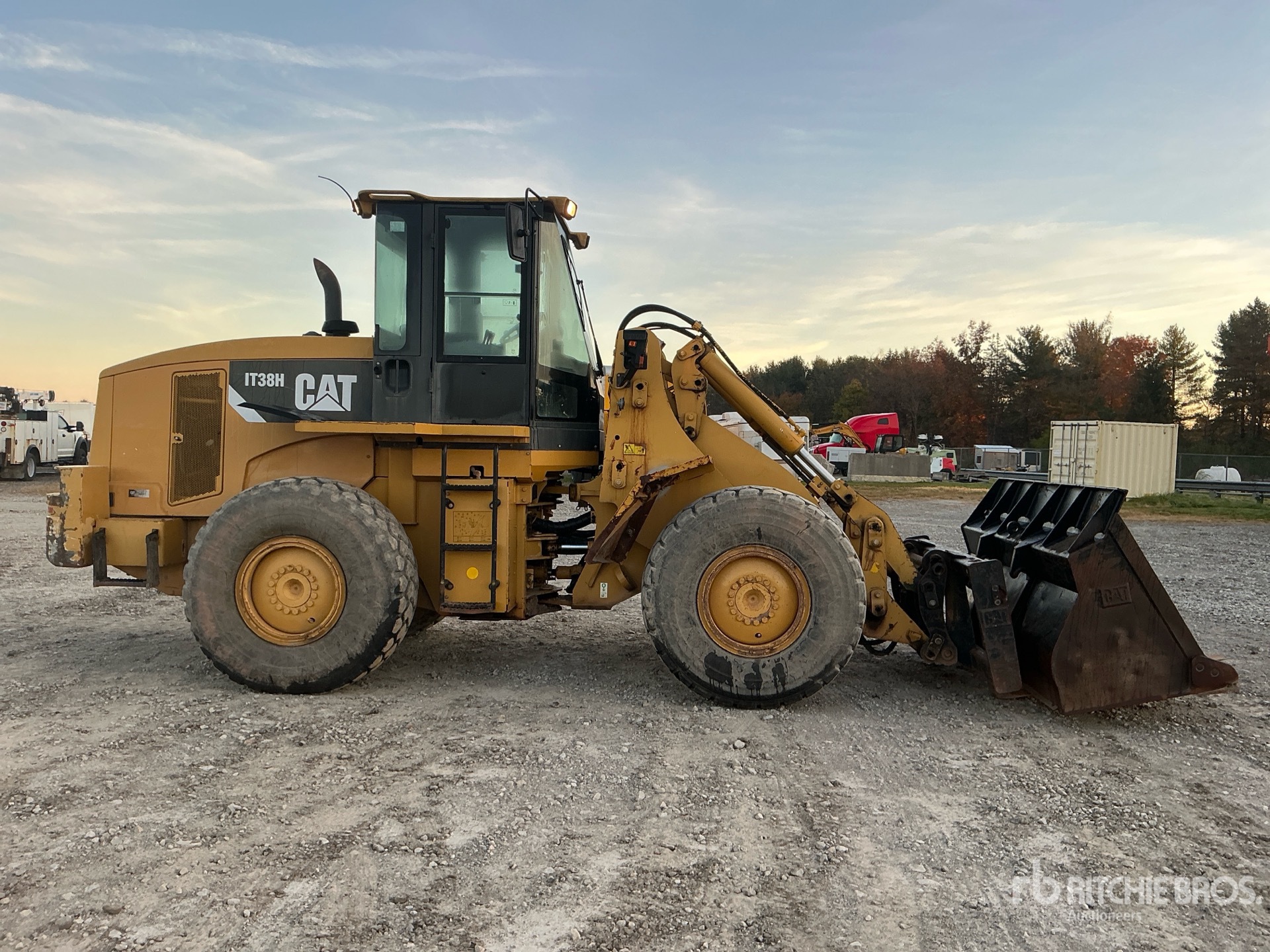

Front

Fixed front

Maximum Single-Wheel Rise And Fall

17 in (43 cm)

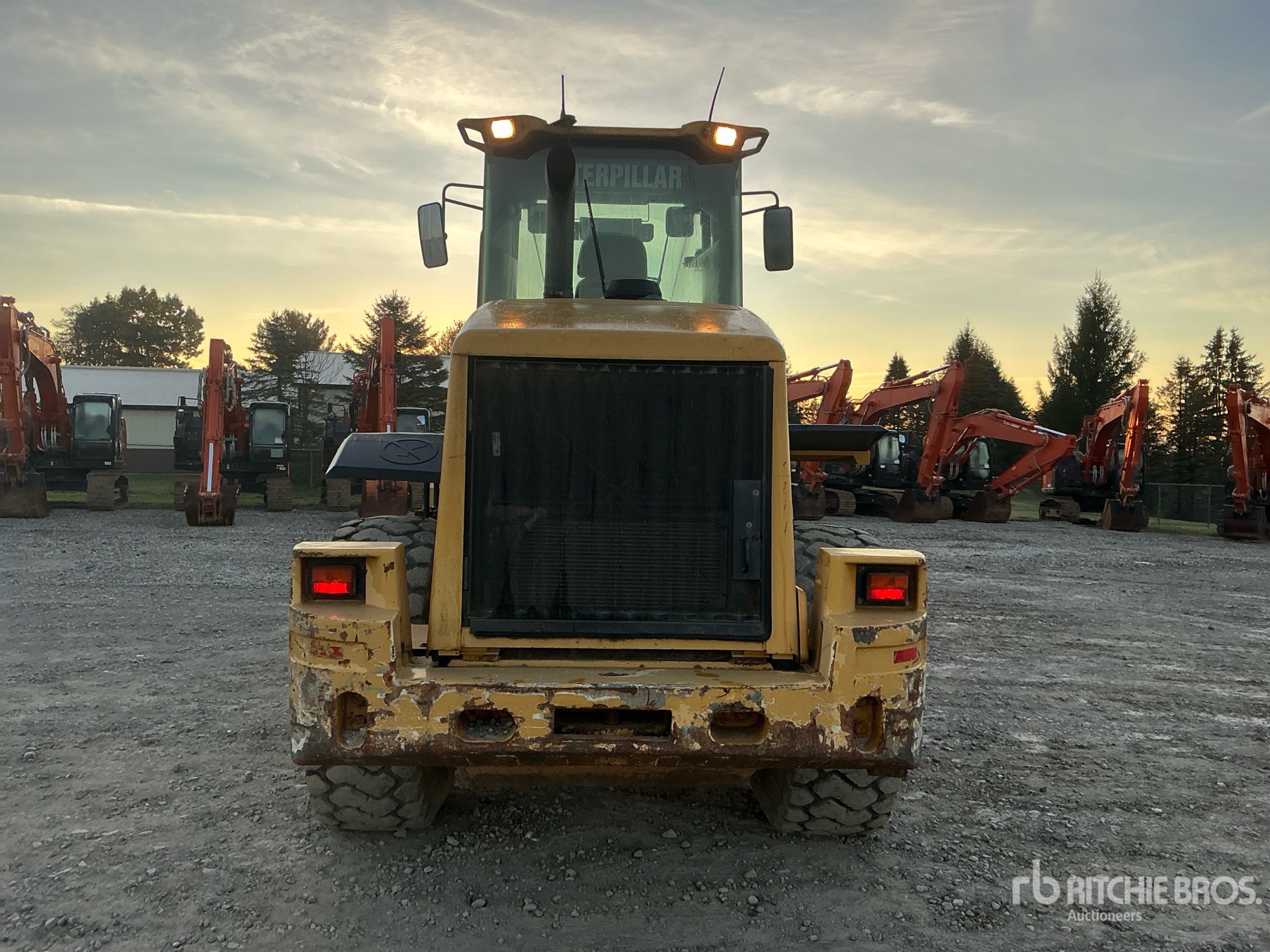

Rear

Oscillating +/-12?

Brakes

Meets required standards

Breakout Force

28,326 lbs (12,848 kg)

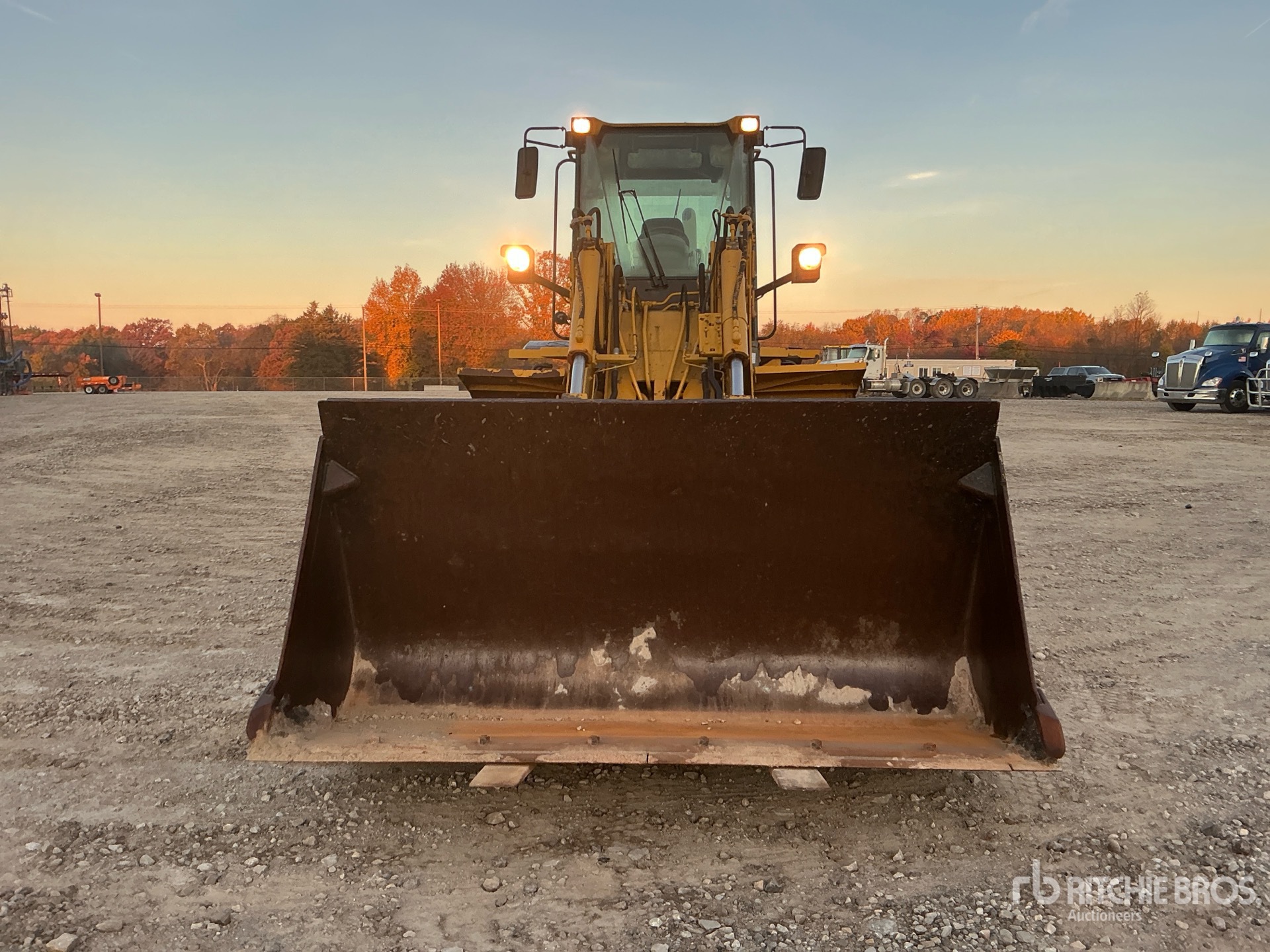

Bucket Capacity - Heaped

4 cu yd

Bucket Capacity - Struck

3 cu yd

Bucket Capacities

2.3 - 3.0 m3 3.0 - 4.0 yd3

Maximum Bucket Capacity

4 cu yd

Rops/Fops

Meets SAE and ISO standards.

Dump Clearance At Max Lift

9 ft (3 m)

Fork Tine Length

5 ft (2 m)

Ground Clearance

1 ft (0 m)

Height

11 ft (3 m)

Height At Hook Max Reach

6 ft (2 m)

Height To Top Of Cab

11 ft (3 m)

Hinge Pin Max Height

13 ft (4 m)

Hook Height At Max Lift - Extended

22 ft (7 m)

Hook Height At Max Lift - Standard

18 ft (6 m)

Hook Max Reach - Extended

18 ft (5 m)

Hook Max Reach - Standard

12 ft (4 m)

Hook Reach At Max Lift - Extended

12 ft (4 m)

Hook Reach At Max Lift - Standard

8 ft (2 m)

Length

25 ft (8 m)

Length W/ Bucket On Ground

25 ft (8 m)

Length With Out Forks On Ground

27 ft (8 m)

Max Lift Height

12 ft (4 m)

Reach At Max Height And Dump

4 ft (1 m)

Weight

35,273 lbs (16,000 kg)

Wheelbase

10 ft (3 m)

Width

9 ft (3 m)

Width Over Tires

9 ft (3 m)

Bore

4 in (10 cm)

Displacement

403 cu in (6,601 cu cm)

Engine Make

2,236

Engine Model

6.6 Acert

Engine Model

Cat? 6.6 ACERT?

Gross Power

197 hp (147 kw)

Gross Power - Sae J1995

197 hp (147 kw)

Max Torque

620 lbs ft (841 nm)

Net Power

178 hp (133 kw)

Net Power - 80/1269/Eec

180 hp (134 kw)

Net Power - Iso 9249

180 hp (134 kw)

Net Power - Sae J1349

178 hp (133 kw)

Peak Torque - 1,400 Rpm - Net

620 lbs ft (841 nm)

Power Measured @

2,100 rpm

Stroke

5 in (13 cm)

Torque Measured @

1,400 rpm

Torque Rise

38 %

Total Torque Rise

38 %

1 Fork tine length (Since 2010)

48 in (122 cm)

1 Fork tine length (Since 2010)

60 in (152 cm)

1 Fork tine length (Since 2010)

72 in (183 cm)

1 Fork tine length (Since 2012)

48 in (122 cm)

1 Fork tine length (Since 2012)

60 in (152 cm)

1 Fork tine length (Since 2012)

72 in (183 cm)

10 Overall height of fork at full lift (top of carriage to ground) (Since 2010)

185 in (470 cm)

10 Overall height of fork at full lift (top of carriage to ground) (Since 2012)

185 in (470 cm)

11 Clearance at full lift and maximum dump (Since 2010)

95 in (241 cm)

11 Clearance at full lift and maximum dump (Since 2010)

85 in (215 cm)

11 Clearance at full lift and maximum dump (Since 2010)

75 in (189 cm)

11 Clearance at full lift and maximum dump (Since 2012)

95 in (241 cm)

11 Clearance at full lift and maximum dump (Since 2012)

85 in (215 cm)

11 Clearance at full lift and maximum dump (Since 2012)

75 in (189 cm)

12 Maximum discharge angle from horizontal (Since 2010)

57 deg

12 Maximum discharge angle from horizontal (2012)

57 deg

13 Carriage width (Since 2010)

88 in (224 cm)

13 Carriage width (Since 2012)

88 in (224 cm)

14 Carriage height (Since 2010)

45 in (113 cm)

14 Carriage height (2012)

45 in (113 cm)

15 Outside tine width (maximum spread) (Since 2010)

78 in (197 cm)

15 Outside tine width (maximum spread) (2012)

78 in (197 cm)

16 Outside tine width (minimum spread) (Since 2010)

17 in (42 cm)

16 Outside tine width (minimum spread) (2012)

17 in (42 cm)

1st (Since 2010)

7.9 4.9

2 Load center (Since 2010)

24 in (61 cm)

2 Load center (Since 2010)

30 in (76 cm)

2 Load center (Since 2010)

36 in (91 cm)

2 Load center (Since 2012)

24 in (61 cm)

2 Load center (Since 2012)

30 in (76 cm)

2 Load center (Since 2012)

36 in (91 cm)

2nd (Since 2010)

14.2 8.8

3 Maximum overall length (Since 2010)

312 in (792 cm)

3 Maximum overall length (Since 2010)

324 in (823 cm)

3 Maximum overall length (Since 2010)

336 in (853 cm)

3 Maximum overall length (Since 2012)

312 in (792 cm)

3 Maximum overall length (Since 2012)

324 in (823 cm)

3 Maximum overall length (Since 2012)

336 in (853 cm)

3rd (Since 2010)

25.0 15.5

4 Reach with forks at ground level (Since 2010)

39 in (98 cm)

4 Reach with forks at ground level (2012)

39 in (98 cm)

4th (Since 2010)

41.1 25.5

5 Ground to top of tine at minimum height and fork level (Since 2010)

3 in (7 cm)

5 Ground to top of tine at minimum height and fork level (2012)

3 in (7 cm)

6 Reach with arms horizontal and forks level (Since 2010)

62 in (159 cm)

6 Reach with arms horizontal and forks level (2012)

62 in (159 cm)

7 Reach with fork at maximum height (Since 2010)

34 in (85 cm)

7 Reach with fork at maximum height (2012)

34 in (85 cm)

8 Ground to top of tine with arms horizontal and fork level (Since 2010)

70 in (177 cm)

8 Ground to top of tine with arms horizontal and fork level (2012)

70 in (177 cm)

9 Ground to top of tine at maximum height and fork level (Since 2010)

143 in (363 cm)

9 Ground to top of tine at maximum height and fork level (2012)

143 in (363 cm)

A - Tine Length (Since 2010)

54 in (137 cm)

A - Tine Length (2012)

54 in (137 cm)

A Maximum overall length (Since 2010)

299 in (759 cm)

A Maximum overall length (2012)

299 in (759 cm)

Approx. Operating Weight (Since 2007)

35,274 lbs (16,000 kg)

Approx. Operating Weight (2008)

35,274 lbs (16,000 kg)

Approx. Operating Weight (2009)

35,274 lbs (16,000 kg)

Approx. Operating Weight (2010)

35,274 lbs (16,000 kg)

Approx. Operating Weight (2011)

35,274 lbs (16,000 kg)

Approx. Operating Weight (2012)

35,274 lbs (16,000 kg)

B - Overall Width (Since 2010)

103 in (262 cm)

B - Overall Width (2012)

103 in (262 cm)

B Wheel base (Since 2010)

119 in (302 cm)

B Wheel base (2012)

119 in (302 cm)

Based on 2134 mm (84") carriage, Fusion coupler and Fusion pallet fork. (Since 2010)

The rated operating load (cid:129) SAE J1197: 50% of full

Based on 2134 mm (84") carriage, Fusion coupler and Fusion pallet fork. (Since 2010)

for a loader equipped with a turn static tipping load or

Based on 2134 mm (84") carriage, Fusion coupler and Fusion pallet fork. (Since 2010)

pallet fork is determined by: hydraulic limit.

Based on 2134 mm (84") carriage, Fusion coupler and Fusion pallet fork. (Since 2012)

The rated operating load mined by:

Based on 2134 mm (84") carriage, Fusion coupler and Fusion pallet fork. (Since 2012)

for a loader equipped

Based on 2134 mm (84") carriage, Fusion coupler and Fusion pallet fork. (Since 2012)

with a pallet fork is deter-

Bore (Since 2010)

4 in (10 cm)

Bore (2012)

4 in (10 cm)

Breakout Force (Since 2007)

28,214 lbf (12,797 kgf)

Breakout Force (2008)

28,214 lbf (12,797 kgf)

Breakout Force (2009)

28,214 lbf (12,797 kgf)

Breakout Force (2010)

28,214 lbf (12,797 kgf)

Breakout force (Since 2010)

27,514 lbf (122 kN)

Breakout force (Since 2010)

24,460 lbf (109 kN)

Breakout force (Since 2010)

29,314 lbf (130 kN)

Breakout force (Since 2010)

27,376 lbf (122 kN)

Breakout force (Since 2010)

24,320 lbf (108 kN)

Breakout force (Since 2010)

27,709 lbf (123 kN)

Breakout force (Since 2010)

25,899 lbf (115 kN)

Breakout force (Since 2010)

27,572 lbf (123 kN)

Breakout force (Since 2010)

29,527 lbf (131 kN)

Breakout Force (Since 2011)

28,214 lbf (12,797 kgf)

Breakout Force (2012)

28,214 lbf (12,797 kgf)

Bucket (Since 2010)

3 cu yd (3 cu m)

Bucket (2012)

3 cu yd (3 cu m)

Bucket Capacity (Since 2012)

5 - 5 cu yd (4 - 4 cu m)

Bucket Capacity (Since 2012)

3 - 5 cu yd (2 - 3 cu m)

Bucket Capacity (Since 2012)

3 - 4 cu yd (3 - 3 cu m)

Bucket Capacity (Since 2012)

4 - 4 cu yd (3 - 3 cu m)

Bucket Capacity (Since 2012)

3 cu yd (2 cu m)

Bucket Capacity (Since 2012)

3 cu yd (2 cu m)

Bucket Capacity (Since 2012)

5 cu yd (4 cu m)

Bucket Capacity (Since 2012)

7 cu yd (6 cu m)

Bucket Capacity (Since 2012)

4 - 4 cu yd (3 - 3 cu m)

Bucket Capacity (Since 2012)

3 - 3 cu yd (2 - 3 cu m)

Bucket Capacity (Since 2012)

2 - 2 cu yd (2 - 2 cu m)

Bucket Capacity (Since 2012)

3 cu yd (2 cu m)

Bucket Capacity (Since 2012)

7 - 8 cu yd (5 - 6 cu m)

Bucket Weight (Since 2012)

3,197 lbs (1,450 kg)

Bucket Weight (Since 2012)

2,156 - 2,608 lbs (978 - 1,183 kg)

Bucket Weight (Since 2012)

3,686 lbs (1,672 kg)

Bucket Weight (Since 2012)

3,836 lbs (1,740 kg)

Bucket Weight (Since 2012)

1,961 - 2,381 lbs (889 - 1,080 kg)

Bucket Weight (Since 2012)

3,118 lbs (1,414 kg)

Bucket Weight (Since 2012)

3,706 lbs (1,681 kg)

Bucket Weight (Since 2012)

3,448 lbs (1,564 kg)

Bucket Weight (Since 2012)

4,078 lbs (1,850 kg)

Bucket Weight (Since 2012)

2,730 lbs (1,238 kg)

Bucket Weight (Since 2012)

1,802 - 2,101 lbs (817 - 953 kg)

Bucket Weight (Since 2012)

3,200 lbs (1,452 kg)

Bucket Weight (Since 2012)

3,410 lbs (1,547 kg)

Bucket Weight (Since 2012)

3,925 lbs (1,780 kg)

Bucket Weight (Since 2012)

3,400 lbs (1,542 kg)

Bucket Width (Since 2012)

109 in (277 cm)

Bucket Width (Since 2012)

106 in (269 cm)

Bucket Width (Since 2012)

114 in (290 cm)

Bucket Width (Since 2012)

108 in (274 cm)

Bucket Width (Since 2012)

121 in (307 cm)

Bucket Width (Since 2012)

109 in (277 cm)

Bucket Width (Since 2012)

110 in (279 cm)

Bucket Width (Since 2012)

121 in (307 cm)

Bucket Width (Since 2012)

110 in (279 cm)

Bucket Width (Since 2012)

129 in (328 cm)

C Machine center point to front axle (Since 2010)

59 in (150 cm)

C Machine center point to front axle (2012)

59 in (150 cm)

Capacity - rated (Since 2010)

3 cu yd (3 cu m)

Capacity - rated (Since 2010)

4 cu yd (3 cu m)

Capacity - rated (Since 2010)

3 cu yd (2 cu m)

Capacity - rated (Since 2010)

4 cu yd (3 cu m)

Capacity - rated (Since 2012)

3 cu yd (3 cu m)

Capacity - rated (Since 2012)

4 cu yd (3 cu m)

Capacity - rated (Since 2012)

3 cu yd (2 cu m)

Capacity - rated (Since 2012)

4 cu yd (3 cu m)

Capacity - rated (Since 2012)

4 cu yd (3 cu m)

Capacity - struck (Since 2010)

3 cu yd (2 cu m)

Capacity - struck (Since 2010)

3 cu yd (3 cu m)

Capacity - struck (Since 2010)

3 cu yd (2 cu m)

Capacity - struck (Since 2010)

3 cu yd (2 cu m)

Capacity - struck (Since 2012)

3 cu yd (2 cu m)

Capacity - struck (Since 2012)

3 cu yd (3 cu m)

Capacity - struck (Since 2012)

3 cu yd (2 cu m)

Capacity - struck (Since 2012)

3 cu yd (2 cu m)

Capacity - struck (Since 2012)

3 cu yd (2 cu m)

Capacity - struck (Since 2012)

3 cu yd (2 cu m)

Capacity - struck (Since 2012)

3 cu yd (3 cu m)

Capacity - struck (Since 2012)

3 cu yd (2 cu m)

Capacity - struck (Since 2012)

3 cu yd (2 cu m)

D Rear axle to counterweight (Since 2010)

76 in (193 cm)

D Rear axle to counterweight (2012)

76 in (193 cm)

Digging depth (Since 2010)

4 in (11 cm)

Digging depth (Since 2010)

3 in (8 cm)

Digging depth (Since 2012)

4 in (11 cm)

Digging depth (Since 2012)

3 in (8 cm)

Displacement (Since 2012)

403 cu in (6,604 cu cm)

Dump Clearance at Max. Height (Since 2007)

110 in (279 cm)

Dump Clearance at Max. Height (2008)

110 in (279 cm)

Dump Clearance at Max. Height (2009)

110 in (279 cm)

Dump Clearance at Max. Height (2010)

110 in (279 cm)

Dump Clearance at Max. Height (2011)

110 in (279 cm)

Dump Clearance at Max. Height (2012)

110 in (279 cm)

Dump clearance at maximum lift and 45° discharge (Since 2010)

110 in (279 cm)

Dump clearance at maximum lift and 45° discharge (Since 2010)

106 in (269 cm)

Dump clearance at maximum lift and 45° discharge (2010)

106 in (269 cm)

Dump clearance at maximum lift and 45° discharge (Since 2010)

102 in (259 cm)

Dump clearance at maximum lift and 45° discharge (Since 2010)

108 in (274 cm)

Dump clearance at maximum lift and 45° discharge (Since 2010)

104 in (264 cm)

Dump clearance at maximum lift and 45° discharge (Since 2012)

110 in (279 cm)

Dump clearance at maximum lift and 45° discharge (Since 2012)

106 in (269 cm)

Dump clearance at maximum lift and 45° discharge (2012)

106 in (269 cm)

Dump clearance at maximum lift and 45° discharge (Since 2012)

102 in (259 cm)

Dump clearance at maximum lift and 45° discharge (Since 2012)

108 in (274 cm)

Dump clearance at maximum lift and 45° discharge (Since 2012)

104 in (264 cm)

Dump clearance at maximum lift and 45° discharge (Since 2012)

107 in (272 cm)

Dump clearance at maximum lift and 45° discharge (Since 2012)

106 in (269 cm)

Dump clearance at maximum lift and 45° discharge (Since 2012)

104 in (264 cm)

Dump clearance at maximum lift and 45° discharge (Since 2012)

102 in (259 cm)

Dump clearance at maximum lift and 45° discharge (Since 2012)

101 in (257 cm)

Dump clearance at maximum lift and 45° discharge (Since 2012)

100 in (254 cm)

E Ground clearance (Since 2010)

15 in (38 cm)

E Ground clearance (2012)

15 in (38 cm)

Engine Displacement (Since 2010)

403 cu in (6,604 cu cm)

Engine Model (Since 2010)

C6.6

Engine Model (2012)

C6.6

F Height to top of engine - compartment (Since 2012)

95 in (241 cm)

F Height to top of engine compartment (Since 2010)

95 in (241 cm)

Flywheel Horsepower (Since 2007)

200 hp (149 kw)

Flywheel Horsepower (2008)

200 hp (149 kw)

Flywheel Horsepower (2009)

200 hp (149 kw)

Flywheel Horsepower (2010)

200 hp (149 kw)

Flywheel Horsepower (2011)

200 hp (149 kw)

Flywheel Horsepower (2012)

200 hp (149 kw)

Flywheel Power: Net (Since 2010)

180 hp (134 kw)

Flywheel Power: Net (2012)

180 hp (134 kw)

Fuel Tank Capacity (Since 2010)

65 US gal (247 L)

Fuel Tank Capacity (2012)

65 US gal (247 L)

G Height to top of ROPS (Since 2010)

132 in (335 cm)

G Height to top of ROPS (2012)

132 in (335 cm)

Gross (Since 2010)

197 hp (147 kw)

Gross (2012)

197 hp (147 kw)

Ground Clearance (Since 2007)

16 in (41 cm)

Ground Clearance (2008)

16 in (41 cm)

Ground Clearance (2009)

16 in (41 cm)

Ground Clearance (2010)

16 in (41 cm)

Ground Clearance (2010)

16 in (41 cm)

Ground Clearance (2011)

16 in (41 cm)

Ground Clearance (2012)

16 in (41 cm)

Ground Clearance (2012)

16 in (41 cm)

Ground Engaging Tools (Since 2012)

BOCE Included

Ground Engaging Tools (Since 2012)

J250/BOCE

Group Number - Linkage Arrangement (Since 2010)

Coupler

Group Number - Linkage Arrangement (2012)

Coupler

Group Number - Logging Arrangement (Since 2010)

103 - 8,617

Group Number - Logging Arrangement (2012)

103 - 8,617

H Height to top of stack (Since 2010)

122 in (310 cm)

H Height to top of stack (2012)

122 in (310 cm)

Height to center axle (Since 2010)

27 in (69 cm)

Height to center axle (2012)

27 in (69 cm)

Hydraulic Cycle Time, - Rated Load in Bucket - Dump (Since 2012)

2 sec (1 Seconds)

Hydraulic Cycle Time, - Rated Load in Bucket - Lower - (Empty, Float Down) (Since 2012)

3 sec (3 Seconds)

Hydraulic Cycle Time, - Rated Load in Bucket - Raise (Since 2012)

5 sec (5 Seconds)

Hydraulic Cycle Time, - Rated Load in Bucket - Total (Since 2012)

10 sec (10 Seconds)

Hydraulic System Capacity - (includes tank) (Since 2010)

43 US gal (162 L)

Hydraulic System Capacity - (includes tank) (2012)

43 US gal (162 L)

Hydraulic Tank Capacity (Since 2010)

24 US gal (89 L)

Hydraulic Tank Capacity (2012)

24 US gal (89 L)

J Tire radius (empty machine) (Since 2010)

29 in (74 cm)

J Tire radius (empty machine) (2012)

29 in (74 cm)

K Maximum digging depth (bucket level) (Since 2010)

4 in (11 cm)

K Maximum digging depth - (bucket level) (Since 2012)

4 in (11 cm)

L Maximum rollback at carry height (Since 2010)

46 deg

L Maximum rollback at carry height (2012)

46 deg

Loader clearance circle with bucket at carry position (Since 2010)

480 in (1,219 cm)

Loader clearance circle with bucket at carry position (Since 2010)

483 in (1,227 cm)

Loader clearance circle with bucket at carry position (Since 2010)

487 in (1,237 cm)

Loader clearance circle with bucket at carry position (Since 2010)

490 in (1,245 cm)

Loader clearance circle with bucket at carry position (Since 2010)

480 in (1,219 cm)

Loader clearance circle with bucket at carry position (Since 2010)

487 in (1,237 cm)

Loader clearance circle with bucket at carry position (Since 2012)

480 in (1,219 cm)

Loader clearance circle with bucket at carry position (Since 2012)

483 in (1,227 cm)

Loader clearance circle with bucket at carry position (Since 2012)

487 in (1,237 cm)

Loader clearance circle with bucket at carry position (Since 2012)

490 in (1,245 cm)

Loader clearance circle with bucket at carry position (Since 2012)

480 in (1,219 cm)

Loader clearance circle with bucket at carry position (Since 2012)

487 in (1,237 cm)

Loader clearance circle with bucket at carry position (Since 2012)

481 in (1,222 cm)

Loader clearance circle with bucket at carry position (Since 2012)

482 in (1,224 cm)

Loader clearance circle with bucket at carry position (Since 2012)

488 in (1,240 cm)

Loader clearance circle with bucket at carry position (Since 2012)

489 in (1,242 cm)

M Maximum rollback at ground (Since 2010)

48 deg

M Maximum rollback at ground (2012)

48 deg

Max. Reach at Max. Height (Since 2007)

45 in (114 cm)

Max. Reach at Max. Height (2008)

45 in (114 cm)

Max. Reach at Max. Height (2009)

45 in (114 cm)

Max. Reach at Max. Height (2010)

45 in (114 cm)

Max. Reach at Max. Height (2011)

45 in (114 cm)

Max. Reach at Max. Height (2012)

45 in (114 cm)

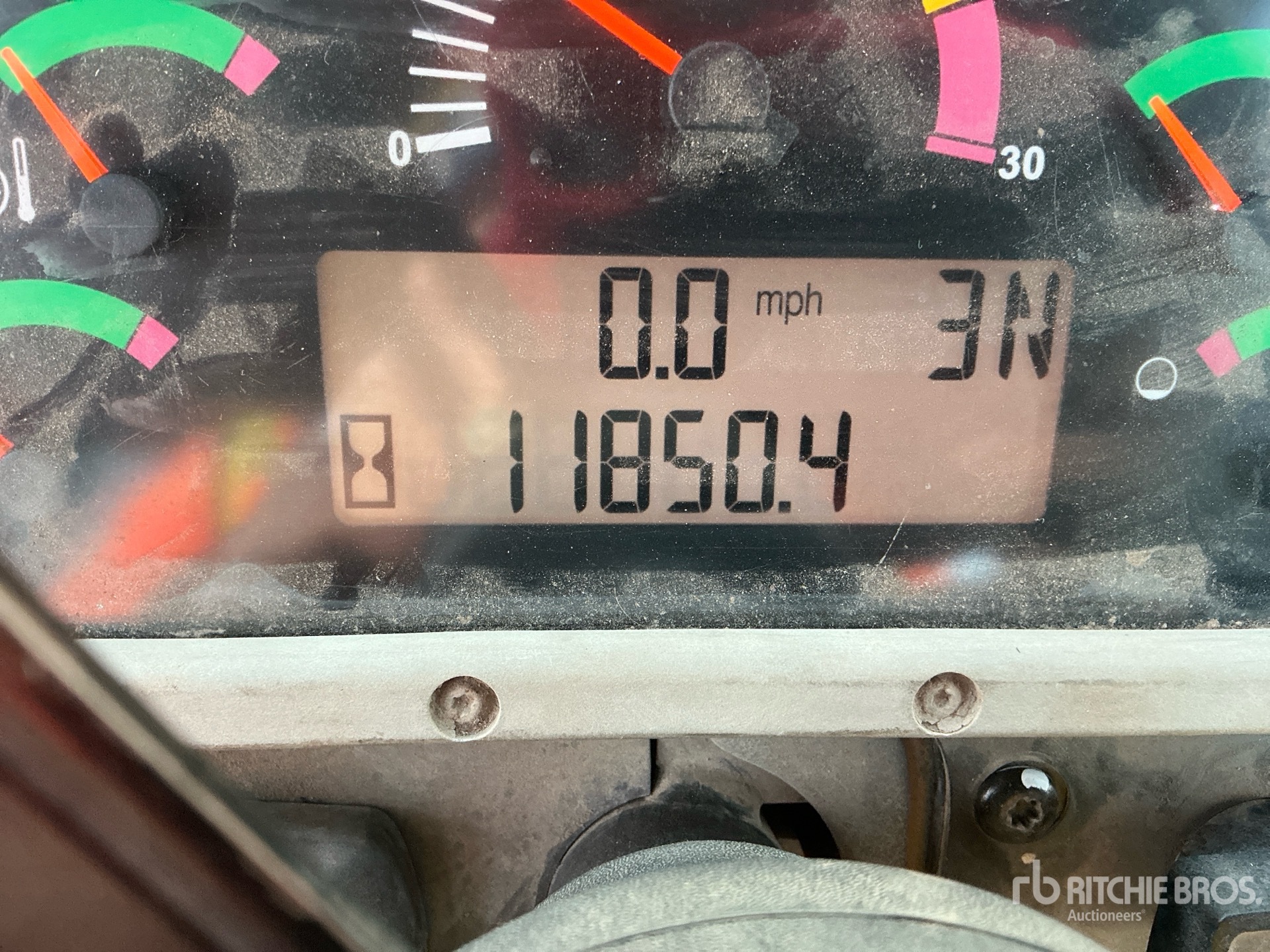

Maximum Forward Speed (Since 2007)

27 mph (43 kph)

Maximum Forward Speed (2008)

27 mph (43 kph)

Maximum Forward Speed (2009)

27 mph (43 kph)

Maximum Forward Speed (2010)

27 mph (43 kph)

Maximum Forward Speed (2011)

27 mph (43 kph)

Maximum Forward Speed (2012)

27 mph (43 kph)

Maximum Reverse Speed (Since 2007)

16 mph (25 kph)

Maximum Reverse Speed (2008)

16 mph (25 kph)

Maximum Reverse Speed (2009)

16 mph (25 kph)

Maximum Reverse Speed (2010)

16 mph (25 kph)

Maximum Reverse Speed (2011)

16 mph (25 kph)

Maximum Reverse Speed (2012)

16 mph (25 kph)

N Dump clearance at full lift - and 45° discharge angle (Since 2010)

108 in (274 cm)

N Dump clearance at full lift and - 45° discharge angle (Since 2012)

108 in (274 cm)

No. Cylinders (Since 2010)

6

No. Cylinders (2012)

6

O Hinge pin height at carry position (Since 2010)

9 in (24 cm)

O Hinge pin height at carry position (2012)

9 in (24 cm)

Operating weight (Since 2010)

35,850 lbs (16,261 kg)

Operating weight (Since 2010)

36,095 lbs (16,372 kg)

Operating weight (Since 2010)

35,810 lbs (16,243 kg)

Operating weight (Since 2010)

36,015 lbs (16,336 kg)

Operating weight (Since 2010)

36,260 lbs (16,447 kg)

Operating weight (Since 2010)

35,628 lbs (16,161 kg)

Operating weight (Since 2010)

36,055 lbs (16,354 kg)

Operating weight (Since 2010)

35,794 lbs (16,236 kg)

Operating weight (Since 2010)

35,589 lbs (16,143 kg)

Operating weight (Since 2010)

35,056 lbs (15,901 kg)

Operating weight (Since 2010)

35,139 lbs (15,939 kg)

Operating weight (Since 2010)

35,221 lbs (15,976 kg)

Operating weight (Since 2012)

35,056 lbs (15,901 kg)

Operating weight (Since 2012)

35,139 lbs (15,939 kg)

Operating weight (Since 2012)

35,221 lbs (15,976 kg)

Overall height with bucket at maximum lift (Since 2010)

204 in (518 cm)

Overall height with bucket at maximum lift (Since 2010)

210 in (533 cm)

Overall height with bucket at maximum lift (Since 2010)

204 in (518 cm)

Overall height with bucket at maximum lift (2012)

204 in (518 cm)

Overall height with bucket at maximum lift (Since 2012)

210 in (533 cm)

Overall height with bucket at maximum lift (Since 2012)

204 in (518 cm)

Overall height with bucket at maximum lift (Since 2012)

206 in (523 cm)

Overall height with bucket at maximum lift (Since 2012)

208 in (528 cm)

Overall height with bucket at maximum lift (Since 2012)

210 in (533 cm)

Overall length (Since 2010)

299 in (759 cm)

Overall length (Since 2010)

304 in (772 cm)

Overall length (Since 2010)

305 in (775 cm)

Overall length (Since 2010)

310 in (787 cm)

Overall length (Since 2010)

299 in (759 cm)

Overall length (Since 2010)

305 in (775 cm)

Overall length (Since 2012)

299 in (759 cm)

Overall length (Since 2012)

304 in (772 cm)

Overall length (Since 2012)

305 in (775 cm)

Overall length (Since 2012)

310 in (787 cm)

Overall length (Since 2012)

299 in (759 cm)

Overall length (Since 2012)

305 in (775 cm)

Overall length (Since 2012)

301 in (765 cm)

Overall length (Since 2012)

302 in (767 cm)

Overall length (Since 2012)

307 in (780 cm)

Overall length (Since 2012)

309 in (785 cm)

P Reach at full lift and 45° dump (Since 2010)

44 in (112 cm)

P Reach at full lift and 45° dump (2012)

44 in (112 cm)

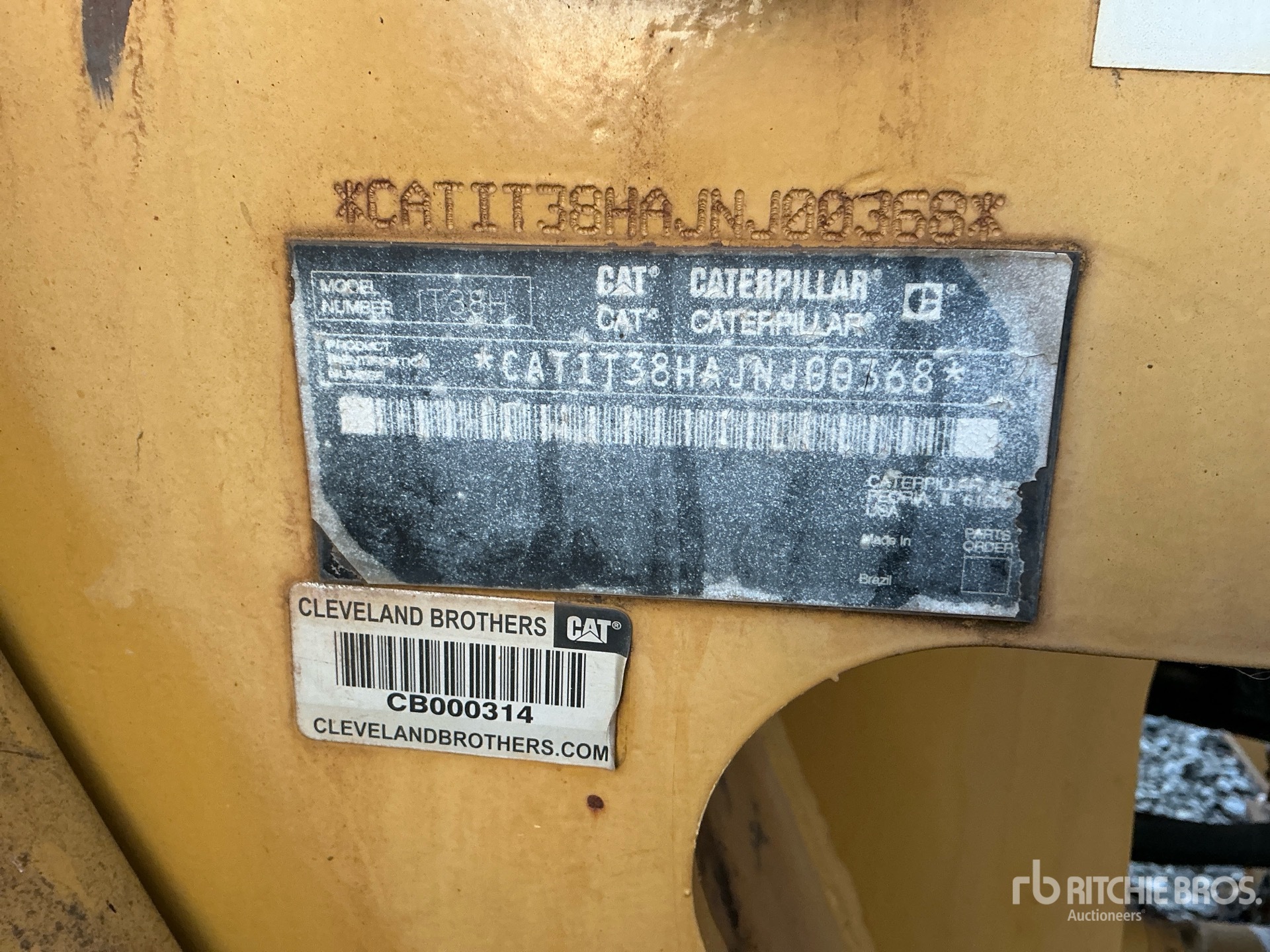

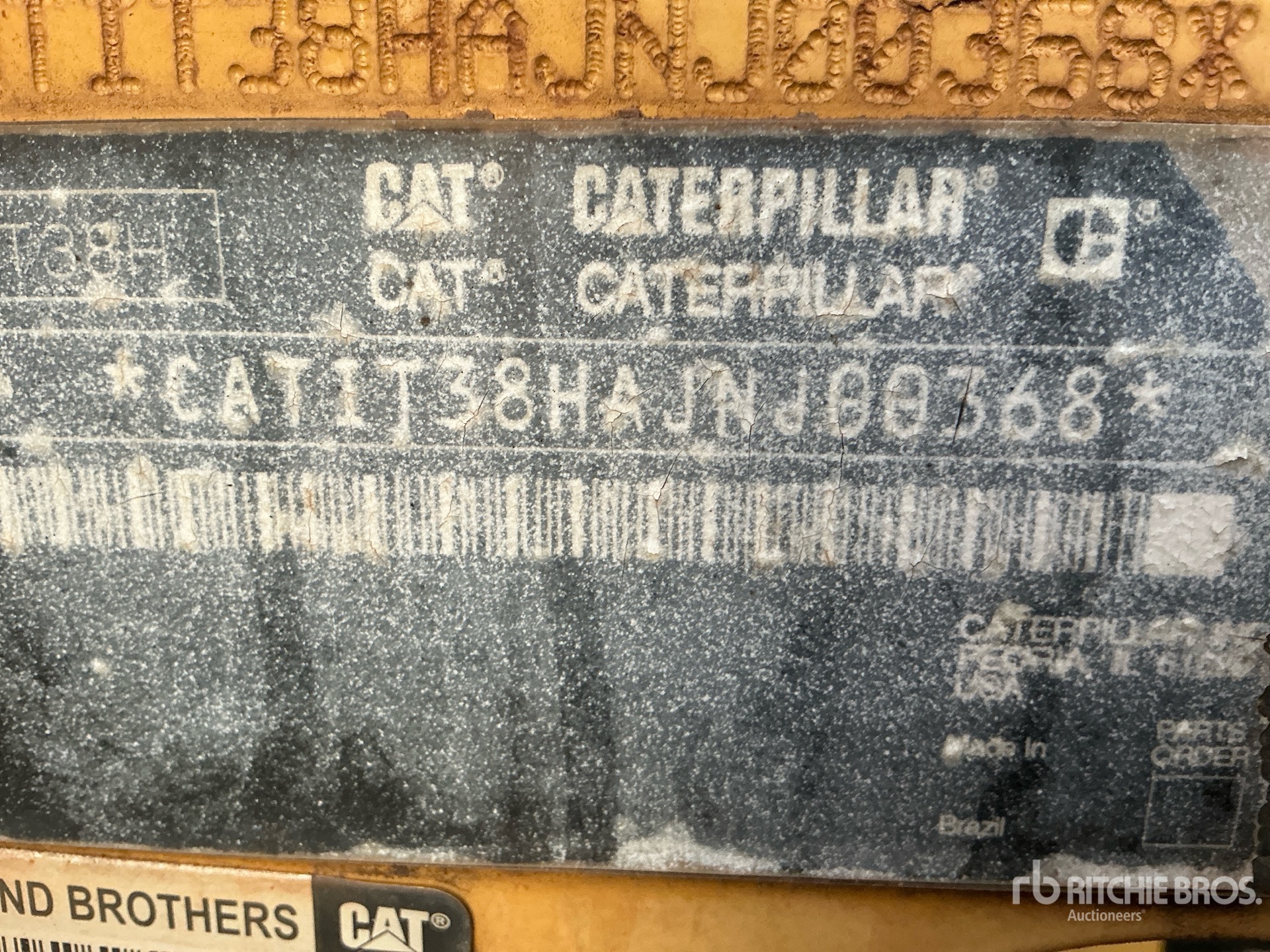

Product Identification Prefix (Since 2007)

JNJ

Product Identification Prefix (2008)

JNJ

Product Identification Prefix (2009)

JNJ

Product Identification Prefix (2010)

JNJ

Product Identification Prefix (2011)

JNJ

Product Identification Prefix (2012)

JNJ

Q Clearance level bucket at full height (Since 2010)

141 in (358 cm)

Q Clearance level bucket at full height (2012)

141 in (358 cm)

R Maximum hinge pin height (Since 2010)

160 in (406 cm)

R Maximum hinge pin height (2012)

160 in (406 cm)

Rated Capacity (Since 2007)

4 cu yd (3 cu m)

Rated Capacity (2008)

4 cu yd (3 cu m)

Rated Capacity (2009)

4 cu yd (3 cu m)

Rated Capacity (2010)

4 cu yd (3 cu m)

Rated Capacity (2011)

4 cu yd (3 cu m)

Rated Capacity (2012)

4 cu yd (3 cu m)

Rated Engine RPM (Since 2010)

2,100 rpm

Rated Engine RPM (2012)

2,100 rpm

Rated load (CEN EN 474-3 firm and level ground) (Since 2010)

13,513 lbs (6,129 kg)

Rated load (CEN EN 474-3 firm and level ground) (Since 2010)

12,799 lbs (5,806 kg)

Rated load (CEN EN 474-3 firm and level ground) (Since 2010)

12,146 lbs (5,509 kg)

Rated load (CEN EN 474-3 firm and level ground) (Since 2012)

13,513 lbs (6,129 kg)

Rated load (CEN EN 474-3 firm and level ground) (Since 2012)

12,799 lbs (5,806 kg)

Rated load (CEN EN 474-3 firm and level ground) (Since 2012)

12,146 lbs (5,509 kg)

Rated load (CEN EN 474-3 rough terrain) (Since 2010)

10,134 lbs (4,597 kg)

Rated load (CEN EN 474-3 rough terrain) (Since 2010)

9,600 lbs (4,354 kg)

Rated load (CEN EN 474-3 rough terrain) (Since 2010)

9,110 lbs (4,132 kg)

Rated load (CEN EN 474-3 rough terrain) (Since 2012)

10,134 lbs (4,597 kg)

Rated load (CEN EN 474-3 rough terrain) (Since 2012)

9,600 lbs (4,354 kg)

Rated load (CEN EN 474-3 rough terrain) (Since 2012)

9,110 lbs (4,132 kg)

Rated load (SAE J1197) (Since 2010)

8,445 lbs (3,831 kg)

Rated load (SAE J1197) (Since 2010)

8,000 lbs (3,629 kg)

Rated load (SAE J1197) (Since 2010)

7,591 lbs (3,443 kg)

Rated load (SAE J1197) (Since 2012)

8,445 lbs (3,831 kg)

Rated load (SAE J1197) (Since 2012)

8,000 lbs (3,629 kg)

Rated load (SAE J1197) (Since 2012)

7,591 lbs (3,443 kg)

Reach at level lift arm and bucket level (Since 2010)

98 in (249 cm)

Reach at level lift arm and bucket level (Since 2010)

103 in (262 cm)

Reach at level lift arm and bucket level (Since 2010)

104 in (264 cm)

Reach at level lift arm and bucket level (Since 2010)

109 in (277 cm)

Reach at level lift arm and bucket level (Since 2010)

98 in (249 cm)

Reach at level lift arm and bucket level (Since 2010)

103 in (262 cm)

Reach at level lift arm and bucket level (Since 2012)

98 in (249 cm)

Reach at level lift arm and bucket level (Since 2012)

103 in (262 cm)

Reach at level lift arm and bucket level (Since 2012)

104 in (264 cm)

Reach at level lift arm and bucket level (Since 2012)

109 in (277 cm)

Reach at level lift arm and bucket level (Since 2012)

98 in (249 cm)

Reach at level lift arm and bucket level (Since 2012)

103 in (262 cm)

Reach at level lift arm and bucket level (Since 2012)

100 in (254 cm)

Reach at level lift arm and bucket level (Since 2012)

101 in (257 cm)

Reach at level lift arm and bucket level (Since 2012)

105 in (267 cm)

Reach at level lift arm and bucket level (Since 2012)

107 in (272 cm)

Reach at maximum lift and 45° discharge (Since 2010)

48 in (122 cm)

Reach at maximum lift and 45° discharge (Since 2010)

51 in (130 cm)

Reach at maximum lift and 45° discharge (Since 2010)

52 in (132 cm)

Reach at maximum lift and 45° discharge (Since 2010)

55 in (140 cm)

Reach at maximum lift and 45° discharge (Since 2010)

44 in (112 cm)

Reach at maximum lift and 45° discharge (Since 2010)

48 in (122 cm)

Reach at maximum lift and 45° discharge (2012)

48 in (122 cm)

Reach at maximum lift and 45° discharge (Since 2012)

51 in (130 cm)

Reach at maximum lift and 45° discharge (Since 2012)

52 in (132 cm)

Reach at maximum lift and 45° discharge (Since 2012)

55 in (140 cm)

Reach at maximum lift and 45° discharge (Since 2012)

44 in (112 cm)

Reach at maximum lift and 45° discharge (Since 2012)

48 in (122 cm)

Reach at maximum lift and 45° discharge (Since 2012)

46 in (117 cm)

Reach at maximum lift and 45° discharge (Since 2012)

47 in (119 cm)

Reach at maximum lift and 45° discharge (Since 2012)

48 in (122 cm)

Reach at maximum lift and 45° discharge (Since 2012)

49 in (124 cm)

Reach at maximum lift and 45° discharge (Since 2012)

50 in (127 cm)

Reach at maximum lift and 45° discharge (Since 2012)

52 in (132 cm)

S Maximum overall height (Since 2010)

204 in (518 cm)

S Maximum overall height (2012)

204 in (518 cm)

Speeds Forward - 1st (Since 2012)

5 mph (8 kph)

Speeds Forward - 2nd (Since 2012)

9 mph (14 kph)

Speeds Forward - 3rd (Since 2012)

16 mph (25 kph)

Speeds Forward - 4th (Since 2012)

26 mph (41 kph)

Speeds Reverse - 1st (Since 2010)

7.9 4.9

Speeds Reverse - 1st (Since 2012)

5 mph (8 kph)

Speeds Reverse - 2nd (Since 2010)

14.2 8.8

Speeds Reverse - 2nd (Since 2012)

9 mph (14 kph)

Speeds Reverse - 3rd (Since 2012)

16 mph (25 kph)

Speeds Reverse - Dump (Since 2010)

1.4 2.0

Speeds Reverse - Lower - (Empty, Float Down) (Since 2010)

2.7 2.7

Speeds Reverse - Raise (Since 2010)

5.4 5.0

Speeds Reverse - Rated Load in Bucket (Since 2010)

938H IT38H

Speeds Reverse - Total (Since 2010)

9.5 9.7

Static tipping load - - articulated maximum 40° turn (Since 2012)

19,795 lbs (8,979 kg)

Static tipping load - - articulated maximum 40° turn (Since 2012)

19,297 lbs (8,753 kg)

Static tipping load - - articulated maximum 40° turn (Since 2012)

19,588 lbs (8,885 kg)

Static tipping load - - articulated maximum 40° turn (Since 2012)

19,086 lbs (8,657 kg)

Static tipping load - - articulated maximum 40° turn (Since 2012)

20,016 lbs (9,079 kg)

Static tipping load - - articulated maximum 40° turn (Since 2012)

19,944 lbs (9,046 kg)

Static tipping load - - articulated maximum 40° turn (Since 2012)

19,738 lbs (8,953 kg)

Static tipping load - - articulated maximum 40° turn (Since 2012)

20,161 lbs (9,145 kg)

Static tipping load - - articulated maximum 40° turn (Since 2012)

19,509 lbs (8,849 kg)

Static tipping load - - articulated maximum 40° turn (Since 2012)

19,782 lbs (8,973 kg)

Static tipping load - - articulated maximum 40° turn (Since 2012)

19,635 lbs (8,906 kg)

Static tipping load - - articulated maximum 40° turn (Since 2012)

19,484 lbs (8,838 kg)

Static tipping load - - articulated maximum 40° turn (Since 2012)

19,574 lbs (8,879 kg)

Static tipping load - - articulated maximum 40° turn (Since 2012)

19,426 lbs (8,812 kg)

Static tipping load - - articulated maximum 40° turn (Since 2012)

19,273 lbs (8,742 kg)

Static tipping load - - articulated maximum 40° turn (Since 2012)

19,996 lbs (9,070 kg)

Static tipping load - - articulated maximum 40° turn (Since 2012)

19,846 lbs (9,002 kg)

Static tipping load - - articulated maximum 40° turn (Since 2012)

19,693 lbs (8,933 kg)

Static tipping load - - Breakout force (Since 2012)

29,314 lbf (130 kN)

Static tipping load - - Breakout force (Since 2012)

27,709 lbf (123 kN)

Static tipping load - - Breakout force (Since 2012)

27,572 lbf (123 kN)

Static tipping load - - Breakout force (Since 2012)

29,527 lbf (131 kN)

Static tipping load - - Breakout force (Since 2012)

25,899 lbf (115 kN)

Static tipping load - - Breakout force (Since 2012)

26,553 lbf (118 kN)

Static tipping load - - Breakout force (Since 2012)

25,566 lbf (114 kN)

Static tipping load - - Breakout force (Since 2012)

24,605 lbf (110 kN)

Static tipping load - - Breakout force (Since 2012)

26,414 lbf (118 kN)

Static tipping load - - Breakout force (Since 2012)

25,427 lbf (113 kN)

Static tipping load - - Breakout force (Since 2012)

24,464 lbf (109 kN)

Static tipping load - - Breakout force (Since 2012)

28,227 lbf (126 kN)

Static tipping load - - Breakout force (Since 2012)

27,123 lbf (121 kN)

Static tipping load - - Breakout force (Since 2012)

26,051 lbf (116 kN)

Static tipping load - - Breakout force (Since 2012)

27,514 lbf (122 kN)

Static tipping load - - Breakout force (Since 2012)

24,460 lbf (109 kN)

Static tipping load - - Breakout force (Since 2012)

27,376 lbf (122 kN)

Static tipping load - - Breakout force (Since 2012)

24,320 lbf (108 kN)
