2000 Champion 710A For Sale in Bowie, TX

Name: 2000 Champion 710A
Brand: Champion
SKU: 88862785
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-08-06 Click here to place a bid Minimum Bid: $5

Royal Auction Group, Inc.

Royal Auction Group, Inc. Dealer Info

Royal Auction Group, Inc. Website

Click here to email Royal Auction Group, Inc..

Click for Phone Number

Machine Info:

Machine Location:	BOWIE, TX
More Information:	https://www.proxibid.com:443/heavy-construction-equipment/motor-graders/2000-champion-710a-articulated-motor-grader/lotInformation/102158213?utm_source=ceg&utm_medium=referral&utm_campaign=atgxl_ceg&utm_content=73143

Description:

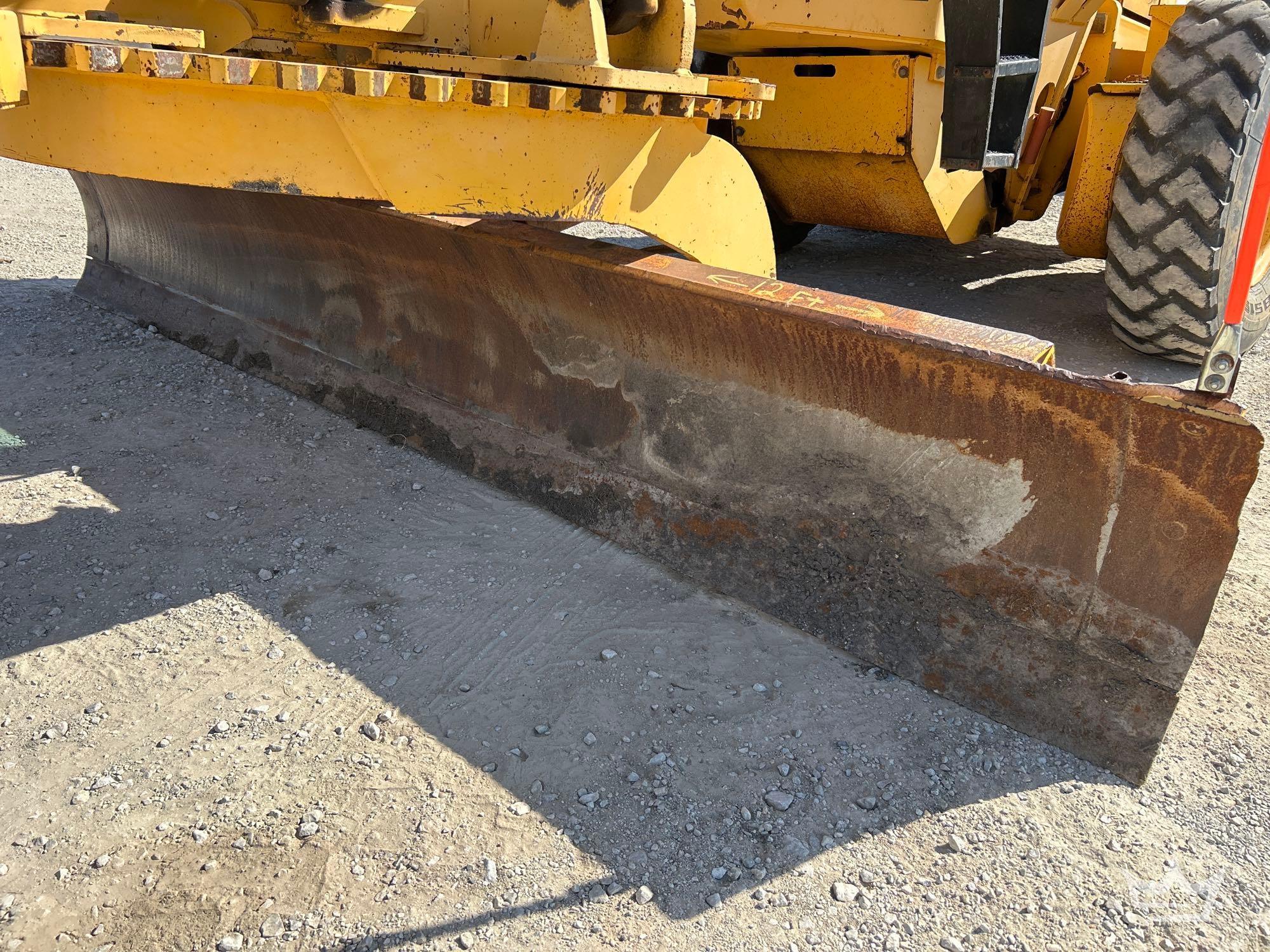

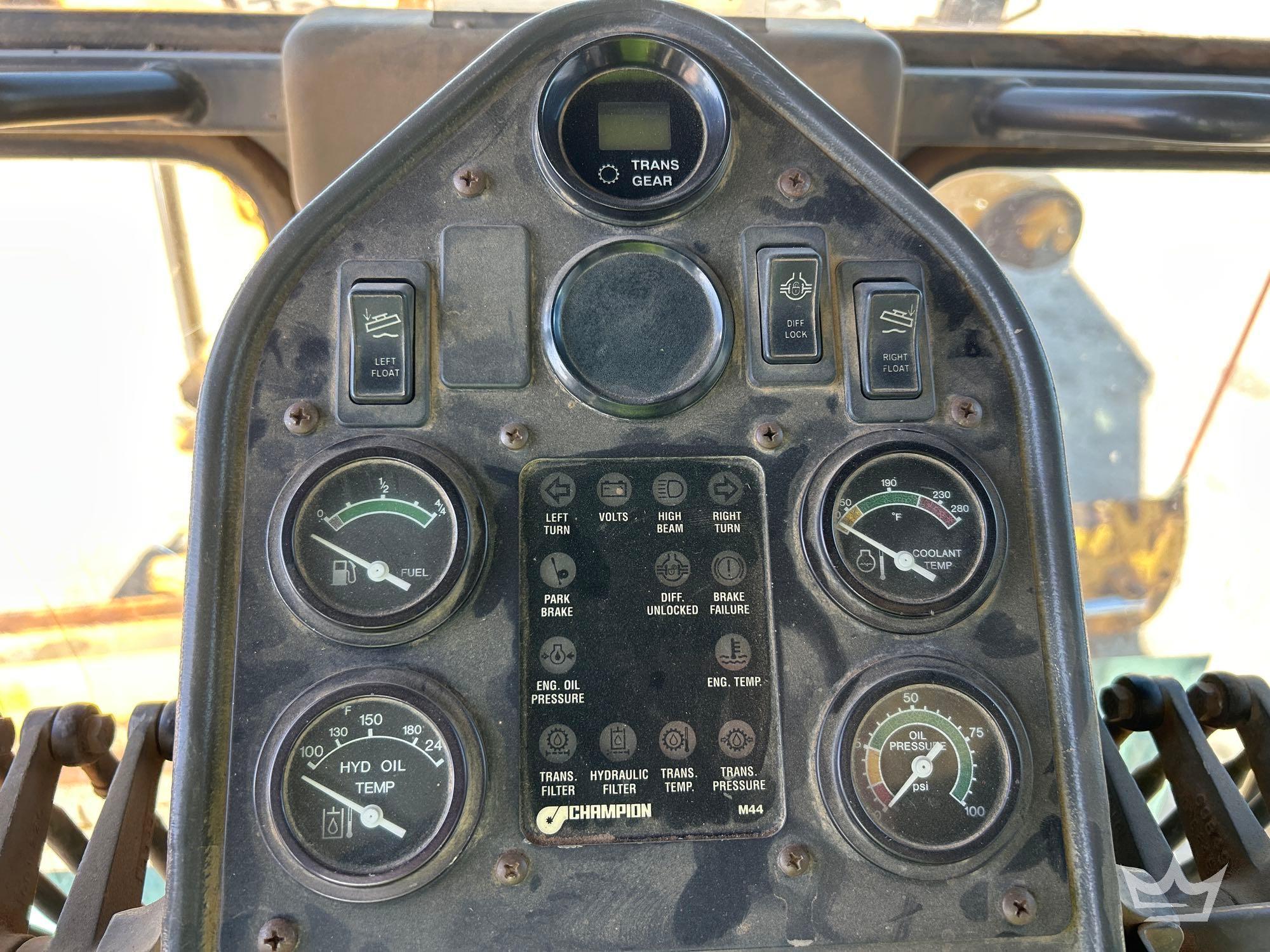

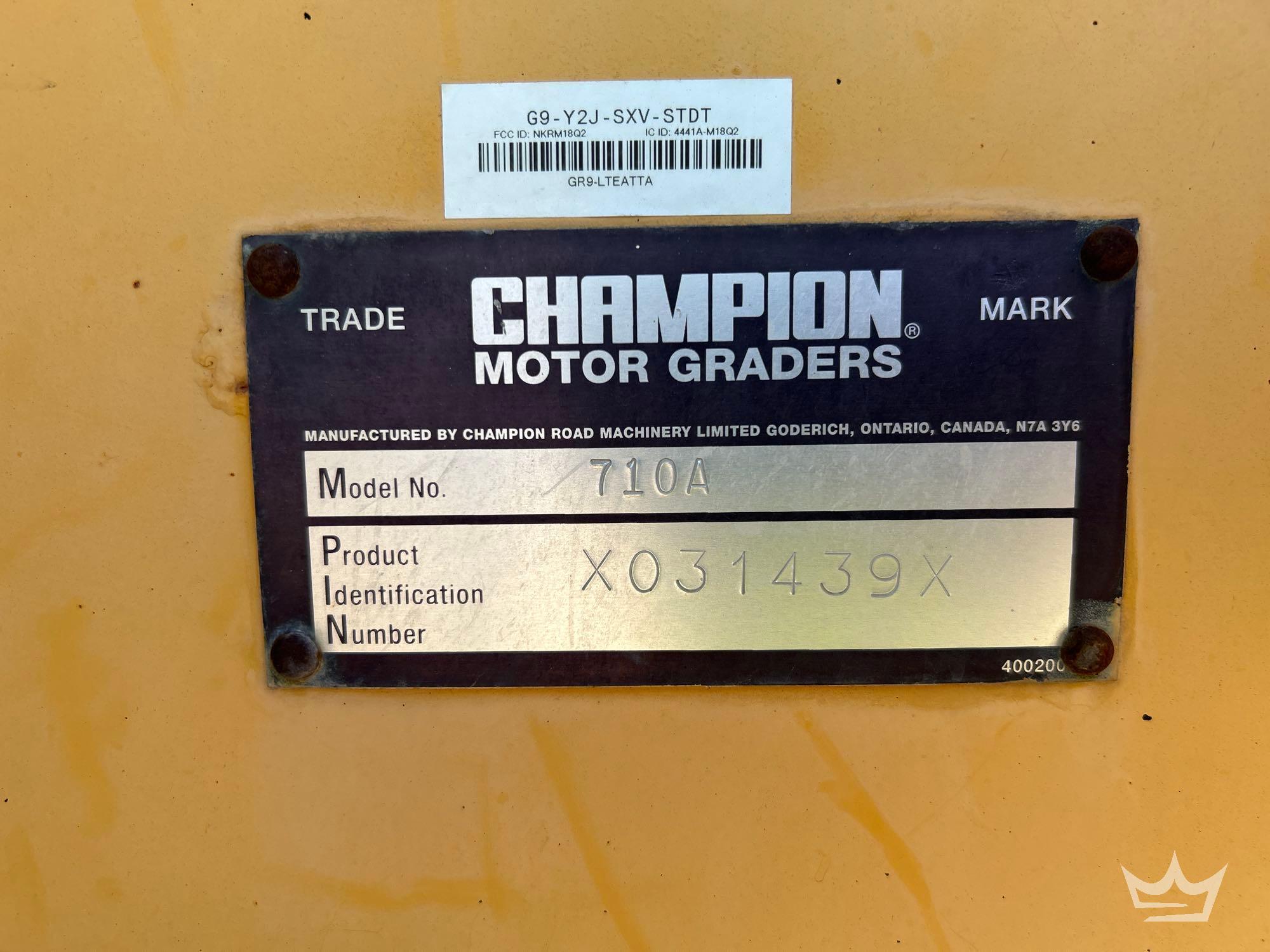

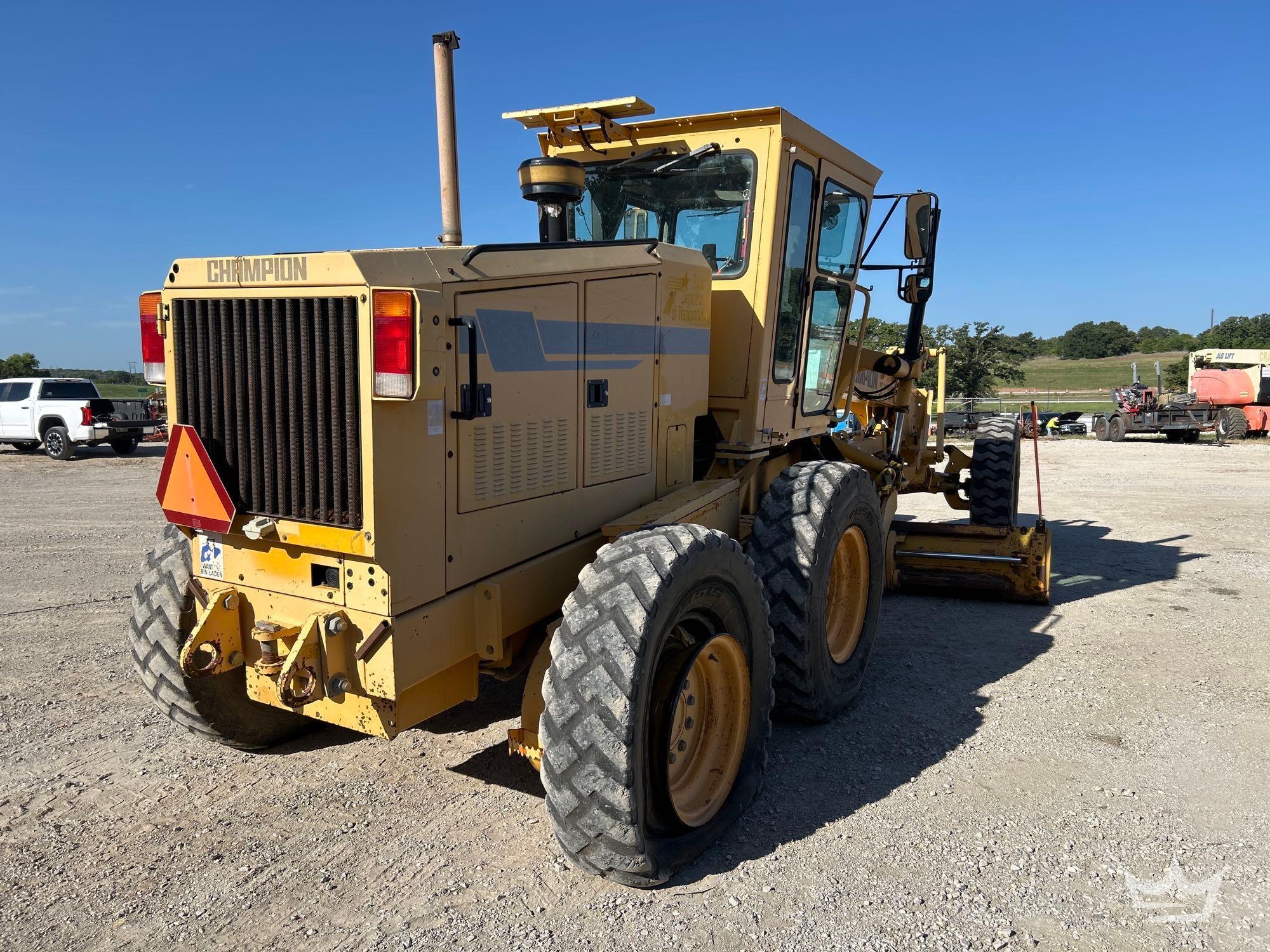

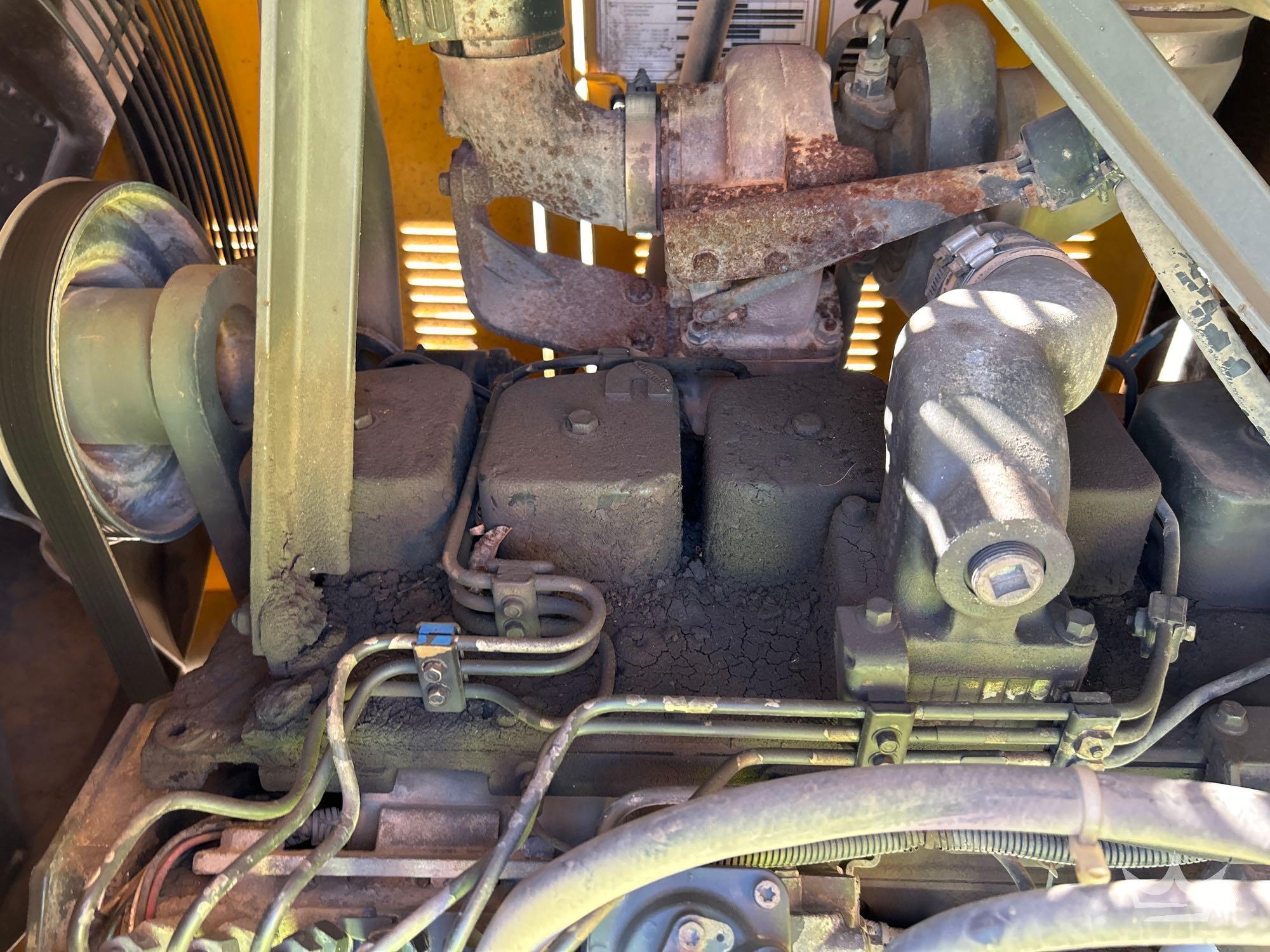

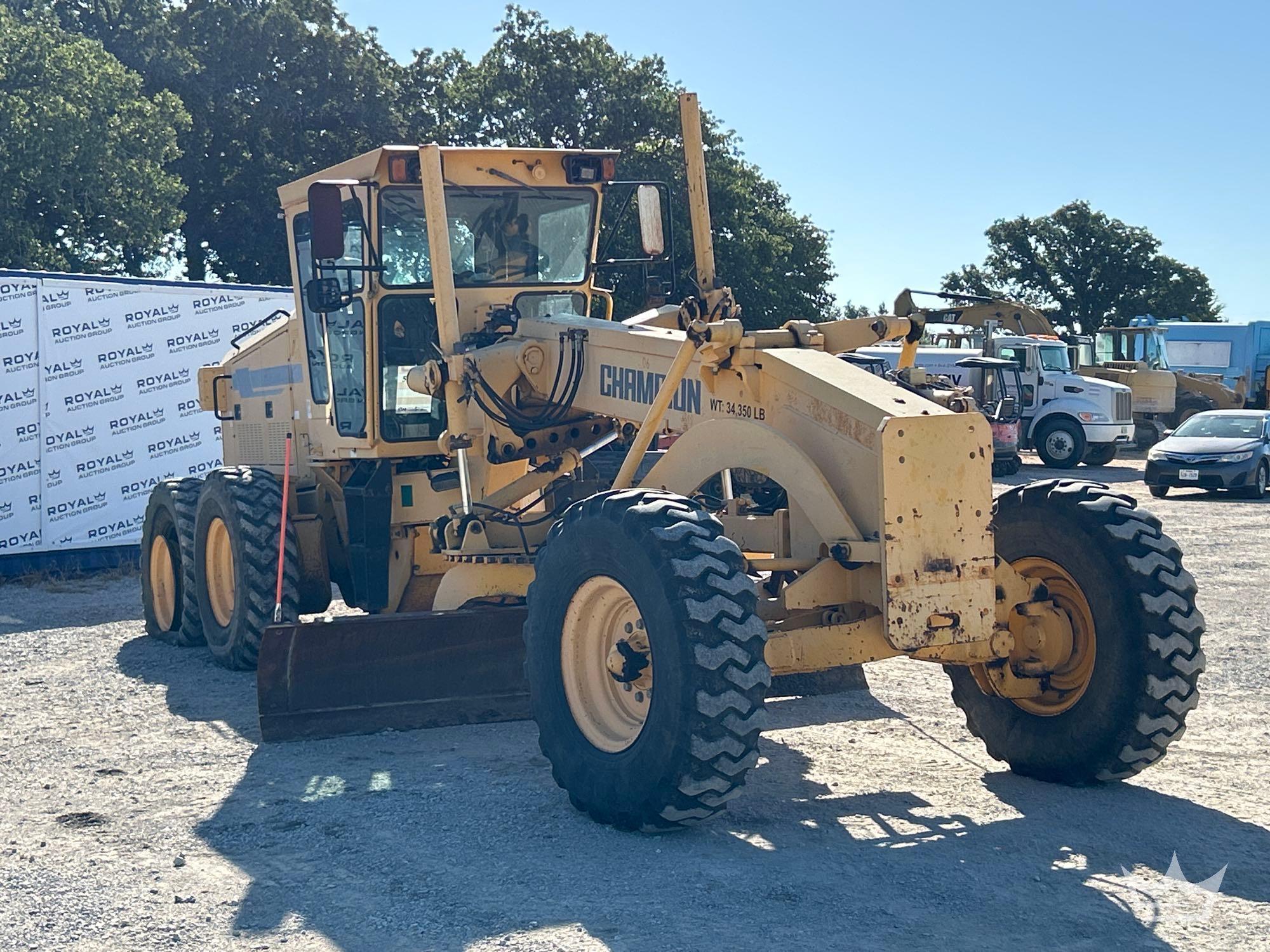

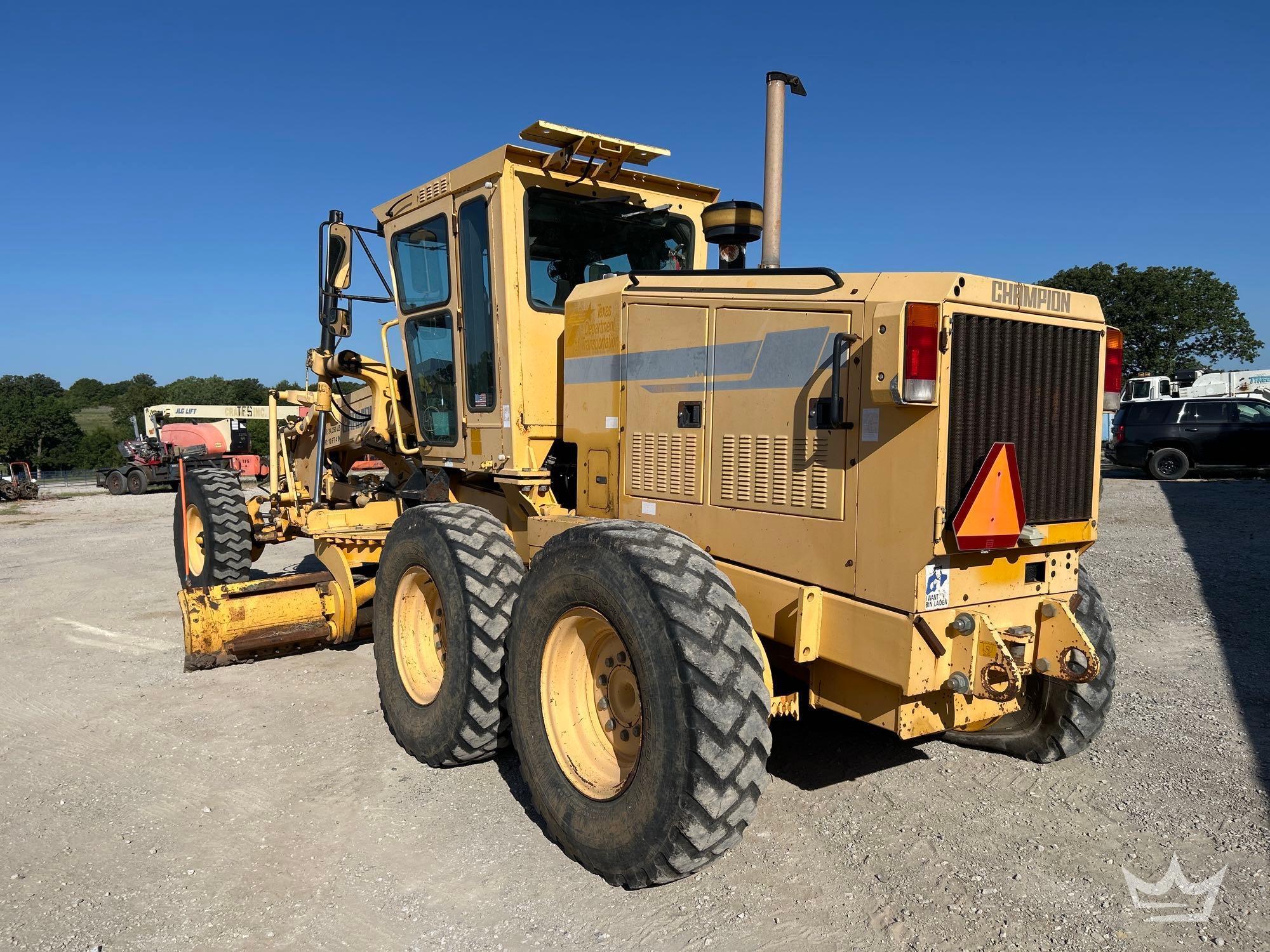

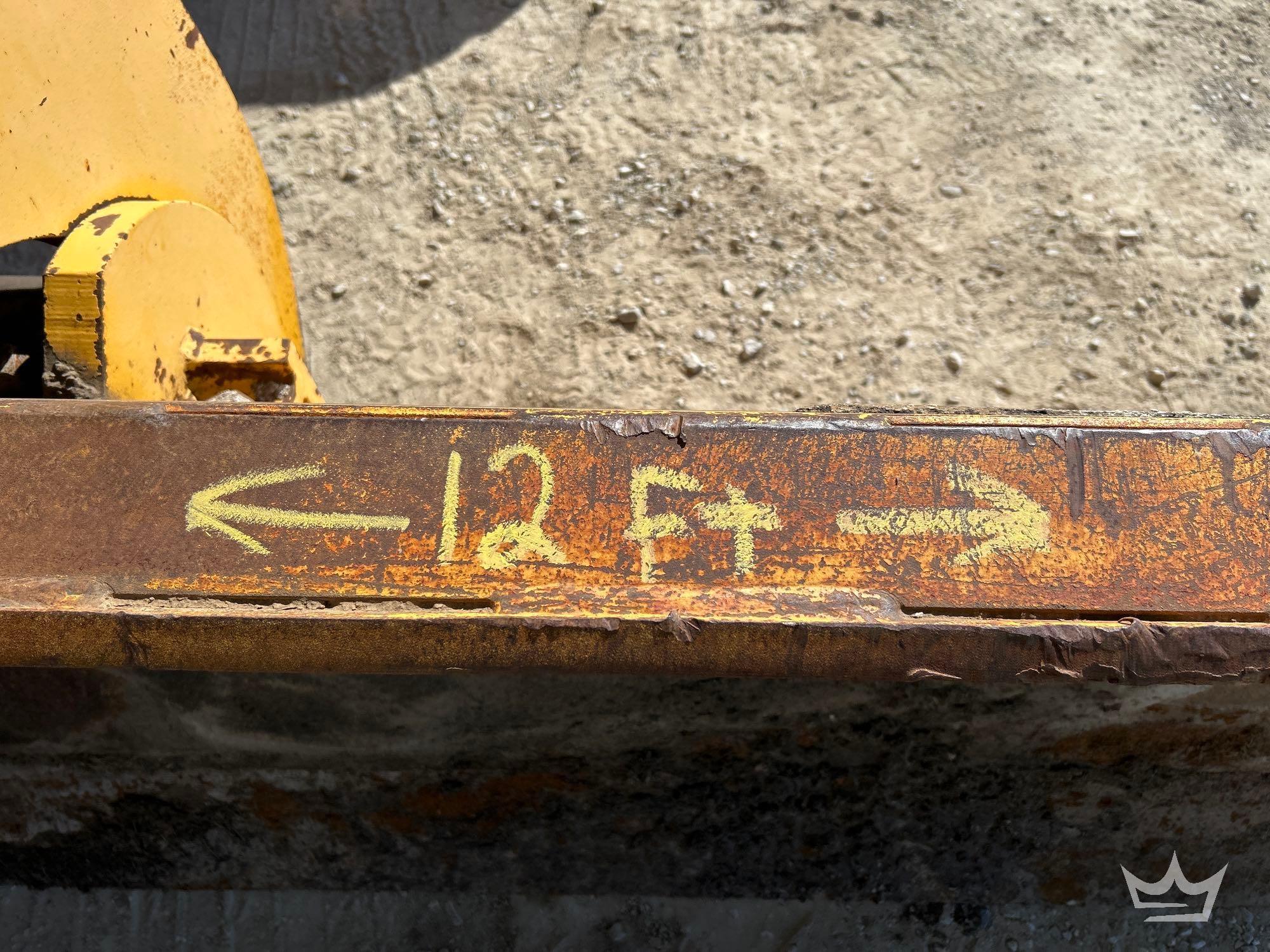

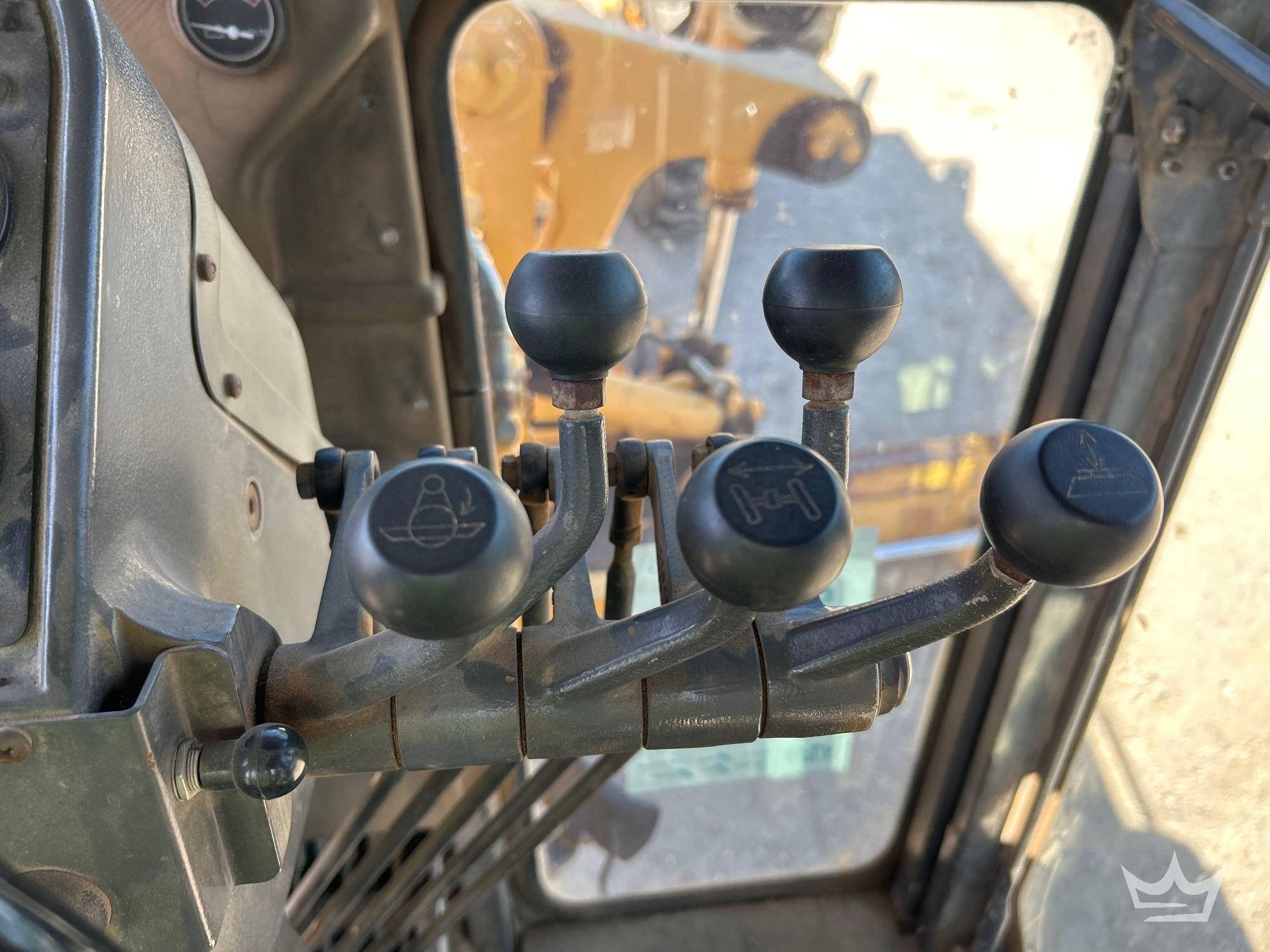

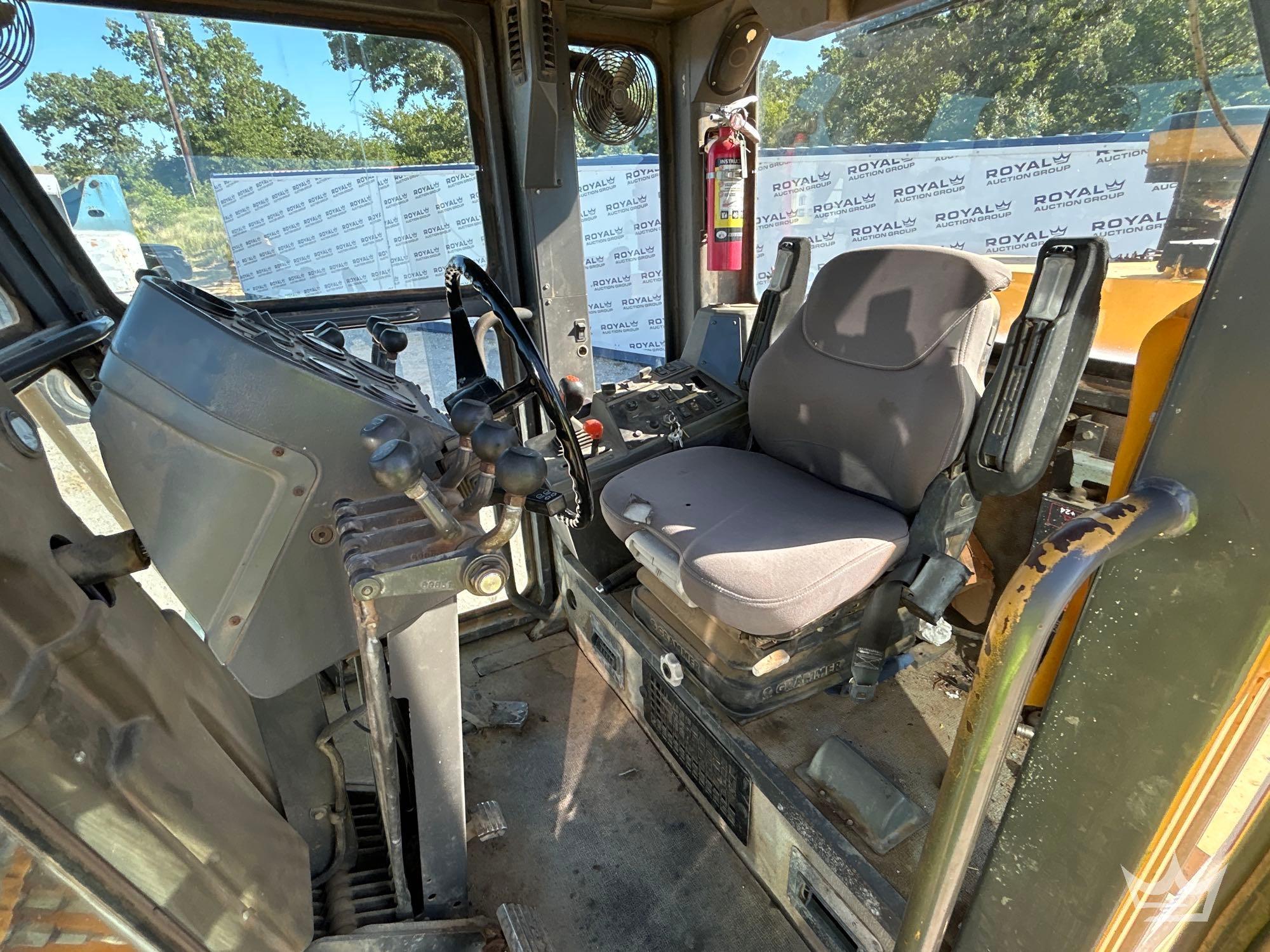

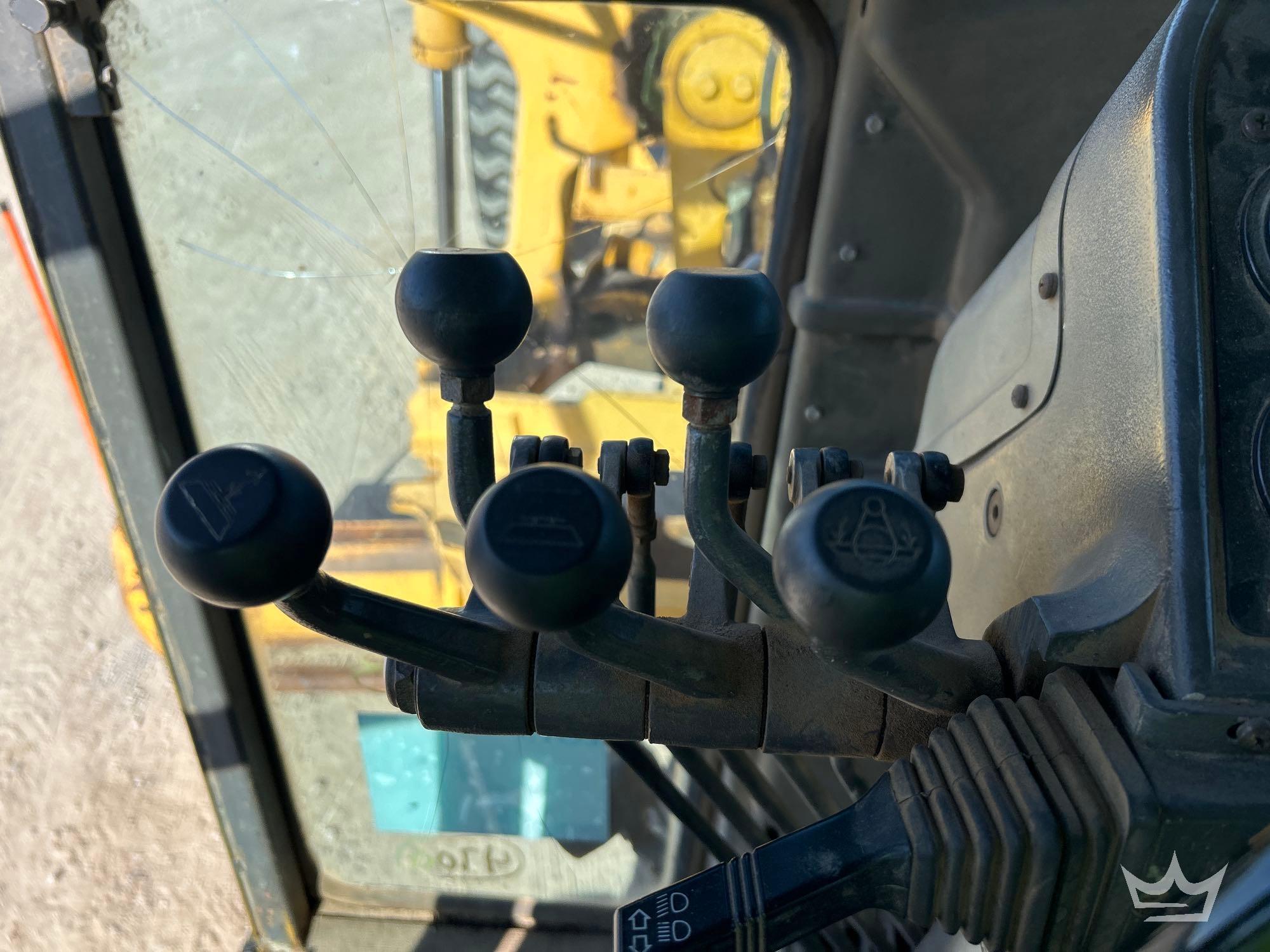

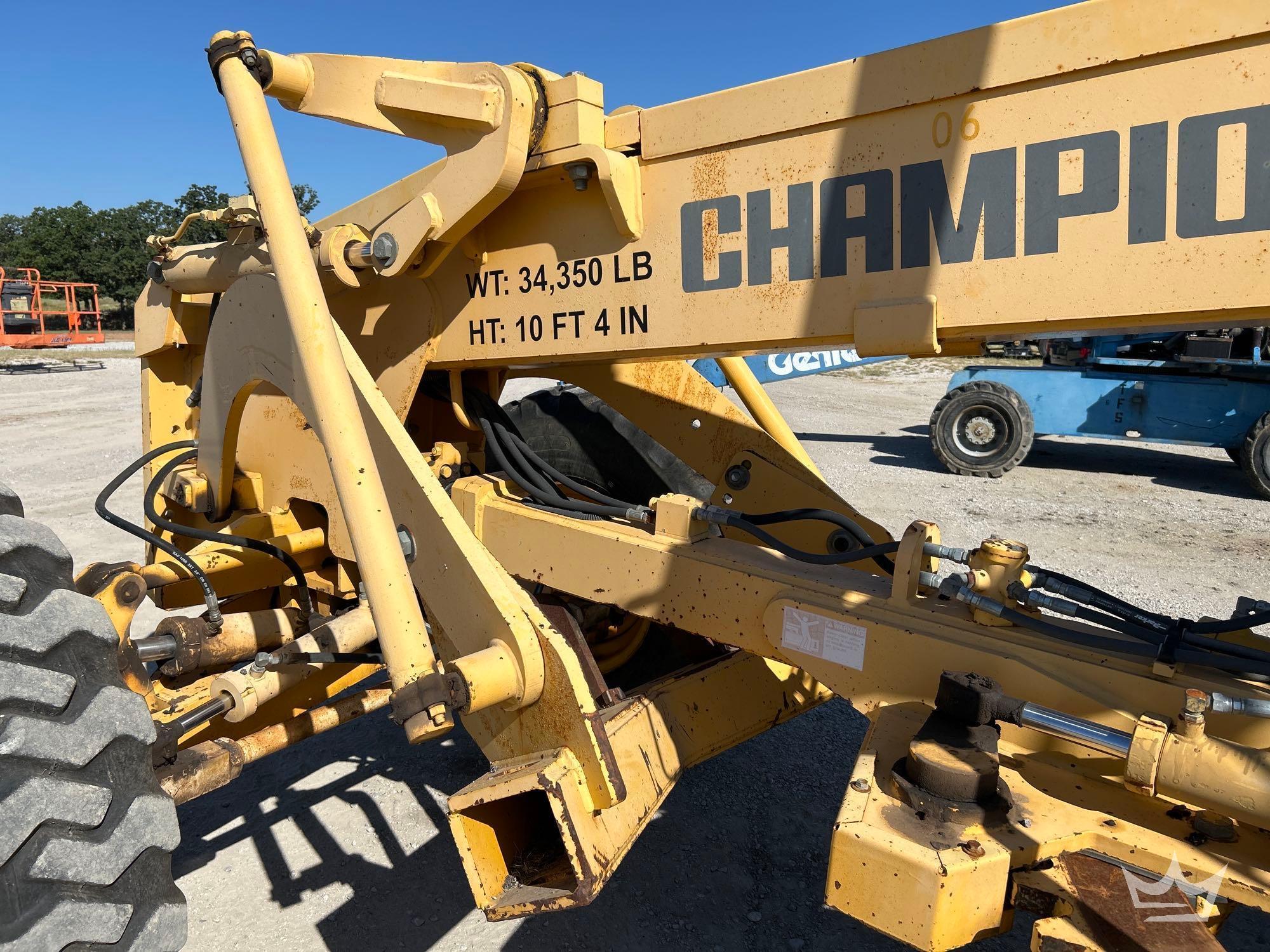

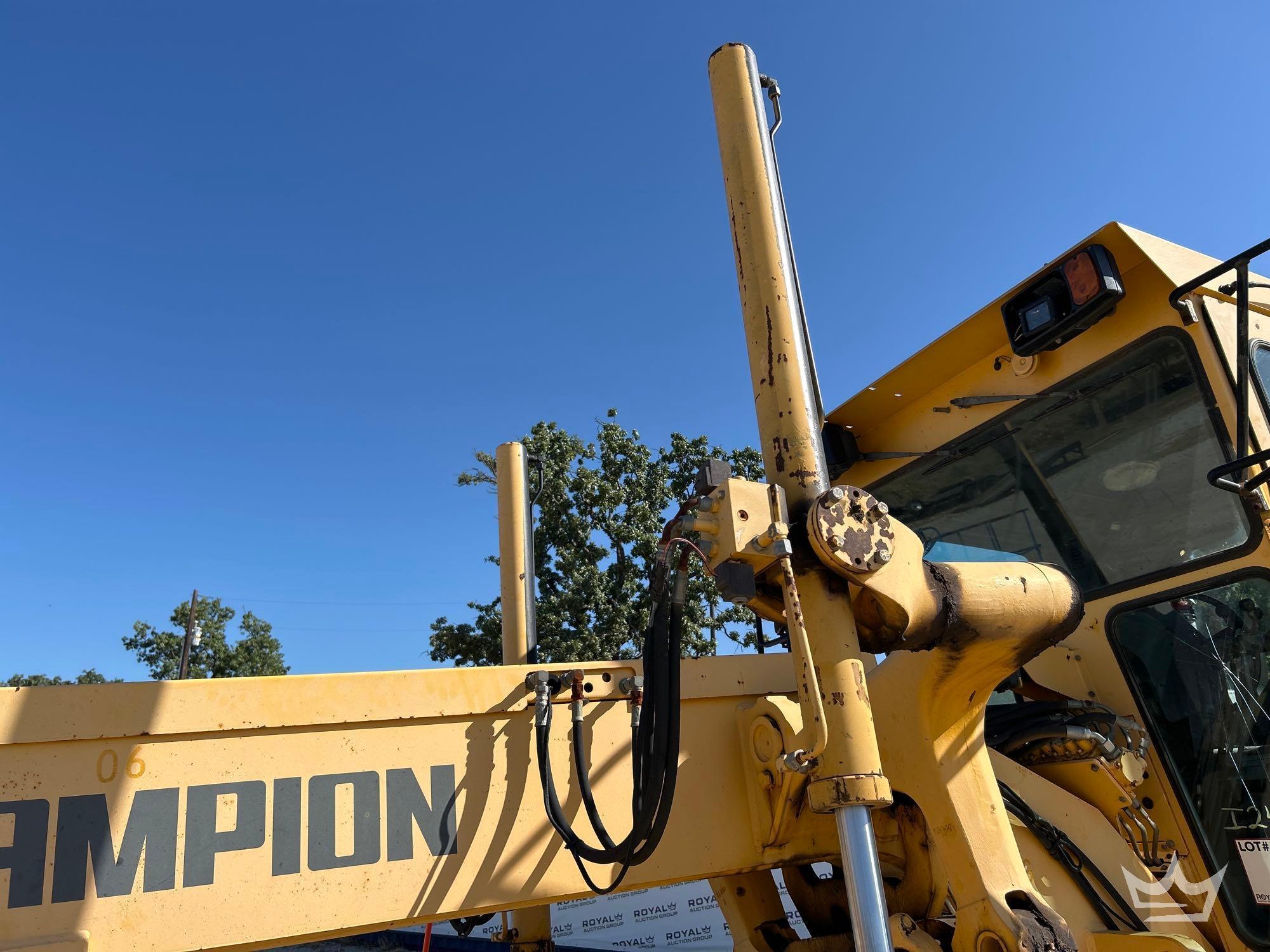

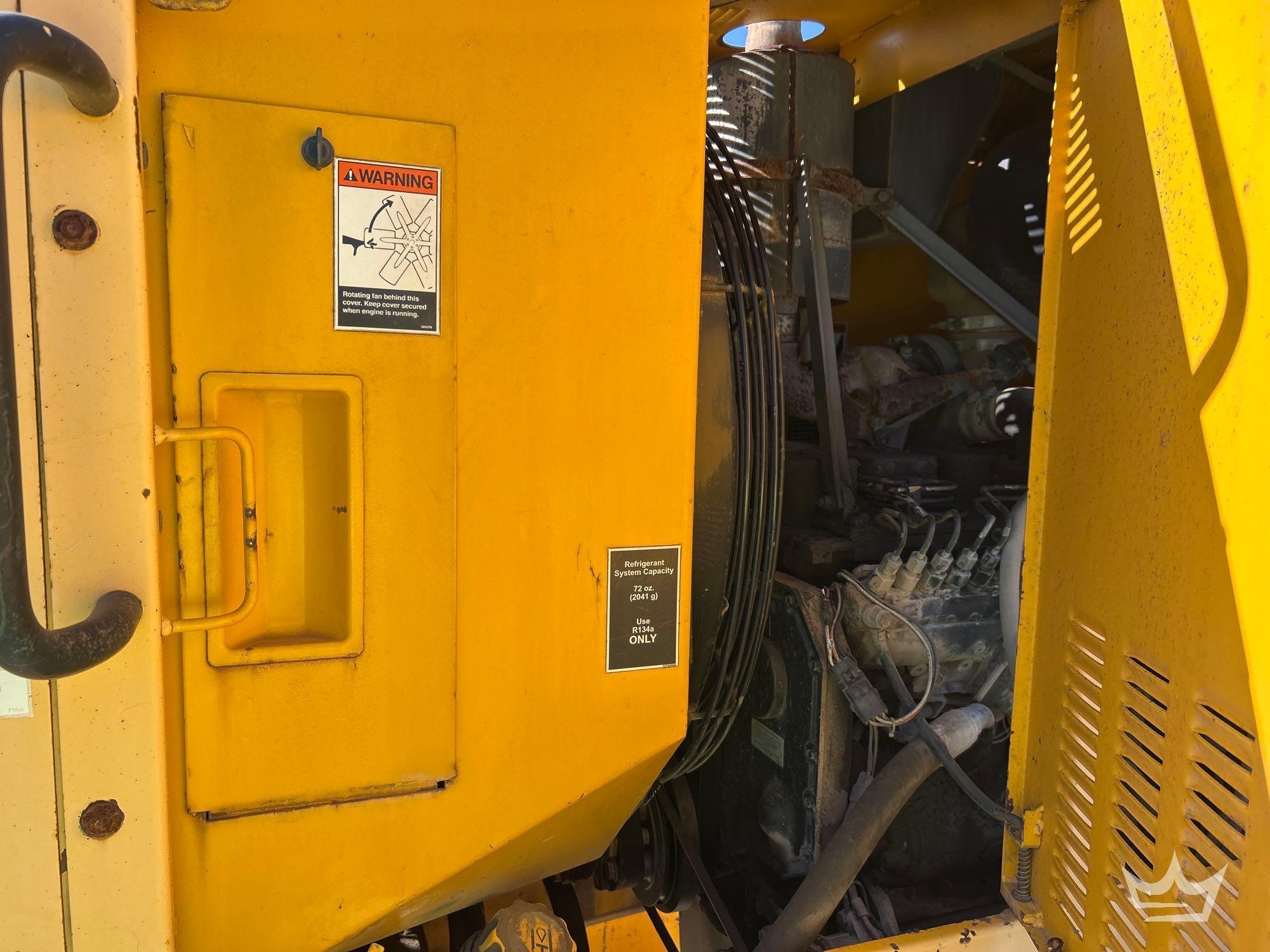

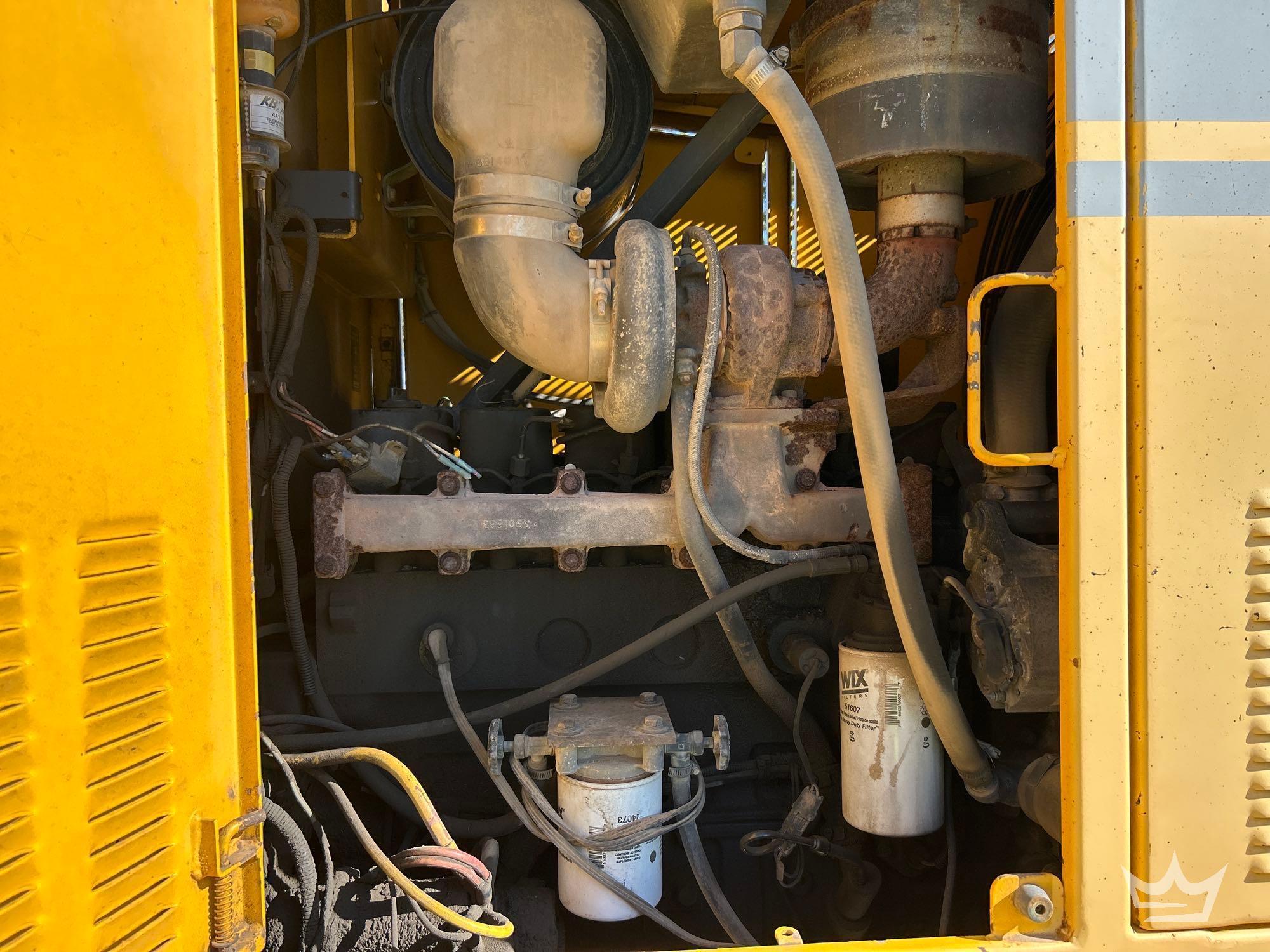

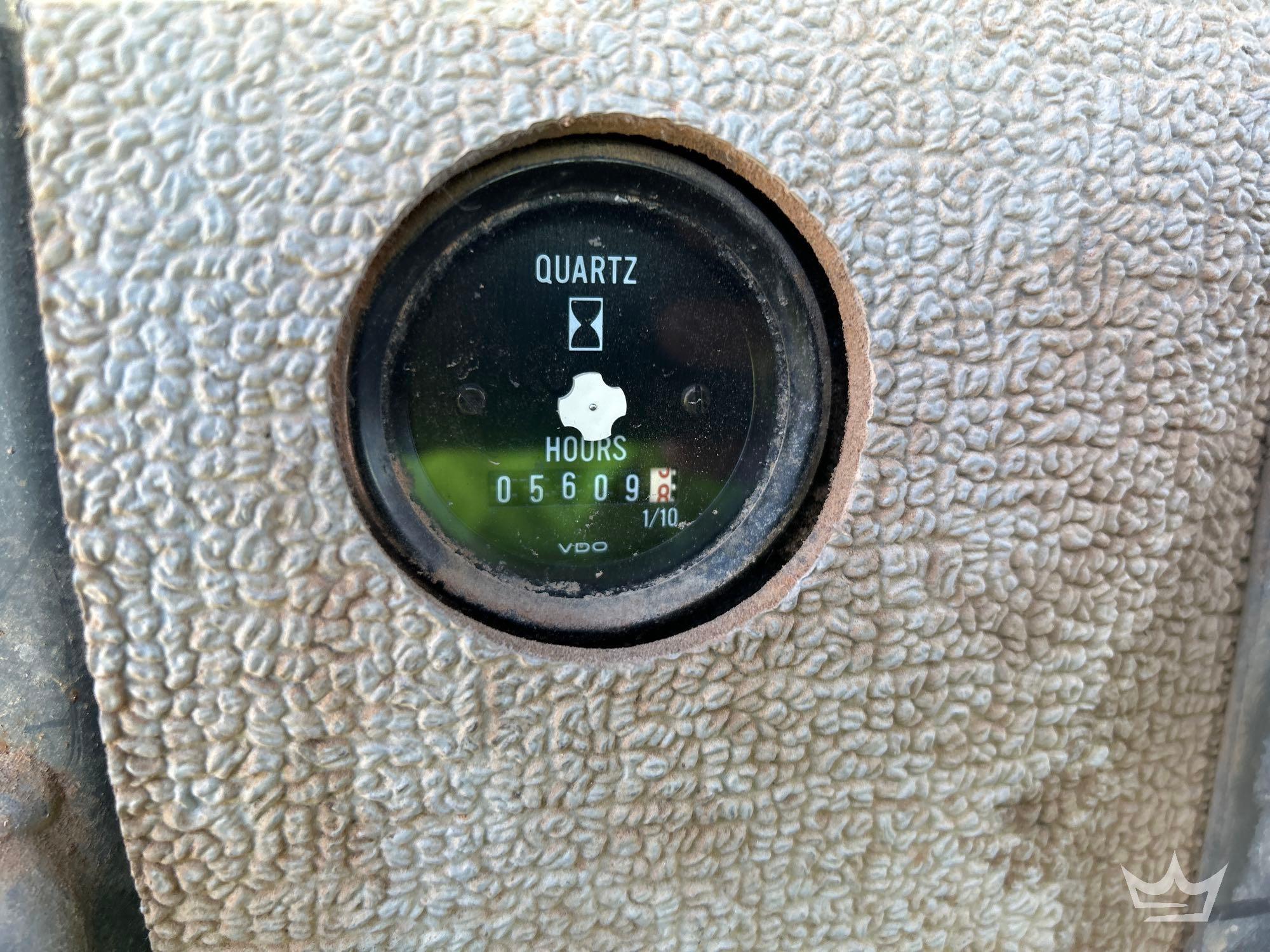

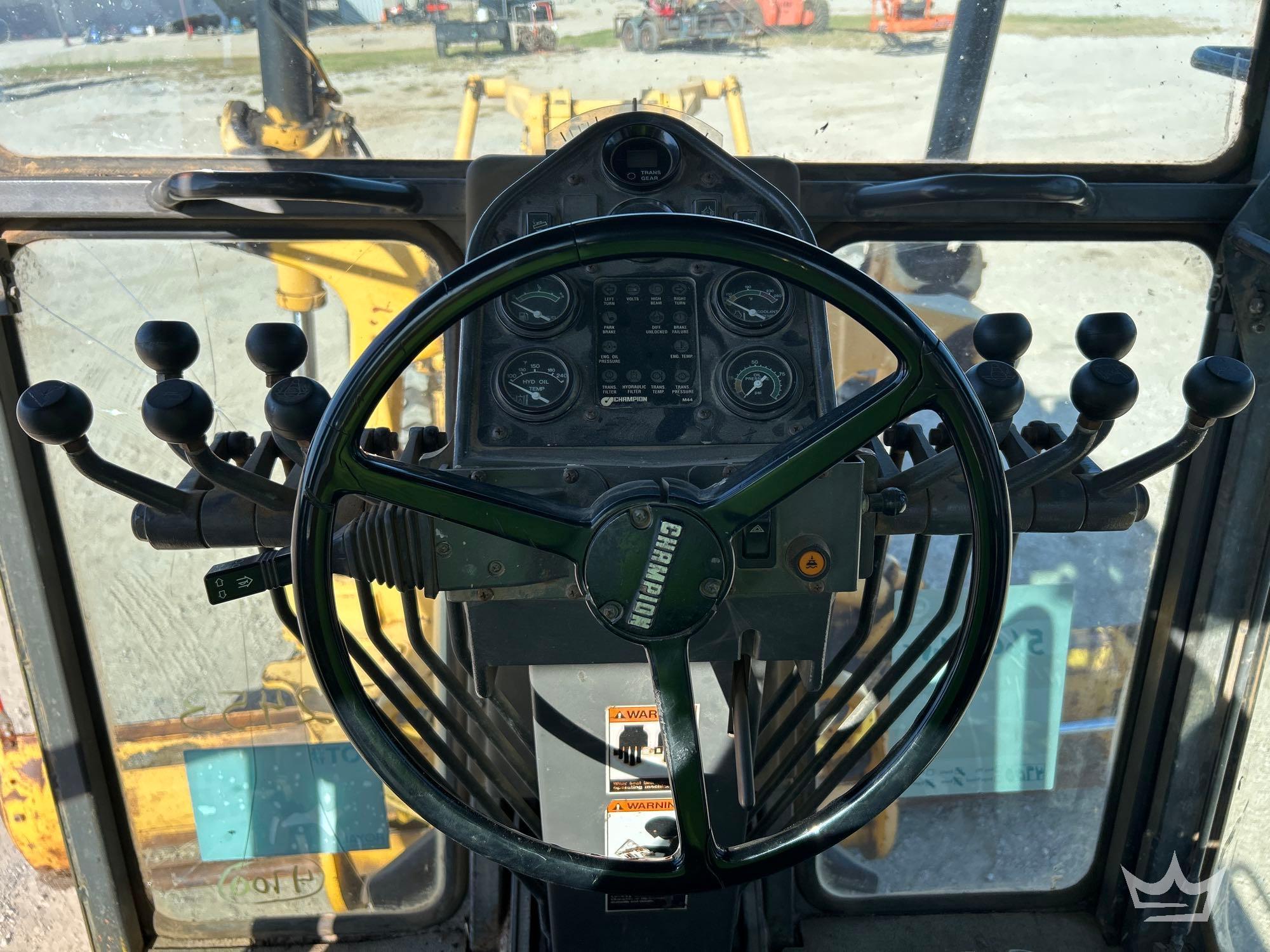

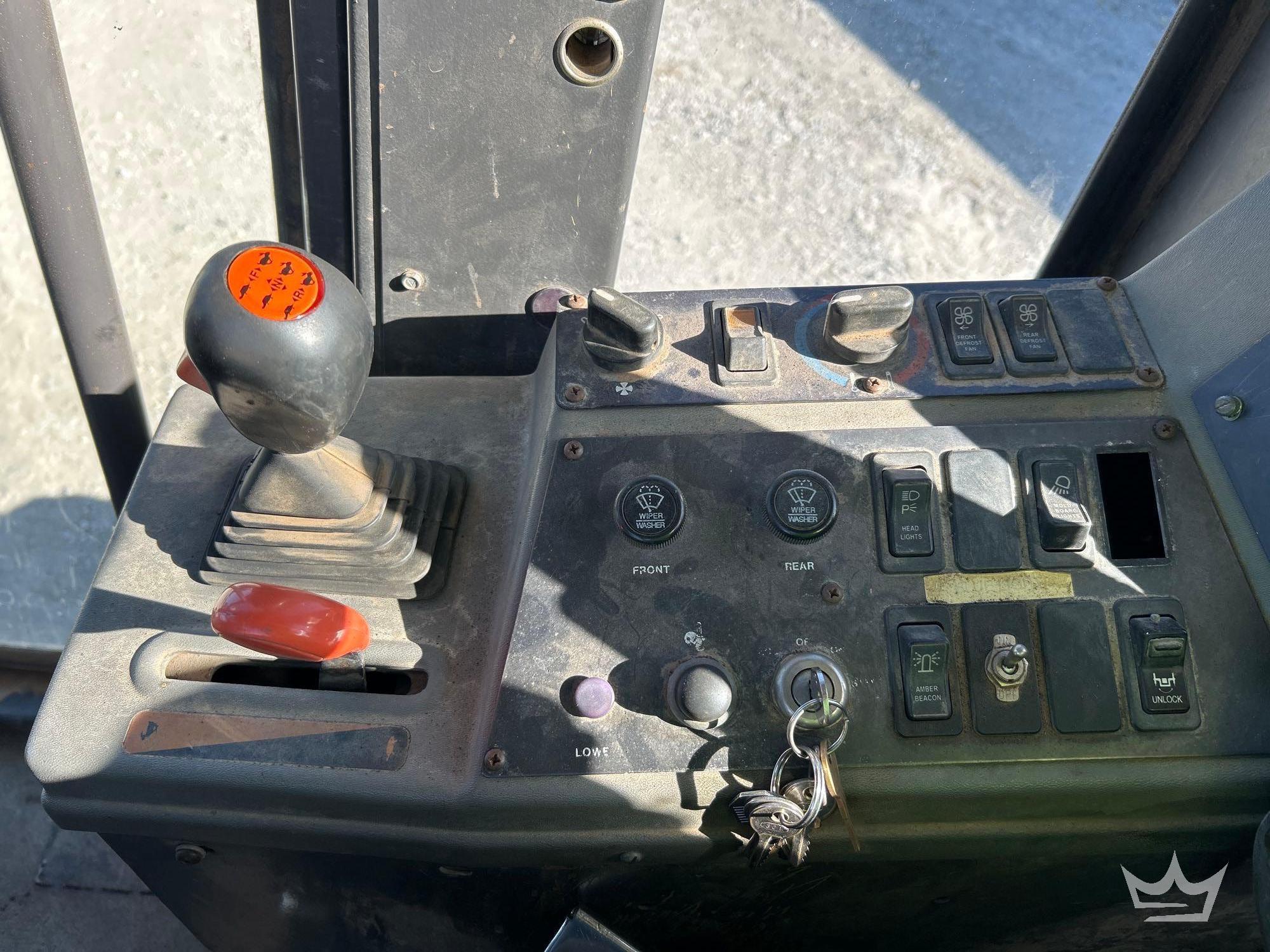

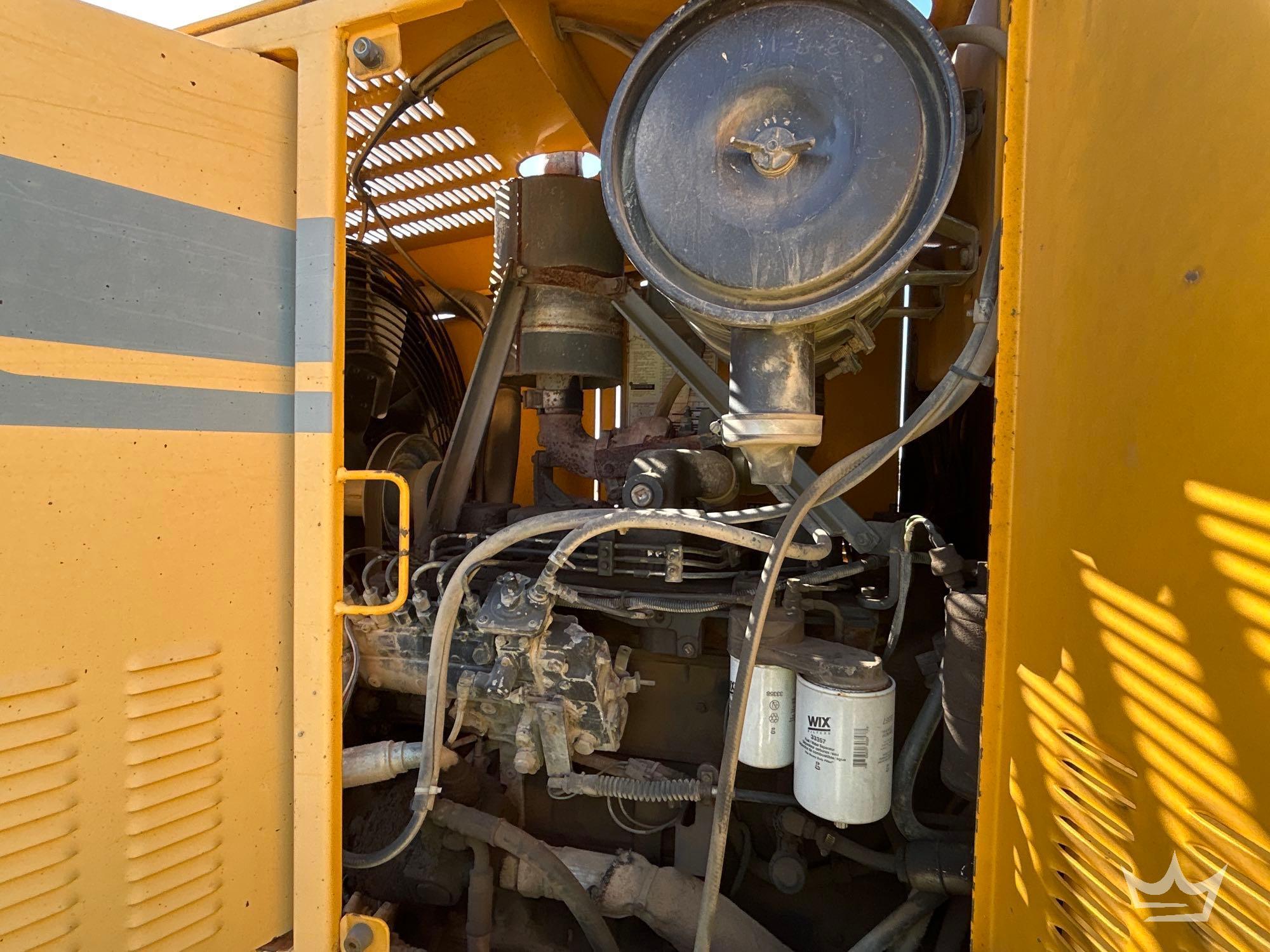

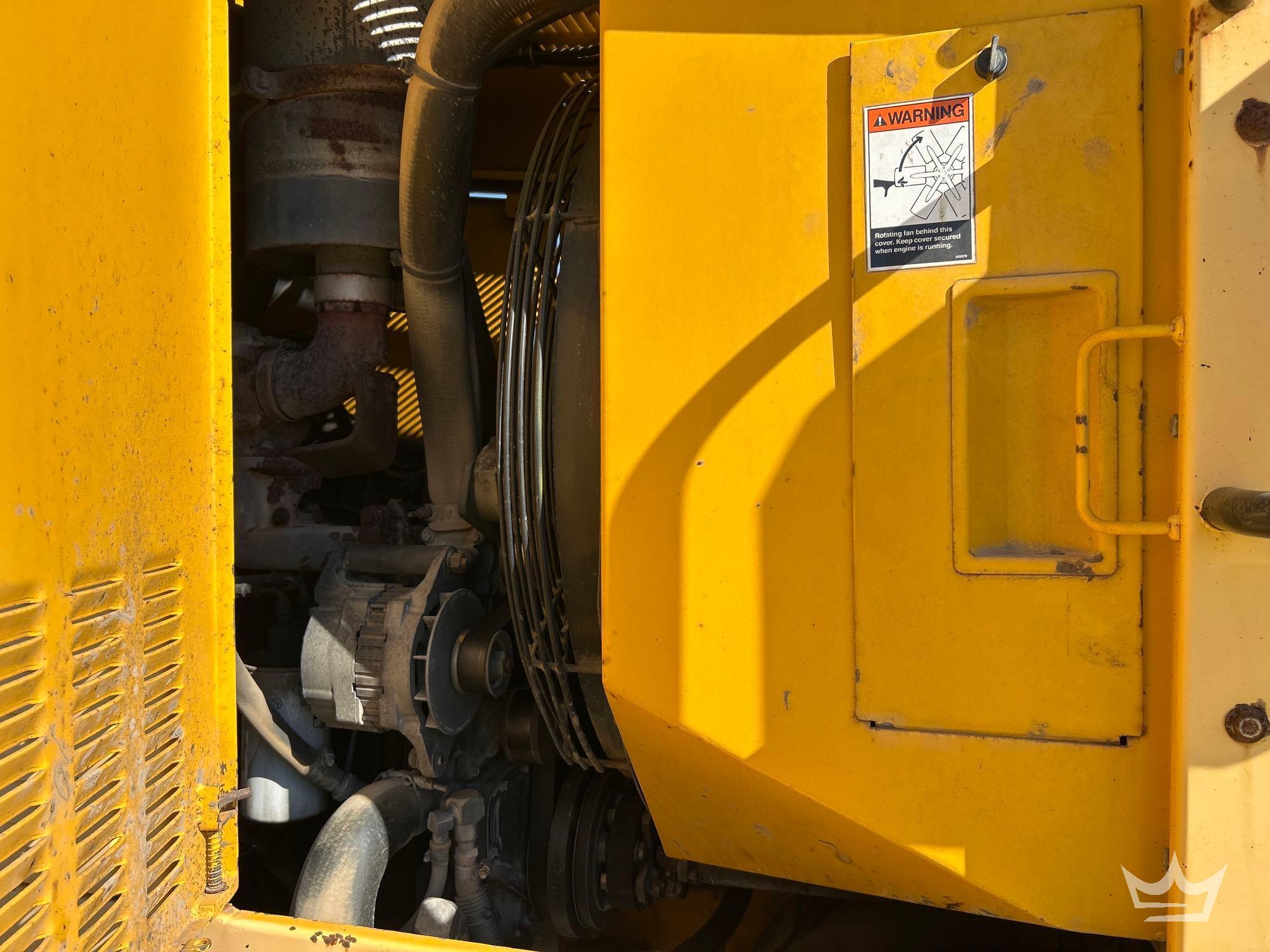

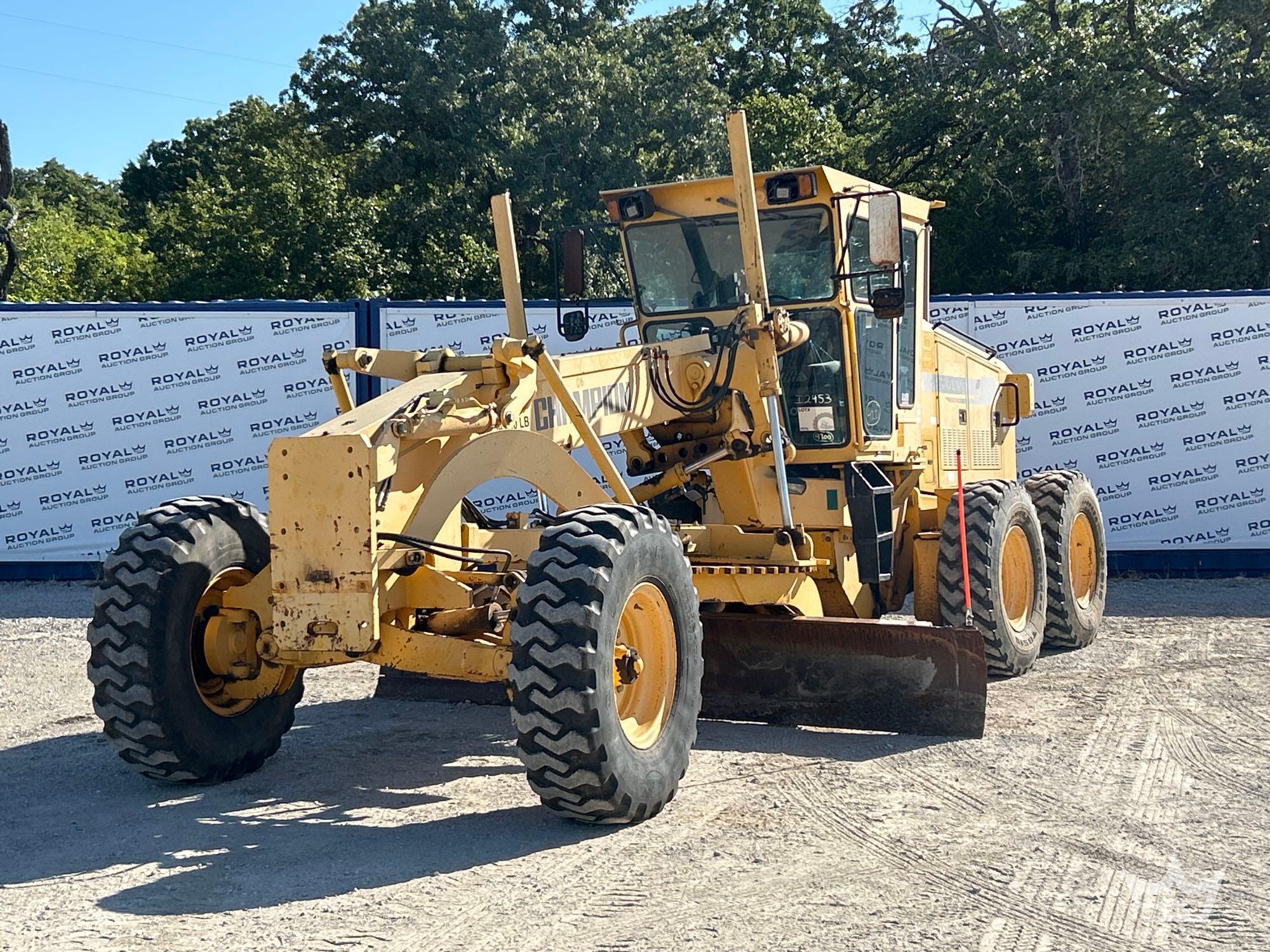

Location: Royal Auction Yard Bowie, TX. Government Fleet Asset, SN: X031439X. Hours read 5,609 hours. Pwd. by Cummins diesel engine, powershift transmission. Equipped with 12ft. moldboard, articulated frame, left float switch, right float switch, diff. lock, joystick rotation, front wheel lean, right and left blade lift, side shift controls, EROPS, heat and a/c. Ran, drove and operated during limited function test at check in.

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Champion 710A is a motor grader used for road construction, maintenance, and surface finishing. It is designed to shape and level soil, gravel, and aggregate materials with a centrally mounted moldboard and adjustable blade controls. The 710A is part of Champion's grader lineup and is commonly associated with municipal work, highway grading, site preparation, and snow removal applications. Typical motor grader functions include ditching, crowning, slope work, and fine grading. The Champion 710A is referenced in equipment records, parts listings, and used machinery inventories as a heavy-duty grading machine for earthmoving and road maintenance tasks.

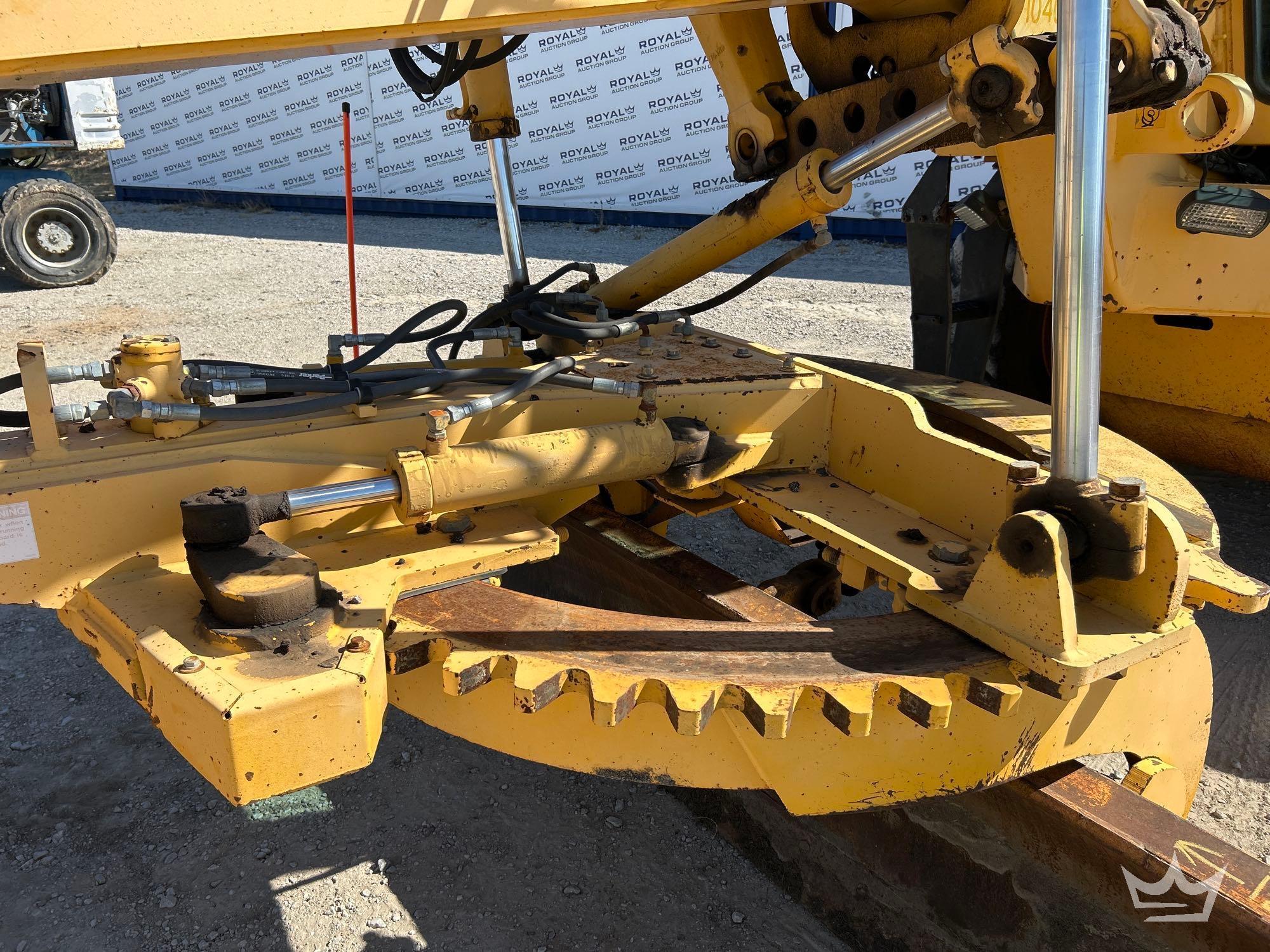

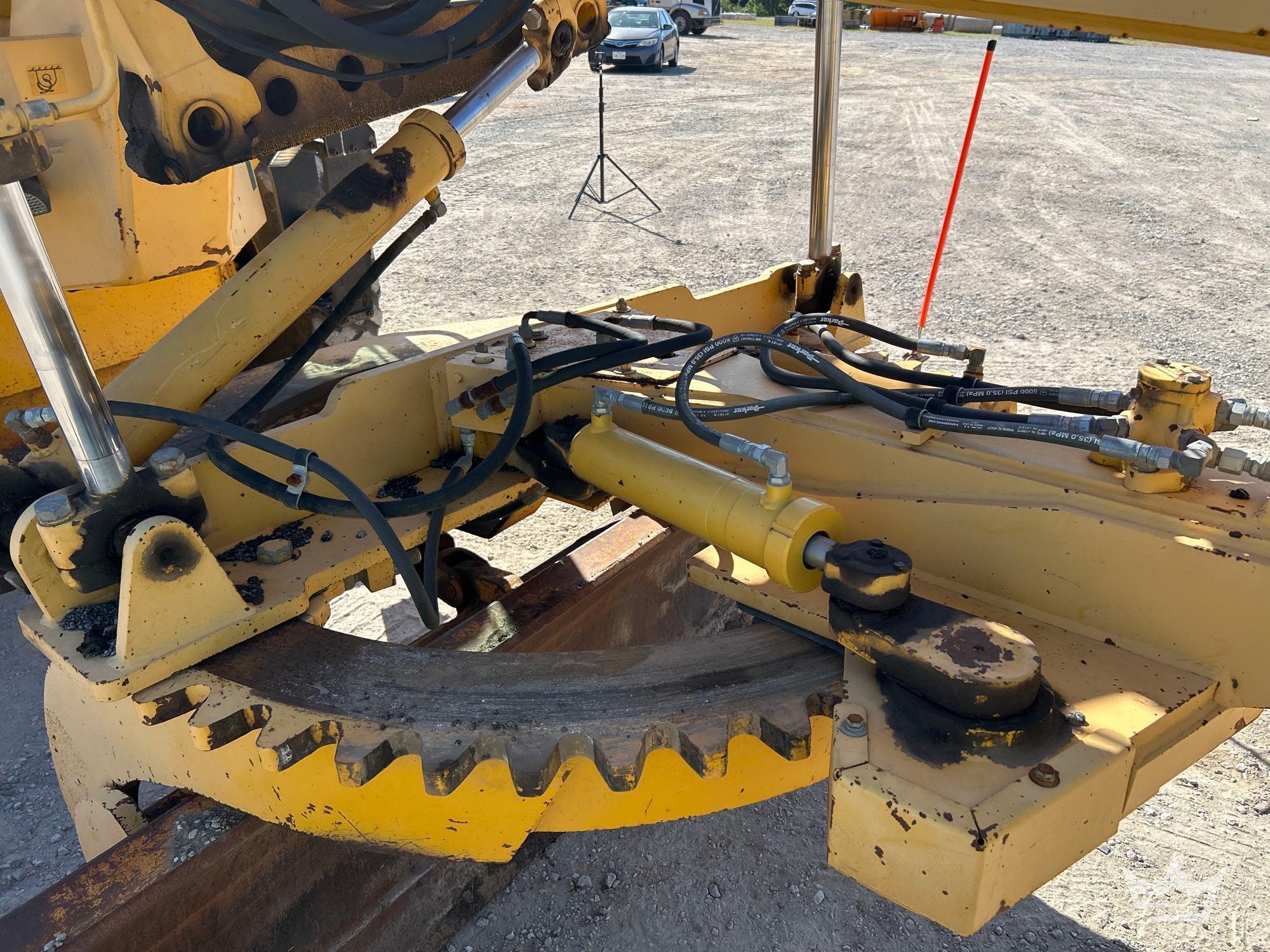

Circle
Blade cutting depth	3 ft (1 m)
Blade ground clearance	2 ft (0 m)
Blade Tip Angle - Front	47 degrees
Blade Tip Angle - Rear	5 degrees
Diameter	66 in (168 cm)
Rotation	360 degrees
Shift Left	31 in (78 cm)
Shift Right	30 in (75 cm)
Dimensions
Blade Base	9 ft (3 m)
Overall Height with cab	11 ft (3 m)
Overall Length	28 ft (8 m)
Overall width	8 ft (3 m)
Tread width	82 in (209 cm)
Wheelbase	20 ft (6 m)
Engine
Aspiration	Turbocharged
Bore	4 in (10 cm)
Displacement	360 cu in (5,901 cu cm)
Engine Model	6B5.9
Gross horsepower	148 hp (110 kw)
Net Power	140 hp (104 kw)
Number of Cylinders	6
Power Measured @	2,200 rpm
Stroke	5 in (12 cm)
Torque	440 lbs ft (597 nm)
Torque Measured @	1,600 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	16 degrees

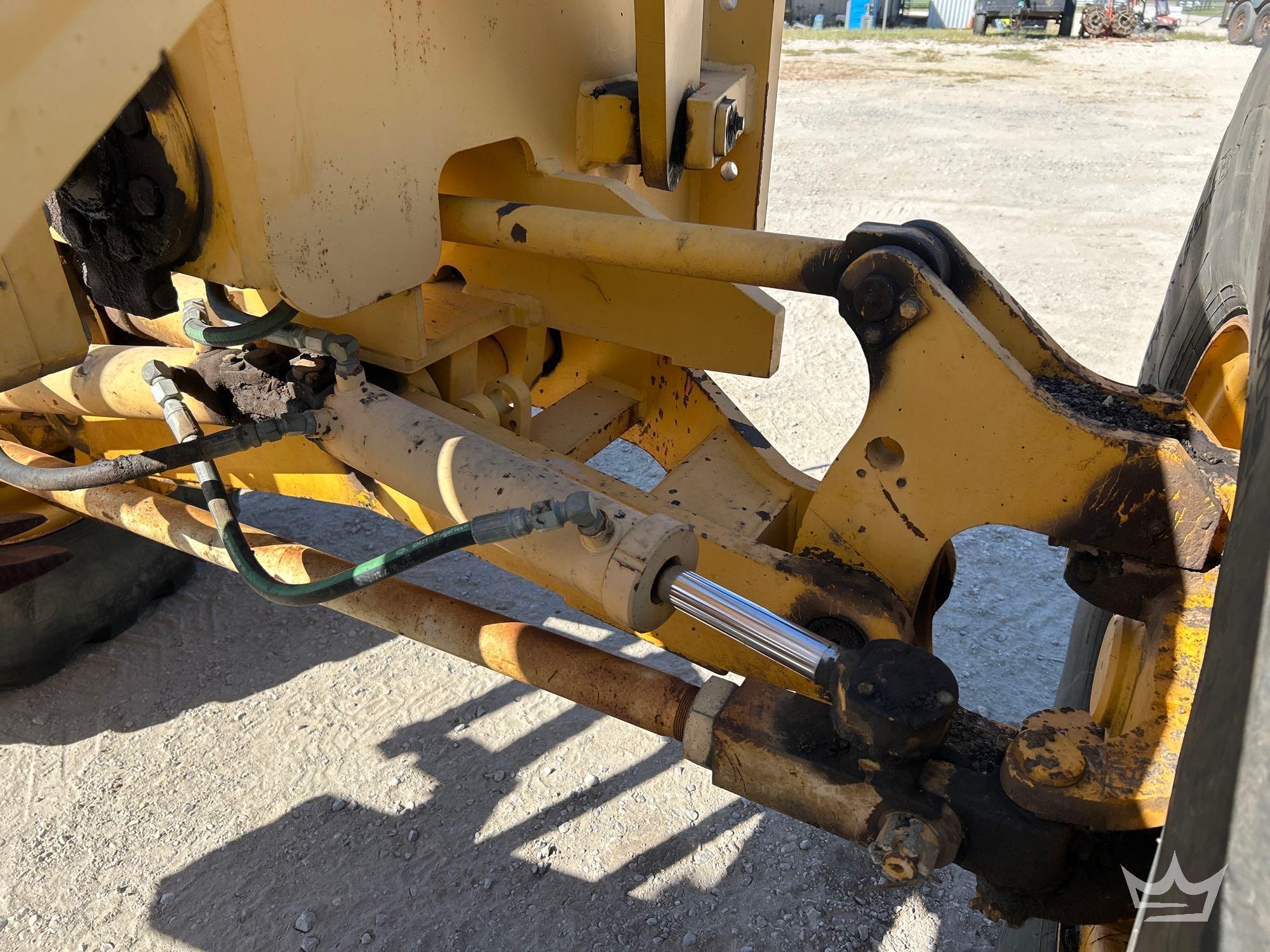

Wheel Lean	18 degrees
Hydraulic System
Pump Flow	51 gpm (191 lpm)
Relief Valve Pressure	2,500 psi
Moldboard
Blade Down Pressure	16,495 lbs (7,482 kg)
Blade Pull at Max Weight	19,110 lbs (8,668 kg)
Max Reach outside - left	10 ft (3 m)
Max Reach outside - right	10 ft (3 m)
Moldboard Height	25 in (64 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	27 in (67 cm)
Side Shift Right	27 in (67 cm)
Operating Specifications
Cooling System Fluid Capacity	12 gal (44 l)
Fuel Capacity	100 gal (379 l)
Hydraulic System Fluid Capacity	24 gal (90 l)
Oil System Fluid Capacity	4 gal (17 l)
Rear Diff/Final Drive Fluid Capacity	6 gal (23 l)
Std Operation Weight - Front Axle	9,400 lbs (4,264 kg)
Std Operation Weight - Rear Axle	21,230 lbs (9,630 kg)
Std Operation Weight - Total	30,630 lbs (13,894 kg)
Tandem Case Fluid Capacity (each)	27 gal (100 l)

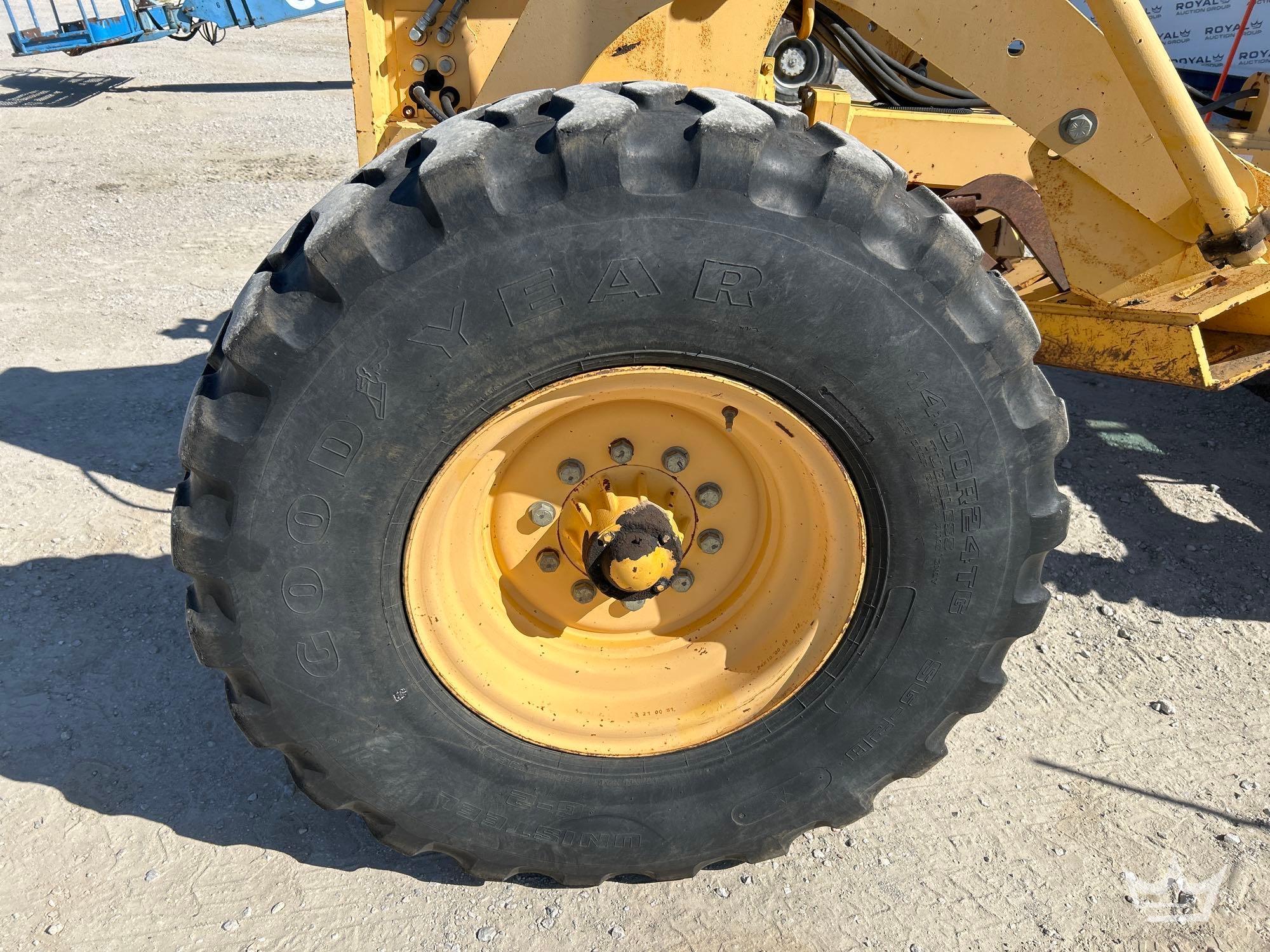

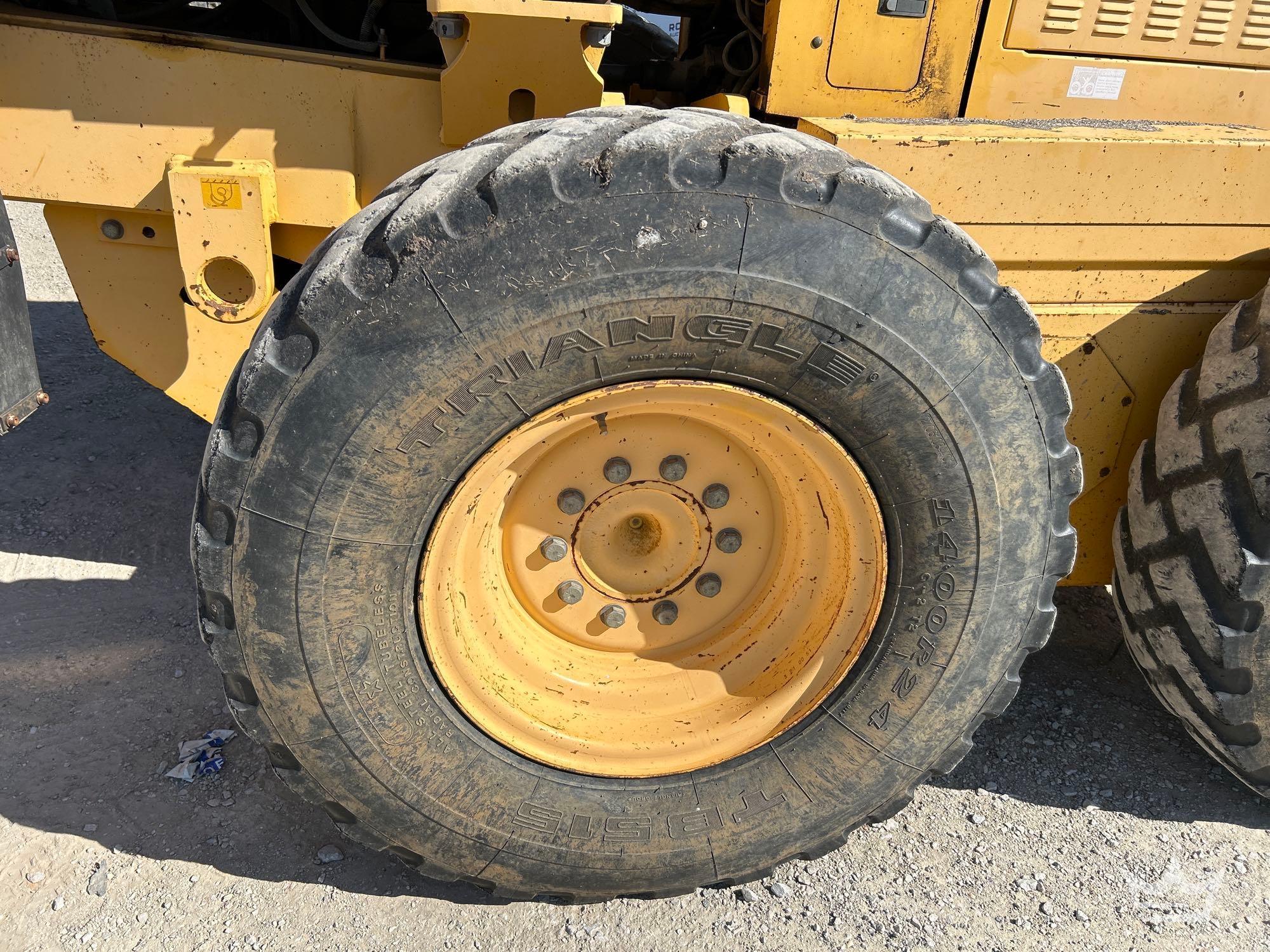

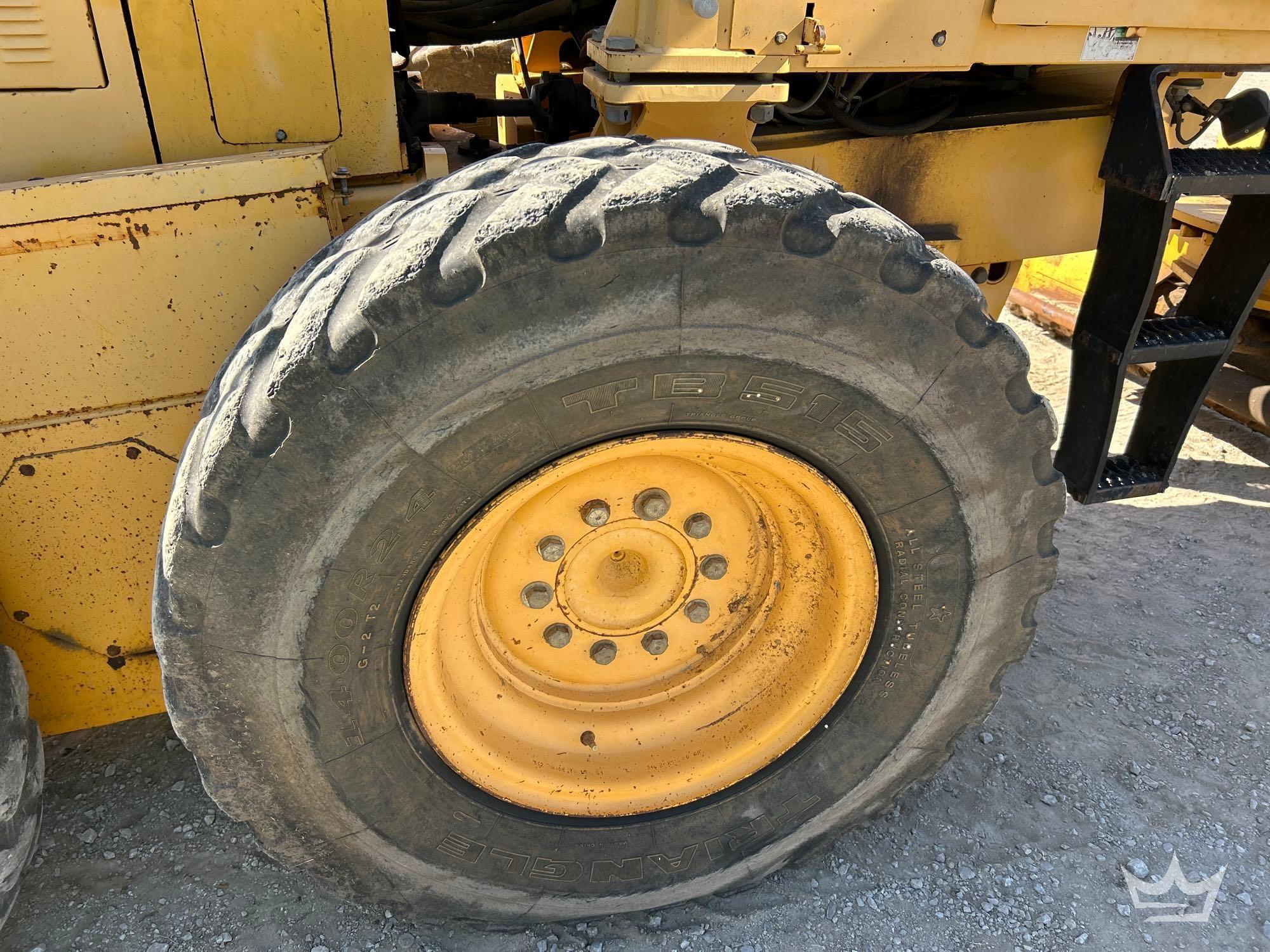

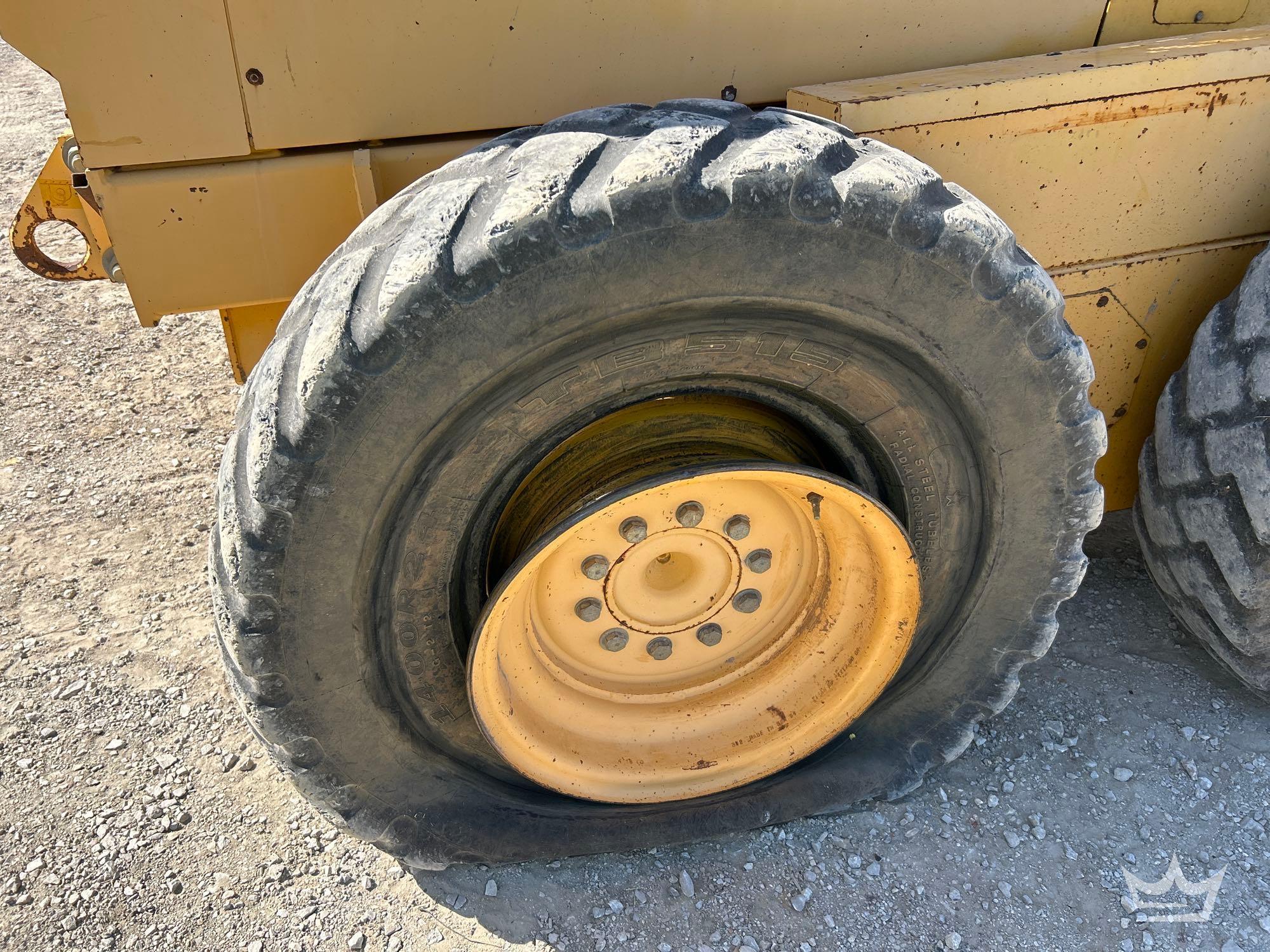

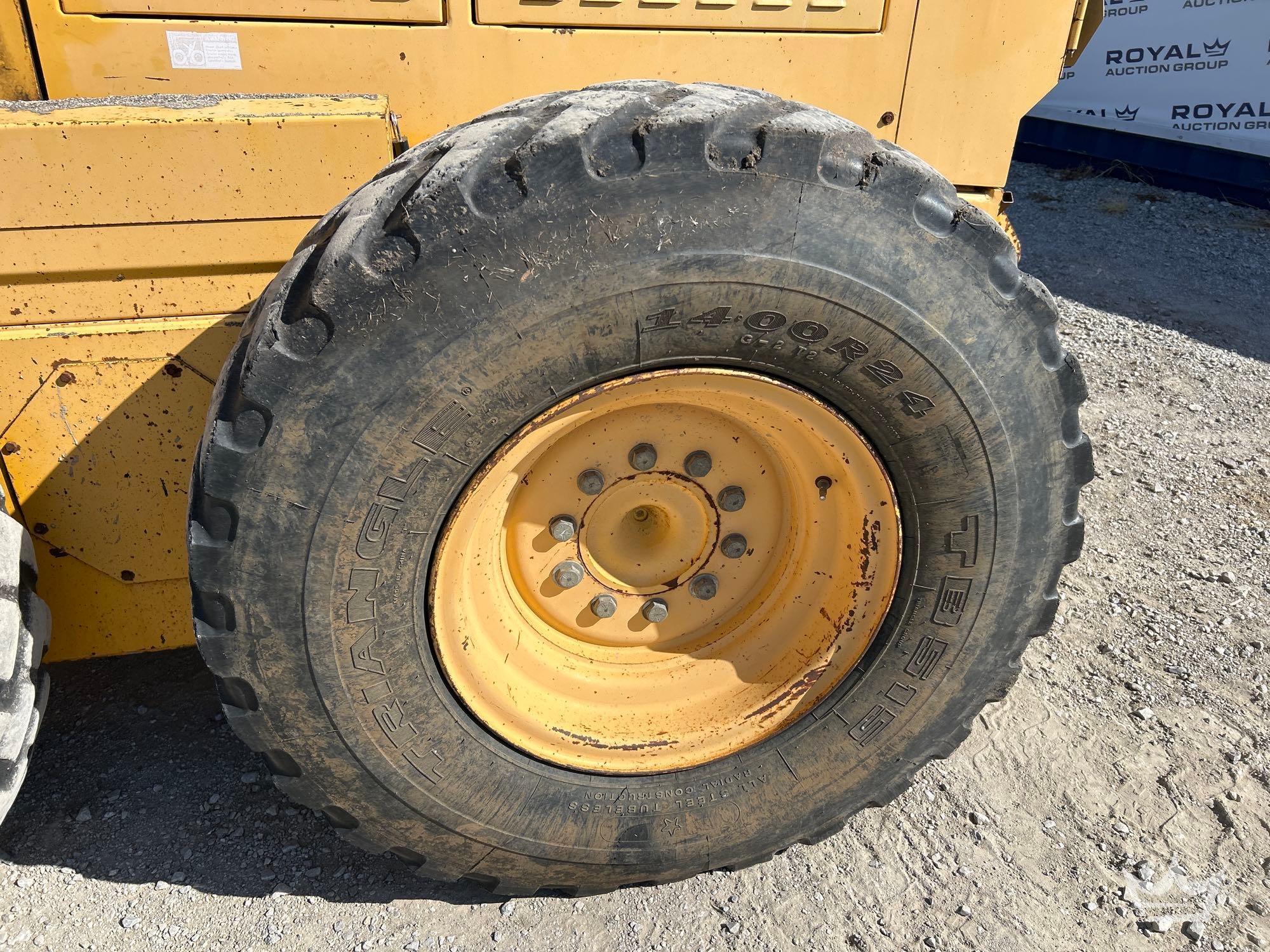

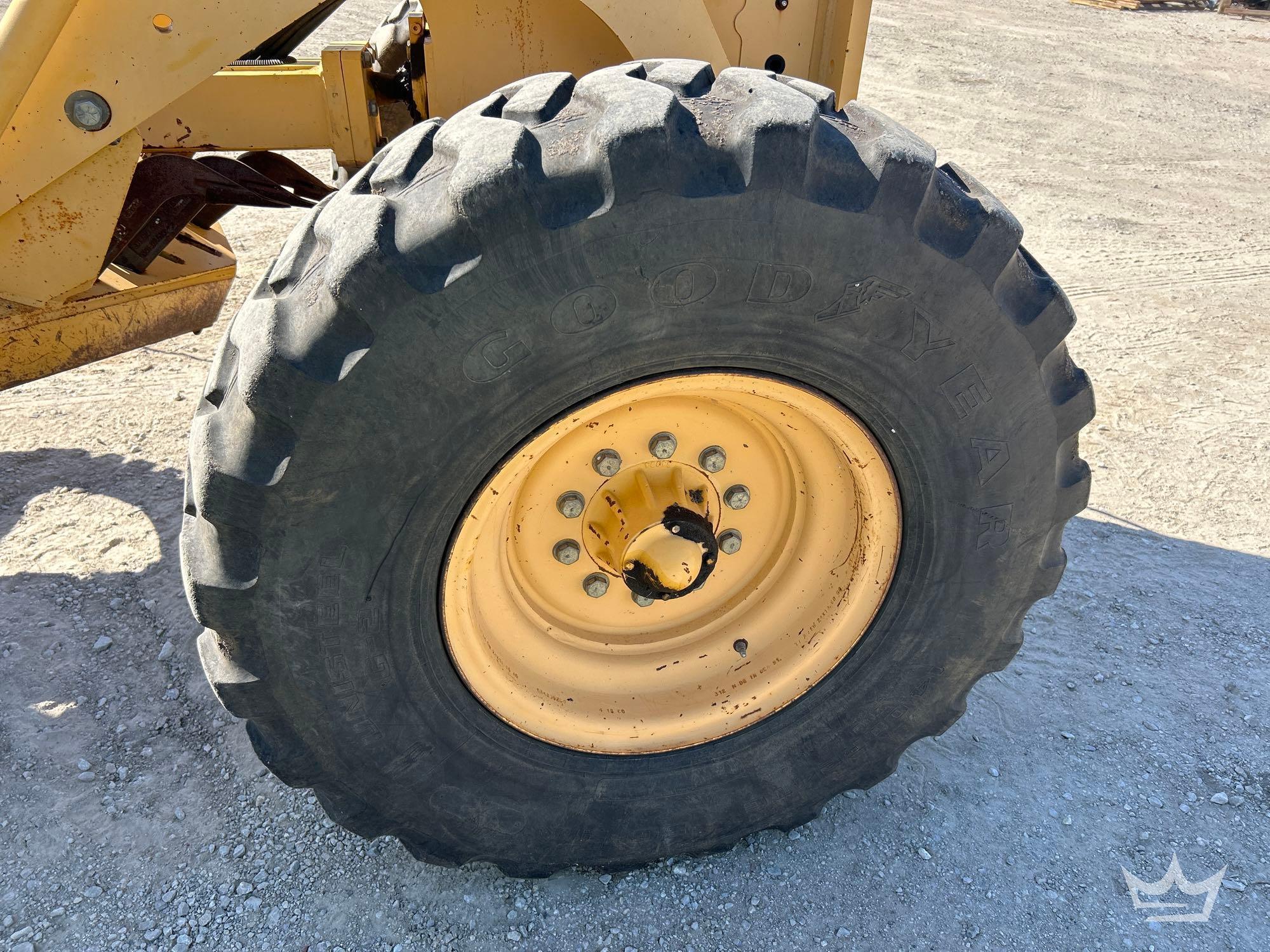

Tire Size	13.00 * 24 G-2
Transmission Fluid Capacity	10 gal (39 l)
Steering System
Articulation Angle	22 degrees
Turning Radius	26 ft (8 m)
Transmission
Max Speed - Forward	25 mph (39 kph)
Max Speed - Reverse	18 mph (29 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	4
Transmission Type	Powershift
