Champion 710A For Sale in Los Angeles, Ca

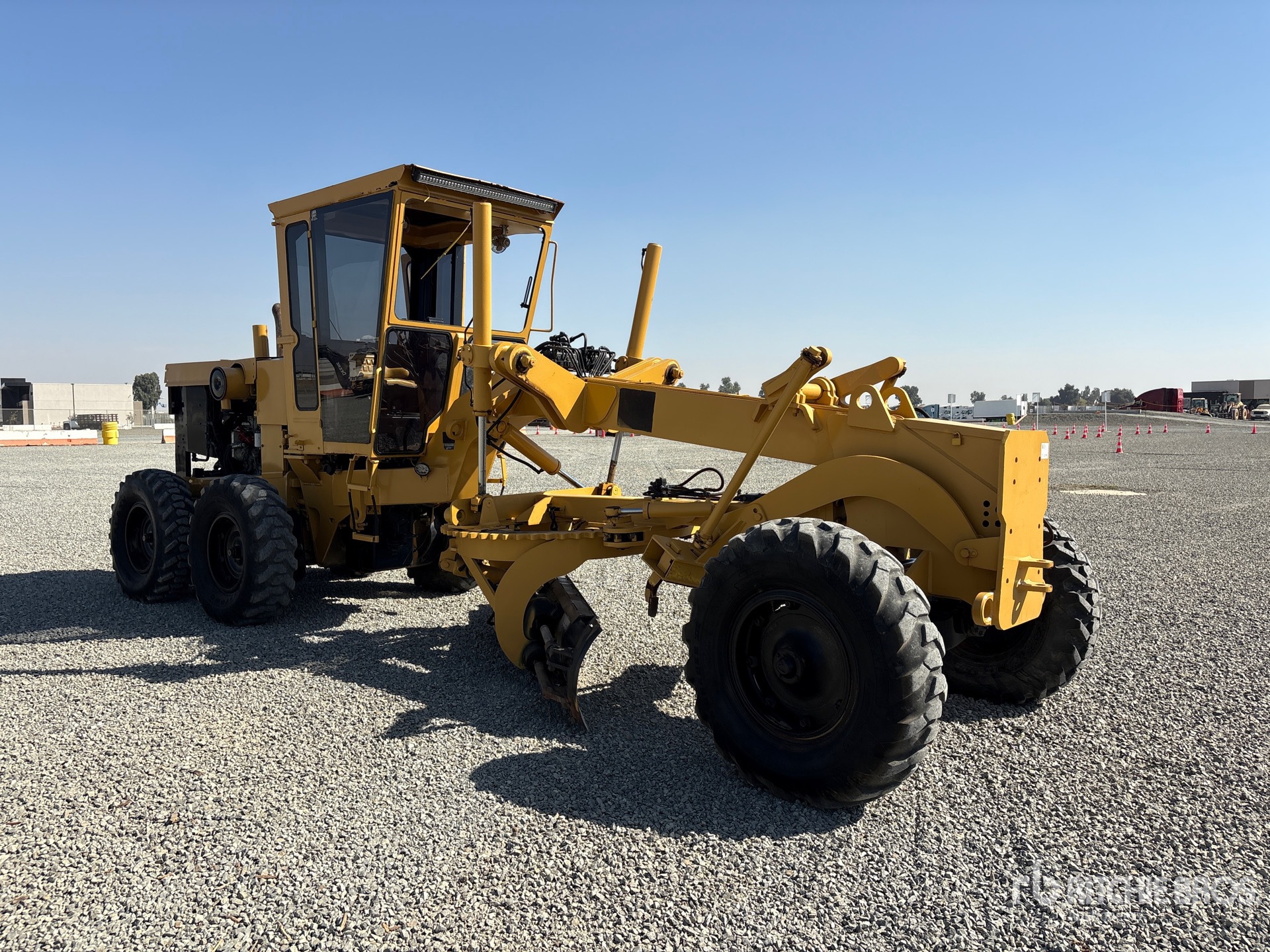

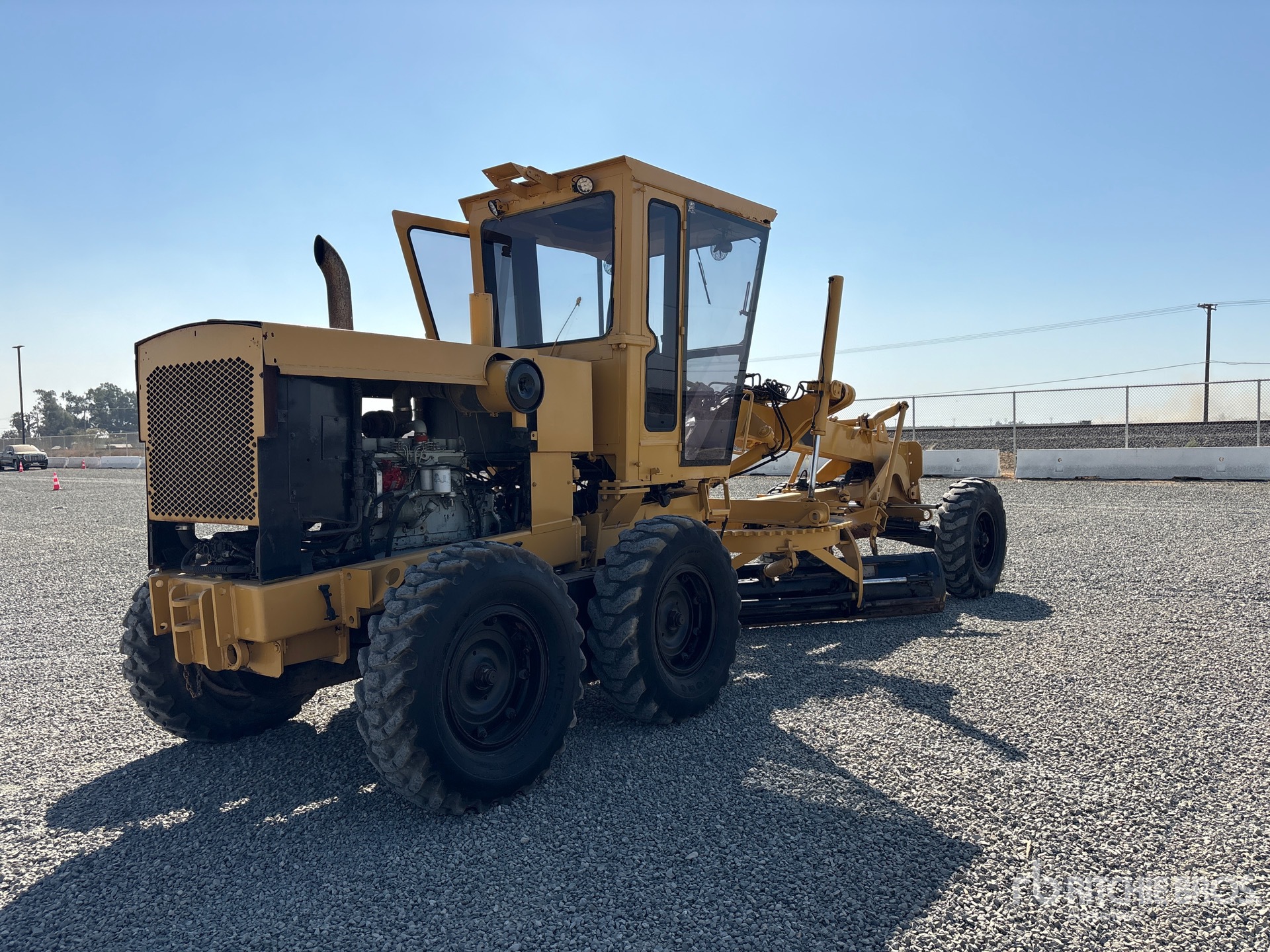

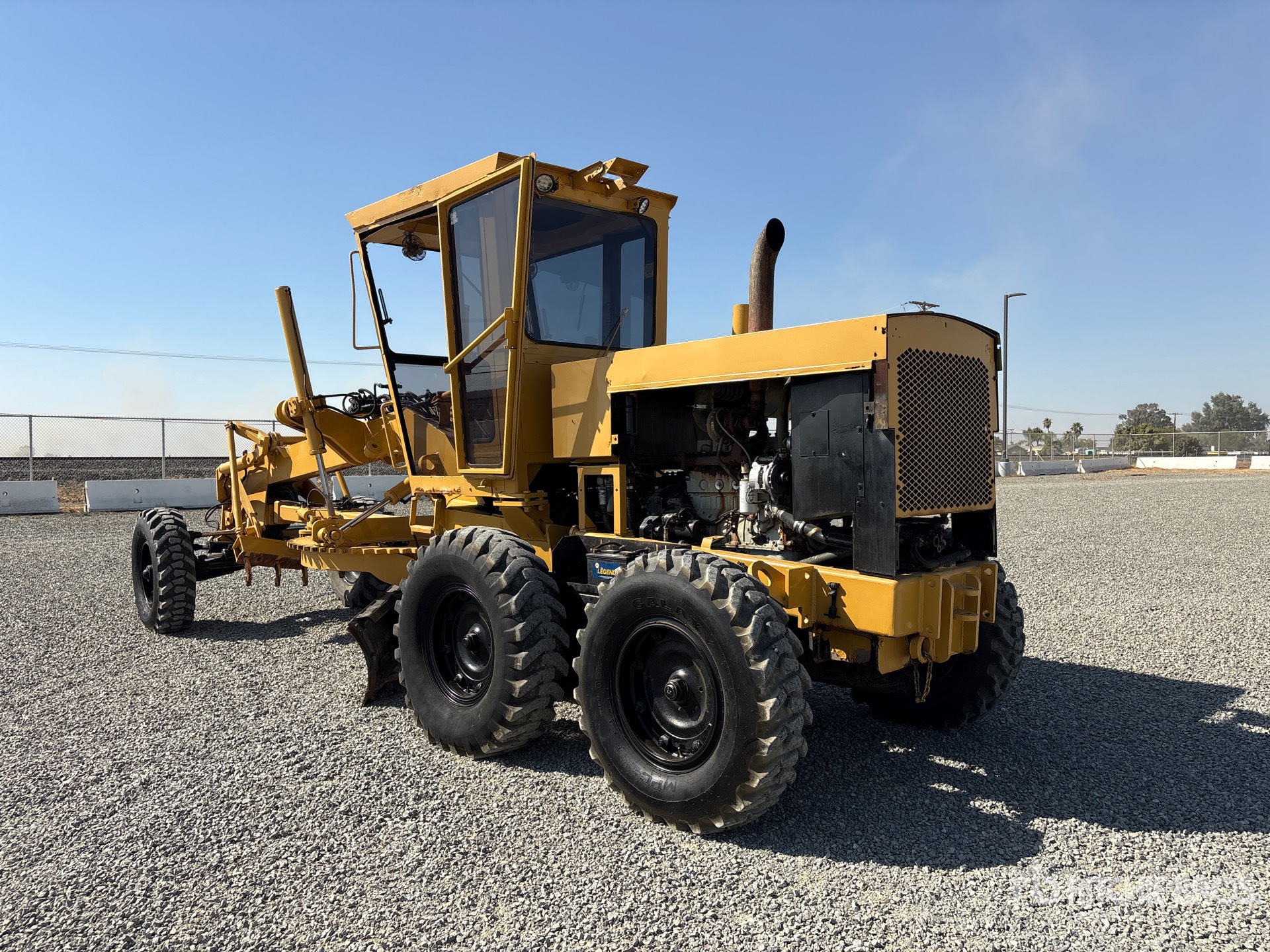

Name: Champion 710A
Brand: Champion
SKU: 89416197
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-11-04 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

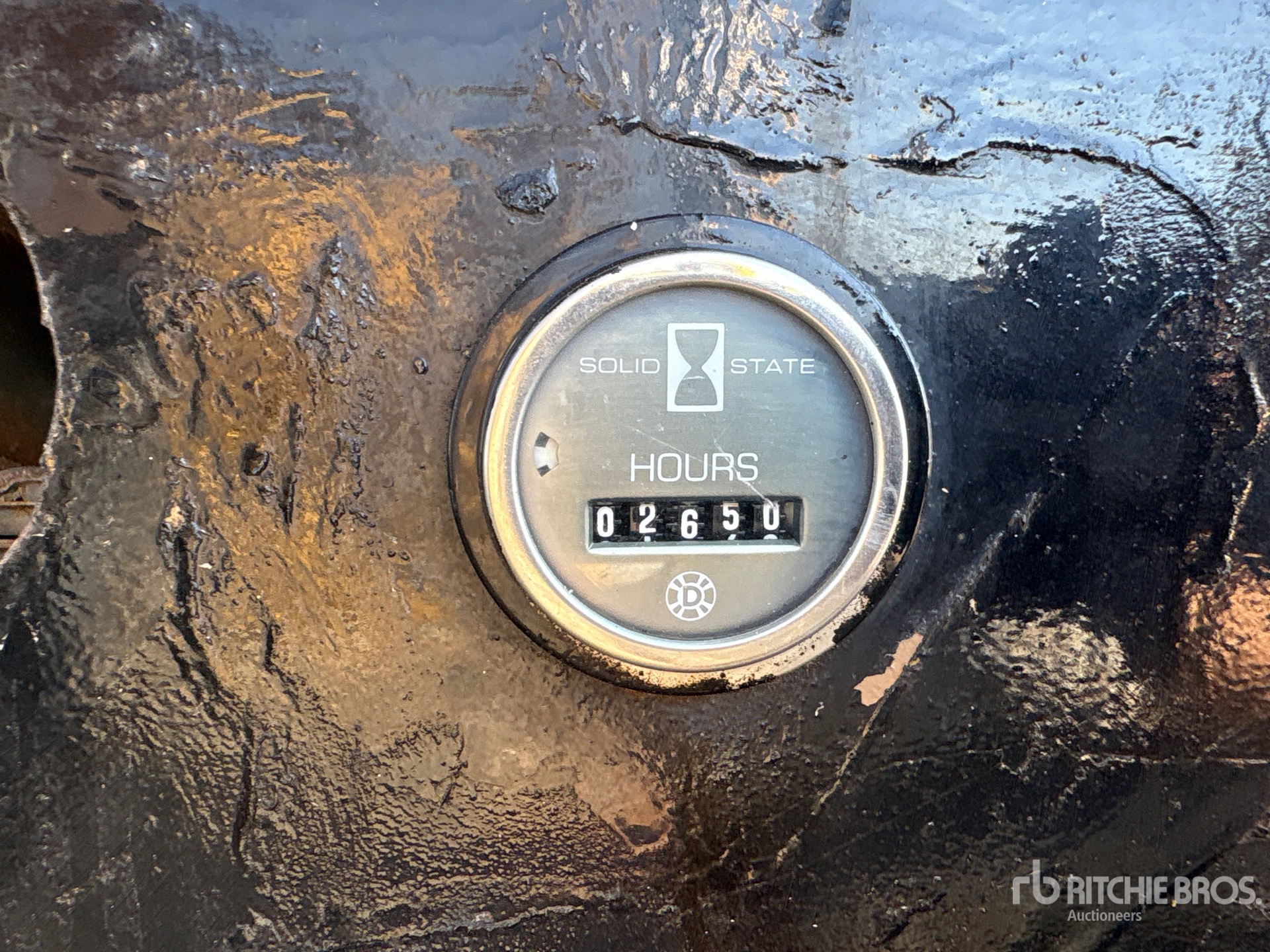

Hours:	2650

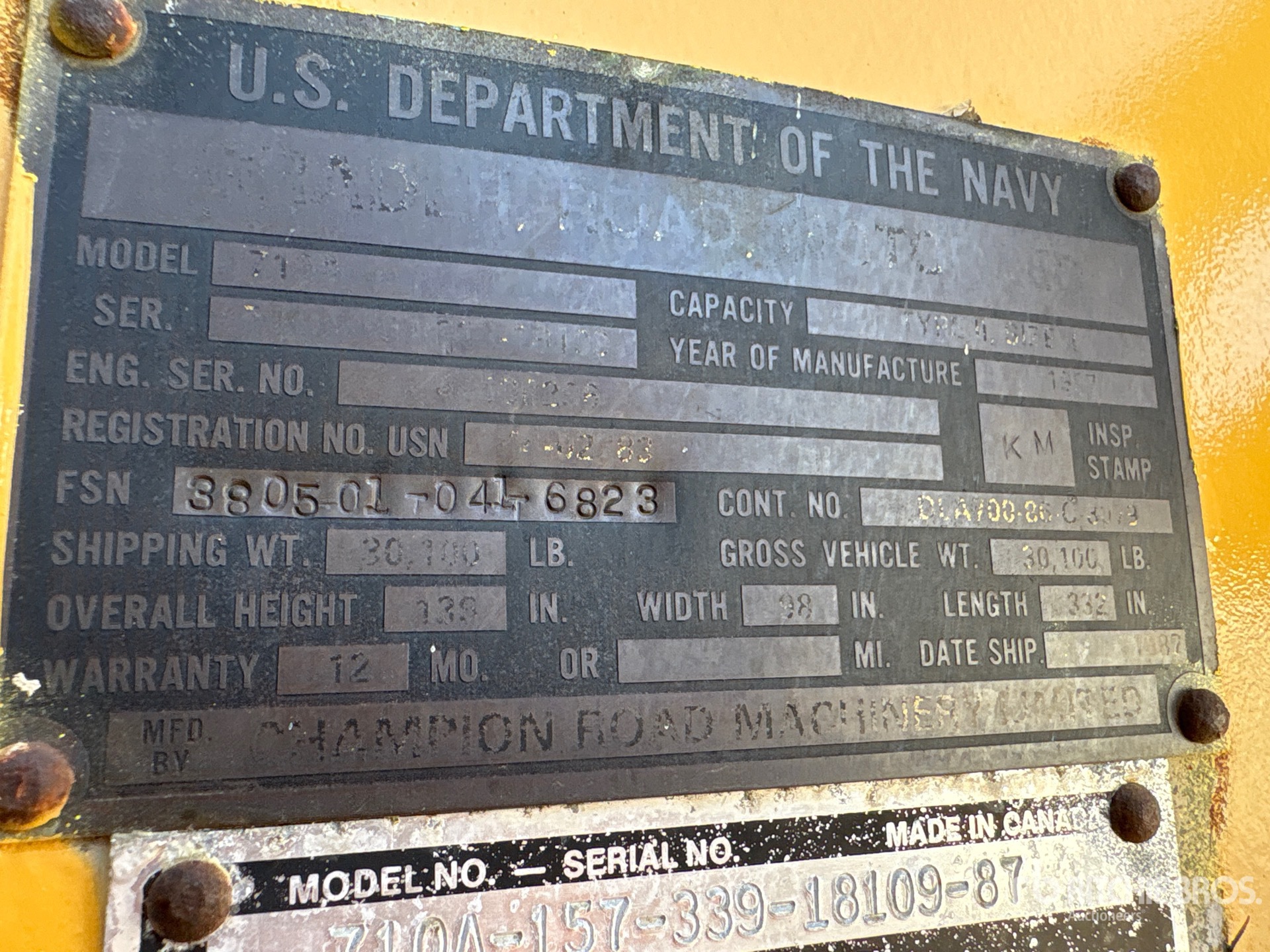

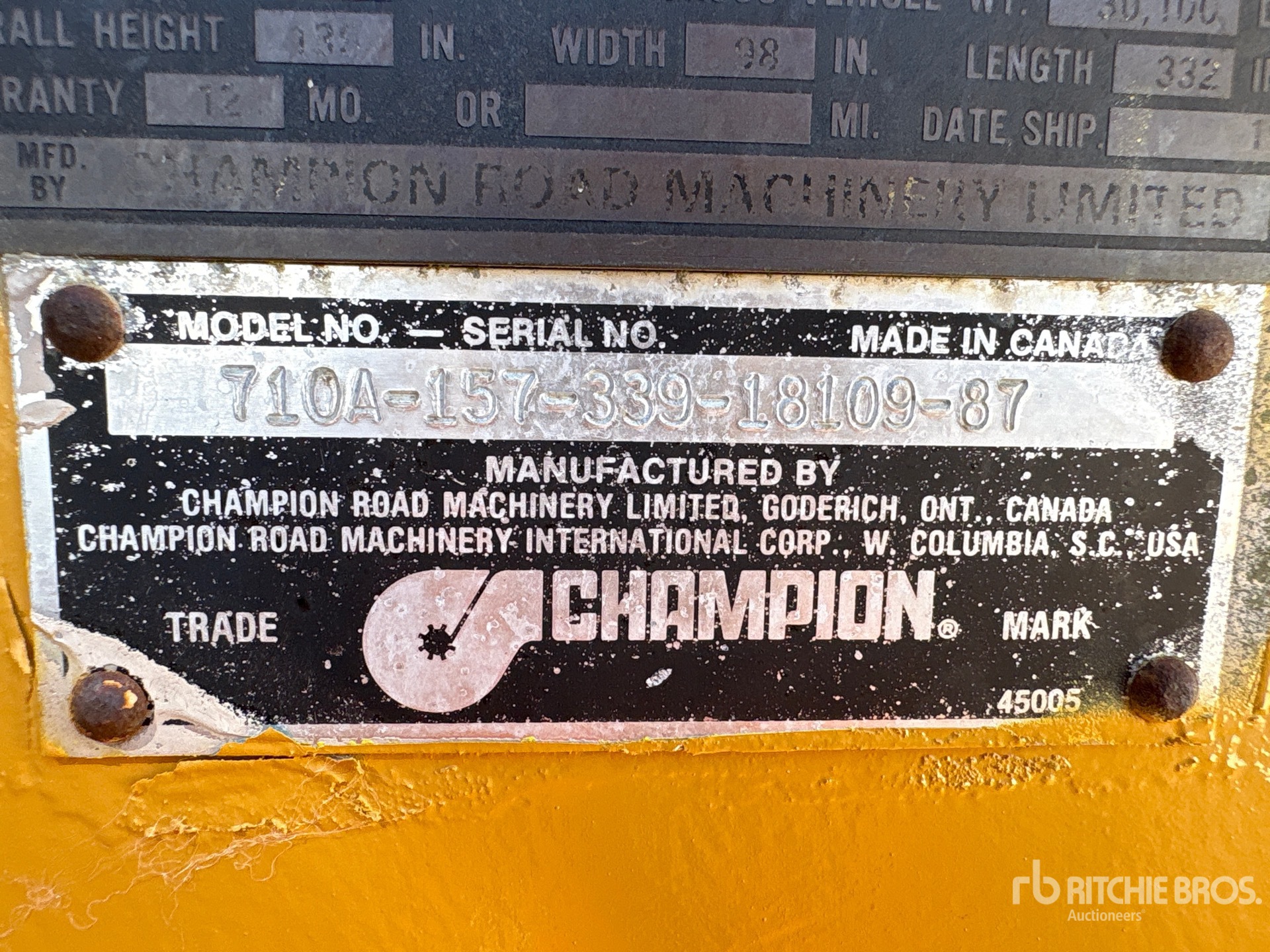

Serial Number:	157-339-18109-
Machine Location:	LOS ANGELES, CA

Description:

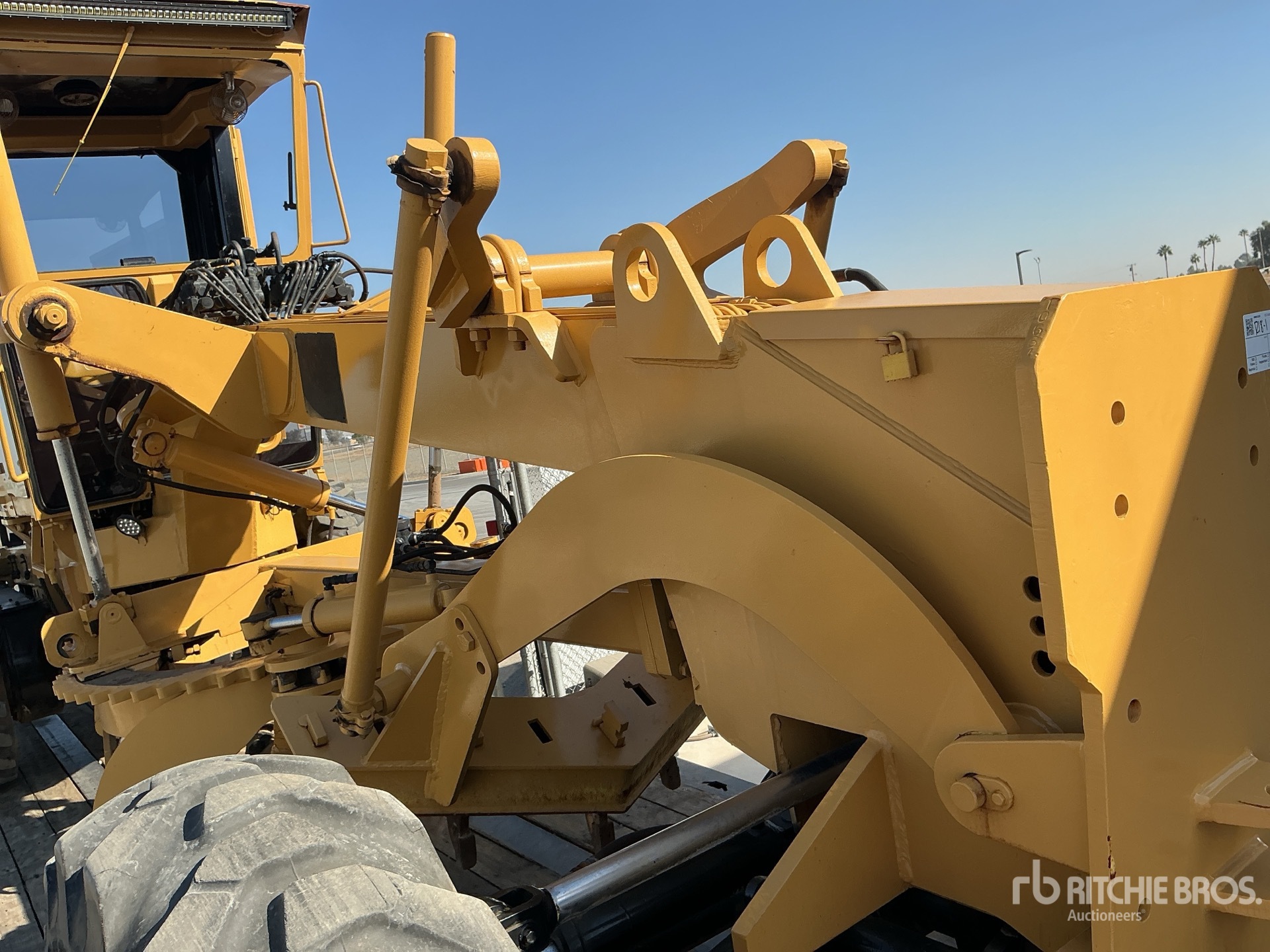

Enclosed Cab, 12 ft / 3.66 m Moldboard, Front Scarifier, 13.00-24 Tires

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Champion 710A is a motor grader used for road construction, maintenance, and site grading. Designed for precise blade control, the 710A is typically used to shape and level surfaces, cut ditches, spread material, and maintain gravel or dirt roads. As a Champion grader, it is associated with heavy-duty earthmoving applications and municipal or contractor fleets. The model designation 710A identifies a specific grader configuration within Champion's product line. Common uses include grading, leveling, snow removal, and finish work on highways, rural roads, and construction sites. It is recognized as a vintage or legacy motor grader model in the used equipment market.

Circle
Blade Cutting Depth	3 ft (1 m)
Blade Ground Clearance	2 ft (0 m)
Blade Tip Angle - Front	47 degrees
Blade Tip Angle - Rear	5 degrees
Diameter	66 in (168 cm)
Rotation	360 degrees
Shift Left	31 in (78 cm)
Shift Right	30 in (75 cm)
Dimensions
Blade Base	9 ft (3 m)
Height	11 ft (3 m)
Height	11 ft (3 m)
Length	28 ft (8 m)
Length	28 ft (8 m)
Overall Height With Cab	11 ft (3 m)
Overall Length	28 ft (8 m)
Overall Width	8 ft (2 m)
Tread Width	82 in (208 cm)
Weight	31,050 lbs (14,084 kg)
Weight	31,050 lbs (14,084 kg)
Wheelbase	20 ft (6 m)
Width	8 ft (2 m)
Width	8 ft (2 m)
Engine
Aspiration	Turbocharged
Bore	4 in (10 cm)
Displacement	360 cu in (5,901 cu cm)
Engine Make	Cummins
Engine Model	6B5.9
Gross Horsepower	148 hp (110 kw)
Net Power	140 hp (104 kw)
Number Of Cylinders	6
Power Measured @	2,200 rpm
Stroke	5 in (12 cm)
Torque	440 lbs ft (597 nm)
Torque Measured @	1,600 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	16 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Flow	51 gpm (191 lpm)
Relief Valve Pressure	2,500 psi
Moldboard
Blade Down Pressure	16,495 lbs (7,482 kg)
Blade Pull At Max Weight	19,110 lbs (8,668 kg)
Max Reach Outside - Left	10 ft (3 m)
Max Reach Outside - Right	10 ft (3 m)
Moldboard Height	25 in (64 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	27 in (67 cm)
Side Shift Right	27 in (67 cm)
Operational
Cooling System Fluid Capacity	12 gal (44 l)
Fuel Capacity	100 gal (379 l)
Hydraulic System Fluid Capacity	24 gal (90 l)
Oil System Fluid Capacity	4 gal (17 l)
Rear Diff/Final Drive Fluid Capacity	6 gal (23 l)
Std Operation Weight - Front Axle	9,400 lbs (4,264 kg)
Std Operation Weight - Rear Axle	21,230 lbs (9,630 kg)
Std Operation Weight - Total	30,630 lbs (13,894 kg)
Tandem Case Fluid Capacity (Each)	27 gal (100 l)
Tire Size	13.00 * 24, G-2
Transmission Fluid Capacity	10 gal (39 l)
Steering
Articulation Angle	22 degrees
Turning Radius	26 ft (8 m)
Transmission
Max Speed - Forward	25 mph (39 kph)
Max Speed - Reverse	18 mph (29 kph)
Number Of Gears - Forward	8
Number Of Gears - Reverse	4
Transmission Type	Powershift
