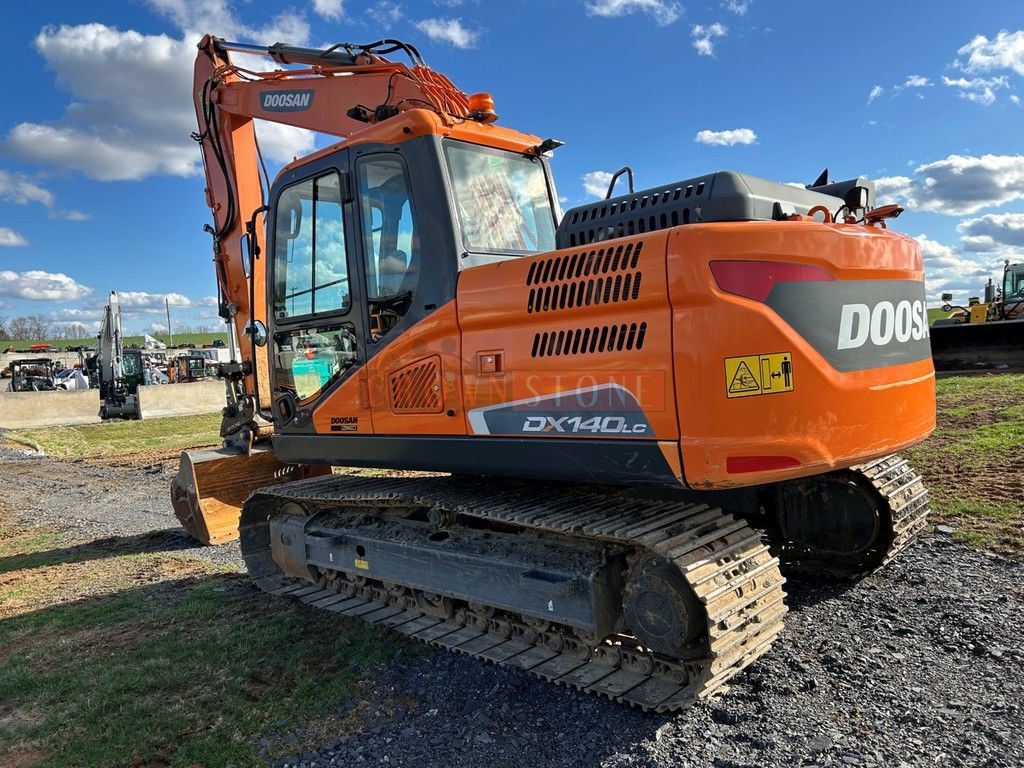

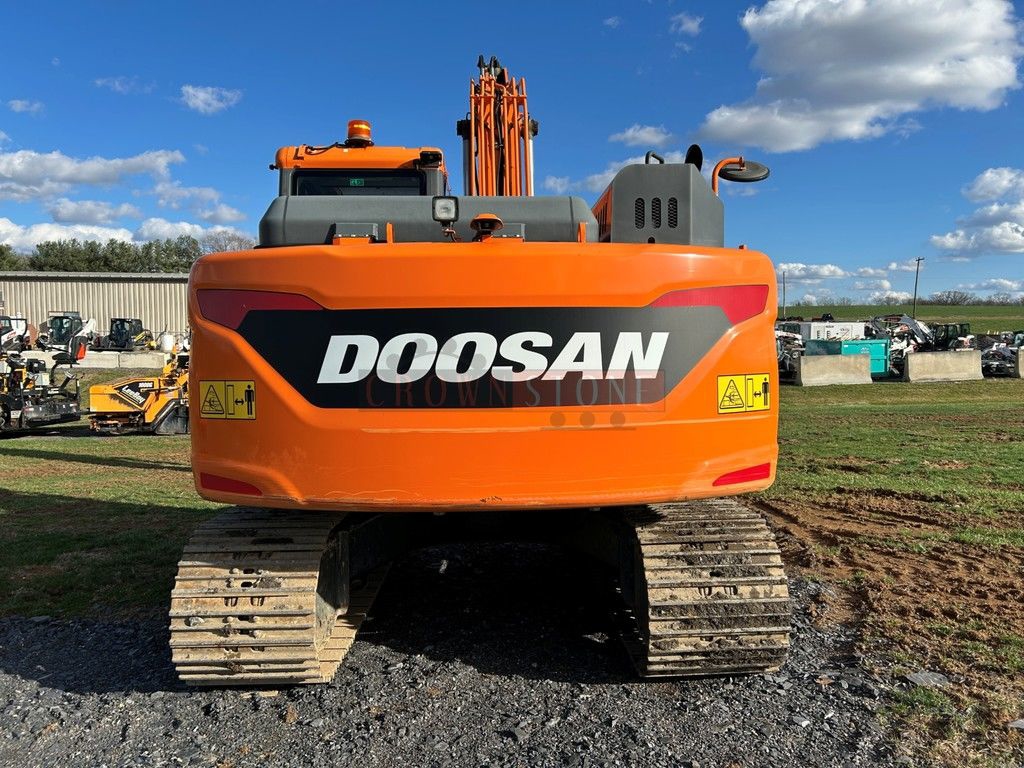

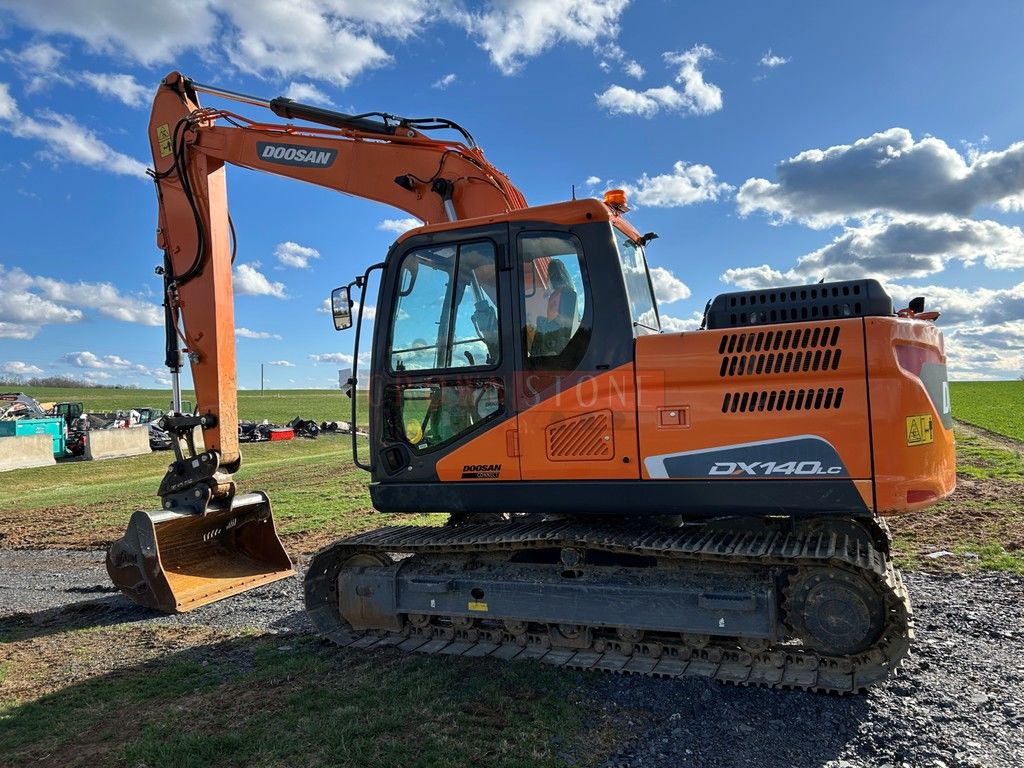

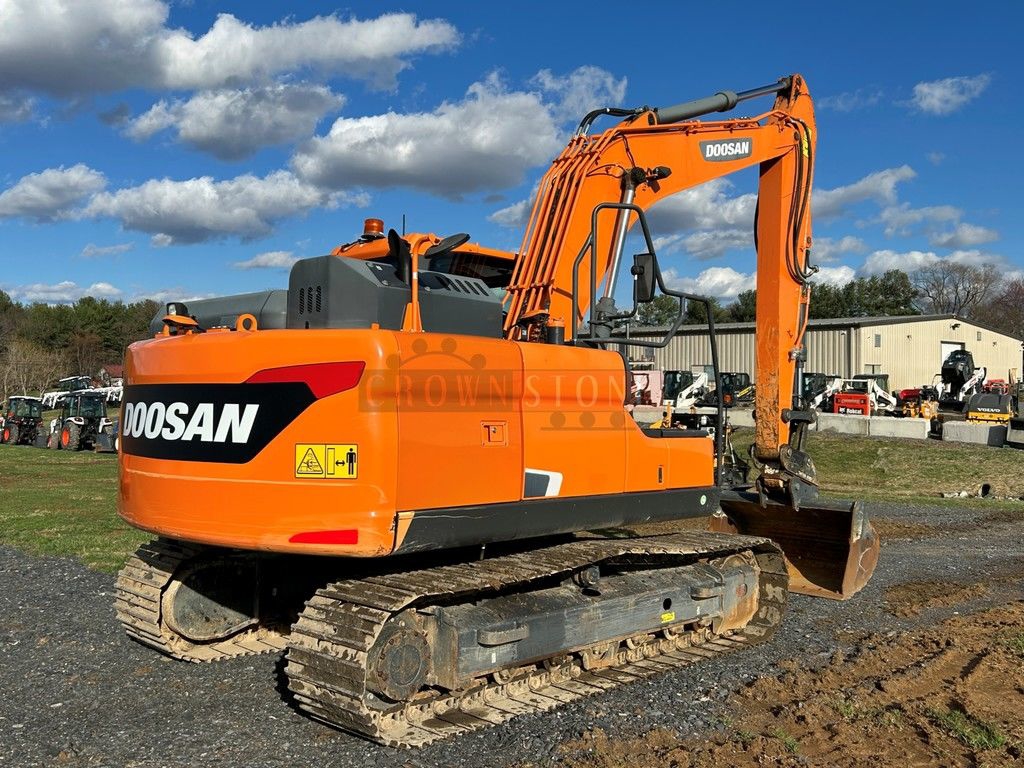

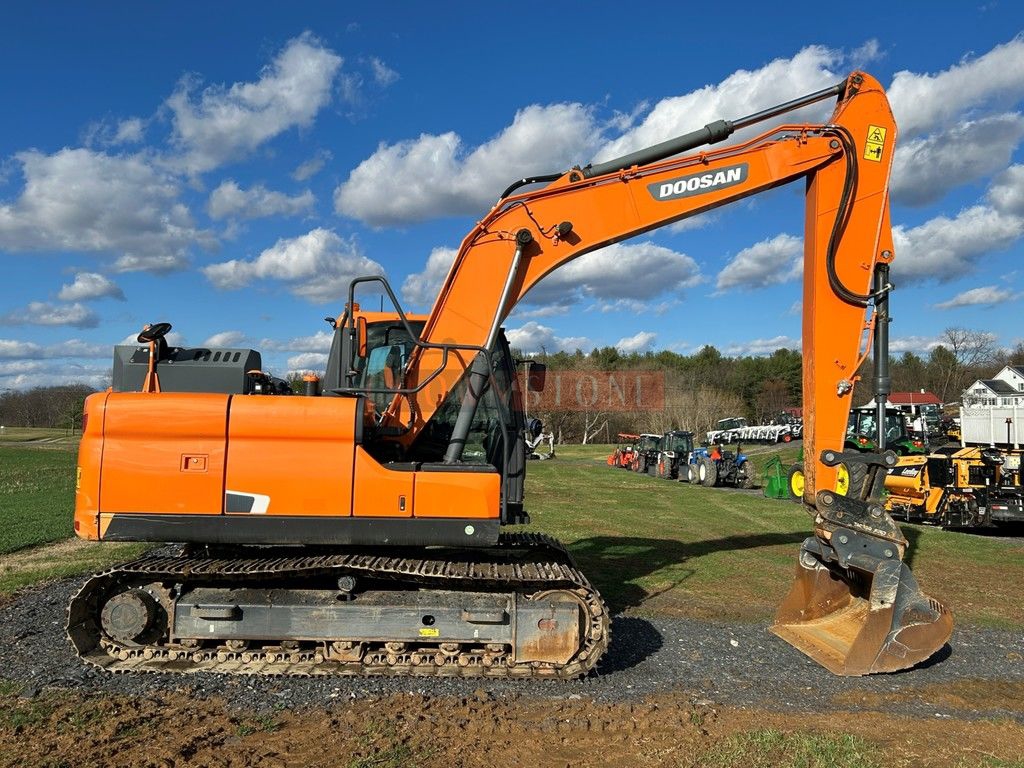

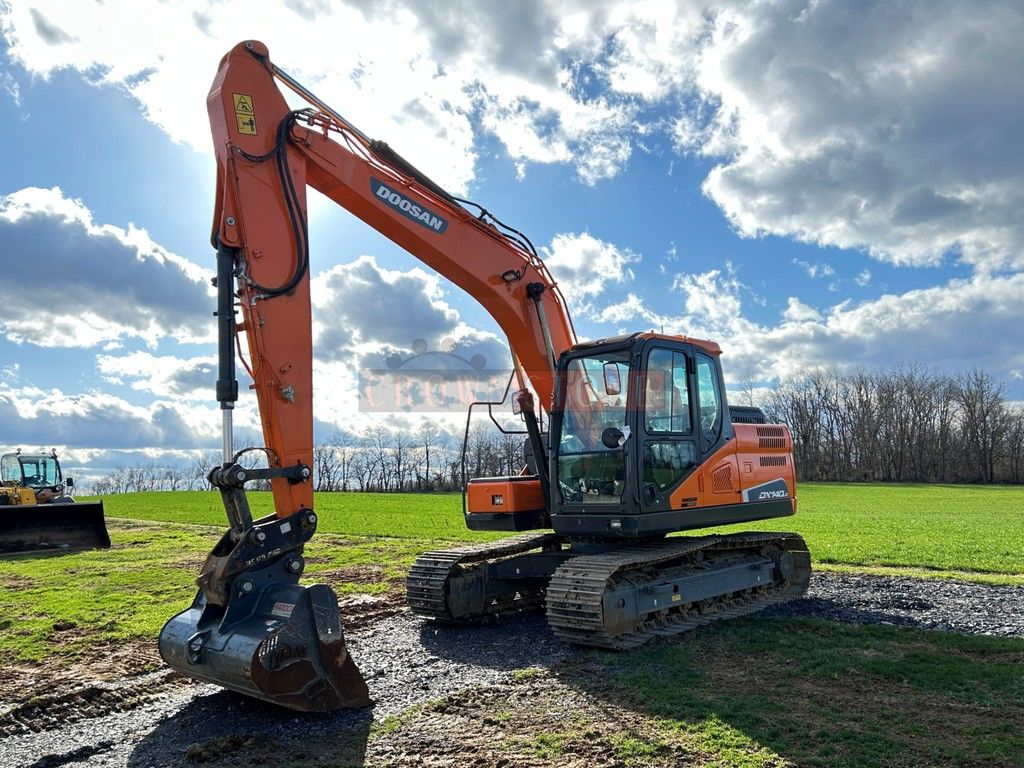

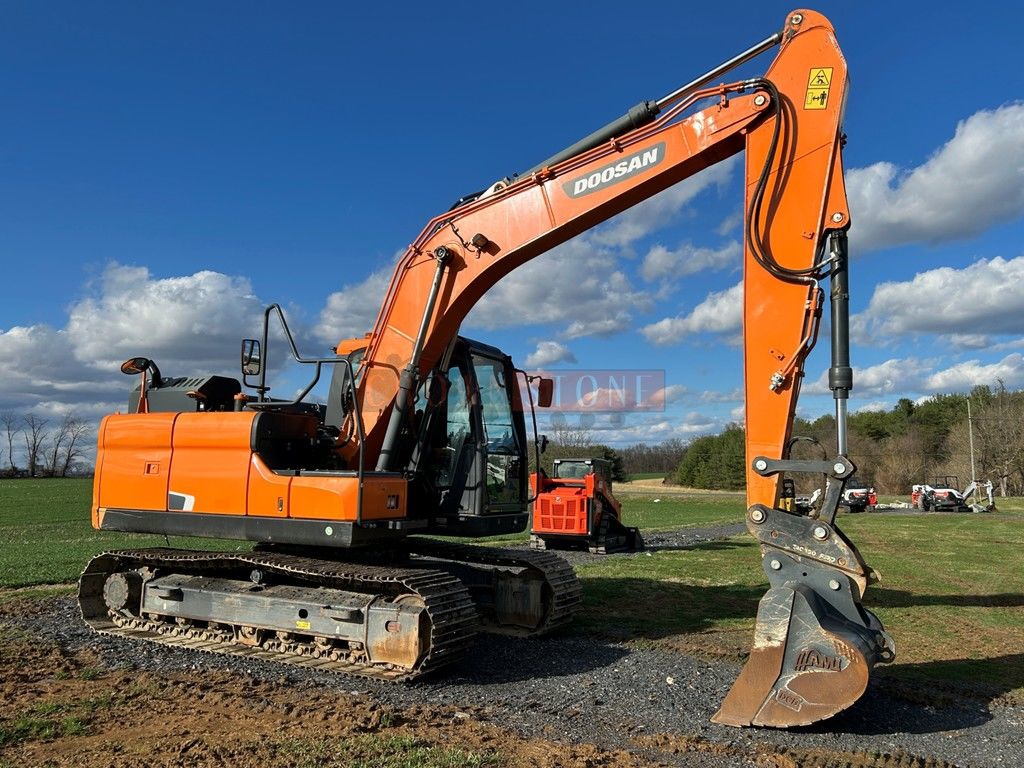

2022 Doosan DX140LC-5 For Sale in York, PA

Name: 2022 Doosan DX140LC-5
Brand: Doosan
SKU: 89088062
Price: 89900 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $89,900.00 USD

Apply for Financing

Crownstone Equipment

Crownstone Equipment Dealer Info

Crownstone Equipment Website

Click here to email Crownstone Equipment.

Contact: Main

Click for Phone Number

Machine Info:

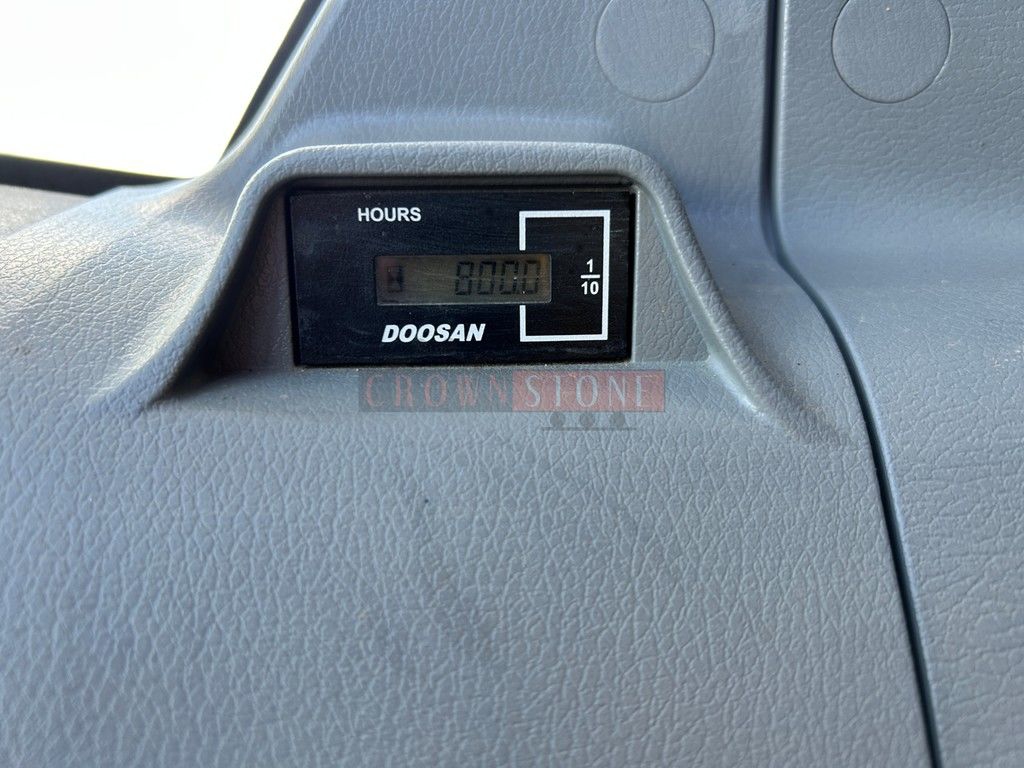

Hours:	800
Serial Number:	18427670
Machine Location:	YORK, PA
More Information:	https://showroom.auction123.com/crownstone_equipment/inventory/17173/18427670.html

Description:

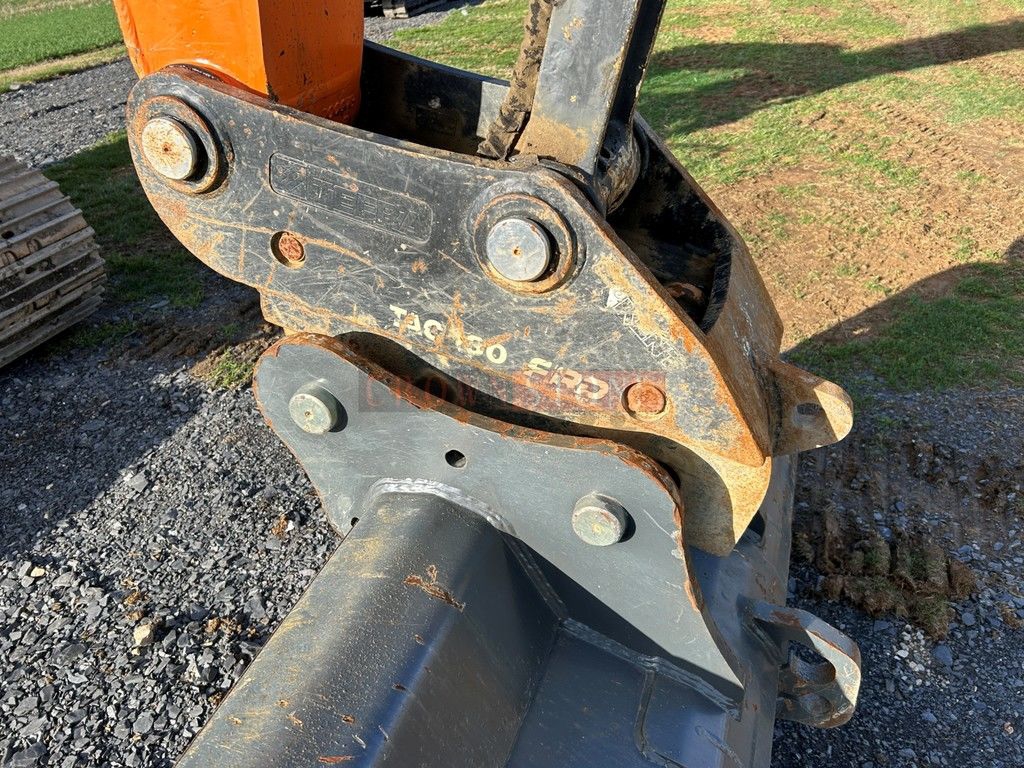

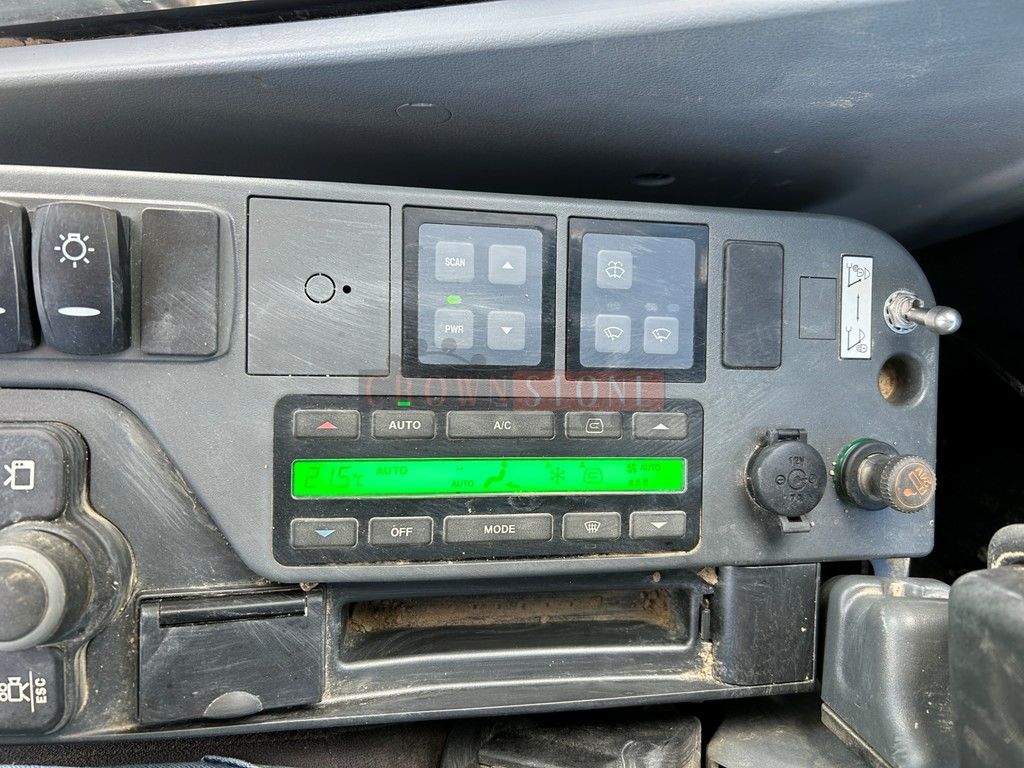

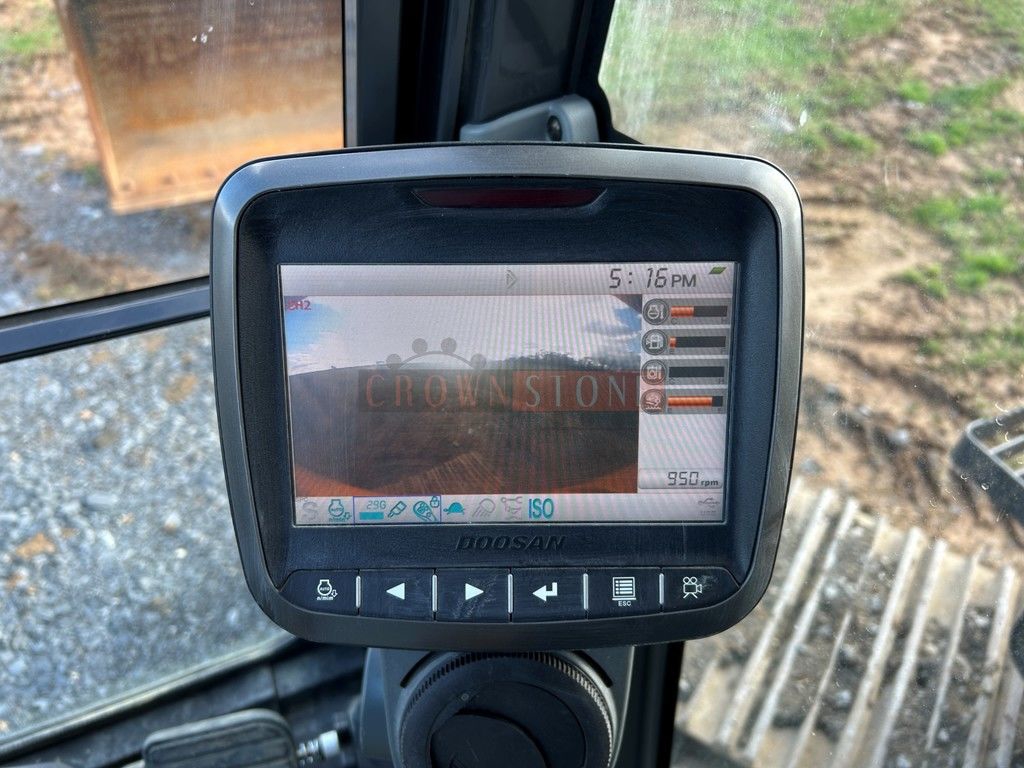

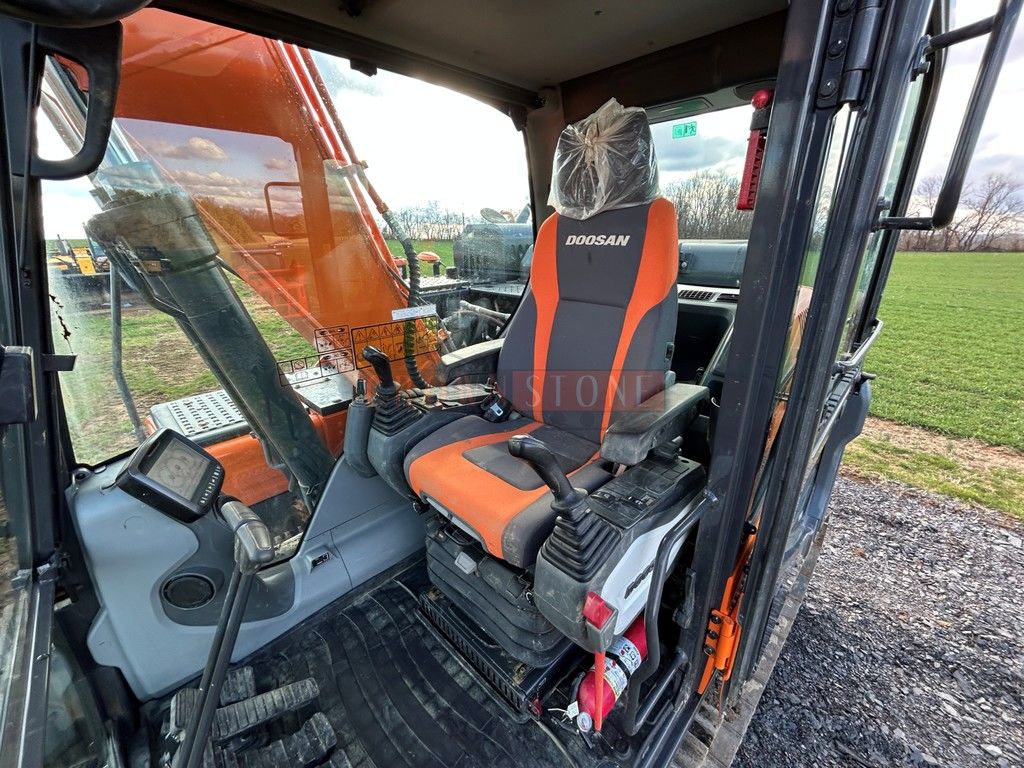

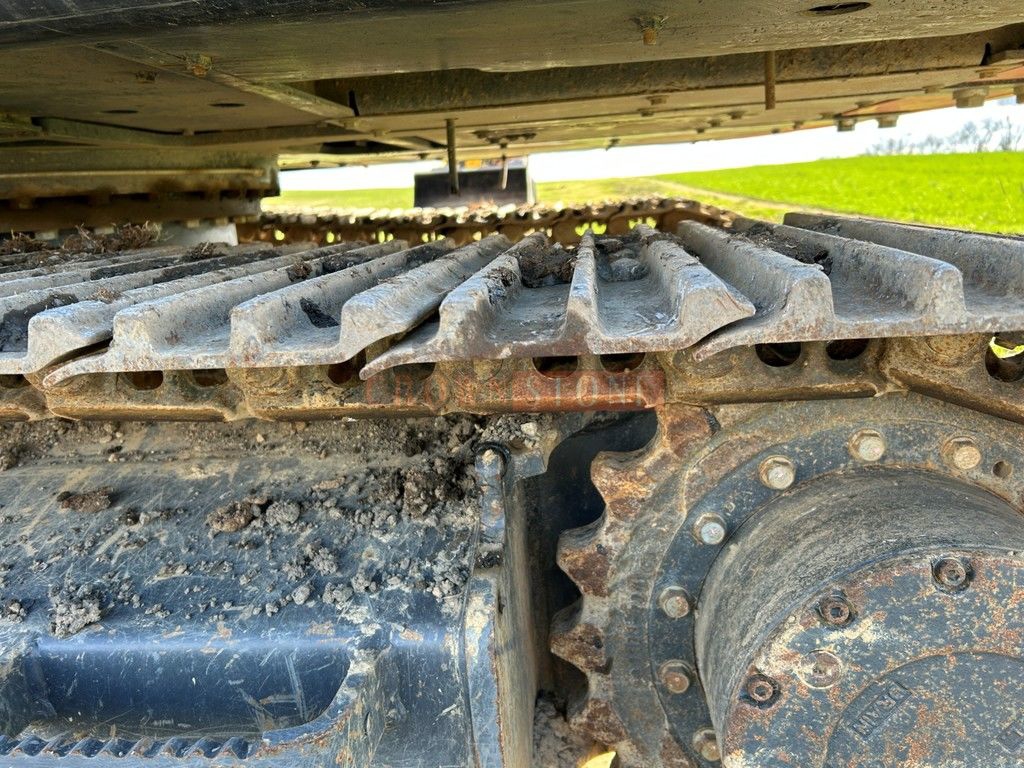

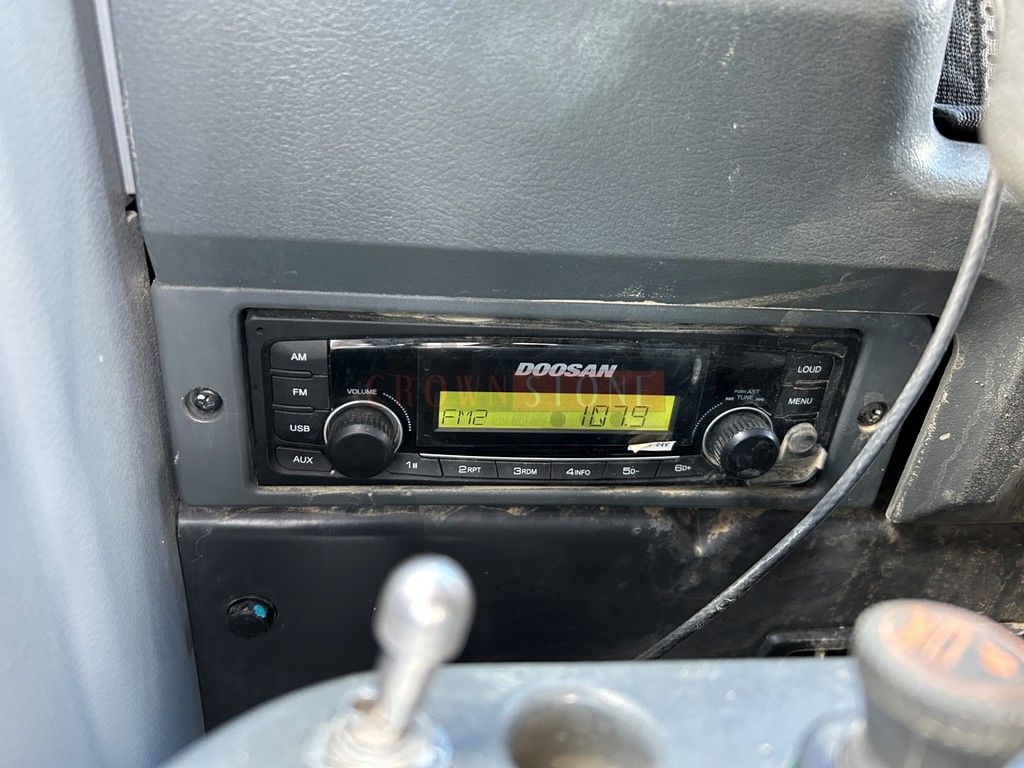

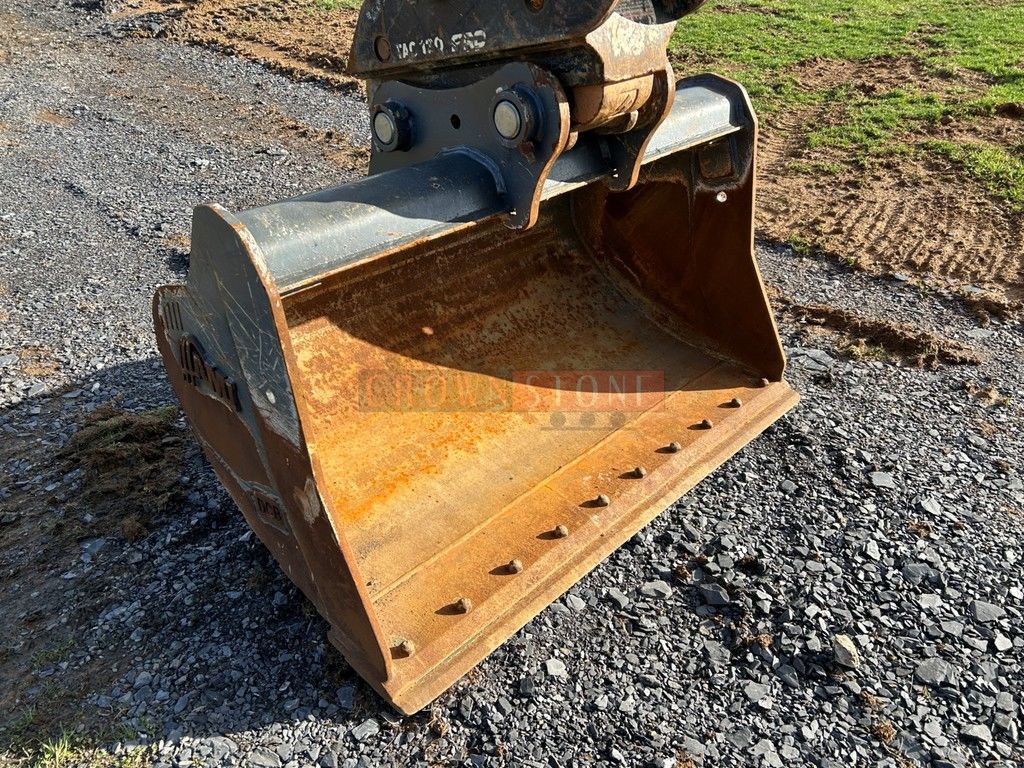

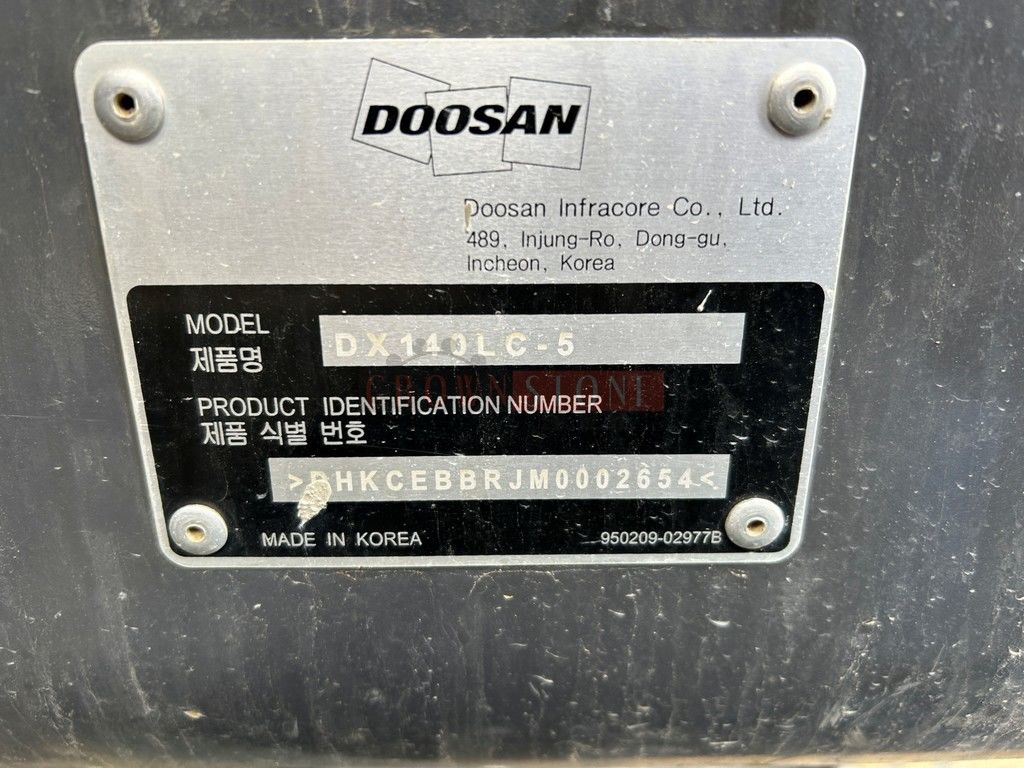

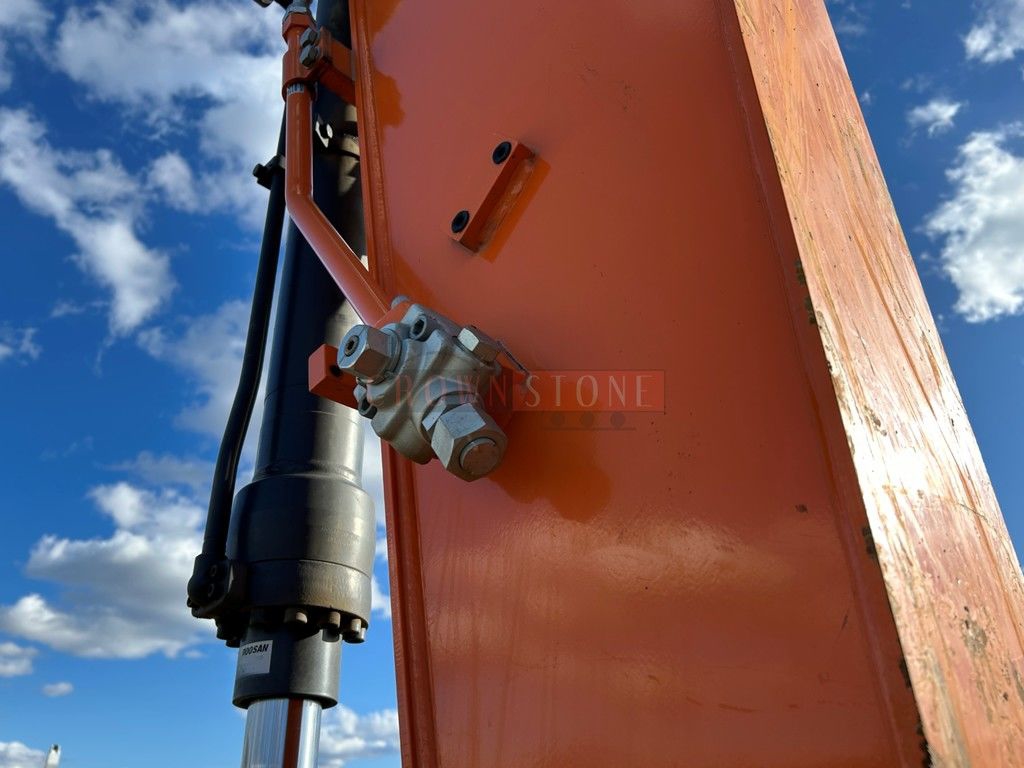

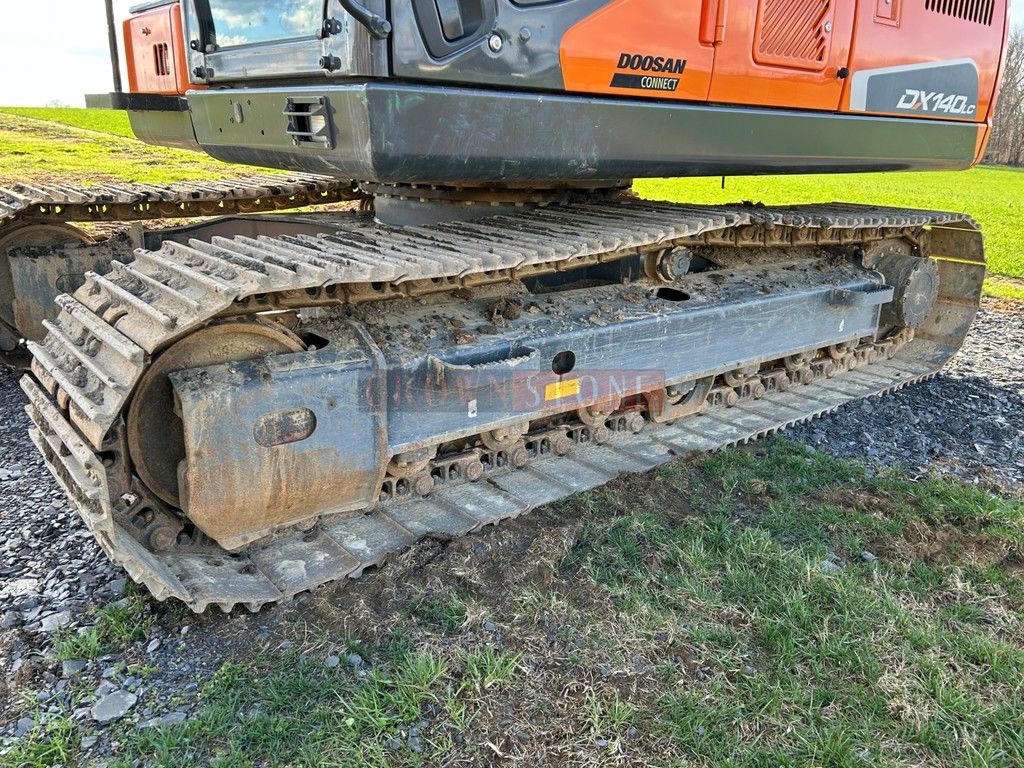

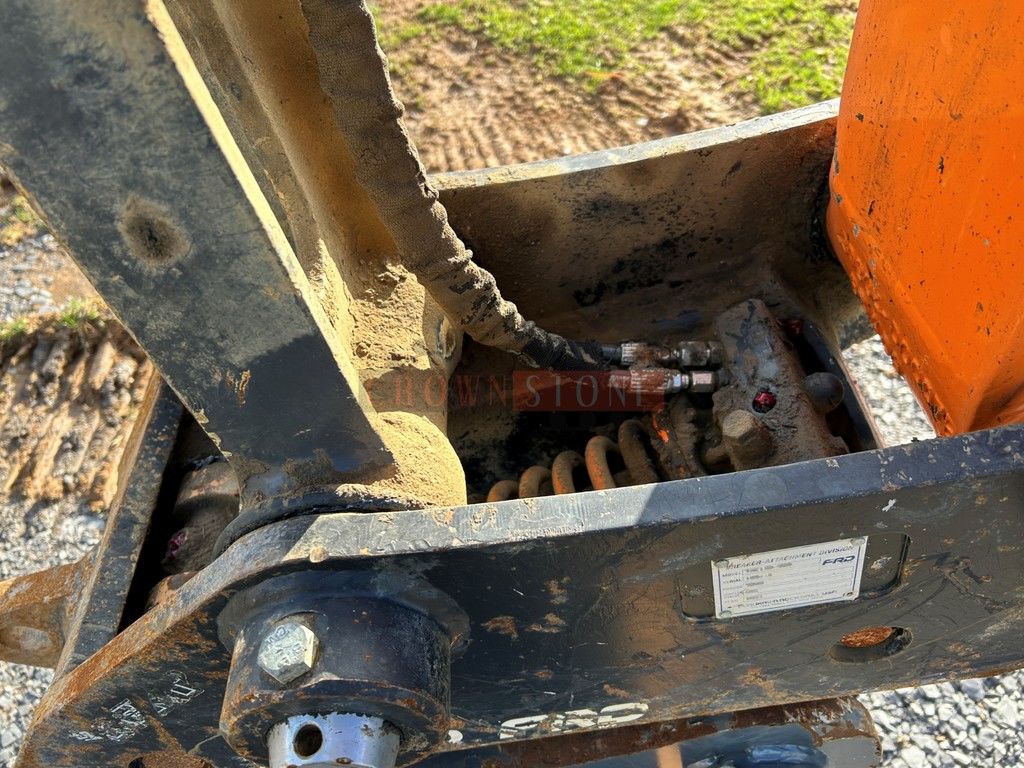

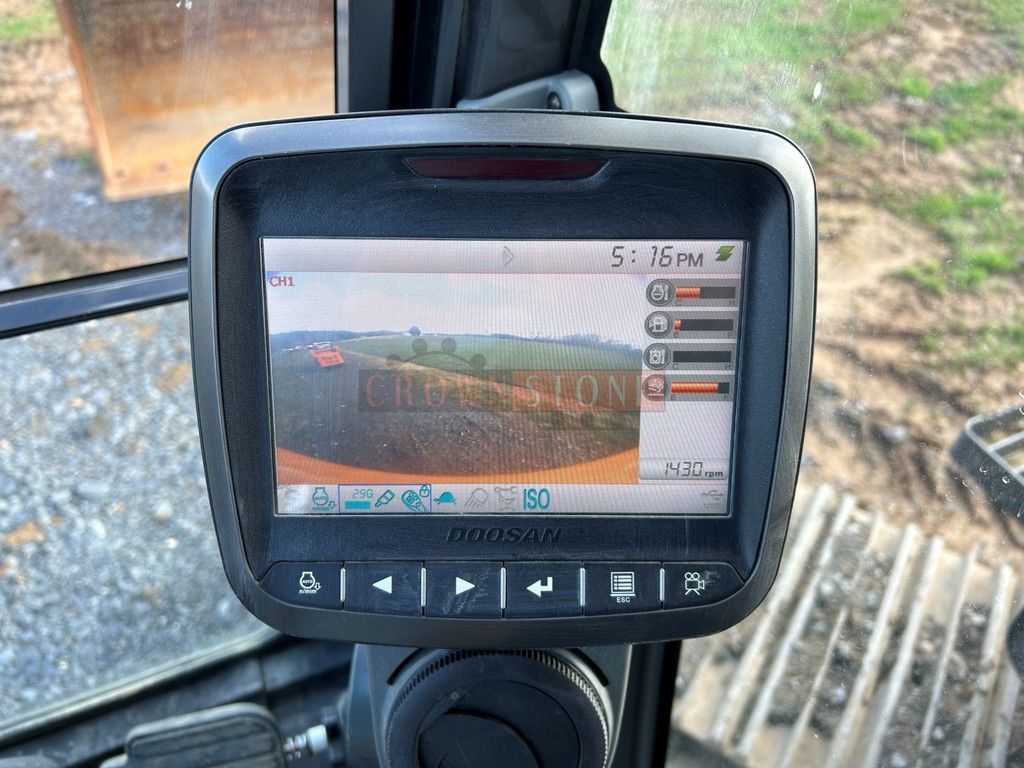

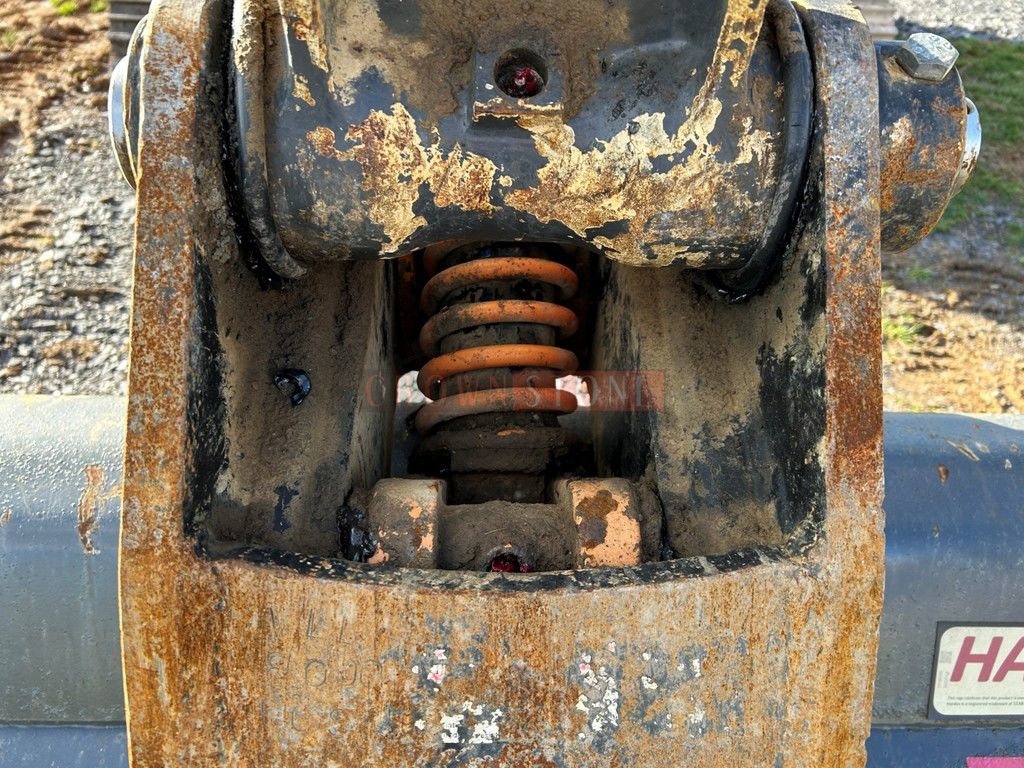

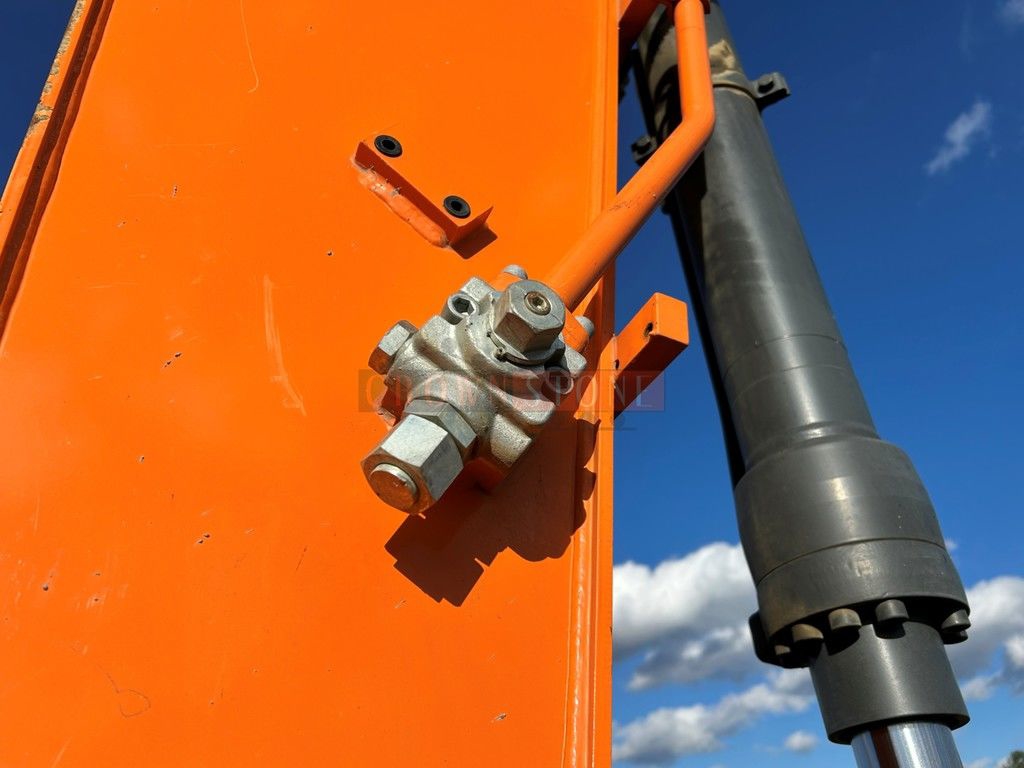

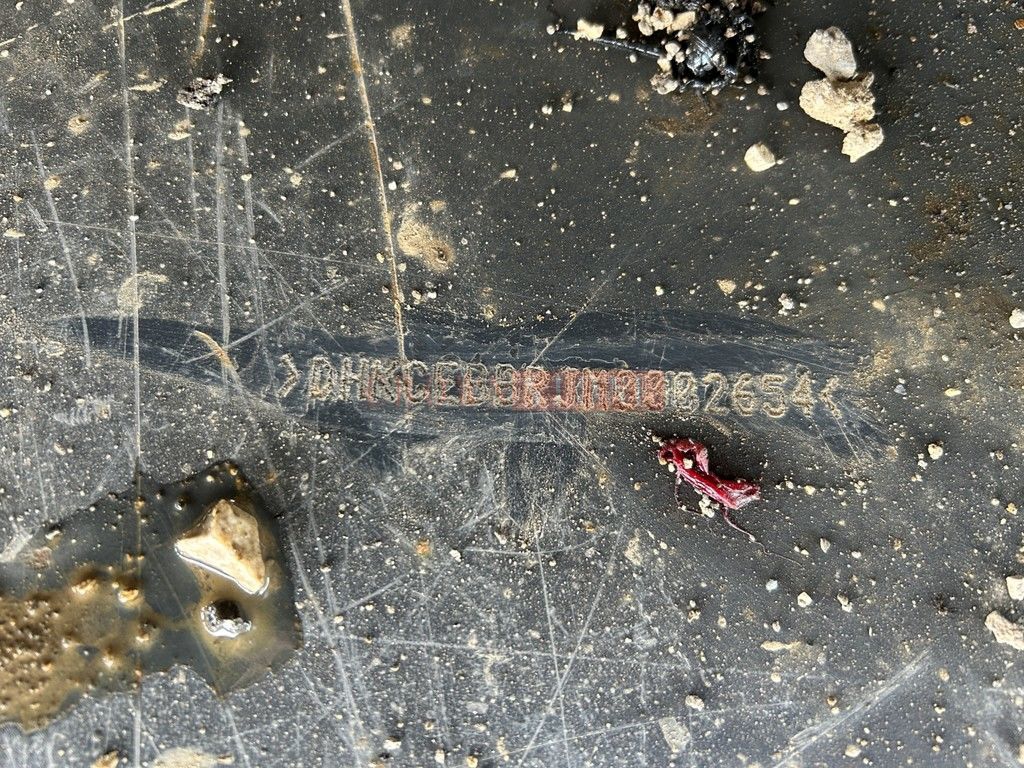

Diamond Certified. Cab. Auto HVAC. (2) Exterior Cameras. Pin Grabber, - DIAMOND CERTIFIED, - FRESH SERVICE!, - MULTI POINT BOBCHECK INSPECTION COMPLETED BY A CERTIFIED BobcatTECHNICIAN, - 60 DAY LIMITED POWERTRAIN WARRANTY, - 800 Hours, - Enclosed Cab, - Auto HVAC, - Radio, - Cloth Suspension Seat, - Digital Display, - (2) Exterior Cameras, - AUX Hydraulics, - Hydraulic Pin Grabber, - 60" Grading Bucket, - Steel Tracks, - 115 HP Perkins Diesel Engine, - 28,800 LB Approximate Operating Weight, - 17' Approximate Dig Depth, SERIAL#: DHKCEBBRJM0002654, STOCK#: 218422, Please call to confirm location!

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Doosan DX140LC-5 is a hydraulic crawler excavator in the 14-ton class, designed for general earthmoving, utility work, site preparation, and material handling. It is part of Doosan's DX-5 series and features a reduced tail swing design for operation in confined job sites. The machine is typically equipped with a fuel-efficient diesel engine, advanced hydraulic controls, and a reinforced undercarriage for stability and durability. Common attachments include buckets, breakers, and thumbs. The DX140LC-5 is used in construction, landscaping, roadwork, and municipal applications where compact size, digging performance, and maneuverability are required.

Boom/Stick 1
Boom/Stick 1	Boom 15\'1\"(4600 mm)/Arm 9\'10\"(3000mm)
Max Digging Depth	20 ft (6 m)
Max Digging Height	29 ft (9 m)
Max Digging Reach	28 ft (9 m)
Max Loading Height	21 ft (6 m)
Max Vertical Wall Digging Depth	15 ft (5 m)
Min Digging Reach	1 ft (0 m)
Minimum Swing Radius	103 in (263 cm)
Shipping Height Of Unit	10 ft (3 m)
Shipping Length Of Unit	25 ft (8 m)
Buckets
Maximum Bucket Capacity	1 cu yd
Minimum Bucket Capacity	1 cu yd
Dimensions
Counterweight Clearance	3 ft (1 m)
Tail Swing Radius	7 ft (2 m)
Track Shoe Width	2 ft (1 m)
Undercarriage Width	8 ft (3 m)
Electrical System
Alternator	24 v, 85 amp
Battery	12V, 100AH
Starter	24V

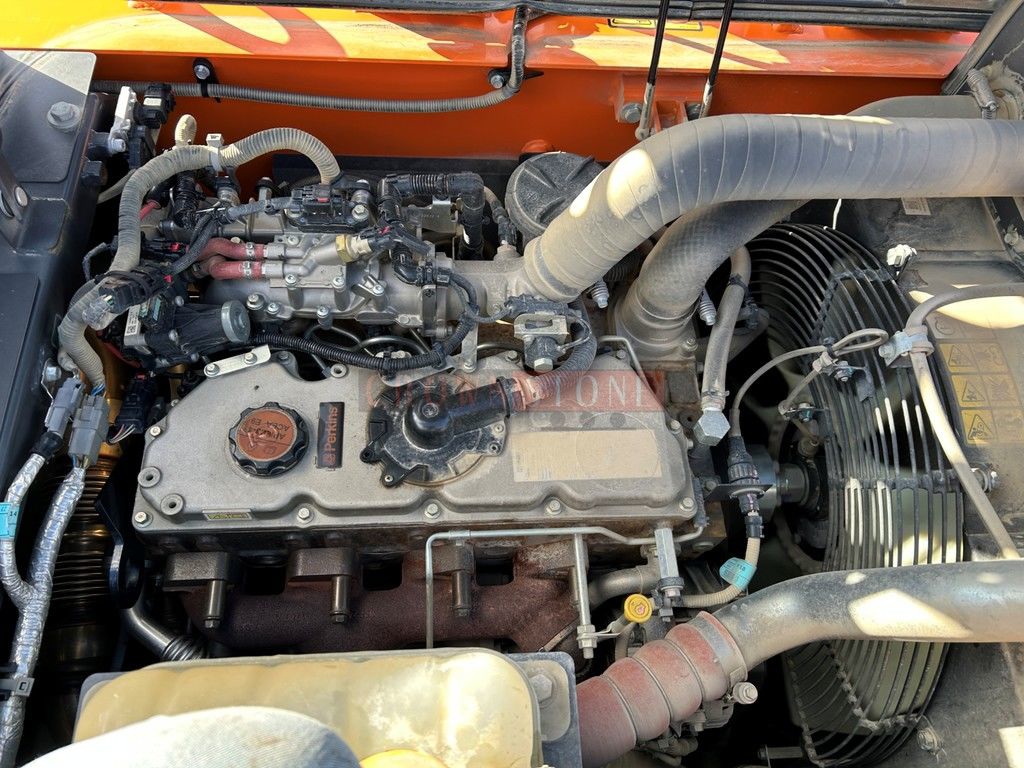

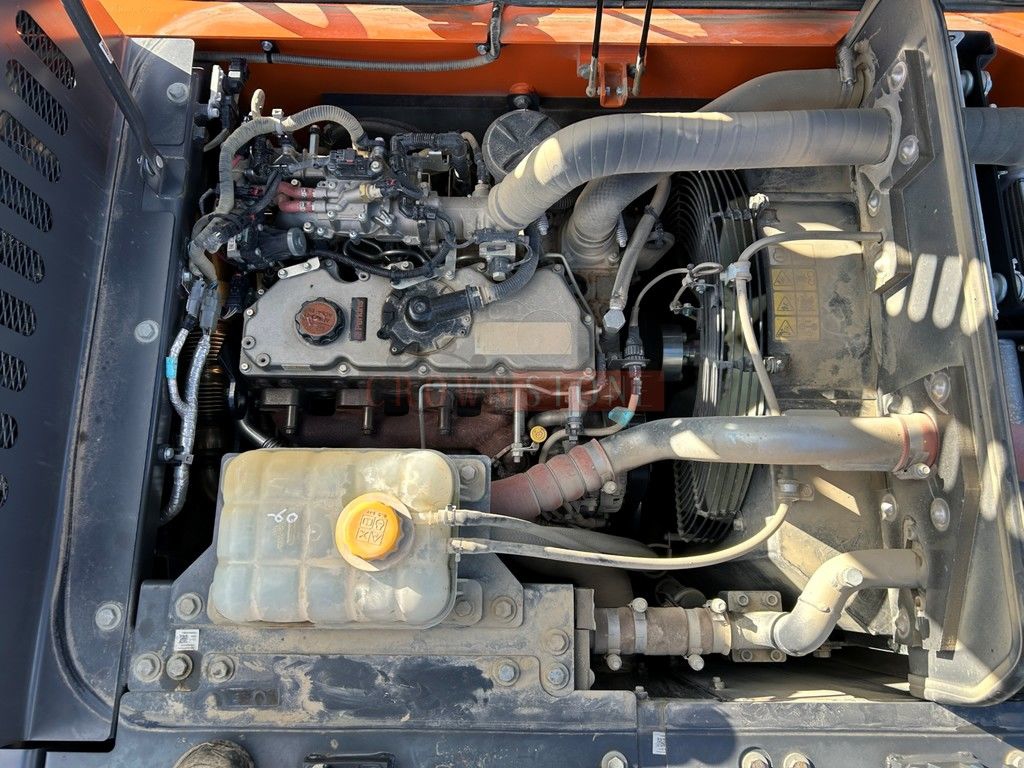

Engine
Air Cleaner	Double Elements
Bore	4 in (11 cm)
Displacement	269 cu in (4,402 cu cm)
Engine Make	Perkins
Engine Model	1204F
Gross Power	115 hp (86 kw)
Max Torque	1,301 lbs ft (1,764 nm)
Net Power	113 hp (84 kw)
Number Of Cylinders	4
Power Measured @	2,000 rpm
Starter	6 hp (4 kw)
Stroke	5 in (13 cm)
Torque Measured @	1,400 rpm

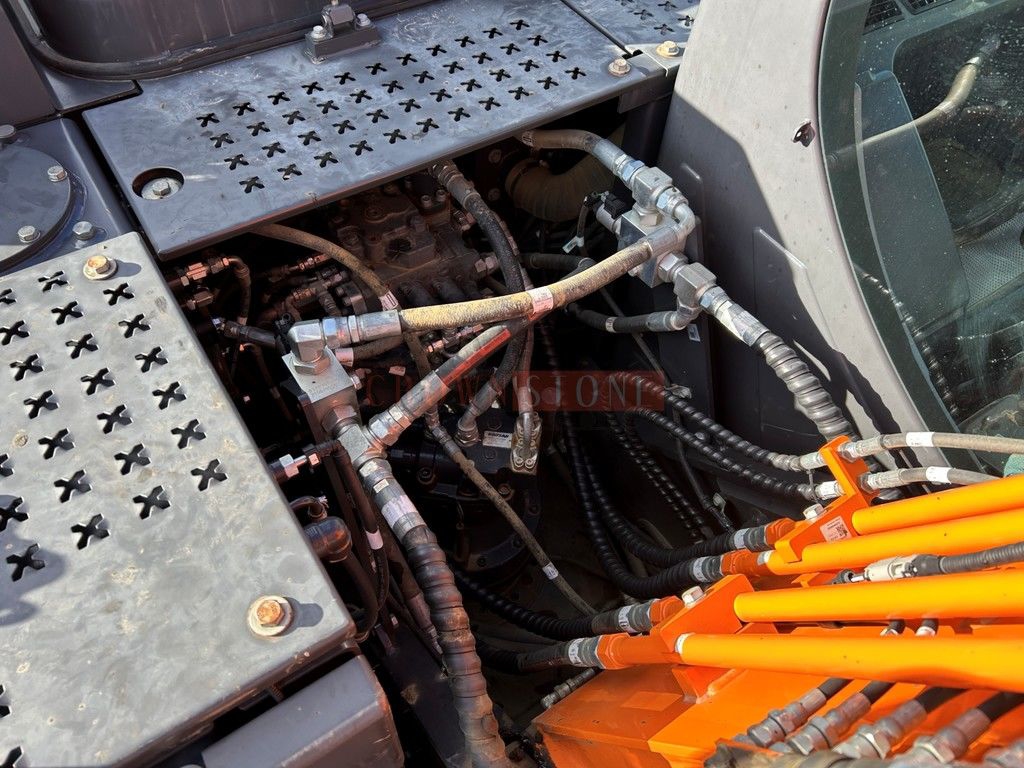

Hydraulic
Main Pump Flow Standard	60 gpm (228 lpm)
Pilotpump-Gear Design	8 gpm (30 lpm)
Relief Pressure - Boost	4,694 psi
Relief Pressure -Normal	4,978 psi
Operational

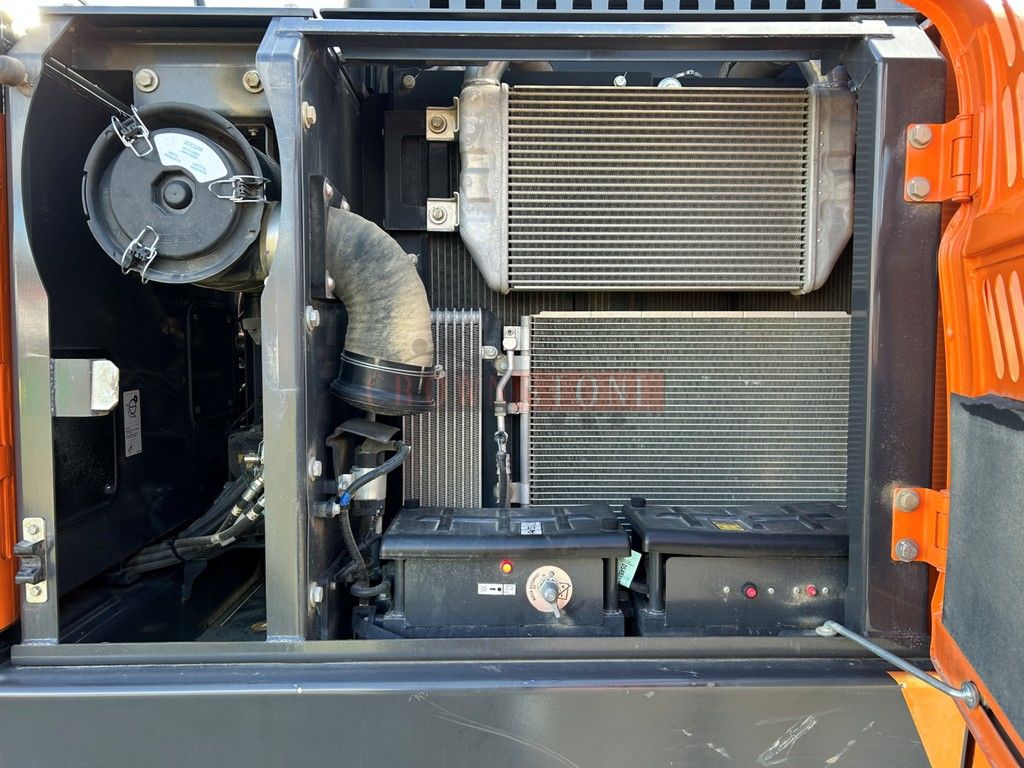

Cooling System Fluid Capacity	7 gal (25 l)
Def Tank Capacity	5 gal (19 l)
Engine Oil Capacity	2 gal (8 l)
Final Drive Fluid Capacity - Each	1 gal (2 l)
Fuel Capacity	70 gal (265 l)
Hydraulic System Fluid Capacity	45 gal (170 l)
Hydraulic System Relief Valve Pressure	5 psi
Hydraulic Tank	40 gal (150 l)
Operating Weight	32,783 lbs (14,868 kg)
Swing Drive Fluid Capacity	1 gal (3 l)
Performance
Maximum Grade	35 degrees
Swing - Normal Mode	4,694 psi
Swing-Power Mode	4,978 psi
Traction Force -Draw Bar Pull	35,935 lbs ft (48,721 nm)
Travel-Normal Mode	4,694 psi
Travel-Power Mode	4,978 psi
Speeds
High	3 mph (5 kph)
Low	2 mph (3 kph)
Swing Mechanism
Swing Speed	11 rpm
Swing Torque	34,718 lbs ft (47,071 nm)

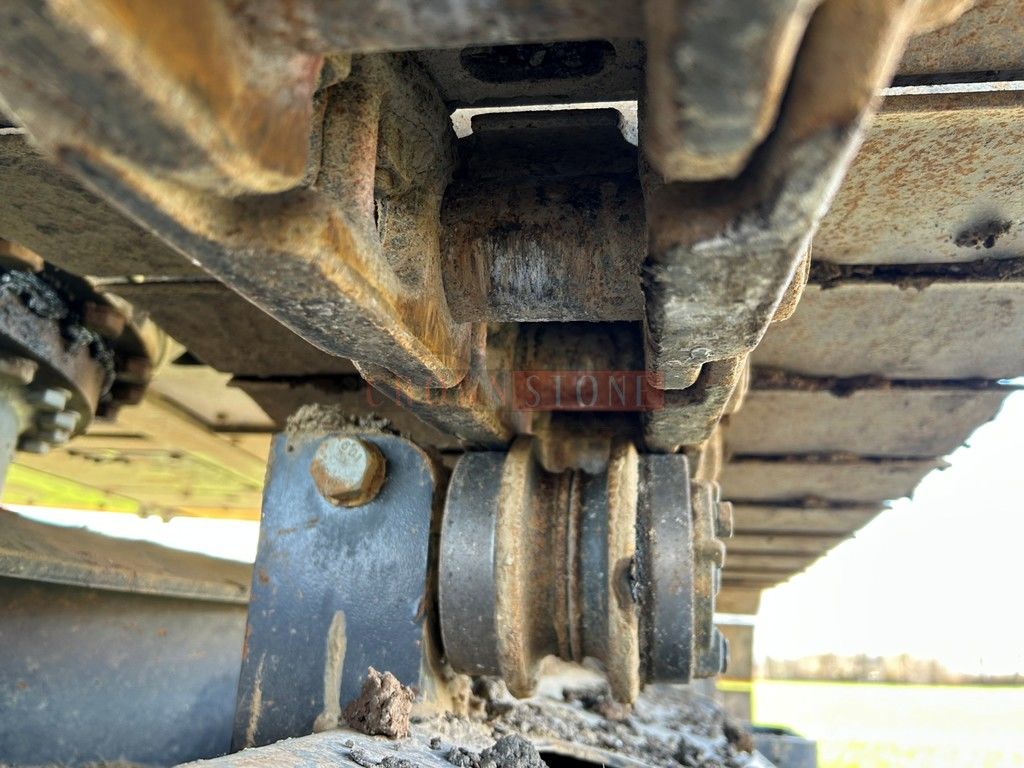

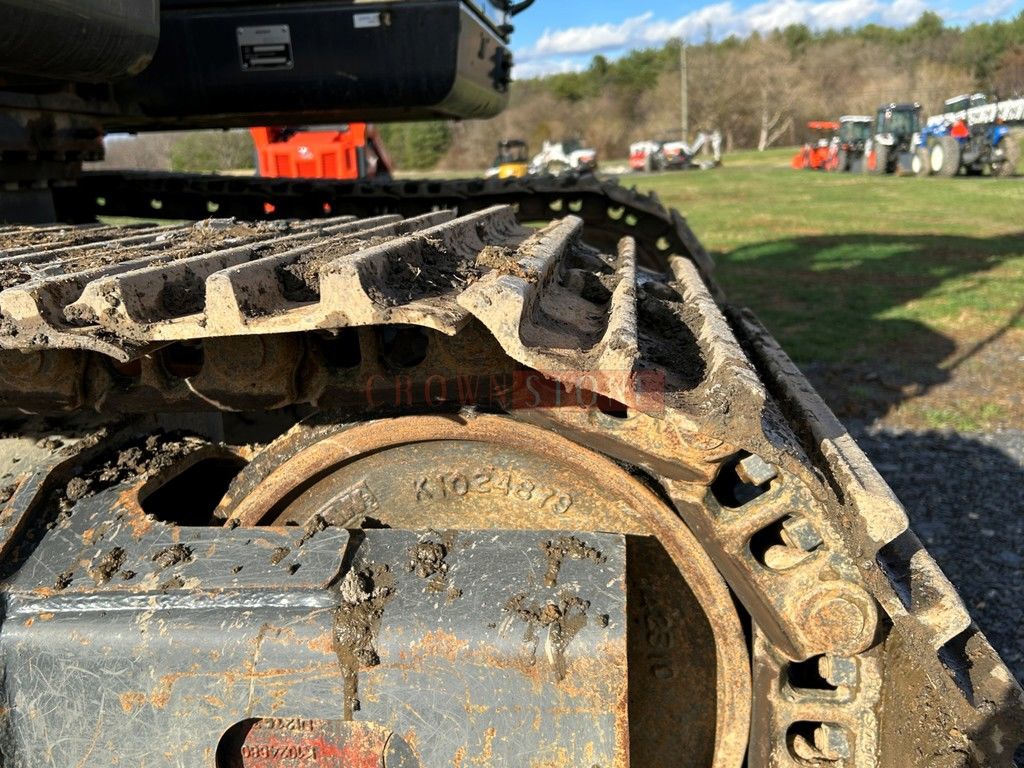

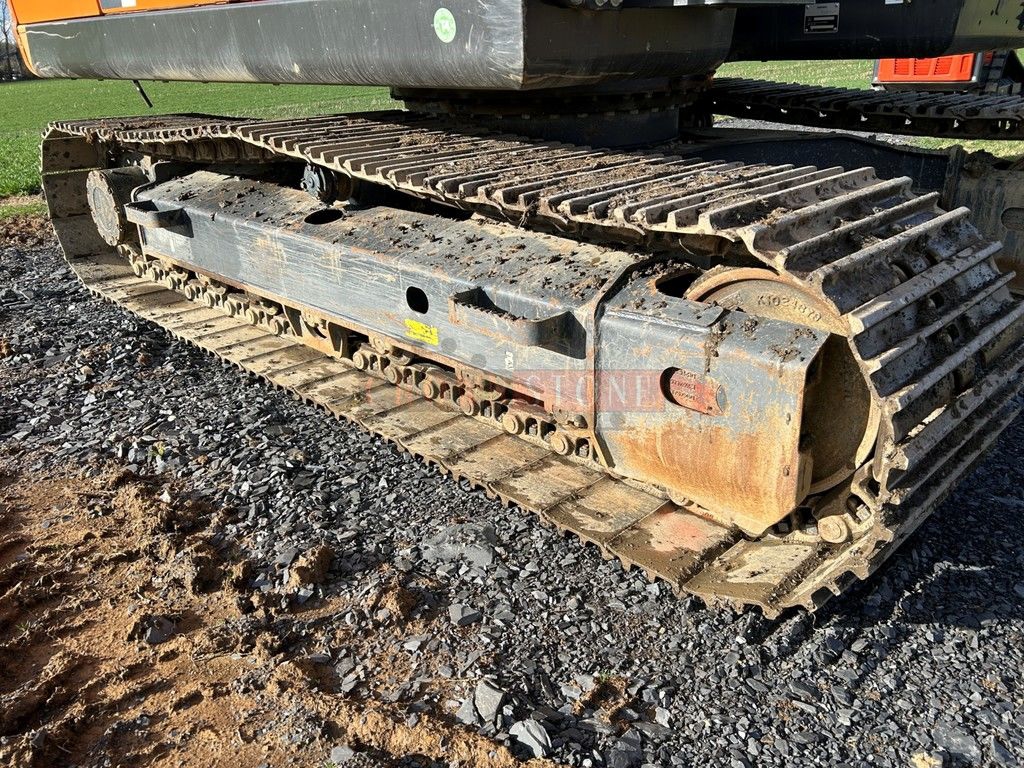

Undercarriage

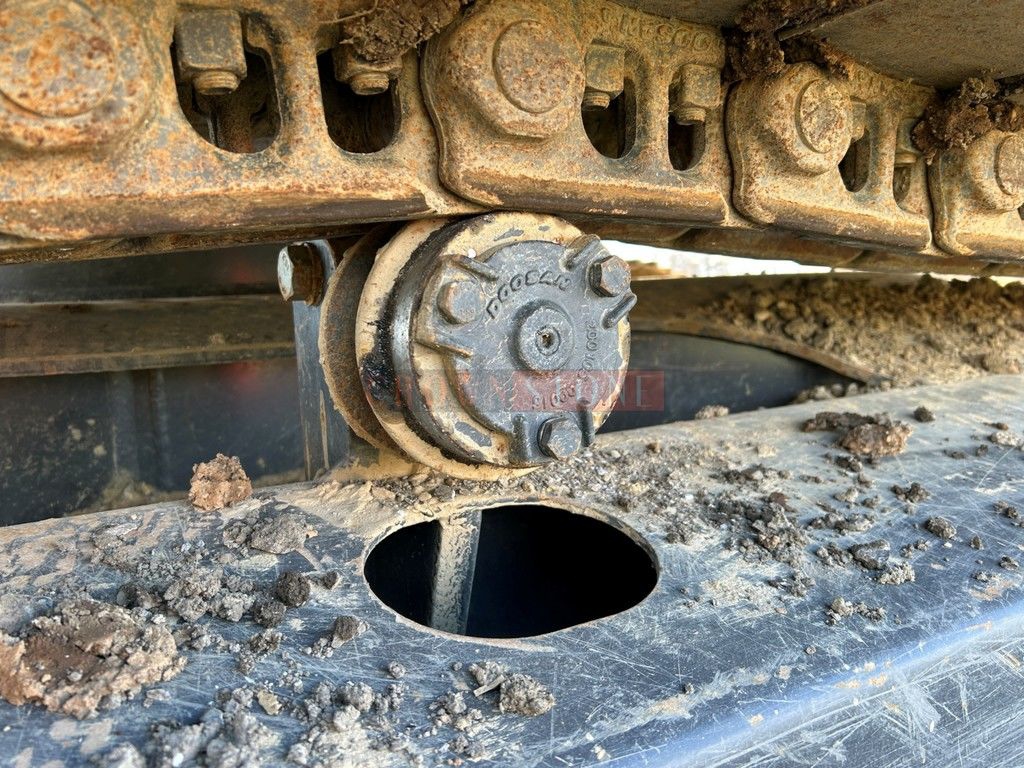

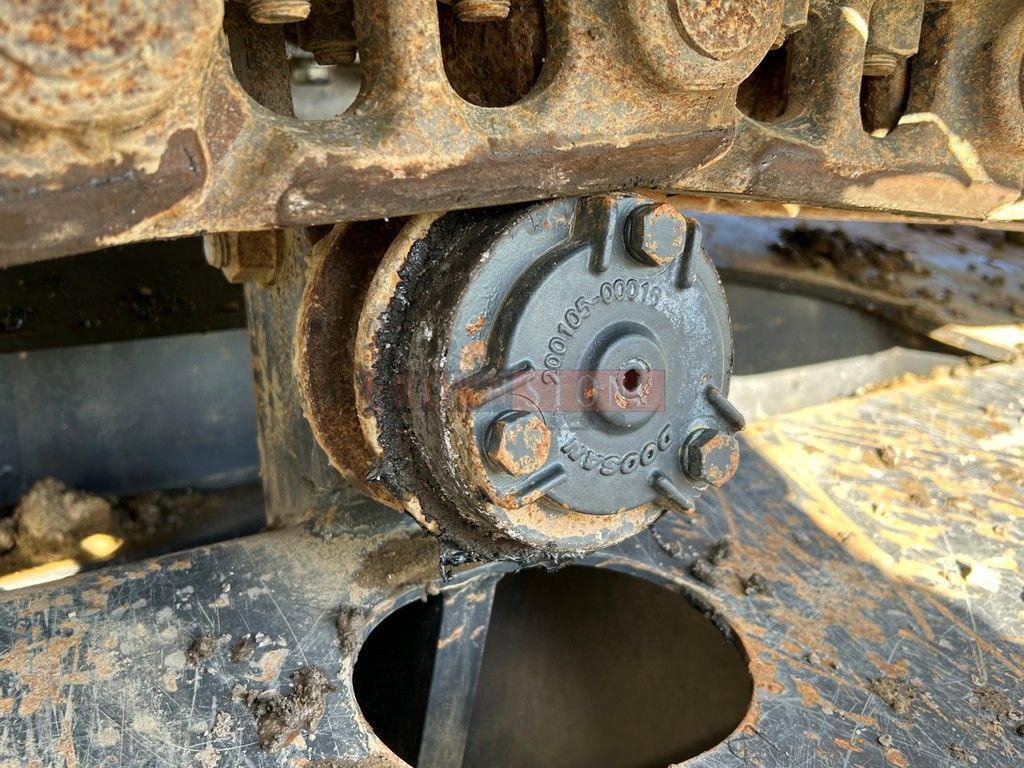

Number Of Bottom Rollers Per Side	7
Number Of Shoes Per Side	46
Number Of Top Rollers Per Side	1
Weights
Counterweight	4,850 lbs (2,200 kg)
