2021 Doosan DX140LC-5 For Sale in Maltby, Gbr

Name: 2021 Doosan DX140LC-5
Brand: Doosan
SKU: 89140609
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-23 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

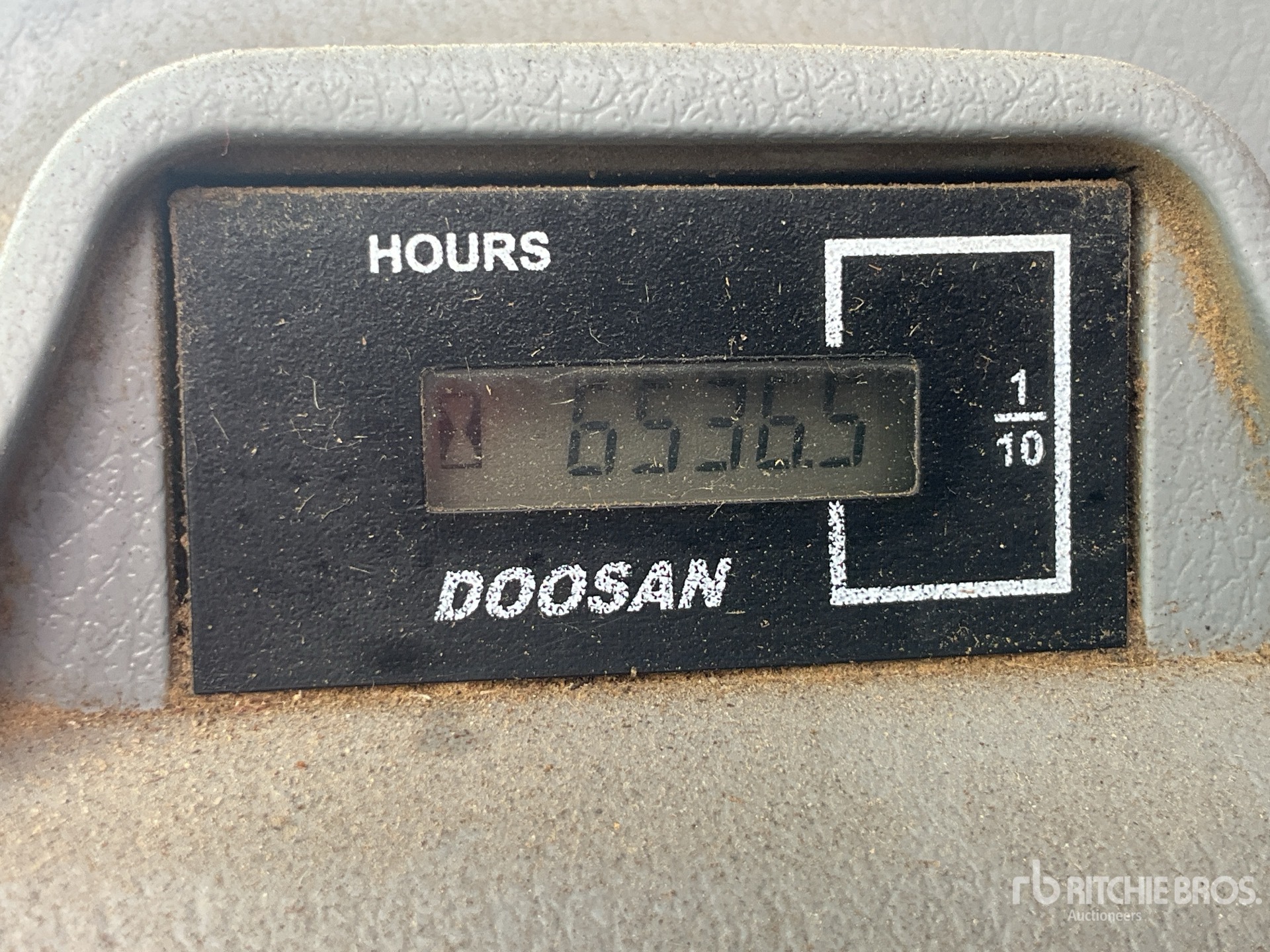

Hours:	6536

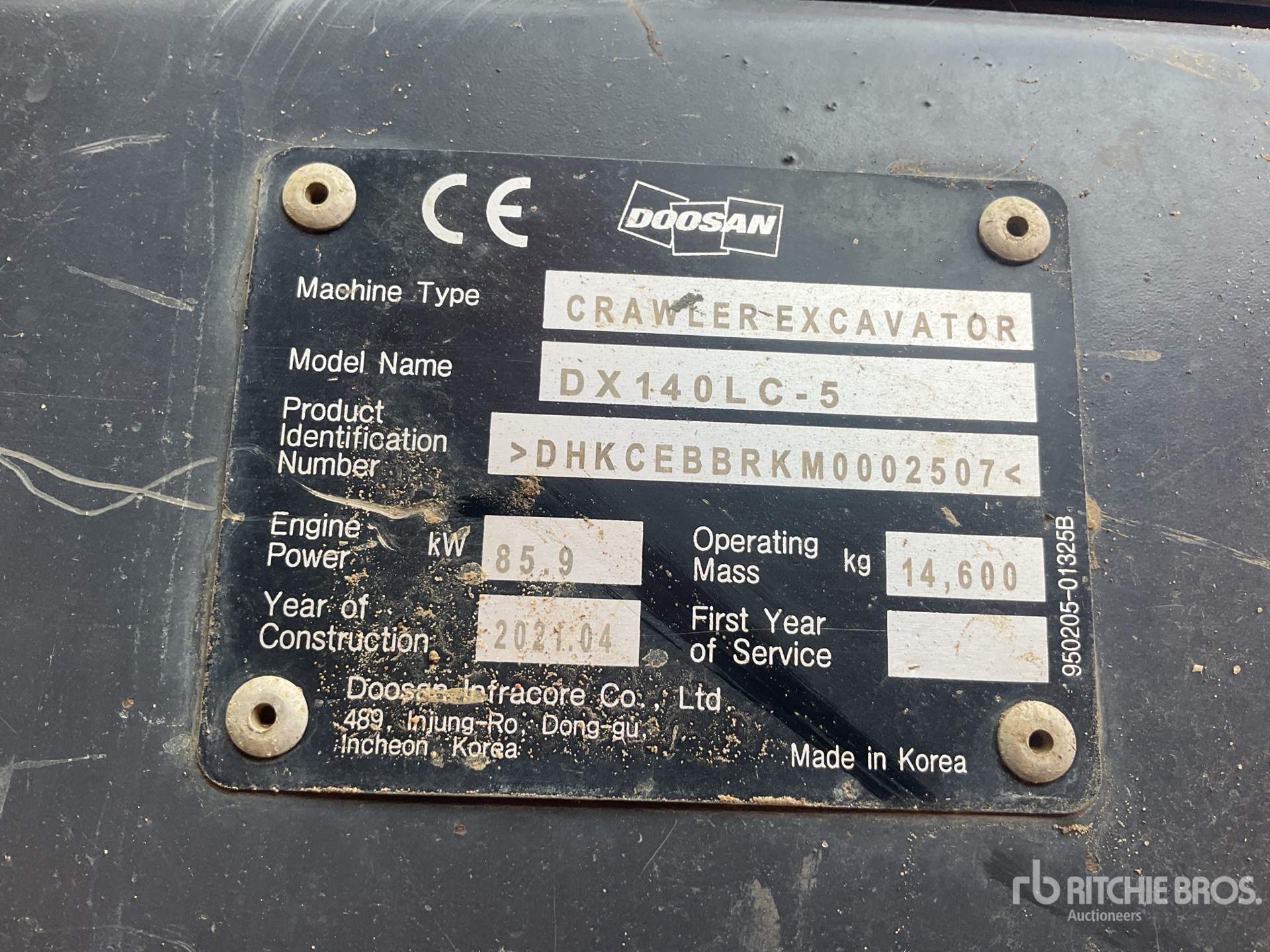

Serial Number:	DHKCEBBRKM0002507
Machine Location:	MALTBY, GBR

Description:

Air Conditioner, Rear & Side View Cameras, 2019 US EPA Label, Requires AdBlue, 3000 mm Stick, Auxiliary Hydraulic Plumbing, Stick Check Valve, Boom Check Valves, 700 mm Triple Grouser Track Shoes, Hydraulic Quick Coupler, 1800 mm Cleanup Bucket

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Doosan DX140LC-5 is a hydraulic crawler excavator in the 14-ton class, designed for general earthmoving, utility work, site preparation, and material handling. It is part of Doosan's DX-5 series and features a reduced tail swing design for operation in confined job sites. The machine is typically equipped with a fuel-efficient diesel engine, advanced hydraulic controls, and a reinforced undercarriage for stability and durability. Common attachments include buckets, breakers, and thumbs. The DX140LC-5 is used in construction, landscaping, roadwork, and municipal applications where compact size, digging performance, and maneuverability are required.

Boom/Stick 1
Boom/Stick 1	Boom 15\'1\"(4600 mm)/Arm 9\'10\"(3000mm)
Max Digging Depth	20 ft (6 m)
Max Digging Height	29 ft (9 m)
Max Digging Reach	28 ft (9 m)
Max Loading Height	21 ft (6 m)
Max Vertical Wall Digging Depth	15 ft (5 m)
Min Digging Reach	1 ft (0 m)
Minimum Swing Radius	103 in (263 cm)
Shipping Height Of Unit	10 ft (3 m)
Shipping Length Of Unit	25 ft (8 m)
Buckets
Maximum Bucket Capacity	1 cu yd
Minimum Bucket Capacity	1 cu yd
Dimensions
Counterweight Clearance	3 ft (1 m)
Tail Swing Radius	7 ft (2 m)
Track Shoe Width	2 ft (1 m)
Undercarriage Width	8 ft (3 m)
Electrical System
Alternator	24 v, 85 amp
Battery	12V, 100AH
Starter	24V
Engine
Air Cleaner	Double Elements
Bore	4 in (11 cm)
Displacement	269 cu in (4,402 cu cm)
Engine Make	Perkins
Engine Model	1204F
Gross Power	115 hp (86 kw)
Max Torque	1,301 lbs ft (1,764 nm)
Net Power	113 hp (84 kw)
Number Of Cylinders	4
Power Measured @	2,000 rpm
Starter	6 hp (4 kw)
Stroke	5 in (13 cm)
Torque Measured @	1,400 rpm
Hydraulic
Main Pump Flow Standard	60 gpm (228 lpm)
Pilotpump-Gear Design	8 gpm (30 lpm)
Relief Pressure - Boost	4,694 psi
Relief Pressure -Normal	4,978 psi
Operational
Cooling System Fluid Capacity	7 gal (25 l)
Def Tank Capacity	5 gal (19 l)
Engine Oil Capacity	2 gal (8 l)
Final Drive Fluid Capacity - Each	1 gal (2 l)
Fuel Capacity	70 gal (265 l)
Hydraulic System Fluid Capacity	45 gal (170 l)
Hydraulic System Relief Valve Pressure	5 psi
Hydraulic Tank	40 gal (150 l)
Operating Weight	32,783 lbs (14,868 kg)
Swing Drive Fluid Capacity	1 gal (3 l)
Performance
Maximum Grade	35 degrees
Swing - Normal Mode	4,694 psi
Swing-Power Mode	4,978 psi
Traction Force -Draw Bar Pull	35,935 lbs ft (48,721 nm)
Travel-Normal Mode	4,694 psi
Travel-Power Mode	4,978 psi
Speeds
High	3 mph (5 kph)
Low	2 mph (3 kph)
Swing Mechanism
Swing Speed	11 rpm
Swing Torque	34,718 lbs ft (47,071 nm)
Undercarriage
Number Of Bottom Rollers Per Side	7
Number Of Shoes Per Side	46
Number Of Top Rollers Per Side	1
Weights
Counterweight	4,850 lbs (2,200 kg)
