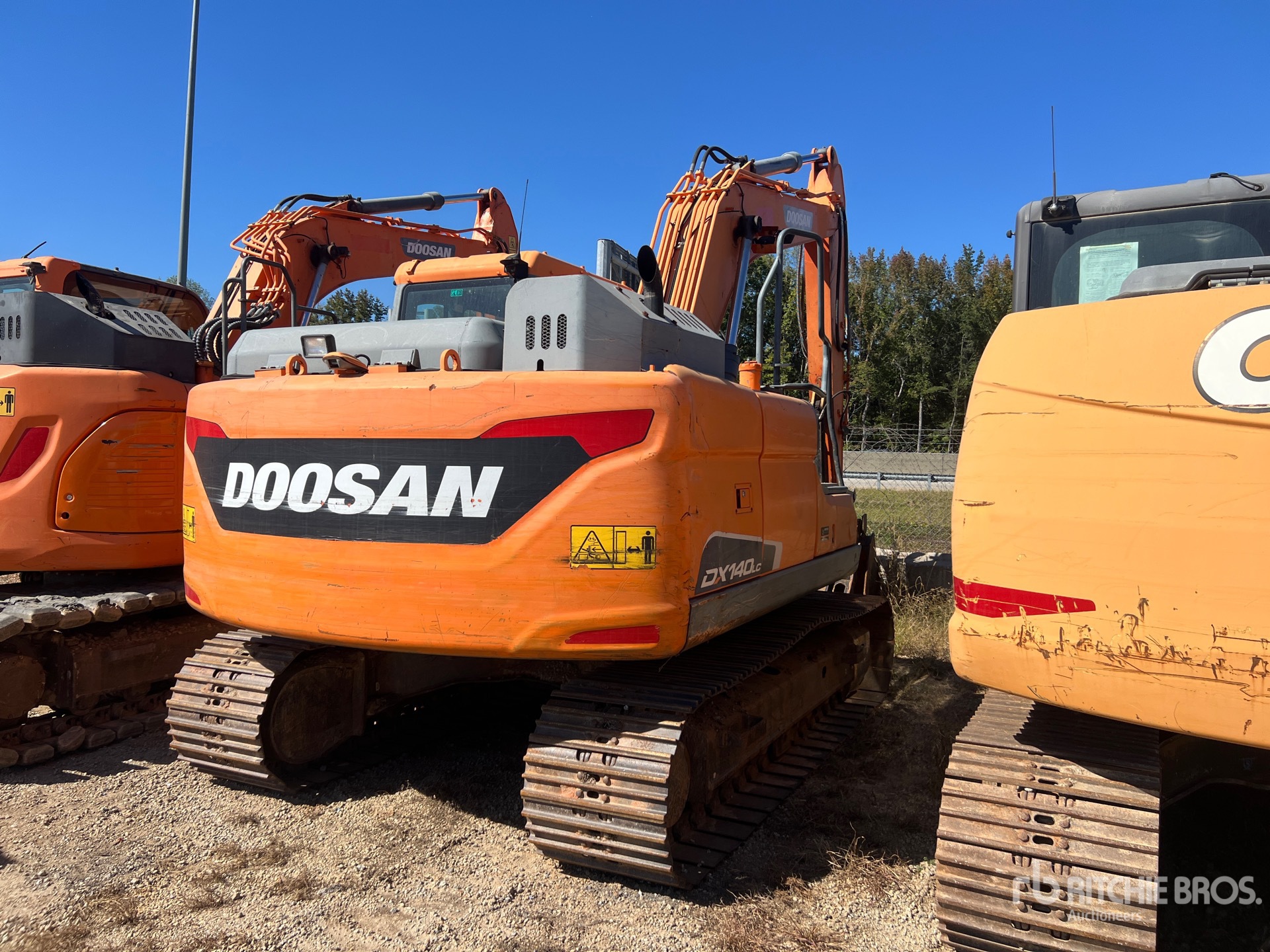

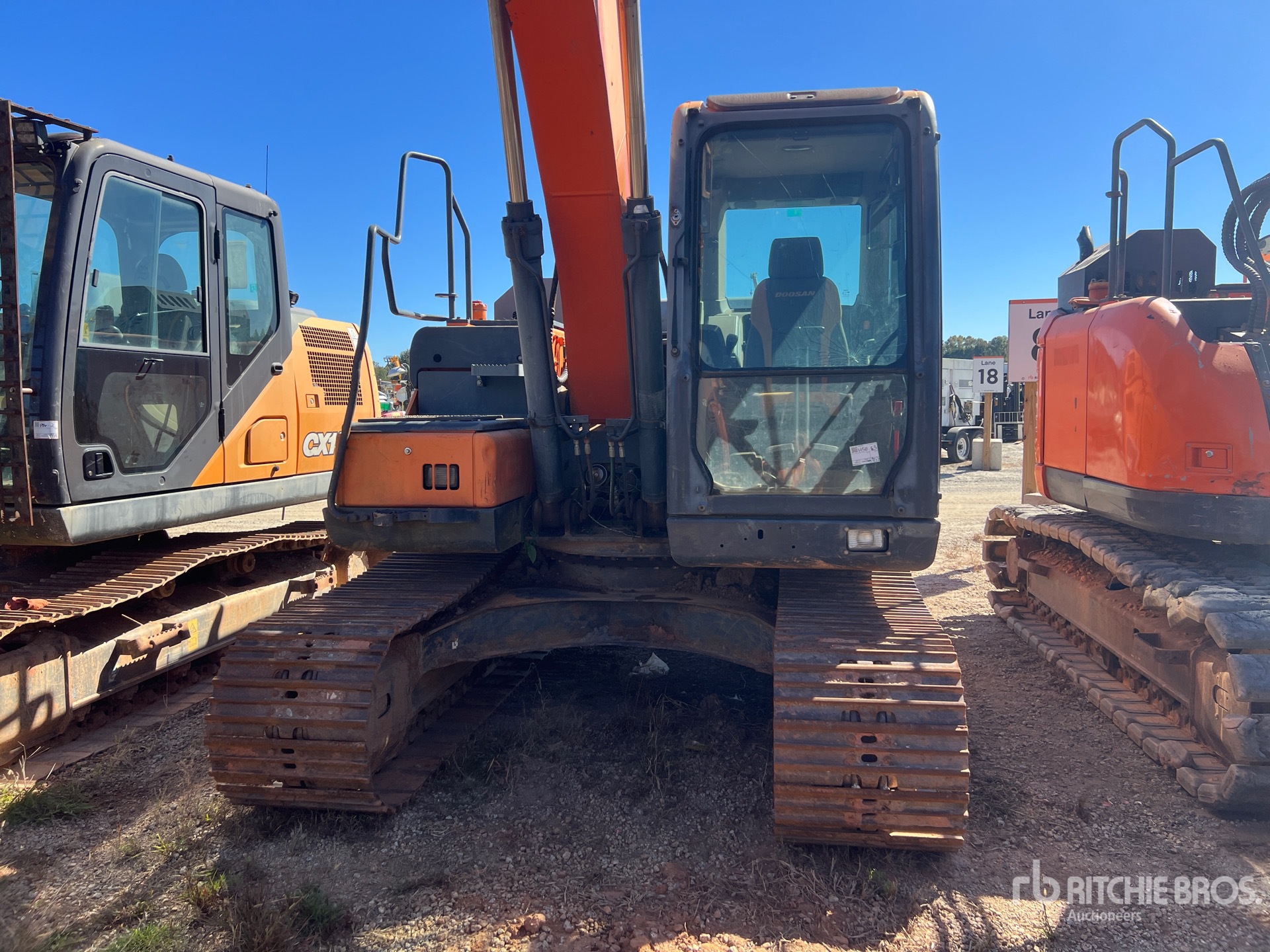

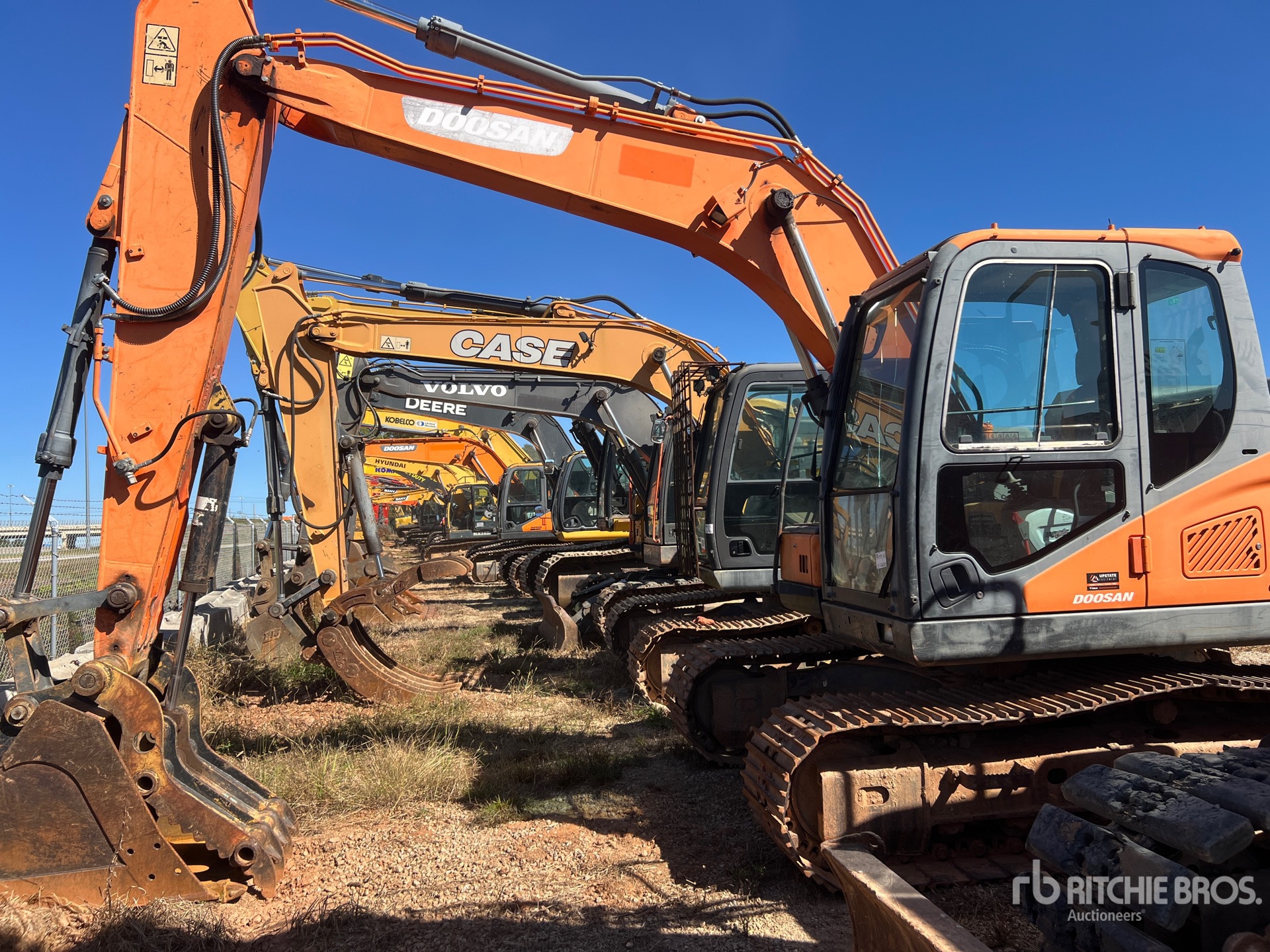

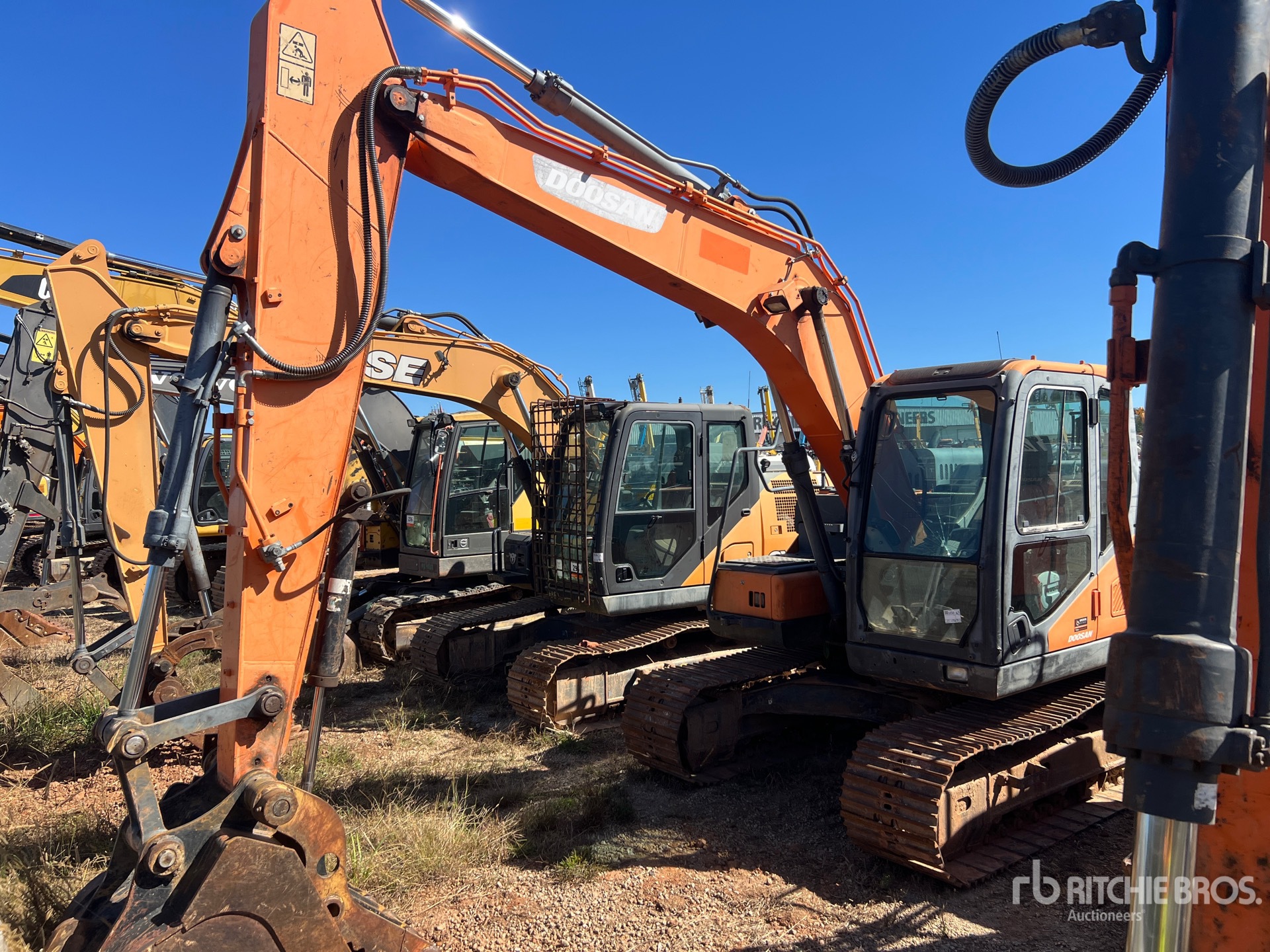

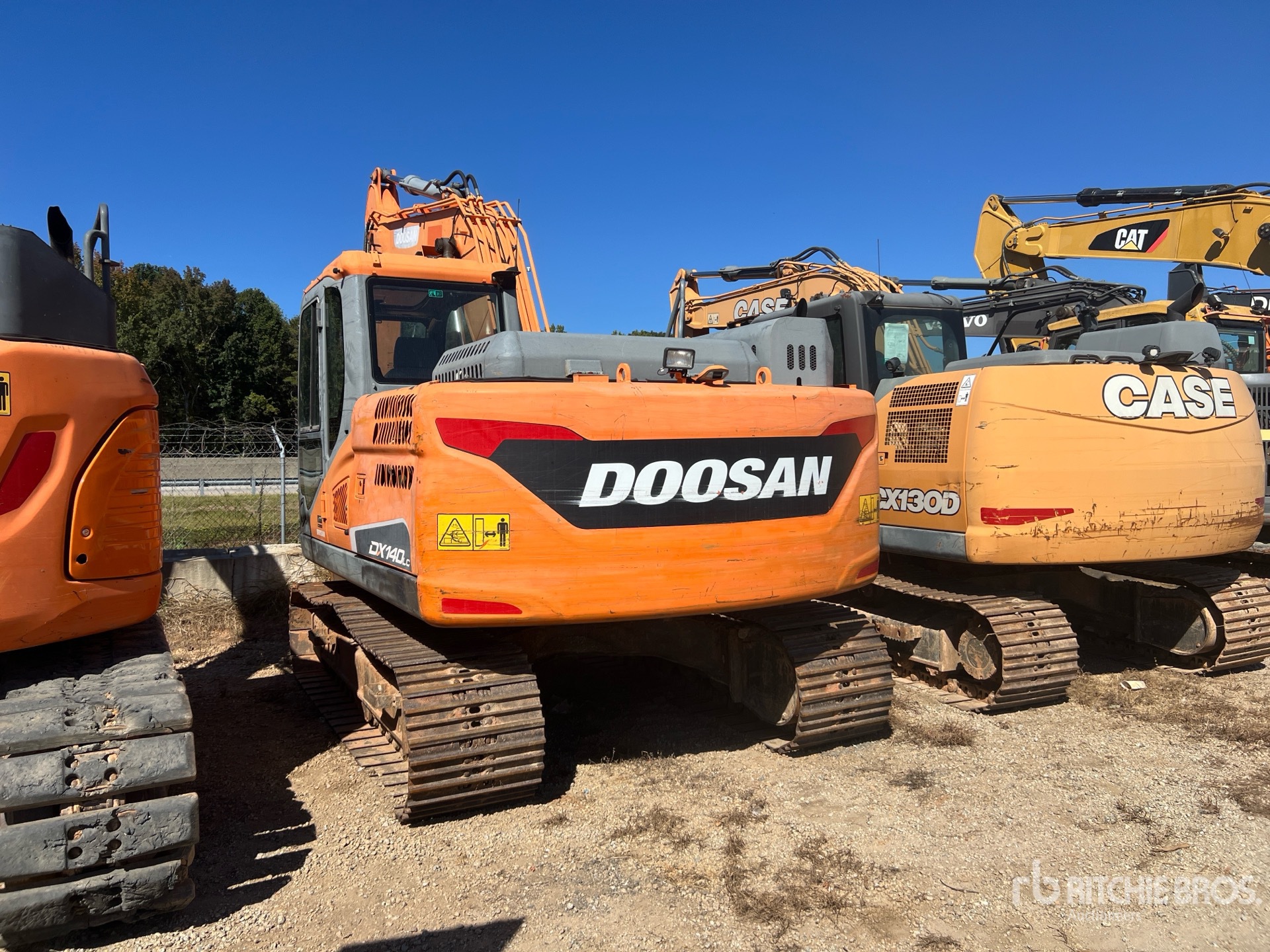

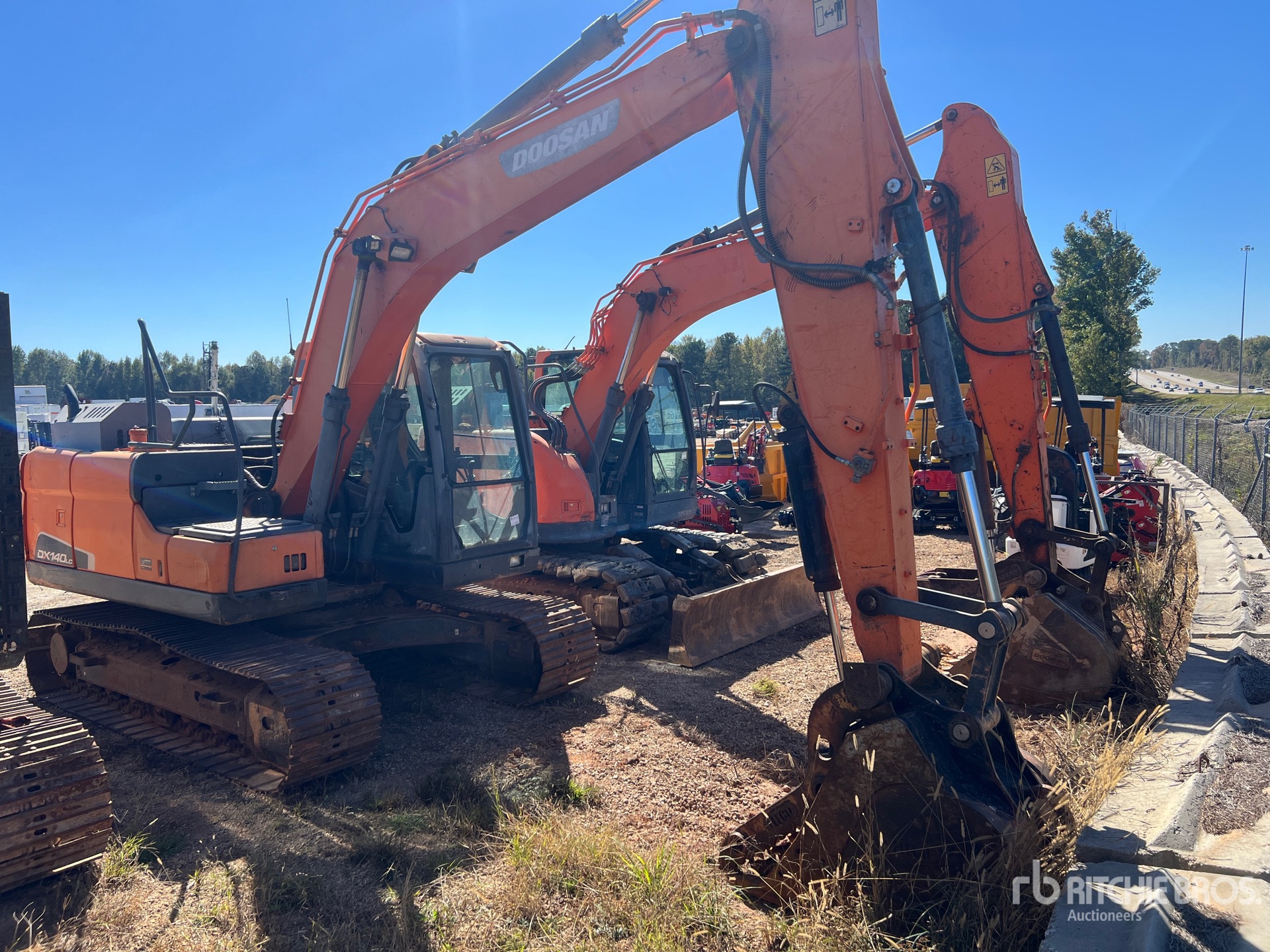

| Boom/Stick 1 |
|
Boom/Stick 1 |
Boom 15'1" (4600mm)/Stick 6'11" (2100mm) |
|
Max Cutting Height |
27 ft (8 m)
|
|
Max Digging Depth |
17 ft (5 m)
|
|
Max Loading Height |
19 ft (6 m)
|
|
Max Reach Along Ground |
25 ft (8 m)
|
|
Max Vertical Wall Digging Depth |
13 ft (4 m)
|
|
Shipping Height Of Unit |
8 ft (3 m)
|
|
Shipping Length Of Unit |
25 ft (8 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
Boom 15'1" (4600mm)/Stick 8'2" (2500mm) |
|
Max Cutting Height |
28 ft (9 m)
|
|
Max Digging Depth |
19 ft (6 m)
|
|
Max Loading Height |
21 ft (6 m)
|
|
Max Reach Along Ground |
27 ft (8 m)
|
|
Max Vertical Wall Digging Depth |
15 ft (5 m)
|
|
Shipping Height Of Unit |
9 ft (3 m)
|
|
Shipping Length Of Unit |
25 ft (8 m)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
Boom 15'1" (4600mm)/Stick 9'10" (3000mm) |
|
Max Cutting Height |
29 ft (9 m)
|
|
Max Digging Depth |
20 ft (6 m)
|
|
Max Loading Height |
21 ft (6 m)
|
|
Max Reach Along Ground |
28 ft (9 m)
|
|
Max Vertical Wall Digging Depth |
16 ft (5 m)
|
|
Shipping Height Of Unit |
10 ft (3 m)
|
|
Shipping Length Of Unit |
25 ft (8 m)
|
| Boom/Stick 4 |
|
Boom/Stick 4 |
Boom 16'4" (4988mm)/Stick 6'11" (2100mm) |
|
Max Cutting Height |
29 ft (9 m)
|
|
Max Digging Depth |
18 ft (5 m)
|
|
Max Loading Height |
21 ft (6 m)
|
|
Max Reach Along Ground |
27 ft (8 m)
|
|
Max Vertical Wall Dig Depth |
16 ft (5 m)
|
|
Shipping Height Of Unit |
9 ft (3 m)
|
|
Shipping Length Of Unit |
26 ft (8 m)
|
| Boom/Stick 5 |
|
Boom/Stick 5 |
Boom 16'4" (4988mm)/Stick 8'2" (2500mm) |
|
Max Cutting Height |
30 ft (9 m)
|
|
Max Digging Depth |
19 ft (6 m)
|
|
Max Loading Height |
22 ft (7 m)
|
|
Max Reach Along Ground |
28 ft (9 m)
|
|
Max Vertical Wall Dig Depth |
18 ft (5 m)
|
|
Shipping Height Of Unit |
9 ft (3 m)
|
|
Shipping Length Of Unit |
26 ft (8 m)
|
| Buckets |
|
Reference Bucket Capacity |
1 cu yd |
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height To Top Of Cab |
9 ft (3 m)
|
|
Length Of Track On Ground |
10 ft (3 m)
|
|
Removal Counterweight Clearance |
3 ft (1 m)
|
|
Tail Swing Radius |
7 ft (2 m)
|
|
Width To Outside Of Tracks |
9 ft (3 m)
|
| Engine |
|
Aspiration |
turbocharged with air to air intercooler |
|
Displacement |
359 cu in (5,883 cu cm)
|
|
Engine Make |
2,252 |
|
Engine Model |
DL06 |
|
Max Torque |
322 lbs ft (436 nm)
|
|
Net Power |
95 hp (71 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
1,850 rpm |
|
Torque Measured @ |
1,400 rpm |
| Operational |
|
Alternator Supplied Amperage |
60 amps |
|
Cooling System Fluid Capacity |
5 gal (20 l)
|
|
Engine Oil Capacity |
7 gal (25 l)
|
|
Fuel Capacity |
71 gal (267 l)
|
|
Hydraulic Pump Flow Capacity |
60 gpm (228 lpm)
|
|
Hydraulic System Fluid Capacity |
39 gal (148 l)
|
|
Hydraulic System Relief Valve Pressure |
4,699 psi |
|
Operating Voltage |
24 V |
|
Operating Weight |
30,864 lbs (14,000 kg)
|
|
Swing Drive Fluid Capacity |
1 gal (4 l)
|
| Swing Mechanism |
|
Swing Speed |
11 rpm |
| Undercarriage |
|
Ground Pressure |
5 psi |
|
Max Travel Speed |
3 mph (5 kph)
|
|
Number Of Carrier Rollers Per Side |
1 |
|
Number Of Shoes Per Side |
46 |
|
Number Of Track Rollers Per Side |
7 |
|
Shoe Size |
24 in (60 cm)
|
