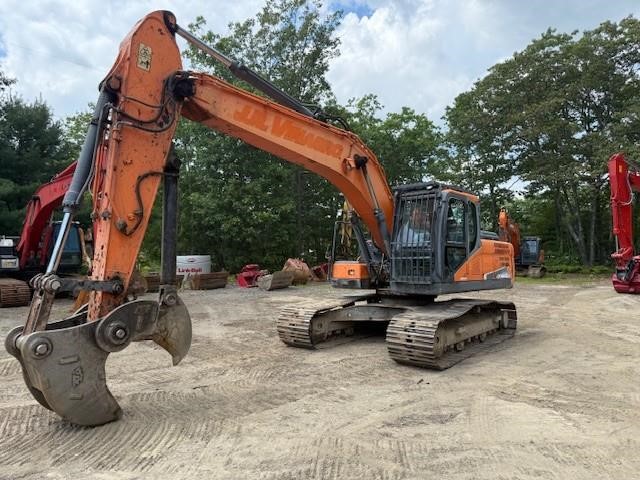

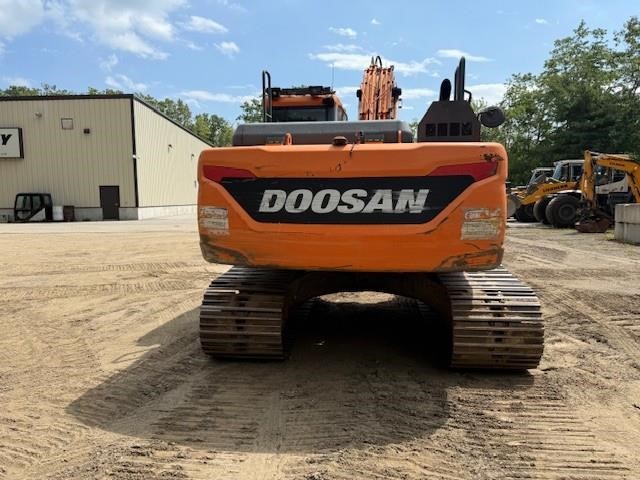

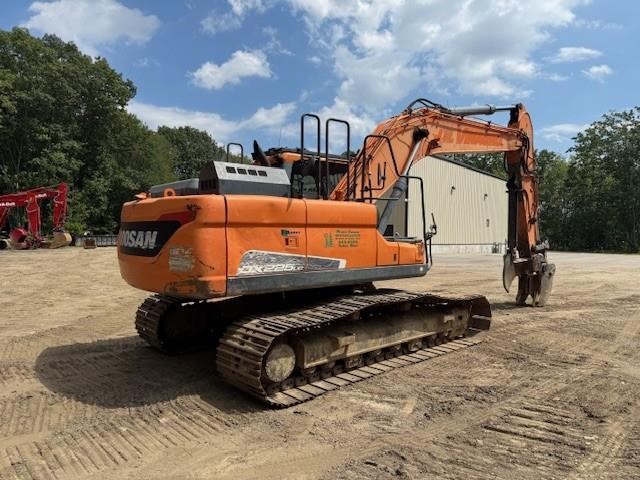

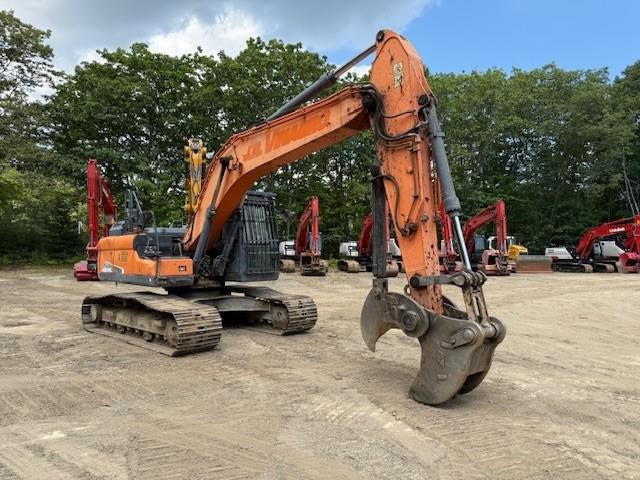

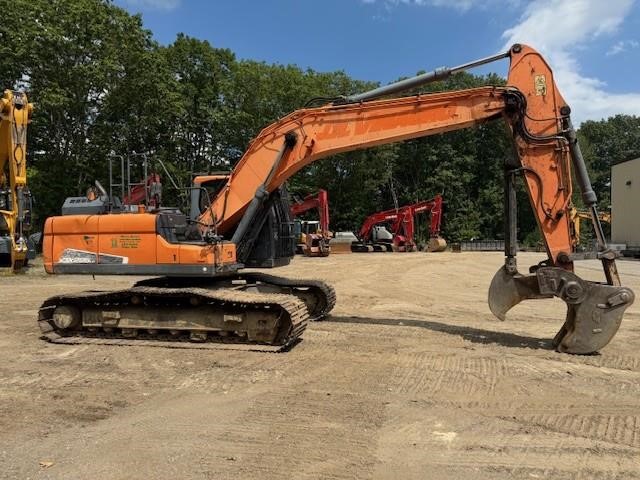

| Boom/Stick 1 |
|
Boom/Stick 1 |
Boom 18'8" (5700mm)/Stick 7'10" (2400mm) |
|
Max Cutting Height |
32 ft (10 m)
|
|
Max Digging Depth |
20 ft (6 m)
|
|
Max Loading Height |
22 ft (7 m)
|
|
Max Reach Along Ground |
31 ft (9 m)
|
|
Max Vertical Wall Digging Depth |
18 ft (5 m)
|
|
Shipping Height Of Unit |
10 ft (3 m)
|
|
Shipping Length Of Unit |
10 ft (3 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
Boom 18'8" (5700mm)/Stick 9'6" (2900mm) |
|
Max Cutting Height |
32 ft (10 m)
|
|
Max Digging Depth |
22 ft (7 m)
|
|
Max Loading Height |
23 ft (7 m)
|
|
Max Reach Along Ground |
32 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
19 ft (6 m)
|
|
Shipping Height Of Unit |
10 ft (3 m)
|
|
Shipping Length Of Unit |
31 ft (9 m)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
Boom 18'8" (5700mm)/Stick 11'6" (3500mm) |
|
Max Cutting Height |
32 ft (10 m)
|
|
Max Digging Depth |
24 ft (7 m)
|
|
Max Loading Height |
23 ft (7 m)
|
|
Max Reach Along Ground |
34 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
20 ft (6 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
31 ft (10 m)
|
| Boom/Stick 4 |
|
Boom/Stick 4 |
Boom 17'1" (5200mm)/Stick 6'7" (2000mm) |
|
Max Cutting Height |
29 ft (9 m)
|
|
Max Digging Depth |
18 ft (5 m)
|
|
Max Loading Height |
20 ft (6 m)
|
|
Max Reach Along Ground |
28 ft (8 m)
|
|
Max Vertical Wall Dig Depth |
15 ft (4 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
30 ft (9 m)
|
| Boom/Stick 5 |
|
Boom/Stick 5 |
Boom 17'1" (5200mm)/Stick 7'11" (2400mm) |
|
Max Cutting Height |
30 ft (9 m)
|
|
Max Digging Depth |
19 ft (6 m)
|
|
Max Loading Height |
21 ft (6 m)
|
|
Max Reach Along Ground |
29 ft (9 m)
|
|
Max Vertical Wall Dig Depth |
16 ft (5 m)
|
|
Shipping Height Of Unit |
10 ft (3 m)
|
|
Shipping Length Of Unit |
30 ft (9 m)
|

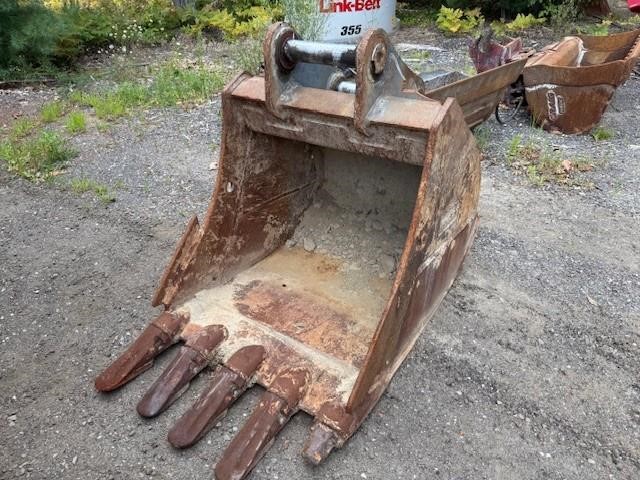

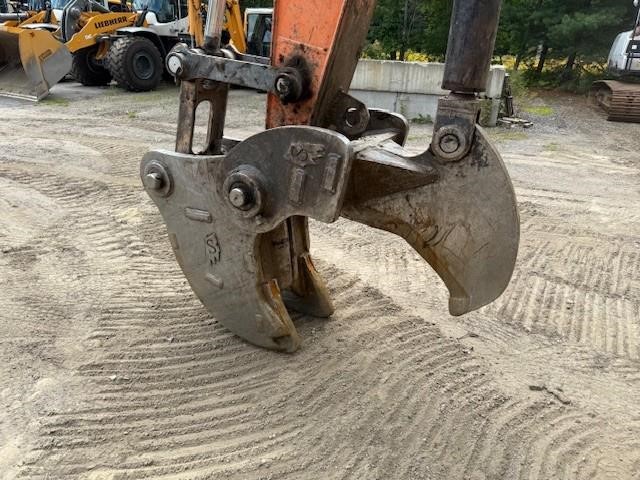

| Buckets |
|
Maximum Bucket Capacity |
2 cu yd |
|
Minimum Bucket Capacity |
1 cu yd |
|
Reference Bucket Capacity |
1 cu yd |
| Dimensions |
|
Ground Clearance |
2 ft (0 m)
|
|
Height To Top Of Cab |
10 ft (3 m)
|
|
Length Of Track On Ground |
12 ft (4 m)
|
|
Removal Counterweight Clearance |
3 ft (1 m)
|
|
Tail Swing Radius |
9 ft (3 m)
|
|
Width To Outside Of Tracks |
10 ft (3 m)
|
| Engine |
|
Aspiration |
turbo charged with air to air intercooler |
|
Displacement |
359 cu in (5,883 cu cm)
|
|
Engine Make |
2,252 |
|
Engine Model |
DL06 |
|
Gross Power |
155 hp (116 kw)
|
|
Max Torque |
492 lbs ft (667 nm)
|
|
Net Power |
148 hp (110 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
1,900 rpm |
|
Torque Measured @ |
1,400 rpm |

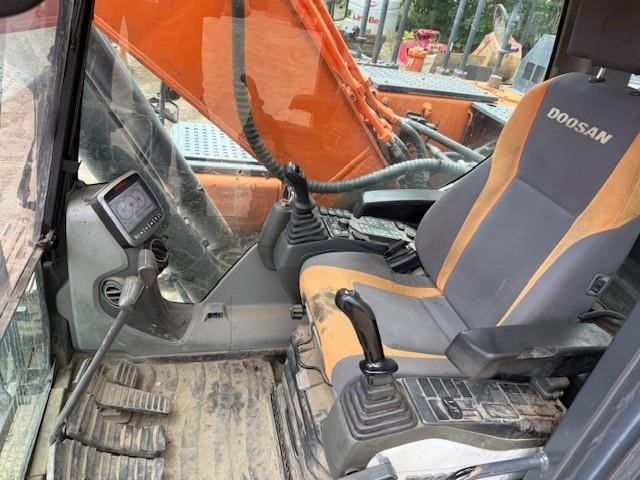

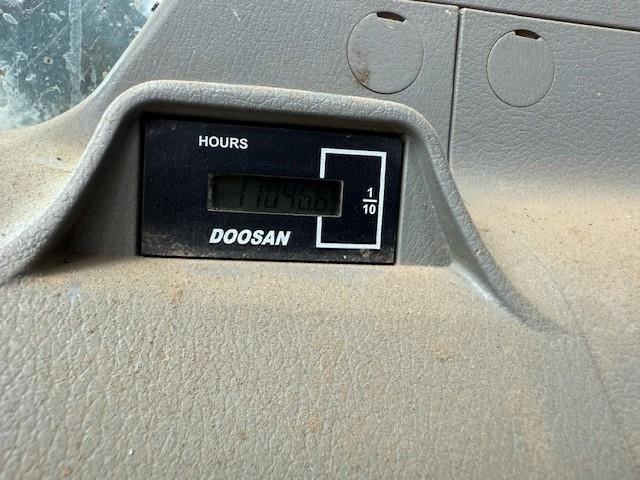

| Operational |
|
Alternator Supplied Amperage |
50 amps |
|
Cooling System Fluid Capacity |
6 gal (24 l)
|
|
Engine Oil Capacity |
7 gal (27 l)
|
|
Fuel Capacity |
106 gal (400 l)
|
|
Hydraulic Pump Flow Capacity |
109 gpm (413 lpm)
|
|
Hydraulic System Fluid Capacity |
87 gal (330 l)
|
|
Hydraulic System Relief Valve Pressure |
4,699 psi |
|
Operating Voltage |
24 V |
|
Operating Weight |
47,399 lbs (21,500 kg)
|
|
Swing Drive Fluid Capacity |
1 gal (5 l)
|
| Swing Mechanism |
|
Swing Speed |
11 rpm |
| Undercarriage |
|
Ground Pressure |
6 psi |
|
Max Travel Speed |
3 mph (5 kph)
|
|
Number Of Carrier Rollers Per Side |
2 |
|
Number Of Shoes Per Side |
49 |
|
Number Of Track Rollers Per Side |
9 |
|
Shoe Size |
24 in (60 cm)
|
