2011 Doosan DX300LC For Sale in Meppen, Deu

Name: 2011 Doosan DX300LC
Brand: Doosan
SKU: 89236835
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-17 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

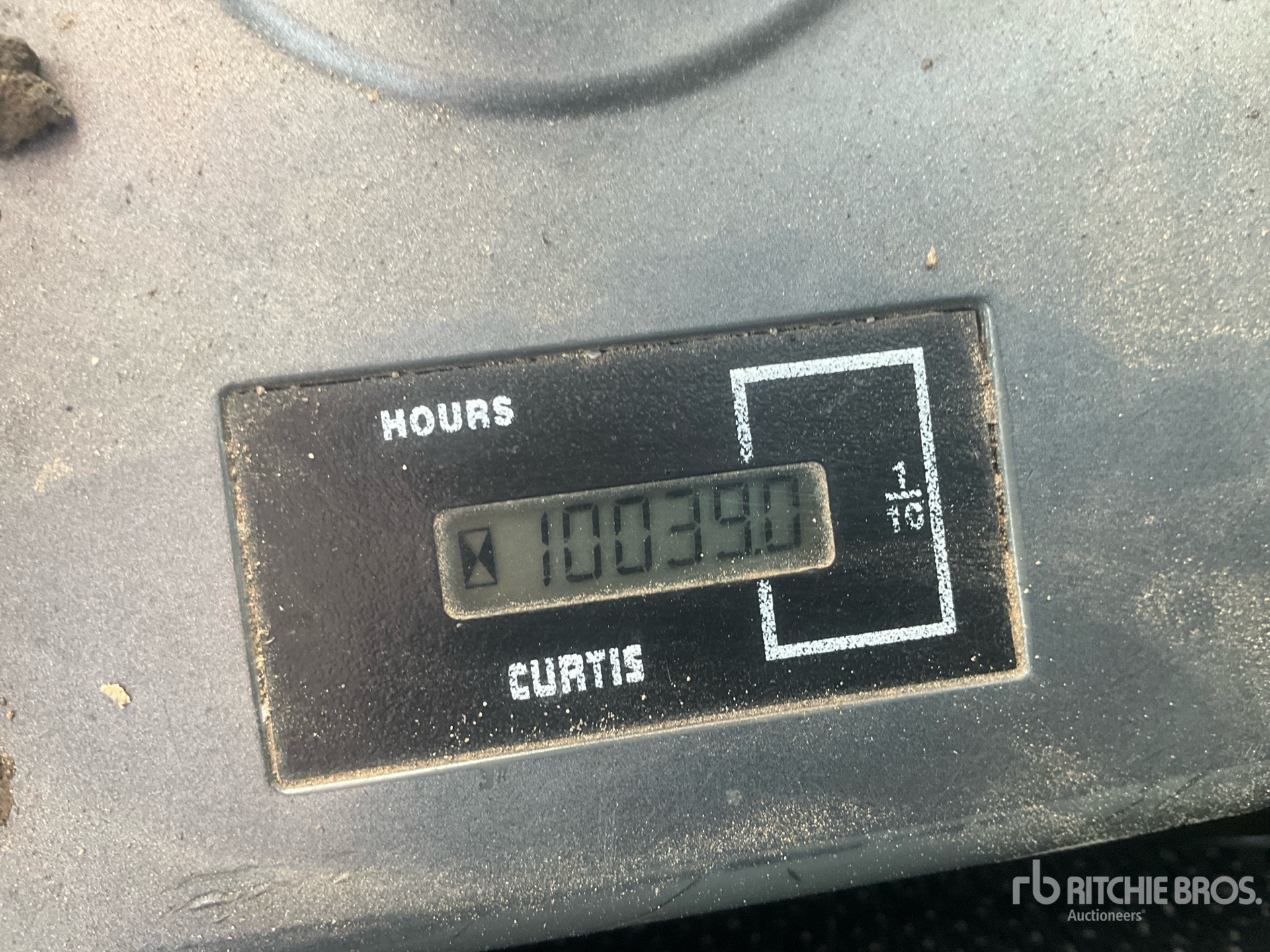

Hours:	10039

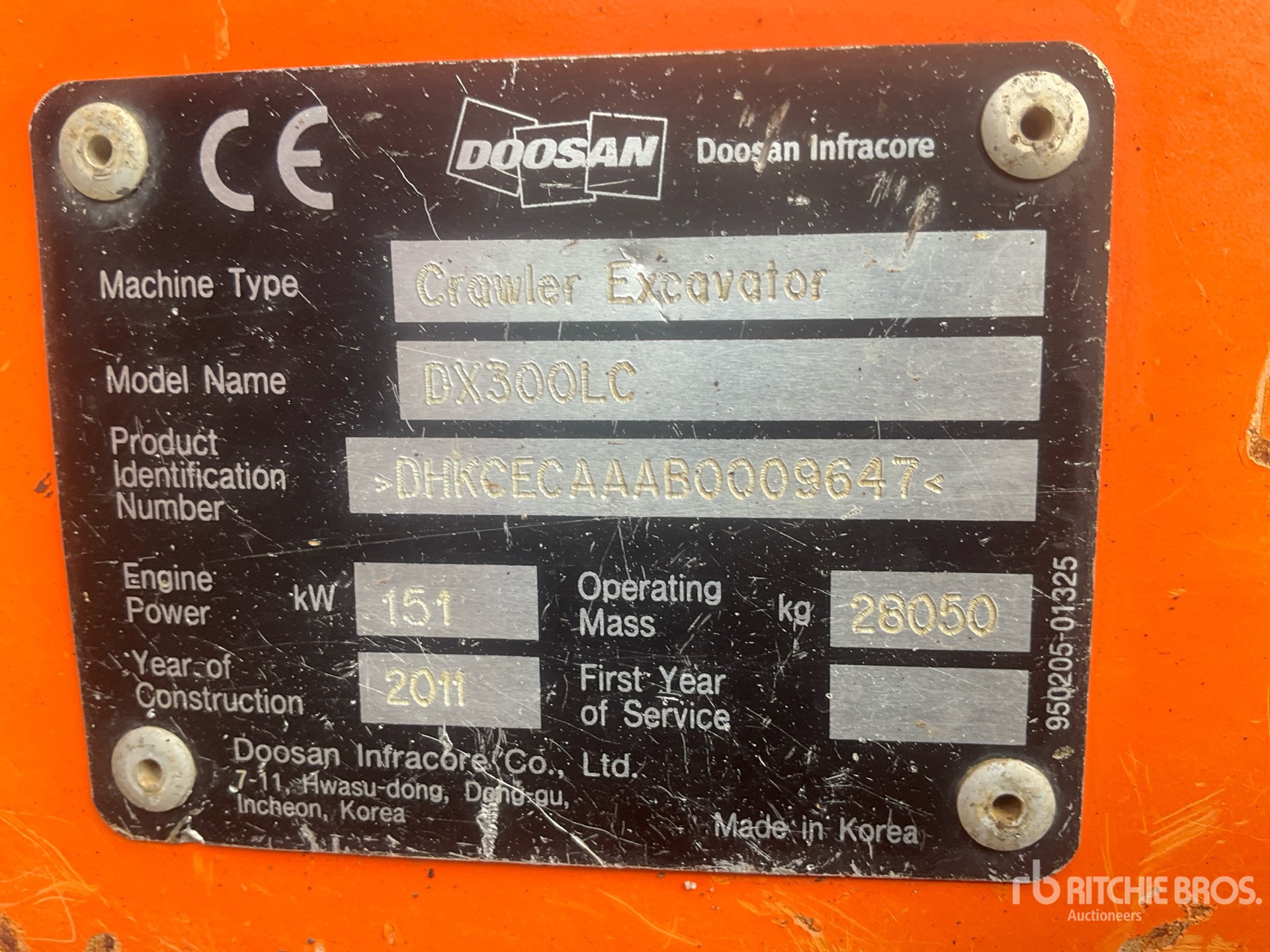

Serial Number:	DHKCECAAAB0009647
Machine Location:	MEPPEN, DEU

Description:

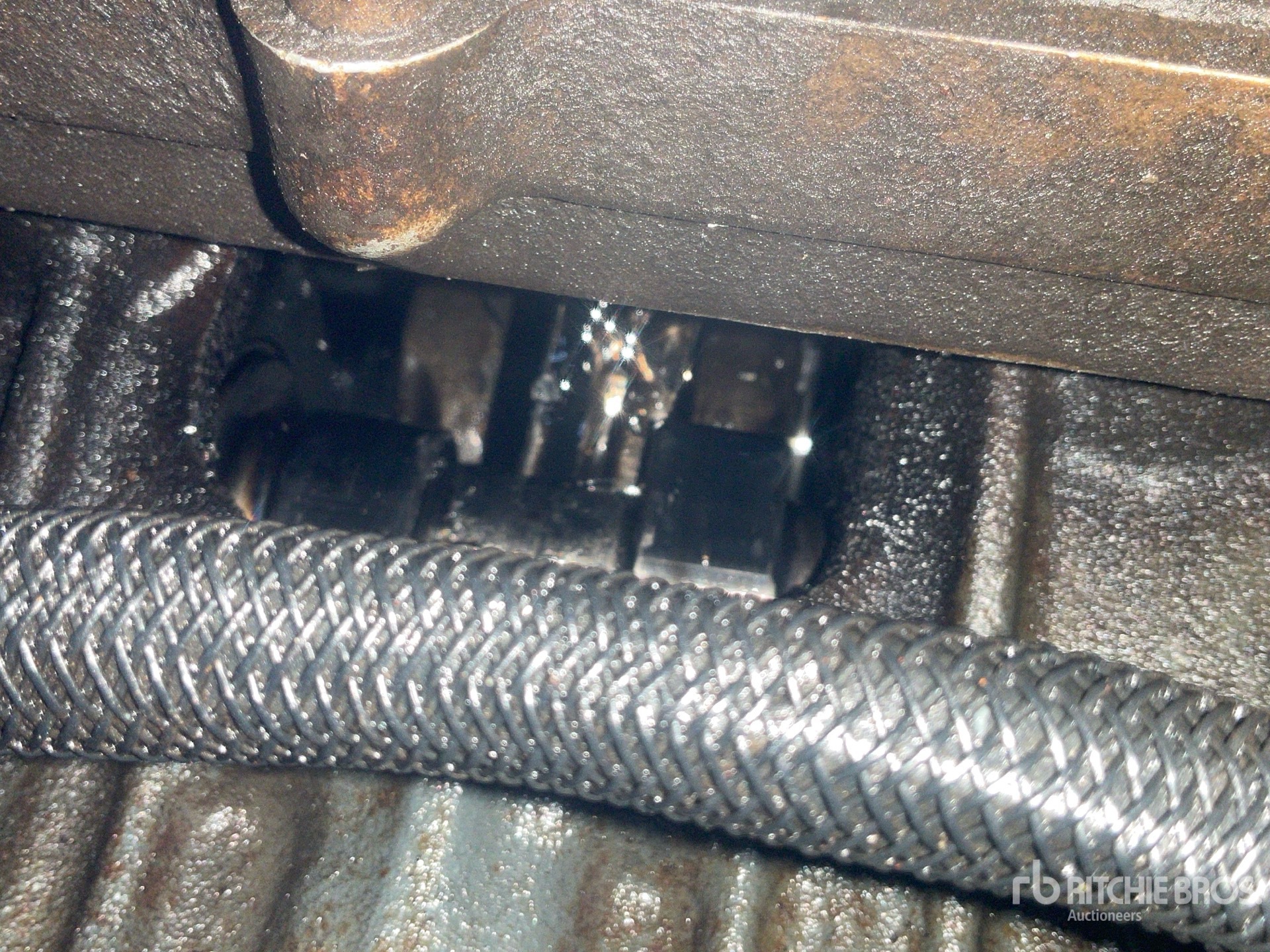

US EPA Label, Auxiliary Hydraulic Plumbing, 600 mm Triple Grouser Track Shoes, 1500 mm Digging Bucket, ENGINE BROKEN / MOTOR DEFEKT ** BUYER IS RESPONSIBLE FOR ARM DISMALTING AND LOADING*** ***Original CE certificate available*** Closing Time: 2026-09-17 10:50:15 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Doosan DX300LC is a crawler excavator in the 30-ton class, designed for earthmoving, trenching, site preparation, and general construction work. It is equipped with a diesel engine, hydraulic digging system, and a long undercarriage for improved stability and ground contact. The DX300LC typically features a spacious operator cab, joystick controls, and service access points for routine maintenance. As part of Doosan's excavator lineup, the DX300LC is used in construction, utility, and infrastructure applications where digging depth, breakout force, and reliable hydraulic performance are required.

Boom/Stick 1
Boom/Stick 1	Boom 20'6" (6245mm)/Stick 8'2" (2500mm)
Max Cutting Height	33 ft (10 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	33 ft (10 m)
Max Vertical Wall Digging Depth	18 ft (5 m)
Shipping Height Of Unit	11 ft (3 m)
Shipping Length Of Unit	35 ft (11 m)
Boom/Stick 2
Boom/Stick 2	Boom 20'6" (6245mm)/Stick 10'2" (3100mm)
Max Cutting Height	34 ft (10 m)
Max Digging Depth	24 ft (7 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	35 ft (11 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Shipping Height Of Unit	11 ft (3 m)
Shipping Length Of Unit	35 ft (11 m)
Boom/Stick 3
Boom/Stick 3	Boom 20'6" (6245mm)/Stick 12'4" (3750mm)
Max Cutting Height	34 ft (10 m)
Max Digging Depth	26 ft (8 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	36 ft (11 m)
Max Vertical Wall Digging Depth	22 ft (7 m)
Shipping Height Of Unit	11 ft (3 m)
Shipping Length Of Unit	35 ft (11 m)
Boom/Stick 4
Boom/Stick 4	Boom 32'10" (10000mm)/Stick 22'11" (7000mm)
Max Cutting Height	46 ft (14 m)
Max Digging Depth	46 ft (14 m)
Max Loading Height	39 ft (12 m)
Max Reach Along Ground	57 ft (17 m)
Max Vertical Wall Dig Depth	38 ft (12 m)
Shipping Height Of Unit	11 ft (3 m)
Shipping Length Of Unit	47 ft (14 m)
Buckets
Maximum Bucket Capacity	2 cu yd
Minimum Bucket Capacity	1 cu yd
Reference Bucket Capacity	1 cu yd
Dimensions
Ground Clearance	2 ft (1 m)
Height To Top Of Cab	10 ft (3 m)
Length Of Track On Ground	13 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	11 ft (3 m)
Width To Outside Of Tracks	11 ft (3 m)
Engine
Aspiration	turbocharged with air to air intercooler
Displacement	466 cu in (7,636 cu cm)
Engine Make	2,252
Engine Model	DL08
Max Torque	672 lbs ft (911 nm)
Net Power	197 hp (147 kw)
Number Of Cylinders	6
Power Measured @	1,900 rpm
Torque Measured @	1,300 rpm
Operational
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	9 gal (35 l)
Engine Oil Capacity	10 gal (36 l)
Fuel Capacity	132 gal (500 l)
Hydraulic Pump Flow Capacity	131 gpm (494 lpm)
Hydraulic System Fluid Capacity	87 gal (330 l)
Hydraulic System Relief Valve Pressure	4,699 psi
Operating Voltage	24 V
Operating Weight	64,594 lbs (29,299 kg)
Swing Drive Fluid Capacity	2 gal (6 l)
Swing Mechanism
Swing Speed	10 rpm
Undercarriage
Ground Pressure	8 psi
Max Travel Speed	3 mph (5 kph)
Number Of Carrier Rollers Per Side	2
Number Of Shoes Per Side	48
Number Of Track Rollers Per Side	9
Shoe Size	24 in (60 cm)
