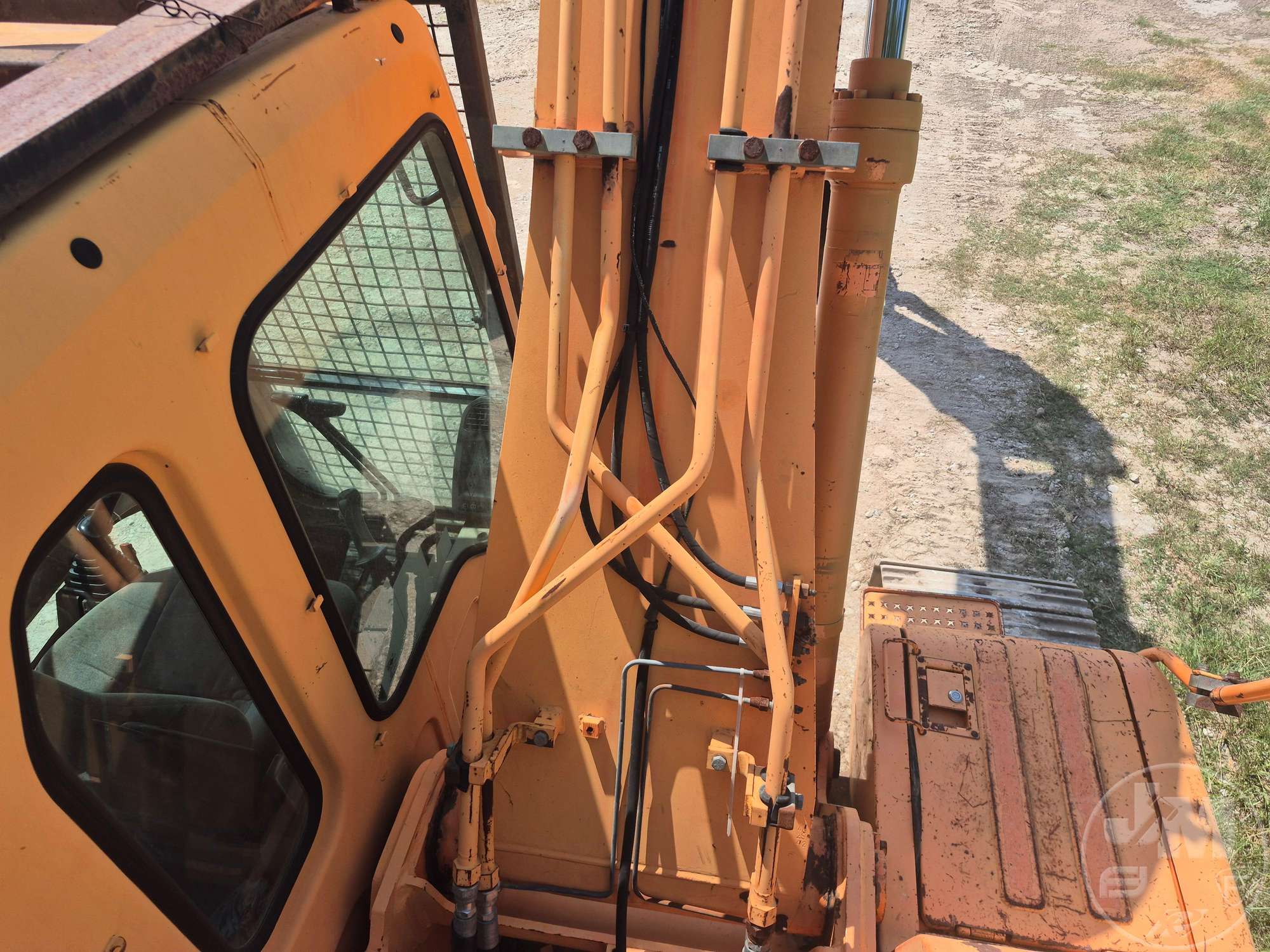

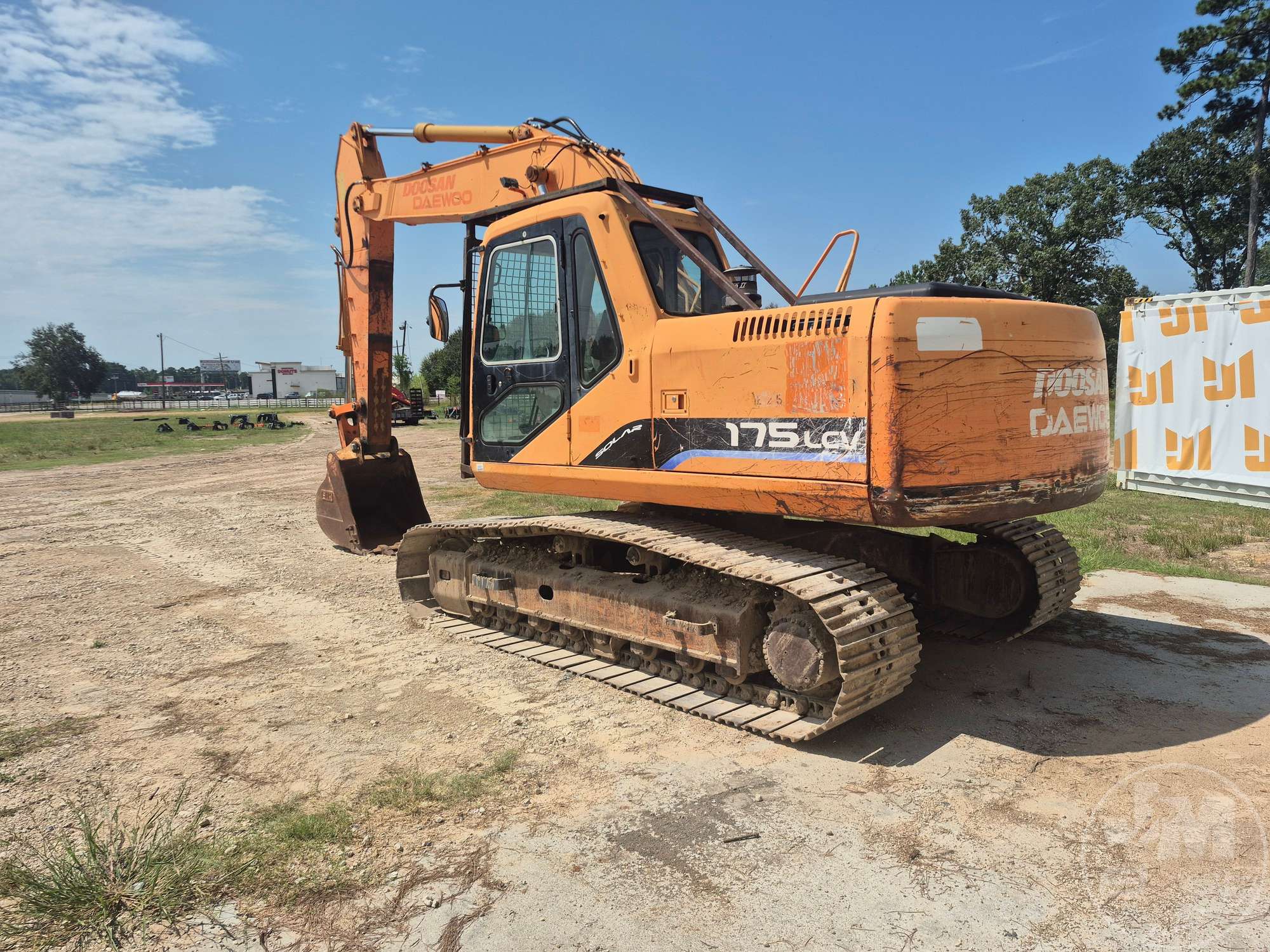

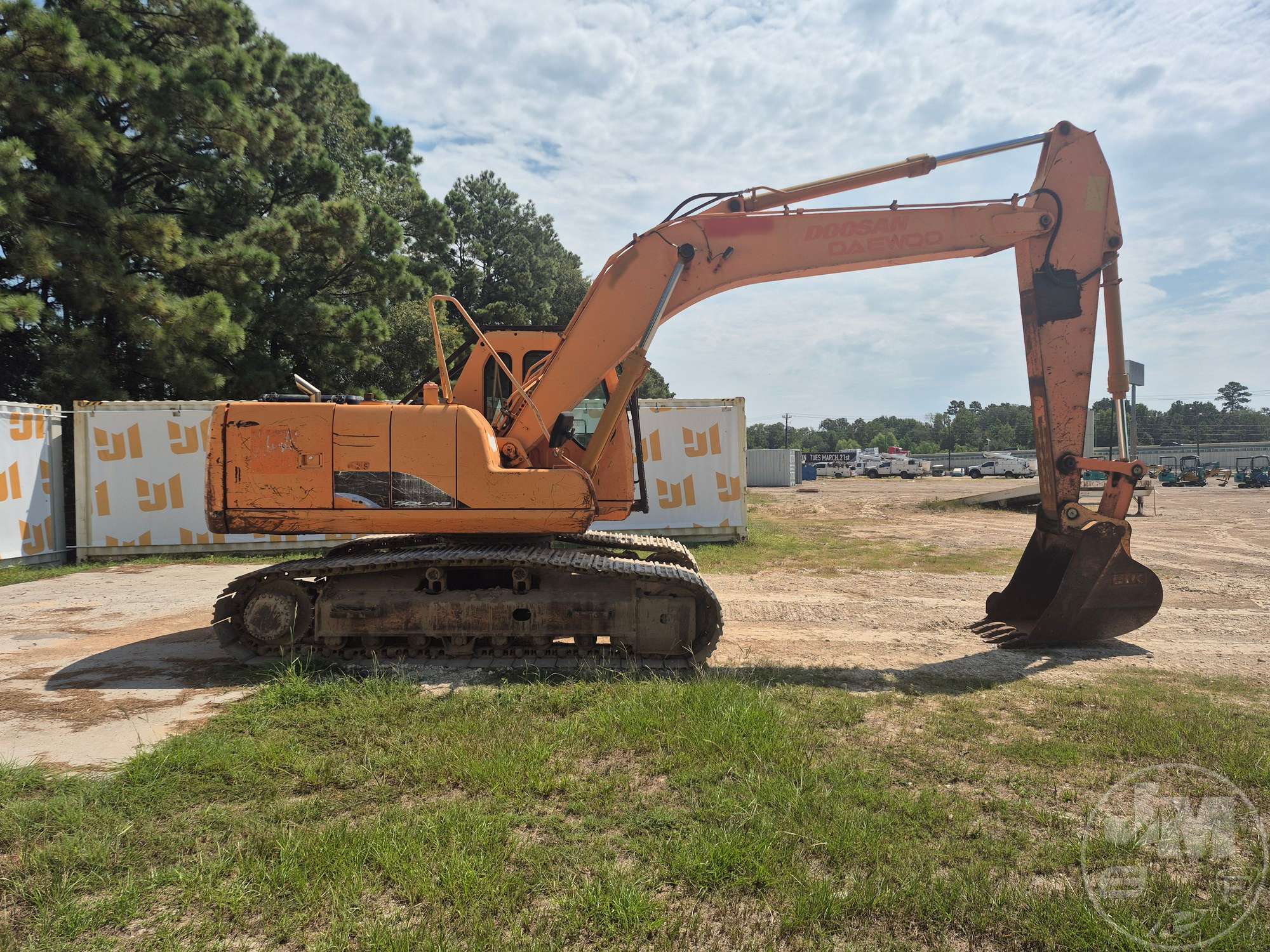

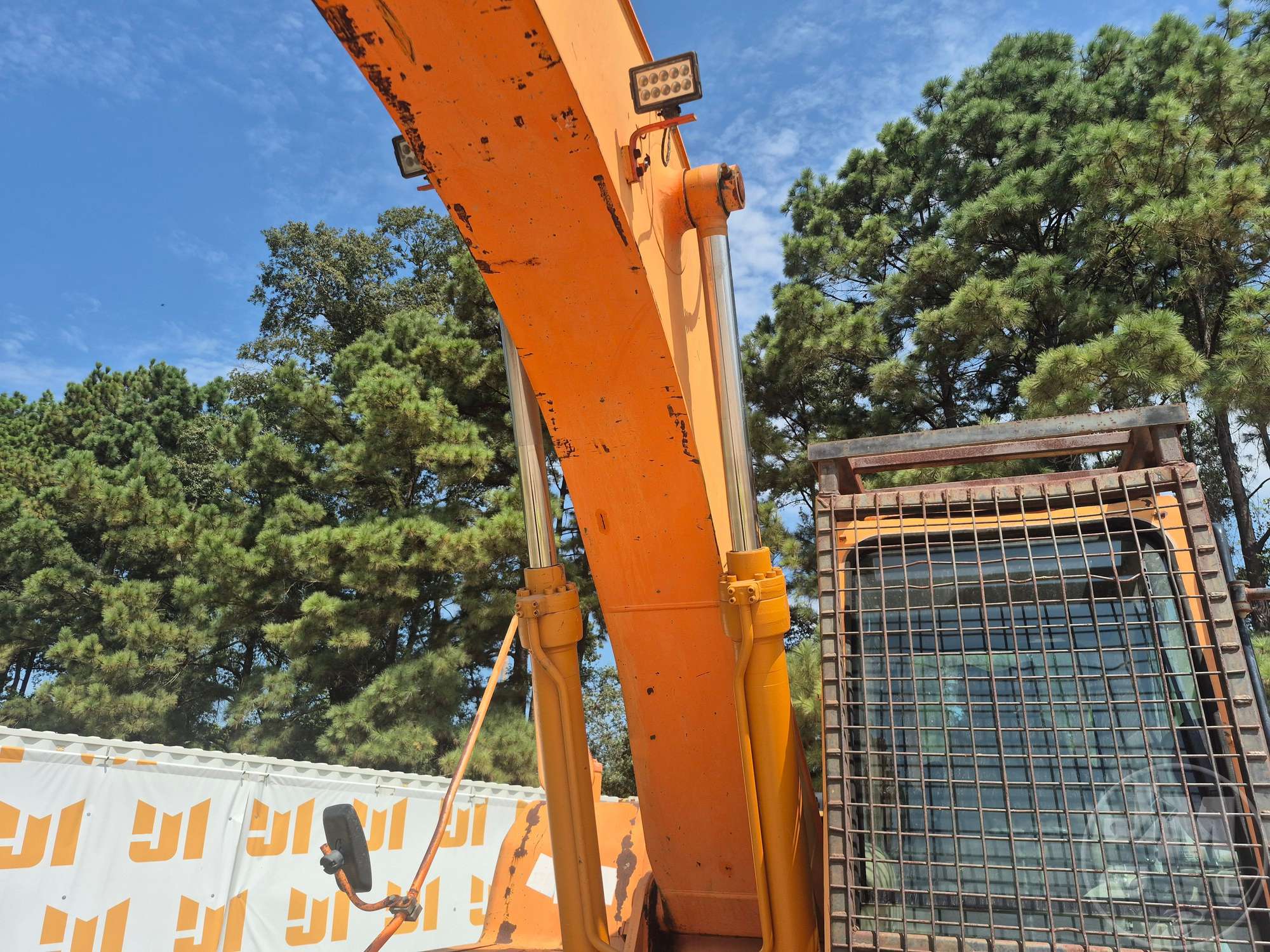

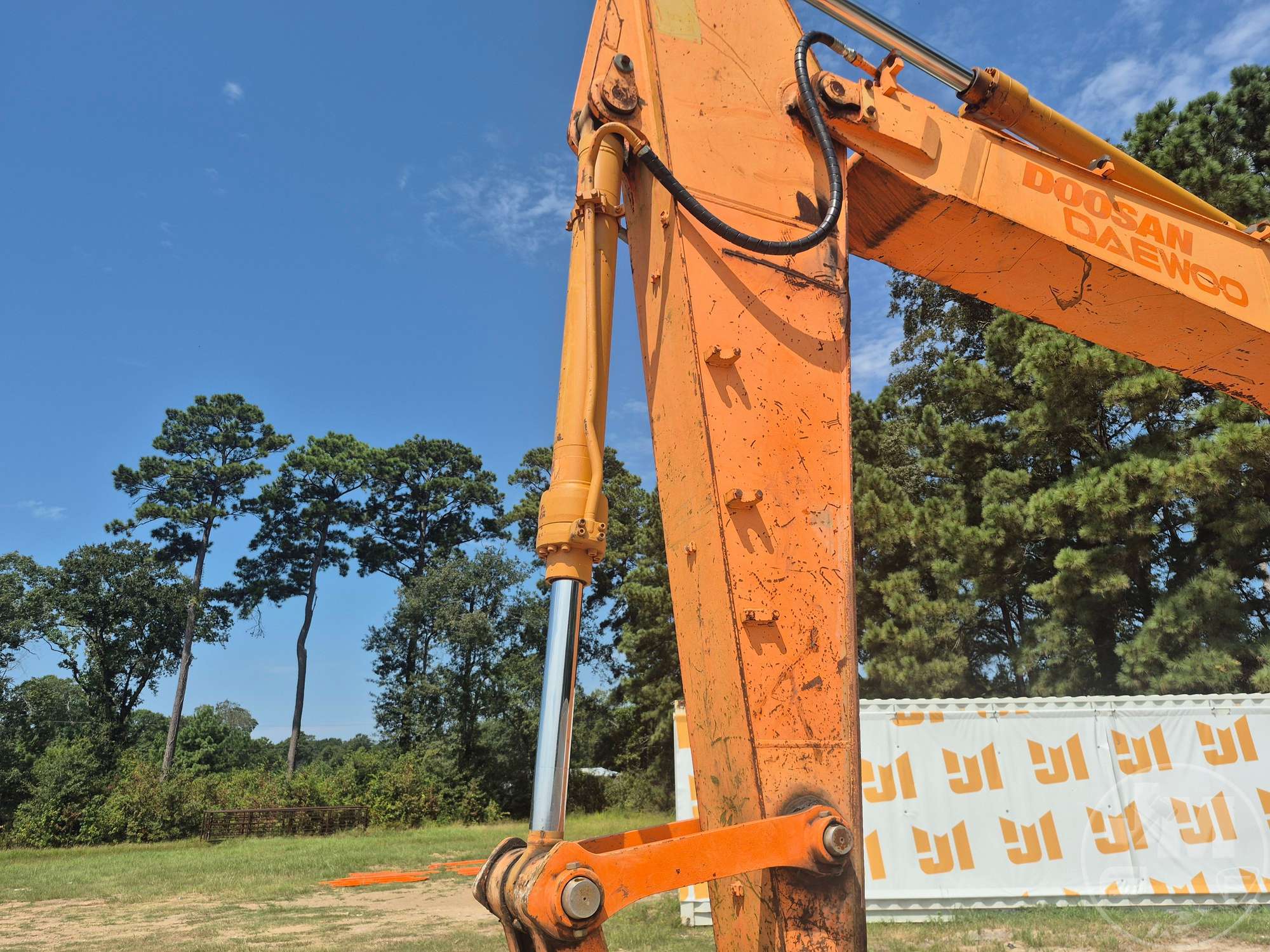

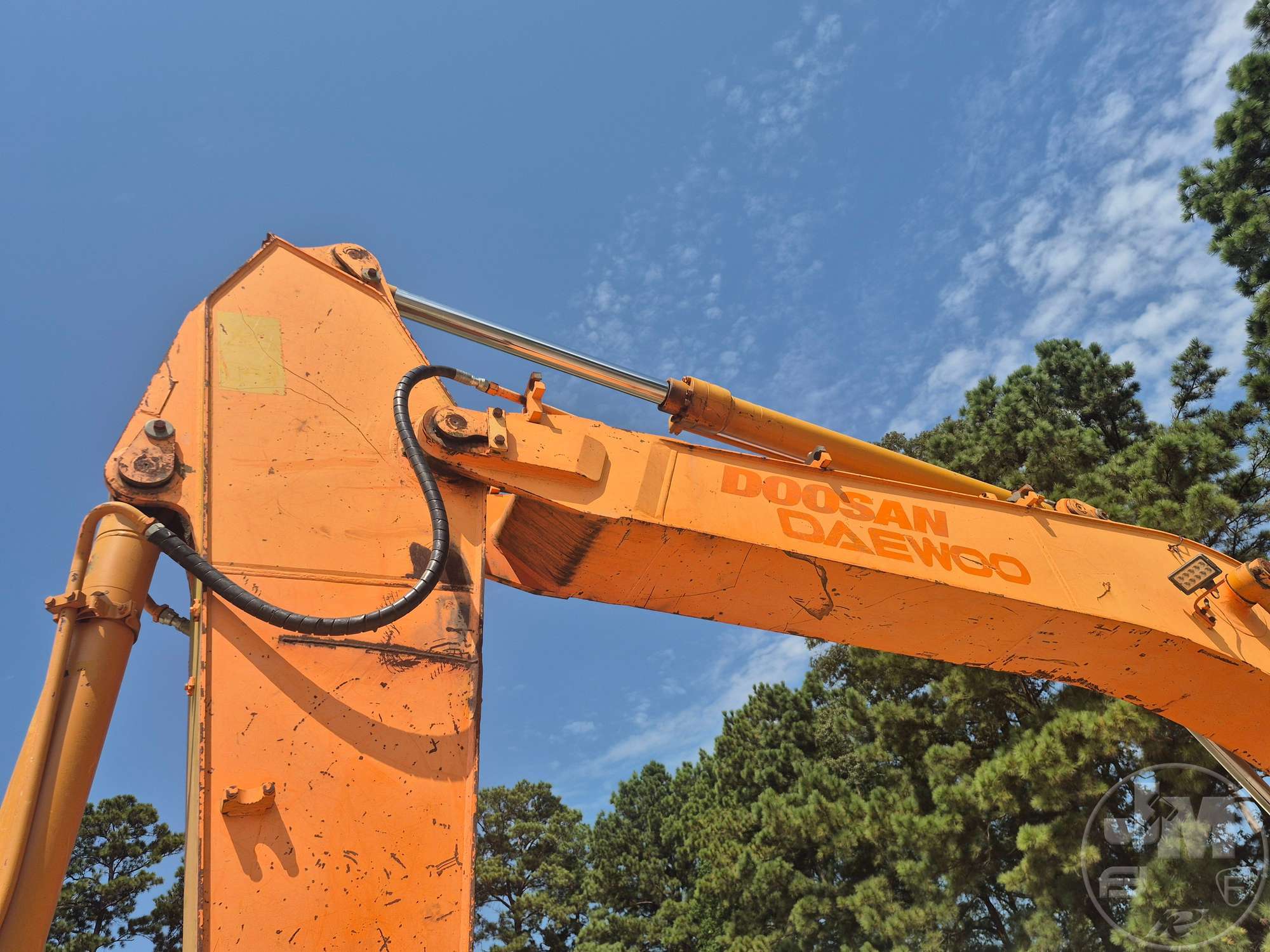

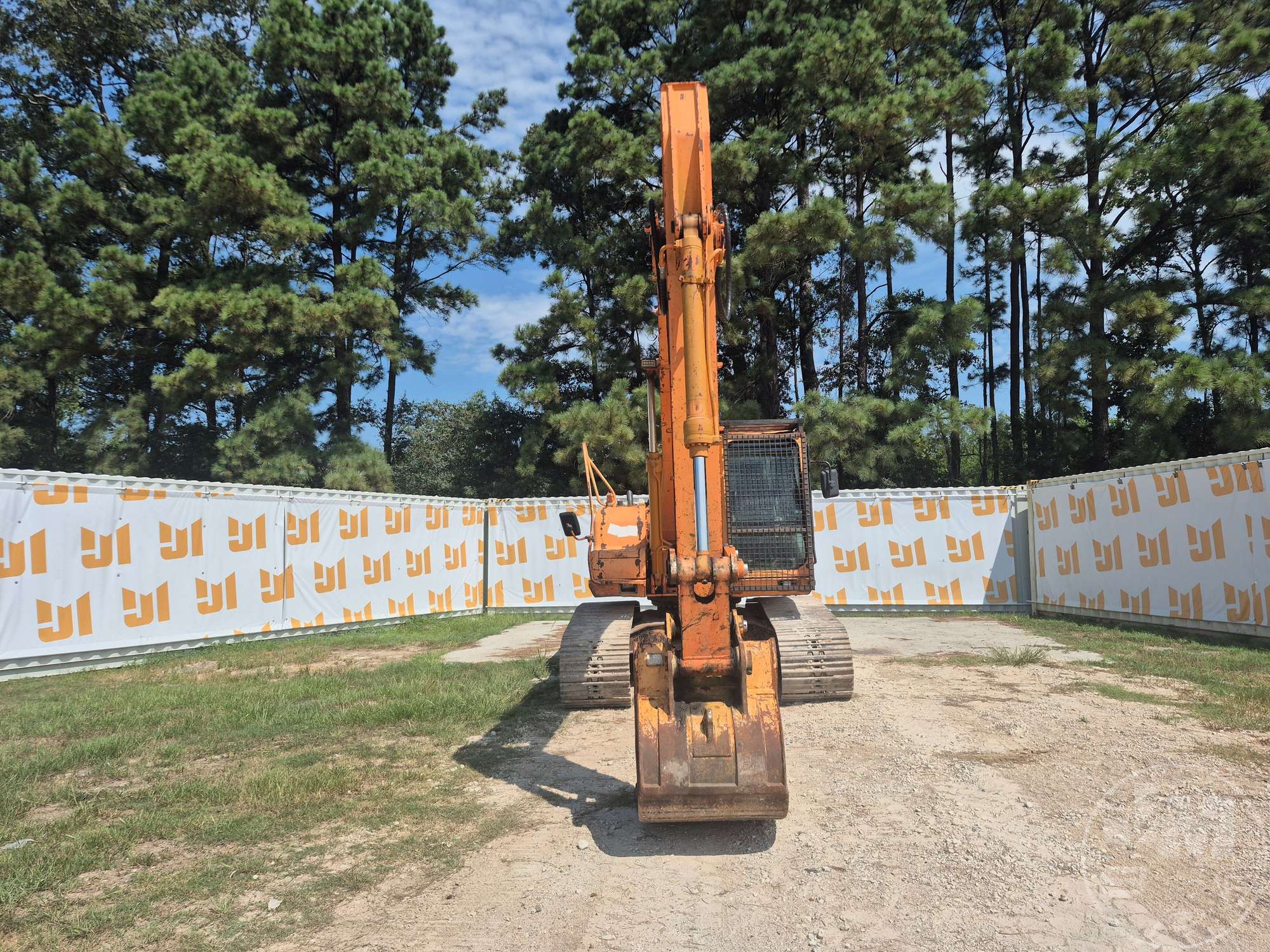

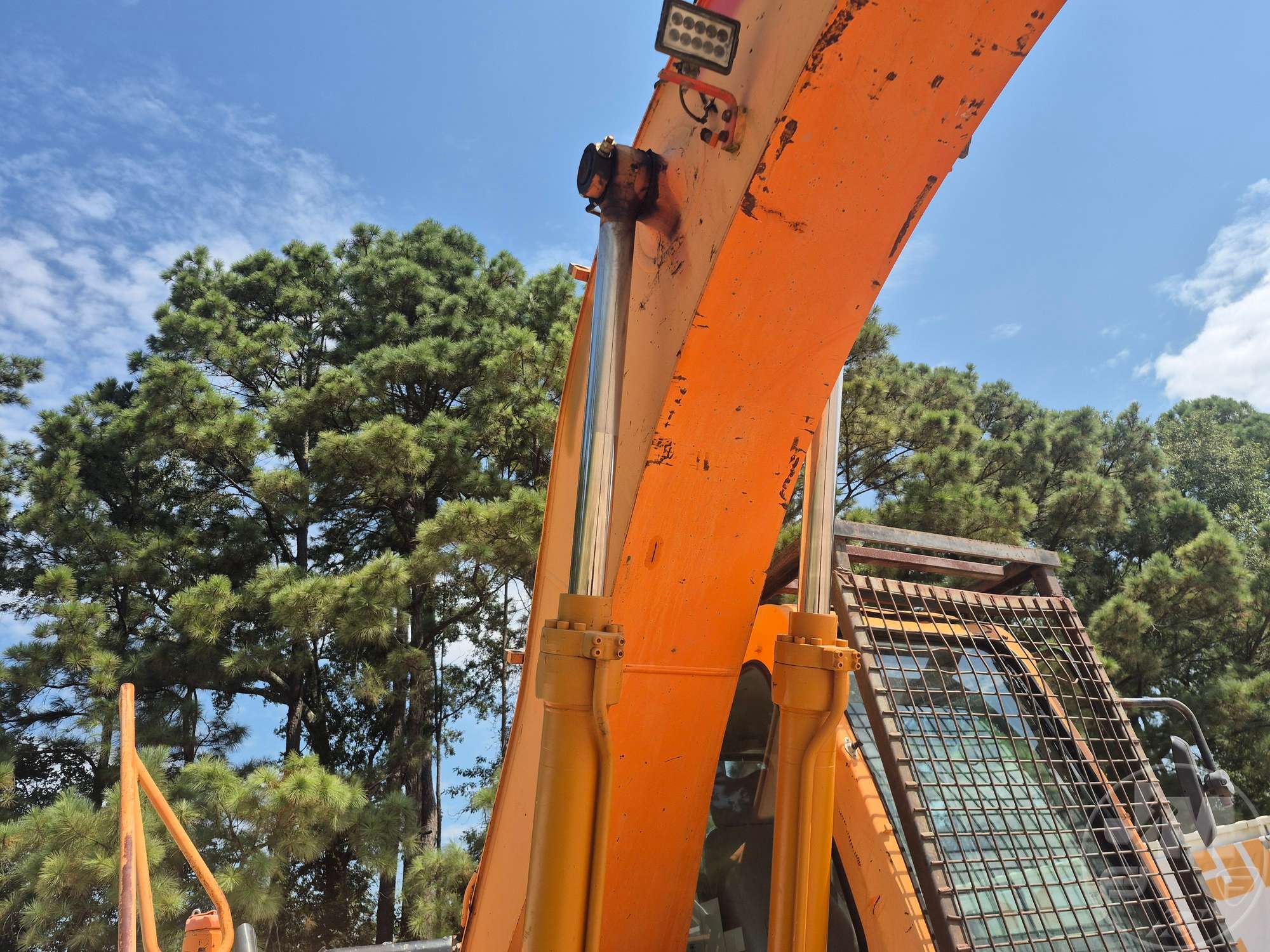

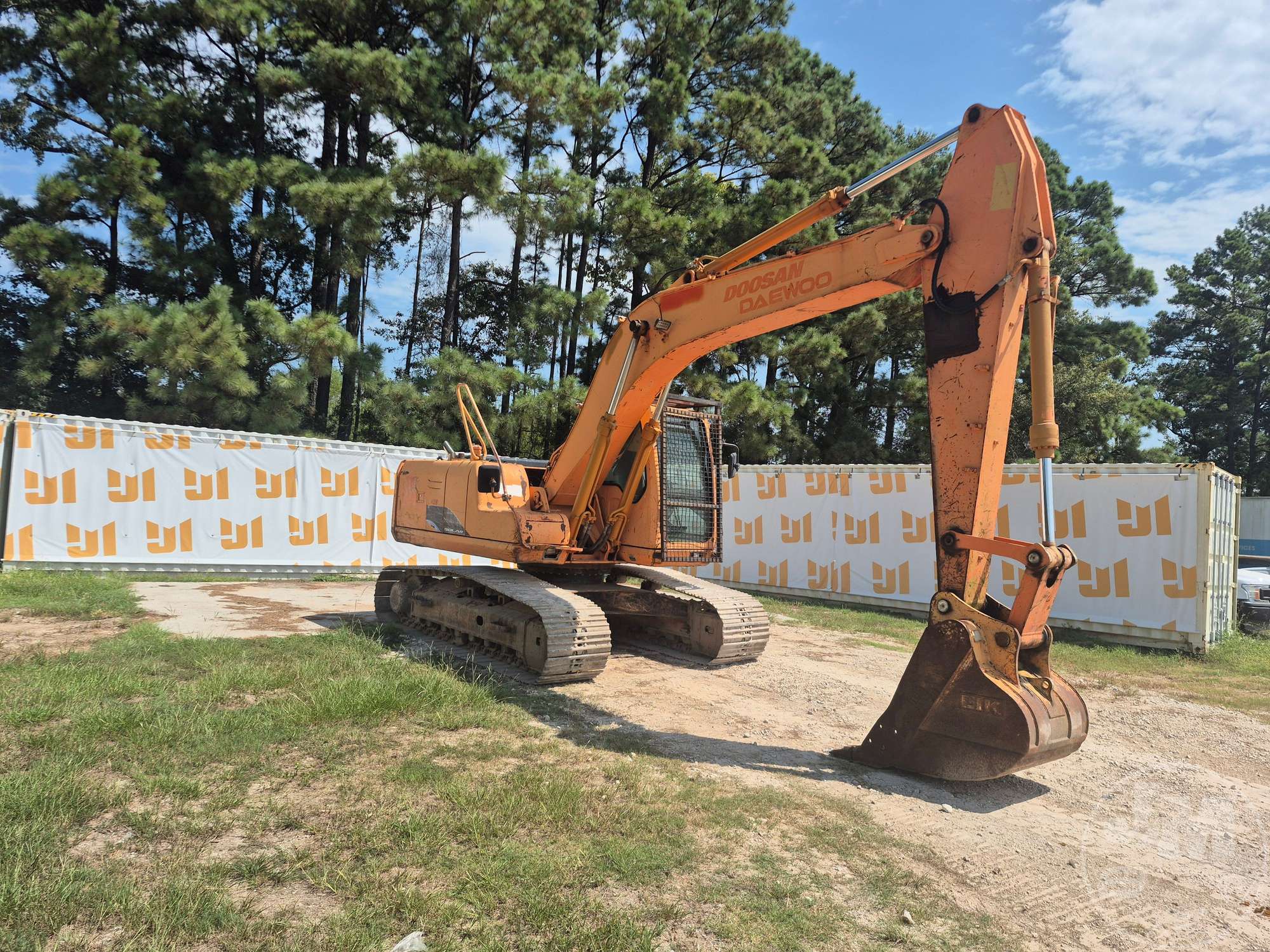

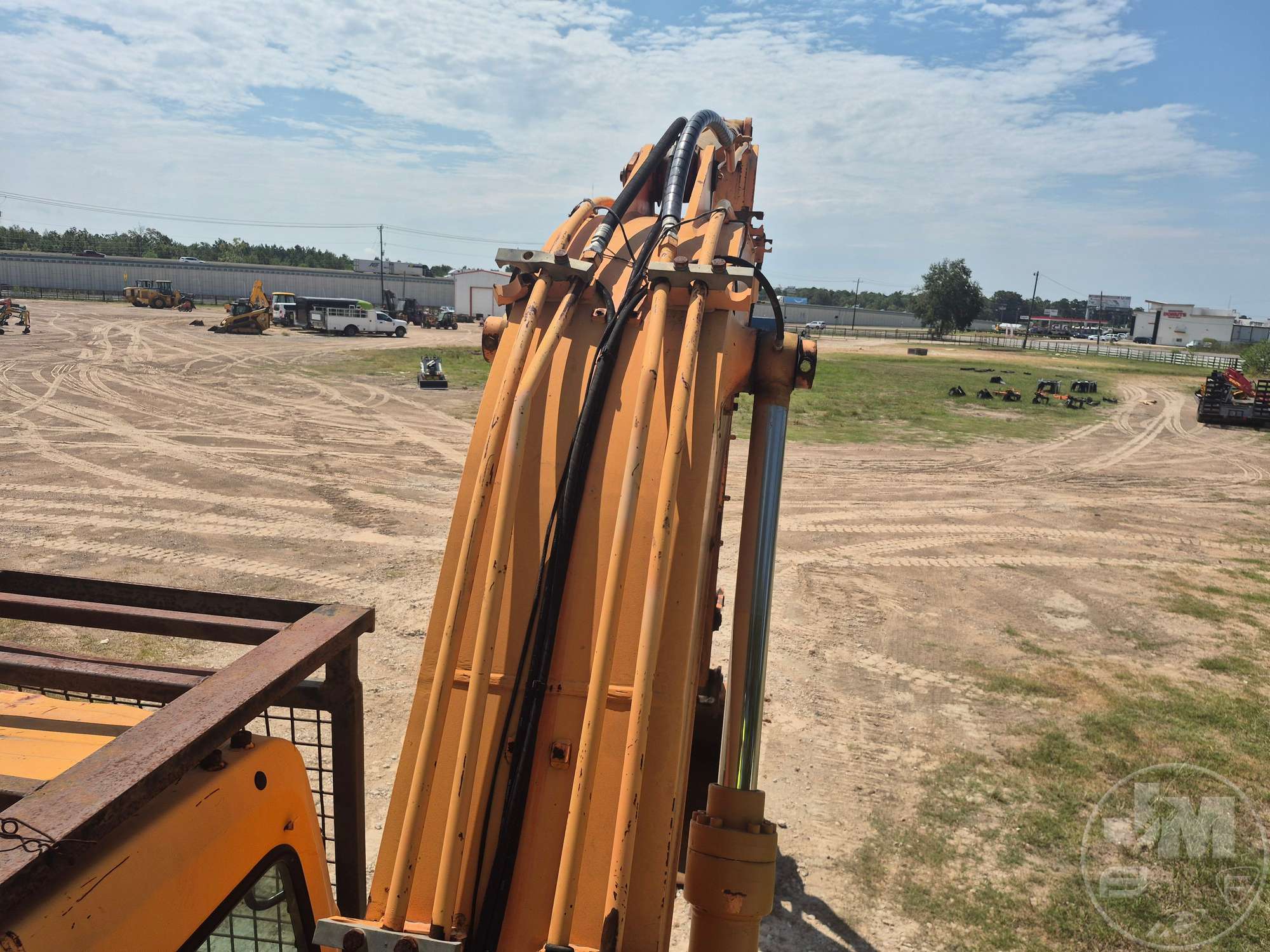

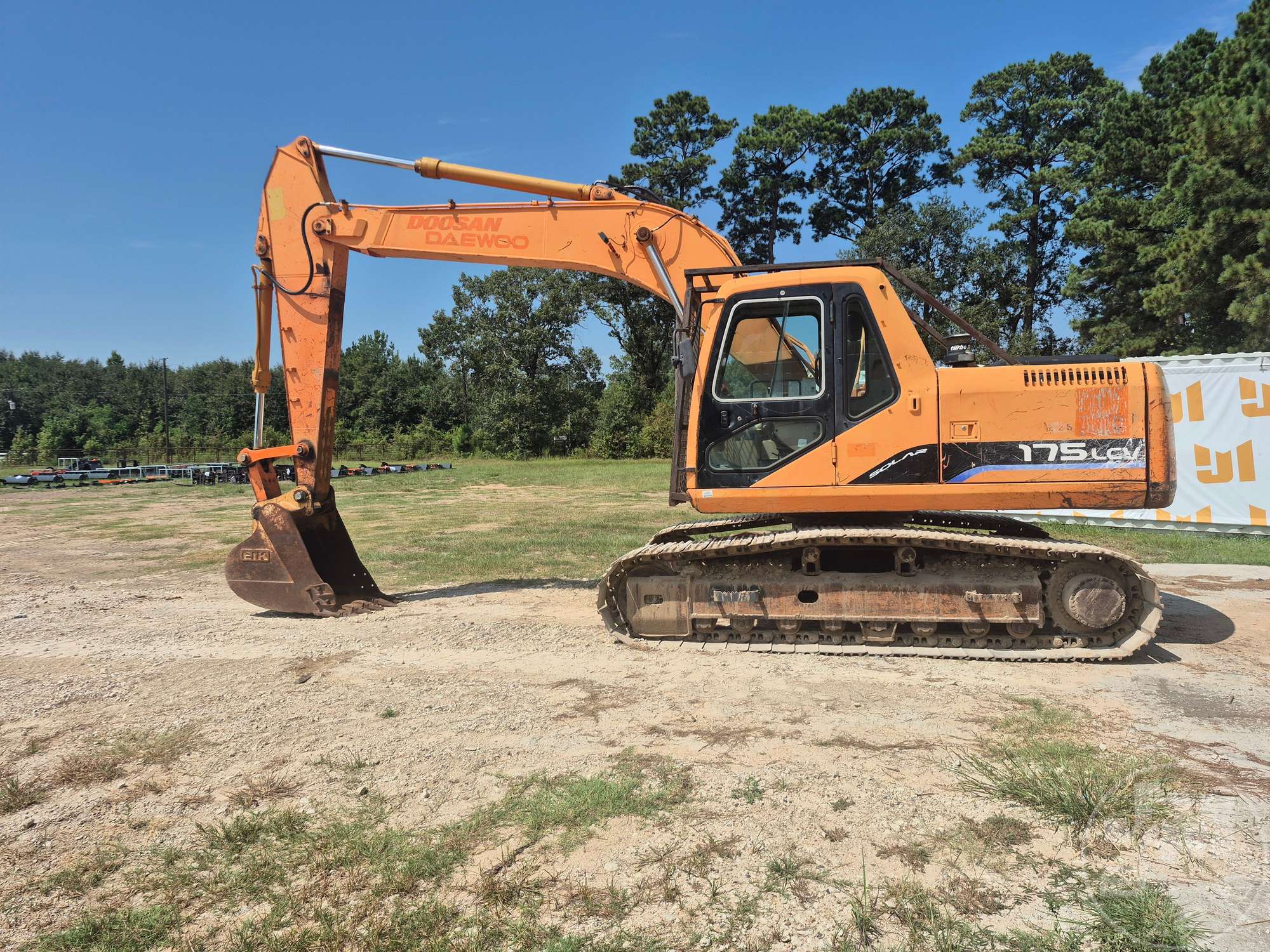

| Boom/Stick 1 |
|
Boom/Stick 1 |
Boom 16'11" (5150mm)/Stick 7'3" (2200mm) |
|
Max Cutting Height |
28 ft (9 m)
|
|
Max Digging Depth |
20 ft (6 m)
|
|
Max Digging Depth |
19 ft (6 m)
|
|
Max Loading Height |
20 ft (6 m)
|
|
Max Loading Height |
19 ft (6 m)
|
|
Max Reach Along Ground |
29 ft (9 m)
|
|
Max Reach Along Ground |
28 ft (9 m)
|
|
Max Vertical Wall Digging Depth |
17 ft (5 m)
|
|
Max Vertical Wall Digging Depth |
16 ft (5 m)
|
|
Shipping Height Of Unit |
10 ft (3 m)
|
|
Shipping Length Of Unit |
29 ft (9 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
Boom 16'11" (5150mm)/Stick 8'6" (2600mm) |
|
Max Cutting Height |
29 ft (9 m)
|
|
Max Digging Depth |
20 ft (6 m)
|
|
Max Loading Height |
20 ft (6 m)
|
|
Max Reach Along Ground |
29 ft (9 m)
|
|
Max Vertical Wall Digging Depth |
17 ft (5 m)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
Boom 16'11" (5150mm)/Stick 10'2" (3100mm) |
|
Max Cutting Height |
30 ft (9 m)
|
|
Max Digging Depth |
22 ft (7 m)
|
|
Max Loading Height |
21 ft (6 m)
|
|
Max Reach Along Ground |
31 ft (9 m)
|
|
Max Vertical Wall Digging Depth |
19 ft (6 m)
|
| Boom/Stick 4 |
|
Boom/Stick 4 |
Boom 18'4" (5600mm)/Stick 7'3" (2200mm) |
|
Max Cutting Height |
32 ft (10 m)
|
|
Max Digging Depth |
20 ft (6 m)
|
|
Max Loading Height |
22 ft (7 m)
|
|
Max Reach Along Ground |
30 ft (9 m)
|
|
Max Vertical Wall Dig Depth |
17 ft (5 m)
|
| Boom/Stick 5 |
|
Boom/Stick 5 |
Boom 18'4" (5600mm)/Stick 8'6" (2600mm) |
|
Max Cutting Height |
31 ft (9 m)
|
|
Max Digging Depth |
19 ft (6 m)
|
|
Max Loading Height |
21 ft (6 m)
|
|
Max Reach Along Ground |
29 ft (9 m)
|
|
Max Vertical Wall Dig Depth |
16 ft (5 m)
|
| Boom/Stick 6 |
|
Boom/Stick 6 |
Boom 18'4" (5600mm)/Stick 10'2" (3100mm) |
|
Max Cutting Height |
32 ft (10 m)
|
|
Max Digging Depth |
22 ft (7 m)
|
|
Max Loading Height |
23 ft (7 m)
|
|
Max Reach Along Ground |
32 ft (10 m)
|
|
Max Vertical Wall Dig Depth |
19 ft (6 m)
|
| Buckets |
|
Maximum Bucket Capacity |
1 cu yd |
|
Minimum Bucket Capacity |
1 cu yd |
|
Reference Bucket Capacity |
1 cu yd |
|
Reference Bucket Capacity |
1 cu yd |
| Dimensions |
|
Ground Clearance |
2 ft (0 m)
|
|
Ground Clearance |
2 ft (0 m)
|
|
Height To Top Of Cab |
10 ft (3 m)
|
|
Length Of Track On Ground |
11 ft (3 m)
|
|
Length Of Track On Ground |
11 ft (3 m)
|
|
Removal Counterweight Clearance |
3 ft (1 m)
|
|
Tail Swing Radius |
8 ft (2 m)
|
|
Tail Swing Radius |
8 ft (2 m)
|
|
Width To Outside Of Tracks |
8 ft (2 m)
|
|
Width To Outside Of Tracks |
9 ft (3 m)
|

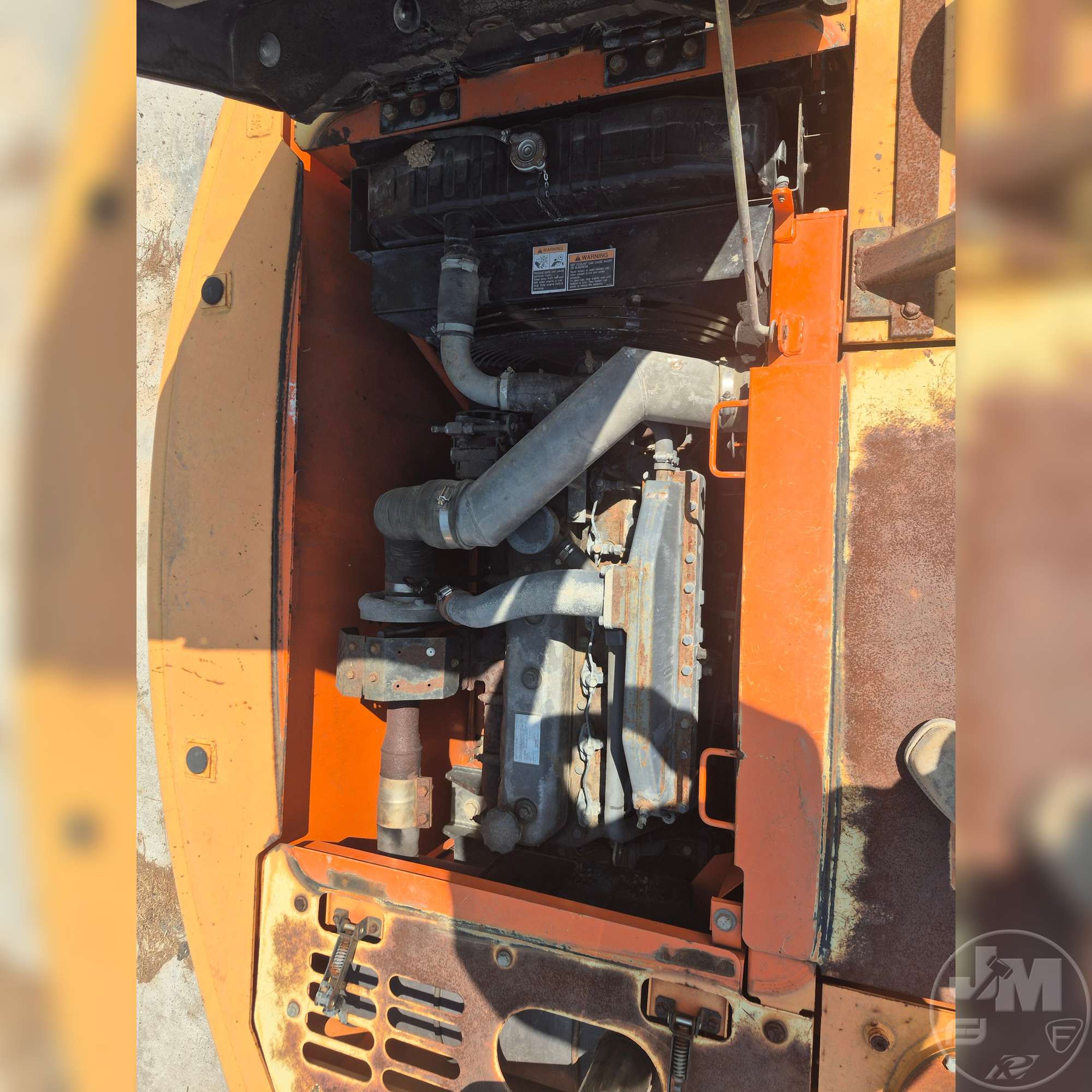

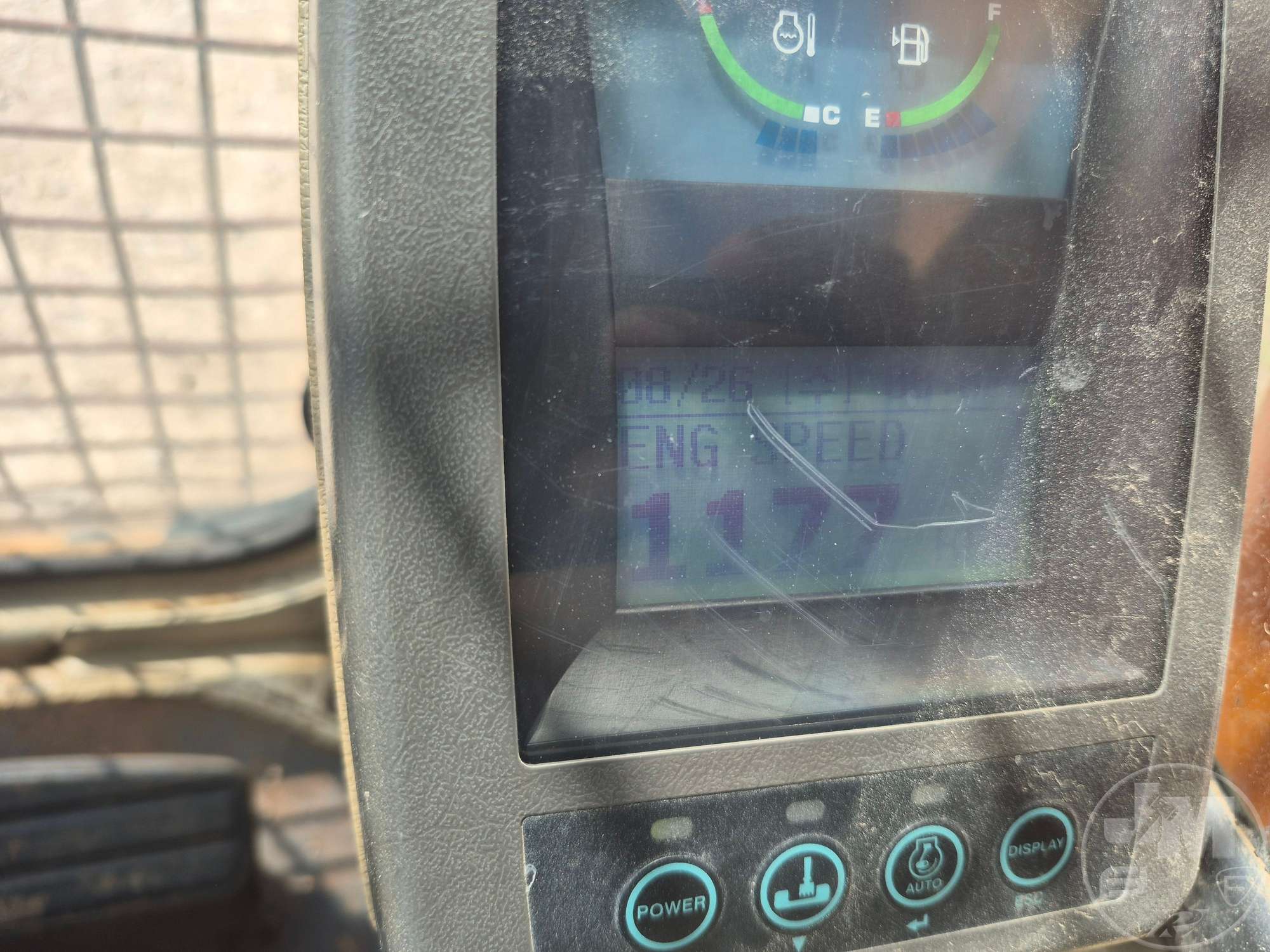

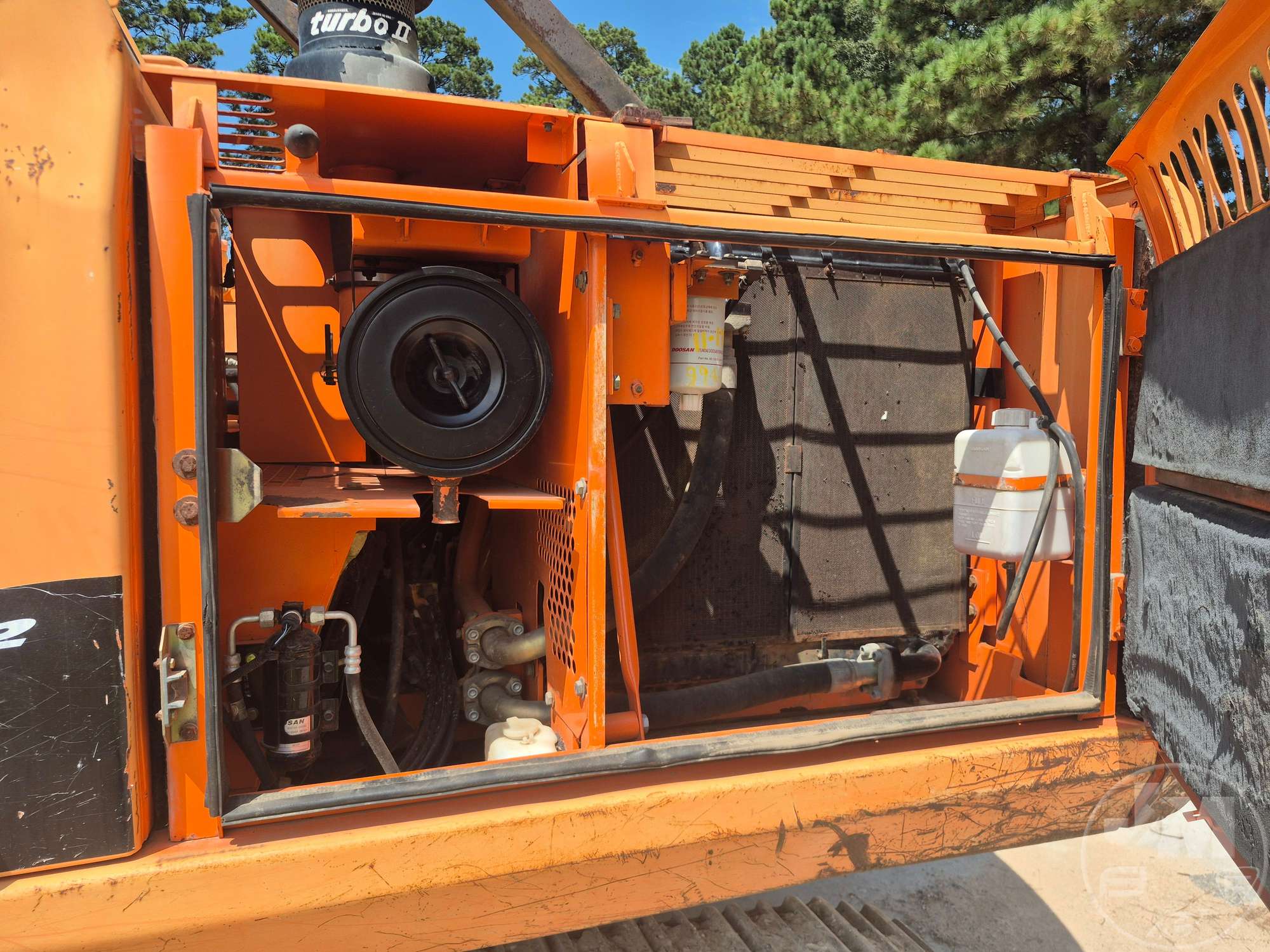

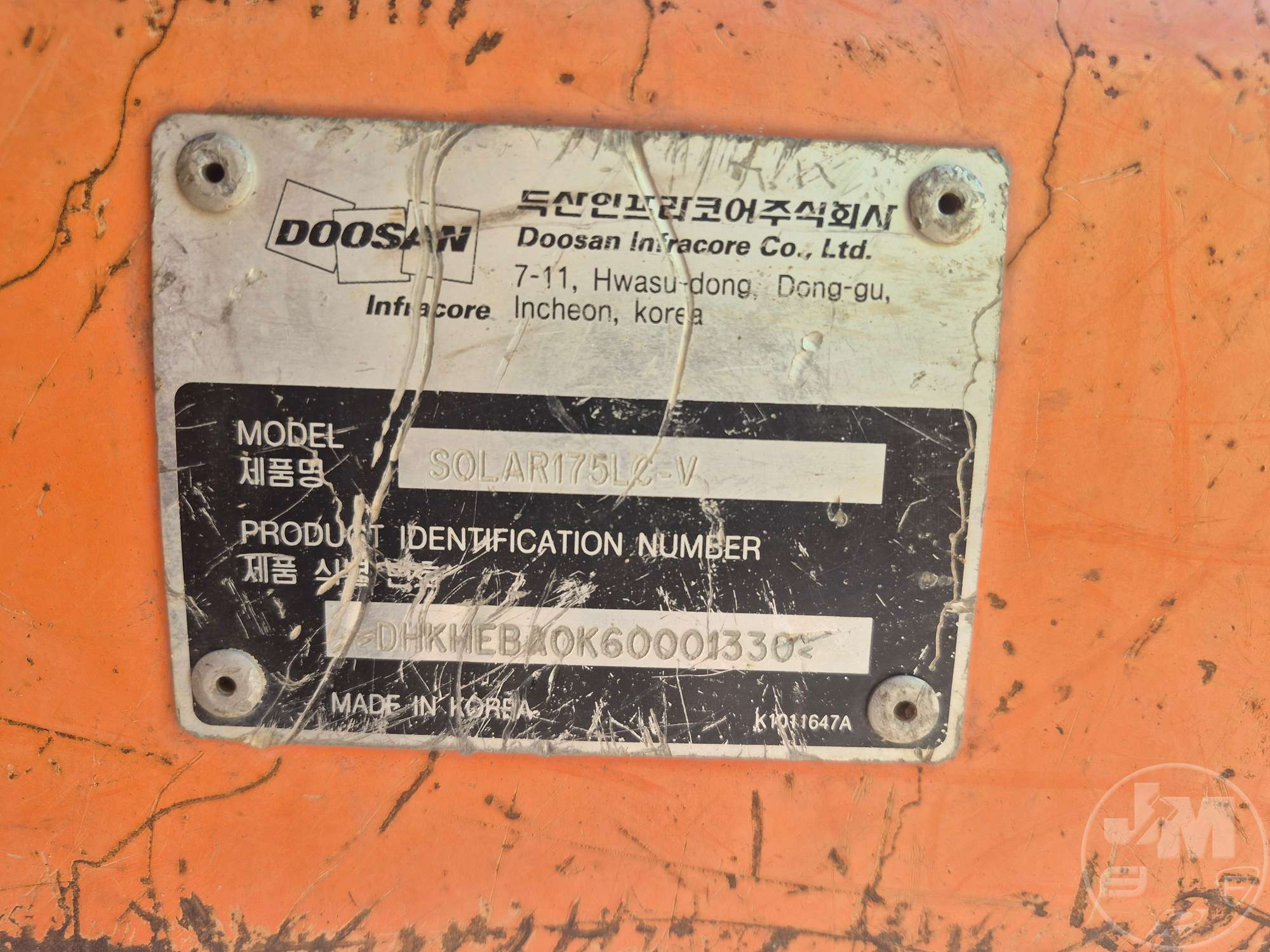

| Engine |
|
Aspiration |
turbocharged air-to-water intercooled |
|
Displacement |
353 cu in (5,785 cu cm)
|
|
Displacement |
353 cu in (5,781 cu cm)
|
|
Engine Make |
2,253 |
|
Engine Make |
2,252 |
|
Engine Model |
DB58TIS |
|
Engine Model |
DB58TIS |
|
Gross Power |
118 hp (88 kw)
|
|
Max Torque |
333 lbs ft (451 nm)
|
|
Net Power |
118 hp (88 kw)
|
|
Number Of Cylinders |
6 |
|
Number Of Cylinders |
6 |
|
Power Measured @ |
1,950 rpm |
|
Power Measured @ |
1,950 rpm |
|
Torque Measured @ |
1,450 rpm |

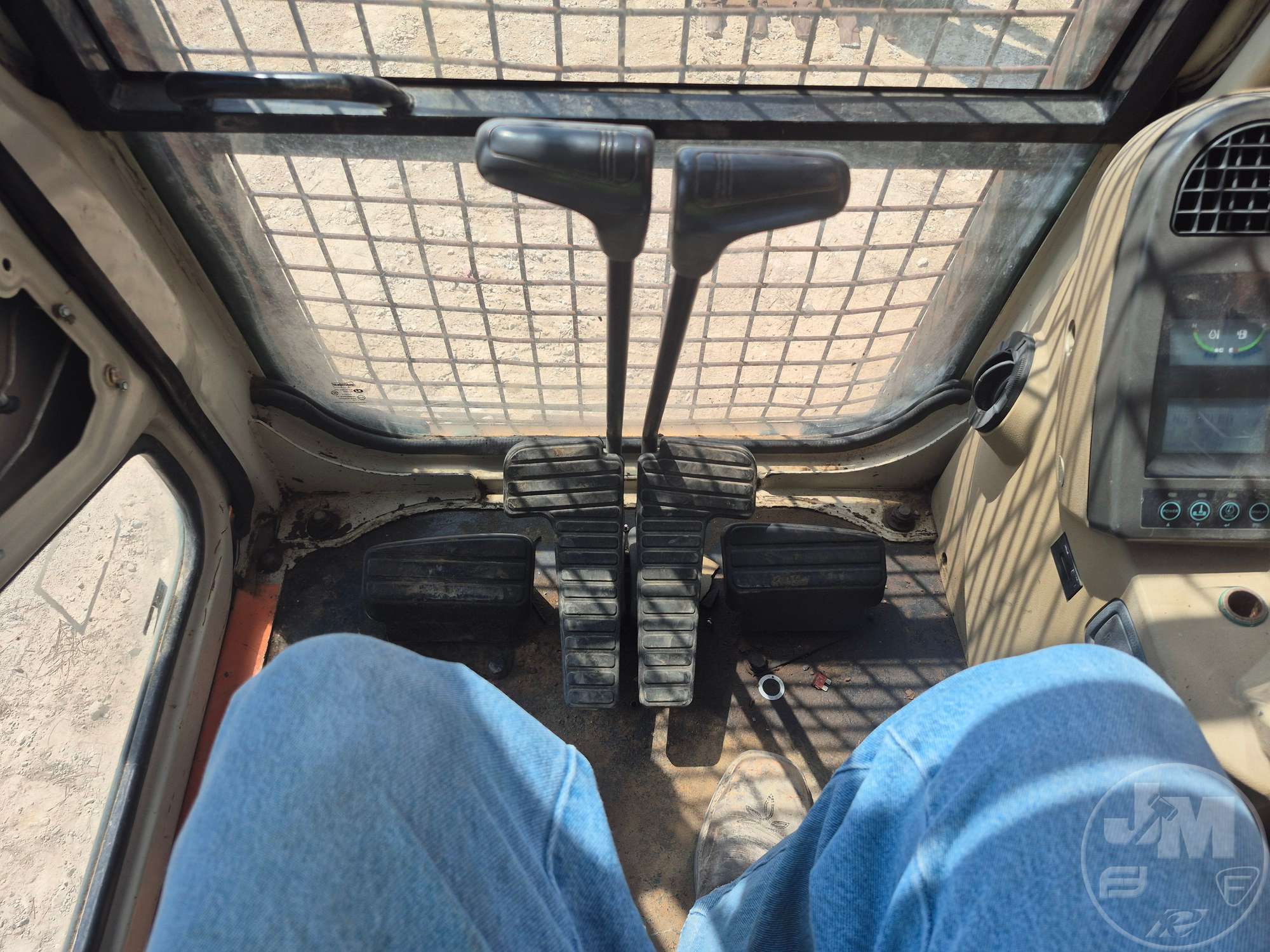

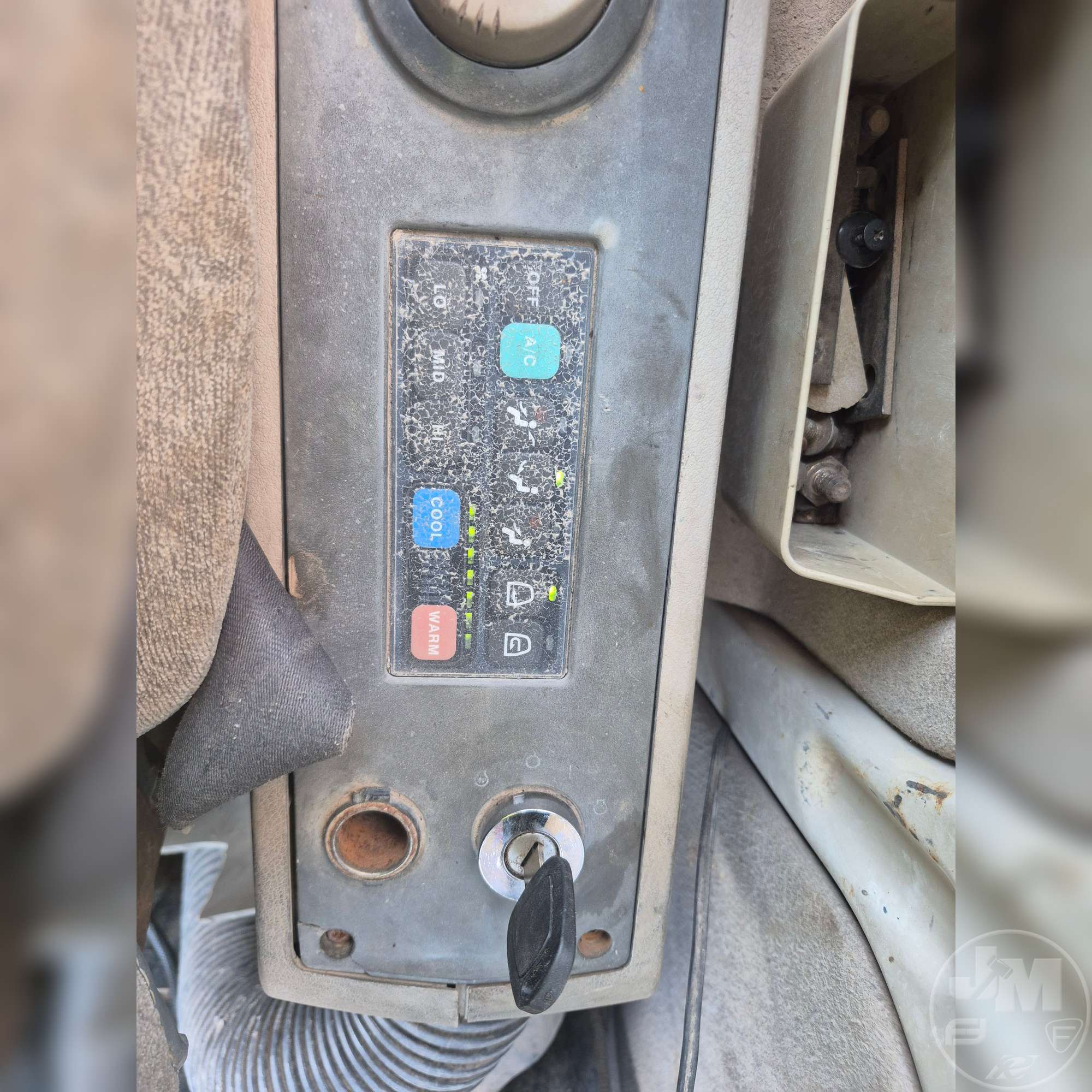

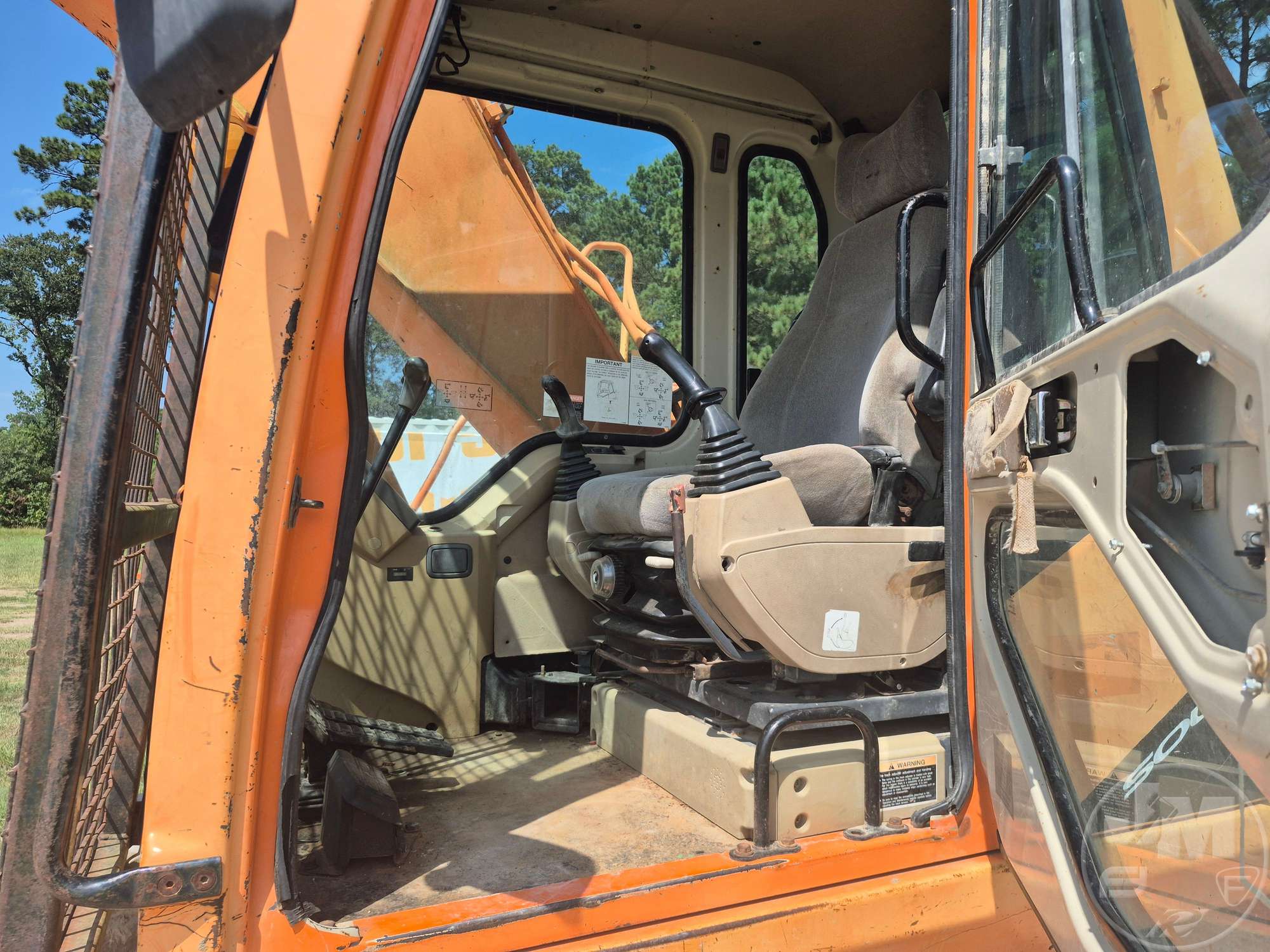

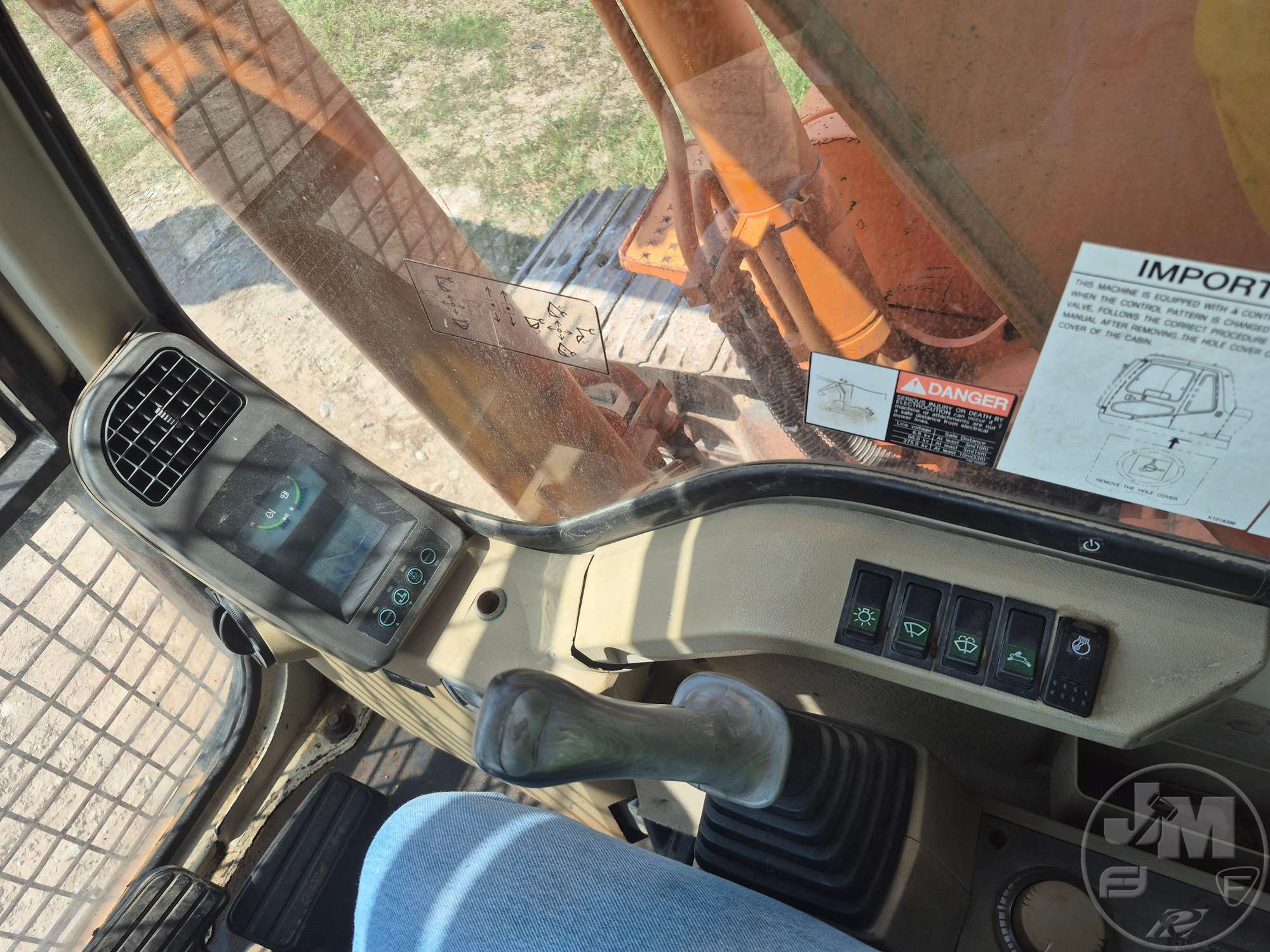

| Operational |
|
Cooling System Fluid Capacity |
6 gal (22 l)
|
|
Engine Oil Capacity |
5 gal (19 l)
|
|
Fuel Capacity |
74 gal (280 l)
|
|

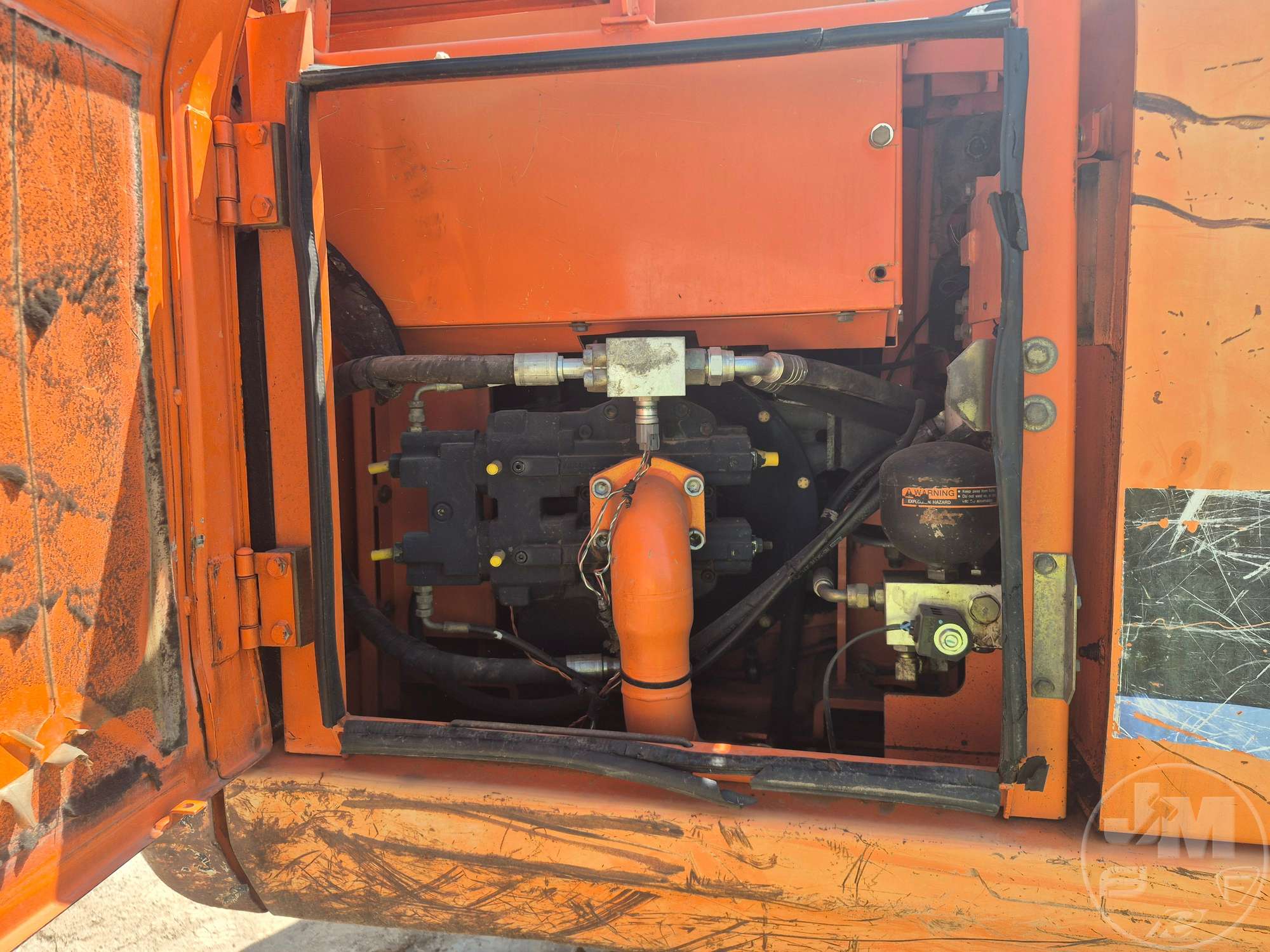

Hydraulic Pump Flow Capacity |
80 gpm (304 lpm)
|
|
Hydraulic Pump Flow Capacity |
80 gpm (304 lpm)
|
|
Hydraulic System Fluid Capacity |
56 gal (210 l)
|
|
Hydraulic System Relief Valve Pressure |
4,690 psi |
|
Hydraulic System Relief Valve Pressure |
4,699 psi |
|
Operating Voltage |
24 V |
|
Operating Weight |
17,400 lbs (7,893 kg)
|
|
Operating Weight |
38,361 lbs (17,400 kg)
|
|
Swing Drive Fluid Capacity |
1 gal (5 l)
|

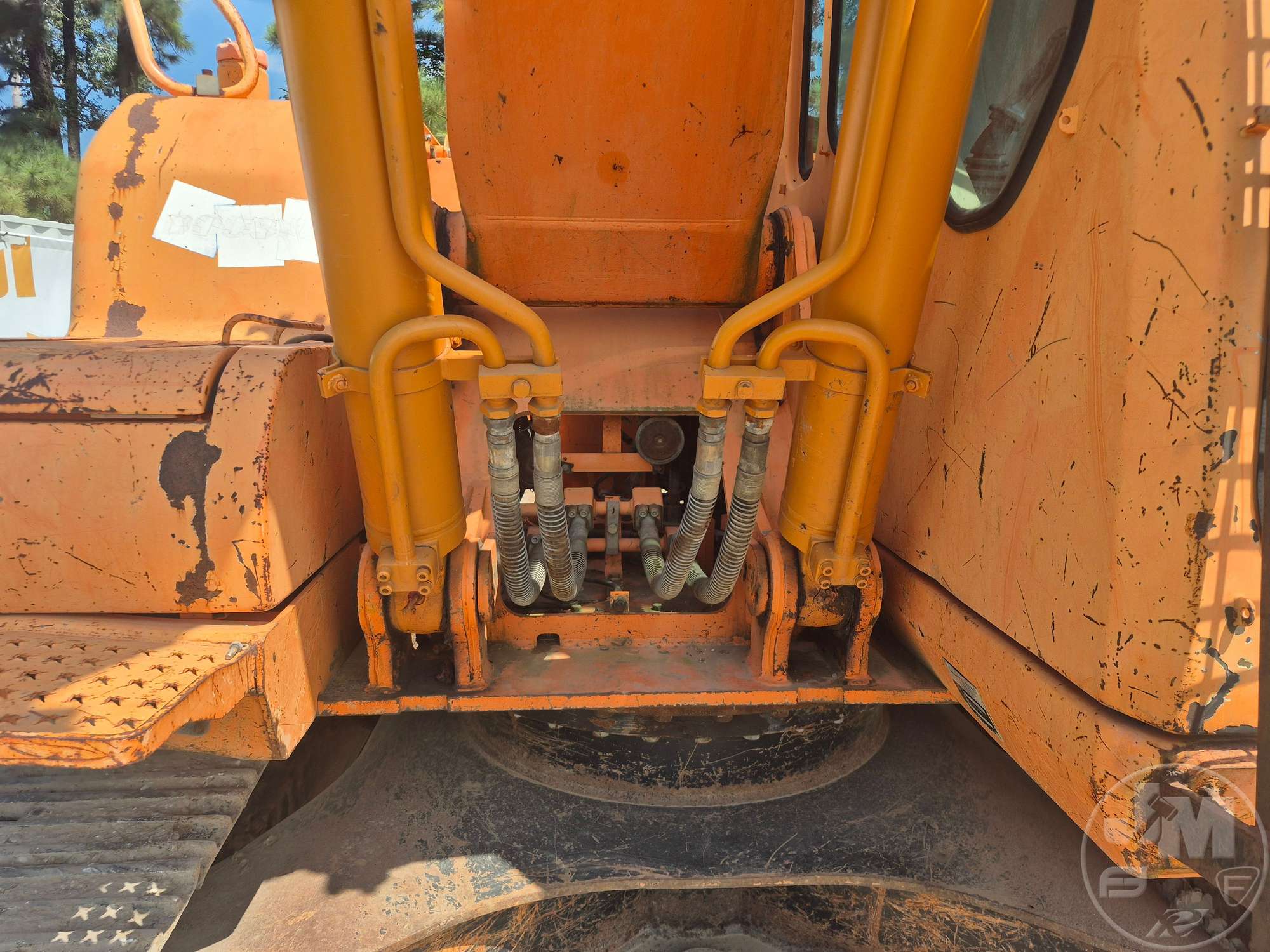

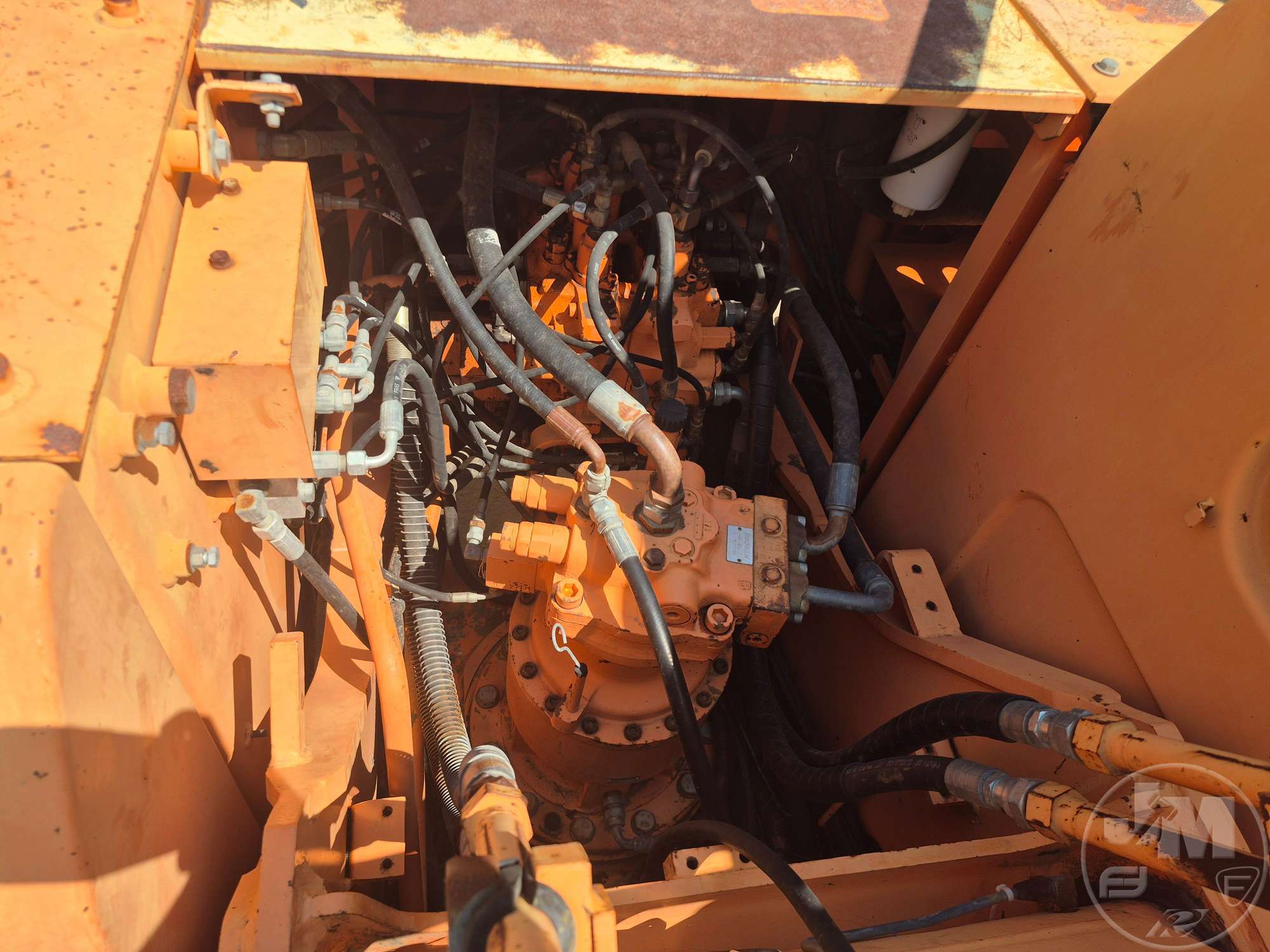

| Swing Mechanism |
|
Swing Speed |
12 rpm |

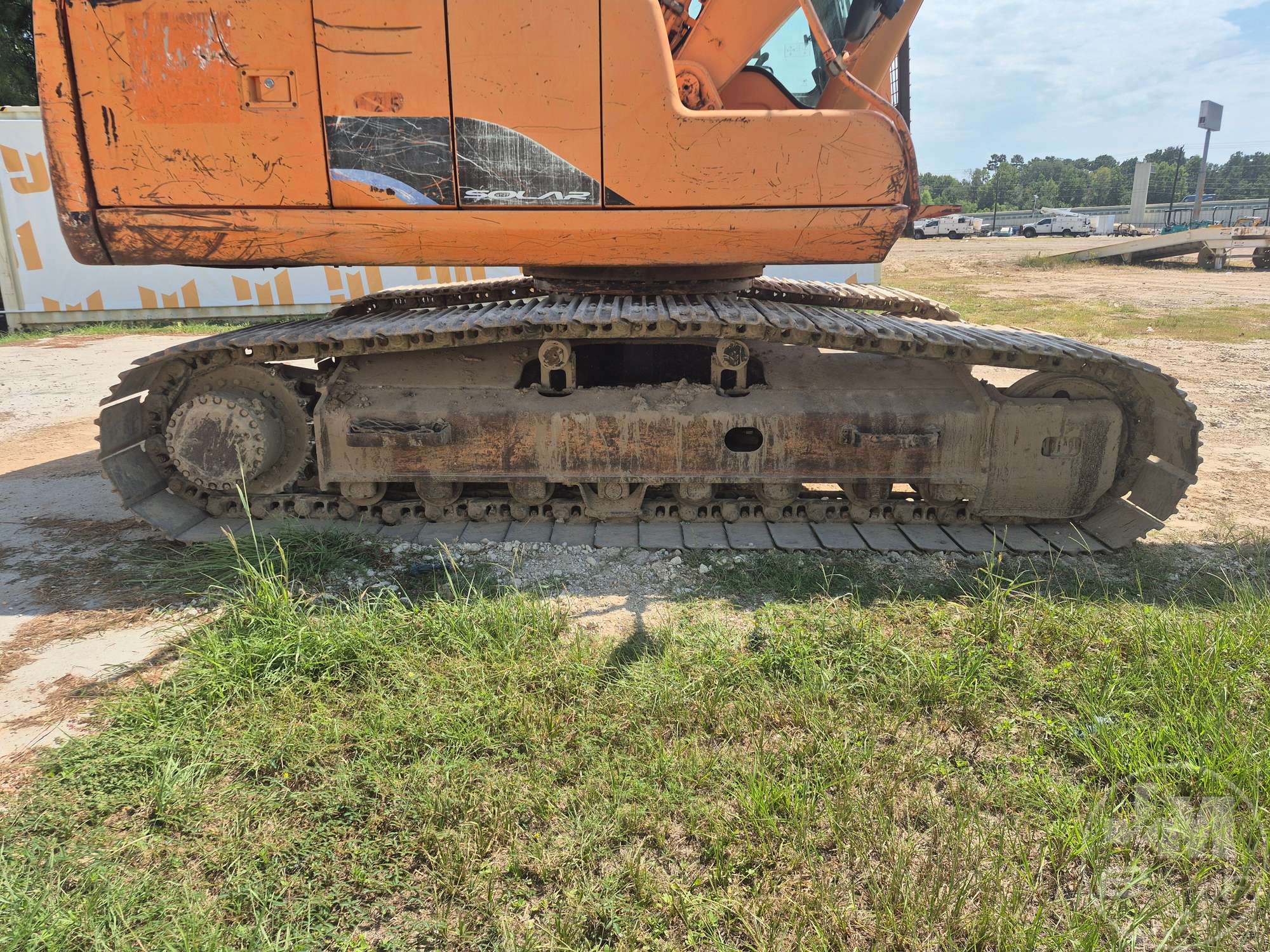

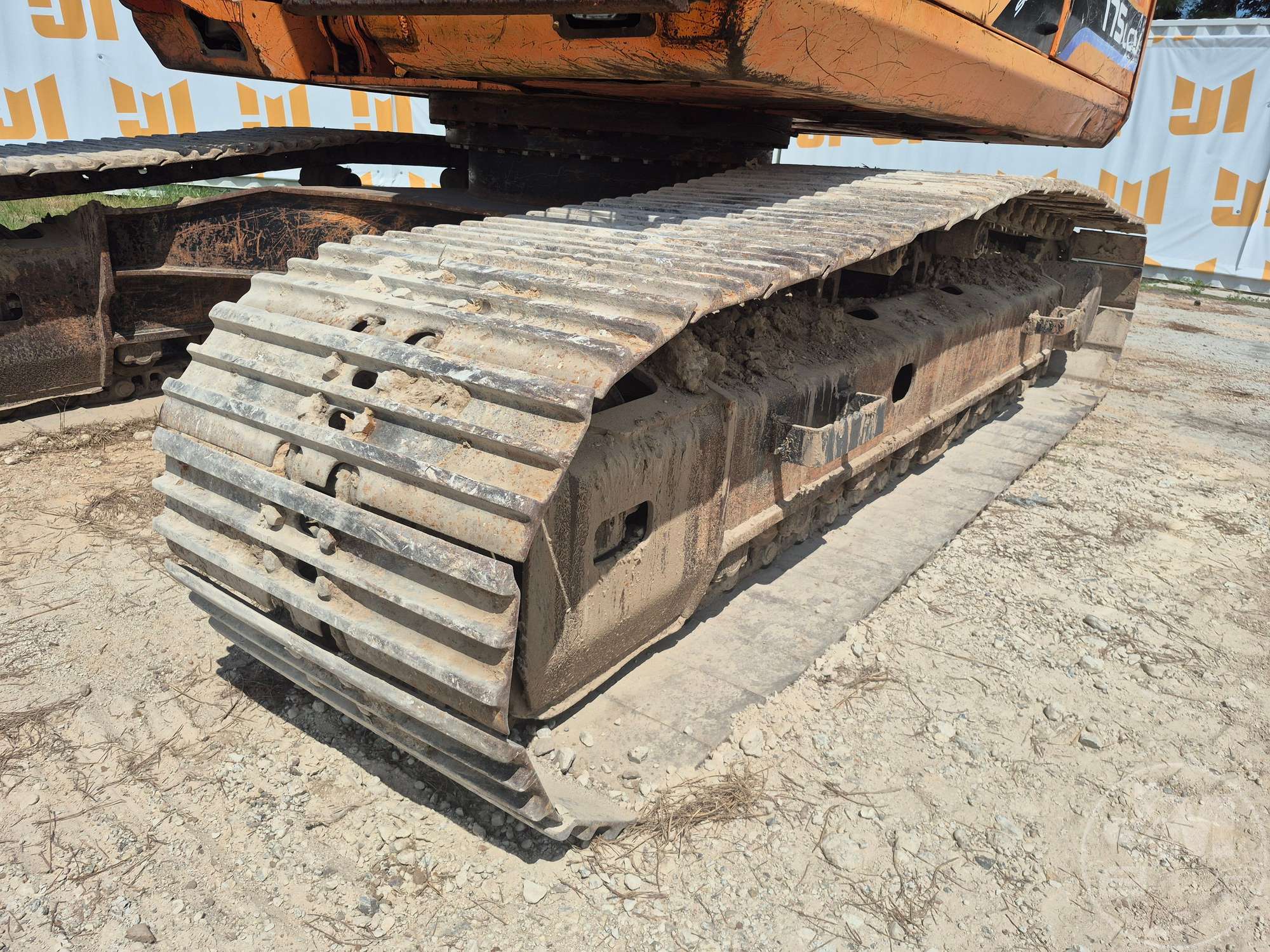

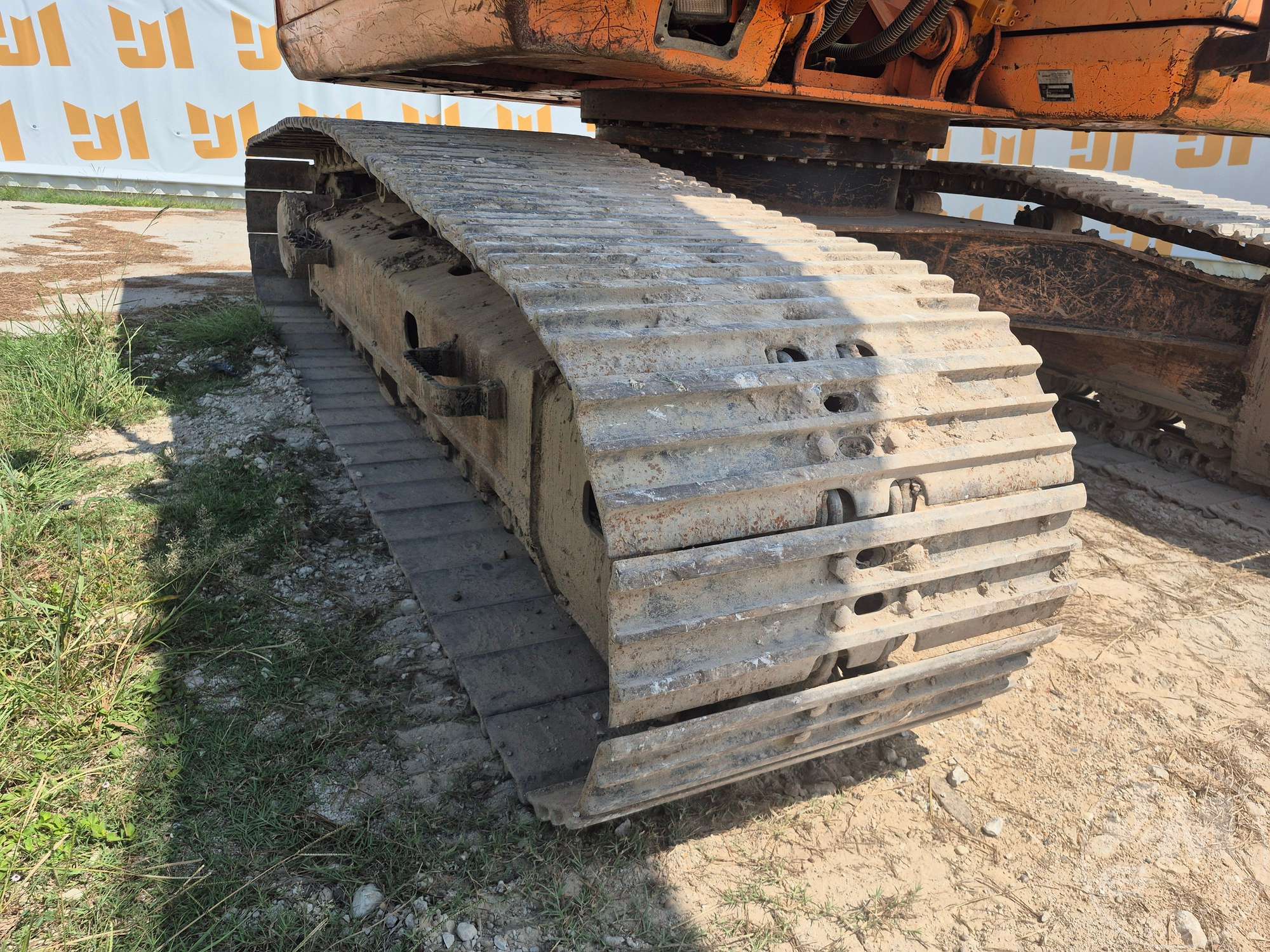

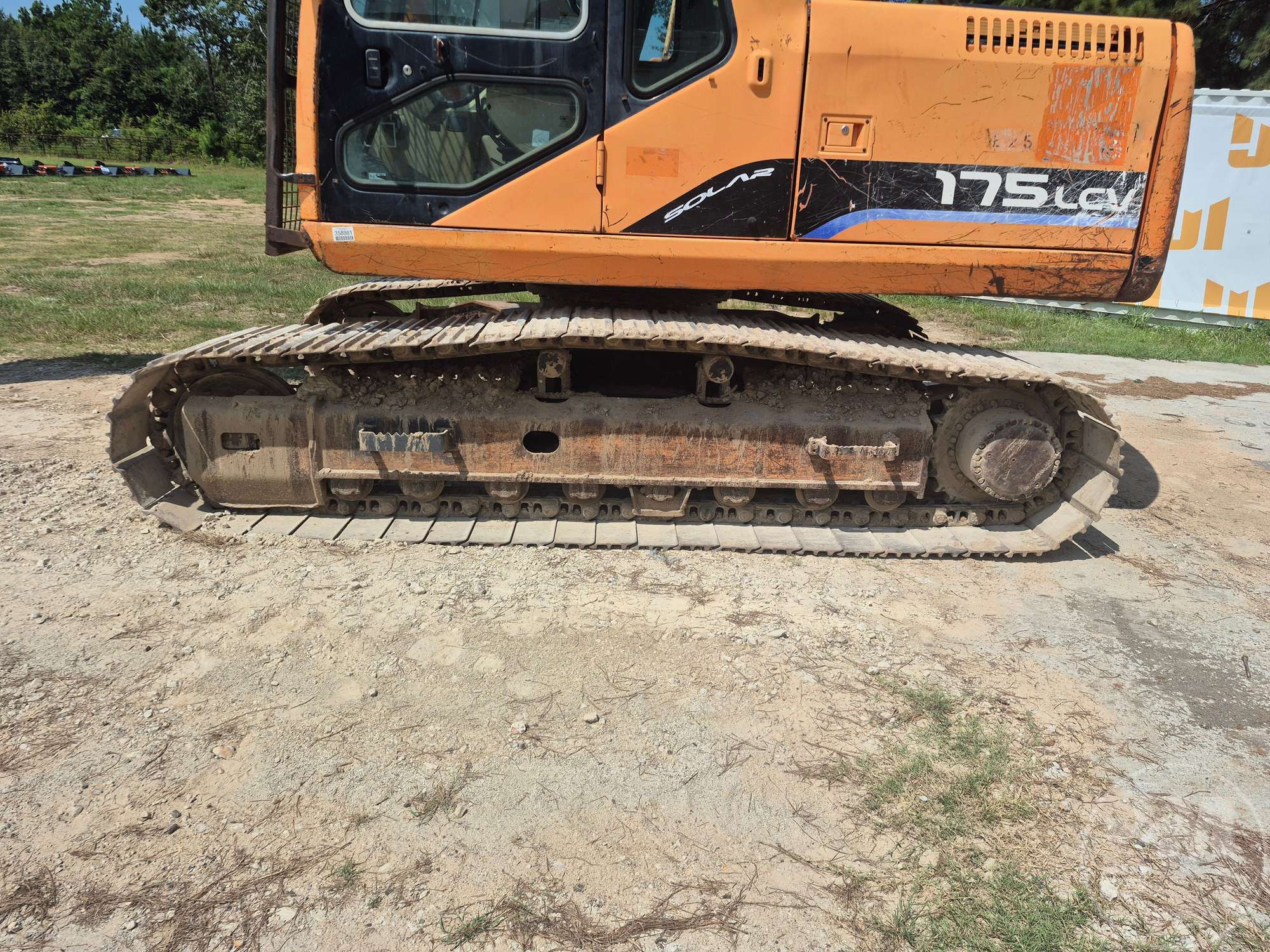

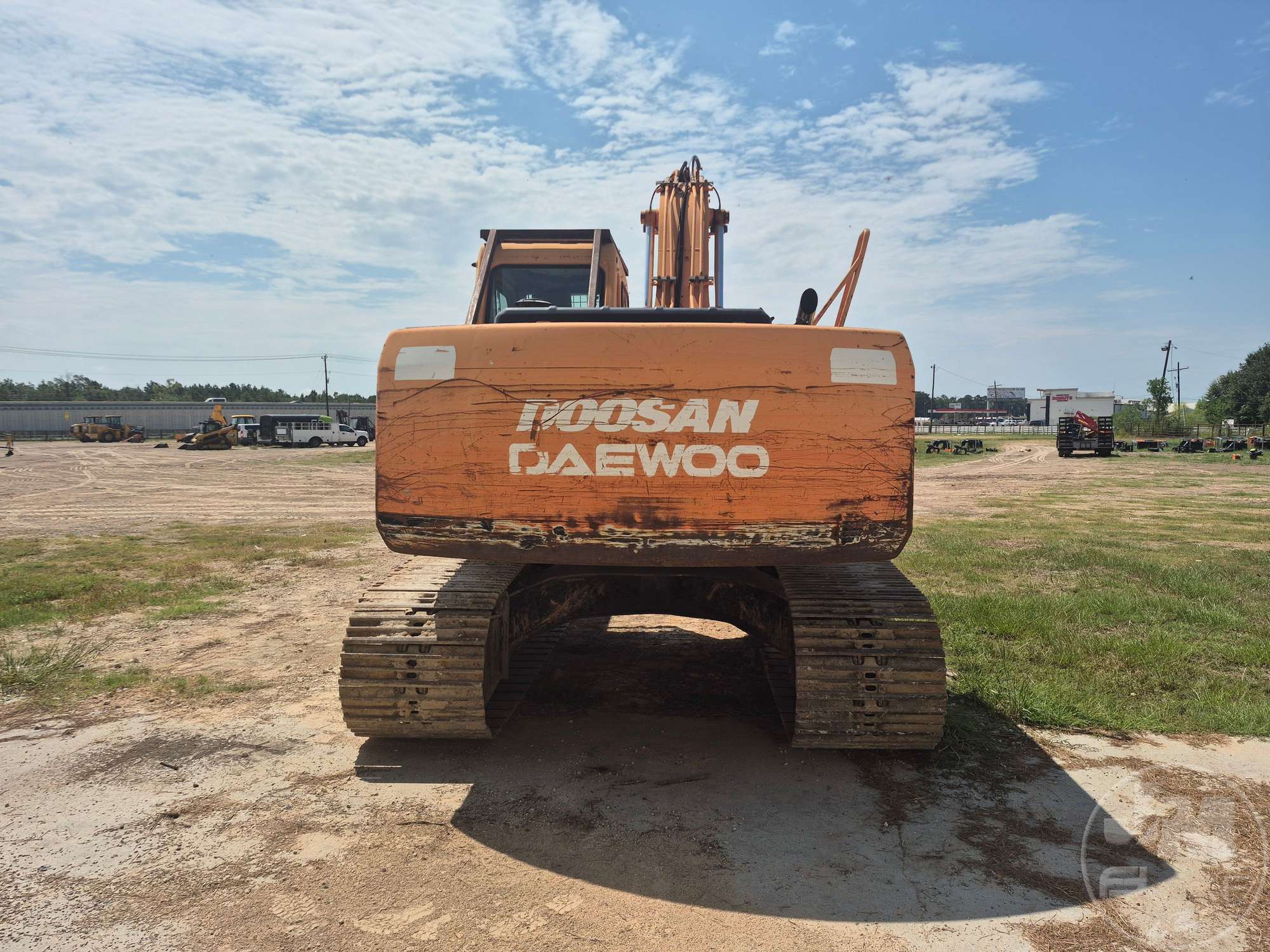

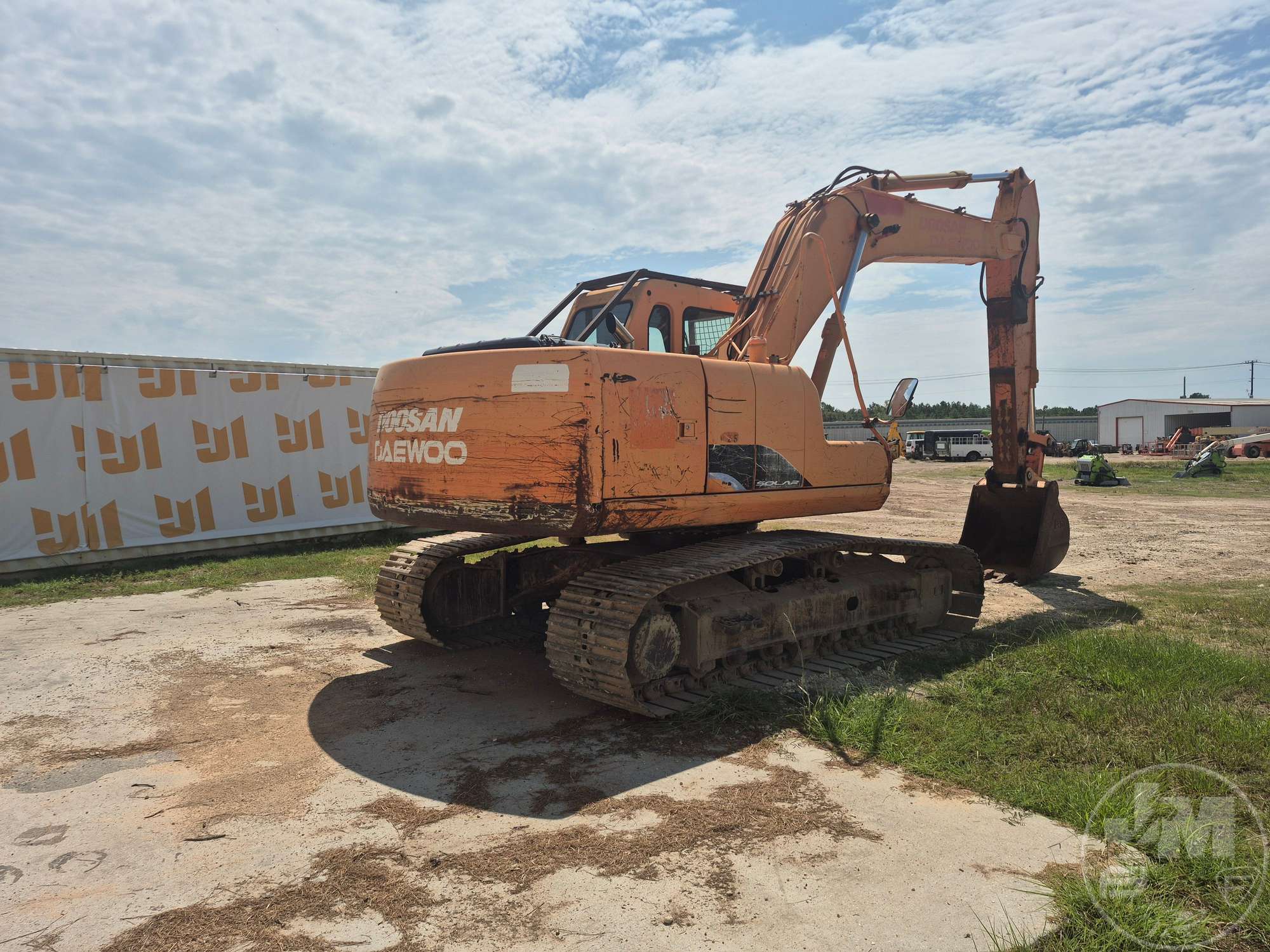

| Undercarriage |
|
Ground Pressure |
6 psi |
|
Max Travel Speed |
3 mph (5 kph)
|
|
Max Travel Speed |
3 mph (5 kph)
|
|
Number Of Carrier Rollers Per Side |
2 |
|
Number Of Shoes Per Side |
49 |
|
Number Of Track Rollers Per Side |
8 |
|
Shoe Size |
24 in (60 cm)
|
|
Shoe Size |
20 in (50 cm)
|
