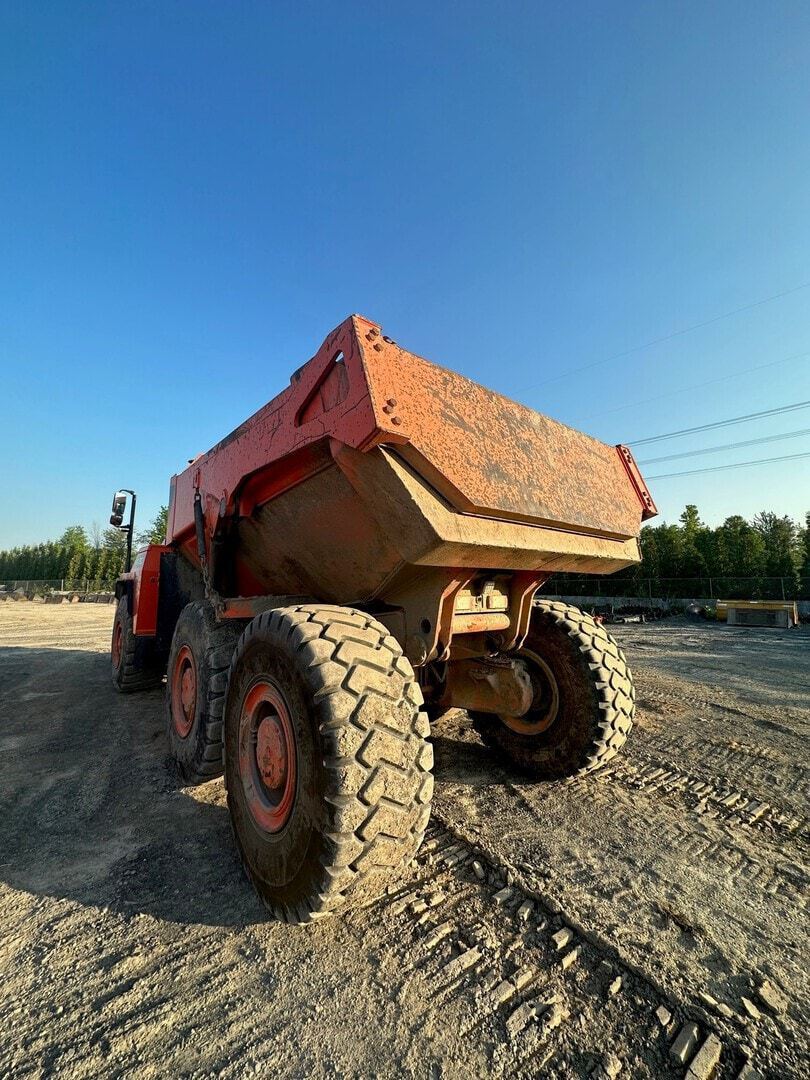

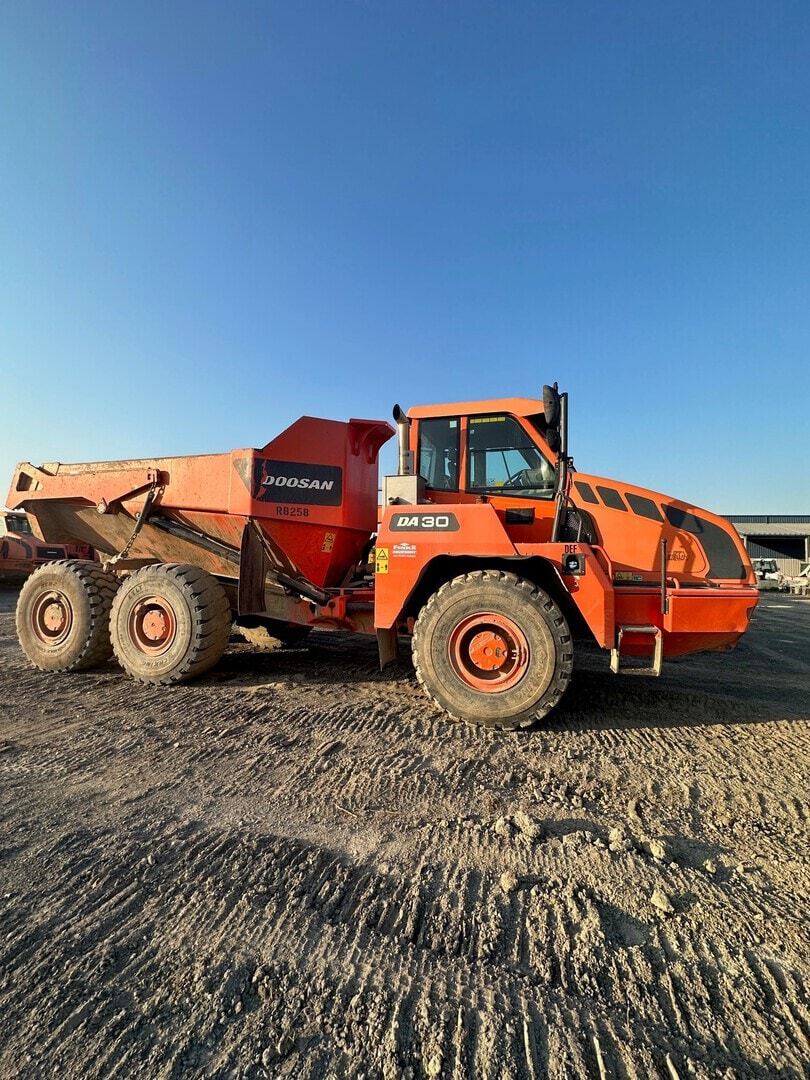

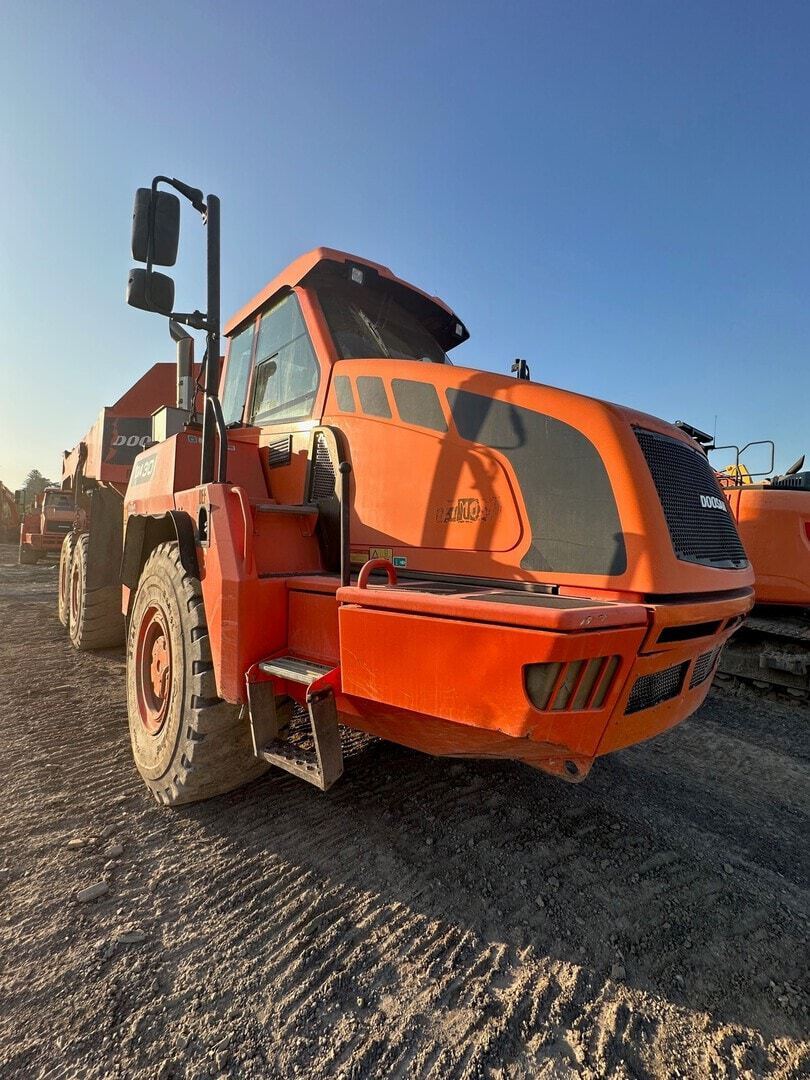

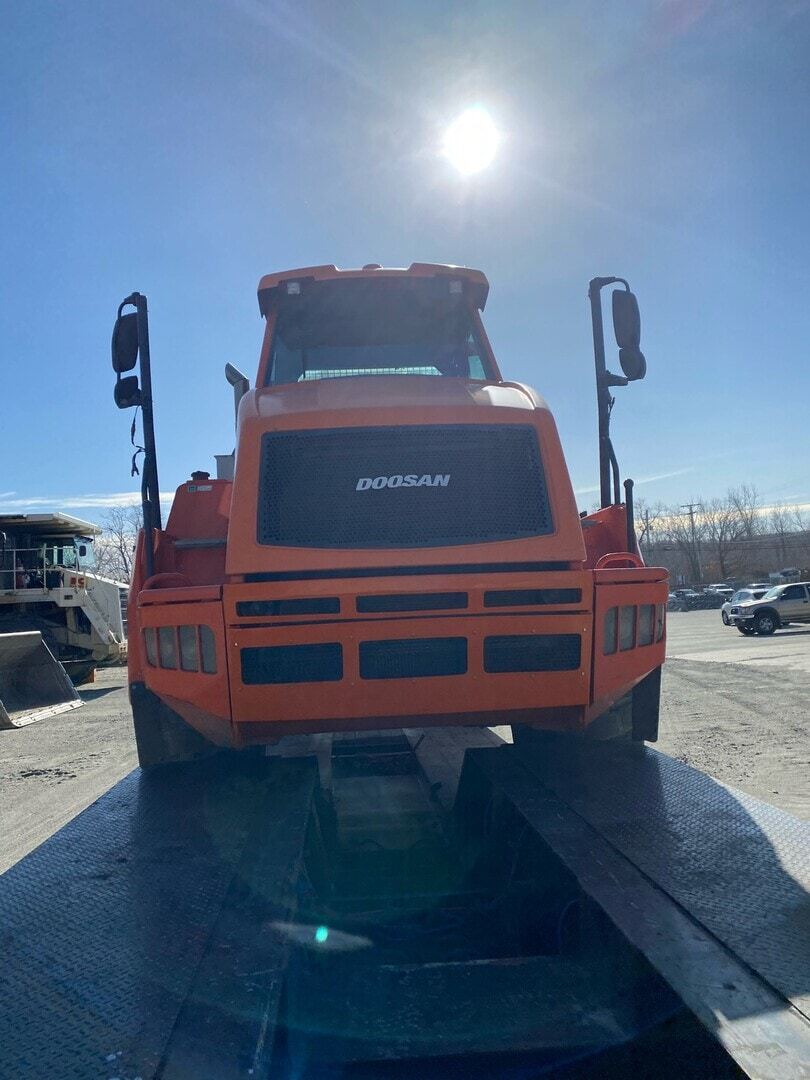

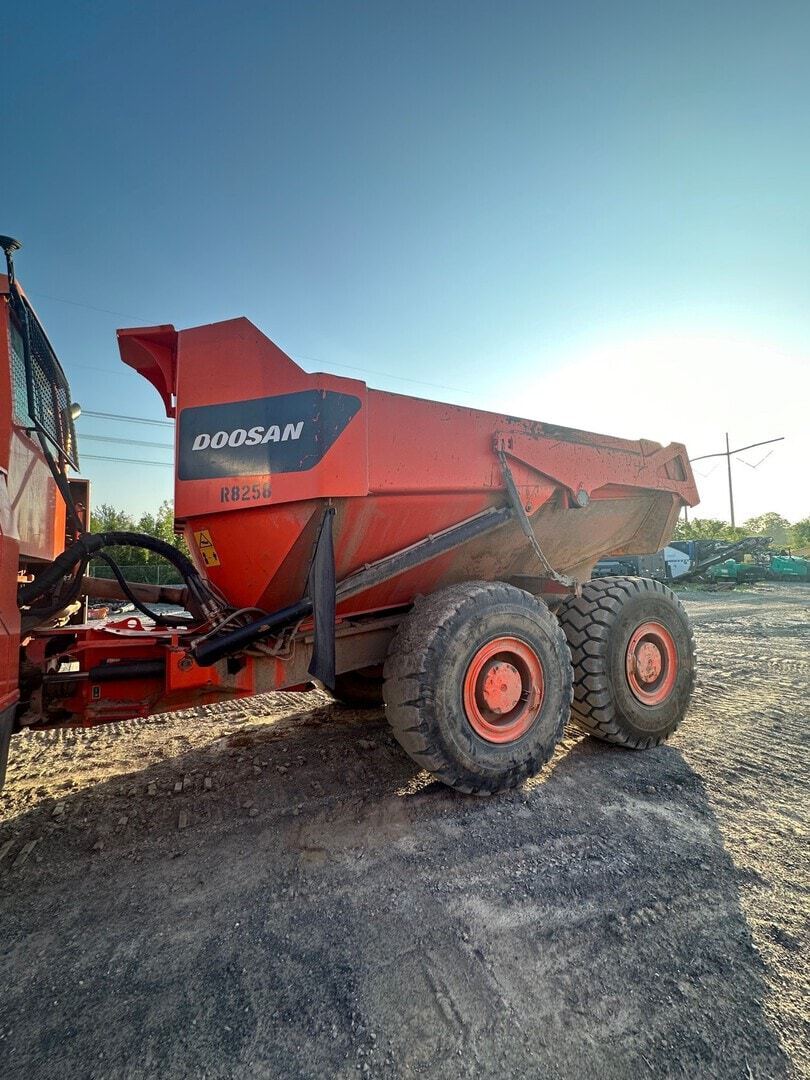

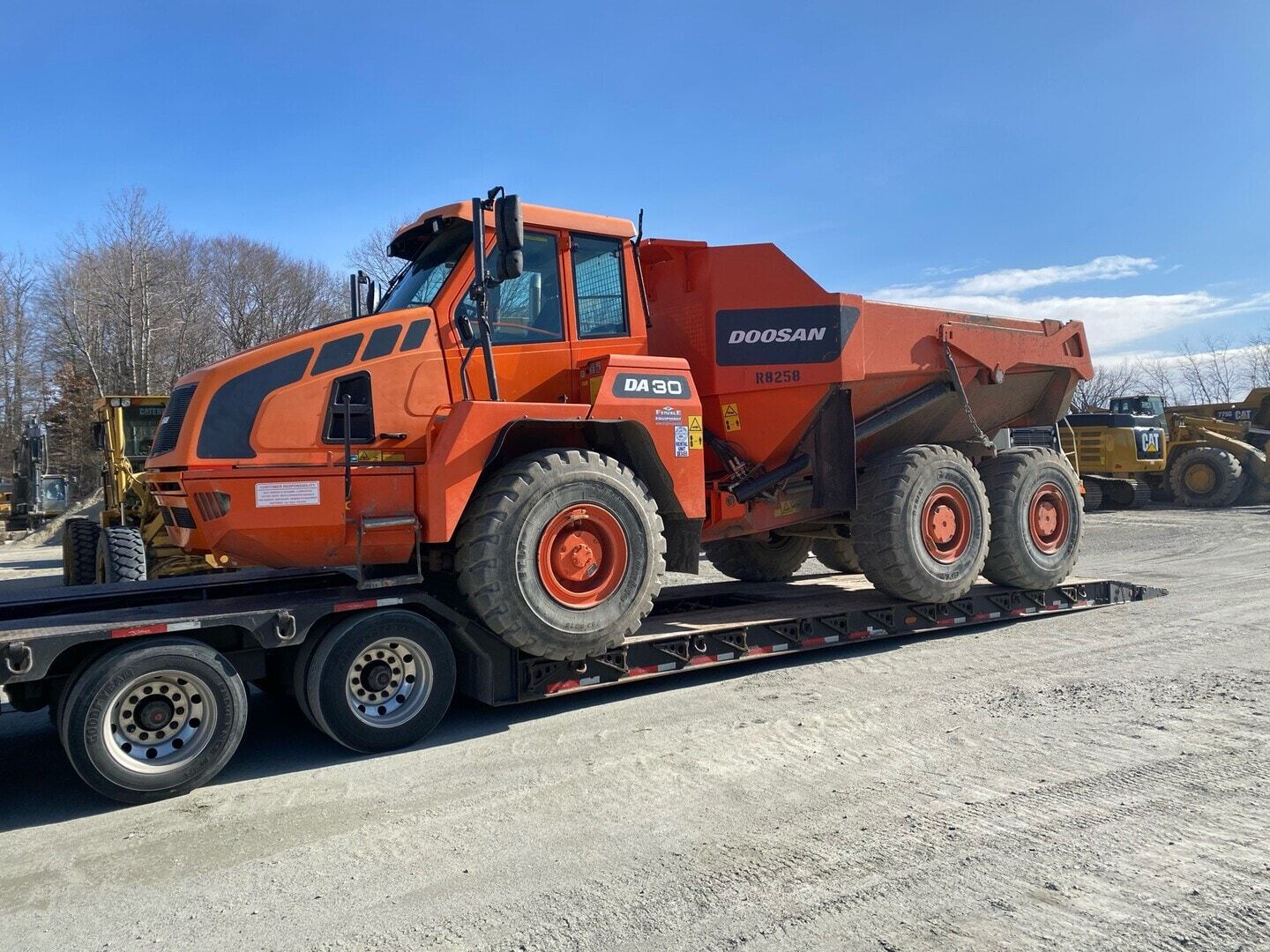

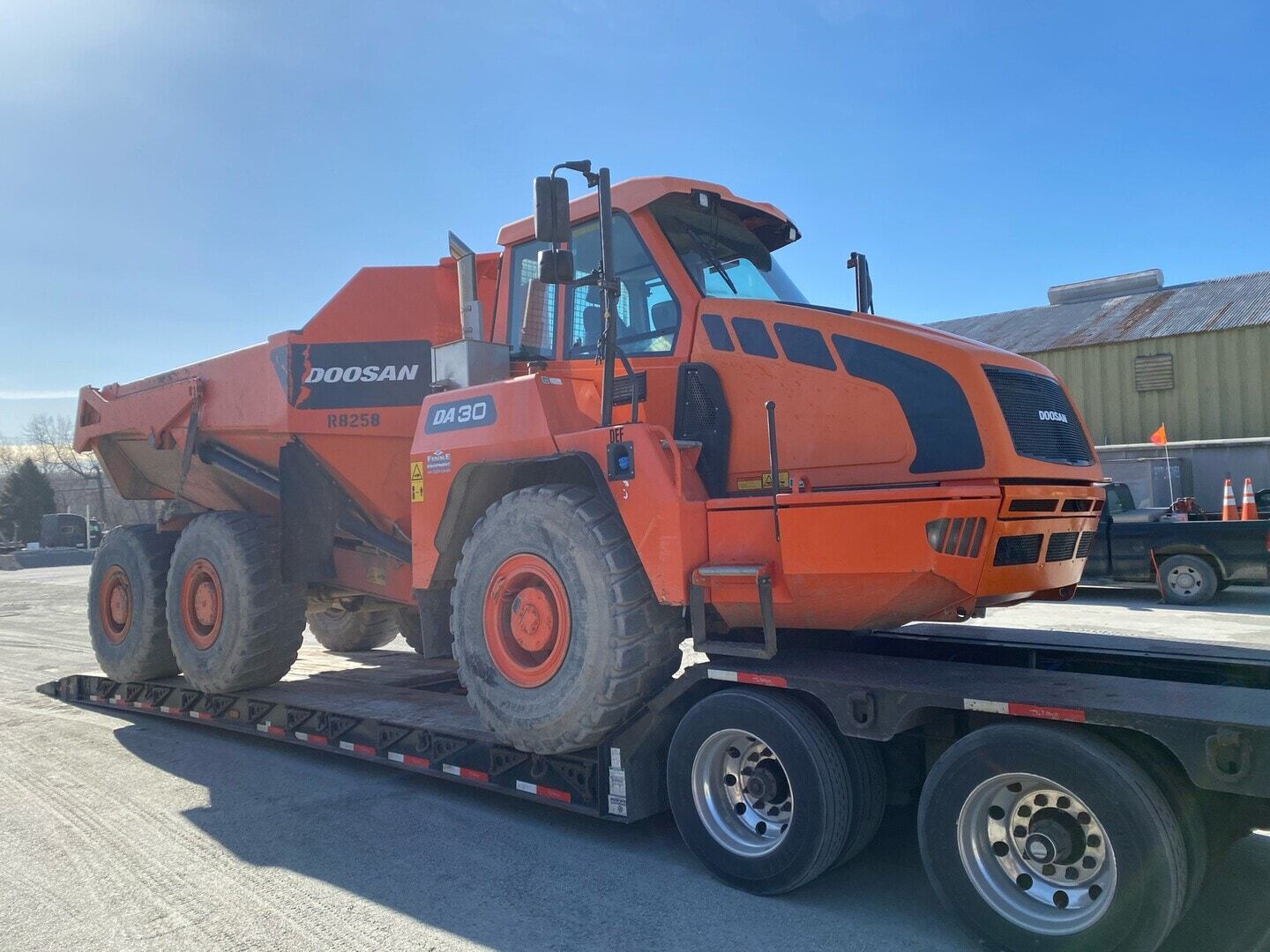

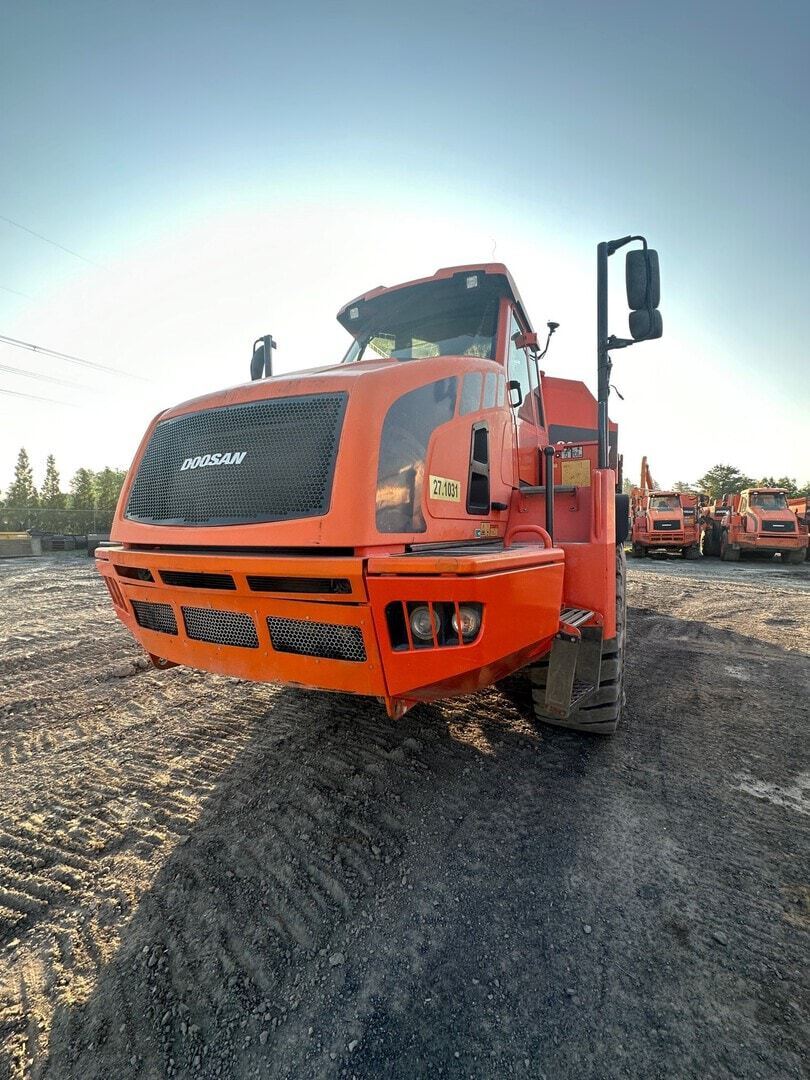

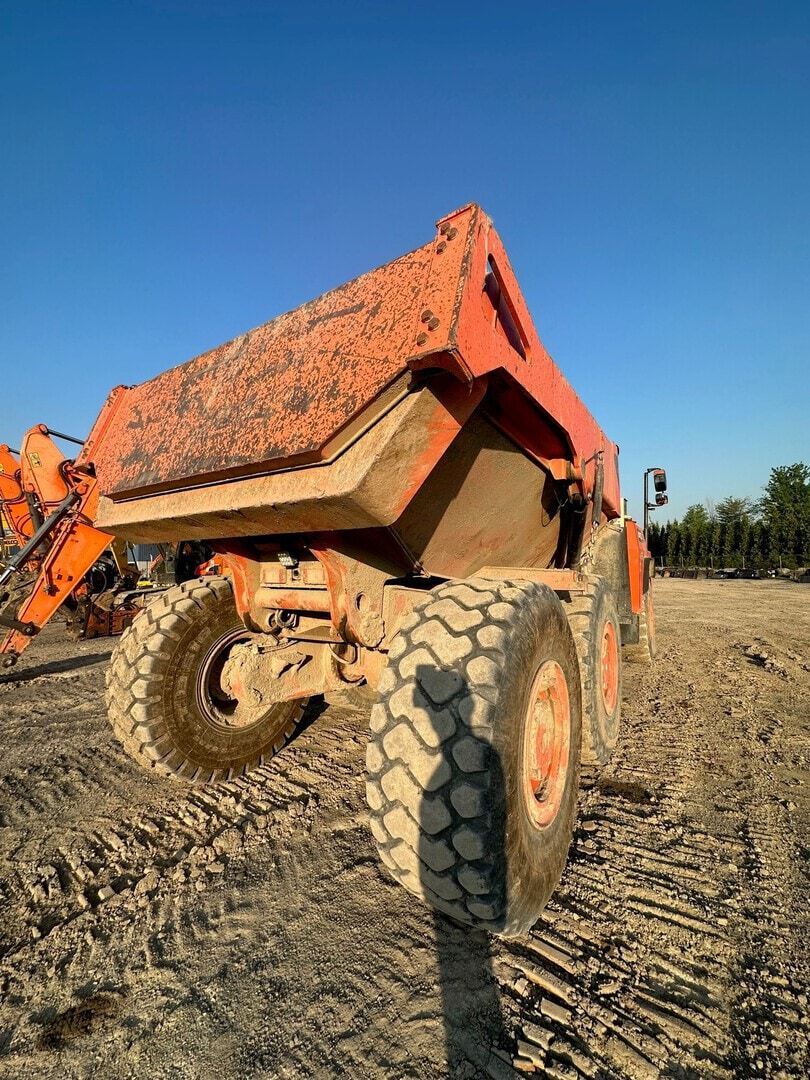

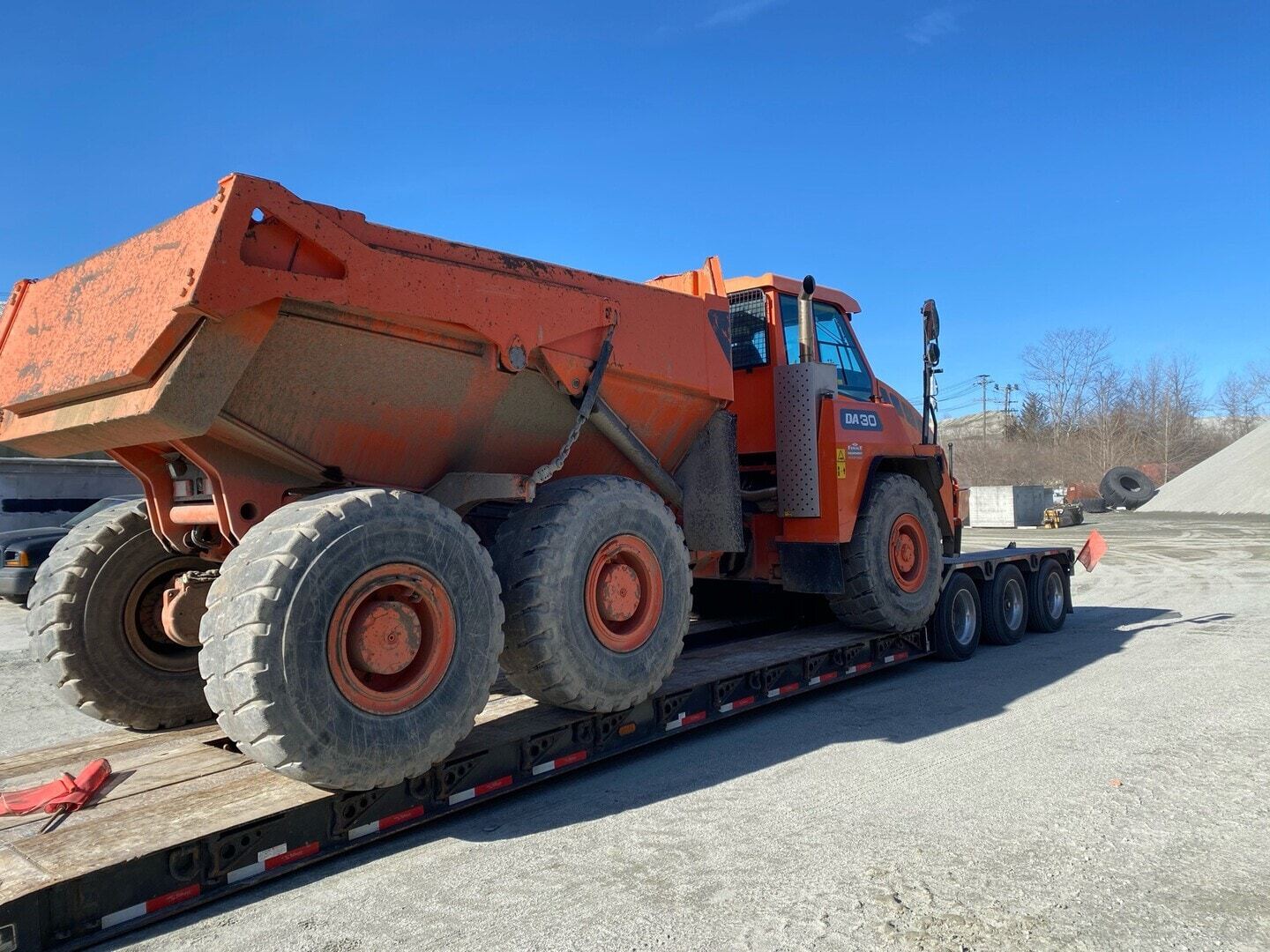

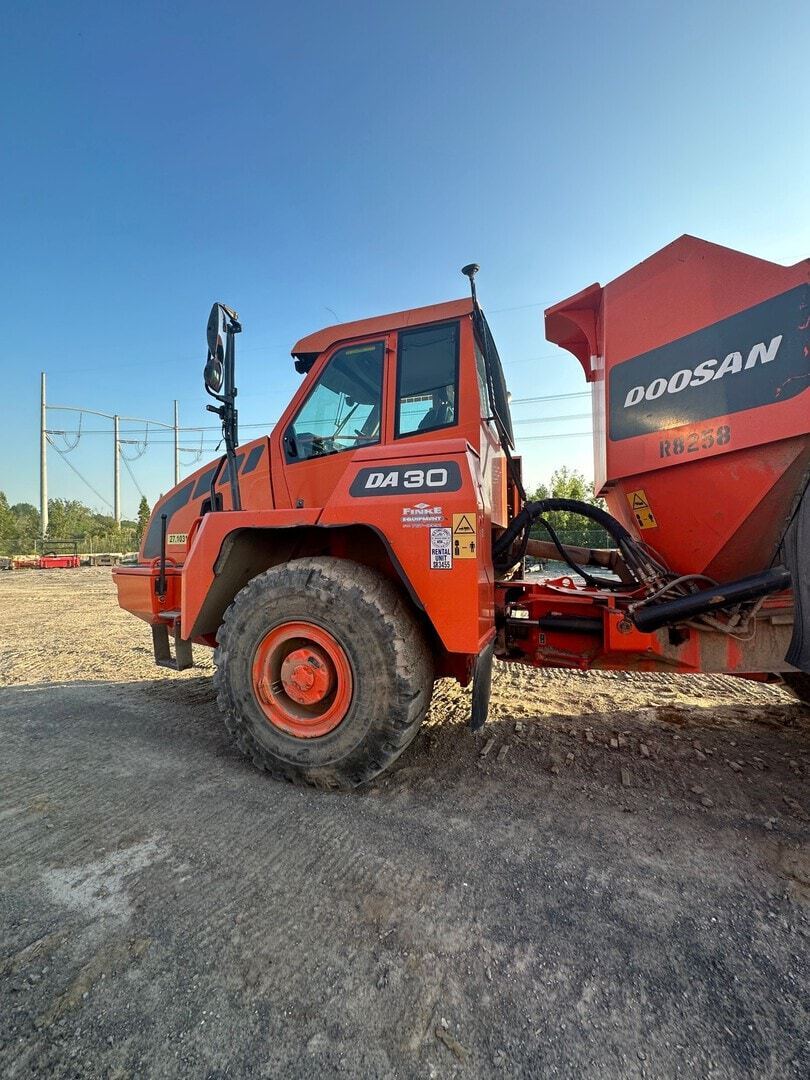

2017 Doosan DA30-5 For Sale in Gansevoort, NY


/ Save to Watch List

For Sale: $162,900.00 USD

Apply for Financing


Machine Info:

Hours:6200
Machine Location:GANSEVOORT, NY
More Information:https://bobcatofsaratoga.com/inventory/dump+trucks/2017-doosan+construction-da30-5-gansevoort-ny-6a2f5d3f0842096a9903a89a/

Description:

2017 Doosan Construction, DA30-5 Off-Highway Trucks, With the Doosan DA30-5, you'll move more materials faster and work harder in tough conditions, and navigate roadways or difficult terrain with ease. The proven, powerful diesel engine provides superior torque and efficient fuel consumption. A sloping rear frame, in combination with the tread width, provides a lower center of gravity, which increases lateral stability and eliminates the need for wide, low profile tires.Power through large loads with a class-leading power-to-weight ratio accomplished through careful selection of engine sizes, power ratings and horsepower relative to load capacity, driveline ratio performance and transmission efficiency.Limited-slip differentials on each axle, deliver best-in-class traction by combining the use of one longitudinal differential lock in the driveline, providing a 50/50 split of power between the front and rear drivetrain.An innovative frame and body design utilize lightweight, high-g


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The Doosan DA30-5 is a 30-ton class off-highway articulated dump truck designed for earthmoving, quarry, and mining applications. It is powered by a diesel engine and uses a six-wheel drive articulated chassis for traction on rough terrain. The DA30-5 features a front-mounted cab, rear dump body, and automatic transmission for material transport in demanding site conditions. Typical uses include hauling soil, aggregate, rock, and overburden across construction and extraction sites. The model is part of Doosan's off-highway truck lineup and is commonly referenced for its payload capacity, stability, and site mobility in heavy-duty material handling operations.
Articulating/Rigid
Articulating/Rigid Articulated
Dimensions
Dump Ground Clearance 2 ft (1 m)
Overall Height 12 ft (4 m)
Overall Length 31 ft (10 m)
DRIVE SYSTEM
Drive Config 6x6
Dump
Dump Angle 70 degrees
Rated Payload 61,730 lbs (28,000 kg)
Engine
Bore 5 in (13 cm)
Displacement 568 cu in (9,301 cu cm)
Engine Model DC9
Gross Power 370 hp (276 kw)
Make Scania
Max Torque 1,381 lbs ft (1,872 nm)
Net Power 362 hp (270 kw)
Number of Cylinders 5
Power Measured @ 2,100 rpm
Stroke 6 in (14 cm)
Torque Measured @ 1,300 rpm
General Specifications
Articulated/Rigid (Since 2016) A
Drive Configuration (Since 2016) 6x6
Drive System Mech/Electr. (Since 2016) M
Engine Type (Since 2016) Scania DC9
Mfg. Model (Since 2018) DA30-5
Operating Weight Pounds (Kgs) (Since 2016) 113,318 (51,400)
Operating Weight Pounds (Kgs) (Since 2020) 112,436 (51,000)
Operating Weight Pounds (Kgs) (Since 2021) 113,318 (51,400)
Rated Payload Tons (Metric Tons) (Since 2016) 31 (28)
Rated Payload Tons (Metric Tons) (Since 2021) 30 (28)
Operating Specifications
Cooling System Fluid Capacity 12 gal (45 l)
Engine Oil Capacity 9 gal (33 l)
Fuel Capacity 89 gal (335 l)
Operating Voltage 24 volts
Transmission Fluid Capacity 20 gal (75 l)
Transmission
Max Speed 34 mph (55 kph)
Number of Forward Gears 8
Number of Reverse Gears 4
Weights
Front Axle - empty 26,310 lbs (11,934 kg)
Front Axle - loaded 31 lbs (14 kg)
Operating Weight 113,318 lbs (51,400 kg)
Rear Axle - empty 25,278 lbs (11,466 kg)
Rear Axle - loaded 76,721 lbs (34,800 kg)
