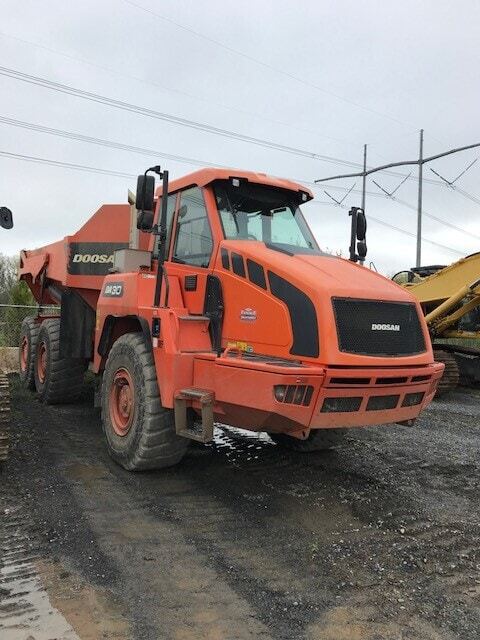

2016 Doosan DA30-5 For Sale in Gansevoort, NY

2016 Doosan DA30-5
2016 Doosan DA30-5
2016 Doosan DA30-5 2016 Doosan DA30-5

/ Save to Watch List

For Sale: $245,900.00 USD

Apply for Financing


Machine Info:

Hours:5050
Machine Location:GANSEVOORT, NY
More Information:https://bobcatofsaratoga.com/inventory/dump+trucks/2016-doosan+construction-da30-5-gansevoort-ny-6a2f5d3f0842096a9903a894/

Description:

2016 Doosan Construction, DA30-5 Off-Highway Trucks, With the Doosan DA30-5, you'll move more materials faster and work harder in tough conditions, and navigate roadways or difficult terrain with ease. The proven, powerful diesel engine provides superior torque and efficient fuel consumption. A sloping rear frame, in combination with the tread width, provides a lower center of gravity, which increases lateral stability and eliminates the need for wide, low profile tires. Power through large loads with a class-leading power-to-weight ratio accomplished through careful selection of engine sizes, power ratings and horsepower relative to load capacity, driveline ratio performance and transmission efficiency. Limited-slip differentials on each axle, deliver best-in-class traction by combining the use of one longitudinal differential lock in the driveline, providing a 50/50 split of power between the front and rear drivetrain.


From the manufacturer:

Supplied by HeavyEquipmentData.com →


Doosan DA30-5 is a rigid-frame off-highway truck designed for hauling material in construction, quarry, and earthmoving applications. It is part of Doosan's articulated dump truck lineup and is used for transporting soil, rock, aggregate, and other bulk materials over rough terrain. The DA30-5 typically features all-wheel drive, articulated steering, and a high-capacity dump body for efficient loading and unloading. It is built for site mobility, traction, and stability in demanding off-road conditions. The model is commonly selected for road building, mining support, and large-scale site development where dependable haulage performance is required.
Body
Heaped Capacity With Tailgate (2:1) 23 cu yd
Heaped Capacity Without Tailgate (2:1) 22 cu yd
Level Capacity With Tailgate 19 cu yd
Level Capacity Without Tailgate 18 cu yd
Tipping Time Down 10 sec
Tipping Time Up 12 sec
Dimensions
Articulation Joint Front Axle 4 ft (1 m)
Articulation Joint Rear Axle 10 ft (3 m)
Dump Ground Clearance 2 ft (1 m)
Ground Clearance At Front Axle 1 ft (0 m)
Ground Clearance Of Rear End 1 ft (0 m)
Height To Top Of Cab 140 in (356 cm)
Overall Height 12 ft (4 m)
Overall Length 31 ft (10 m)
Overhang Front 9 ft (3 m)
Overhang Rear 3 ft (1 m)
Tread Width 118 in (299 cm)
Turning Radius - Inside 13 ft (4 m)
Turning Radius - Outside 25 ft (8 m)
Dump
Dump Angle 70 degrees
Rated Payload 61,729 lbs (28,000 kg)
Engine
Alternator 100 amps
Battery 2 x 12, 140 AH
Bore 5 in (13 cm)
Displacement 568 cu in (9,301 cu cm)
Engine Make Scania
Engine Model DC9
Gross Power 370 hp (276 kw)
Max Torque 1,381 lbs ft (1,872 nm)
Net Power 362 hp (270 kw)
Number Of Cylinders 5
Power Measured @ 2,100 rpm
Stroke 6 in (14 cm)
Torque Measured @ 1,300 rpm
General Specifications
Articulated/Rigid (Since 2016) A
Drive Configuration (Since 2016) 6x6
Drive System Mech/Electr. (Since 2016) M
Engine Type (Since 2016) Scania DC9
Mfg. Model (Since 2018) DA30-5
Operating Weight (Since 2016) 113,318 lbs (51,400 kg)
Operating Weight (Since 2020) 112,436 lbs (51,000 kg)
Operating Weight (Since 2021) 113,318 lbs (51,400 kg)
Rated Payload (Since 2016) 31 t (31,000 kg)
Rated Payload (Since 2021) 30 t (30,000 kg)
Hydraulic
Main Pump 81 gpm (305 lpm)
Main Relief Pressure 4,061 psi
Operational
Cooling System Fluid Capacity 12 gal (45 l)
Def Tank Capacity 10 gal (38 l)
Engine Oil Capacity 9 gal (33 l)
Front Diff Fluid Capacity 4 gal (13 l)
Fuel Capacity 89 gal (335 l)
Operating Voltage 24 V
Rear Diff Fluid Capacity 4 gal (16 l)
Transmission Fluid Capacity 20 gal (75 l)
Transmission
Max Speed 34 mph (55 kph)
Number Of Forward Gears 8
Number Of Reverse Gears 4
Weights
Front Axle - Empty 26,310 lbs (11,934 kg)
Front Axle - Loaded 31 %
Rear Axle - Empty 25,278 lbs (11,466 kg)
Rear Axle - Loaded 76,721 lbs (34,800 kg)
