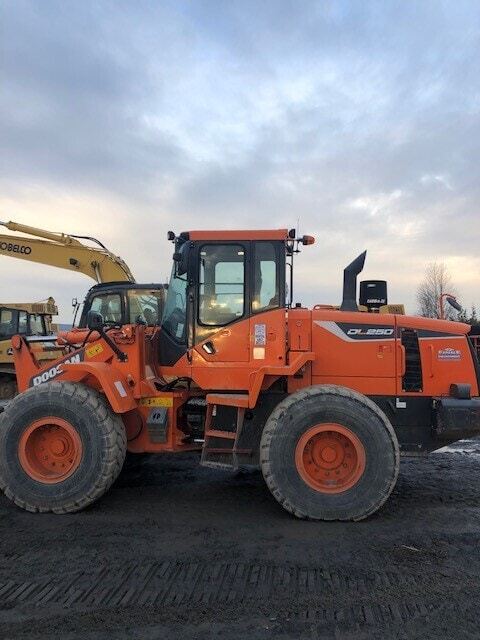

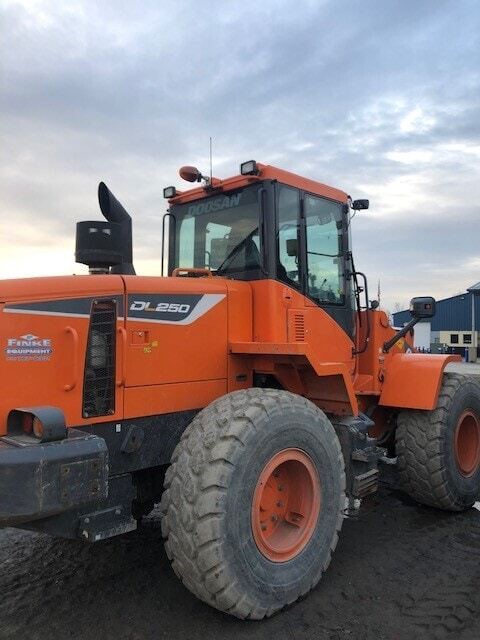

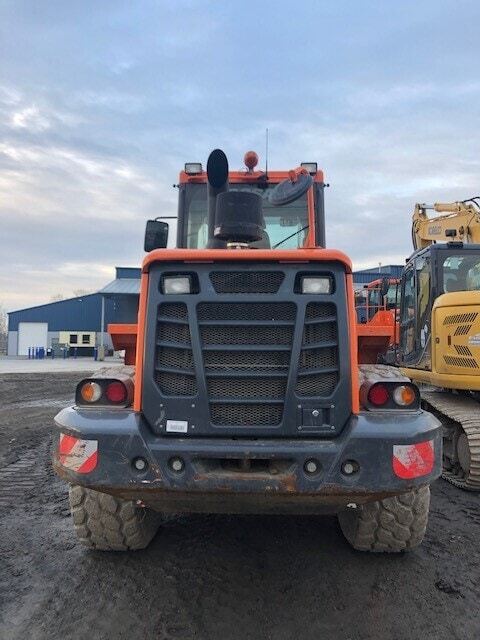

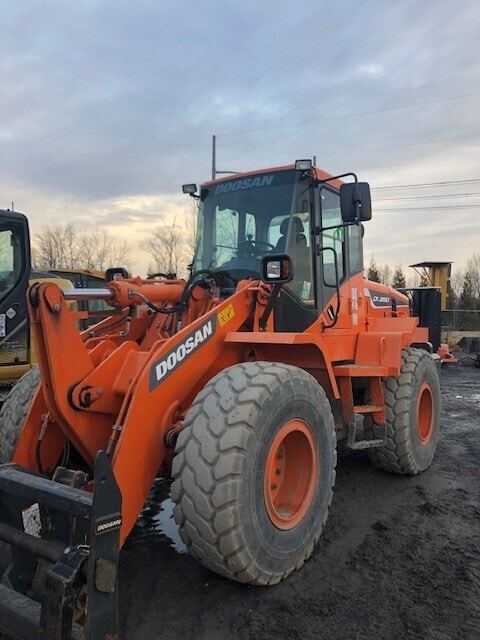

2015 Doosan DL250-5 For Sale in Gansevoort, NY
For Sale: $116,669.00 USD
Apply for Financing
Machine Info:
Description:
2015 Doosan Construction, DL250-5 Loaders, Tough jobs don't stand a chance with the DL250-5 wheel loader. With an excellent combination of breakout force, size and lift capacity, it's a highly-capable machine for many applications. It's ideally sized to handle a wide range of material handling tasks, from loading and transporting sand and gravel to snow and storm debris removal. With its High Lift option, the DL250-5 will easily load stockpiled, light materials like grain, fertilizer, coal or waste into high-sided trucks or hoppers. Performance features include a powershift transmission with optimized hydraulic pumps, multiple power modes, Z-bar lift arm, return to dig, and limited slip differentials on both front and rear axles. An efficient cooling system features an all-aluminum reversible fan, rubber mounts that reduce vibration. To help save valuable diesel fuel, auto-shutdown comes standard. When enabled, the feature will shut down the loader s engine when the preset idle time is met. Operators can configure the idle time from 3 to 60 minutes.
From the manufacturer:
Supplied by HeavyEquipmentData.com →
The Doosan DL250-5 is a wheel loader designed for material handling, loading, stockpiling, and general earthmoving applications. It is part of Doosan's DL-5 series and is commonly used in construction, aggregate, quarry, and industrial site operations. The machine features a front-mounted loader arm and bucket configuration, articulated steering, and a diesel powertrain suited to repetitive loading cycles. The DL250-5 is built for maneuverability, operator visibility, and efficient cycle performance in confined and open work areas. It is typically selected for tasks involving bulk material movement, truck loading, and site support work across a range of heavy equipment applications.
| Bucket |
|
Breakout Force |
2,429,960 lbs (1,102,213 kg)
|
|
Bucket Capacity - Heaped |
3 cu yd |
|
Bucket Width |
9 ft (3 m)
|
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Hinge Pin - Max Height |
13 ft (4 m)
|
|
Overall Length |
294 in (748 cm)
|
|
Tread Width |
80 in (204 cm)
|
|
Wheelbase |
10 ft (3 m)
|
|
Width Over Tires |
9 ft (3 m)
|
| Engine |
|
Alternator |
80 amps |
|
Bore |
4 in (10 cm)
|
|
Displacement |
360 cu in (5,901 cu cm)
|
|
Engine Make |
Doosan |
|
Engine Model |
DL06 |
|
Gross Power |
172 hp (128 kw)
|
|
Max. Torque Iso14396 |
593 lbs ft (804 nm)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
2,100 rpm |
|
Stroke |
5 in (13 cm)
|
|
Torque Measured @ |
1,400 rpm |
| General Specifications |
|
Bucket Capacity (Since 2016)
|
3 cu yd |
|
Bucket Capacity (Since 2017)
|
4 cu yd |
|
Bucket Capacity (Since 2019)
|
3 cu yd |
|
Bucket Capacity (2020)
|
3 cu yd |
|
Bucket Capacity (2021)
|
3 cu yd |
|
Engine Power (Since 2016)
|
172 hp (128 kw)
|
|
Engine Power (2017)
|
172 hp (128 kw)
|
|
Engine Power (2019)
|
172 hp (128 kw)
|
|
Engine Power (2020)
|
172 hp (128 kw)
|
|
Engine Power (2021)
|
172 hp (128 kw)
|
|
Engine type (Since 2016)
|
Doosan |
|
Engine type (2017)
|
Doosan |
|
Engine type (2019)
|
Doosan |
|
Engine type (2020)
|
Doosan |
|
Engine type (2021)
|
Doosan |
|
Max Dump Height (Since 2016)
|
9 ft (3 m)
|
|
Max Dump Height (2017)
|
9 ft (3 m)
|
|
Max Dump Height (2019)
|
9 ft (3 m)
|
|
Max Dump Height (2020)
|
9 ft (3 m)
|
|
Max Dump Height (2021)
|
9 ft (3 m)
|
|
Operating Weight (Since 2016)
|
30,115 lbs (13,660 kg)
|
|
Operating Weight (2017)
|
30,115 lbs (13,660 kg)
|
|
Operating Weight (2019)
|
30,115 lbs (13,660 kg)
|
|
Operating Weight (2020)
|
30,115 lbs (13,660 kg)
|
|
Operating Weight (2021)
|
30,115 lbs (13,660 kg)
|
| Operational |
|
Cooling System Fluid Capacity |
11 gal (40 l)
|
|
Def Tank Capacity |
8 gal (32 l)
|
|
Engine Oil Fluid Capacity |
7 gal (27 l)
|
|
Front Axle/Diff Fluid Capacity |
9 gal (35 l)
|
|
Fuel Capacity |
59 gal (222 l)
|
|
Hydraulic System Fluid Capacity |
32 gal (120 l)
|
|
Operating Voltage |
24 V |
|
Operating Weight |
30,115 lbs (13,660 kg)
|
|
Rear Axle/Diff Fluid Capacity |
6 gal (23 l)
|
|
Static Tipping Weight |
21,231 lbs (9,630 kg)
|
|
Tire Size |
20.5-R25 (L3) |
|
Transmission Fluid Capacity |
8 gal (30 l)
|
| Transmission |
|
Max Speed - Forward |
24 mph (38 kph)
|
|
Max Speed - Reverse |
15 mph (24 kph)
|
|
Number Of Forward Gears |
4 |
|
Number Of Reverse Gears |
3 |
