| Dimensions |
|
Curb Clearance |
10 in (25 cm)
|
|
Gradeability |
52 % |
|
Ground Clearance |
10 in (25 cm)
|
|
Height |
8 ft (3 m)
|
|
Height With Out Rops |
71 ft (22 m)
|
|
Height With Rops |
8 ft (3 m)
|
|
Length |
13 ft (4 m)
|
|
Overall Length |
156 in (396 cm)
|
|
Overhang Front |
0 ft (0 m)
|
|
Overhang Rear |
0 ft (0 m)
|
|
Turning Radius - Inside |
8 ft (2 m)
|
|
Turning Radius - Outside |
13 ft (4 m)
|
|
Weight |
10,471 lbs (4,750 kg)
|
|
Wheelbase |
73 in (185 cm)
|
|
Width |
5 ft (1 m)
|

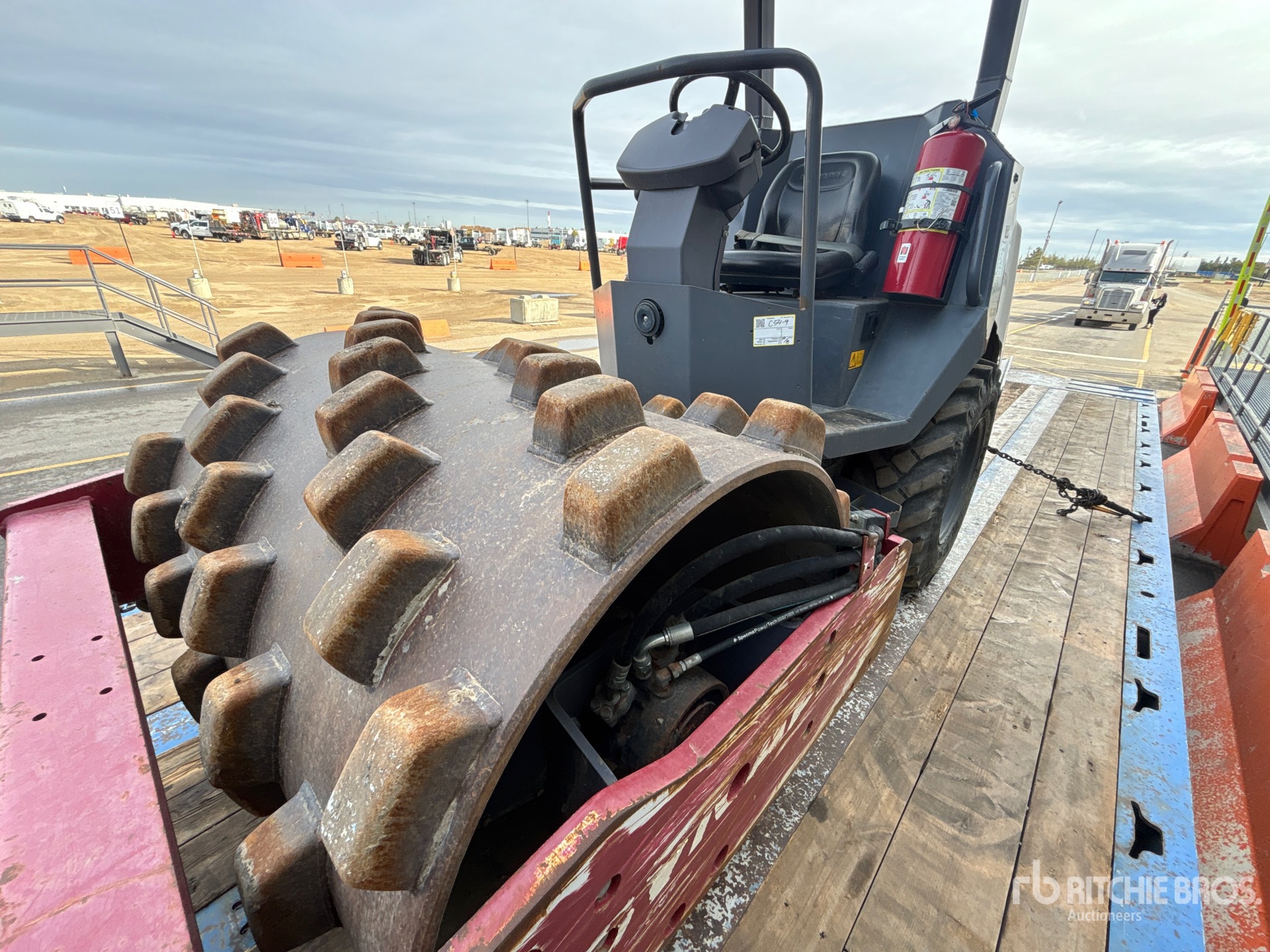

| Drum |
|
Centrifugal Force - High |
20,000 lbs (9,072 kg)
|
|
Drum Diameter |
39 in (99 cm)
|
|
Drum Thickness |
1 in (2 cm)
|
|
Drum Width |
54 in (137 cm)
|
| Engine |
|
Engine Make |
Kubota |
|
Engine Model |
V 3307 CR-TE4 |
|
Engine Type |
Water cooled turbo Diesel |
|
Gross Power |
75 hp (56 kw)
|
|
Power Measured @ |
2,200 rpm |
| General Specifications |
|
CATEGORY (Since 2018)
|
Compaction |
|
CATEGORY (2020)
|
Compaction |
|
CATEGORY (2021)
|
Compaction |
|
CATEGORY (2022)
|
Compaction |
|
CATEGORY (2023)
|
Compaction |
|
CATEGORY (2024)
|
Compaction |
|
DRUM WIDTH (Since 2016)
|
54 in (137 cm)
|
|
DRUM WIDTH (2017)
|
54 in (137 cm)
|
|
DRUM WIDTH (2018)
|
54 in (137 cm)
|
|
DRUM WIDTH (2019)
|
54 in (137 cm)
|
|
DRUM WIDTH (2020)
|
54 in (137 cm)
|
|
DRUM WIDTH (2021)
|
54 in (137 cm)
|
|
DRUM WIDTH (2022)
|
54 in (137 cm)
|
|
DRUM WIDTH (2023)
|
54 in (137 cm)
|
|
DRUM WIDTH (2024)
|
54 in (137 cm)
|
|
DRUM WIDTH (2025)
|
54 in (137 cm)
|
|
DRUM WIDTH (2026)
|
54 in (137 cm)
|
|
ENGINE TYPE (Since 2016)
|
Kubota V3307 CR-TE4 (T4f) |
|
ENGINE TYPE (2017)
|
Kubota V3307 CR-TE4 (T4f) |
|
ENGINE TYPE (2018)
|
Kubota V3307 CR-TE4 (T4f) |
|
ENGINE TYPE (2019)
|
Kubota V3307 CR-TE4 (T4f) |
|
ENGINE TYPE (2020)
|
Kubota V3307 CR-TE4 (T4f) |
|
ENGINE TYPE (2021)
|
Kubota V3307 CR-TE4 (T4f) |
|
ENGINE TYPE (2022)
|
Kubota V3307 CR-TE4 (T4f) |
|
ENGINE TYPE (2023)
|
Kubota V3307 CR-TE4 (T4f) |
|
ENGINE TYPE (2024)
|
Kubota V3307 CR-TE4 (T4f) |
|
ENGINE TYPE (2025)
|
Kubota V3307 CR-TE4 (T4f) |
|
ENGINE TYPE (2026)
|
Kubota V3307 CR-TE4 (T4f) |
|
FREQUENCY (Since 2021)
|
2,100 vpm |
|
FREQUENCY (2022)
|
2,100 vpm |
|
FREQUENCY (2023)
|
2,100 vpm |
|
FREQUENCY (2024)
|
2,100 vpm |
|
FREQUENCY (2025)
|
2,100 vpm |
|
FREQUENCY (2026)
|
2,100 vpm |
|
FREQUENCY HZ (Since 2016)
|
2,100 Vpm |
|
FREQUENCY HZ (2017)
|
2,100 Vpm |
|
FREQUENCY HZ (Since 2018)
|
2,100 vpm |
|
FREQUENCY HZ (2019)
|
2,100 vpm |
|
FREQUENCY HZ (2020)
|
2,100 vpm |
|
INSIDE TURN RADIUS (Since 2016)
|
97 in (246 cm)
|
|
INSIDE TURN RADIUS (2017)
|
97 in (246 cm)
|
|
INSIDE TURN RADIUS (2018)
|
97 in (246 cm)
|
|
INSIDE TURN RADIUS (2019)
|
97 in (246 cm)
|
|
INSIDE TURN RADIUS (2020)
|
97 in (246 cm)
|
|
INSIDE TURN RADIUS (2021)
|
97 in (246 cm)
|
|
INSIDE TURN RADIUS (2022)
|
97 in (246 cm)
|
|
INSIDE TURN RADIUS (Since 2023)
|
96 in (244 cm)
|
|
INSIDE TURN RADIUS (2024)
|
96 in (244 cm)
|
|
INSIDE TURN RADIUS (2025)
|
96 in (244 cm)
|
|
INSIDE TURN RADIUS (2026)
|
96 in (244 cm)
|
|
MODEL (Since 2016)
|
CA1300PD |
|
MODEL (2017)
|
CA1300PD |
|
MODEL (2018)
|
CA1300PD |
|
MODEL (2019)
|
CA1300PD |
|
MODEL (2020)
|
CA1300PD |
|
MODEL (2021)
|
CA1300PD |
|
MODEL (2022)
|
CA1300PD |
|
MODEL (2023)
|
CA1300PD |
|
MODEL (2024)
|
CA1300PD |
|
MODEL (2025)
|
CA1300PD |
|
MODEL (2026)
|
CA1300PD |
|
WIDTH (Since 2016)
|
55 in (140 cm)
|
|
WIDTH (2017)
|
55 in (140 cm)
|
|
WIDTH (Since 2018)
|
59 in (150 cm)
|
|
WIDTH (2019)
|
59 in (150 cm)
|
|
WIDTH (2020)
|
59 in (150 cm)
|
|
WIDTH (2021)
|
59 in (150 cm)
|
|
WIDTH (2022)
|
59 in (150 cm)
|
|
WIDTH (2023)
|
59 in (150 cm)
|
|
WIDTH (2024)
|
59 in (150 cm)
|
|
WIDTH (2025)
|
59 in (150 cm)
|
|
WIDTH (2026)
|
59 in (150 cm)
|
| Operational |
|
Fuel Capacity |
31 gal (117 l)
|
|
Max Speed |
4 mph (6 kph)
|
|
Operating Weight |
11,500 lbs (5,216 kg)
|
|
Operating Weight Rops |
10,500 lbs (4,763 kg)
|
|
Tire Size |
12.5-20 |
