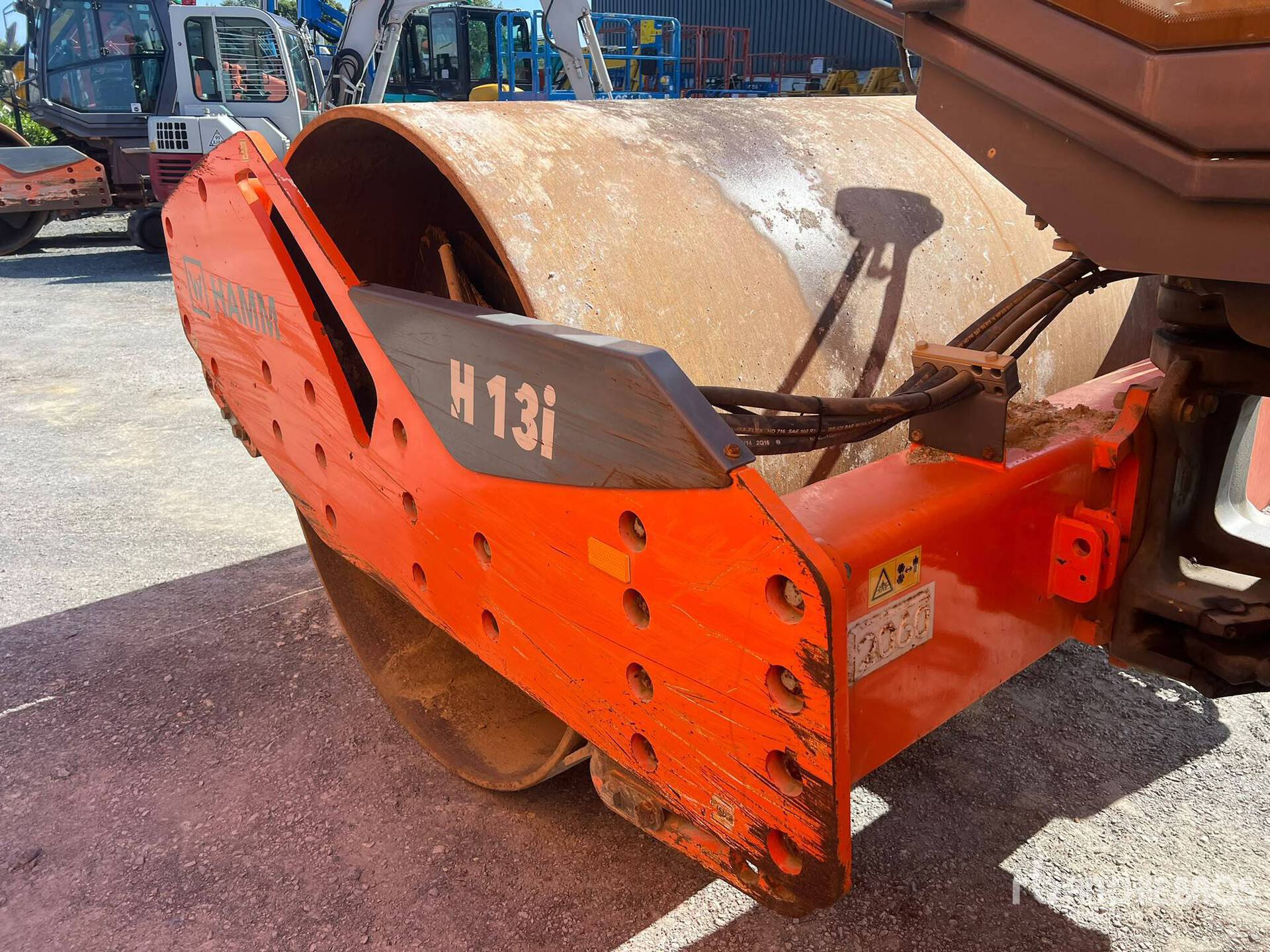

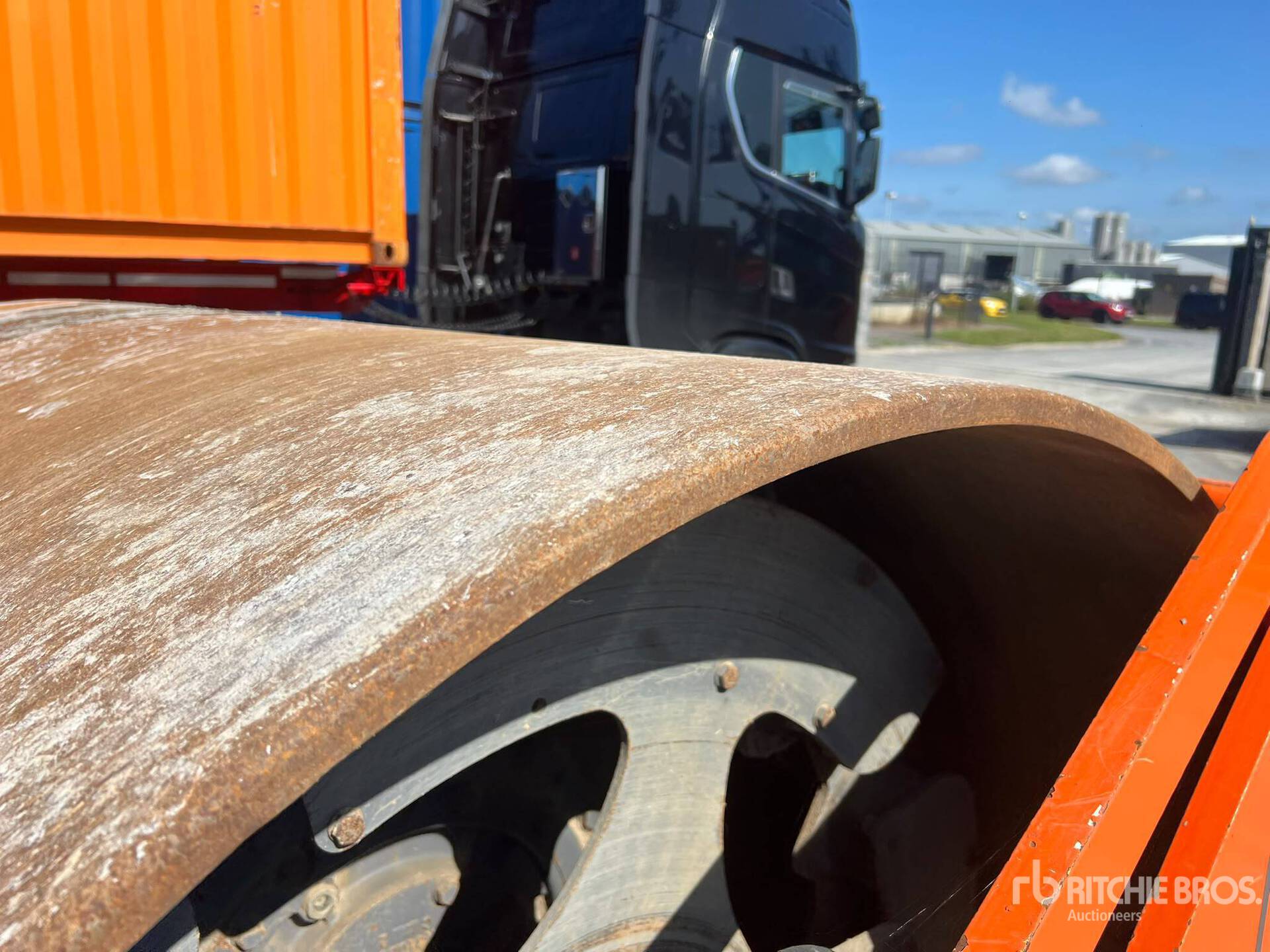

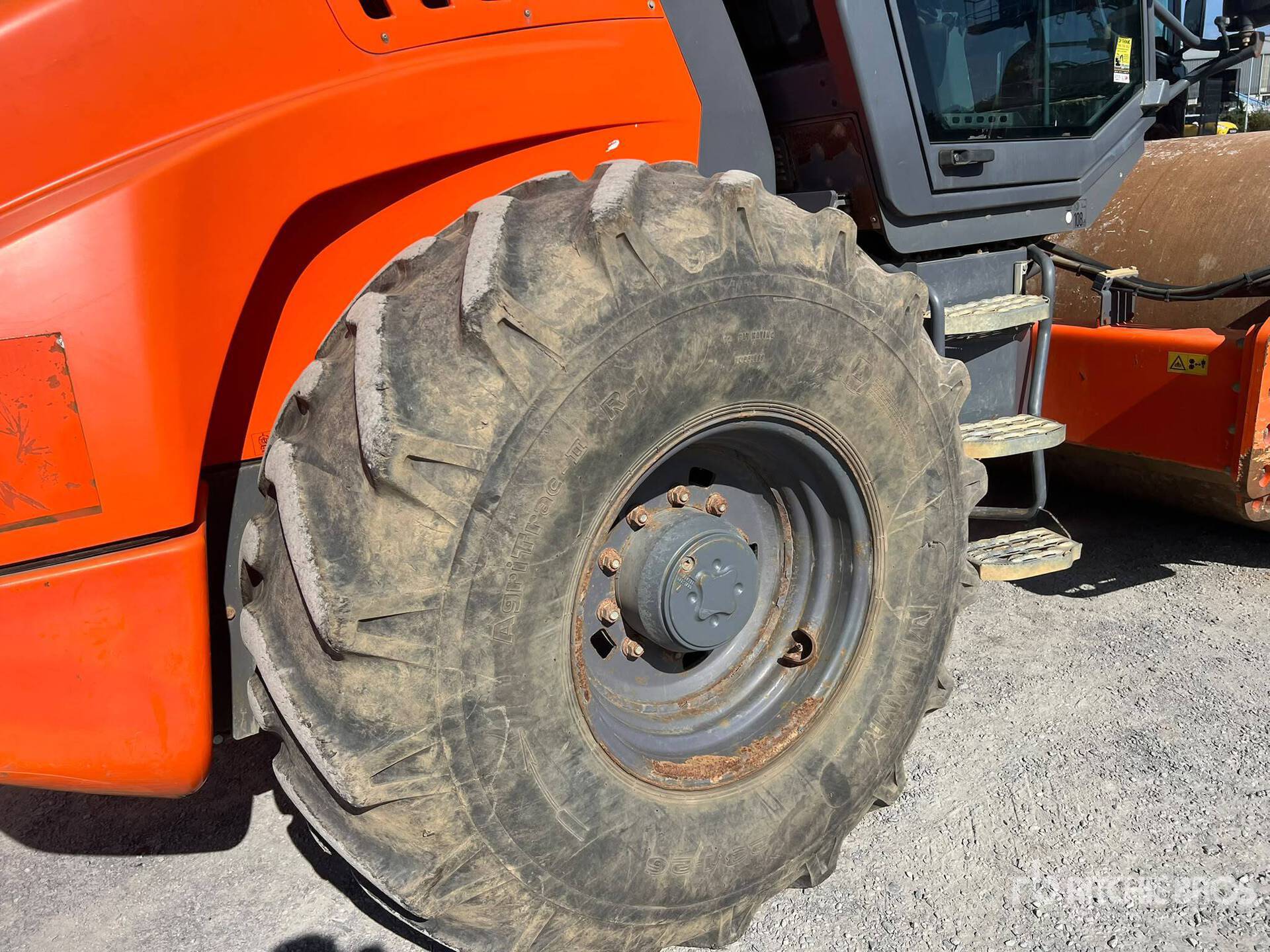

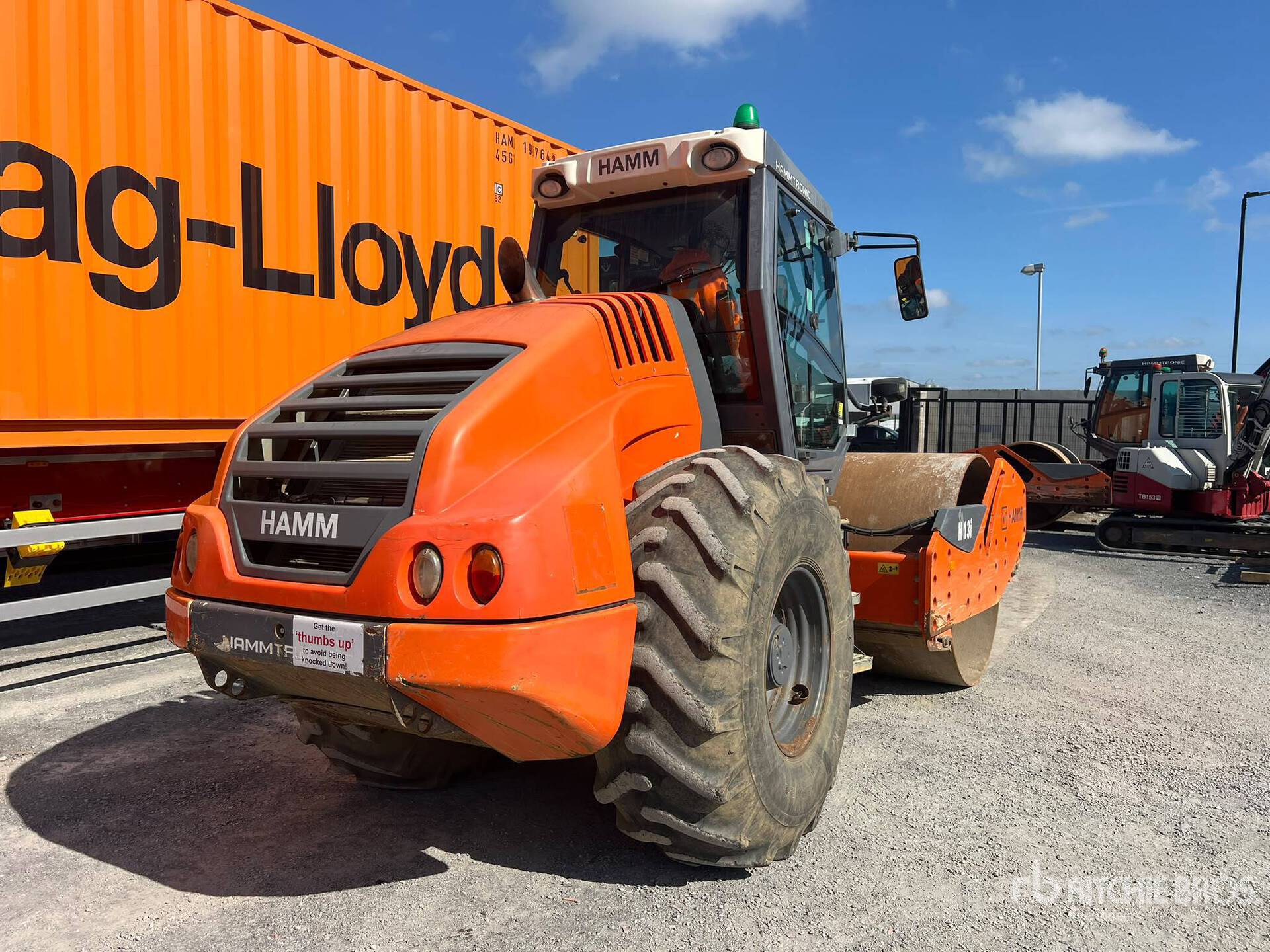

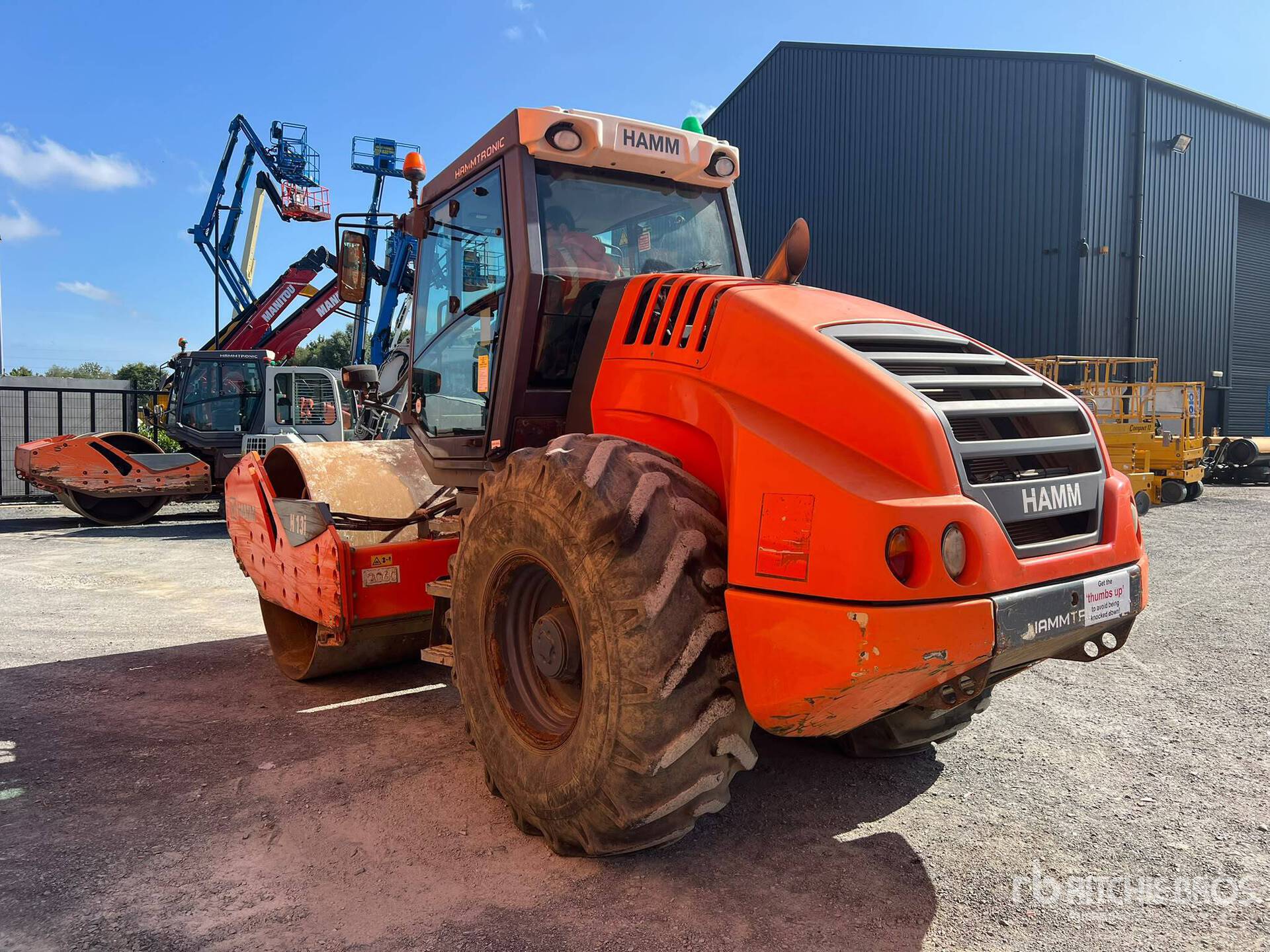

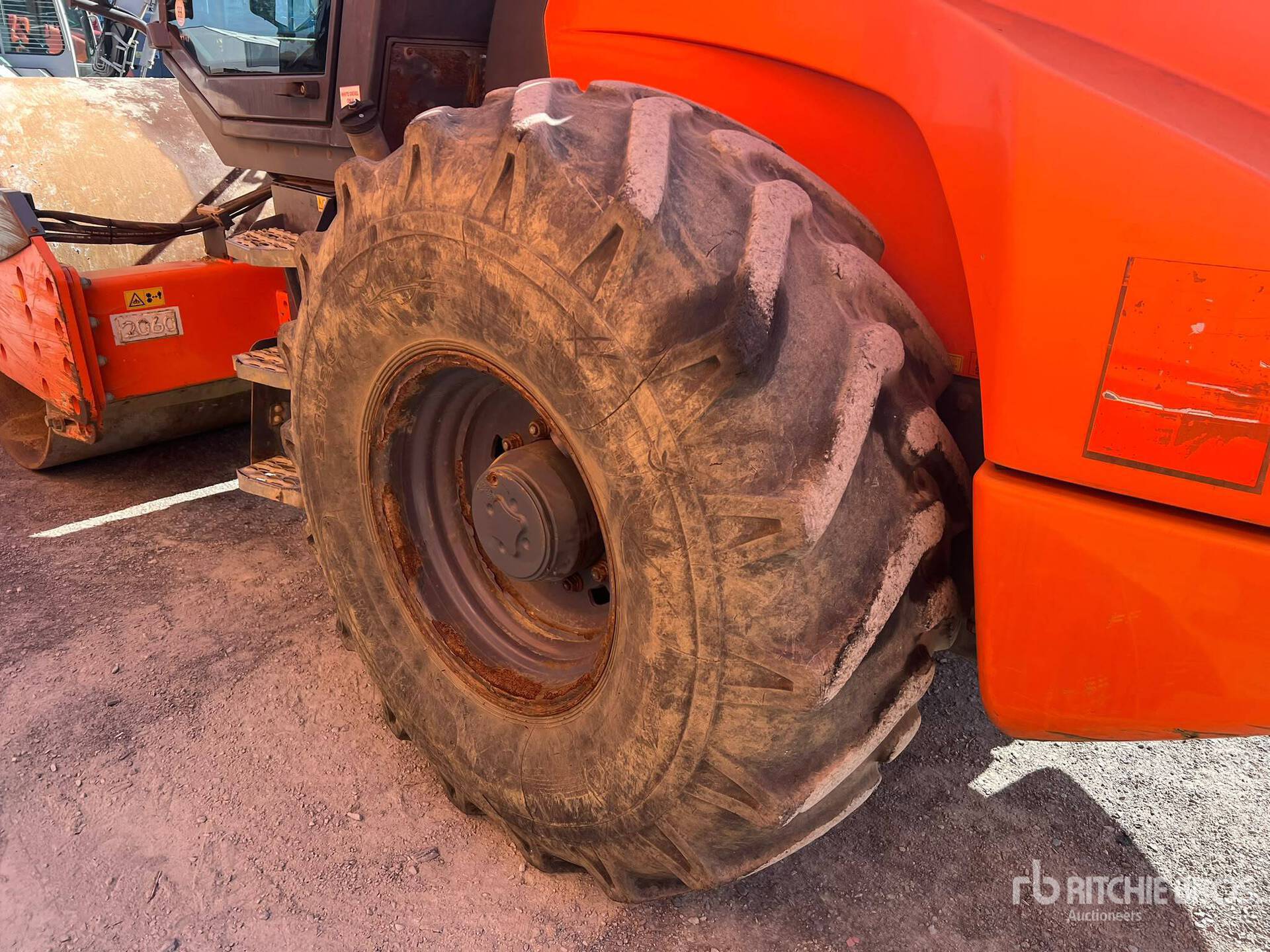

2016 Hamm H13I For Sale in Moerdijk, Nld

Name: 2016 Hamm H13I
Brand: Hamm
SKU: 89105886
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-09 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Hours:	3745
Serial Number:	H2110926
Machine Location:	MOERDIJK, NLD

Description:

Enclosed Cab, US EPA Label, Deutz TCD4.1 L4 4 Cylinder 105 kW 4.03 L Diesel Engine, 2140 mm Drum

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Dimensions
Angle Of Driving Slope-Front	53 degrees
Angle Of Driving Slope-Rear	32 degrees
Ground Clearance	15 in (39 cm)
Height	10 ft (3 m)
Height To Top Of Cab	10 ft (3 m)
Length	19 ft (6 m)
Loadover Height	8 ft (2 m)
Overall Length	230 in (585 cm)
Turning Radius - Inside	13 ft (4 m)
Weight	36,288 lbs (16,460 kg)
Wheelbase	124 in (315 cm)
Width	7 ft (2 m)
Width Over Cab	90 in (228 cm)
Drum
Centrifugal Force - High	55,978 lbs (25,387 kg)
Centrifugal Force - Low	37,318 lbs (16,924 kg)
Drum Diameter	59 in (151 cm)
Drum Thickness	1 in (3 cm)
Drum Type	smooth
Drum Width	84 in (214 cm)
Nominal Amplitude - High	0 in (0 cm)
Nominal Amplitude - Low	0 in (0 cm)
Static Linear Load	186 lb/in
Vibration Frequency 1	30 Hz
Vibration Frequency 2	36 Hz
Engine
Diesel Fuel Tank Capacity - Standard Tank	9 gal (32 l)
Emissions Certification	EU Stage IIIB / EPA Tier 4
Engine Make	Deutz
Engine Model	TCD 3.6 L4
Engine Power@Iso 14396	154 hp (115 kw)
Engine Power@Saej1349	154 hp (115 kw)
Exhaust Gas Recirculation (Egr)	DOC-SCR
Number Of Cylinders	4
Power Measured @	2,300 rpm
General Specifications
CATEGORY (Since 2018)	Single Smooth Drum Vibratory Rollers
CATEGORY (2019)	Single Smooth Drum Vibratory Rollers
CATEGORY (2020)	Single Smooth Drum Vibratory Rollers
CATEGORY (2021)	Single Smooth Drum Vibratory Rollers
CATEGORY (2022)	Single Smooth Drum Vibratory Rollers
DRUM WIDTH (Since 2016)	84 in (214 cm)
DRUM WIDTH (2017)	84 in (214 cm)
DRUM WIDTH (Since 2018)	84 in (214 cm)
DRUM WIDTH (2019)	84 in (214 cm)
DRUM WIDTH (2020)	84 in (214 cm)
DRUM WIDTH (2021)	84 in (214 cm)
DRUM WIDTH (2022)	84 in (214 cm)
ENGINE TYPE (Since 2016)	Deutz
ENGINE TYPE (2017)	Deutz
ENGINE TYPE (2018)	Deutz
ENGINE TYPE (2019)	Deutz
ENGINE TYPE (2020)	Deutz
ENGINE TYPE (2021)	Deutz
ENGINE TYPE (Since 2022)	Deutz TCD 4.1 L4
FREQUENCY HZ (Since 2016)	30/40
FREQUENCY HZ (2017)	30/40
FREQUENCY HZ (Since 2018)	30/36
FREQUENCY HZ (2019)	30/36
FREQUENCY HZ (2020)	30/36
FREQUENCY HZ (2021)	30/36
FREQUENCY HZ (2022)	30/36
INSIDE TURN RADIUS (Since 2016)	144 in (365 cm)
INSIDE TURN RADIUS (2017)	144 in (365 cm)
INSIDE TURN RADIUS (Since 2018)	152 in (386 cm)
INSIDE TURN RADIUS (2019)	152 in (386 cm)
INSIDE TURN RADIUS (2020)	152 in (386 cm)
INSIDE TURN RADIUS (2021)	152 in (386 cm)
INSIDE TURN RADIUS (2022)	152 in (386 cm)
MODEL (Since 2016)	H 13i
MODEL (2017)	H 13i
MODEL (2018)	H 13i
MODEL (2019)	H 13i
MODEL (2020)	H 13i
MODEL (2021)	H 13i
MODEL (2022)	H 13i
WIDTH (Since 2016)	89 in (226 cm)
WIDTH (2017)	89 in (226 cm)
WIDTH (2018)	89 in (226 cm)
WIDTH (2019)	89 in (226 cm)
WIDTH (2020)	89 in (226 cm)
WIDTH (2021)	89 in (226 cm)
WIDTH (Since 2022)	90 in (228 cm)
Operational
Axle Load - Front	15,686 lbs (7,114 kg)
Axle Load - Rear	12,666 lbs (5,744 kg)
Fuel Capacity	74 gal (280 l)
Max Speed	12 mph (19 kph)
Max Weight	34,987 lbs (15,867 kg)
Operating Weight Cabin	28,352 lbs (12,858 kg)
Operating Weight Rops	27,778 lbs (12,598 kg)
Speeds
Size Of Tyres, Rear	AW 23.1-26 12 PR
Steering System
Oscillating Angle	10 degrees
Steering Method	Articulated steering
