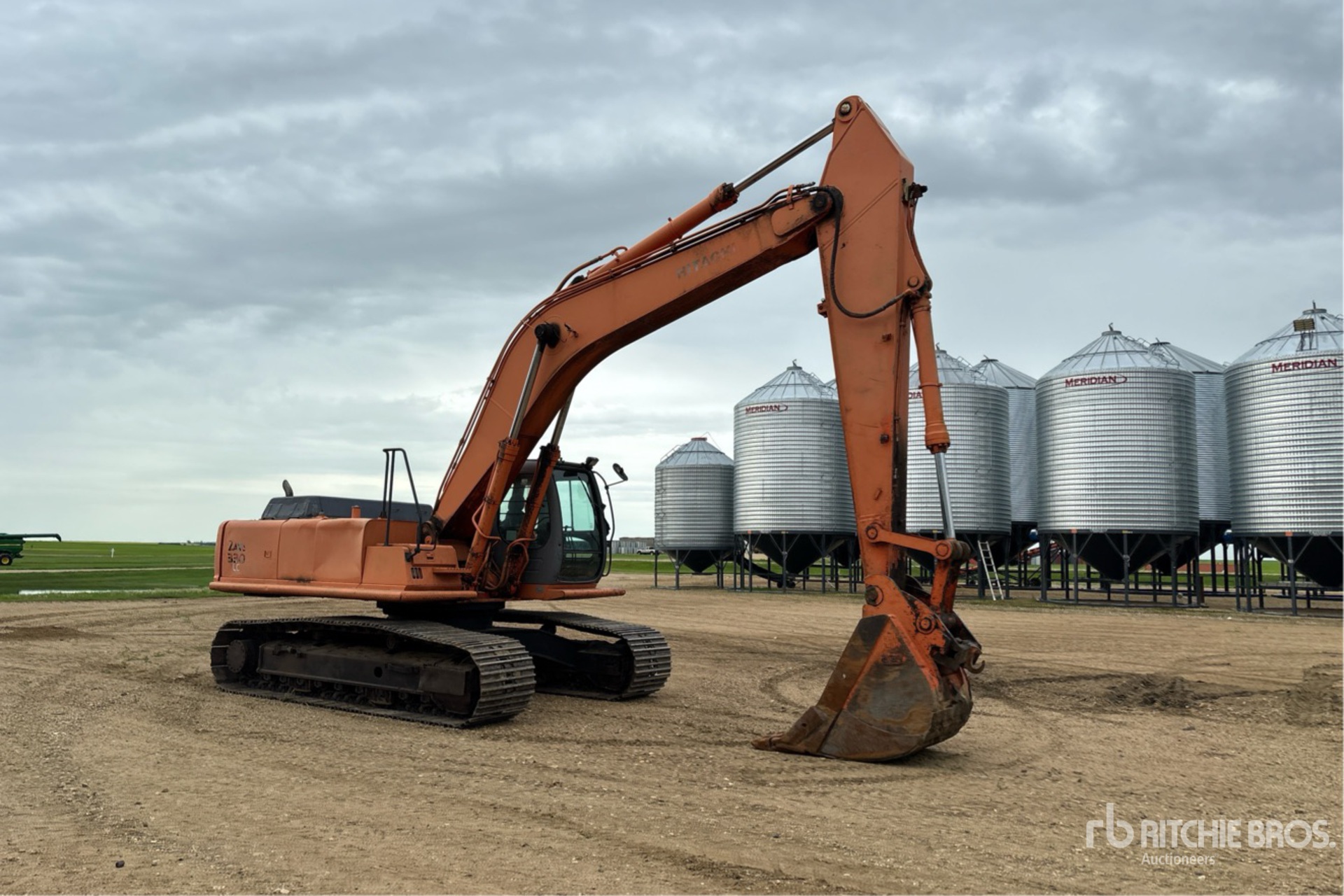

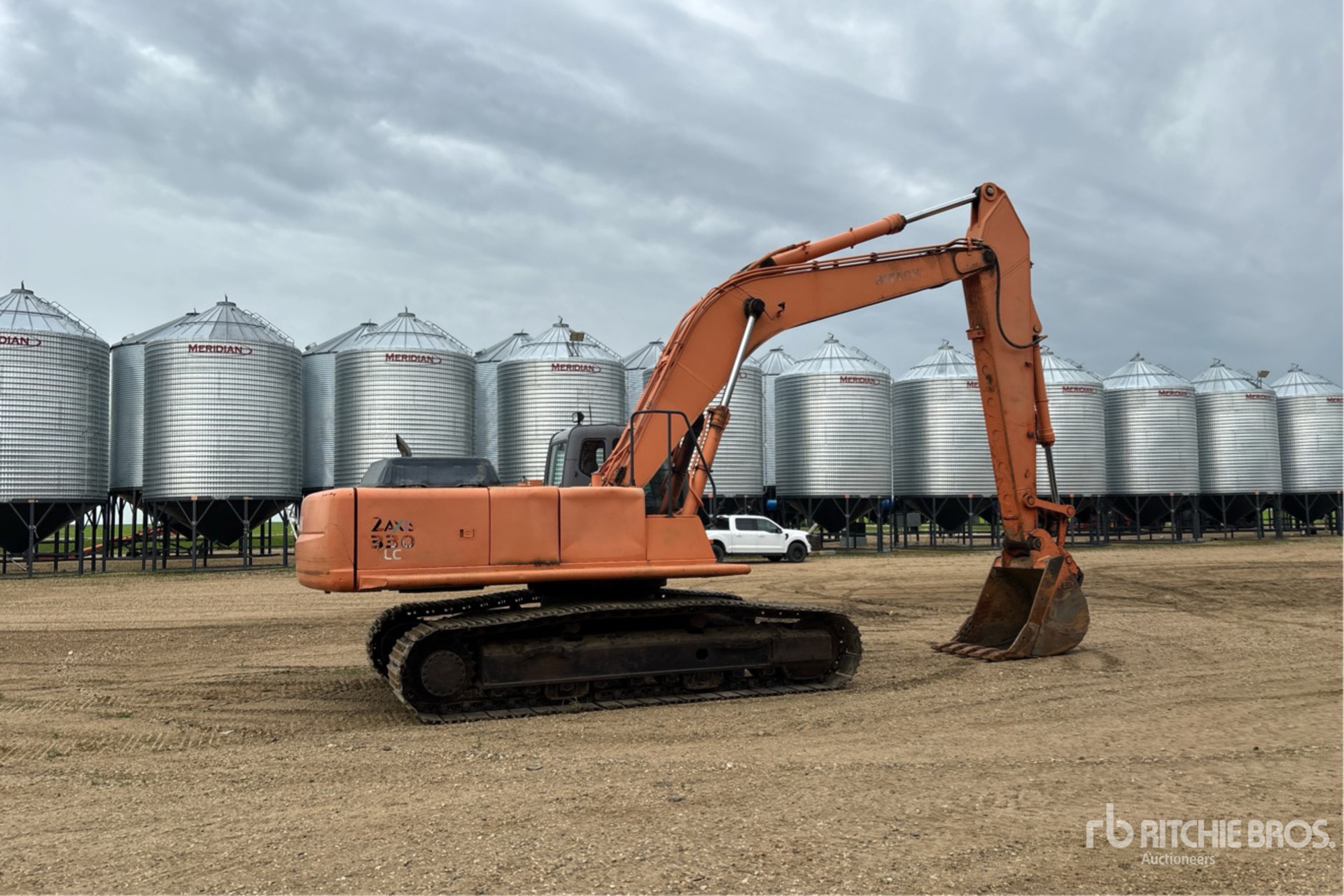

2004 Hitachi 330LC For Sale in Limerick, Sk

Name: 2004 Hitachi 330LC
Brand: Hitachi
SKU: 88764367
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-10-08 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

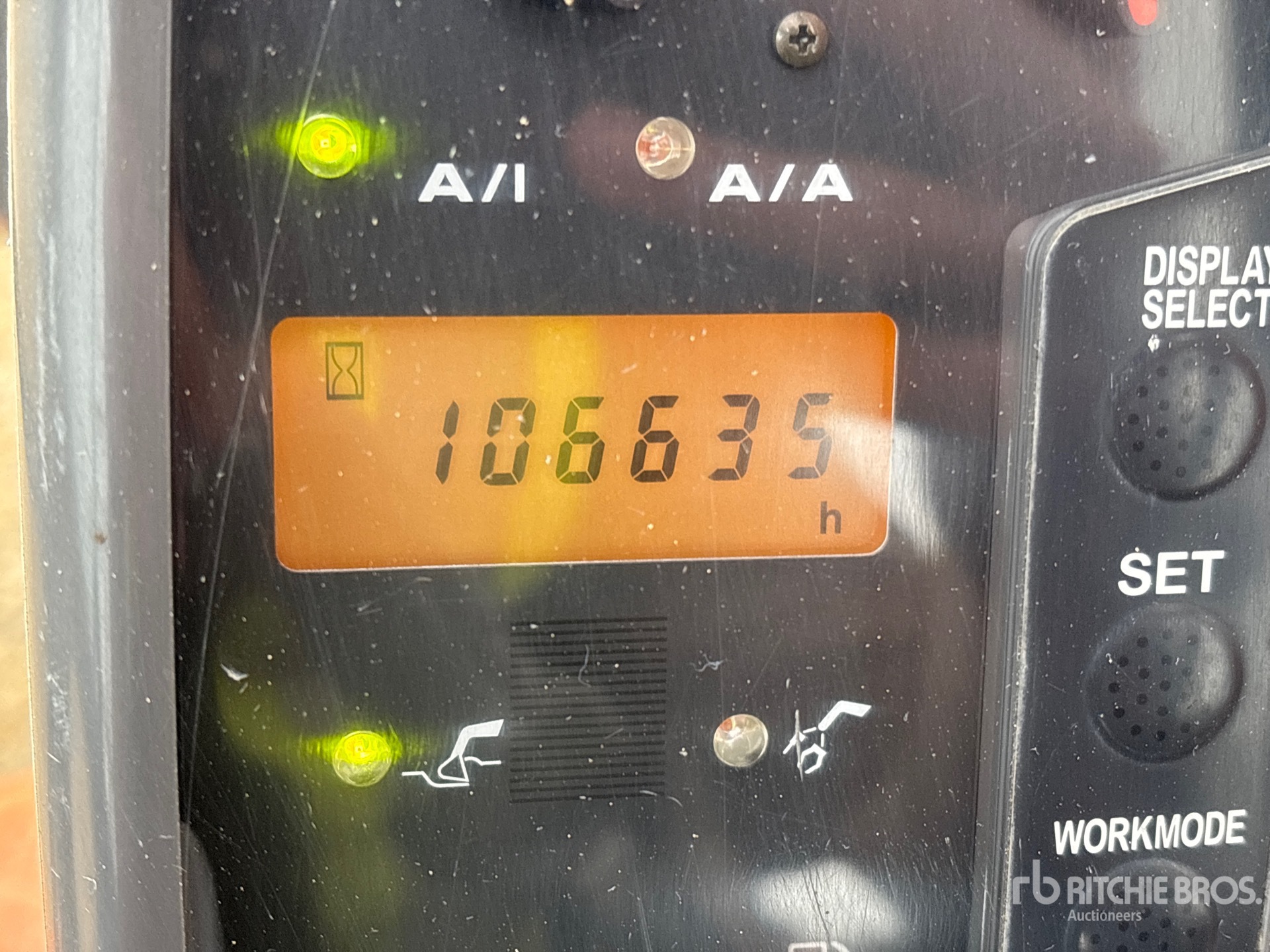

Hours:	10663

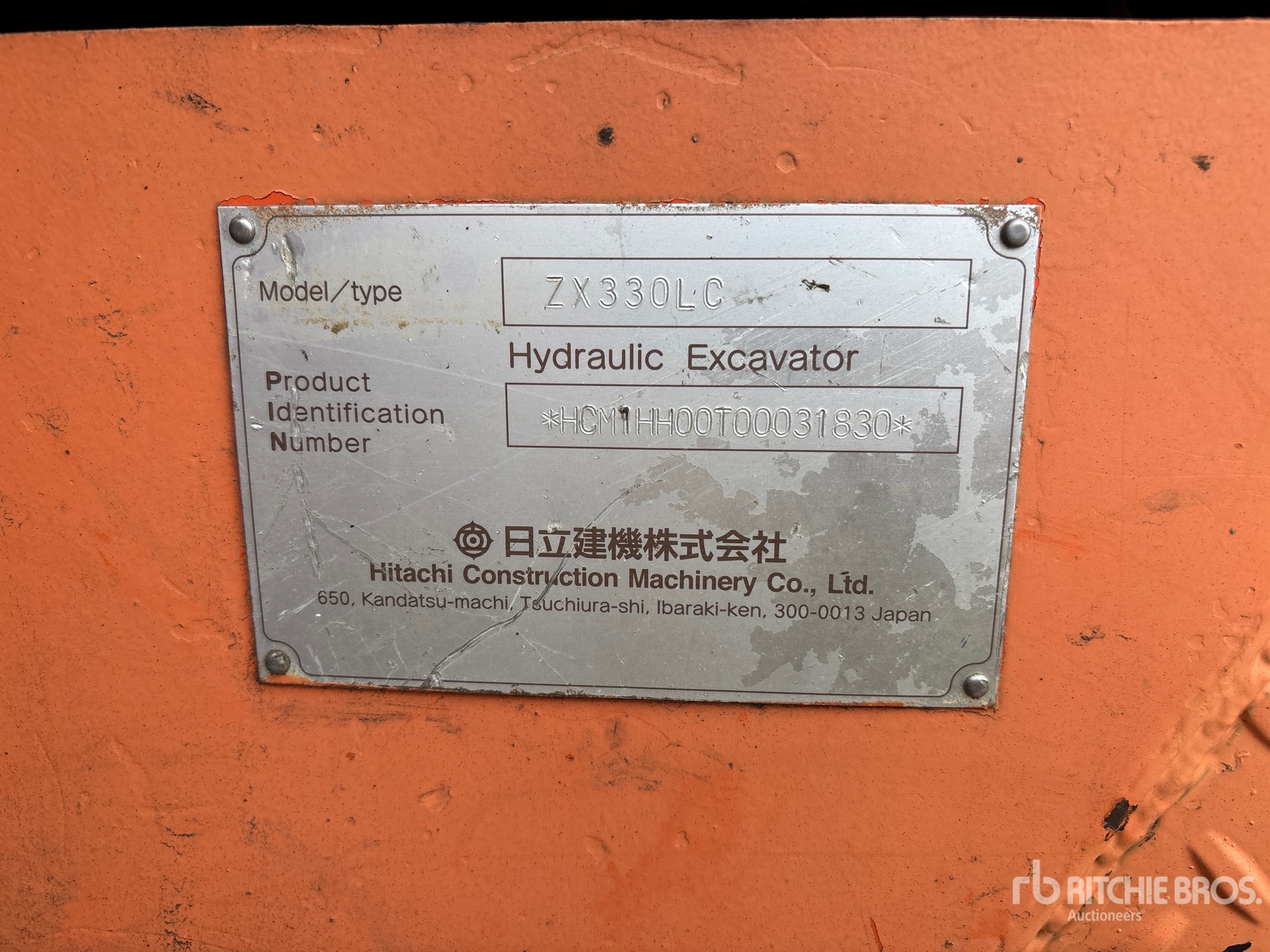

Serial Number:	HCM1HH00T00031830
Machine Location:	LIMERICK, SK

Description:

Air Conditioner, Tier 2, US EPA Label, CARB Compliant, Positive Air Shutoff, 31.5 in Triple Grouser Track Shoes, Manual Quick Coupler, 48 in Digging Bucket, Catwalks Closing Time: 2026-10-08 07:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Hitachi ZX330LC is a hydraulic crawler excavator in the ZX series, designed for earthmoving, trenching, site preparation, and general construction work. The ZX330LC features a long undercarriage for improved stability and ground contact, supporting digging performance in demanding conditions. It is commonly equipped with a diesel engine, hydraulic control system, and a reinforced boom and arm assembly for heavy-duty operation. The ZX330LC is used in quarrying, road building, utility work, and large-scale excavation projects. As an excavator model, it is recognized for its balance of digging force, reach, and operating efficiency in medium to large construction applications.

Boom/Stick 1
Boom/Stick 1	boom 6400 mm w/ stick 2660mm
Max Cutting Height	32 ft (10 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	34 ft (10 m)
Max Vertical Wall Digging Depth	18 ft (6 m)
Shipping Height Of Unit	11 ft (3 m)
Shipping Length Of Unit	36 ft (11 m)
Boom/Stick 2
Boom/Stick 2	boom 6400mm w/ stick 3200mm
Max Cutting Height	34 ft (10 m)
Max Digging Depth	24 ft (7 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	36 ft (11 m)
Max Vertical Wall Digging Depth	21 ft (6 m)
Shipping Height Of Unit	11 ft (3 m)
Shipping Length Of Unit	36 ft (11 m)
Boom/Stick 3
Boom/Stick 3	boom 6400mm w/ stick 4000mm
Max Cutting Height	35 ft (11 m)
Max Digging Depth	27 ft (8 m)
Max Loading Height	25 ft (8 m)
Max Reach Along Ground	38 ft (12 m)
Max Vertical Wall Digging Depth	24 ft (7 m)
Shipping Height Of Unit	12 ft (4 m)
Shipping Length Of Unit	36 ft (11 m)
Buckets
Maximum Bucket Capacity	2 cu yd
Minimum Bucket Capacity	1 cu yd
Reference Bucket Capacity	2 cu yd
Dimensions
Ground Clearance	2 ft (1 m)
Height	12 ft (4 m)
Height To Top Of Cab	10 ft (3 m)
Length	37 ft (11 m)
Length Of Track On Ground	12 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	11 ft (3 m)
Weight	73,500 lbs (33,339 kg)
Width	11 ft (3 m)
Width To Outside Of Tracks	11 ft (3 m)
Engine
Aspiration	turbocharged, intercooled
Displacement	475 cu in (7,790 cu cm)
Engine Make	2,353
Engine Model	AA-6HK1X
Max Torque	644 lbs ft (873 nm)
Net Power	247 hp (184 kw)
Number Of Cylinders	6
Power Measured @	2,000 rpm
Torque Measured @	1,700 rpm
Operational
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	9 gal (35 l)
Engine Oil Capacity	10 gal (36 l)
Fuel Capacity	148 gal (560 l)
Hydraulic Pump Flow Capacity	153 gpm (580 lpm)
Hydraulic System Fluid Capacity	85 gal (320 l)
Hydraulic System Relief Valve Pressure	5,050 psi
Operating Voltage	24 V
Operating Weight	73,500 lbs (33,333 kg)
Swing Drive Fluid Capacity	4 gal (17 l)
Swing Mechanism
Swing Speed	12 rpm
Undercarriage
Ground Pressure	9 psi
Max Travel Speed	3 mph (6 kph)
Number Of Carrier Rollers Per Side	2
Number Of Shoes Per Side	45
Number Of Track Rollers Per Side	8
Shoe Size	24 in (60 cm)
Track Gauge	9 ft (3 m)
