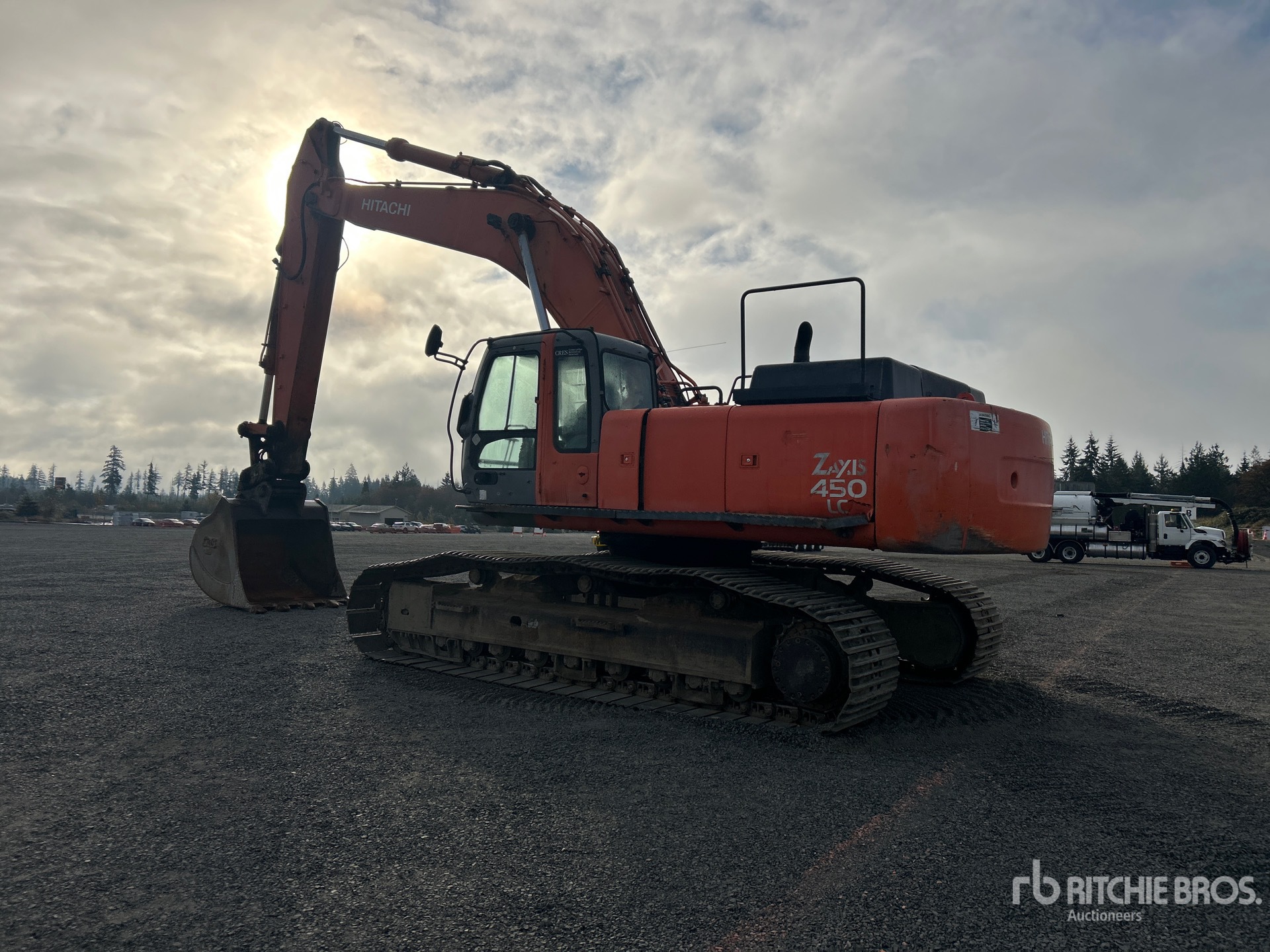

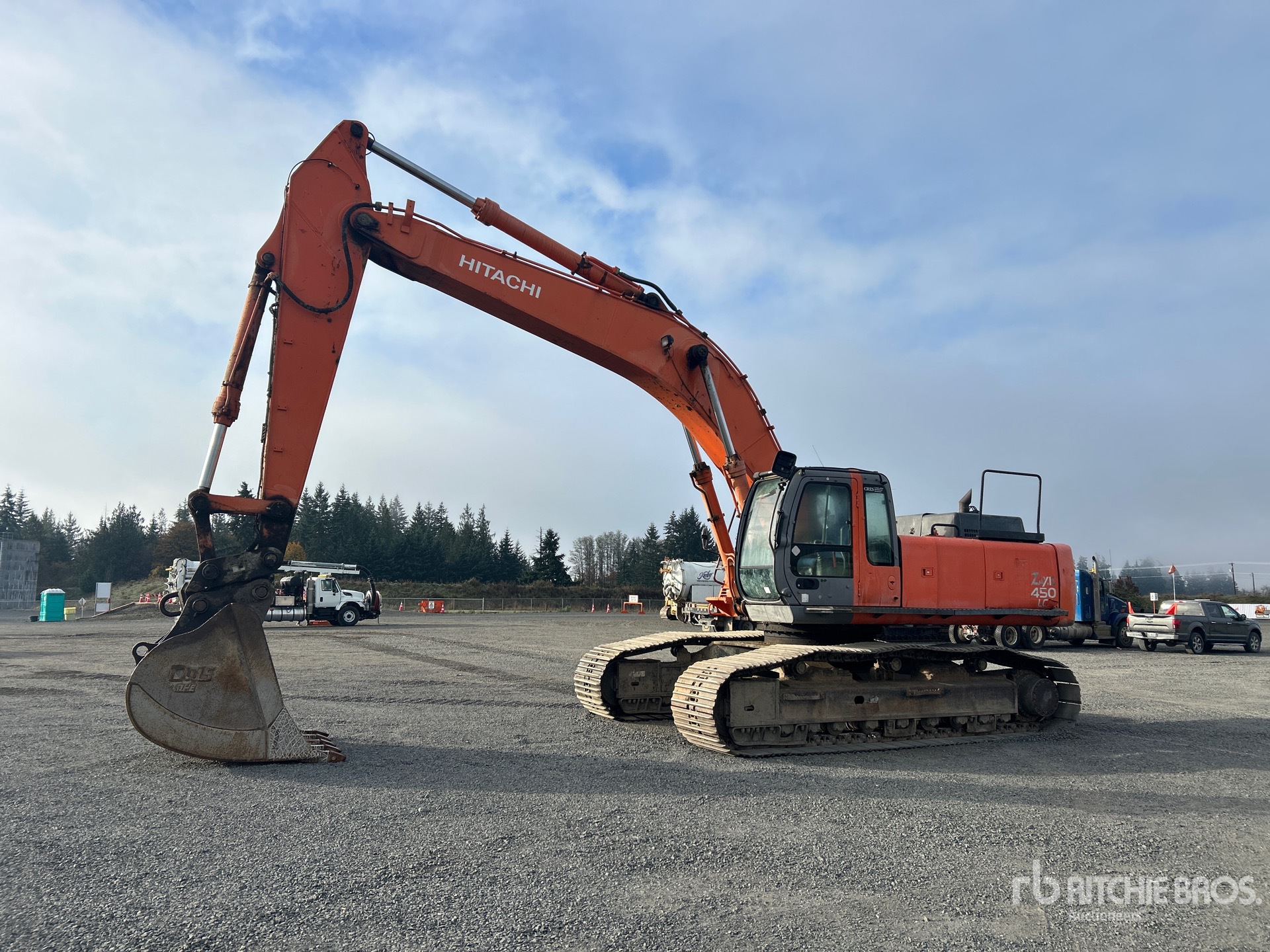

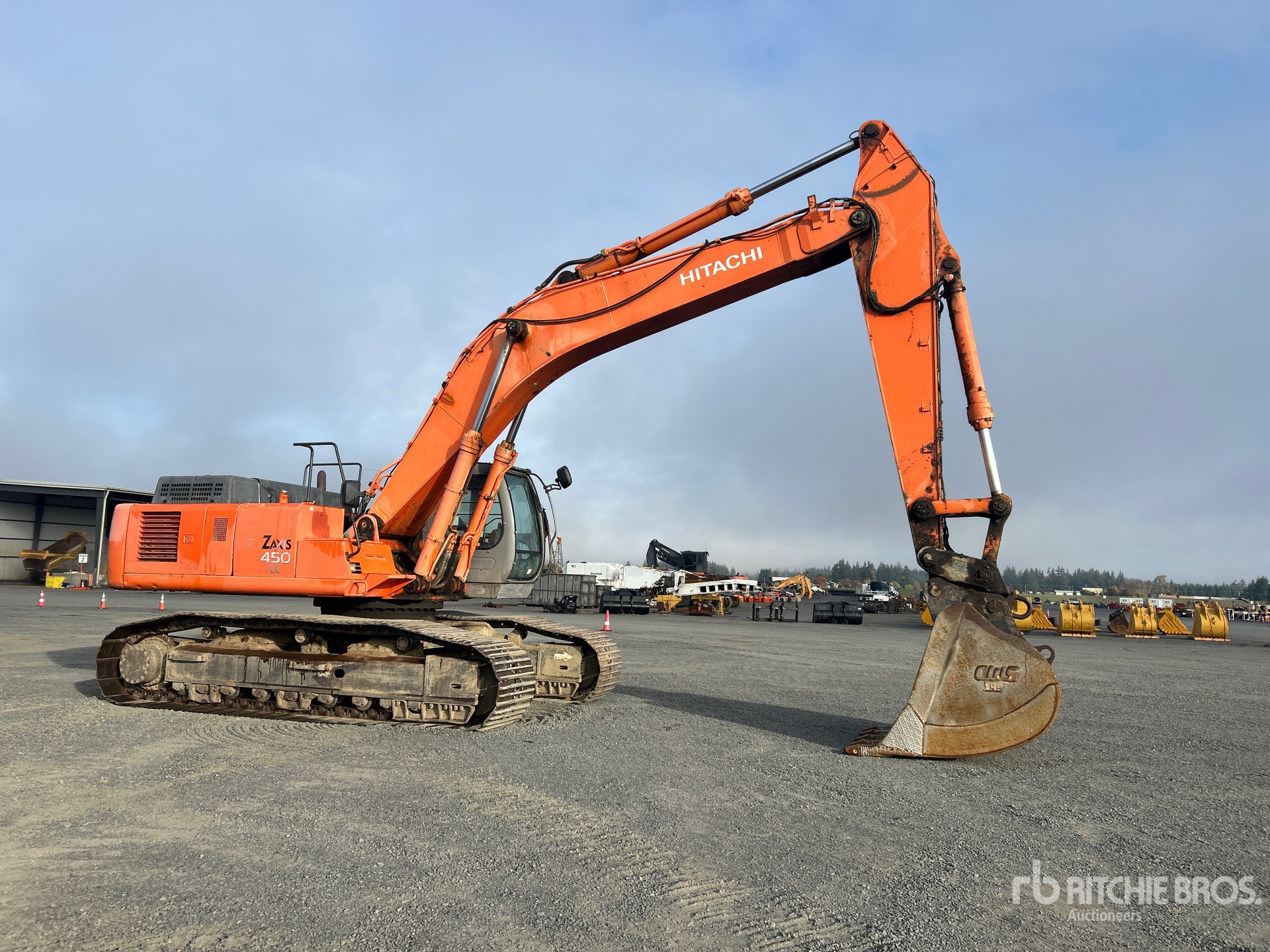

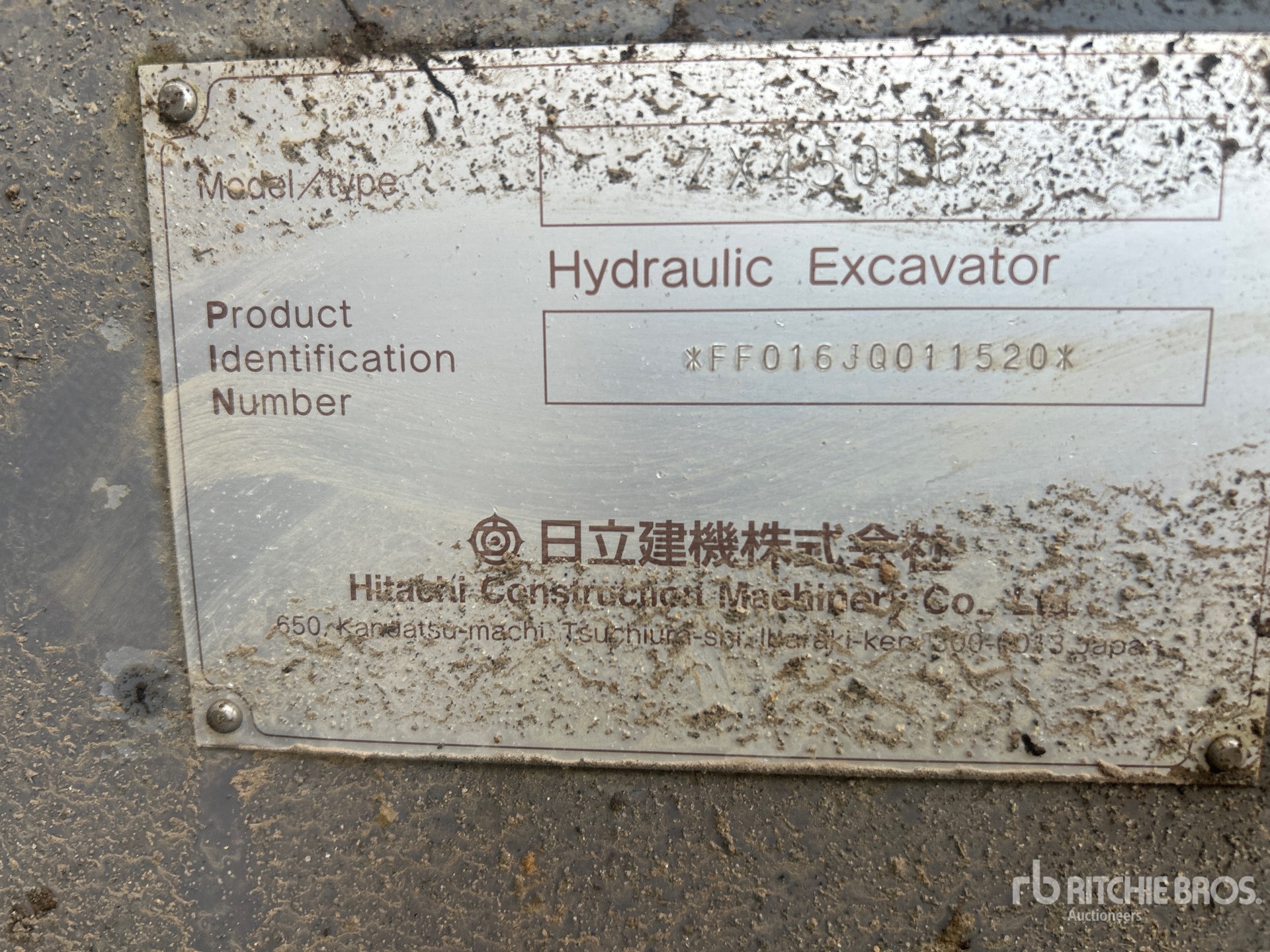

| Boom/Stick 1 |
|
Boom/Stick 1 |
Boom 6300mm (20\\\' 8\\\'\\\') / Stick 2500mm (8\\\' 2\\\'\\\') |
|
Max Cutting Height |
35 ft (11 m)
|
|
Max Digging Depth |
19 ft (6 m)
|
|
Max Loading Height |
24 ft (7 m)
|
|
Max Reach Along Ground |
34 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
16 ft (5 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
39 ft (12 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
Boom 7000mm (23\\\' 0\\\'\\\') / Stick 2900mm (9\\\' 6\\\'\\\') |
|
Max Cutting Height |
34 ft (10 m)
|
|
Max Digging Depth |
24 ft (7 m)
|
|
Max Loading Height |
23 ft (7 m)
|
|
Max Reach Along Ground |
37 ft (11 m)
|
|
Max Vertical Wall Digging Depth |
16 ft (5 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
39 ft (12 m)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
Boom 7000mm (23\\\' 0\\\'\\\') / Stick 3400mm (11\\\' 2\\\'\\\') |
|
Max Cutting Height |
36 ft (11 m)
|
|
Max Digging Depth |
25 ft (8 m)
|
|
Max Loading Height |
25 ft (8 m)
|
|
Max Reach Along Ground |
39 ft (12 m)
|
|
Max Vertical Wall Digging Depth |
22 ft (7 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
39 ft (12 m)
|
| Boom/Stick 4 |
|
Boom/Stick 4 |
Boom 7000mm (23\\\' 0\\\'\\\') / Stick 3900mm (12\\\' 10\\\'\\\') |
|
Max Cutting Height |
37 ft (11 m)
|
|
Max Digging Depth |
27 ft (8 m)
|
|
Max Loading Height |
26 ft (8 m)
|
|
Max Reach Along Ground |
40 ft (12 m)
|
|
Max Vertical Wall Dig Depth |
23 ft (7 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
39 ft (12 m)
|
| Boom/Stick 5 |
|
Boom/Stick 5 |
Boom 7000mm (23\\\' 0\\\'\\\') / Stick 4900mm (16\\\' 1\\\'\\\') |
|
Max Cutting Height |
39 ft (12 m)
|
|
Max Digging Depth |
30 ft (9 m)
|
|
Max Loading Height |
29 ft (9 m)
|
|
Max Reach Along Ground |
43 ft (13 m)
|
|
Max Vertical Wall Dig Depth |
28 ft (8 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
39 ft (12 m)
|
| Boom/Stick 6 |
|
Boom/Stick 6 |
Boom 8200mm (26\\\' 11\\\'\\\') / Stick 4900mm (16\\\' 1\\\'\\\') |
|
Max Cutting Height |
40 ft (12 m)
|
|
Max Digging Depth |
34 ft (10 m)
|
|
Max Loading Height |
30 ft (9 m)
|
|
Max Reach Along Ground |
47 ft (14 m)
|
|
Max Vertical Wall Dig Depth |
31 ft (9 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
39 ft (12 m)
|
| Buckets |
|
Maximum Bucket Capacity |
4 cu yd |
|
Minimum Bucket Capacity |
2 cu yd |
|
Reference Bucket Capacity |
3 cu yd |
| Dimensions |
|
Ground Clearance |
2 ft (1 m)
|
|
Height |
12 ft (4 m)
|
|
Height To Top Of Cab |
11 ft (3 m)
|
|
Length |
36 ft (11 m)
|
|
Length Of Track On Ground |
15 ft (4 m)
|
|
Removal Counterweight Clearance |
4 ft (1 m)
|
|
Tail Swing Radius |
11 ft (4 m)
|
|
Weight |
105,000 lbs (47,627 kg)
|
|
Width |
12 ft (4 m)
|
|
Width To Outside Of Tracks |
11 ft (3 m)
|
| Engine |
|
Aspiration |
turbocharged |
|
Displacement |
957 cu in (15,682 cu cm)
|
|
Engine Make |
2,353 |
|
Engine Model |
AA-6WG1TQA |
|
Max Torque |
940 lbs ft (1,275 nm)
|
|
Net Power |
314 hp (234 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
1,800 rpm |
|
Torque Measured @ |
1,500 rpm |

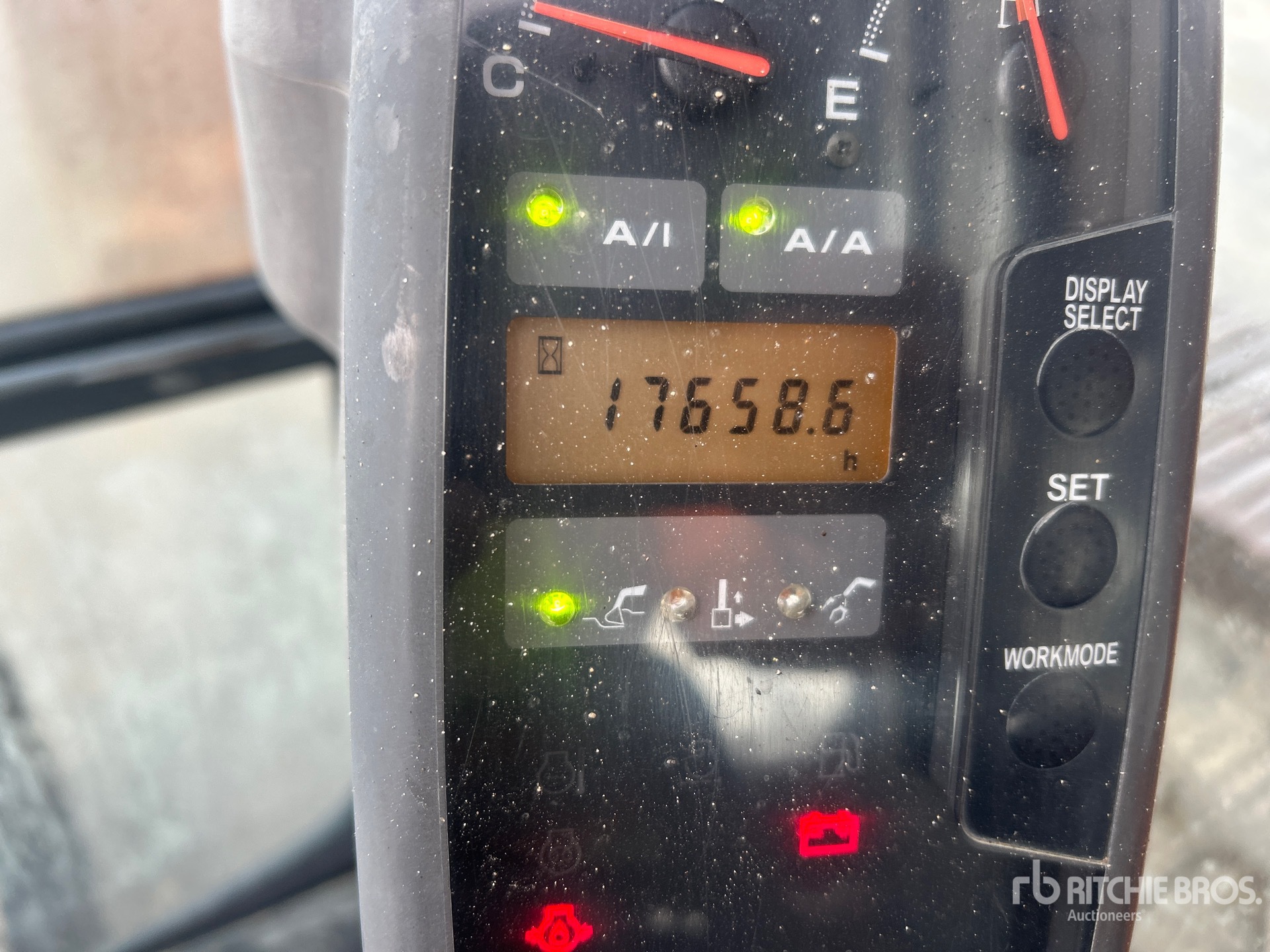

| Operational |
|
Cooling System Fluid Capacity |
16 gal (61 l)
|
|
Engine Oil Capacity |
15 gal (55 l)
|
|
Fuel Capacity |
172 gal (650 l)
|
|
Hydraulic Pump Flow Capacity |
95 gpm (360 lpm)
|
|
Hydraulic System Fluid Capacity |
135 gal (510 l)
|
|
Hydraulic System Relief Valve Pressure |
4,980 psi |
|
Operating Voltage |
12 V |
|
Operating Weight |
98,767 lbs (44,800 kg)
|
|
Swing Drive Fluid Capacity |
2 gal (7 l)
|
| Swing Mechanism |
|
Swing Speed |
9 rpm |

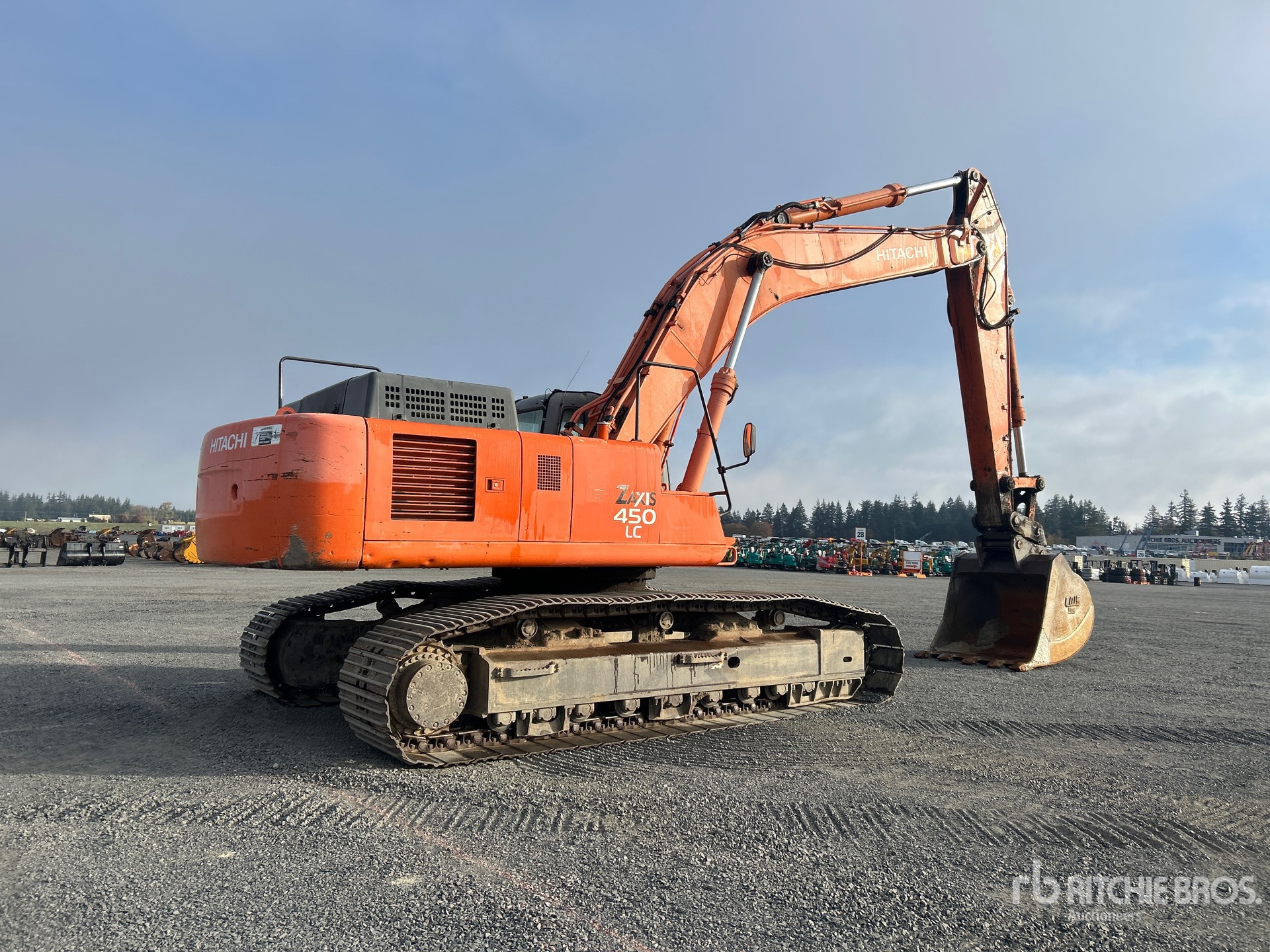

| Undercarriage |
|
Ground Pressure |
11 psi |
|
Max Travel Speed |
3 mph (6 kph)
|
|
Number Of Carrier Rollers Per Side |
3 |
|
Number Of Shoes Per Side |
53 |
|
Number Of Track Rollers Per Side |
9 |
|
Shoe Size |
24 in (60 cm)
|
|
Track Gauge |
9 ft (3 m)
|
