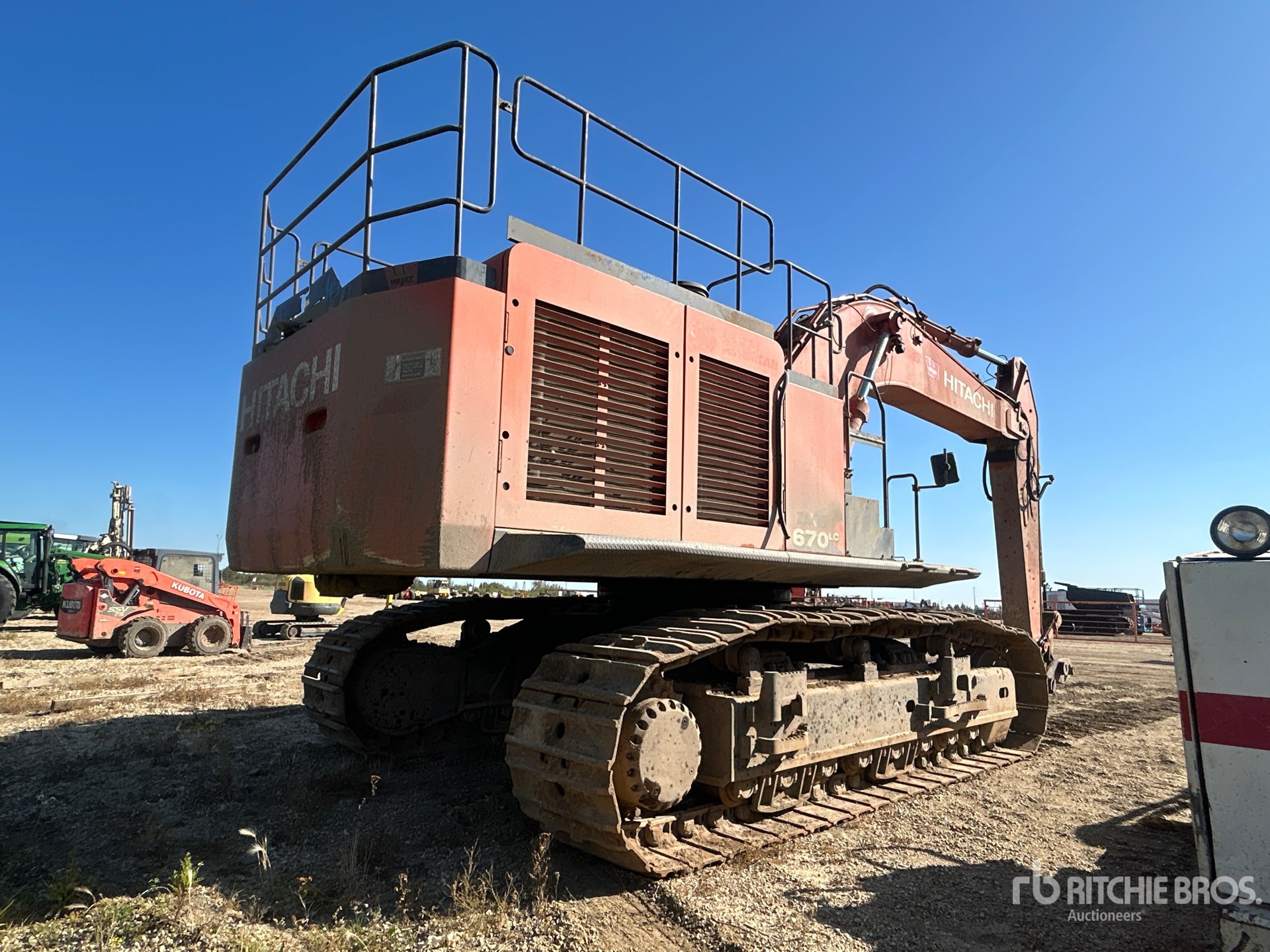

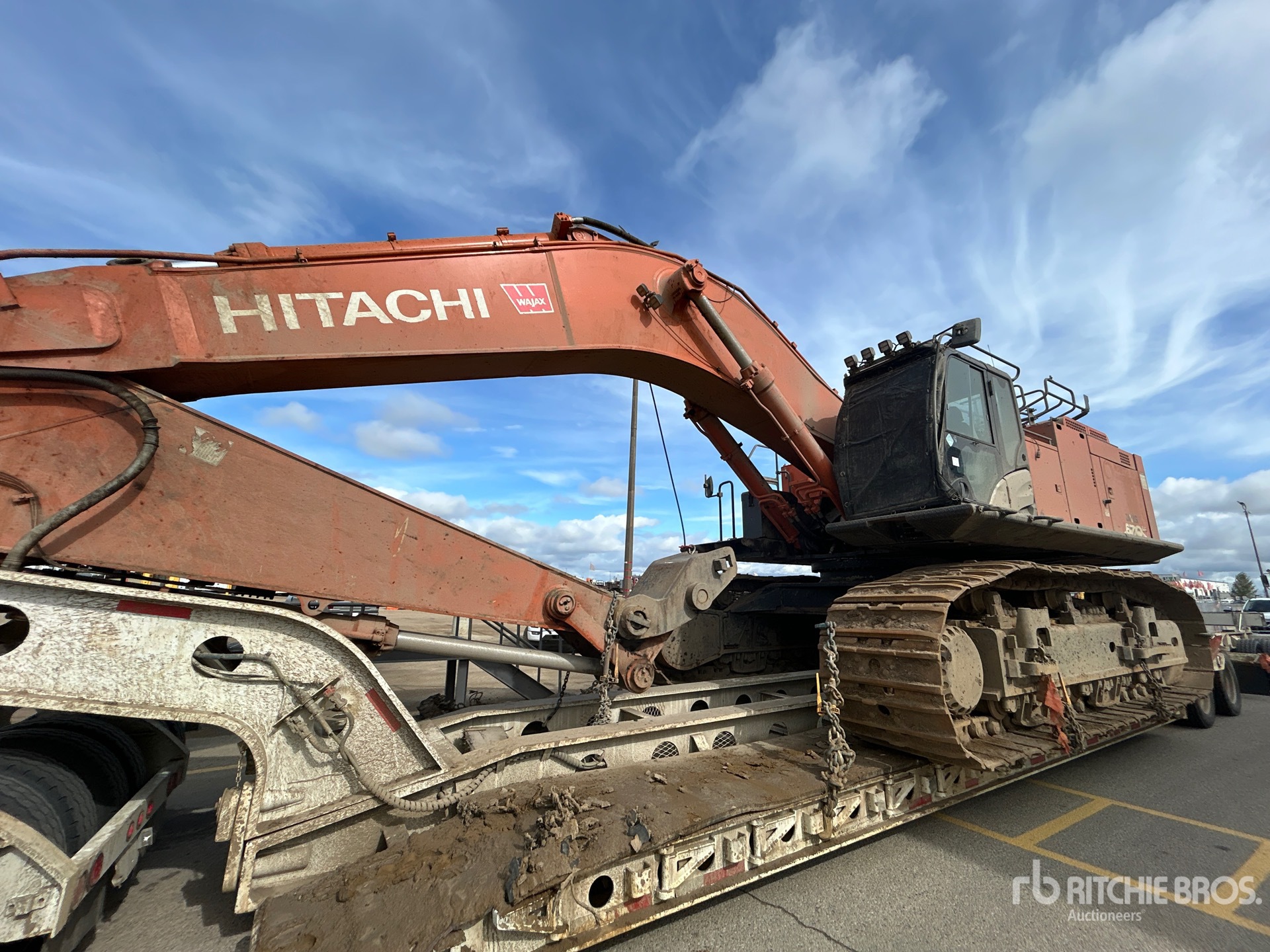

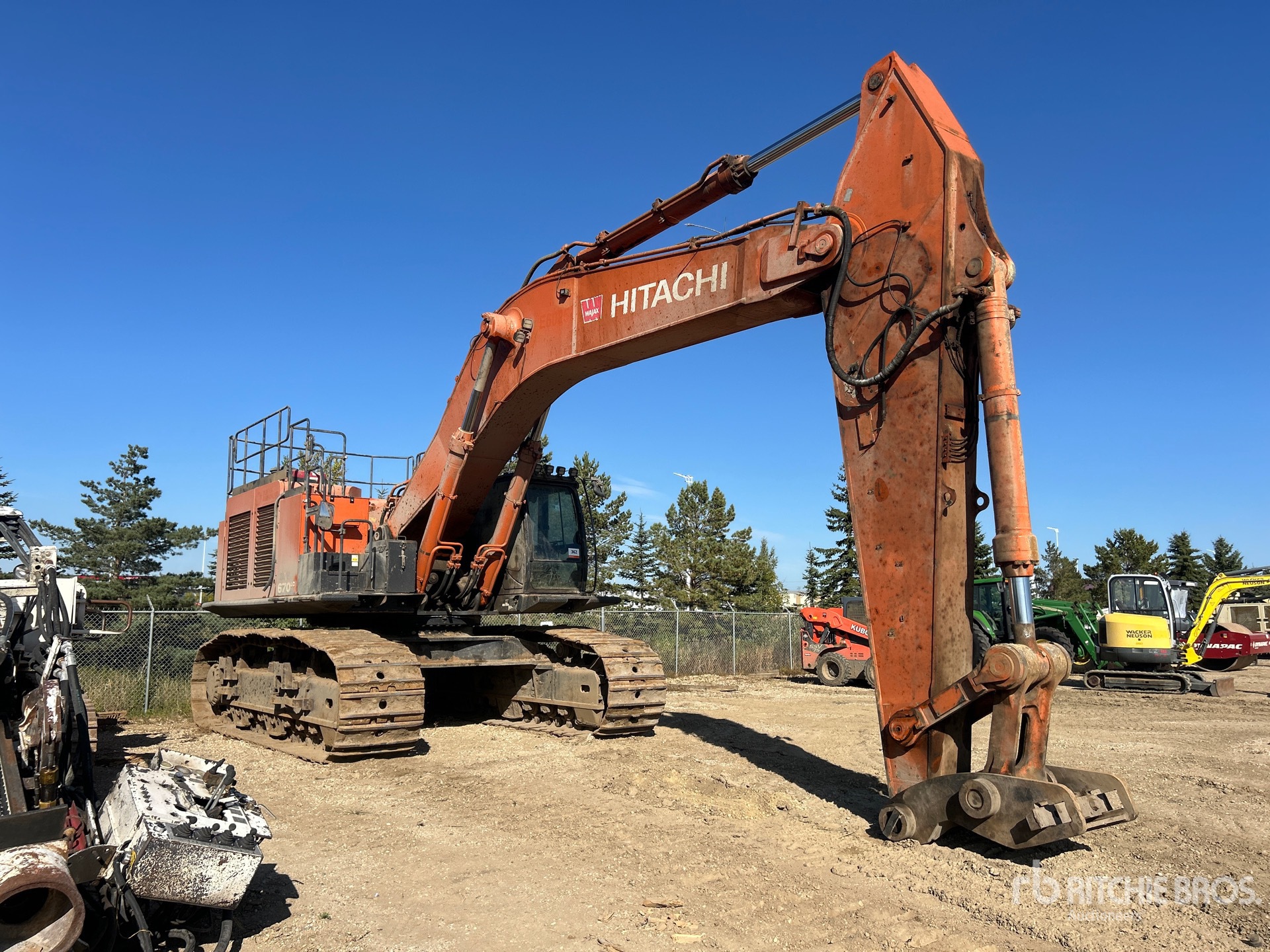

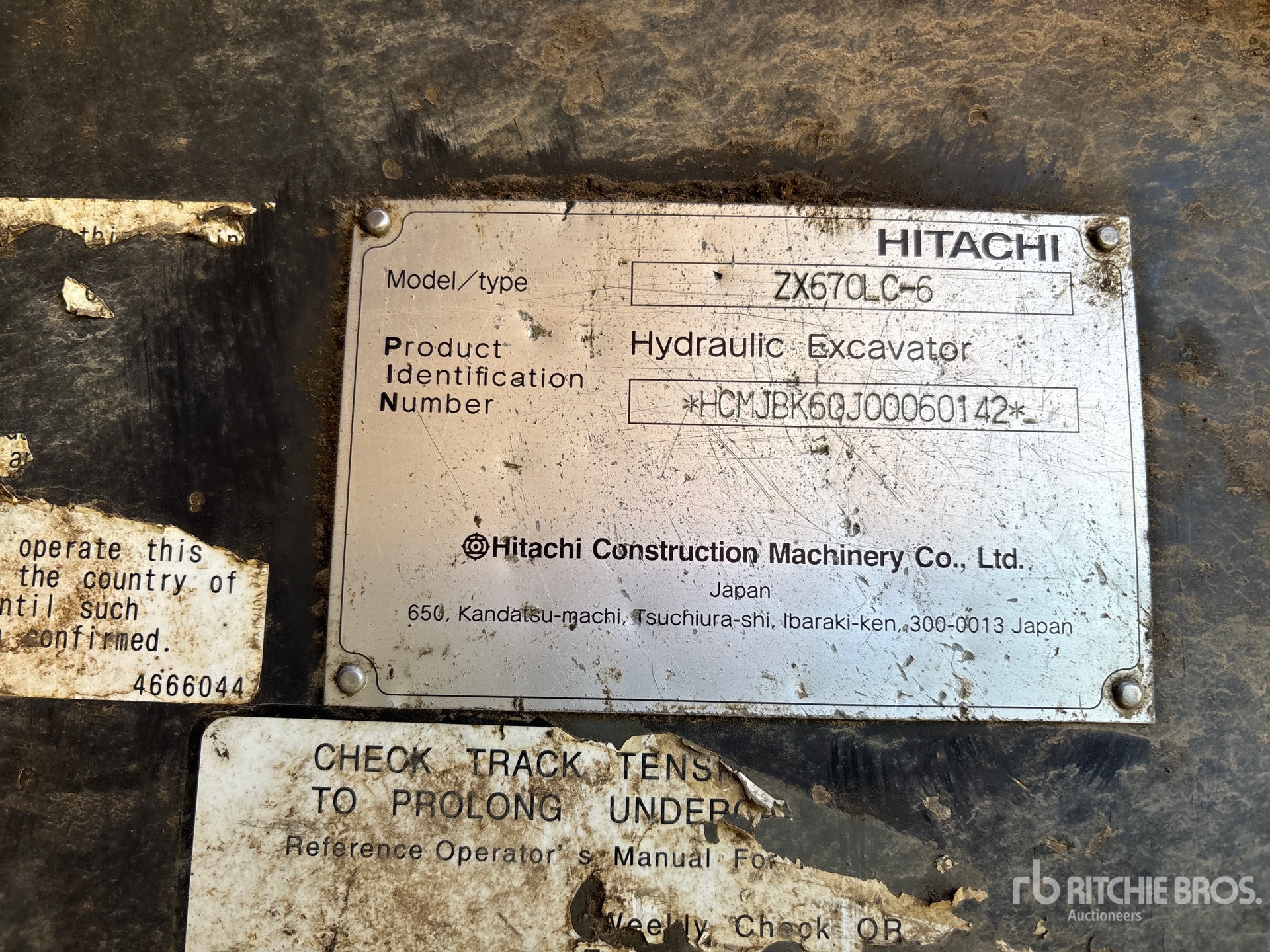

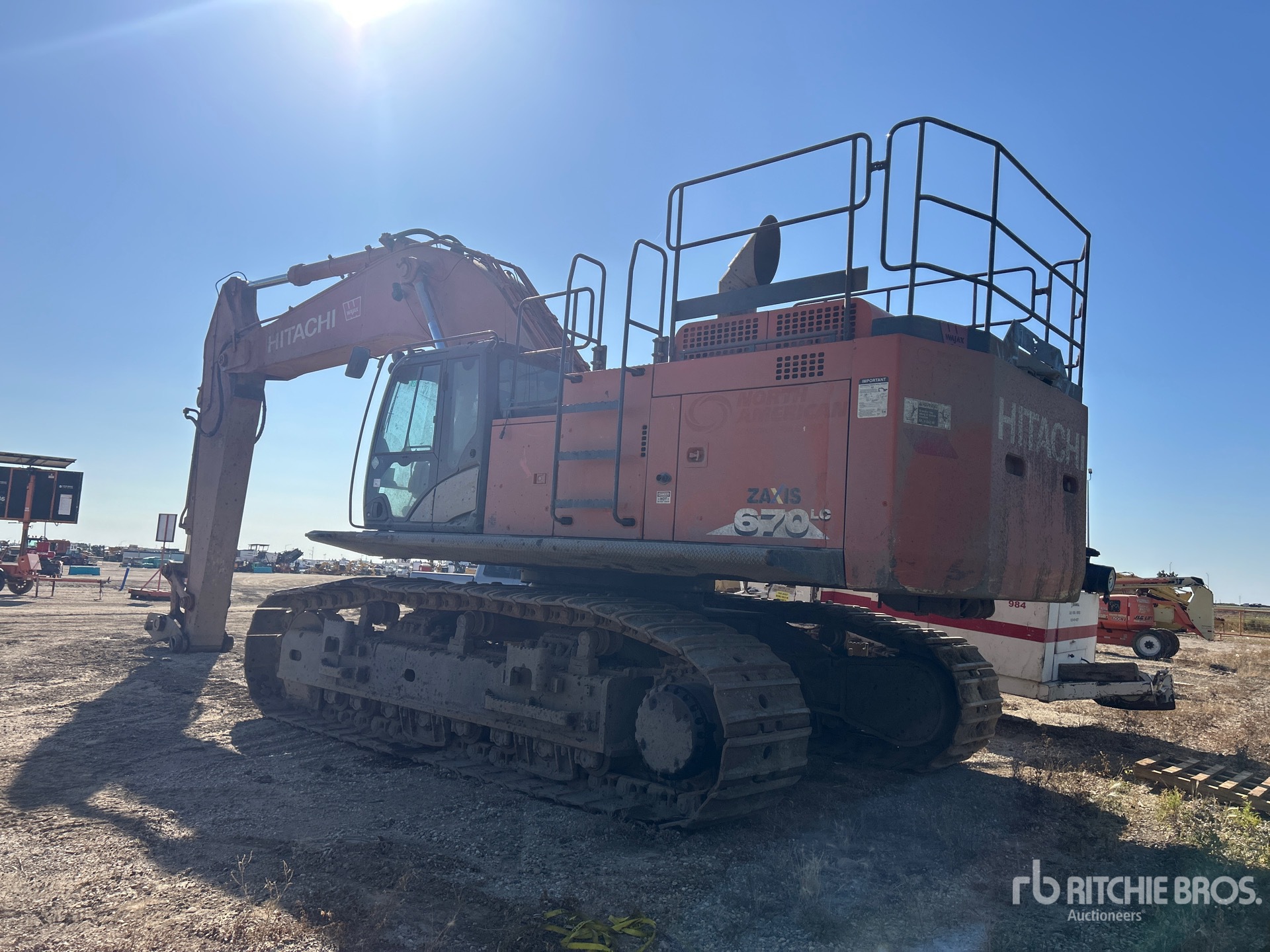

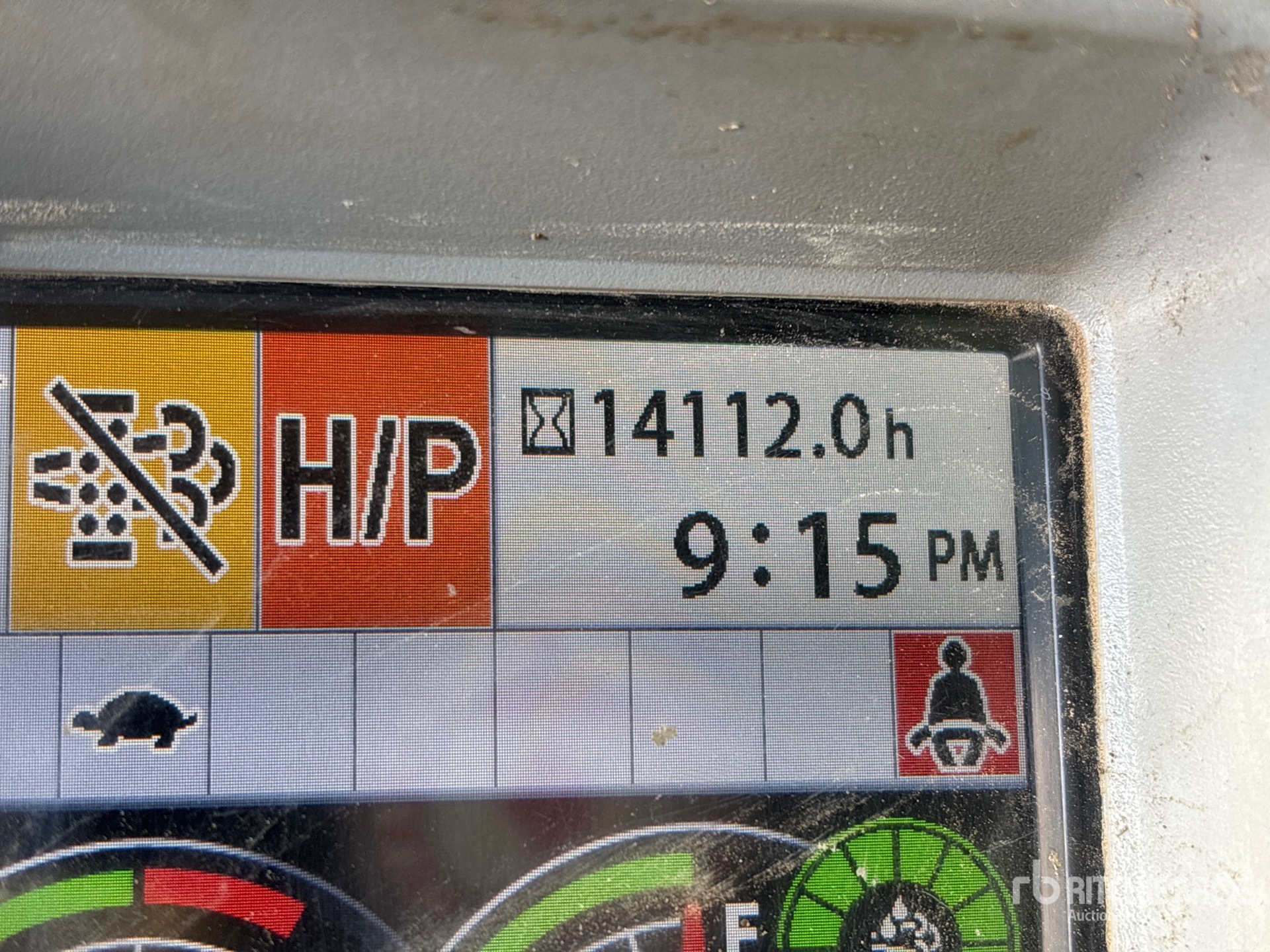

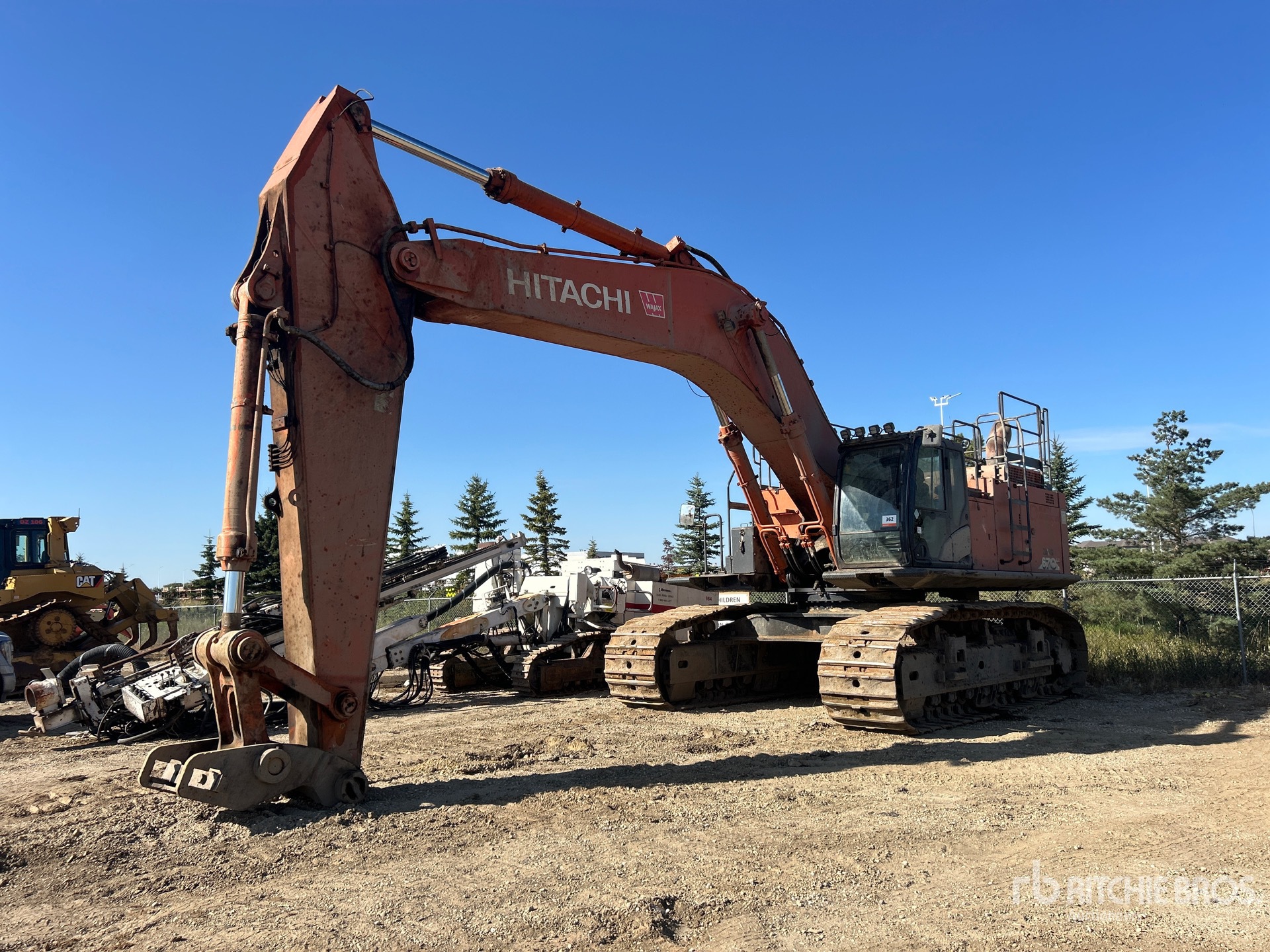

| Boom/Stick 1 |
|
Arm Digging Force - Iso |
57,326 lbs (26,003 kg)
|
|
Arm Digging Force - Sae |
55,528 lbs (25,187 kg)
|
|
Boom/Stick 1 |
Arm Length - 3.6 m (11 ft 10 in) with 7.8 m (25 ft 7 in) Boom |
|
Bucket Digging Force - Iso |
72,838 lbs (33,039 kg)
|
|
Bucket Digging Force - Sae |
65,195 lbs (29,572 kg)
|
|
Max Cutting Height |
39 ft (12 m)
|
|
Max Digging Depth |
28 ft (9 m)
|
|
Max Loading Height |
26 ft (8 m)
|
|
Max Reach Along Ground |
43 ft (13 m)
|
|
Max Vertical Wall Digging Depth |
24 ft (7 m)
|
|
Shipping Height Of Unit |
15 ft (4 m)
|
|
Shipping Length Of Unit |
44 ft (13 m)
|
| Boom/Stick 2 |
|
Arm Digging Force - Iso |
51,931 lbs (23,555 kg)
|
|
Arm Digging Force - Sae |
50,357 lbs (22,842 kg)
|
|
Boom/Stick 2 |
Arm Length - 4.2 m (13 ft 9 in) with 7.8 m (25 ft 7 in) Boom |
|
Bucket Digging Force - Iso |
72,838 lbs (33,039 kg)
|
|
Bucket Digging Force - Sae |
65,195 lbs (29,572 kg)
|
|
Max Cutting Height |
40 ft (12 m)
|
|
Max Digging Depth |
30 ft (9 m)
|
|
Max Loading Height |
27 ft (8 m)
|
|
Max Reach Along Ground |
45 ft (14 m)
|
|
Max Vertical Wall Digging Depth |
27 ft (8 m)
|
|
Shipping Height Of Unit |
16 ft (5 m)
|
|
Shipping Length Of Unit |
44 ft (13 m)
|
| Boom/Stick 3 |
|
Arm Digging Force - Iso |
44,063 lbs (19,986 kg)
|
|
Arm Digging Force - Sae |
43,163 lbs (19,579 kg)
|
|
Boom/Stick 3 |
Arm Length - 5.3 m (17 ft 5 in) with 7.8 m (25 ft 7 in) Boom |
|
Bucket Digging Force - Iso |
62,272 lbs (28,246 kg)
|
|
Bucket Digging Force - Sae |
55,078 lbs (24,983 kg)
|
|
Max Cutting Height |
42 ft (13 m)
|
|
Max Digging Depth |
33 ft (10 m)
|
|
Max Loading Height |
30 ft (9 m)
|
|
Max Reach Along Ground |
48 ft (15 m)
|
|
Max Vertical Wall Digging Depth |
30 ft (9 m)
|
|
Shipping Height Of Unit |
17 ft (5 m)
|
|
Shipping Length Of Unit |
43 ft (13 m)
|
| Boom/Stick 4 |
|
Arm Digging Force - Iso |
68,792 lbs (31,203 kg)
|
|
Arm Digging Force - Sae |
66,768 lbs (30,286 kg)
|
|
Boom/Stick 4 |
Arm Length - 2.9 m (9 ft 6 in) Mass Excavating with 6.8 m (22 ft 4 in) Mass-Excavating Boom |
|
Bucket Digging Force - Iso |
82,955 lbs (37,628 kg)
|
|
Bucket Digging Force - Sae |
74,637 lbs (33,855 kg)
|
|
Max Cutting Height |
38 ft (12 m)
|
|
Max Digging Depth |
41 ft (12 m)
|
|
Max Loading Height |
39 ft (12 m)
|
|
Max Reach Along Ground |
23 ft (7 m)
|
|
Max Vertical Wall Dig Depth |
17 ft (5 m)
|
|
Shipping Height Of Unit |
16 ft (5 m)
|
|
Shipping Length Of Unit |
41 ft (12 m)
|
| Buckets |
|
Maximum Bucket Capacity |
6 cu yd |
|
Minimum Bucket Capacity |
2 cu yd |
| Capacities |
|
Cooling System |
20 gal (76 l)
|
|
Diesel Exhaust Fluid (Def) Tank |
25 gal (95 l)
|
|
Engine Oil With Filter |
15 gal (57 l)
|
|
Fuel Tank |
238 gal (900 l)
|
|
Hydraulic System |
198 gal (750 l)
|
|
Hydraulic Tank |
100 gal (380 l)
|
|
Pump Drive |
2 gal (6 l)
|
|
Swing Drive |
3 gal (11 l)
|
| Cylinders |
|
Bore (Arm) |
8 in (20 cm)
|
|
Bore (Boom) |
8 in (19 cm)
|
|
Bore (Bucket) |
7 in (18 cm)
|
|
Rod Diameter (Arm) |
6 in (14 cm)
|
|
Rod Diameter (Boom) |
5 in (13 cm)
|
|
Rod Diameter (Bucket) |
5 in (13 cm)
|
|
Stroke (Arm) |
85 in (216 cm)
|
|
Stroke (Boom) |
71 in (181 cm)
|
|
Stroke (Bucket) |
61 in (156 cm)
|
| Dimensions |
|
Ground Clearance |
3 ft (1 m)
|
|
Height To Top Of Cab |
12 ft (4 m)
|
|
Length Of Track On Ground |
44 ft (13 m)
|
|
Removal Counterweight Clearance |
5 ft (2 m)
|
|
Tail Swing Radius |
13 ft (4 m)
|
|
Width To Outside Of Tracks |
14 ft (4 m)
|
| Electrical System |
|
Alternator Rating |
50 amp |
|
Batteries |
2 x 12 V |
|
Battery Capacity |
500 CCA |
|
Work Lights |
5 halogen |
| Engine |
|
Aspiration |
Turbocharged, air-to-air charge-air cooler |
|
Cooling System |
2 cool-on-demand hydraulic-driven, suction-type fans with remote-mounted drives |
|
Displacement |
957 cu in (15,681 cu cm)
|
|
Emissions Level |
EPA Final Tier 4 / EU Stage IV |
|
Engine Model |
Isuzu 6WG1-FT4 |
|
Net Power |
463 hp (345 kw)
|
|
Number Of Cylinders |
6 |
|
Off-Level Capacity |
70 % |
|
Power Measured @ |
1,800 rpm |
| Hydraulic System |
|
Controls |
Pilot levers, short-stroke, low-effort hydraulic pilot controls with shutoff lever |
|
Hydraulic System Type |
Open center, load sensing |
|
Implement - Operating Pressure |
4,627 psi |
|
Main Pump - Maximum Flow |
129 gpm (489 lpm)
|
|
Main Pump Type |
2 variable-displacement pumps |
|
Power Boost - Operating Pressure |
4,975 psi |
|
Swing - Operating Pressure |
4,264 psi |
|
Travel - Operating Pressure |
4,975 psi |
| Operational |
|
Operating Weight |
154,103 lbs (69,900 kg)
|
| Swing Mechanism |
|
Swing Speed |
9 rpm |
|
Swing Torque |
151,938 lbs ft (205,997 nm)
|
| Undercarriage |
|
Drawbar Pull |
101,666 lbs (46,115 kg)
|
|
Ground Pressure |
15 psi |
|
Max Travel Speed |
3 mph (5 kph)
|
|
Number Of Carrier Rollers Per Side |
3 |
|
Number Of Shoes Per Side |
47 |
|
Number Of Track Rollers Per Side |
8 |
