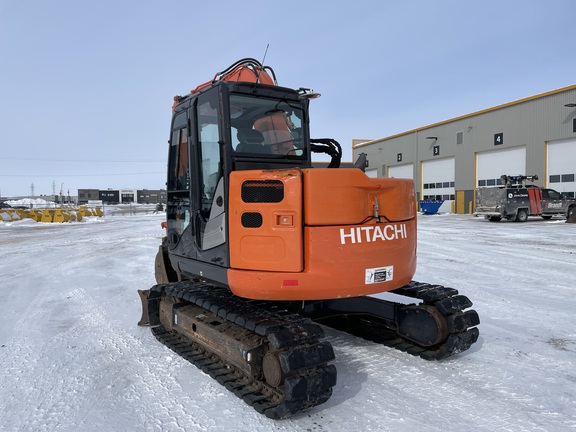

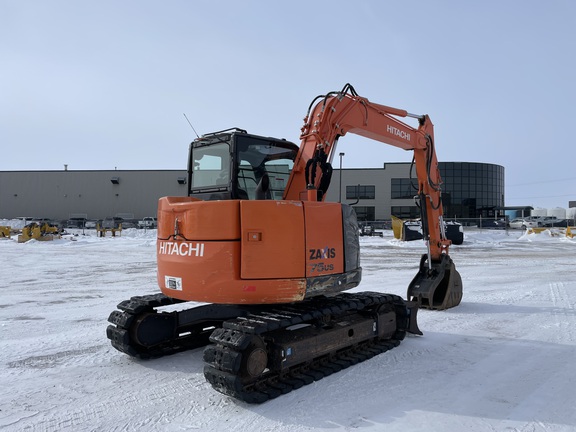

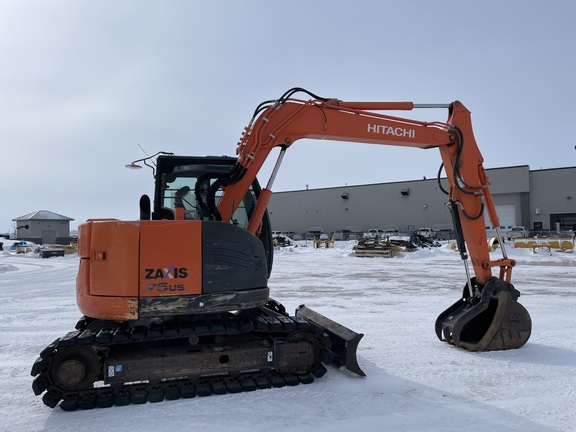

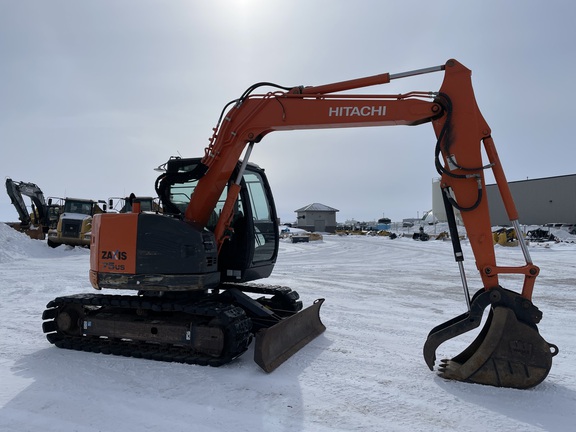

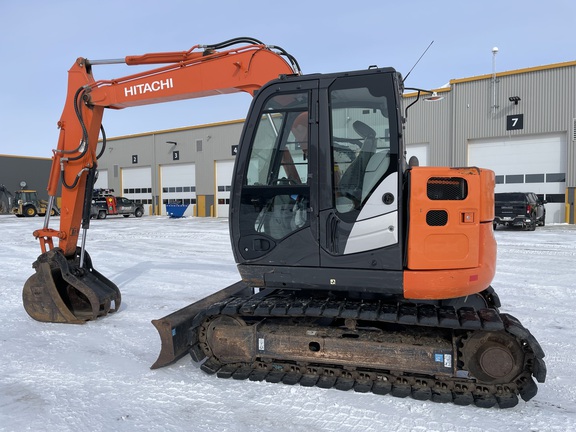

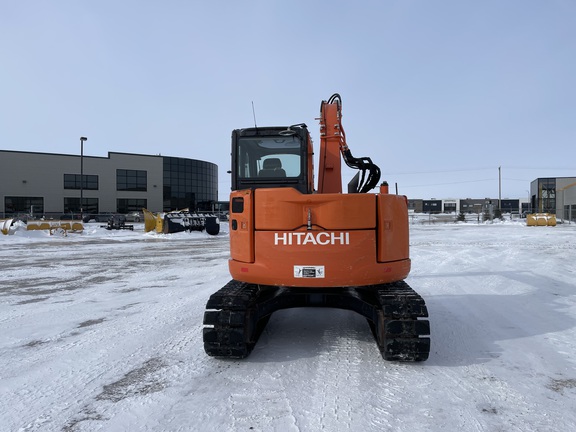

2018 Hitachi ZX75US-5 For Sale in Winnipeg, MB

Name: 2018 Hitachi ZX75US-5
Brand: Hitachi
SKU: 85790945
Price: 89000 CAD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $64,256.00 USD
Converted From: 89,000.00 CAD

Apply for Financing

Brandt Tractor LTD

Brandt Tractor LTD Dealer Info

Brandt Tractor LTD Website

Click here to email Brandt Tractor LTD.

Contact: Equipment Sales

Click for Phone Number

Machine Info:

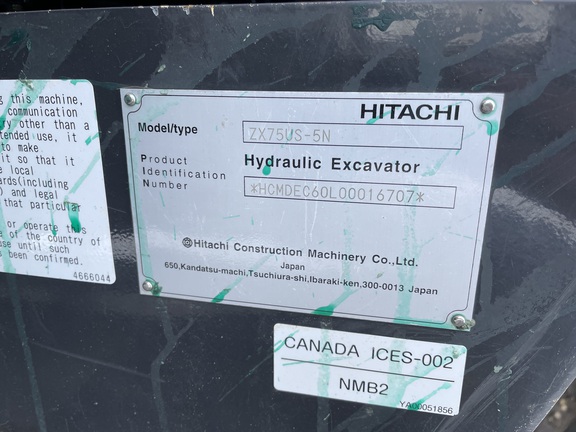

Serial Number:	HCMDEC60L00016707
Stock Number:	1U016707
Machine Location:	WINNIPEG, MB

Description:

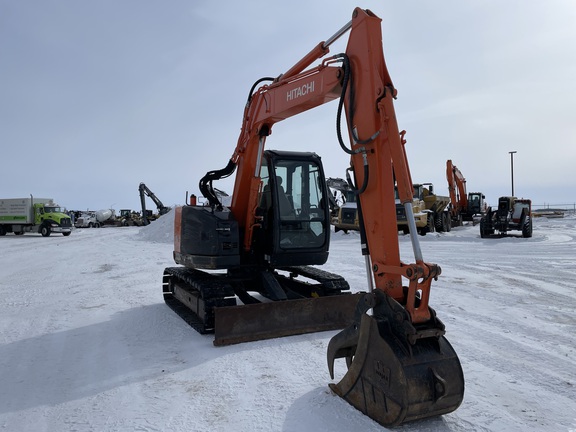

Cab w/ AC; Rubber Pads; Aux Hydraulics, Hydraulic Thumb; w/ Bucket; w/ Blade

Machine Details:

General Specifications

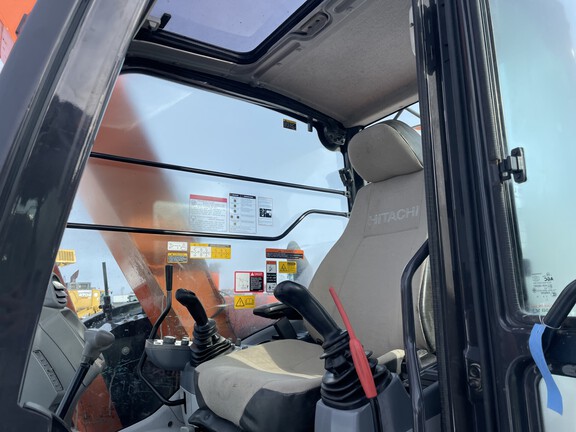

Operators Station	Cab w/ AC
Tracks	Rubber Pads
Options	Aux Hydraulics
Attachments	Hydraulic Thumb
Buckets	w/ Bucket
Blades	w/ Blade

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Arm Digging Force - ISO	6,902 lbs (3,131 kg)
Bucket Digging Force - ISO	10,476 lbs (4,752 kg)
Max Cutting Height	25 ft (8 m)
Max Digging Depth	15 ft (5 m)
Max Digging Reach	23 ft (7 m)
Max Reach Along Ground	22 ft (7 m)
Capacities
Engine oil with filter	3 gal (12 l)
Fuel Tank	32 gal (120 l)
Hydraulic system	27 gal (103 l)
Hydraulic Tank	15 gal (56 l)
Propel	0 gal (2 l)
Cylinders
Bore (Arm)	4 in (10 cm)
Bore (Boom)	5 in (12 cm)
Bore (Bucket)	3 in (9 cm)
Rod Diameter (Arm)	2 in (6 cm)
Rod Diameter (Boom)	3 in (7 cm)
Rod Diameter (Bucket)	2 in (6 cm)
Stroke (Arm)	36 in (90 cm)
Stroke (Boom)	35 in (89 cm)
Stroke (Bucket)	29 in (73 cm)
Dimensions
Cab Height	9 ft (3 m)
Counterweight Clearance	2 ft (1 m)
Ground Clearance	1 ft (0 m)
Length	2,508 in (6,370 cm)
Tail Swing Radius	4 ft (1 m)
Undercarriage Overall Length	10 ft (3 m)
Electrical System
Alternator rating	50 amp
Batteries	2 x 12 V volts
Battery capacity	450CCA
Work Lights	2 halogen
Engine
Aspiration	Natural
Cooling system	High efficiency direct-driven suction-type fan
Displacement	201 cu in (3,300 cu cm)
Emissions level	EPA Final Tier 4 / EU Stage IV
Engine Make	Yanmar
Engine Model	4TNV98C
Net Power	57 hp (42 kw)
Off-Level Capacity	70%
Power Measured @	2,000 rpm
Hydraulic System
Implement - Operating Pressure	3,771 psi
Main pump type	3 variable-displacement axial-piston pumps
Travel - Operating Pressure	4,554 psi
Operating Specifications
Cooling System Fluid Capacity	3 gal (10 l)
Hydraulic Pump Flow Capacity	53 gpm (200 lpm)
Hydraulic System Relief Valve Pressure	566 psi
Operating Weight	19,244 lbs (8,729 kg)
Swing Mechanism
Swing Speed	11 rpm
Undercarriage
Drawbar Pull	14,661 lbs (6,650 kg)
Max Travel Speed	3 mph (5 kph)
Number of Shoes per Side	40
