2016 Hitachi ZX85USB-5 For Sale in Ocana, Esp

Name: 2016 Hitachi ZX85USB-5
Brand: Hitachi
SKU: 88784843
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-16 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

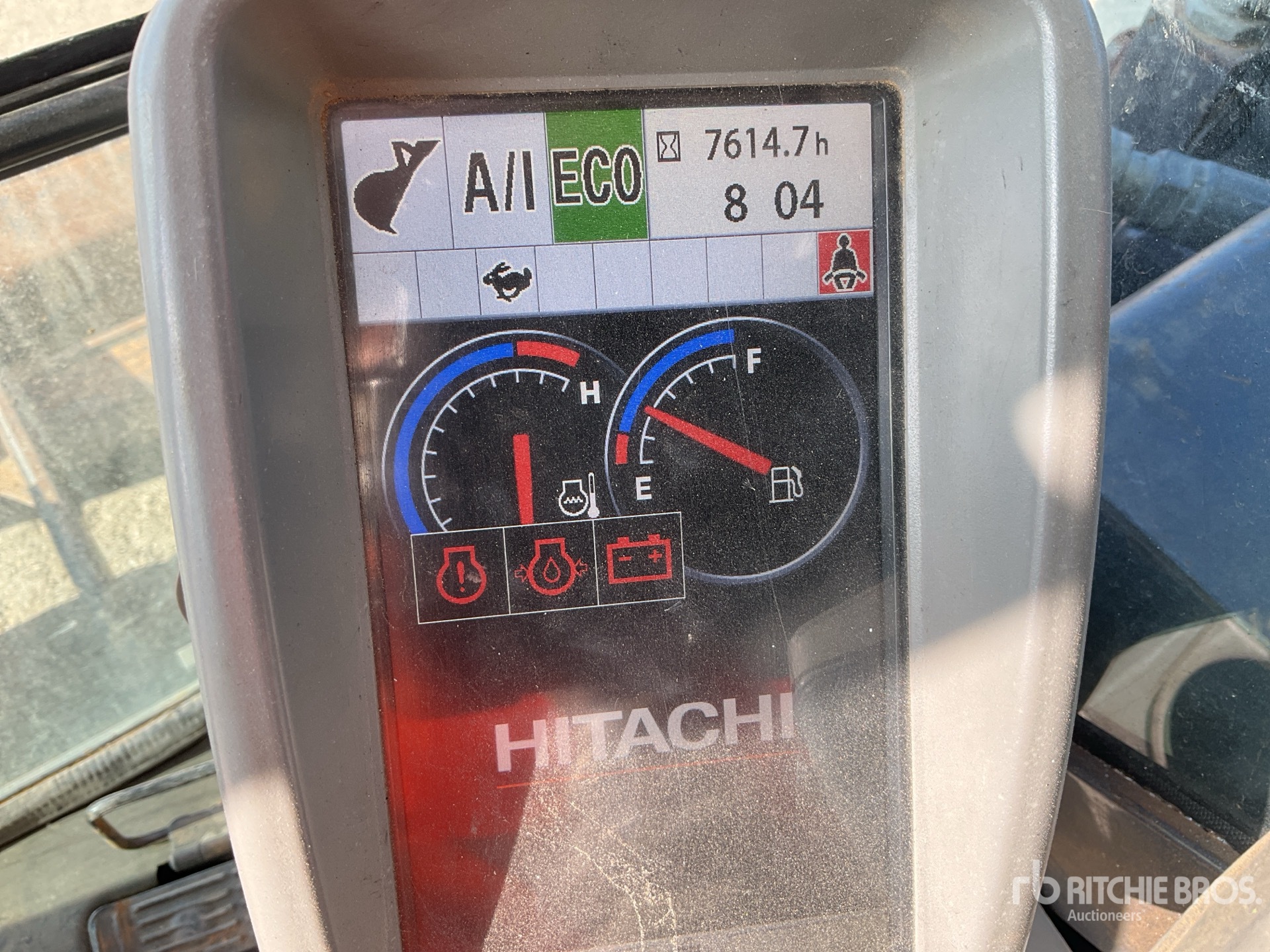

Hours:	7614

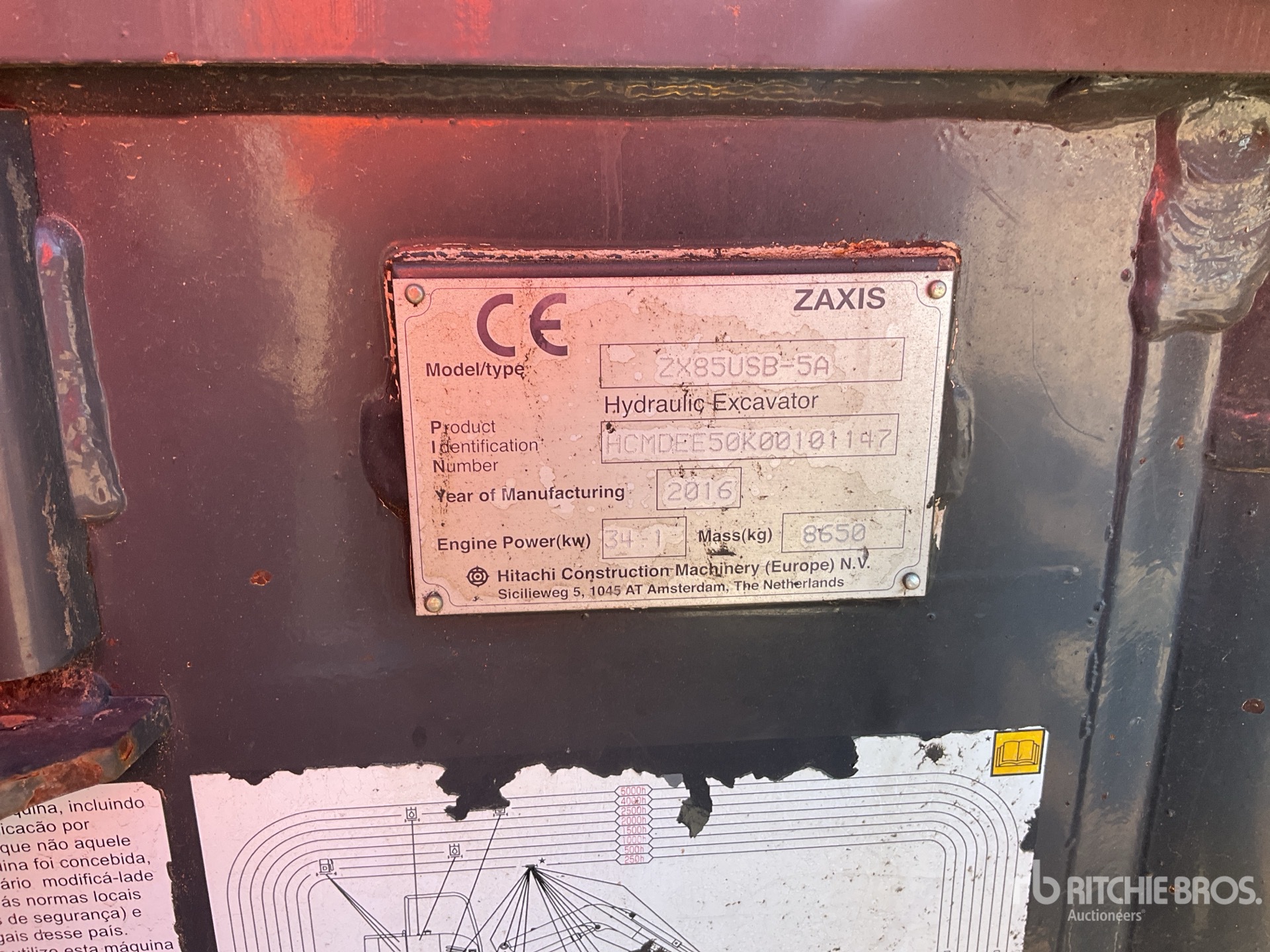

Serial Number:	HCMDEE50K00101147
Machine Location:	OCANA, ESP

Description:

Swing Boom, 2100 mm Stick, Backfill Blade, 450 mm Rubber Tracks, Hydraulic Quick Coupler, 350 mm Digging Bucket **COPIA CERTIFICADO CE DISPONIBLE/ COPY CE CERTIFICATE AVAILABLE** Closing Time: 2026-09-16 10:15:25 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Hitachi ZX85USB-5 is a compact excavator in the ZX-5 series, designed for urban construction, utility work, landscaping, and confined job sites. It features a short-tail swing design for improved maneuverability in tight spaces, along with a digging depth and lifting capability suited to small-to-medium excavation tasks. The ZX85USB-5 is typically equipped with a fuel-efficient diesel engine, hydraulic controls, and a comfortable operator station. As an excavator, it is used for trenching, grading, site preparation, and material handling. Its compact size and reduced rear overhang make it suitable for work near structures, roads, and other obstacles.

Boom/Stick 1
Arm Digging Force - Sae	6,902 lbs (3,130 kg)
Boom/Stick 1	Arm Length - 2.12 m (6 ft 11 in)
Bucket Digging Force - Sae	10,476 lbs (4,751 kg)
Max Cutting Height	23 ft (7 m)
Max Digging Depth	15 ft (5 m)
Max Digging Reach	3 ft (1 m)
Max Reach Along Ground	25 ft (8 m)
Max Vertical Wall Digging Depth	13 ft (4 m)
Min.Front Swing Radius	9 ft (3 m)
Boom/Stick 2
Boom/Stick 2	Arm Length - 2.96 m (9 ft 9 in)
Boom/Stick 3
Boom/Stick 3	Arm Length - 3.61 m (11 ft 10 in)
Capacities
Engine Oil With Filter	3 gal (12 l)
Fuel Tank	36 gal (135 l)
Hydraulic System	27 gal (103 l)
Hydraulic Tank	15 gal (56 l)
Propel	0 gal (2 l)
Cylinders
Bore (Arm)	4 in (10 cm)
Bore (Boom)	5 in (12 cm)
Bore (Bucket)	3 in (9 cm)
Rod Diameter (Arm)	2 in (6 cm)
Rod Diameter (Boom)	3 in (7 cm)
Rod Diameter (Bucket)	2 in (6 cm)
Stroke (Arm)	36 in (90 cm)
Stroke (Boom)	35 in (89 cm)
Stroke (Bucket)	29 in (73 cm)
Dimensions
Cab Height	9 ft (3 m)
Counterweight Clearance	2 ft (1 m)
Ground Clearance	1 ft (0 m)
Length	2,685 in (6,820 cm)
Tail Swing Radius	5 ft (1 m)
Undercarriage Overall Length	10 ft (3 m)
Electrical System
Alternator Rating	50 amp
Batteries	2 x 12 V
Battery Capacity	450CCA
Work Lights	2 halogen
Engine
Aspiration	Natural
Cooling System	High efficiency direct-driven, suction-type fan
Displacement	201 cu in (3,300 cu cm)
Emissions Level	EPA Final Tier 4 / EU Stage IV
Engine Make	Yanmar
Engine Model	4TNV98C-WHBW
Net Power	57 hp (42 kw)
Number Of Cylinders	4
Off-Level Capacity	70 %
Power Measured @	2,000 rpm
Hydraulic System
Controls	Pilot levers
Implement - Operating Pressure	3,771 psi
Main Pump Type	3 variable-displacement axial-piston pumps
Swing - Operating Pressure	3,626 psi
Travel - Operating Pressure	4,554 psi
Operational
Cooling System Fluid Capacity	3 gal (10 l)
Hydraulic Pump Flow Capacity	53 gpm (200 lpm)
Hydraulic System Relief Valve Pressure	566 psi
Operating Weight	17,952 lbs (8,142 kg)
Swing Mechanism
Swing Speed	11 rpm
Swing Torque	12,244 lbs ft (16,600 nm)
Undercarriage
Drawbar Pull	14,661 lbs (6,649 kg)
Max Travel Speed	3 mph (5 kph)
Number Of Shoes Per Side	40
