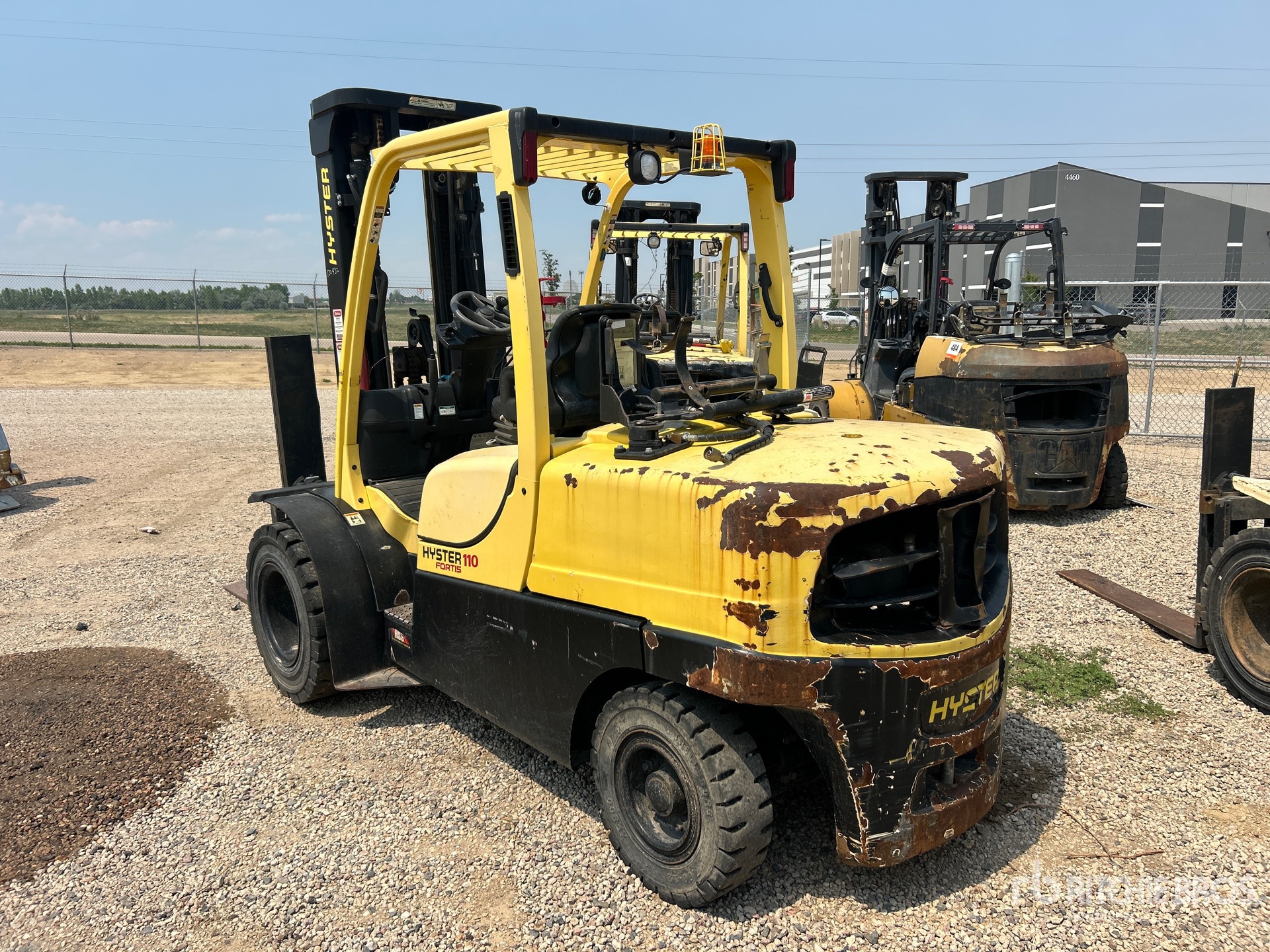

2016 Hyster H100FT

Name: 2016 Hyster H100FT
Brand: Hyster
SKU: 88676932
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-08-26 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Serial Number:	U005V03658P
Machine Location:	DENVER, CO

Description:

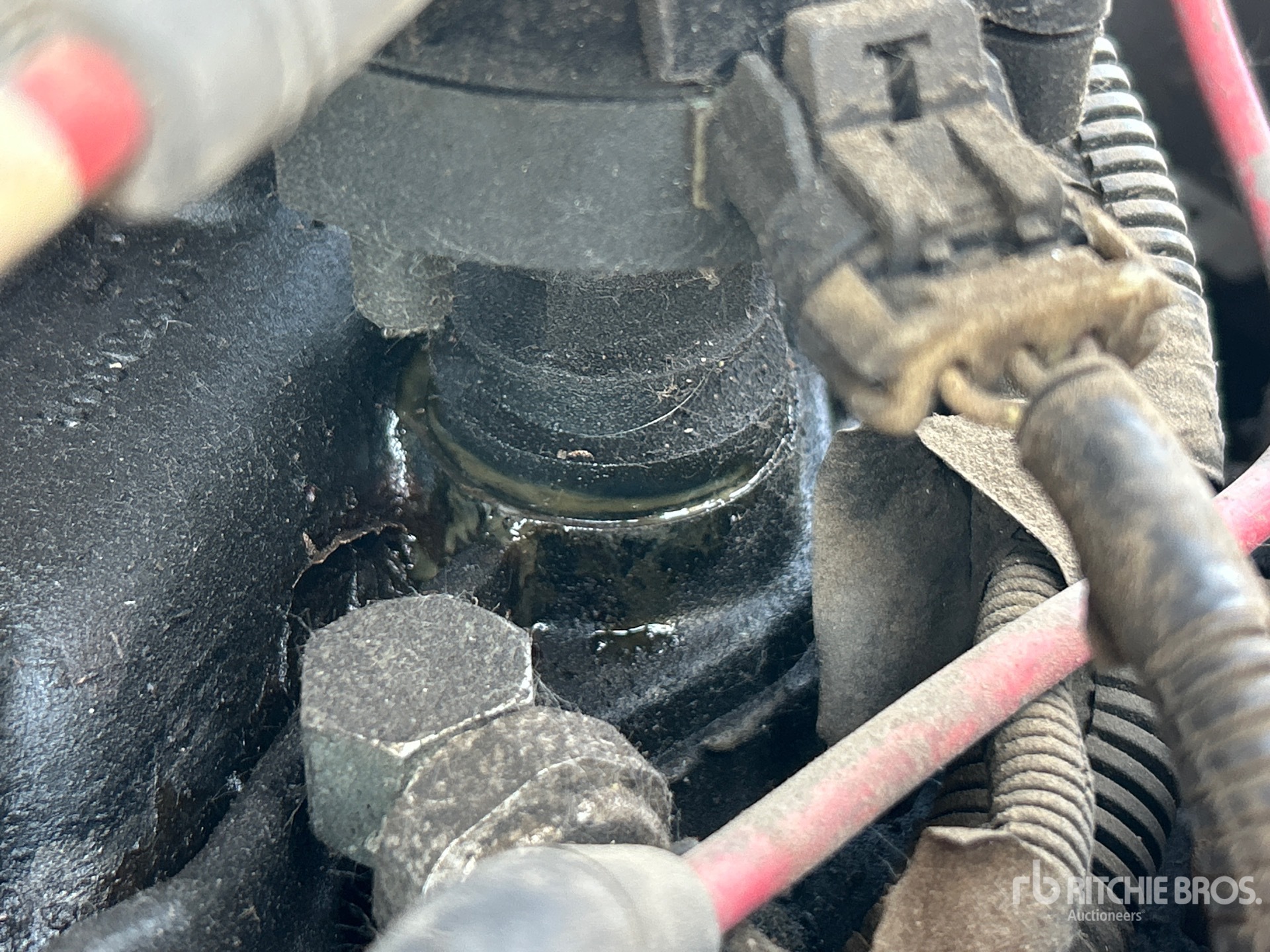

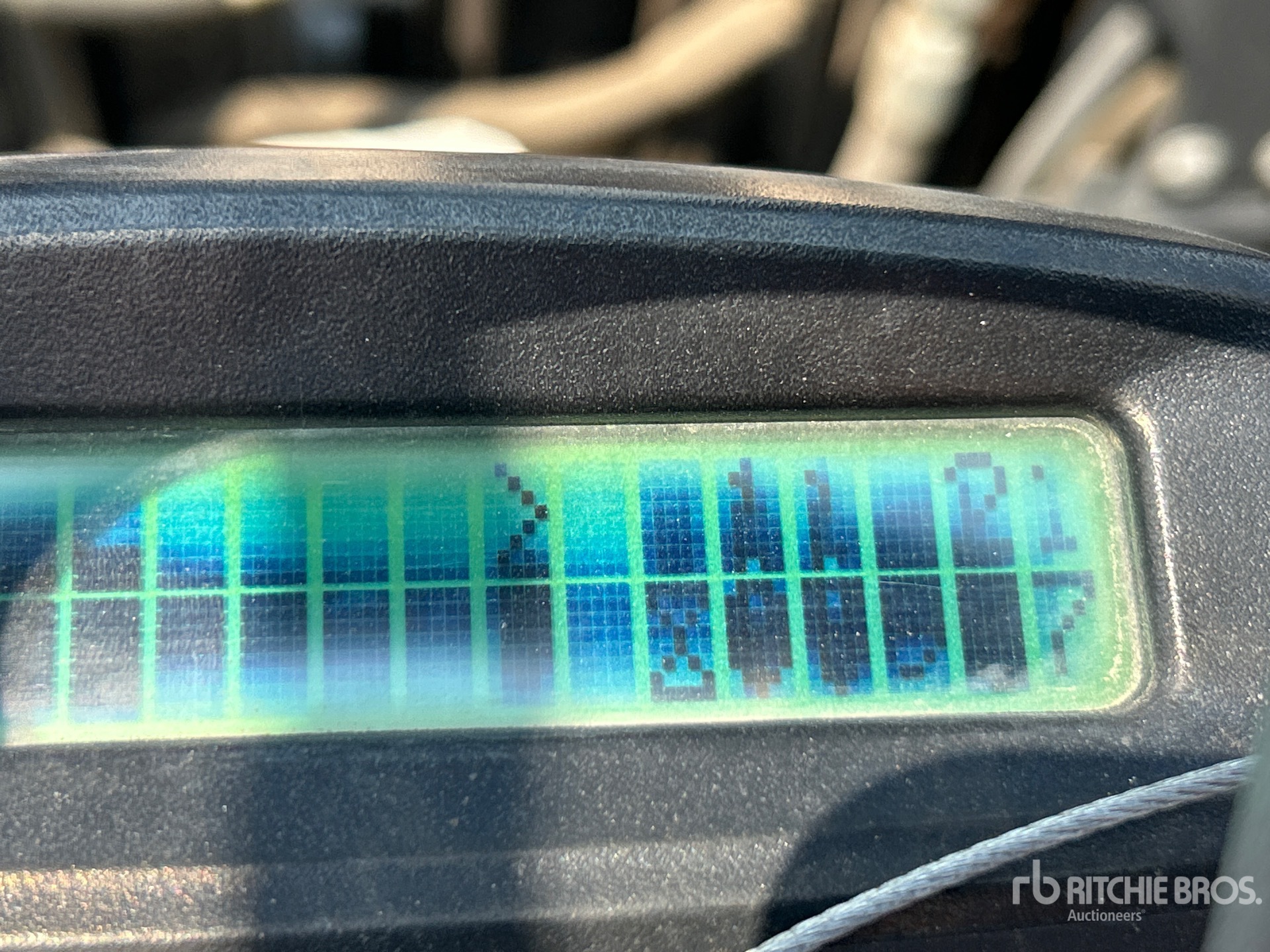

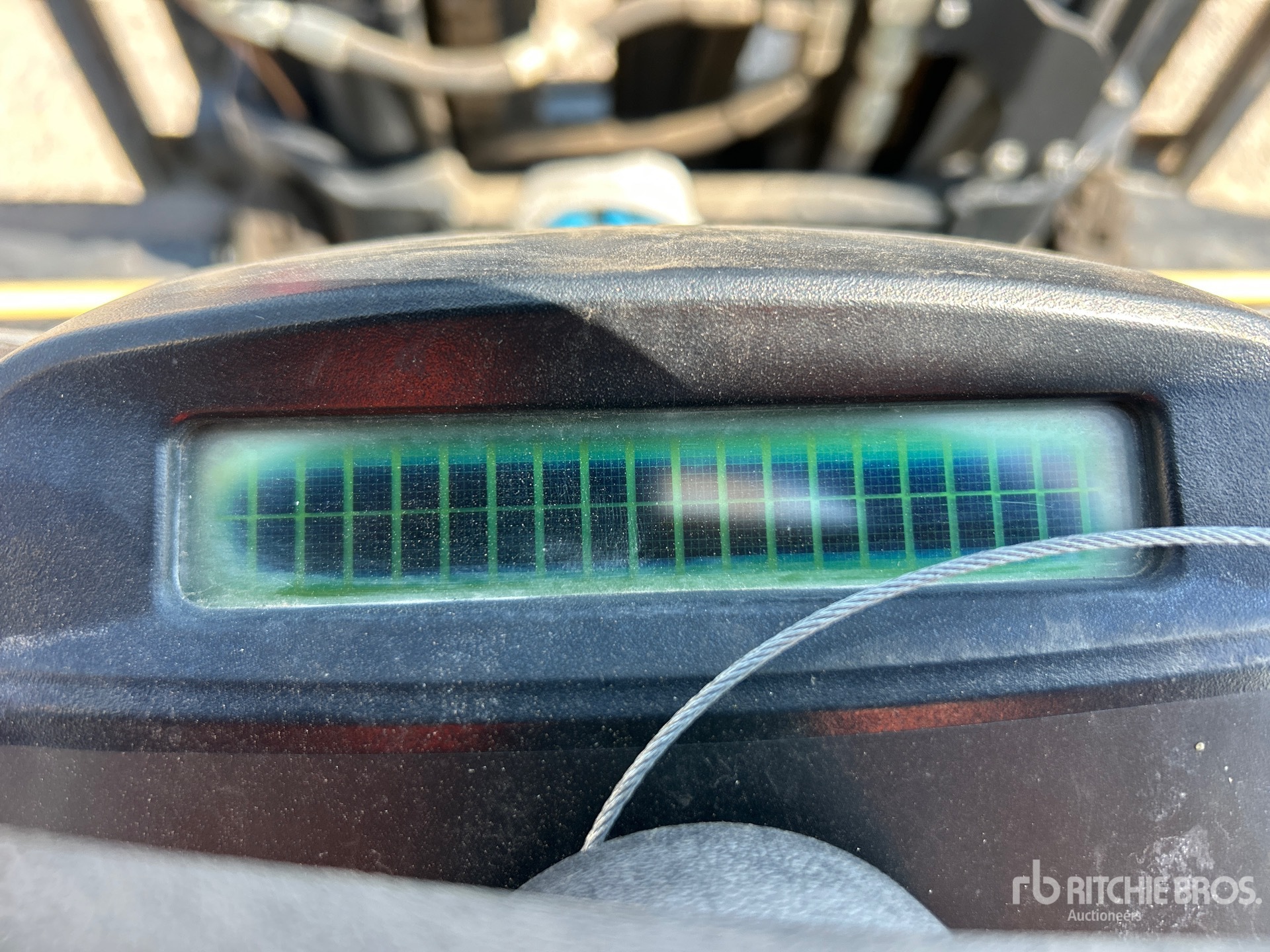

Located in Lane 600, Full Free Lift, 208.7 in Max Lift Height, 102 in Lowered Mast Height, 46 in Forks, Side Shift, Solid Pneumatic Tires, 2016 US EPA Label, PSI 4.3 L Dual Fuel Engine No tank provided - Hydraulic hoses are showing signs of wear - Main lift cylinder is seeping; Unable to obtain hour meter reading - see inspection photos Closing Time: 2026-08-26 10:32:30 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Hyster H100FT is a heavy-duty forklift truck in Hyster's Fortis series, designed for material handling in demanding industrial and warehouse applications. It is commonly configured as a pneumatic tire, internal combustion forklift with a rated capacity of 10,000 lb, depending on mast, load center, and attachment setup. The H100FT is used for loading, unloading, yard work, and general freight handling in manufacturing, distribution, lumber, and construction environments. Typical features include a durable chassis, operator-focused controls, and service-accessible components. Specifications may vary by year, configuration, and region.

Brakes
Parking Brake	Hand/Mechanical
Service Brake	Foot/Hydraulic
Dimensions
Gradeability	29 %
Ground Clearance	9 in (24 cm)
Height To Top Of Overhead Guard	8 ft (2 m)
Length To Fork Face	11 ft (3 m)
Max Fork Height	9 ft (3 m)
Overall Height - Mast Lowered	7 ft (2 m)
Overall Width	5 ft (1 m)
Right Angle Stack	11 ft (3 m)
Turning Radius	9 ft (3 m)
Wheelbase	7 ft (2 m)
Engine
Displacement	263 cu in (4,310 cu cm)
Engine Model	PSI 4.3L V6
Fuel Type	LPG
Number Of Cylinders	6
Power	88 hp (66 kw)
Power Measured @	2,200 rpm
Torque	210 lbs ft (285 nm)
Torque Measured @	2,200 rpm
Mast
Lift Speed	98 ft/min
Load Capacity	10,000 lbs (4,536 kg)
Load Center	24 in (61 cm)
Lower Speed	100 ft/min
Mast Tip Forward	6 degrees
Mast Tip Rear	10 degrees
Max Fork Spread	50 in (126 cm)
Operational
Axle Load - Front	6,642 lbs (3,013 kg)
Axle Load - Rear	8,268 lbs (3,750 kg)
Drawbar Pull	6,914 lbs (3,136 kg)
Front Tire Size	300 x 15 - 20 Ply
Hydraulic System Relief Valve Pressure	2,250 psi
Hydraulic Tank	18 gal (68 l)
Max Speed	12 mph (19 kph)
Number Of Front Wheels	2
Number Of Rear Wheels	2
Operating Weight	14,910 lbs (6,763 kg)
Rear Tire Size	7.00 x 12 - 14 Ply
Tire Type	Pneumatic
