2013 Hyster H230HD2S For Sale in Birmingham, AL

Name: 2013 Hyster H230HD2S
Brand: Hyster
SKU: 89242543
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-10-14

JJ Kane Auctions

JJ Kane Auctions Dealer Info

JJ Kane Auctions Website

Click here to email JJ Kane Auctions.

Click for Phone Number

Machine Info:

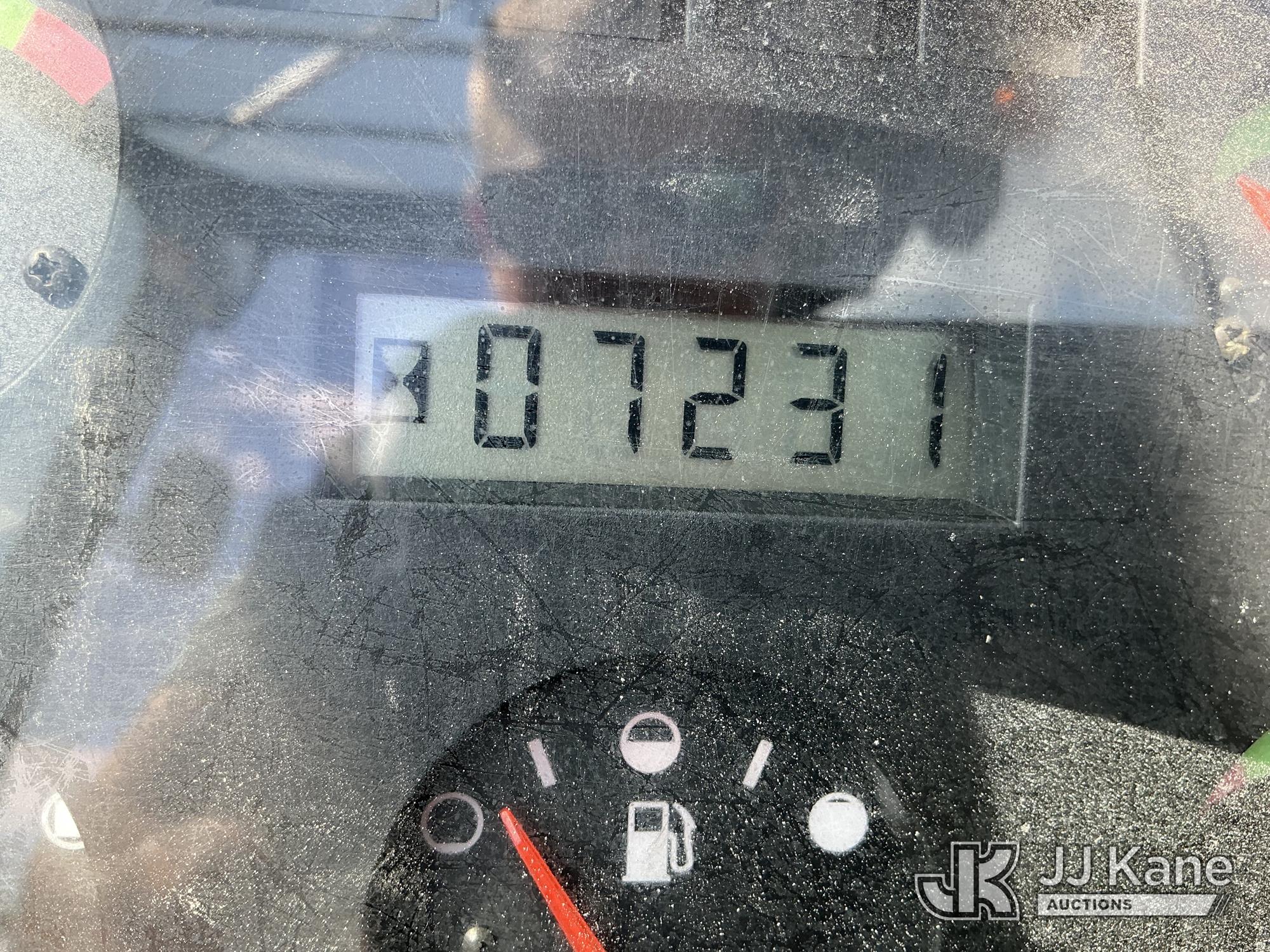

Hours:	7231

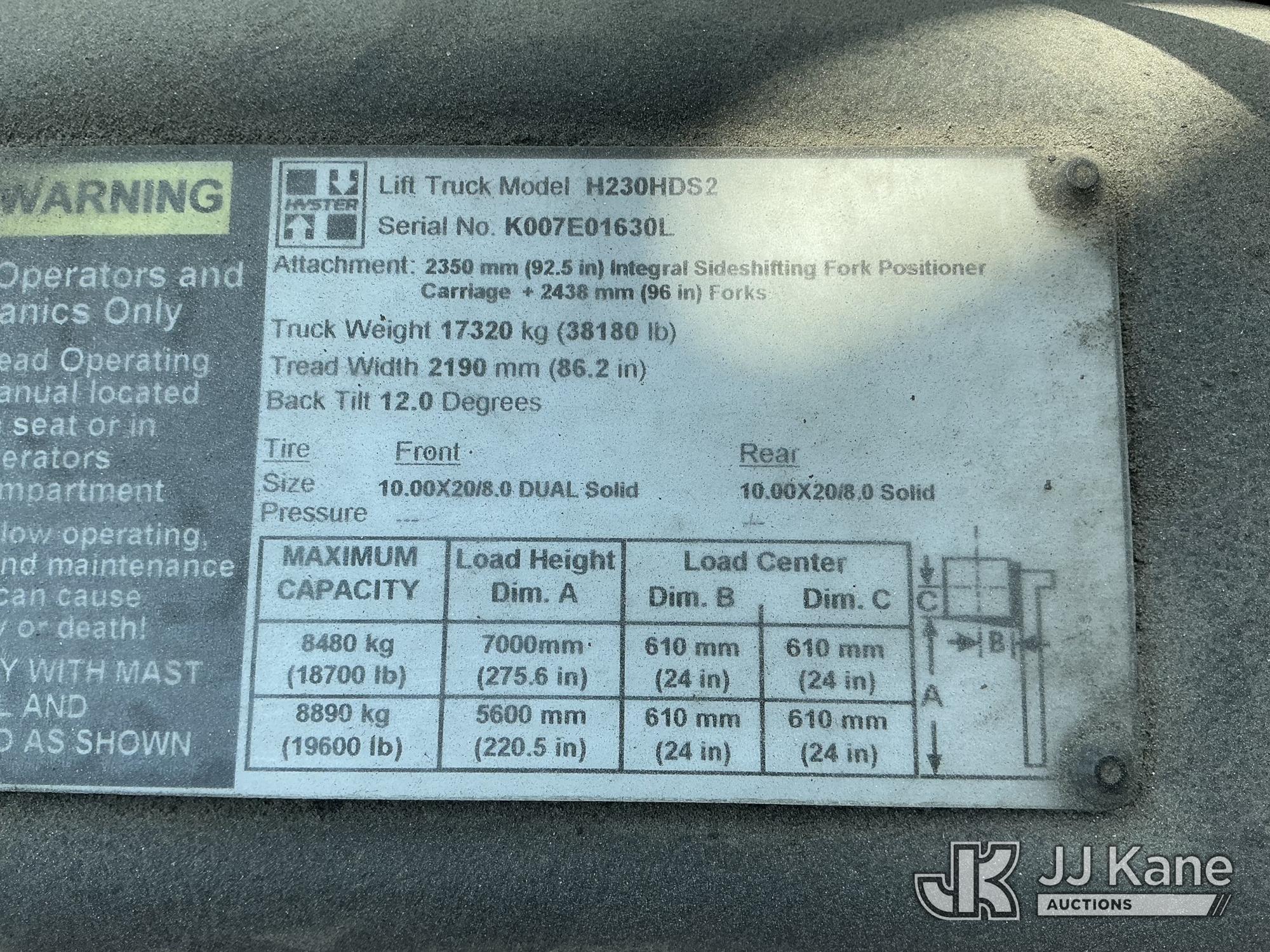

Serial Number:	K007E01630L
Machine Location:	BIRMINGHAM, AL

Description:

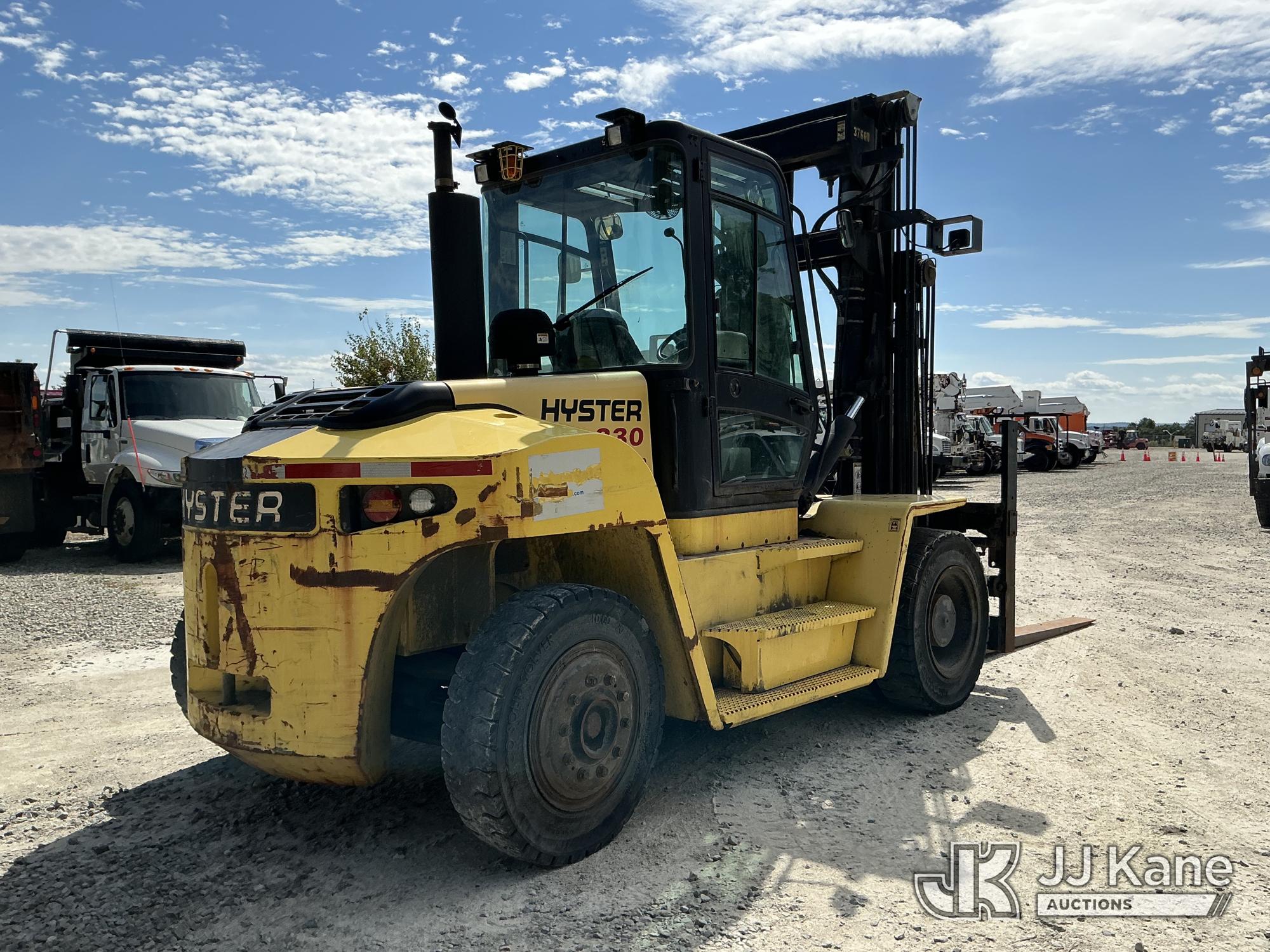

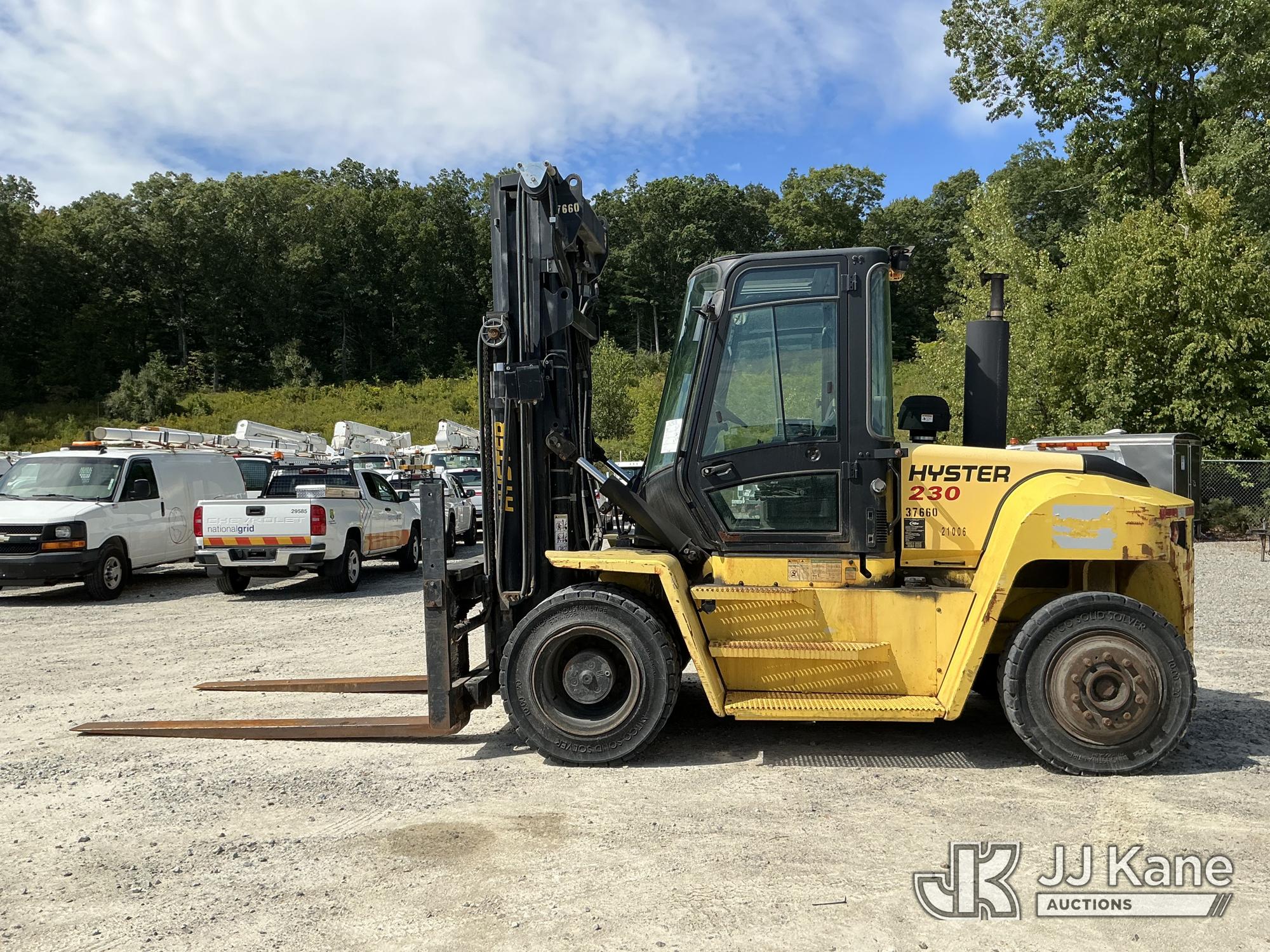

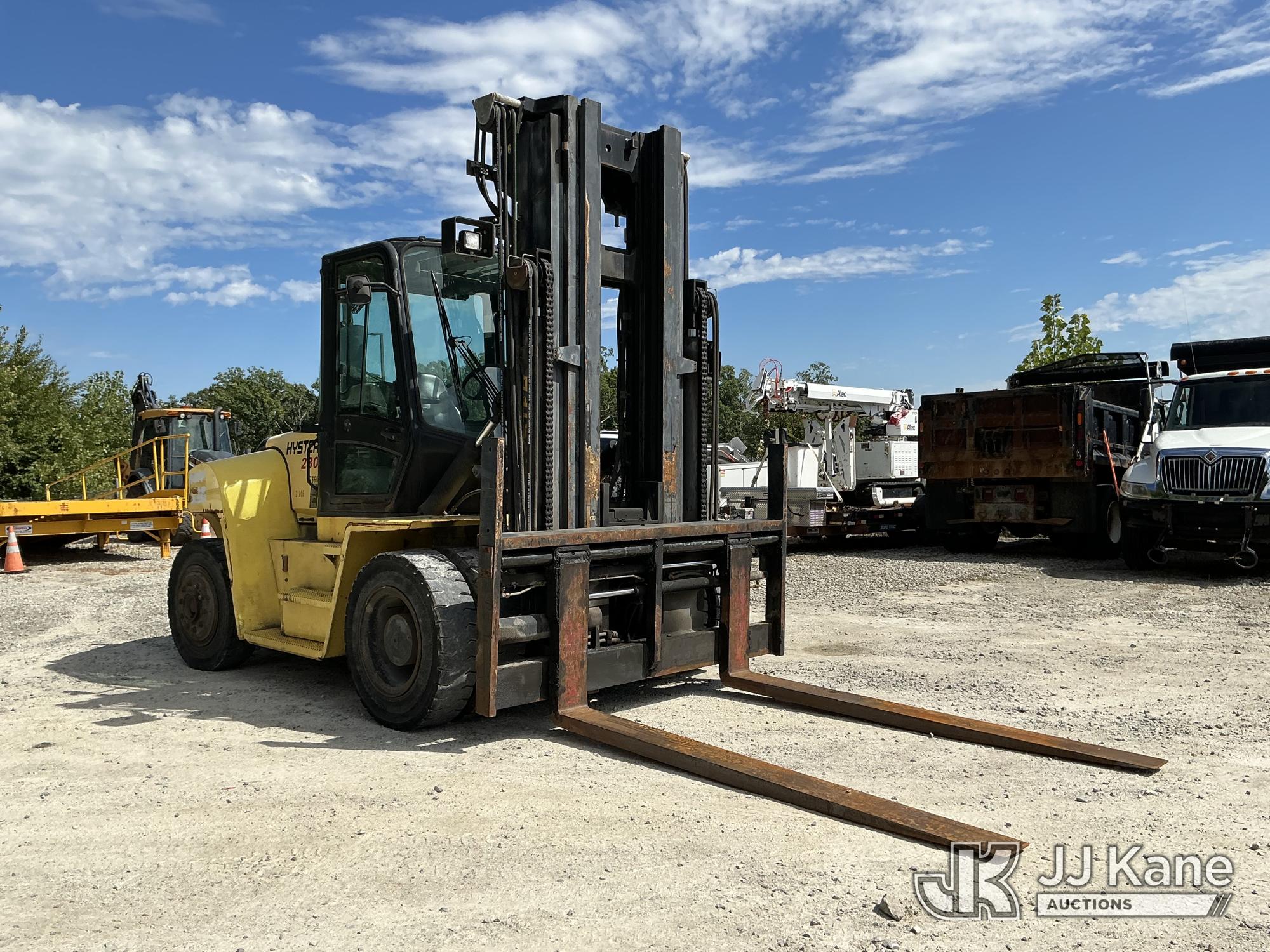

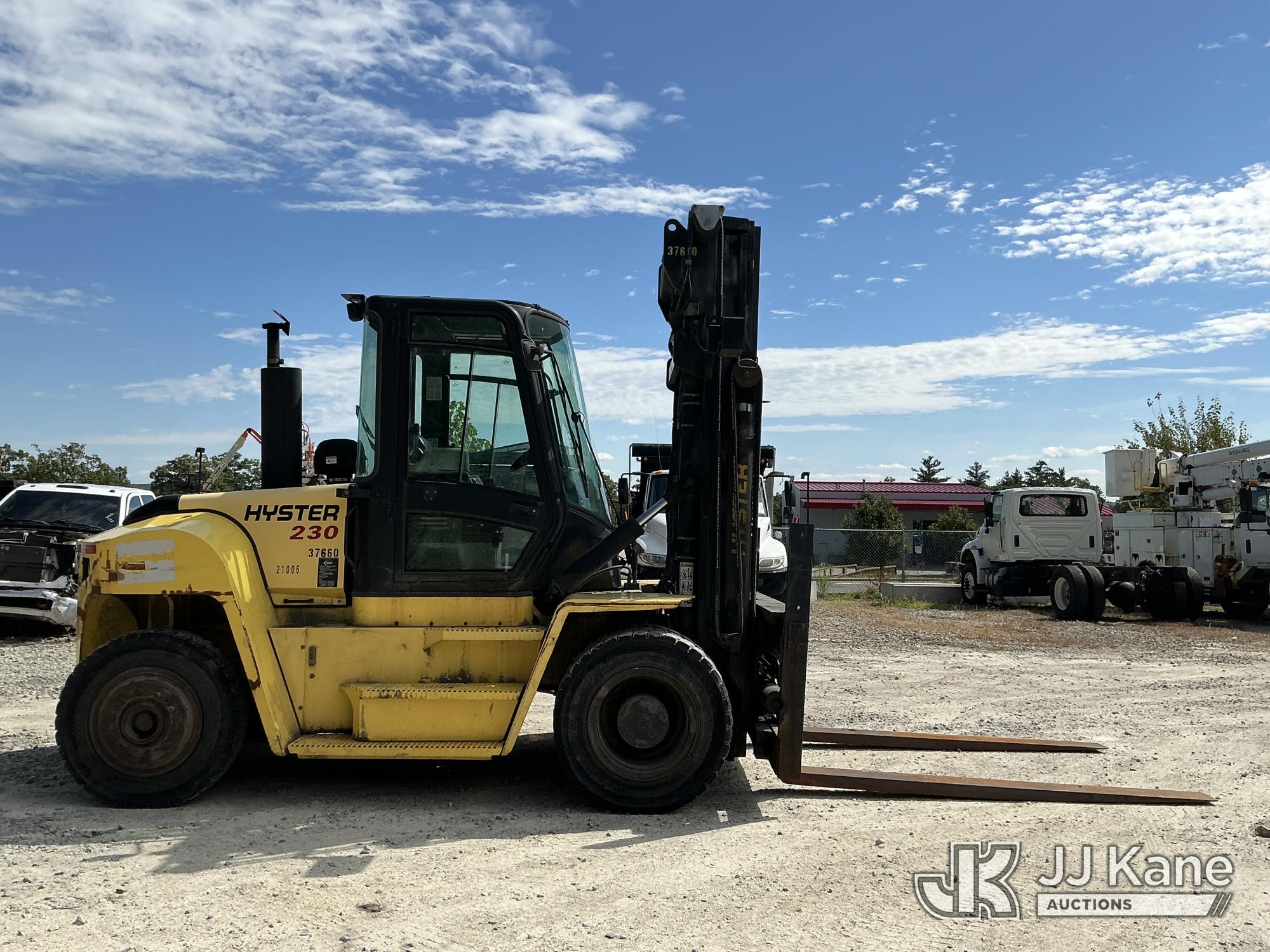

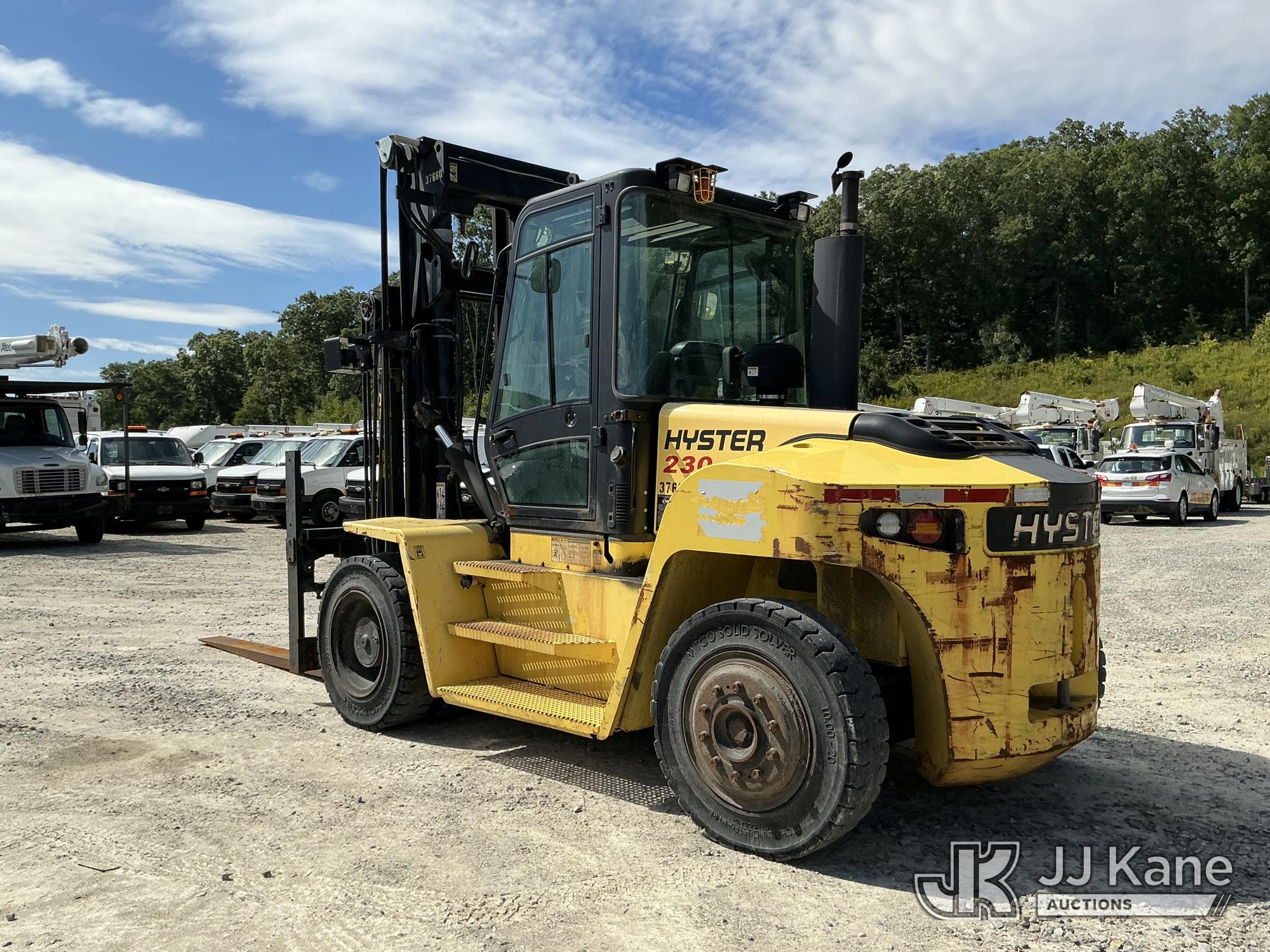

2013 Hyster H230HD2S Solid Tired Forklift, s/n K007E01630L, 6.7L I6 Diesel, Shuttle, with 18,700 lb cap., 275 inch 3 Stage Mast, Hyd Open/Close Forks, Hyd Side Shift, 92 inch Carriage, 96 inch Forks , (Runs, Moves & Operates) (Reads 7,231 hours) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in Shrewsbury, MA. Inspection & preview days for this unit are the 2 business days prior to the first day of items closing for this auction, item is located at 11 Fortune Blvd Shrewsbury, MA 01545 and hours of operations are 8a-4p. For pre-sale questions, please contact Office Staff @ (508) 864-4126. (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.)

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Brakes
Parking Brake	Spring applied, dry disc on drive axle
Service Brake	Oil immersed (wet) disc
Dimensions
Front Tread Range	73 in (184 cm)
Gradeability	44 %
Ground Clearance	10 in (25 cm)
Height To Top Of Overhead Guard	10 ft (3 m)
Length To Fork Face	14 ft (4 m)
Overall Height - Mast Lowered	12 ft (4 m)
Overall Width	8 ft (2 m)
Rear Tread Range	76 in (193 cm)
Turning Radius	13 ft (4 m)
Wheelbase	9 ft (3 m)
Engine
Displacement	272 cu in (4,457 cu cm)
Engine Make	Cummins
Engine Model	QSB 4.5
Fuel Type	Diesel
Number Of Cylinders	4
Power	160 hp (119 kw)
Power Measured @	2,300 rpm
Torque	460 lbs ft (624 nm)
Torque Measured @	1,500 rpm
Mast
Lift Speed	79 ft/min
Load Capacity	23,001 lbs (10,433 kg)
Load Center	24 in (61 cm)
Lower Speed	98 ft/min
Mast Tip Forward	15 degrees
Mast Tip Rear	12 degrees
Operational
Alternator Supplied Amperage	120 amps
Axle Load - Front	49,941 lbs (22,653 kg)
Axle Load - Rear	4,570 lbs (2,073 kg)
Drawbar Pull	21,400 lbs (9,707 kg)
Front Tire Size	10.00-20 16PR
Fuel Capacity	28 gal (104 l)
Hydraulic System Fluid Capacity	36 gal (135 l)
Number Of Front Wheels	4
Number Of Rear Wheels	2
Oil System Fluid Capacity	27 gal (100 l)
Operating Voltage	24 V
Operating Weight	31,511 lbs (14,293 kg)
Rear Tire Size	10.00-20 16PR
Tire Type	Pneumatic
Transmission
Drive System	Powershift Transmission
Number Of Forward / Reverse Speeds	3 / 3
Transmission Type	ZF WG161
