2012 Hyster H360HD2 For Sale in Birmingham, AL

Name: 2012 Hyster H360HD2
Brand: Hyster
SKU: 88971621
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-09-02

JJ Kane Auctions

JJ Kane Auctions Dealer Info

JJ Kane Auctions Website

Click here to email JJ Kane Auctions.

Click for Phone Number

Machine Info:

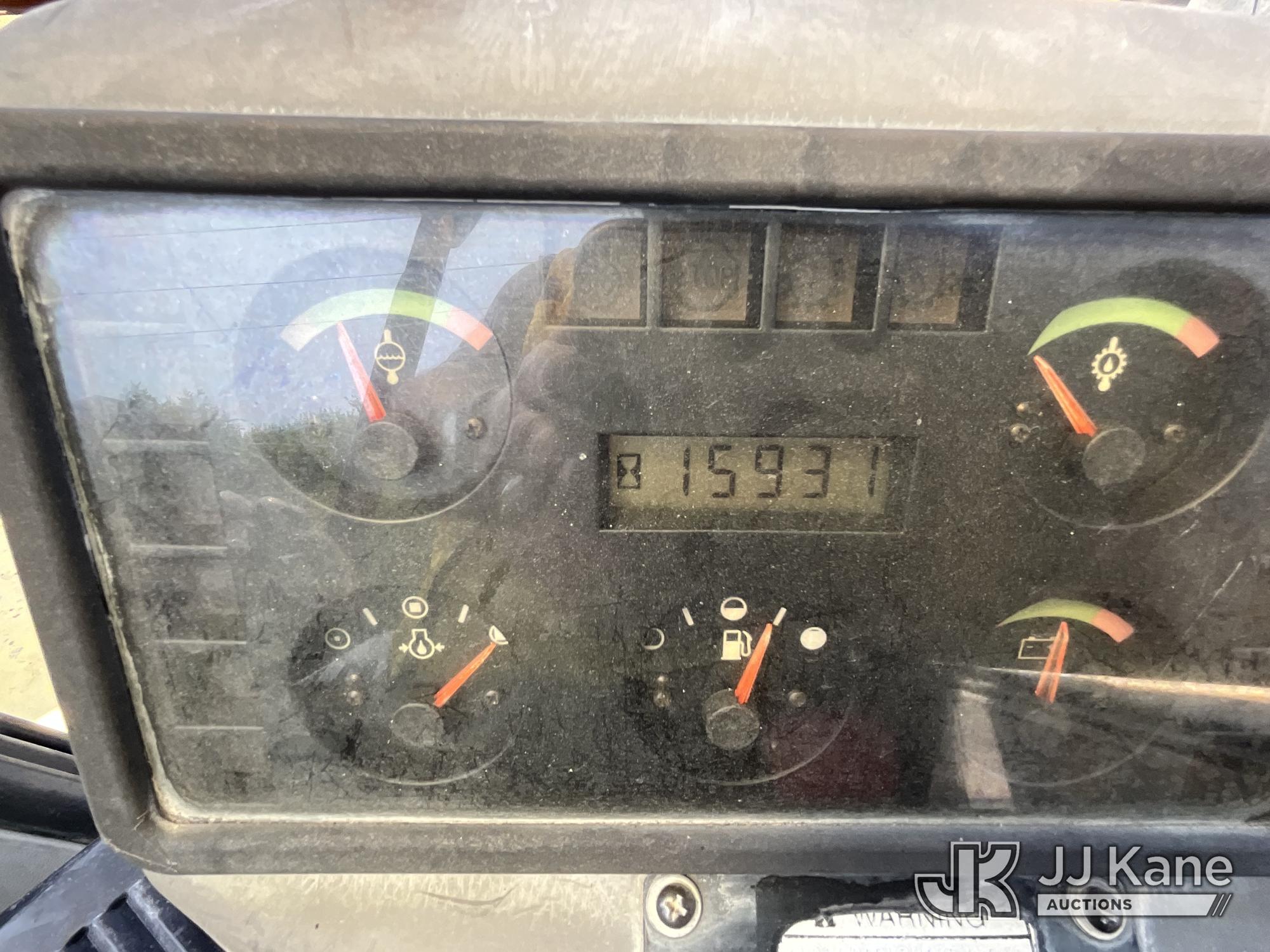

Hours:	15931
Serial Number:	J019E01621K
Machine Location:	BIRMINGHAM, AL

Description:

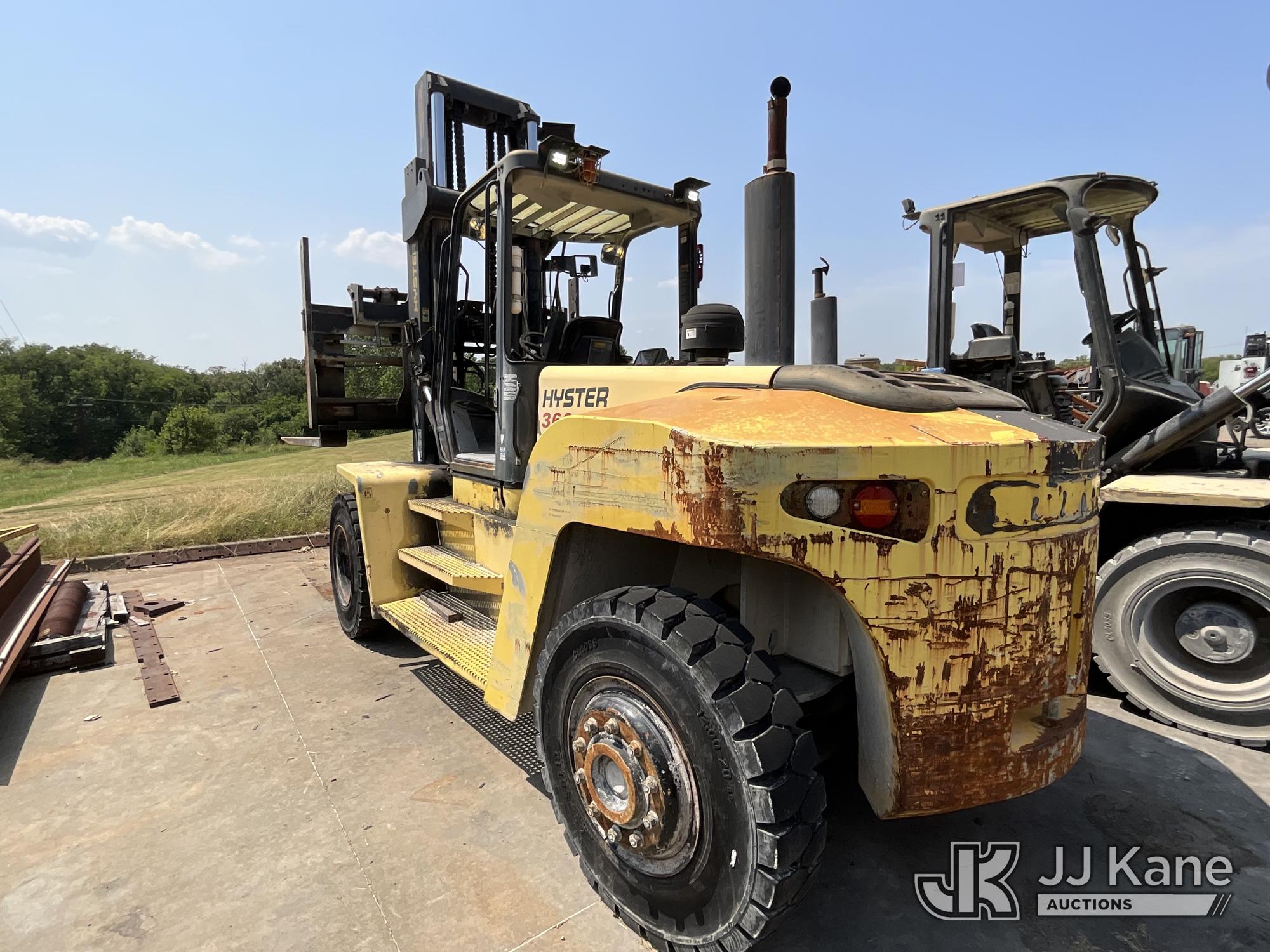

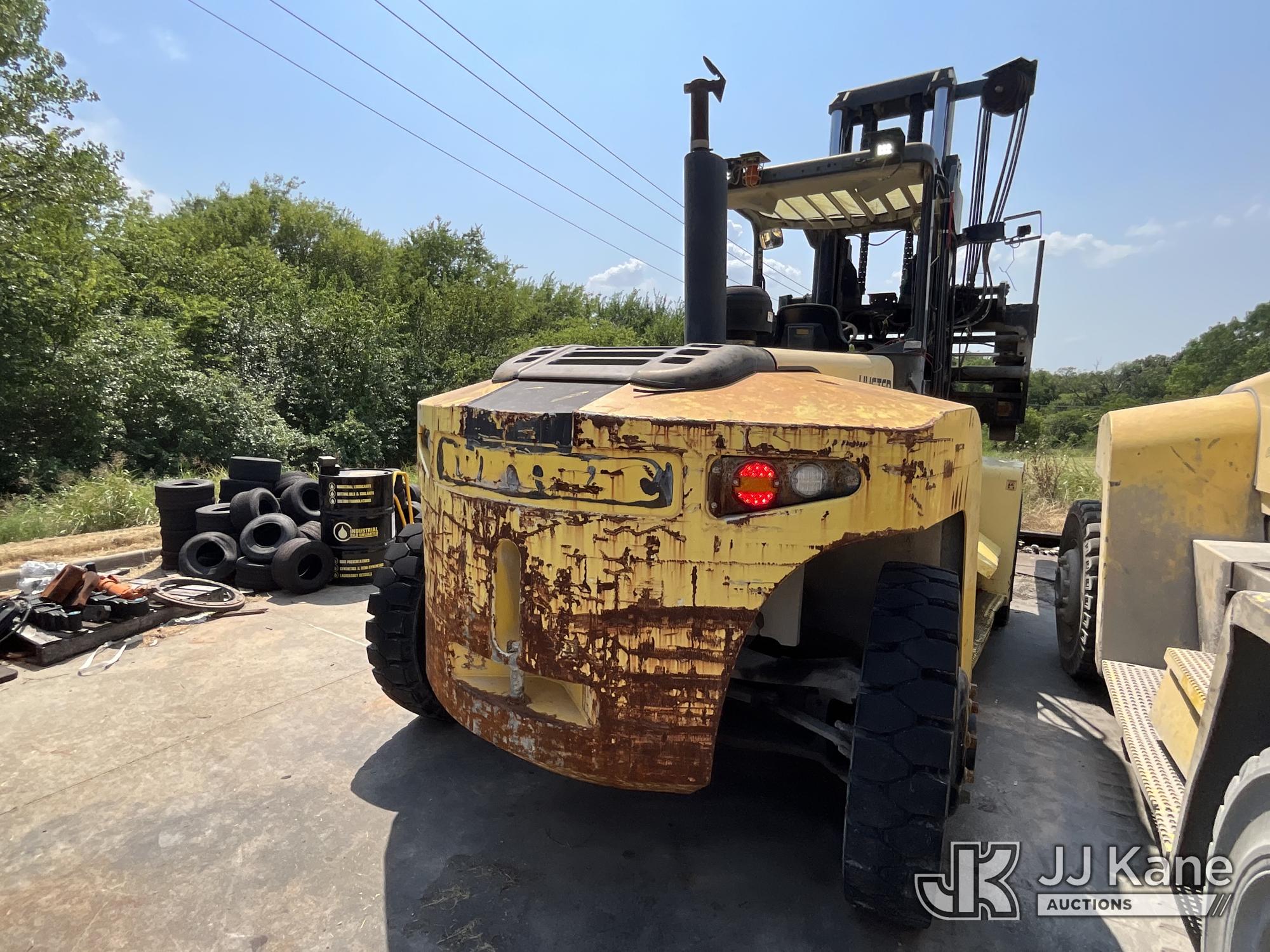

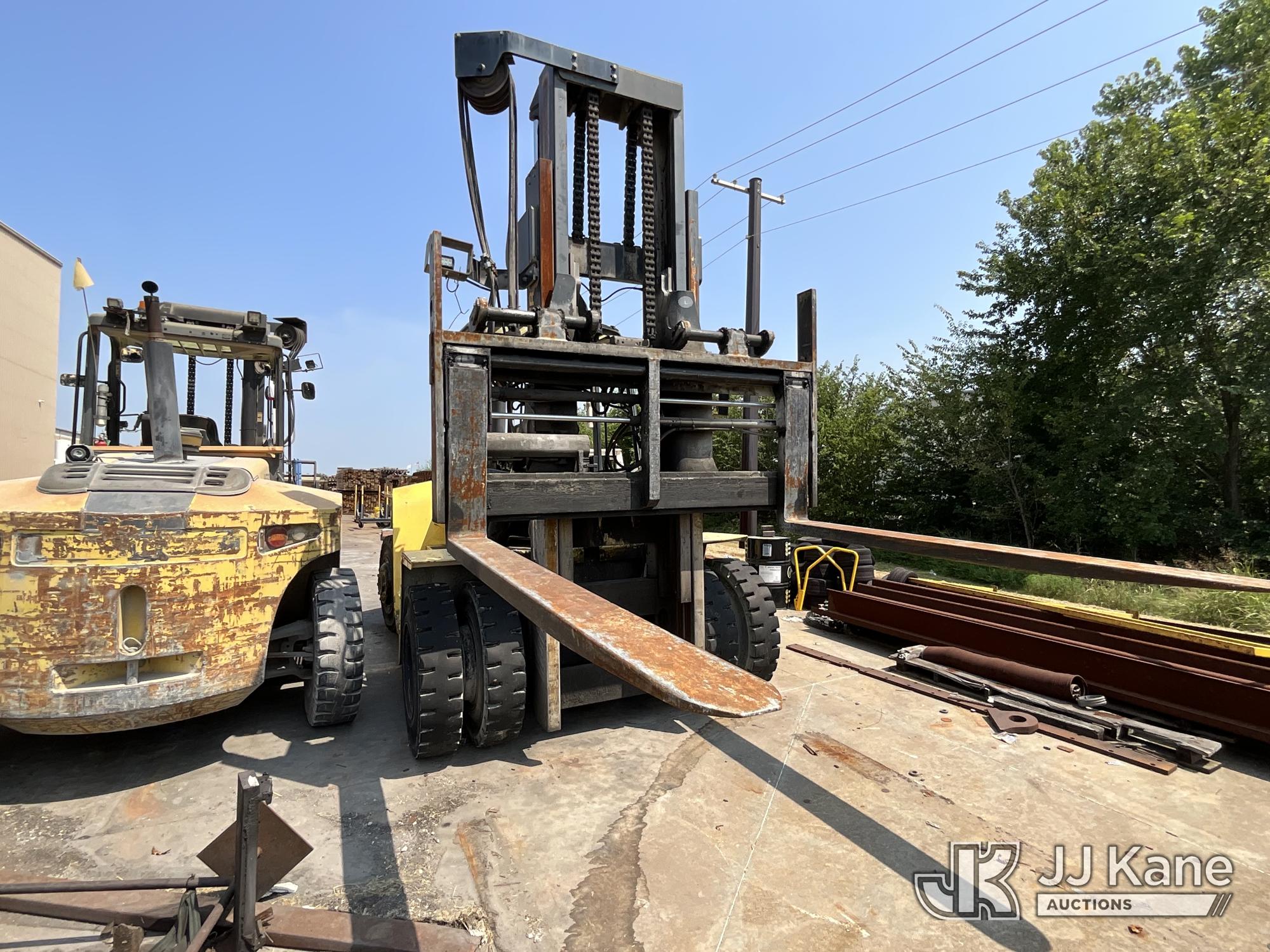

2012 Hyster H360HD2 Rubber Tired Forklift, s/n J019E01621K, Cummins QSB 6.7L Turbo Diesel ZF Powershift, with 147.6 inch Load Height. 98.4 in Integral Side Shifting Fork Positioner Carriage. 96 in Forks. 12-20 Dual Solid Front Tires. 12-20 Solid Rear Tires. ROPS, Rated Lift Capacity Of 34,100 LBS (Runs & Operates) (Does Not Move, Seller States: That A New Starter Relay Is Required To Start Vehicle) (Reads 15,931 hours) NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in Claremore, OK. For more information & removal arrangements please contact Ben Cox @ 572-235-0552. (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.)

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Brakes
Parking brake	Spring applied dry disc on drive axle
Service brake	Oil immersed (wet) disc
Dimensions
Front Tread Range	73 in (184 cm)
Gradeability	32%
Ground Clearance	10 in (25 cm)
Height to Top of Overhead Guard	10 ft (3 m)
Length to Fork Face	16 ft (5 m)
Overall Height - mast lowered	12 ft (4 m)
Overall Width	8 ft (3 m)
Rear Tread Range	79 in (200 cm)
Turning Radius	15 ft (5 m)
Wheelbase	11 ft (3 m)
Engine
Alternator	120 amps
Battery	102 Ah
Displacement	408 cu in (6,691 cu cm)
Emission Tier Level	TIER 3
Engine Make	Cummins
Engine Model	QSB 6.7
Fuel Type	Diesel
Number of Cylinders	6
Power	155 hp (116 kw)
Power Measured @	2,300 rpm
Torque	440 lbs ft (597 nm)
Torque Measured @	1,500 rpm
MAST
Lift Speed	71 ft/min (22 m/min)
Load Capacity	36,000 lbs (16,329 kg)
Load Center	24 in (61 cm)
Lower Speed	98 ft/min (30 m/min)
Mast Tip Forward	15 degrees
Mast Tip Rear	12 degrees
Operating Specifications
Axle load - front	72,805 lbs (33,024 kg)
Axle load - rear	6,085 lbs (2,760 kg)
Drawbar Pull	20,400 lbs (9,253 kg)
Front Tire Size	12.00-20 20PR
Fuel Capacity	42 gal (159 l)
Hydraulic System Fluid Capacity	37 gal (140 l)
Max Speed	17 mph (27 kph)
Number of Front Wheels	4
Number of Rear Wheels	2
Oil System Fluid Capacity	26 gal (100 l)
Operating Voltage	24 volts
Operational Weight	42,891 lbs (19,455 kg)
Rear Tire Size	12.00-20 20PR
Tire Type	Pneumatic
Transmission
Drive system	Powershift Transmission
Number of Forward / Reverse Speeds	3-3
Transmission Type	ZF / WG161
