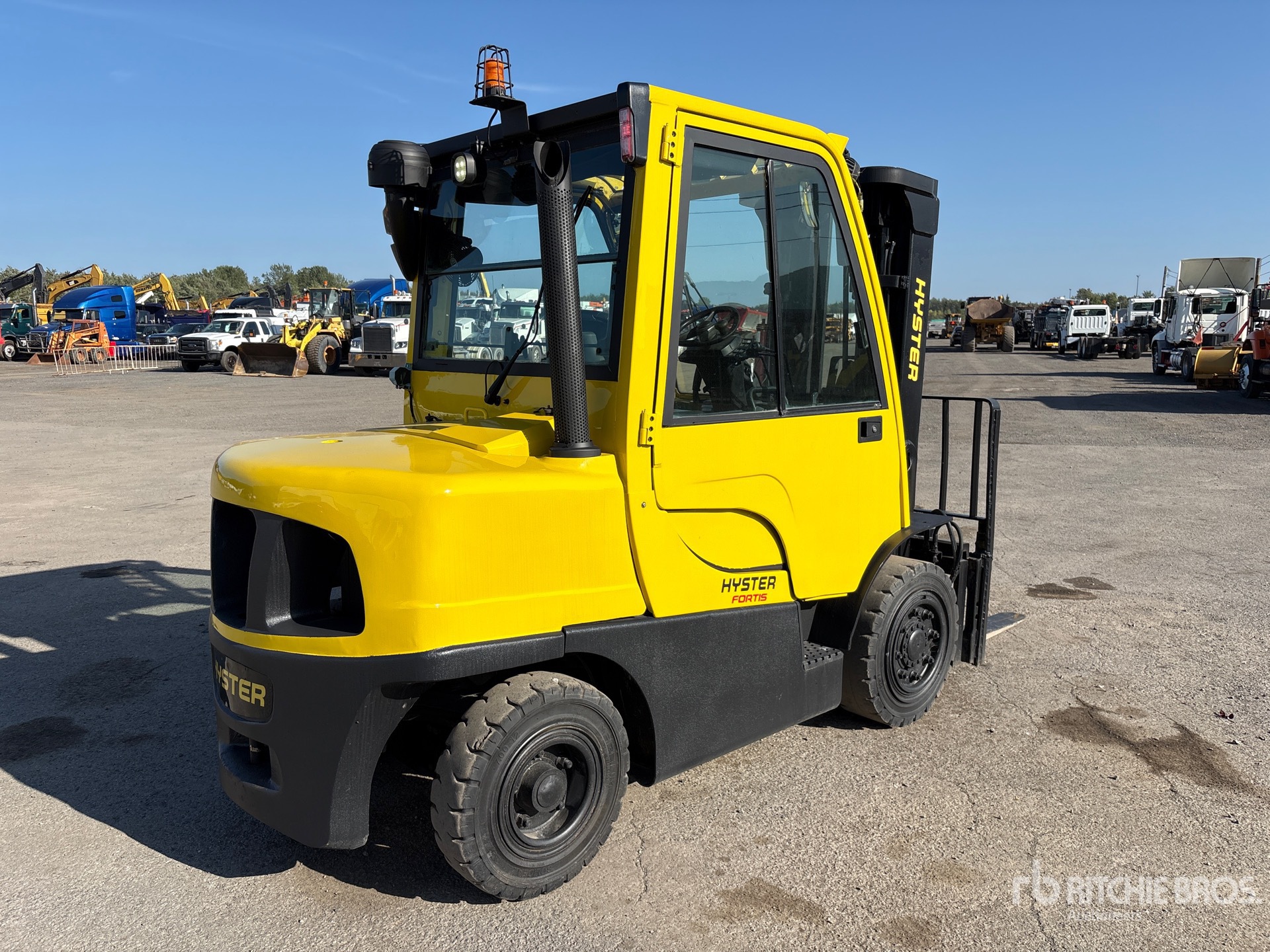

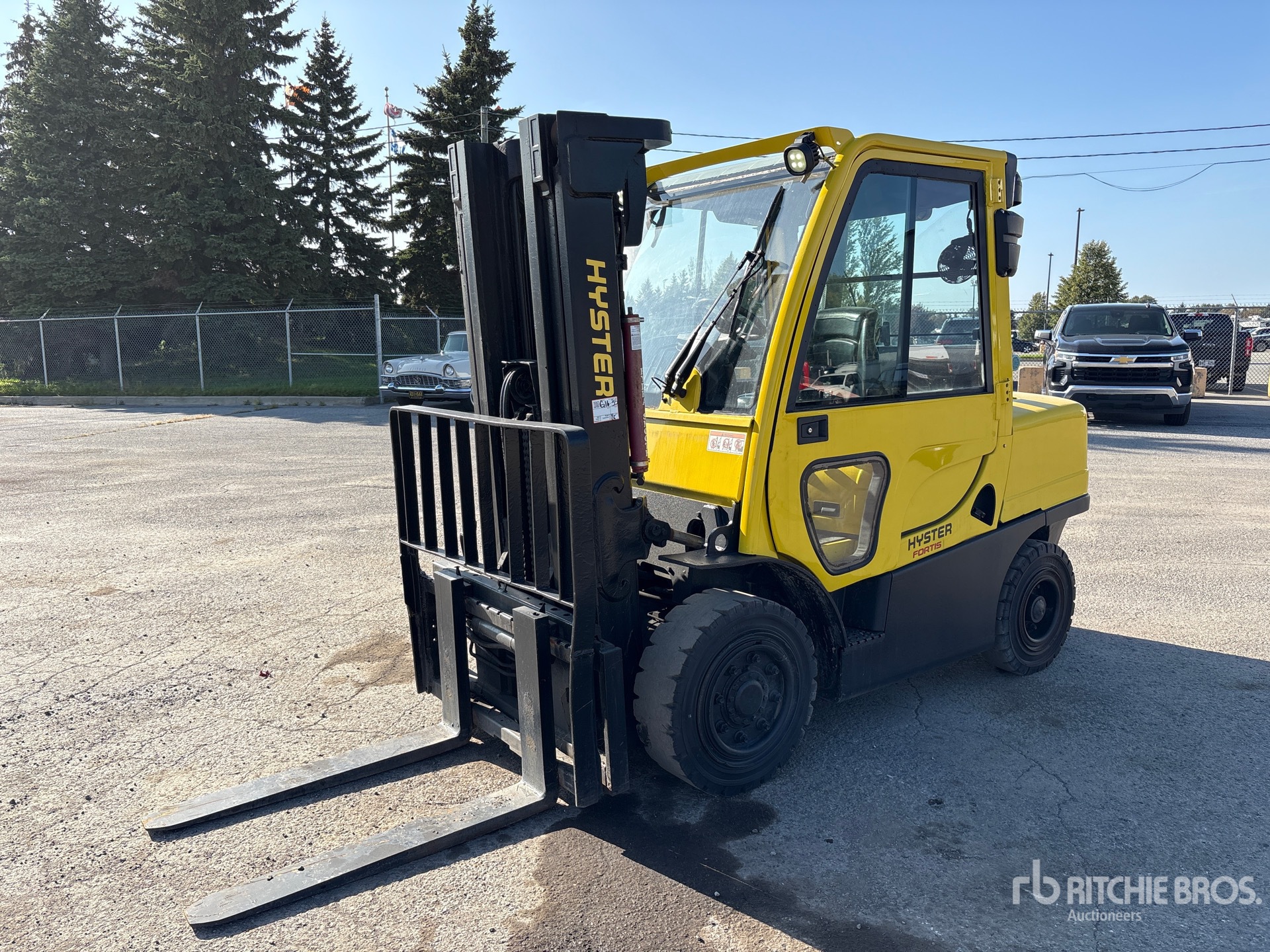

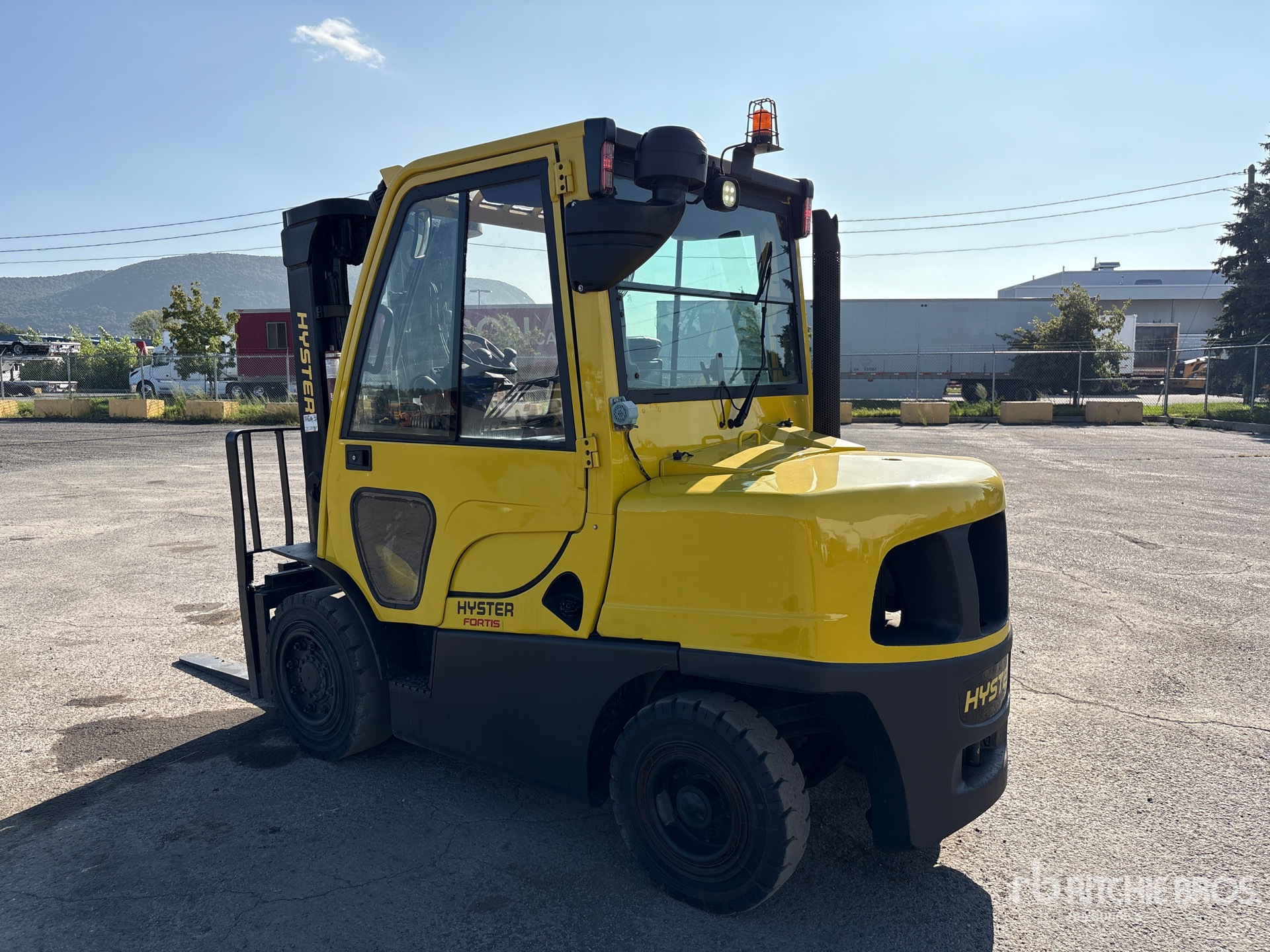

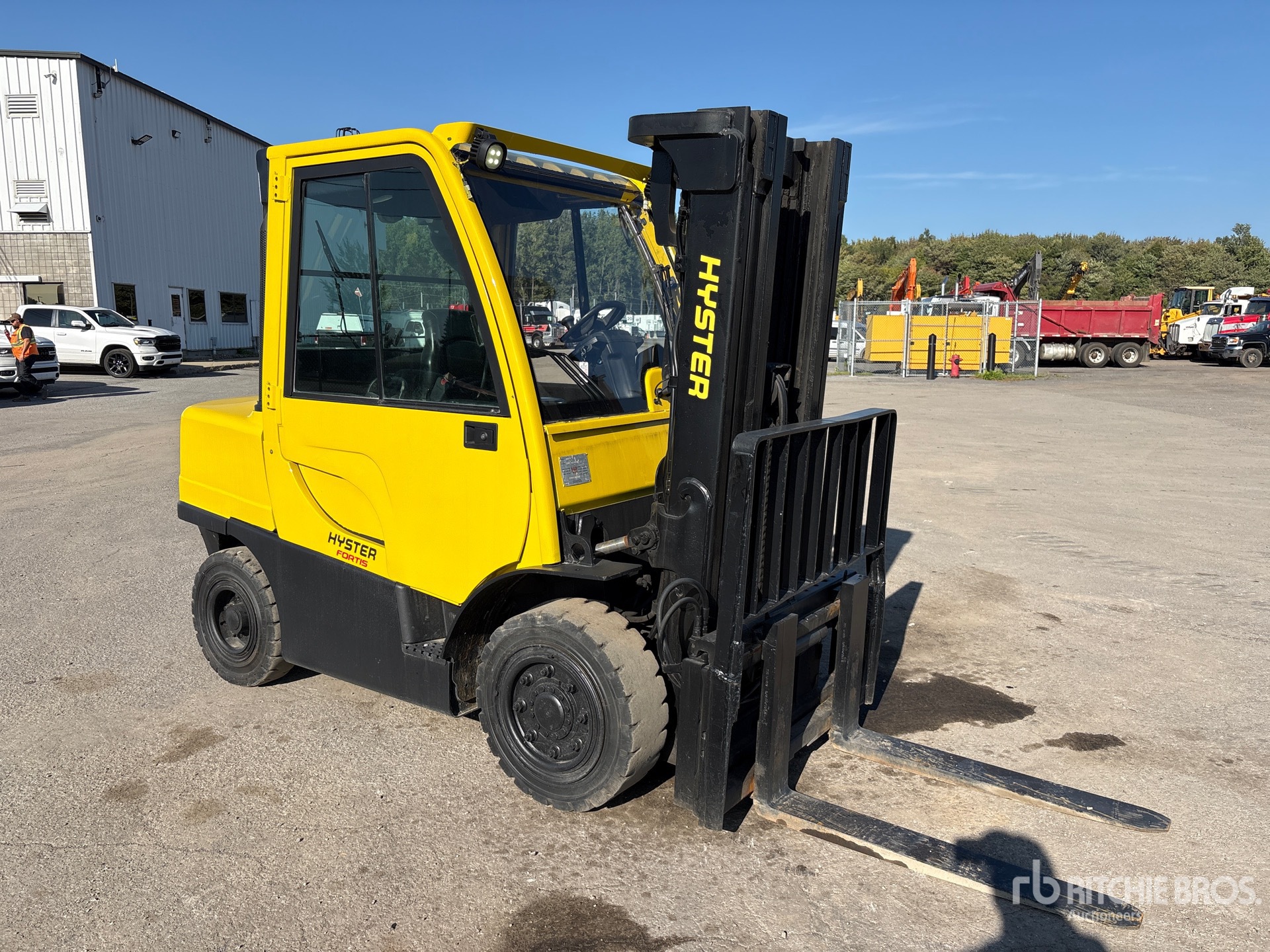

2012 Hyster H90FT

Name: 2012 Hyster H90FT
Brand: Hyster
SKU: 89236576
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-09-21 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

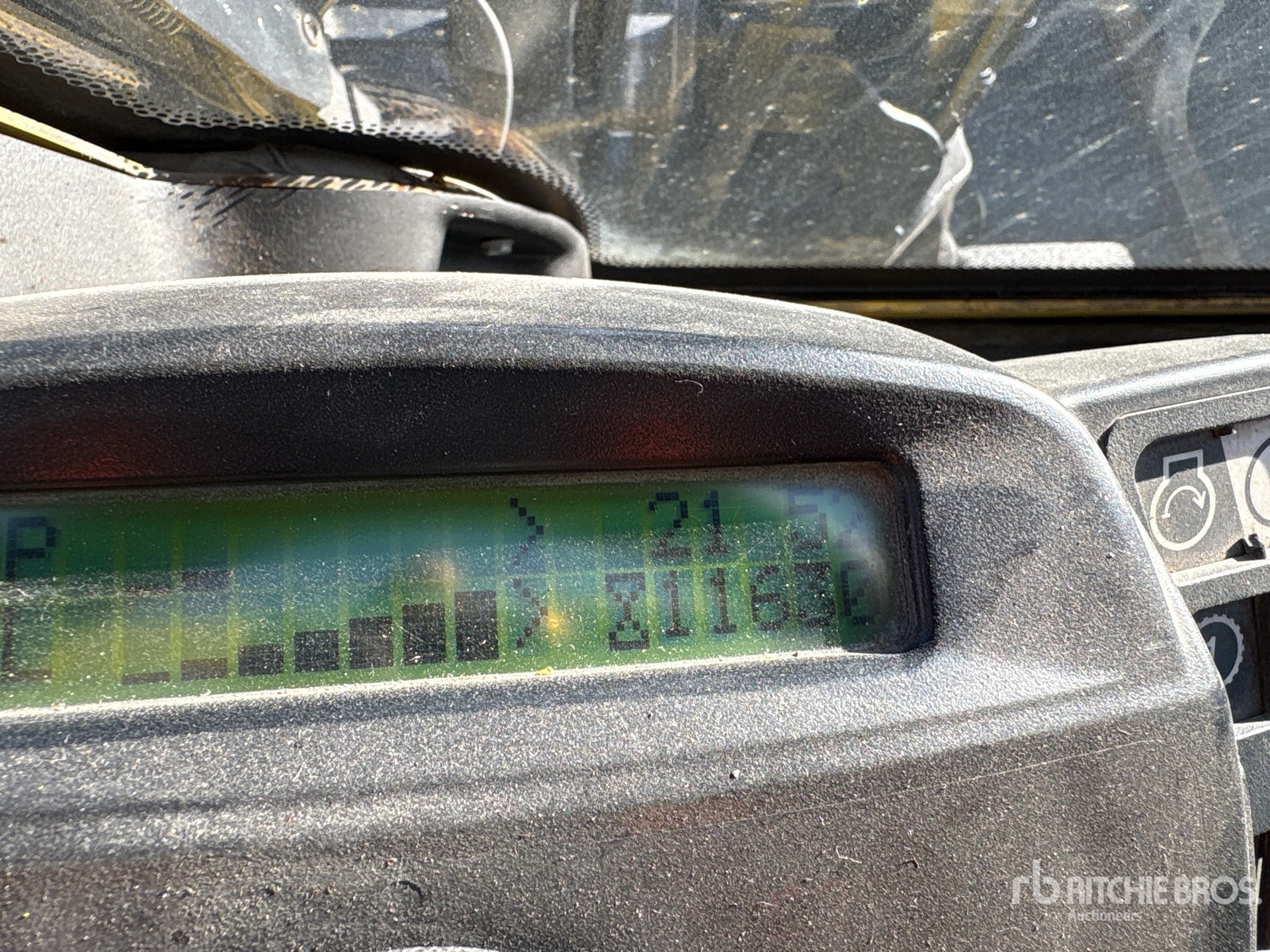

Hours:	11630

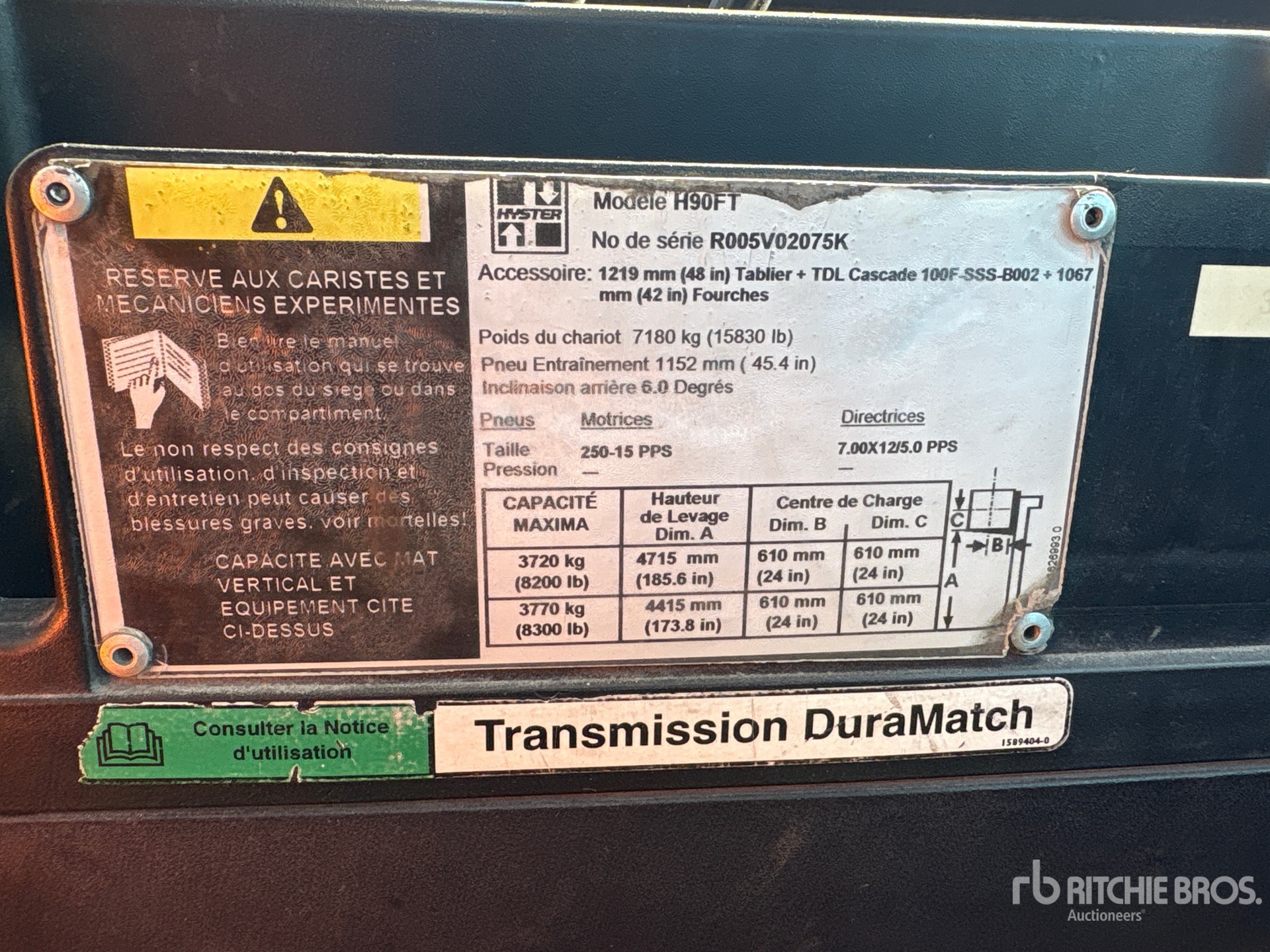

Serial Number:	R005V02075K
Machine Location:	MONTREAL, QC

Description:

Located in Lane 9 Spot 73, Enclosed Cab, 3 Stage Mast, 185.6 in Max Lift Height, 24 in Lowered Mast Height, 42 in Forks, Kubota V3800-T 4 Cylinder 3.8 L Diesel Engine Closing Time: 2026-09-21 10:38:42 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Hyster H90FT is a cushion-tire forklift truck in Hyster's HFT series, designed for indoor material handling and warehouse applications. It is commonly used for loading, unloading, pallet transport, and general lift truck duties in distribution, manufacturing, and storage environments. The H90FT is typically powered by an internal combustion engine and built for maneuverability in confined spaces with a focus on lift capacity, operator visibility, and durability. As part of the Hyster forklift lineup, the H90FT is associated with industrial lifting tasks where reliable performance and controlled handling are required.

Brakes
Parking Brake	Hand/Mechanical
Service Brake	Foot/Hydraulic
Dimensions
Gradeability	32 %
Ground Clearance	6 in (15 cm)
Height	8 ft (2 m)
Height To Top Of Overhead Guard	7 ft (2 m)
Length	10 ft (3 m)
Length To Fork Face	10 ft (3 m)
Max Fork Height	10 ft (3 m)
Overall Height - Mast Lowered	7 ft (2 m)
Overall Width	5 ft (1 m)
Right Angle Stack	10 ft (3 m)
Turning Radius	9 ft (3 m)
Weight	14,039 lbs (6,368 kg)
Wheelbase	6 ft (2 m)
Width	6 ft (2 m)
Engine
Displacement	263 cu in (4,310 cu cm)
Engine Model	PSI 2.4L
Fuel Type	LPG
Number Of Cylinders	4
Power	74 hp (55 kw)
Power Measured @	1,800 rpm
Torque	210 lbs ft (285 nm)
Torque Measured @	1,800 rpm
Mast
Lift Speed	121 ft/min
Load Capacity	9,000 lbs (4,082 kg)
Load Center	24 in (61 cm)
Lower Speed	108 ft/min
Mast Tip Forward	6 degrees
Mast Tip Rear	10 degrees
Max Fork Spread	44 in (111 cm)
Operational
Axle Load - Front	8,341 lbs (3,783 kg)
Axle Load - Rear	5,579 lbs (2,531 kg)
Drawbar Pull	5,882 lbs (2,668 kg)
Front Tire Size	250 x 15 - 20 Ply
Fuel Capacity	14 gal (53 l)
Hydraulic System Relief Valve Pressure	2,250 psi
Hydraulic Tank	12 gal (46 l)
Max Speed	13 mph (21 kph)
Number Of Front Wheels	2
Number Of Rear Wheels	2
Operating Weight	13,920 lbs (6,314 kg)
Rear Tire Size	7.00 x 12 - 14 Ply
Tire Type	Pneumatic
