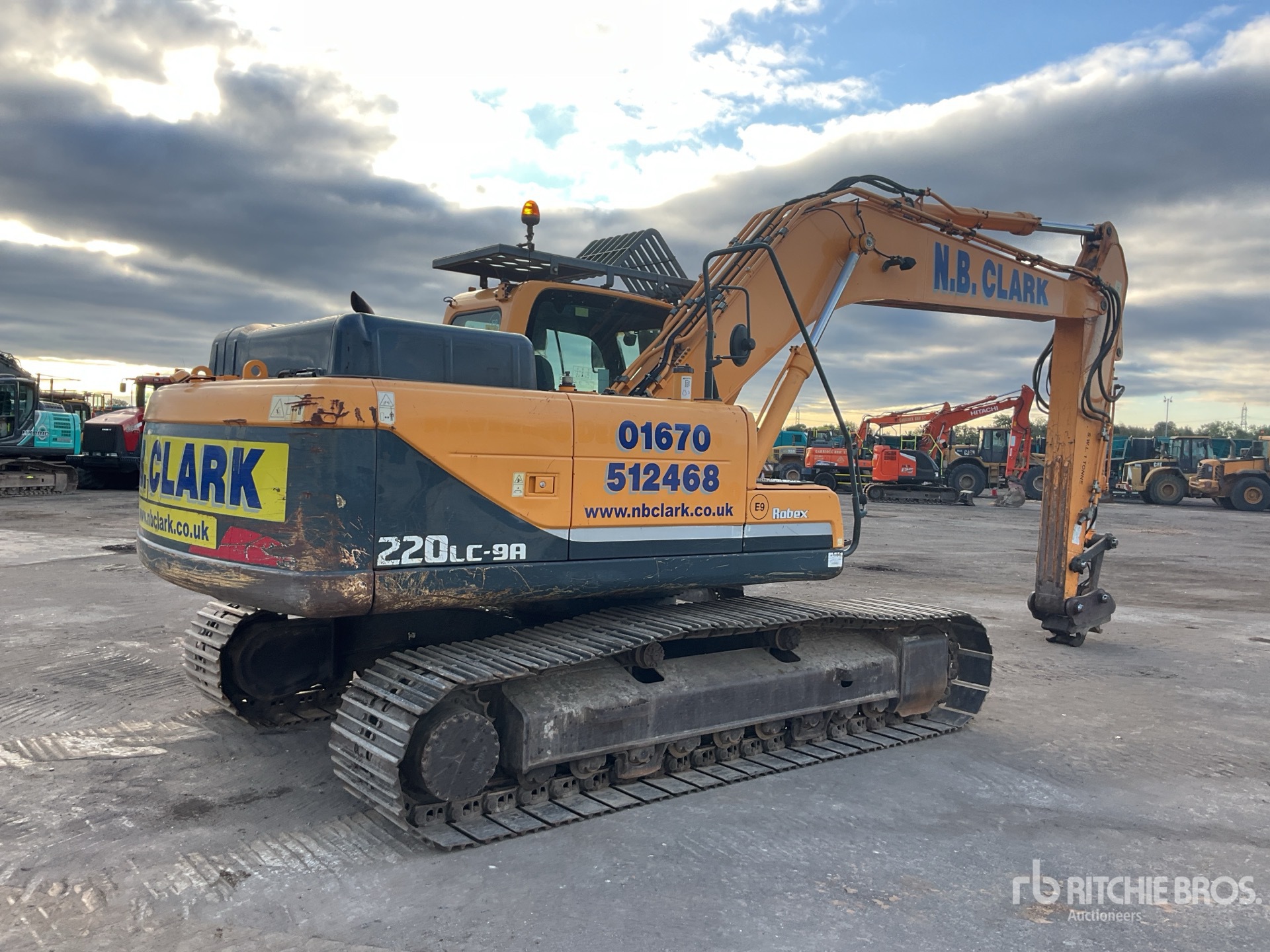

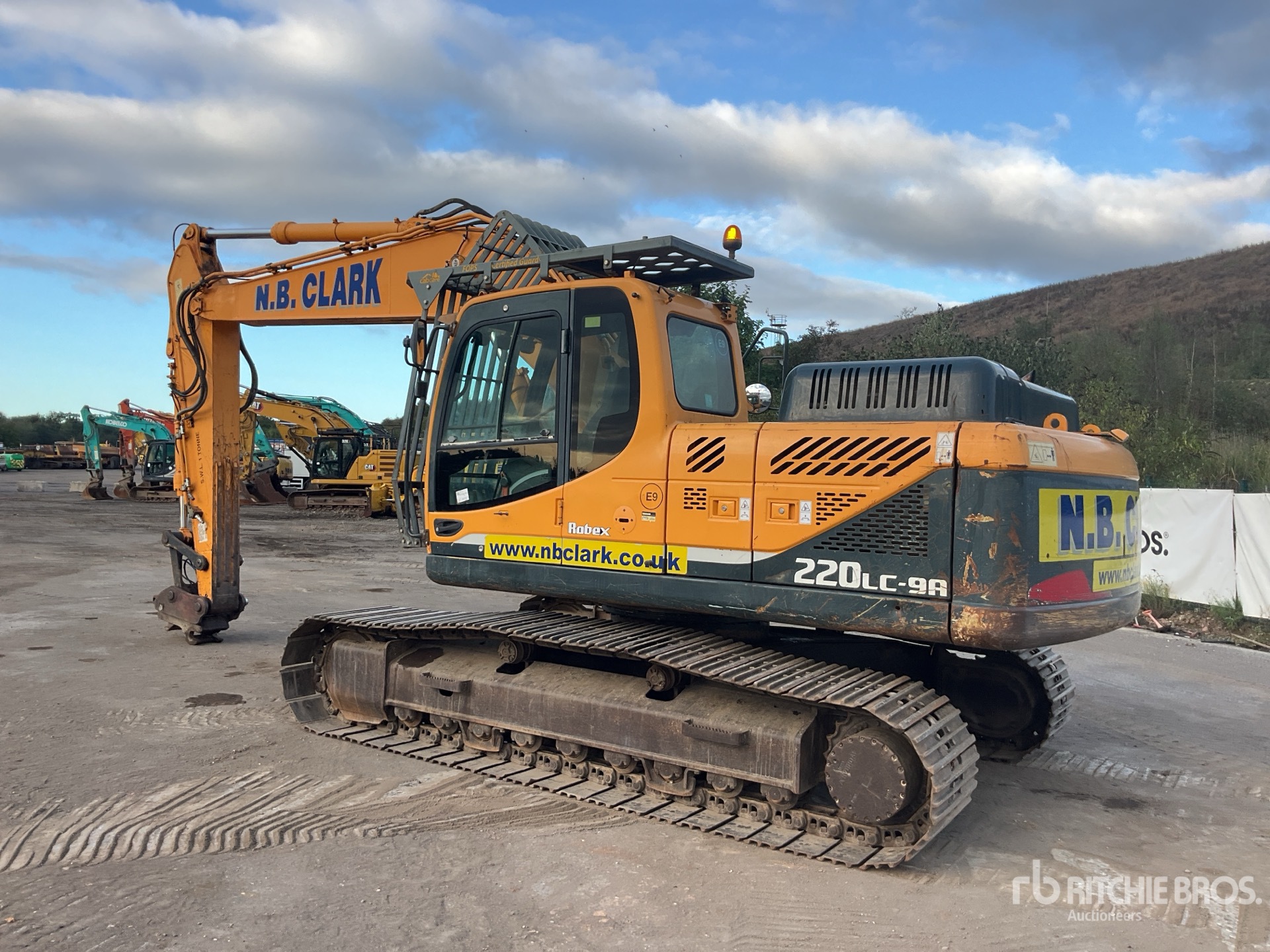

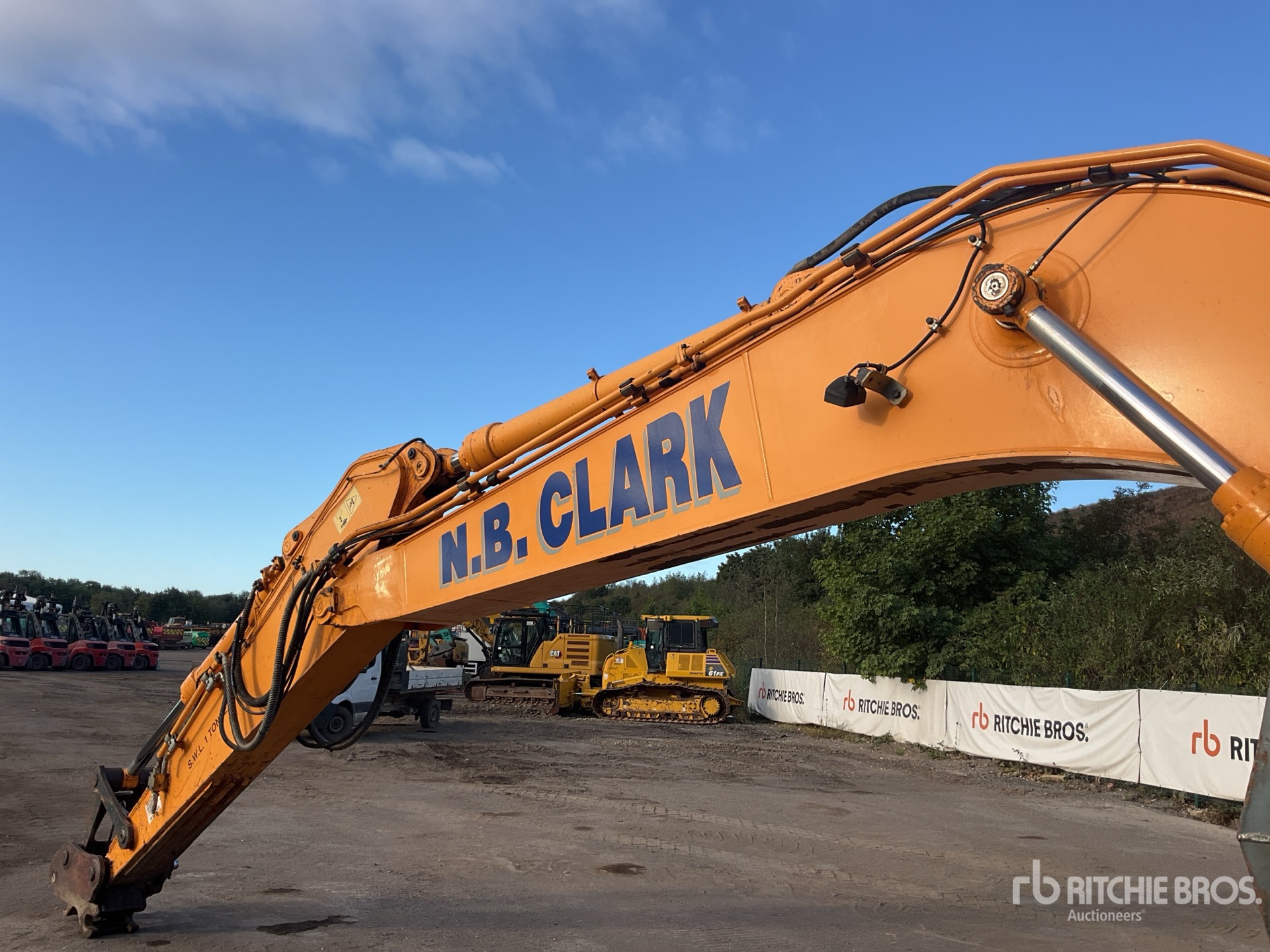

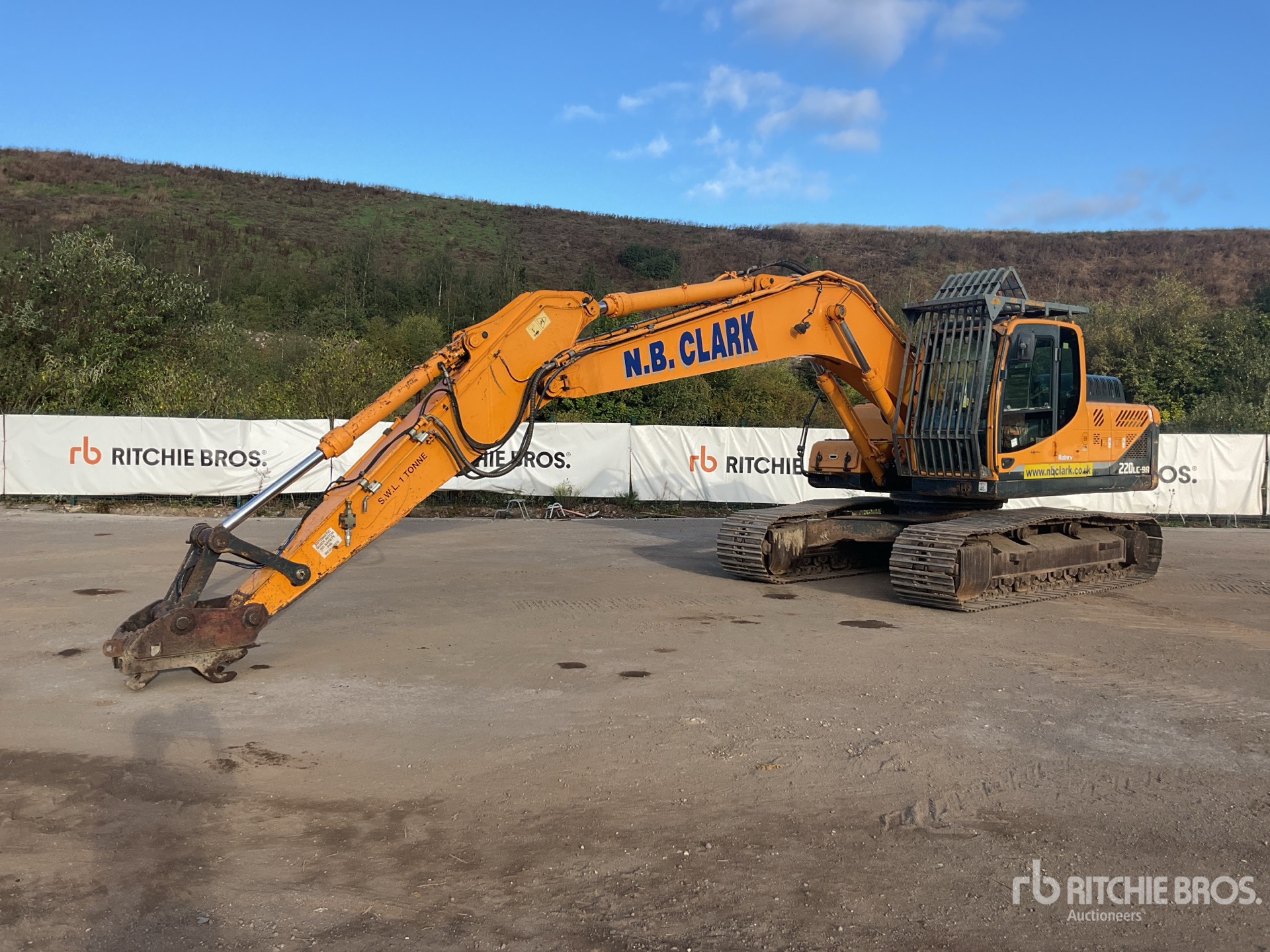

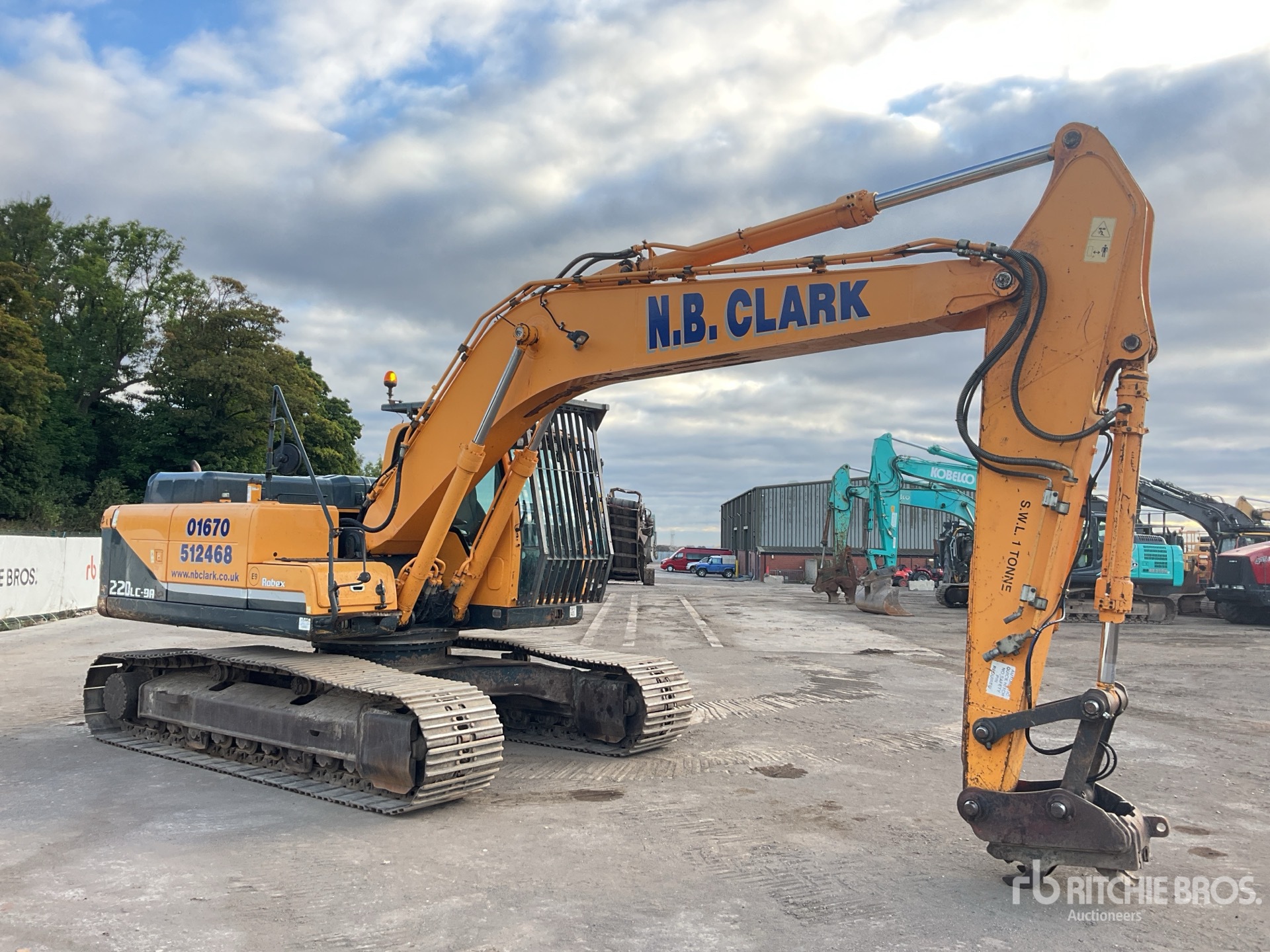

| Boom/Stick 1 |
|
Boom/Stick 1 |
Boom - 5680 mm, 18.8 ft in / Arm - 2000 mm, 6.7 ft in |
|
Max Cutting Height |
30 ft (9 m)
|
|
Max Digging Depth |
19 ft (6 m)
|
|
Max Loading Height |
21 ft (6 m)
|
|
Max Reach Along Ground |
29 ft (9 m)
|
|
Max Vertical Wall Digging Depth |
17 ft (5 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
32 ft (10 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
Boom - 5680 mm, 18.8 ft in / Arm - 2400 mm, 7.10 ft in |
|
Max Cutting Height |
31 ft (9 m)
|
|
Max Digging Depth |
20 ft (6 m)
|
|
Max Loading Height |
21 ft (7 m)
|
|
Max Reach Along Ground |
31 ft (9 m)
|
|
Max Vertical Wall Digging Depth |
19 ft (6 m)
|
|
Shipping Height Of Unit |
10 ft (3 m)
|
|
Shipping Length Of Unit |
8 ft (2 m)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
Boom - 5680 mm, 18.8 ft in / Arm - 2920 mm, 9.7 ft in |
|
Max Cutting Height |
32 ft (10 m)
|
|
Max Digging Depth |
22 ft (7 m)
|
|
Max Loading Height |
22 ft (7 m)
|
|
Max Reach Along Ground |
32 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
21 ft (6 m)
|
|
Shipping Height Of Unit |
10 ft (3 m)
|
|
Shipping Length Of Unit |
10 ft (3 m)
|
| Boom/Stick 4 |
|
Boom/Stick 4 |
Boom - 5680 mm, 18.8 ft in / Arm - 3900 mm, 12.10 ft in |
|
Max Cutting Height |
33 ft (10 m)
|
|
Max Digging Depth |
25 ft (8 m)
|
|
Max Loading Height |
24 ft (7 m)
|
|
Max Reach Along Ground |
35 ft (11 m)
|
|
Max Vertical Wall Dig Depth |
24 ft (7 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
13 ft (4 m)
|
| Boom/Stick 5 |
|
Boom/Stick 5 |
Boom - 8200 mm, 26.11 ft in / Arm - 6300 mm, 20.8 ft in |
|
Max Cutting Height |
41 ft (13 m)
|
|
Max Digging Depth |
39 ft (12 m)
|
|
Max Loading Height |
34 ft (10 m)
|
|
Max Reach Along Ground |
50 ft (15 m)
|
|
Max Vertical Wall Dig Depth |
32 ft (10 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
21 ft (6 m)
|
| Dimensions |
|
Ground Clearance |
2 ft (0 m)
|
|
Height To Top Of Cab |
10 ft (3 m)
|
|
Length Of Track On Ground |
15 ft (4 m)
|
|
Removal Counterweight Clearance |
3 ft (1 m)
|
|
Tail Swing Radius |
9 ft (3 m)
|
|
Width To Outside Of Tracks |
9 ft (3 m)
|
| Engine |
|
Aspiration |
Turbocharged |
|
Bore |
4 in (11 cm)
|
|
Displacement |
409 cu in (6,702 cu cm)
|
|
Engine Make |
CUMMINS |
|
Engine Model |
QSB6.7 |
|
Gross Power |
167 hp (125 kw)
|
|
Max Torque |
540 lbs ft (732 nm)
|
|
Net Power |
157 hp (117 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
1,950 rpm |
|
Stroke |
5 in (12 cm)
|
|
Torque Measured @ |
1,500 rpm |
| Operational |
|
Cooling System Fluid Capacity |
9 gal (35 l)
|
|
Engine Oil Capacity |
6 gal (24 l)
|
|
Fuel Capacity |
106 gal (400 l)
|
|
Hydraulic Pump Flow Capacity |
60 gpm (228 lpm)
|
|
Hydraulic System Fluid Capacity |
73 gal (275 l)
|
|

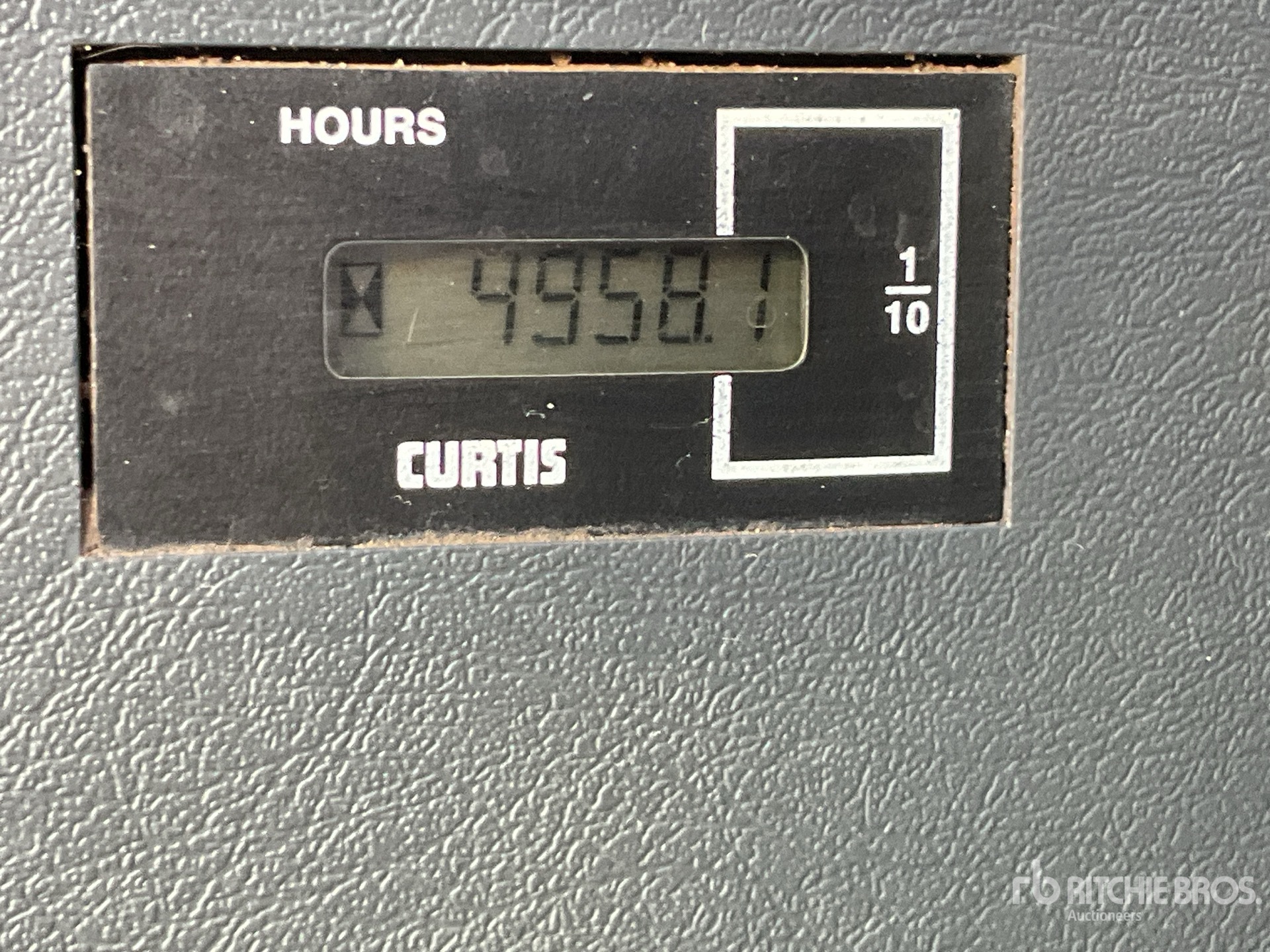

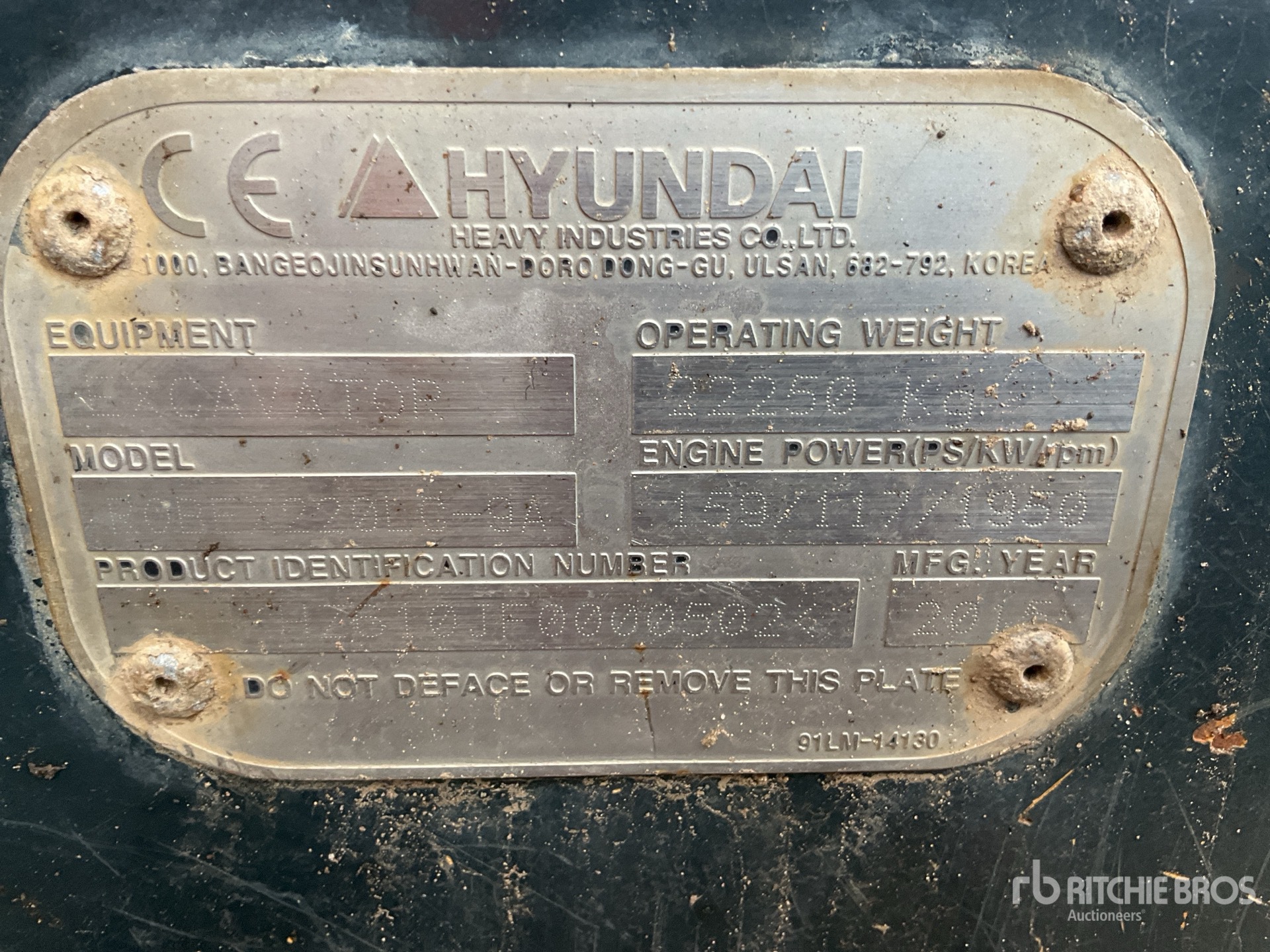

Operating Weight |
49,273 lbs (22,350 kg)
|
|
Swing Drive Fluid Capacity |
2 gal (6 l)
|
| Swing Mechanism |
|
Swing Speed |
11 rpm |
| Undercarriage |
|
Drawbar Pull |
46,500 lbs (21,092 kg)
|
|
Ground Pressure |
7 psi |
|
Max Travel Speed |
4 mph (6 kph)
|
|
Number Of Carrier Rollers Per Side |
2 |
|
Number Of Shoes Per Side |
49 |
|
Number Of Track Rollers Per Side |
9 |
|
Shoe Size |
24 in (60 cm)
|
