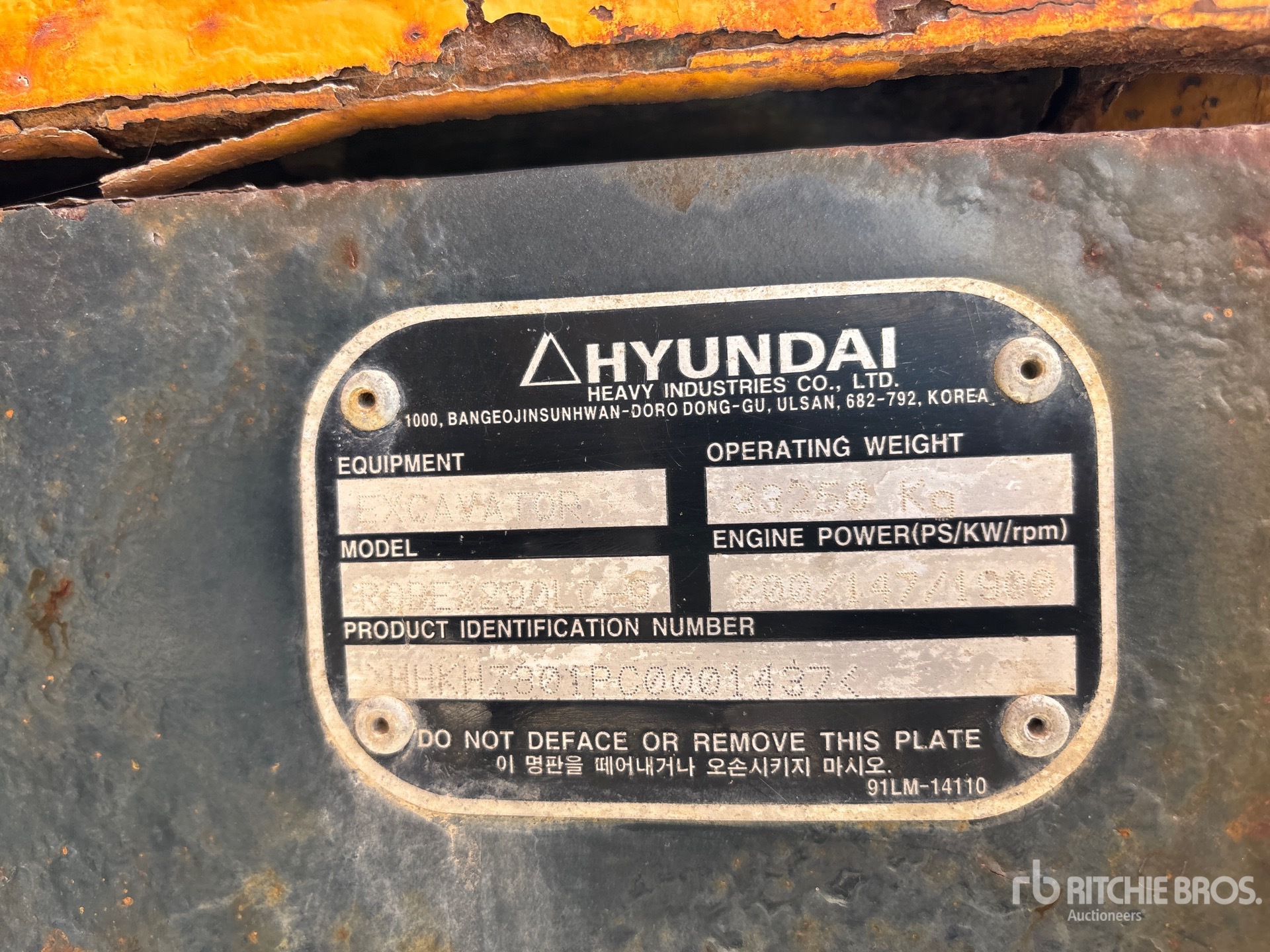

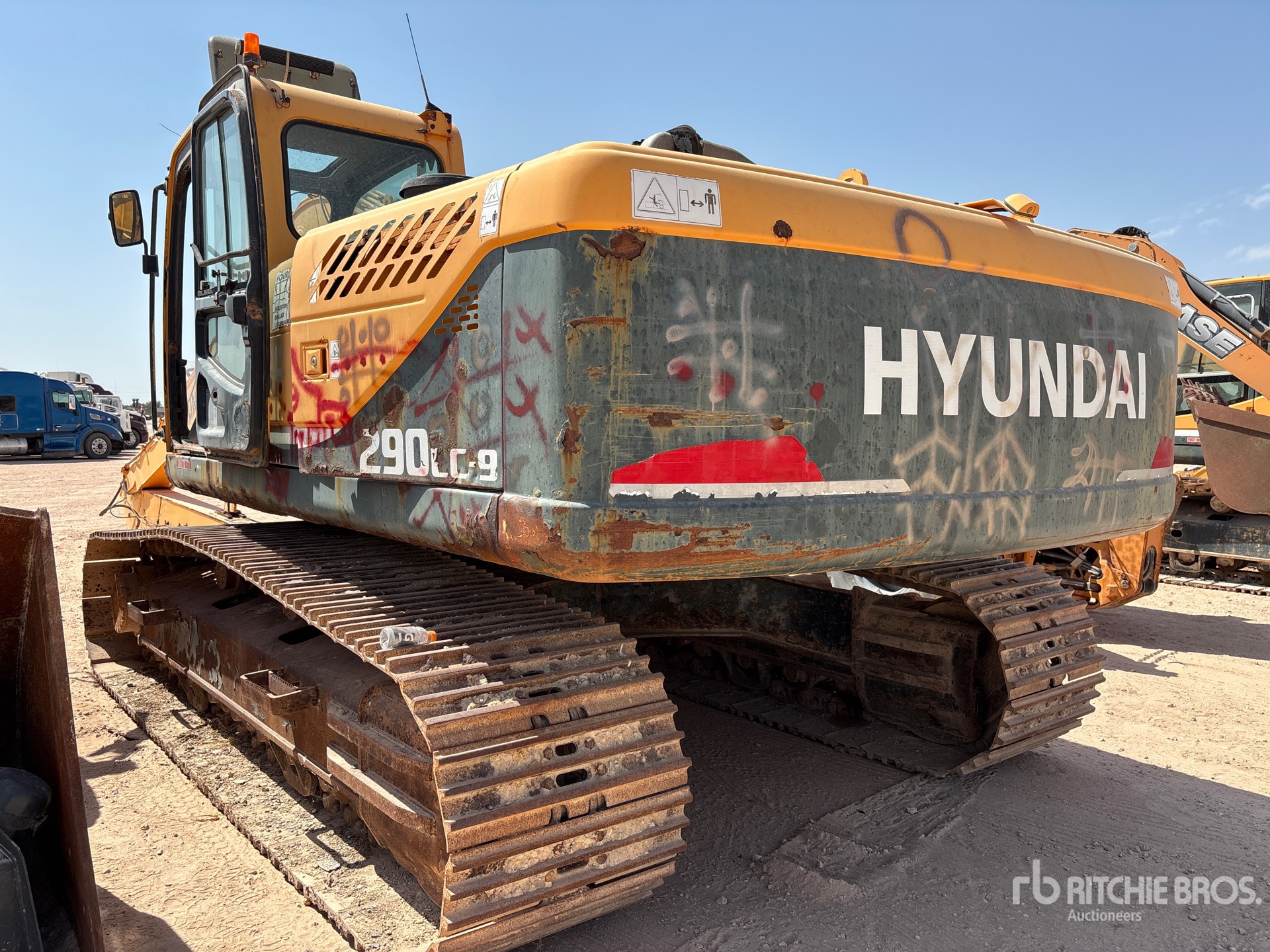

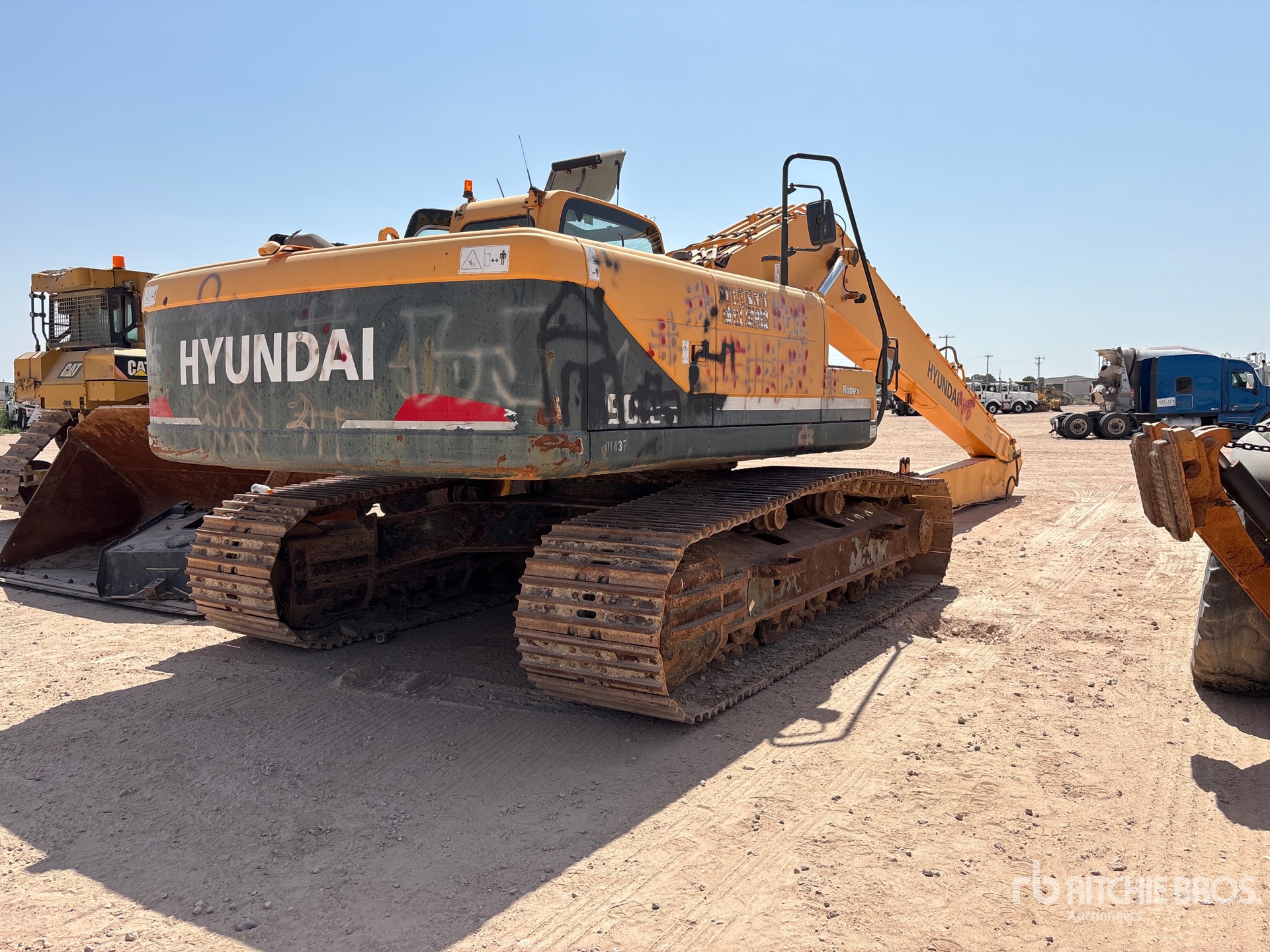

| Boom/Stick 1 |
|
Boom/Stick 1 |
Boom 20\' 6\" (6250mm) / Stick 6\' 11\" (2100mm) |
|
Max Cutting Height |
33 ft (10 m)
|
|
Max Digging Depth |
21 ft (6 m)
|
|
Max Loading Height |
23 ft (7 m)
|
|
Max Reach Along Ground |
32 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
20 ft (6 m)
|
|
Shipping Height Of Unit |
12 ft (4 m)
|
|
Shipping Length Of Unit |
35 ft (11 m)
|
| Boom/Stick 2 |
|
Boom/Stick 2 |
Boom 20\' 6\" (6250mm) / Stick 8\' 2\" (2500mm) |
|
Max Cutting Height |
33 ft (10 m)
|
|
Max Digging Depth |
22 ft (7 m)
|
|
Max Loading Height |
23 ft (7 m)
|
|
Max Reach Along Ground |
33 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
19 ft (6 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
35 ft (11 m)
|
| Boom/Stick 3 |
|
Boom/Stick 3 |
Boom 20\' 6\" (6250mm) / Stick 10\' 0\" (3050mm) |
|
Max Cutting Height |
33 ft (10 m)
|
|
Max Digging Depth |
25 ft (8 m)
|
|
Max Loading Height |
23 ft (7 m)
|
|
Max Reach Along Ground |
35 ft (11 m)
|
|
Max Vertical Wall Digging Depth |
21 ft (6 m)
|
|
Shipping Height Of Unit |
11 ft (3 m)
|
|
Shipping Length Of Unit |
35 ft (11 m)
|
| Boom/Stick 4 |
|
Boom/Stick 4 |
Boom 20\' 6\" (6250mm) / Stick 12\' 4\" (3750mm) |
|
Max Cutting Height |
34 ft (10 m)
|
|
Max Digging Depth |
27 ft (8 m)
|
|
Max Loading Height |
24 ft (7 m)
|
|
Max Reach Along Ground |
37 ft (11 m)
|
|
Max Vertical Wall Dig Depth |
23 ft (7 m)
|
|
Shipping Height Of Unit |
11 ft (4 m)
|
|
Shipping Length Of Unit |
35 ft (11 m)
|

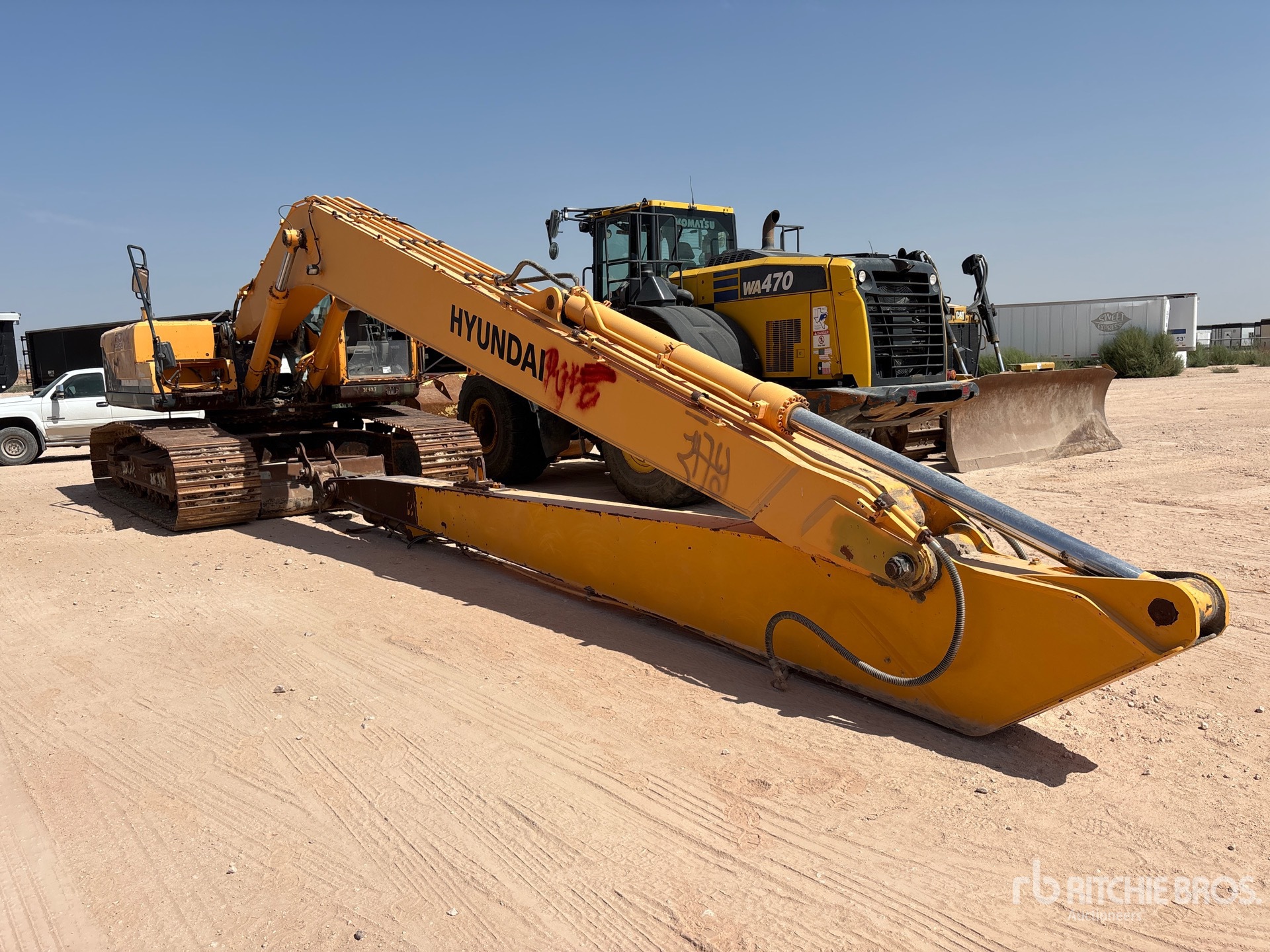

| Boom/Stick 5 |
|
Boom/Stick 5 |
Boom 33\' 6\" (10200mm) / Stick 25\' 9\" (7850mm) |
|
Max Cutting Height |
48 ft (15 m)
|
|
Max Digging Depth |
49 ft (15 m)
|
|
Max Loading Height |
40 ft (12 m)
|
|
Max Reach Along Ground |
60 ft (18 m)
|
|
Max Vertical Wall Dig Depth |
39 ft (12 m)
|
|
Shipping Height Of Unit |
12 ft (4 m)
|
|
Shipping Length Of Unit |
48 ft (15 m)
|
| Buckets |
|
Maximum Bucket Capacity |
3 cu yd |
|
Minimum Bucket Capacity |
1 cu yd |
|
Reference Bucket Capacity |
2 cu yd |
| Dimensions |
|
Ground Clearance |
2 ft (1 m)
|
|
Height To Top Of Cab |
10 ft (3 m)
|
|
Length Of Track On Ground |
13 ft (4 m)
|
|
Removal Counterweight Clearance |
4 ft (1 m)
|
|
Tail Swing Radius |
11 ft (3 m)
|
|
Width To Outside Of Tracks |
11 ft (3 m)
|
| Engine |
|
Aspiration |
Turbocharged |
|
Displacement |
409 cu in (6,702 cu cm)
|
|
Engine Make |
2,347 |
|
Engine Model |
QSB 6.7 |
|
Gross Power |
227 hp (169 kw)
|
|
Max Torque |
700 lbs ft (949 nm)
|
|
Net Power |
197 hp (147 kw)
|
|
Number Of Cylinders |
6 |
|
Power Measured @ |
1,900 rpm |
|
Torque Measured @ |
1,400 rpm |
| Operational |
|
Alternator Supplied Amperage |
50 amps |
|
Cooling System Fluid Capacity |
13 gal (50 l)
|
|
Engine Oil Capacity |
6 gal (24 l)
|
|
Fuel Capacity |
132 gal (500 l)
|
|
Hydraulic Pump Flow Capacity |
133 gpm (504 lpm)
|
|
Hydraulic System Fluid Capacity |
87 gal (330 l)
|
|
Hydraulic System Relief Valve Pressure |
4,978 psi |
|
Operating Voltage |
24 V |
|
Operating Weight |
64,596 lbs (29,300 kg)
|
|
Swing Drive Fluid Capacity |
3 gal (11 l)
|
| Swing Mechanism |
|
Swing Speed |
10 rpm |
| Undercarriage |
|
Ground Pressure |
8 psi |
|
Max Travel Speed |
3 mph (5 kph)
|
|
Number Of Carrier Rollers Per Side |
2 |
|
Number Of Shoes Per Side |
48 |
|
Number Of Track Rollers Per Side |
9 |
|
Shoe Size |
24 in (60 cm)
|
|
Track Gauge |
9 ft (3 m)
|
