Hyundai HL757-9 For Sale in Edmonton, Ab

Name: Hyundai HL757-9
Brand: Hyundai
SKU: 89030430
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-22 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

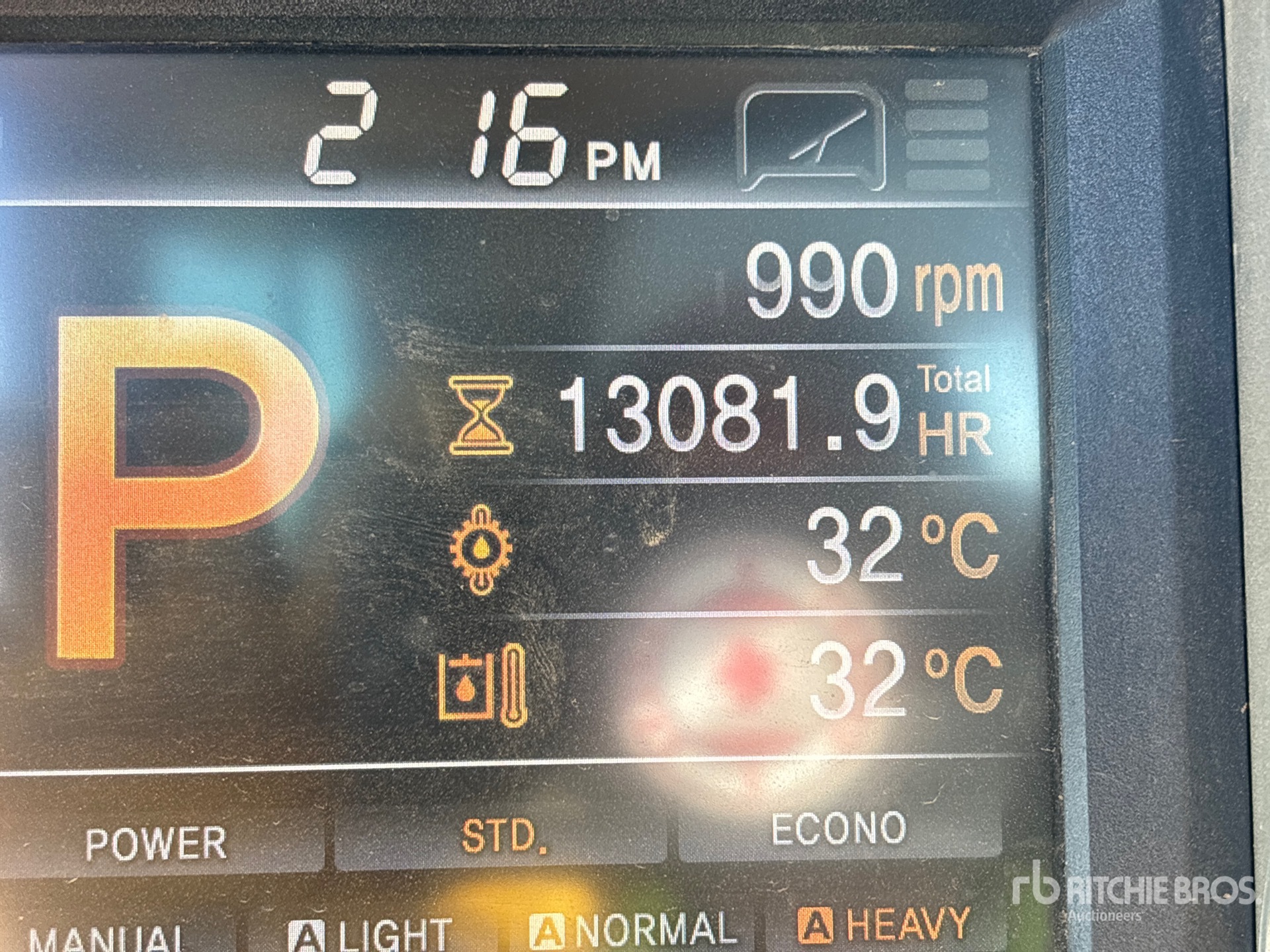

Hours:	13081

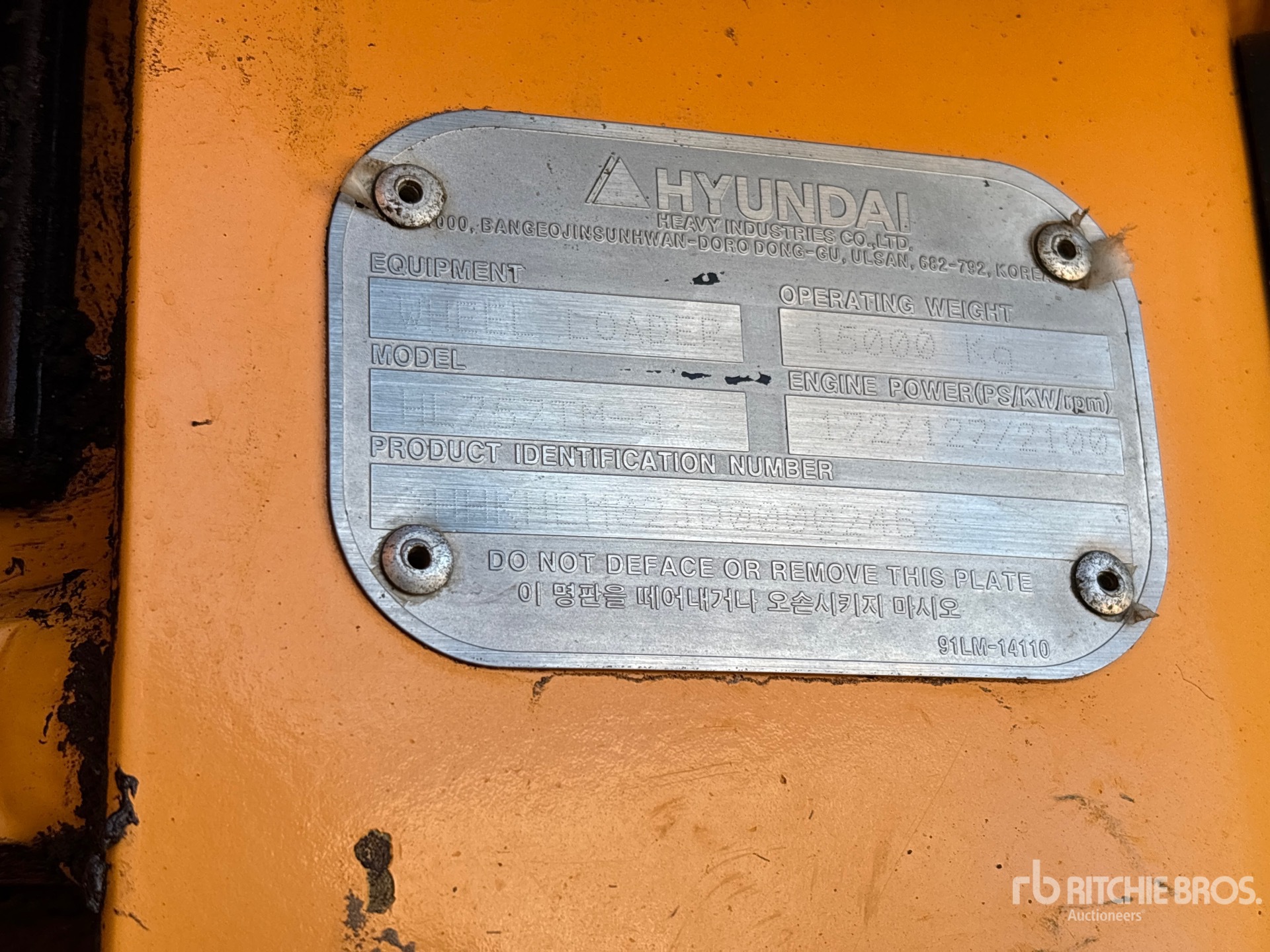

Serial Number:	HHKHLM02JD000
Machine Location:	EDMONTON, AB

Description:

Located in Lane 8 Spot 12, Enclosed Cab, Air Conditioner, Rear View Camera, Air Ride Seat, 2013 US EPA Label, CARB Compliant, Positive Air Shutoff, Auxiliary Hydraulics, Hydraulic Coupler, 20.5-25 Tires Closing Time: 2026-09-22 08:56:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

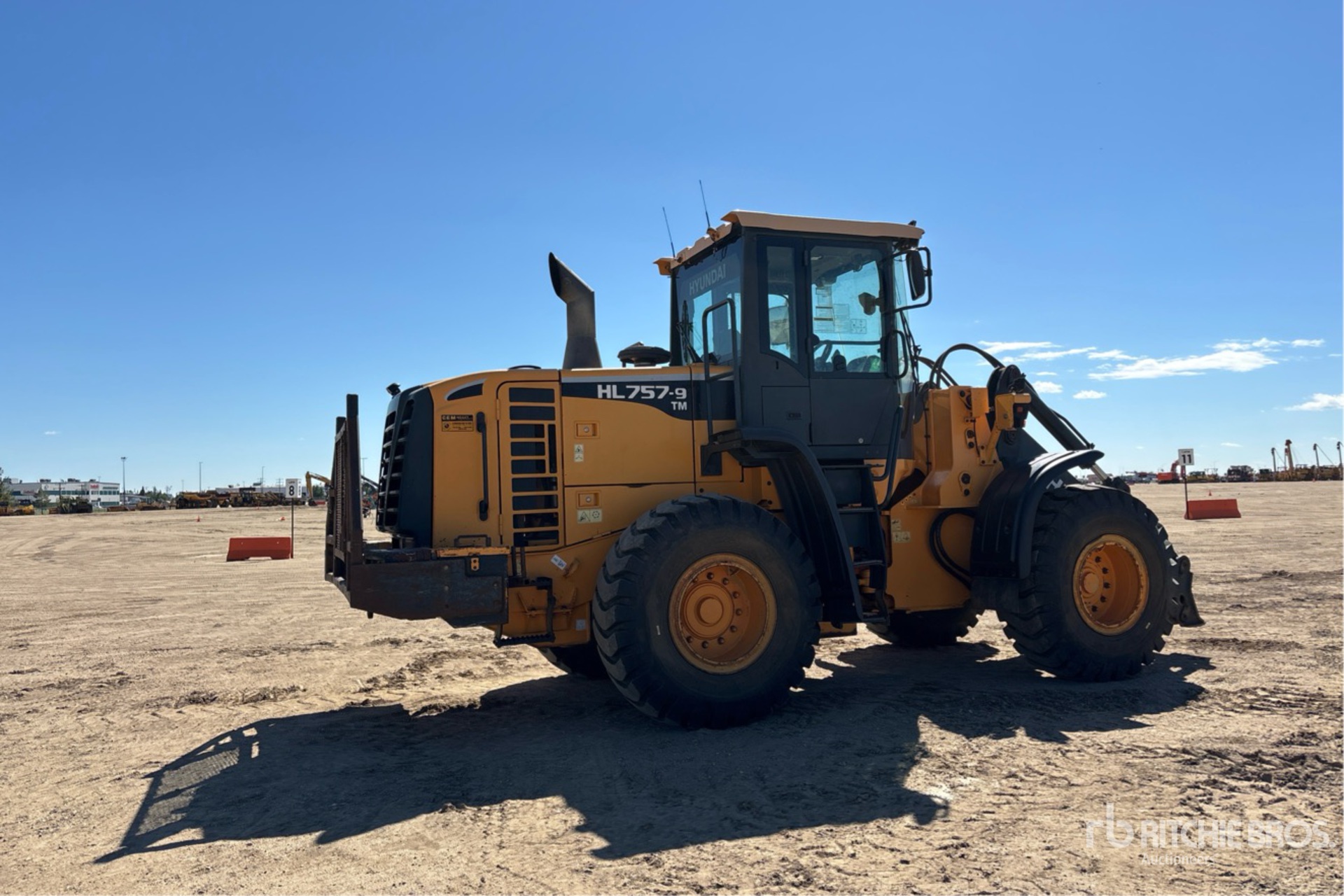

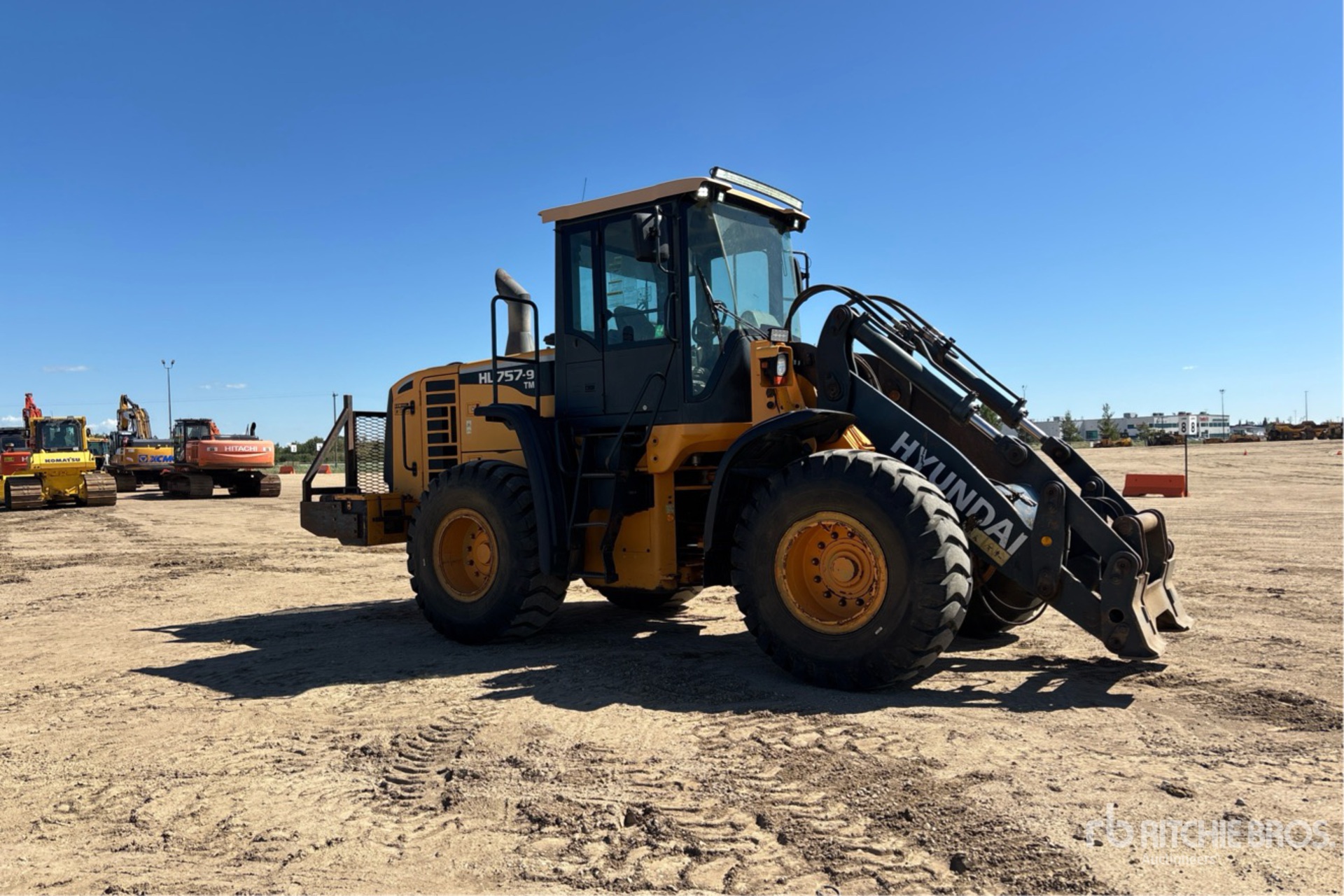

The Hyundai HL757-9 is a wheel loader designed for material handling, earthmoving, and loading applications in construction, quarry, aggregate, and industrial sites. It is part of Hyundai's HL-9 series and is typically used for moving soil, gravel, sand, rock, and other bulk materials. The machine features a front-mounted loader bucket, articulated steering, and a diesel powertrain suited for continuous duty cycles. The HL757-9 is commonly selected for its balance of lifting capacity, breakout force, and operator visibility. It is used in general construction, roadwork, site preparation, and material stockpile management.

Bucket
Bucket Capacity - heaped	4 cu yd (3 cu m)
Bucket Capacity - struck	3 cu yd (2 cu m)
Dump Clearance at Max Raise	9 ft (3 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Length with Bucket on Ground	25 ft (8 m)
Reach at Max Lift and Dump	4 ft (1 m)
Wheelbase	10 ft (3 m)
Width Over Tires	9 ft (3 m)
Engine
Aspiration	Turbocharged
Engine Model	QSB6.7
Gross Power	173 hp (129 kw)
Make	Cummins
Net Power	170 hp (127 kw)
Number of Cylinders	6
Power Measured @	2,100 rpm
Torque Measured @	1,400 rpm
General Specifications
Bucket Capacity (Since 2016)	4 cu yd
Engine Power (Since 2016)	170 hp (127 kw)
Engine type (Since 2016)	Cummins QSB6.7
Max Dump Height (Since 2016)	9 ft (3 m)
Operating Weight (Since 2016)	32,000 lbs (14,512 kg)
Hydraulic System
Dump Time	1 seconds
Lower Time	4 seconds
Pump Flow Capacity	49 gpm (185 lpm)
Pump Type	Variable Axial Piston
Raise Time	6 seconds
Operating Specifications
Alternator Supplied Amperage	70 amps
Cooling System Fluid Capacity	9 gal (35 l)
Engine Oil Fluid Capacity	5 gal (18 l)
Front Axle/Diff Fluid Capacity	8 gal (29 l)
Fuel Capacity	78 gal (294 l)
Hydraulic System Fluid Capacity	57 gal (215 l)
Operating Voltage	24 volts
Operating Weight	31,967 lbs (14,498 kg)
Rated Bucket Capacity	4 cu yd (3 cu m)
Rear Axle Oscillation	26 degrees
Rear Axle/Diff Fluid Capacity	6 gal (24 l)
Static Tipping Weight	24,912 lbs (11,298 kg)
Tire Size	20.5-25
Transmission Fluid Capacity	7 gal (28 l)
Transmission
Max Speed - Forward	24 mph (38 kph)
Max Speed - Reverse	15 mph (24 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	Powershift
Weights
Operational Weight	32,000 lbs (14,512 kg)
