2014 Hyundai HL757-9A For Sale in Fort Worth, Tx

Name: 2014 Hyundai HL757-9A
Brand: Hyundai
SKU: 89189629
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-16 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

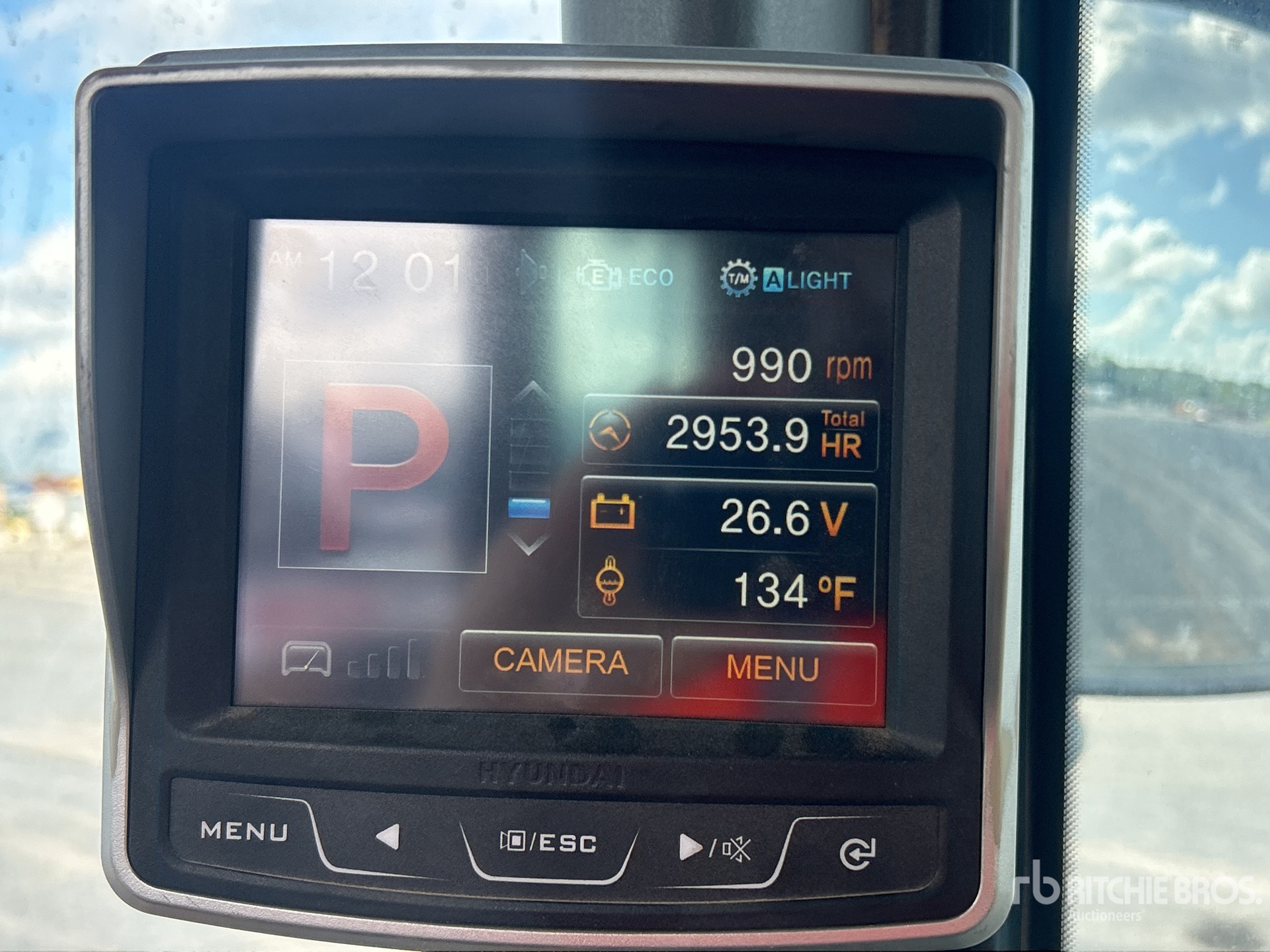

Hours:	2953

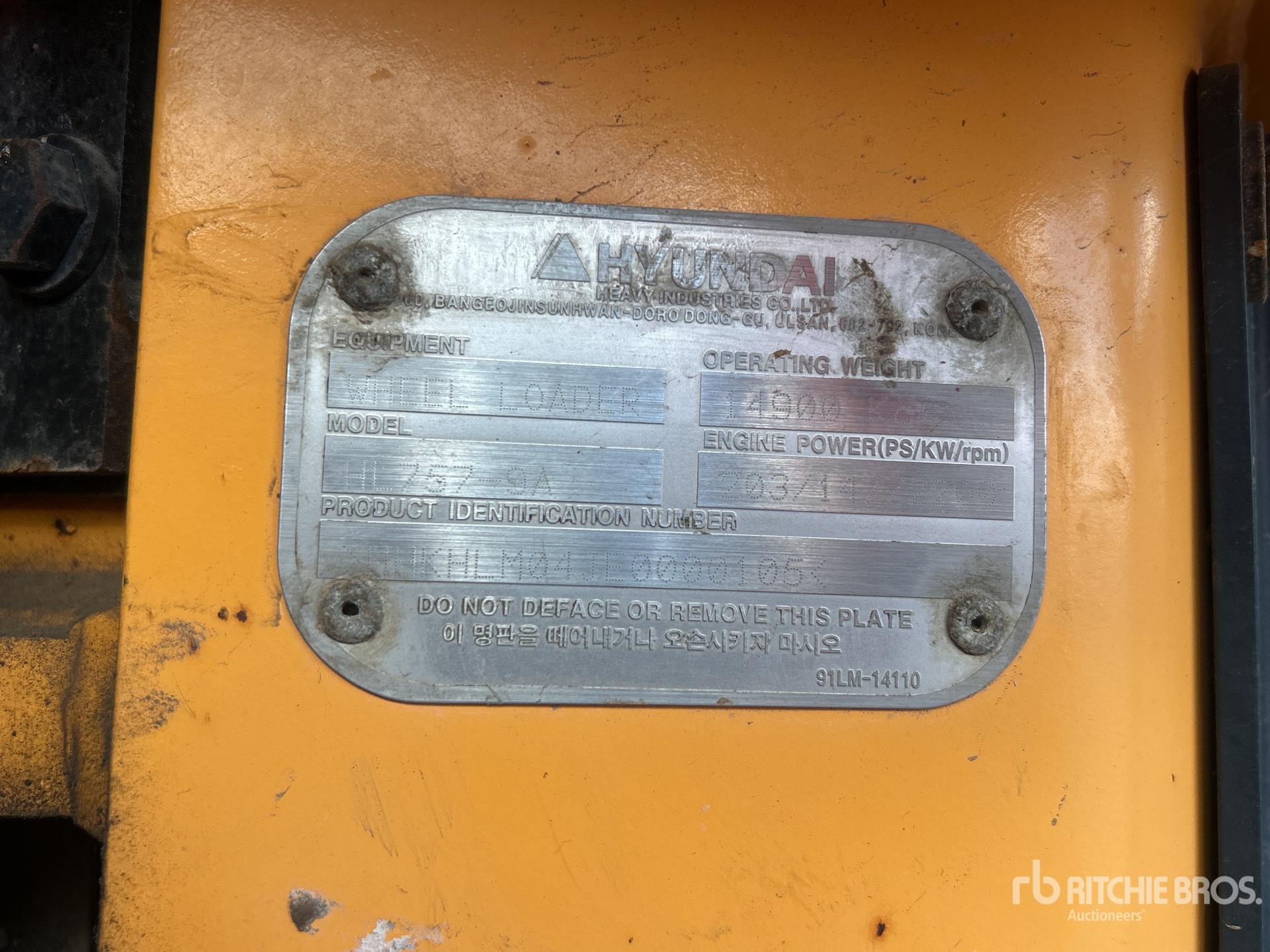

Serial Number:	HHKHLM04J30000105
Machine Location:	FORT WORTH, TX

Description:

Located in Lane 6 Spot 18, Enclosed Cab, Air Conditioner, Rear View Camera, Air Ride Seat, Autoshift, Hydraulic Coupler, 108 in Bucket, Forks, 20.5R25 Tires Closing Time: 2026-09-16 10:41:24 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Brakes
Emergency Brake	Parking brake automatically applies.
Parking Brake	Spring-applied
Service Brake	Hydraulically actuated
Bucket
Bucket Width	9 ft (3 m)
Digging Depth	0 ft (0 m)
Dump Clearance At Max Raise	9 ft (3 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height	11 ft (3 m)
Height To Top Of Cab	11 ft (3 m)
Length	25 ft (8 m)
Length With Bucket On Ground	25 ft (8 m)
Reach At Max Lift And Dump	4 ft (1 m)
Weight	32,400 lbs (14,696 kg)
Wheelbase	10 ft (3 m)
Width	9 ft (3 m)
Electrical System
Starter Motor	24V,7.8kw
Engine
Air Cleaner	Dry, Two stages dual elements
Aspiration	Turbocharged
Bore	4 in (11 cm)
Displacement	409 cu in (6,701 cu cm)
Emissions Certification	Stage III-A
Engine Make	CUMMINS
Engine Model	QSB6.7
Engine Type	Watercooled
Gross Power	200 hp (149 kw)
Max Torque Iso Tr14396	685 lbs ft (929 nm)
Net Power	197 hp (147 kw)
Number Of Cylinders	6
Stroke	5 in (12 cm)
Torque Measured @	1,400 rpm
General Specifications
Bucket Capacity (Since 2016)	4 cu yd
Engine Power (Since 2016)	197 hp (147 kw)
Engine type (Since 2016)	Cummins QSB6.7
Max Dump Height (Since 2016)	9 ft (3 m)
Operating Weight (Since 2016)	32,400 lbs (14,696 kg)
Hydraulic System
Dump Time	2 sec
Lower Time	4 sec
Pump Flow Capacity	49 gpm (185 lpm)
Pump Type	Variable axial piston
Raise Time	6 sec
Relief Valve Pressure	3,555 psi
Operational
Alternator Supplied Amperage	70 amps
Cooling System Fluid Capacity	12 gal (46 l)
Front Axle/Diff Fluid Capacity	9 gal (32 l)
Fuel Capacity	78 gal (294 l)
Hydraulic System Fluid Capacity	53 gal (202 l)
Operating Voltage	24 V
Operating Weight	32,408 lbs (14,700 kg)
Rear Axle Oscillation	26 degrees
Rear Axle/Diff Fluid Capacity	6 gal (24 l)
Tire Size	20.5-25, L3
Transmission Fluid Capacity	7 gal (28 l)
Transmission
Max Speed - Forward	24 mph (38 kph)
Max Speed - Reverse	15 mph (24 kph)
Number Of Forward Gears	4
Number Of Reverse Gears	3
Transmission Type	Full automatic power shift
