2013 Hyundai HL770-9 For Sale in Australia, Aus

Name: 2013 Hyundai HL770-9
Brand: Hyundai
SKU: 89130642
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-10-07

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

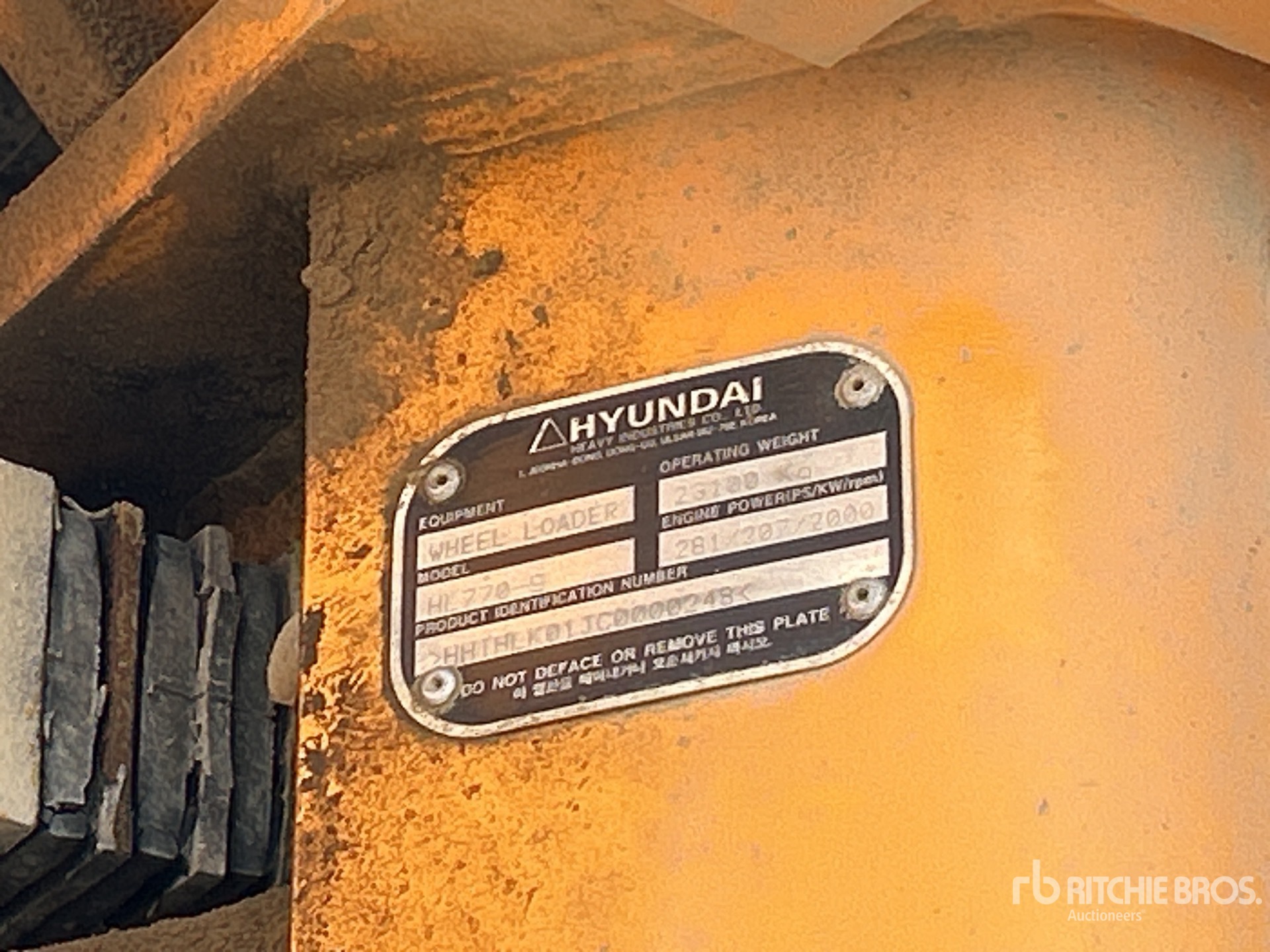

Serial Number:	HHIHLK01JC0000248
Machine Location:	AUSTRALIA, AUS

Description:

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Hyundai HL770-9 is a wheel loader designed for material handling, aggregate work, construction, and quarry applications. It is part of Hyundai's HL-9 series and is built for loading trucks, stockpiling, and moving bulk materials in demanding jobsite conditions. The HL770-9 typically features a diesel engine, articulated steering, hydraulic lift and bucket systems, and a cab configured for operator visibility and control. Common attachments and bucket options support use in earthmoving, mining support, and industrial material handling. The model is recognized for its large-frame wheel loader configuration, service access, and compatibility with high-production loading cycles.

Bucket
Bucket Capacity - Heaped	6 cu yd
Bucket Capacity - Struck	5 cu yd
Bucket Width	10 ft (3 m)
Dump Clearance At Max Raise	10 ft (3 m)
Dimensions
Ground Clearance	2 ft (0 m)
Height To Top Of Cab	12 ft (4 m)
Hinge Pin - Max Height	14 ft (4 m)
Length With Bucket On Ground	29 ft (9 m)
Reach At Max Lift And Dump	4 ft (1 m)
Wheelbase	11 ft (4 m)
Width Over Tires	10 ft (3 m)
Engine
Aspiration	Turbocharged
Engine Make	2,347
Engine Model	QSL
Gross Power	280 hp (209 kw)
Max Torque	1,070 lbs ft (1,451 nm)
Net Power	277 hp (207 kw)
Number Of Cylinders	6
Power Measured @	2,000 rpm
Torque Measured @	1,400 rpm
General Specifications
Bucket Capacity (Since 2016)	6 cu yd
Engine Power (Since 2016)	277 hp (207 kw)
Engine type (Since 2016)	Cummins QSL
Max Dump Height (Since 2016)	10 ft (3 m)
Operating Weight (Since 2016)	50,930 lbs (23,098 kg)
Hydraulic System
Dump Time	1 sec
Lower Time	3 sec
Pump Flow Capacity	90 gpm (342 lpm)
Pump Type	Variable Axial Piston
Raise Time	5 sec
Operational
Alternator Supplied Amperage	70 amps
Cooling System Fluid Capacity	15 gal (56 l)
Engine Oil Fluid Capacity	6 gal (23 l)
Front Axle/Diff Fluid Capacity	14 gal (51 l)
Fuel Capacity	121 gal (457 l)
Hydraulic System Fluid Capacity	77 gal (292 l)
Operating Voltage	24 V
Operating Weight	50,927 lbs (23,096 kg)
Rear Axle Oscillation	26 degrees
Rear Axle/Diff Fluid Capacity	11 gal (43 l)
Static Tipping Weight	38,846 lbs (17,617 kg)
Tire Size	26.5-25
Transmission Fluid Capacity	11 gal (43 l)
Transmission
Max Speed - Forward	26 mph (41 kph)
Max Speed - Reverse	17 mph (27 kph)
Number Of Forward Gears	4
Number Of Reverse Gears	3
Transmission Type	Powershift
