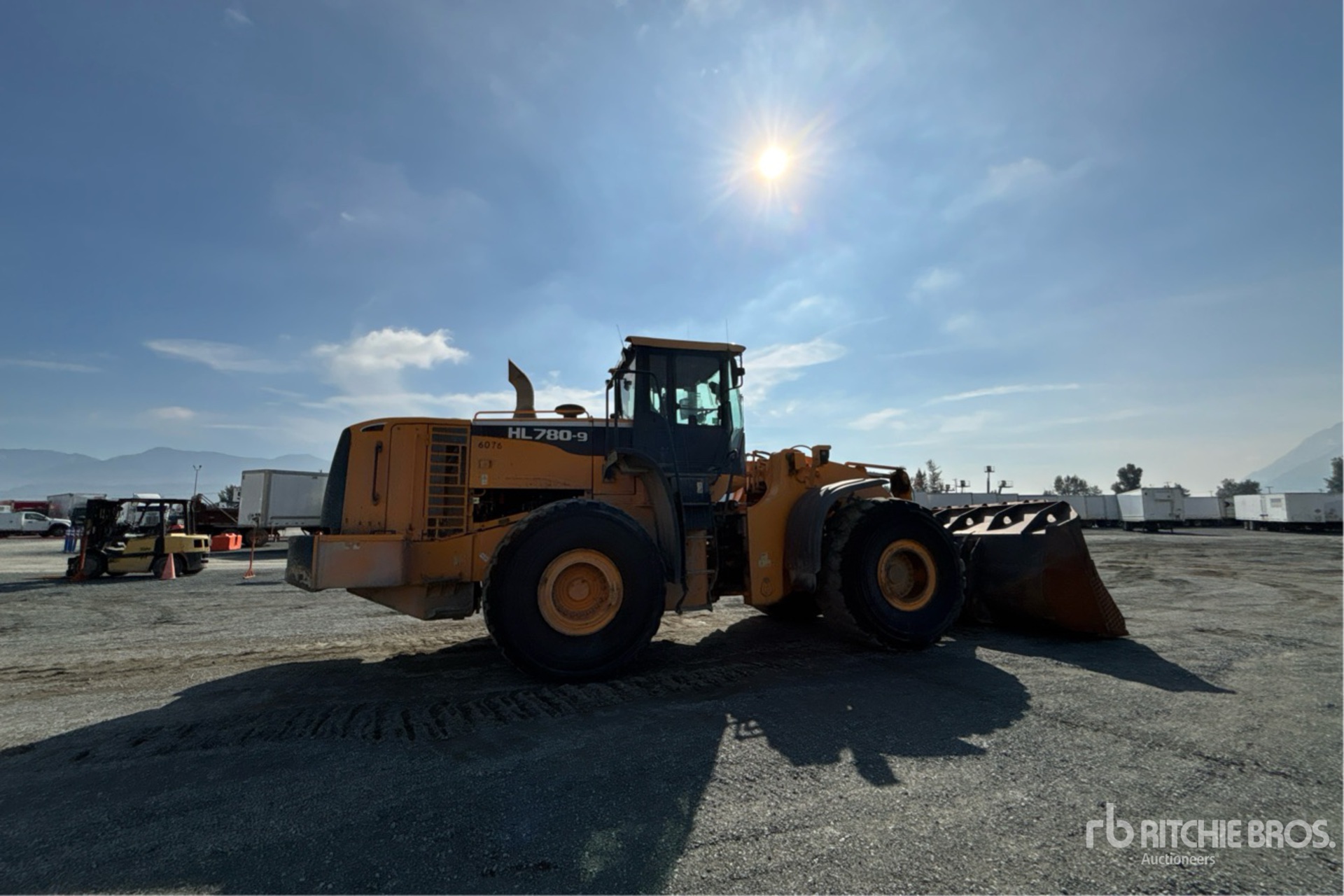

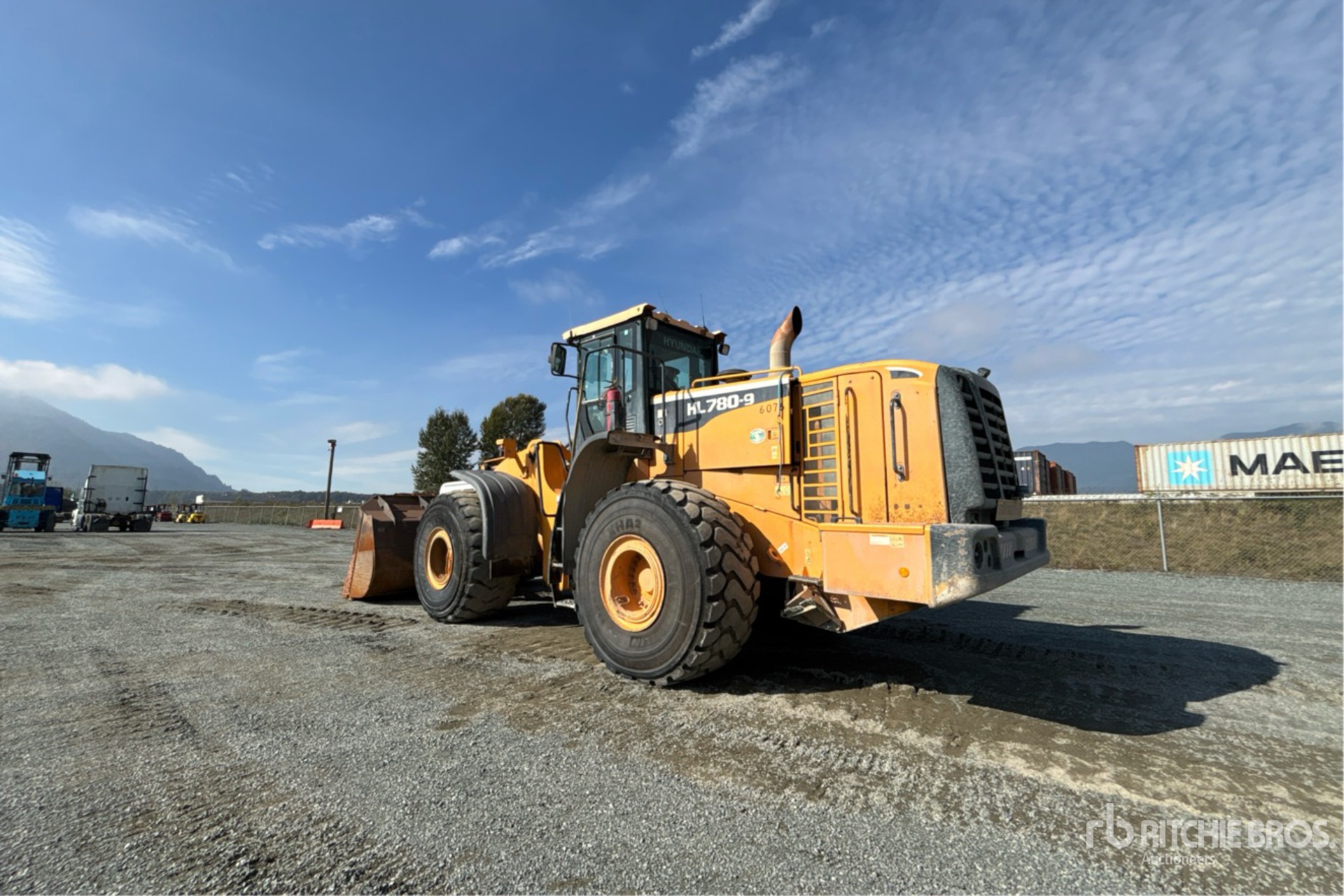

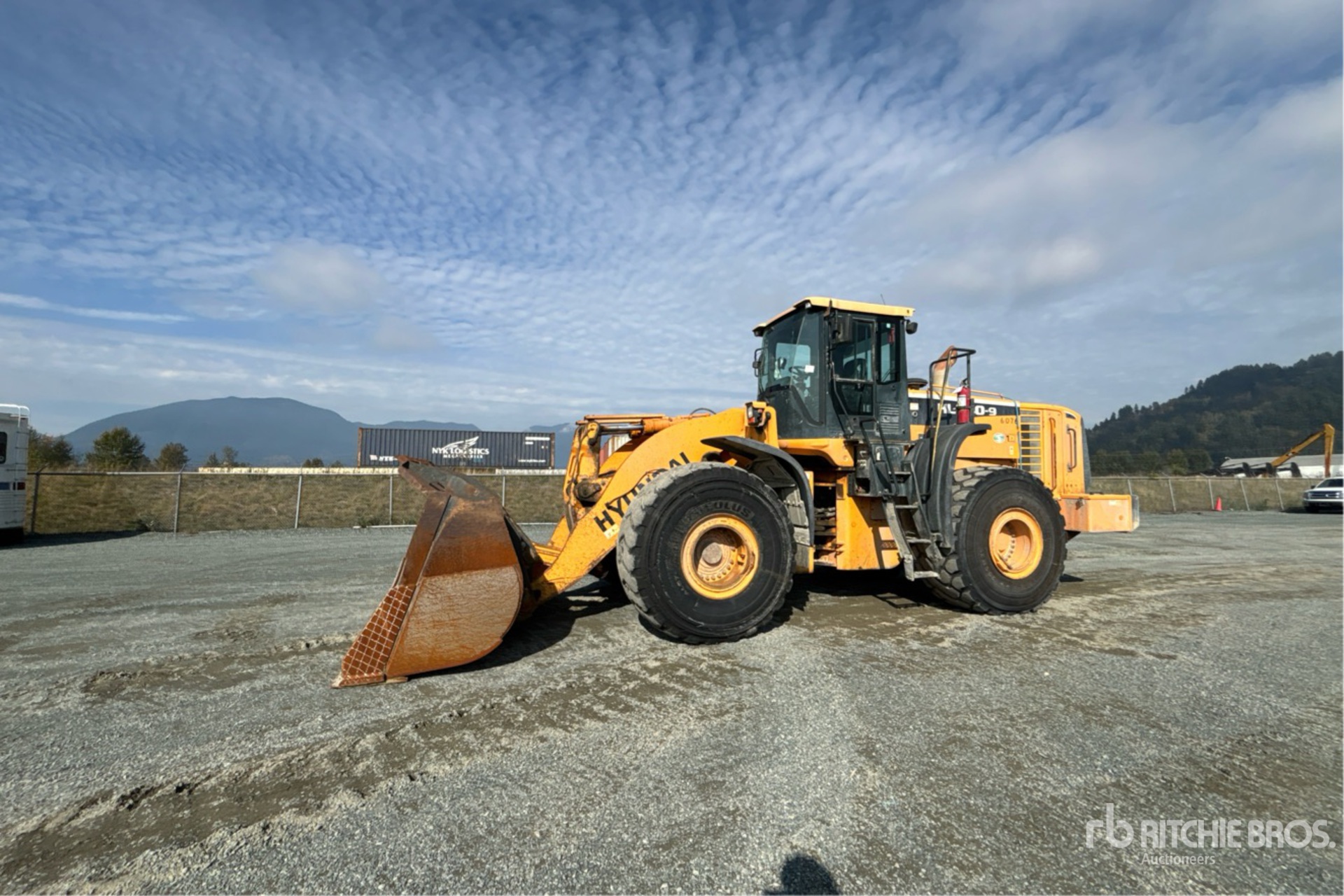

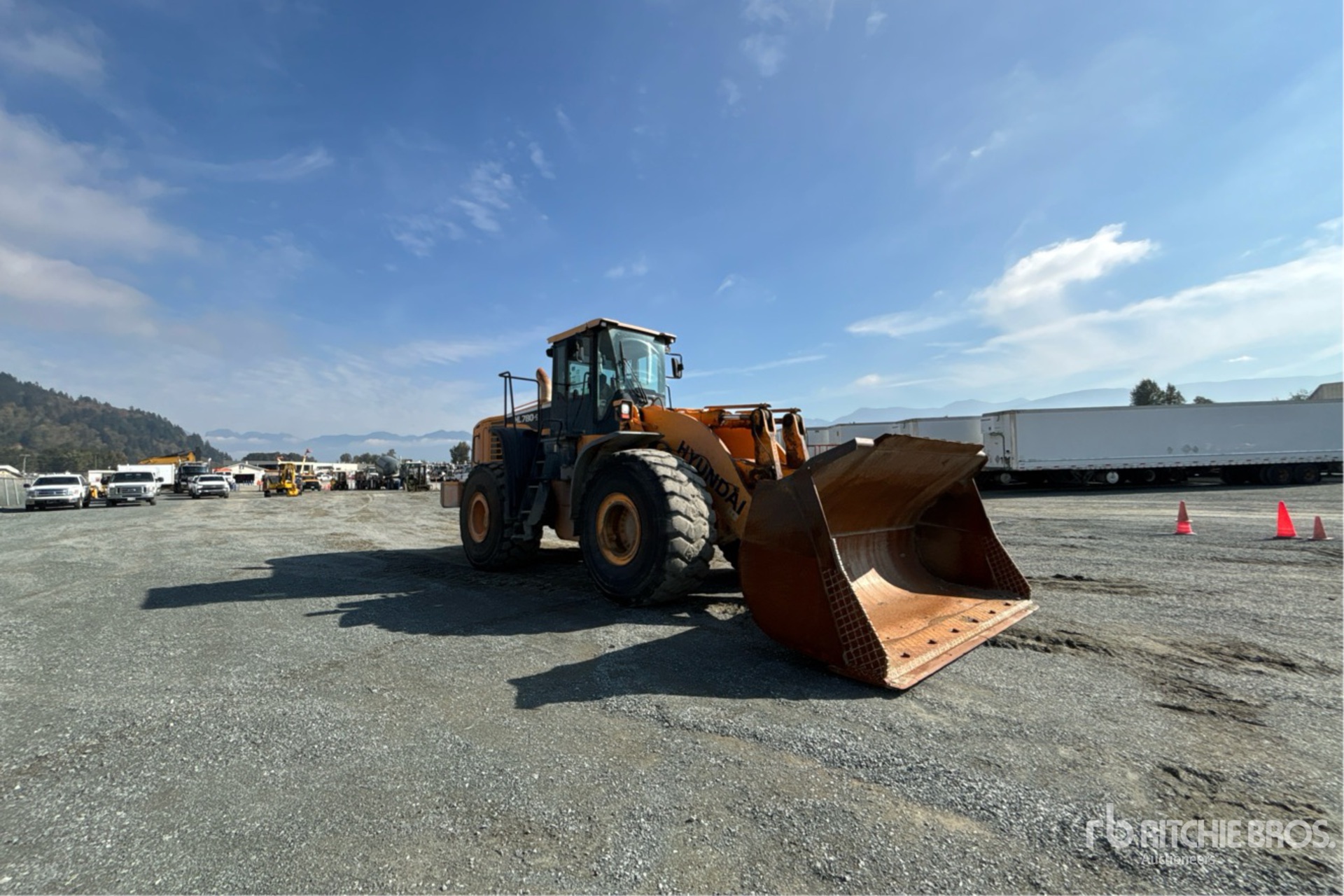

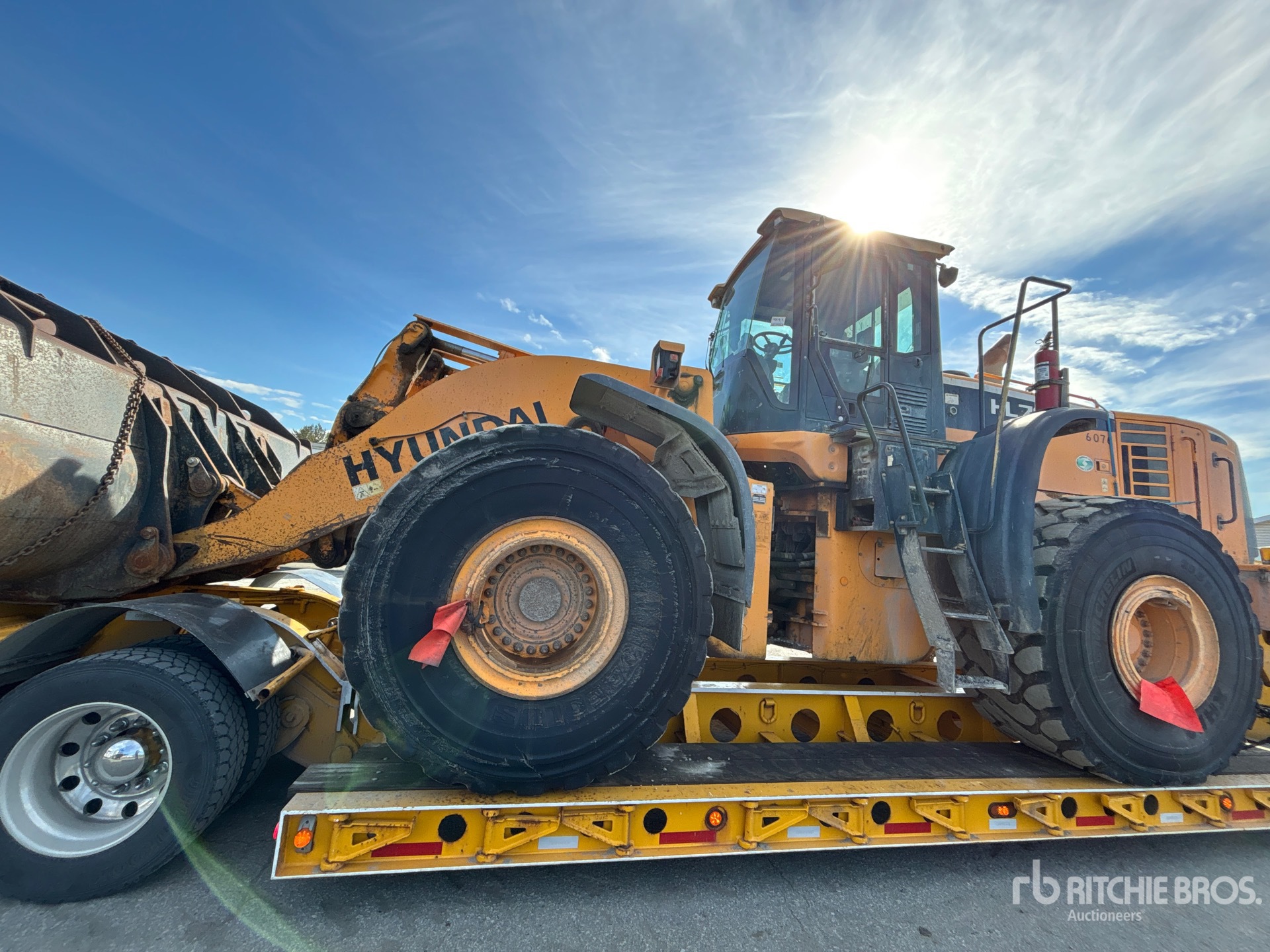

2012 Hyundai HL780-9 For Sale in Chilliwack, Bc

Name: 2012 Hyundai HL780-9
Brand: Hyundai
SKU: 89401741
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-10-22 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

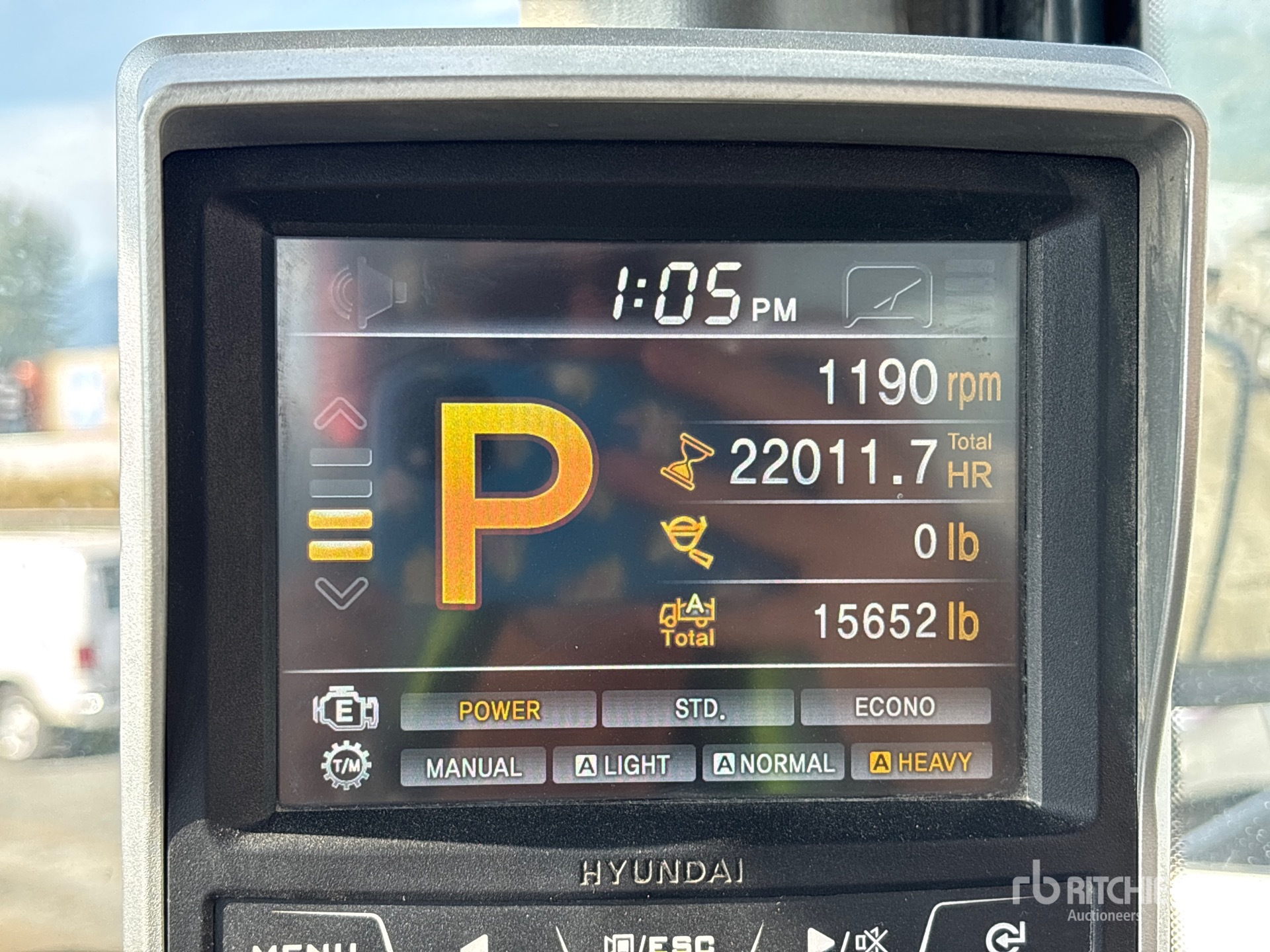

Hours:	22012

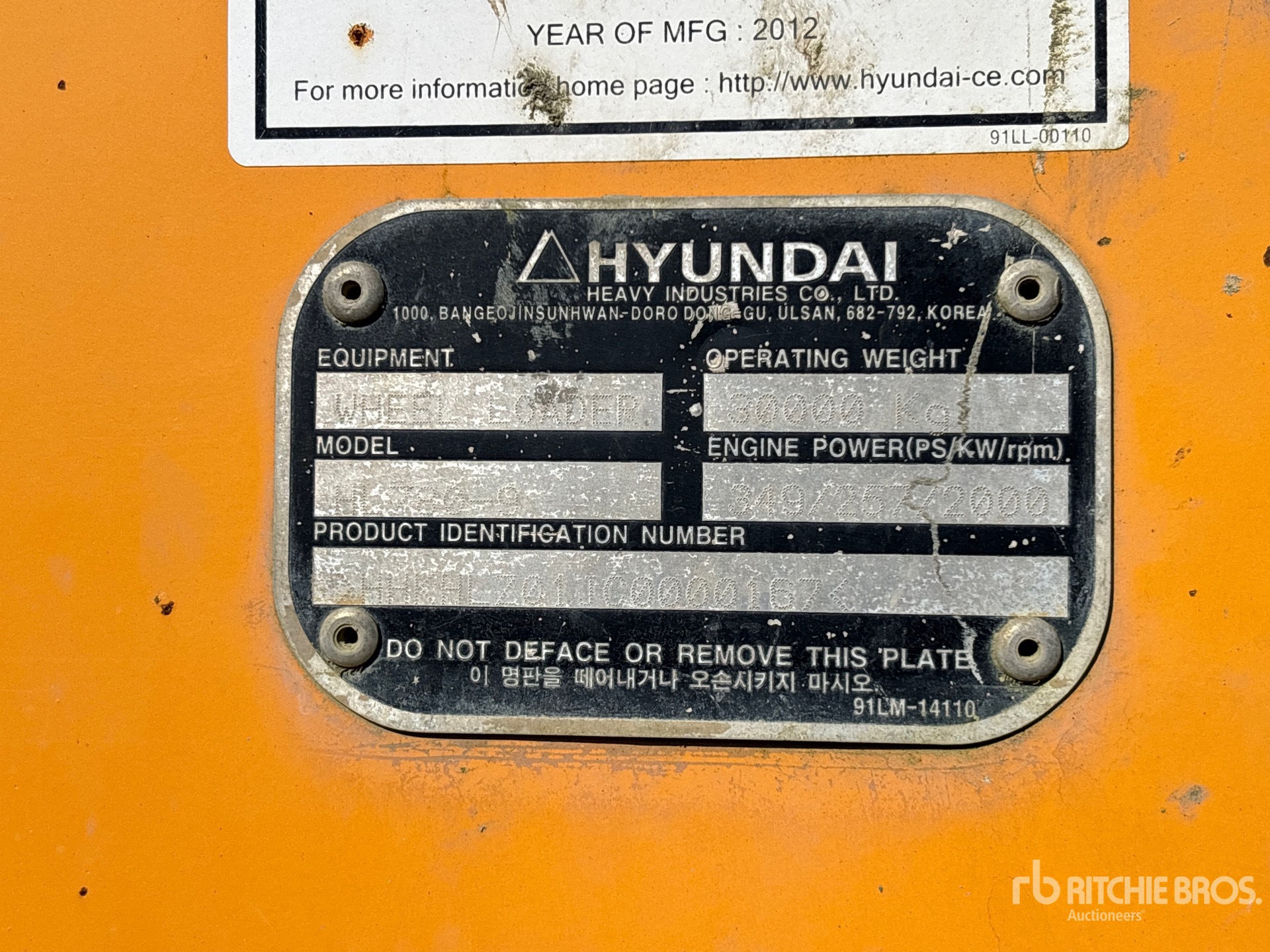

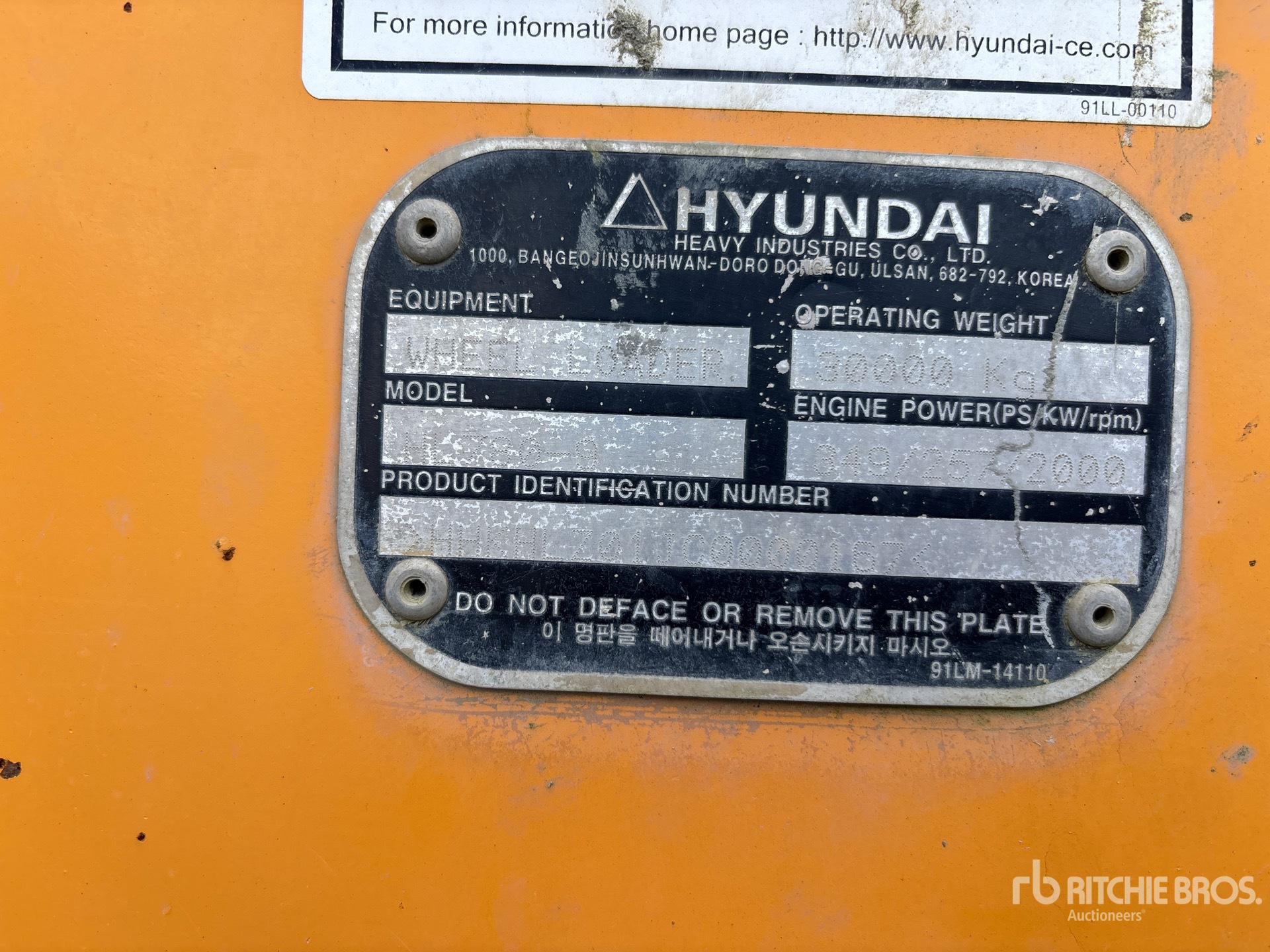

Serial Number:	HLZ01JC0000167
Machine Location:	CHILLIWACK, BC

Description:

Enclosed Cab, Air Ride Seat, Hyundai On-Board Scale, 2011 US EPA Label, CARB Compliant, 138 in Bucket, 29.5R25 Tires

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Bucket
Bucket Capacity - Heaped	7 cu yd
Bucket Capacity - Struck	6 cu yd
Bucket Width	11 ft (3 m)
Dump Clearance At Max Raise	11 ft (3 m)
Dimensions
Ground Clearance	2 ft (1 m)
Height	13 ft (4 m)
Height To Top Of Cab	13 ft (4 m)
Hinge Pin - Max Height	15 ft (5 m)
Length	32 ft (10 m)
Length With Bucket On Ground	32 ft (10 m)
Reach At Max Lift And Dump	5 ft (1 m)
Weight	66,100 lbs (29,982 kg)
Wheelbase	12 ft (4 m)
Width	11 ft (3 m)
Width Over Tires	11 ft (3 m)
Engine
Aspiration	Turbocharged
Engine Make	2,347
Engine Model	QSM11
Gross Power	348 hp (260 kw)
Max Torque	1,235 lbs ft (1,674 nm)
Net Power	344 hp (257 kw)
Number Of Cylinders	6
Power Measured @	2,000 rpm
Torque Measured @	1,400 rpm
General Specifications
Bucket Capacity (Since 2016)	7 cu yd
Engine Power (Since 2016)	344 hp (257 kw)
Engine type (Since 2016)	Cummins QSM11
Max Dump Height (Since 2016)	10 ft (3 m)
Operating Weight (Since 2016)	66,100 lbs (29,982 kg)
Hydraulic System
Dump Time	1 sec
Lower Time	4 sec
Pump Flow Capacity	111 gpm (420 lpm)
Pump Type	Variable Axial Piston
Raise Time	6 sec
Operational
Alternator Supplied Amperage	70 amps
Cooling System Fluid Capacity	17 gal (65 l)
Engine Oil Fluid Capacity	10 gal (38 l)
Front Axle/Diff Fluid Capacity	15 gal (58 l)
Fuel Capacity	119 gal (450 l)
Hydraulic System Fluid Capacity	62 gal (234 l)
Operating Voltage	24 V
Operating Weight	66,139 lbs (30,000 kg)
Rear Axle Oscillation	26 degrees
Rear Axle/Diff Fluid Capacity	15 gal (58 l)
Static Tipping Weight	53,352 lbs (24,200 kg)
Tire Size	29.5-25
Transmission Fluid Capacity	11 gal (43 l)
Transmission
Max Speed - Forward	23 mph (37 kph)
Max Speed - Reverse	16 mph (25 kph)
Number Of Forward Gears	4
Number Of Reverse Gears	3
Transmission Type	Powershift
