| Backhoe |
|
Bucket Dig Force |
11,847 lbs (5,374 kg)
|
|
Bucket Dig Force - Extended |
11,847 lbs (5,374 kg)
|
|
Load Height |
11 ft (3 m)
|
| Electrical System |
|
Alternator |
95 |
|
Battery |
1000 CCA (120 amp) |
|
Front working lights |
4 adjustable |
|

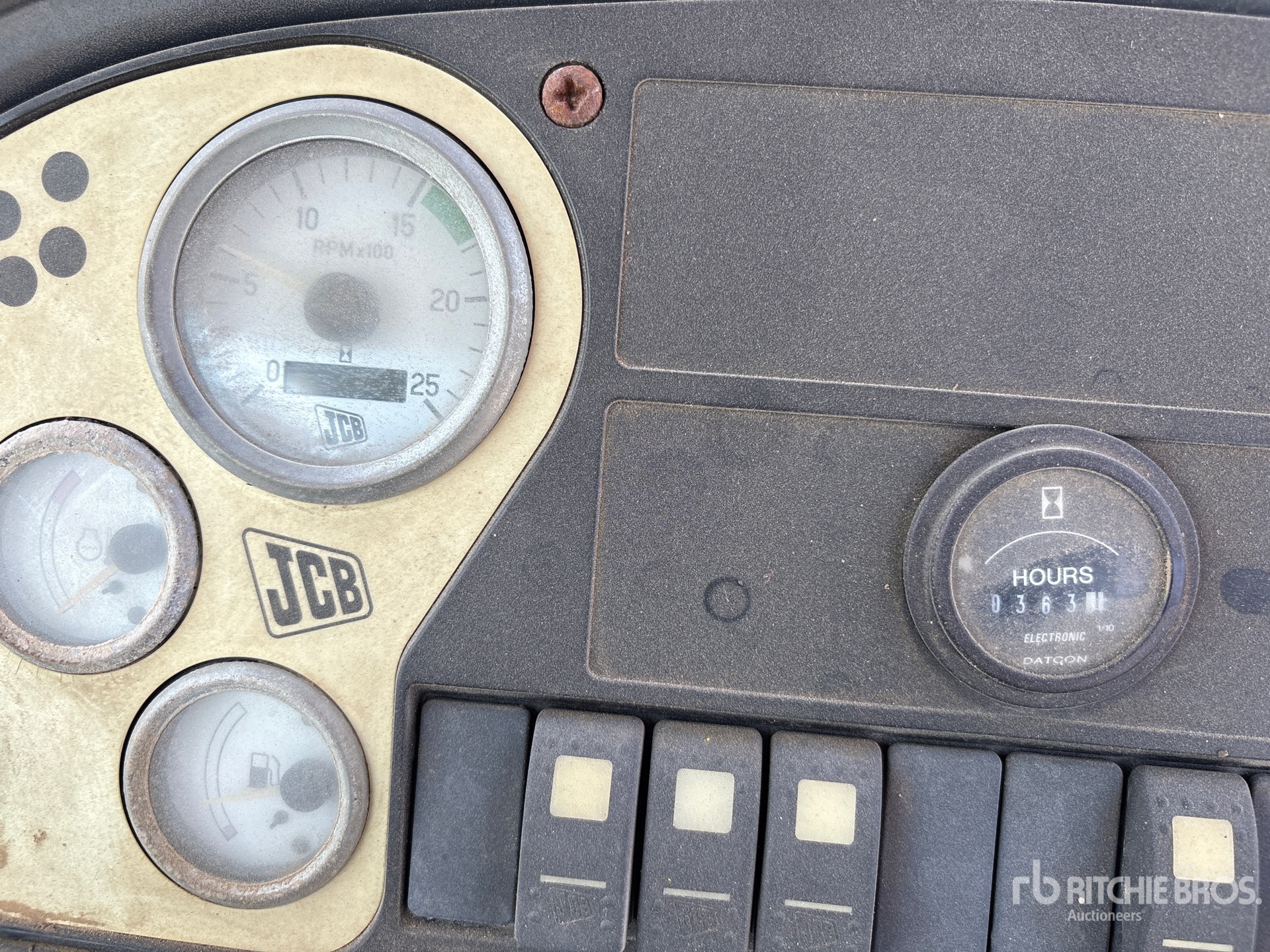

Gauges |
Tachometer engine coolant temp fuel level hourmeter clock |
|
Pre-wire |
Radio speakers (cab) beacon (all) |
|
Rear working lights |
4 adjustable |
| Engine |
|
Bore |
4 in (10 cm)
|
|
Displacement |
269 cu in (4,402 cu cm)
|
|
Emissions Certification |
Tier IV |
|
Emissions Certification |
Tier IV |
|
Engine Model |
3CX ECO SITE MASTER |
|
Fuel Type |
Diesel |
|
Gross Power |
74 hp (55 kw)
|
|
Net Power |
537 hp (400 kw)
|
|
Number of Cylinders |
4 |
|
Power Measured @ |
2,200 rpm |
|
Rated engine speed |
1,200 rpm |
|
Stroke |
5 in (13 cm)
|
| General Specifications |
|
Backhoe Loading Height (Since 2015)
|
11 ft (3 m)
|
|
Backhoe Loading Height (Since 2016)
|
11 ft (3 m)
|
|
Backhoe Loading Height (Since 2017)
|
11 ft (3 m)
|
|
Backhoe Loading Height (Since 2019)
|
15-6 |
|
Backhoe Loading Height (Since 2025)
|
14-3 |
|
Loader Breakout Force (Since 2015)
|
13,600 lbs (6,169 kg)
|
|
Loader Breakout Force (Since 2016)
|
13,739 lbs (6,232 kg)
|
|
Loader Breakout Force (Since 2017)
|
14,398 lbs (6,531 kg)
|
|
Loader Breakout Force (Since 2019)
|
13,603 lbs (6,170 kg)
|
|
Loader Breakout Force (Since 2025)
|
14,398 lbs (6,531 kg)
|
|
Loader Lift Capacity (Since 2015)
|
6,354 lbs (2,882 kg)
|
|
Loader Lift Capacity (Since 2016)
|
6,354 lbs (2,882 kg)
|
|
Loader Lift Capacity (Since 2017)
|
7,705 lbs (3,495 kg)
|
|
Loader Lift Capacity (2019)
|
7,705 lbs (3,495 kg)
|
|
Loader Lift Capacity (Since 2025)
|
7,670 lbs (3,479 kg)
|
|
Loader SAE (Since 2015)
|
74 hp (55 kw)
|
|
Loader SAE (Since 2016)
|
71 hp (53 kw)
|
|
Loader SAE (Since 2017)
|
74 hp (55 kw)
|
|
Loader SAE (2019)
|
74 hp (55 kw)
|
|
Loader SAE (2025)
|
74 hp (55 kw)
|
|
Max Digging Depth (Since 2015)
|
15 ft (4 m)
|
|
Max Digging Depth (2016)
|
15 ft (4 m)
|
|
Max Digging Depth (Since 2017)
|
19 ft (6 m)
|
|
Max Digging Depth (Since 2019)
|
18-6 |
|
Max Digging Depth (Since 2025)
|
18-4 |
|
Operating Weight (Since 2015)
|
17,196 lbs (7,800 kg)
|
|
Operating Weight (2016)
|
17,196 lbs (7,800 kg)
|
|
Operating Weight (2017)
|
17,196 lbs (7,800 kg)
|
|
Operating Weight (2019)
|
17,196 lbs (7,800 kg)
|
|
Operating Weight (Since 2025)
|
17,748 lbs (8,050 kg)
|
|
Travel Speed 4th Gear Fwd (Since 2015)
|
23 mph (37 kph)
|
|
Travel Speed 4th Gear Fwd (2016)
|
23 mph (37 kph)
|
|
Travel Speed 4th Gear Fwd (2017)
|
23 mph (37 kph)
|
|
Travel Speed 4th Gear Fwd (2019)
|
23 mph (37 kph)
|
|
Travel Speed 4th Gear Fwd (Since 2025)
|
26 mph (42 kph)
|
| Loader |
|
Bucket Breakout Force |
8,285 lbs (3,758 kg)
|
|
Bucket Width |
88 in (224 cm)
|
|
Dig Depth |
0 in (1 cm)
|
|
Dump height |
9 ft (3 m)
|
|
Lift Capacity |
3,364 lbs (1,526 kg)
|
|
Load over height |
10 ft (3 m)
|
|
Load over height |
11 ft (3 m)
|
|
Reach at Max Dump Height |
17 ft (5 m)
|
| Operating Specifications |
|
Alternator Supplied Amperage |
95 amps |
|
Cooling System Fluid Capacity |
5 gal (19 l)
|
|
Front Axle Fluid Capacity |
4 gal (16 l)
|
|
Hydraulic System Fluid Capacity |
27 gal (100 l)
|
|
Oil System Fluid Capacity |
4 gal (15 l)
|
|
Operating Voltage |
12 volts |
|
Operating Weight |
13,382 lbs (6,070 kg)
|
|
Operating Weight 2wd |
14,278 lbs (6,476 kg)
|
|
Operating Weight 4wd |
14,586 lbs (6,616 kg)
|
|
Rear Axle Fluid Capacity |
4 gal (16 l)
|
|
Transmission Fluid Capacity |
4 gal (16 l)
|
| Transmission |
|
Max Speed |
5 mph (8 kph)
|
|
Number of Forward Gears |
4 |
|
Number of Reverse Gears |
4 |
