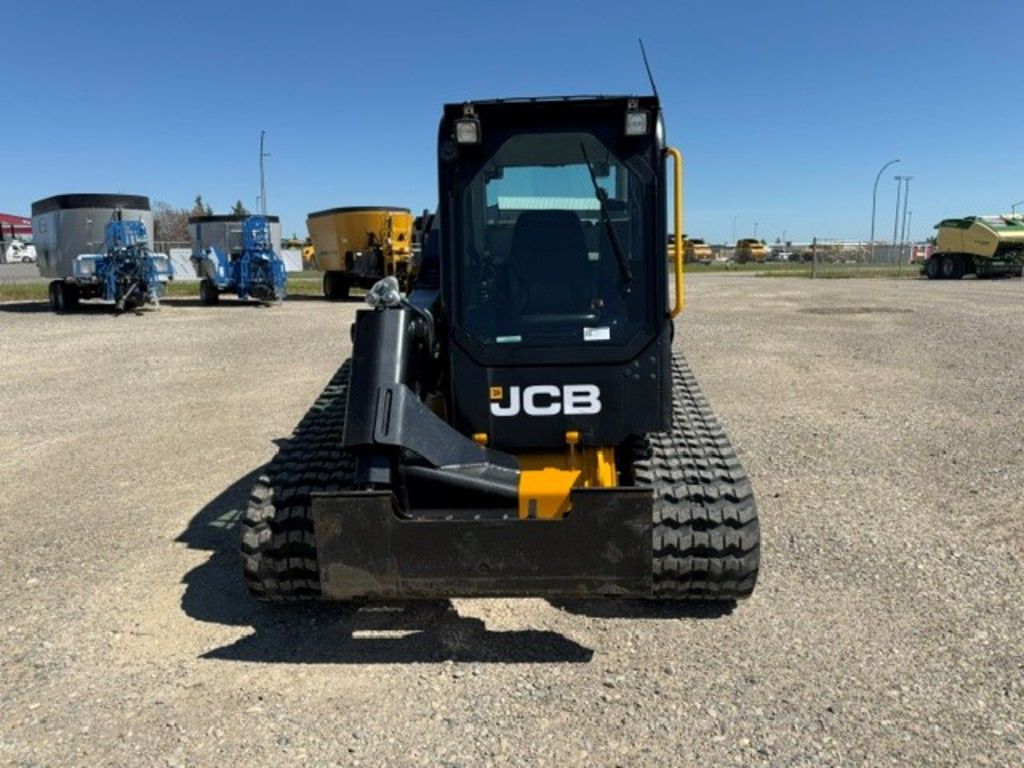

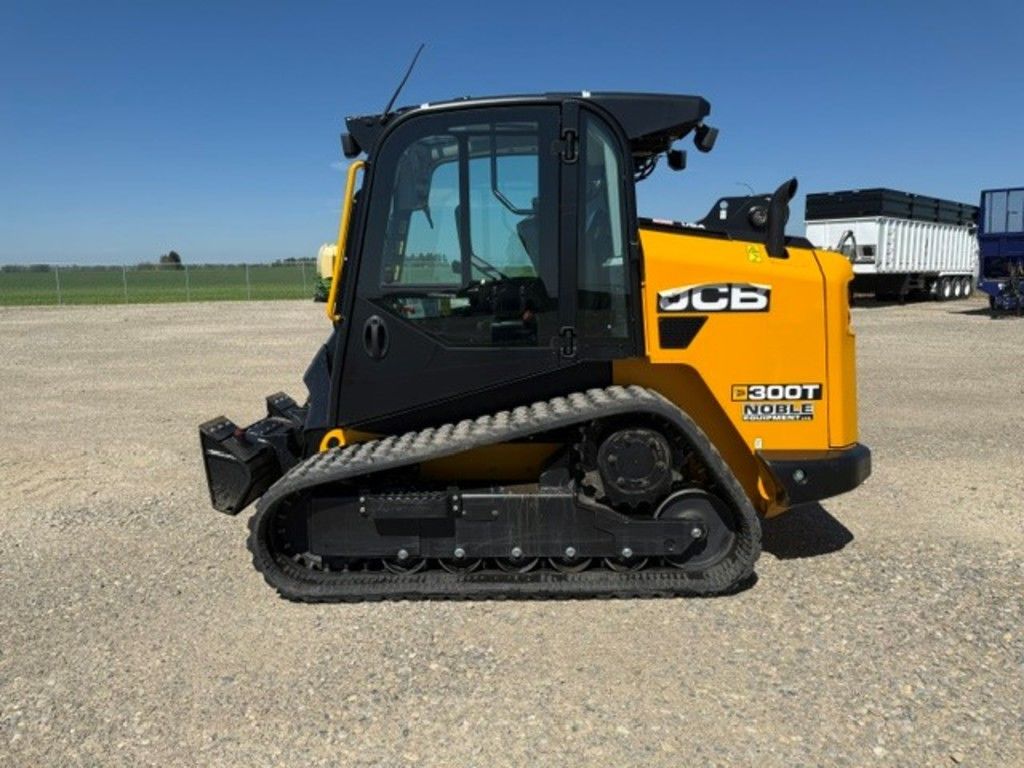

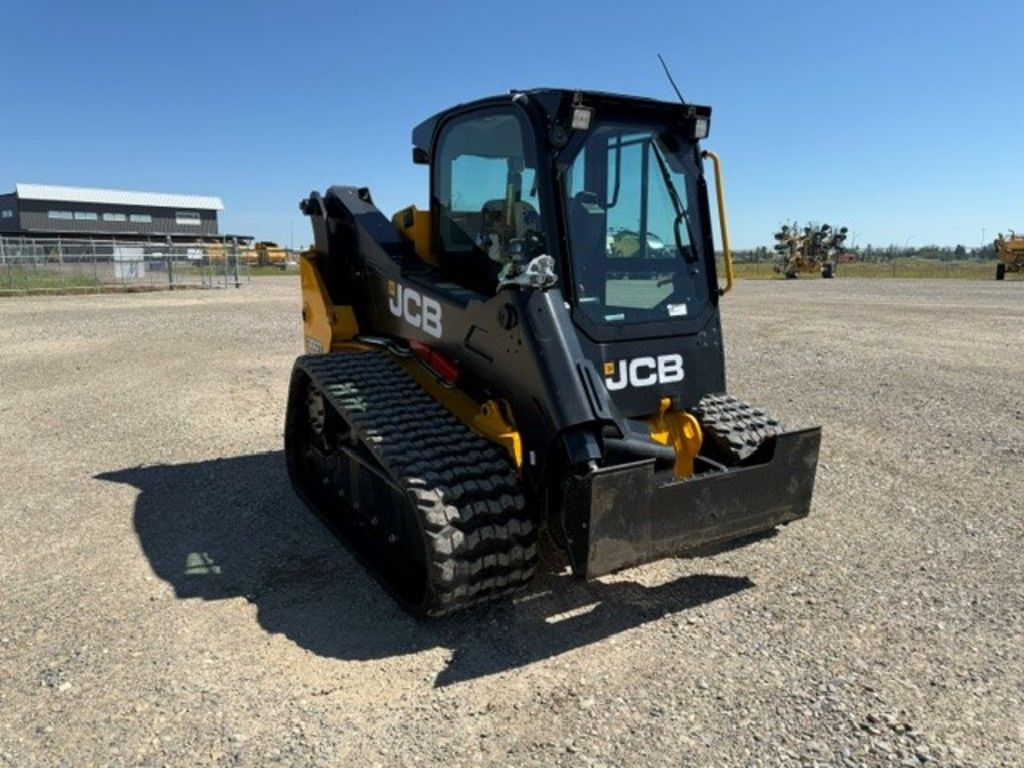

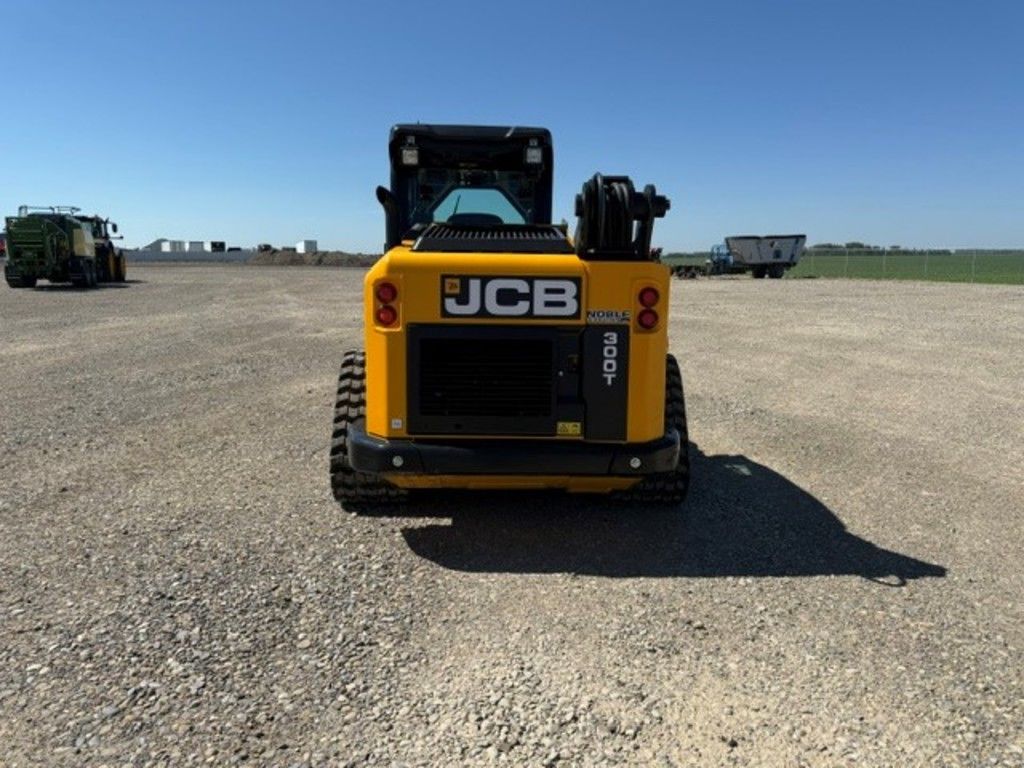

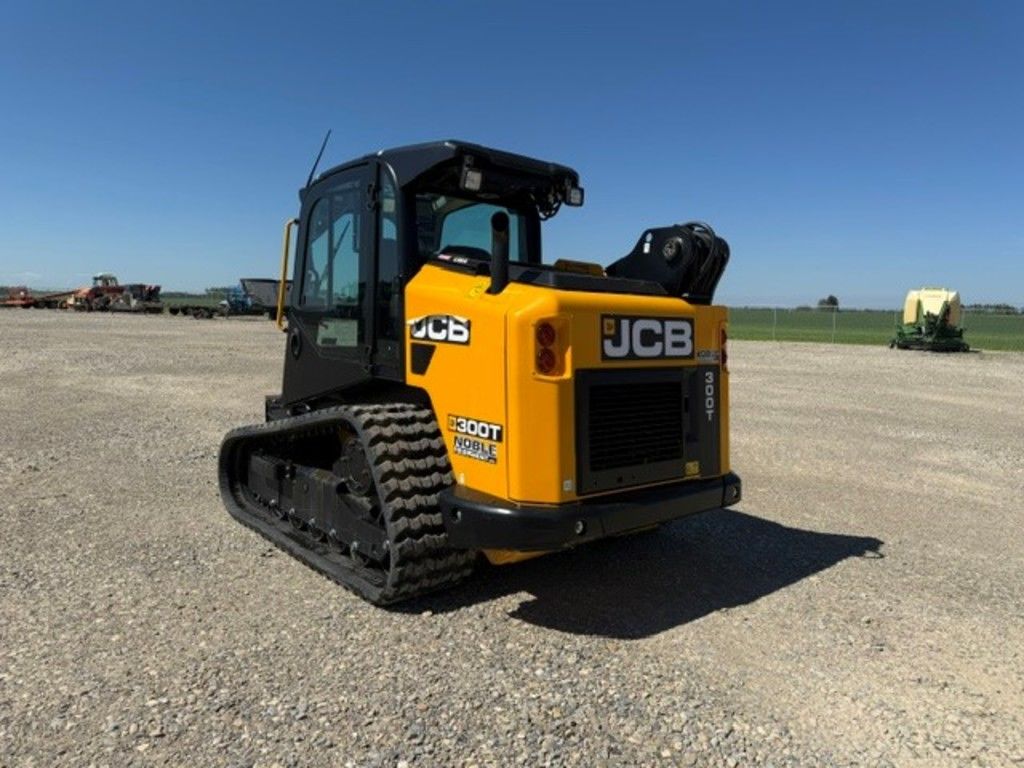

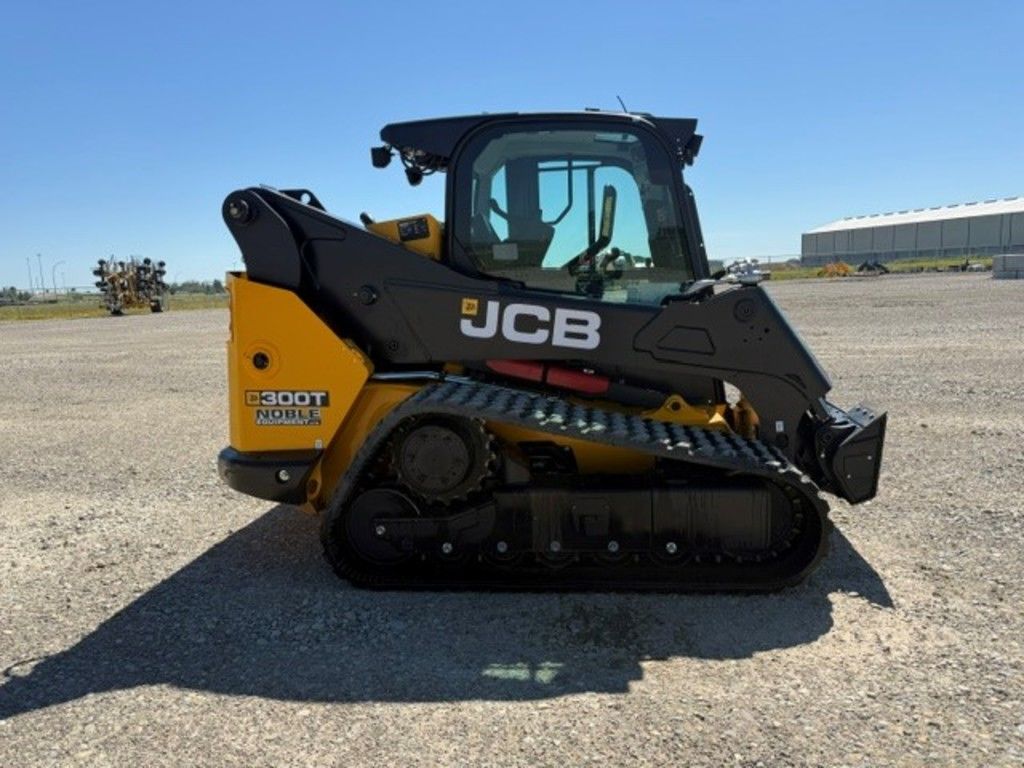

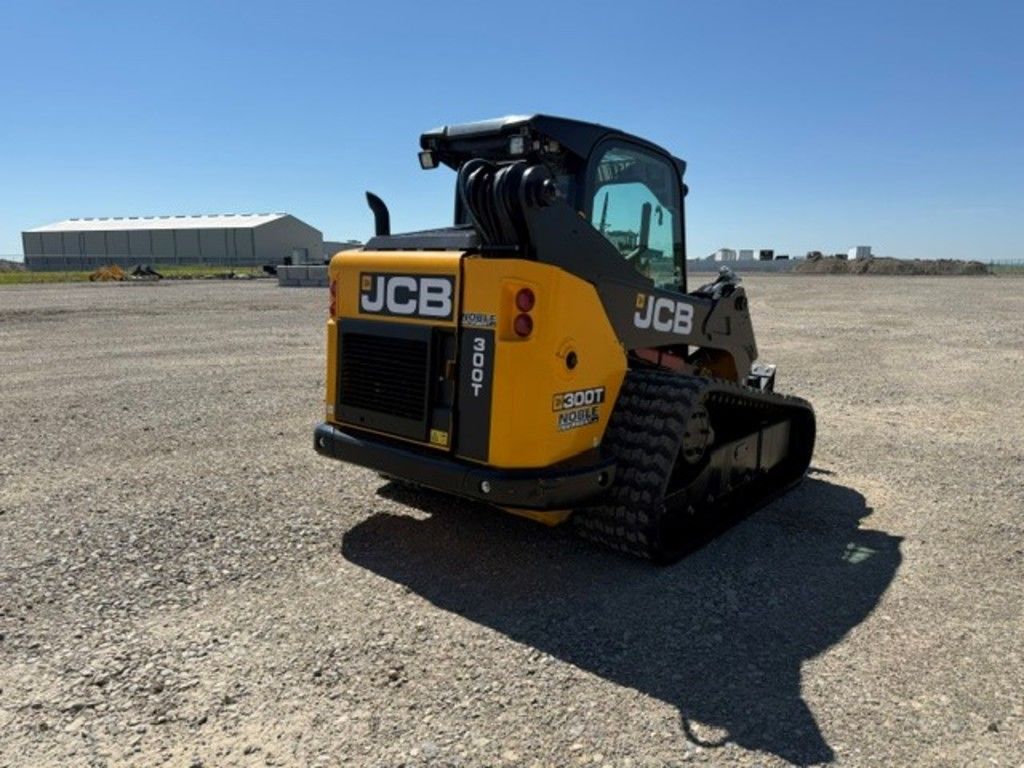

2023 JCB 300T COMPACT TRACK LOADER For Sale in olds, AB

❮

❯

/ Save to Watch List

For Sale: $99,500.00 USD

Apply for Financing

Noble JCB

Noble JCB Dealer Info

Noble JCB Website

Click here to email Noble JCB.

Click for Phone Number

Machine Info:

Machine Location:	OLDS, AB
More Information:	https://noblejcb.com/inventory/skid+steer+loader/2023-jcb-300t+compact+track+loader-mountain+view+county-ab-6a4f3909417292f9010b71b4/

Description:

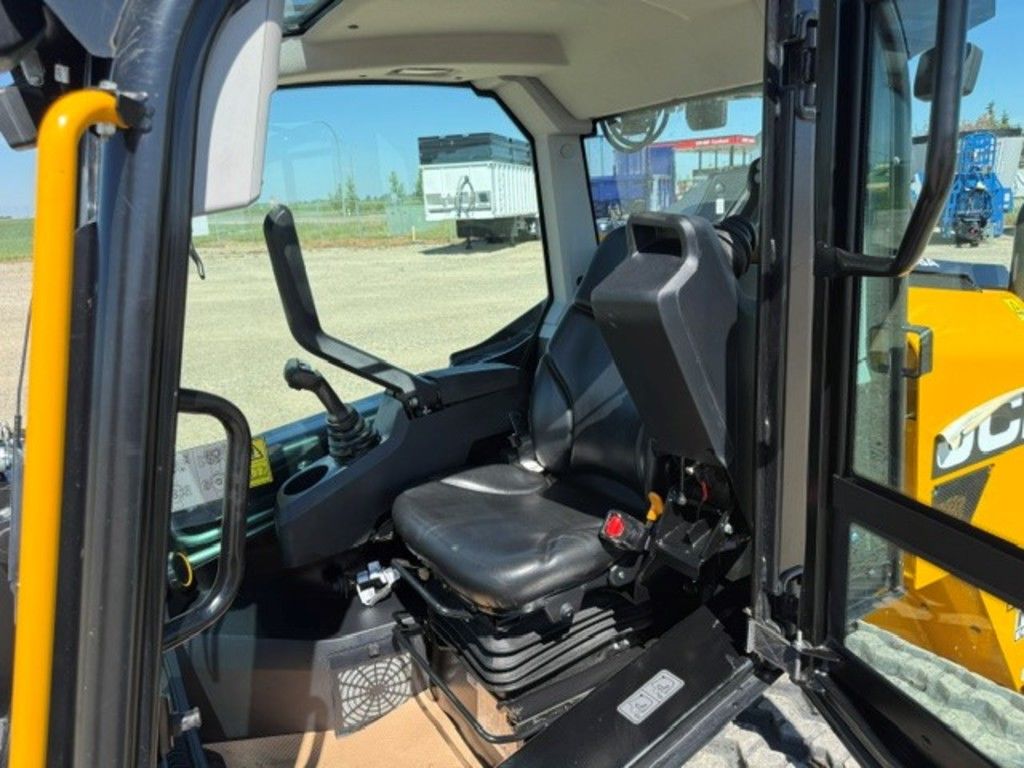

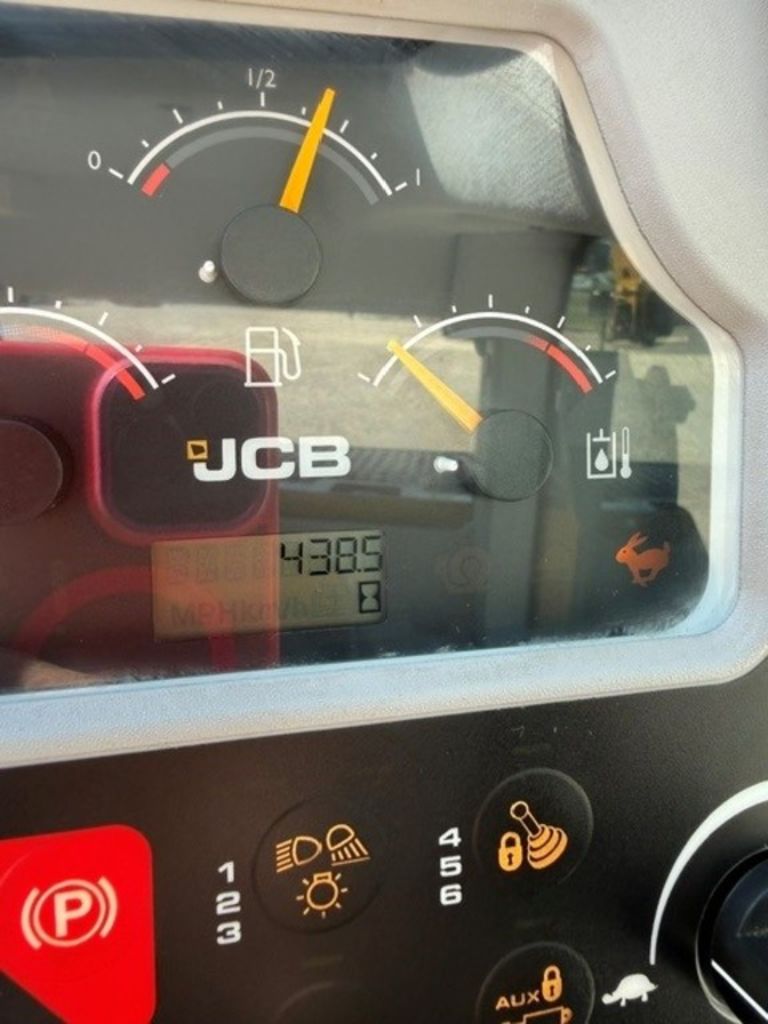

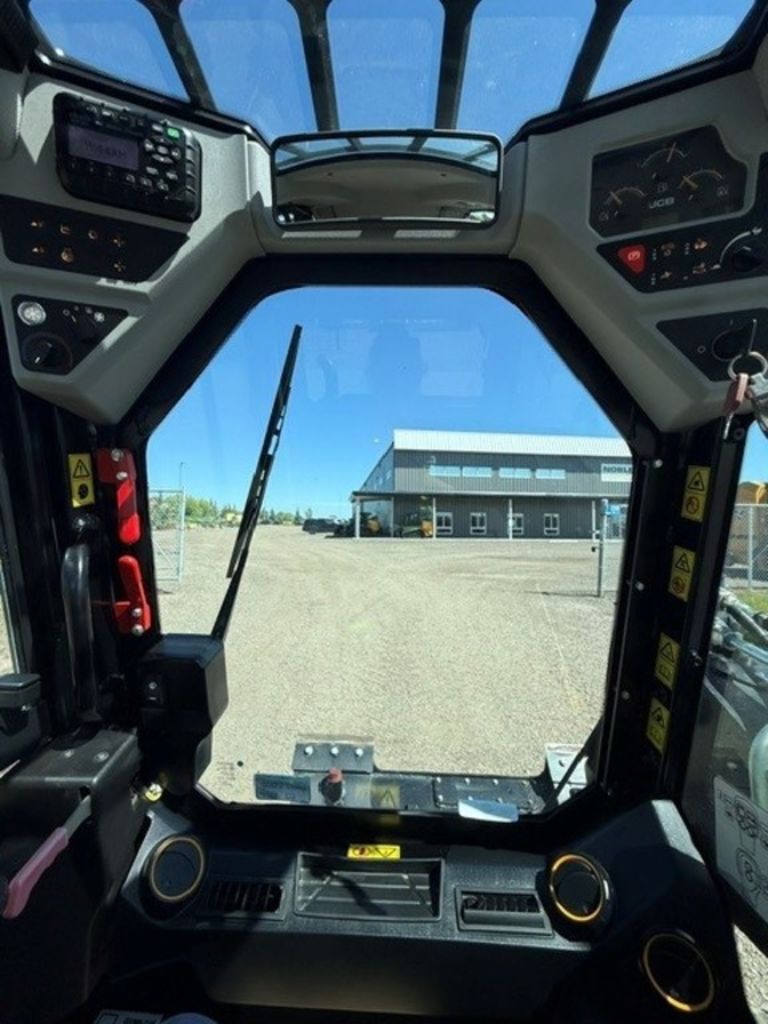

2023 JCB, 300T Compact Track Loader Skid Steer Loader, 438 Hrs, 74HP , 3000lb operating capacity, 31GPM Hi Flo Hydraulics, 7.8MPH Travel Speed, Reversing Fan, Vinyl Air Suspension Seat, Powered Quick Hitch, Block Heater, Parallel Lift and Smooth Ride.
*Willing to assist with shipping and brokerage fees to the U.S*

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The JCB 300T is a compact track loader designed for material handling, grading, site preparation, and work in soft or uneven ground conditions. It uses a tracked undercarriage to improve flotation, traction, and stability compared with wheeled loaders. The 300T is commonly used in construction, landscaping, agriculture, and utility applications where low ground pressure and maneuverability are important. JCB compact track loaders are typically configured with a front loader arm, auxiliary hydraulics, and a quick-attach system for buckets and work tools. The JCB 300T is part of JCB's compact equipment range for versatile jobsite operation.

Dimensions
Angle Of Departure	29 degrees
Clearance At Max Lift And Dump	8 ft (2 m)
Dig Depth	-394 in (-1,000 cm)
Dump Angle	42 degrees
Dump Height - Maximum	90 in (228 cm)
Ground Clearance	9 in (23 cm)
Height To Top Of Cab	7 ft (2 m)
Length With Bucket	12 ft (4 m)
Loadover Height	9 ft (3 m)
Max. Reach @ Full Height	4 ft (1 m)
Pin Height	10 ft (3 m)
Reach @ Ground Level	4 ft (1 m)
Reach At Max Lift And Dump	3 ft (1 m)
Rollback @ Ground	30 degrees
Wheelbase	7 ft (2 m)
Width Over Tracks	6 ft (2 m)
Engine
Alternator	95 amps
Aspiration	Turbo
Battery	12V
Cooling System	Liquid
Displacement	269 cu in (4,400 cu cm)
Emissions Certification	EPA-T4F (EU St3B)
Engine Model	EcoMAX TCAE-55
Engine Oil Service Interval Hours	500
Fuel	Diesel
Gross Power	74 hp (55 kw)
Peak Torque	295 lbs ft (400 nm)
Power Measured @	2,400 rpm
Starter Motor	4.2 KW
Torque Measured @	1,200 rpm
General Specifications
ENGINE POWER (Since 2020)	74 hp (55 kw)
Engine Power (Since 2021)	74 hp (55 kw)
Engine Power (2022)	74 hp (55 kw)
Engine Power (2023)	74 hp (55 kw)
Engine Power (2024)	74 hp (55 kw)
Engine Power (2025)	74 hp (55 kw)
Engine Power (2026)	74 hp (55 kw)
MODEL (Since 2020)	300T
OPERATING WIDTH (Since 2020)	75 in (191 cm)
Operating Width (Since 2021)	75 in (191 cm)
Operating Width (2022)	75 in (191 cm)
Operating Width (2023)	75 in (191 cm)
Operating Width (2024)	75 in (191 cm)
Operating Width (2025)	75 in (191 cm)
Operating Width (2026)	75 in (191 cm)
Rated Operating Capacity (Since 2025)	3,000 lbs (1,361 kg)
RATED OPERATING CAPACITY (50%) (Since 2020)	3,000 lbs (1,361 kg)
Rated Operating Capacity LBS. (KG) 50% (Since 2021)	3,000 (1361)
Rated Operating Capacity LBS. (KG) 50% (2022)	3,000 (1361)
Rated Operating Capacity LBS. (KG) 50% (Since 2023)	3,000 (1,361)
Rated Operating Capacity LBS. (KG) 50% (2024)	3,000 (1,361)
Rated Operating Capacity LBS. (KG) 50% (2026)	3,000 (1,361)
Hydraulic
Pump Flow	23 gpm (87 lpm)
Relief Valve Pressure	3,335 psi
Loader
Bucket Capacity	1 cu yd
Bucket Width	75 in (190 cm)
Operating Load	11,219 lbs (5,089 kg)
Tipping Angle	8,628 degrees
Operational
Cooling System Fluid Capacity	4 gal (16 l)
Engine Oil Capacity	4 gal (15 l)
Fuel Capacity	27 gal (103 l)
Hydraulic System Fluid Capacity	15 gal (55 l)
Max Speed - Low Range	6 mph (9 kph)
Operating Voltage	12 V
Operating Weight	11,219 lbs (5,089 kg)
Undercarriage
Ground Pressure	5 psi
Width Of Track	18 in (45 cm)
